My RC Stratojet Merlin

#1

04-21-2012, 11:36 PM

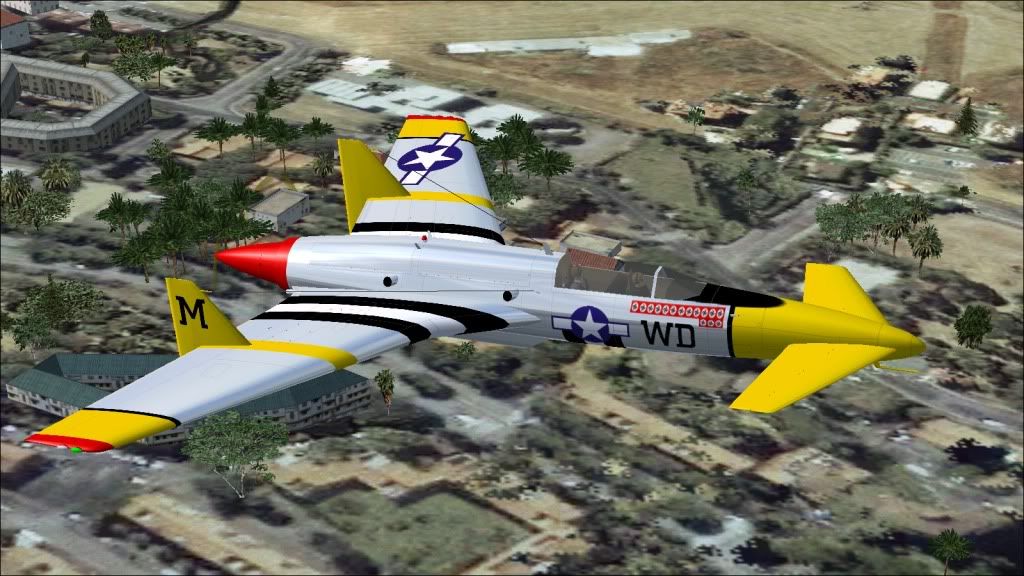

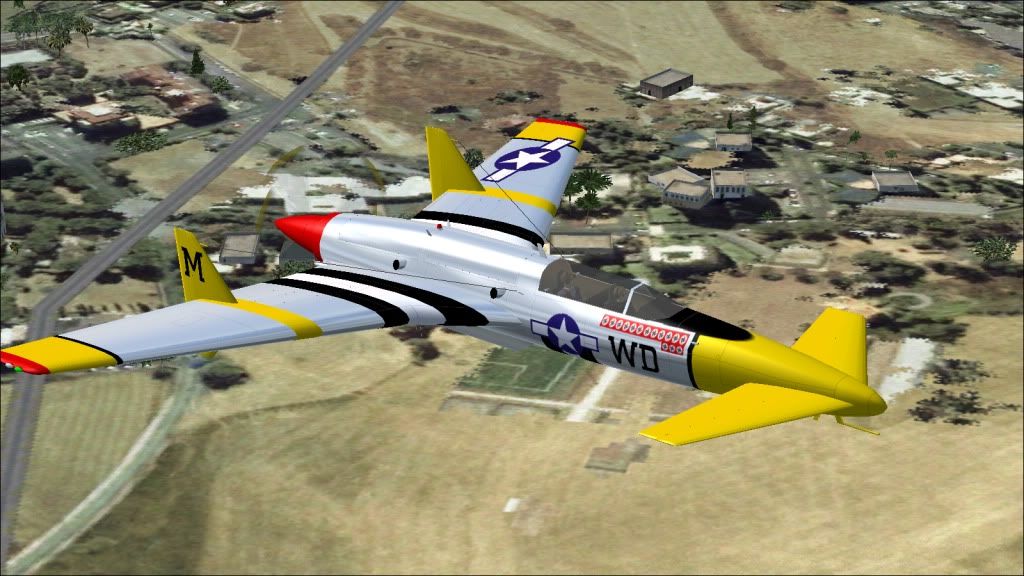

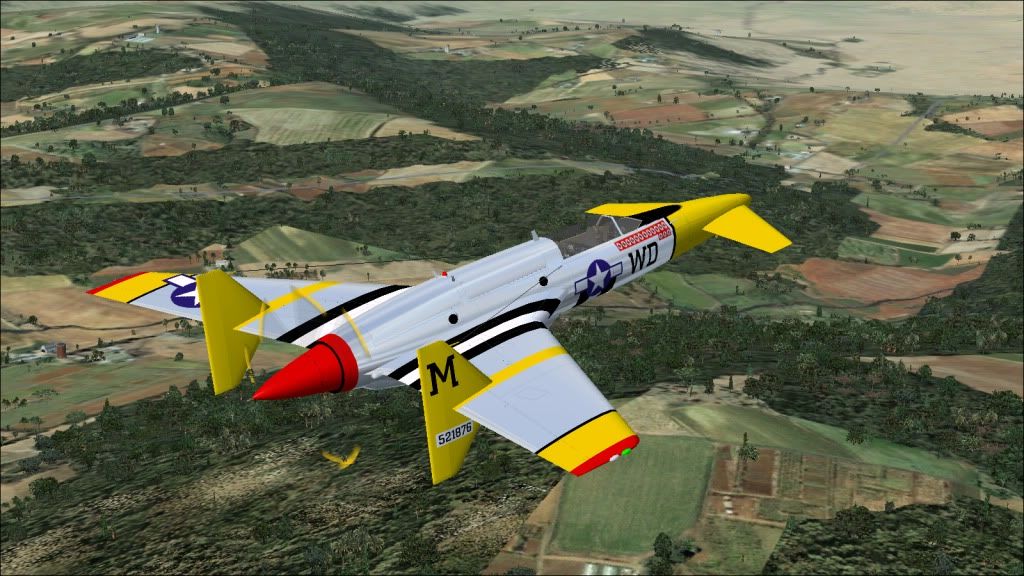

alright so i've been fly this plane in FSX for over 2-3 years now and now i want to make it into a RC plane and here what i looks like

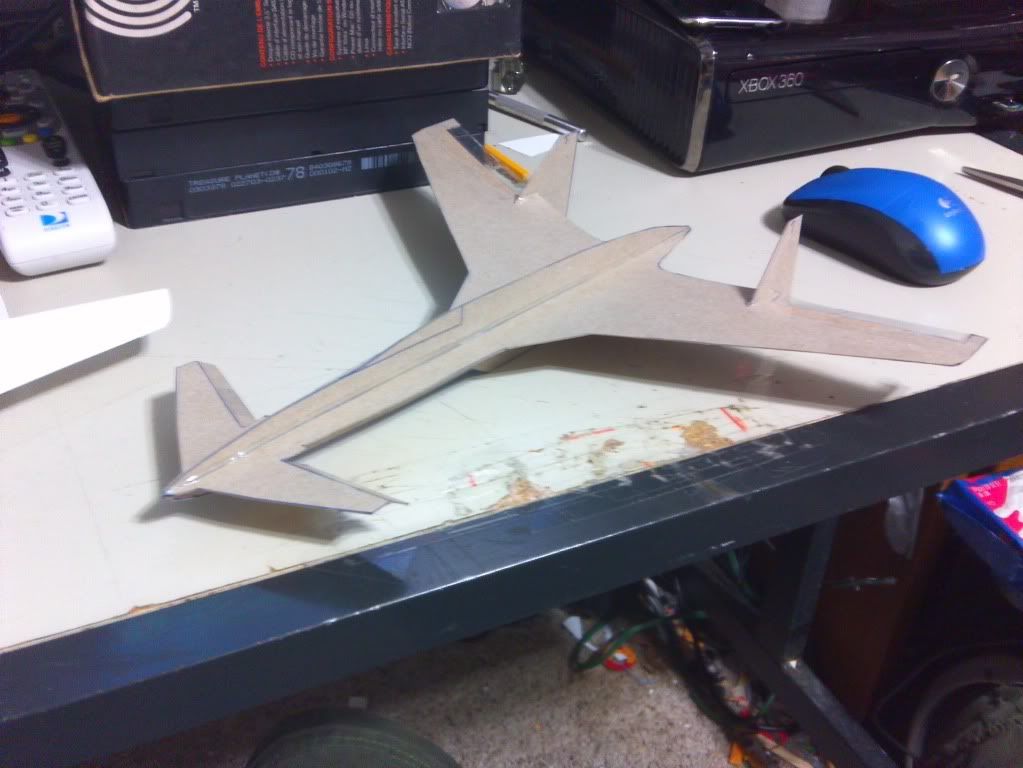

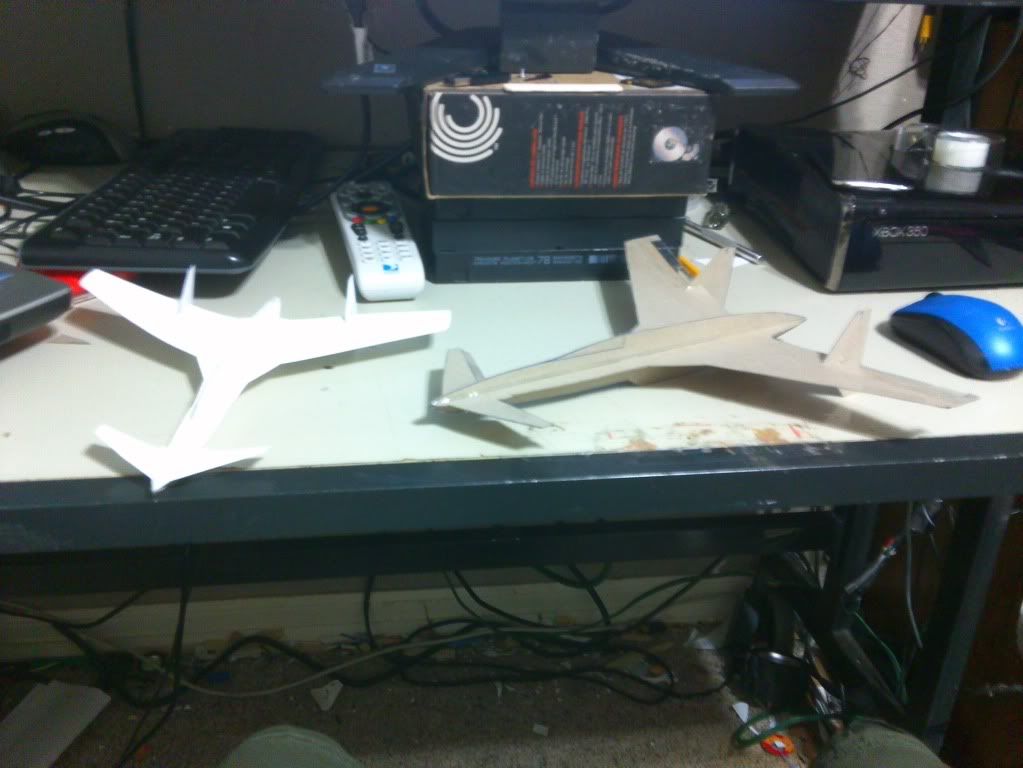

Here my first 2 i make to see if a biger one will fly and they both seem to fly very good.

The brown one flys and best and i like it

i think monday i'll have some new pic cuz the hobby store is closed sunday. im going to be making this into a foamy
Tags: None

tankball

Banned
- Join Date: Sep 2010
- Posts: 903
#2

04-22-2012, 01:17 AM

srry guys i forget to add the blueprints i made for this RC
Comment

Pack hunter

Infantryman
- Join Date: Jun 2011
- Posts: 166
#3

04-22-2012, 04:36 AM

i thought you meant one of these

http://www.google.com/imgres?um=1&hl...r:1,s:18,i:116
Comment

tankball

Banned
- Join Date: Sep 2010
- Posts: 903
#4

04-22-2012, 07:42 AM

alright just finshed my powerd one and this is how big im planing to make it

the one thang that throws me off is how the up and down work.
when i want to go up the elly will be like this

when i want her to go down the elly will be like this
Comment

tankball

Banned
- Join Date: Sep 2010
- Posts: 903
#5

04-22-2012, 08:38 AM

and heres a video
Comment

xWarningEmp

Infantryman
- Join Date: Aug 2011
- Posts: 51
#6

04-22-2012, 08:44 AM

The plane reminds me of the ones that I saw in an anime titled Sky Crawlers
Comment

ACDCrockr209

Infantryman
- Join Date: May 2008
- Posts: 2954
#7

04-22-2012, 09:07 AM

Why don't you move the front flaps from the front to the back? With a design like that has never been built, you might as well modify it so that it can fly in real life, but still keep it's shape.
Comment

tankball

Banned
- Join Date: Sep 2010
- Posts: 903
#8

04-22-2012, 09:17 AM

from all the testing i've been doing it seems to fly very will. but if i have to move them i will. im hoping to send it of to Banana Hobby and see what they can do with it. not for the $$$ just cuz i want to see a 3D one fly
Comment

ZoidianKings

Pending Verification
- Join Date: Apr 2012
- Posts: 81
#9

04-22-2012, 10:35 AM

The best way to get the horizontal stabilizers to work the best and not weigh the plane down would be to go and buy the micro-servos.
Comment

tankball

Banned
- Join Date: Sep 2010
- Posts: 903
#10

04-22-2012, 10:50 AM

Originally posted by ZoidianKings View Post

The best way to get the horizontal stabilizers to work the best and not weigh the plane down would be to go and buy the micro-servos.

yes i know and i am planing to use micro-servos on this one. im hope to make it under $100
Comment

ZoidianKings

Pending Verification
- Join Date: Apr 2012
- Posts: 81
#11

04-22-2012, 11:30 AM

You can make a plane for a lot cheaper than 100. I have seen people make some on youtube for around $25-30.

That is probably without the controller, and I really have no clue how much that would cost.
Comment

Spitfire22V

Infantryman
- Join Date: Feb 2011
- Posts: 1094
#12

04-22-2012, 02:59 PM

Originally posted by ACDCrockr209 View Post

Why don't you move the front flaps from the front to the back? With a design like that has never been built, you might as well modify it so that it can fly in real life, but still keep it's shape.

These designs exist in full-scale planes, and quite a few have been successfully built. They're even generally considered to be more stable that conventional planes, and more difficult to stall + spin.

Tankball, the elevator movement is "backwards" because the horizontal stabilizer is in front of the center-of-gravity. On a conventional plane with the tail in the back, the elevator going up will induce a downward moment on the tail, causing the nose to pitch up, and the plane to climb. With the horizontal stab in the front, "up" elevator will cause that same down force, but now it's acting on the nose, not the tail, causing the plane to dive. It's completely normal, and just one of the effects of a canard design.

I've made several entire RC planes out of one piece of $1 Dollar Tree foamboard. They're quite fun to fly since there's no stress of crashing it because so little is invested in it.

Last edited by Spitfire22V; 04-22-2012, 03:02 PM.
Comment

tankball

Banned
- Join Date: Sep 2010
- Posts: 903
#13

04-23-2012, 03:04 AM

yes i know i can make the creaper but i dont have the radio and all the other parts to make a full RC
Comment

tankball

Banned
- Join Date: Sep 2010
- Posts: 903
#14

04-23-2012, 03:48 PM

just got done with the build.
Comment

tankball

Banned
- Join Date: Sep 2010
- Posts: 903
#15

04-23-2012, 04:17 PM

heres other video
Comment
