Hey all.
Adam requested that I pony up the technique I used to make the Blue Realm style Dual Layer visors for my helmet, so I thought that I should share it with all of you. Being that I've been a little behind... on finishing the comprehensive tutorial, I figure I owed you guys a freebie...
I think it's common knowledge how it's done, But I know that it's pretty intimidating taking a Dremel to a brand new pristine visor without seeing it done by someone else.
Also I wanted to officially thank Blue Realm for pioneering this technique. I had thought about doing it, but didn't have the guts to try until I saw how great his looked. Hope you don't mind Blue Realm, it's in your honor, and you deserve the credit! :clap:
Firstly I purchased two identical gold visors. I buy mine here : http://www.helmetsetc.com/detail.asp?product_id=rst-19

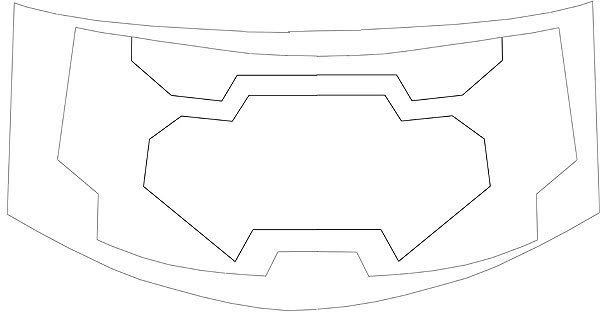

Then I took a sheet of printer paper and taped it to the visor so that I could trace the exact dimensions of the visor and the exposed area of it when it is installed in my helmet. I took this sheet of paper back off the visor and roughly sketched the shapes of the recessed areas using game images as a reference. I then scanned this image into my computer and straightened and cleaned up the design of the template in Photoshop... which looks something like this:
I then printed the template out at full size, and taped it to the inside of my visor. Then I very carefully traced this pattern onto the face of the visor using a oil pencil.

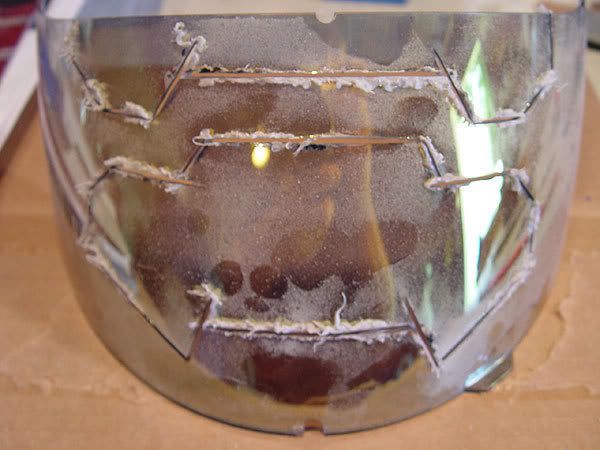

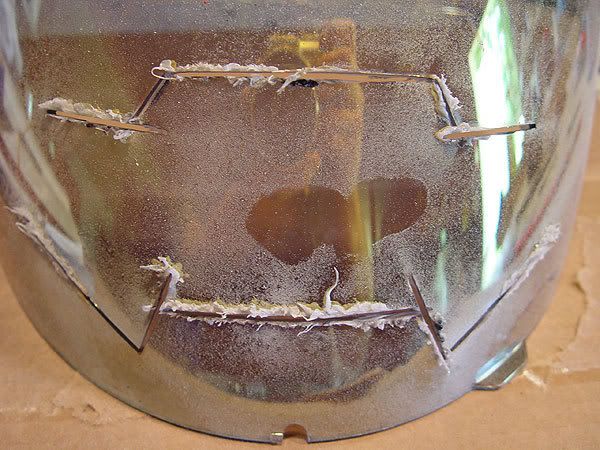

With the pattern transferred to the visor, I used a Dremel rotary tool with a REINFORCED CUTTING WHEEL to very very carefully cut the patten out. Don't use those awful standard cutting wheels to do this, they will snap apart and fly all over the place! Be very patient and try cutting just a little at a time carefully avoiding any skipping or scratching of the surface, and also be very careful to not overcut at the corners.
After I had cut all the lines there was still a little bit of plastic holding the pieces in place. I used a fine scroll saw blade to hand-cut these last little attachments.

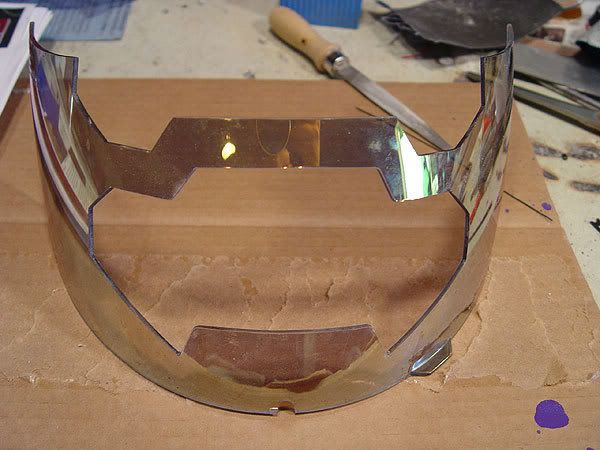

After seperating the cut out areas of the design, I carefully trimmed off the flashing around the cuts, and used 120 grit sandpaper and a fine file to clean up the edges. Be VERY careful when wiping dust off of the visor, because this abrasive dust will scratch off the mirrored finish. Use compressed air, or wash it off under a faucet.

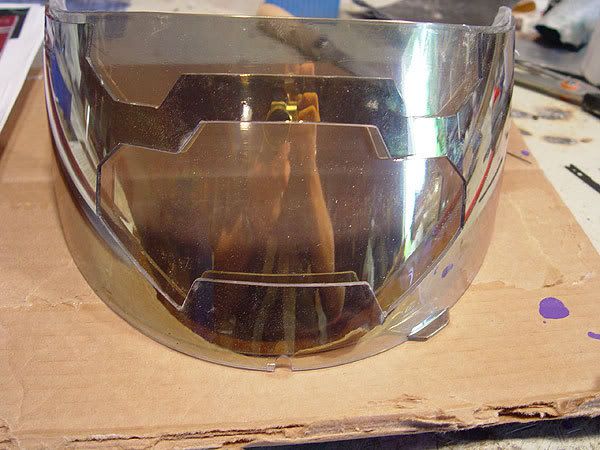

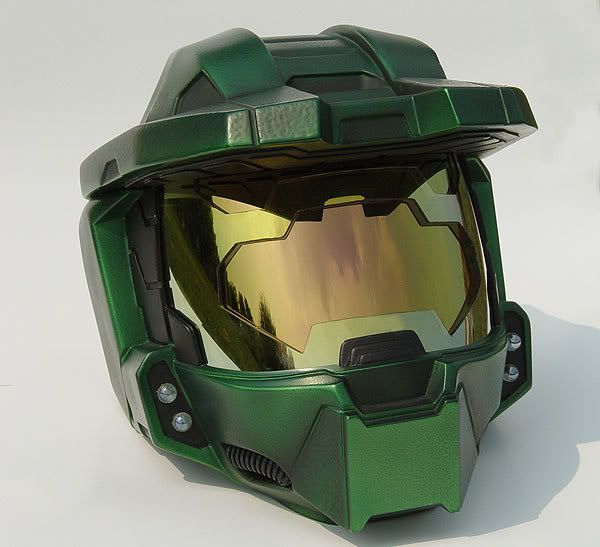

Then just place this cut out visor overtop of the uncut one. You may want to neatly tape the two together at the edges before you install it in your helmet.
Enjoy!
-Sean
Adam requested that I pony up the technique I used to make the Blue Realm style Dual Layer visors for my helmet, so I thought that I should share it with all of you. Being that I've been a little behind... on finishing the comprehensive tutorial, I figure I owed you guys a freebie...
I think it's common knowledge how it's done, But I know that it's pretty intimidating taking a Dremel to a brand new pristine visor without seeing it done by someone else.
Also I wanted to officially thank Blue Realm for pioneering this technique. I had thought about doing it, but didn't have the guts to try until I saw how great his looked. Hope you don't mind Blue Realm, it's in your honor, and you deserve the credit! :clap:
Firstly I purchased two identical gold visors. I buy mine here : http://www.helmetsetc.com/detail.asp?product_id=rst-19
Then I took a sheet of printer paper and taped it to the visor so that I could trace the exact dimensions of the visor and the exposed area of it when it is installed in my helmet. I took this sheet of paper back off the visor and roughly sketched the shapes of the recessed areas using game images as a reference. I then scanned this image into my computer and straightened and cleaned up the design of the template in Photoshop... which looks something like this:
I then printed the template out at full size, and taped it to the inside of my visor. Then I very carefully traced this pattern onto the face of the visor using a oil pencil.
With the pattern transferred to the visor, I used a Dremel rotary tool with a REINFORCED CUTTING WHEEL to very very carefully cut the patten out. Don't use those awful standard cutting wheels to do this, they will snap apart and fly all over the place! Be very patient and try cutting just a little at a time carefully avoiding any skipping or scratching of the surface, and also be very careful to not overcut at the corners.
After I had cut all the lines there was still a little bit of plastic holding the pieces in place. I used a fine scroll saw blade to hand-cut these last little attachments.
After seperating the cut out areas of the design, I carefully trimmed off the flashing around the cuts, and used 120 grit sandpaper and a fine file to clean up the edges. Be VERY careful when wiping dust off of the visor, because this abrasive dust will scratch off the mirrored finish. Use compressed air, or wash it off under a faucet.
Then just place this cut out visor overtop of the uncut one. You may want to neatly tape the two together at the edges before you install it in your helmet.
Enjoy!
-Sean
.
