now it's my turn MK VI (pic heavy)

#1

04-27-2011, 05:28 PM

Thought I had done enough work to start to show things off. So this is my MK VI build thread. I've been working on all thing since about early November. Comments and constructive criticism are welcome.

I have all the pep work done but the HD chest (WIP), and the HD helmet. Though there is a good chance I'm going to rebuild the hand plates since they were my first build and are pretty sloppy.

pep work list:
[X] LD boot
[X] HD right boot
[X] HD left boot
[X] HD shins X3
[X] HD right thigh X2
[X] HD left thigh*
[X] LD cod
[X] HD cod
[X] LD hand plate
[X] HD hand plate X2
[X] LD forearm
[X] HD left forearm
[X] HD right forearm
[X] LD shoulder
[X] HD right shoulder
[X] HD left shoulder
[X] LD chest
[\] HD chest
[X] LD helmet
[] HD helmet

resin list:
[] HD right boot
[\] HD left boot
[\] HD shins X2
[] HD right thigh
[X] HD left thigh*
[] HD cod
[X] HD hand plate X2
[X] HD left forearm
[\] HD right forearm
[] HD right shoulder
[X] HD left shoulder
[] HD chest
[] HD helmet

Last edited by chitwood1775; 04-28-2011, 12:26 AM.
Tags: None

chitwood1775

Infantryman
- Join Date: Nov 2010
- Posts: 215
#2

04-27-2011, 05:28 PM

http://s1183.photobucket.com/albums/...%20VI%20armor/

Last edited by chitwood1775; 04-27-2011, 05:35 PM.
Comment

LongShot-X

Infantryman
- Join Date: May 2010
- Posts: 1235
#3

04-27-2011, 11:50 PM

Wow! You got a lot done!

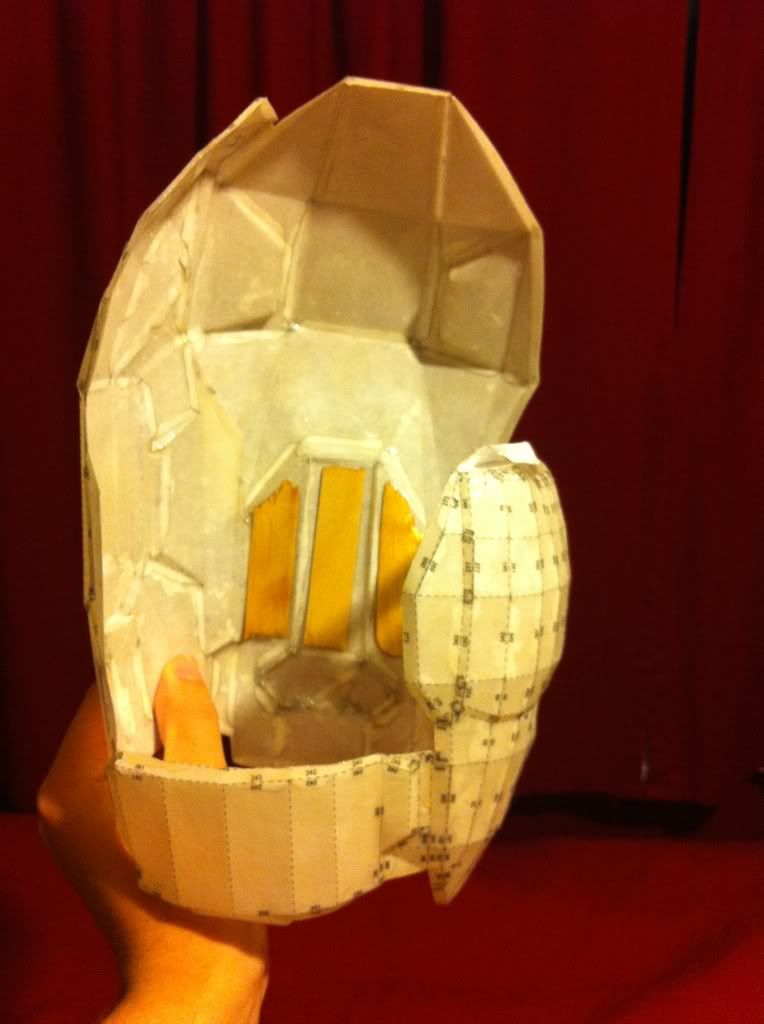

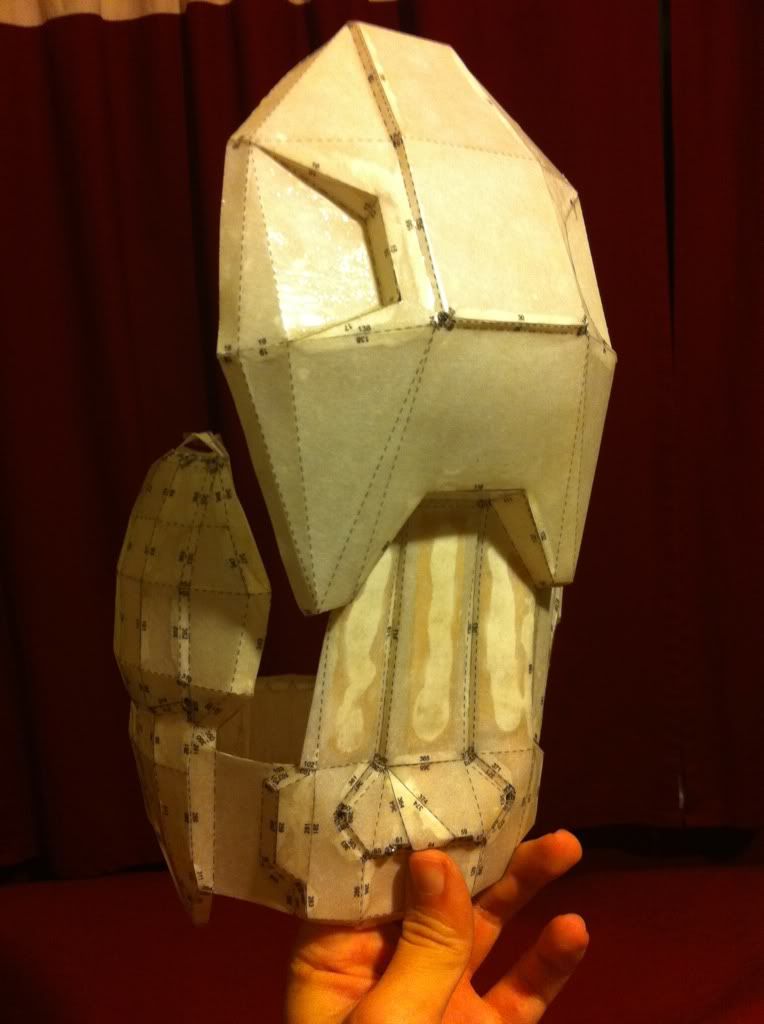

I like what you did to the inside of the shoulder piece. Used wood sticks to keep the piece from warping.
Your 1 step ahead of mine. I did'nt do that on mine and yea it warped.

Fold are good, considering your using a wooden ruler. With a metal one, you would see an improvement and ease in those folds.

Nice to see them resined and warping looks to be at a minimum

I'd say keep going.
Comment

chitwood1775

Infantryman
- Join Date: Nov 2010
- Posts: 215
#4

04-28-2011, 12:23 AM

(not trying to put down your very nice armor)
A few more thing that my armor will have over yours is that
1) the helmet will be AI intergrated. Once my AI is inserted into my helmet in will complete a cicuit and will turn on the flashlights.
2) I will have a speker in it to be albe to play music. ([pretty sure you said you had this]will also likely put in a PA system)
3) there will be magnets in the right thigh and back so i can mount the weapons on it and have the same look as the game.
4) maybe some metal plates in the boots so it sounds like my boots are made of metal not paper and fiberglass.

Last edited by chitwood1775; 04-28-2011, 10:18 PM.
Comment

chitwood1775

Infantryman
- Join Date: Nov 2010
- Posts: 215
#5

05-05-2011, 09:32 AM

Just thought I'd give a quick update on my work. No new pictures yet.*

resin list:
[X] HD right boot
[X] HD left boot
[X] HD shins X2
[X] HD right thigh
[X] HD left thigh
[X] HD cod
[X] HD hand plate X2
[X] HD left forearm
[X] HD right forearm
[X] HD right shoulder
[X] HD left shoulder
[X] LD chest
[] HD chest
[] HD helmet

Last edited by chitwood1775; 05-25-2011, 12:48 PM.
Comment

chitwood1775

Infantryman
- Join Date: Nov 2010
- Posts: 215
#6

05-25-2011, 12:51 PM

Small picture update. Will replace LD helmet and chest with HD parts. Left toe has the first bit of fiberglass. Will post more pics when I have more to show.

Last edited by chitwood1775; 05-25-2011, 12:53 PM.
Comment

Hyperballistik

Infantryman
- Join Date: Dec 2010
- Posts: 1010
#7

05-25-2011, 06:16 PM

Everything looks good with what you have completed so far, looks like a whole MKVI suit to me, but It will look good with the HD chest and helmet also, keep up the great job
Comment

chitwood1775

Infantryman
- Join Date: Nov 2010
- Posts: 215
#8

05-25-2011, 11:35 PM

I use LD parts for scaling and practice. Like I'm keeping the chest to practice and figure out where I'm going to split it.
Comment

chitwood1775

Infantryman
- Join Date: Nov 2010
- Posts: 215
#9

06-06-2011, 12:23 PM

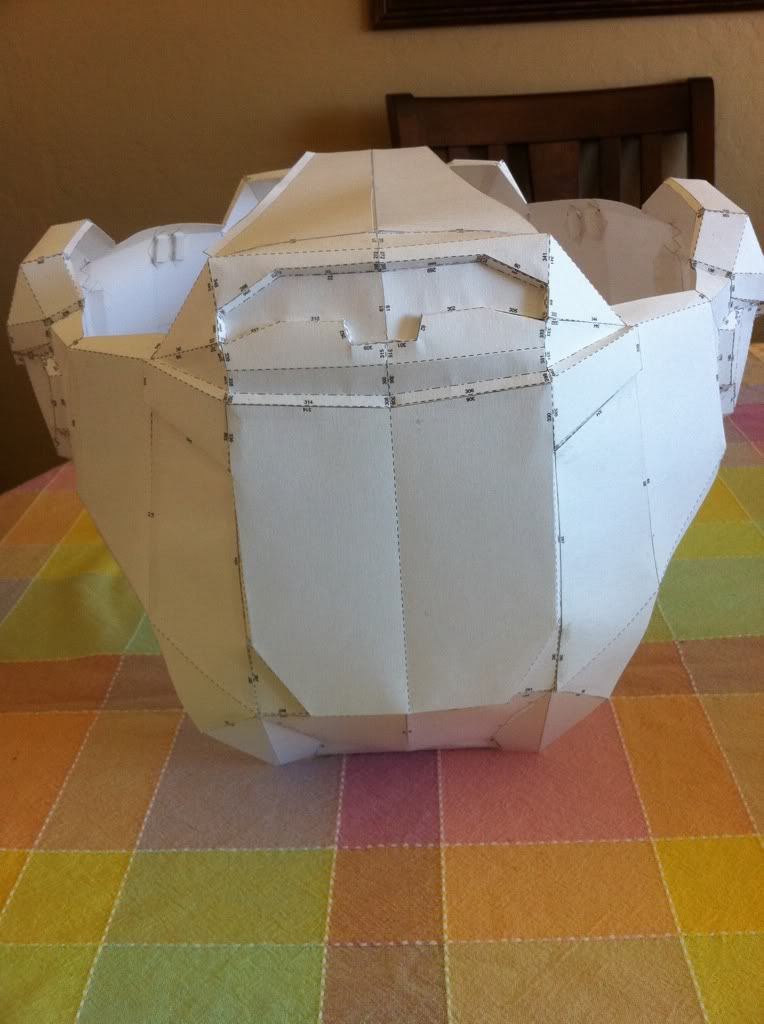

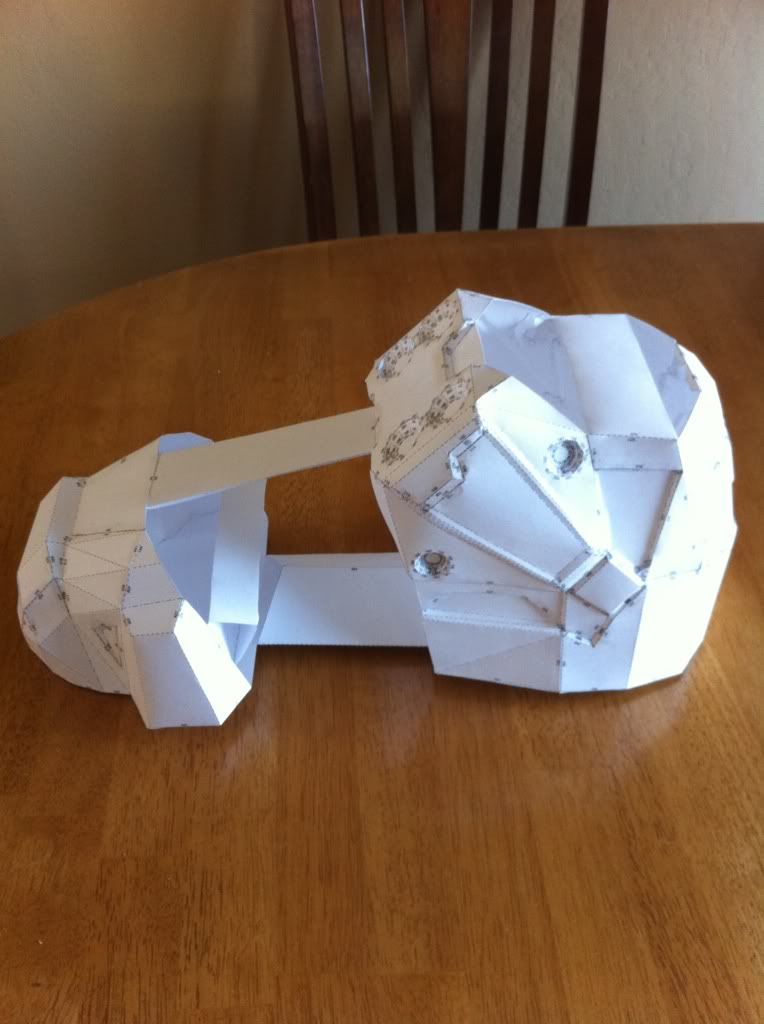

Here's a quick update on my HD chest

Here is where I finished on Wednesday*

Thursday

Friday

Saturday
Comment

chitwood1775

Infantryman
- Join Date: Nov 2010
- Posts: 215
#10

07-09-2011, 02:04 PM

First, let me say sorry for all the multi posts. I've had more updates then there have been comments and input.*

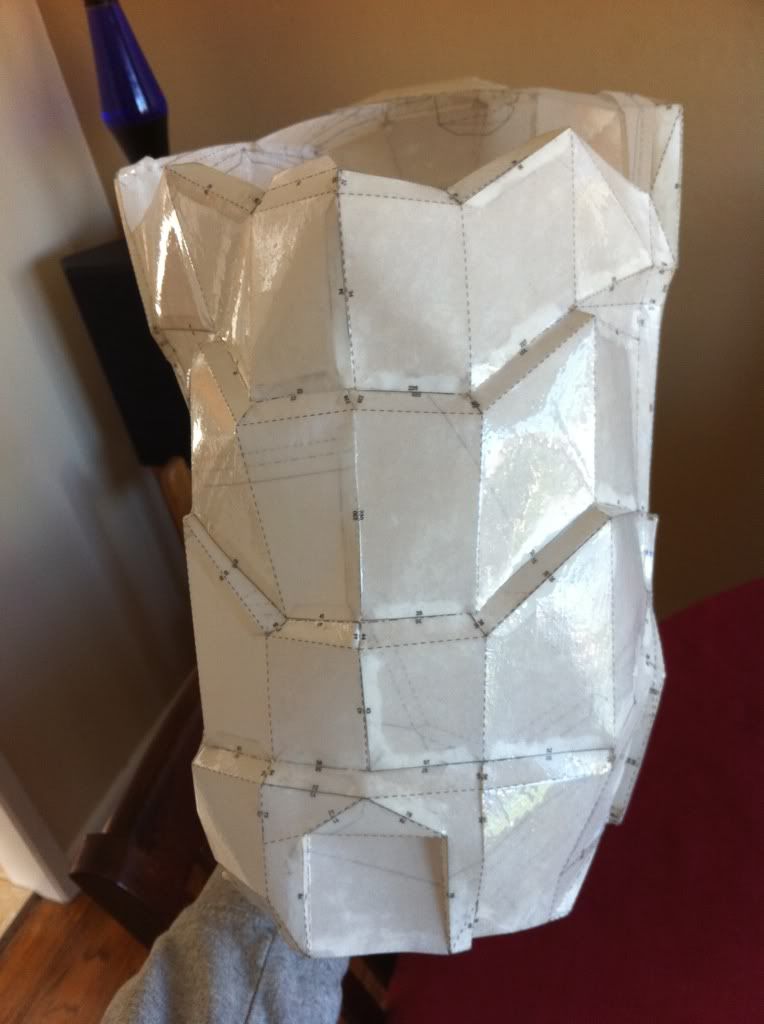

Now for the updates. I finished my HD chest about a month and a half ago.
*

Please note that the warping looks much worst because of the lighting.*

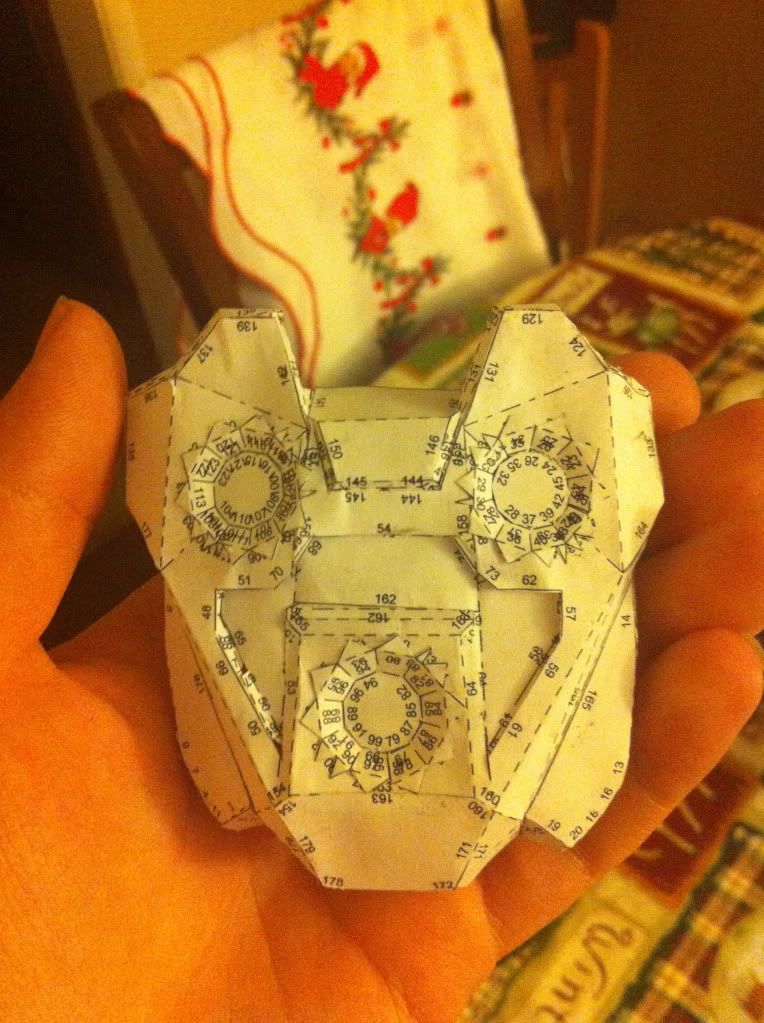

I also decided to remake the had plates.*

Last edited by chitwood1775; 07-09-2011, 02:06 PM.
Comment

Spitfire22V

Infantryman
- Join Date: Feb 2011
- Posts: 1094
#11

07-09-2011, 03:10 PM

The center rear parts of the chest (where there are the "louvers") look a little....flat? Don't know what happened there, looks like some parts aren't folded.
Comment

Stray

Pending Verification
- Join Date: Jun 2011
- Posts: 23
#12

07-09-2011, 03:16 PM

It's the surrounds, they're pointing outwards when they should be like, countersunk.
Comment

chitwood1775

Infantryman
- Join Date: Nov 2010
- Posts: 215
#13

07-09-2011, 06:35 PM

The center rear gave me A LOT of problems. There are so many Popsicle sticks in there just so it doesn't rip itself apart and so it has some kind of correct shape.

The bumps are supposed to be inverted???
Comment

Stray

Pending Verification
- Join Date: Jun 2011
- Posts: 23
#14

07-10-2011, 01:42 AM

If you check out some pictures of other people's suits you should be able to see what I mean. The areas around those little panels should be sunk into the back not pointing outwards. Here's a good example of what I mean from Deviant Art.
Comment

chitwood1775

Infantryman
- Join Date: Nov 2010
- Posts: 215
#15

07-11-2011, 11:18 AM

So should I remake it?
