    Cheap Visor Tinting Alternative

    #1
    Greetings Fellow 405th Members.
    I have found a special gold spray paint that is cheap, and has a one-way glass finish. The Design Master Billiant Gold 731. This paint dosn't use the same solvents as normal spray paints and is styrofoam safe.
    The pros: It costs $8 a can, which could do dozens of visors and does not require an air brush. It will act as an one way glass and supports reflections. It is the color of the Halo CE helmet.
    The drawbacks: It gives everything a slight orange fog and appears a little grainy up close.

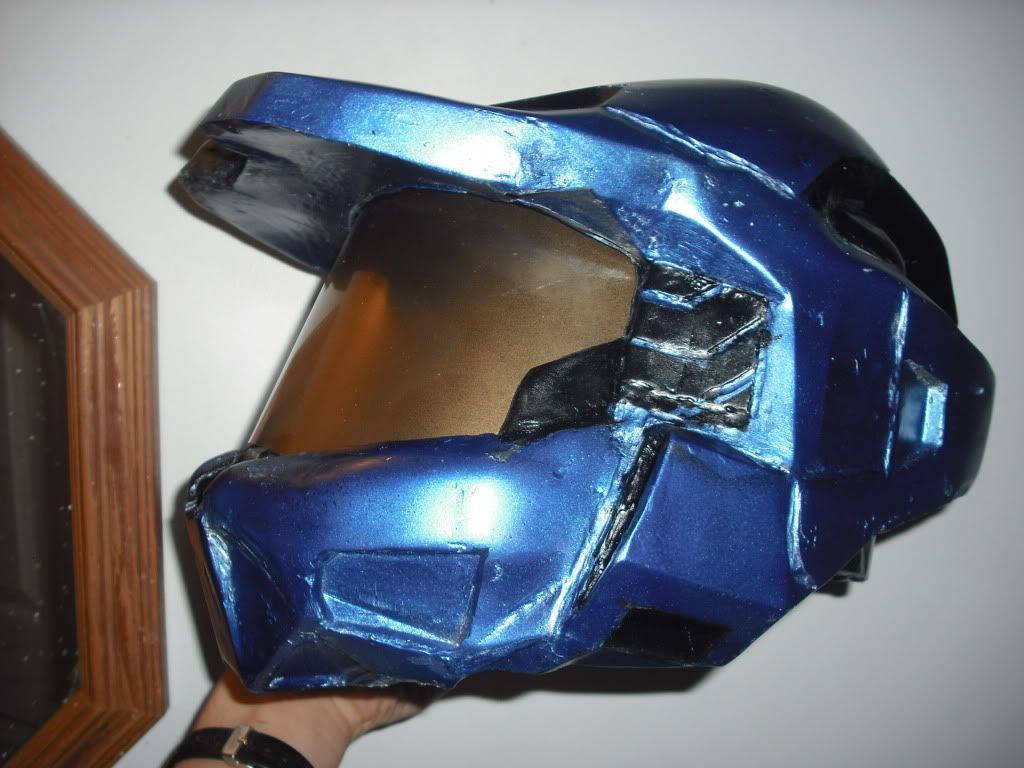

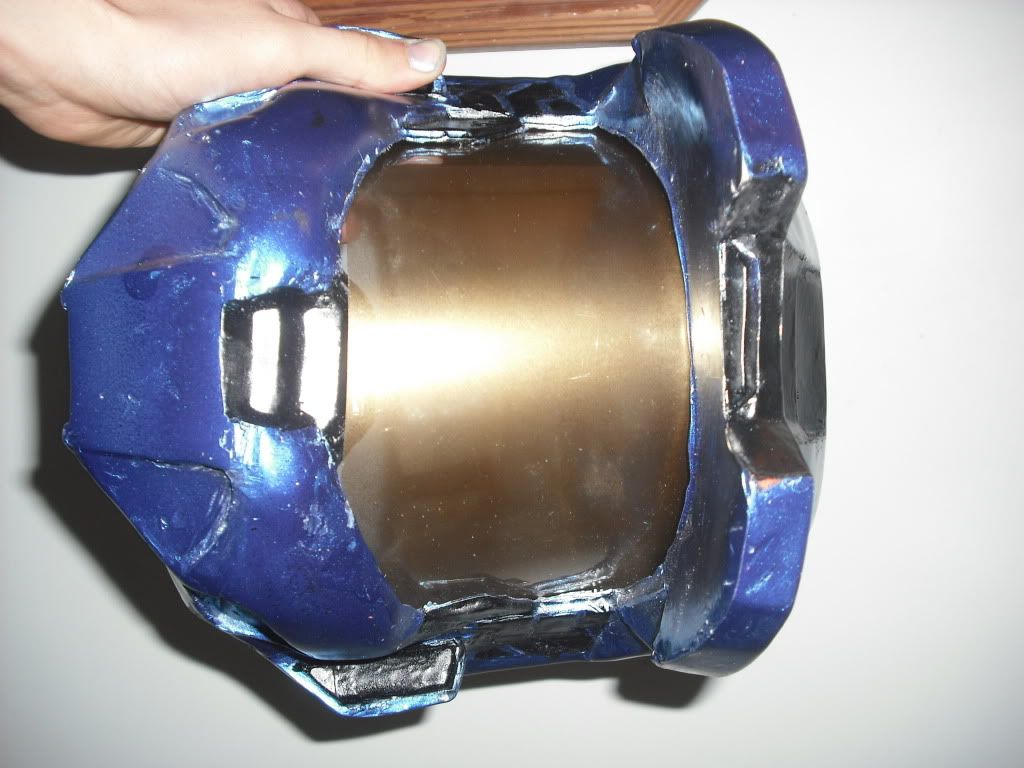

    The way you use it is firstly, get your visor or substitute material, I used a $2 sheet of clear plastic. Next, apply verrrry light coats of the paint to the BACK Side of the visor. Every time you apply a coat, test to see how well you can see through it from the back and how even the texture is on the front. There is a delicate balance as too much paint looks good, but offers very poor visability. Too little means more visability, but its more grainy and can be seen through. Here is a picture of my helmet with the gold painted
    flexable plastic visor.

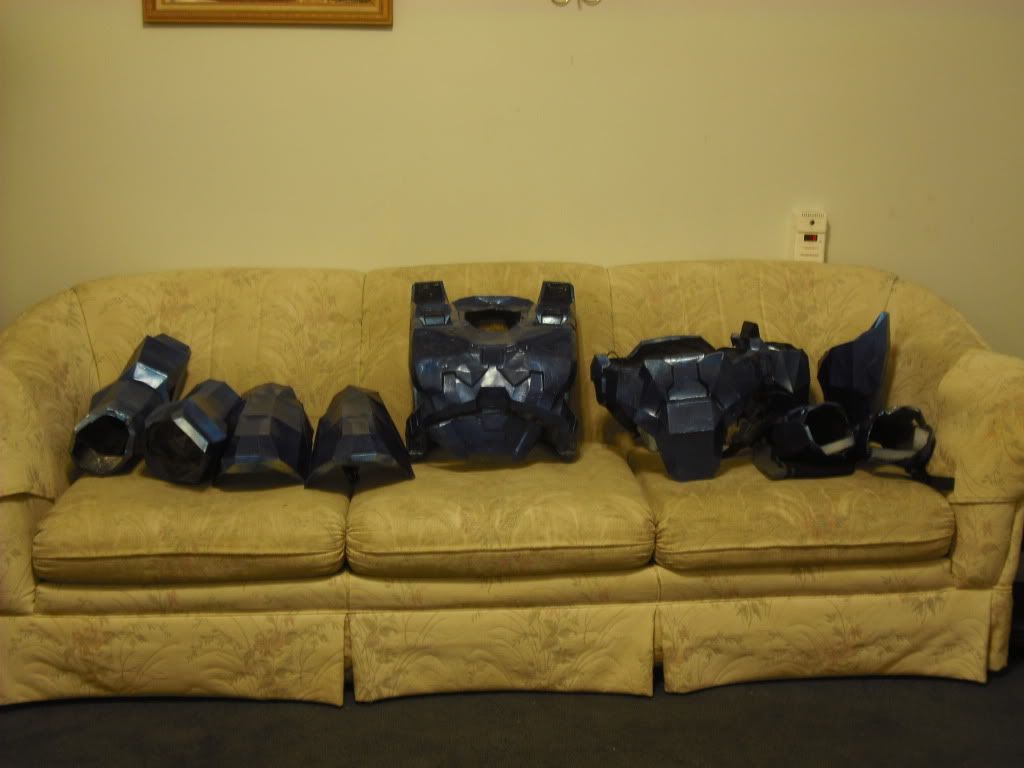

    Heres me and my armor recolor:

    Note, it is see though if theres light inside the helmet, which wont be a problem if your head is in it.

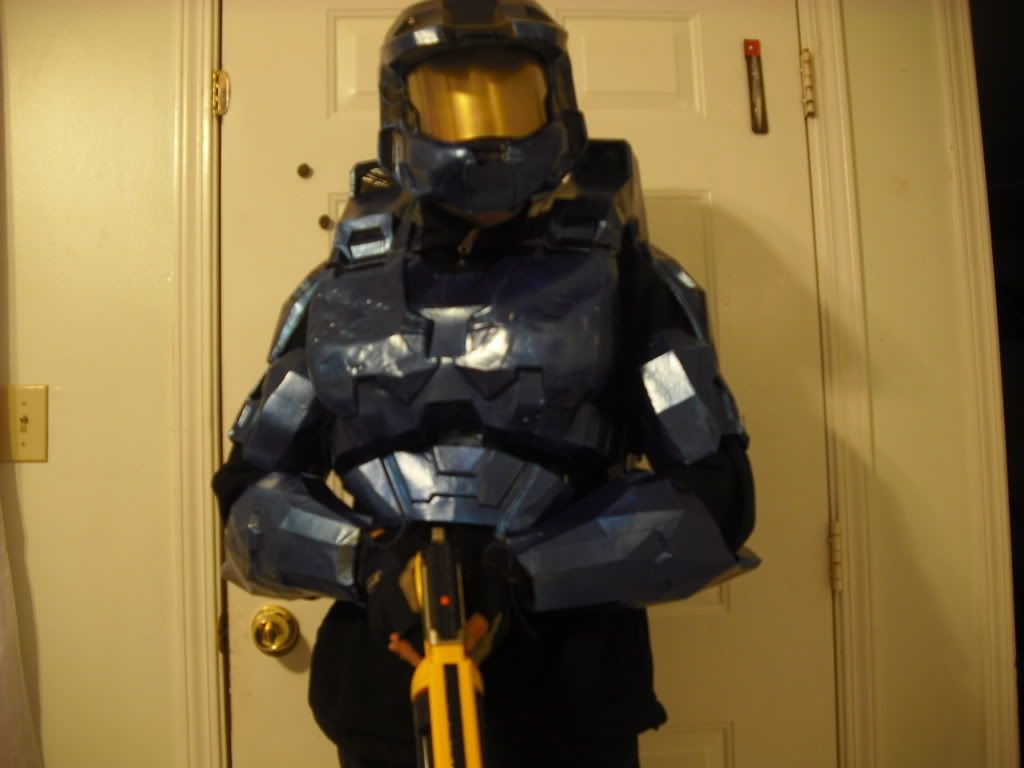

    Here are some pictures with and without the helmet on:
    Reference picture:

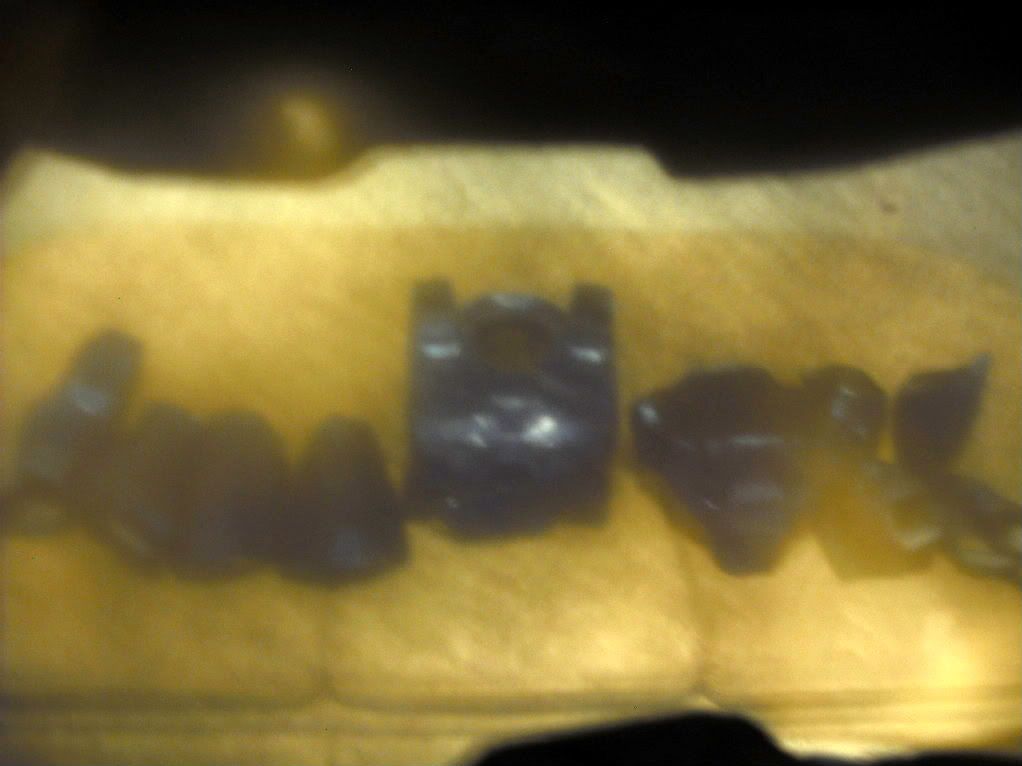

    Visor Picture: (note that being inside the helmet causes the camera to be a little out of focus.)


    This by no means is as high quality as a professional visor, however if your strap for cash and dont have a air brush, I would recomend this method. After all, doing this visor cost me $10 total, and I can make dozens of visors for little only the cost of the plastic itself.
    -Gryphon
    Last edited by GunGryphon; 12-08-2010, 01:32 AM.

  • Roadkiller's Avatar
    Infantryman
    • Aug 2010
    • 560

    #2
    Interesting find!

    I will try this on my "spare" helmet and report how it worked out for me.

    Comment


    • 009-SPA's Avatar
      Infantryman
      • Oct 2009
      • 229

      #3
      Brilliant find, excellent. Can you point me towards a website or store that sells it, preferably in the UK?

      Comment


      • AI Blue Fox's Avatar
        Infantryman
        • Oct 2008
        • 904

        #4
        do they make black?

        Comment


        • GunGryphon's Avatar
          Infantryman
          • Oct 2010
          • 114

          #5
          I have not tried any other color of spray, however the entire line of COLORTOOL spray are suppost to be translucent when applied lightly. This is the page with most of the colortool sprays, however what I am using is in the metalic sub-section here. The spray I used is on the right in the web page picture. I do not know if any of the sprays outside the metalic section will give a reflective finish, but if anyone wants to try them out, be my guest and tell us how it goes. I found this at the craft store, where I also picked up a $2 12x12" square of clear flexible plastic that could make 2 visors. I would recomend trying it of one of these before using it on a professional visor. Just color the plastic and prop a piece in the visor. Thats how my helmet is at the moment because the black nose bit gets in the way of mounting it. Best of Luck
          -Gryphon

          Comment


          • soul products's Avatar
            Infantryman
            • Dec 2009
            • 841

            #6
            i just wanted to let you know that you may have just solved the EVA/ emile visor delemma.......

            YOU ARE AWESOME!

            Comment


            • GunGryphon's Avatar
              Infantryman
              • Oct 2010
              • 114

              #7
              Aye, Ive thought of using this to tint an EVA visor, just forgot to note it on my original post. Still, it may be hard getting an even mist on the inside of the visor as a distance of 12 inchs is optimal for a thin even coat.
              Glad to be of help.
              Gryphon-

              Comment


              • Chambs007's Avatar
                Infantryman
                • Jul 2010
                • 142

                #8
                I think I may have to look into this for my helmets.

                Comment


                • Guest's Avatar
                  Guest

                  #9
                  Congradulations sir you win the BOSS of the week award good on ya.

                  Comment


                  • Aeneas2020's Avatar
                    Pending Verification
                    • Nov 2010
                    • 7

                    #10
                    think im going to order some of this stuff looks like it could be a good find

                    Comment


                    • Octorock's Avatar
                      Infantryman
                      • Mar 2011
                      • 265

                      #11
                      Wow.....
                      That's some impressive visor inside that awesome suit.

                      Comment


                      • cory045's Avatar
                        Infantryman
                        • May 2010
                        • 102

                        #12
                        thx for the tip
