Scout build

#1

08-06-2011, 09:11 PM

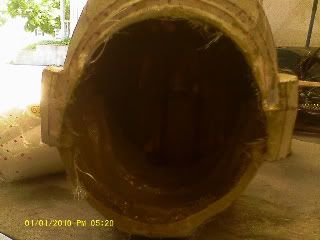

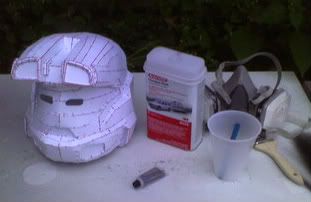

After finishing the JFO build with Satchmo III, I have start building a scout helmet. During the last week I have finished the Pepakura model, the first inner coat of rondo and 2 layers of fiber glass. Currently I am working on the outer final bondo layer and the hardest process of sanding. It's looking good so far, but there is a long ways to go.

Work log
August 8-13 I plan to finish all of the sanding, cut in all the details and at least put one coat of primer.
August 14-20 Finish all of the paint (weather look), finish visor, Start wiring in fans and leds, and start padding
Finish sortly after
Tags: None

Satchmo III

Infantryman
- Join Date: Jan 2011
- Posts: 496
#2

08-06-2011, 09:29 PM

Welcome to the 405th, brother! Everything looks good so far.
Comment

ventrue

Infantryman
- Join Date: Sep 2010
- Posts: 2743
#3

08-06-2011, 09:30 PM

Looks good!

Is it possible that your particle filters are inserted the wrong way? :-)
The side that has the text and pictures on it should face the cartridge according to 3M's instructions. But don't switch them over now, if you've already used them, use new ones for that.
Comment

ionHighlander

Member
- Join Date: Aug 2011
- Posts: 12
#4

08-07-2011, 01:31 AM

It does not matter what side the filters are on as long as they are fully sealed, and the small side of the filter is facing forward.
Comment

RogueSeven

Infantryman
- Join Date: Apr 2011
- Posts: 49
#5

08-07-2011, 01:33 AM

looking forward to seeing it sanded and painted
Comment

Sepheus 13

Infantryman
- Join Date: Apr 2010
- Posts: 113
#6

08-07-2011, 12:32 PM

I love this helmet so much, it was so easy to pep and complete it. I look forward to see how you finish it.
Comment

ionHighlander

Member
- Join Date: Aug 2011
- Posts: 12
#7

08-10-2011, 07:54 PM

Second week of work

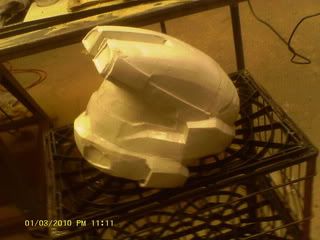

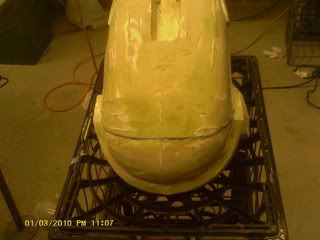

So far this week I almost have all of the bondo done. There are just a few spots I need to touch up with some spot putty. Currently I am in the stages of final sanding with 120 and 220 grit sand paper. After finishing sanding, I plan to start fitting the visor. After that I can start to paint. It’s really coming along good but going to are cabin every week has really slowed me down, still coming along rather fast still.
Comment

ionHighlander

Member
- Join Date: Aug 2011
- Posts: 12
#8

08-16-2011, 04:04 PM

Week three of my scout build

This week has been a very busy week around the house. I haven’t had much time to work on it. Final sandy is just about finished still. There are still a few places i need to touch up though. This week i did get the lenses for the leds cut, I am not going to install them until I paint. I also cut openings in the front for fans, and made some fins on the outside to cover them up out of 14g aluminum, and then hot glued them in place.I also cut in all of the detail lines.
Comment

Satchmo III

Infantryman
- Join Date: Jan 2011
- Posts: 496
#9

08-22-2011, 10:08 AM

Looking good. I think the aluminum louvers will really give the helmet a realistic touch.

It looks like you have some interesting mount-points for the fans. Can you describe what the mount-points are and how you installed them?
Comment

ionHighlander

Member
- Join Date: Aug 2011
- Posts: 12
#10

08-22-2011, 01:40 PM

Over the past several days i accomplished a lot of tasks. So far i cut out the visor, still working on a way to mount it though and still have to cut the detail lines into it. The lights are ready to be installed with the fogged lensed, cut out of Lexan plastic, and fogged with a wire brush in my dremal. The fans are also ready to be installed, to install them I used some lock tight repair putty and the original mounting post from the intercooler. I also managed to finish most of the final panting. Sometime in the near future I plan to make it look aged and worn.
Comment

ionHighlander

Member
- Join Date: Aug 2011
- Posts: 12
#11

08-25-2011, 08:32 PM

past several days

In the past few days I did a lot of work. I finished all the electronics (fans, leds), I think the wiring is one of the cleaner jobs I seen. I even though of covering the leds on the inside with some wiring tape so you can't see my face when they are on. The visor is mounted, and the detail lines are cut into it. I also managed to finish most of the paint, including the black wash and worn look thanks to Adam Gumbo's tutorial (http://www.youtube.com/watch?v=dYHA-VvBVY0). The only thing I need to do as the paint goes is a few yellow strips by the visor. I still need to figure out what I am going to do for the padding, but I plan to get some 2 inch foam, and cut out a few strips to place them in the top. Then it is completely finished.
Comment

Cinderblock

Infantryman
- Join Date: Jul 2011
- Posts: 204
#12

08-25-2011, 11:16 PM

blah darn computer, if this shows up twice it had an error posting my first reply* veery good work, i just pep'd a scout helm too, but i really like the model you used, great body (filler) work too, cant wait to see it all finished.
Comment

ionHighlander

Member
- Join Date: Aug 2011
- Posts: 12
#13

09-05-2011, 11:21 AM

Over the past week, with school starting and all, I haven’t had very much time to work on my helmet. I did manage to finish all of the padding though. There is not too much to do any more, just a few yellow detail strips and then it will be finished. I already started a mrk V (a), but all i had time to do on it is one layer of rondo.

Last edited by ionHighlander; 09-05-2011, 12:51 PM.
Comment

odst.fng

Pending Verification
- Join Date: Sep 2011
- Posts: 133
#14

09-05-2011, 01:47 PM

very nice work...I like what you did with the louvers on the side cant wait to see the rest!
Comment

ionHighlander

Member
- Join Date: Aug 2011
- Posts: 12
#15

09-18-2011, 05:24 PM

No changes have been made
