Mk VI Foam build

S

sidheman

Jr Member

• Oct 28, 2012

• #1

Hey guys! Been a while since I've had a relevant update for the forums. Still plugging away at the T-45d armor; slow going all around. Started a new project though!

Yeah, another foam project. This one is halo related though (for once lol). I'll be working on the Mk VI suit, ala Robogenesis/Demolition's files. After I get through this one I want to take a crack at a custom Mk V Reach set, but one thing at a time!

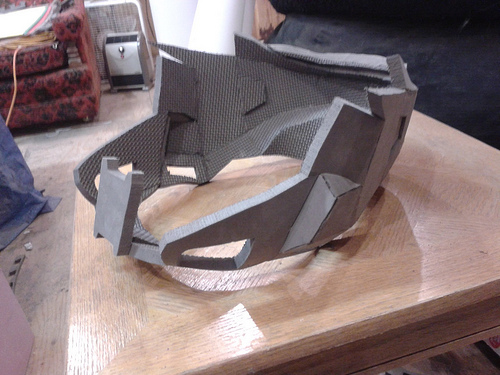

Here's the current progress as of today, and after only today working!





There's a spot under the back of the helmet that didn't angle well, so I'm probably going to cover a section in craft foam to clean it up some. Either way, onward!



C

Camaro91

Member

• Oct 29, 2012

• #2

So far so good, pretty clean edges too



Jason 078

Well-Known Member

Pacific Regiment

Crater

• Oct 29, 2012

• #3

Every time I see someone doing a foam helmet, it amazes me at the skill you have. That looks good.



S

sidheman

Jr Member

• Nov 3, 2012

• #4

Camaro91 said:

So far so good, pretty clean edges too

Click to expand...

Thanks! I still need to do some clean-up, and there are a few small spots I'd like to fill, but otherwise it's turning out cleaner than I expected.

Jason-078 said:

Every time I see someone doing a foam helmet, it amazes me at the skill you have. That looks good.

Click to expand...

Thanks! Foam is lots of fun, and really easy to work with if you're moderately patient with it.

*****UPDATE*****

Okay, so I've been a bit sick, and haven't gotten much further than I had before, and since my band saw blade is done for again I won't be getting much else done for a bit. Car's dead, so haven't been able to pop up to Harbor Freight for more foam (and now a new blade lol), so the project may stall a bit until I can get those.

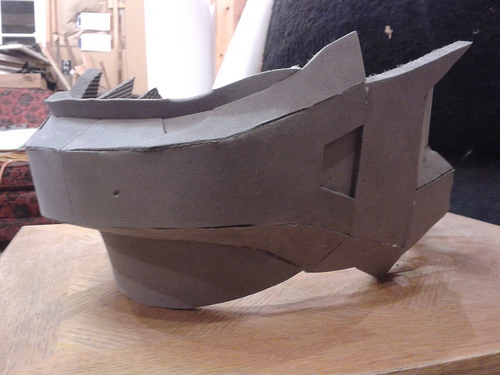

Anyway, got further on the helmet!









The top bit is cut, but not connected yet. Still need to even one side to accommodate the center bits. Also, while the front looks warped, it's because some parts are not yet attached to give it the proper shape. I will also be dremeling down the inset bit on the front later. Chugging along....



SquishyShoes

Well-Known Member

Australian Regiment

• Nov 3, 2012

• #5

This looks great so far mate, but I was wondering if you could throw some hints to a newb to the foam. I've been wanting to get my edges clean like that, but can only seem to do it half of the time. Have you got a specific technique you use and do you cut your foam at angles to get the right shapes or just glue and bend?

Cheers, Squish



S

sidheman

Jr Member

• Nov 3, 2012

• #6

SquishyShoes said:

This looks great so far mate, but I was wondering if you could throw some hints to a newb to the foam. I've been wanting to get my edges clean like that, but can only seem to do it half of the time. Have you got a specific technique you use and do you cut your foam at angles to get the right shapes or just glue and bend?

Cheers, Squish

Click to expand...

Practice, practice, and a nice belt sander/band saw lol. I cut my pieces out, then sand them down to the angle I want. I know there's quite a few people that use blades, but I've never been able to get a nice, perfect, clean cut (though I need to try drack's surgical knife trick). Some sections are curved, which you'll need a heat gun for if you want really good curves, though some pieces curve naturally just from the way they're attached.

I highly recommend looking up drack's foam tutorials for hints, tips, and tricks. You can find them on his Iron Man thread, page 1.



S

sidheman

Jr Member

• Nov 11, 2012

• #7

***UPDATE***

Got a little further on the helmet! Haven't been able to do a lot of work on it (slow going with a couple commissions to fill), but I'm nearly finished with this piece. It's a bit big, though I'll have to see how the chest looks with it to see if I want to make it again a bit smaller.





Have I mentioned how much fun EVA foam is?



A

Annanymous

Well-Known Member

• Nov 11, 2012

• #8

the helmet is looking really great! Edges are wicked clean- I am always in awe when people post WIP of foam builds. I will never be able to fully understand/do foam building. Cant wait to see more!



D

DBmike

Well-Known Member

• Nov 12, 2012

• #9

nice clean build dude, i'm really excited to see how you progress. I am subscribed!



A

astromanED

New Member

• Aug 14, 2013

• #10

EXCELLENT THREAD! I would like to see how you finished this up. I'm totally using this thread to guide me through my own build. So far so good but some of the smaller parts are proving frustrating



A

Apothacary

Member

Canadian Regiment

• Aug 14, 2013

• #11

Looks awesome! Just one question, what thickness of foam did you use for that helmet? Was thinking of doing mine in 4mm or 6mm, I figured 10mm might be a bit thick.

Keep up the great work, can't wait to see more.



B

blubber616

New Member

• Mar 15, 2016

• #12

Great job! I have made one myself but yours looks much better! After seeing this, I might work on another Mark VI helmet. At what angle did you put the "chin"? When I did it, the "chin" would stick out and I would have to glue it far into the helmet.



D

Dynamic1

New Member

• Mar 15, 2016

• #13

This is looking great! Keep it up!:thumbsup



elusch99

Member

• Mar 15, 2016

• #14

Hey guys make sure to check the post dates, the last post was about 2 years ago. Generally don't post if the thread last post was more than 3-4 months ago.
