Master Chief Mk VII/Halo 4: First Build [WIP/Pic Heavy]

PolyEngineer · Jun 28, 2013

Current Update: 25 June 2014

Current Progress:

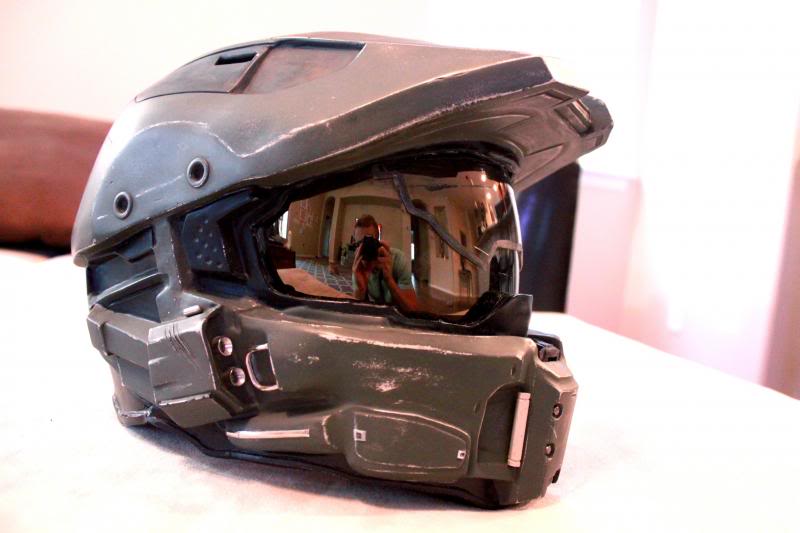

Helmet- Finished
Chest Piece- RESTARTED (Can't always get it right the first time around!)
Forearms- Finishing elbow pad attachments

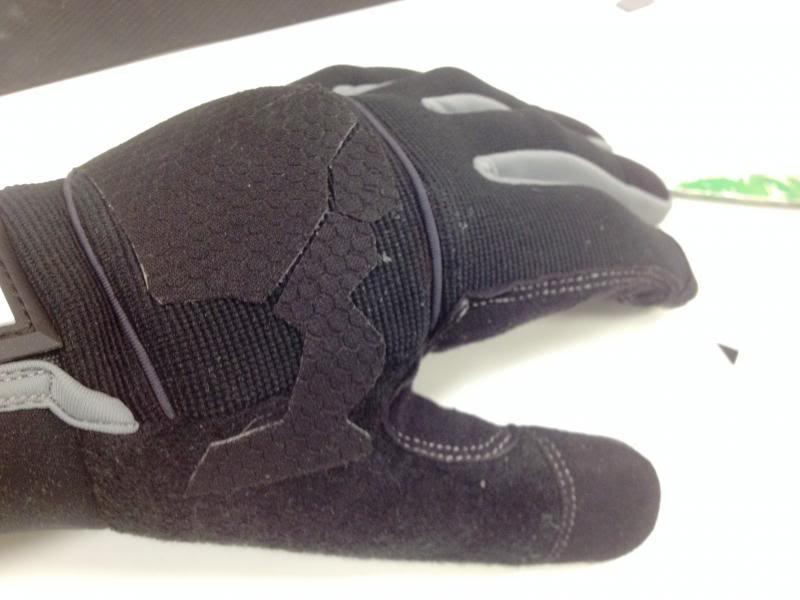

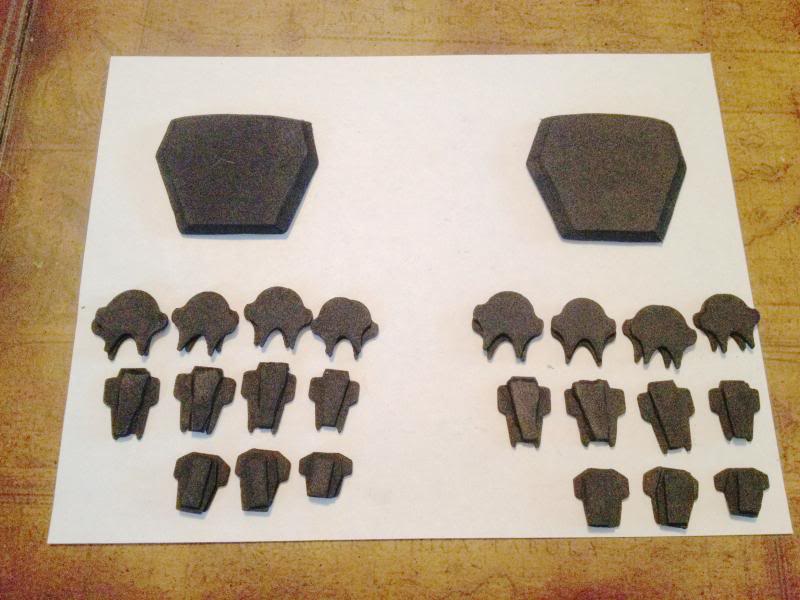

Gloves- Armor completed, waiting to sew on honeycomb material before attaching.
All Other Parts- On hold

Original Post:

Hello 405th!

I've been a member for quite some time now. This site has helped so much, so I think it's time to give back!

I'll keep it brief on the text and load this with photos, since that's typically what catches my eye when I browse through threads. If anyone has any suggestions or tips i'd greatly appreciate it. And if anyone has any questions I'd be happy to answer!

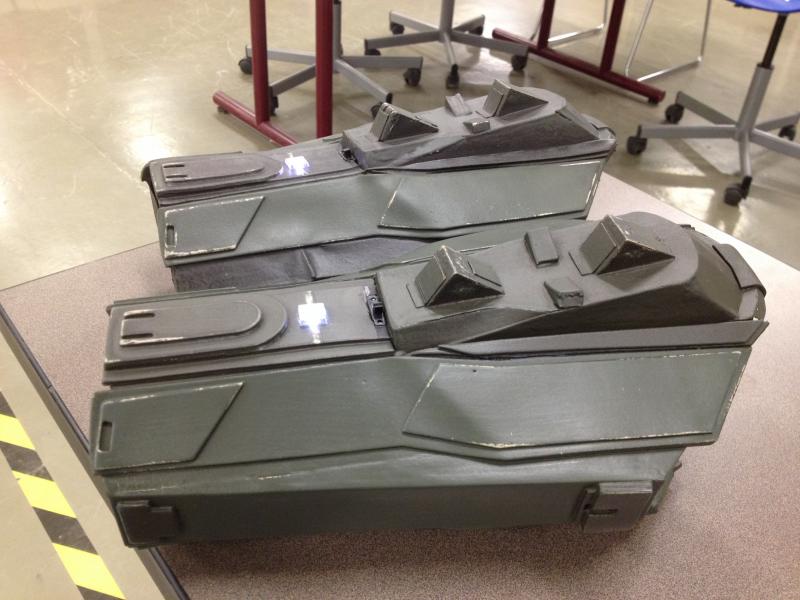

Forearm pieces completed. Detachable elbow pads INW.

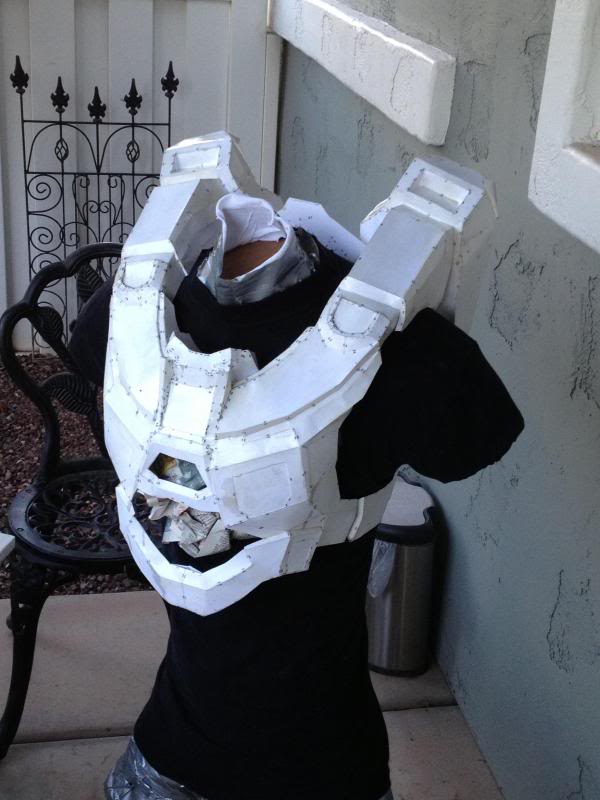

Chest piece has been restarted.

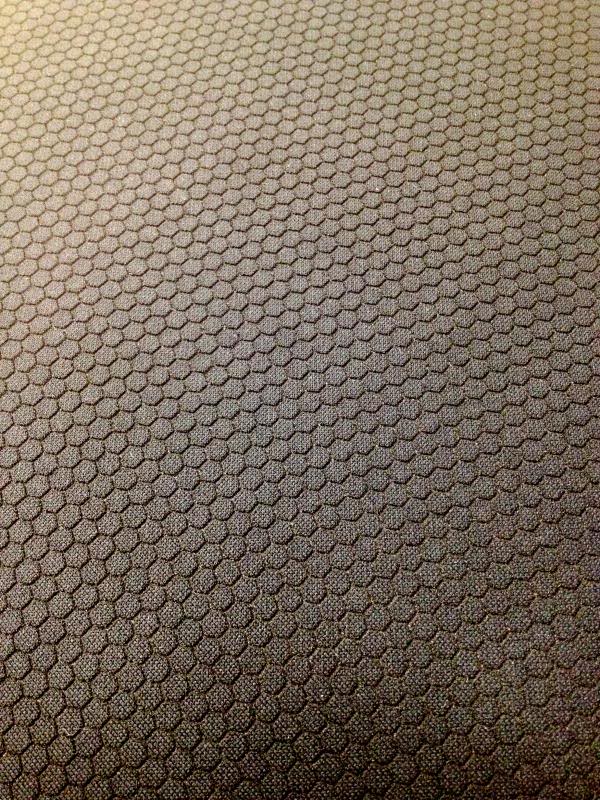

Laser engraved fabric is turning out nicely.

Mstruvmgc · Jun 29, 2013

Very nicely done so far

I like the idea of the EVO detail you plan on putting on. Are you planning on using your solor powered light idea for the lights on this build?
+1 to sub

PolyEngineer · Jun 29, 2013

Thanks! and yep, This is the one. I may put some kind of a power switch into the circuit. I think the way it's set up, alone, is the lights come on whenever the battery is no longer in "charge" mode when it's receiving sunlight.

Might end up being more complicated then I think it should be (like most things end up being)... who knows. I've got a 9V pack ready to go in case the solar plan fails.

Mstruvmgc · Jun 29, 2013

PolyEngineer said:
Thanks! and yep, This is the one. I may put some kind of a power switch into the circuit. I think the way it's set up, alone, is the lights come on whenever the battery is no longer in "charge" mode when it's receiving sunlight.

Might end up being more complicated then I think it should be (like most things end up being)... who knows. I've got a 9V pack ready to go in case the solar plan fails.

Well if you leave it the way it is, that could be cool to have the lights turn on automatically when you walk inside or something instead of hitting a switch. At least it looks cool in my head lol. I want to try it now! i guess i should start building my helmet soon lol

cyberdemon35 · Jun 29, 2013

It looks mind blowing, but I was woundering did you use normal bondo or mud

PolyEngineer · Jun 29, 2013

I used normal bondo. Purchased the gigantic paint can tub of the stuff since i'll be using quite a bit of it.

cyberdemon35 · Jun 29, 2013

Ok, thanks I was just thinking it looks a lot better then my helmet after bondo.

PolyEngineer · Jun 29, 2013

Spartan 127 in another thread stated "Less bondo is more"... and he's totally right. Although you may end up wasting unused bondo in each mix, the outcome is so much better when you focus on a small section and either layer or slow-form each part. Although I like how the helmet is turning out, the amount of time I spent sanding and forming bondo nearly makes me want to do the rest of the suit in foam!! Seriously... this helmet has been a work in progress for over a month now... as in no less than an hour a day.... :/

cyberdemon35 · Jun 29, 2013

thanks for the tip I will use it for my mk5 helmet.

averysmallhorse · Jun 29, 2013

Looks like it came straight out of the game, nicely done, is this your first build?

PolyEngineer · Jun 29, 2013

Yes, this is my first build.

ADDED REF PHOTOS:

Mr skywalker · Jun 29, 2013

This is Freak'n awesome! Excellent work so far, I can't wait to see the rest of your armor

PolyEngineer · Jun 29, 2013

Thanks! I'll be working on the foam tonight. Hopefully i'll have picks up by tomorrow.

ADDED REF PHOTOS:

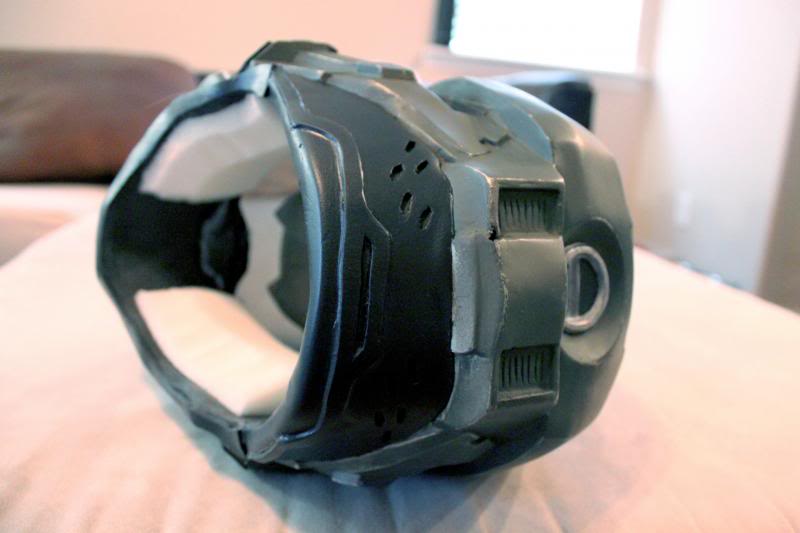

This was before adding the foam to the bottom half:

Absol898 · Jun 29, 2013

Man! I am loving how clean that turned out, very good job! After my cog build I was thinking about doing halo 4 master chief. After seeing that I think i have my mind made up (lol).

You mind telling me more about how your bondo stage went. Like how many times did you had to rebondo and how did you get it so clean?

BlueFreeze128 · Jun 29, 2013

wow! super clean job! i know how you feel about the bond stage it takes FOREVER but it is so worth it in the end when your helmet comes out all nice and smooth, keep up the good work!

PolyEngineer · Jun 29, 2013

Absol898 said:
Man! I am loving how clean that turned out, very good job! After my cog build I was thinking about doing halo 4 master chief. After seeing that I think i have my mind made up (lol).

You mind telling me more about how your bondo stage went. Like how many times did you had to rebondo and how did you get it so clean?

I started with the top of the helmet and then worked my way down with the bondo. I didn't move on until the piece I was on was at least up to par standards. I used a dremel for the tight areas and to add details like the lines on the top and sides, and then 80 grit sand paper to take down any areas that were too high, once anything was just about leveled I moved on to 120 grit. I found using only 80 grit left big gashes that even the primer couldn't fill. The primer that I used was a sandable primer. It lays out much thicker, which means it would "fill" any minor gashes or scratches left over by the 120 grit. I had to lay out at least three layers of bondo on each section to get it right. Also, folding the sandpaper into 4ths or rolling it into a tube helped get some of tight areas. Other than that... it was just patience... lots of patience. There were many times I wanted to settle on something and move on to the next section.. but I kept reminding myself that taking the time to do it right would be worth it in the end. We live in a "now" society, and even I just want to get to the end result ASAP, so sitting down and doing something over again is extremely hard!! Just gotta stick it out.

Like the saying goes, Rome wasn't built in a day.

PolyEngineer · Jun 30, 2013

Update:!!!

Finished the lower and back half of the helmet with foam. It was my first time dealing with foam, so I made a few mistakes, but everything turned out extremely well. Wondering if the helmet is too small though, it's a bit hard to fit my huge head into it now with the foam. :/

Vandoore · Jun 30, 2013

wow that is very impressive for a first go

Mstruvmgc · Jun 30, 2013

The foam turned out really well i think. Cudos!

Jason 078 · Jun 30, 2013

I wish I had half the skill with foam that you do... impressive, most impressive.
