01) WIP: Home Made Foam Halo 3 SRS99D-S2 AM Sniper Rifle


TheRealVictor

Jr Member
Hey Guys! I have no idea how these threads work but hopefully I can manage. Anyway, Here I will post my steps/ progress towards my very own prop sniper.

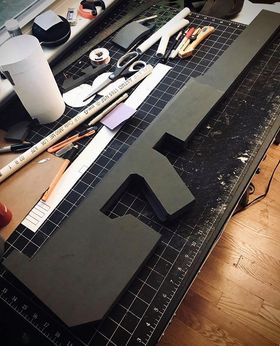

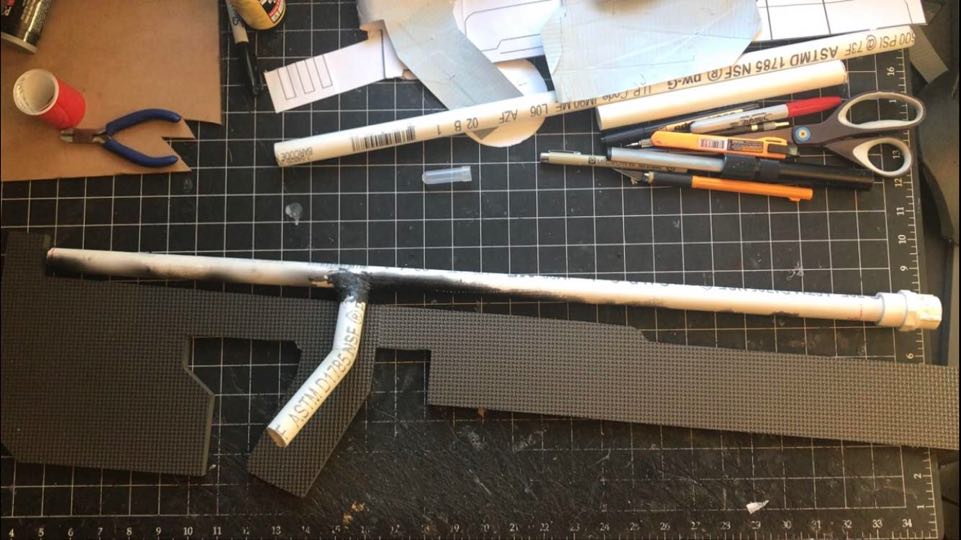

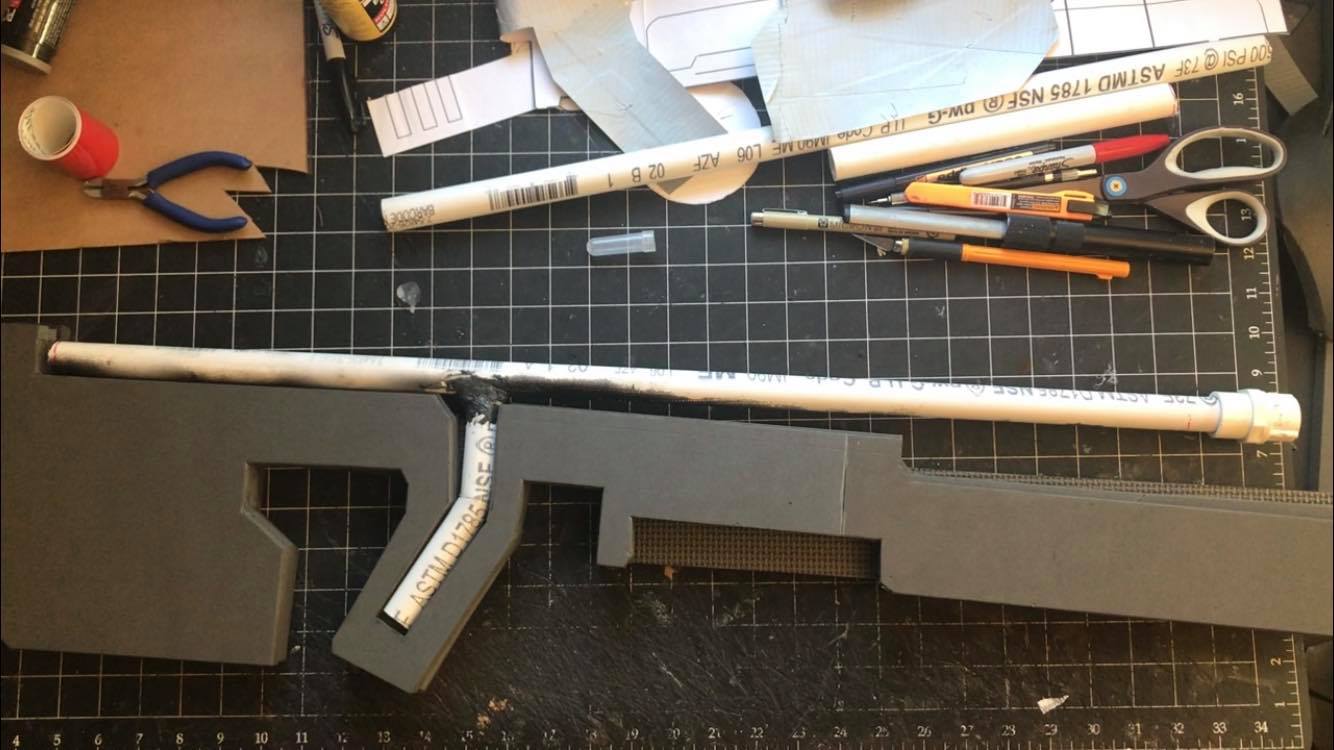

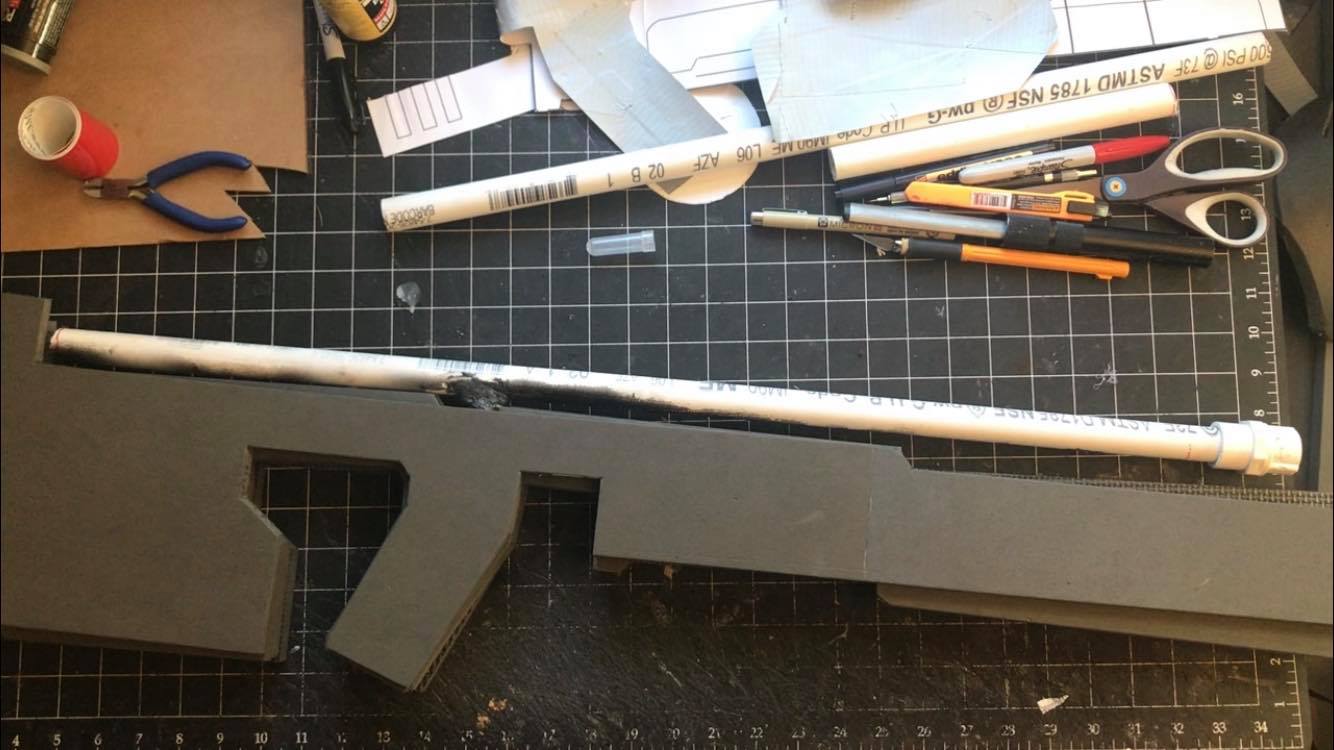

I studied the rifle in forge mode and made sketches/designs in my sketchbook. The "base" rifle is just 2 pvc pipes and 3 layers of 1/2" eva foam. This is the structure, a PVC Sandwich!


Attachments

  • 1.jpg
    87.6 KB · Views: 45
  • 2.jpg
    105.1 KB · Views: 38
  • 3.jpg
    103.4 KB · Views: 43
  • 4.jpg
    25.9 KB · Views: 52

TheRealVictor

Jr Member

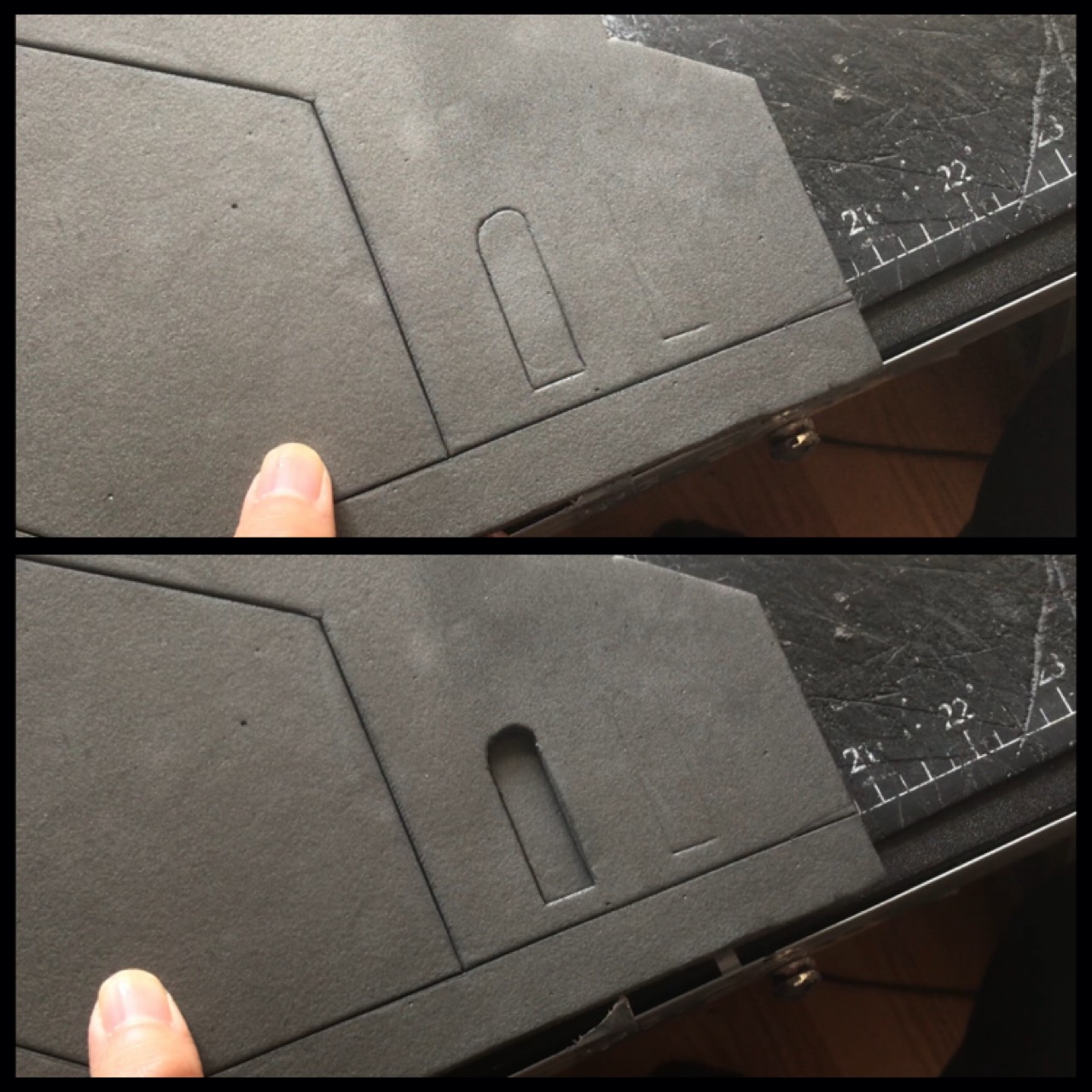

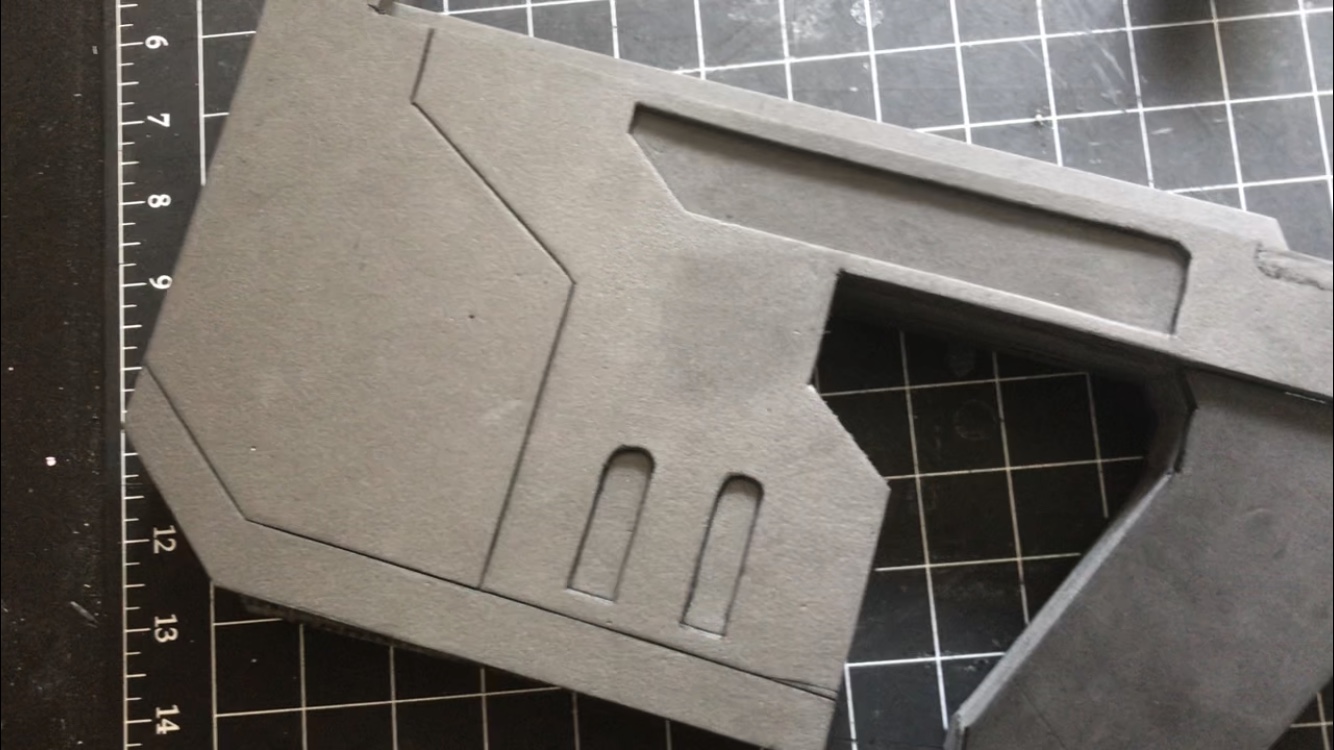

Adding details is a great way to give your projects more life and realism! Here I implement (2) simple yet highly effective techniques: scoring+heating and recessing. Lightly graze the surface of eva foam with a sharp blade and apply heat with a heat gun. This will cause the opening to expand and create nice detail lines. Recessing is cutting out a shape and pushing it passed flush, this will create a nice recessed surface that fits perfectly. Take care everyone!


Attachments

  • 0E58B20A-7C07-414C-BCAA-6950104FBC85.jpeg
    222.7 KB · Views: 36
  • ED116732-B436-4135-B19C-E02072EBA845.jpeg
    312.8 KB · Views: 39
  • 156F16A7-535D-4B00-BCE6-8769DD8B9FE4.jpeg
    321.3 KB · Views: 38

TheRealVictor

Jr Member

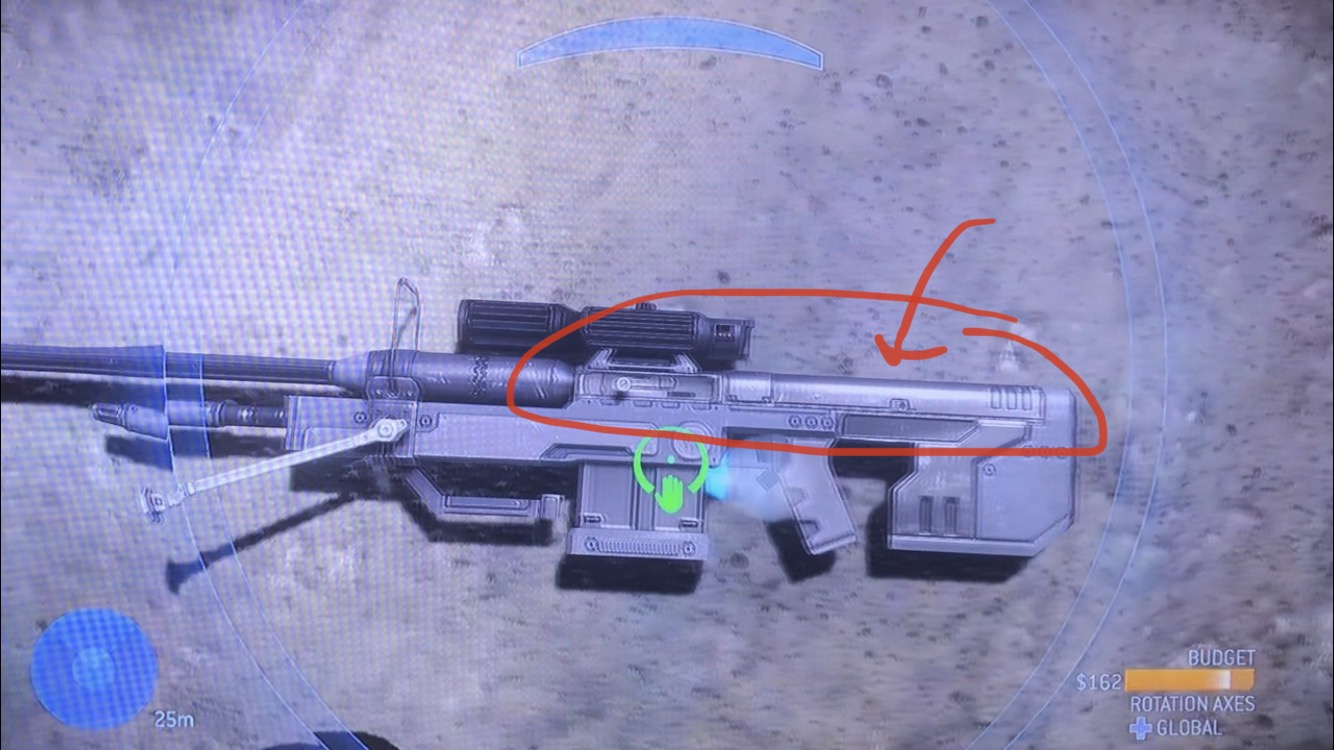

“Curved Top Part”

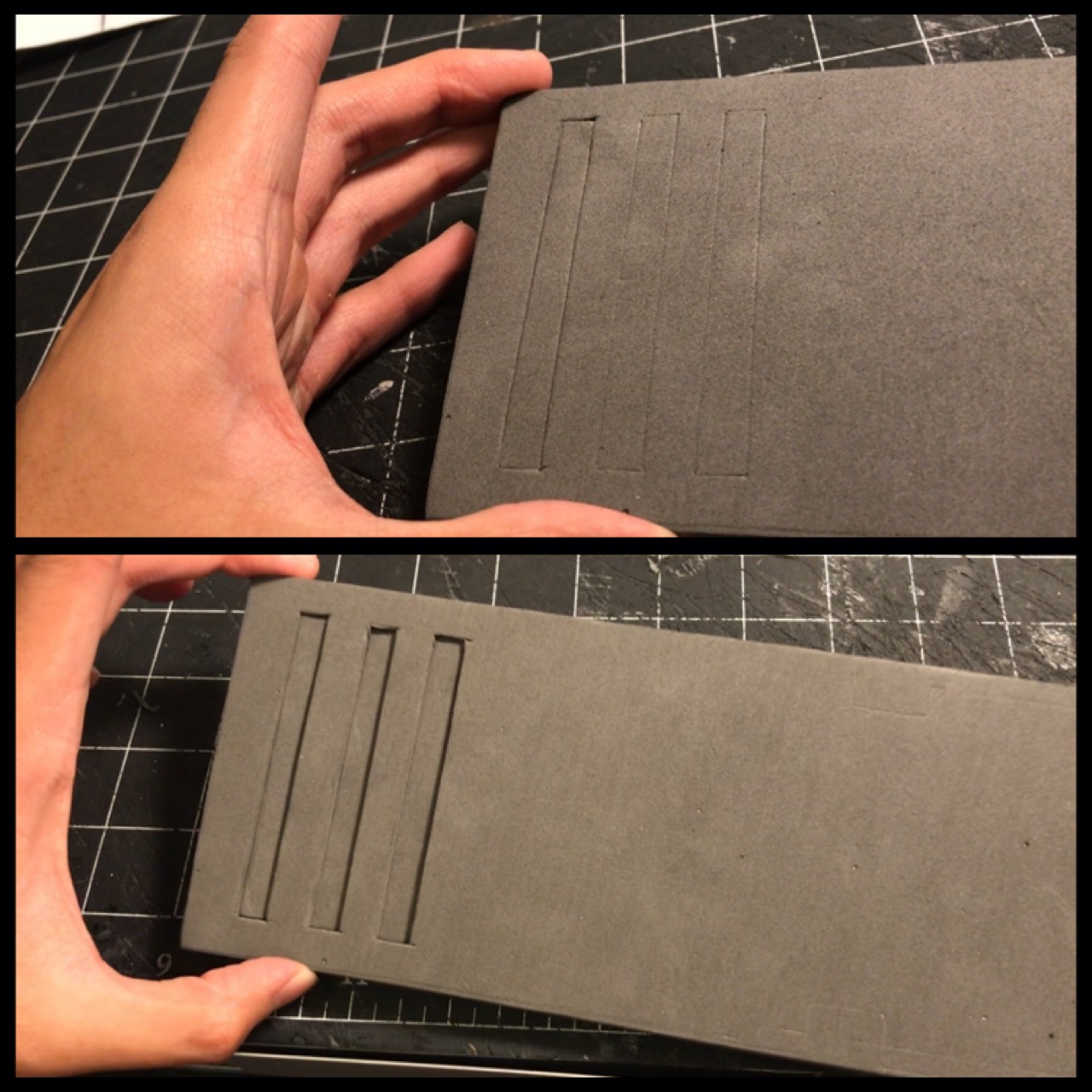

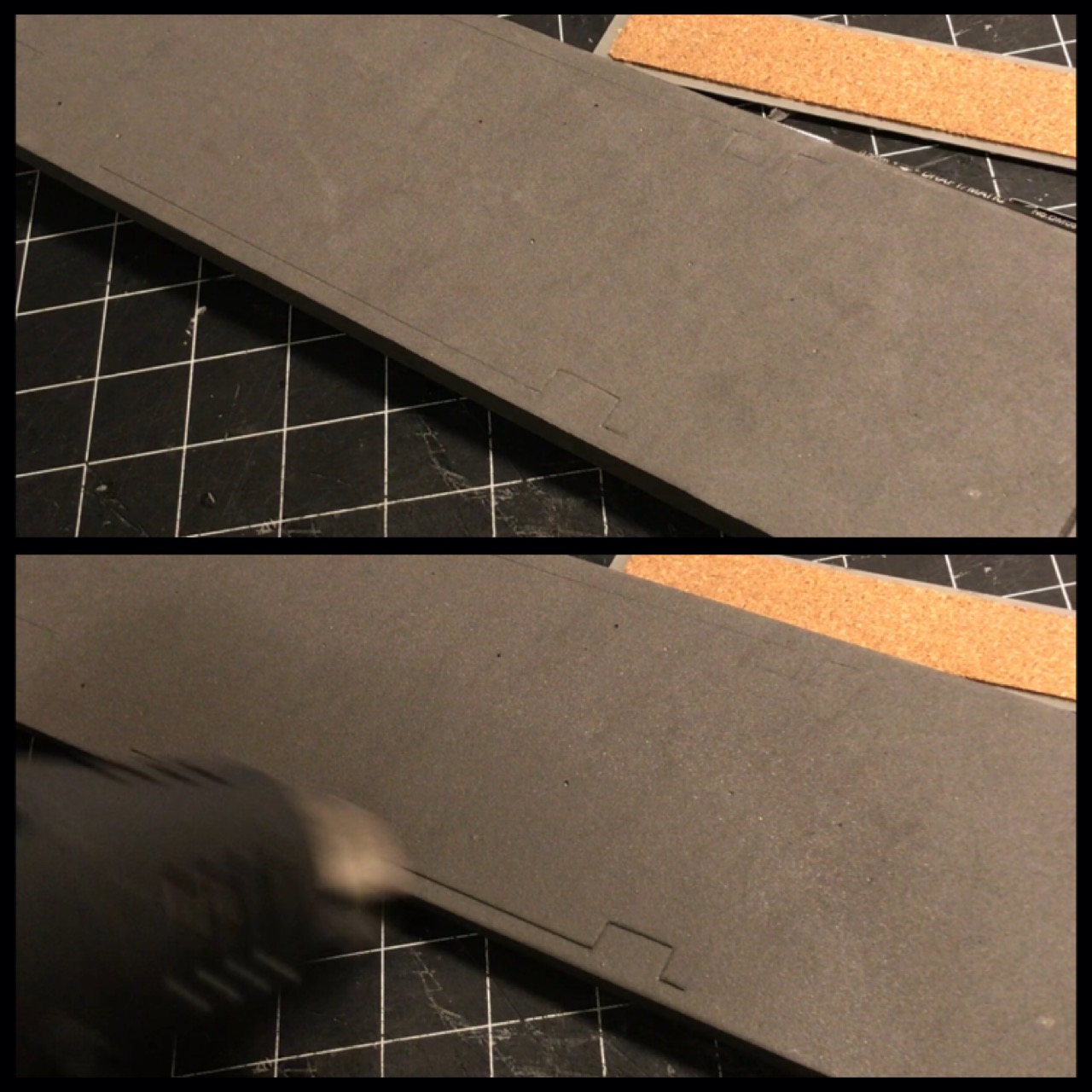

This Part was a bit tricky because I wanted the curve to look as smooth as possible. My solution was to make a long thin rectangular shape that would wrap around the pvc pipe in a “C” shape. By wrapping it around the pipe, it would give me a nice structure so the foam can follow the shape. Think of it similar to pipe insulation for plumbing. I cut in details to the shape, and used a heat gun to bend it to shape. This is a bit tricky so to help I cut out channels on the interior side to make bending much easier. I then glued it in place. It isn’t perfect but I like the curve and that was my goal!


Attachments

  • A1BCC049-2D33-42DA-AD71-2F38D2B70DE9.jpeg
    272.2 KB · Views: 37
  • BD7EDF70-EB7F-491C-BF8E-EB4736EDD73D.jpeg
    298.7 KB · Views: 32
  • 6596D629-C16A-4AC7-BE9A-78963B3EF976.jpeg
    350.6 KB · Views: 28
  • 2DB90A32-C929-4D3C-ACC6-3B8A091B4214.jpeg
    358.2 KB · Views: 31
  • 50C7CD35-6D67-41A9-A8FA-04D68BA73E5B.jpeg
    347.8 KB · Views: 32
  • 9DA46992-07EA-4C31-B3D8-BFC80B2E8F8D.jpeg
    203 KB · Views: 32

TheRealVictor

Jr Member
Barrels and Cone Carving?!

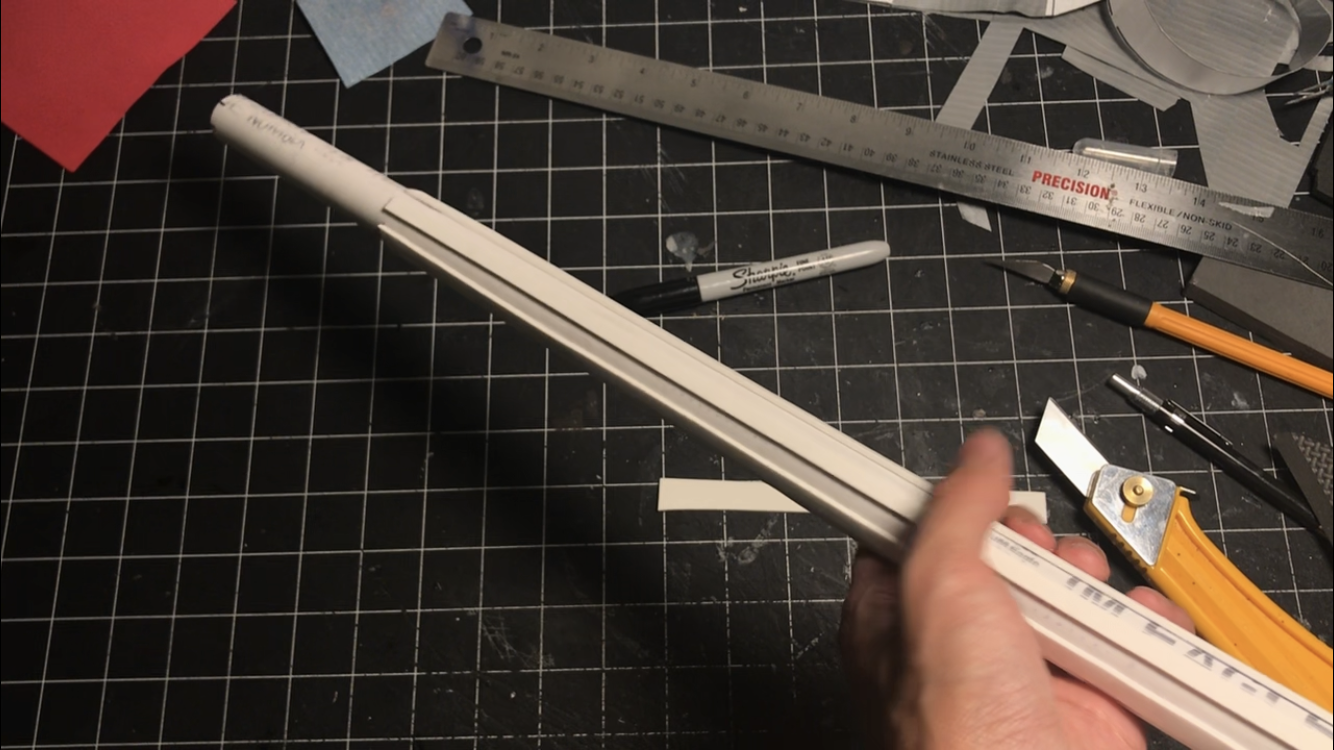

-The front barrel of the rifle Is a pvc pipe. I added thin strips of eva foam to try to emulate fluting

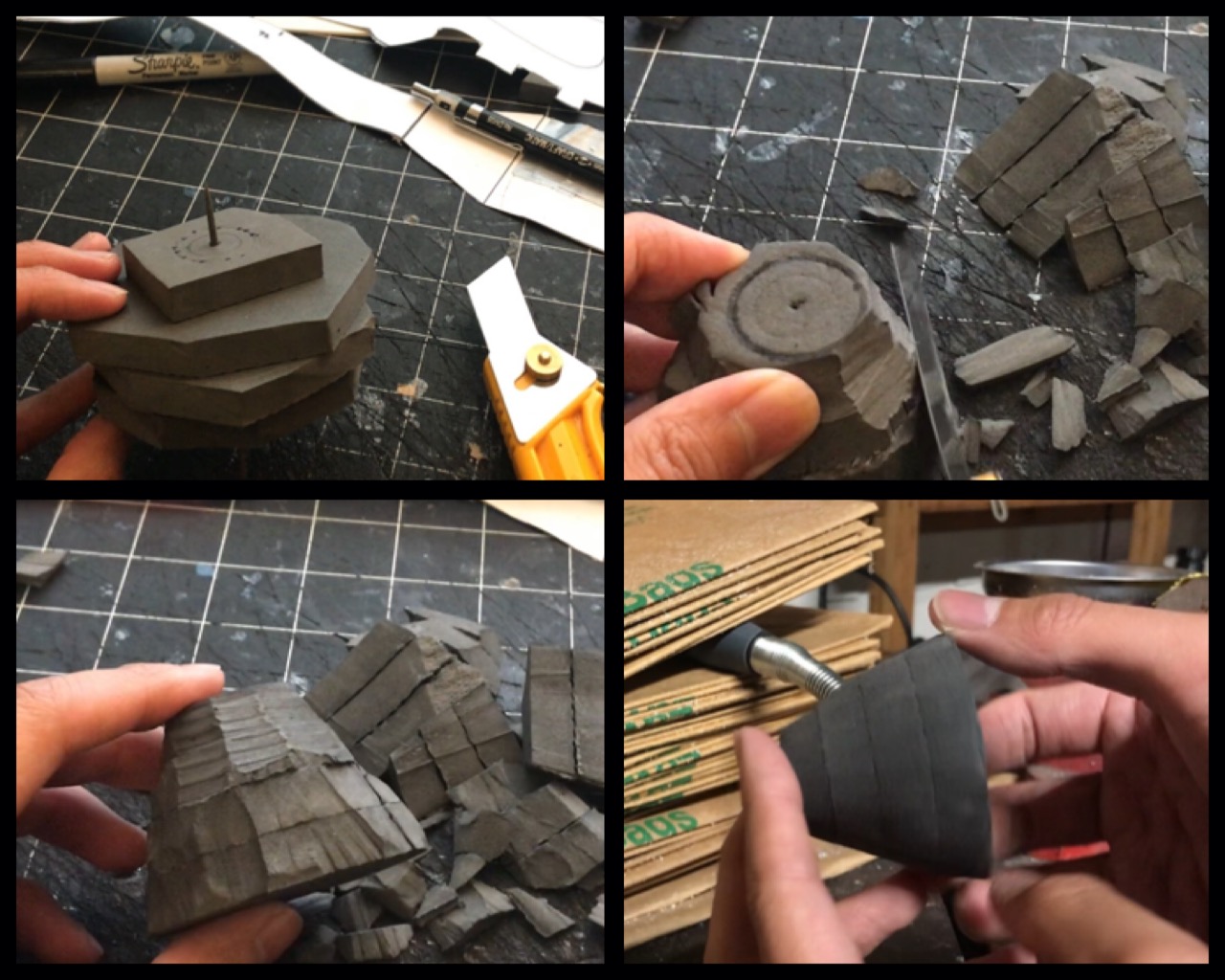

-The barrel also has a cylindrical cone shape. To make these, I make a block of eva foam and carve away at an angle to create a rough shape. I have (2) circles drawn on the top and bottom to denote the faces of the final shape. I then sand it with a rotary tool to smooth it out. It’s sort of like sculpting but with foam.

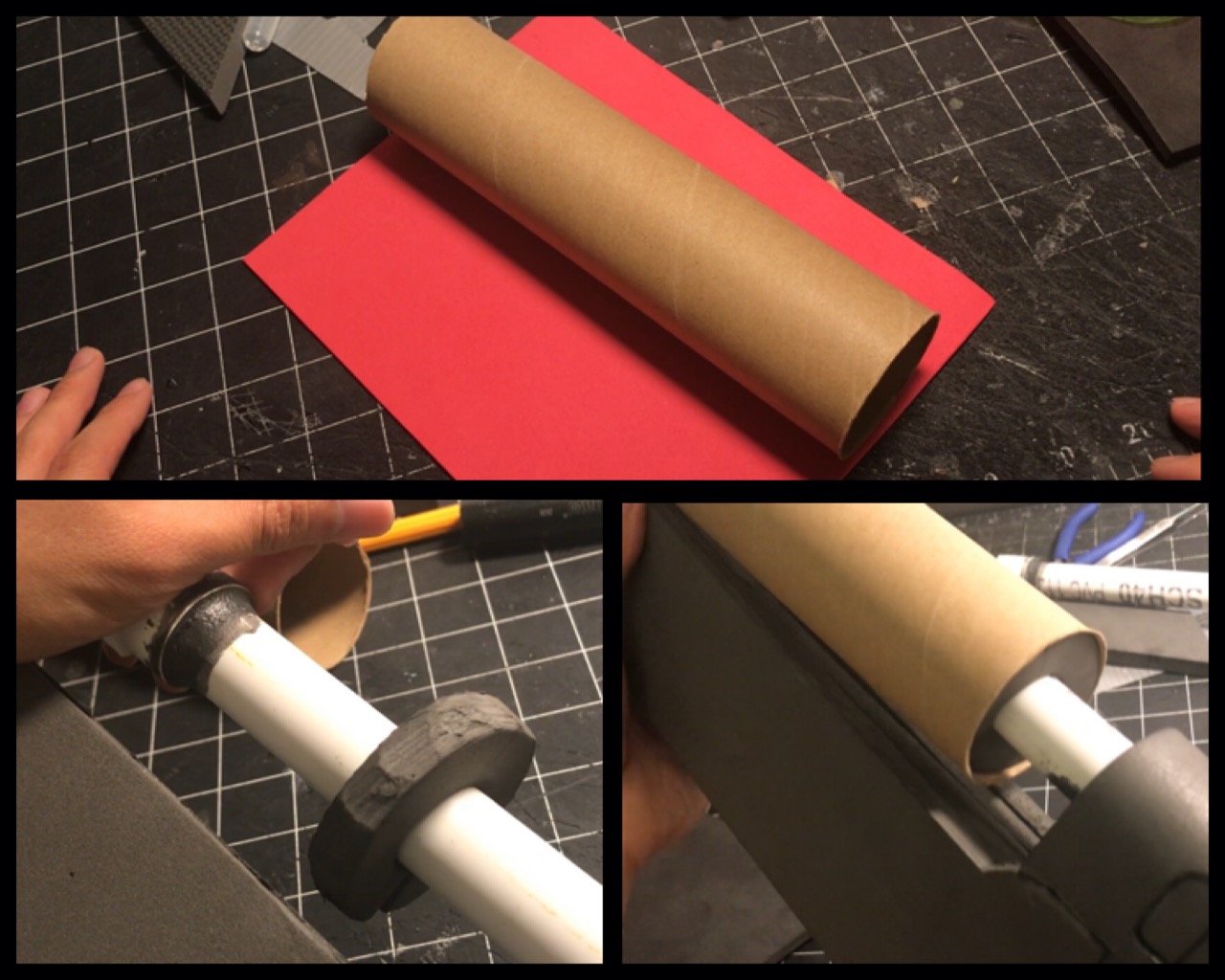

-I also used an old wrapping paper roll and wrapped it with craft foam for the tube shape. This was just a simple cardboard/paper material but they are way more sturdy than the typical toilet paper rolls.


Attachments

  • 9A65CF9F-9E29-4185-ABB0-2C4A5358D903.png
    3.9 MB · Views: 29
  • D57E4FF4-9703-4190-AD53-EAA31E51F6AD.png
    3.6 MB · Views: 28
  • 843CB636-CC14-43CD-887E-E40120ED7451.jpeg
    273.1 KB · Views: 27
  • B778EADB-ED12-47AE-B36A-CE37266DCC9F.jpeg
    226.2 KB · Views: 28
Last edited:

TheRealVictor

Jr Member
Hand guard, Barrels, & Barrel Brakes

-The hand guard was made of (3) layers of crafts foam. The inner layer had an opening where I placed a broken chopstick. This will help anchor it to the body of the gun. It’s not an integrated structure like the hand grip, but I'm ok with that.

-The lower barrel was a simple pipe inserted through a circular cutout. I will later wrap it with craft foam for details

- The barrel brake (I know the shape is a bit off) is essentially an octagonal block. I made (2) octagons for the front/back and connected the edges with strips of craft foam. I then recessed faces for details. I add the top “sight” later on too as well as other details


Attachments

  • 6E89BF5C-B30D-4B38-AF47-93F5C5FCF9AE.jpeg
    354.4 KB · Views: 38
  • 7E388F94-FF11-41B8-ABA7-729C2C9F1150.jpeg
    256.4 KB · Views: 36
  • ECD7C543-E0CE-435C-89E8-5D1C7D9D4812.jpeg
    323.9 KB · Views: 27
  • B0ADE12F-A313-4894-80B5-75466321592F.jpeg
    355.2 KB · Views: 38

TheRealVictor

Jr Member

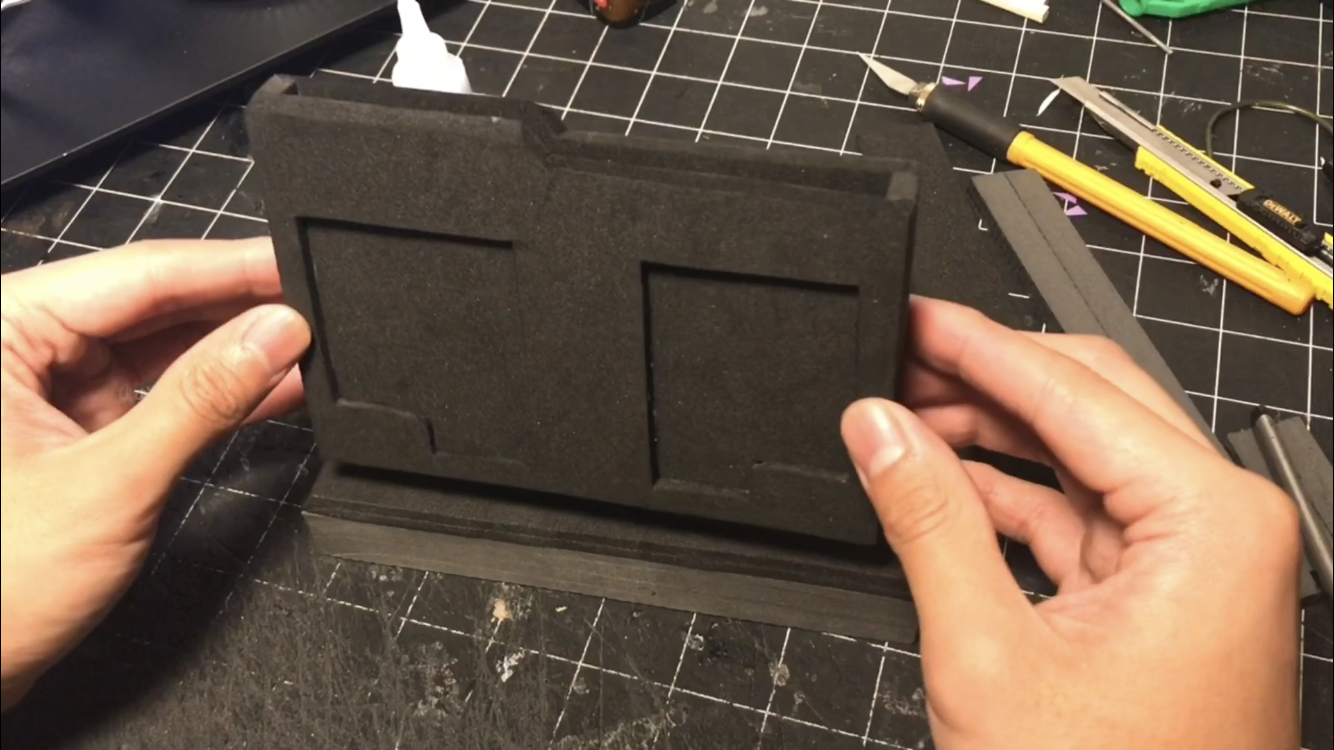

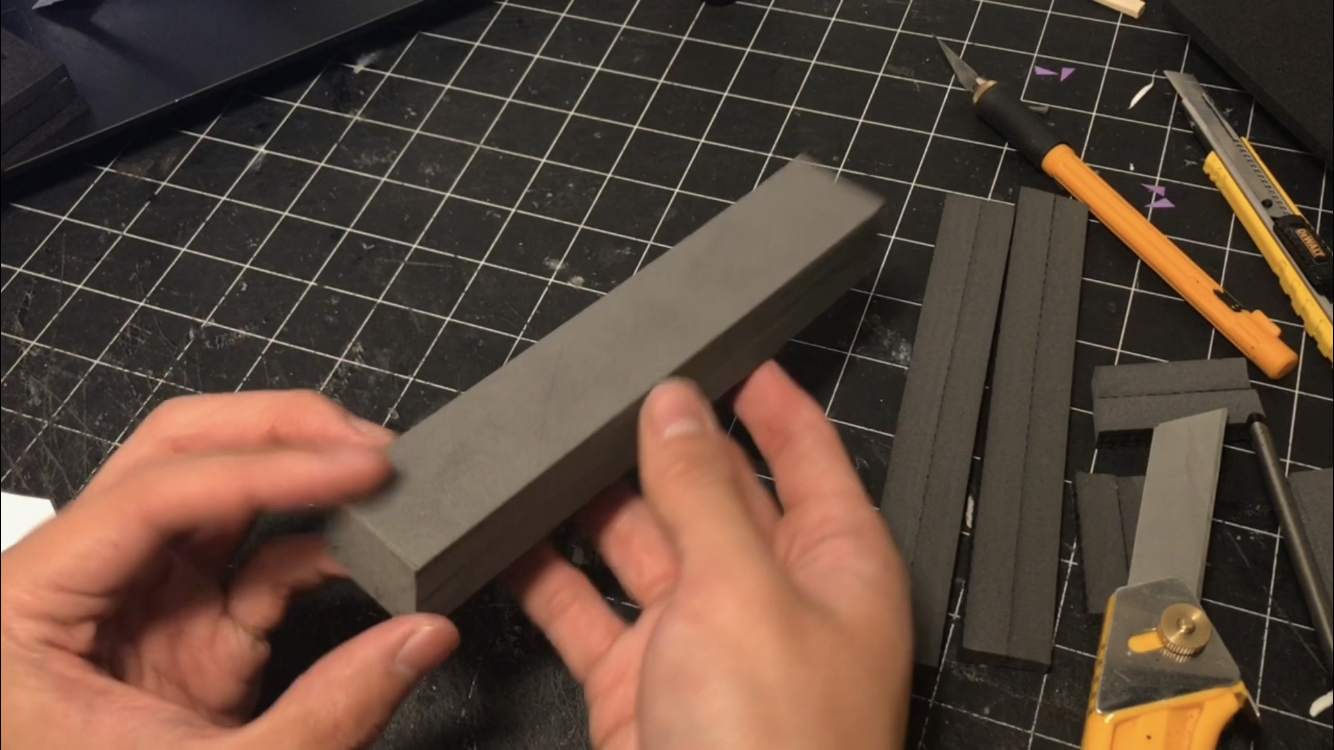

The Magazine

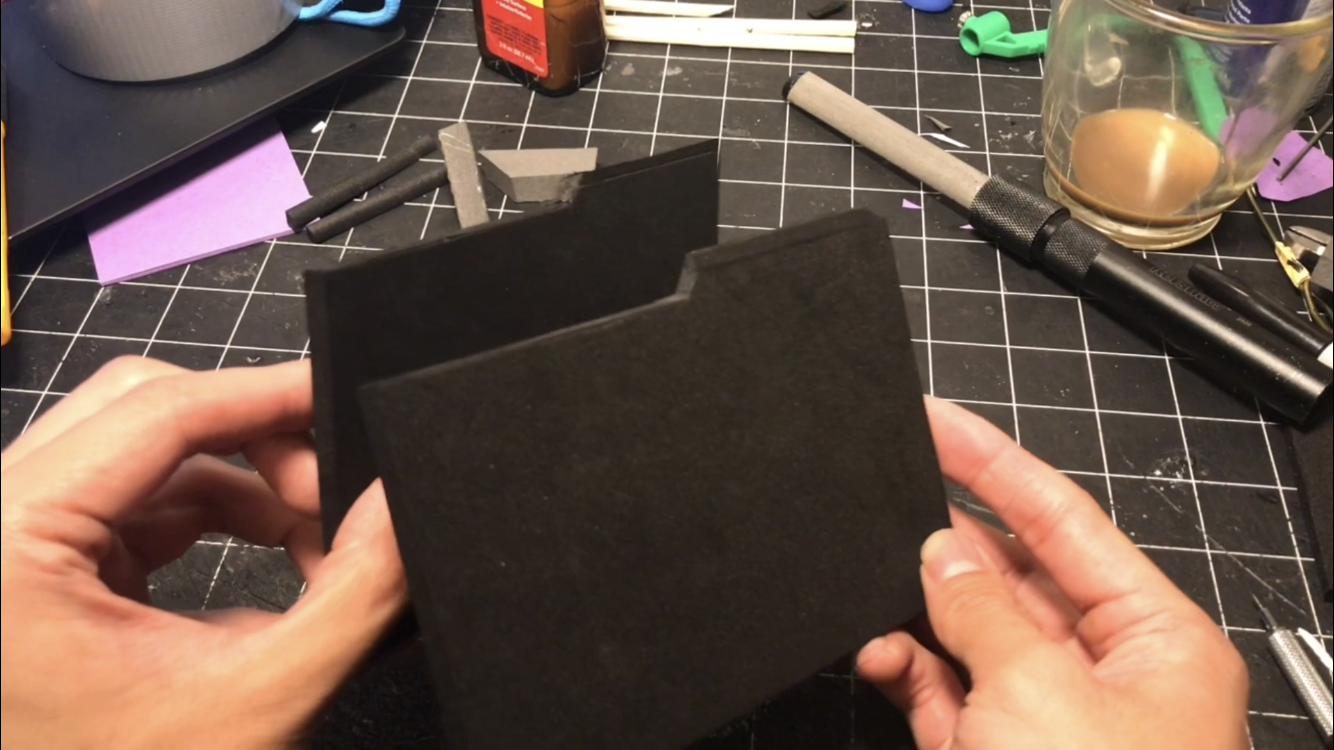

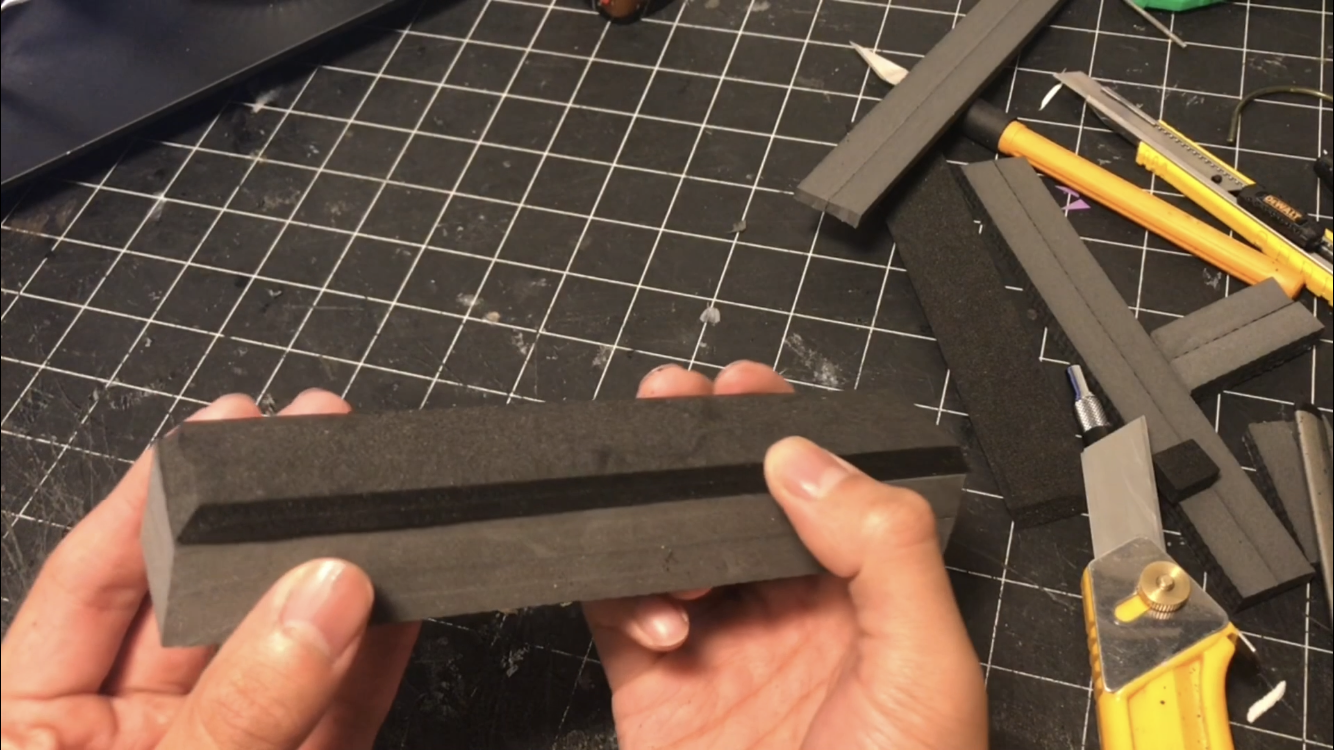

-The Magazine is just a box. I tried my best to make craft foam shapes that would recreate it.
-Construction wise, it looked like the magazine had 2 main parts, the upper and lower parts.
-I recessed some of the faces by cutting out the shapes and pushing them passed flush
-I add more details with my dremel later on


Attachments

  • 75AFD32A-0713-4471-91A9-69D9444D39CC.png
    3.7 MB · Views: 22
  • EA6EF95D-0F74-46AE-ADF9-E48171B66A37.png
    4 MB · Views: 21
  • F6982B53-6FF1-4403-B29C-4AAEE15FFB11.png
    3.7 MB · Views: 15
  • 8C3A962F-39E5-4CC0-B328-37BD22F66628.png
    3.6 MB · Views: 20
  • 5F4CC393-30E1-44C2-9104-98E905C3EF98.png
    3.8 MB · Views: 21

TheRealVictor

Jr Member
The Carrying Handle- Super DIY!

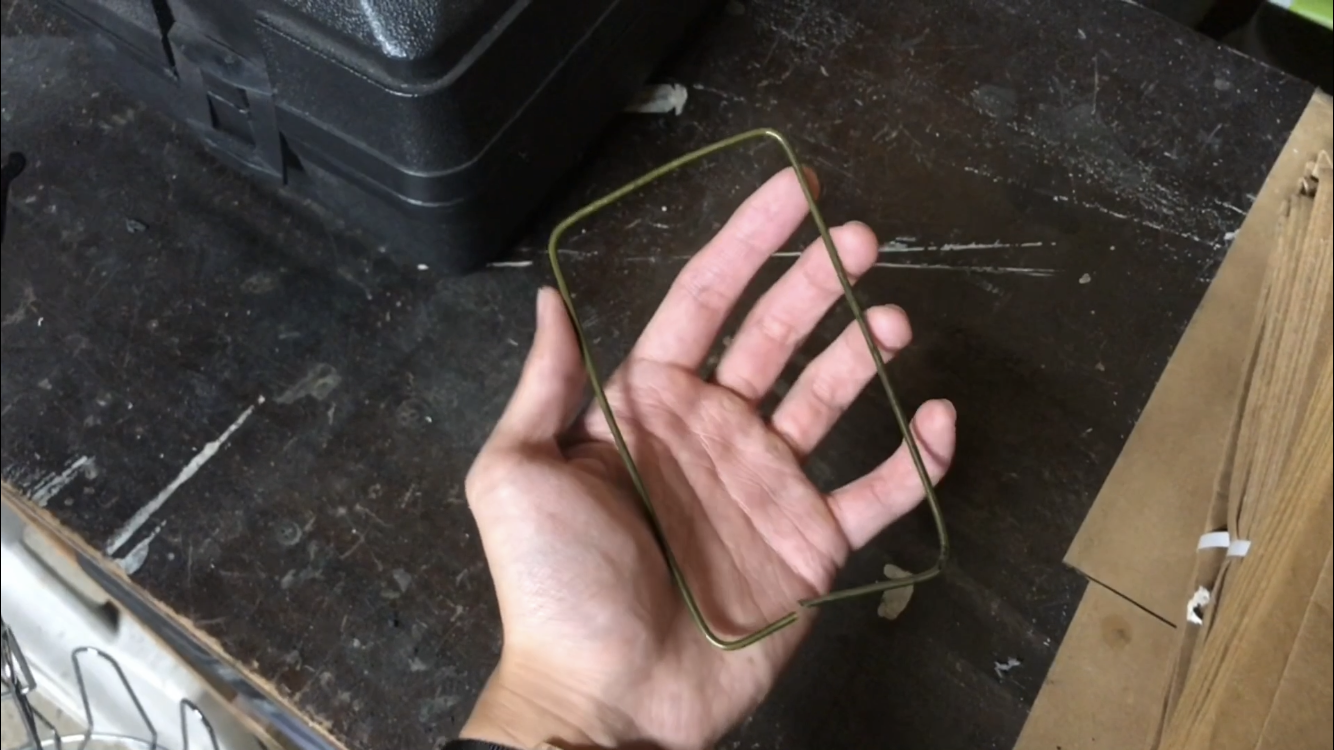

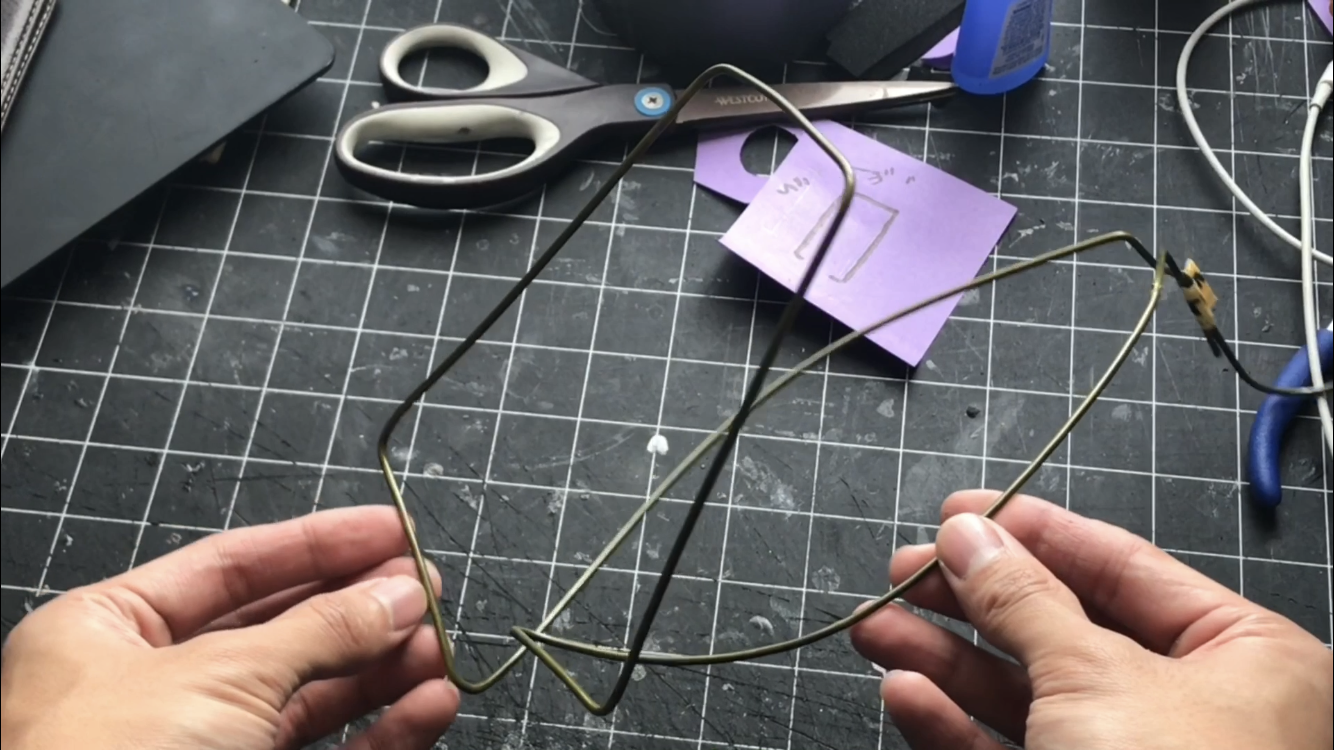

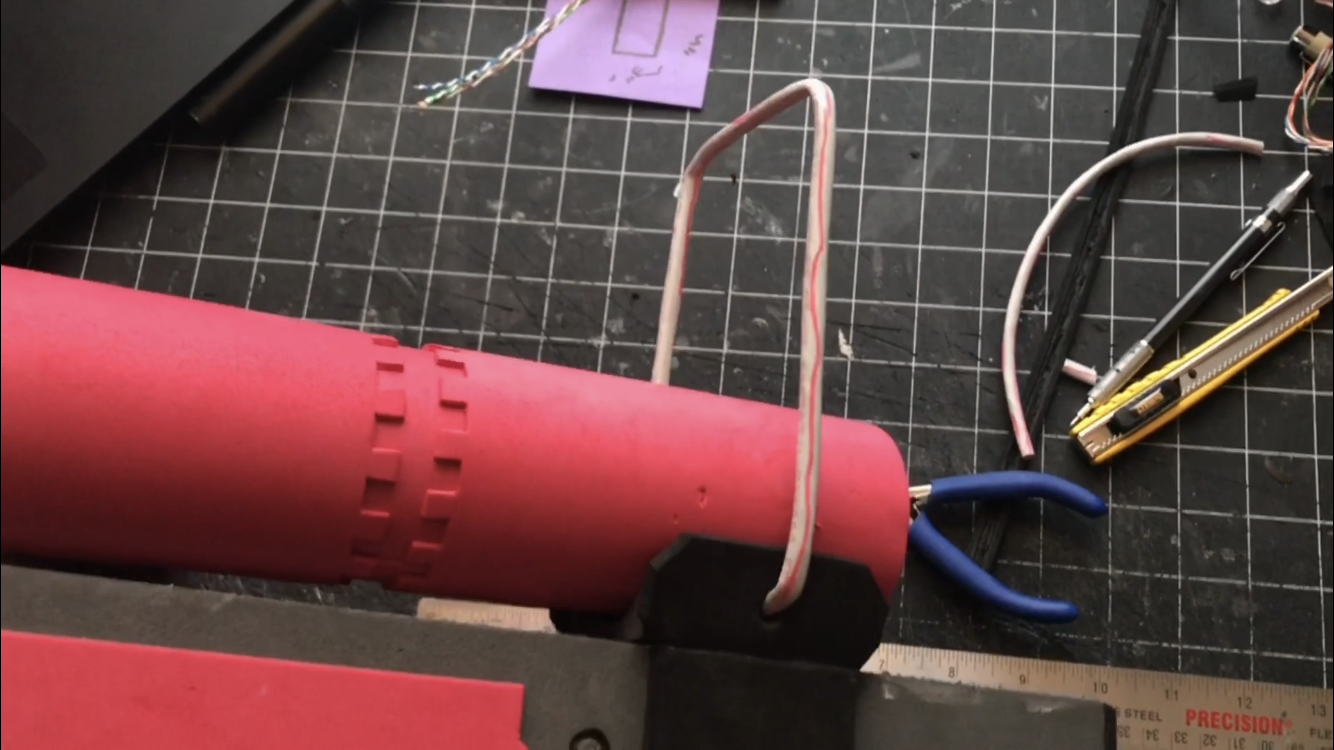

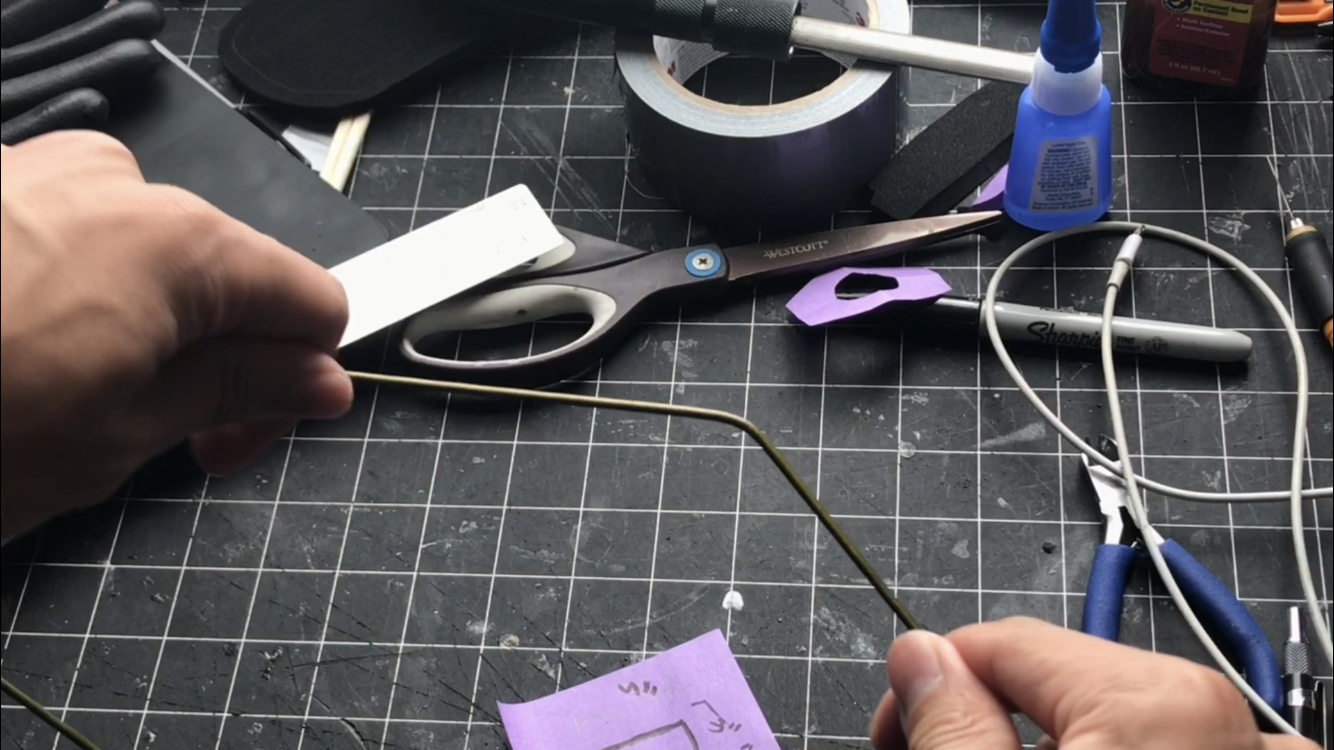

*The carrying handle is just a bent pipe. If possible, I advise you find a 1/4” or 3/16” aluminum rod and bending that. But, here is what I did:

-Find a metal coat hanger
-Bend and cut to a “U” shape

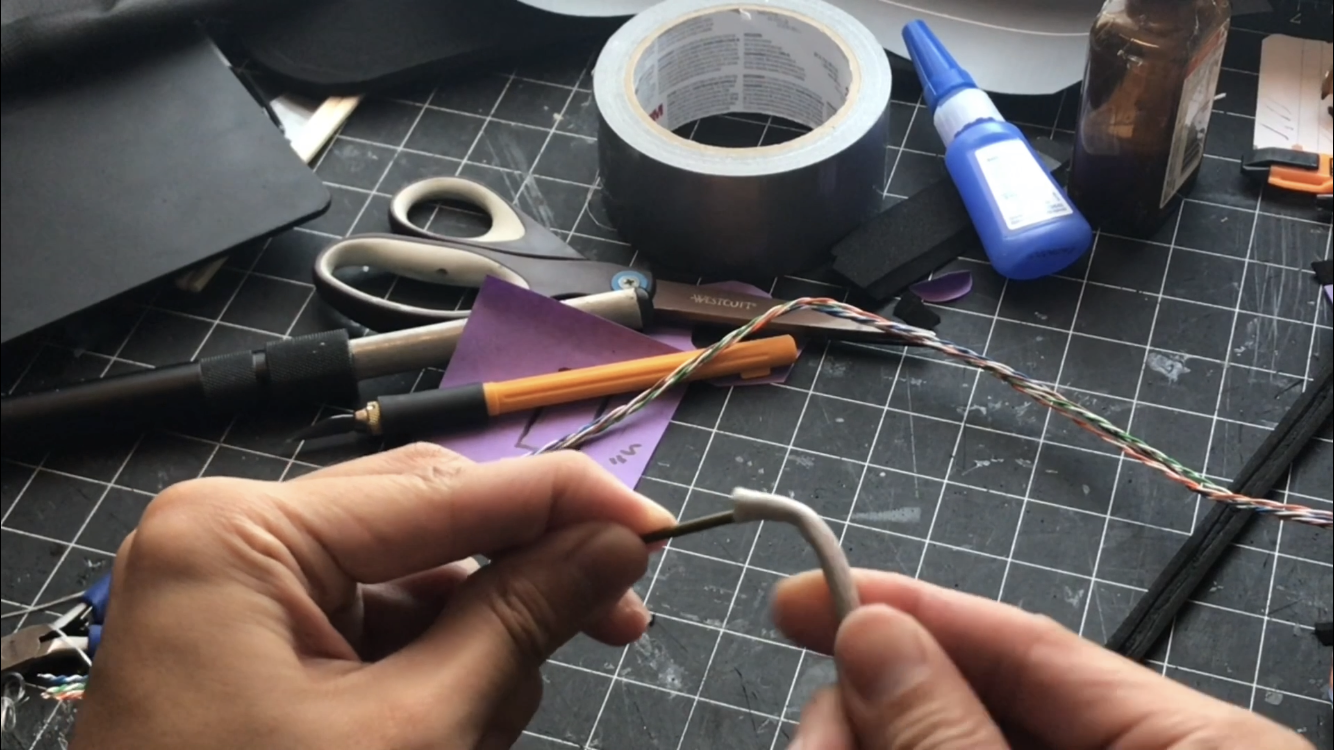

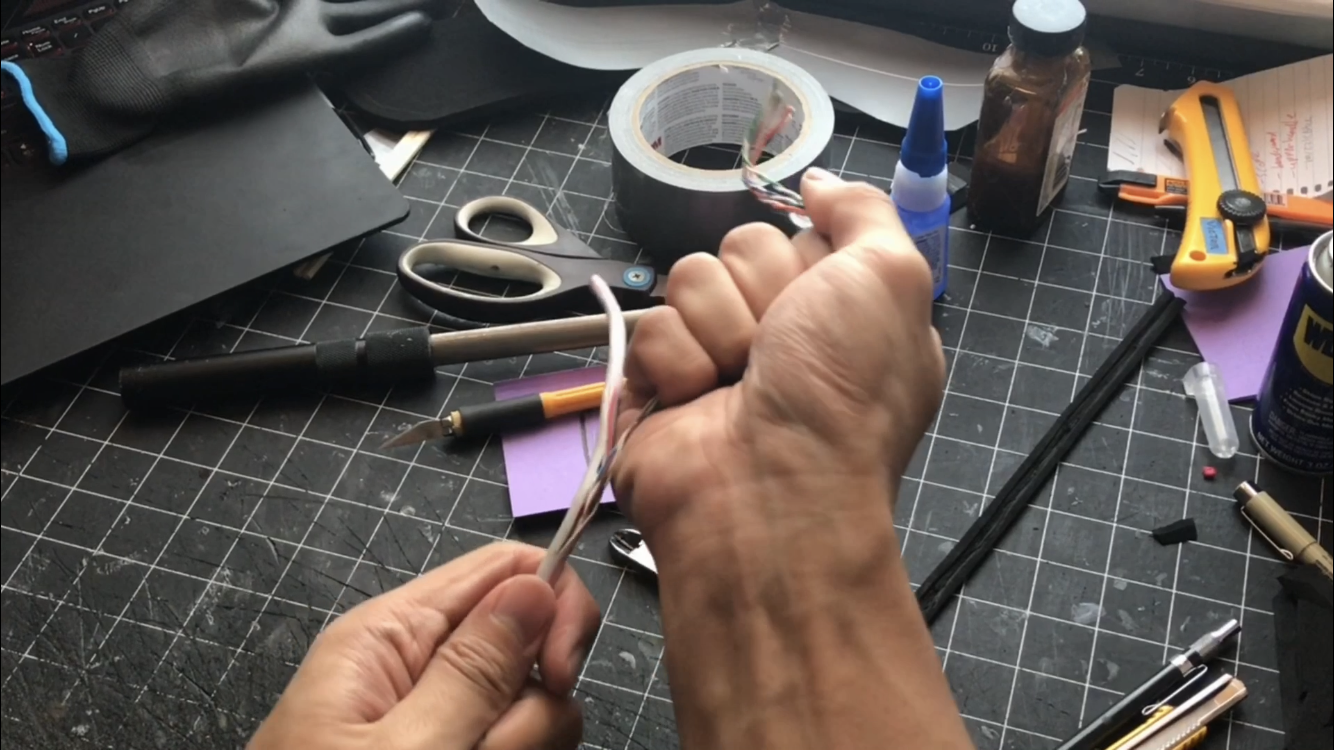

-The coat hanger is too thin so I beefed it up by repurposing an Ethernet cable wire. I removed the internal wires and used that housing


Attachments

  • 812FBAB6-85F2-4C24-BAE7-66BC43319F07.png
    3.6 MB · Views: 21
  • 7599A13D-68CC-4C24-8889-B15C21A8A361.png
    3.7 MB · Views: 18
  • 672A493D-B2C9-4E3D-8E09-674F4AAF5B4F.png
    3.8 MB · Views: 20
  • 1E79DB0F-6097-4777-996F-CA702D1EE2AC.png
    4 MB · Views: 14
  • 901E6037-55C0-49A6-B86B-0AAAF0C1CD5A.png
    3.9 MB · Views: 17
  • CD34C217-4873-49F5-8562-CE7B8CEB8E14.png
    4 MB · Views: 18
  • 83B897AA-3CA6-4A0E-81F1-77F158DFBB52.png
    3.3 MB · Views: 20

TheRealVictor

Jr Member
Ye ‘Ol Bipod

*This was surprisingly more complex than I thought! As always, I just look at my reference photos and try to make the corresponding pieces

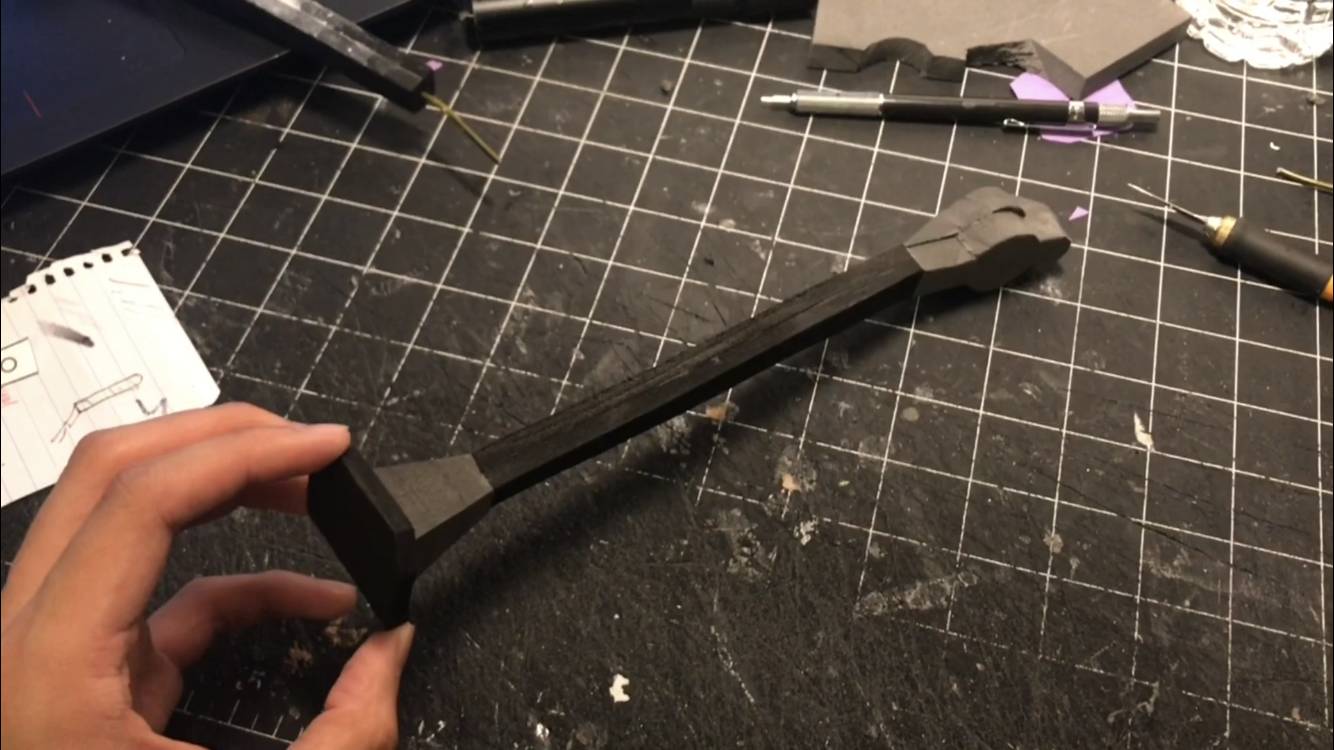

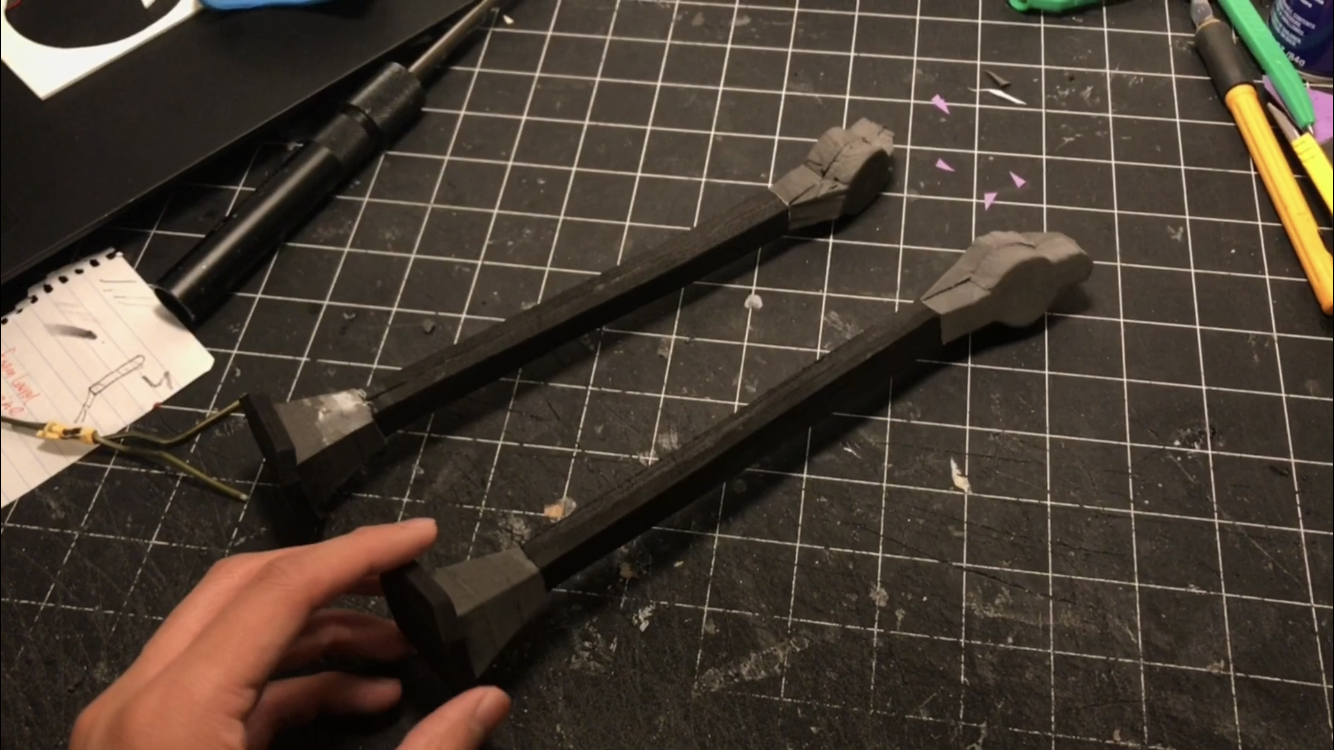

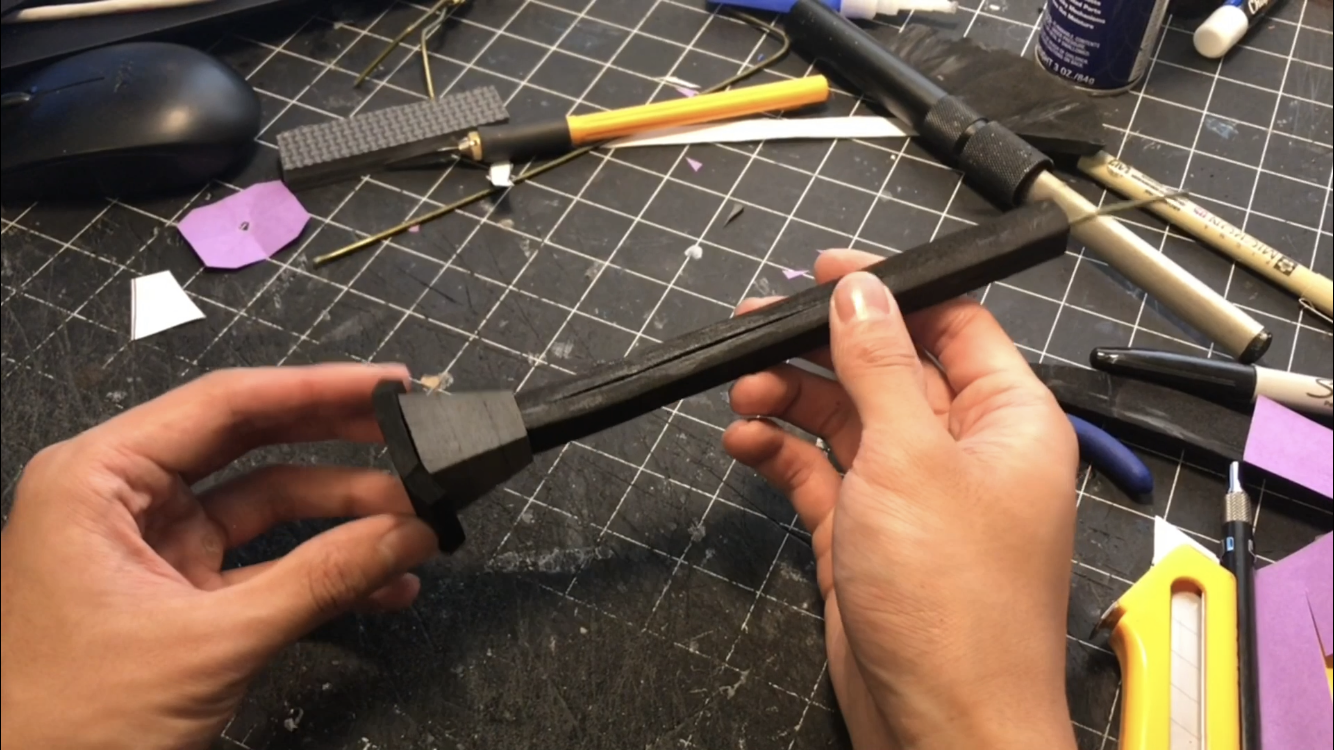

I can break down the bipod into (3) main sections: the foot, the stem, the head.

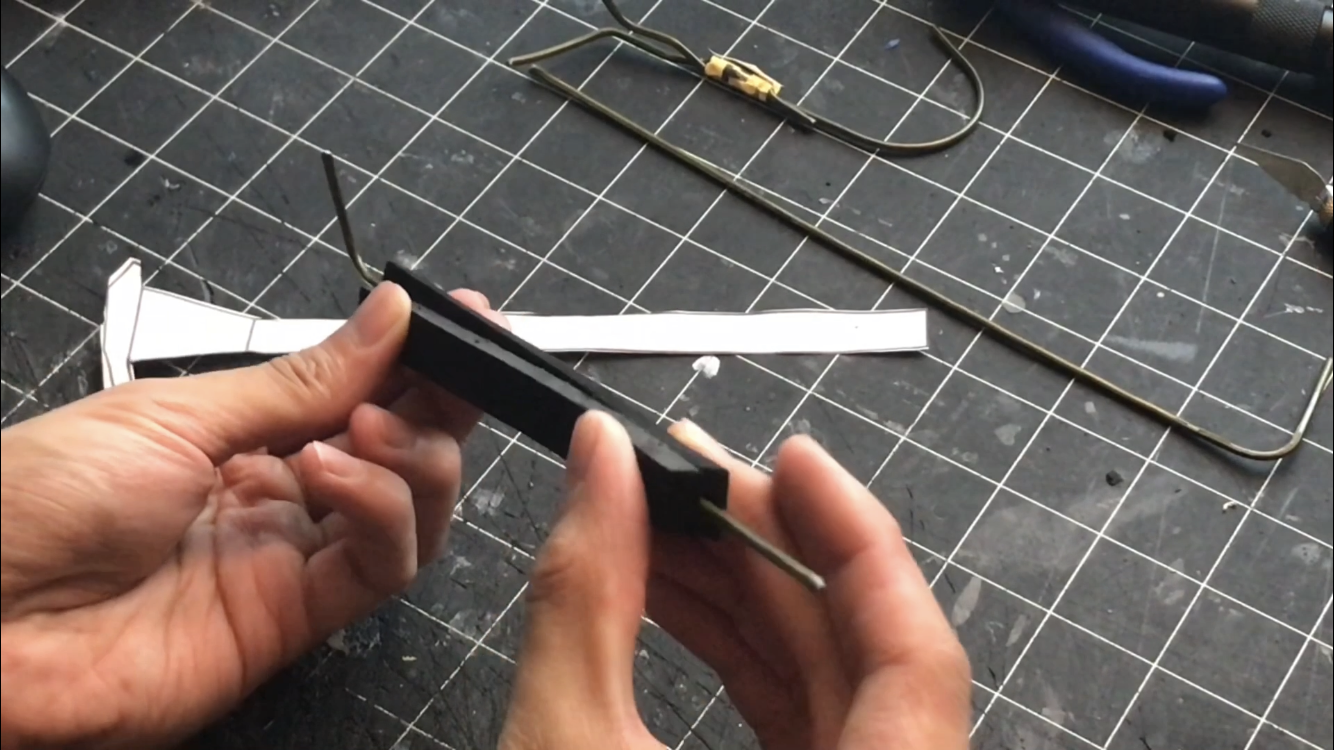

-the stem is the coat hanger wire sandwiched between 2 layers of craft foam. This part will be glued at a slight angle to the “head” to give that anglebipod mount look

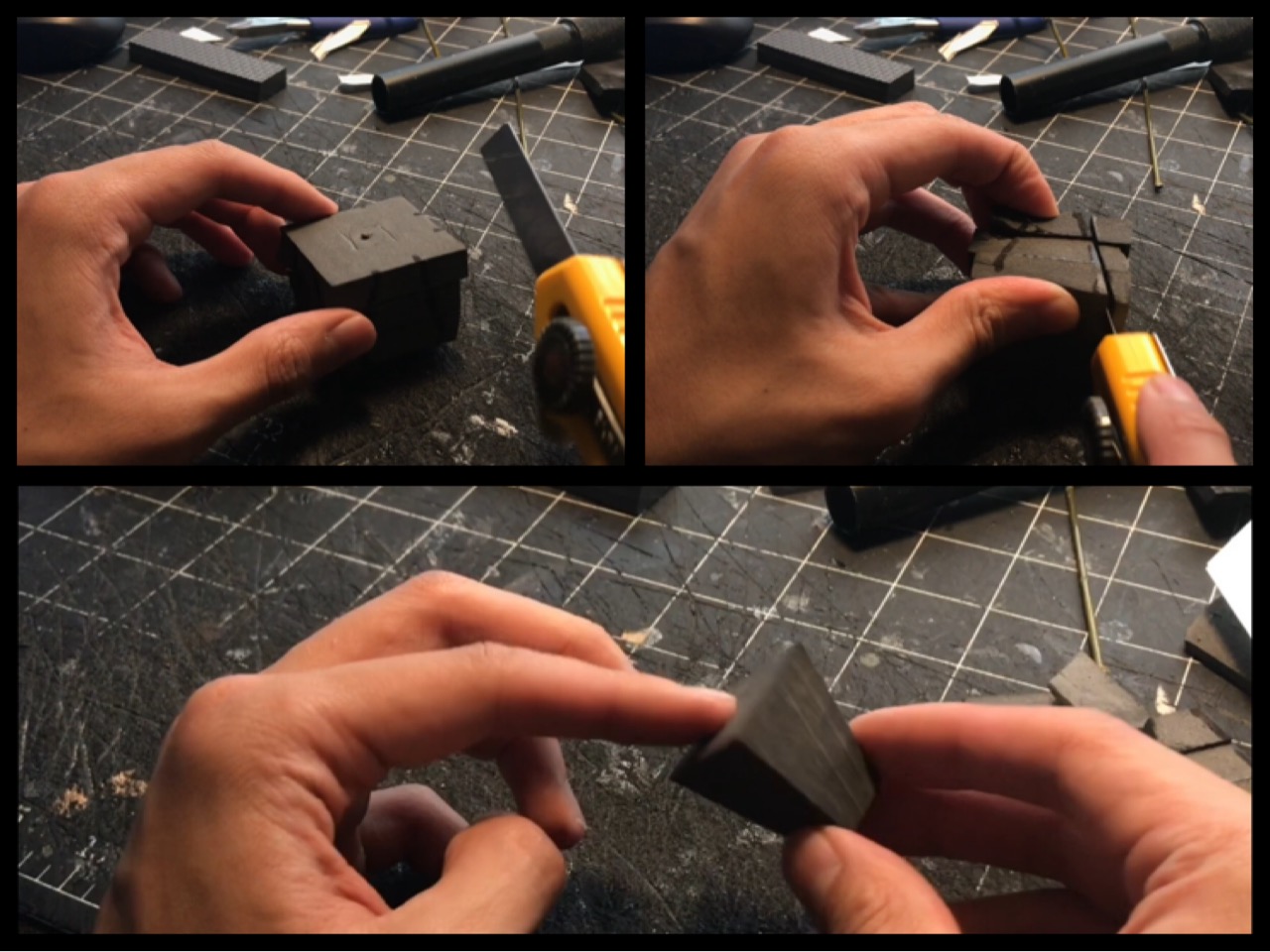

-the foot is a flat top pyramid. Again, I layer eva foams and carve away at the sides to make the shape. I glue another layer to the bottom of the foot too complete it.

-The head is hard to describe. It looks like a wing-nut in profile. It’s a circle with angled sides. I stack 2 foam layers and carve away.
*i will add smaller details in the end

(repeat this twice to make a pair!)


Attachments

  • 941EBA4E-6CDE-40C4-A3AC-B5F0182765BE.png
    4 MB · Views: 17
  • 20D9B9CE-2121-4042-ADB8-4FEBD187A6AC.png
    4.2 MB · Views: 19
  • 3A6EF4B9-4E5B-45C4-AAD3-AC6E21E301B1.png
    3.7 MB · Views: 22
  • 8C1D2D84-1675-431F-A7BC-A29A392F0CAA.png
    3.9 MB · Views: 18
  • 64DA47AC-FC63-443E-9044-0F40423D4A78.jpeg
    242.5 KB · Views: 17
  • 2F5AC711-B743-4682-A06F-7AF922BC0D53.jpeg
    172.1 KB · Views: 20

TheRealVictor

Jr Member

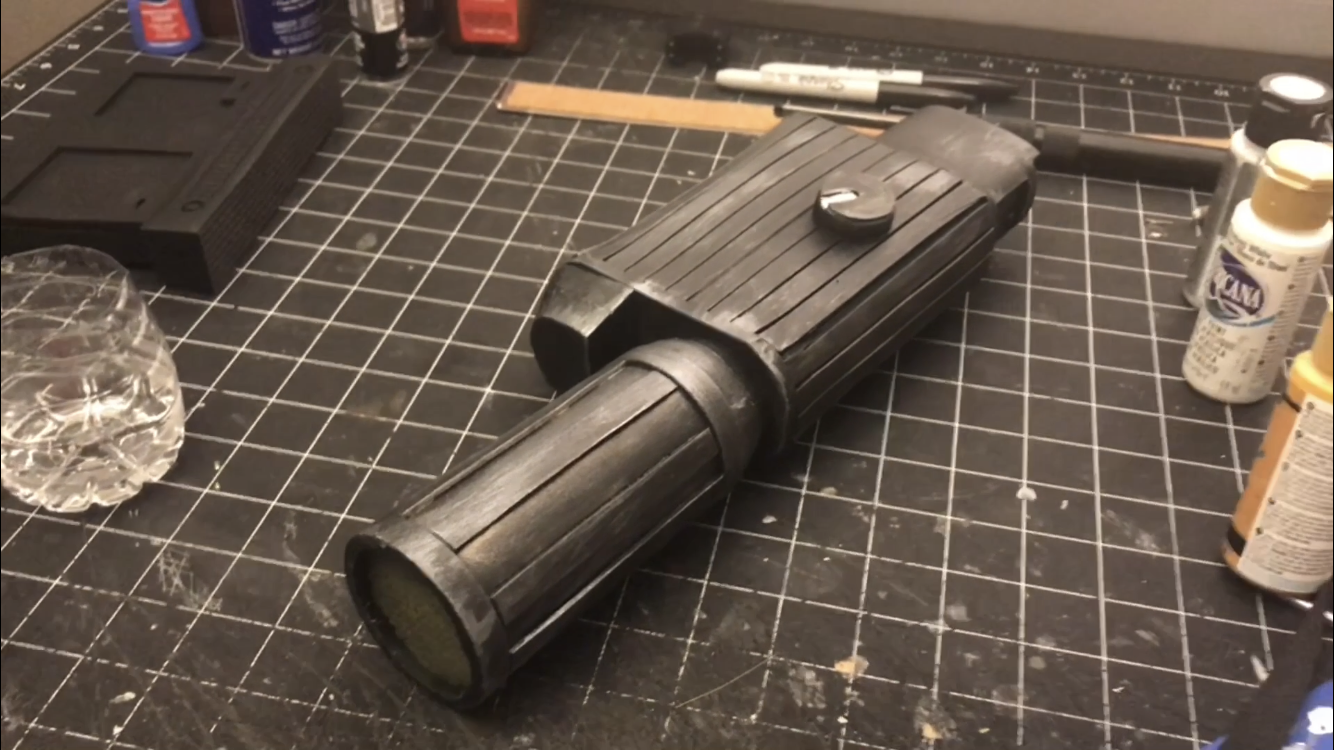

The Scope

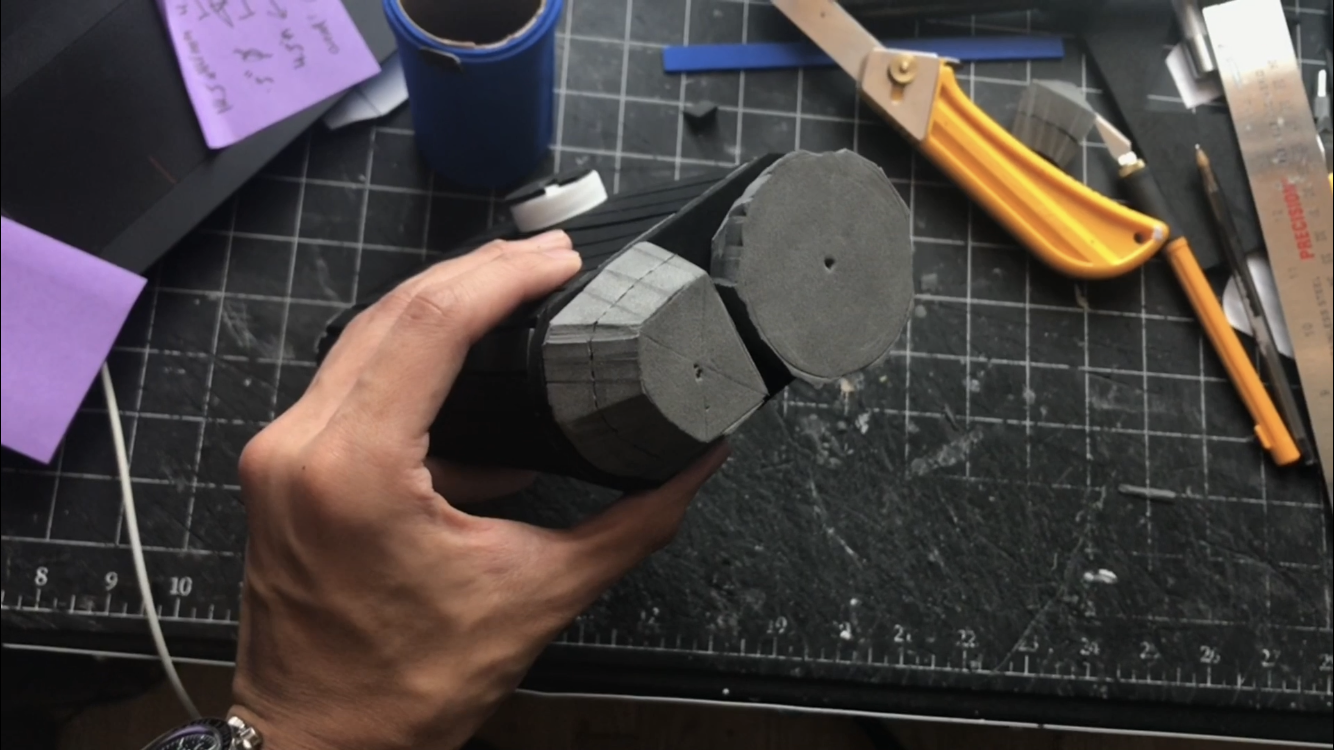

*I break down the build into 3 main segments: the front, middle, and back.

-the front is the cardboard tube, wrapped with craft foam + thin strips

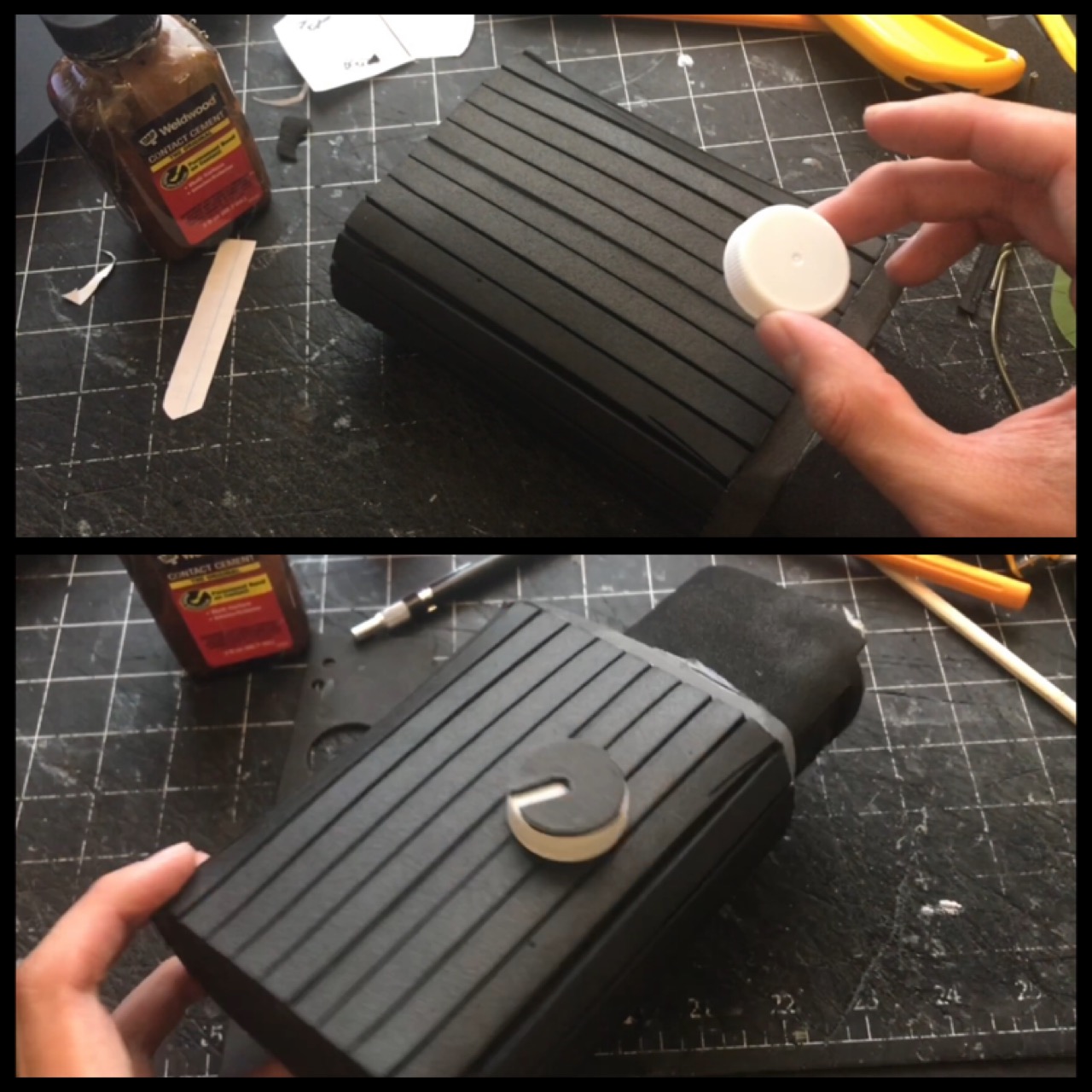

-the middle is a rounded box. This was made by wrapping 2 ellipse shapes With a large rectangle

- the back is sort of a combination of the front and middle. It’s an extruded/rounded ellipse

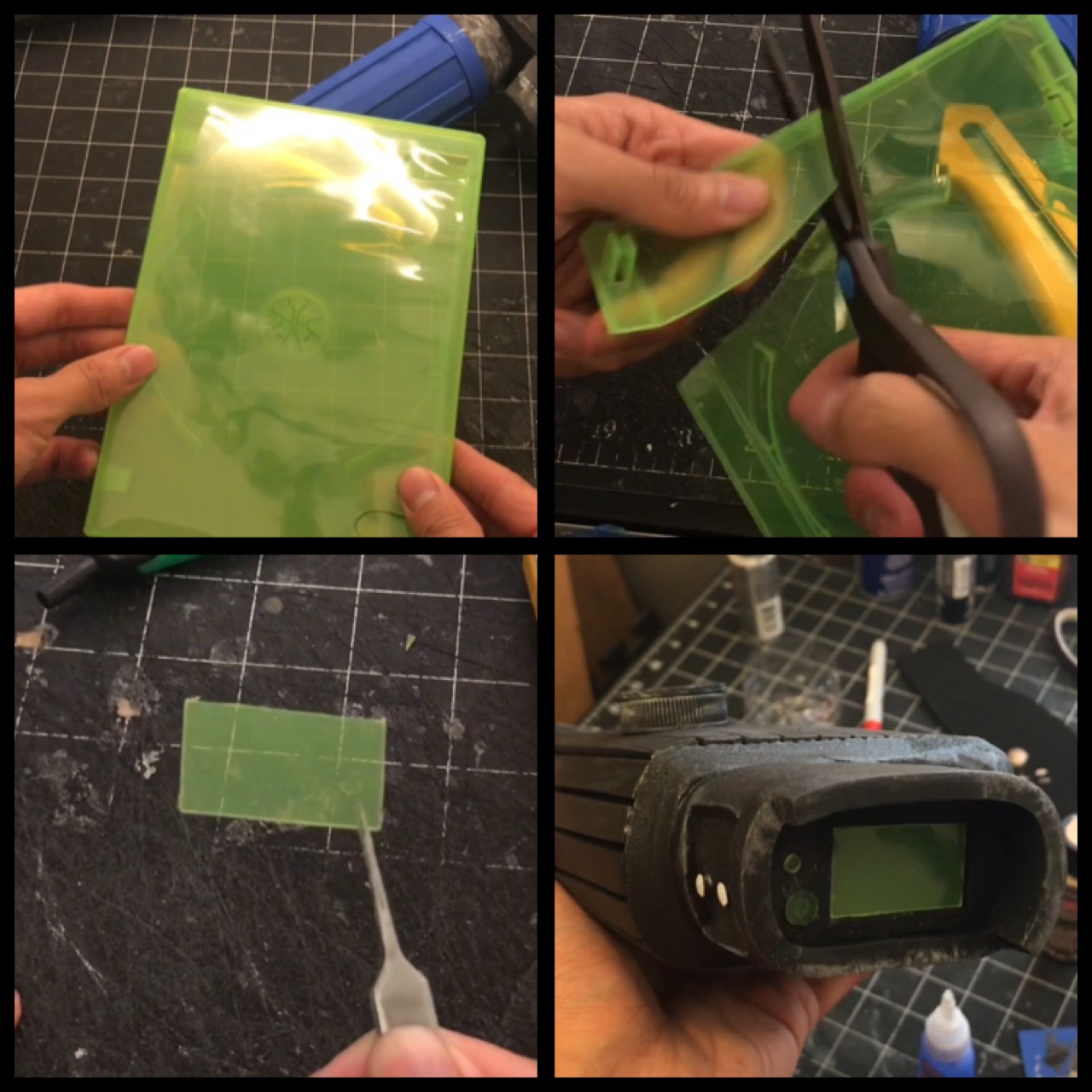

-I scavenged my own Xbox game case for the green display

-one bottle cap was recycled for the top knob

-I sculpted other portions with the stack/layer techniques from before as well

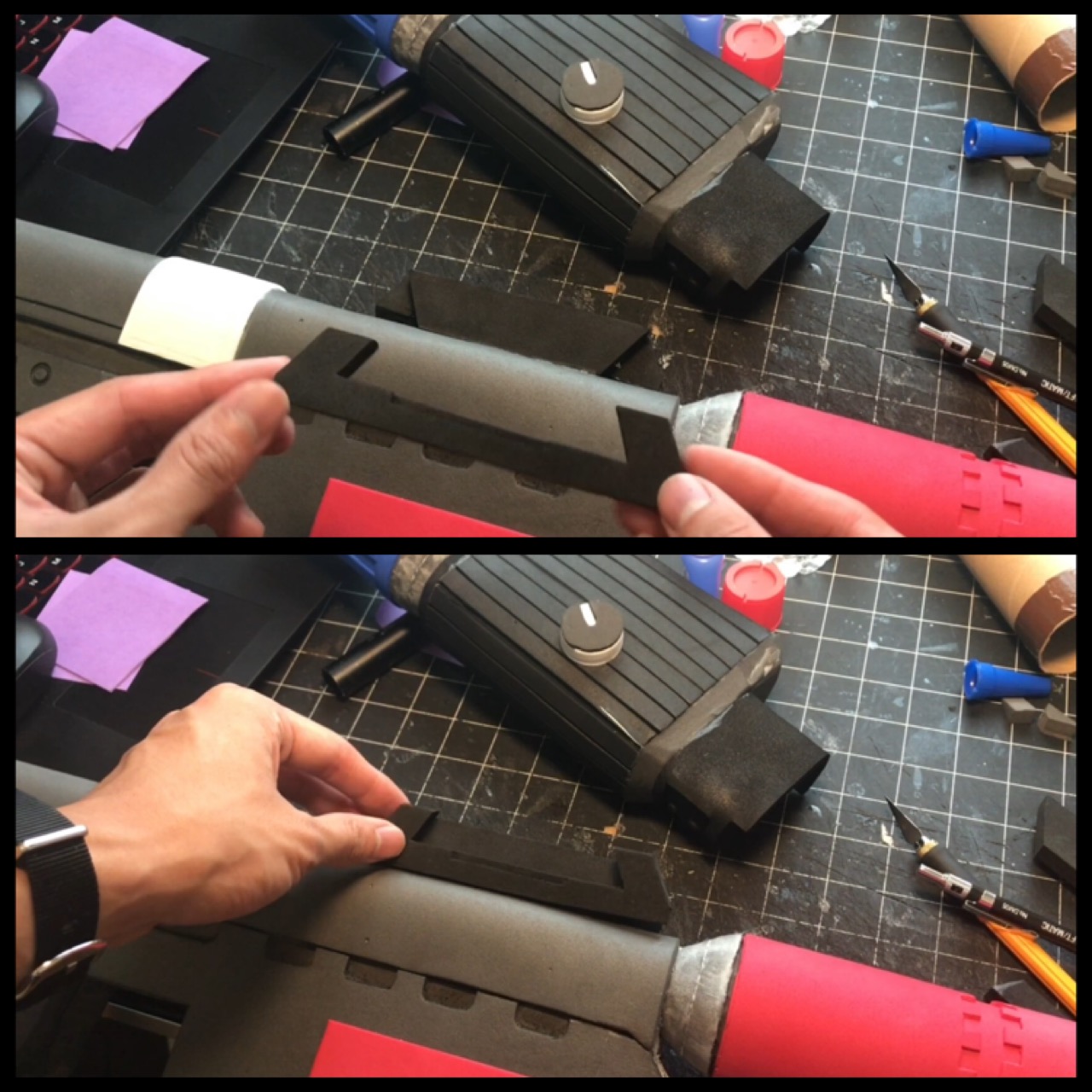

*I also make the mount that attaches the scope to the rifle body


Attachments

  • E7388CE5-0C0E-43C8-846A-EEE146C927CF.png
    3.4 MB · Views: 19
  • A4CDA916-9917-4D9A-BF05-BC00BF80B5C4.png
    4.1 MB · Views: 19
  • 66E10769-4041-490B-B63D-28DCB4D5B631.jpeg
    268.1 KB · Views: 17
  • 4CD66838-C814-45C7-943B-522225D220F9.jpeg
    317.8 KB · Views: 14
  • F6A46F67-4540-4F44-B6A3-8E97A9EFDA17.jpeg
    337.5 KB · Views: 19
  • 4D89EC71-E07F-430F-A021-D2D751615550.jpeg
    284.8 KB · Views: 16
  • 2B6B3166-7984-4D5A-894F-C6FD1292C0D8.jpeg
    291.5 KB · Views: 15
  • 6D895C87-2811-4F4F-A383-DE1DCADB15EF.jpeg
    292.2 KB · Views: 17

TheRealVictor

Jr Member

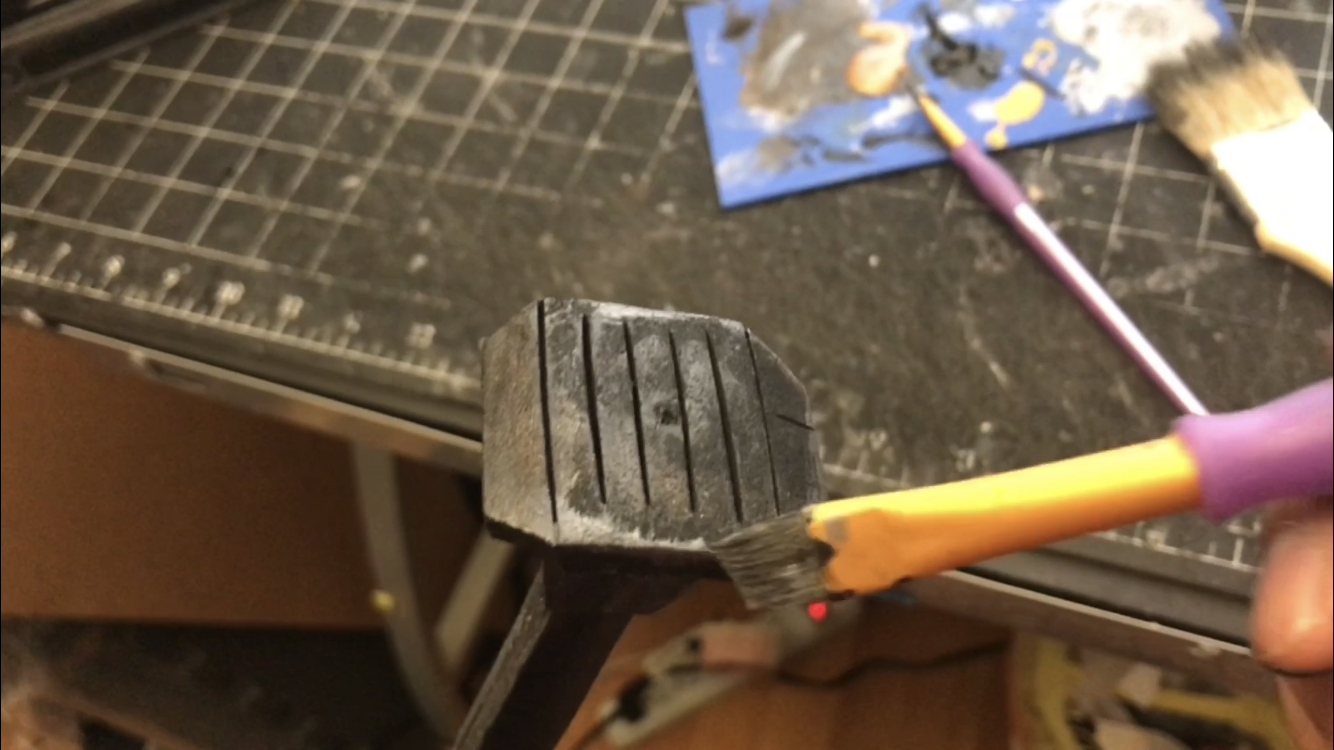

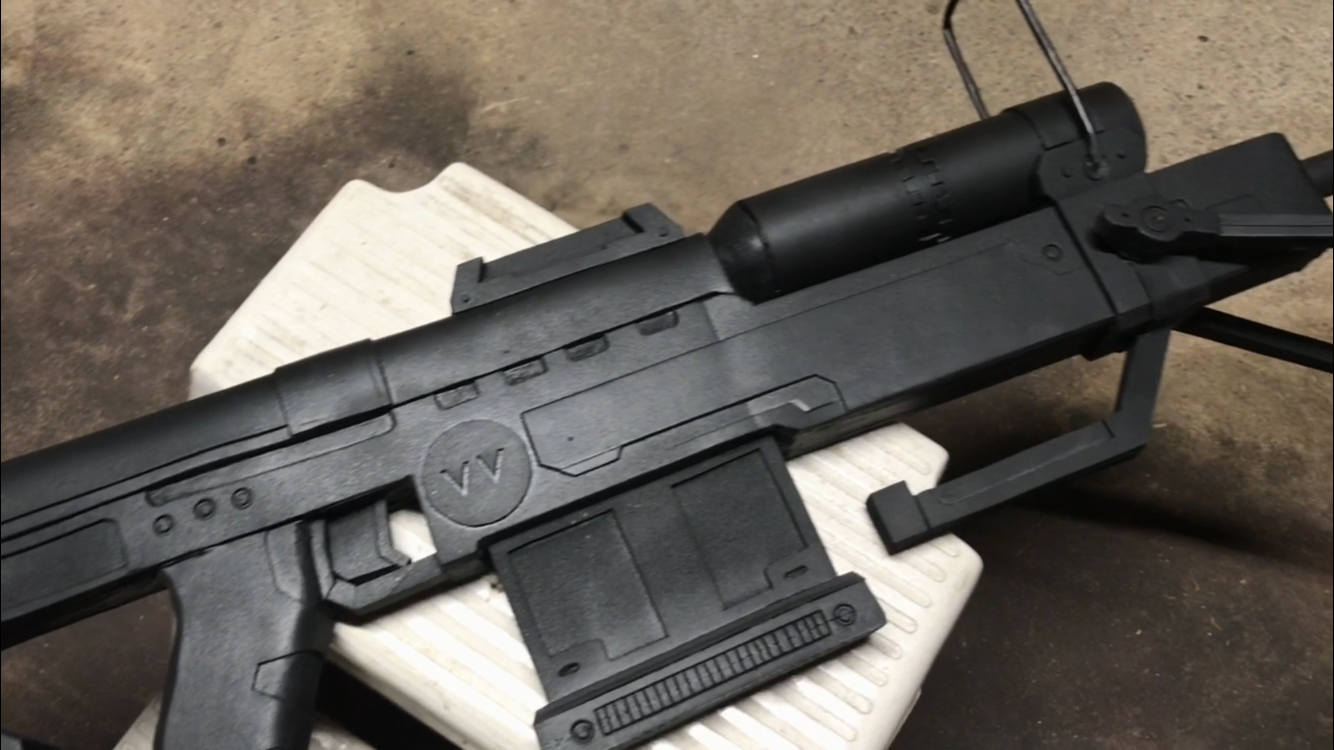

Painting & Priming- Crash Course

-Heat seal all eva foam props with a heat gun prior to sealing

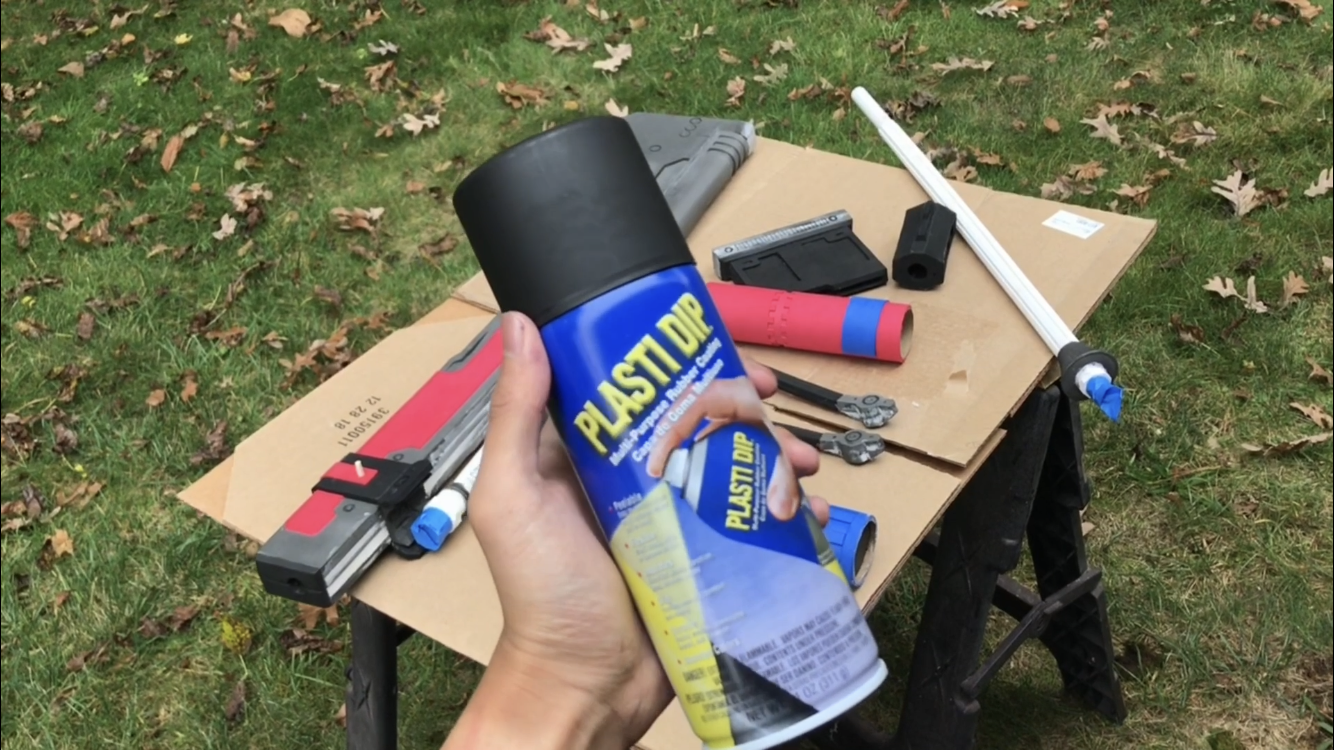

-Seal the foam. I like to use black Plastidip spray. White glue such as Elmers glue could also work but I like the rubber flexibility of Plastidip (This acts as my primer). Use 2-3 layers for full coverage

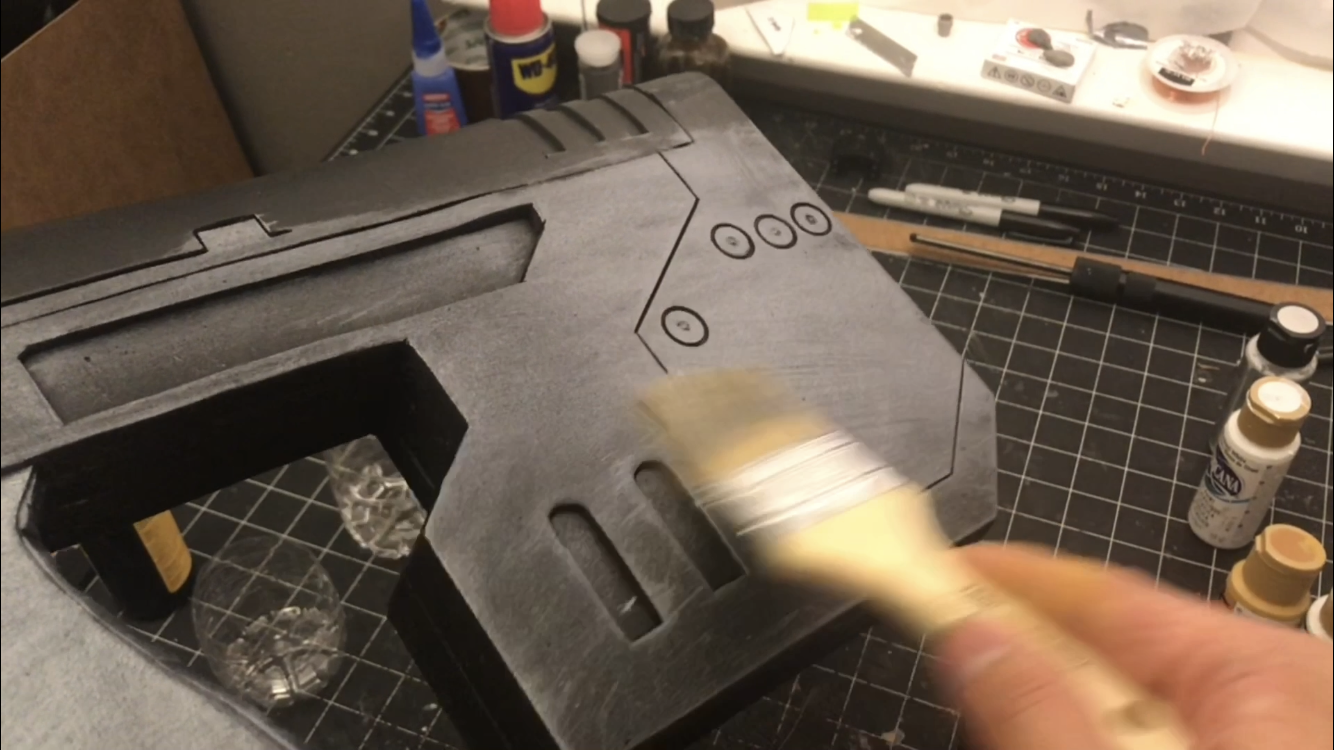

- Use acrylic paint and brushes to create your own paint job. I’m keeping it to a battle damaged UNSC and use black and silver paints

Thats it!


Attachments

  • 70E032DD-DF9C-4ABB-9156-2BBEEF5763DF.png
    3.8 MB · Views: 21
  • 697F0372-762E-446D-841E-4B7518F56F14.png
    3.5 MB · Views: 22
  • E20F1910-5BBA-496D-99F8-38F3C94BF74E.png
    3.7 MB · Views: 20
  • 67F4F8C4-400A-469E-A074-0512000651B1.png
    3.8 MB · Views: 19
  • A61A8E3C-0C43-4E0B-BF02-ECD66732330C.png
    3.7 MB · Views: 21
  • F48A864A-2612-49CD-8D70-6A0DAC3E63DB.png
    5 MB · Views: 22

TheRealVictor

Jr Member

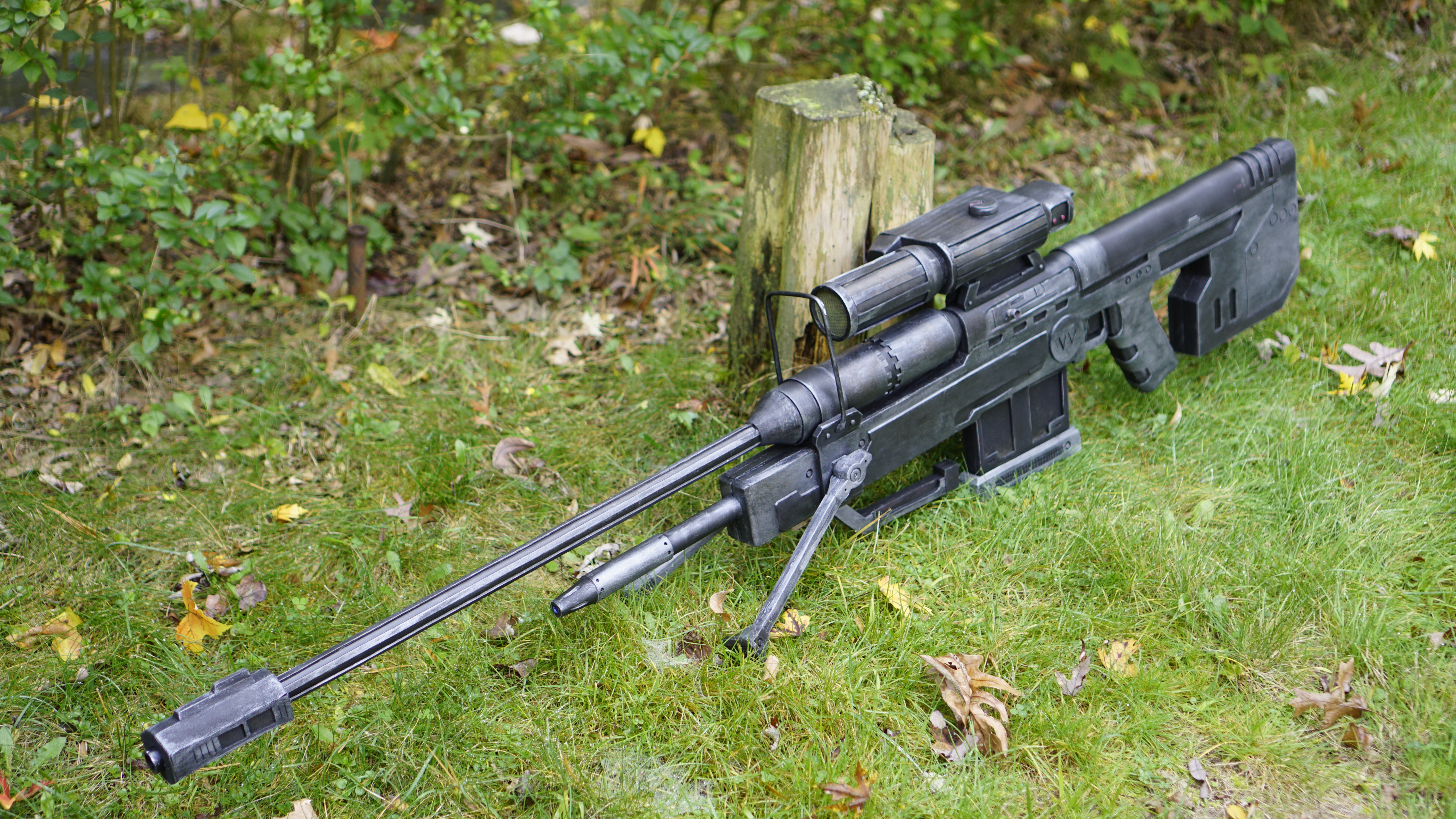

The Final Results

Here is the link to my YouTube tutorial on this sniper rifle:


As always, there are countless ways and methods as to how you can create. Experiment, find something you enjoy, and gradually step it up!


Attachments

  • a.jpg
    8.7 MB · Views: 25
  • _DSC4192.JPG
    3 MB · Views: 29
  • _DSC4138.JPG
    9.5 MB · Views: 23
  • _DSC4124.JPG
    5.6 MB · Views: 28
