AIE-486H Heavy Machine Gun build (Halo 3 turret)

Felipe06

Member
Hopefully this is the first step in me being more active on the forums :)

The turret will be based on Benton Samec's designs, with Eric Lobb's modifications and a few changes of mine. Eric was kind enough to supply me with the internal pieces to make the turret spin.

So my basic plan: make a Halo 3 turret with the Halo 5 SPNKr Prime paint scheme


I was originally planning on doing the SPNKr and go pretty far, but realized it would be covering my security shoulder at all times :lol:
Anyway, I'm currently cutting the pvc pipping, so enjoy these reference shots until I get some progress made :)



Attachments

Last edited:

xXDashIVXx

Sr Member
Hopefully this is the first step in me being more active on the forums :)

The turret will be based on Benton Samec's designs, with Eric Lobb's modifications and a few changes of mine. Eric was kind enough to supply me with the internal pieces to make the turret spin.

So my basic plan: make a Halo 3 turret with the Halo 5 SPNKr Prime paint scheme
View attachment 278449 View attachment 278450

I was originally planning on doing the SPNKr and go pretty far, but realized it would be covering my security shoulder at all times :lol:
Anyway, I'm currently cutting the pvc pipping, so enjoy these reference shots until I get some progress made :)

View attachment 278431 View attachment 278432 View attachment 278433 View attachment 278434 View attachment 278435 View attachment 278436 View attachment 278437 View attachment 278438 View attachment 278439 View attachment 278444 View attachment 278445 View attachment 278446 View attachment 278447 View attachment 278448
Aw man! This thread is what I have been needing! You have some amazing reference photos, and you seek like you have it all down. I am curious on these internal mechanics you mentioned are, because I got pretty far in a H3 turret build, but never finished it because I didnt have a good enough drill to take apart to use. That and it got incredibly heavy since a foam base with metal lazy Susan's and front heavy PVC kept weighing it down. Thanks to contact cement the seams never ripped. Also, these colors are gonna be beutiful. If only this beutiful beast shot spanked prime rockets o.0


Felipe06

Member

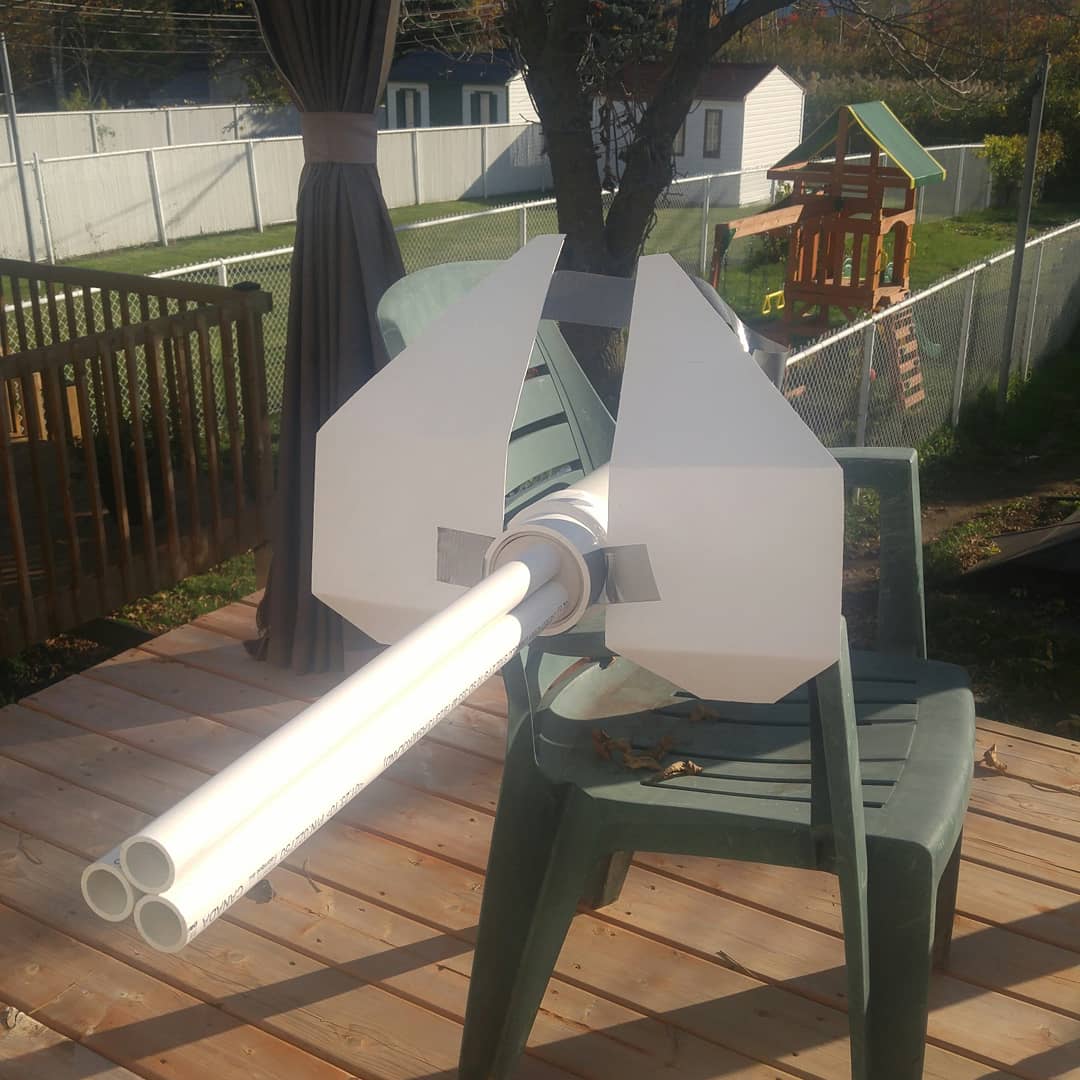

Minor update, currently scaling everything. Going for something much more manageable and not "Spartan" size. Can't imagine dragging around a 7-feet long turret at cons :lol:


Aw man! This thread is what I have been needing! You have some amazing reference photos, and you seek like you have it all down. I am curious on these internal mechanics you mentioned are, because I got pretty far in a H3 turret build, but never finished it because I didnt have a good enough drill to take apart to use. That and it got incredibly heavy since a foam base with metal lazy Susan's and front heavy PVC kept weighing it down. Thanks to contact cement the seams never ripped. Also, these colors are gonna be beutiful. If only this beutiful beast shot spanked prime rockets o.0

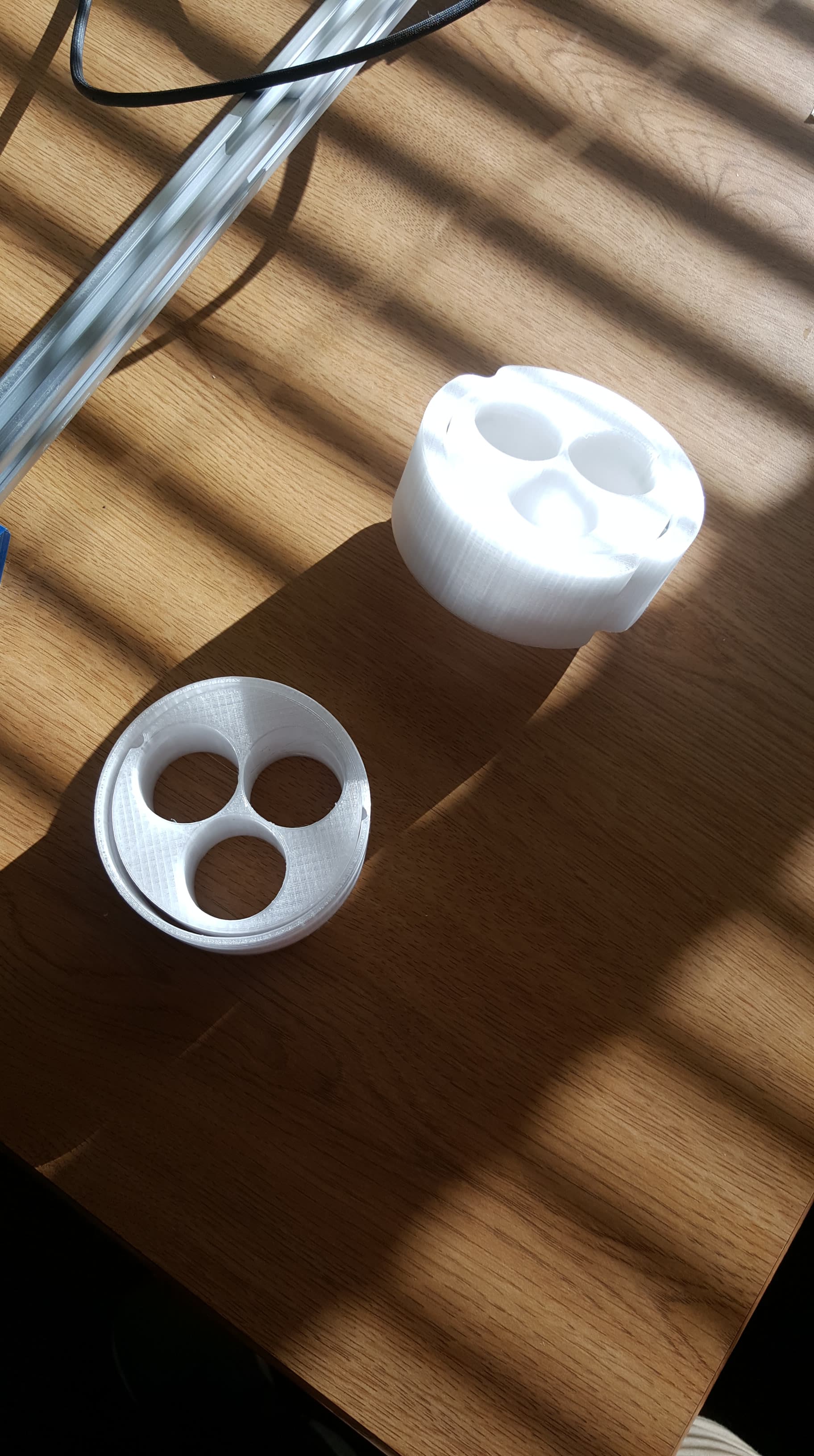

Thank you! Like the builds I'm basing my build on, I'm using a Apollo screwdriver for the spinning function. Lobb was nice enough to print me internals that would hold the pvc piping and allow it all to spin with that particular screwdriver:


there's also an end cap to hold the screwdriver, but I don't have an image of it at the moment

Last edited:

Felipe06

Member

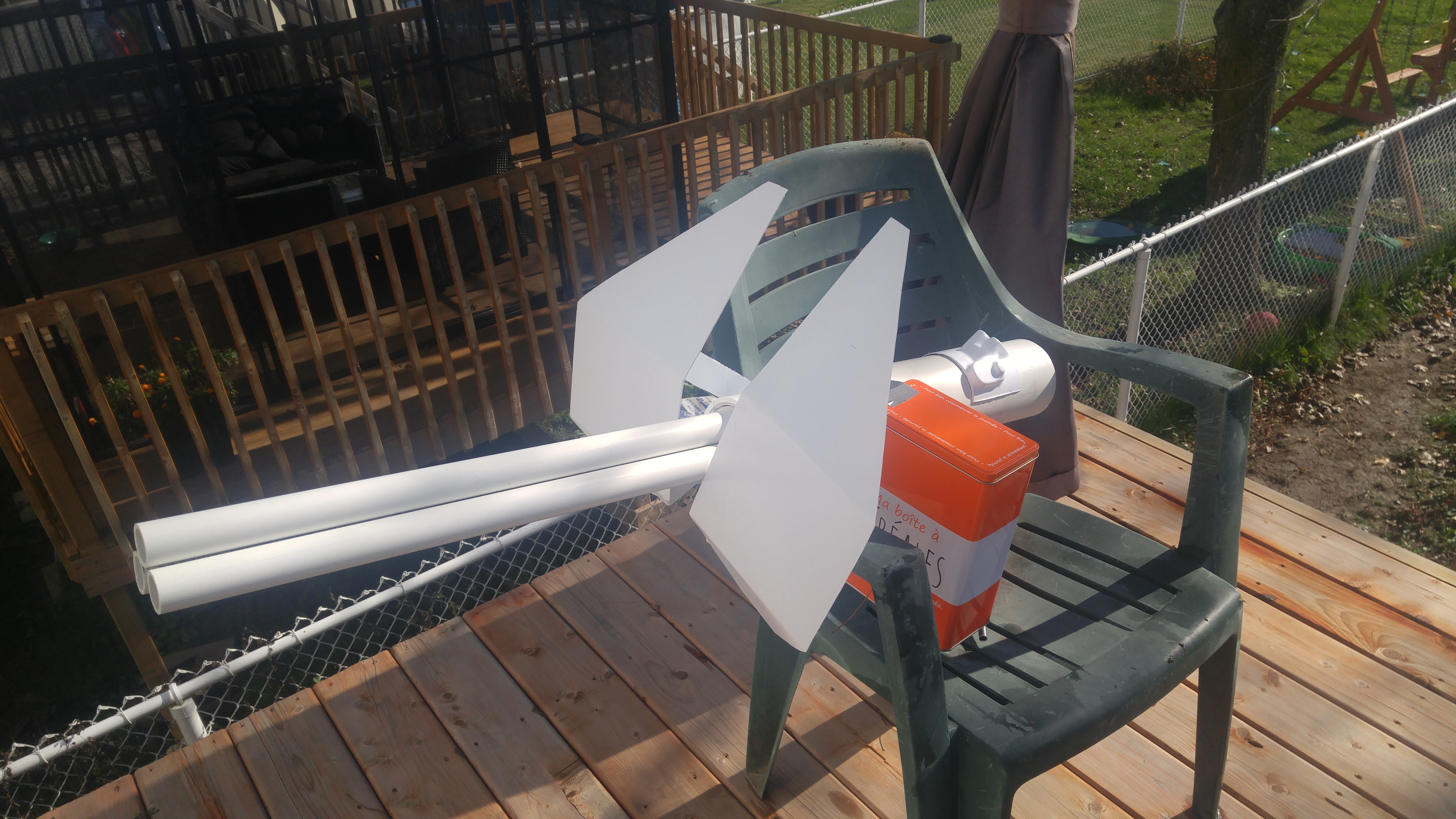

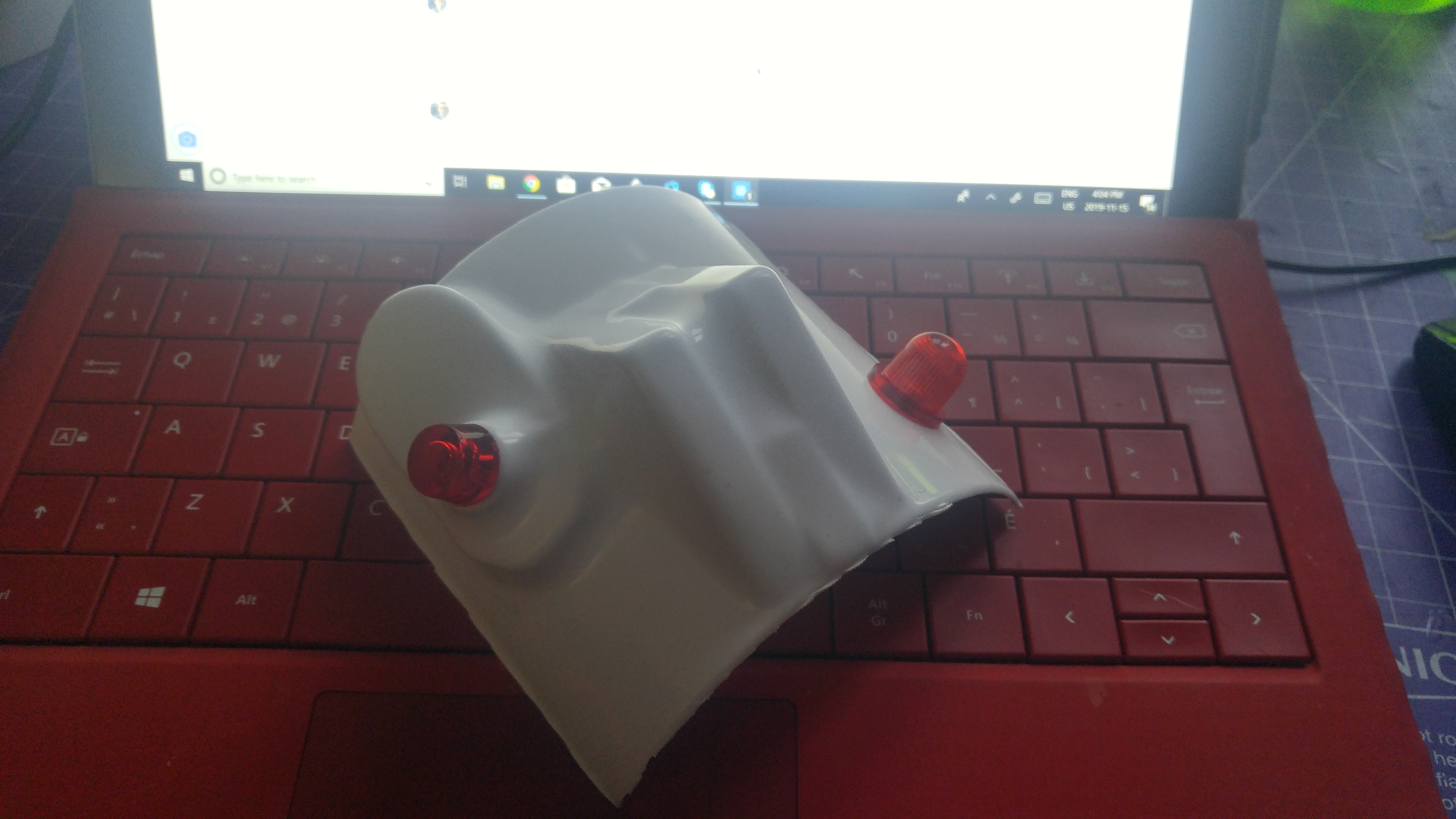

Minor update, started vacuum forming details and found the perfect ammo box



This looks sweet! I plan on making one of these for my ODST! Just curious, what size pvc pipe are you using for this?
4" by 18" for the body, 1" by 35" for the barrels. Keep in mind this is a smaller scale turret, as the full scale turret is like 7 feet long xD


Felipe06

Member

this project isn't dead just yet!

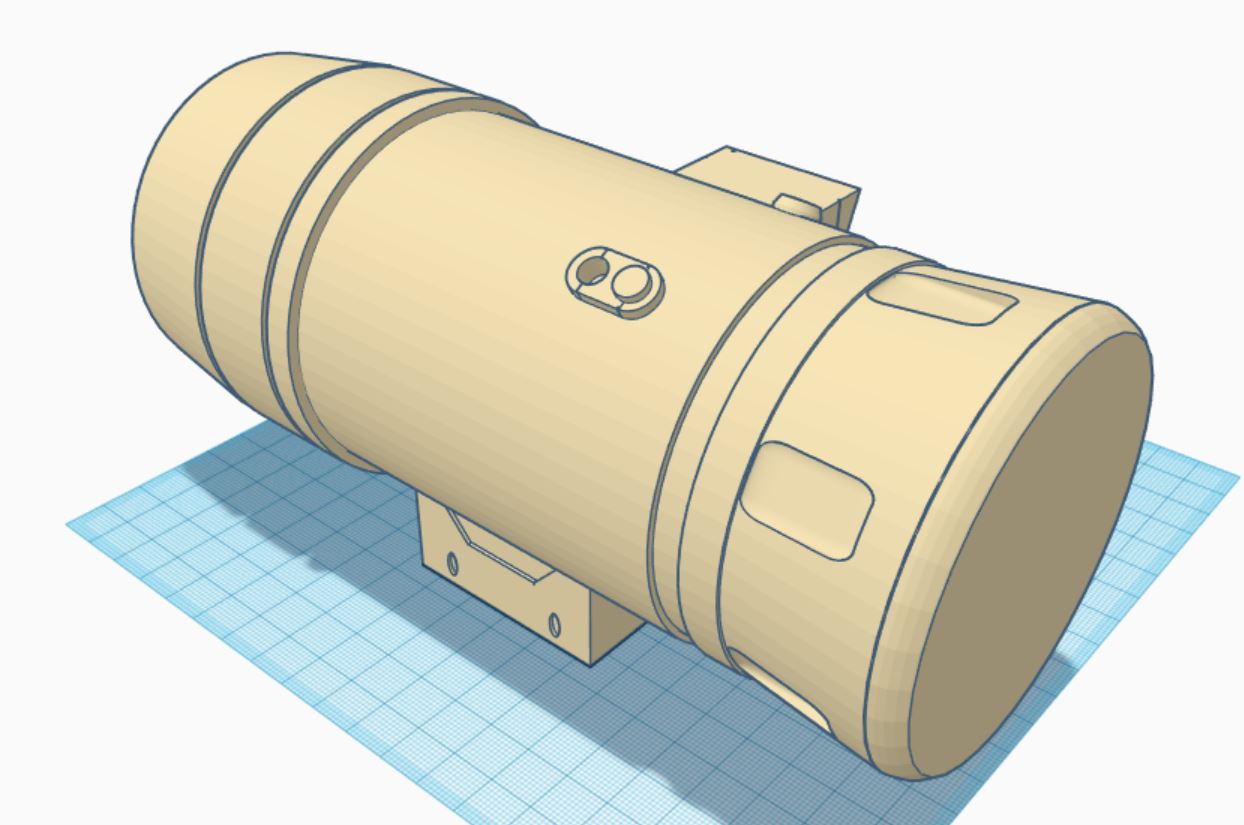

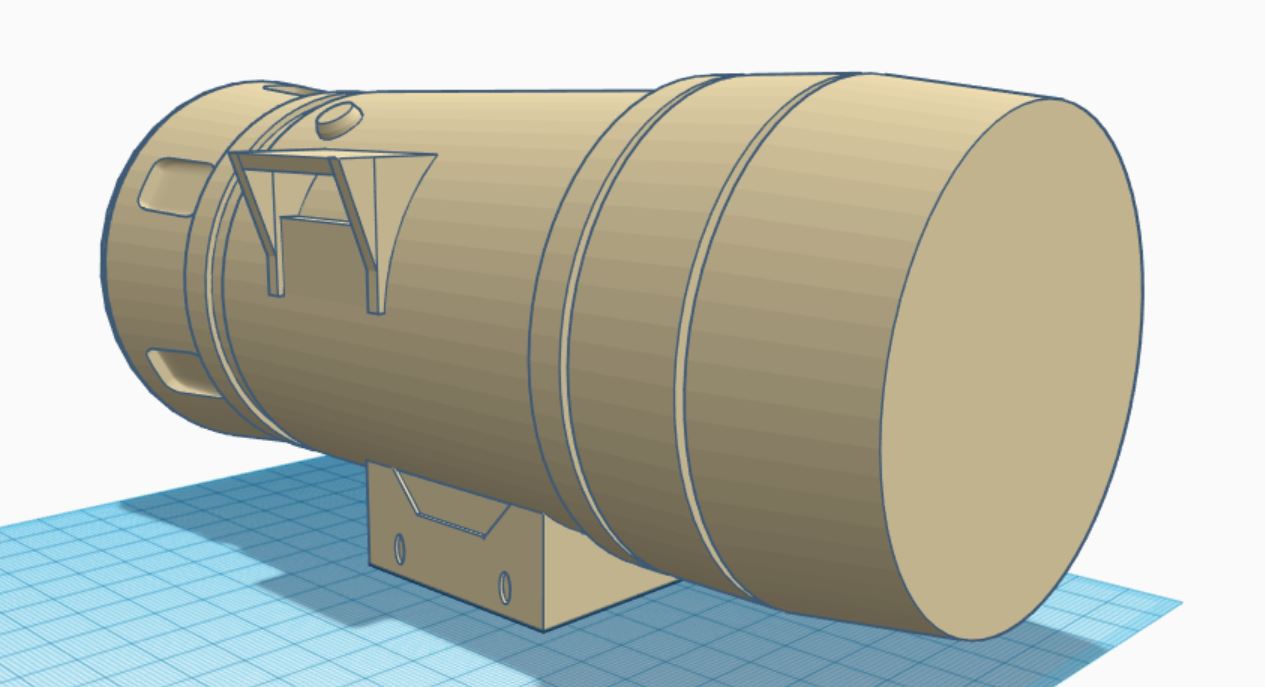

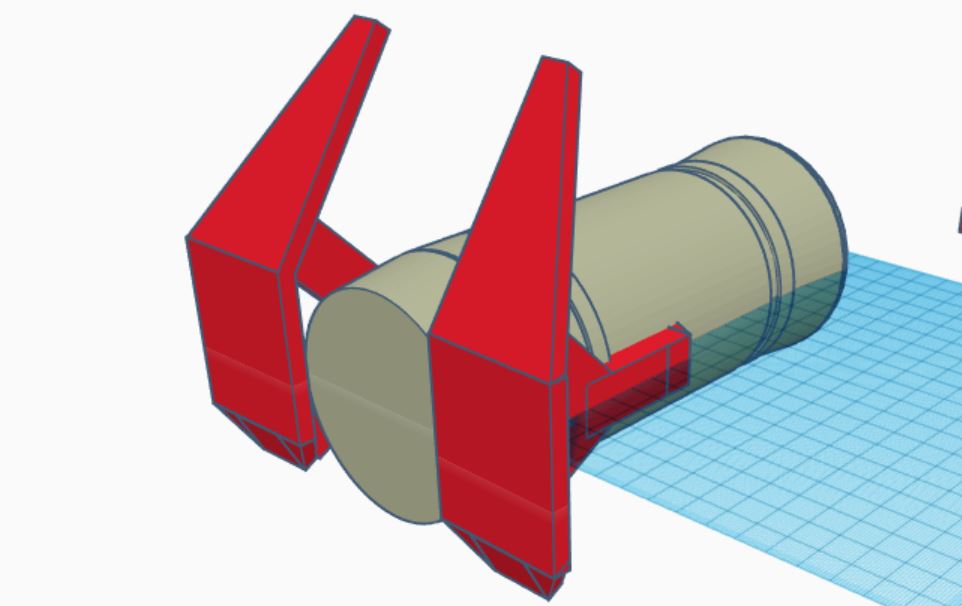

With everyone I know making to scale turrets, I decided I had to up my game! I'm going to use the same concept as the build above, but just make it bigger. Here's my current progress on the model:

Also made a rough draft of the shields

More to come (hopefully!)
