BLOXX3R’s Spartan-III build, 3D Printed

Bloxx3r

Jr Member

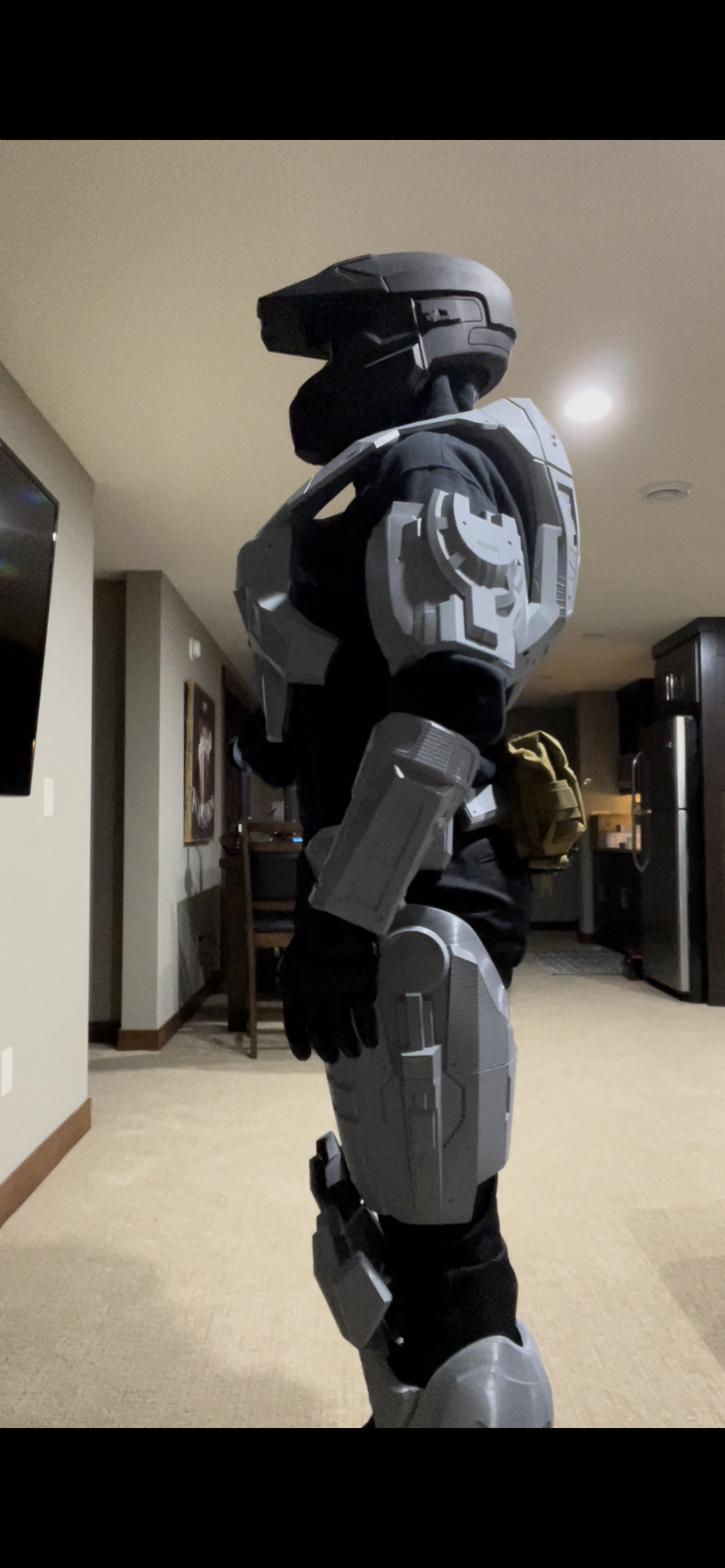

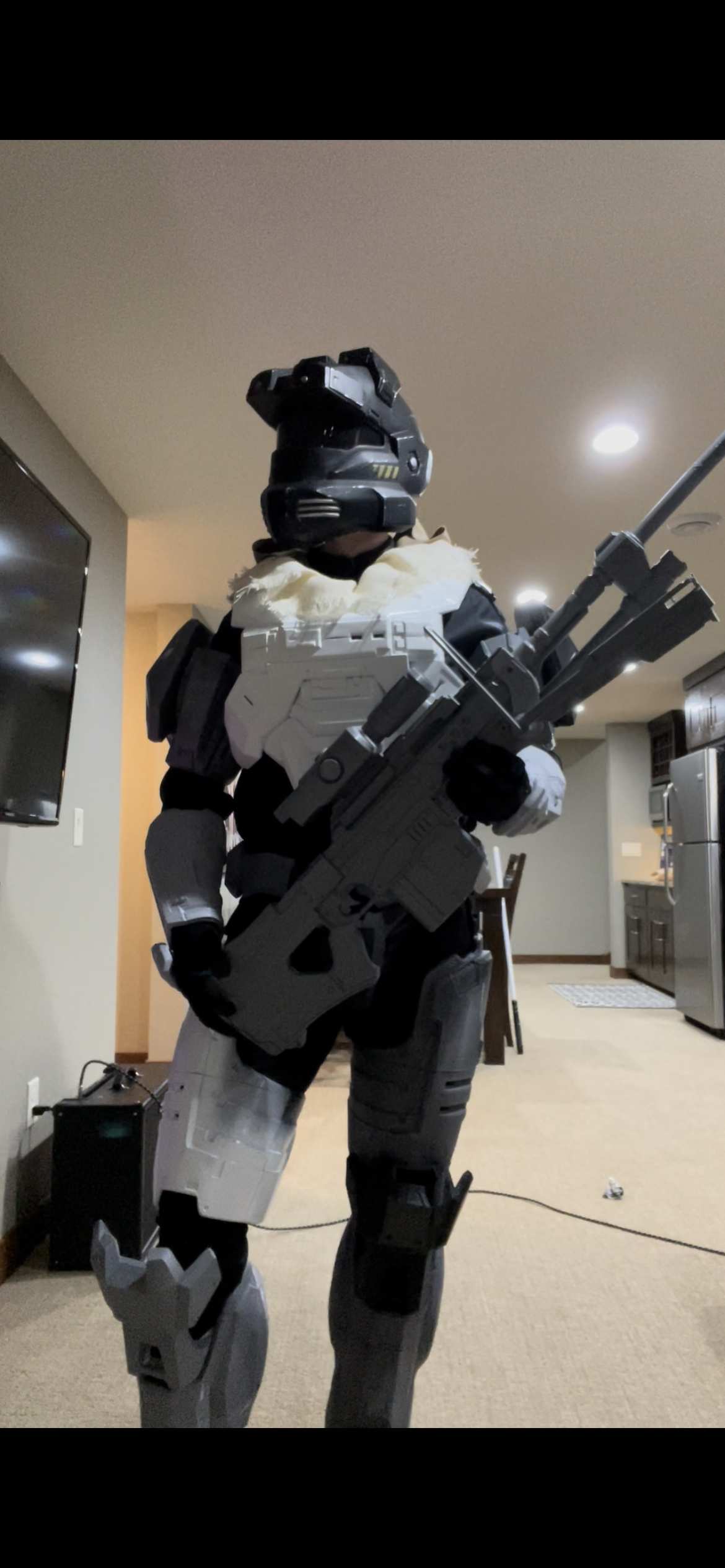

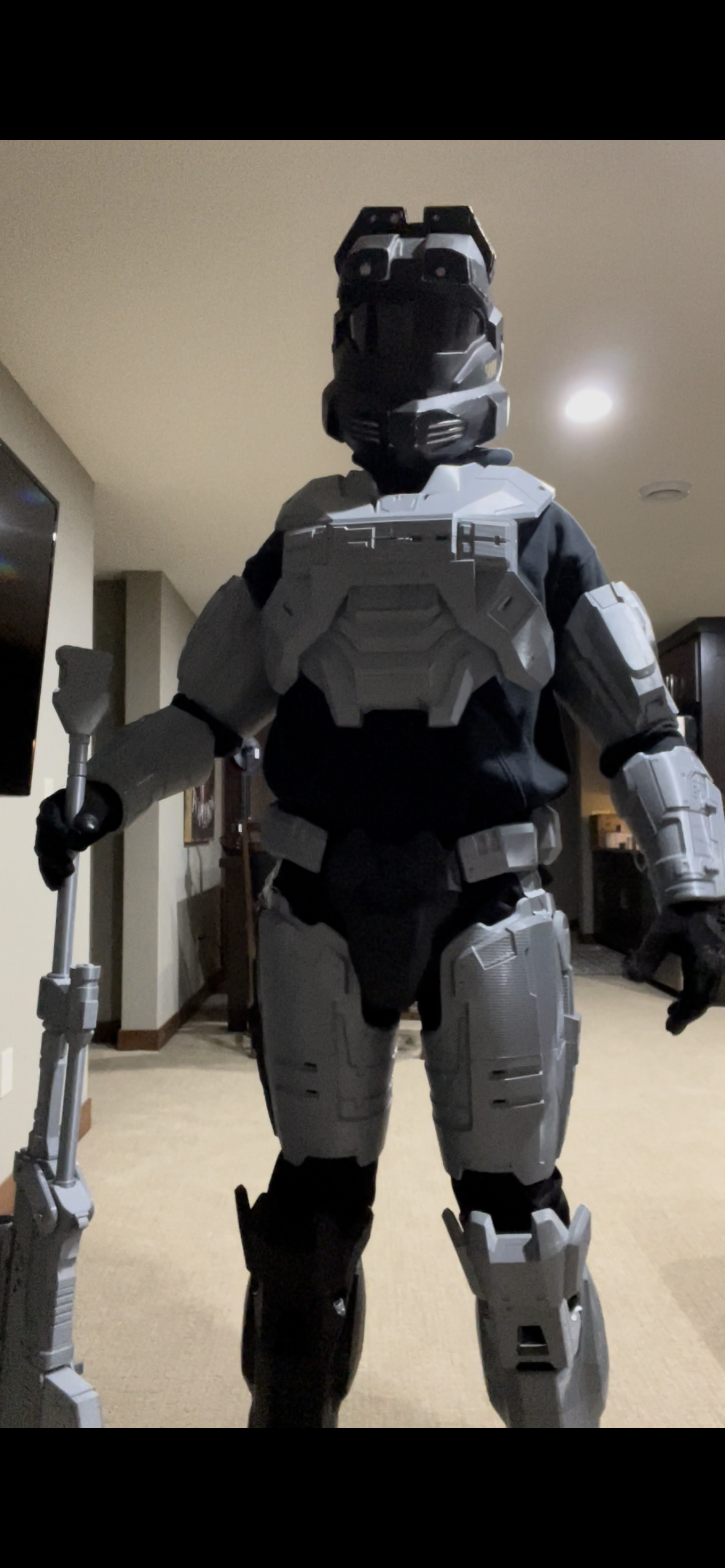

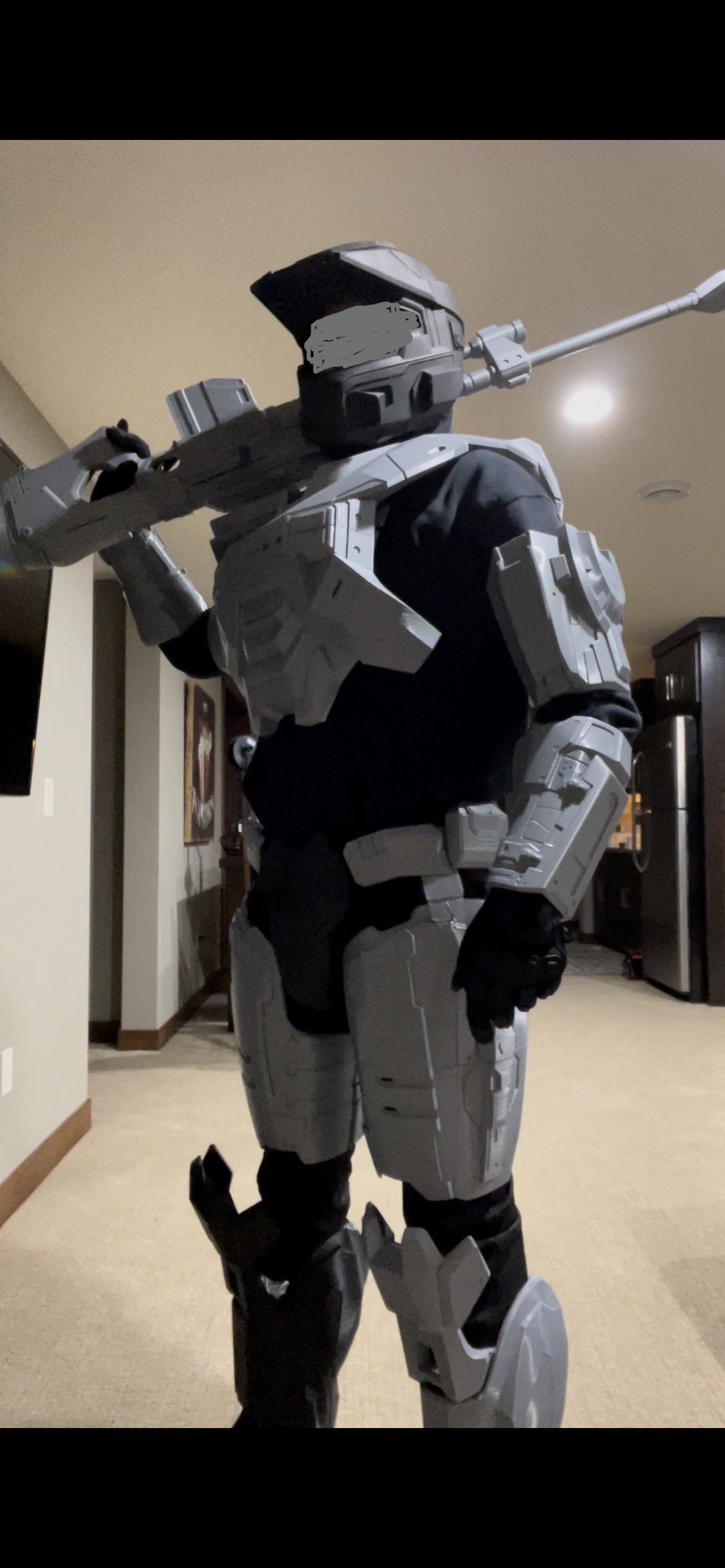

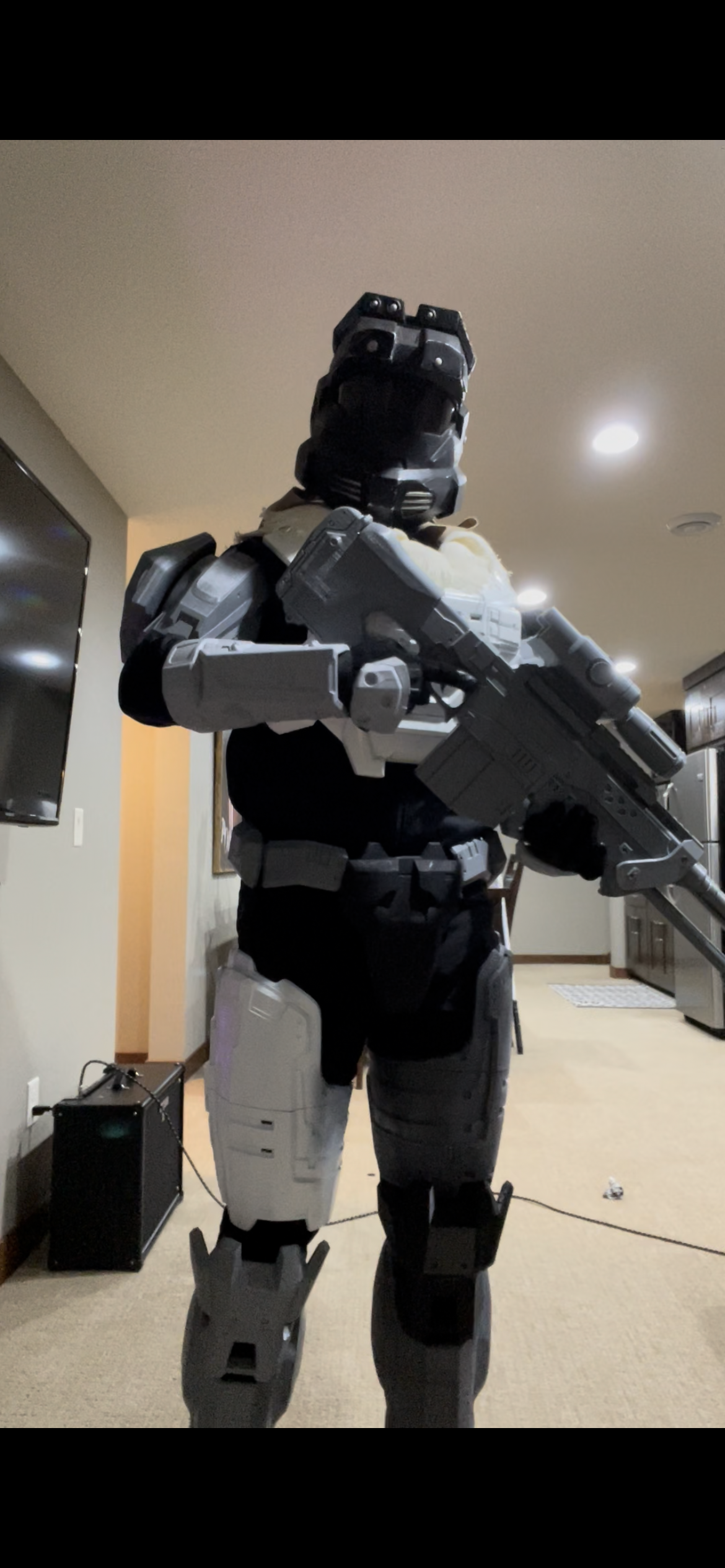

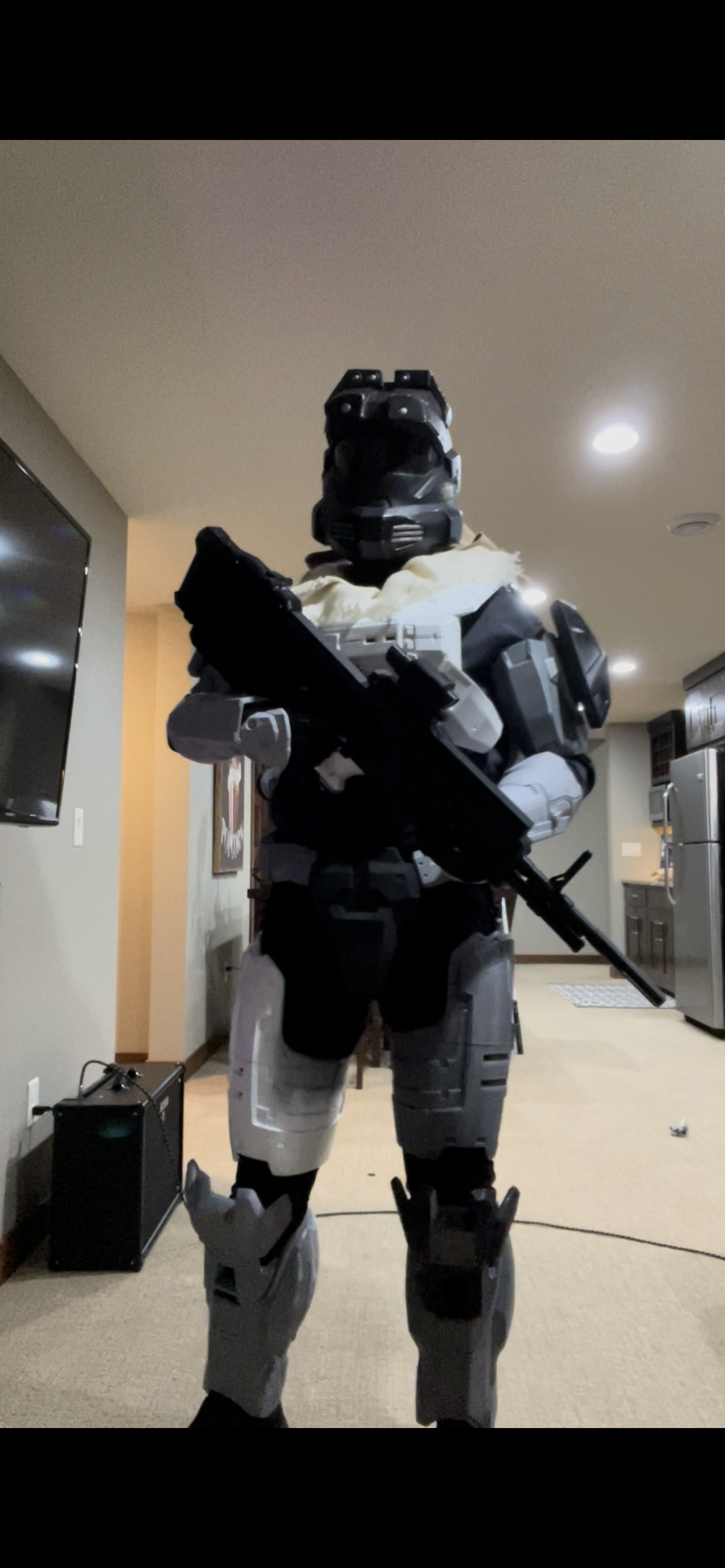

Hello again! Been awhile yet again haha. I was looking back at some photos, and I noticed that my chest armor looked a little large. So took a few new ones to try to get some better angles (emphasis on tried), and I’d like to hear some opinions. Is my chest armor large and in need of a reprint, or am I just going crazy?

Edit: I feel like the thighs are a little small as well. Again though, I might just be way too OCD lol


Attachments

  • FF509027-4BD7-4735-BF4B-4E366E590147.png
    9.9 MB · Views: 39
  • C2EBCF53-E08C-443F-9851-7414B8828B2F.png
    10 MB · Views: 41
  • 2446B3A2-0C61-4DEA-88A6-5B28750EC915.png
    10.3 MB · Views: 35
  • 82F79A68-70AF-445B-9CDA-B58814393EB0.png
    10 MB · Views: 39
  • F69F8CB1-E240-4C97-89ED-66CD6178C28A.png
    10.1 MB · Views: 37
  • A6FC9C46-91C1-48D0-874D-A150DB51F11B.jpeg
    325 KB · Views: 35
  • 72AF8D54-8668-4AC0-BC3C-E180BF217ED7.jpeg
    332.1 KB · Views: 40
Last edited:

Bloxx3r

Jr Member

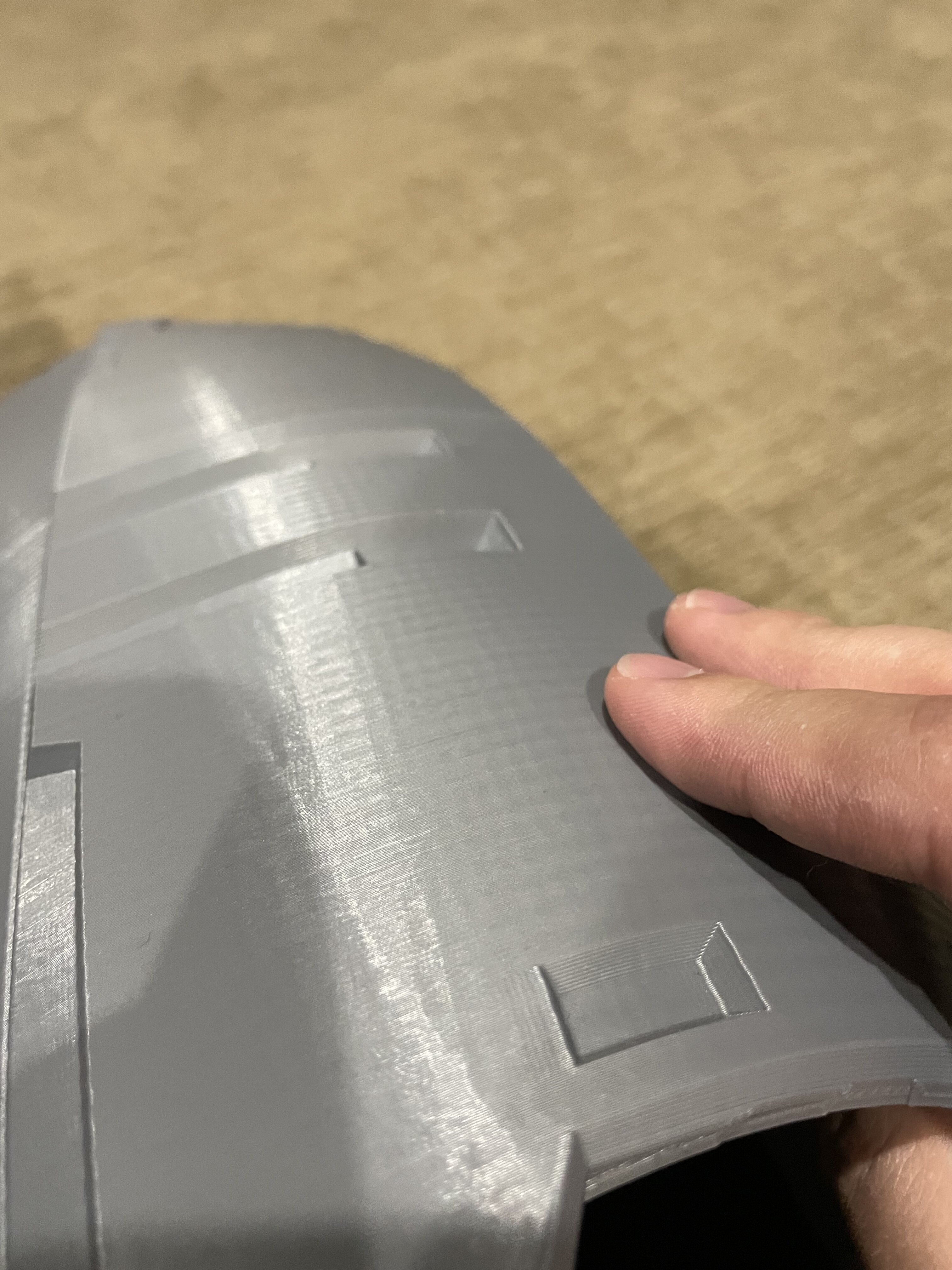

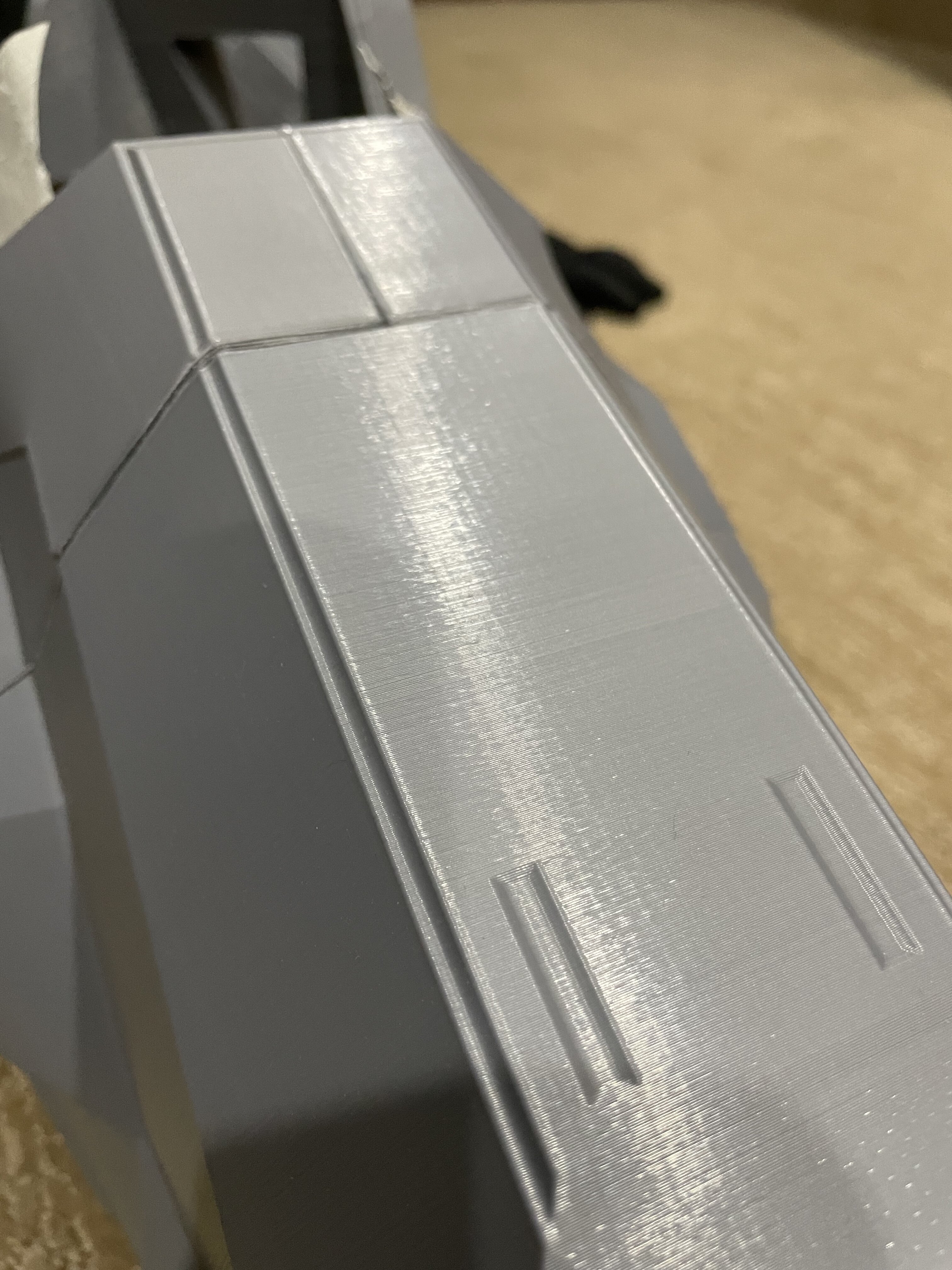

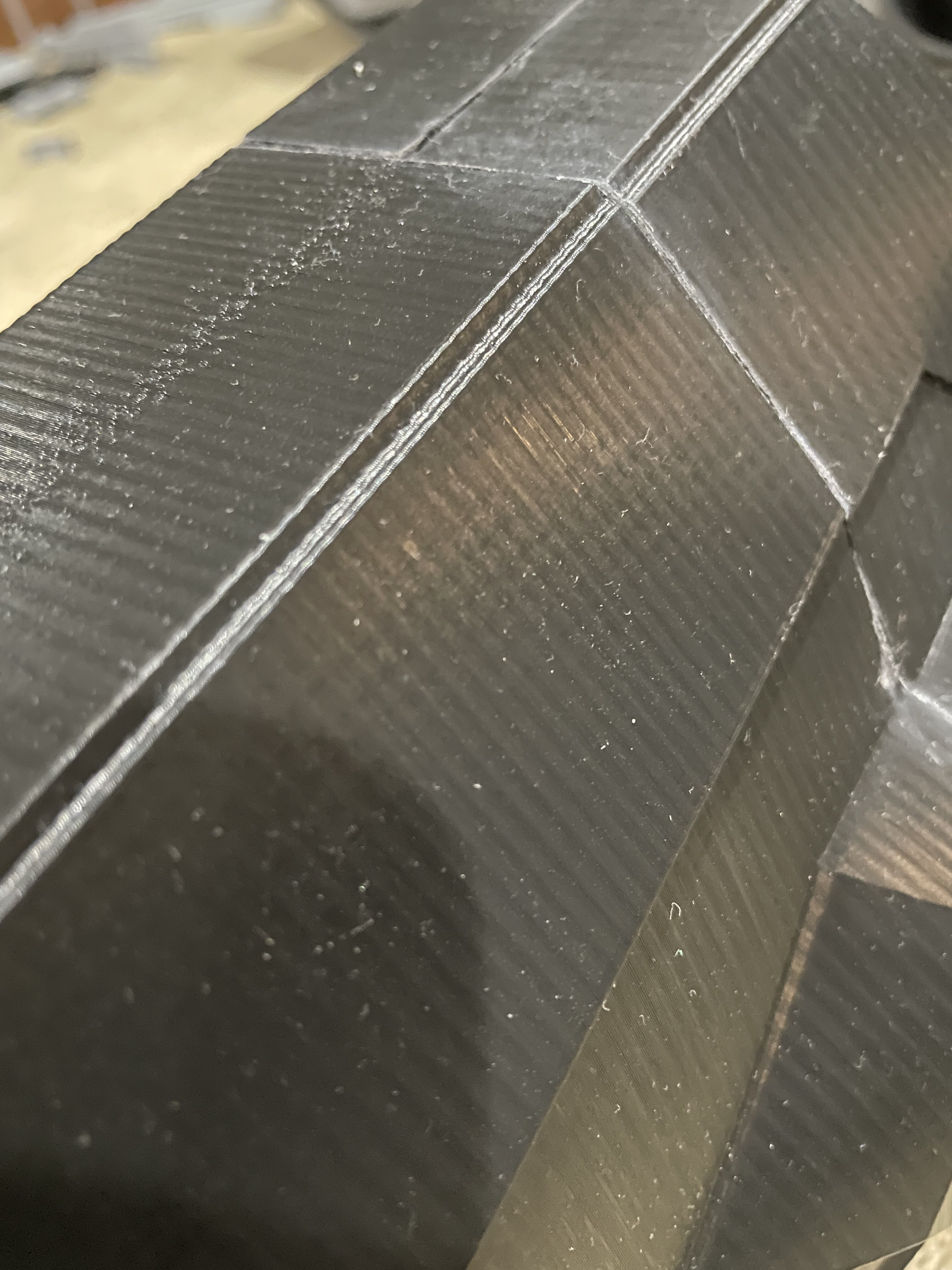

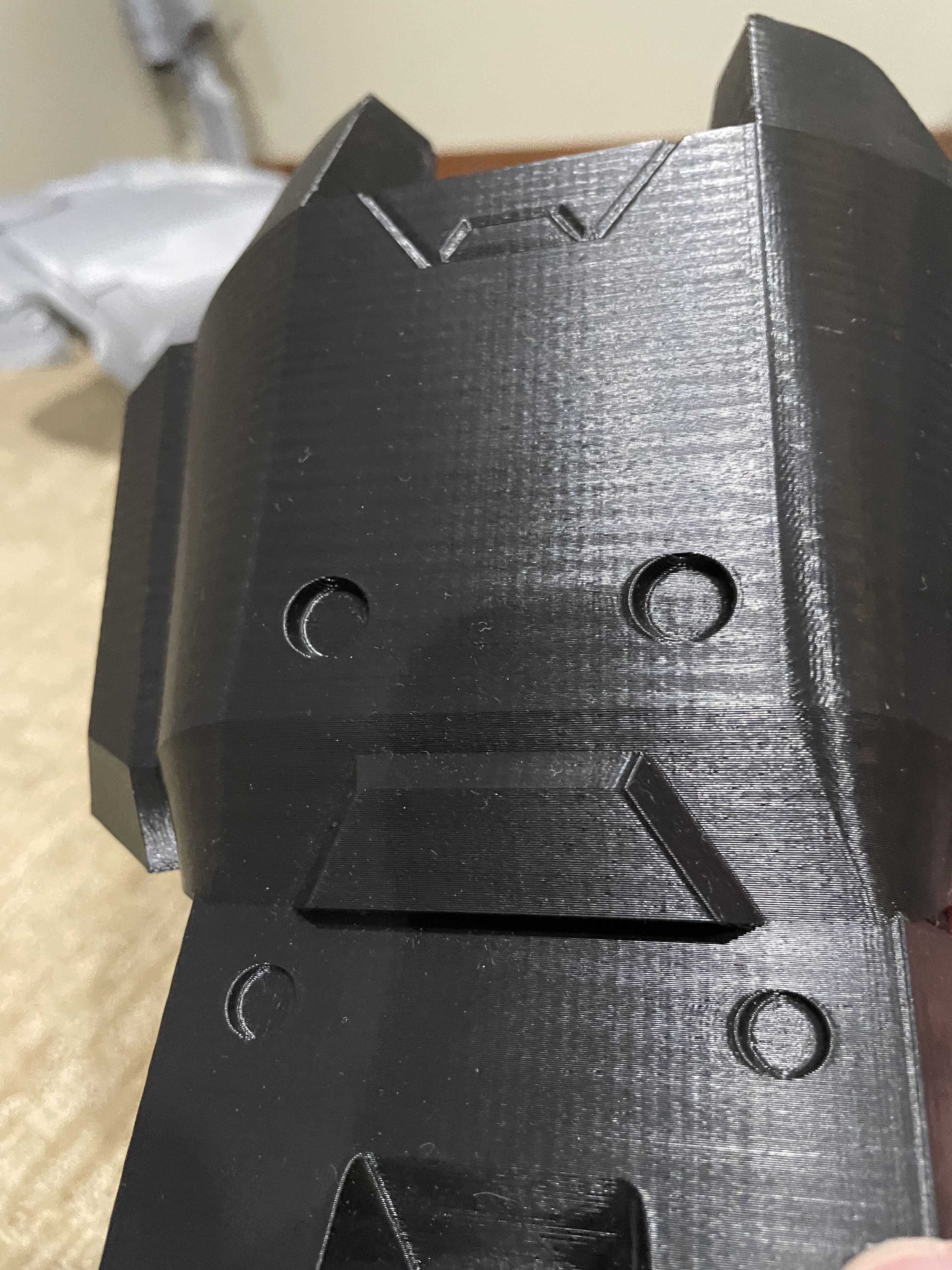

I’ve got another question for my 3D printing friends out there- After a good amound of printing, maybe about halfway through my suit, I started to get these really weird wavy walls (silver calf is nice and clean for reference). I thought nothing of it at first, but now that I’ve started to sand it I’ve realized that it’s a pain in the butt. Any tips on how to get rid of it before I print any other big items?

Also, for some reason it only shows up on bigger prints. I’ve printed a handful of benchys and calibration cubes and they all came out flawless, so I can’t figure out what on earth is happening.


Attachments

  • 25EC2B95-53DE-4DC8-8FF0-33FF2F23098F.jpeg
    2 MB · Views: 18
  • E8254E80-D8FC-4509-8D88-BA8796CED358.jpeg
    1.6 MB · Views: 20
  • A6F577F5-1BB8-4921-8E25-748115A1CE65.jpeg
    1.5 MB · Views: 20
  • 1B430442-27C3-4C33-ADE1-96338F7BB362.jpeg
    1.8 MB · Views: 20

PlanetAlexander

RMO
405th Regiment Officer
That looks like it could be an issue with Z-banding. I don't remember a whole lot about it, but I know it can occur when the gantry isn't level, or there's an issue with the Z-axis rods, like they're not completely vertical.


Bloxx3r

Jr Member

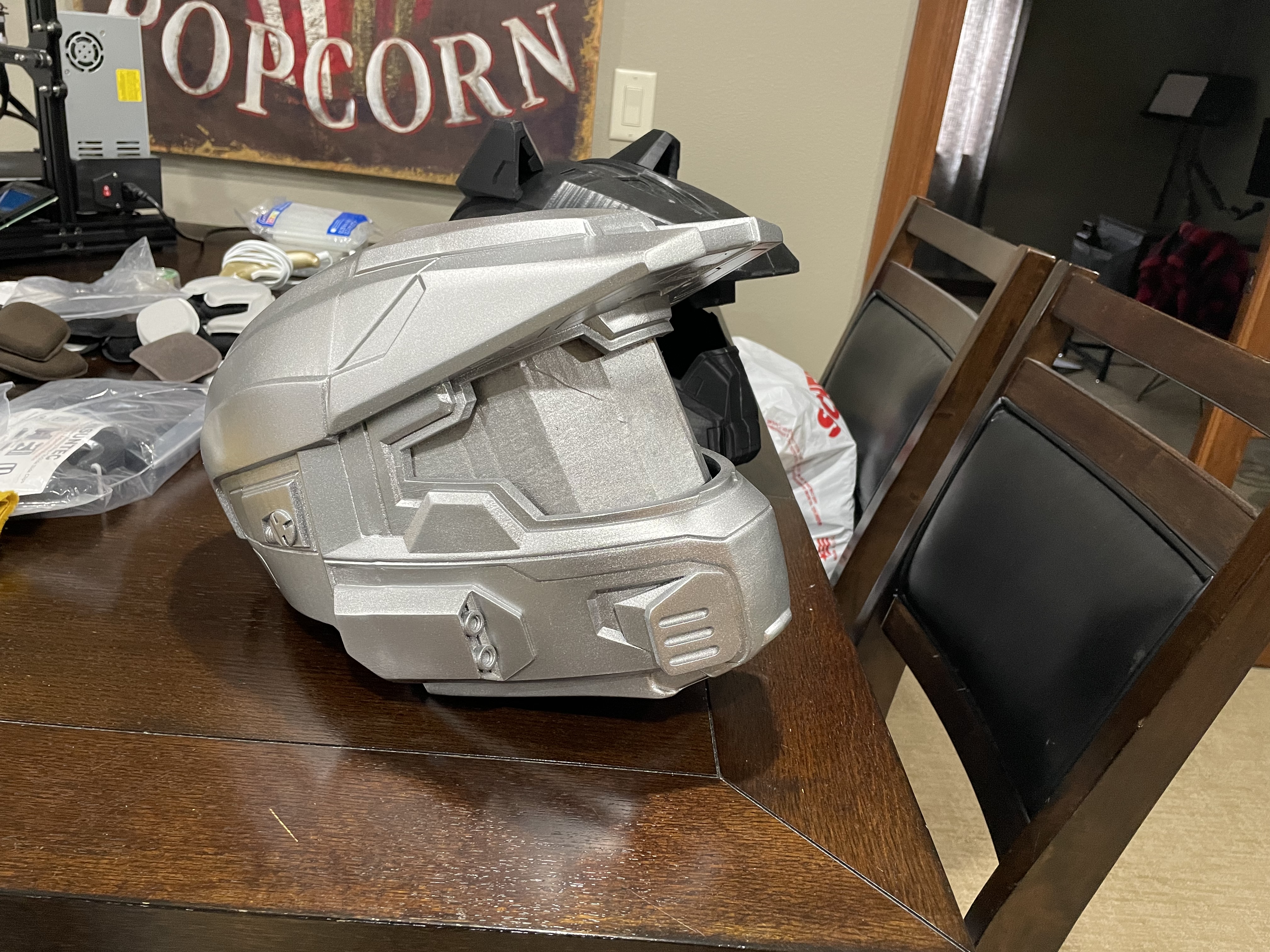

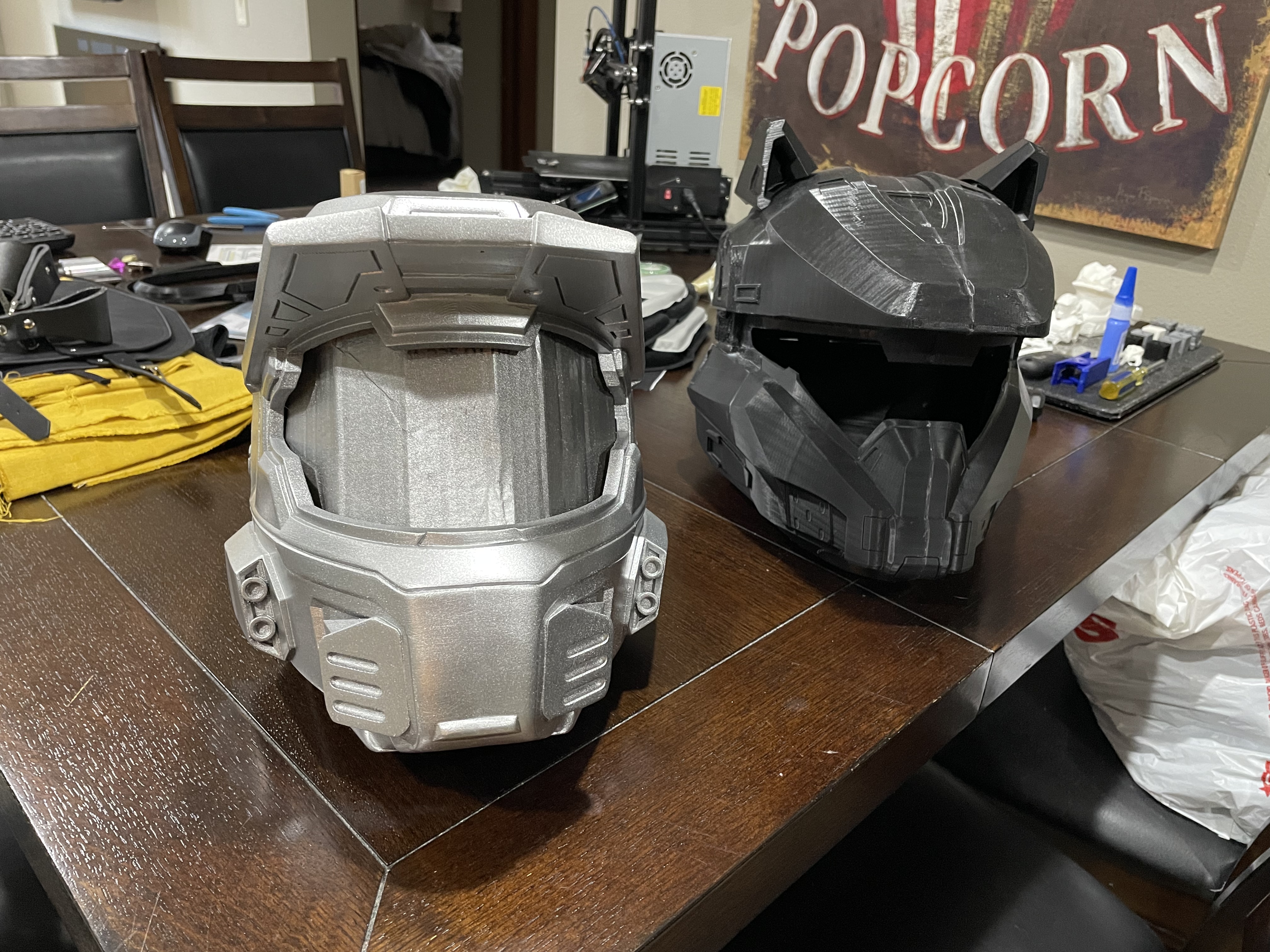

Finally got some paint on the Mk. V bucket! Laid down a couple layers of silver for the undercoat. What did some of you use for your main paints in terms of “texture?” I’m planning to use a gloss primary with a semigloss secondary and a clear matte finish on top. Will the semigloss accents look tacky? Should I stay consistent with the gloss? Any tips are greatly appreciated!


Attachments

  • 2A870318-43B3-4BE0-B6A2-9C818B5D527A.jpeg
    3.4 MB · Views: 12
  • FEAED816-8505-4B36-AFB0-2752FB6A46E9.jpeg
    4.1 MB · Views: 12

Manta

New Member
Finally got some paint on the Mk. V bucket! Laid down a couple layers of silver for the undercoat. What did some of you use for your main paints in terms of “texture?” I’m planning to use a gloss primary with a semigloss secondary and a clear matte finish on top. Will the semigloss accents look tacky? Should I stay consistent with the gloss? Any tips are greatly appreciated!
In the past I also used gloss and finished with clear matte. Semi-gloss imo just looks like a less wet, shiny version of the gloss. I've only tried the matte clear coat once, but I'm guessing whatever texture you use, the matte will just make it all look the same in the end. Probably stay consistent with the gloss.


Emp Frosty

Active Member
Finally got some paint on the Mk. V bucket! Laid down a couple layers of silver for the undercoat. What did some of you use for your main paints in terms of “texture?” I’m planning to use a gloss primary with a semigloss secondary and a clear matte finish on top. Will the semigloss accents look tacky? Should I stay consistent with the gloss? Any tips are greatly appreciated!
I used ulta flat colors for my armor then put some layers of clear matte over it. For one helmet that I made I did use a gloss green and matte black for details, it didnt look quite right but after putting a semi-gloss clear over top it looked way better.


Bloxx3r

Jr Member
I used ulta flat colors for my armor then put some layers of clear matte over it. For one helmet that I made I did use a gloss green and matte black for details, it didnt look quite right but after putting a semi-gloss clear over top it looked way better.
In the past I also used gloss and finished with clear matte. Semi-gloss imo just looks like a less wet, shiny version of the gloss. I've only tried the matte clear coat once, but I'm guessing whatever texture you use, the matte will just make it all look the same in the end. Probably stay consistent with the gloss.
Thanks for the tips, guys! I appreciate it!


GrmblBACHx

Jr Member
Finally got some paint on the Mk. V bucket! Laid down a couple layers of silver for the undercoat. What did some of you use for your main paints in terms of “texture?” I’m planning to use a gloss primary with a semigloss secondary and a clear matte finish on top. Will the semigloss accents look tacky? Should I stay consistent with the gloss? Any tips are greatly appreciated!
I've been reading about your build. I too am building a spartan 3. Looks great so far! My question is what do you mean by texture for the paint? I've hit all my stuff with 2 or 3 coats of matte finish. My only recommendation would be to test out your finishing coats on a few bad prints if you have any lying around. And then make sure you apply the same technique to the whole suit. A semi gloss probably won't look tacky if your whole armor is going to be a brand new set that's never seen battle. However if you plan on weathering it up, the gloss might look out of place. Keep up the good work!


Bloxx3r

Jr Member
I've been reading about your build. I too am building a spartan 3. Looks great so far! My question is what do you mean by texture for the paint? I've hit all my stuff with 2 or 3 coats of matte finish. My only recommendation would be to test out your finishing coats on a few bad prints if you have any lying around. And then make sure you apply the same technique to the whole suit. A semi gloss probably won't look tacky if your whole armor is going to be a brand new set that's never seen battle. However if you plan on weathering it up, the gloss might look out of place. Keep up the good work!
Thanks a lot! By texture I guess I mean like type of paint (gloss, semigloss, matte, etc). I am hoping to weather it up a little bit. I’ve been planning to follow weathering @ConnorCreator’s tutorial on YouTube
and he used gloss paint and then used a matte clear finish when he was done with everything and I thought it looked pretty good! I just don’t know whether to keep the gloss paint consistent for the whole armor, or if I’d want to use like semigloss or matte for the black accents.


GrmblBACHx

Jr Member
Thanks a lot! By texture I guess I mean like type of paint (gloss, semigloss, matte, etc). I am hoping to weather it up a little bit. I’ve been planning to follow weathering @ConnorCreator’s tutorial on YouTube
and he used gloss paint and then used a matte clear finish when he was done with everything and I thought it looked pretty good! I just don’t know whether to keep the gloss paint consistent for the whole armor, or if I’d want to use like semigloss or matte for the black accents.

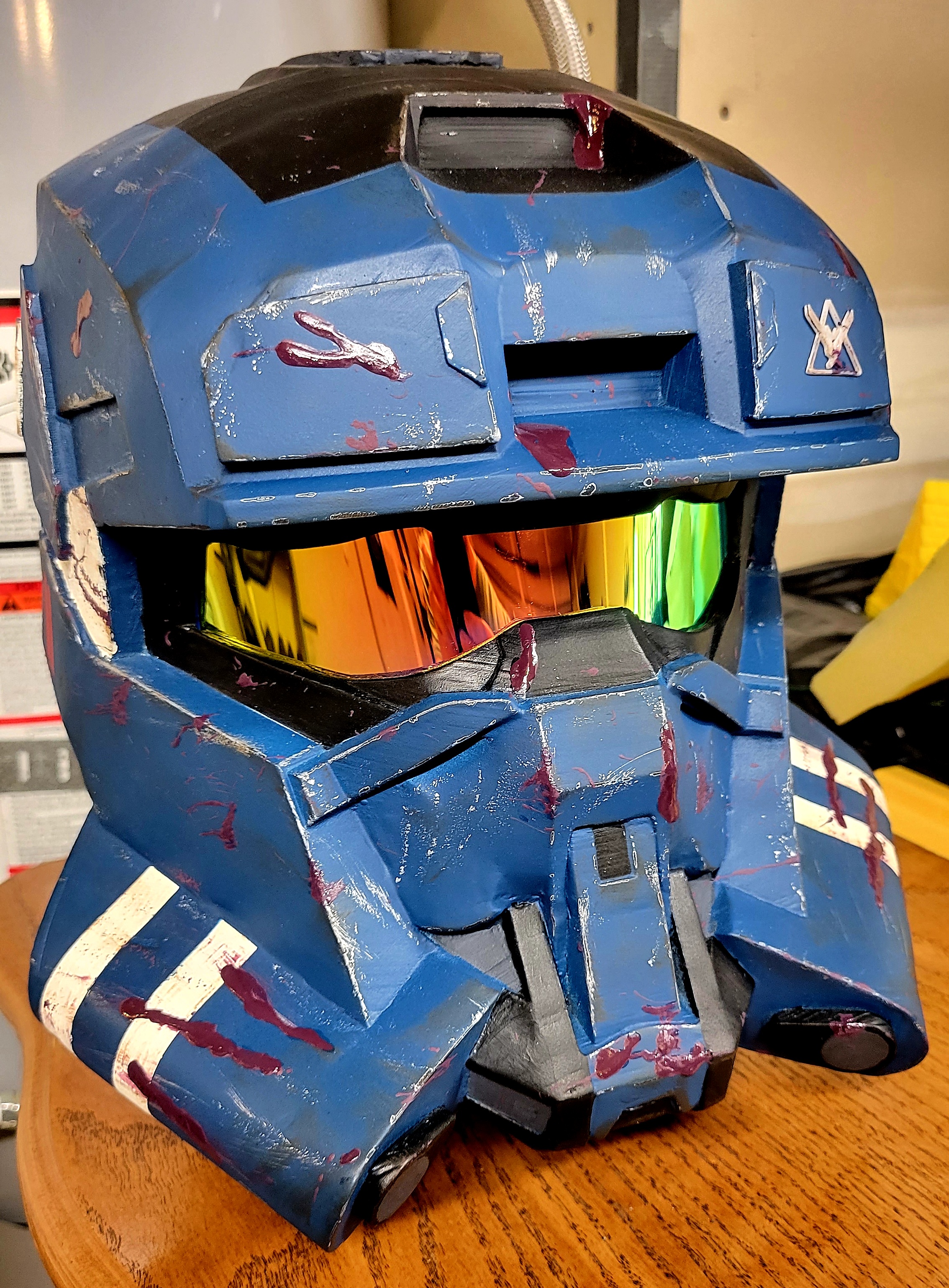

So I know this is comparing apples to oranges but I matte finished my helmet but then someone had told me to use gloss nail polish for my blood to give it more of a blood like appreance. Not sure if this will apply to your armor or not, but just a suggestion.


Attachments

  • 20220425_203753.jpg
    2.3 MB · Views: 10

Bloxx3r

Jr Member

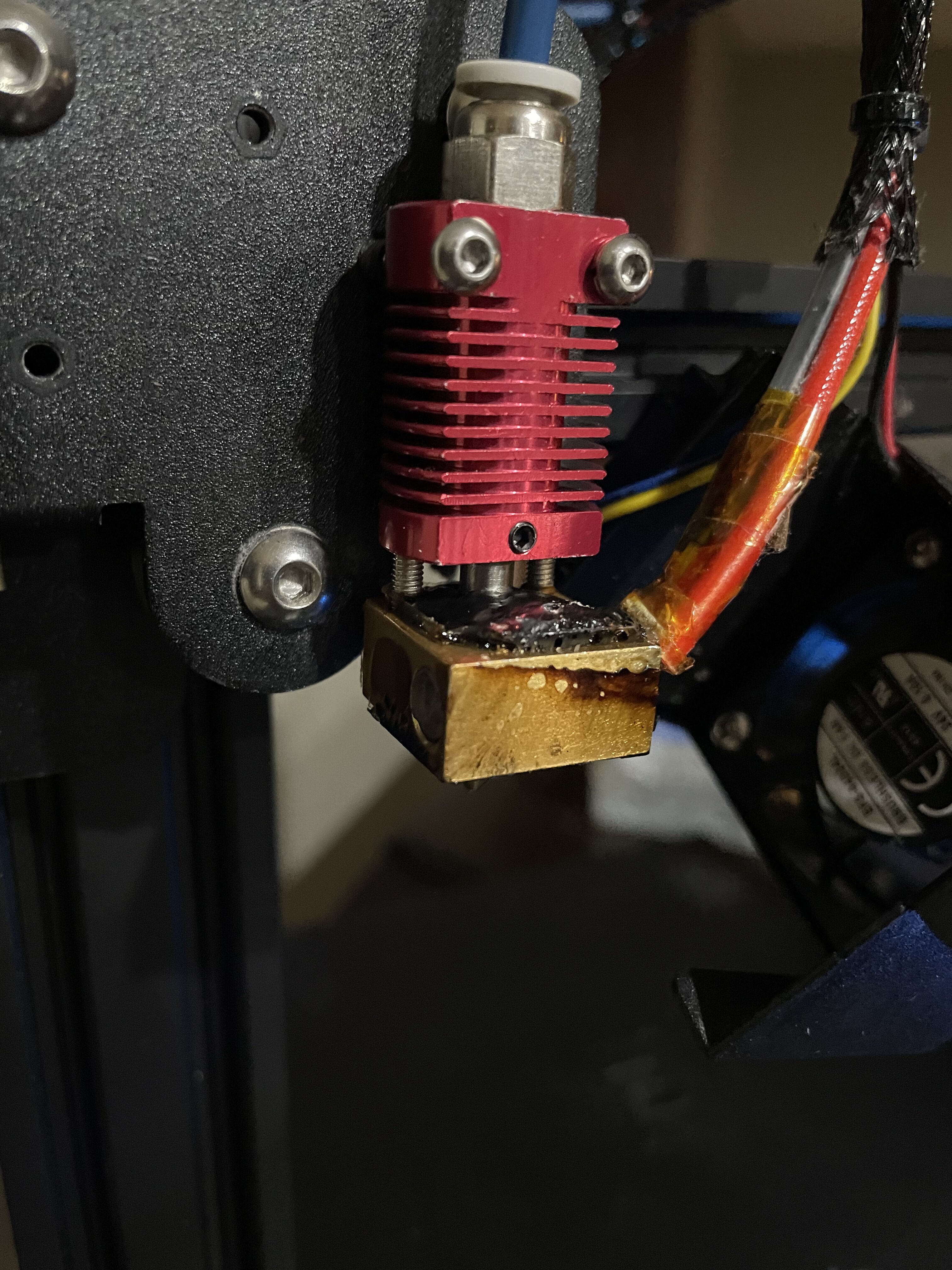

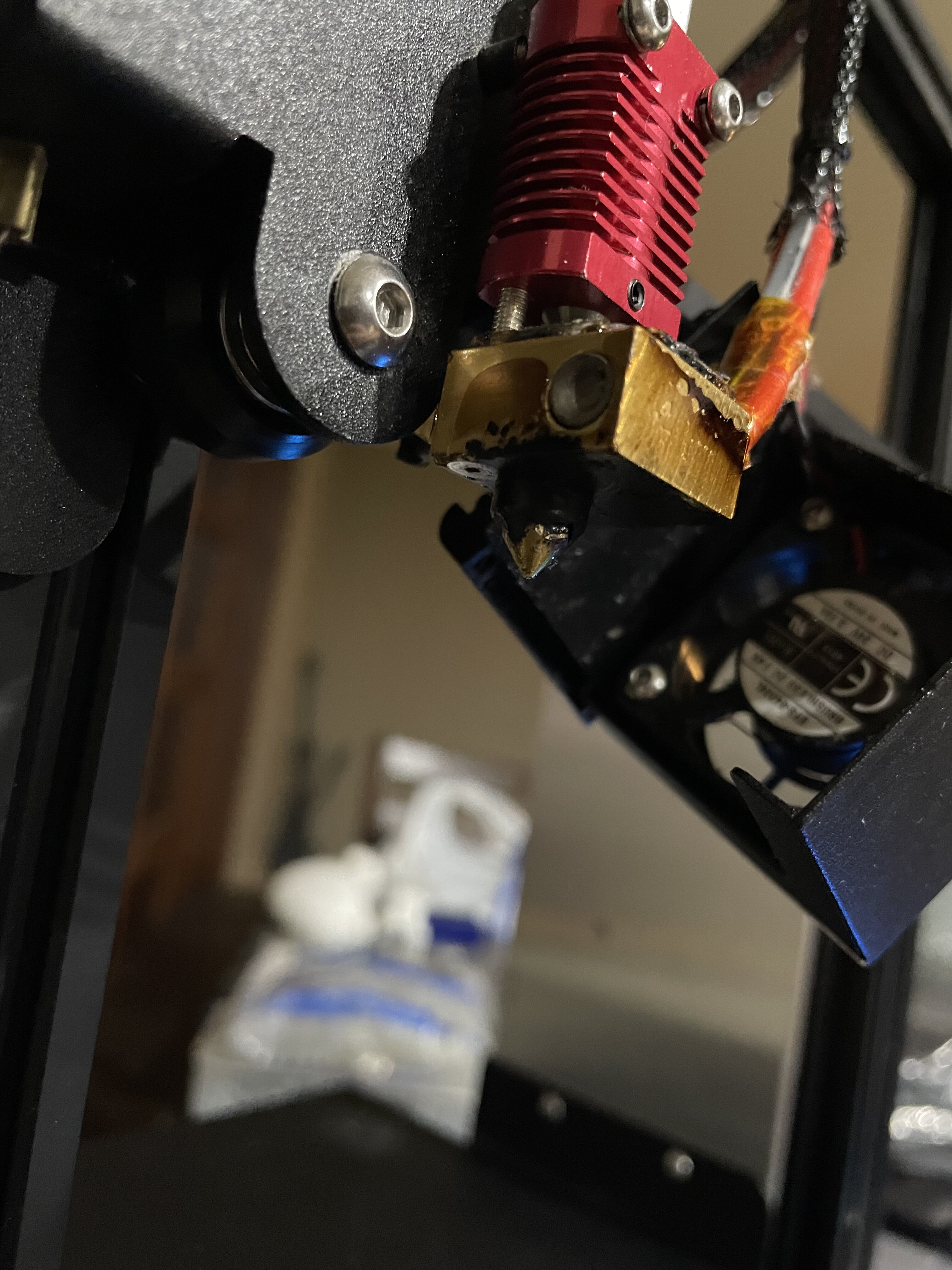

Hello again… long time no update. I’ve been struggling hardcore with my printer over the last month or so. First I had large clog that formed a block of plastic around my hot end, then I clean it up and replaced the bowden tube, and I started getting this weird wavy texture on my prints. Then I decided to replace the entire hot end. I started to finally get some distinguishable prints off with what I think was some pretty bad under extrusion. THEN, when I was in the midst of trying to fix my prints, this happened… again.
I have no idea what the hell caused this for a second time, nor can I figure out why my prints aren’t solid anymore. Currently running a 0.4mm nozzle, and might try something a bit bigger and see if that helps… maybe a 0.6mm? I don’t know. This has been a super frustrating process that I’m sure every 3D printer-person has gone through at some point, but if anybody has any knowledge or any ideas on what I might be able to to to get my printer back to solid working condition that would be greatly appreciated! I’ll give any details needed.


Bloxx3r

Jr Member

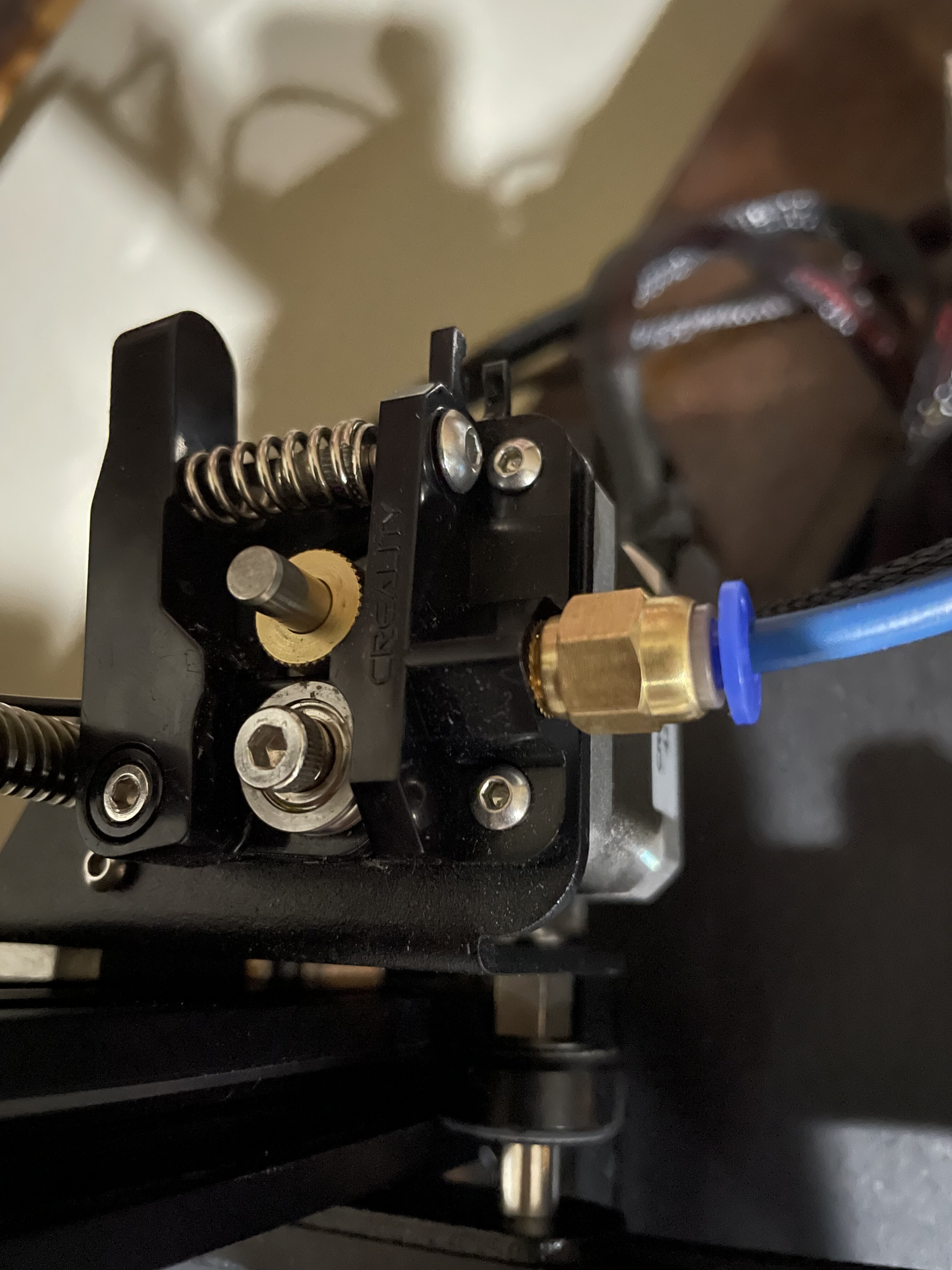

Oh my goodness I think I got it (mostly) back to normal!! Sorry for being a bit dramatic in my previous post. I cleaned up my hot end, did my best to clear my bowden tube, hot end tube, and I put on the new 0.6mm nozzle. After loading up a calibration cube I still noticed some under extrusion. I was looking all over the printer, and then I saw it:
That silver gear on the extruder wasn't moving. I tightened up a couple of screws to help press the silver gear up against the toothed bronze gear, and she seems to be printing like normal again! I’ll be running some more test prints and posting another update or two. Fingers crossed everything goes well!


GrmblBACHx

Jr Member
Glad you got it fixed! Just a word of caution though, I would look into upgrading your plastic extruder to a metal one. The plastic ones tend to crack and will leave you with more problems at some point. Because of the pressure the spring is putting on the plastic lever, it's only a matter of time until it cracks on you. It also looks like you are missing the little black clip on your Bowden tube at the extruder connection. Those are supposed to help the tube from not backing out. You should also have one of those on your hot end for the same reason.
Oh my goodness I think I got it (mostly) back to normal!! Sorry for being a bit dramatic in my previous post. I cleaned up my hot end, did my best to clear my bowden tube, hot end tube, and I put on the new 0.6mm nozzle. After loading up a calibration cube I still noticed some under extrusion. I was looking all over the printer, and then I saw it: View attachment 321511 That silver gear on the extruder wasn't moving. I tightened up a couple of screws to help press the silver gear up against the toothed bronze gear, and she seems to be printing like normal again! I’ll be running some more test prints and posting another update or two. Fingers crossed everything g


Bloxx3r

Jr Member
Glad you got it fixed! Just a word of caution though, I would look into upgrading your plastic extruder to a metal one. The plastic ones tend to crack and will leave you with more problems at some point. Because of the pressure the spring is putting on the plastic lever, it's only a matter of time until it cracks on you. It also looks like you are missing the little black clip on your Bowden tube at the extruder connection. Those are supposed to help the tube from not backing out. You should also have one of those on your hot end for the same reason.
Thanks for the tips! I’ll definitely look into getting a metal extruder. As for those clips I have some, I just totally forgot to pop them back on after I replaced the bowden tube, so thanks for the reminder!


admiral4ever

Jr Member
Glad you got it fixed! Just a word of caution though, I would look into upgrading your plastic extruder to a metal one. The plastic ones tend to crack and will leave you with more problems at some point. Because of the pressure the spring is putting on the plastic lever, it's only a matter of time until it cracks on you. It also looks like you are missing the little black clip on your Bowden tube at the extruder connection. Those are supposed to help the tube from not backing out. You should also have one of those on your hot end for the same reason.
I second this. My plastic one cracked after only a month of use.
to be fair i did also print an entire chest piece in 2 weeks but regardless. Metal one is far better long term
creality printers generally are weird with how long they last though. So many upgrades needed for a stock printer. ughhh


Bloxx3r

Jr Member
I've taken your advice and I have a new metal extruder upgrade on the way! Should be here Monday. I had another print fail for the same reason after I sent my last message so I figured I'd just replace the extruder before I mess anything else up!
