[Central] Moldmaking for newbies

Discussion in 'Halo Costumes and Armor' started by falcon NL, Oct 2, 2007.

  1. falcon NL

    falcon NL Well-Known Member

    Welcome to the central mold making threat. This threat is to help the beginner moldmaker on his way and to explaine the step that are needed to make a final product.

    Help I don't see the answer to my question!!!
    Take it easy, relax breath in and breath out.... good. For every project there are different questions, so its a possibility that your answer inst here. Just ask ( in good grammar) what you need to know. I could be that it takes a while before you get a answer so have some patience.


    Whats the difference between a model, mold and jacket

    Well that rather easy.

    Model: is the object what you want to make a mold from. In this case its the masterchief's head in clay.
    Mold: This is the flexible rubber layer that you are brush on to the model.
    Jacket: This is a hard supporting jacket for the flexible rubber mold. It keeps the mold in the right place, this layer will be bush on the mold.


    The beginnings of mold making

    These steps are a summary of what you need to do. You still need to do some research yourself before even attempt to start.

    Step 1:
    [​IMG] Buy some oil-base clay.
    There are a lot of different sorts of oil based clay.The most used clay is Chavant NPS (Non-Sulphurated Plasteline) clay.This comes in a couple of kinds .
    - Chavant NPS soft (hardness 4)
    - Chavant NPS medium (hardness 7)
    - Chavant NPS Hard (hardness 10)

    There is a alternative that is widely used. These are the Roma Plastina and the Van Aken Plastalina. For a Masterchief helmet you will needing a lot of clay, The big question is how much...well Adam?
    Step 2:
    [​IMG] Place the clay on you manique
    Make sure that the thickness of the clay is about 1,5 / 2 inch all around .On the top of the manique it needs to be around 3 /4 inches. This is necessary for padding later on and for movement of the head. After this is done you may want to insert visor, this way you can build around your visor and have the some reference points. Now you are ready to build up you model to the shape you desire (masterchief helmet)

    Step 3
    [​IMG] Done with sculpting
    If you are done sculpting, you are done sculpting. This sound weird but read on. If you found the time,money and inspiration for a project like this you need to be a 100% satisfied with your result. Take the time with your sculpt and work on it until you are satisfied. After you start beginning on the mold there is no place fore little adjustments.

    Step 4
    [​IMG] make preparations
    Before starting on the mold, you need to have a parting seam. You can create a parting seam by making a wall of sheets of thin/metal or the use of oil base clay. The best way to hide a parting seam is to make use of the lines that there are in a object. This way it need less work after the de-molding. I recommend that you will apply some mold release before starting.

    Step 5, part one
    [​IMG] Making the mold
    Now you are ready to make the mold. For the best result you cannot cut down on this part. You will be needing liquid 2 part rubber that can be thicken and brush on to the model. The 2 most commonly rubbers are,
    - Polytek 74-30 with Polyfiber to thickenen it.
    - BRUSH-ON serie from smooth on.
    The first coat will be barely thickened, so that it can flows in to all the details, then the next coat a little thicker, and so on until you have built up the rubber to about 3/4 - 1 inch. You are only doing this at one side of the parting seam.Alway read the instruction's on the can, and use a respirator. Don't try to speed up the process by messing with the relations.

    Step 5, part two
    [​IMG] Making the jacket
    The jacket is the part that keeps the mold on this place. You need to brush it on the mold and until its about 2/4 inch thick.There isn't one material that commonly used. It really up to the maker on what he want to use for the jacket. There are a couple that i recommend.
    - Shell Shock (Smooth on)
    - Plasti-past (Smooth on

    Step 5, part three

    [​IMG] Preparations for the second half
    Remove the wall, apply some mold release on the parting seam so that the two parts don't stick together. Do steps one and two on the other side.

    Step 5, part four

    [​IMG] afterwards treatment

    This mold is now complete. You should drill some holes through the parting wall that you created, so that you'll be able to bolt the two halves together. Pry the two halves of the jacket apart, peel the rubber off your model and place them into their corresponding jackets, put the two halves together, bolt them, and your ready to make your first casting.

    Step 6

    [​IMG] polyurethane

    Polyurethane is the most used material for the actual helmet. There are people that use custom mixes (like Sean) but that to difficult if you are a beginner. The most commonly used polyurethane is Smooth-Cast 300 (Smooth On). Its a necessary that the polyurethane is a rotocast material.
    mixing accordingly

    step 7

    [​IMG]

    Using a rotocasting resin (Smooth-On) you will mix a moderate amount of resin .Not enough to fill the helmet mold, just enough to coat the sides to about 1/4 inch. Pour the resin into the mold, and rotate the moldso that the resin coats all the sides as it cures. This will make a hollow casting. It's a little tricky to get it right the first time, it may take some practice, and a few batches of resin to get a uniform coating on the inside of the mold.

    Videos

    Please take the time to read the above.These video's are nothing more then a visual explanation

    Important!!

    Good explanation about mold materials

    Brush on Poly 74-30 with Polyfiber

    This is a one part mold with a two part jacket. This isn't going to work on a Masterchief helmet because of the shape of the helmet.

    Plastipast demo


    Smooth on instruction video




    Adam Video ODST helmet

    I want to say thank to :
    - Sean for helping me with the info about rotocast, shell casting and the materials that he use.
    - Adam for this site.
    - The video tutorials threat

    Last edited by a moderator: Aug 2, 2017
    Raven and Shelbiegirl18 like this.
  2. Adam

    Adam Community Founder

    very nice... will put on main site!

  3. Sean Bradley

    Sean Bradley

    Excellent tutorial Falcon, this should help with the constant barrage of mold questions.

  4. falcon NL

    falcon NL Well-Known Member

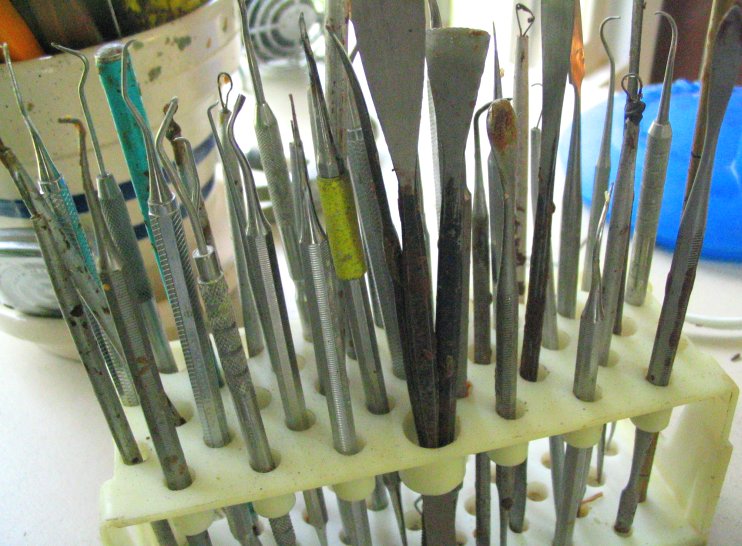

    Well i use the tools that are available at my local art store. Over the time that i have been doing this i have collected some tools that people even use in surgery, a good example of tools that experience (pro) people is :




    I don't know what you are planning to sculpt (im guessing the MC ;)/wink.gif' class='bbc_emoticon' alt=';)' />" border="0" alt="wink.gif" />) but you will be a lot less then that. A good starting kit would look something like this:



    [​IMG]

  5. zeronifty

    zeronifty Jr Member

    what series of Brush On would you suggest? since there are a few to choose from and im afraid that 40 might be too soft and sag

  6. falcon NL

    falcon NL Well-Known Member

    Well I'm using brush on 35, but i dont see any reason why you can't use 40. The Shore is good and if you made a jacket, there isn't anything wrong with soft and sag. It makes it easer to pull the mold out of the jacket, and form the model.

    Last edited by a moderator: Feb 25, 2017
  7. abandonship

    abandonship Well-Known Member

    so for rotocasting you just rotate it until everything gets an even coat?

  8. falcon NL

    falcon NL Well-Known Member

    Yes, but do note the processing time. You can't move you mold all the time :rolleyes

  9. chalupalover

    chalupalover New Member

    dose it matter if I use task 8 instead of smooth cast 300?

  10. falcon NL

    falcon NL Well-Known Member

    I'm nor familiar with task 8, or for that matter know the product. I do recommend Smooth Cast 300 serie, because these are good products, easy to use, and easy to sand.

  11. Captiandean

    Captiandean New Member

    Hey i was wondering How much silicon do you really need for One Mold? could i get like to 2 of the smaller size or do you need 1 Gallon?

  12. monstermike19

    monstermike19 Jr Member

  13. chalupalover

    chalupalover New Member

    I have been looking in the fourms ang i cant find out where to get the mannequin head at , dose anyone know where i can get one at?

  14. falcon NL

    falcon NL Well-Known Member

    @Captiandean:
    Well one gallon is most of the time cheaper then two 1/2 gallons.

    @Mike,
    Thank you for your input and for looking out for people with little cash. You should repost it in the "Where do I get" threat.

    @chalupa lover,
    I found it myself though Mike's link. Be sure you check the size of the mannequin head. If you don't want to buy online, you just look in some hobby shops.
    http://www.monstermakers.com/product/delux...-life-size.html

  15. IronPatriot

    IronPatriot New Member

    Well I have a question. AND yes I have read the whole thing. I have started my helmet and I'm about detail the clay but I don't have time to put a visor in the clay and so my question is What can I use instead of an actual visor or do I even need anything there?

  16. falcon NL

    falcon NL Well-Known Member

    Well you do need something to support the upper helmet.You can use a piece of plastic that you can bend in a ''visor'' way, you can also you clay to fill up the space( but then you will be more clay, and therefore more money spending).

    I would strongly advice to use a visor, you are going to need one any way to make you helmet complete. Why wouldn't you spend those 2 hours for implanting a visor? You cast would look better and you will have better reference points...

    Other then a sheet of plastic or clay i can really say if there is another option.

  17. Yodajammies

    Yodajammies Well-Known Member

    request for "tutorial" video:

    Can we adam or sean or someone to make a quick 30 second video or whatnot of them kicking around a casted helmet. I'd like to see more about the physical properties of smooth-cast.

  18. Walter Spase

    Walter Spase

    A video is being uploaded now if you really must know... sean does not smoothcast, its another type of material... but the one in the video is a smooth-on plastic helmet


    Last edited by a moderator: Aug 2, 2017
  19. ponchato

    ponchato Jr Member

    Let's say I have a finished pepakura-based hand plate. To make a mold, I'm thinking that if I just made a small container out of cardboard, I could just put the hand plate in, right side up, and pour silicon molding material over it. The problem is, I don't think that the bottom/inside half of the plate would be even with the other side (if you put it on a flat surface the top wouldn't be level).



    So I pretty much don't know how to do it. How could I make a mold of a hand plate?



    And to mold a hand plate, do I need to use fiberglass or could I just resin it with a few extra coats inside? From what I've read, fiberglass is a pain to work with. What about using a casting resin such as AeroMarine(<-link) instead of fiberglass?

  20. OGGY

    OGGY New Member

    Hi, I am currently building a pep based ODST helmet and I would like to cast it afterwards.

    I have read through this thread and watched the vids but I am still a little confused.



    Questions:

    -What is the best silcone to use; Rebound 25 or Mold Max stroke (or other)?



    -Thi-Vex thickener is neccessary for helmets, right? (only for certain areas)



    -What is best to use for the jacket? I have seen the Plati-Paste but I would rather build a jacket that bolts together.



    -What do I do around the bottom lip of the helmet? Here is what I was thinking; Add extra material around the lip of the helmet (to make the hole smaller); while siliconing, overflow onto the new material. Make a cast using the mold and cut off what remains of the material that was added. This is all to make sure the entire lip around the base of the helmet gets cast.



    -Why are two part molds better? (the ones using the metal stips); I would think one part molds with one seam would be better (for fewer seam lines.)



    -How much silicone, SmoothCast, thickener, and jacket material (whatever it is) should I buy?



    -How much do the molds shrink? I see that SmoothOn has some special shrink free molds whick leads me to beleive that regular ones shrink.



    Thanks. If you prefer to answer by PM that would be fine.

  21. arloman

    arloman New Member

    okay, so i've read most of the thread and have noticed, this is mainly about molding clay, and the problem i see with that is that there might not be visors that could fit in without having to change the whole sculpt, but that's not why i'm here. i'm here because of decided to do a pep helmet and in my head im think, how the heck am i supposed to put in plates that will separate the two halves of the mold and jackets like in a clay sculpt? So if anyone can get back to me, that would be great

  22. MikyVengeance

    MikyVengeance

    could I use this same technique with molding weapons?

  23. SraiderL

    SraiderL New Member

    I was looking at this and I was wondering do I have to sculpt the helmet to do this or can I make a pep helmet and use that maybe put on fiber glass resin to harden it for the process? I don't think I would be able to sculpt a mc helmet very well lol

  24. kenster1000

    kenster1000 Jr Member

    Hi im in the process of molding a helmet and i was wondering. After I brush on the rubber layer should I put regestration keys on the rubber layer for better placement inside the final jacket layer?

  25. Magic Zombie

    Magic Zombie New Member

    I totally forgot about this site, and I have a convention coming up in 3 weeks, how can i smooth out hot glue which i used to cover my makeshift armor?[attachment=15844:pICT0078.JPG]
