Energy Sword

Discussion in 'Halo Props' started by crackhead09, Mar 9, 2008.

  1. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770

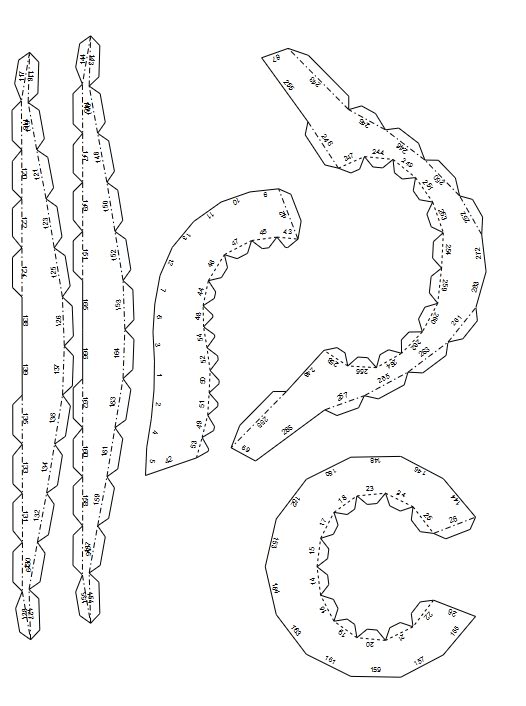

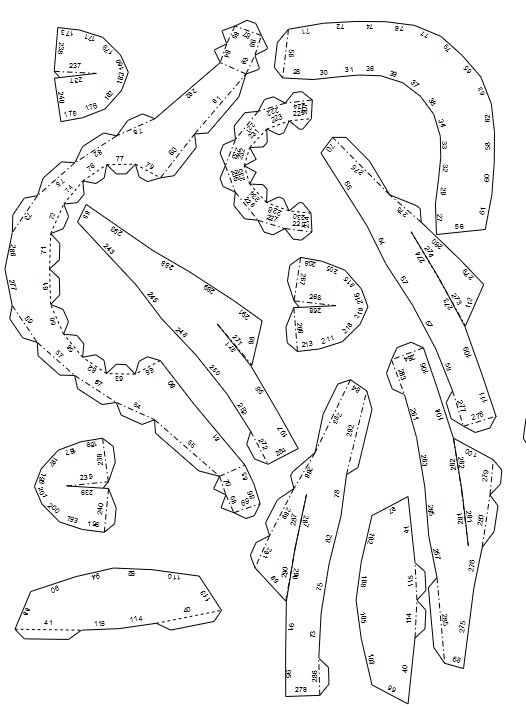

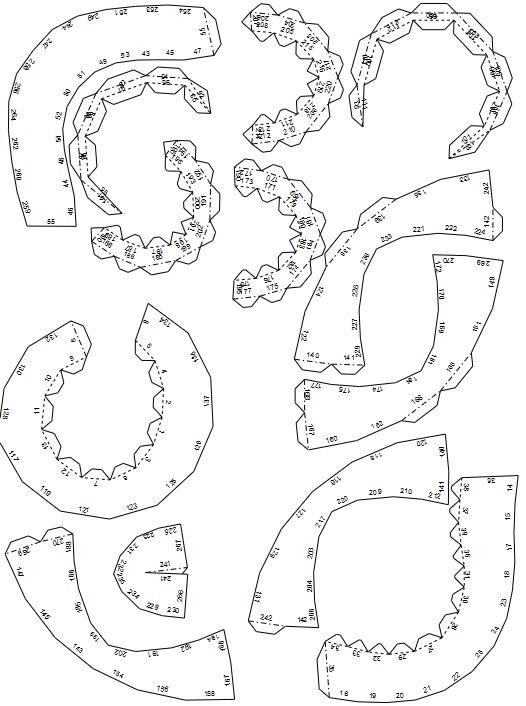

    I'm releasing this because its my first weapon im making so I figured I'll give the people a Smooth unfolded pep handle its 5 cm tall and i believe thats the right scale and remember this is only the handle not the blade
    [attachment=3453:004.JPG][attachment=3454:005.JPG]
    Energy Sword Handle
    Scale: 5cm
    completly smooth
    build time (1-3 hours)
    download from mediafire

    and to those unfortunate to have a mac and suffer without you guys can thank Rob Westerfield for this request.
    here is the same file just in BMP format sorry i dunno how to do JPEG
    Mediafire

    and if you dont have WINRAR heres the pic themselves




    I hope this helps other people

  2. Garland

    Garland Member

    Trophy Points:
    119
    That's pretty good. Did you model it from scratch or did you use one of the H2 models?

  3. cholo71796

    cholo71796 Jr Member

    Trophy Points:
    99
    I agree. Could you link to a matching energy sword sword portion? Thanks!

    Last edited by a moderator: Feb 25, 2017
  4. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770
    its the halo 2 one and right now im busy making the file and its not too hard if you start from one end then work your way to the other end.

    um i guess but would you rather have just a 2d layout for cut outs on plexiglass? because from back to front is 82.8

    Last edited by a moderator: Feb 25, 2017
  5. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770
    [attachment=3452:005.JPG][attachment=3451:004.JPG]

    well here are some pics of the handle complete

  6. tonsofhoopla

    tonsofhoopla Member

    Trophy Points:
    119
    Downloaded it, Looks great!
    *opens Weapons planning to make folder, places handle in it.*

    Keep it up.


    -Justin

    Last edited by a moderator: Feb 25, 2017
  7. tokage81

    tokage81 New Member

    Trophy Points:
    4
    nice work, and you are better off just building the blades out of plexiglass or something similar I unfolded the blades and assembled the whole thing. It goes great all the way until you get to the top tips of the blades then it just kinda flattens out and looks bad. I'll take some pics of mine assembled and post 'em.

  8. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770
    well what my plan was to do what sean bradley did with his. i going to make the blades two sheeted so leds fit in between and frost the glass so it glows and for the handle i just going to fiberglass the outside and have some fun with a DREMOL and mud

  9. Sean Bradley

    Sean Bradley Sr Member

    Trophy Points:
    1,070
    Thats a nice Pep Sword handle!

    With some bondo and a dremel, that could be pretty fantastic.



    Good luck on this project. If I can help in any way just let me know!

    -Sean

  10. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770
    well i do have a few

    1. is plexiglass a good idea because i dont know where to find polycarbonate

    2. what i plan on with the lights will use a pressure switch located near the palm so its only on if your holding it and would that be a good idea?

    3. will a magnet destroy the wiring and stuff inside the handle?

  11. Sean Bradley

    Sean Bradley Sr Member

    Trophy Points:
    1,070
    In my experience the plexiglass works just fine. I guess the advantage of the polycarbonate is that it might be stronger. But I've never had any problems with standard 'hardware strore' plexiglass or acrylic sheet.

    I found it much more practical to use a on/off pushbutton or slide switch placed right where your thumb rests. That way you can turn it on when you want to, not just when it's being held. I found this useful for emphasising the action of turning it on while in costume... looks and feels very cool to flick your arm out when you hit the switch:



    You can't see it very well in that clip because of the distance, but you get the idea..


    Hmm. That I don't know. I imagine you're talking about a high-strength neodynium magnet, and I just don't have any experience with them.. The bigger question is, are you going to have room for a Neodynium magnet inside your handle? It's a VERY tight fit just to get the proper electronics and power supply inside there...


    Last edited by a moderator: Aug 2, 2017
  12. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770
    thanks sean i guess instead of a magnet maybe a piece of metal so the magnet in the thigh just gets that and i appreciate the awnsers but another question on plexiglass

    will it wobble?

    oh and attathing the blades to the piece as well

  13. tokage81

    tokage81 New Member

    Trophy Points:
    4
    wow... just looking at the picture answers alot of the questions I woulda had. very nice

  14. Vrogy

    Vrogy Well-Known Member

    Trophy Points:
    770
    polycarbonate source: ~.11" thick can be had from Home Depot/ Lowe's. http://www.mcmaster.com carries a nice 1/16" thickness, and many others.

    The advantage over acrylic is indeed strength. Get a small sample of each and try abusing it in various ways- the acrylic will shatter, the polycarb will either spring back into shape or deform and eventually tear under enough stress, but long after the acrylic is shattered.

    neodymiums: they can be pretty small, and still have a lot of holding power. You'll want two sets of them, too, so the sword doesn't swing around when you walk. Also remember that the holding power increases the closer they are. If you can get away with having them actually touch each other, that's ideal, and a coating of something non-slip would help some with shearing forces between the two.

  15. Sean Bradley

    Sean Bradley Sr Member

    Trophy Points:
    1,070

    Meh... wobbles maybe a little, depends on how you're swinging it. If you swing it blade sideways, you can tell it's plastic.. if you swing it as seen in the game, then no worries.

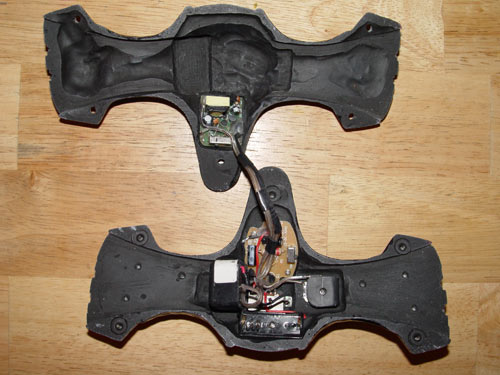

    About the mounting: Three screws in each blade inside the handle. Look here:

    http://nikon.bungie.org/misc/sean_bradley_...display=ESSS125


    Be sure to check out that HBO gallery, the pictures say a thousand words... well 88 thousand words I guess.. ;)

    Last edited by a moderator: Feb 25, 2017
  16. rachciav

    rachciav Well-Known Member

    Trophy Points:
    769
    ooo this handle is awsome! i think im gonna make it, so i can attach it to my leg as a side weapon with magnets!

    sean i have a question about what you used for the lights, is that that EL or wat ever its called wire?

  17. Sean Bradley

    Sean Bradley Sr Member

    Trophy Points:
    1,070
  18. beowulf

    beowulf Jr Member

    Trophy Points:
    89
    great job

  19. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770
    *UPDATE*

    there is now a WINRAR file containing BMP files of the handle as well as the BMP images on first post

  20. shadow8136

    shadow8136 Well-Known Member

    Trophy Points:
    669
    umm... blade plz? lolz

  21. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770
    well to be honest you would be better off doing it with plexiglass like i am using a drawing than to print out a pep model because that wouldnt really work

    Last edited by a moderator: Feb 25, 2017
  22. MysticLegend

    MysticLegend Jr Member

    Trophy Points:
    99
    It actually looks like the Halo 3 one. I'm very familiar with the differences, and you can tell by the way both endcaps look. The H2 one is flatter at each end, while this one does a nice curve.

    Last edited by a moderator: Feb 25, 2017
  23. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770
    well it really is from halo 2 i downloaded the godly file back in the summer of 2007 and all the smoothing is done in pep but it is flattering to think it looked like halo 3

    Last edited by a moderator: Feb 25, 2017
  24. Sisko4

    Sisko4 Well-Known Member

    Trophy Points:
    669
    Great Handle, i think i restart my Sword now, going to build Sean´s Sword, hope i could make it right.

  25. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Trophy Points:
    770
    Good luck to you on that im just trying to get meoney for the plexiglass
