Foam ODST (WIP)

Discussion in 'New Recruits' started by TuckerN17, Jun 7, 2018.

Tags:
  1. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3
    Hello everyone, it has been several years since I've even been on this website and my old username is long gone. This first post is going to be quite long as I have been working on my armor intermittently for about a year and a half.

    This is not my first attempt at making armor. I have tried pep and fiberglassing a Halo Reach spartan before, but I ended up just endlessly sanding and bondoing so I quit.

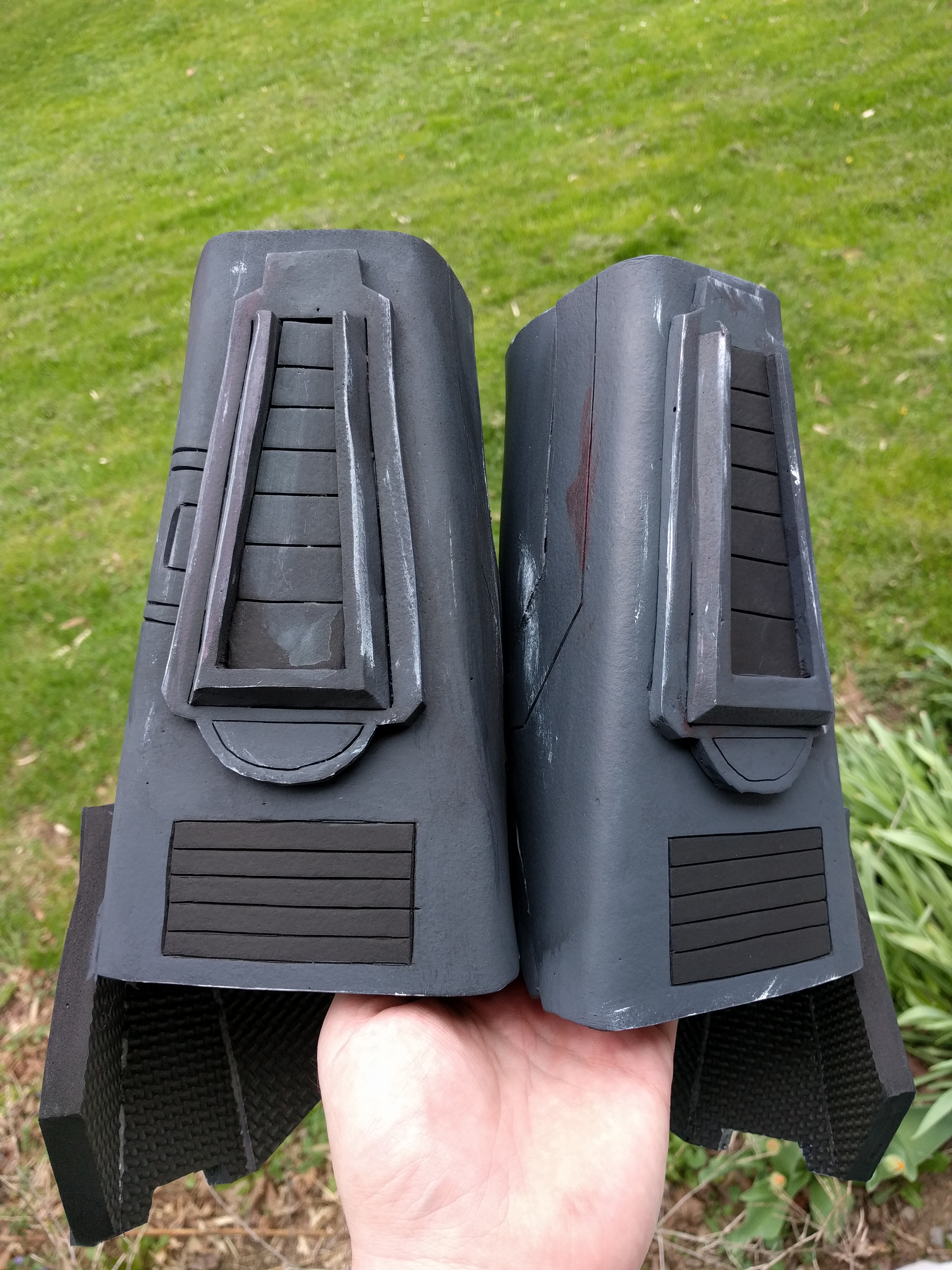

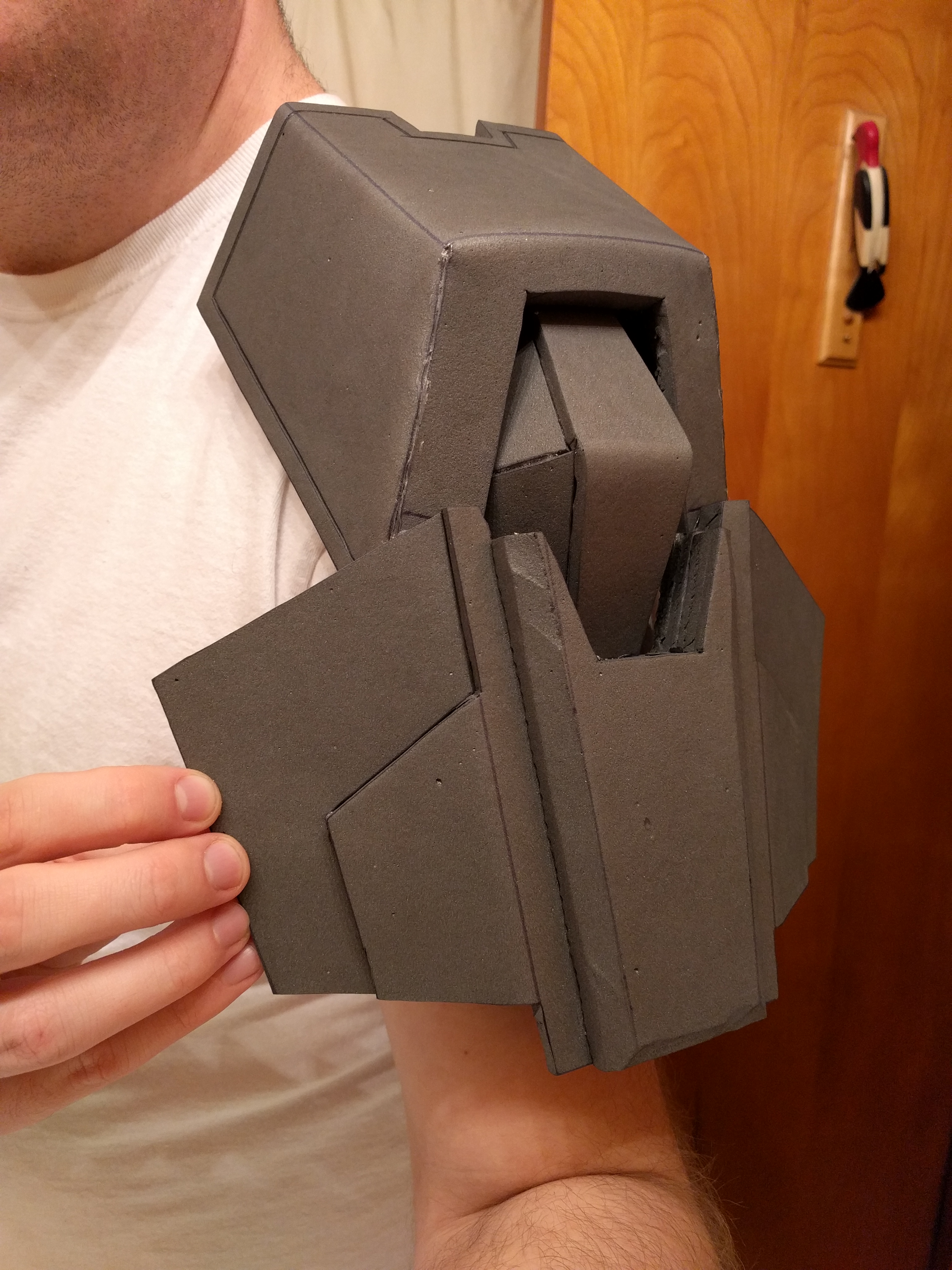

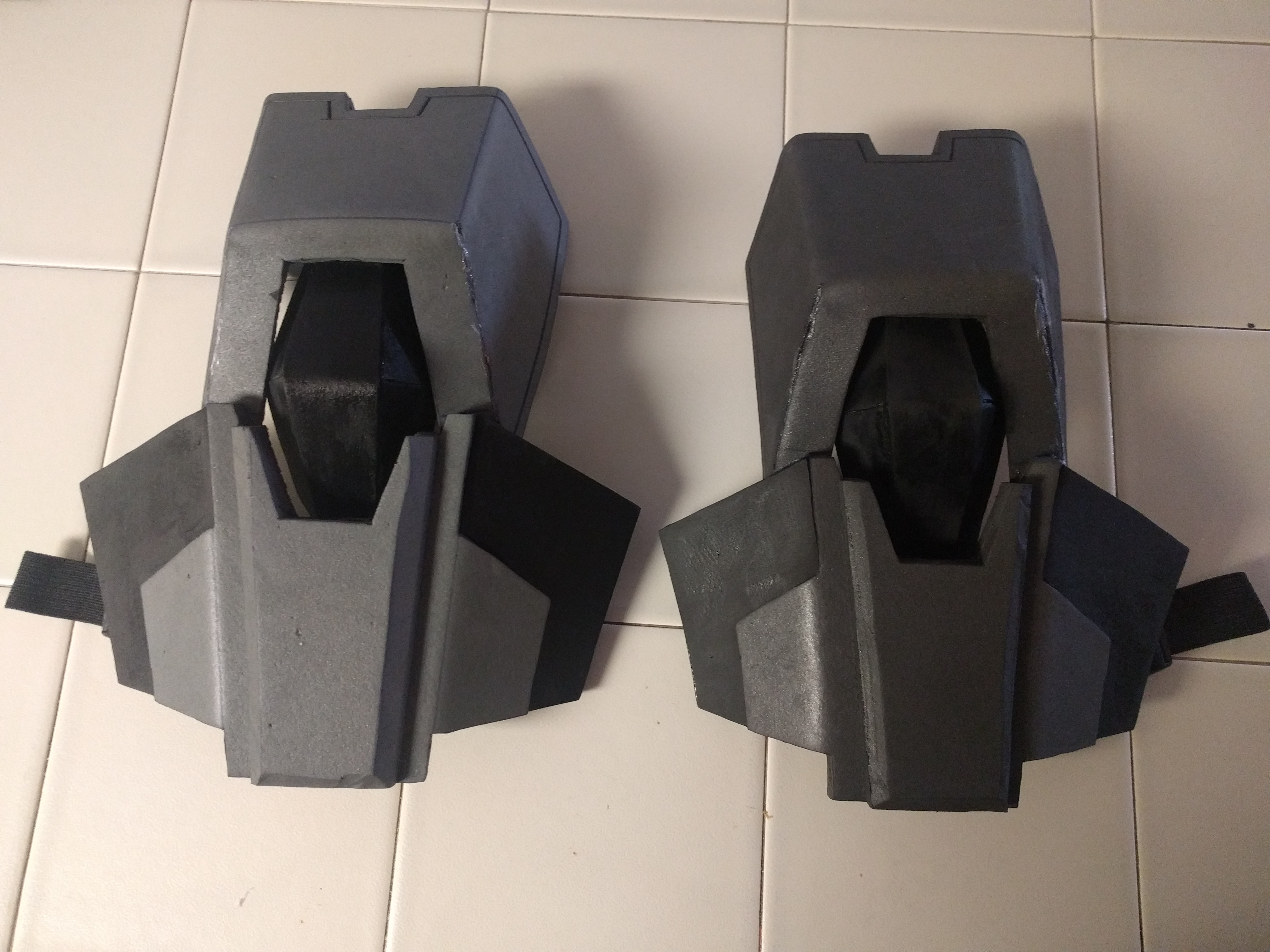

    Last year in January I saw AndrewDFT's tutorials for ODST foam armor and after thinking about it for awhile I decided to give it a shot. I started out by making a shoulder piece. I had never worked with foam before and decided to proceed with caution as I have a tendency to dive in to a large project and get overwhelmed.

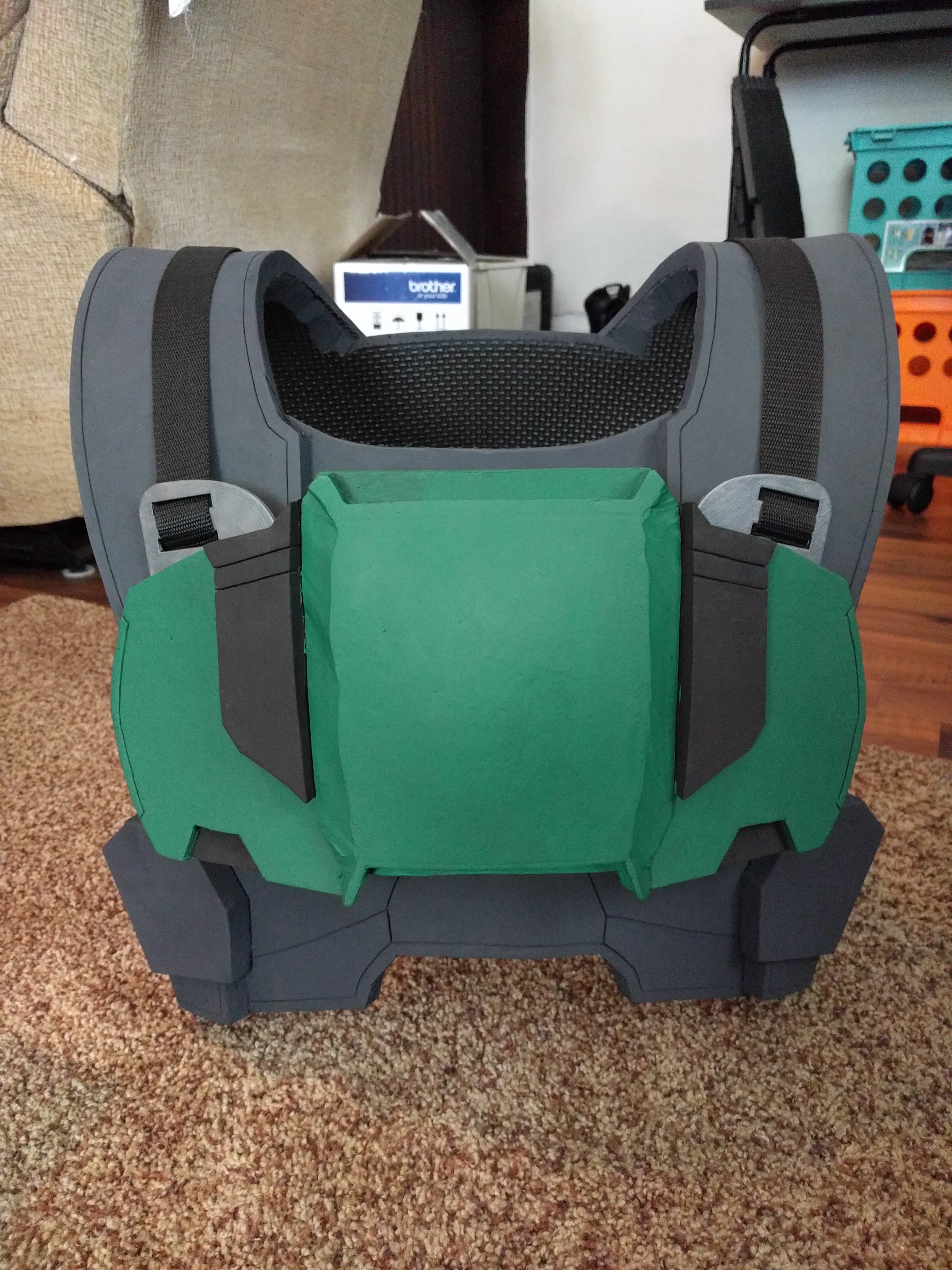

    Much to my surprise it didn't turn out half bad. So I kept at it and before I knew it I had all the foam pieces cut out and glued together. During this process I also started working on the under suit. I found fabric on Amazon that I liked and made a template from a button up shirt and a pair of pants.
    The under suit was actually quite easy to sew (those 8th grade home economics skills came right back). That was in about November. The weather got cold outside so Plastidip wasn't an option. I tried sealing the foam with glue then painting it with acrylic paint but I wasn't satisfied. The armor just didn't look right to me. So I decided to shelve the project for awhile and ponder what to do.

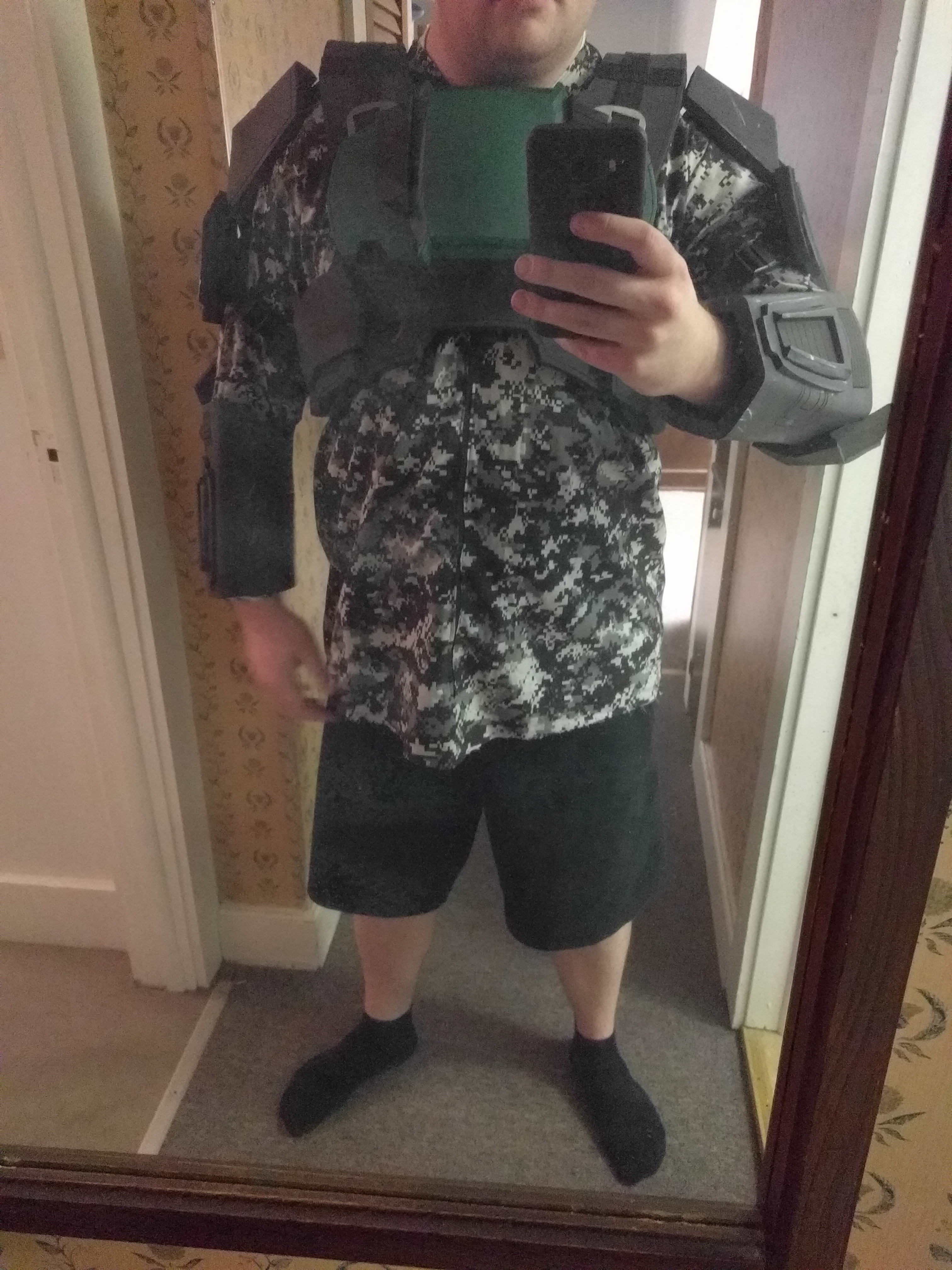

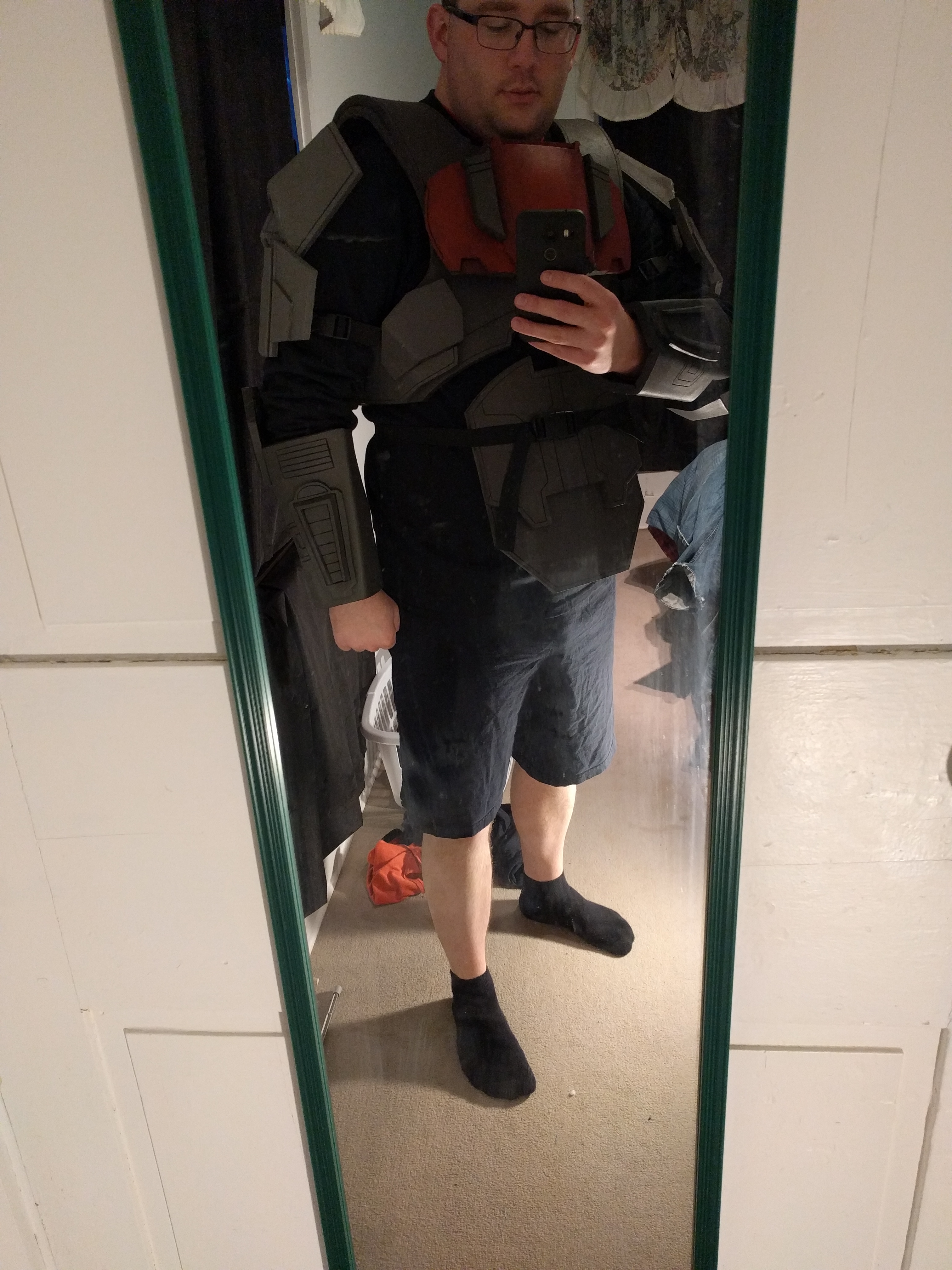

    IMG_20170427_191934.jpg IMG_20170428_102917.jpg IMG_20170515_185351.jpg IMG_20170418_151935.jpg IMG_20170408_141642.jpg

    So the project laid dormant for a couple months until recently it started getting warm outside. Over the winter months I would randomly think about the armor, what I liked and what I knew needed to change. The thing that seemed to bother me the most was the placement of the straps. So last month I pulled everything out of the closet and laid it all out on the floor. The first thing I did was carefully remove ALL of the straps. Next I Plastidipped all of the pieces. Then it was time to add on the strapping again. I bought adhesive Velcro for fabric and added it to the under suit where the armor pieces would go over top. The Velcro would do most of the work of holding the armor in place on my body. The straps were there to hold the armor piece against my body so it wasn't flapping around. I ended up liking how well the Velcro holds that I'm using it all over the place.

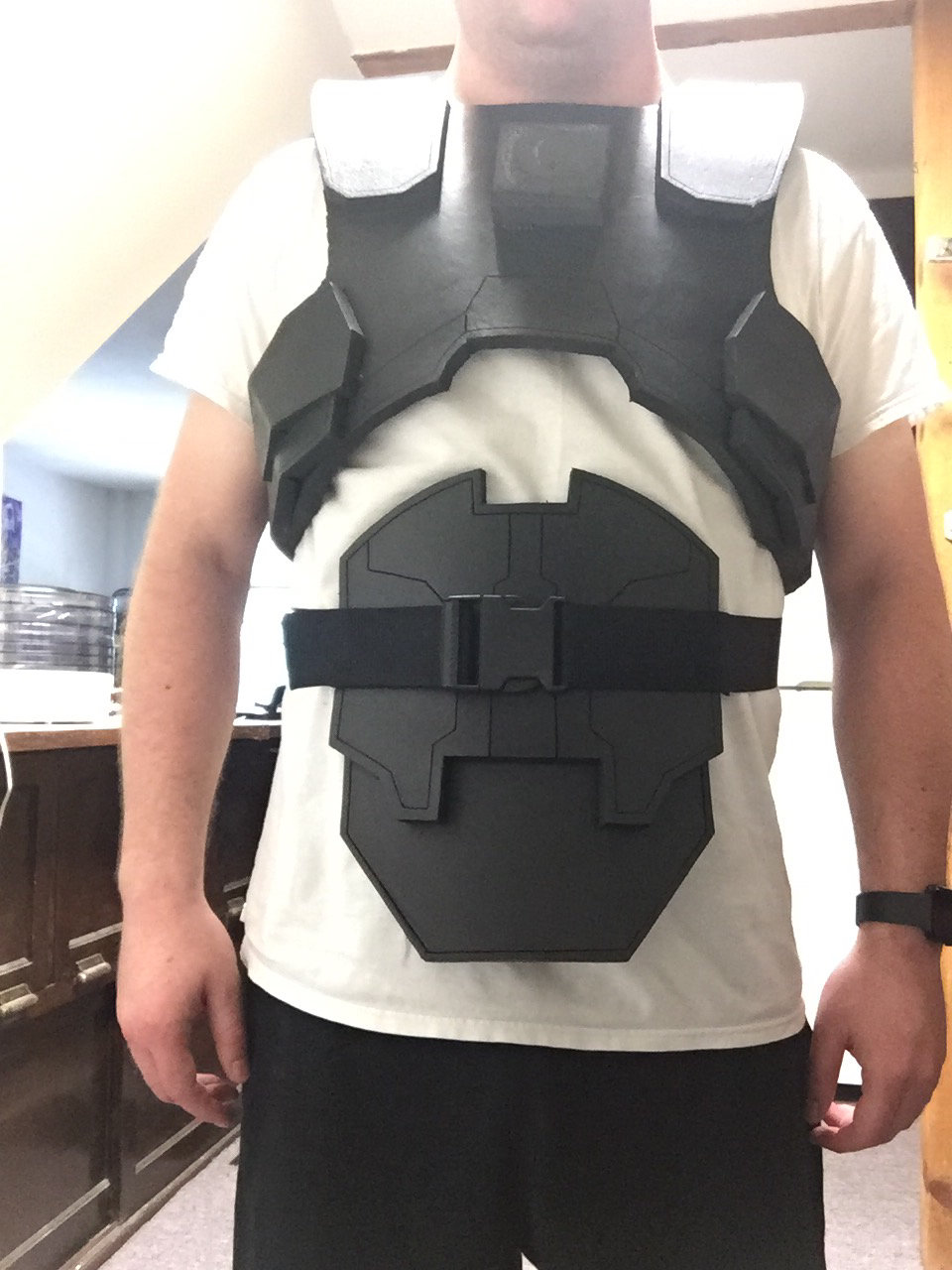

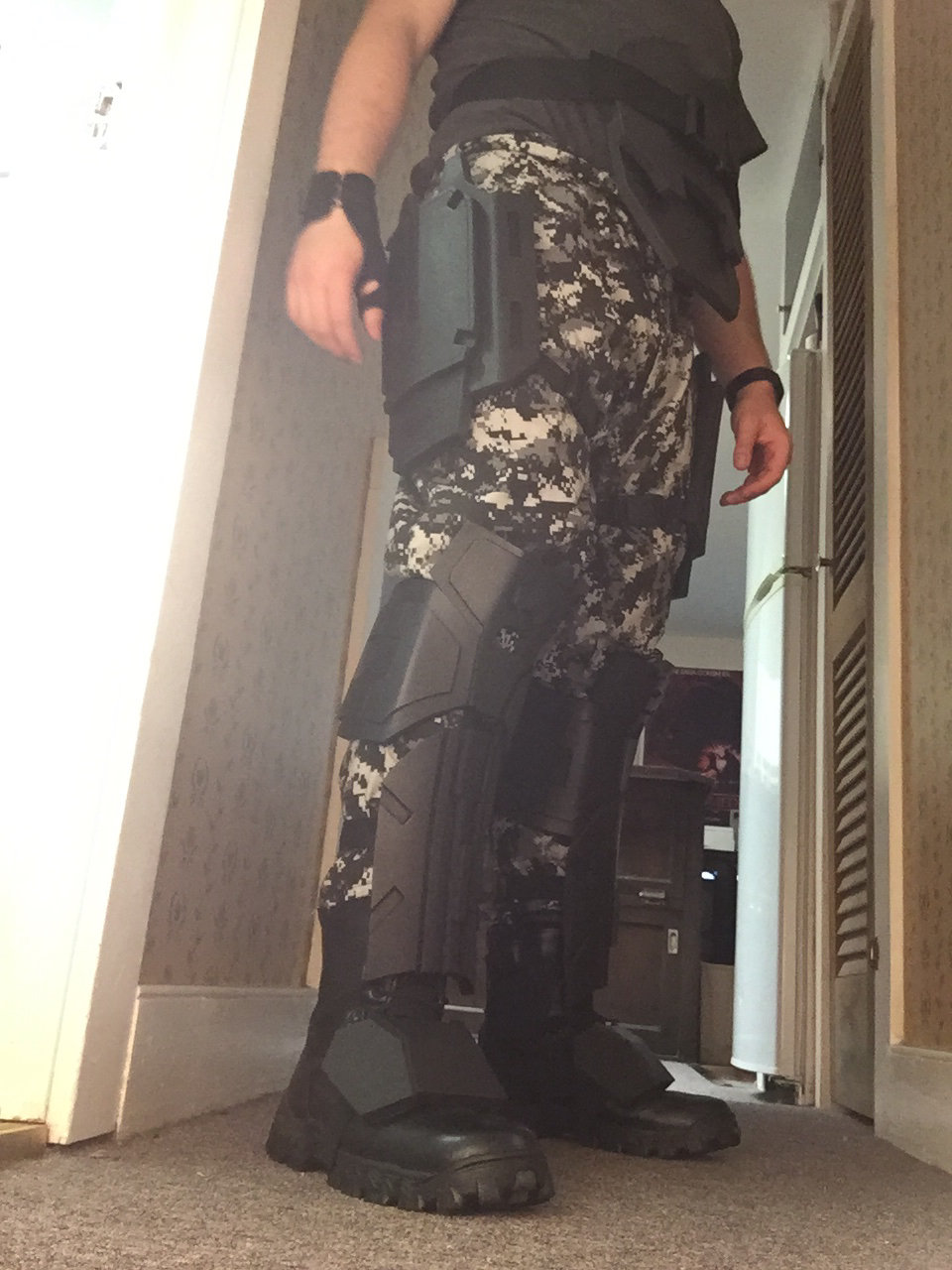

    So this brings us to today, and the current state of my project. All of the foam pieces are cut out and glued together, with the exception of the chest plate which I am currently remaking. Today I finished adding strapping to the legs. The ab plate and back plate are finished and fit great. I am able to sit down comfortably which is a huge bonus.

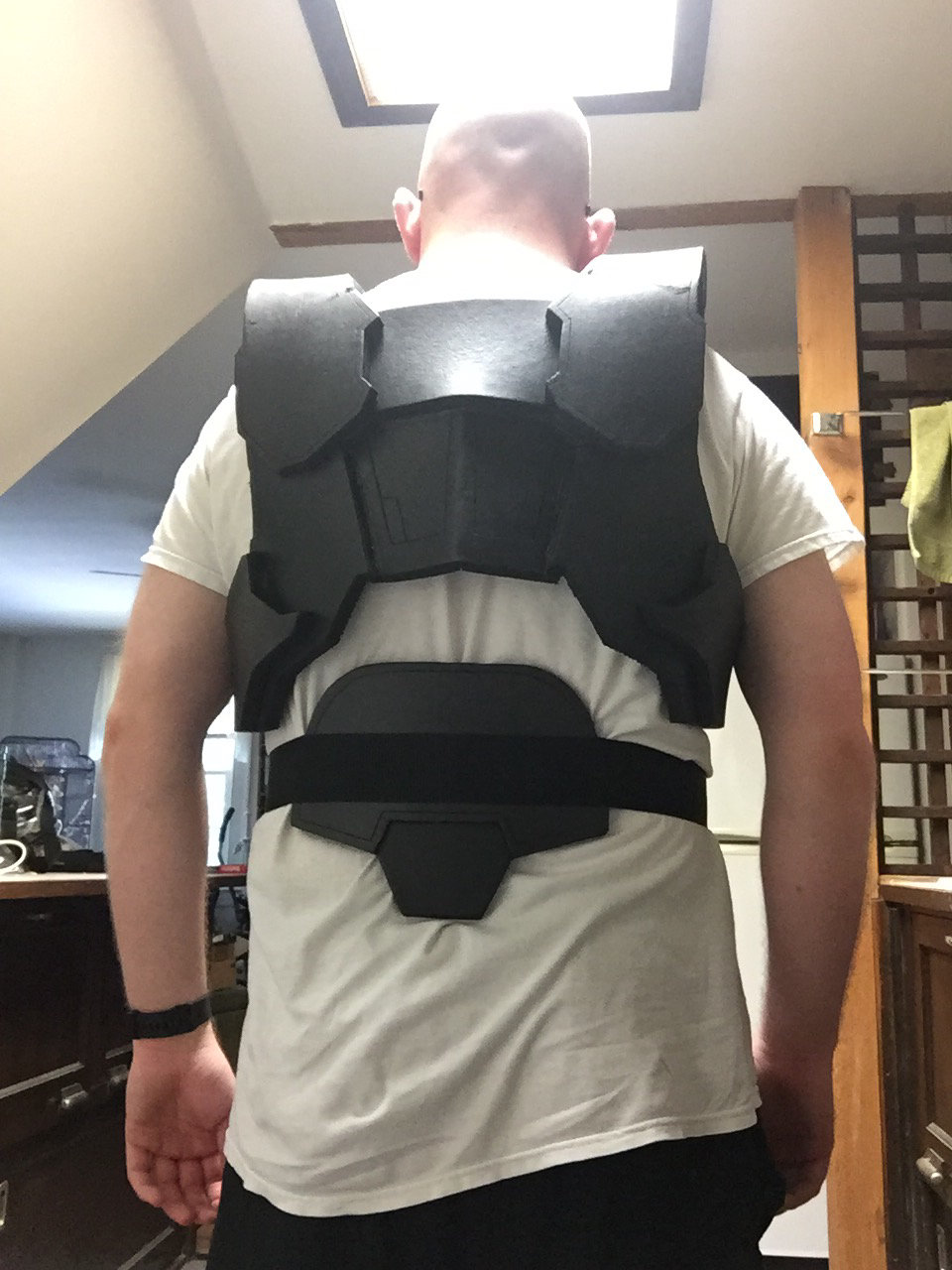

    legs.JPG front ab plate.JPG back.JPG
    The main chest piece is almost finished, it just needs the chest plate. The forearms are finished and are held in place just by sliding them up my arm. The shoulder armor need a bit of work as I don't like how they rest on my upper arm.

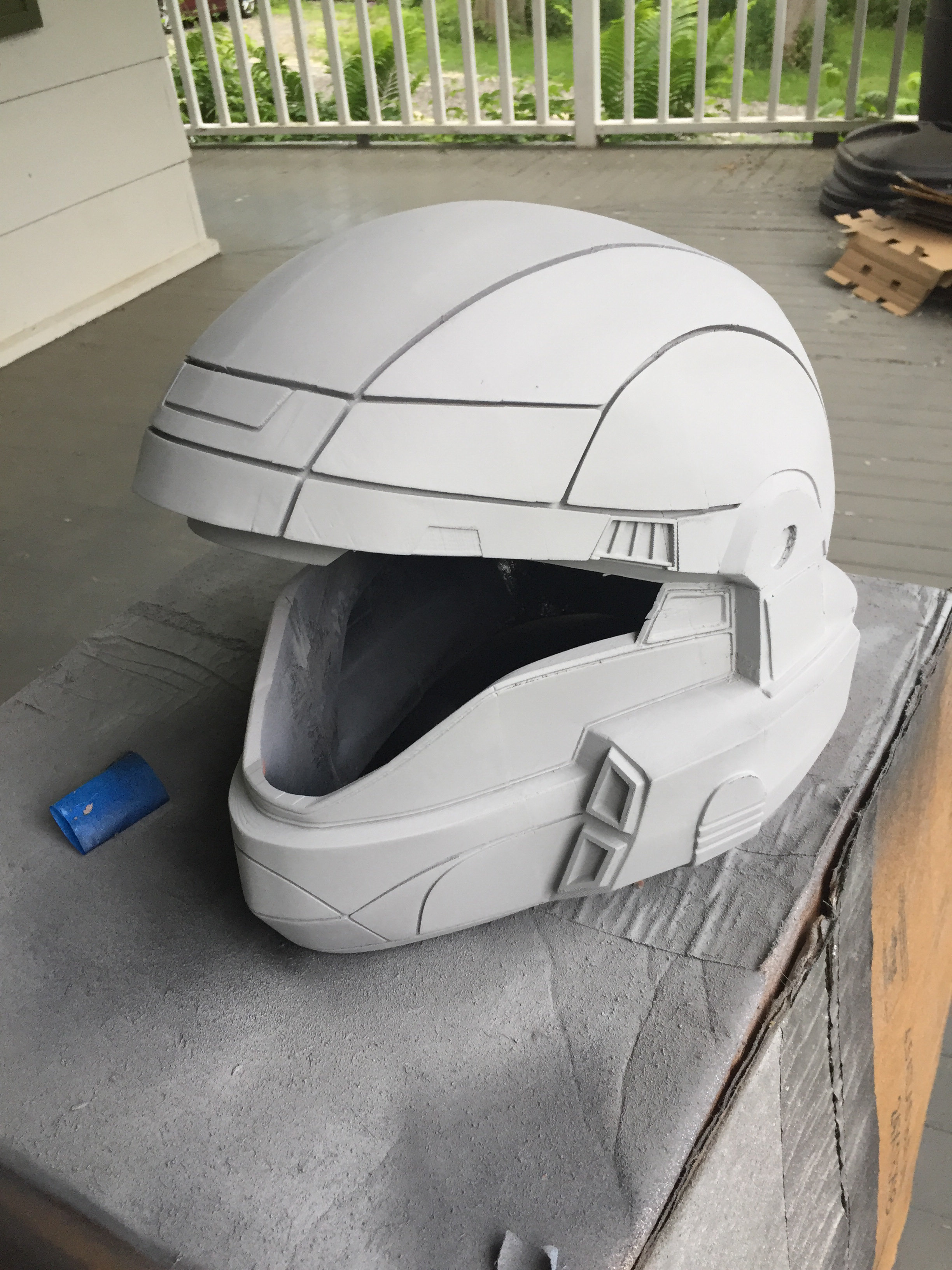

    Last but not least is the helmet. I did originally build an AndrewDFT's helmet but I didn't like it very much. I tend to think that people look at the helmet more than any other part of the armor so I wanted to make sure it looked good. So I decided to 3D print the helmet. After many, many hours of printing, gluing, sanding, applying primer, and filling this is how it looks. I still need to put some work into it but I'm overall happy with it.
    helmet 1.JPG

    I do have a M6SOCOM pistol and a silenced SMG in the works, but I'll save those for another time.

  2. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    Trophy Points:
    1,085
    Woah.

    WOAH

    That's the sign of a good fitting costume. Everything is looking extremely clean well done good sir.

    Do you happen to know what the fabric was called on the bolt so that other forum users can find it?

    Dirtdives and Lieutenant Jaku like this.
  3. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3
    Dirtdives and TurboCharizard like this.
  4. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    Trophy Points:
    935
    Liked, watched, and anticipating great things! I Like how clean it's coming together. Keep us posted, for sure!

    Dirtdives likes this.
  5. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3
    chest front 1.JPG acc 1.JPG acc 2.JPG helmet 2.JPG

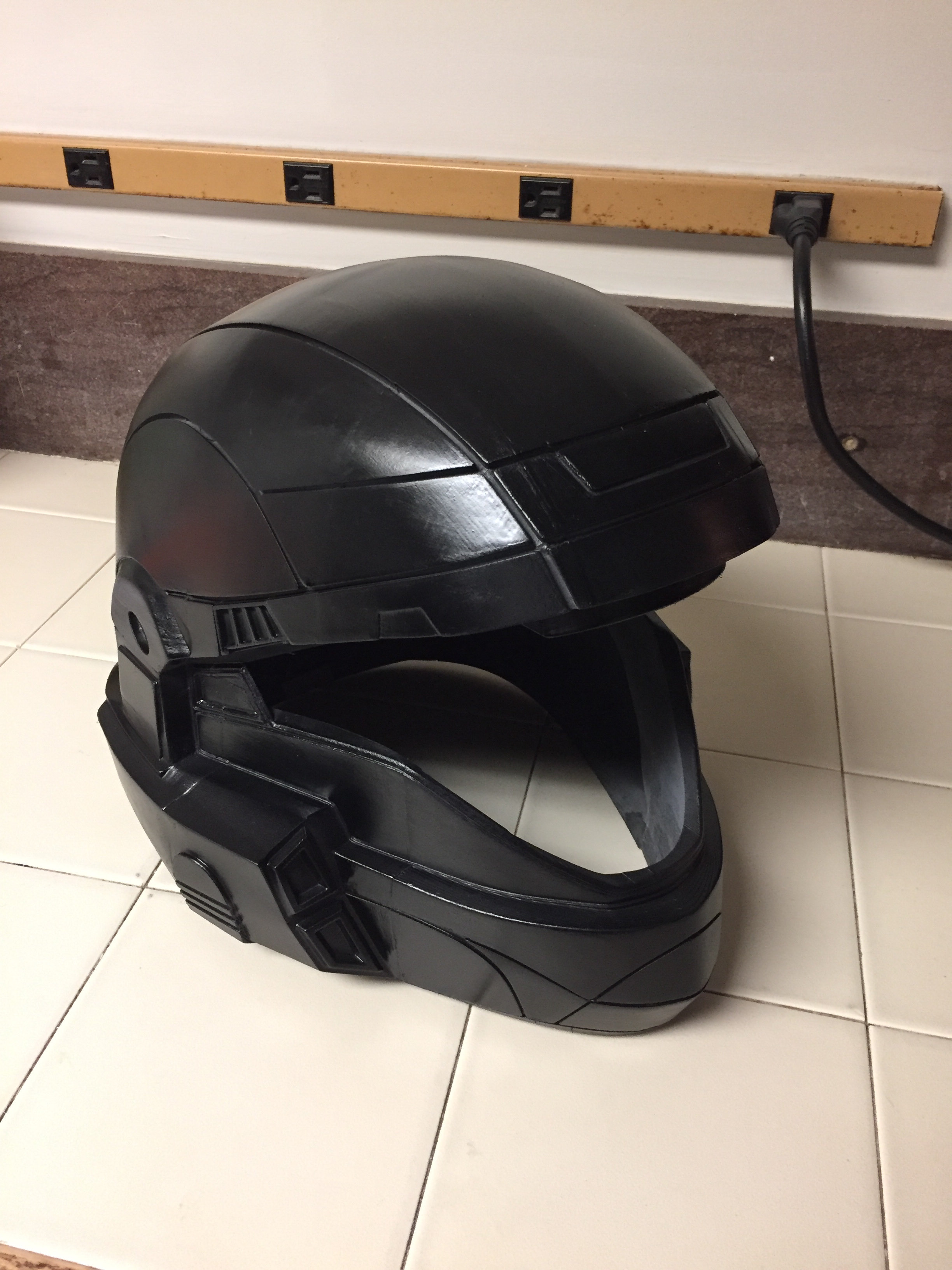

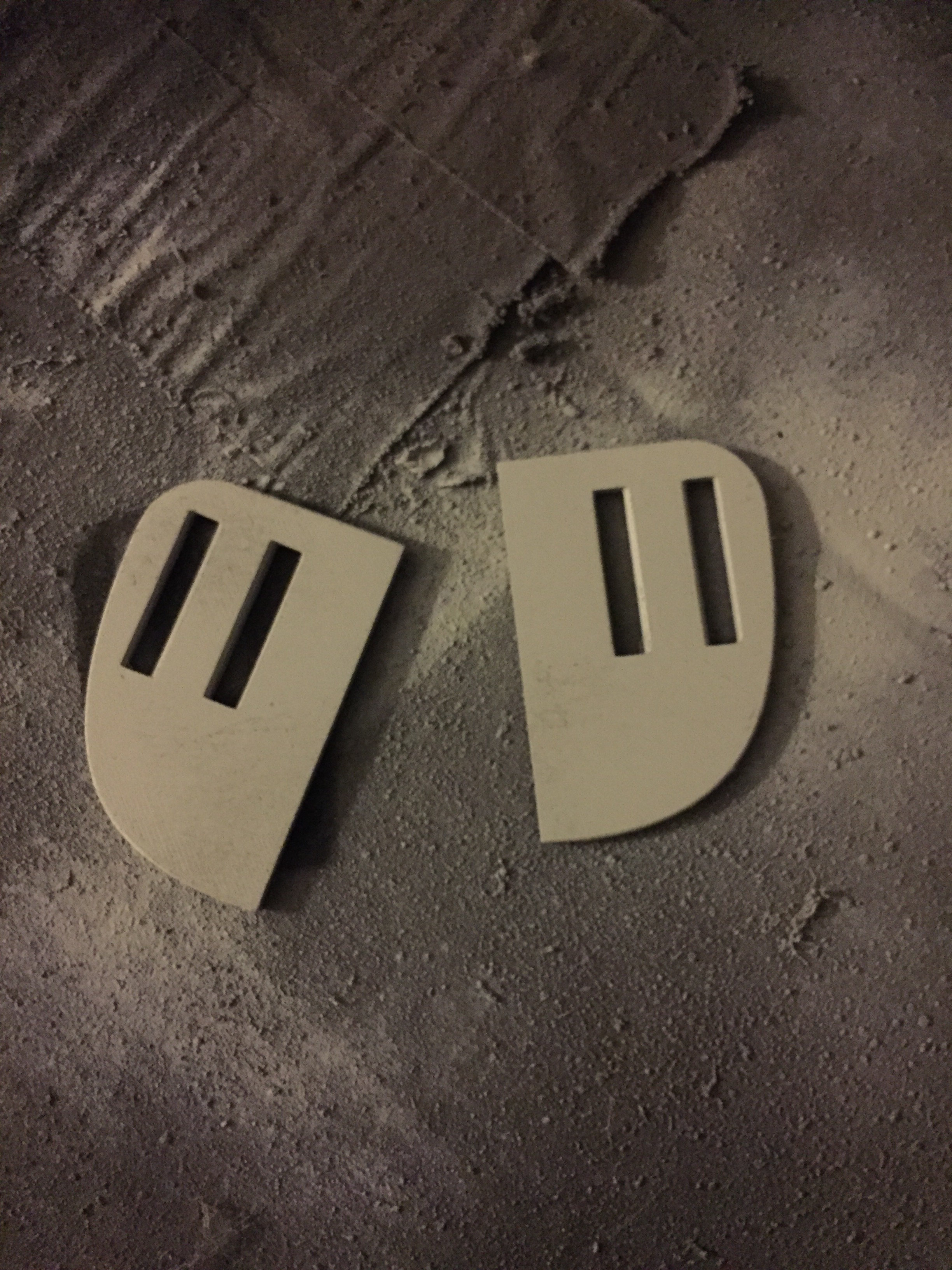

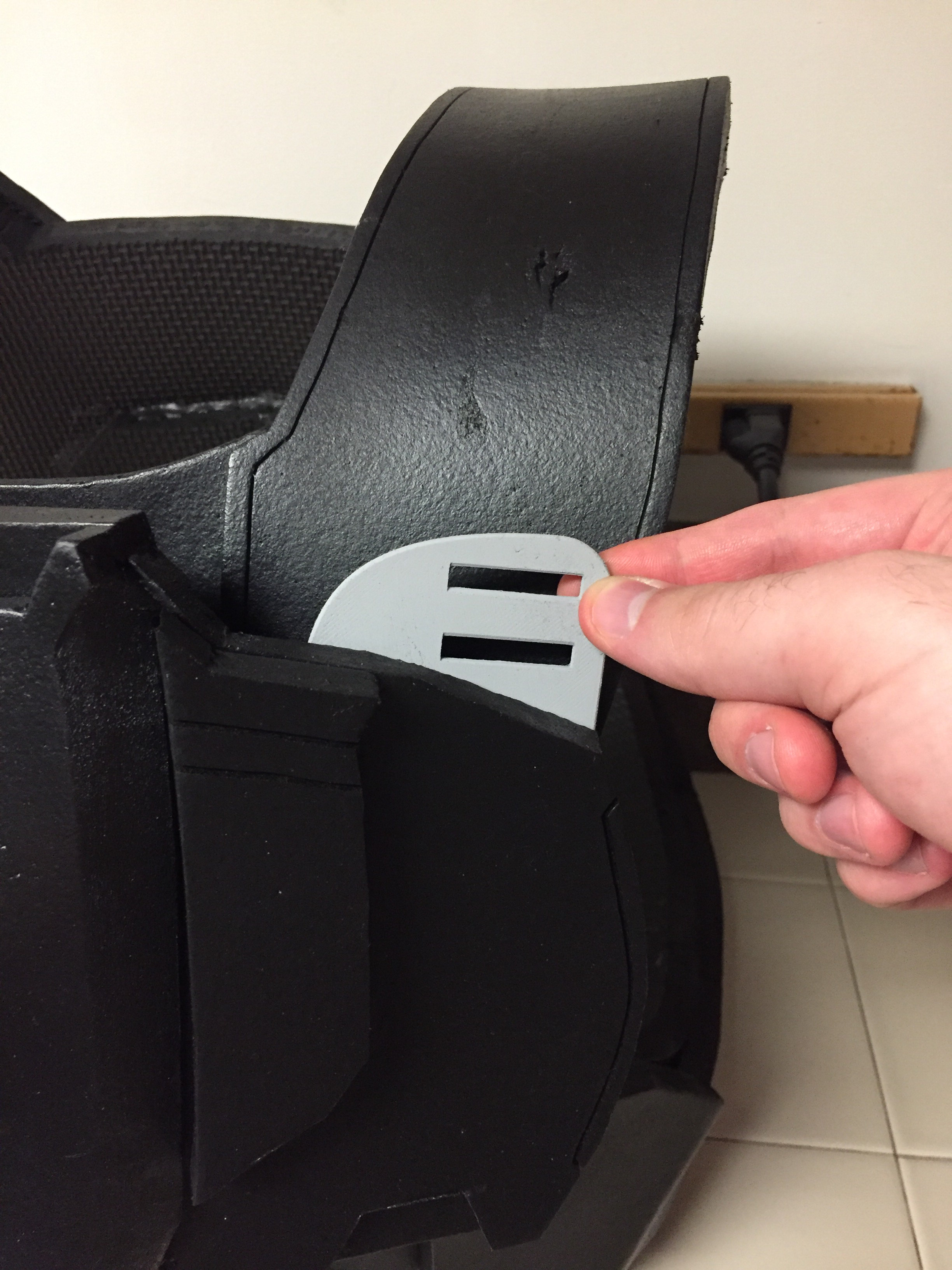

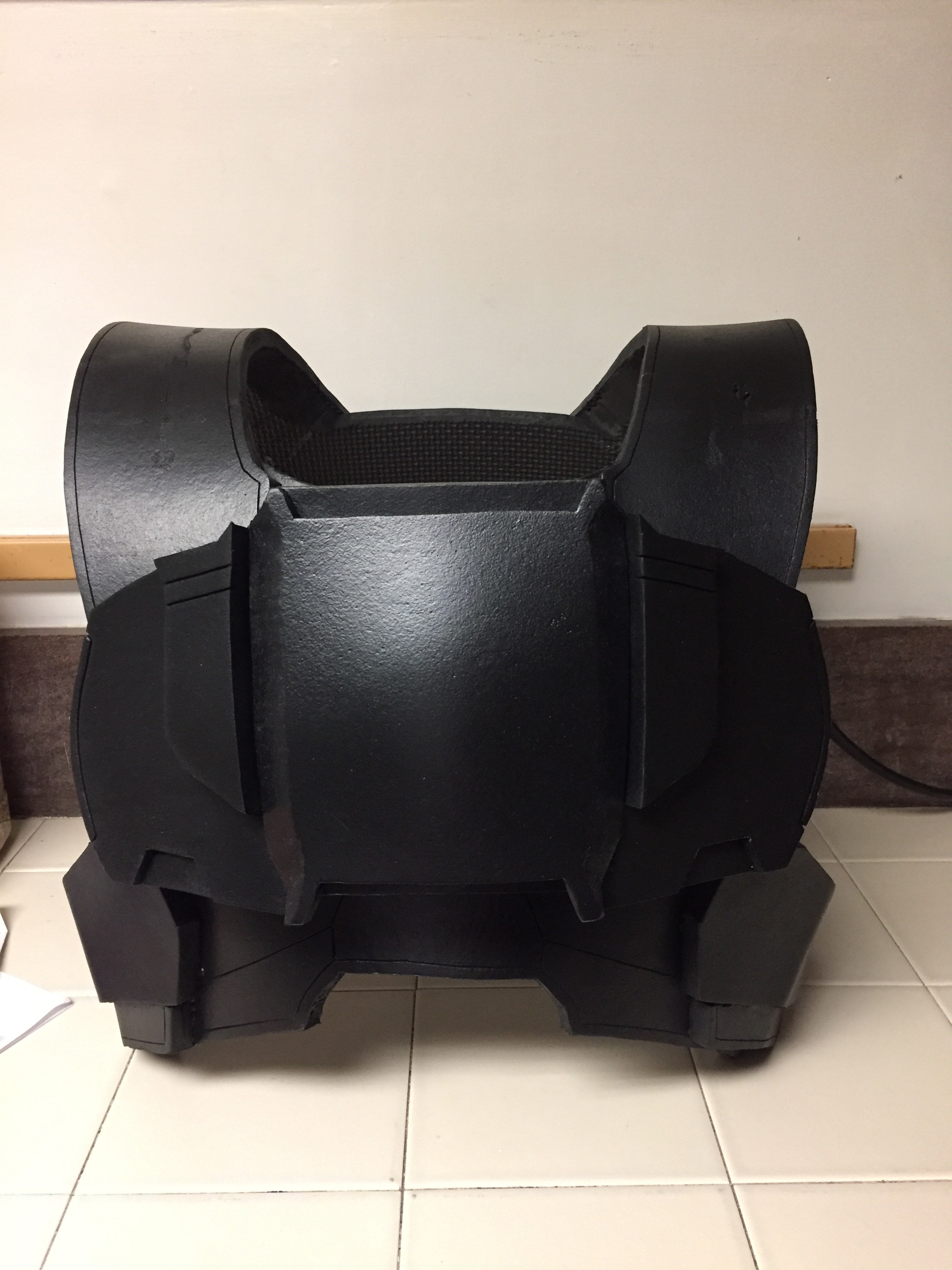

    Today I finished up the chest plate and temporarily attached it. I'll need to be able to remove it later to attach the straps to the plastic pieces and then attach those to the back of the chest plate. I also put a coat of black on the helmet. There are a few spots I missed that need a little more work. I also 3D printed the buck to vacuum form the visor a few days ago. Well I should admit its actually the second one I've printed as I melted the first one, who would of thought that hot plastic would melt plastic :) . I have a busy couple days coming up so I won't have much time to work on the project for a couple days.

  6. cyberponcho

    cyberponcho New Member

    Trophy Points:
    4
    Awesome work sir! I bought the files meself but haven't really had the time (or space!!) to get to work, but this is very inspiring, looking forward to seeing more of this.

    Last edited: Jun 17, 2018
  7. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3

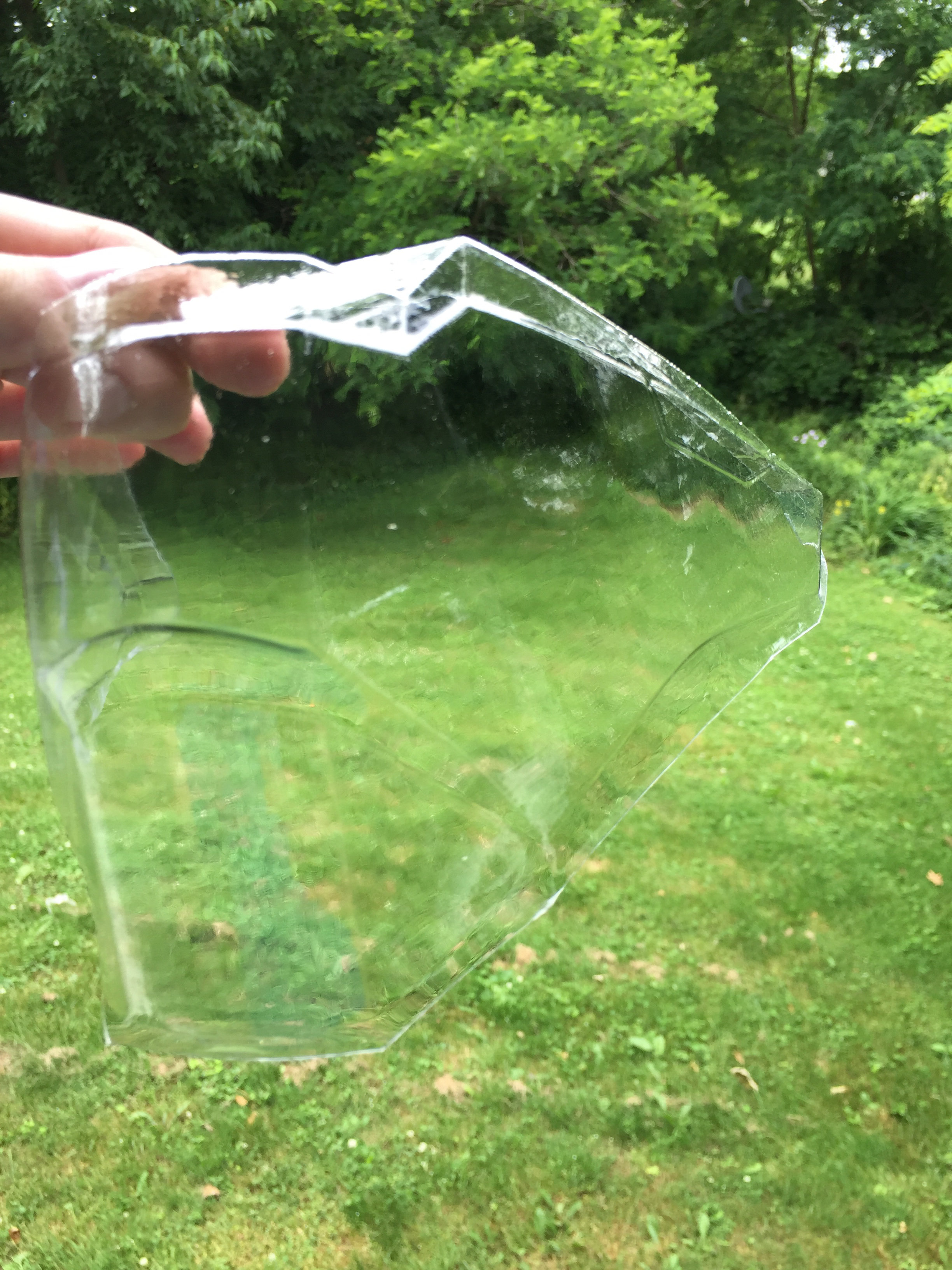

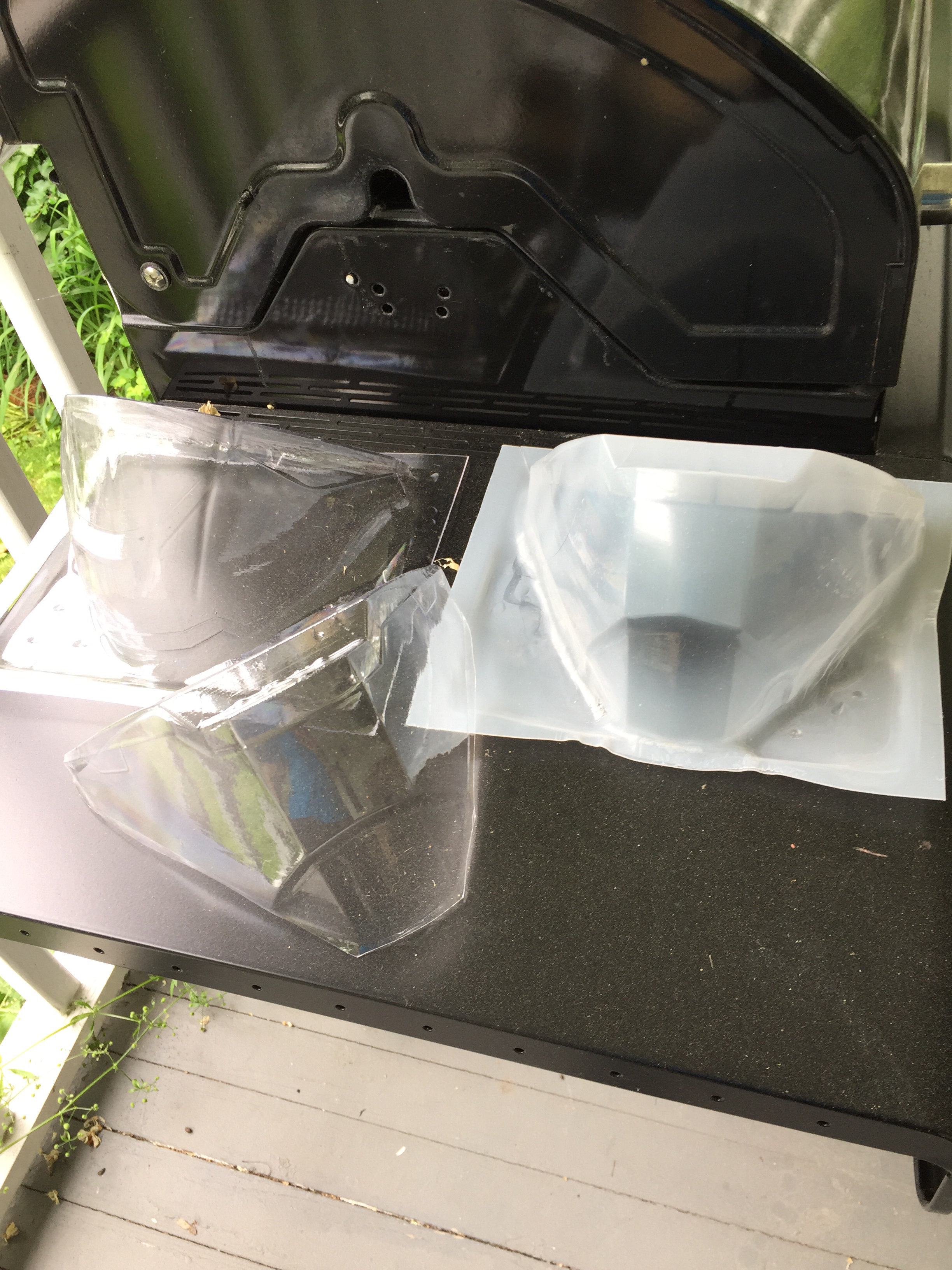

    Visor Update! Today I vacuum formed 3 visors. I ended up with two really good ones and one.... uh... test piece. I'm planning on using the tinting method shown in the Punished Props video "How to Tint a Visor" but that is gonna be a little ways out.
    Visor 1.JPG Visor 2.JPG

  8. Chiefmartin650

    Chiefmartin650 Jr Member

    Trophy Points:
    70
    Looks good, keep it up

  9. Callianis

    Callianis New Member

    Trophy Points:
    3
    It's always interesting to see how people build stuff, so that I can from everyone's mistakes ;) my ODST is still a ways off but I'm heading your route - foam armour with 3D helmet and props. I think my helmet is the same 3D file as yours. Assuming the buck I should print from ABS or PETG and some others reinforce it too. Guess I'll find out ;)

    Curious about what you'll do with the inside of your helmet re cooling and padding :) I saw a fellow cut out parts of the back and used black mesh. Nifty vents :)

  10. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3
    It has been quite a few months since I have been able to work on my armor. My summer has been fairly busy, but now that the weather is cooling down I should have more free time.

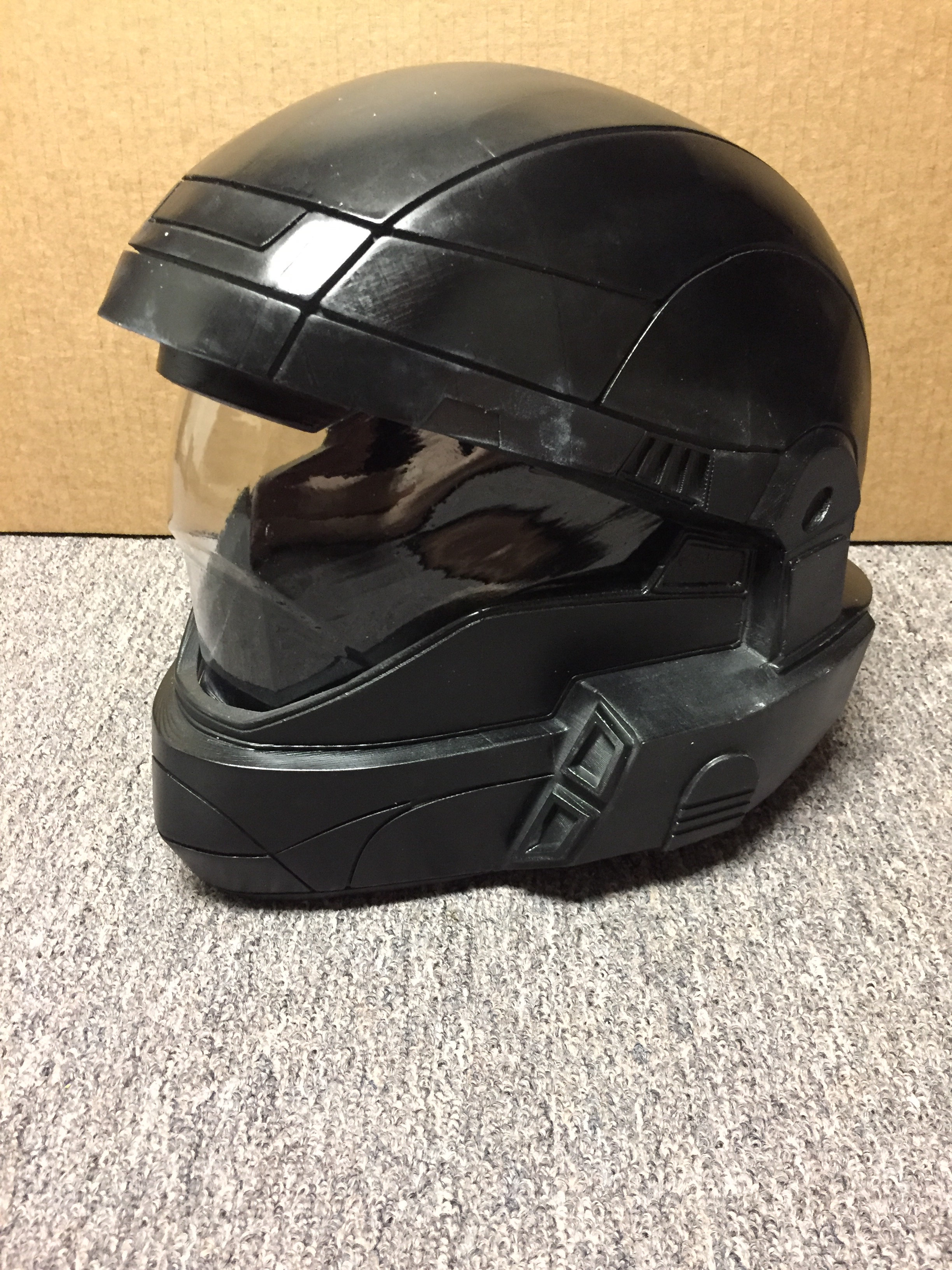

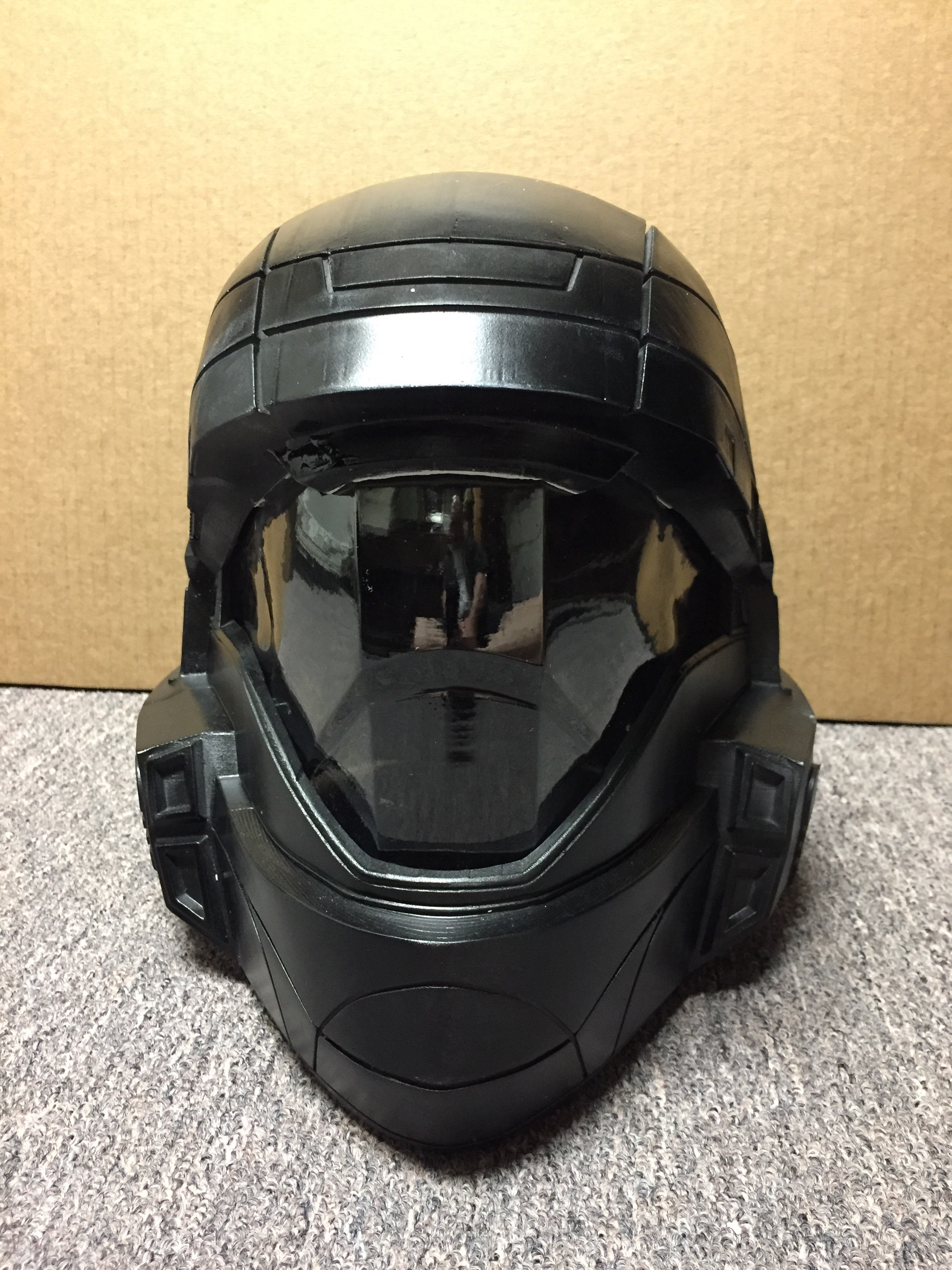

    helmet3.JPG helmet4.JPG helmet5.JPG

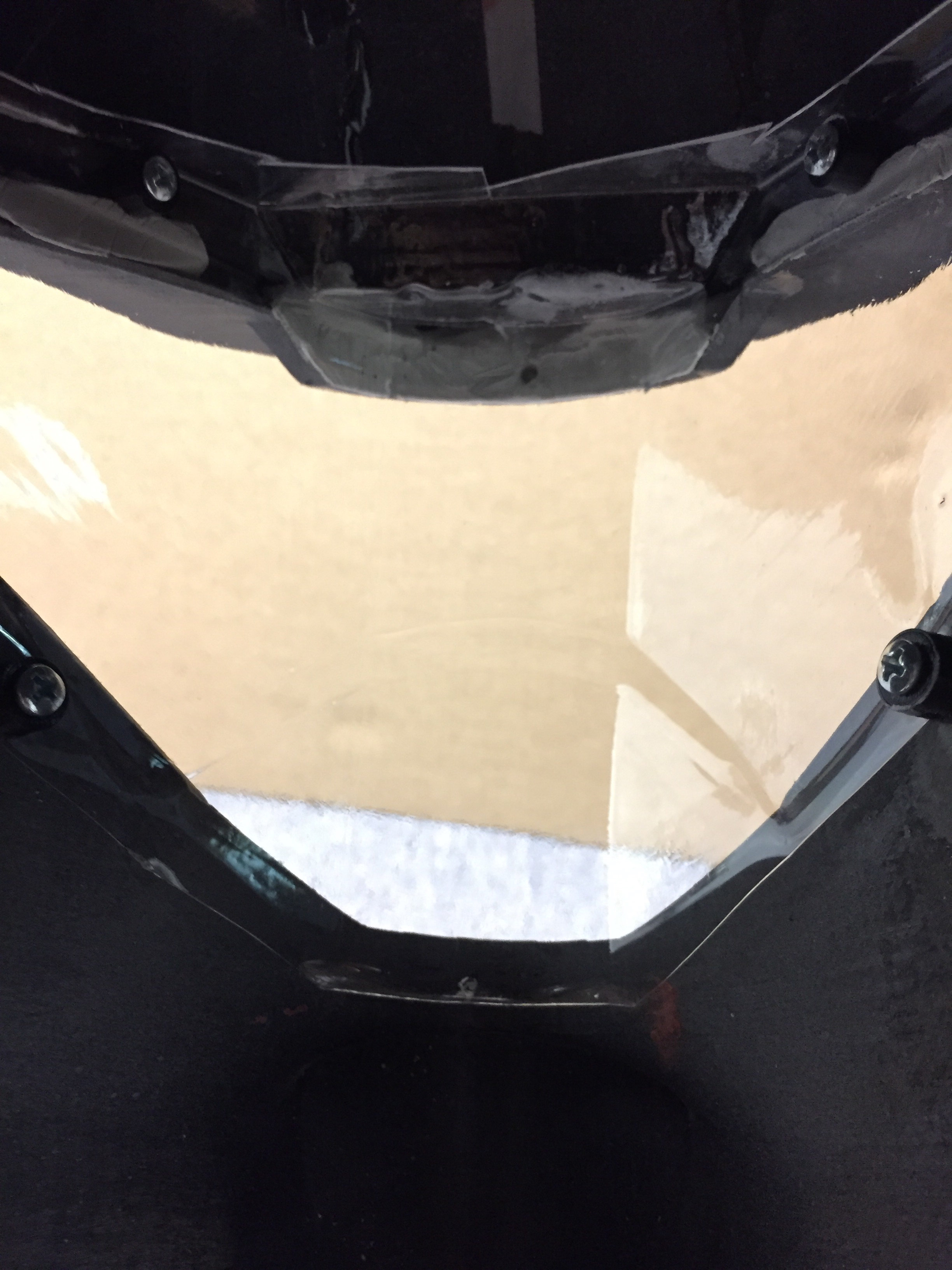

    First, I mounted the visor in the helmet. There is a bit of a gap at the bottom part of the visor, but I'm overall quite happy with how this turned out. I ordered black and blue dye to tint the visor. I'm going to try for a blue/dark blue color with the visor. Everything for that should be here on Tuesday and I'm quite excited to give that a try.

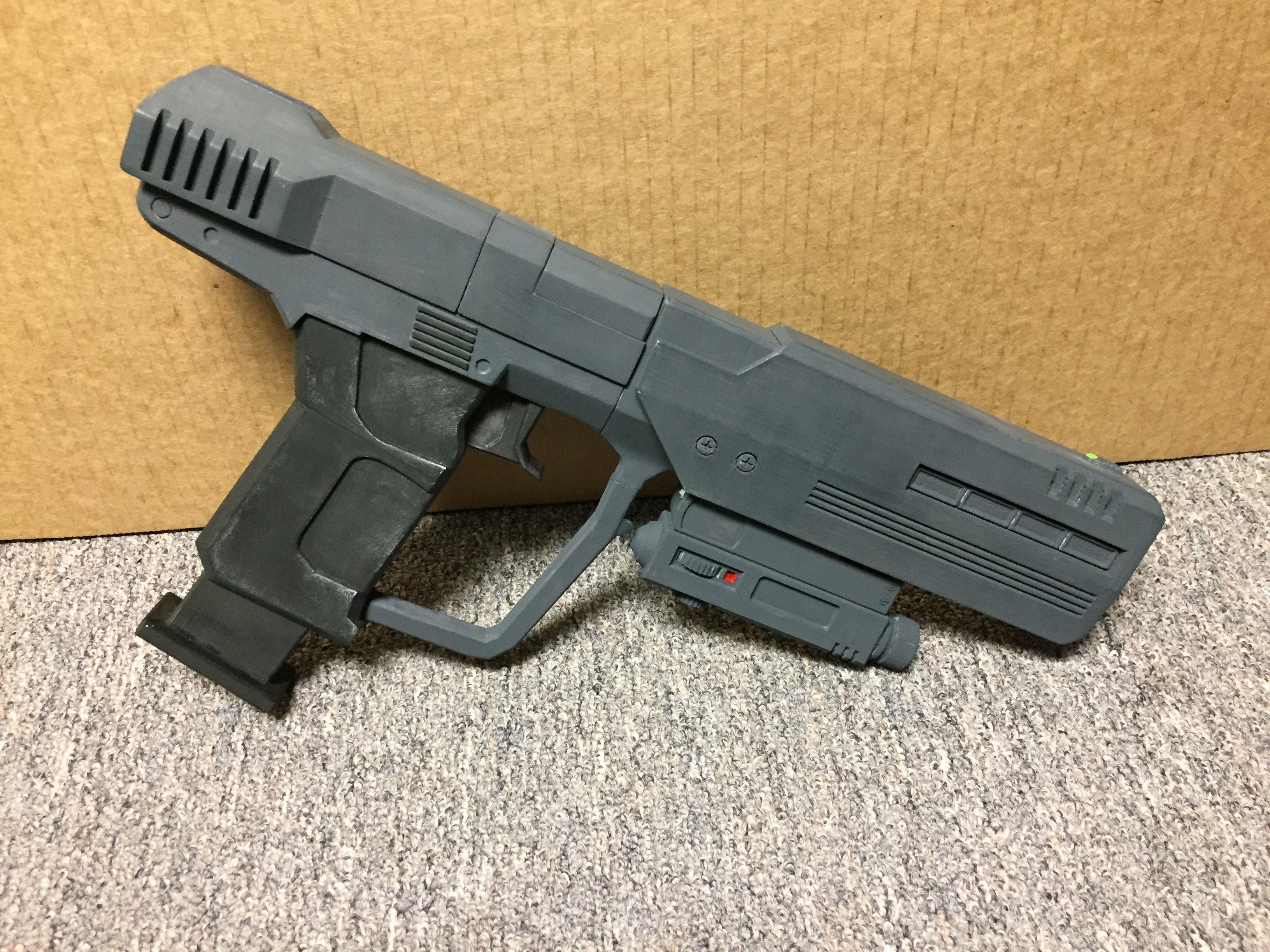

    Second, Ive been working on the sidearm. I 3D printed and assembled this a couple of months ago. When I originally assembled it I just used CA glue, which was a mistake! I had placed it on a shelf about 8 inches off the floor, it slid off and broke apart. It only broke back apart into its individual pieces and I used epoxy this time. Now it's really solid. The trigger is actually not glued in place. I put two small springs behind it and it moves. The magazine isn't glued in place either, it's just a friction fit. I've also put a few neodymium magnets in the left side. My right thigh will have a small strip of steel so the sidearm can just be set on my thigh and will stay there. Ive done some tests and it seems to hold on pretty strong. For anyone that is wondering, the 3D files for the pistol can be found here: M6C/SOCOM Magnum Sidearm by fergal_kelly

    Hopefully my next update won't take as long as this one.

    Dirtdives and Lieutenant Jaku like this.
  11. JD of Asgard

    JD of Asgard Member

    Trophy Points:
    105
    that helmet is so smooth!

  12. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3
    Thanks! Its a lot of sanding, filling, and repeating.

    Dirtdives likes this.
  13. HeroMinerR5

    HeroMinerR5 Member

    Trophy Points:
    110
    This is some great work. Good jobs with some of the major detail

  14. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3

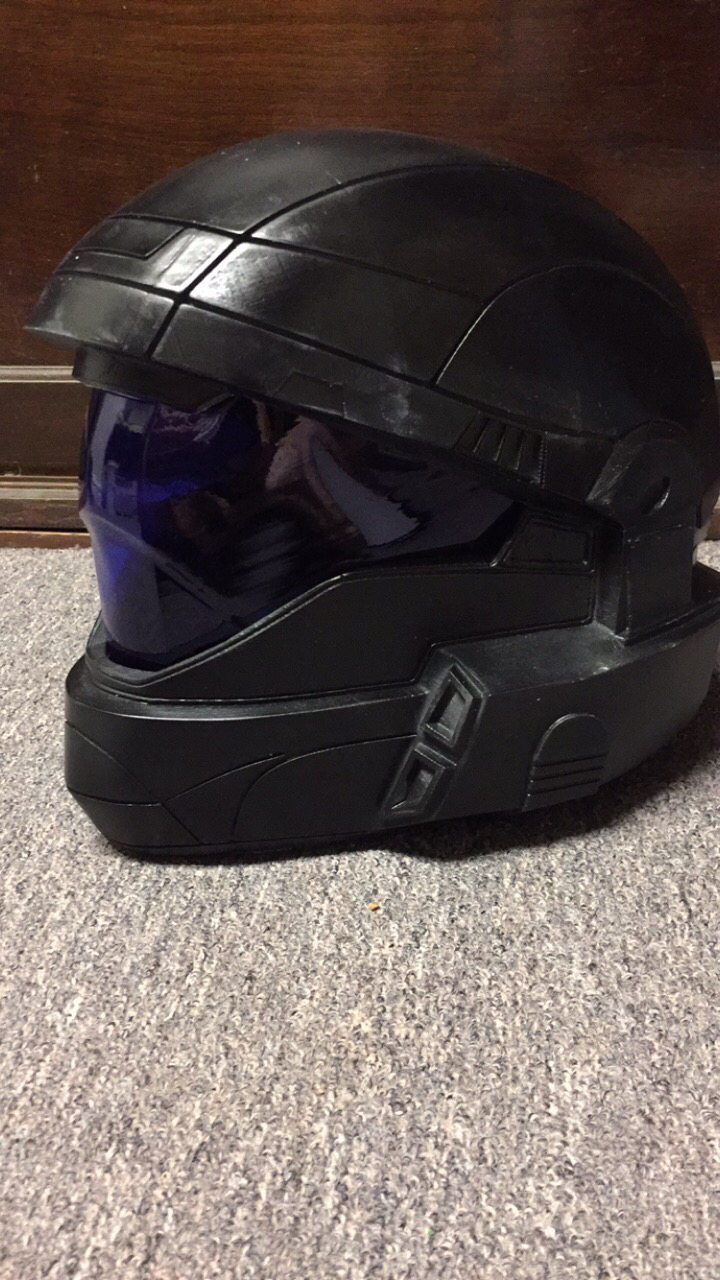

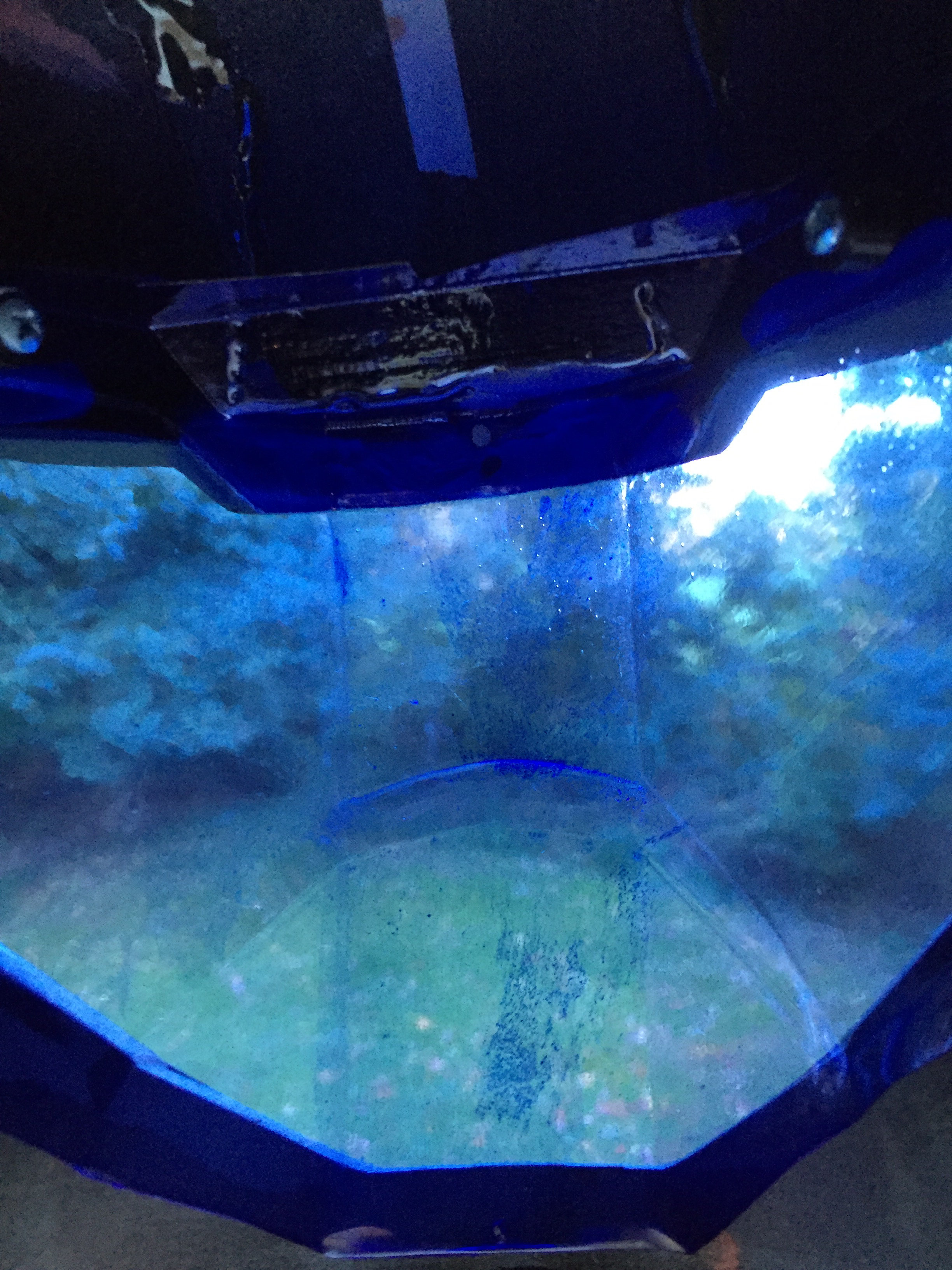

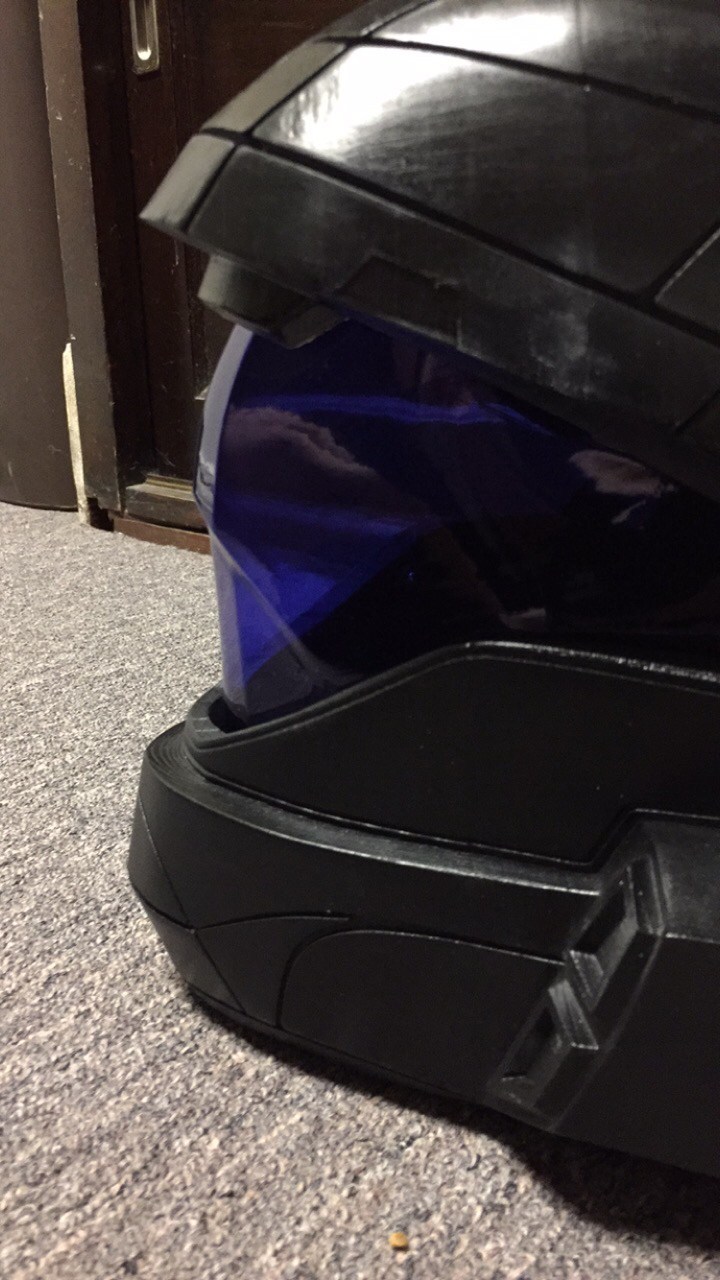

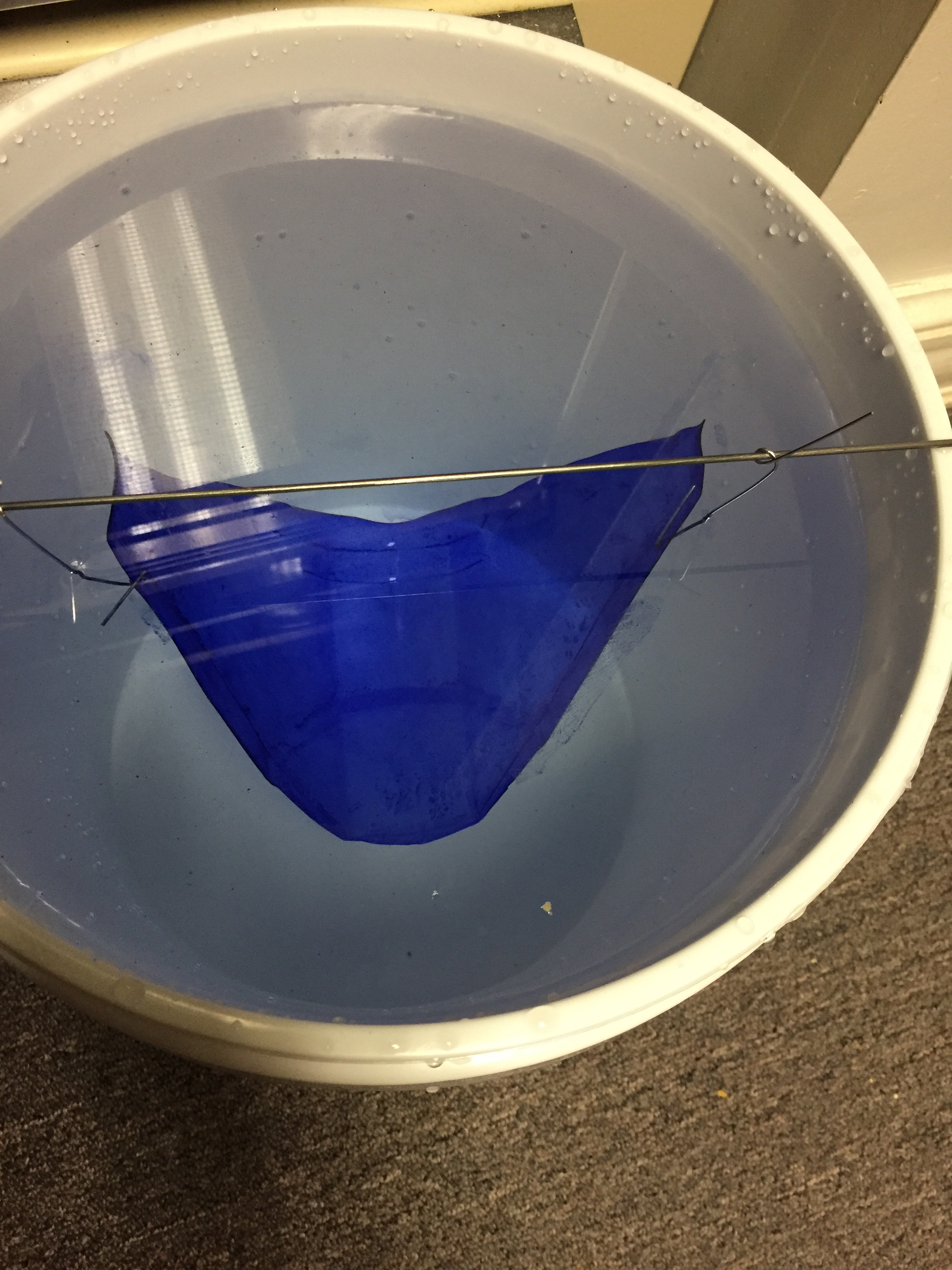

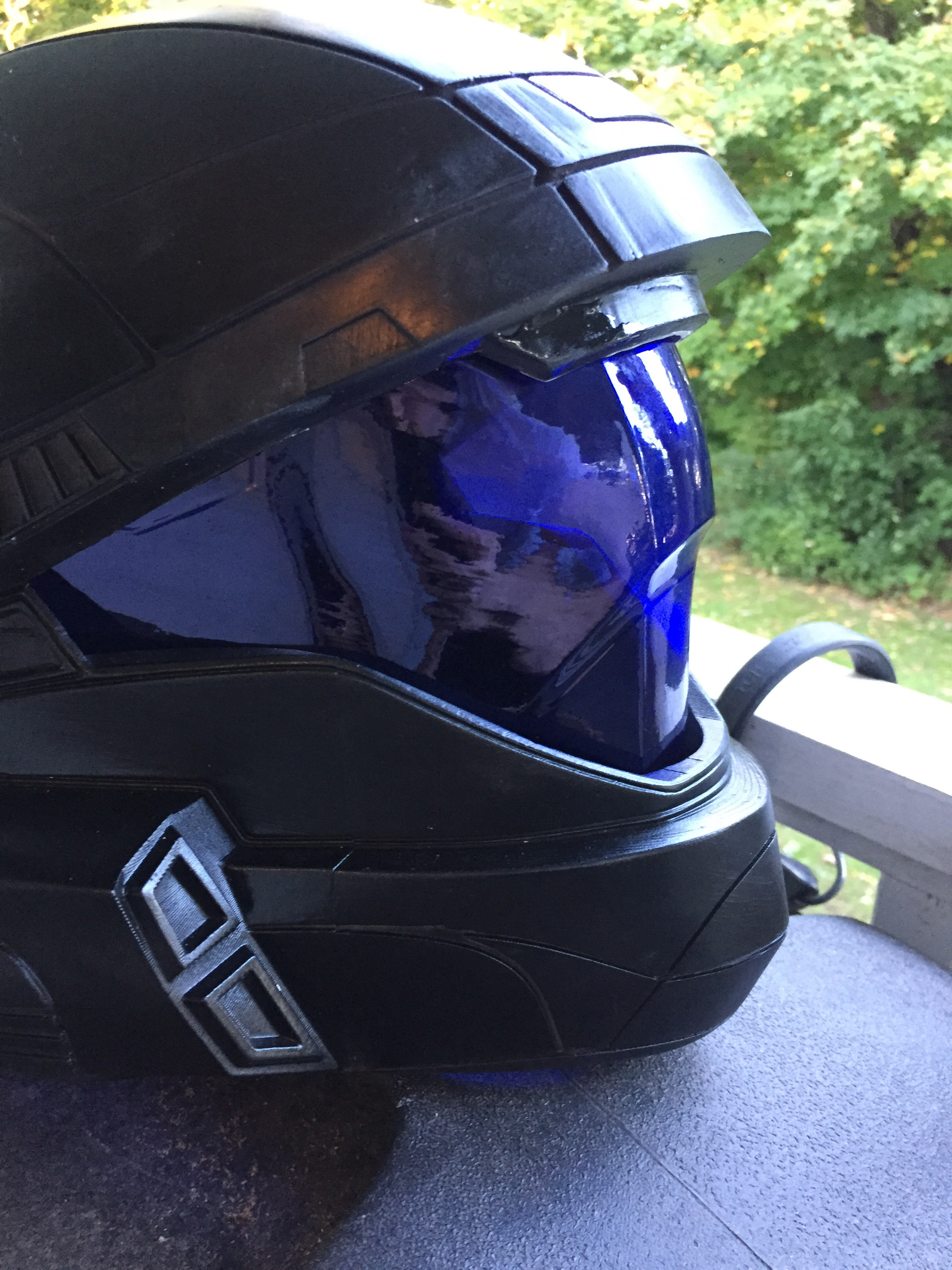

    I dyed the visor today. I used the method shown in the Punished Props video "How to Tint a Visor," and it worked great! I originally planned on using two packets, one black and one blue. I ended up only using the blue one. I did three rounds of 5 minutes in the dye at 140 degrees. I dyed two visors, the first one was a failed vacuum form and it was just used as a test. The color on both visors turned out fantastic. The only problem is both visors ended up with smudges where the tint seemed to have extra effect, and its in different spots on both visors. It can be seen in the last picture. Luckily it can't be seen from the outside looking in when the visor is mounted in the helmet.
    Visor 4.JPG Visor 5.JPG Visor 6.JPG Visor 7.JPG Visor 8.JPG Visor 9.JPG

  15. Elcorio

    Elcorio Member

    Trophy Points:
    135
    Those visors are spot on! Awesome work.

    Dirtdives likes this.
  16. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3

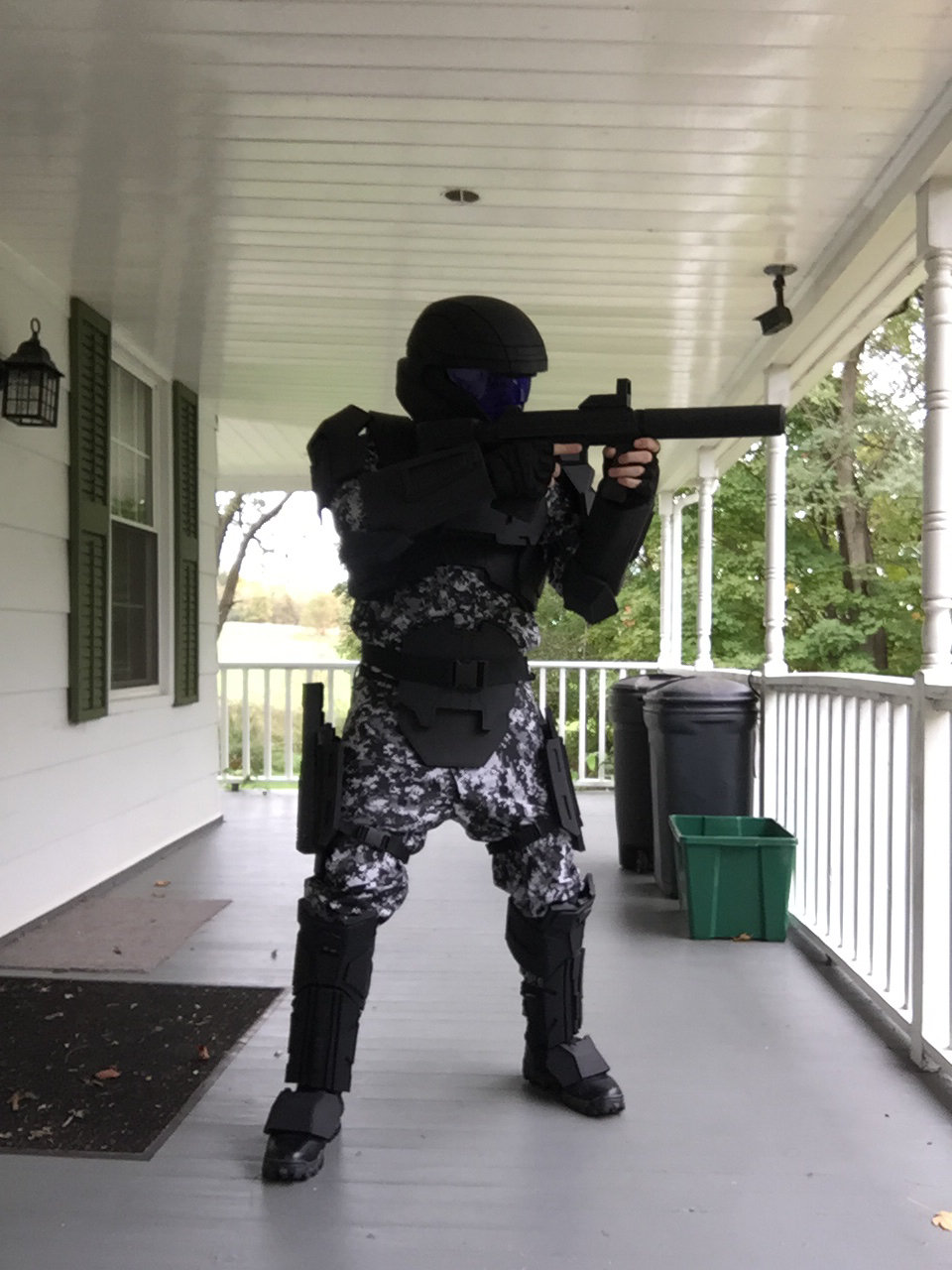

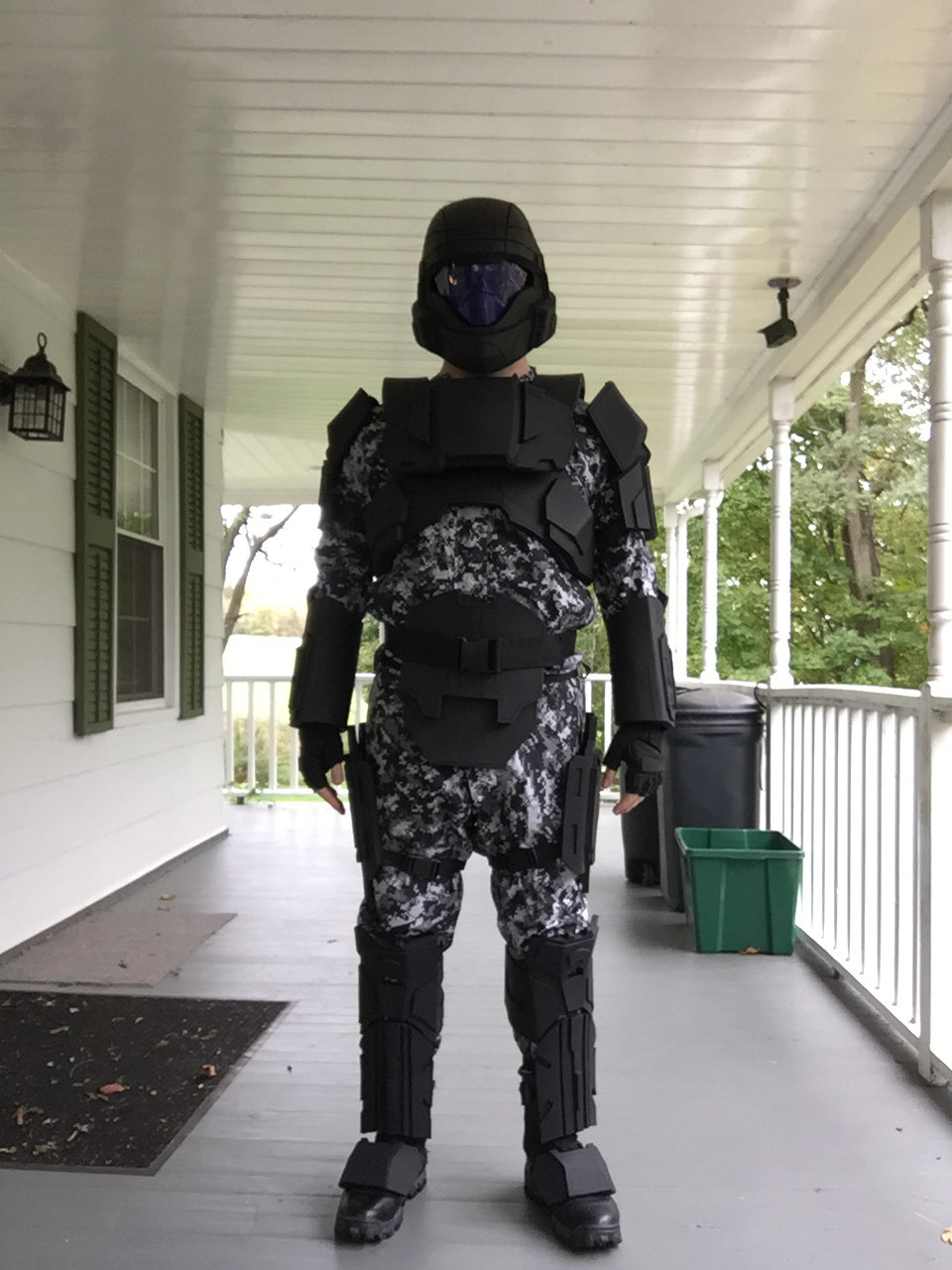

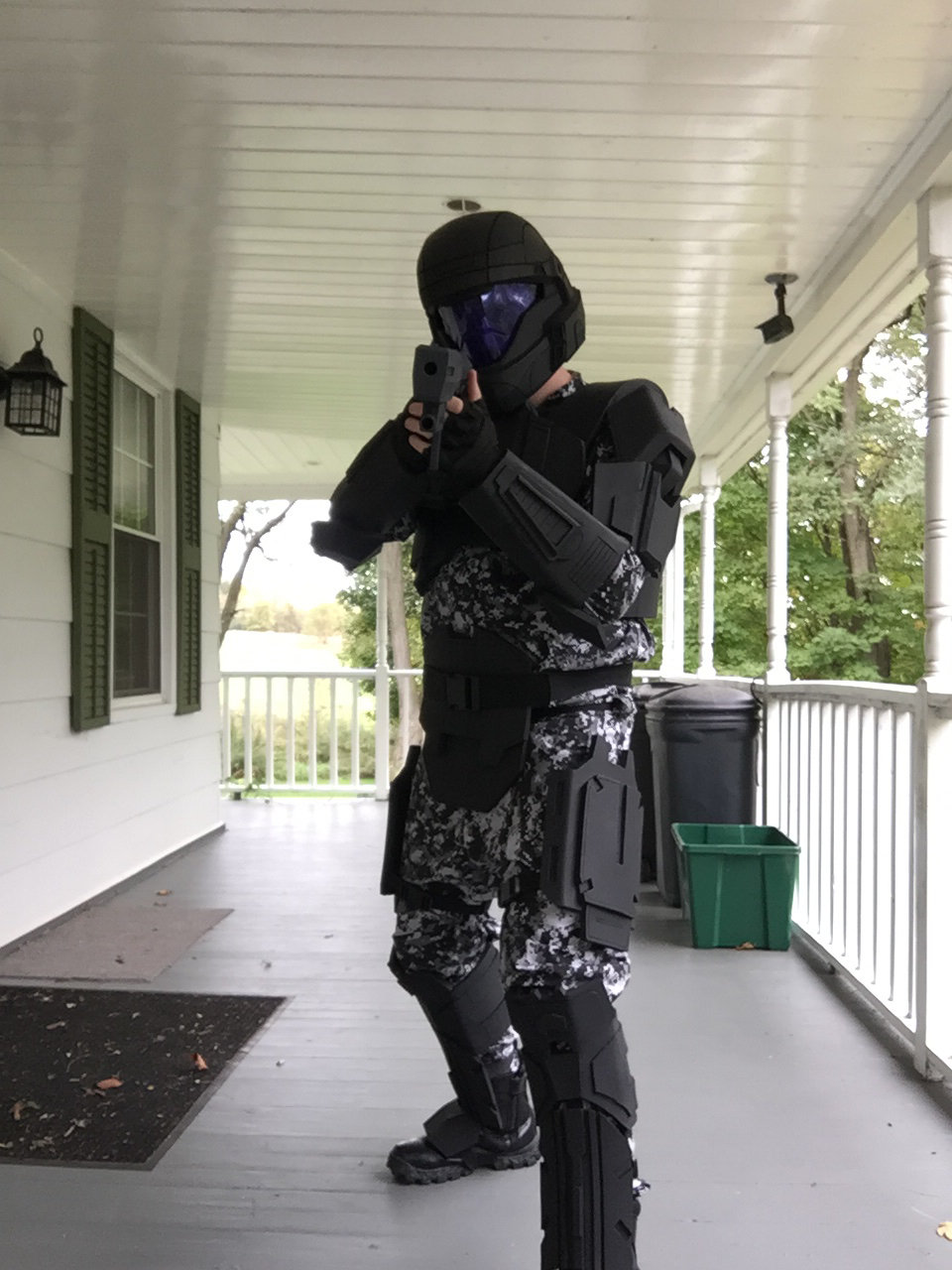

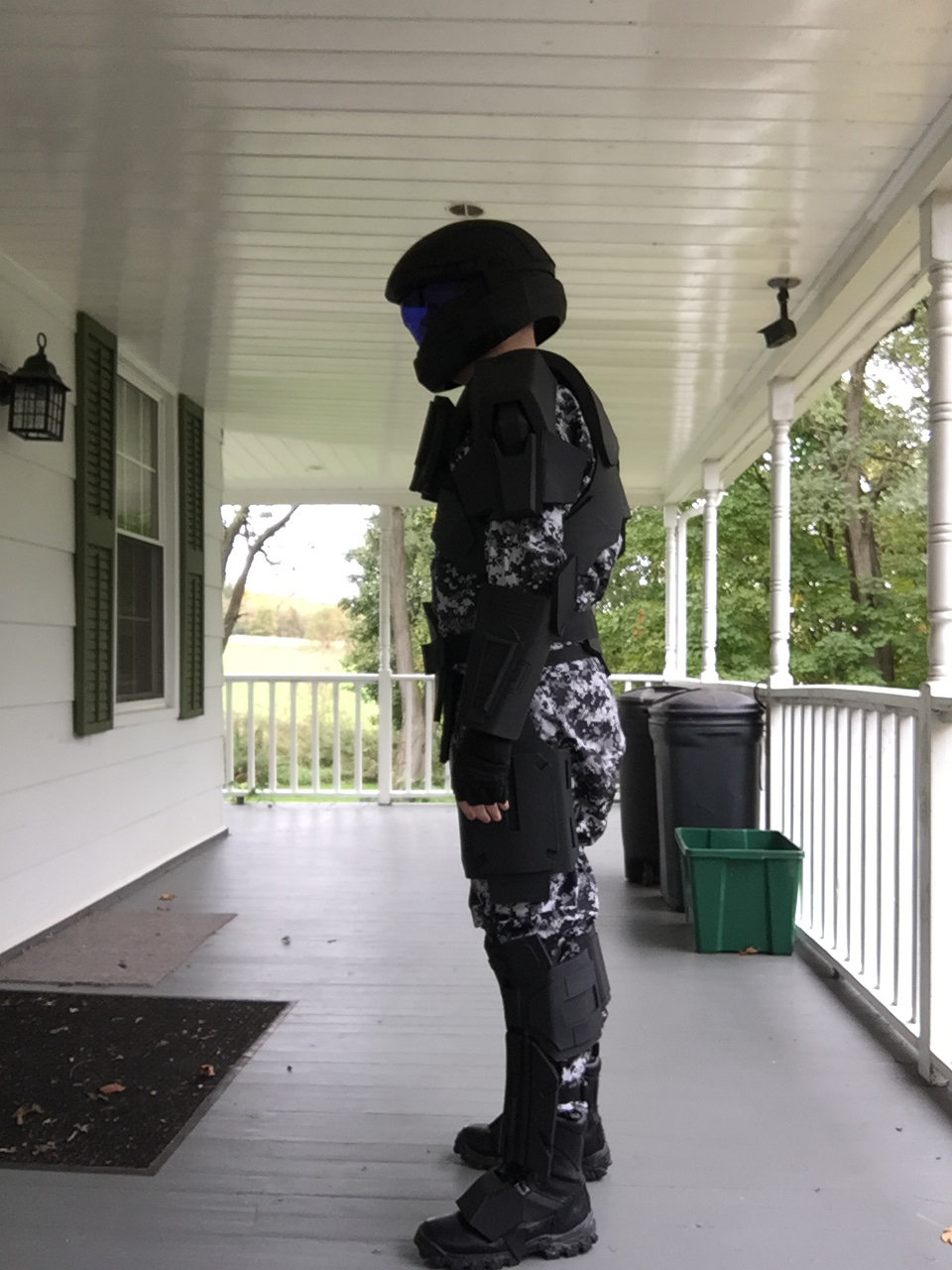

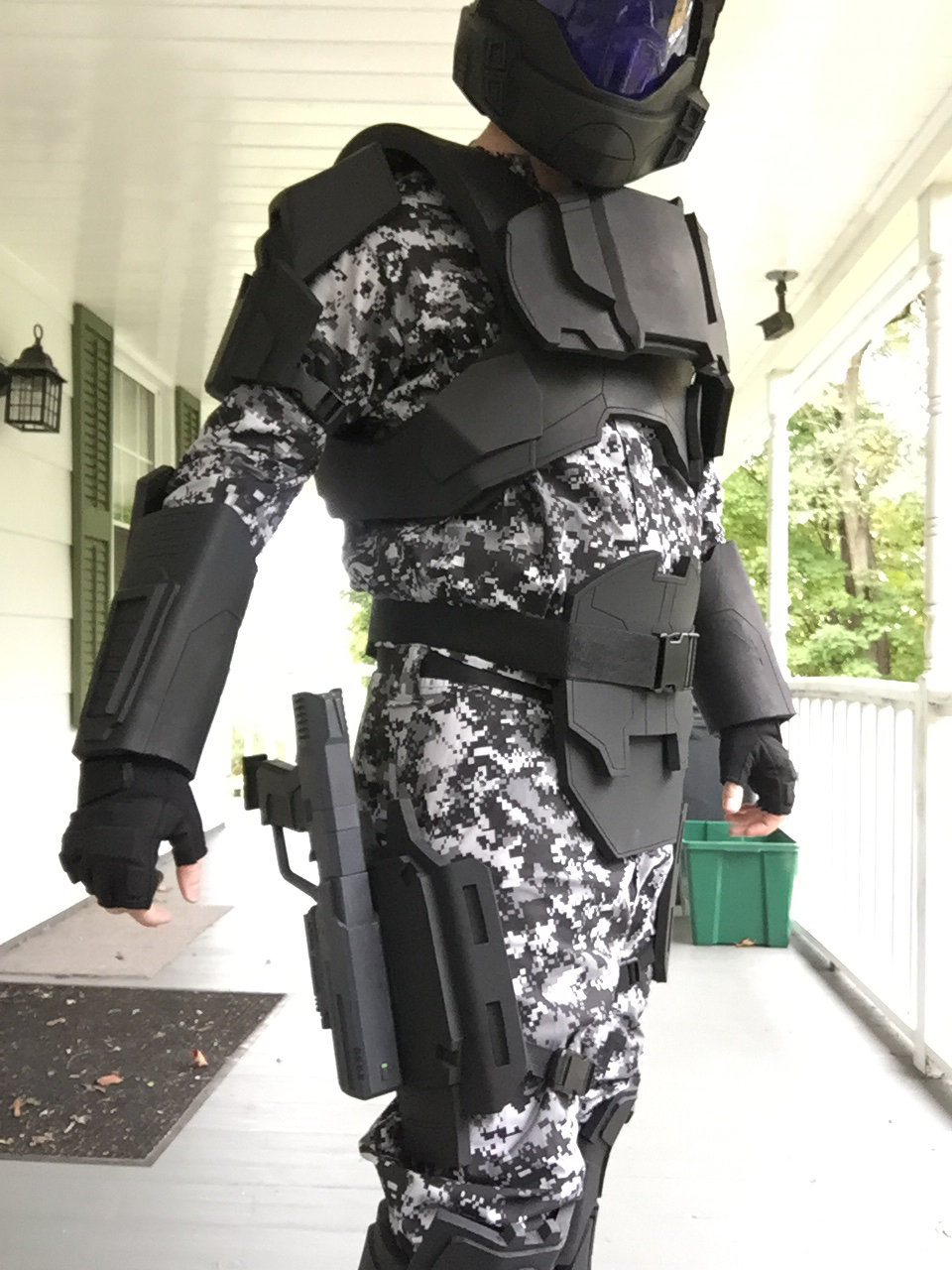

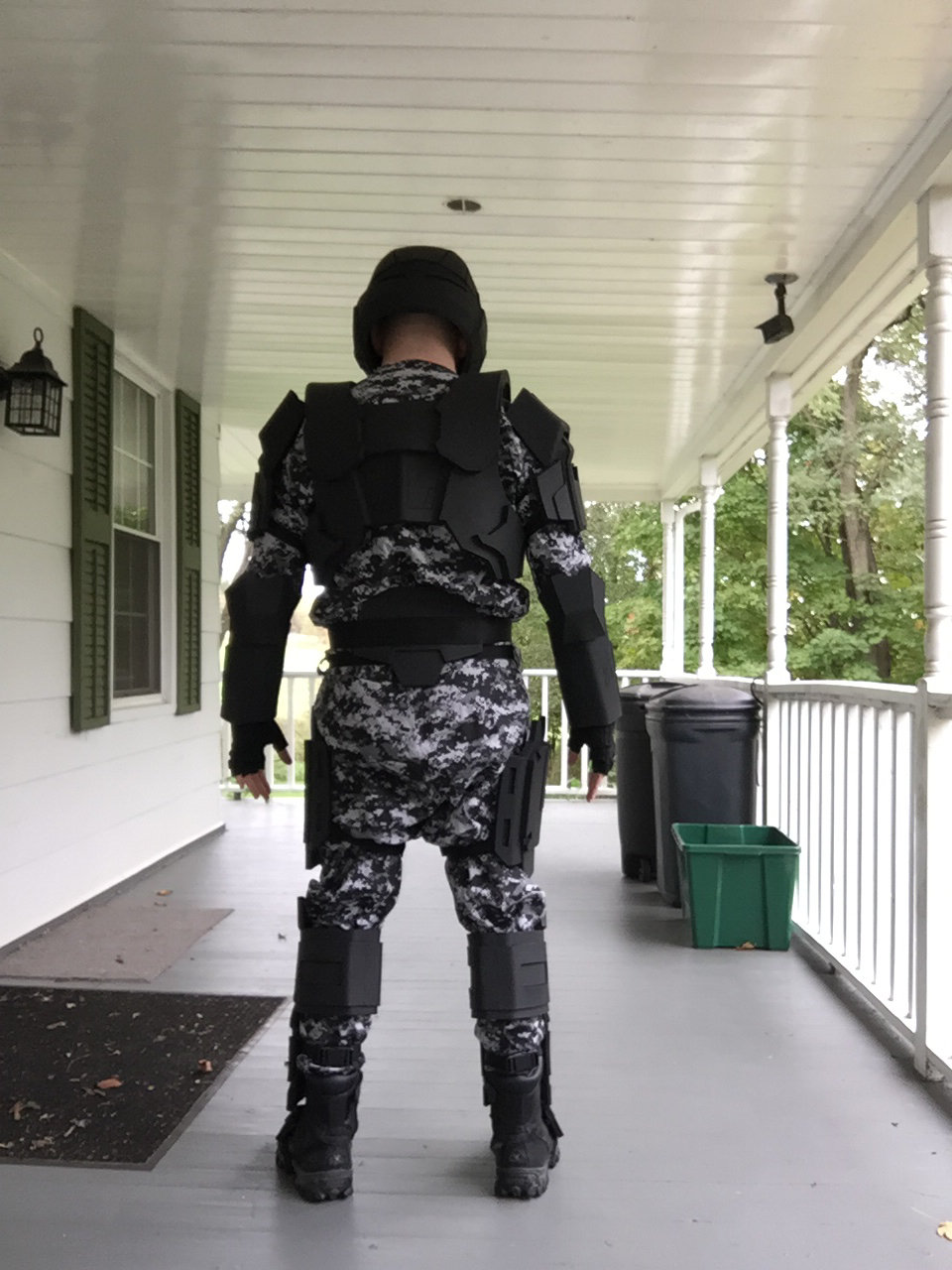

    Last night I finished painting everything a base coat of flat black. This morning I had time to put everything on and managed to rig up a way to hold my phone to take pictures. The only difficult part about putting the armor on by myself is the shoulders. I have to put them on after the upper torso piece and it is difficult to reach around to attach it. The armor is really quite comfortable.

    All1.JPG All2.JPG All3.JPG All4.JPG All5.JPG All8.JPG All9.JPG

    Next I really need to finish the undersuit. It looks fine in the pictures, but all of the problems are hidden. There bottom of the shirt and the ends of the sleeves and pant legs aren't sewn off so they are frayed pretty badly. I will probably make a neck seal or at least extend the neck up a bit. I don't have access to a sewing machine so that will have to wait a little while.

    Also, I'm going to add a color to the helmet, chest, and shoulder pieces. Ive been testing a couple shades of blue on scrap parts. Then once the color is added I can work on adding detail pieces like the shoulder straps that connect to the chest piece.

  17. HATE Recon

    HATE Recon Member

    Trophy Points:
    120
    Looks good man. I think I printed the same helmet :). I might have to watch that how to dye a visor vid, as I just used tail light blackout for mine. But great job overall so far!

    Dirtdives likes this.
  18. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3
    I originally planned on using the tail light blackout before I found the tutorial on how to dye a visor. The most difficult part about dying the visor is finding a disposable pot large enough to heat the water in. I got lucky and found one at my local Goodwill for $9. The dye method is nice because there are a lot of color choices.

    SI3RRA 117 and Dirtdives like this.
  19. HATE Recon

    HATE Recon Member

    Trophy Points:
    120
    Yeah, I vacuum formed my visor this time though, so the vht nightshades kinda applied thicker is some areas tha others, which while not visible from the outside looking in, is really annoying to look through.

    Dirtdives likes this.
  20. Caleb I

    Caleb I New Member

    Trophy Points:
    2
    I have a few questions that I would be eternally grateful if you answer them:
    1. What 3D printer did you use for your helmet and buck for visor?
    2. Where did you find said buck file to print?
    3. Where did you find the helmet files to print?
    4. What type of plastic did you use for the visor?
    5. What material did you print in?

    I am a beginner and had started out with the AndrewDFT build templates, I just finished the helmet and boy that is a tad tough. My twin brother and I are looking to work together on this and we would love to go for accuracy, if we could manage to 3D print the helmets, that would be great! I am learning and would love to know how you did what was asked above. Thanks!

    -Caleb

  21. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    Trophy Points:
    1,085
    Because I'm all about this stuff
    1. Wanhao Duplicator i3 V2.1 and Tevo Tornado
    2. I designed the helmet
    3. See above
    4. 1/32" PETG on a cheapo vac former
    5. eSun PLA+

  22. Caleb I

    Caleb I New Member

    Trophy Points:
    2
    In reference to questions number 2 and 3, are these files available to the public? If not, where might one get started with designing the helmet from scratch with reference? I have solidworks and autocad experience so I'm not meaning "where to begin with modeling".

    Also, without looking into the specs and sites about the two mentioned 3D printers in question 1, are they available to the US and are they reliable to deliver high quality prints? Do they fault out often?

    Much appreciated that you responded lightning quick!

  23. TuckerN17

    TuckerN17 New Member

    Trophy Points:
    3
    1. Anet A8. At the time it was one of the cheapest 3D printers available, partially because it comes as a kit. There are tons of files on thingiverse that help make improvements to the 3D printer, mostly just stabilizing pieces that help make the frame more rigid. If i remember right I ordered mine from banggood.com and it came from China so it took a few weeks to arrive. As for reliability, I'm extremely satisfied with my printer. I've had it for 2 years next month with just over 1,200 hours of total print time. Excluding the initial "learning to use a 3D printer" time I don't really get faults anymore just because I've learned how to set things up for the printer.

    2. and 3. 3D Printable Halo 3 ODST helmet Wearable Cosplay by jeffrey
    I am like 99% sure this is the file I used. The helmet comes in one giant piece but it can easily be split up into smaller parts using a program like 3D Builder. It's a super simple program that lets you do basic things without any knowledge of 3D modelling.

    4. I bought a package of 0.030" PETG plastic sheets off of eBay. My vacuum forming setup was pretty janky but very effective. I bought a used toaster oven from Goodwill to heat the plastic. My vacuum former was a wooden box with holes drilled in the top which was connected to a shop vac. I think I purchased 5 sheets because I knew I would make mistakes because I had never done anything like this before, and I was right!

    5. I printed in a pretty cheap black PLA from amazon. It was around $20 for a spool. You don't need to print something like this with a high quality PLA because it requires finishing (sanding, filling, priming) so any imperfections in the print don't matter because they will be corrected in the steps after printing.

    SI3RRA 117 likes this.
