Gipsy Danger 10 Foot Tall

Discussion in 'Non-Halo Costumes and Props' started by Benton188, Aug 3, 2018.

  1. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    One of my dream cosplays has been a big mech build. At the top of the list of available mechs to build was Gipsy Danger because I love it's design and purpose. Fight giant monsters with fists, guns, rockets, and swords, what's not to love? In late May of this year I found Gipsy Danger .obj files and decided then and there that it was going to happen, and I was gonna go BIG!
    Throughout June and into July I took time to unfold and resize all the pieces to make a 10 foot tall version of Gipsy. Thankfully there was a full model .obj to work off of, so all the individual pieces will be sized correctly. All the armor will be made of EVA foam, and I plan on building a PVC inner frame for support. Stilts of course will be used for the legs, and some mechanical prowess for the arms to move. It's a work in progress of course, but it should be equal parts fun and equal parts challenging. Just the way I like it :cool:

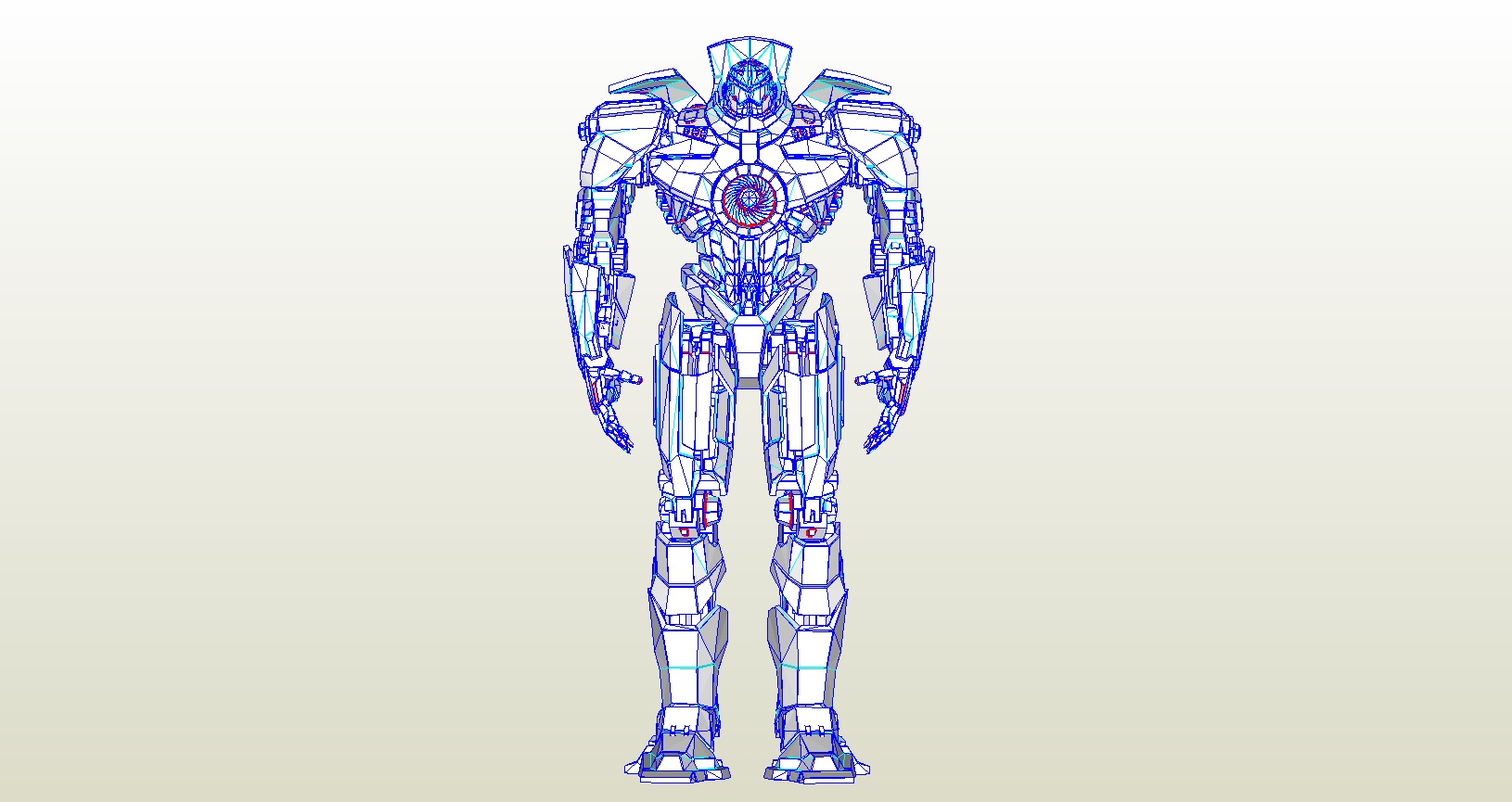

    Gipsy Full.jpg

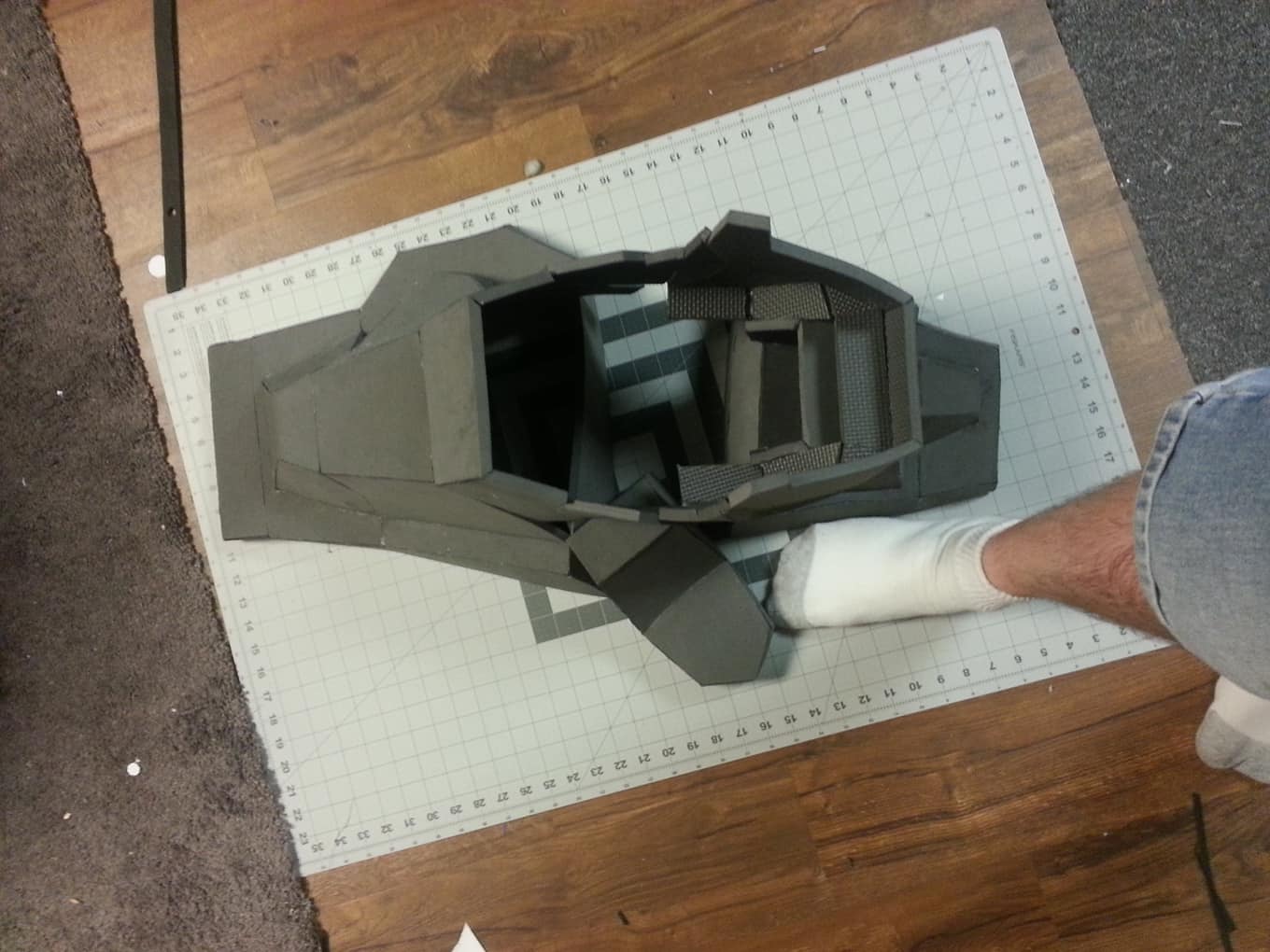

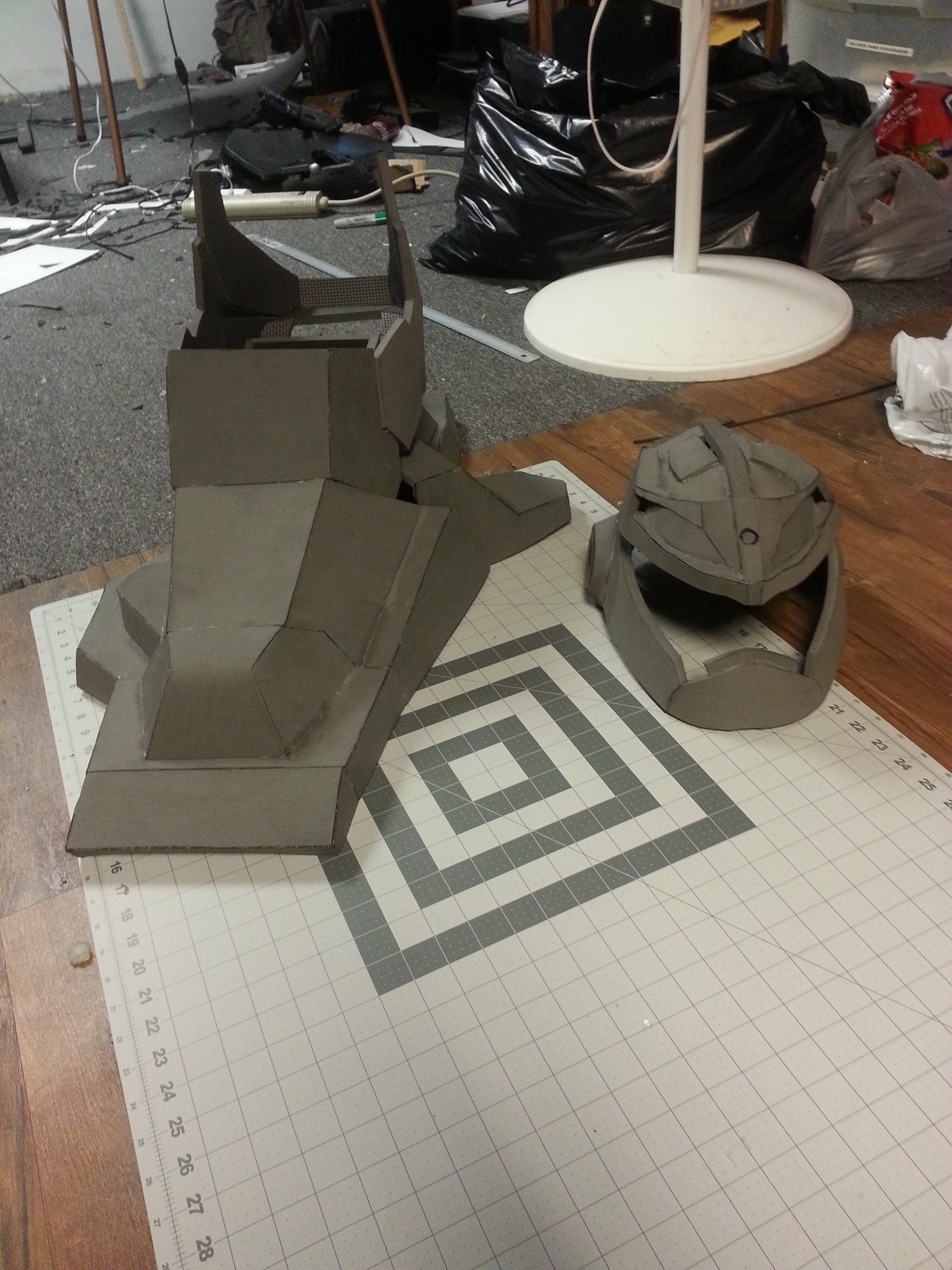

    Here's some pics of what i got done so far. Just the helmet and one boot so far:
    38181988_2473369829343499_2205973354450518016_n.jpg 38204184_2473353279345154_7403397726987091968_o.jpg

  2. Sandbagger

    Sandbagger Well-Known Member

    Trophy Points:
    935
    Now this should be good.

    Benton188 likes this.
  3. IPv6 Subnet

    IPv6 Subnet Member

    Trophy Points:
    110
    I have seen a few big builds and they look really epic! Can't wait to see the finished result of your project!

  4. topless68

    topless68 New Member

    Trophy Points:
    5
    Looking awesome! This is one of my favourite movies to watch, something about giant robots with attitude .

    Benton188 likes this.
  5. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    UPDATE!!

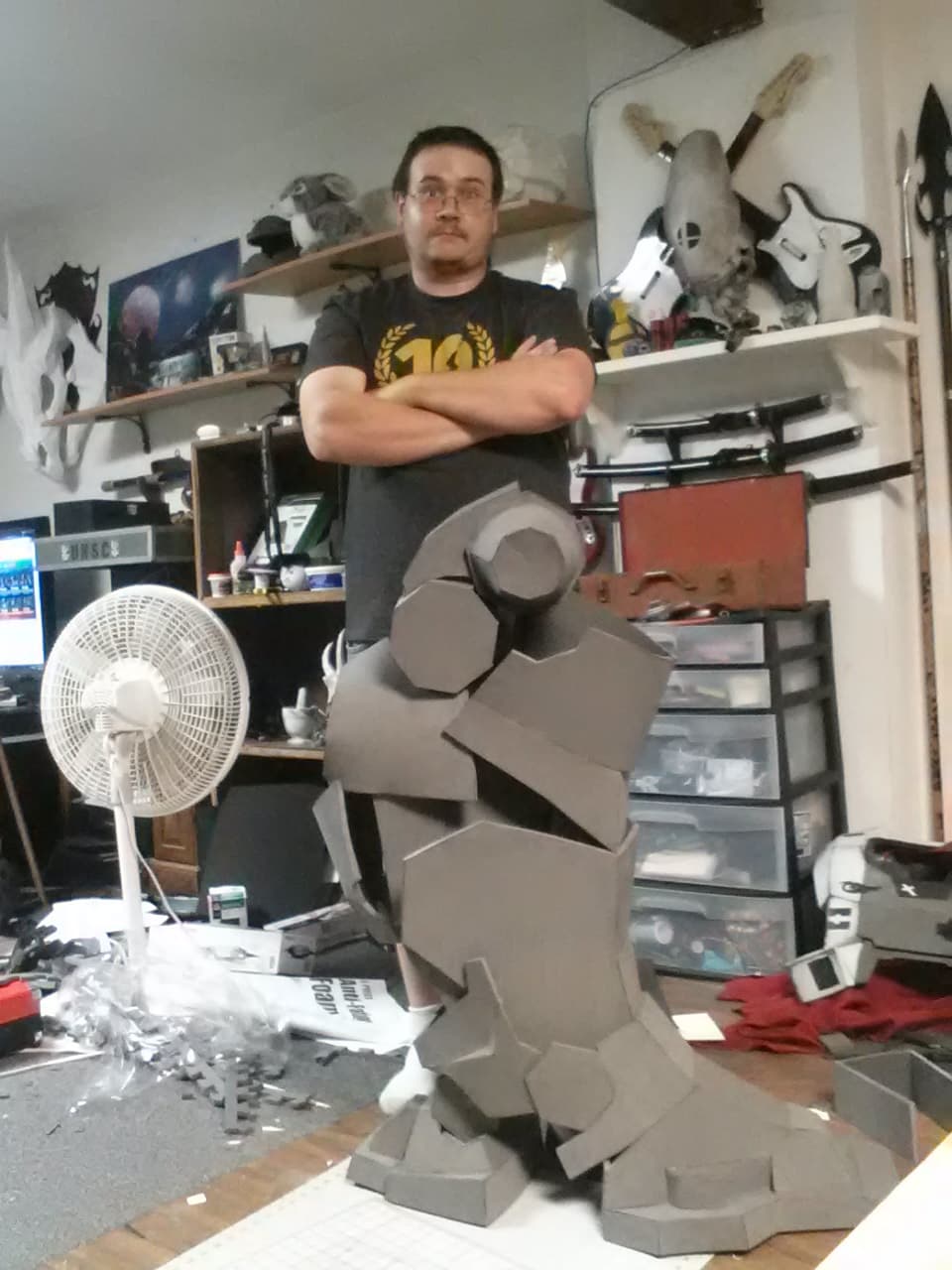

    Both feet are foamed out, and I got 1 shin done as well. Did a slight test fit to see how big it was gonna be and.....oh......oh my.
    Once the other shin is done I may need to focus on building the stilts right away to help support the shins. Basically building the internal skeleton as I go to keep everything from drooping and warping too much.
    39522315_884240501770391_4127779835667808256_n (1).jpg

  6. Beemo8bit

    Beemo8bit Jr Member

    Trophy Points:
    95
    Amazing! Looking good! Add in some lights and sounds! :)

  7. whtknght

    whtknght New Member

    Trophy Points:
    2
    Looks good so far
    Can I get a copy of your pep file?

  8. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    Yeah, shoot me your e-mail address in a private message and I'll send them out. All files are for foam and not for pep work btw.

    GMer56 likes this.
  9. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    I recommend going all the way and using the PVC primer/cement combo (don't forget a respirator!). Gorrilla glue just doesn't cut the mustard: had my stilts fall apart on me!

    You wanna try to have a mech fight?

  10. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    Did you use PVC for your leg stilts? I wasn't sure if they would hold up well to weight very well.
    Also, yes I'll mech fight you when it's all done lol

  11. Schankerz

    Schankerz Active Member

    Trophy Points:
    335
    Goodness gracious dude, you really like to go big don’t you? Not everyone can say they’ve built mechs, alien hover bikes and tanks in their lifetime!

    I was a pretty big fan of the film so I’m looking forward to seeing more of this! I myself haven’t seen anyone do a Jager yet.

  12. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Woohoo! Roadtrip!

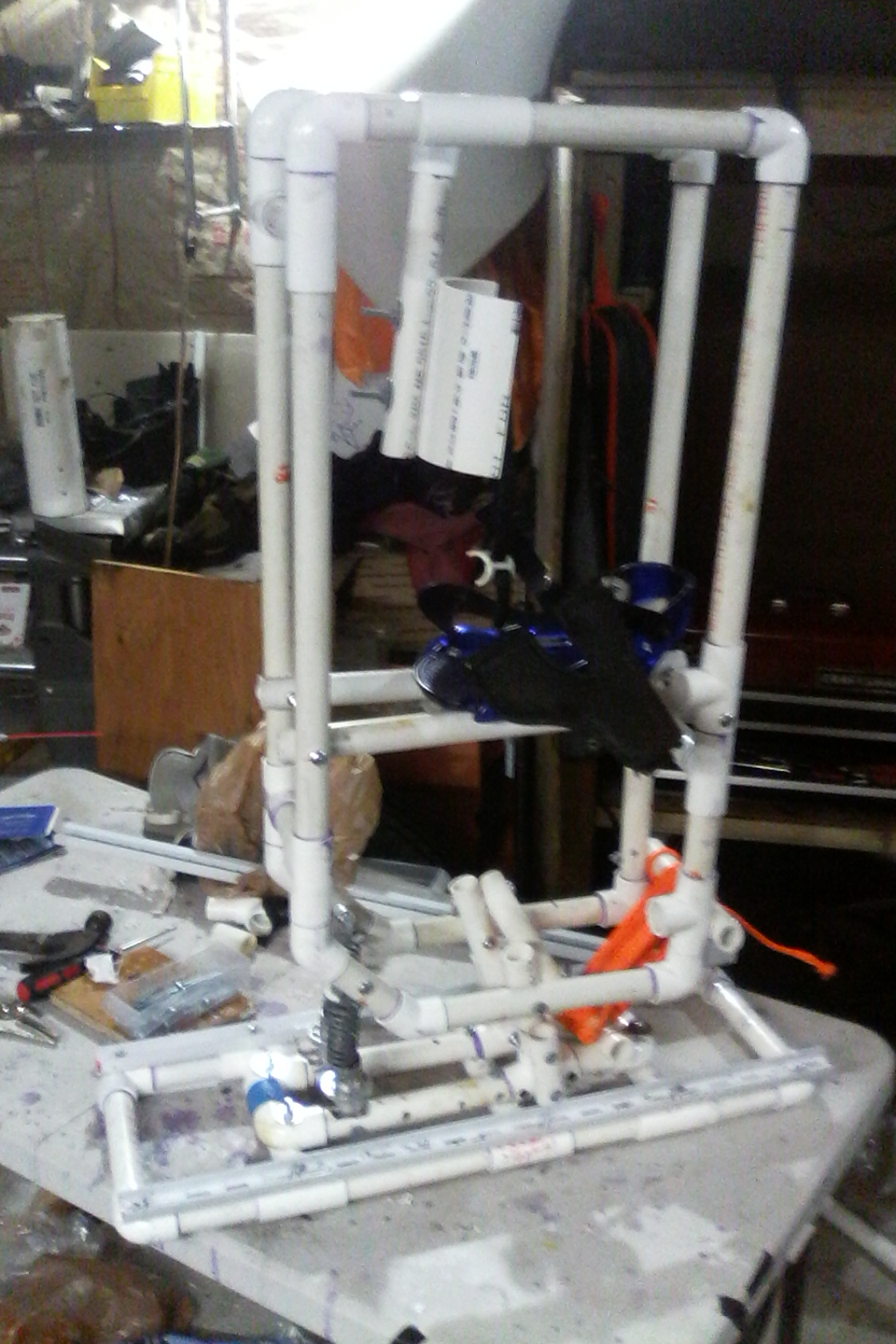

    Depends on how you use PVC. I've gotten good performance out of a simple prism design:


    But a few diagonal supports on the corners wouldn't go amiss (bearing in mind 3/4" PVC gets bendy after a foot or so) and a bit of wall-mounted shelf framing to keep the feets from bending.

  13. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    UPDATE!!

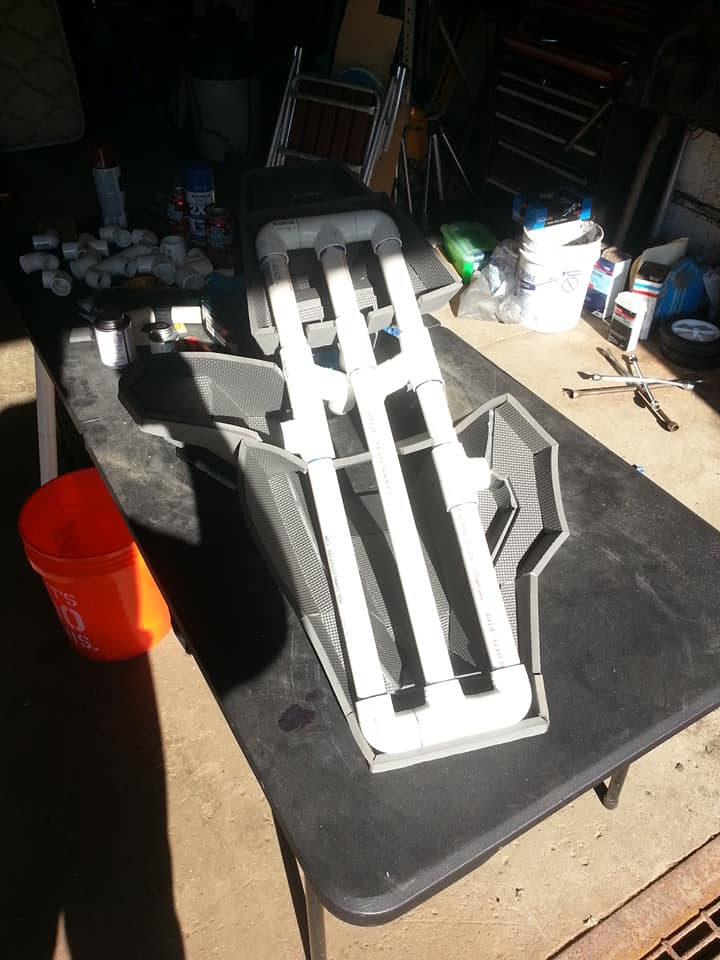

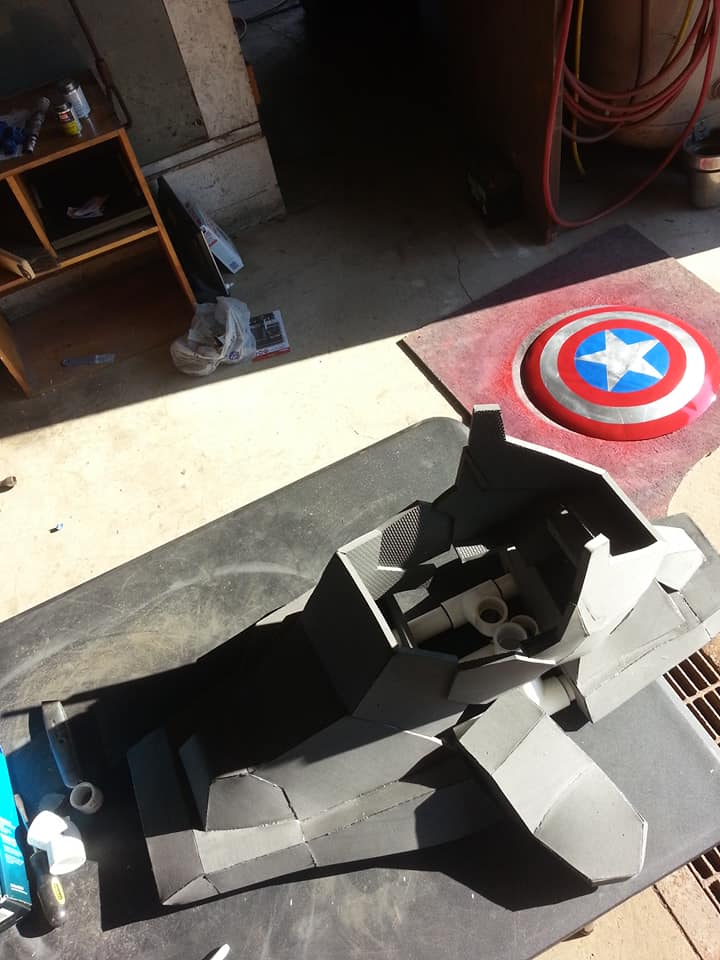

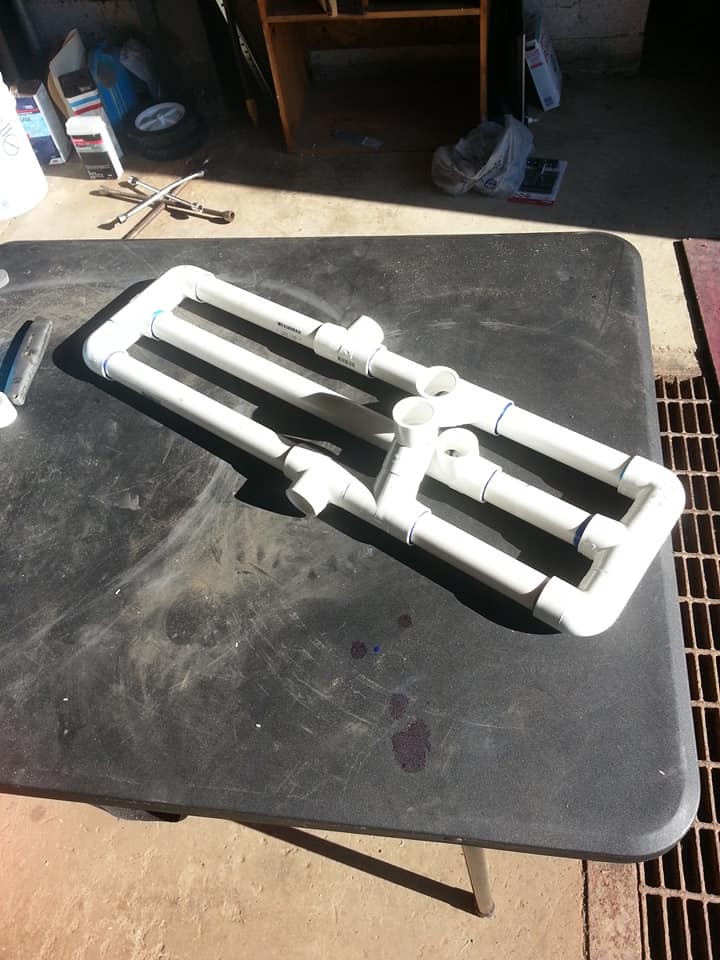

    Almost done making the 2nd shin, and started working on the platform stilts for the shins and boots.
    40633405_2549573478389800_8702949312000163840_n.jpg 40592208_2549573368389811_6955428656579608576_n.jpg 40603730_2549573205056494_5792979677559652352_n.jpg

    Lieutenant Jaku, GMer56 and VP Hydra like this.
  14. PillarofAutumn

    PillarofAutumn Jr Member

    Trophy Points:
    80
    Love me some Gipsy Danger! Can't wait to see further updates

  15. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    UPDATE!!

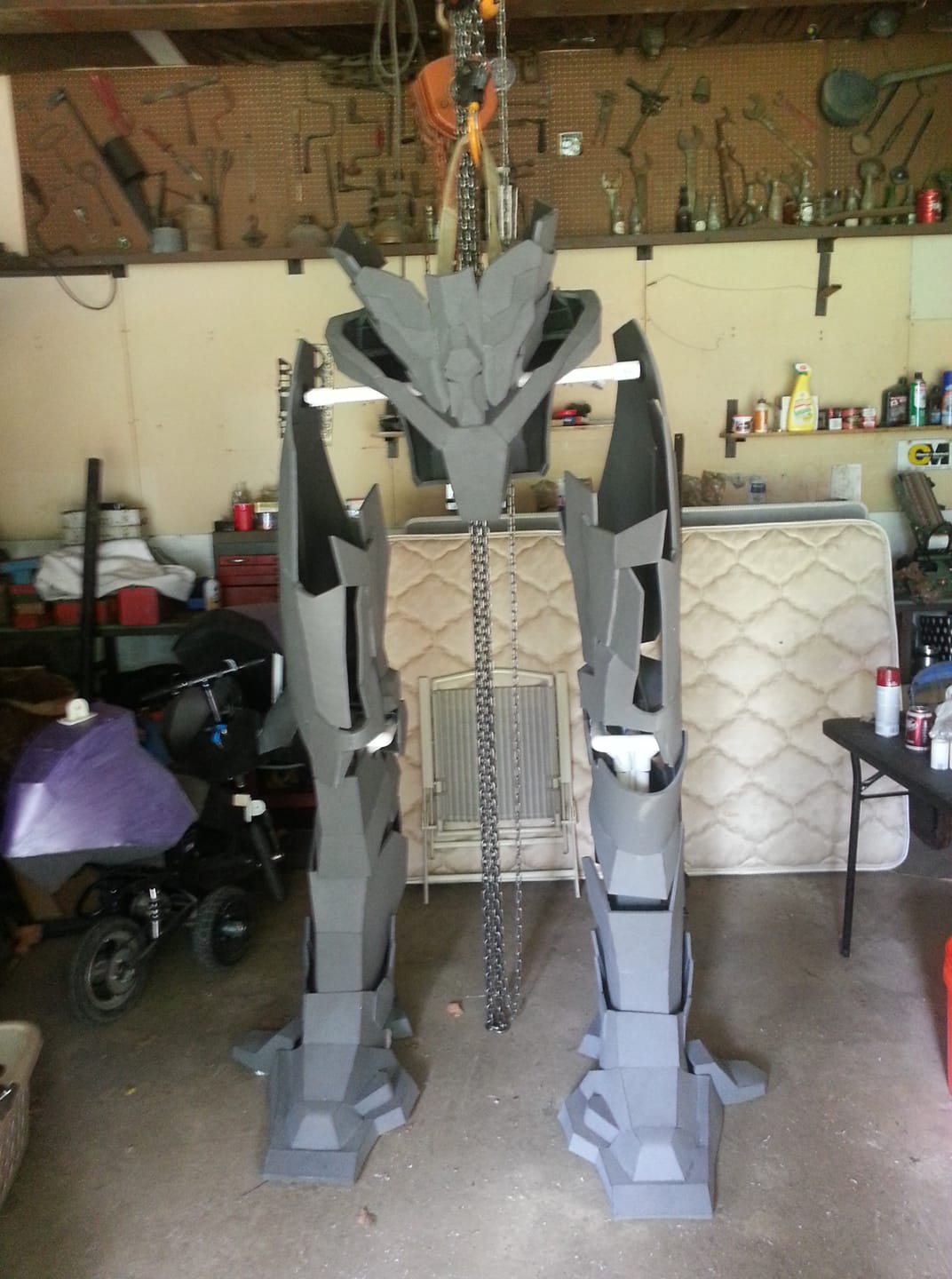

    Feet, shins, thighs, cod, and abs have been made. As well as both stilts for the shins and feet. Some smaller detail pieces for the legs and abs still need to be made, but the overall outer big pieces are finished. Going to take some time to figure out how I want to do the pvc structure heading from the knees to the waist. It needs to be designed to be both movable and have a way to lock it into place so I can get out without it falling over. Also going to add some further reinforcement on the stilts before I try and walk with them on. Might be a bit overkill, but I want to make sure they won't break on me.

    Lieutenant Jaku and GMer56 like this.
  16. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Wall mounted shelf tracks make excellent support if you want that extra bit of metal-based stability.
    It looks so thin! I think you need to bring the legs closer together, but nice foam work!

    Benton188 likes this.
  17. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    The legs will definitely be closer together, I just had them wide because of the pvc pipe holding them up was a scrap piece. Hopefully by the end of the week I'll have everything figured out on the legs and I'll begin testing the stilts out with everything put together.

  18. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    SETBACK!!
    Huh, I don't think I've ever made an update post like this one that goes backwards instead of forwards. Anyways, I'm going to have to scrap the PVC stilts in favor of something more sturdy. The height of these legs on PVC is just too much, even after I reinforced them with 1 1/4" pipes as well as fiberglass wrapped the daylights out of them. So instead of PVC I'll be switching over to using all wood. Might add a bit more for weight, but I'll feel a lot safer on them. Plus the PVC was actually heavier than I was expecting which is why I wanted to use it in the first place, but now that's kind of a mute point. In the meantime, I'm starting on the chestpiece next so I get a sense of how much wiggle room I'll have inside. If the cod and abs have told me anything, it's actually going to be a lot more snug than I originally thought. That could be good and or bad, but we'll see.

    TurboCharizard and SI3RRA 117 like this.
  19. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    Trophy Points:
    1,085
    I don't know if it's a setback in the long run if you're rebuilding for safety and stability. I'd say it's a good time investment if it keeps the legs from collapsing under you and damaging both the suit and yourself.

    Benton188 and Lieutenant Jaku like this.
  20. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    I feel ya, especially with a height of what, 30 inches?
    My PVC stilts are built more like little bridges (or an actual power armor component!) than actual stilts.

    Ever consider a stilt core of 4" PVC?

    For the torso you might wanna consider something like Thomas DePetrillo's Reinhart system...

    Beemo8bit and Benton188 like this.
  21. Mysterythetiger

    Mysterythetiger New Member

    Trophy Points:
    3
    Oh wow! This I need to see finished. Keep building!

    Benton188 likes this.
  22. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    UPDATE!!
    New stilts are in progress and are 1,000x better than the PVC stilts. Should have gone this way from the start lol. I wanted the PVC ones to work for the benefit of being lighter in weight, but these wood ones are so much sturdier and feel so much safer. Plus I was able to make an easy step-up platform right off to the side for each foot, meaning getting in and out of Gipsy will be easy. Also, I've been plugging away at the chest piece in the meantime and finally got most of it done. Just some more detailing on the back and sides and it'll be good.
    45435782_2686501594696987_6030403970738946048_n.jpg 45390842_2686501801363633_2429241800494415872_n.jpg 45506224_2686502061363607_4515372463441313792_n.jpg 45423724_2686502188030261_5625025316457021440_n.jpg

  23. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    Trophy Points:
    1,085
    Because I'm a nervous nelly and don't want to see your hard work fail and you to fall off stilts, you should look at adding some cross members to keep the uprights grouped together even tighter. Maybe something like slotted steel for sake of strength and low weight.

  24. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    It's pretty solid right now, but I was thinking of adding just a bit more support near the top to be safe. The middle piece has 3" lag bolts running through it so it's got the 2 uprights pinned really tight already. Working on figuring out the calf braces and rest of the PVC frame up to the hips and waist right now, and that'll help keep it from rocking side to side so much.

  25. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Dayum how tall are those stilts, 3 feet?
    Don't underestimate the power of triangles. Maybe get some aluminum flashing, cut it into strips and wrap it around the shins in a chain-link-fence-like pattern?
