Soft Parts H3: ODST Undersuit Analysis/WIP

Jason225

Active Member
Hey everyone, just thought I'd share some observations and kind of show what I've gotten done so far. So I wanted to start with the top of the undersuit for my "Rookie" ODST armor build, and wanting to go the extra mile, I went to the 3D models for reference pics.

269760
269761

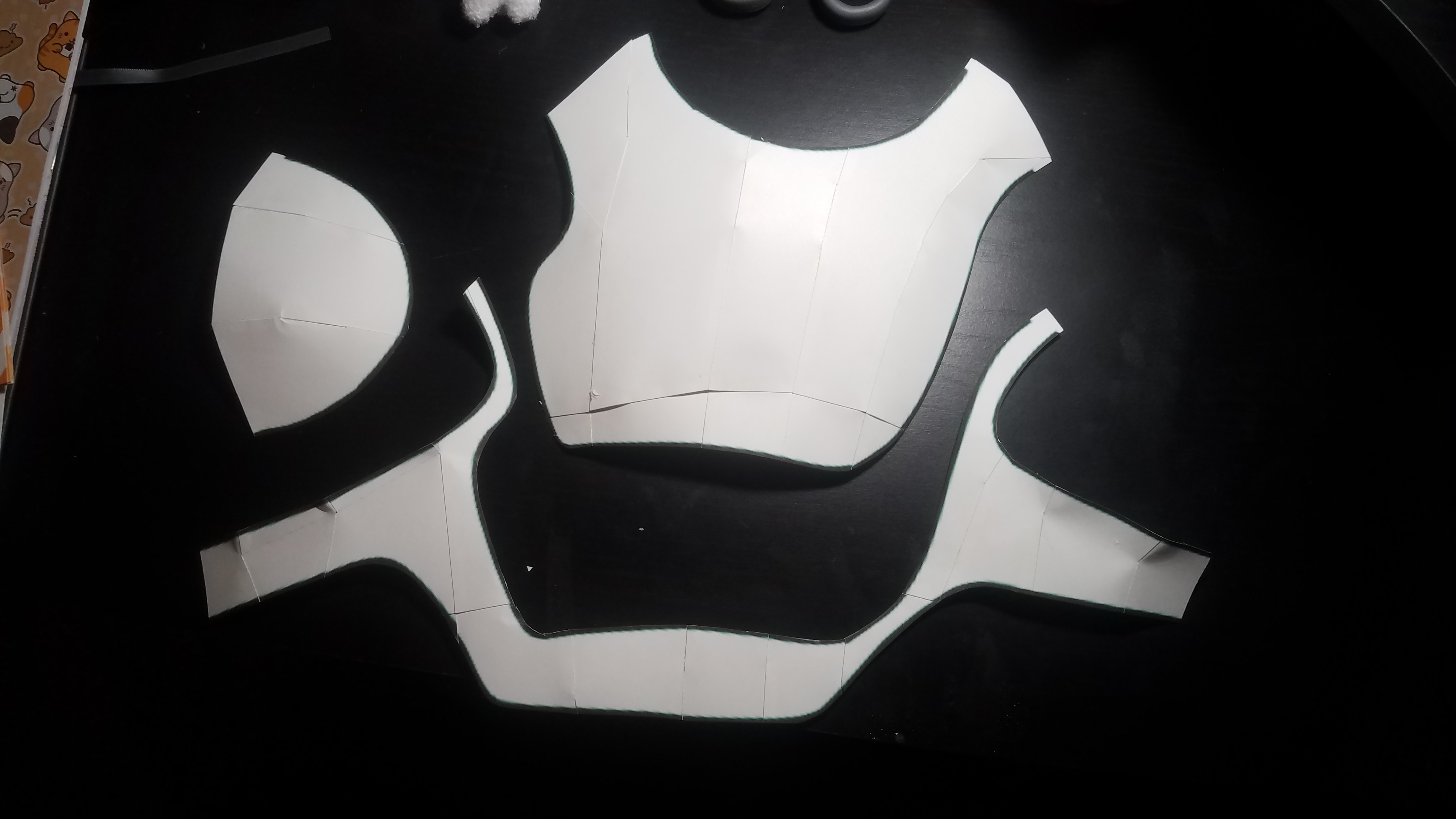

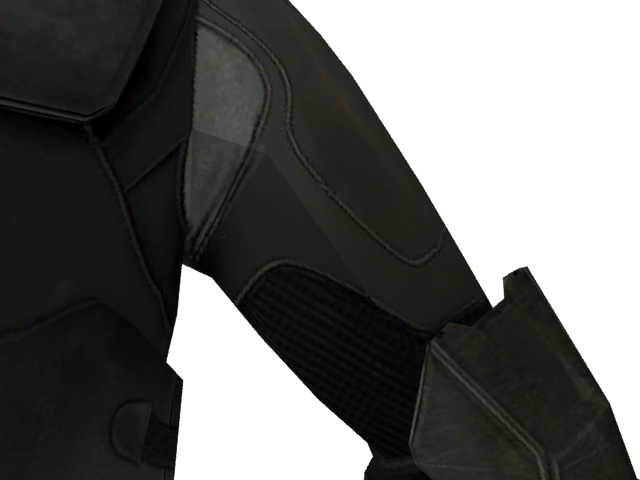

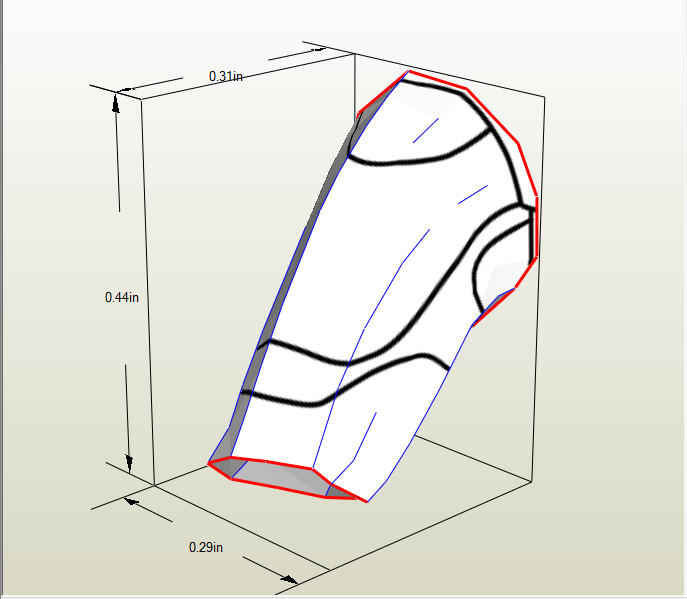

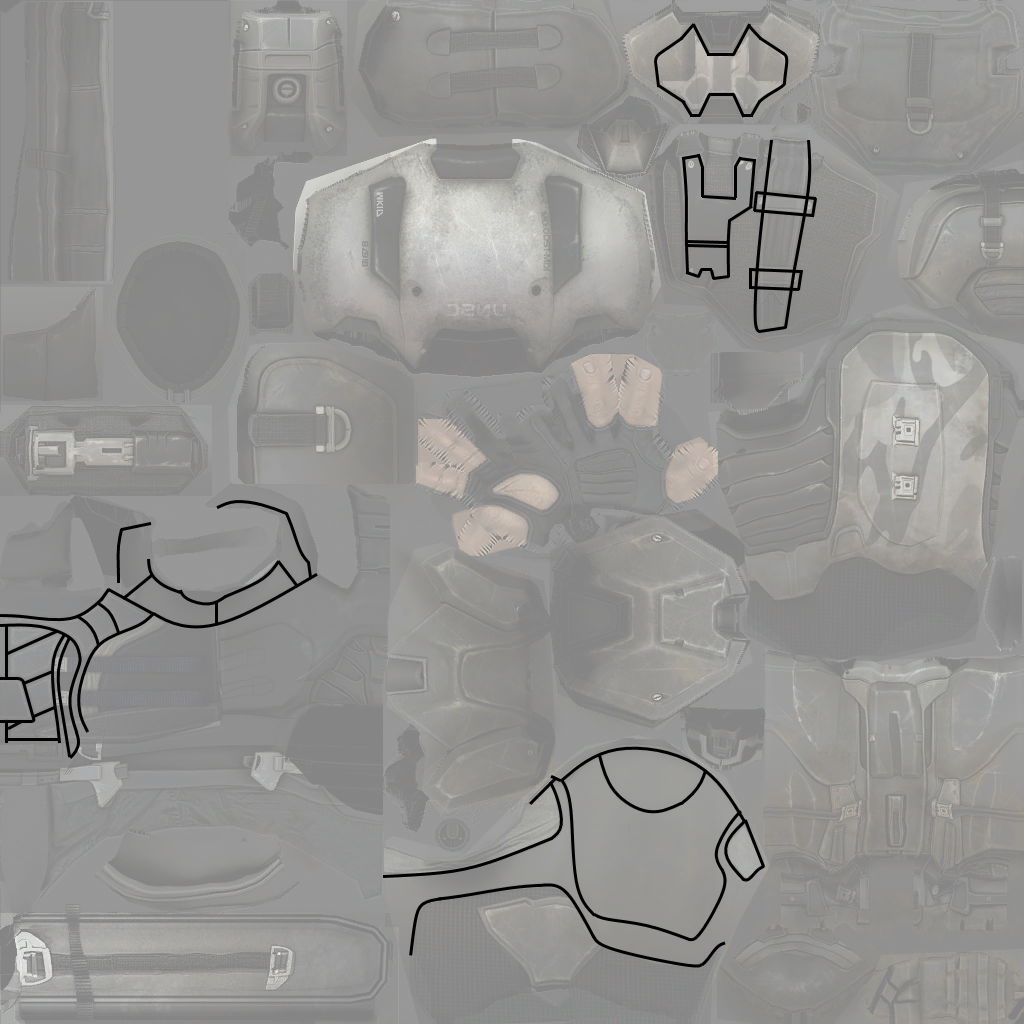

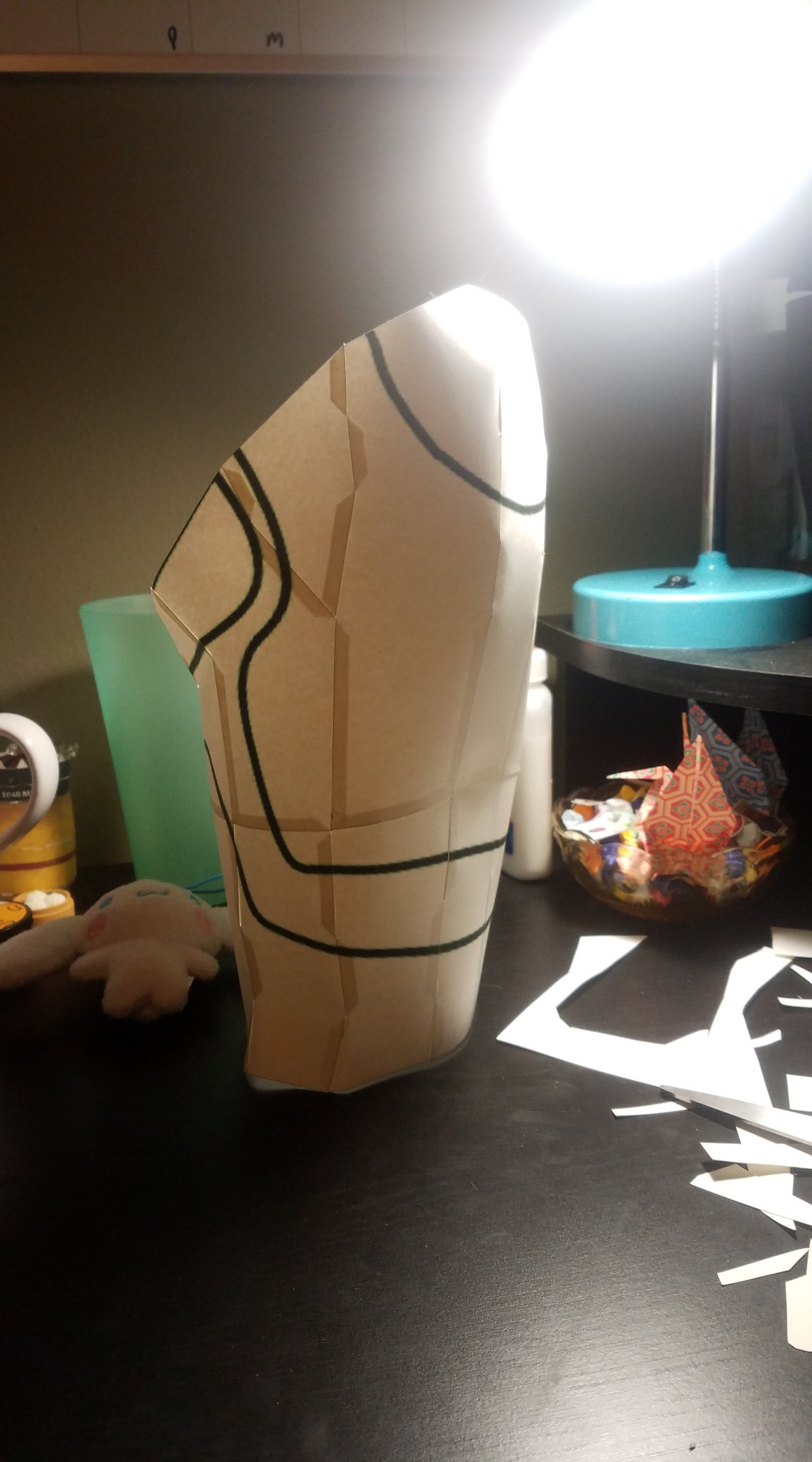

As you can see, there is indeed a lot of texture on the stomach underneath the armor plates, so I'm gonna try to work that in somehow with foam. But looking at the shoulder, we've got what appears to be some kind of rubber or vinyl padding on the shoulders, and I wanted as accurate of a pattern as I could get for that - I just ordered a sheet of gray 1/16" thick 65A SBR rubber, so we'll see how that goes. But anyway, for my pattern, I decided to trace over the model's texture and pepakura out an entire shoulder just so I could cut it up. Here's some pics of that process.

269762
269763

269764
269765


So I've got my pattern, just waiting on the rubber. I also want to talk about the base layers - which, to me, appear to be a tan shirt in the armpit area (which I figured would be a nice breathable base layer since it'll be covered by the rest of the armor anyway, only the armpits will show when I'm done) and black thermal underwear material on the rest of the sleeve (you can see the small square pattern in the cloth in my reference picture up top). Luckily I had a black thermal already and a blank tan shirt was only $6 on Amazon, so we've got those covered. I'll be sewing the sleeves of the thermal onto the shirt, so I won't have to wear the thermal underneath it and overheat.

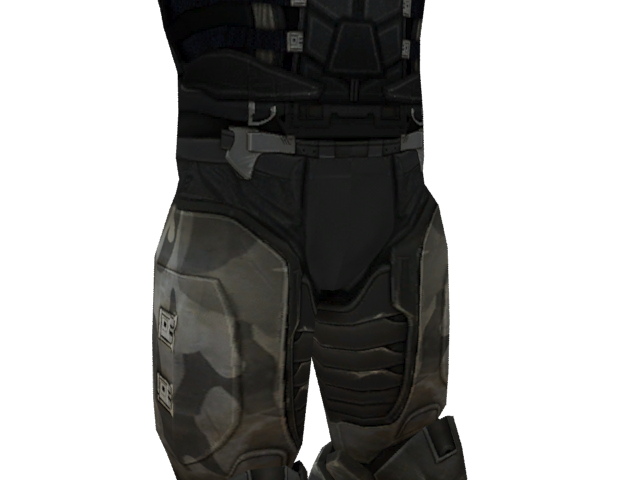

Next I wanna talk about the legs. Here's a couple reference pics:

269766
269767

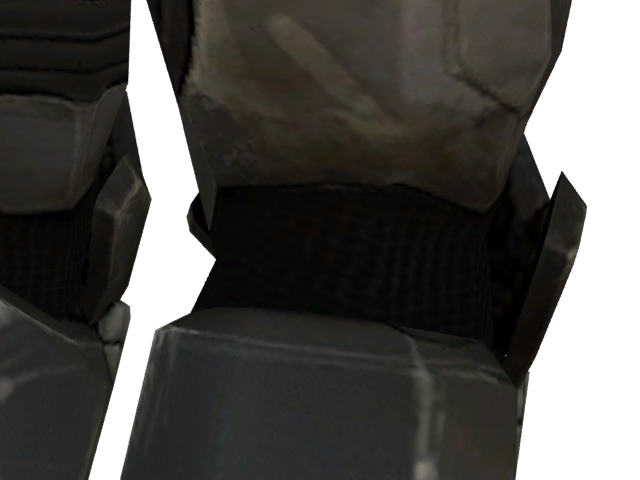

For the waist area, I'm just gonna go with grey cargo shorts. Could I put a big rubber piece on the jock area? Sure. Would it look like an adult diaper? Probably. So I'm gonna stick with just the shorts. Then we have a familiar face on the back of the knees, that old square-pattern black thermal again. LUCKILY I also happen to have black thermal pants laying around somewhere too, so I'll be sewing the legs onto the bottom of the cargo shorts similar to the shirt plan for the top half, so I don't end up with a bad case of swamp butt.

If anyone's interested, I can scan the pattern I got for the rubber/vinyl/whatever on the shoulders and upload them here. Let me know what you guys think of my plans so far, and if you have any ideas on things that can be improved upon, definitely let me know.


Jason225

Active Member

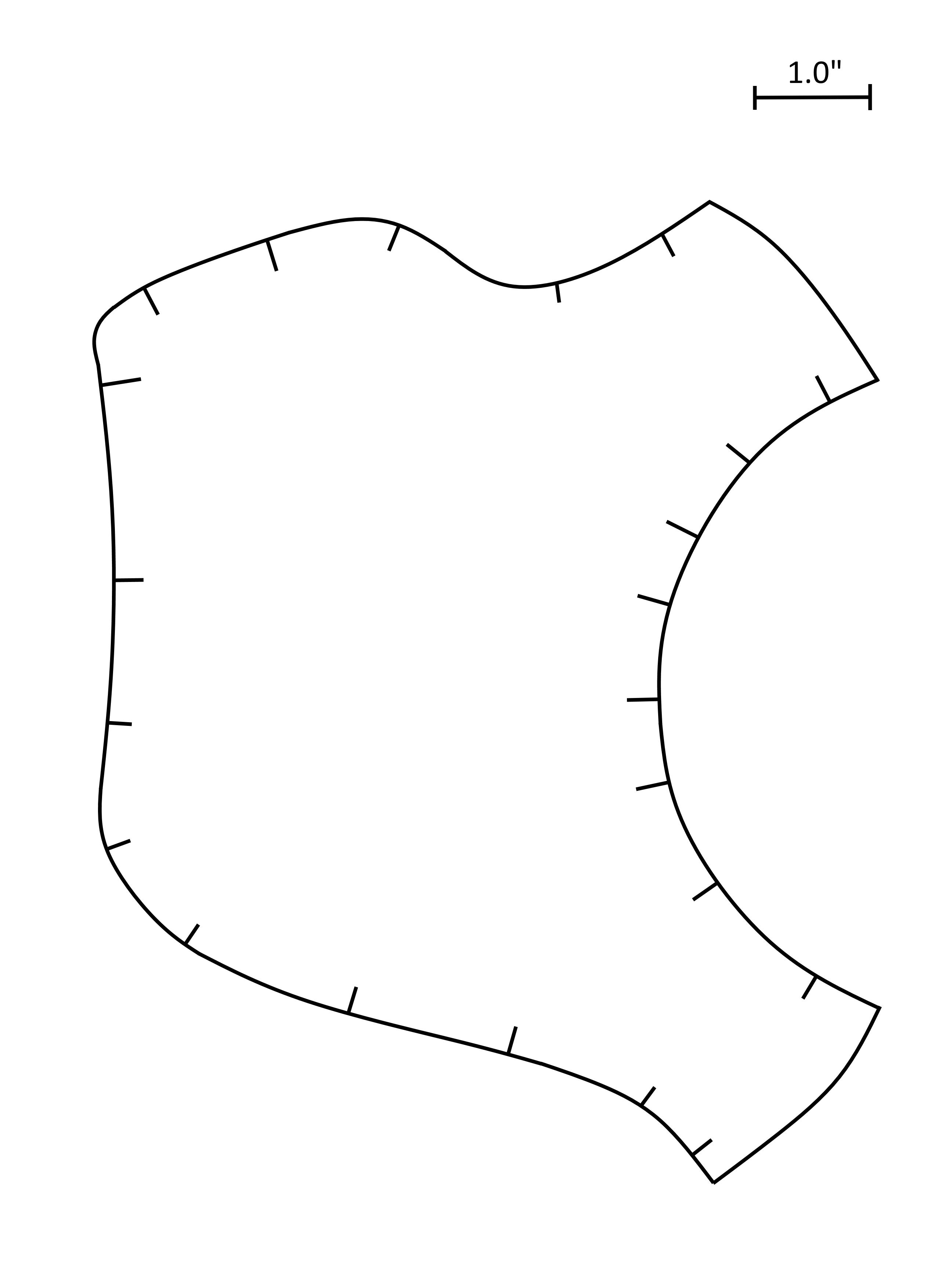

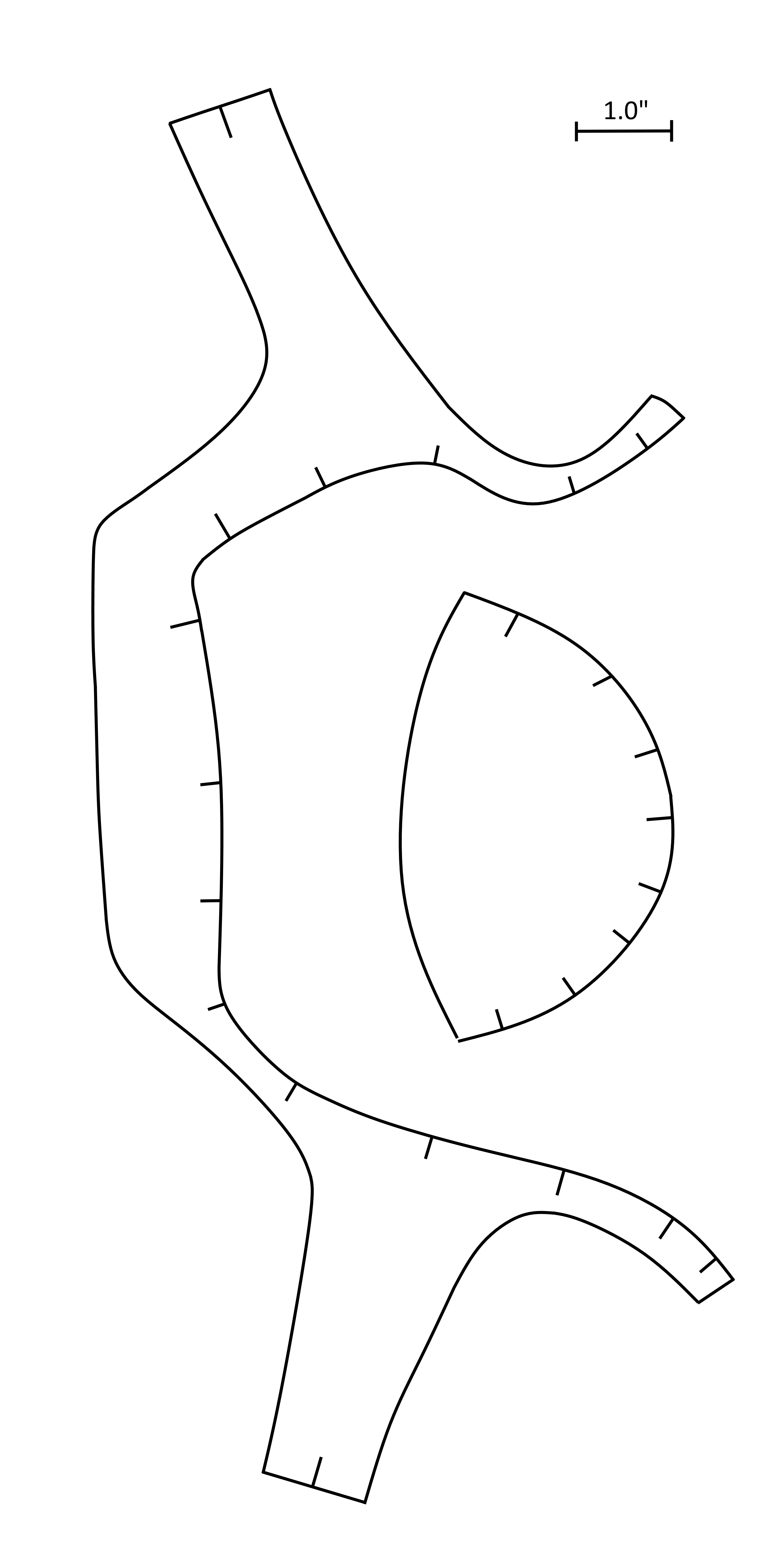

Here's the patterns I ended up with, I scanned them and cleaned them up in Paint.net. I've... Never made a sewing pattern before, so let me know if I did something stupid. They're scaled for my arm by default, which is roughly 14" in circumference where the bottom "strap" area wraps around.


Attachments

Jason225

Active Member

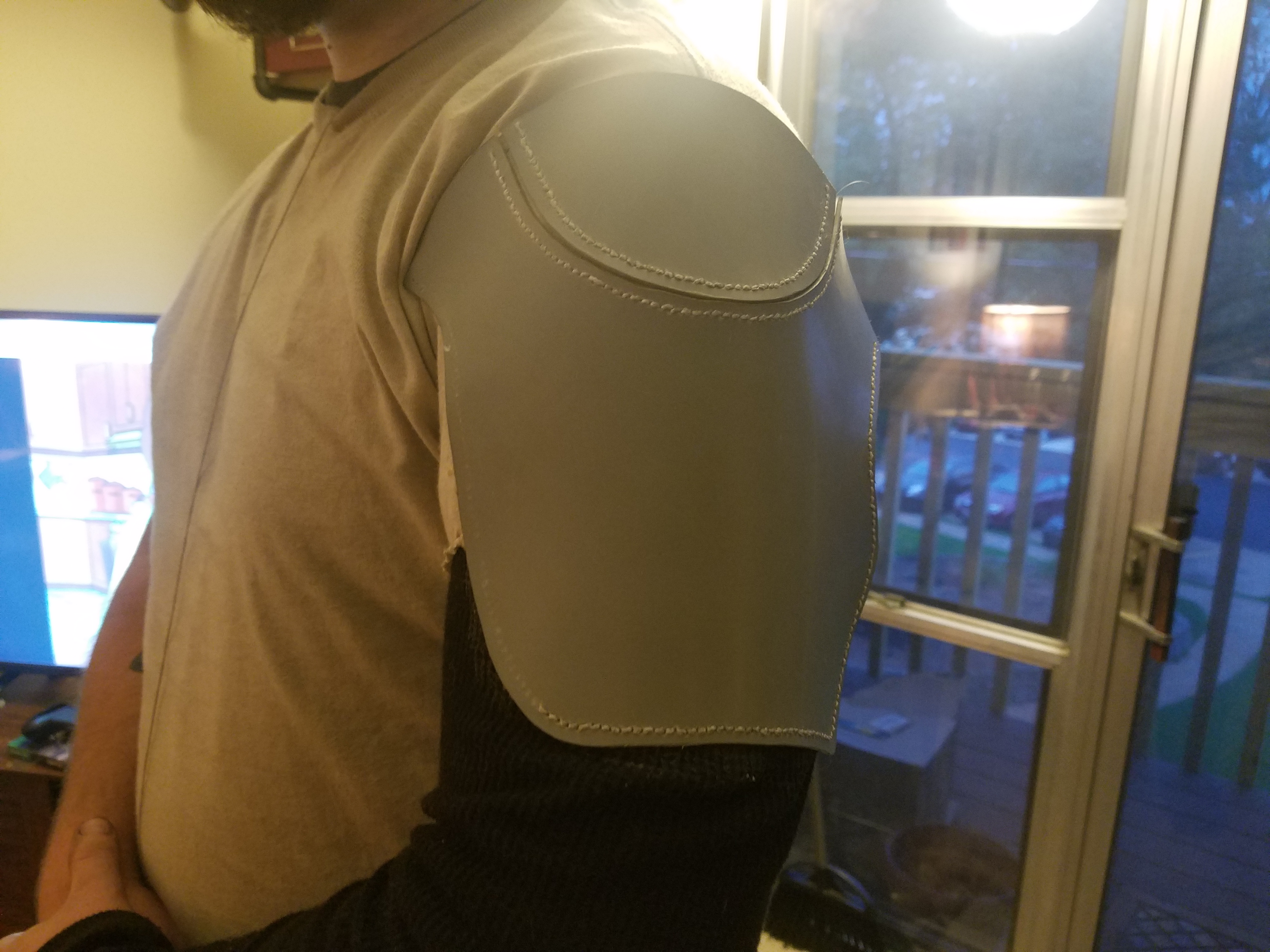

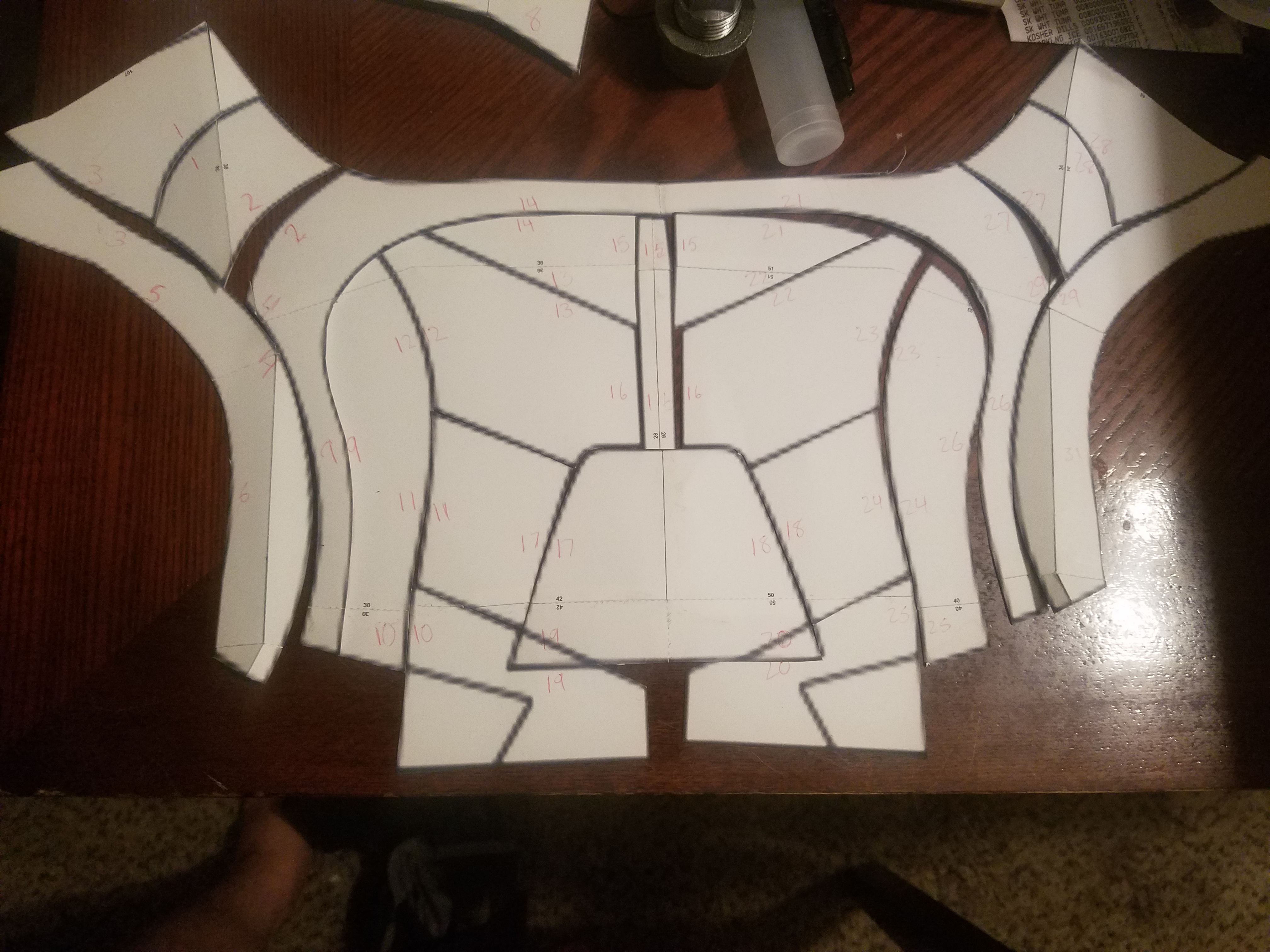

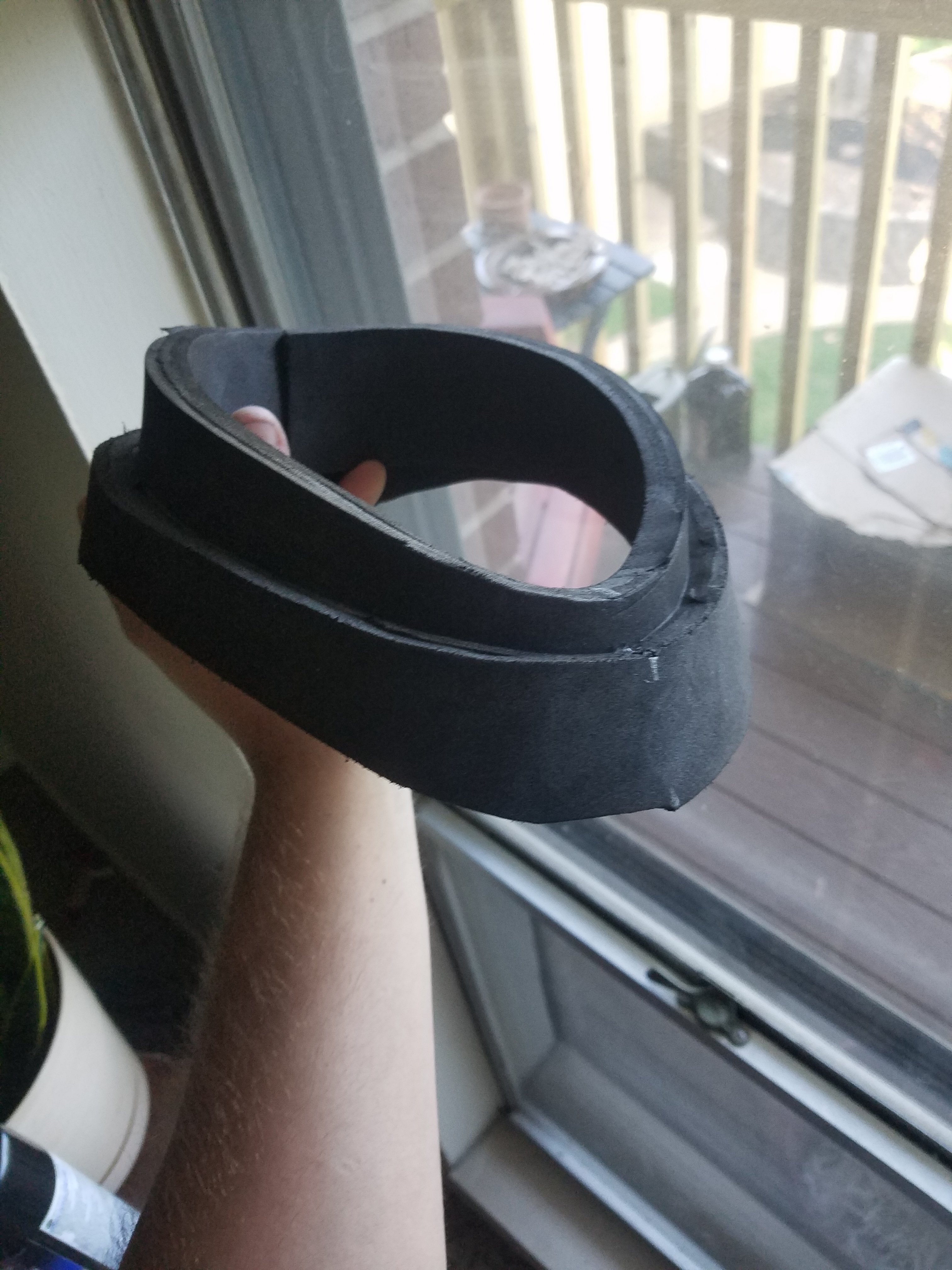

Sorry it’s been a minute since my last update, but I’ve been trying to request a sample of the rubber sheet I wanted to no avail. Sent an email to the company a while ago, then filled out their sample request form, no response for either of them, so I decided to just eat the $20 if it turns out to not be exactly what I want and ordered it from the Home Depot website instead. In the mean time, here’s a test piece I made out of foam. Foam was my original plan until I realized how much this shoulder pad will need to stretch to fit properly, but I figured I’d go ahead and whip one up anyway to check the fit. Looks pretty solid in my opinion.


Attachments

gerard2567

Member
You can probably heat form the rubber sheets over your foam template. (If it works like most rubber I've worked with...) Instead of sewing them together. Kinda like wet forming leather over a mold.


Jason225

Active Member
You can probably heat form the rubber sheets over your foam template. (If it works like most rubber I've worked with...) Instead of sewing them together. Kinda like wet forming leather over a mold.
I’ll have to give that a shot, I’m not super certain what will or won’t work until I actually get the rubber though, haha.


Callianis

New Member
Good reference pics and good idea for the shoulder template. That extra level of dimension :) And thanks for extracting so many pics on my own thread earlier this year.

I'd love to make that abdominal undersuit but not sure I've the skills just yet. But we'll see how the rest of the build goes ;)

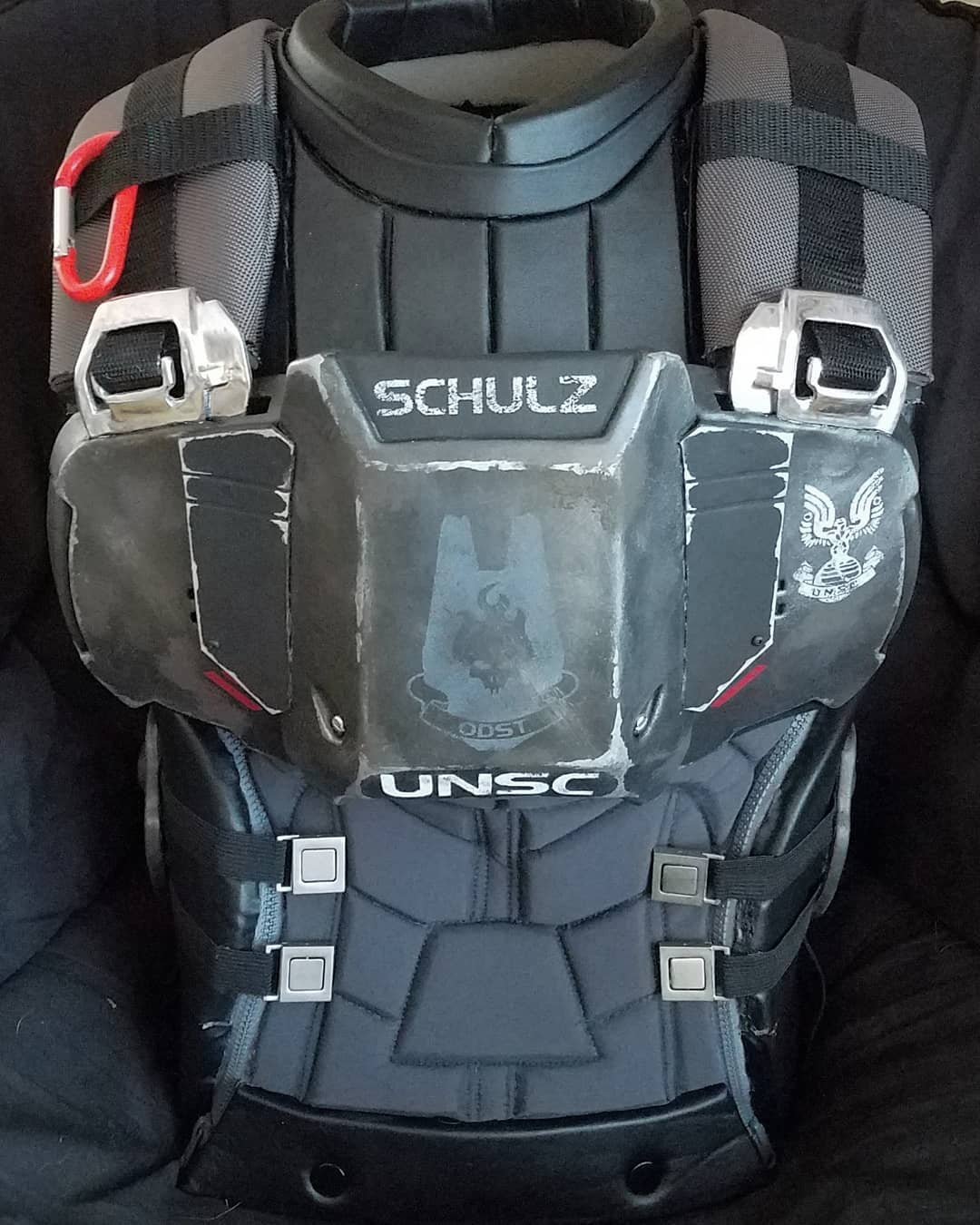

LostVikingProps (IG and FB) has some great ODST creation videos and pictures including the under suit for the upper body (has zippers) and that he also turned the butt plate into a bum bag to store stuff (ingenious idea).

270568


Jason225

Active Member
Good reference pics and good idea for the shoulder template. That extra level of dimension :) And thanks for extracting so many pics on my own thread earlier this year.

I'd love to make that abdominal undersuit but not sure I've the skills just yet. But we'll see how the rest of the build goes ;)

LostVikingProps (IG and FB) has some great ODST creation videos and pictures including the under suit for the upper body (has zippers) and that he also turned the butt plate into a bum bag to store stuff (ingenious idea).

View attachment 270568
I saw that when I was digging around on Google! I'm hoping my undersuit turns out that good, though I'll probably use foam for my "abs" as I don't have a sewing machine. And yeah, I was also thinking of doing the buttplate as a fanny pack of sorts, though I think that may actually be the intended purpose. You can actually see what looks like a zipper on the 3D model. I've been kind of looking for a makeup bag or clutch of some sort that matches the shape and texture to save me the trouble of sewing one by hand, that way I'll just have to sew the nylon straps and clips onto it.


Callianis

New Member
I saw that when I was digging around on Google! I'm hoping my undersuit turns out that good, though I'll probably use foam for my "abs" as I don't have a sewing machine. And yeah, I was also thinking of doing the buttplate as a fanny pack of sorts, though I think that may actually be the intended purpose. You can actually see what looks like a zipper on the 3D model. I've been kind of looking for a makeup bag or clutch of some sort that matches the shape and texture to save me the trouble of sewing one by hand, that way I'll just have to sew the nylon straps and clips onto it.
I can only sew straight lines (eg velcro onto webbing) :) So I'd be inclined to use foam too, or foam with fabric glued onto it.

The "bum bag" idea is so awesome I'd like to do it myself. Ah you mean you want to find a pre-made bag, add straps to the back and the armour plate to the front? Interesting idea. Myself, I'll go with making the butt plate out of foam then adding a zipper to it.

I'm also planning on making the flashbang grenades into storage containers (eg snacks, small water bottle, money).


Jason225

Active Member
I can only sew straight lines (eg velcro onto webbing) :) So I'd be inclined to use foam too, or foam with fabric glued onto it.

The "bum bag" idea is so awesome I'd like to do it myself. Ah you mean you want to find a pre-made bag, add straps to the back and the armour plate to the front? Interesting idea. Myself, I'll go with making the butt plate out of foam then adding a zipper to it.

I'm also planning on making the flashbang grenades into storage containers (eg snacks, small water bottle, money).

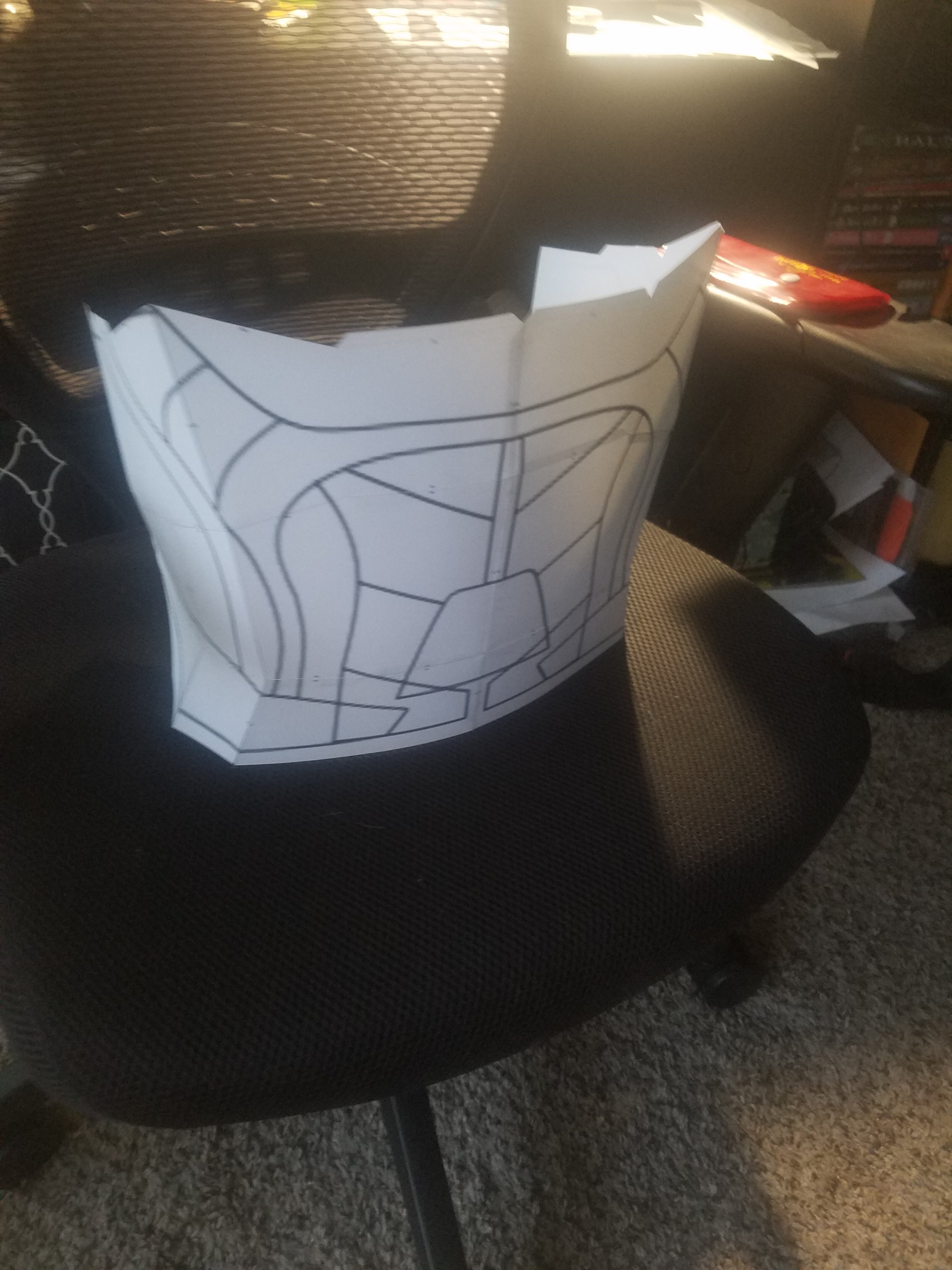

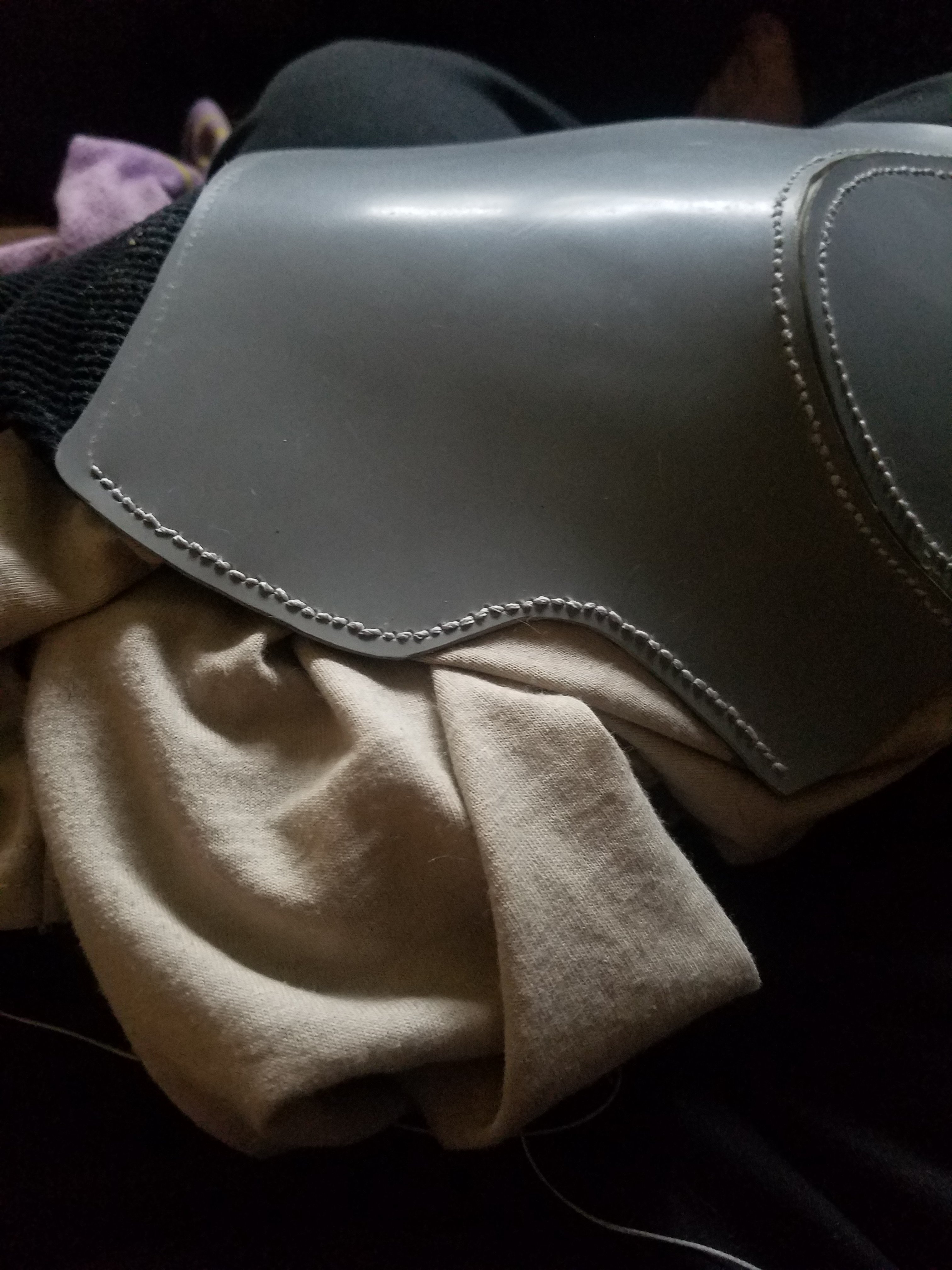

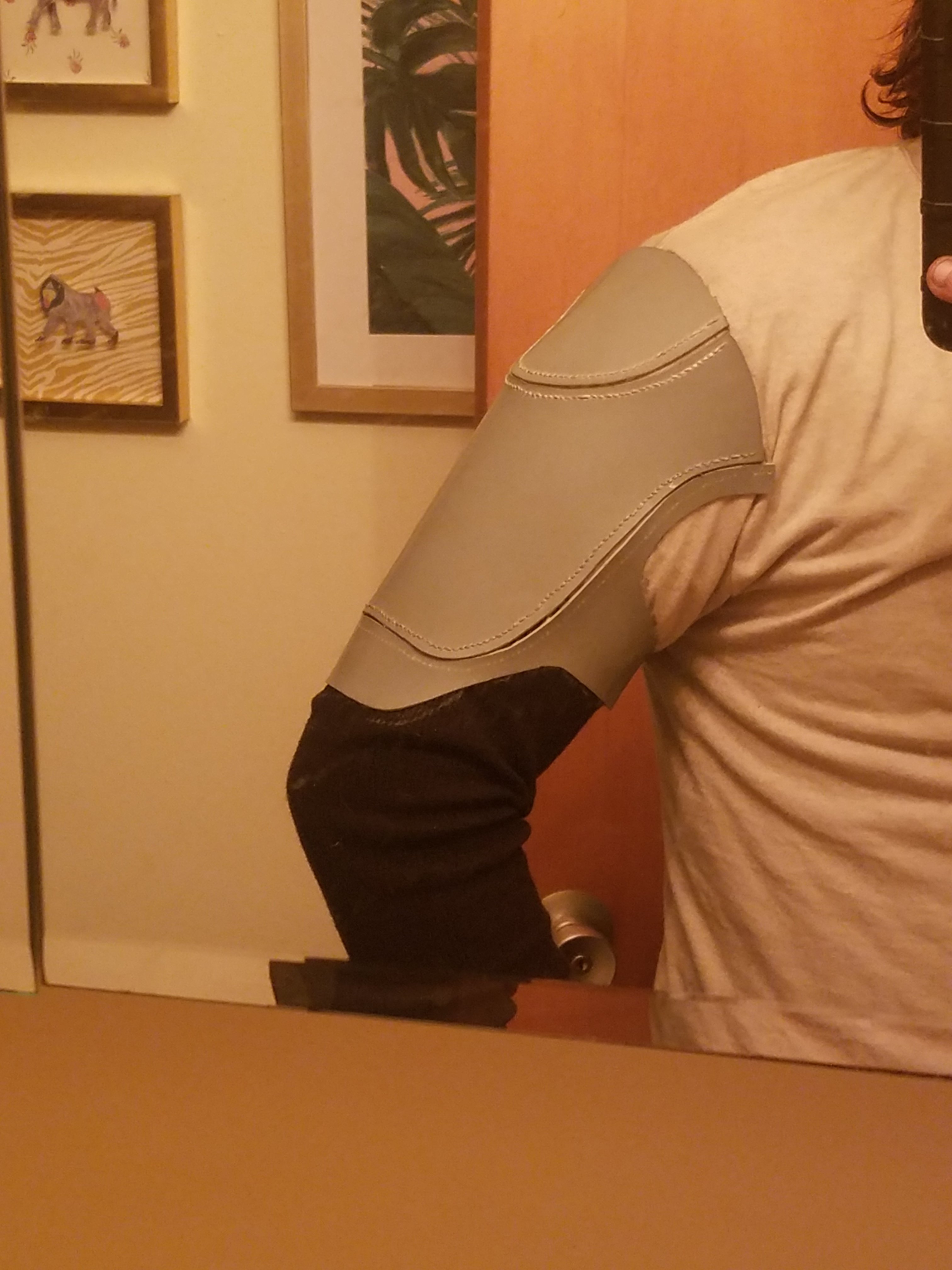

Yeah, I know I've seen some makeup cases with that half-moon kind of shape, but unless I can find one exactly the right shape and texture, I'll probably just pull the in-game model and turn it into a sewing template in Pepakura Designer, then use some faux leather or marine vinyl to make the bag then stick the black armor-looking part on afterward. Also, I got my rubber in today, yay! It's less stretchy than I would have liked, but the color and texture are fantastic and I think I can make it work anyway. I maybe should have gone with silicone instead of SBR gasket material, but sheets of silicone are pretty expensive and this stuff was $20 for a roughly 1m x 0.6m sheet, so I've got plenty to work with. My needles and thread are arriving tomorrow, so I'll be getting to work on everything then.


Harri51

Well-Known Member
Yes!! I am currently looking into a under suit as well. This just made my day even better!!! I kind of made and idea from seeing others under suits but the route you are talking about seems better. So much ideas and not enough time to figure!


Jason225

Active Member
Yes!! I am currently looking into a under suit as well. This just made my day even better!!! I kind of made and idea from seeing others under suits but the route you are talking about seems better. So much ideas and not enough time to figure!
Glad I could help you out!


mblackwell1002

Well-Known Member
I gotta say, really clever idea to use the texture maps as a template for construction. Really smart idea, and things are looking great so far. I look forward to seeing more progress.


Jason225

Active Member
I gotta say, really clever idea to use the texture maps as a template for construction. Really smart idea, and things are looking great so far. I look forward to seeing more progress.
Thanks! Hoping to be making some more progress soon, I bit the bullet and ordered a sheet of grey silicone. Just waiting for that to show up now. Lol
