So i have posted a previous thread about what kind of armor should i build. after days and weeks of thinking i have decided to build the halo 4 hayabusa concept armor. seeing that there wasn't a lot of pepakura files of this armor i have decided to take it on in a different approach and build a custom one. bare with me at first i tried to build a halo 4 master chief armor, finished it but wasn't proud of the build. wasn't good enough for my liking. but i have learned from that build and now im here to show you what i got :). the build will consist of fiberglass and resin parts, Eva foam and a few sculpted pieces.
. post-26953-0-04894400-1358979762.jpg
First off:

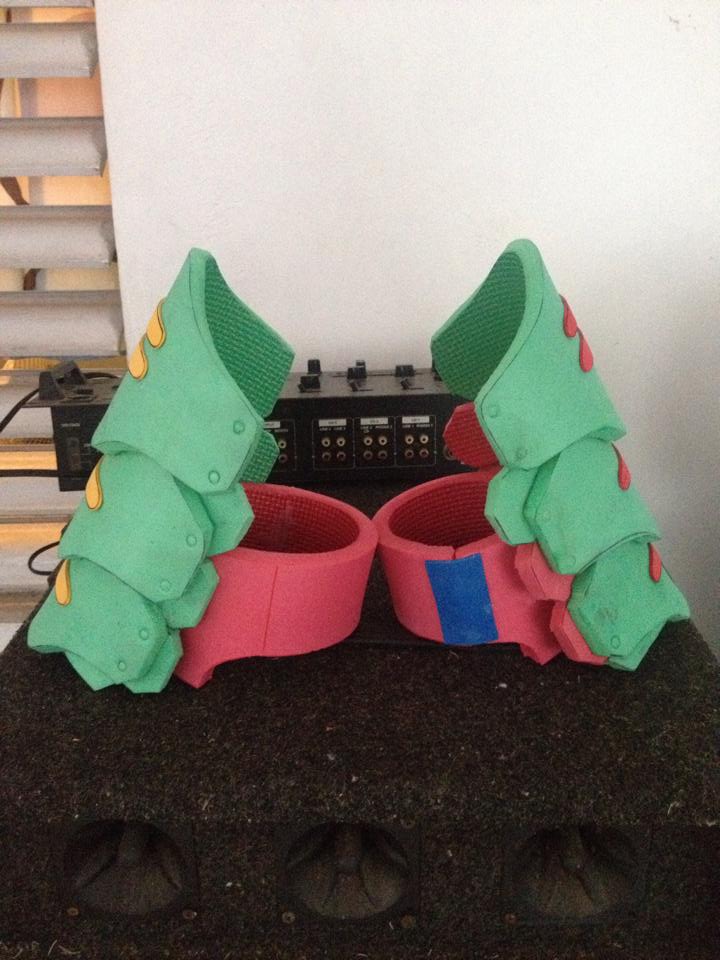

Shoulders
Used Eva foam to build the shoulders, made them free handed and to my liking, they are lightweight,simple but looks good. i will be sealing it and painting it with plastic dip (BLACK) until i finish the rest of my armor.





Last edited by a moderator:

m00sem4n

Active Member
your work looks clean and crisp, that's the key to a successful foam project, keep it up! :thumbsup

I've been waiting for a great hayabusa foam build to inspire me to do my own one day, so maybe you're the chosen one, haha


xdarkx

New Member
your work looks clean and crisp, that's the key to a successful foam project, keep it up! :thumbsup

I've been waiting for a great hayabusa foam build to inspire me to do my own one day, so maybe you're the chosen one, haha
i will try man, thanks for the support, i gotta finish it before the midnight XD so gotta work quick!
will post more pictures in a few hours.


xdarkx

New Member

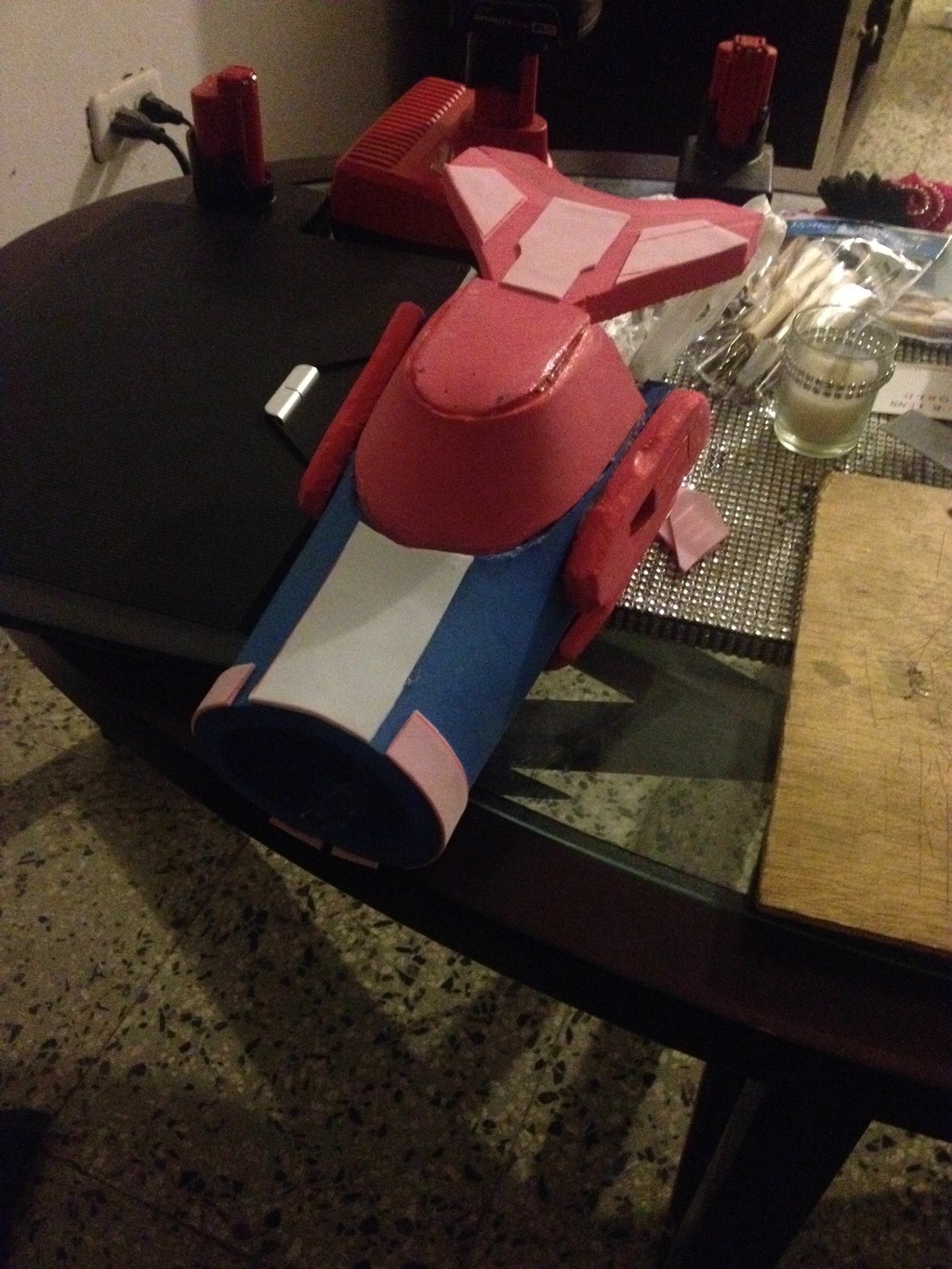

Forearms:
so for the forarms i used "impact props" stencils,but i had to do alot of modifications so it would fit nicely and still look good on me. decide to go with this type of forarm because it goes nicely with the whole hayabusa "thing"
might scultp and cast custom hayabusa forearms and might sell a few if i ever do. but for now this will do since i only have 2 months till the halo 5 midnight.




Last edited by a moderator:

xdarkx

New Member

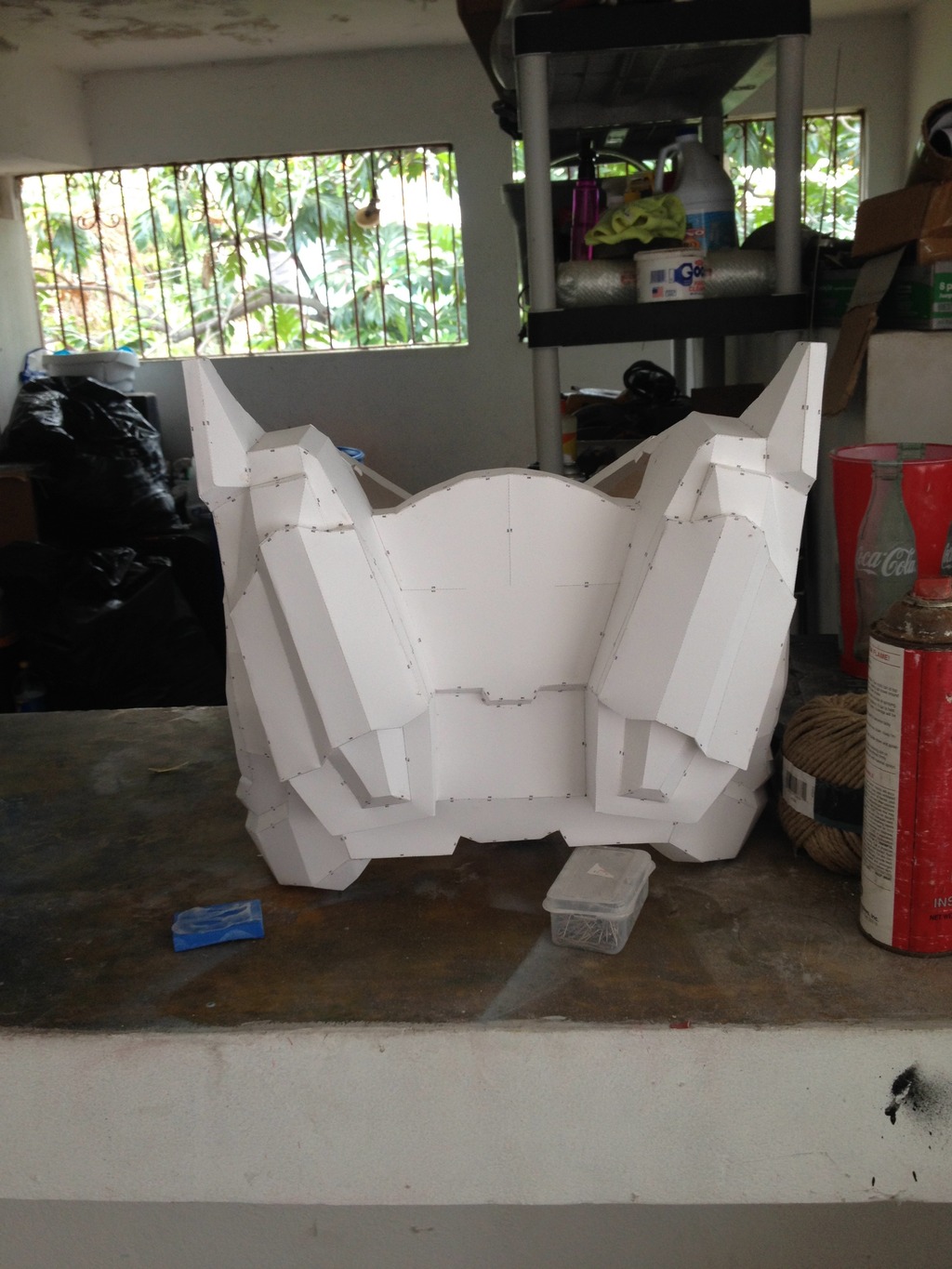

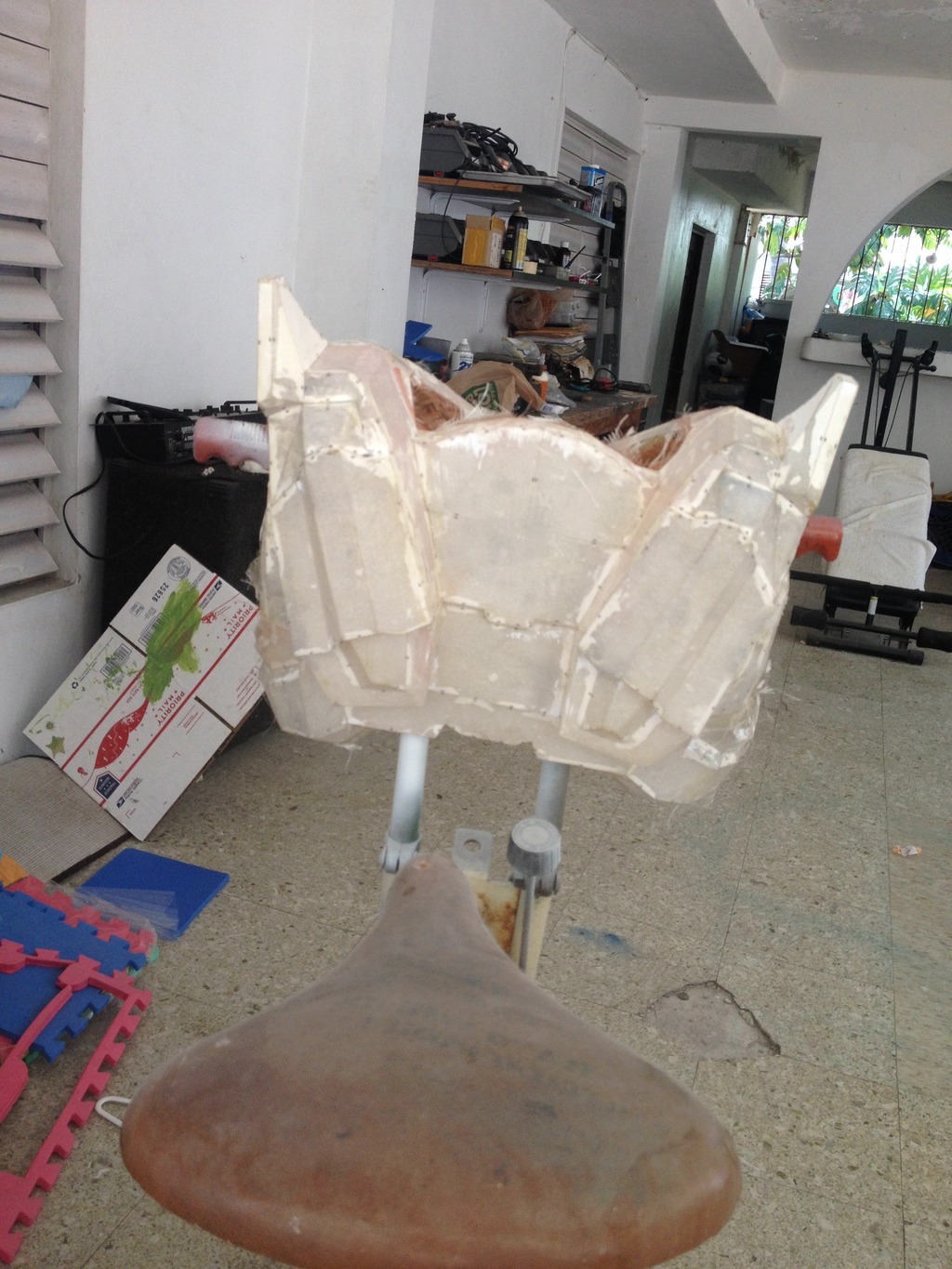

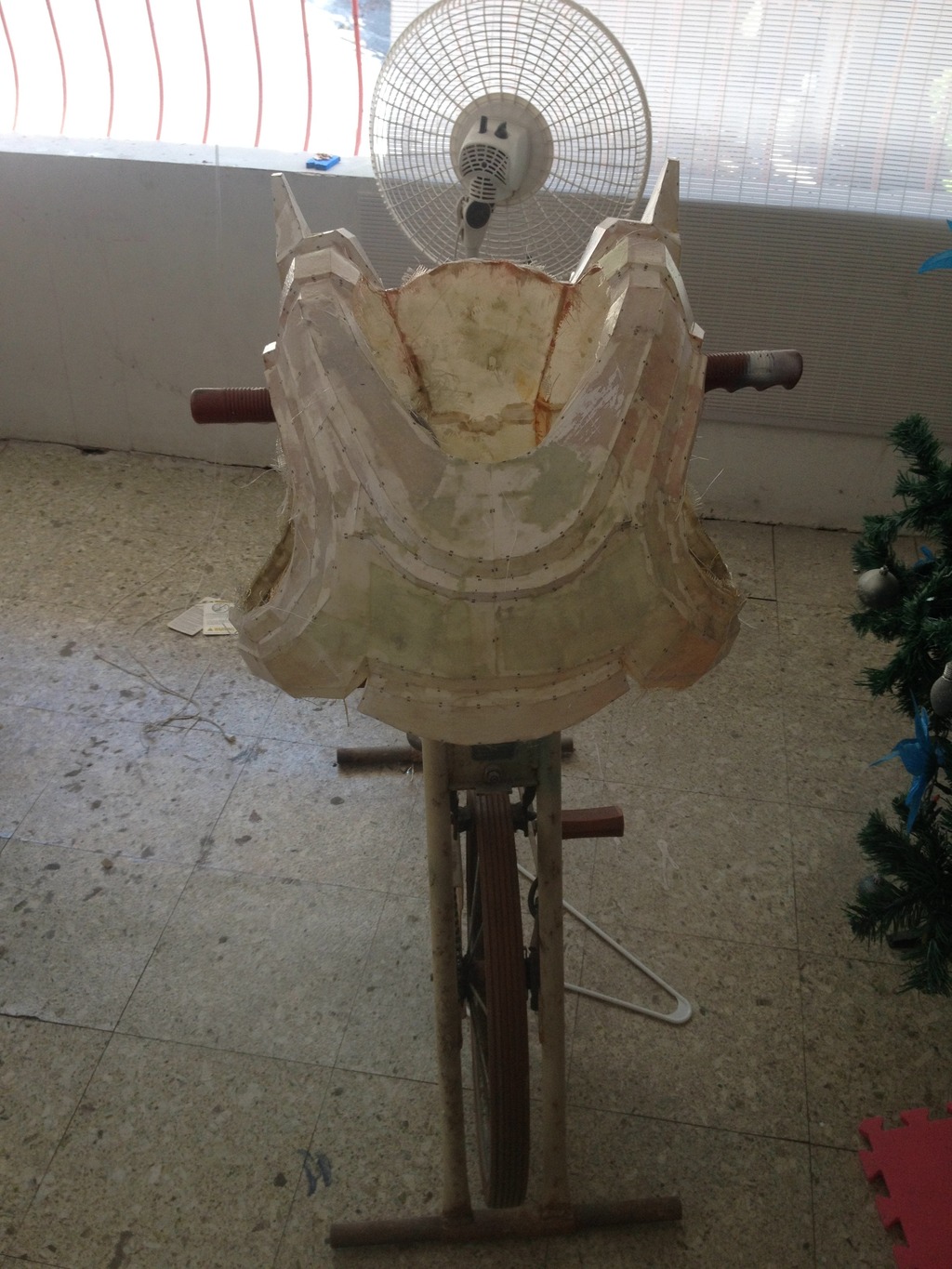

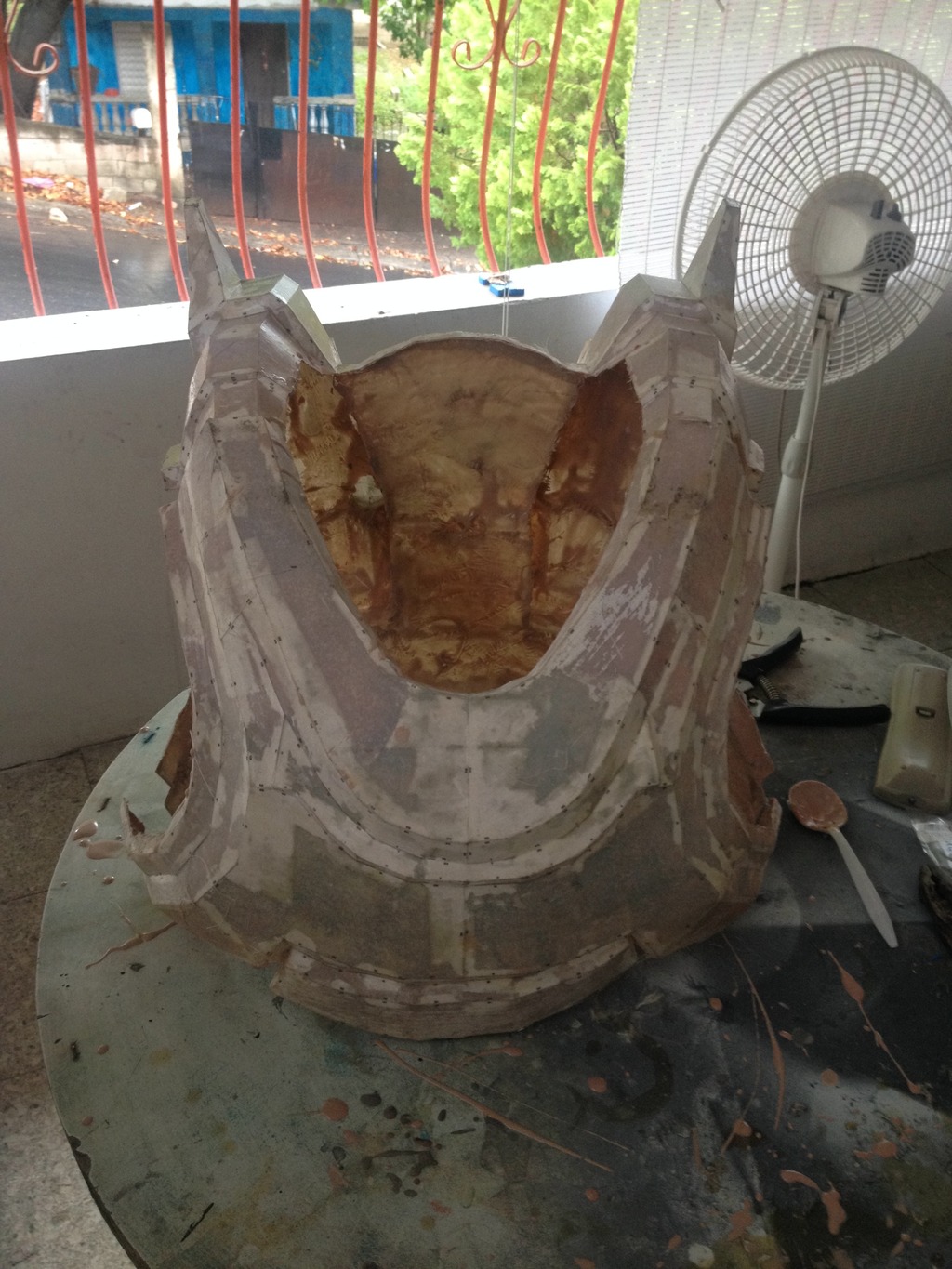

Chest piece:


So here is the chest piece i have prepared for my suit. since there's no hayabusa chest piece templates available i have decided to go with this one. its the Oceanic chest piece, since it gives a good vibe to the helmet i have decided to build it.
it looks simple enough but i will be doing alot of modifications and details by hand. so it stands out from a normal chest piece.

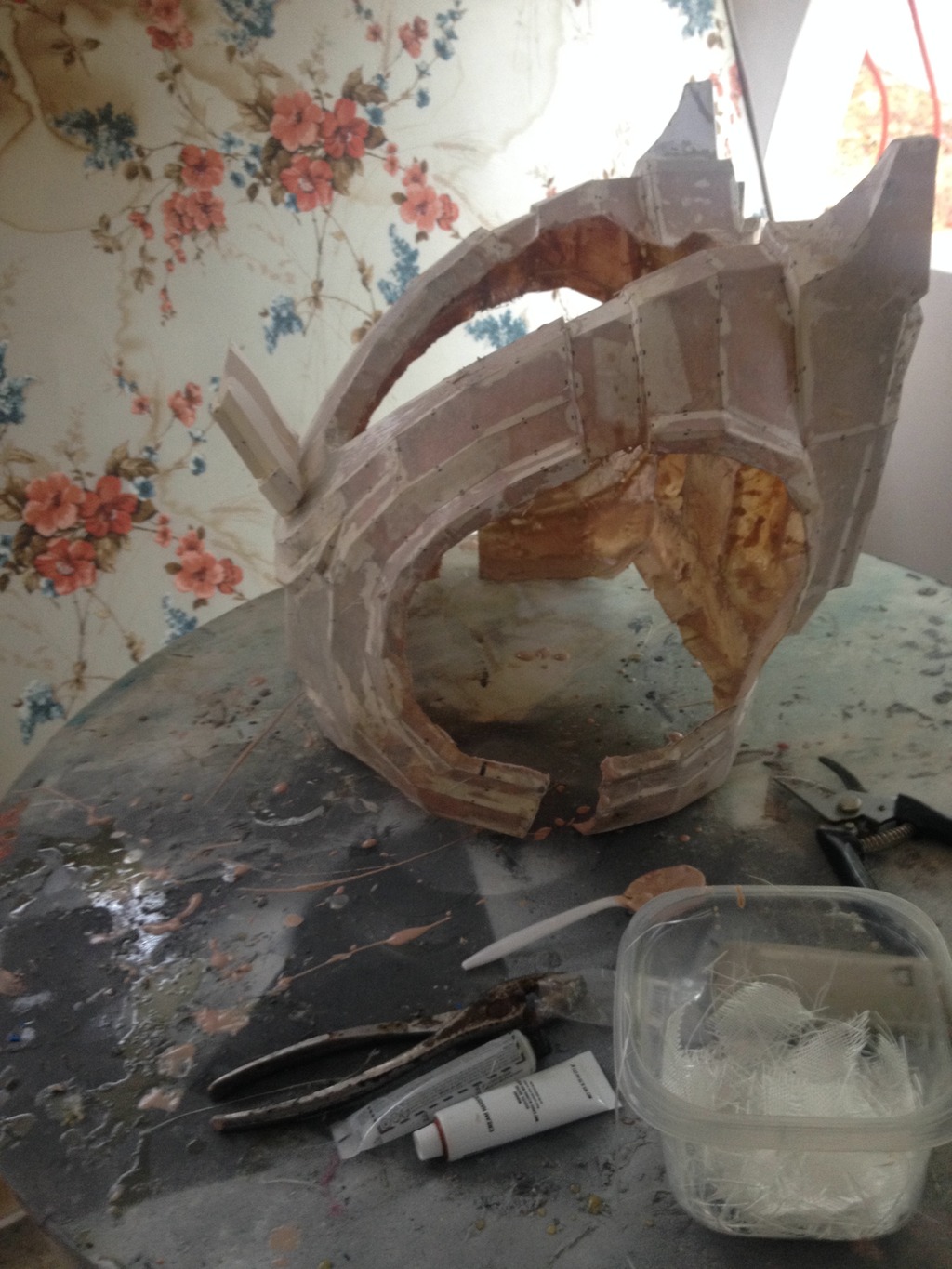

i did 2 coats of resin on the outside, 2 coats of resin with fiberglass on the inside and once that was dry i did 3 lights coats of rondo in the inside to make it hard enough.
will put some LED's on the back and on the front of the chest. to simulate the original concept.
Chest progress 60%















Last edited by a moderator:

xdarkx

New Member

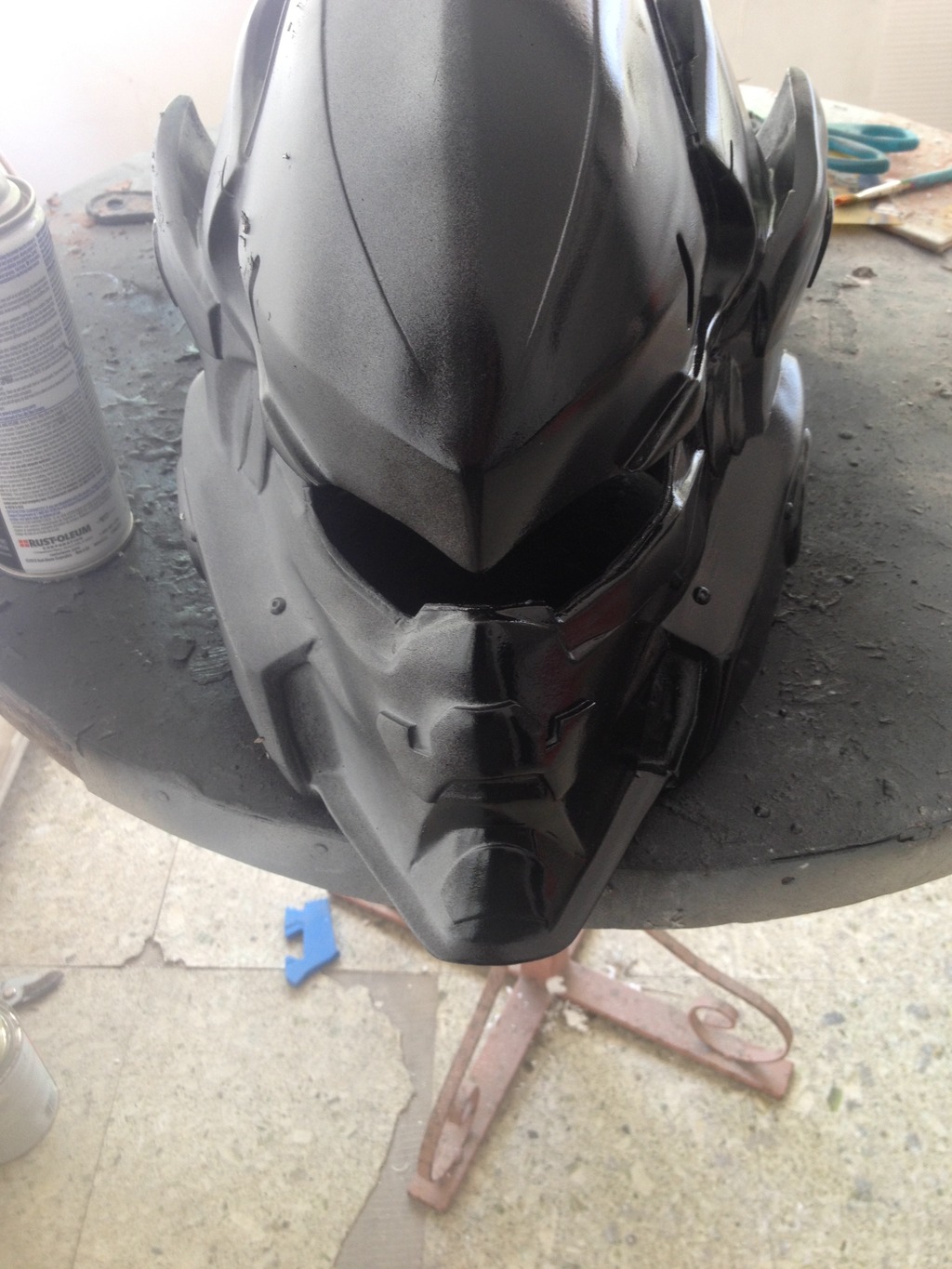

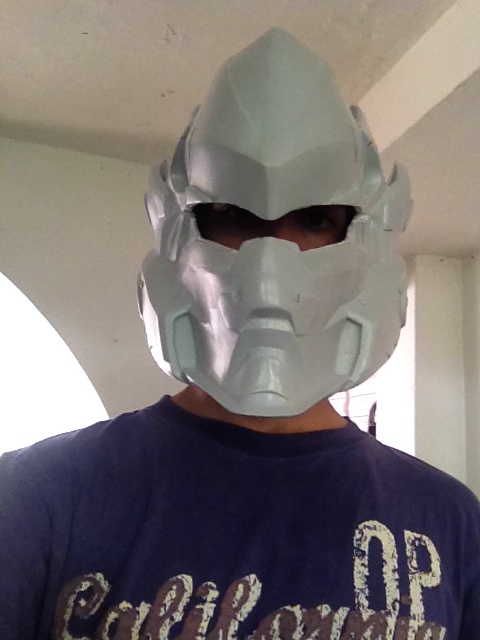

Helmet:
So the helmet i will be using is the raw cast from impact props. i know, i know i should have build it, but with the time limit i got it wouldn't be possible. i will do make it once i have the armor completed, just to make it my own desing.
painting it black until i decide the color.




Last edited by a moderator:

xdarkx

New Member
hayabusa_halo_4_shoulders_sealed_by_darkxfalcon-d93b0t4.jpg halo_4_hayabusa_progress_by_darkxfalcon-d92ww7q.jpg

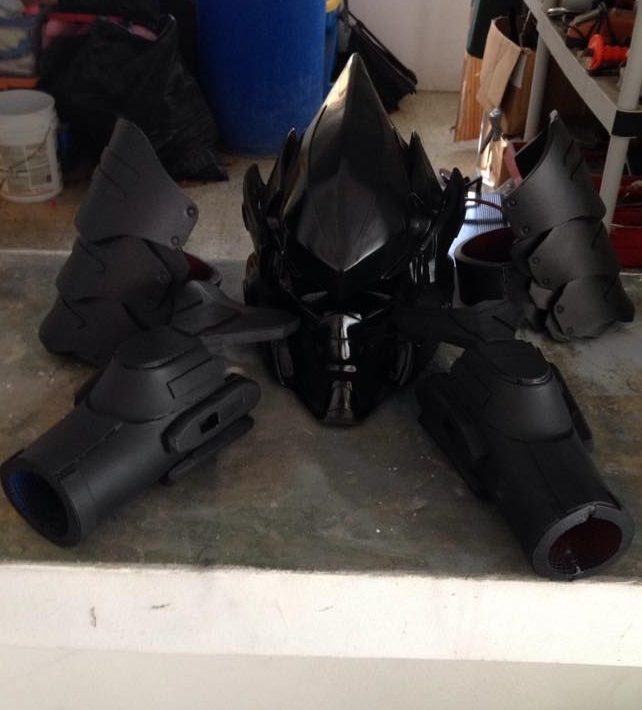

Here are the pictures of what i have till now, sealed the foam pieces (shoulders and forearms) with mod podge and 4-5 coats of plastic dip. i will be removing the shoulder "sleeve" and will replace it with black elastic bands. it will fit better around my arms and i will give me a better range of motion. i feel that the hayabusa should look bad ass and at the same time look mean and "speedy" not to "bulky" but hey, thats just me.
At the moment im attempting to sculpt a custom hand plate but i will see if i succeed.


xdarkx

New Member
Sorry for not being on and keeping you guys posted. its been a busy week but i do have an update for you guys.
IMG_1059_zpsj6haj9rs.jpg IMG_1058_zpsvhnjhezi.jpg 25132d60-e937-466c-99c7-5ae7a5d97ec5_zpsxmvgujkc.jpg IMG_1065_zpsyfkprcri.jpg cfba68e2-d92b-4d38-9b63-6acb3436008e_zpsgq2bvb1p.jpg

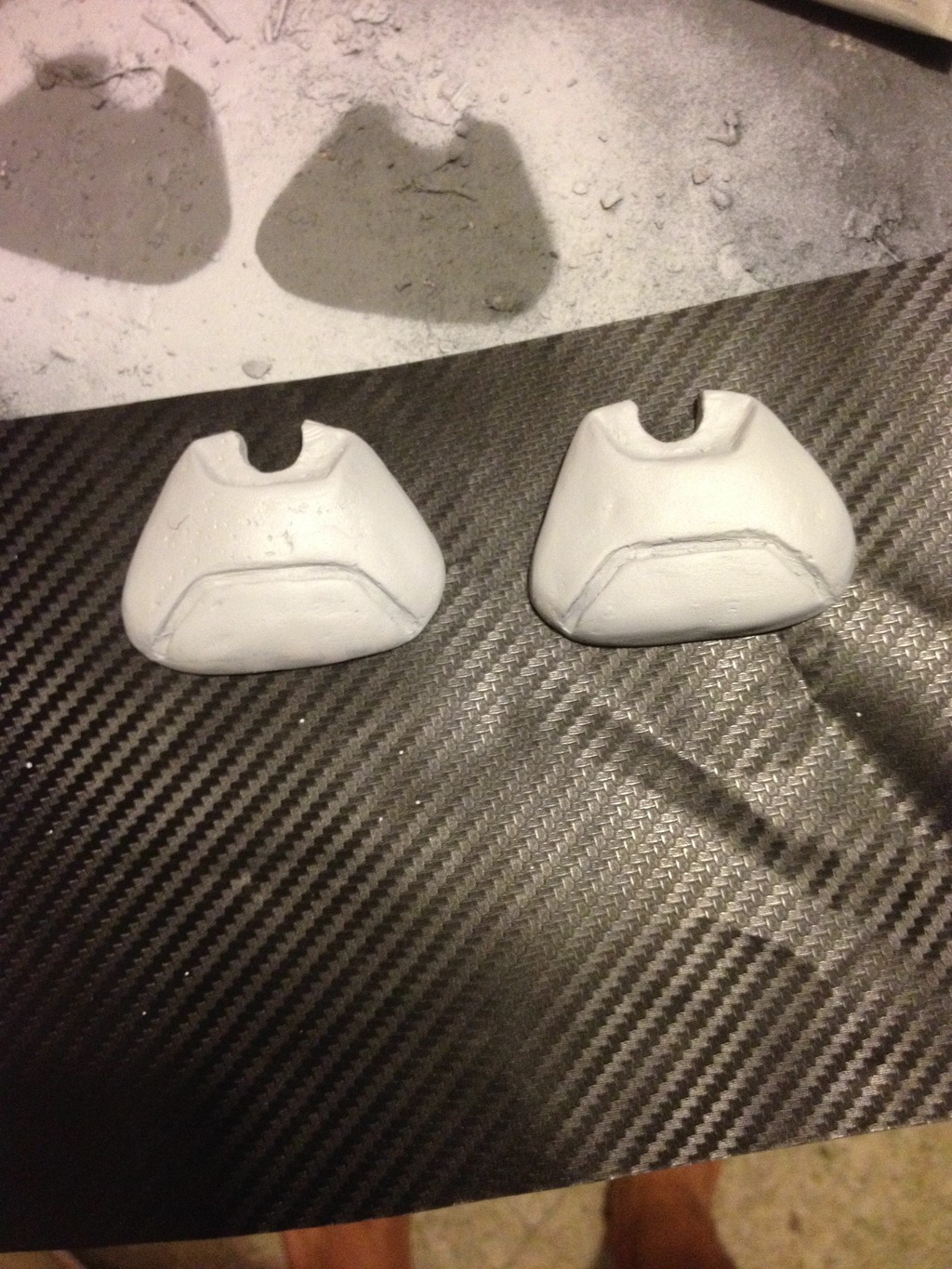

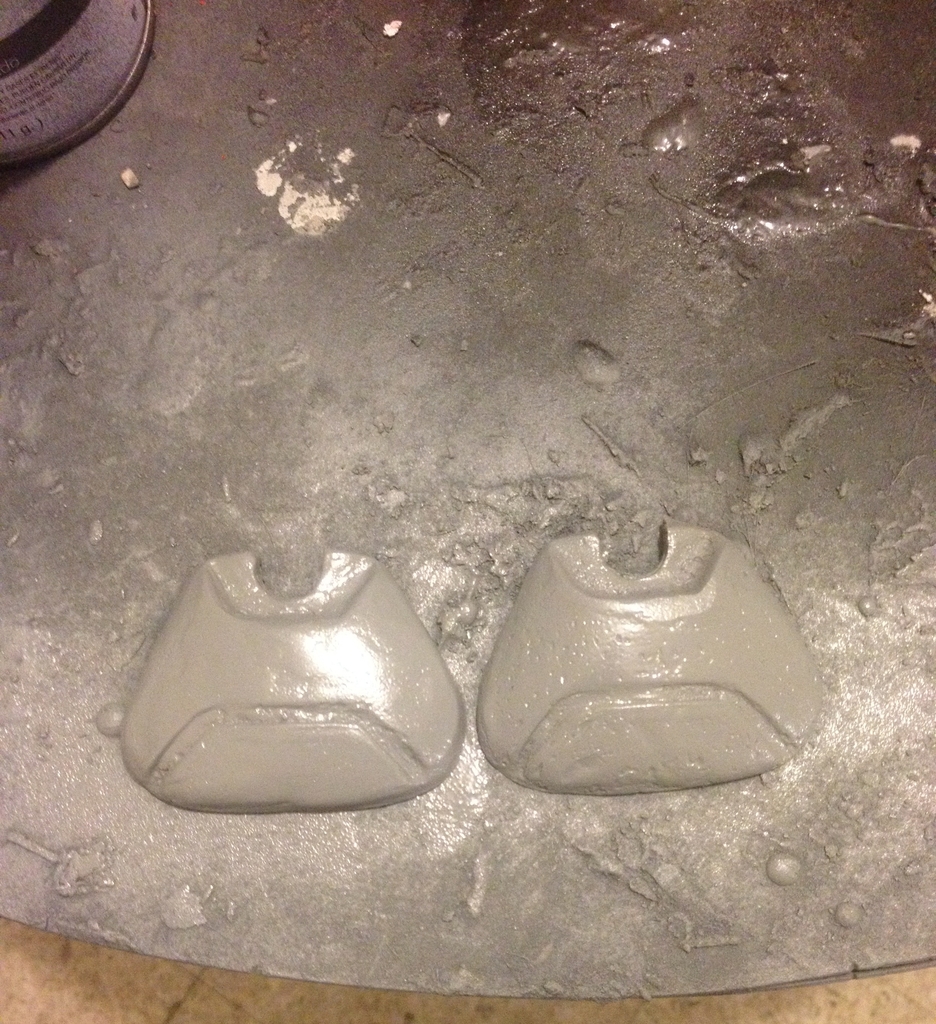

alright so this is the hand plates i sculpted, before anyone states the obvious, yeah they aren't perfect and i am really not 100% happy with them, but for the sake of having hand plates i tried to sand them down and to cover mayor imperfections.
this is only a temp fix, until i get some good quality silicone to make a proper mold of the sculpt. in addiction these hand plates weren't the one i wanted to go with, but i tried twice with the silicone and soap method and fail that i really got tired of making it real detailed.


IMG_1073_zpsllfbmgod.jpg IMG_1072_zpsbj0miqjm.jpg IMG_1074_zpsbwvxzo8t.jpg IMG_1071_zps0aqwlmwm.jpg

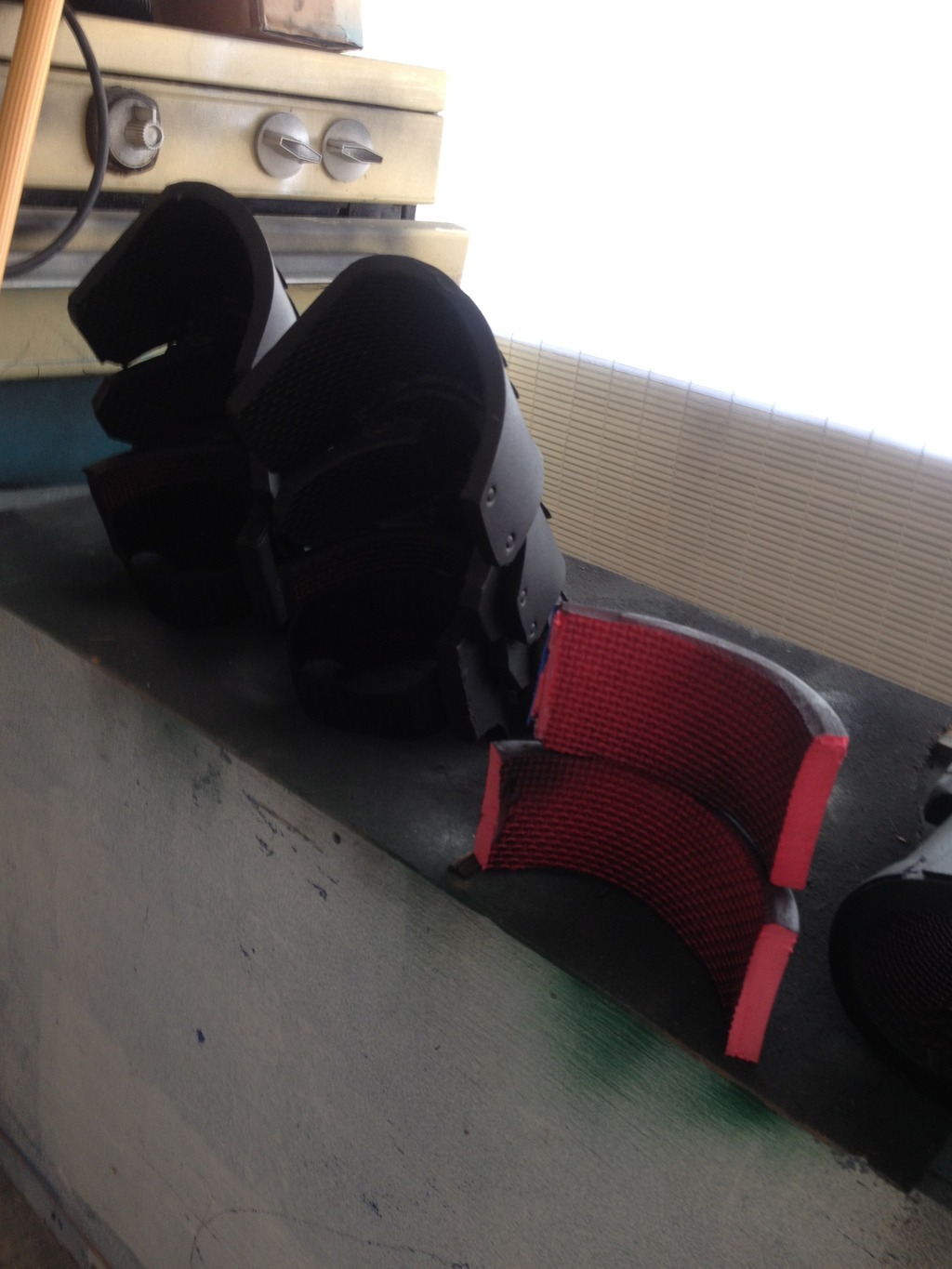

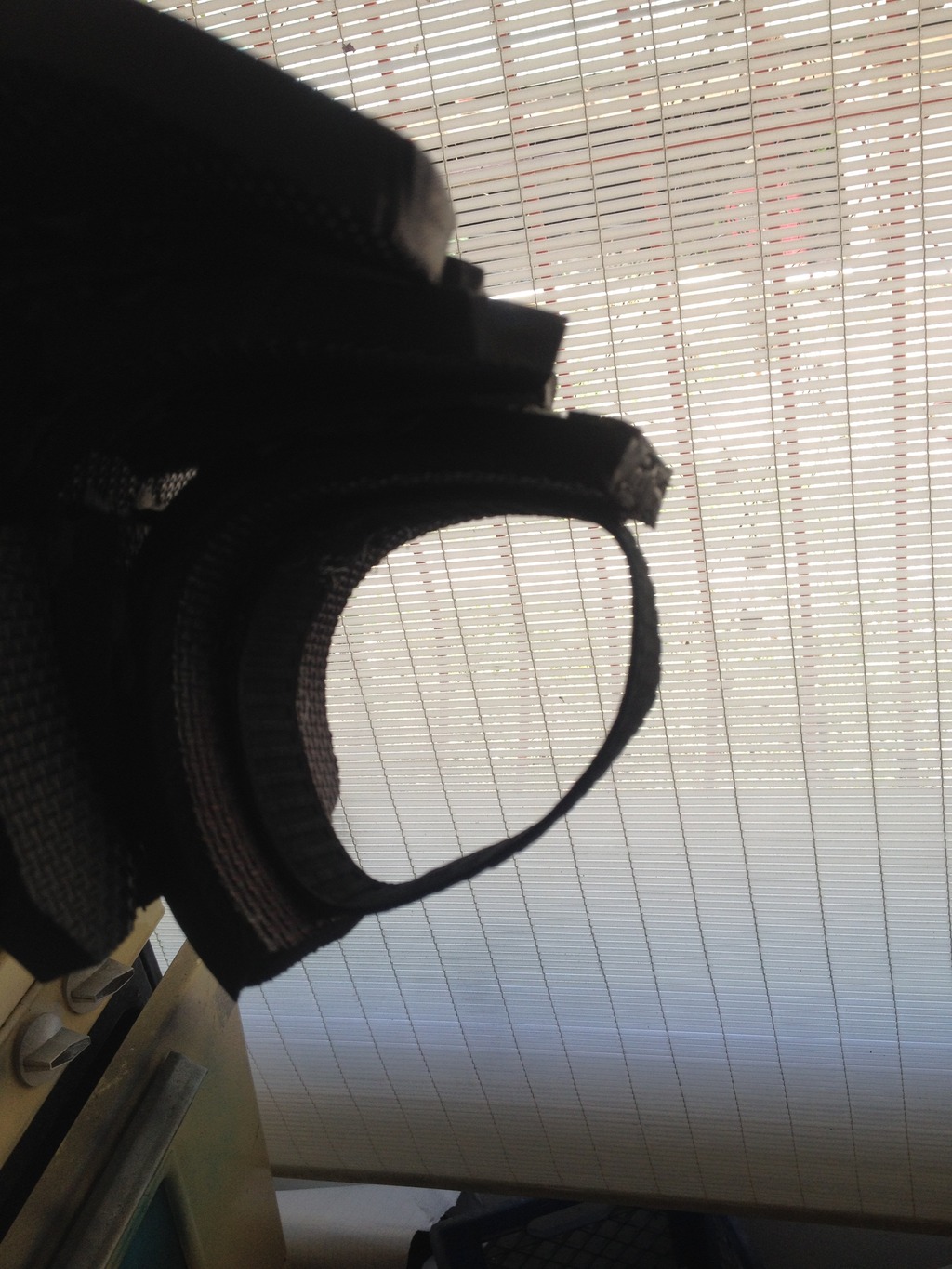

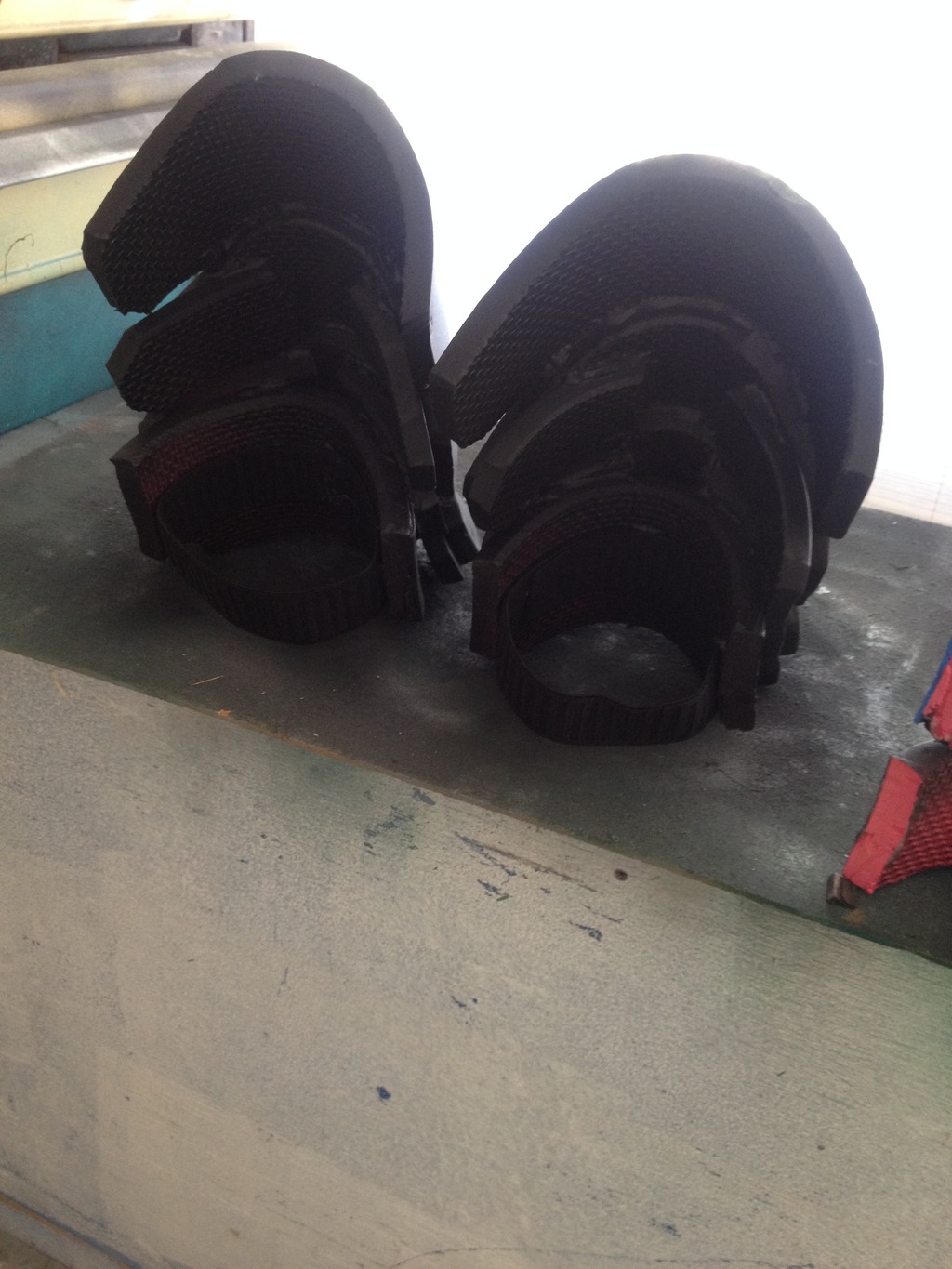

So after i finished preparing the shoulders i noticed a big ass problem, it reduces the range of motion of my arms. so to fix this i went with a easy,quick and smart solution. i used pieces of black elastic and glue them into the foam, the bond is super strong and in term gives me back my range of motion. i am super happy with this.

and this is me test fitting the arms an shoulders.
Note: theses aren't the gloves i will be using.
