Halo 4 Weapon Templates

[Cr4zyDav0]

Hey,

I recently downloaded all the source files for Halo 4, and i used the 3d model of the magnum as a blueprint.
I don't see the use in not sharing these images, so here goes:

M6H (Magnum):


BR85HB (Battle Rifle)

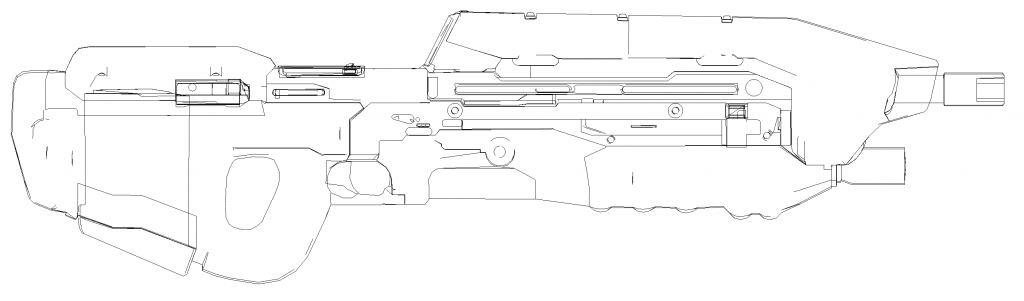

MA5D (Assaut Rifle):

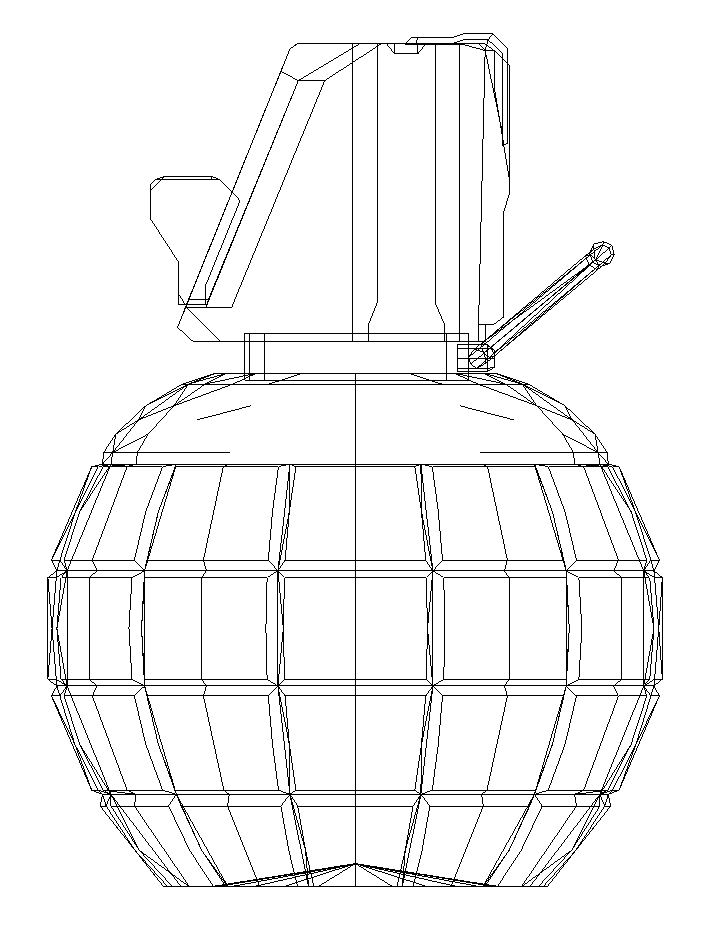

M9 Fragmentation Grenade:


Combat Knife:


M739 Light Machine Gun (Saw):

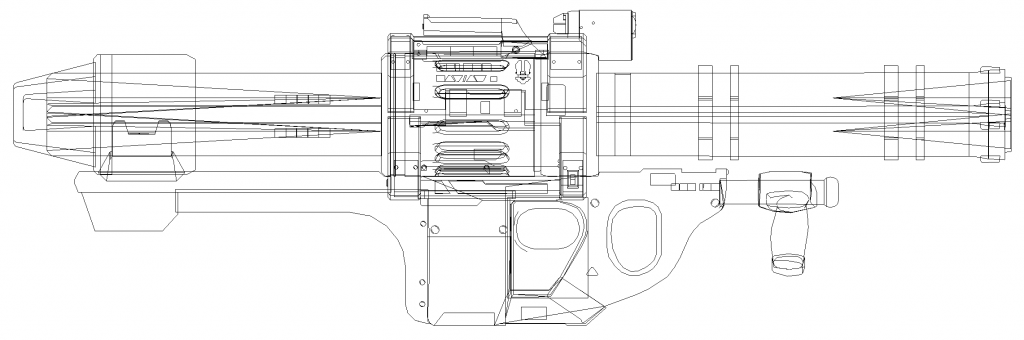

M41 Rocket Launcher:

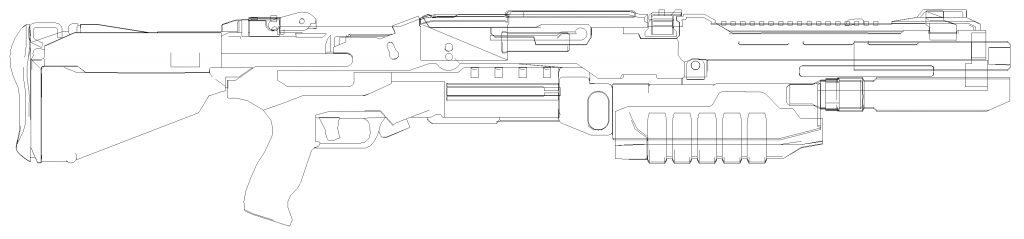

M45D Tactical Shotgun:

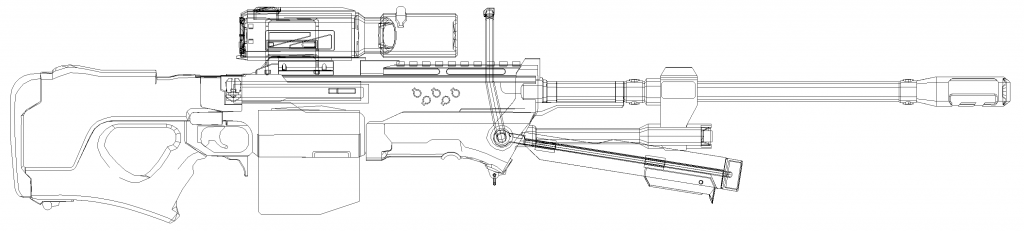

SRS99-S5 AM Sniper Rifle:

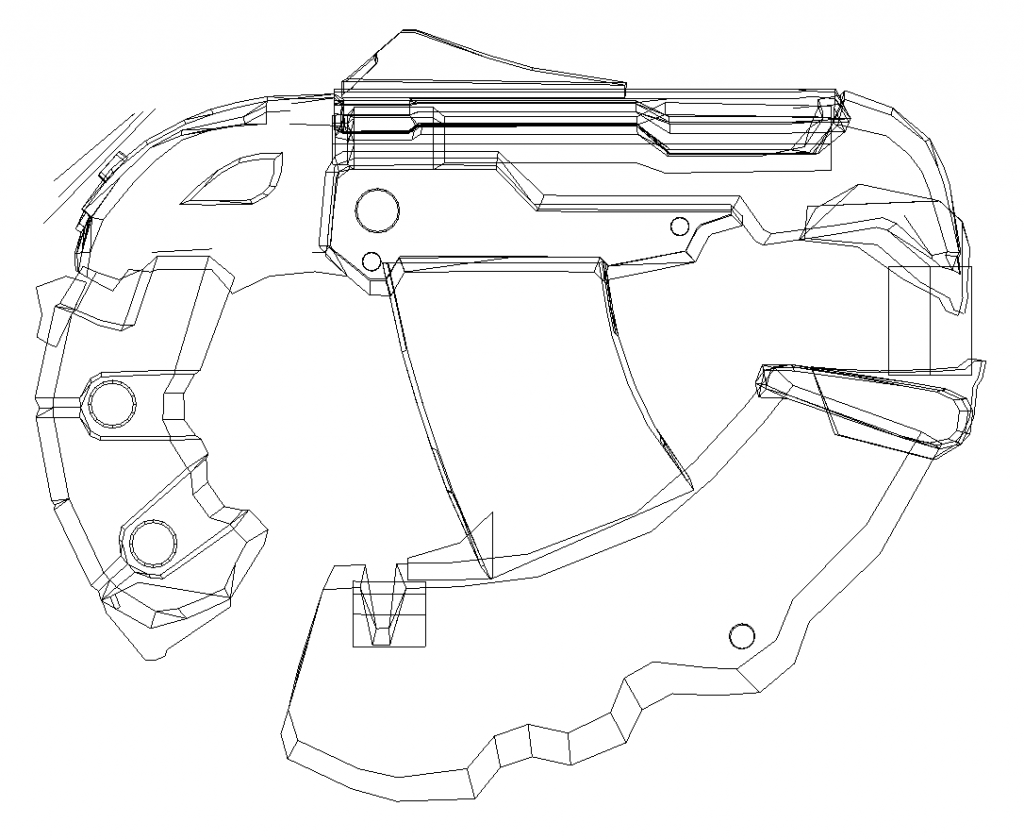

Type-25 Energy Pistol (Plasma Pistol):

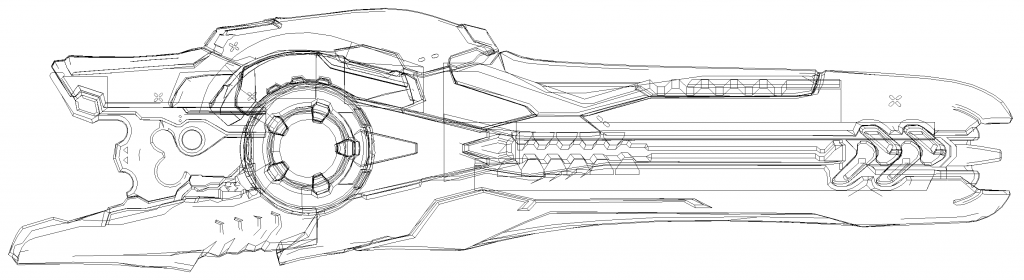

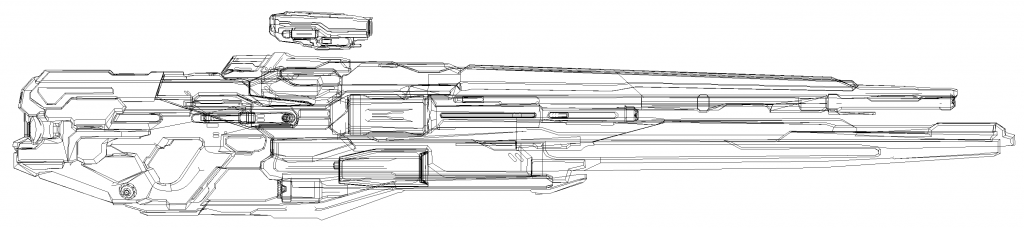

Type-27 Special Application Sniper Rifle (Beam Rifle):


Type-33 Anti-Armor Weapon (Fuel Rod Cannon):


Type-33 Guided Munitions Launcher (Needler):

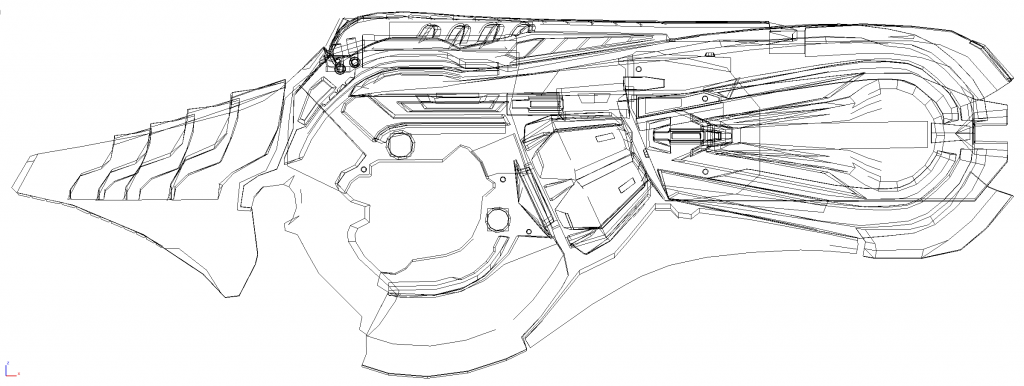

Type-50 Heavy Energy Rifle (Concussion Rifle):


Type-51 Carbine:



More in next post....

CrazyDav0



[Seth Knight]

Thanks for posting these! This will definitely help any eps and wood builders (as well as scratch builders...) when making any of these! Were these files from the links zombiegrimm re-posted a while back?

-Seth



[Cr4zyDav0]

Thanks for posting these! This will definitely help any eps and wood builders (as well as scratch builders...) when making any of these! Were these files from the links zombiegrimm re-posted a while back?

-Seth

yea the files are really handy. it has helped me heaps so far



[S323]

Thanks a bunch for posting these. I've been wanting to tackle the SAW for quite some time now and I think I may have finally found the solution.



[Cr4zyDav0]

Continued templates:

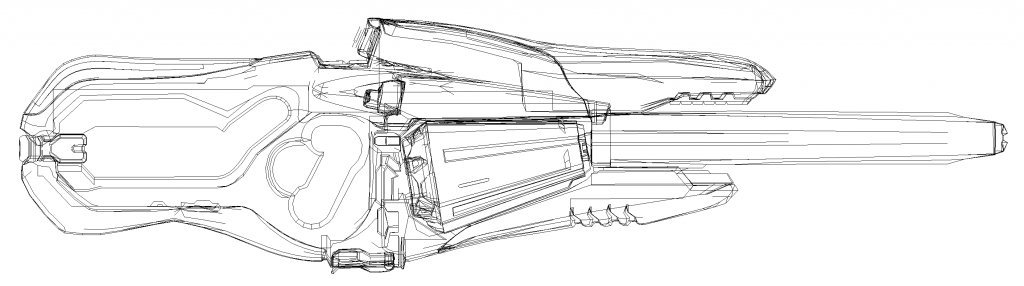

Type-55 Energy Rifle (Storm Rifle):

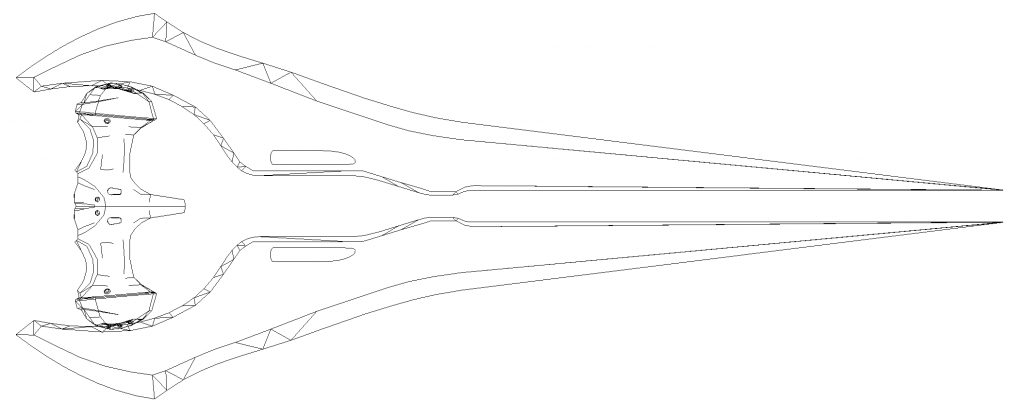

Type-1 Energy Sword:


Type-2 Energy Hammer (Gravity Hammer):

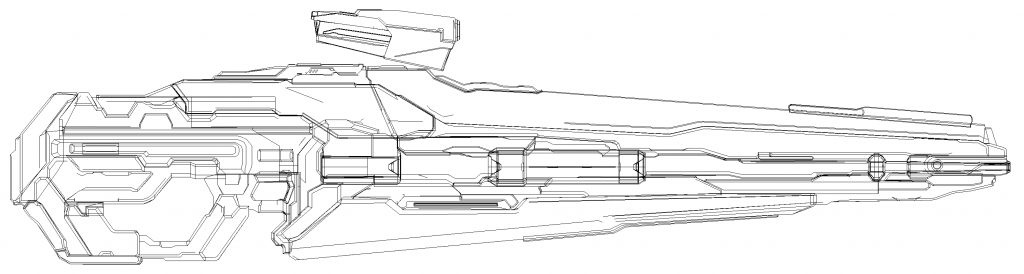

Z-250 Light Rifle:

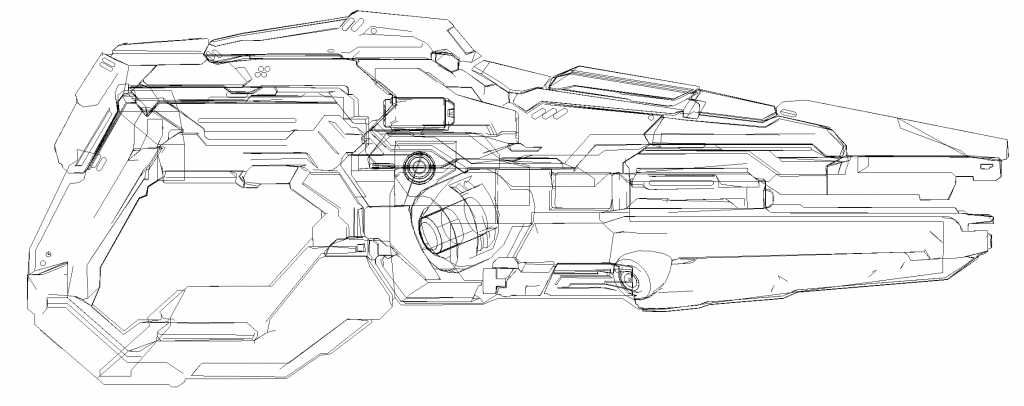

Z-130 Directed Energy Automatic Weapon (Suppressor):

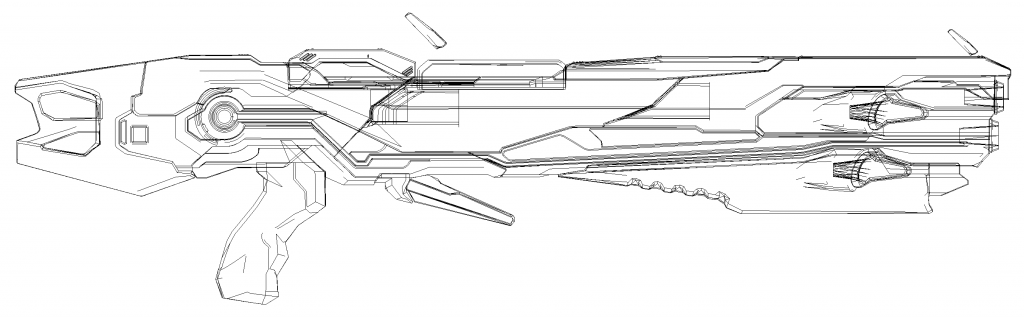

Z-180 Close Combat Rifle (Scattershot):

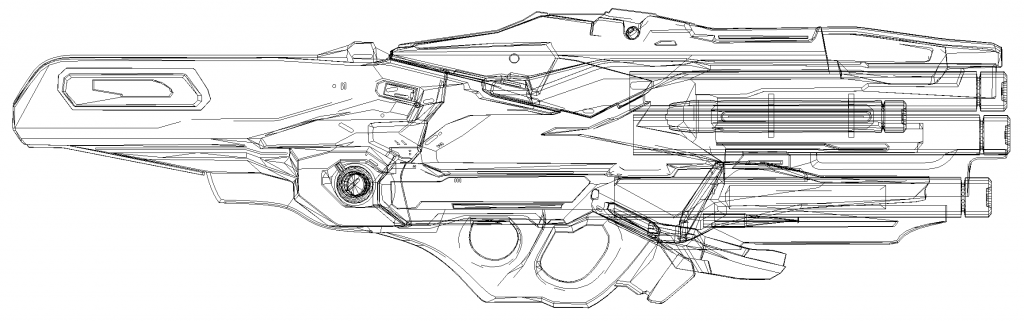

Z-390 High-Explosive Munitions Rifle (Incineration Cannon):


Z-750 Special Application Sniper Rifle (Binary Rifle):

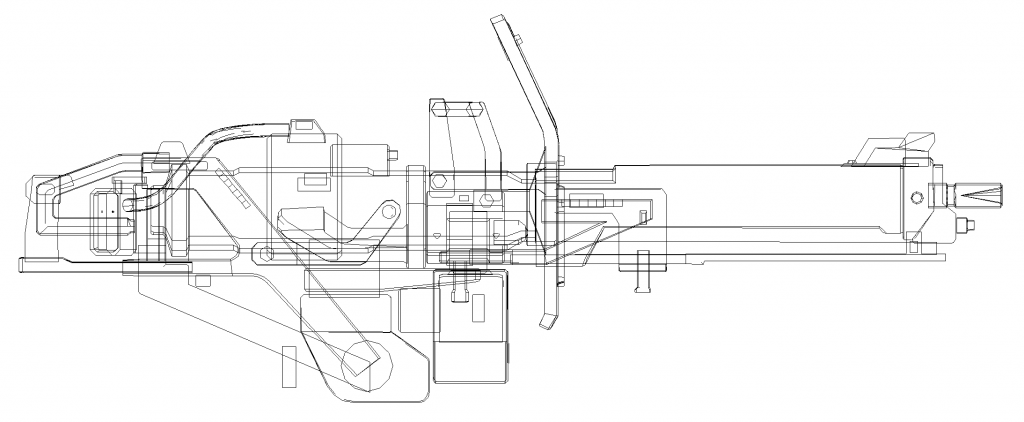

M247H Heavy Machine Gun (Turret):



more to come....



[Cr4zyDav0]

reserved for pics



[Seth Knight]

Yaya! More covy weaponry!



[Cr4zyDav0]

bump
more weapons added



[1337]

Hey dude, did you do those off of 3d files, or freehand it? if you did it from files, could you post them, please, with a cherry on top?



[Chernobyl]

I think these would be a lot better if they weren't just straight print-screens of the wireframe in a modelling program.

Great effort, but personally I'd suggest cleaning up some of the geometry and showing off the top, front, bottom, stock and the other side. A nice, clean orthographic is much, much more helpful than one single side-shot.



[Cr4zyDav0]

yea, for now they're just wireframe side views, I wanted to show the guns that were available.
Would you prefer only basic outlines?

Btw I did have to shrink them depth ways to remove some unnecessary lines.


CrazyDav0



[Jason 078]

I'd say, do the simply outlines with visible surface details. But make a left, right, top, bottom, front, and back image of them. Then, show the magazine separately next to it in the same manner.



[Cr4zyDav0]

I'd say, do the simply outlines with visible surface details. But make a left, right, top, bottom, front, and back image of them. Then, show the magazine separately next to it in the same manner.

okay, ill try that then, pic will be up soon



[Exaldear]

yes please on the orthographic views. (easy to model on pc). though keep the other views as well. it helps with added details.



[Kibiri Foxx]

Yeah, I'd just repeat what Jason just said. But thank you tons for your hard work so far. These will indeed come in handy big time!



[Crimmson]

How did you make the blue prints? Is there a program for making these into blue prints? Thank you.



[Cr4zyDav0]

How did you make the blue prints? Is there a program for making these into blue prints? Thank you.

i pretty much got the source files into blender, display wireframe, side view ortho, scaled the depthways, then screenshot them.
not too complicated :/

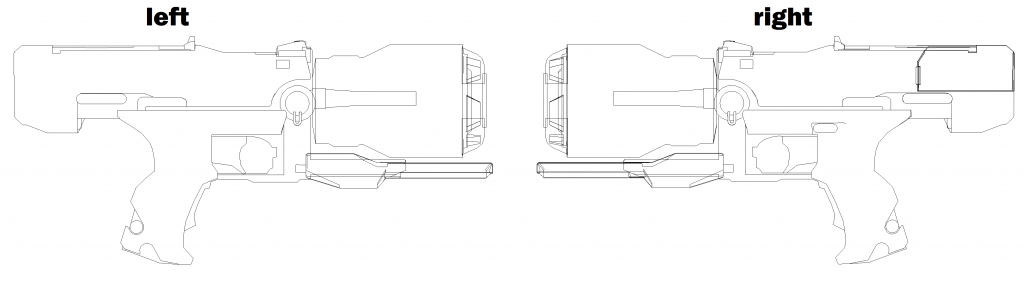

btw heres a L & R View for the Sticky Detonator:


not finished yet, still gotta do other views, but lemme know if its better

thanks,
CrazyDav0



[Crimmson]

i pretty much got the source files into blender, display wireframe, side view ortho, scaled the depthways, then screenshot them.
not too complicated :/

btw heres a L & R View for the Sticky Detonator:


not finished yet, still gotta do other views, but lemme know if its better

thanks,
CrazyDav0

Thank you, I will try to figure it out using your directions. Still learning blender little by little. Thank you for posting these.



[shotgun rumble]

Hey man just wanted to say thank you so much for the blueprints, I'm about to start making the halo 4 rocket launcher and was curious on how I can find the length, width, and depth... I'm new to building weapons and would much greatly appreciate if you could point me in the right direction or just send me a link because I plan to use wood (for body), PVC (for the barrels), and foam (as the fillers and details), and I really need to have the exact lengths and stuff because this is a pretty big prop! Thanks yet again man, u rock



[electricocomics]

I don't see the use in not sharing these images, so here goes:

CrazyDav0

Thank you! I have to make a few of these things for my little brother's birthday so you sorta saved my life there. Again Thanks!
