Hello everyone, It has been a while since I've made another Halo built and this time I am going for a Chaingun from Halo 5 Guardians! Take note this built took me 3 and a half days, I will go through step by step and will show you my time stamp on how I tackled this built. The end product is a huge prop, went 1:1 scale with this bad boy, 68 inches in length and 24 inches in width, Lets go!

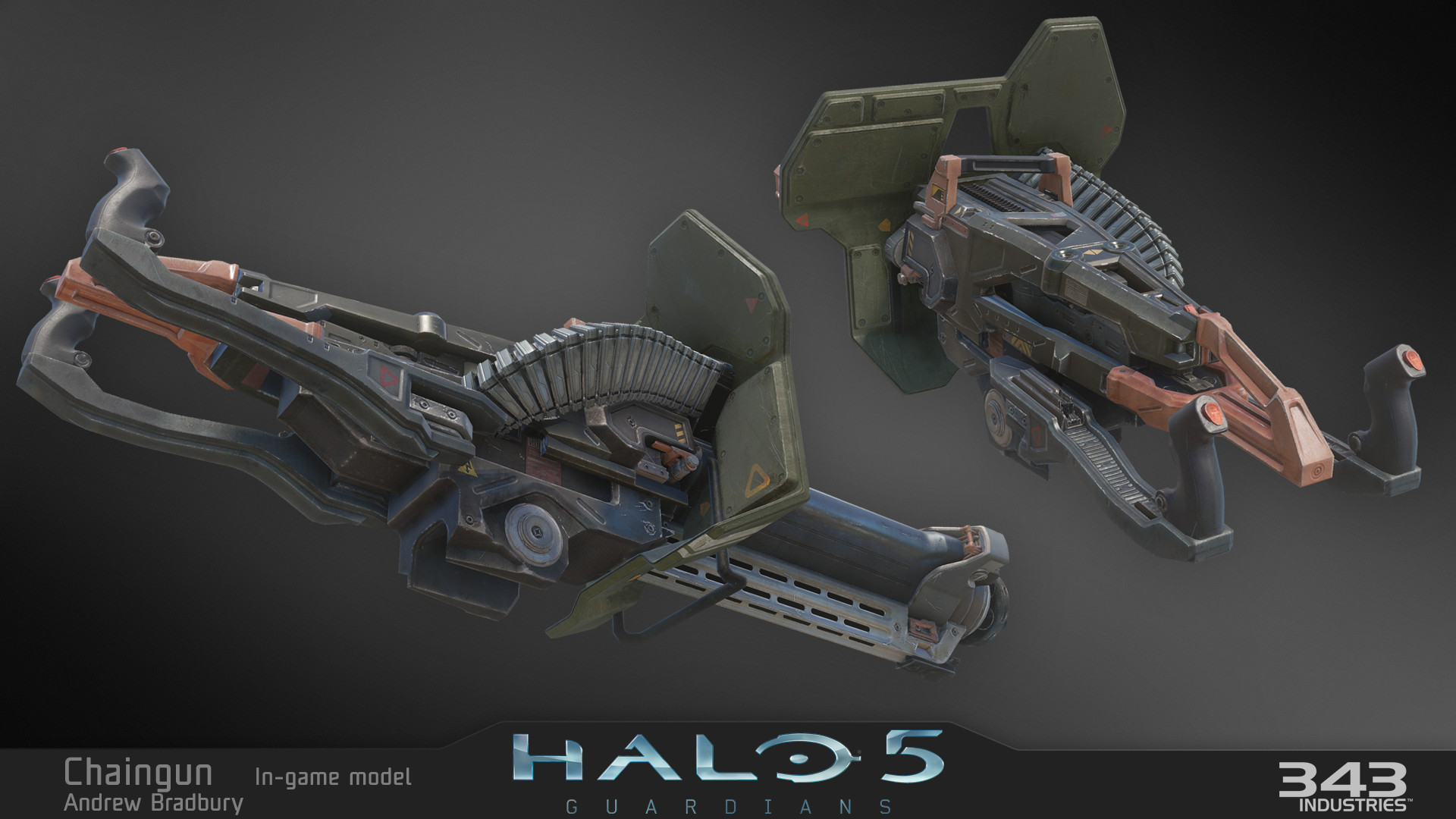

Reference Images!
andrew-bradbury-chaingun-lo-b-01.jpg andrew-bradbury-chaingun-lo-c-01.jpg andrew-bradbury-chaingun-lo-d-01.jpg andrew-bradbury-chaingun-lo-a-01.jpg

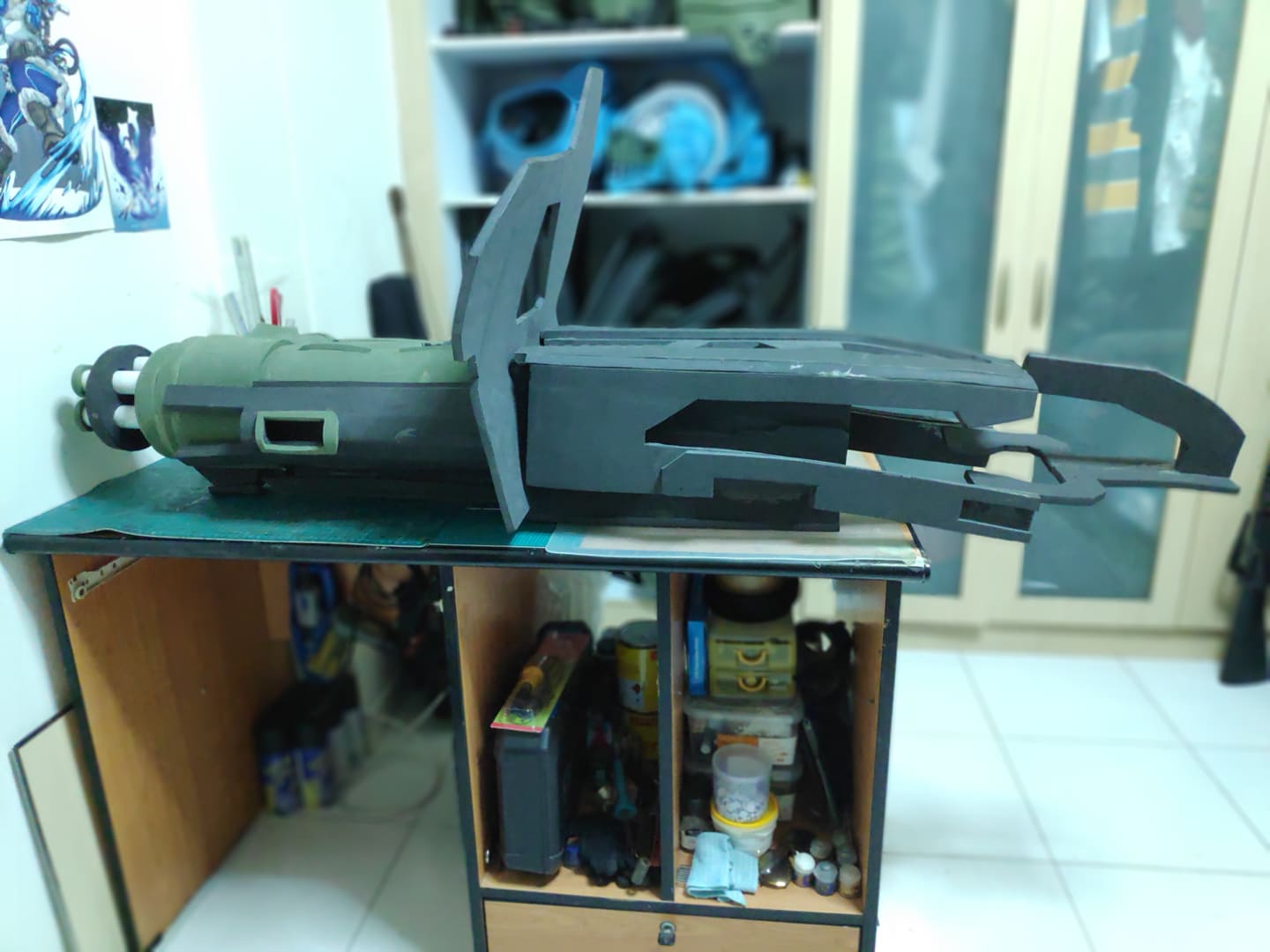

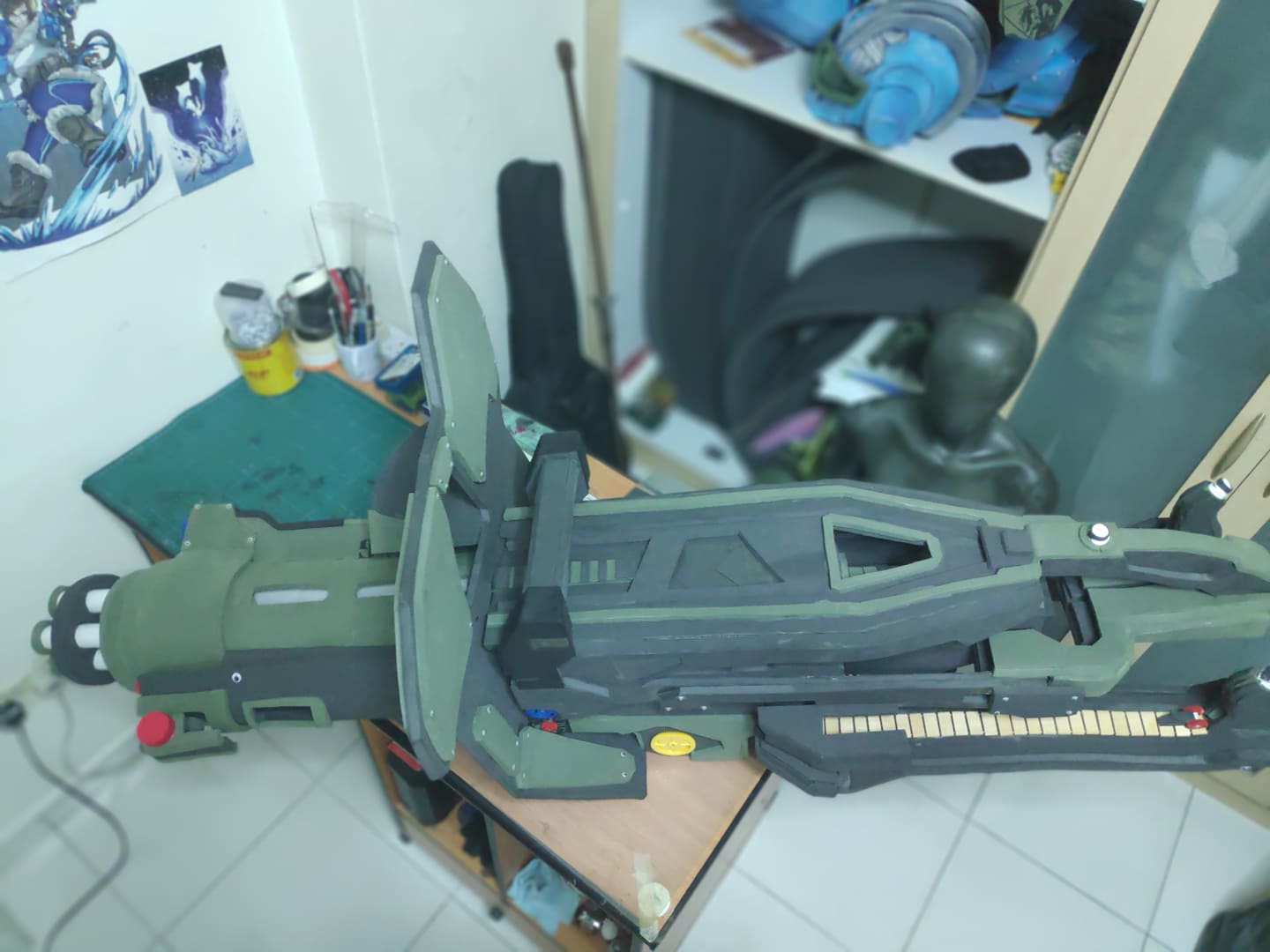

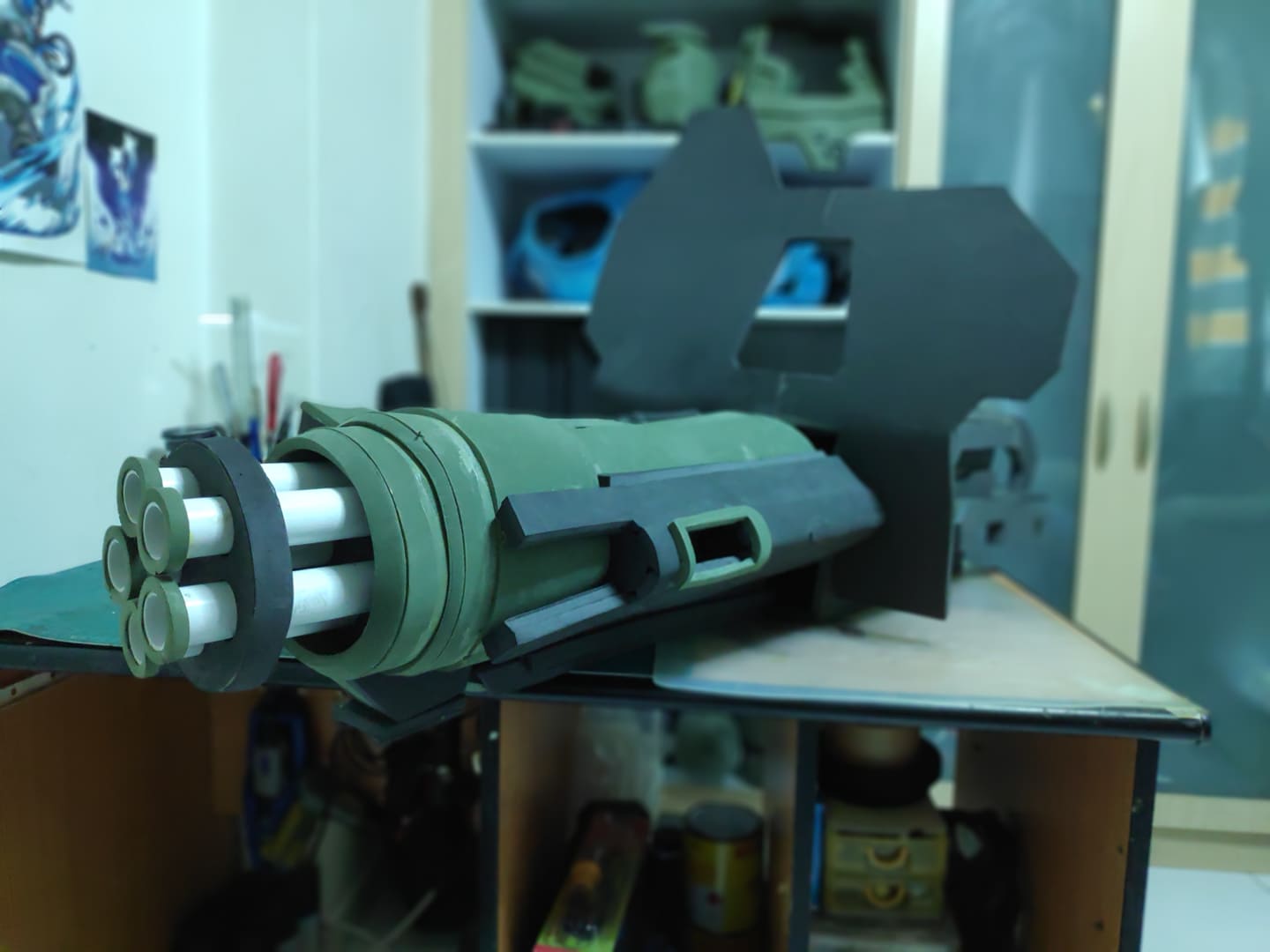

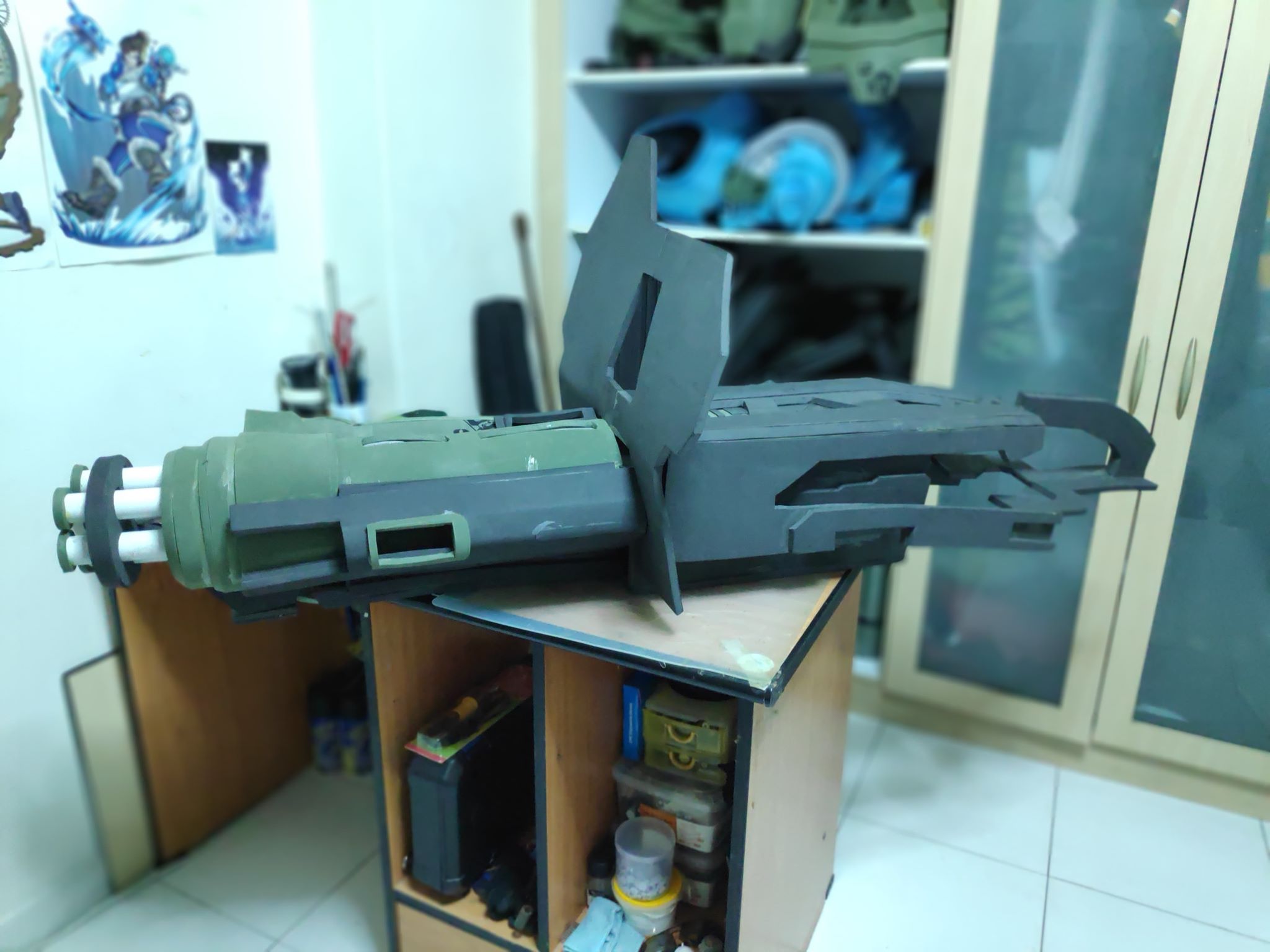

Now Starting the Built! 10 hrs in
49136626_374580690014747_8499536783233515520_n.jpg 49161247_339684673291826_4801369941930409984_n.jpg 49205170_370333183517133_4628357792980271104_n.jpg 49502976_2258202061108462_1849804713164275712_n.jpg

Ok I do not have the earlier progress picture but this is 10 hours into the built! I started off by make a cylinder shape and support of the barrel, slowly work my way to the back. take note at this point I do not go for details! Work on blocking out the shape of the gun, detailing comes last!

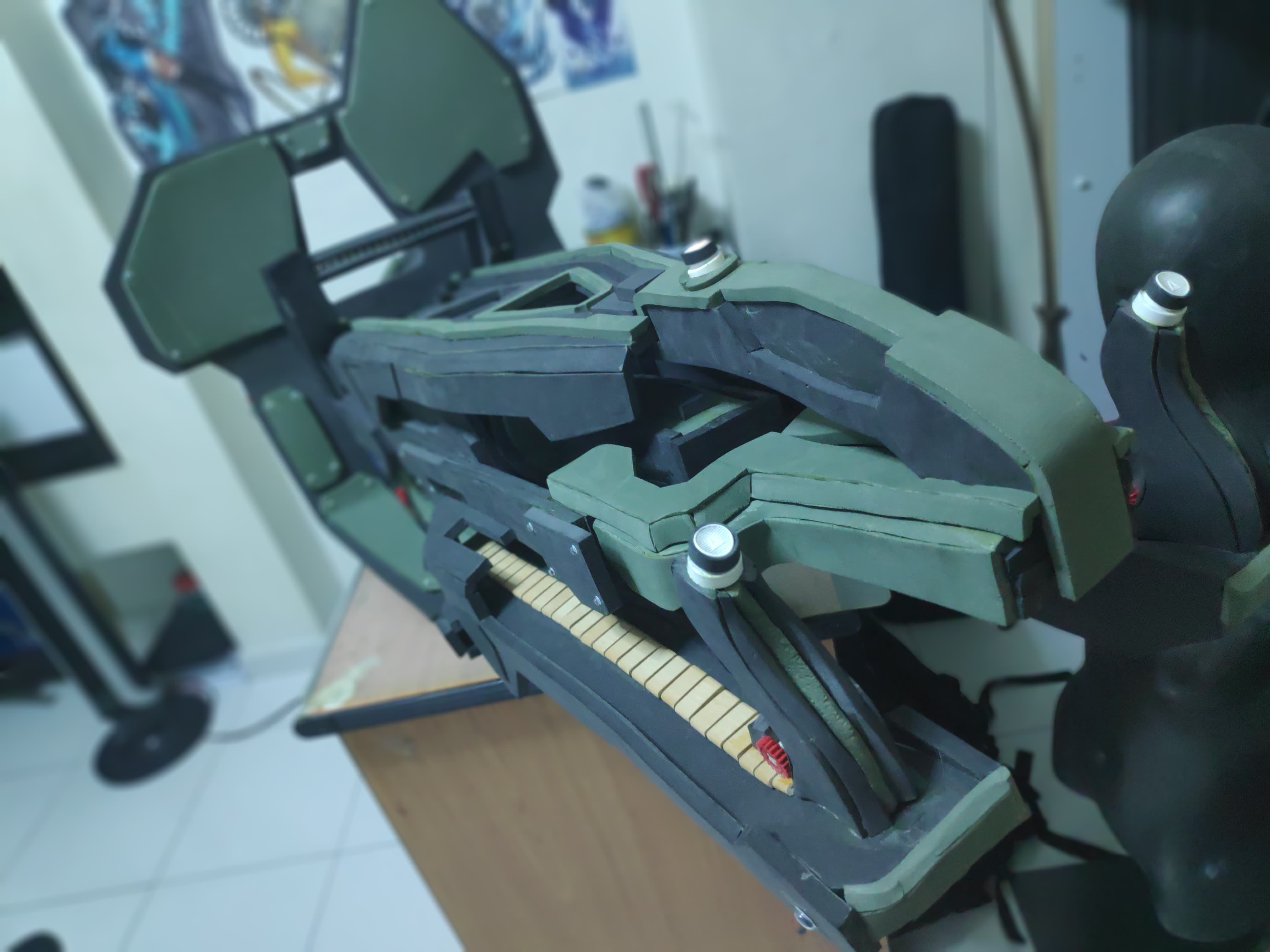

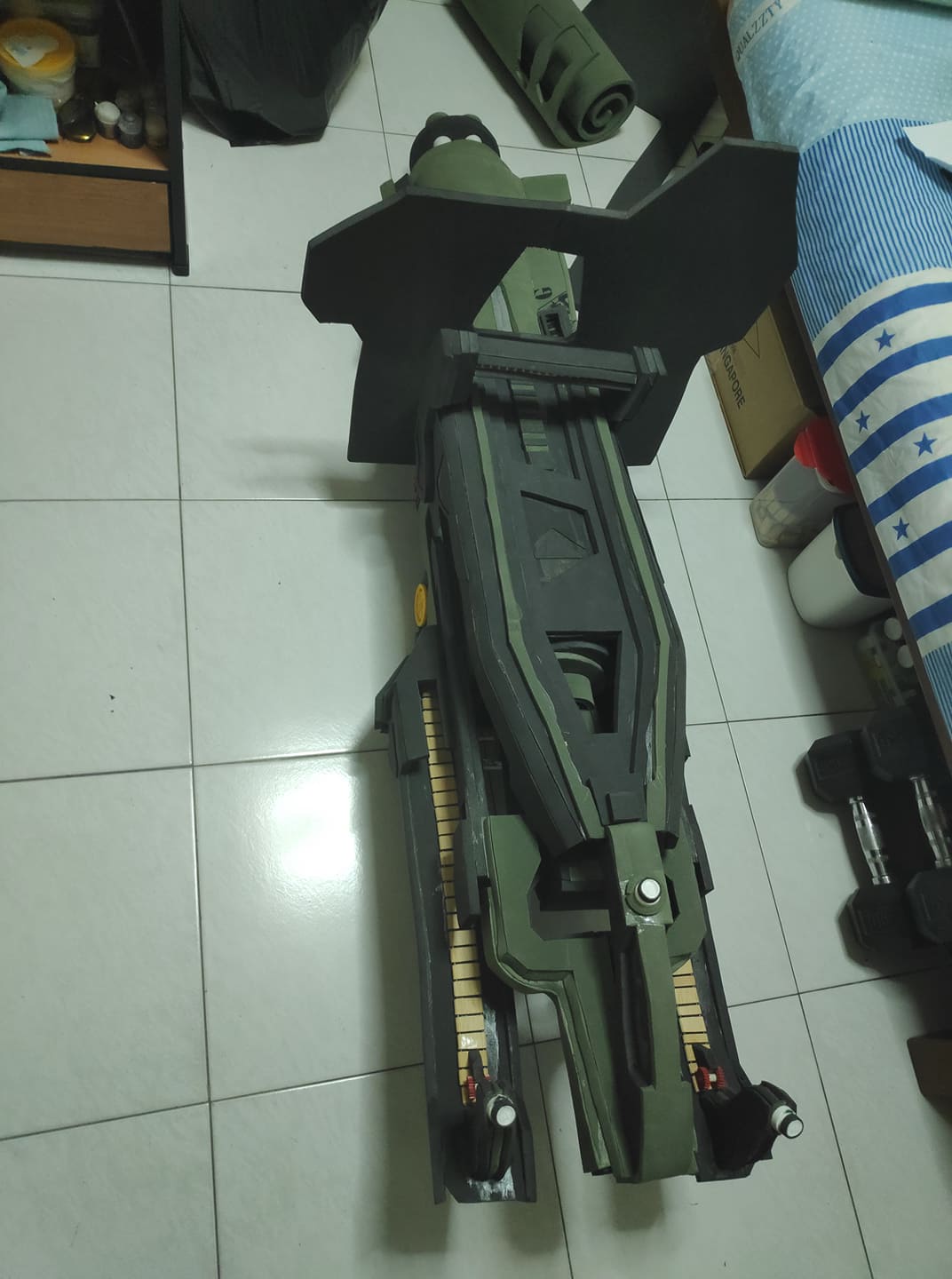

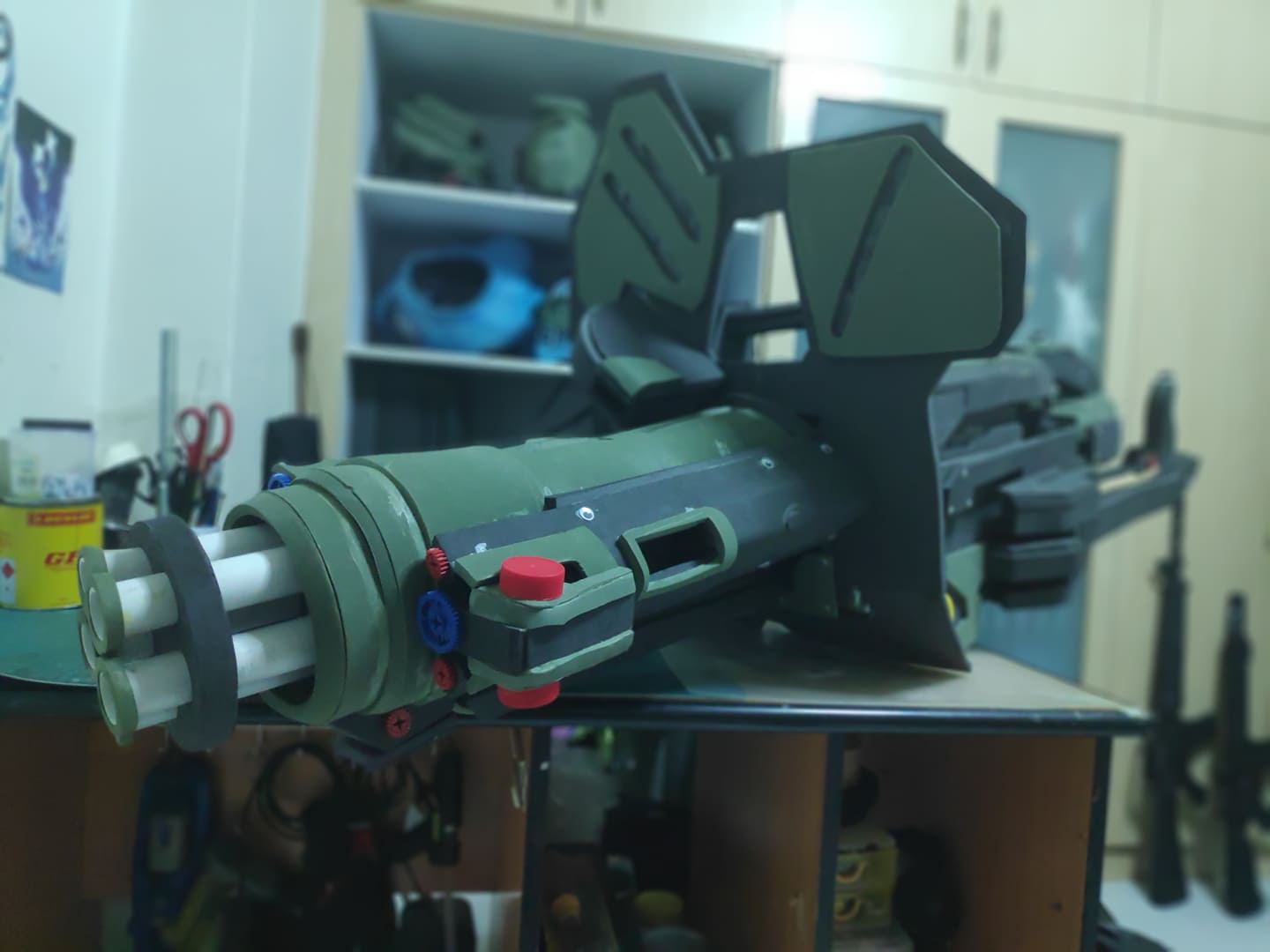

Adding the details! 48 hrs in
49027037_1879230722203521_7121249578577297408_n.jpg 49098478_374470916452584_1652637423328296960_n.jpg 49136626_374580690014747_8499536783233515520_n.jpg 49442079_527457651071452_2612697617691312128_n.jpg

Ok at this point I have already done blocking out the shape and already add the details! I have done the back area as well as finish up adding small little details on the front. Before you prime your prop do double check if there is anything missing or is there more stuff you need to add. Off to Plastidip this big boy!

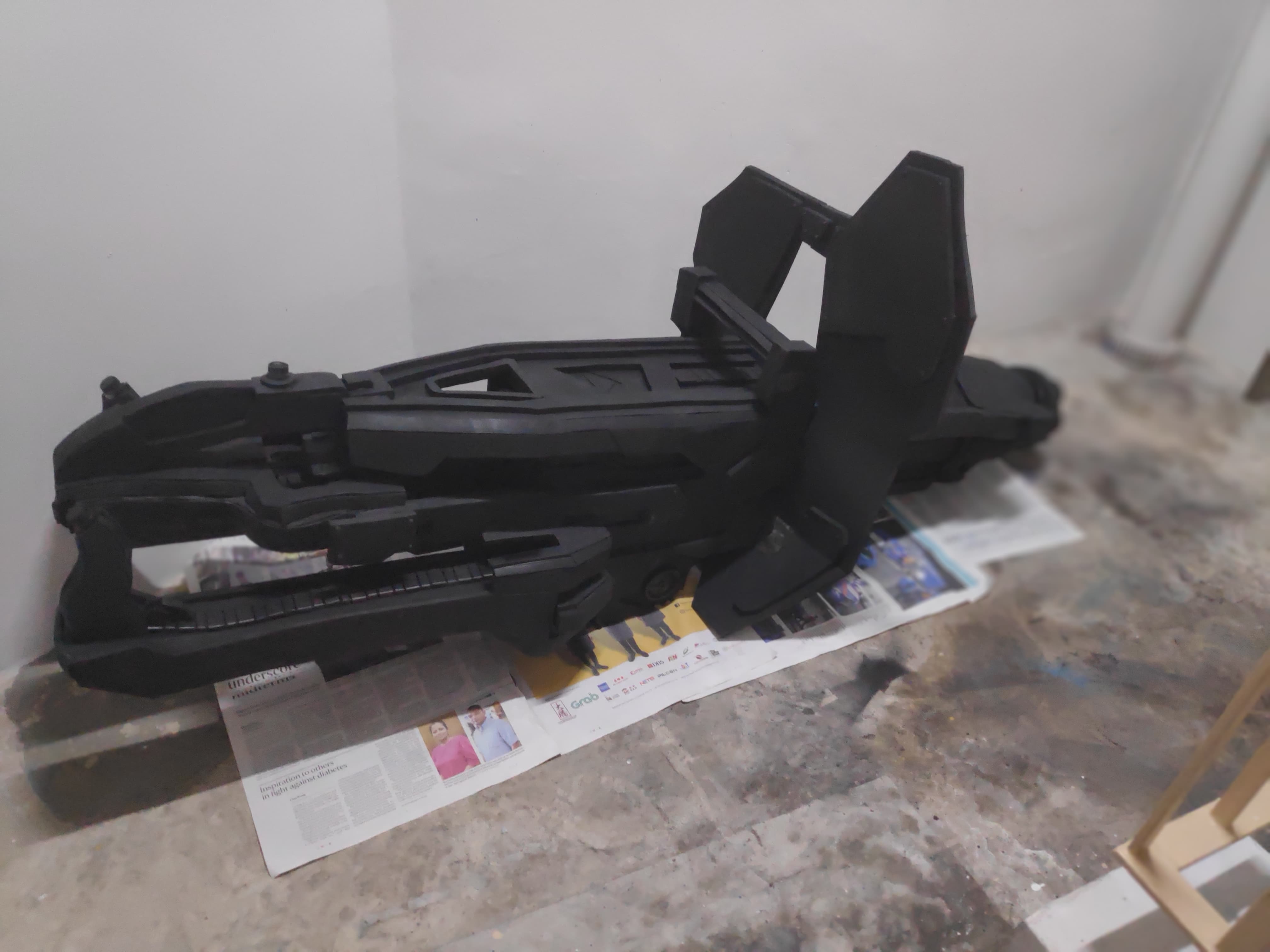

3 cans of plastidip used! 54 hrs in

Yes I have used up 3 cans of plasti dip.. I feel a huge hole in my wallet

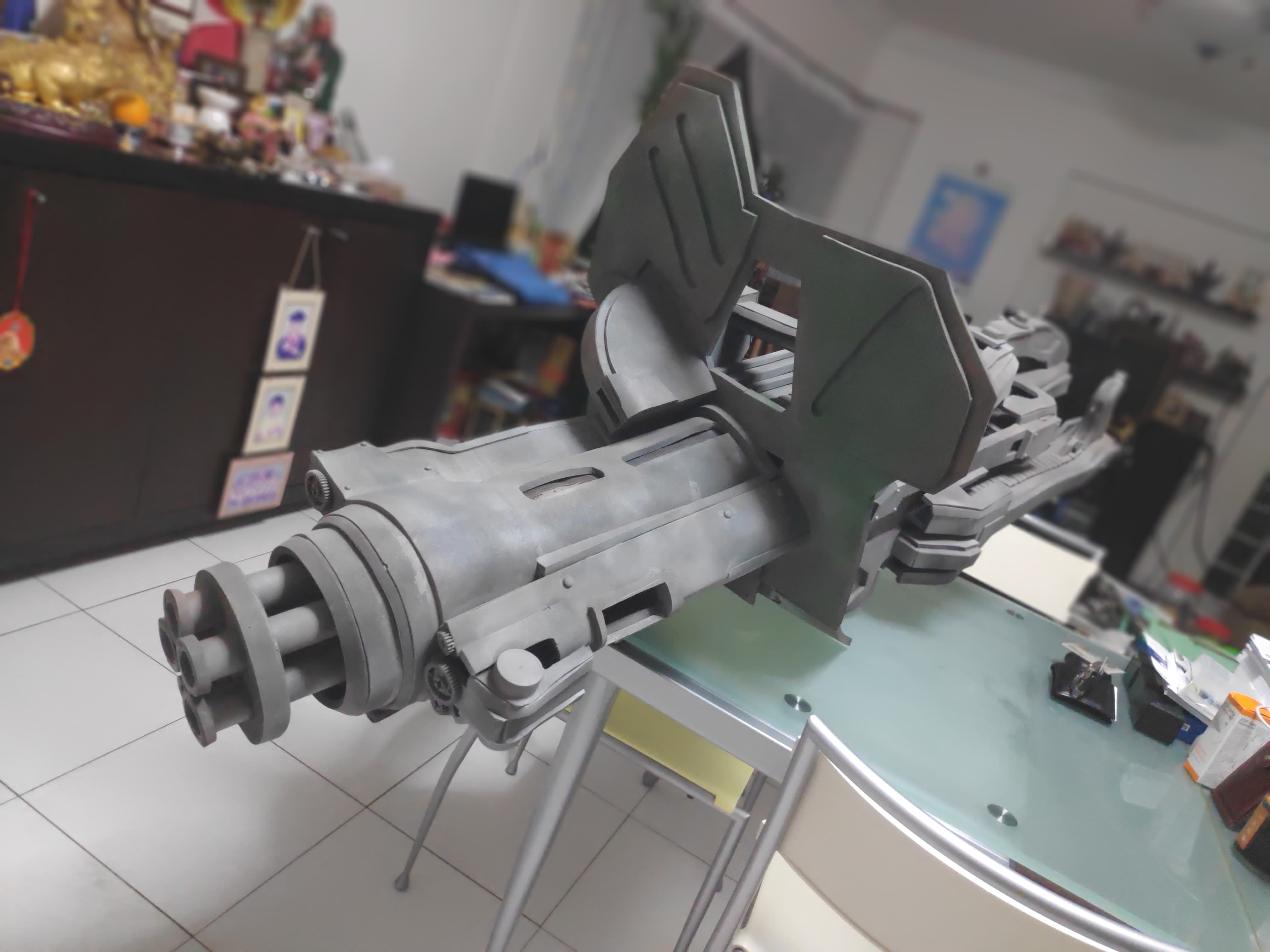

Base paint done! 68 hrs in!

Waiting for the it to dry was a pain! I used a fan to sped it up. Ok so for the base paint I used Graffiti spray paint, gives off that matte looking texture. pantene grey for the gun itself and military green for the shield! I also used Dry brushing to add abit more texture like rust for e.g and more shades of grey. Now waiting for the paint to dry!

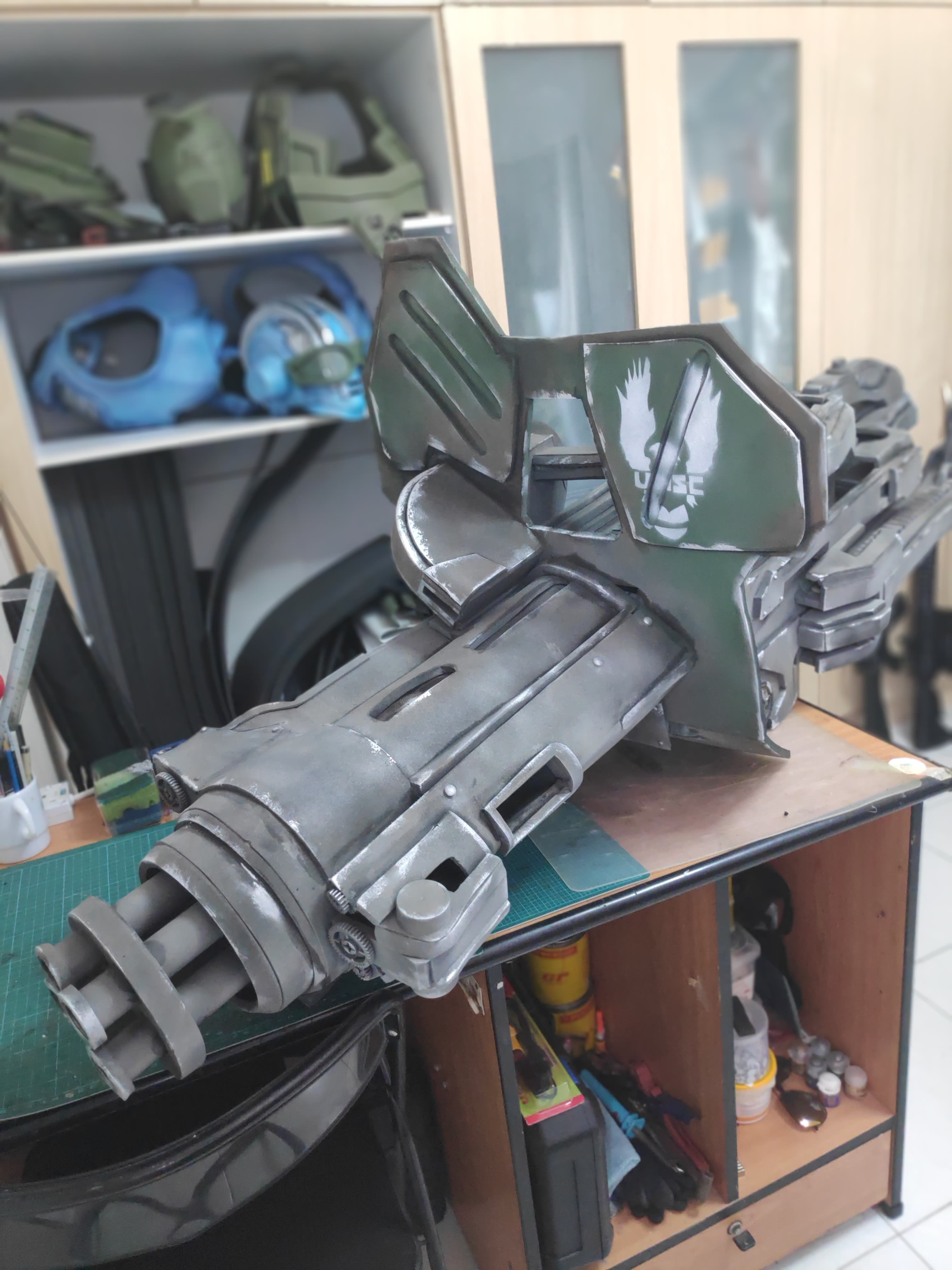

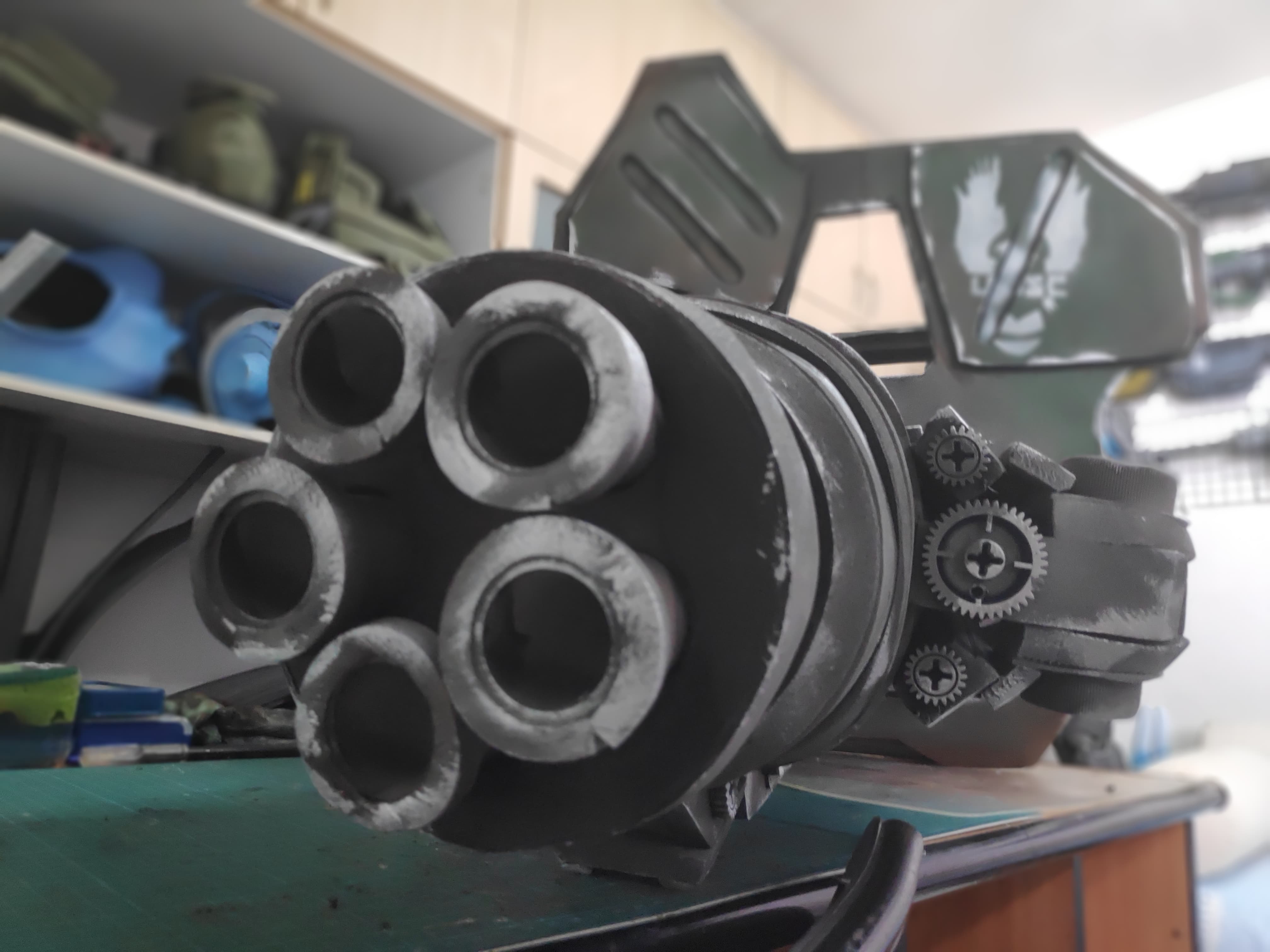

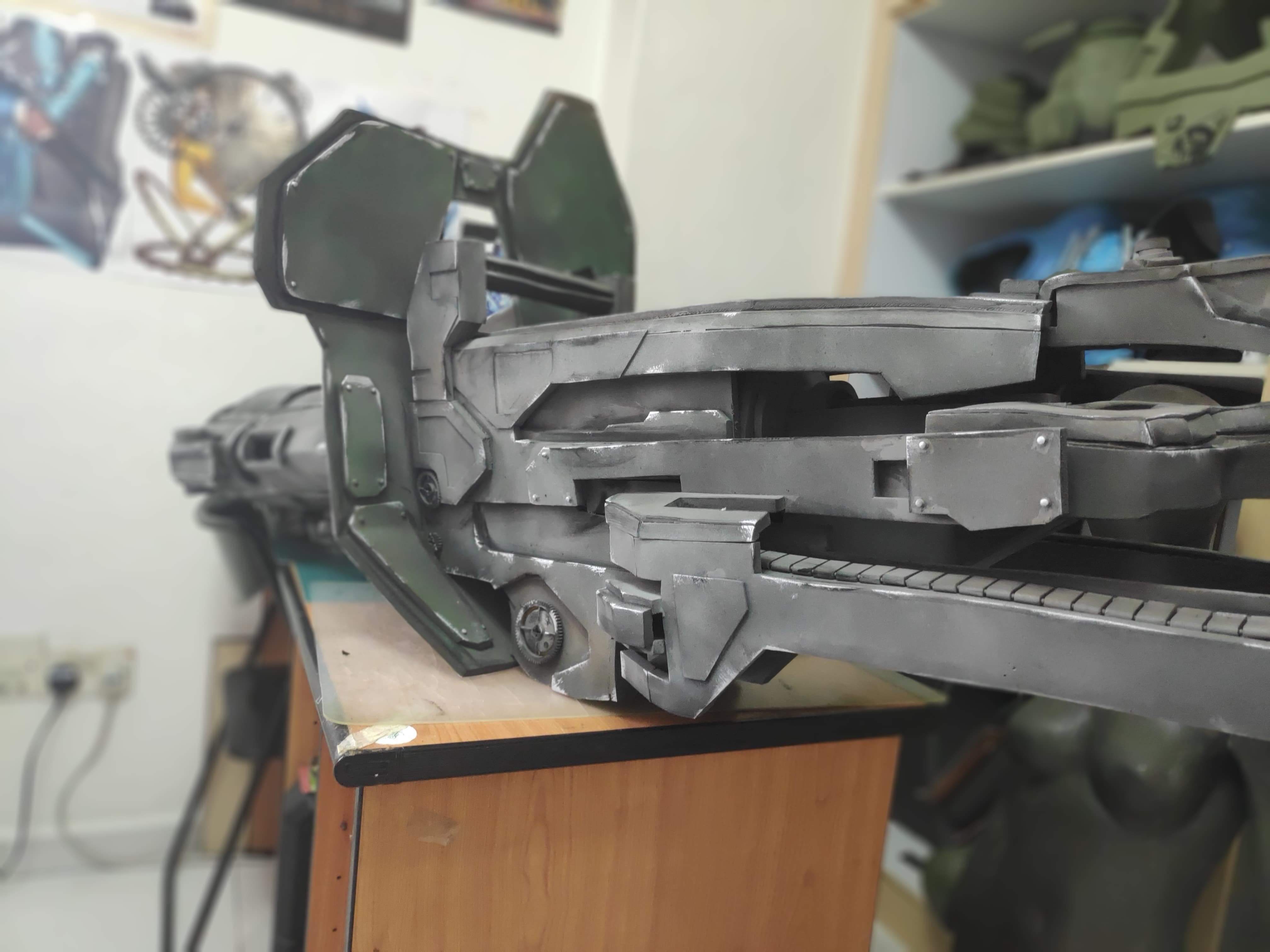

I am done! 84 hours in and everything turned out great!
48926389_279296159447606_2761039380003946496_n.jpg 49067595_430015424461012_8866936733934026752_n.jpg 49535950_278985819477659_857345067931664384_n.jpg

Used stenciling method for the unsc logo, will add more later! e.g the yellow and orange arrows. used oil paint to darken and shade parts of the gun as well as used Citidel silver for weathering, done by using a small brush! patience is key for detailing! Time to bring this bad boy out!

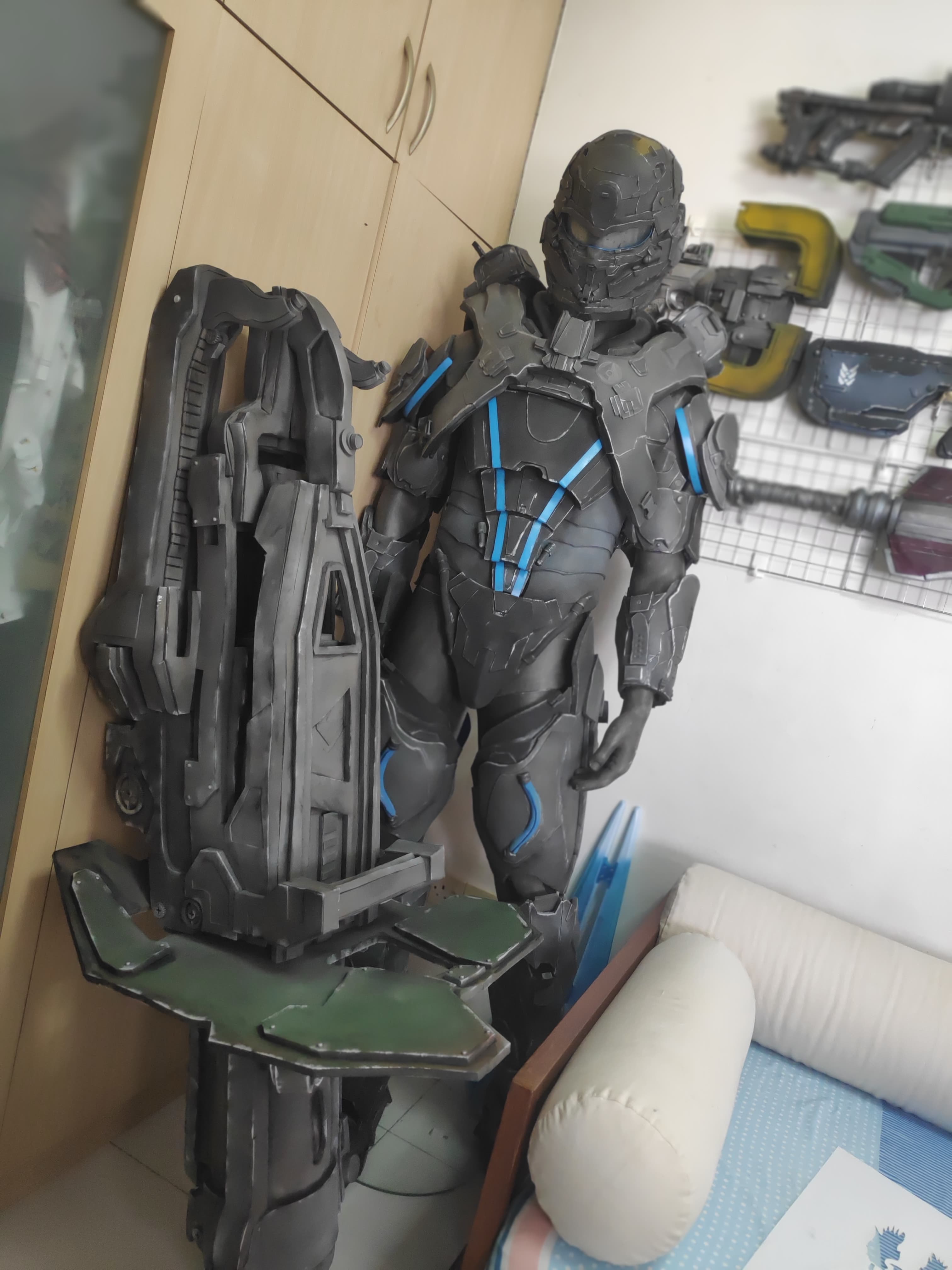

FYI this is my Spartan Locke its 6.6ft tall and my Gun for ref!

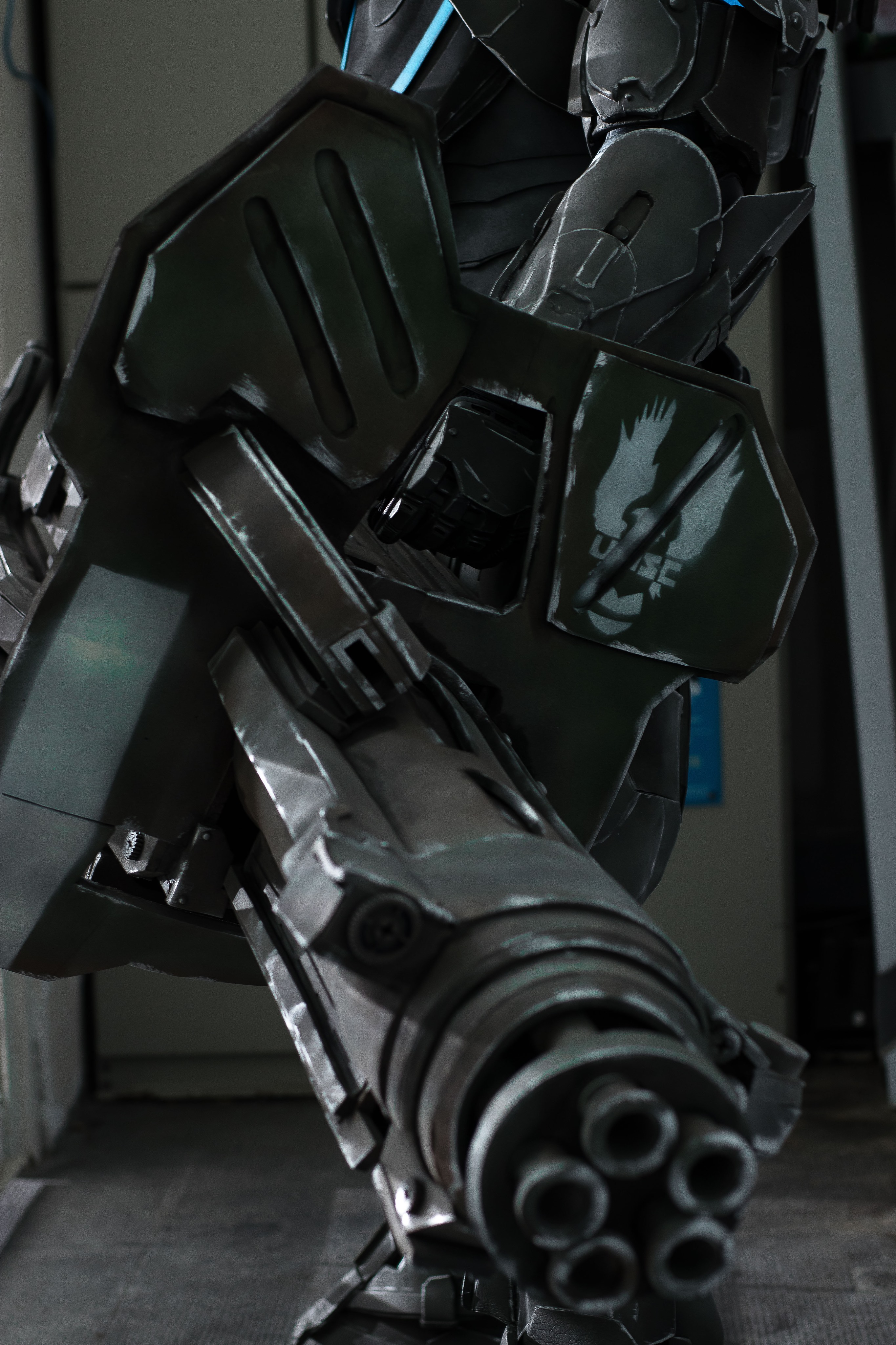

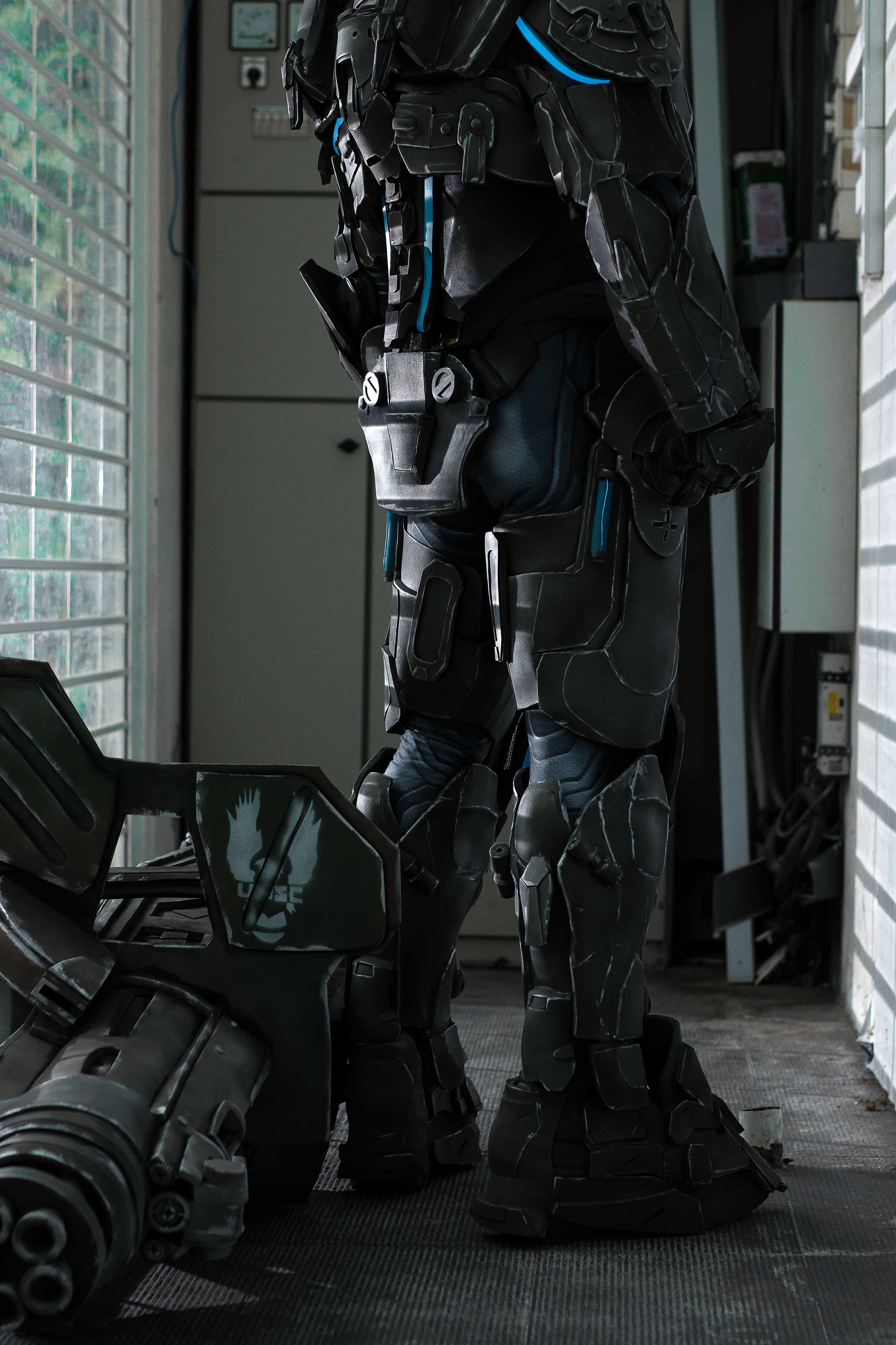

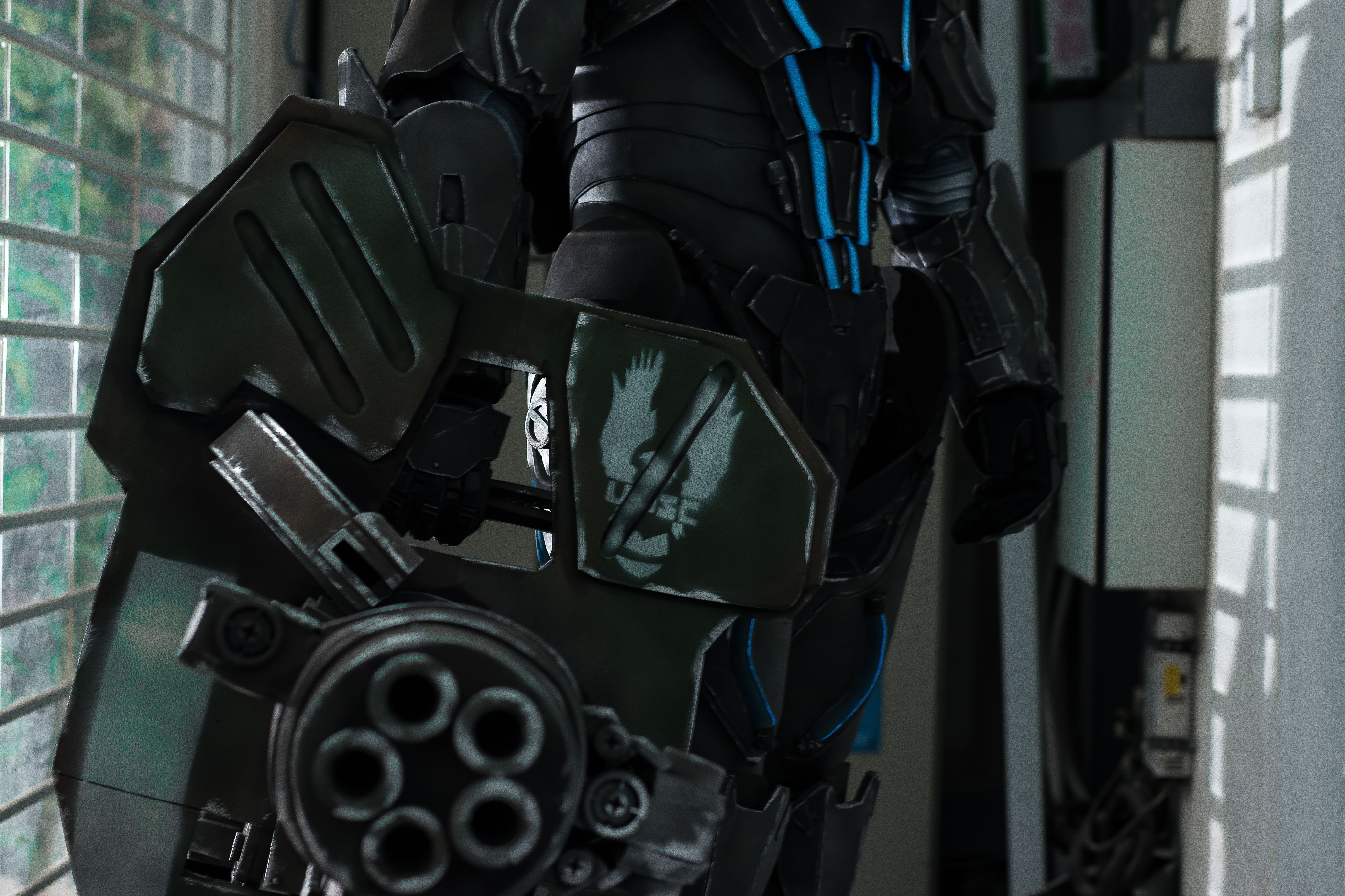

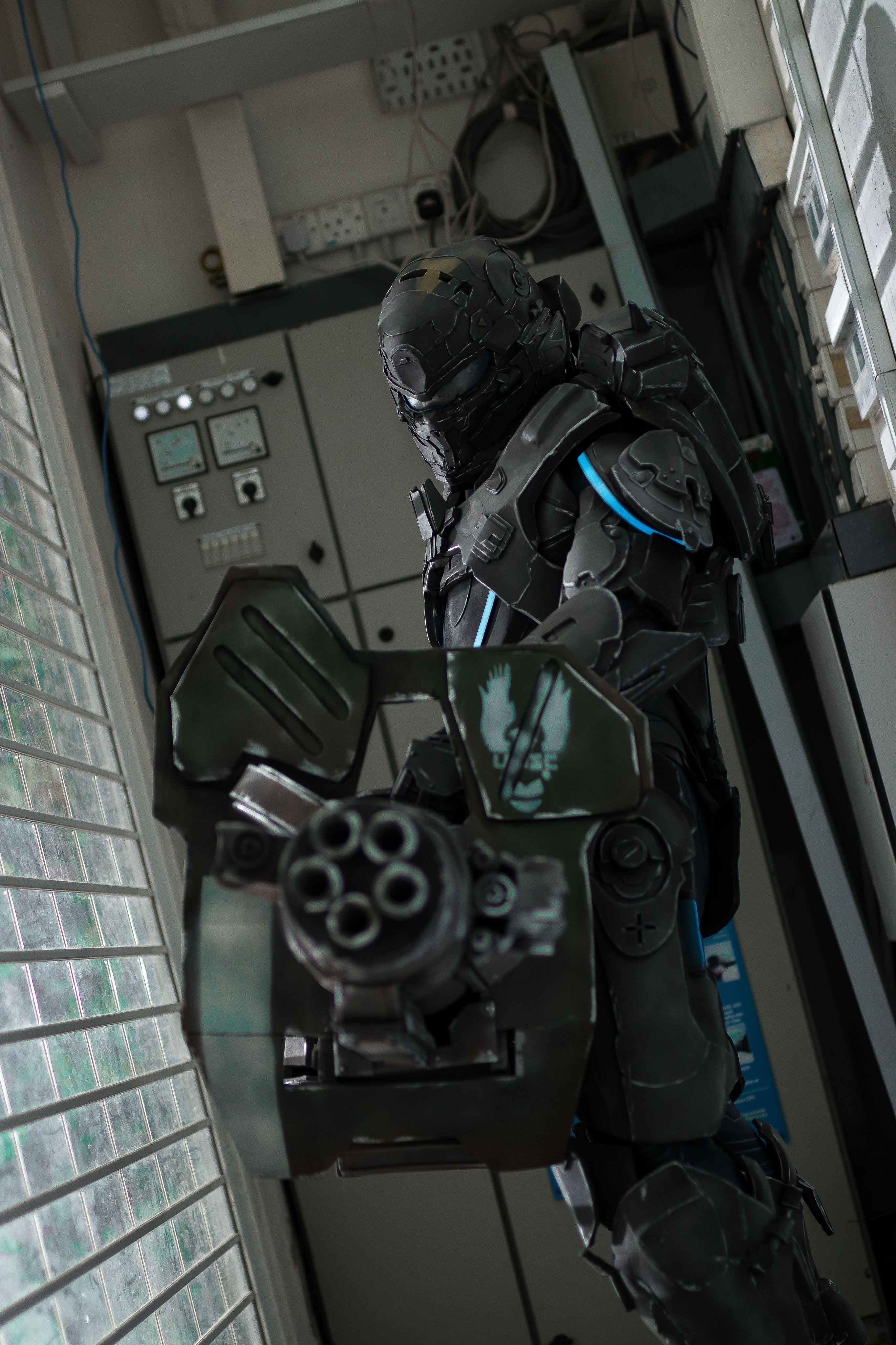

Con time! And yes it turned out great!
48396417_752815248421674_6549845471660081152_n.jpg 49599772_336048993658365_7040132365208780800_n.jpg 49343515_2427997713894963_5467210050290319360_n.jpg

Stay tuned for my next Halo build! Thank you so much for reading this far!


BeeBoy

Regiment CO
405th Regiment Officer
Awesome build bud! Haha never fail to impress ^^

Hello everyone, It has been a while since I've made another Halo built and this time I am going for a Chaingun from Halo 5 Guardians! Take note this built took me 3 and a half days, I will go through step by step and will show you my time stamp on how I tackled this built. The end product is a huge prop, went 1:1 scale with this bad boy, 68 inches in length and 24 inches in width, Lets go!

Reference Images!
View attachment 263622 View attachment 263623 View attachment 263624 View attachment 263625


Now Starting the Built! 10 hrs in
View attachment 263626 View attachment 263627 View attachment 263628 View attachment 263630 View attachment 263630
Ok I do not have the earlier progress picture but this is 10 hours into the built! I started off by make a cylinder shape and support of the barrel, slowly work my way to the back. take note at this point I do not go for details! Work on blocking out the shape of the gun, detailing comes last!



Adding the details! 48 hrs in
View attachment 263631 View attachment 263632 View attachment 263633 View attachment 263634 View attachment 263632
Ok at this point I have already done blocking out the shape and already add the details! I have done the back area as well as finish up adding small little details on the front. Before you prime your prop do double check if there is anything missing or is there more stuff you need to add. Off to Plastidip this big boy!



3 cans of plastidip used! 54 hrs in
View attachment 263635
Yes I have used up 3 cans of plasti dip.. I feel a huge hole in my wallet



Base paint done! 68 hrs in!
View attachment 263636
Waiting for the it to dry was a pain! I used a fan to sped it up. Ok so for the base paint I used Graffiti spray paint, gives off that matte looking texture. pantene grey for the gun itself and military green for the shield! I also used Dry brushing to add abit more texture like rust for e.g and more shades of grey. Now waiting for the paint to dry!


I am done! 84 hours in and everything turned out great!
View attachment 263638 View attachment 263639 View attachment 263640 View attachment 263637
Used stenciling method for the unsc logo, will add more later! e.g the yellow and orange arrows. used oil paint to darken and shade parts of the gun as well as used Citidel silver for weathering, done by using a small brush! patience is key for detailing! Time to bring this bad boy out!



FYI this is my Spartan Locke its 6.6ft tall and my Gun for ref!
View attachment 263641


Con time! And yes it turned out great!
View attachment 263655 View attachment 263657 View attachment 263656
View attachment 263658
Stay tuned for my next Halo build! Thank you so much for reading this far!


JZ5U

New Member
Wow, this is just incredible! I hope to see it IRL soon (if theres a con). Btw, where'd you get your foam? The green bits look like the yoga mats you see in Beach road army market haha.


Ronin Armory

New Member
Wow, this is just incredible! I hope to see it IRL soon (if theres a con). Btw, where'd you get your foam? The green bits look like the yoga mats you see in Beach road army market haha.
Yes they are, Im clearing out the green foams for this built, The black foam I got it from a local supplier and the quality is much better


JZ5U

New Member
Awesome. I always thought the green foam was too malleable to construct things with it, but you've certainly proved me wrong! Could you share or pm where you got the black one though? I can't ever seem to find thin smooth foam here.


TheCostumeGeek

RCO
405th Regiment Officer
This built is amazing.

Your execution is very clean and I am. Impressed by the short amount of time it took you to assemble this neat props.
