Props Halo Reach Needler Build

Status
Not open for further replies.

Xtremenoob

Active Member

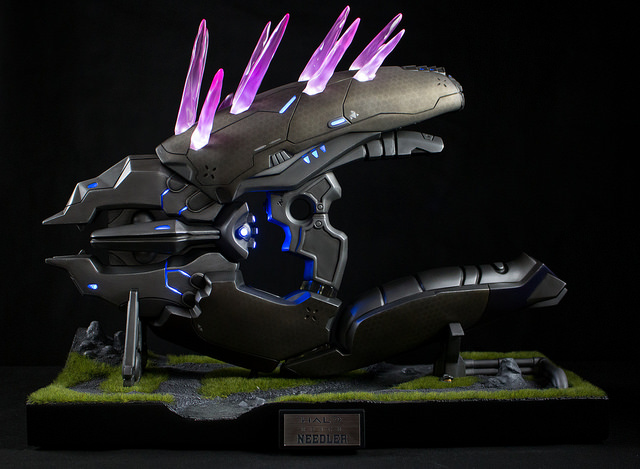

The needler is now finished
16062653010_a099db1bf9_z.jpg007 by daniel.bignoux, on Flickr


My name is Daniel and i will be making a halo reach needler up to the highest quality i can over the coming weeks and months.
I have made a rough 3D model in blender but it is not perfect (this is the first model i have made) but with some good old labor work it should all turn out well.
The model was made in sections and then sliced for 3D printing:
First and second slice pics
[/url]003 by daniel.bignoux, on Flickr[/IMG]
[/url]002 by daniel.bignoux, on Flickr[/IMG]
[/url]005 by daniel.bignoux, on Flickr[/IMG]

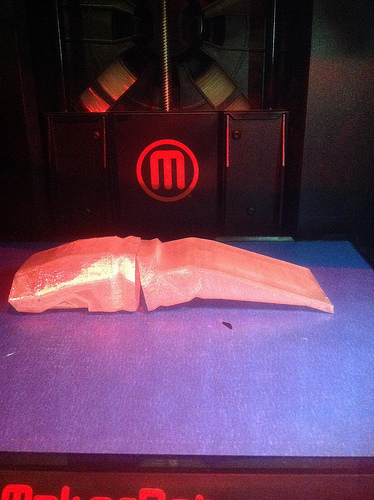

I am currently up to the third slice and will be printing parts every day and hopefully have no printer issues.
Until the next pic dump thanks for looking.

Cheers
Daniel


Attachments

  • 16062653010_a099db1bf9_z.jpg
    104.8 KB · Views: 571
Awesome!

After seeing Volpin's Needler, I instantly became interested in the Covenant weapon!
Cant wait to see how it turns out. :)


Good luck!
Halo 3 Props

What 3D printer?
What scaling/printing software?
What scale/size are you printing it at?
Are you using support material?
How are you slicing the model? (Where are you making the cuts?)
How do you intend on assembling the sliced model?
Care to share your 3d model?

Have you done sliced models before? Is it necessary to sand the edges that will attach to one another so they fit flush?
I've thought about printing a helmet, but I am worried that there will be lots of terrible looking seams.
I've been on the look for a reasonably priced home printer that has a print volume space that could make a helmet but only 1 exists and it has poor reviews.
If it turns out that you have good success with your seams, I might have to just go buy the typical 10x10x12" volumr sized desktop printer very soon.

-This post was made on a mobile device.

Looks like you're off to a great start! The Needler has always been one of the more difficult weapons to make, especially with high accuracy. What kinds of 3D printer and filament material are you using?

What 3D printer?
What scaling/printing software?
What scale/size are you printing it at?
Are you using support material?
How are you slicing the model? (Where are you making the cuts?)
How do you intend on assembling the sliced model?
Care to share your 3d model?

Have you done sliced models before? Is it necessary to sand the edges that will attach to one another so they fit flush?
I've thought about printing a helmet, but I am worried that there will be lots of terrible looking seams.
I've been on the look for a reasonably priced home printer that has a print volume space that could make a helmet but only 1 exists and it has poor reviews.
If it turns out that you have good success with your seams, I might have to just go buy the typical 10x10x12" volumr sized desktop printer very soon.

-This post was made on a mobile device.

1. Maker Bot replicator 5th gen
2. I made the model and scaled it in blender and using Maker Bot desktop to print it.
3. I'm printing it at the length of 57.6360 instead of 57.8cm so i can account for paint body filler and some slight movement of parts to bring it up to 57.8
4. I thickened my model in blender so all the walls are 2mm thick and slicing it in the right places so i dont need to use supports as there are not any over hangs.
5. I an using netfab to slice it and the rest of the answer is in the last answer
6. once a section that has all been printed i will be using superglue (just to hold it together then wrapped in tape for added security it wont fall apart) then making a small pour spot so i can roto-casting it with smoothcast 320. From there i can just thickened it up with more plastic or use expanding foam to make it more solid if need be so it can get it ready for molding after sanding.
7. I will not be releasing the file.

I print mine with a raft so there is only the flaky bits i have to sand to get it flush. keep in mind this is this first time i'm using a 3D printer and besides from the test print i have only printed the needler parts shown above. I am a beginner at 3D printing but i am learning quickly. With the help of maker bot desktop it is very easy and simple to print especially since i had no printing experience when it arrived at my door a few days ago.

wow now how are you going to make the shards.

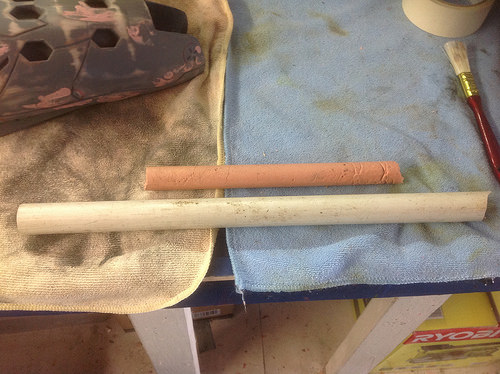

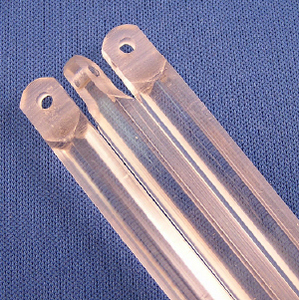

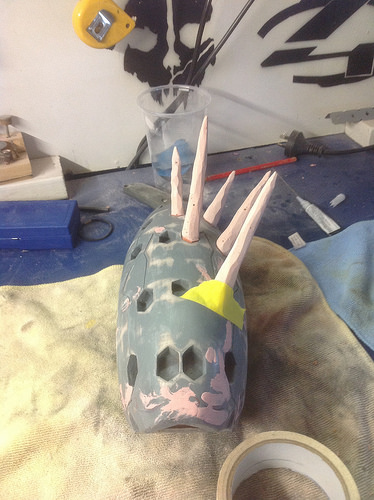

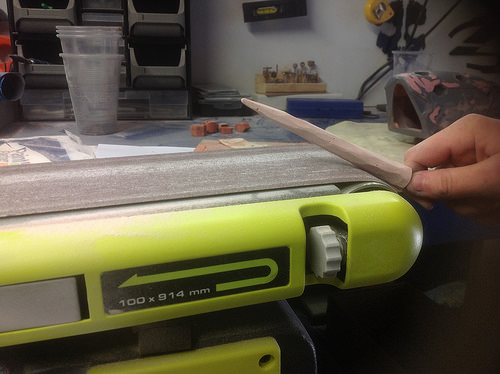

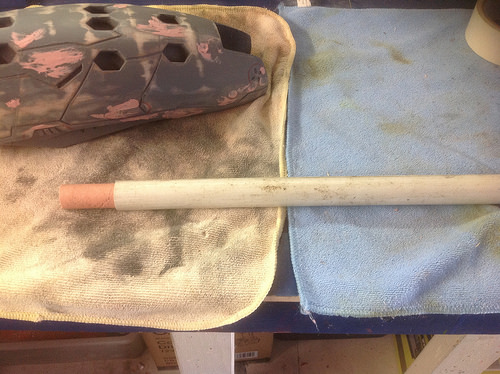

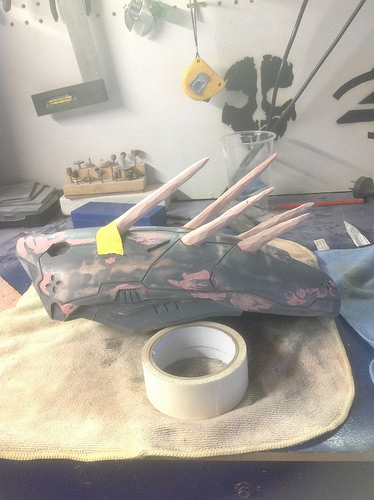

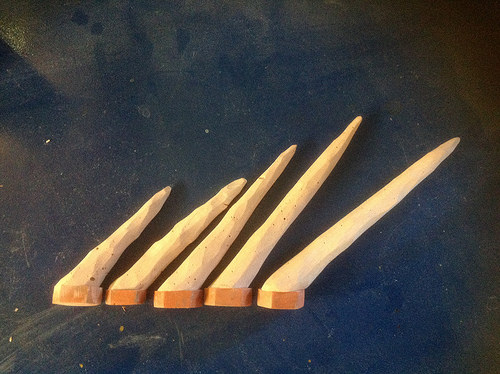

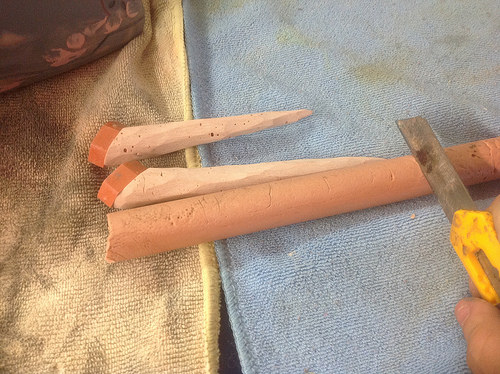

im assuming your taking about the needles (spikes)? Well i plan on making 3-5 individual spikes just by pouring rondo in a tube that is the correct diameter for them and them carving the shape. once i have a few finished sanded i will mold it and cast it in clear resin with a tad of dye(the same way volpin did it but approaching it from different angel using different products.

Looks like you're off to a great start! The Needler has always been one of the more difficult weapons to make, especially with high accuracy. What kinds of 3D printer and filament material are you using?

The Makerbot printer i have only does PLA.

Interesting, i guess I will be testing for a bit because smoothon's crystal clear is quite expensive for a trial kit

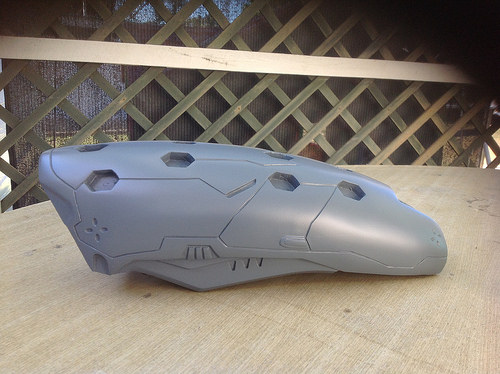

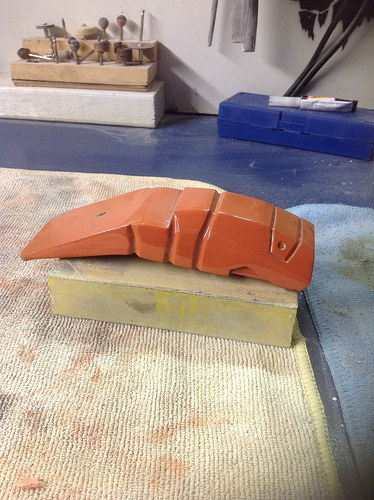

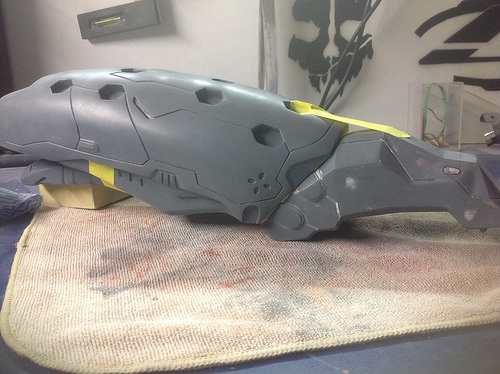

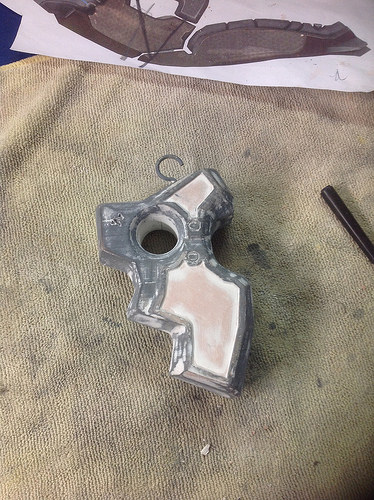

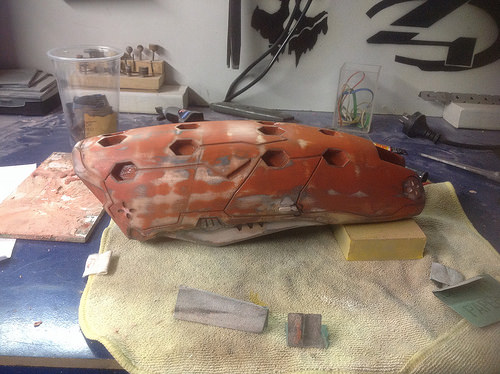

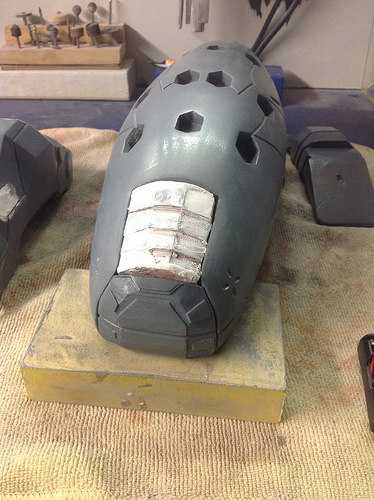

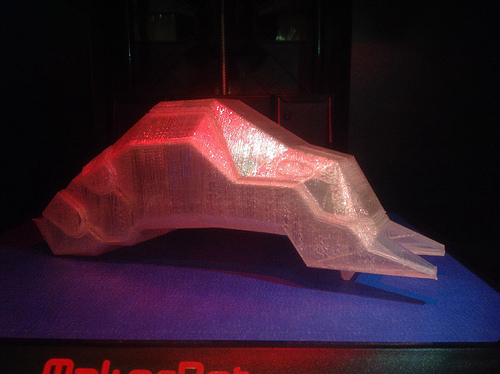

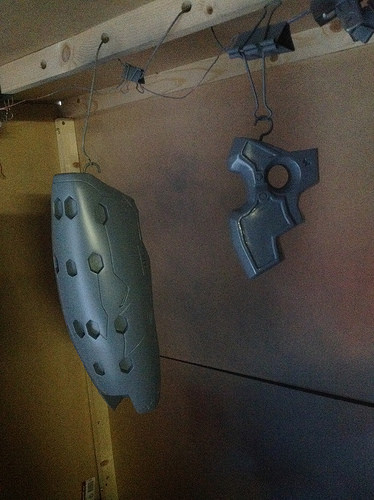

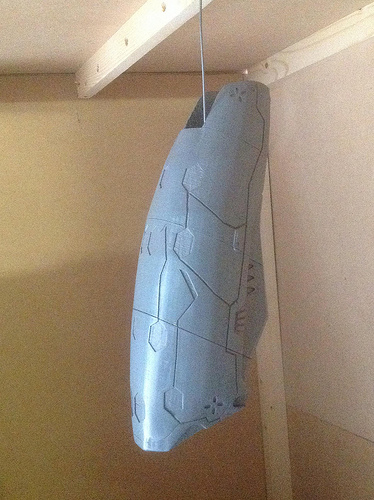

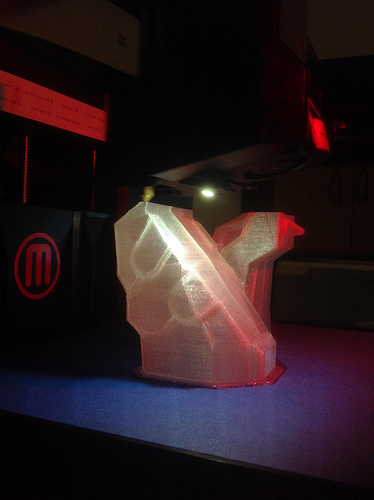

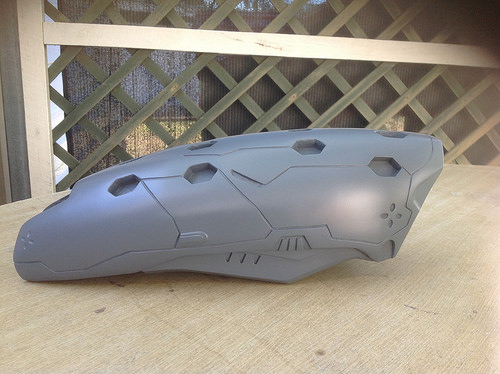

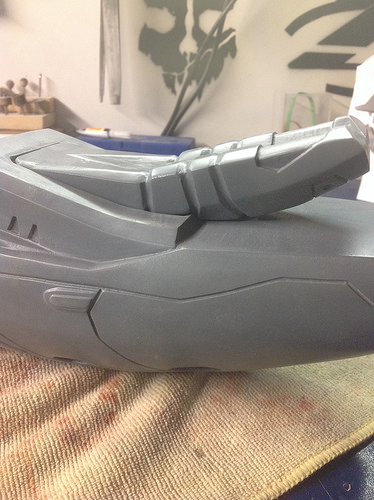

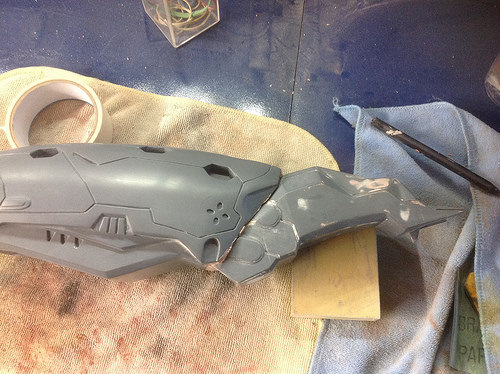

Here is a quick few pics the top main body has been assembled and undergoing body filler and sanding. the other pics are just prints that it did today and yesterday:


[/url] 14673276594_8a9c98220d.jpghttps://flic.kr/p/omCnVu14488984728_d7309dec8a.jpg 14488934800_88bee005f7.jpg 14675610745_00f07d0871.jpg

Until Next Time
Daniel


Attachments

  • 14673276594_8a9c98220d.jpg
    107 KB · Views: 478
  • 14488984728_d7309dec8a.jpg
    111.4 KB · Views: 447
  • 14488934800_88bee005f7.jpg
    69 KB · Views: 448
  • 14675610745_00f07d0871.jpg
    85.9 KB · Views: 439

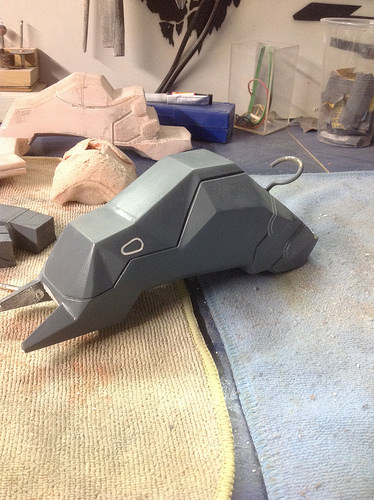

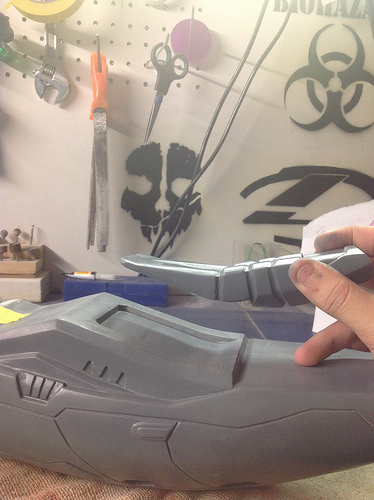

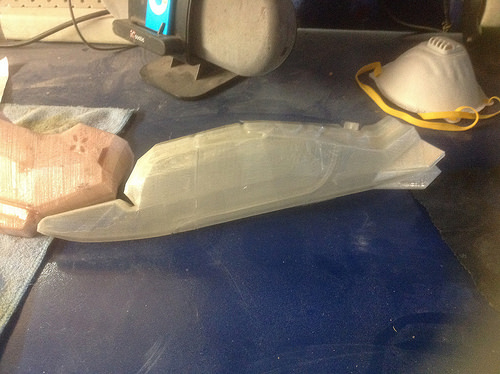

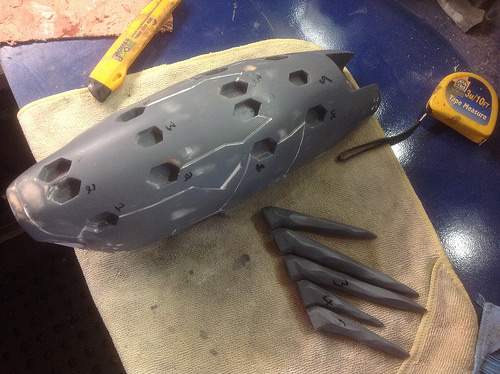

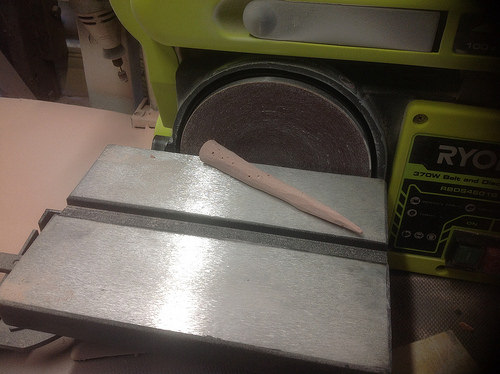

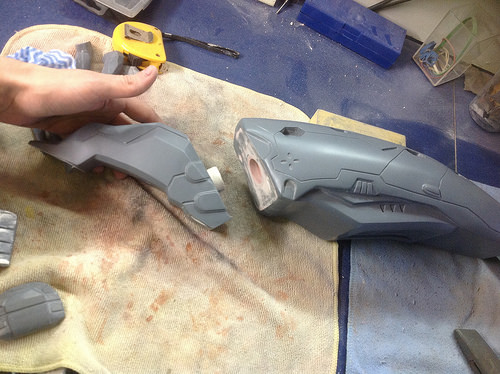

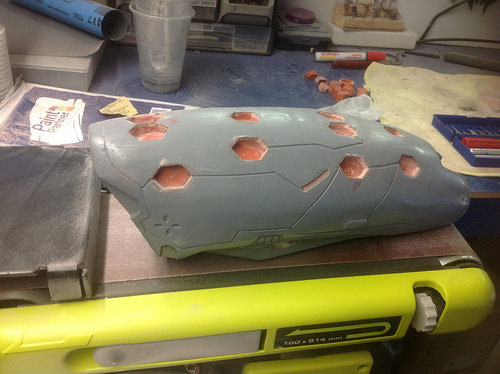

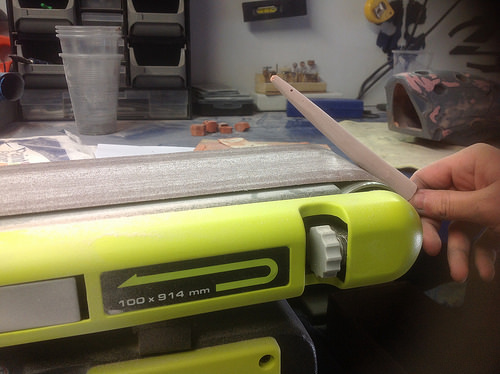

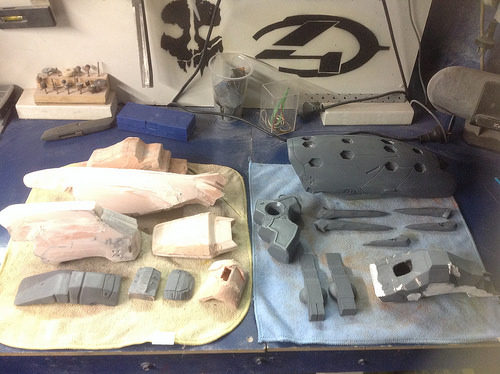

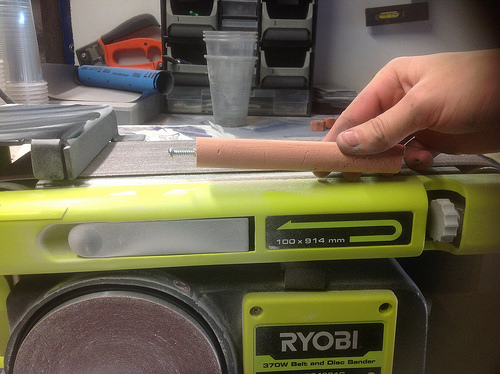

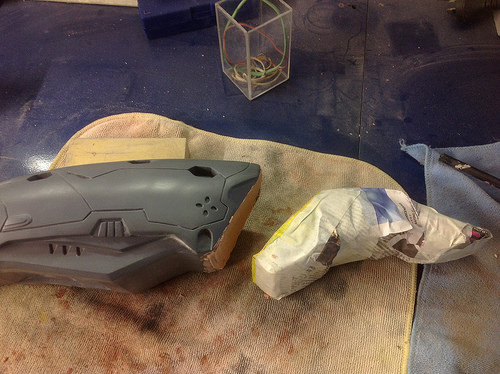

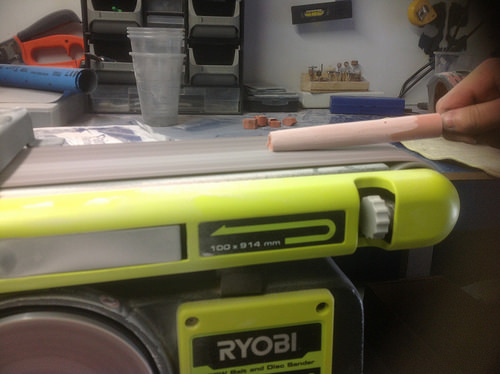

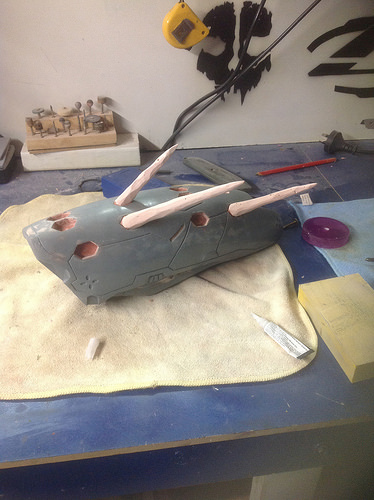

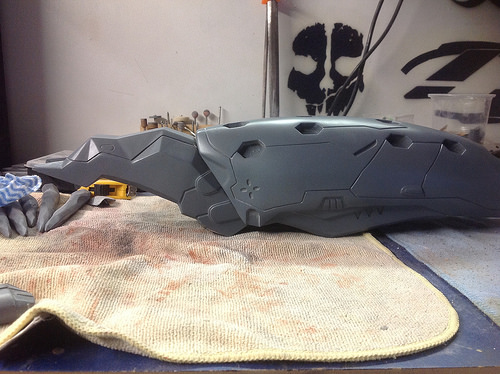

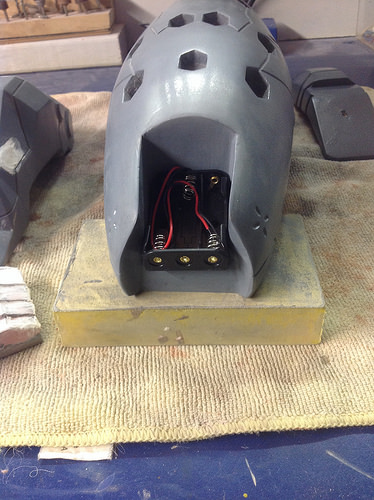

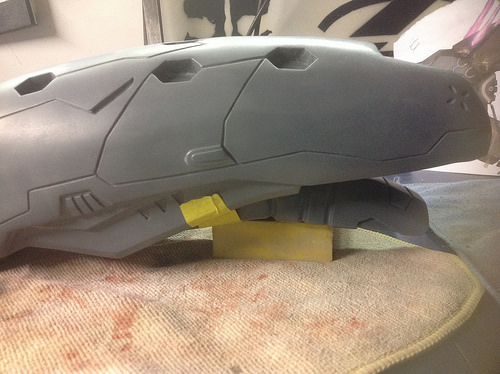

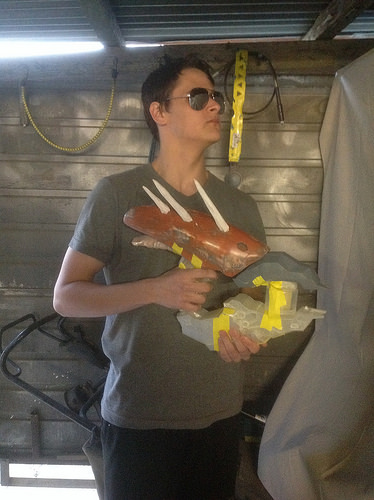

pic dump:

Until next time
thanks for looking
Daniel


Attachments

  • 14760050423_b6fd447afb.jpg
    43.8 KB · Views: 431
  • 14737018541_4acf6d6fa3.jpg
    79.5 KB · Views: 447
  • 14740193175_f68f424972.jpg
    60.2 KB · Views: 403
  • 14553553879_2dfa18e5b6.jpg
    85.4 KB · Views: 458
  • 14553534620_d3a047450c.jpg
    55.9 KB · Views: 430
  • 14760058923_328764f4e4.jpg
    68.2 KB · Views: 434
  • 14737023851_600f0e2779.jpg
    76.6 KB · Views: 298
  • 14553740467_1bfd5520fb.jpg
    62.6 KB · Views: 432
  • 14739910642_cb1a18fbdb.jpg
    59.4 KB · Views: 431
  • 14737840814_d8b6a6c02d.jpg
    43.2 KB · Views: 455
  • 14737036571_683916fc3a.jpg
    63.9 KB · Views: 423
  • 14737032321_b4829714a4.jpg
    60.8 KB · Views: 432
  • 14553542690_160848c366.jpg
    79.7 KB · Views: 464
  • 14739924202_2a04aaf74c.jpg
    62.4 KB · Views: 451
  • 14737850954_8f826d6613.jpg
    68 KB · Views: 404

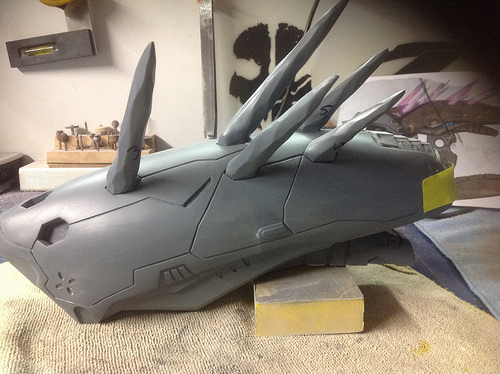

Very nice....its coming along! I noticed last week the crystal shard holes in one photo and said "nope the blind parts are too small" lol. I like the way you did them though.
