Home brew Vac-table

Status
Not open for further replies.

peterthethinker

Well-Known Member
Yesterday I got some parts from the HW store to make a Vac-table .
That is all done! 24 * 24 Inch
Ive picked up some styrene from TAP up the road today...
I am forming up a frame for the 16*16 inch blanks I am gonna pull .
I recon I can make magnums and hand parts and other goodies.

I really wanna master it as its SO cool! and sooooo cheap to run and H3 armor is so roundish that it lends it self to vac.




By tonight there should be a full pull! .....

Peter


Frozensnot

Well-Known Member
I always like to see how others make their vac tables. Looking forward to seeing how it all comes together!


peterthethinker

Well-Known Member
Ask and Ye shal get a pic!

Exalted and I are at my pad pulling parts..

Video to follow !
peter...


----- UPDATE-------

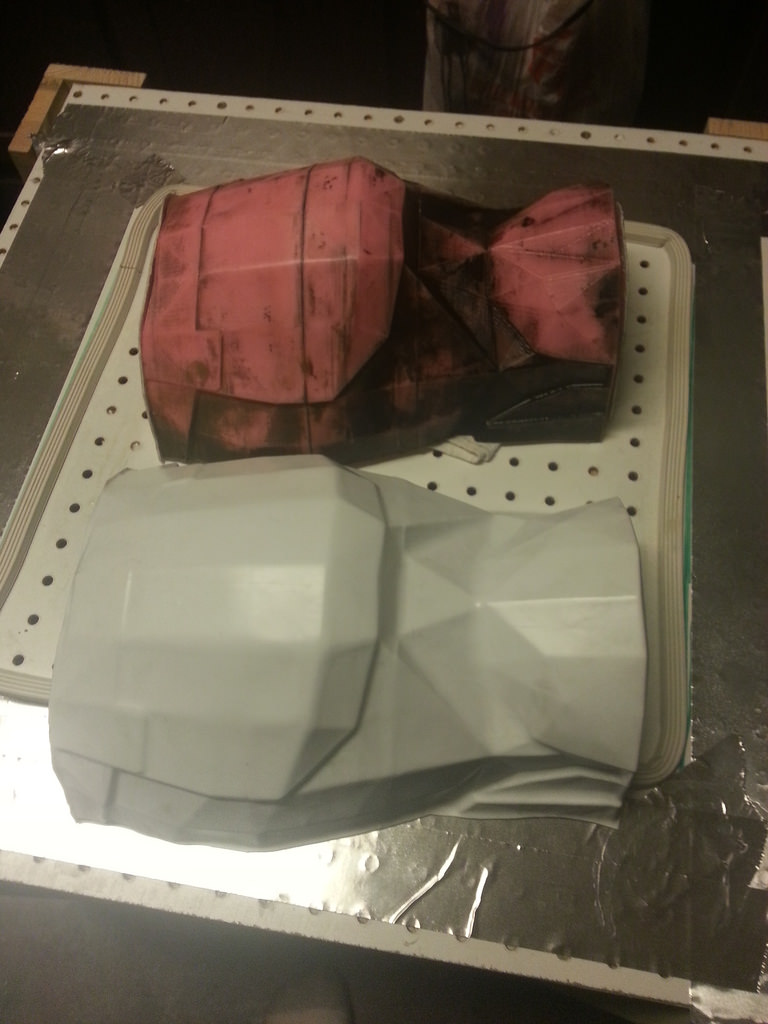

We pulled some rear shins for his suit ! .

14+ hours of 3D print . OR about 5 min to pull one on the bed .
or a 3rd of a spool Or a 2 dolla sheet of plastic.

I think I am in love ! ......
Good thing I got 18 sheets of this stuff to play with .

Peter

Last edited by a moderator:

Frozensnot

Well-Known Member
That looks like a pretty good pull. The only critique I have is the frame. I know you mentioned that it would be worked on but I thought I heard the seal between the frame and table not completely sealed on one occasion. It was after the plastic had been sucked down. I could be wrong though, maybe I just heard the vacuum making funny noises. Even with that though, the pull still looks pretty good. What's the thickness of the plastic?


peterthethinker

Well-Known Member
yea that pull never mated to the gasket fully.
Its 1/16 styrene .
The pull we did on the leg part was far better .

we were both just shocked how well my setup worked .
It's not like I did any math


Bob Rosland

Jr Member
It's a little easier to get a good seal with a raised platen. It sort of gives the styrene a ledge to seal itself against instead of just relying on the gaskets.


peterthethinker

Well-Known Member
considering how cheap it is to do vacuum forming. I can see this is going to be a very useful tool to have for more than just costumes.. .in fact I may just vacuum form a noble 6 helmet for myself and a friend.it would be easy to make a bunch of them and then put the bullet hole in the visor as a static prop...


hacxor

New Member
Some people are using clips to secure it down then sucking it, instead of pushing


If it's not broke, don't fix it

Sent from my iPhone using Tapatalk
