Its not Halo armor but its armor

Spartan648

Member
I did this over several weekends
Halloween costume for a freind of a friend

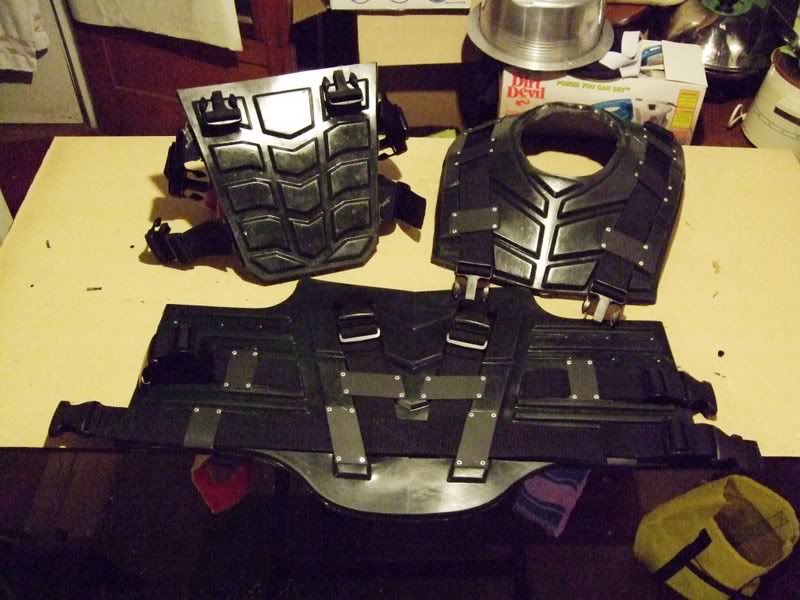

and the finished set


Let me know what you think

Spartan648


Spartan648

Member
Moz said:
what did you cast it in?

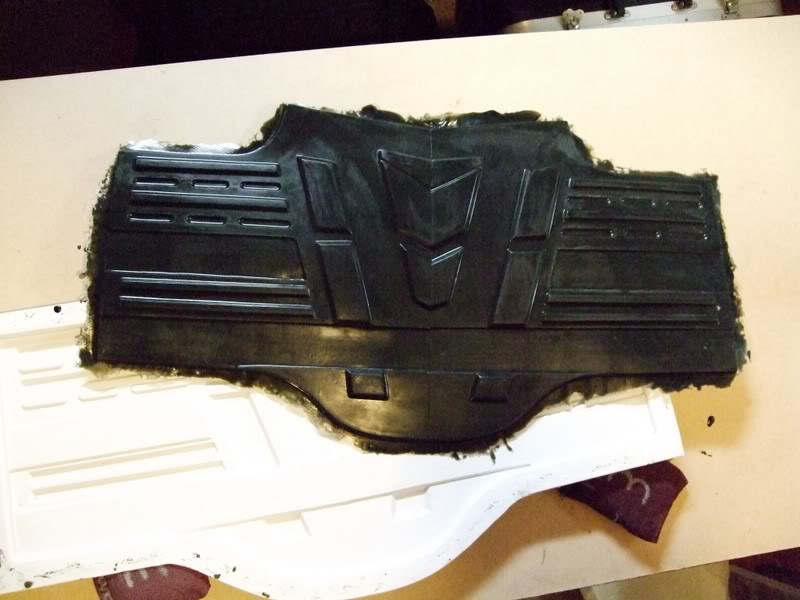

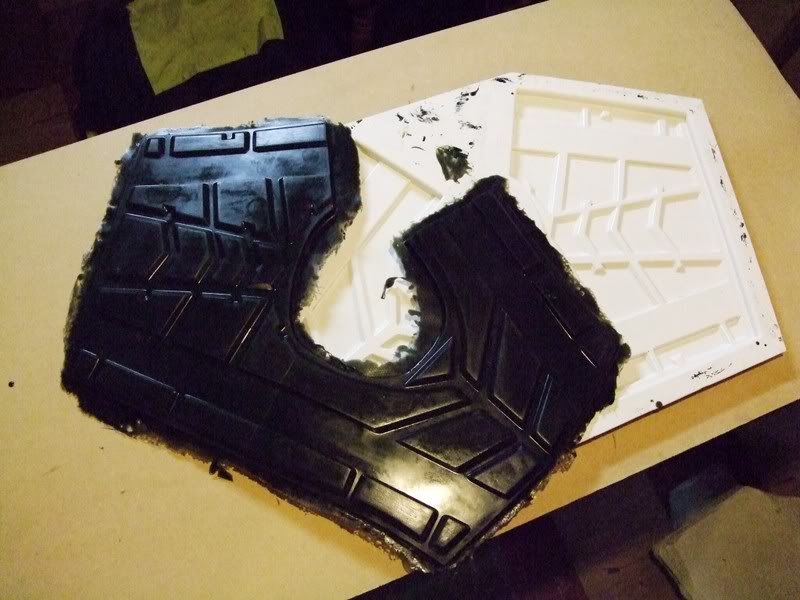

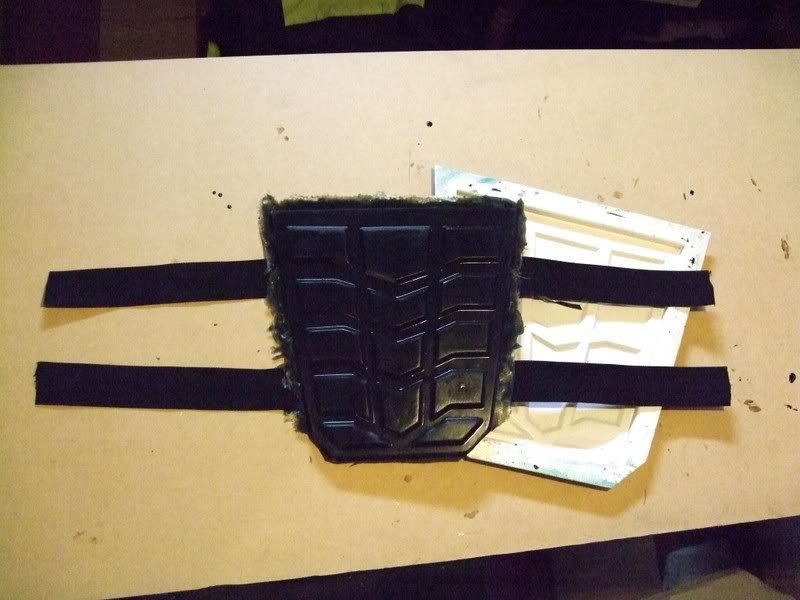

The armor was cast using Smooth-On VytaFlex 40 with black pigment added
the VytaFlex40 is thin like water and had to be thickened so I could brush it into the molds
the armor is backed with a foam sheet which had to be glued in with a smooth on adhesive
made for fixing torn urethane rubber molds because the adhesive that was on the foam sheet
would not stick to the VytaFlex40.
I did use the orginal polyurethane rubber and foam that was used to make the movie suits
but that material was very hard to use because it kicked to fast once it was mixed.

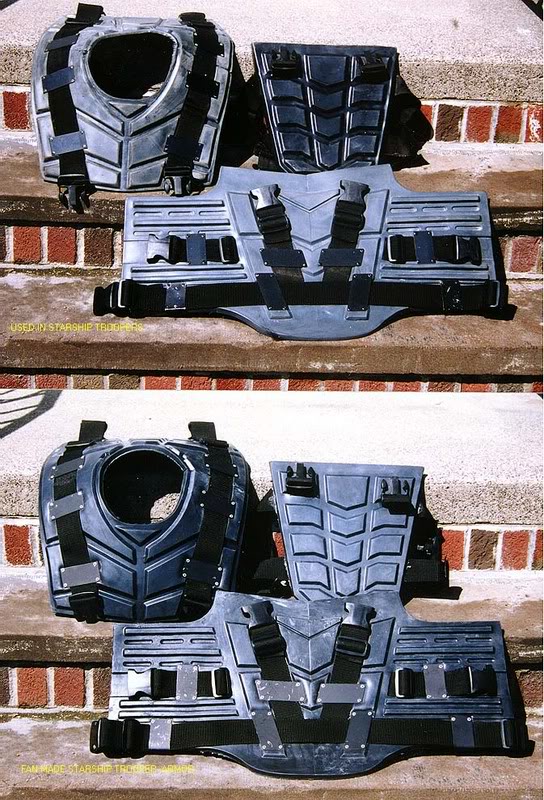

Here is a pic of my screen used armor with the first suit I made under it

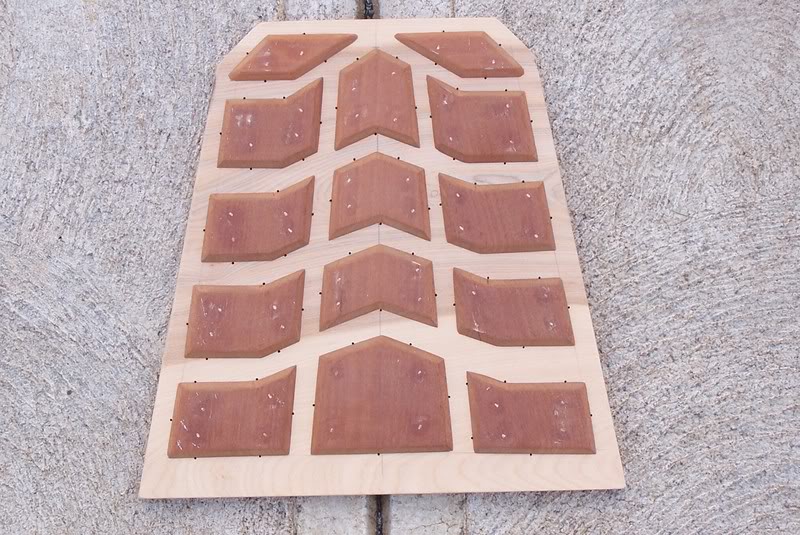

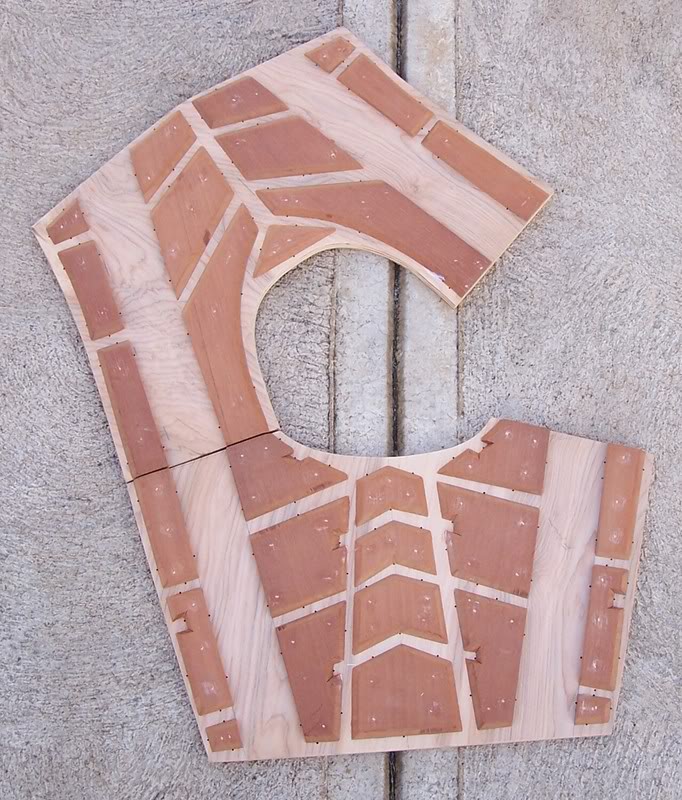

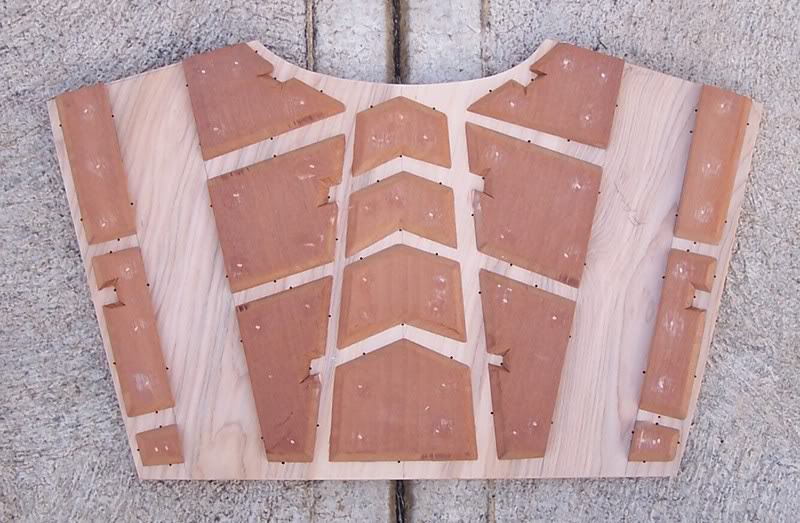

Measurements were taken off the original to make wooden bucks
that were used to make the vacuum formed molds that the armor is cast from




all of the aluminum plates that are on the armor are made to the correct size
and attached with pop rivets

Thanks for looking

Spartan648

Last edited by a moderator:

smilie120

Sr Member
Awsome! Have you got any pics wearing it? Or on a manequin? Because im quite puzzled at how you wear thoes lol. But that looks sweet man! Kudos


Spartan648

Member
smilie120 said:
Awsome! Have you got any pics wearing it? Or on a manequin? Because im quite puzzled at how you wear thoes lol. But that looks sweet man! Kudos

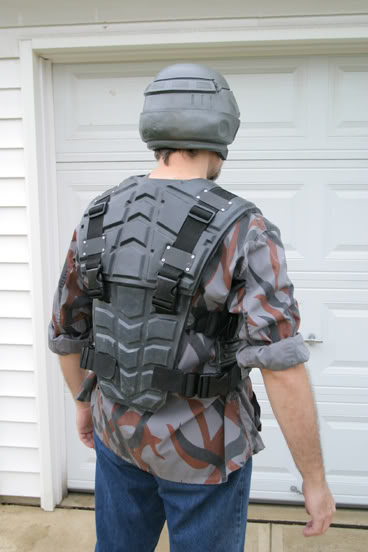

Here you go




Even thou its made of rubber and foam, its kinda like wearing a body cast :lol:

Last edited by a moderator:

Spartan648

Member
smilie120 said:
AWSOME! The pink on the face is very effective is it a visor? Lol o.j. Awsome stuff man keep it up!
No visor....Its Photo Shop :lol:

Last edited by a moderator:

Spartan648

Member
Macattack64 said:
Couldn't we do something like that for marine armor?
Funny that you should mention that

I was thinking the same thing last night, possibly using the same outline pattern of the wooden bucks
but with different detail on the surface, only down side, I cannot sculpt that well

Last edited by a moderator:

Afterlife

New Member
I liked the use of the snaps to hold it together. I see this method being used more so towards marine armor and not the MJOLNIR armor.


Spartan857

Well-Known Member
very nice. i wouldnt have thought about making a starship trooper outfit.

looks fantastic

The only Good Bug is a Dead Bug


Spartan648

Member
dead-spartan said:
how did you make the metal plates. and by the way that looks awesome

I had the aluminum plates made for me at a local metal shop


I am glad that everyone like it

Thank you for your comments

Spartan648

Last edited by a moderator:

Adam

Community Founder
this is utterly amazing!!!

Honestly, how did you make the wood pattern? By hand?


Spartan648

Member
Adam said:
this is utterly amazing!!!

Honestly, how did you make the wood pattern? By hand?
Adam
Yes the wooden patterns were made by hand, but not by me.
A freind of mine, knows a pattern maker and I gave him my
orginal screen used armor to take measurements off of.
He made the wooden patterns and also made the vacuum formed
molds.

Spartan648

Last edited by a moderator:
