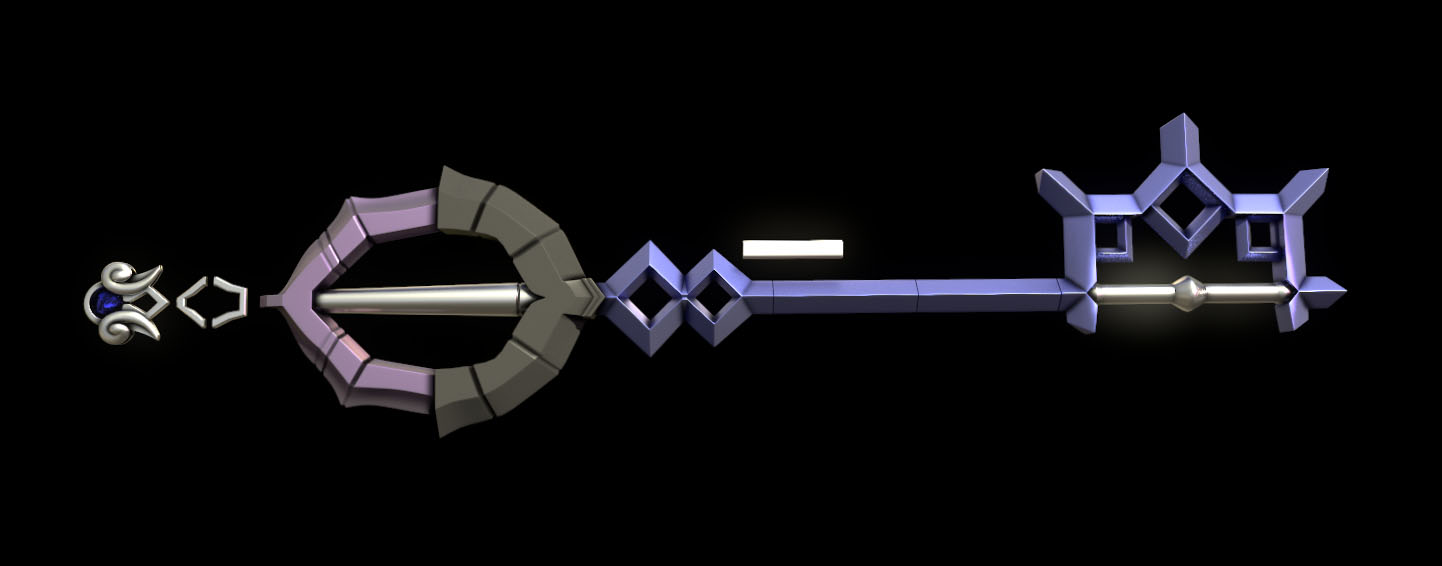

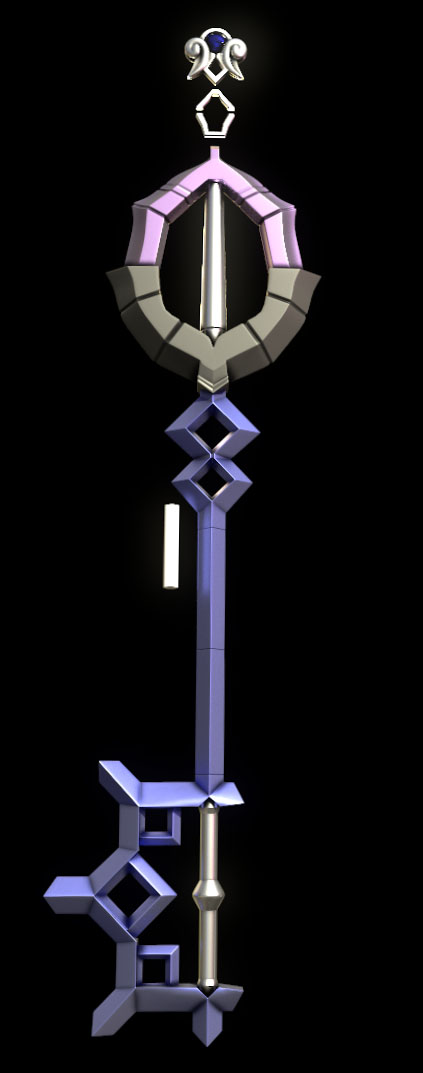

3D printable Stormfall Keyblade. Aqua's Keyblade from Kingdome hearts. Meant to finish and Upload this days ago but with terrible weather in Austin and frequent power outages, I never got the chance. 2 more keyblades on the way soon!

Kingdom Hearts - Stormfall Keyblade by BreakerboxCosplay

Update 03/06/2021: Fixed issue with Guard_Back piece where it was not completely flat. Aqua's Stormfall Keyblade from Kingdom hearts. All pieces except the Handle, Chain_Link and Charm are cut in half to ease of printing. You will need to print 2 of each and glue the halves together. Includes...

www.thingiverse.com

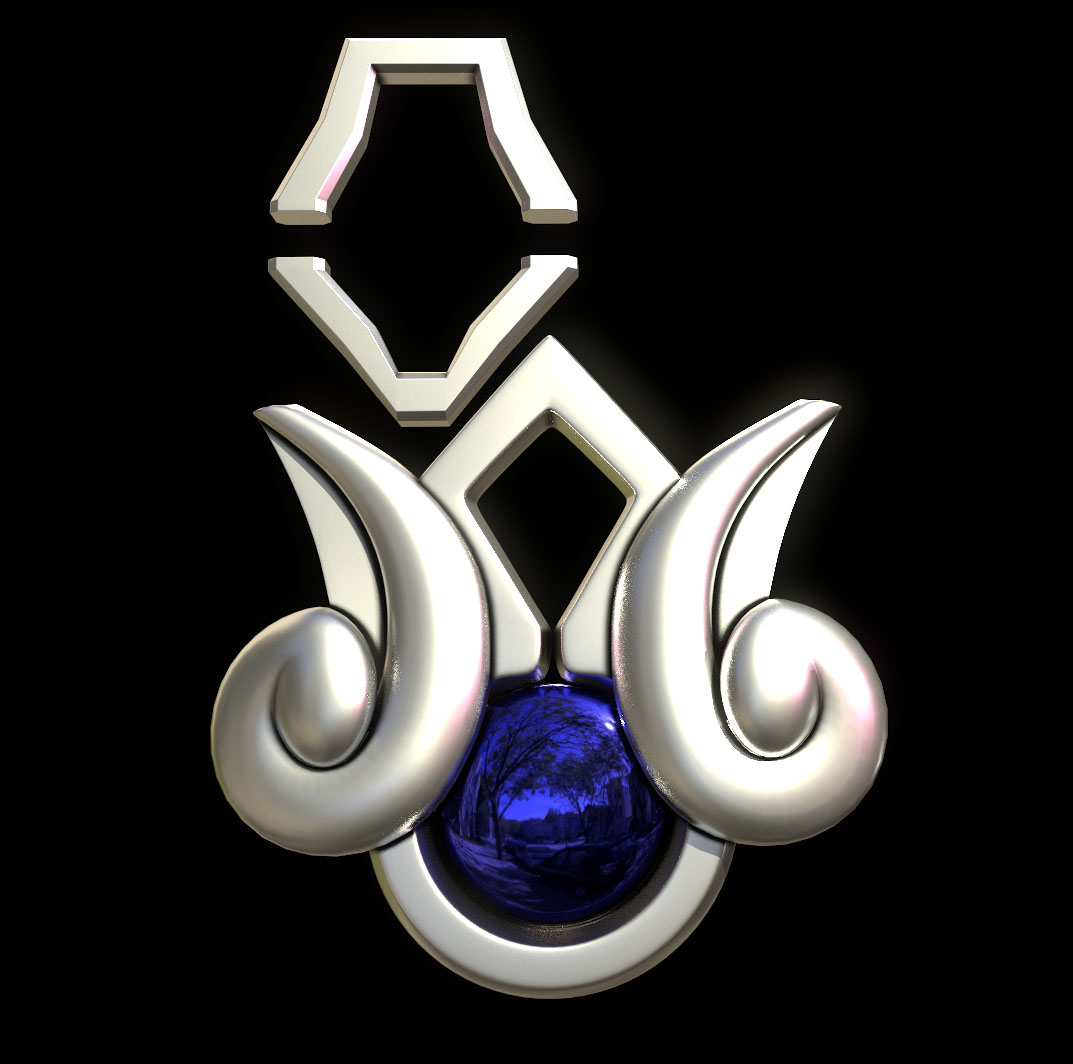

Features a Charm with a seprated gem and printable chain link.

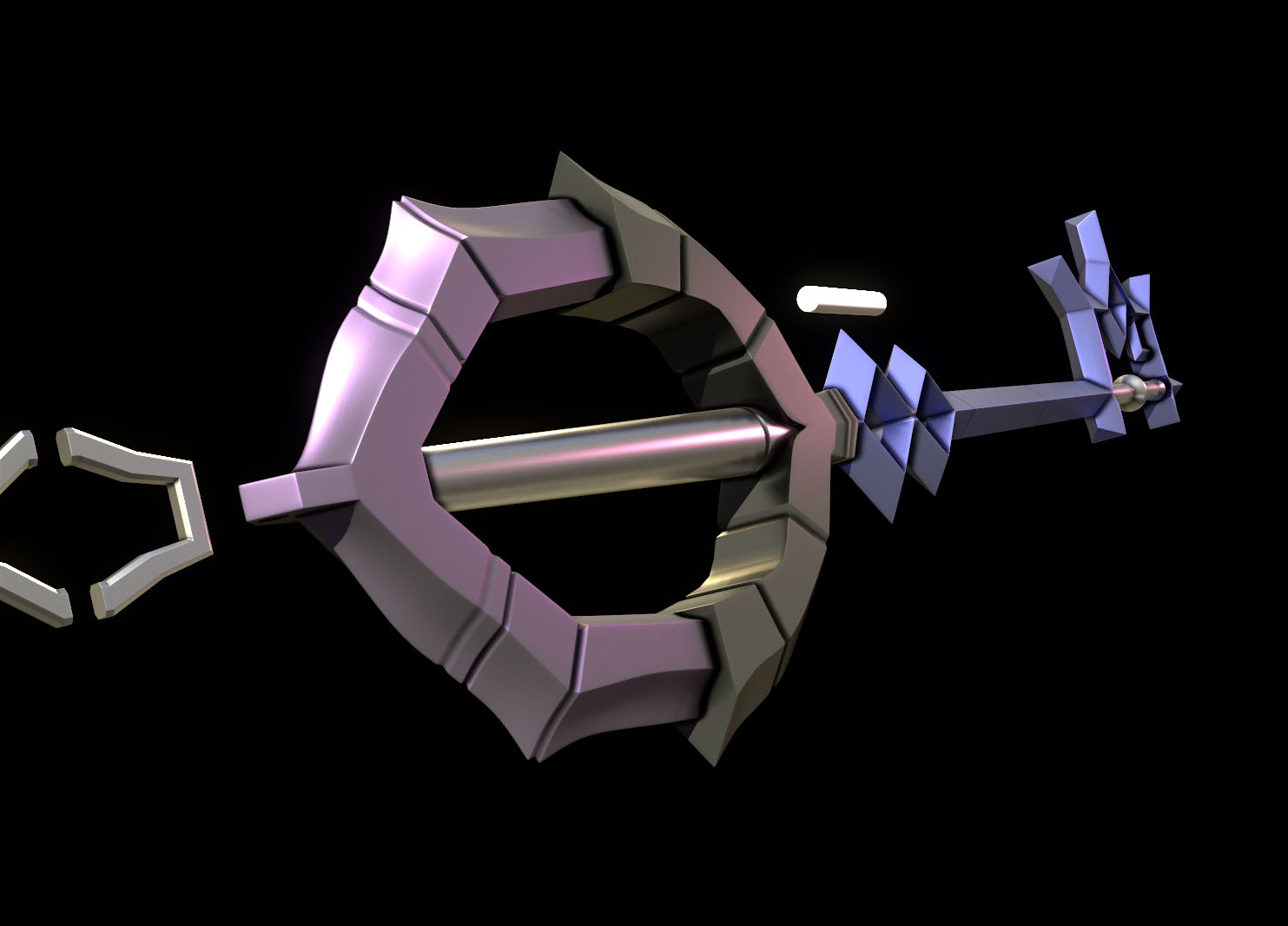

Most all the pieces are cut in half for easy printing, jsut print the 2 halve then glue them together.



[shadowbreakre]

After some long serious thought I have decided to rebrand as breakerbox cosplay and launched my very own patreon. All my models will still be free, however If you like what I do and want to support me in doing what I love you can donate here. https://www.patreon.com/Breakerbox



[shadowbreakre]

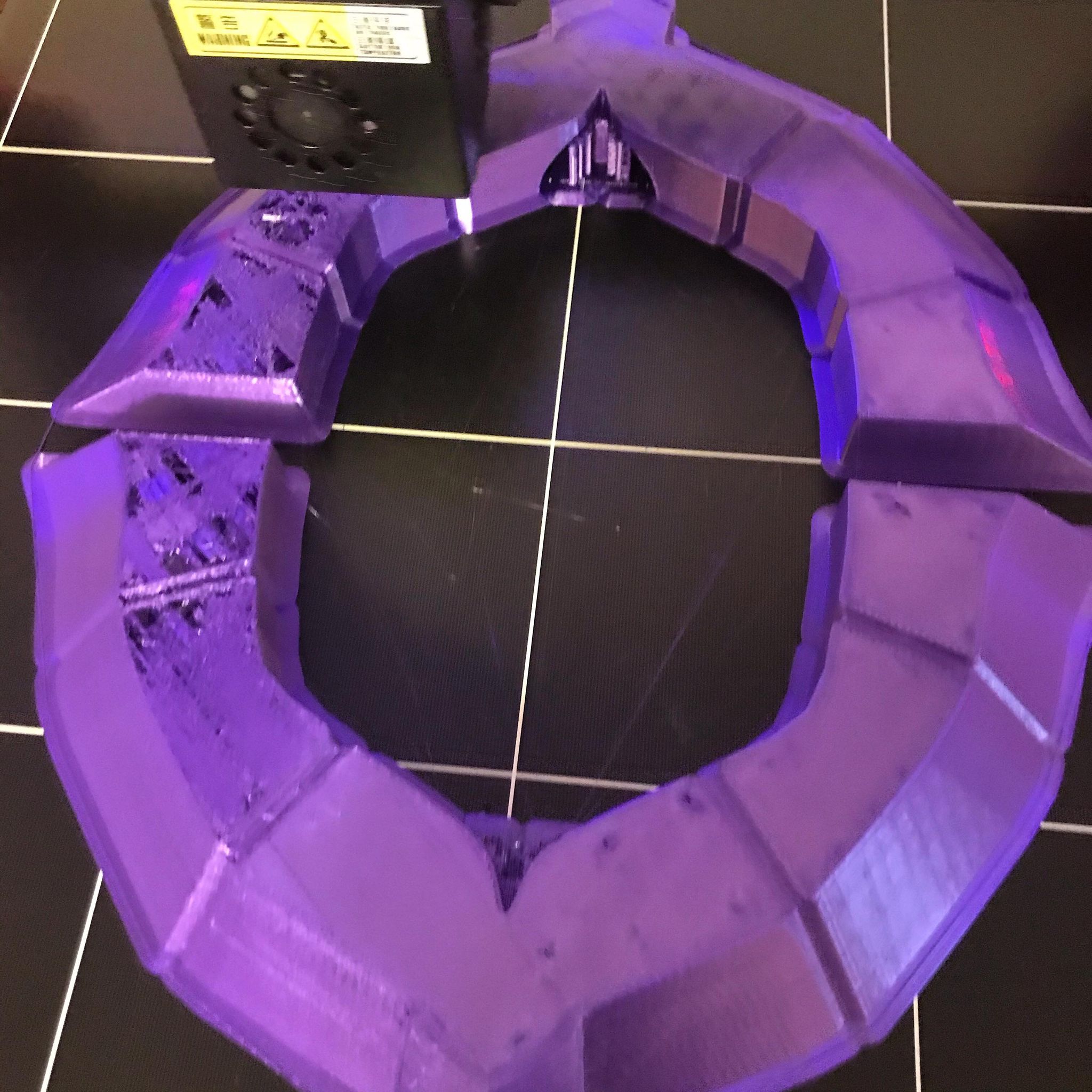

So I finally got some filament to start test printing all these models and I decided to start with this one. everything was going fine and dandy until this last piece which took 15 hours, only to find out that the bed wasn't quite level and that the heat block on my hotend cracked and started oozing burnt plastic out the top. I order a new one but it will be some time before I can continue working on this or other prints.



[shadowbreakre]

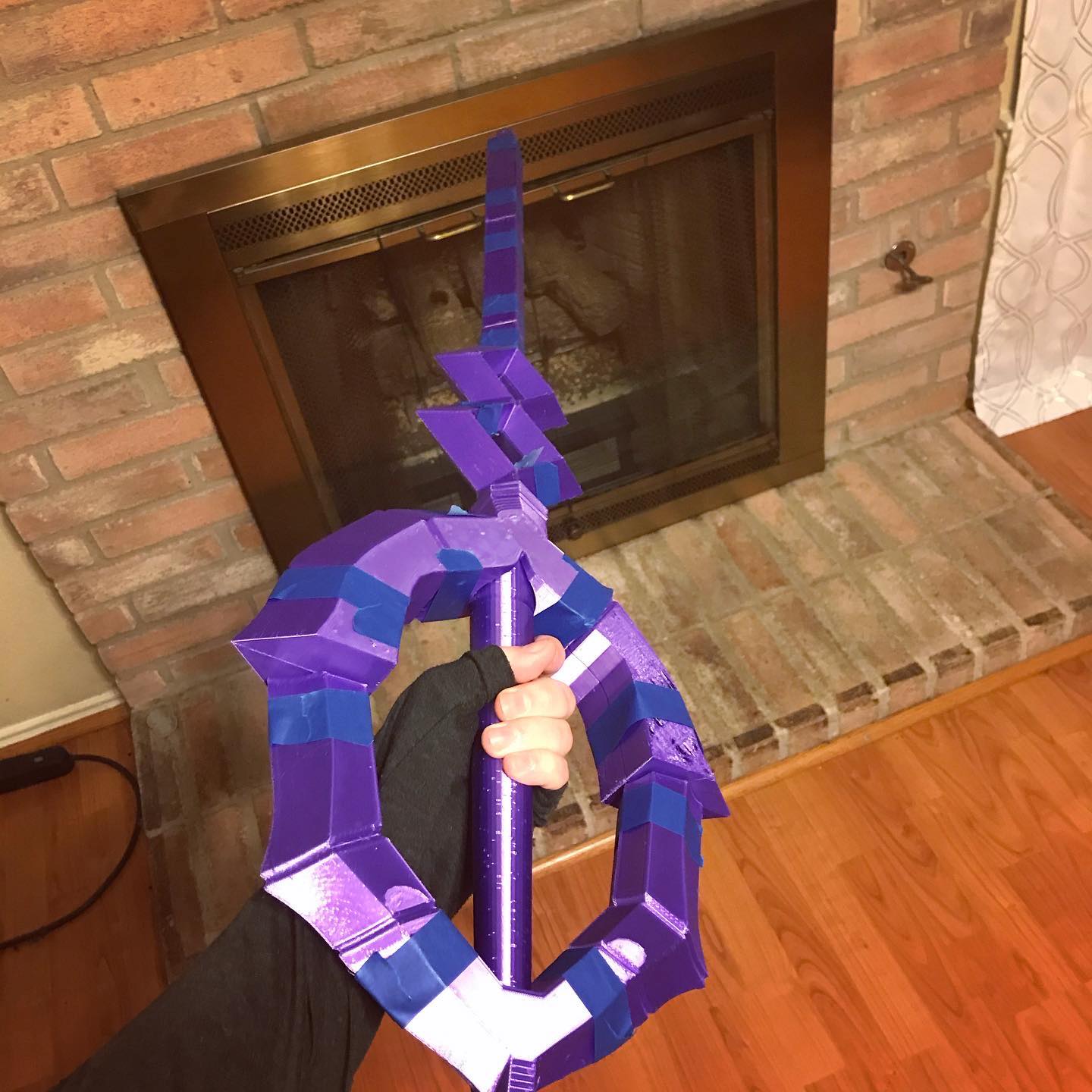

Almost done printing. Need to wait to get more filament. Halves are taped together however segments are being held and place by the printed pegs. All that’s left to print is the other half of the key tooth pieces and bar. I’ll use a bonding epoxy to glue the halves and segments together and fill in the seems with spot putty before sanding and painting.

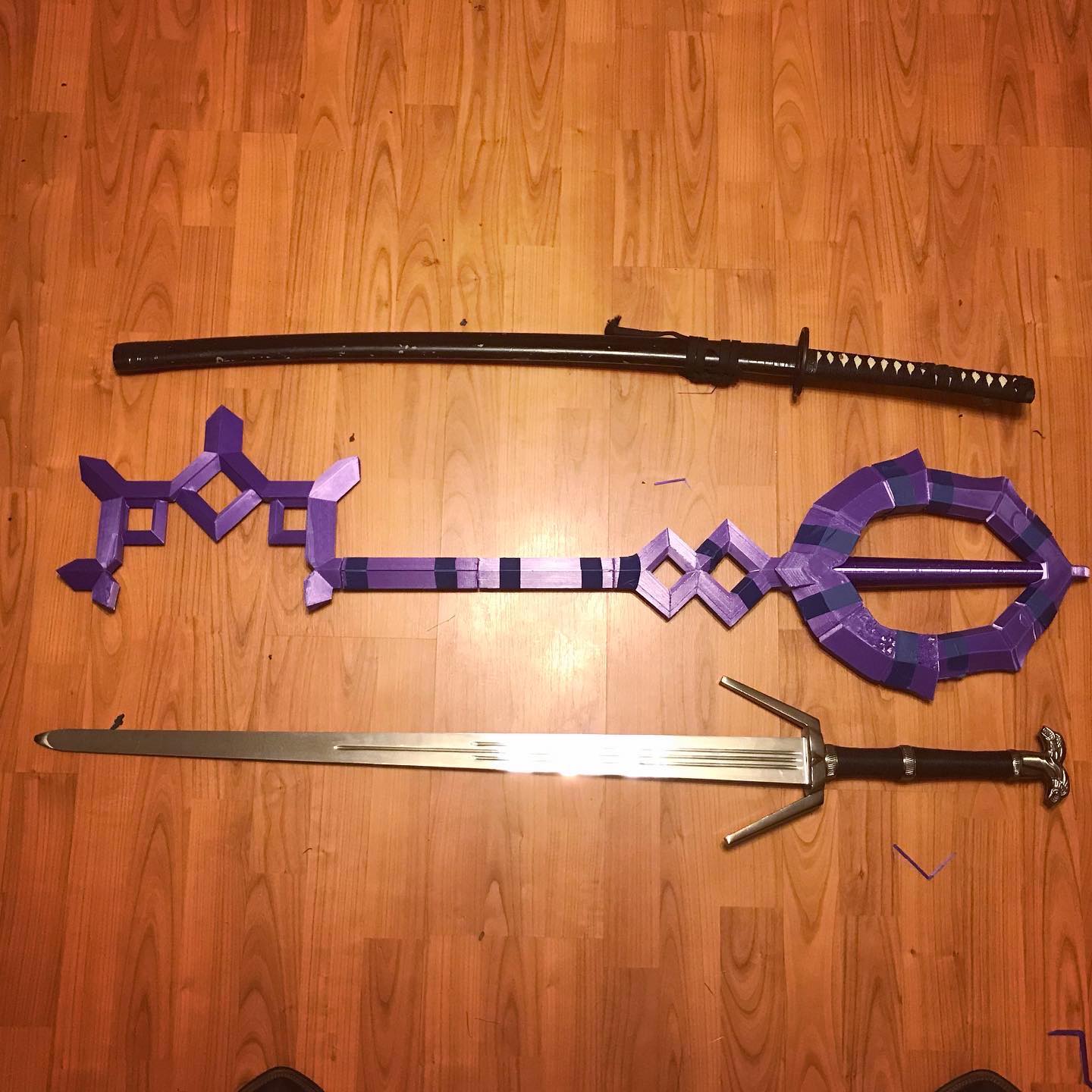

Length ref next to my old competition blade and witch sword. blade 29 inches and the full length is around 44



[TecnicoNinja]

that's coming along nicely, that keyblade looks awesome, I will tell a friend who really likes keyblades.



[KGSupreme]

Nice! I've been working on Aqua's Rainfell Keyblade for too long now, really need to get around to finishing that. Native Texan over here as well, winter storm shirley really messed stuff up.

There may be another way to approach this, but do you take suggestions/requests/commissions? PM me if that's a possibility.



[shadowbreakre]

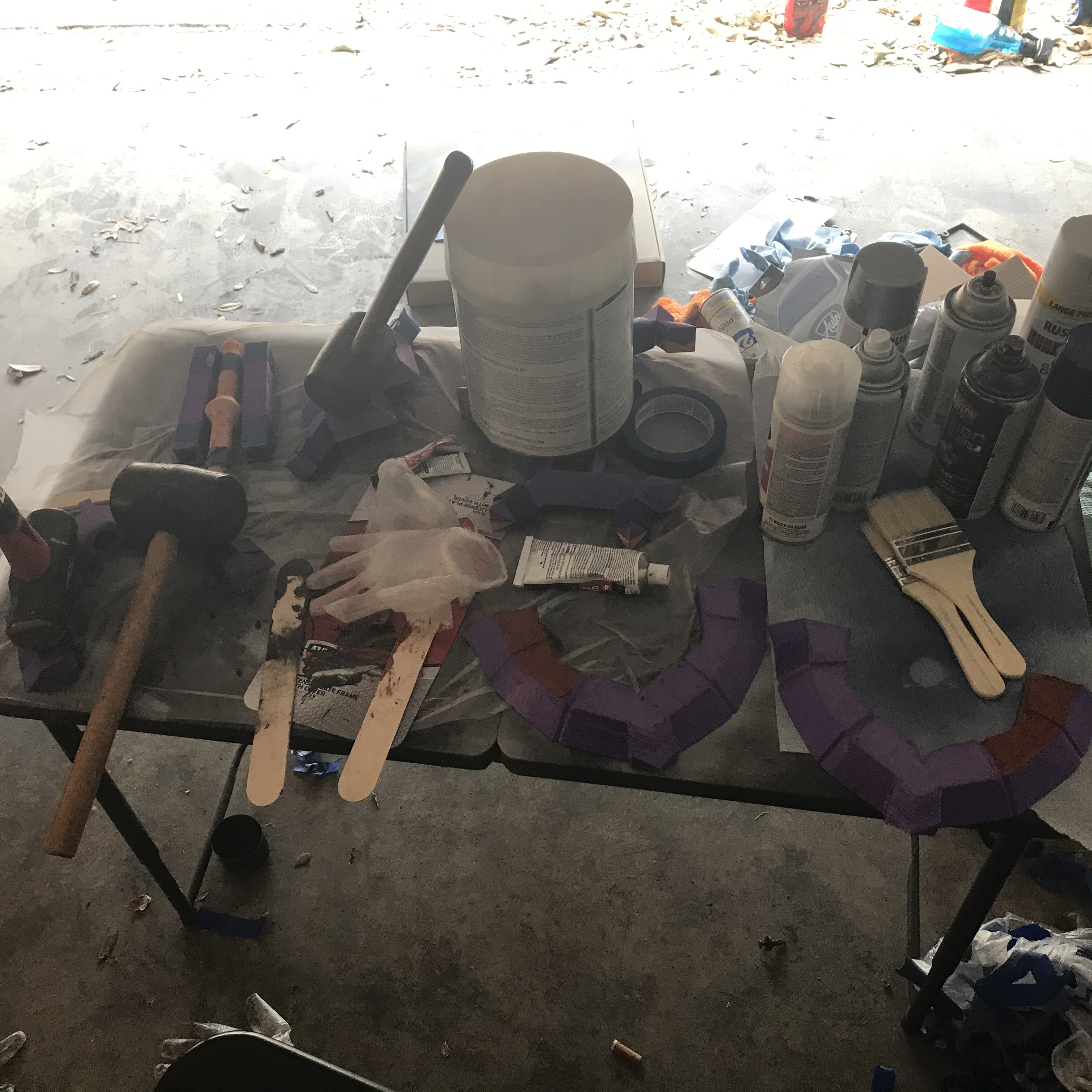

All pieces printer and fitted. Now to wait 24 hours for the epoxy to cure. Once that done I’ll use 3D printing resin for smoothing the pieces, then stick them together with more epoxy to before final sanding and painting



[Hein B287]

never been a fan of kingdom hearts. but these swords do loke pretty awesome.



[shadowbreakre]

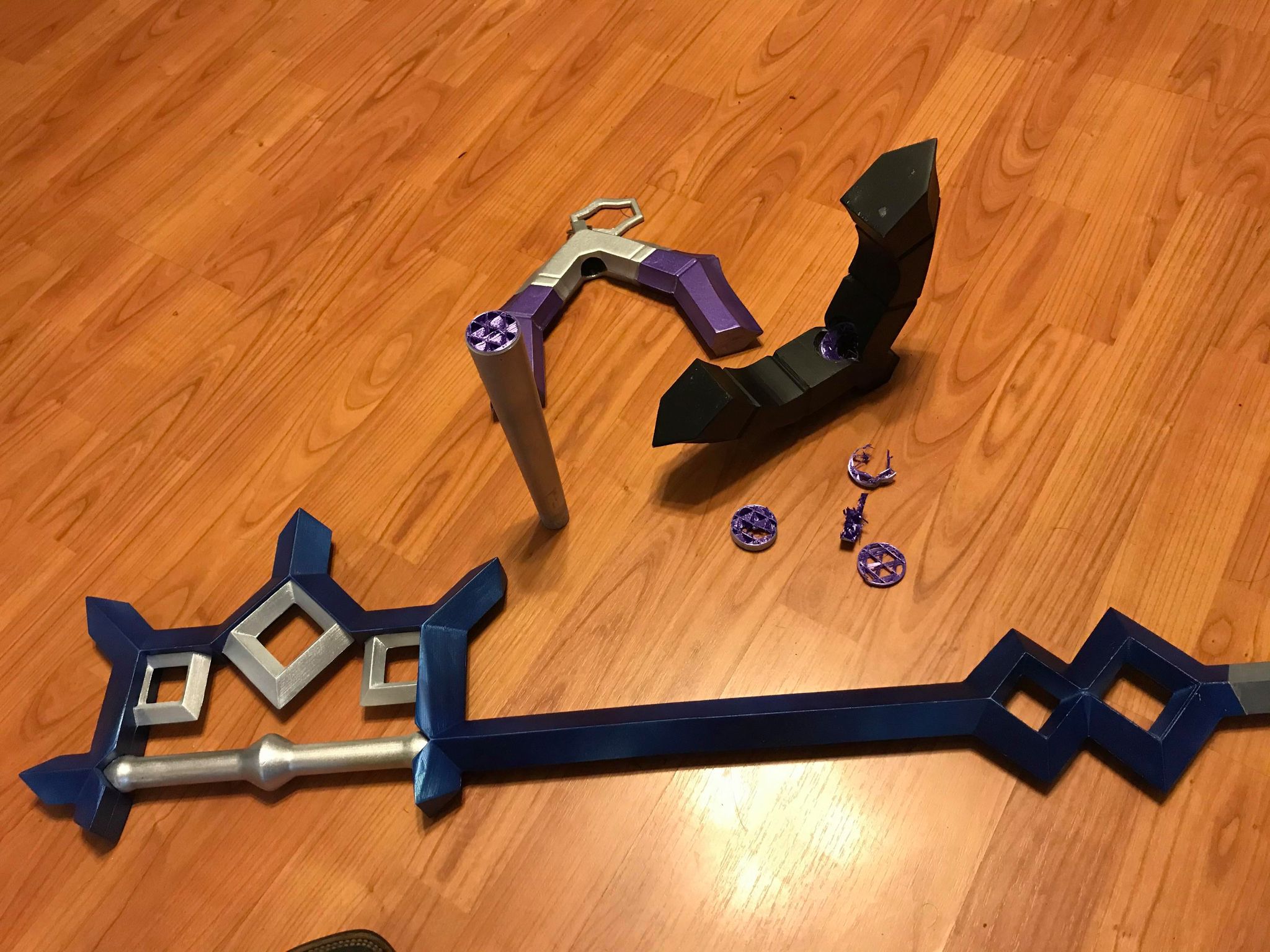

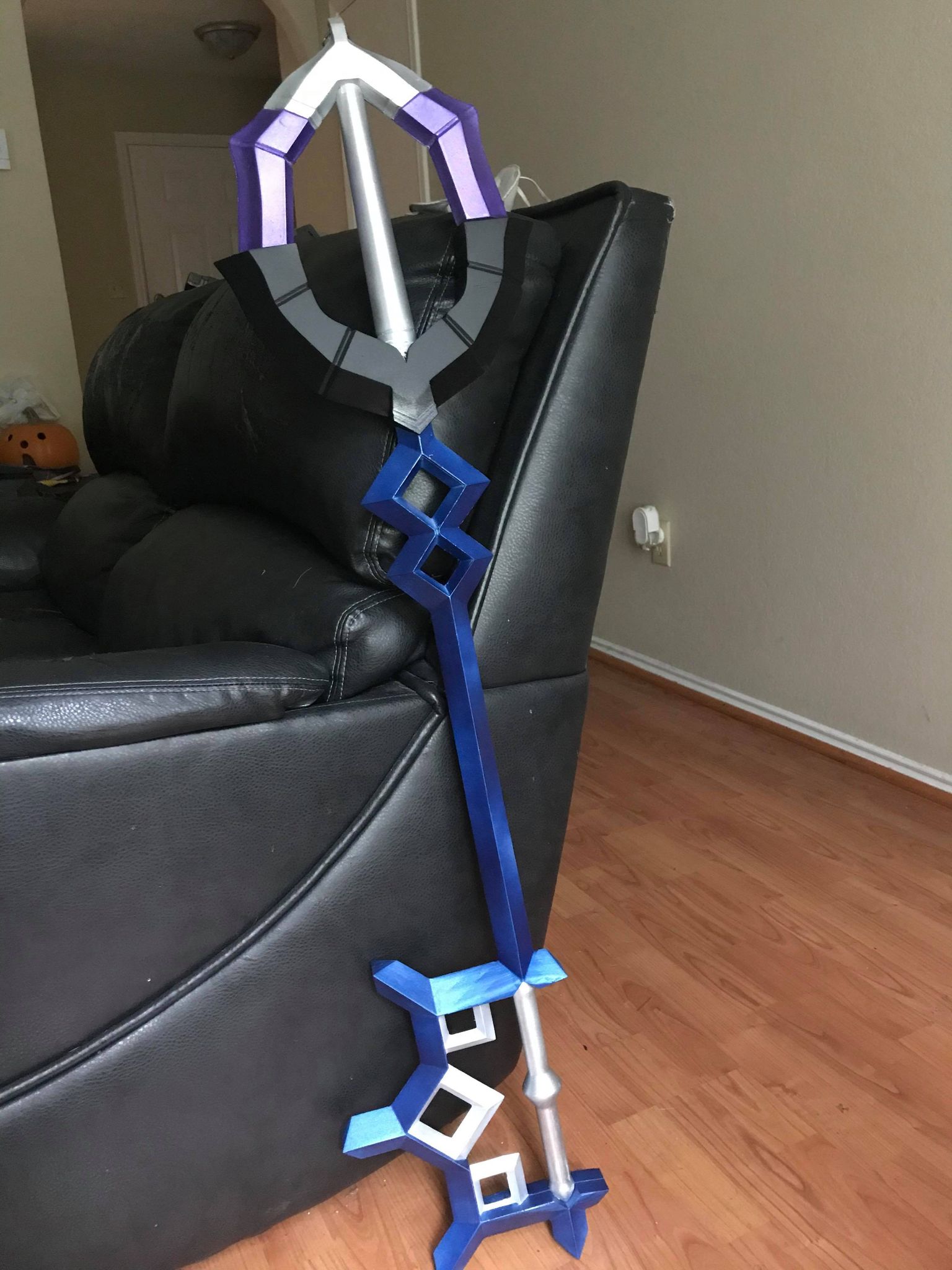

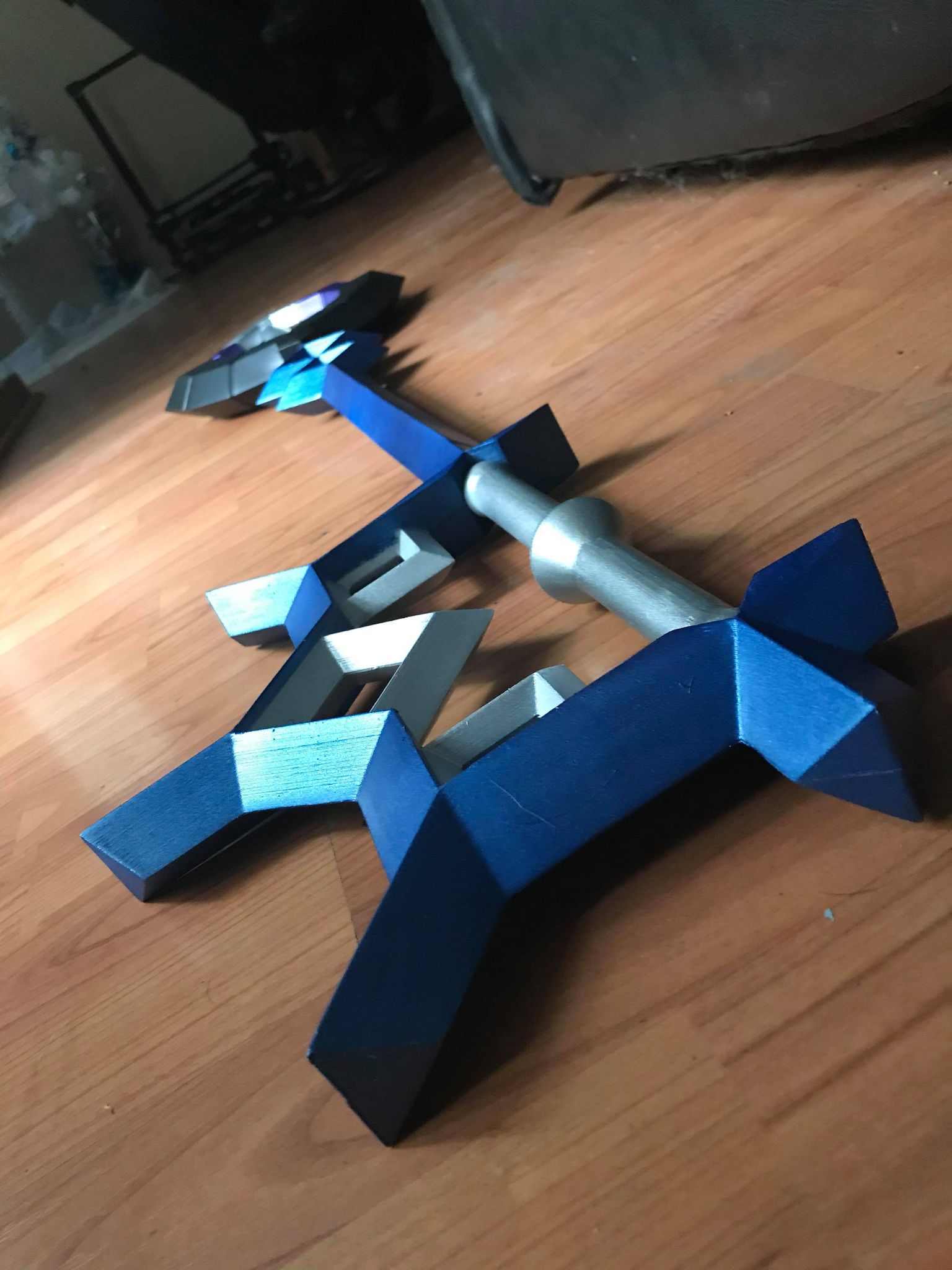

I finally finished Aqua’s storm fall keyblade!... then I promptly dropped it on concrete and broke the handle.

Since it was glued into the guard I have to now reprint that piece as well pieces. FML. Luckily the blade was not damaged.

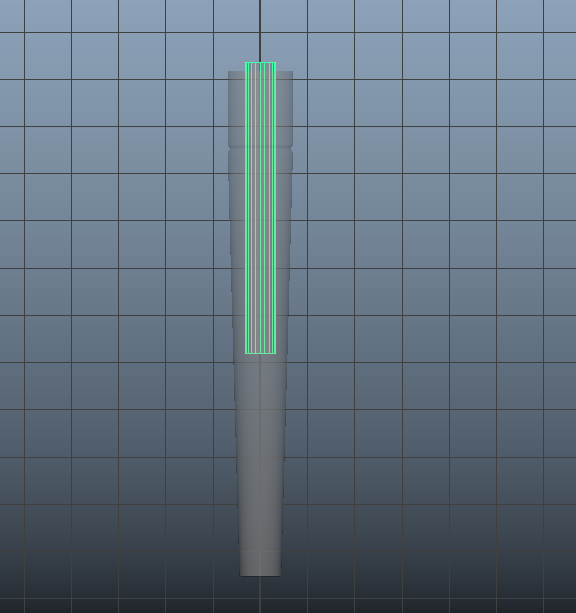

The reason it broke was because when I printed the the handle I made the walls too thin and with not enough infill. The crease toward the top created a week point and since it wasn't properly reinforced, it broke. I will obviously correct this when I fix it. I will also be remaking it so I can put in one of my printed dowels just for good measure.

Right now though my printer is busy making armor so it will be a while before I fix it.
