M6D Magnum (H1)

Discussion in 'Halo 3D Modeling' started by CollinMcCaf, Dec 8, 2018.

  1. CollinMcCaf

    CollinMcCaf Member

    Trophy Points:
    105
    Wanna see more? Be sure to check out CollinMcCaf's Model Repository!

    Its finally done! Winter break gave me a bit of free time :)
    I've updated the file (01/04/19), this one is in two parts to reduce the amount of support material required. Be sure to sand these two mating surfaces really well before gluing them together, as there shouldn't be a visible split line for this model.
    M6D.zip

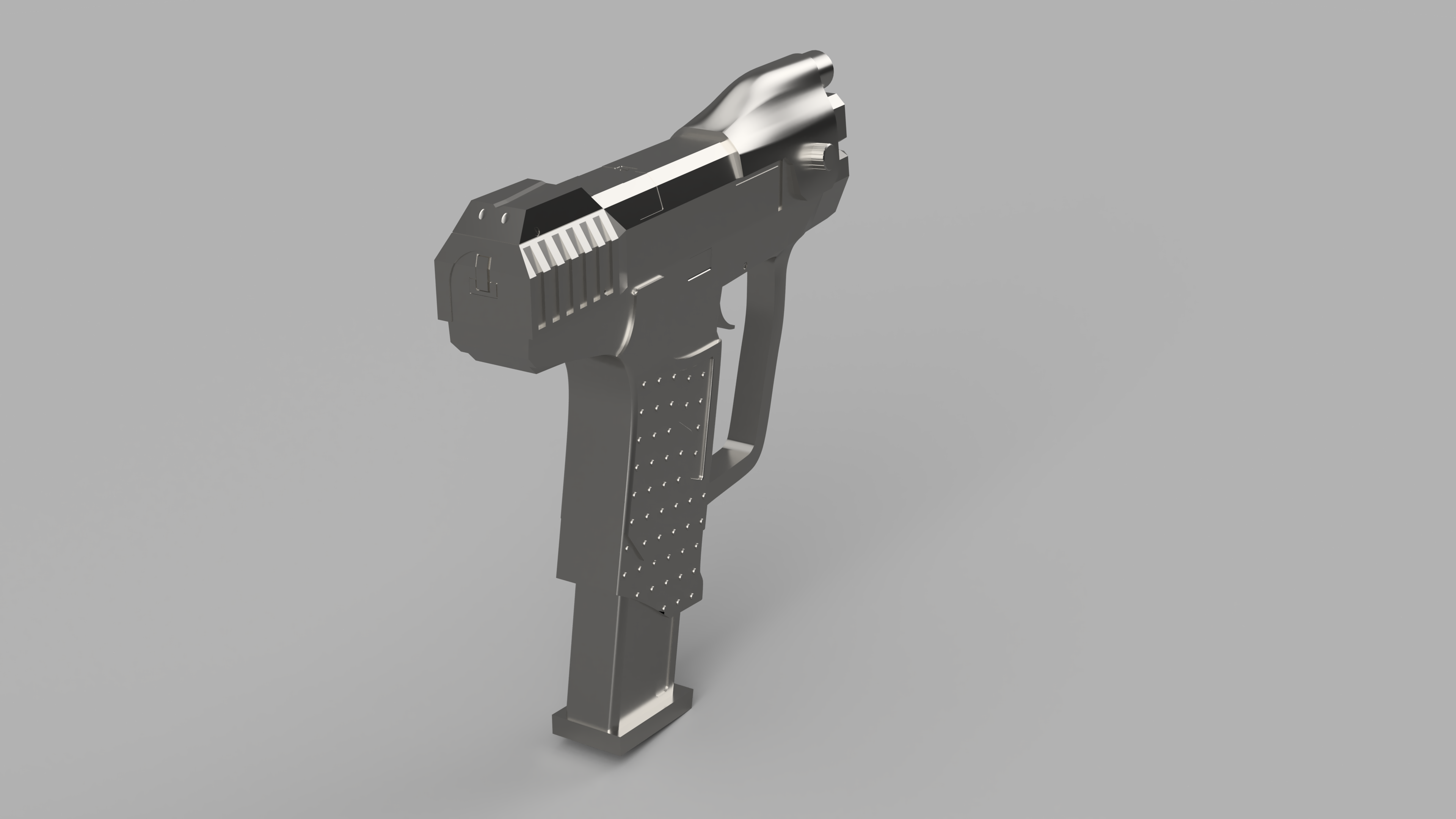

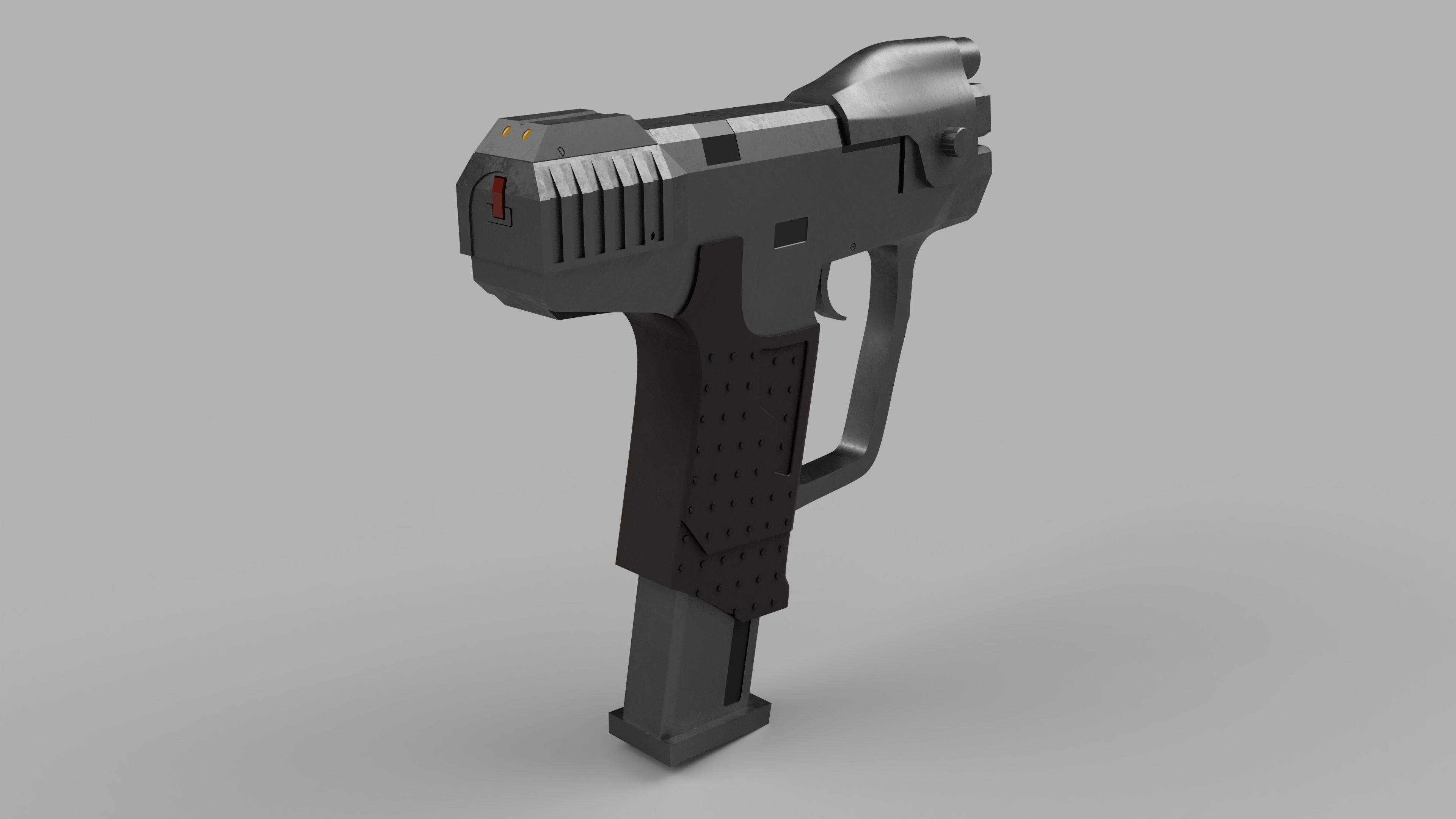

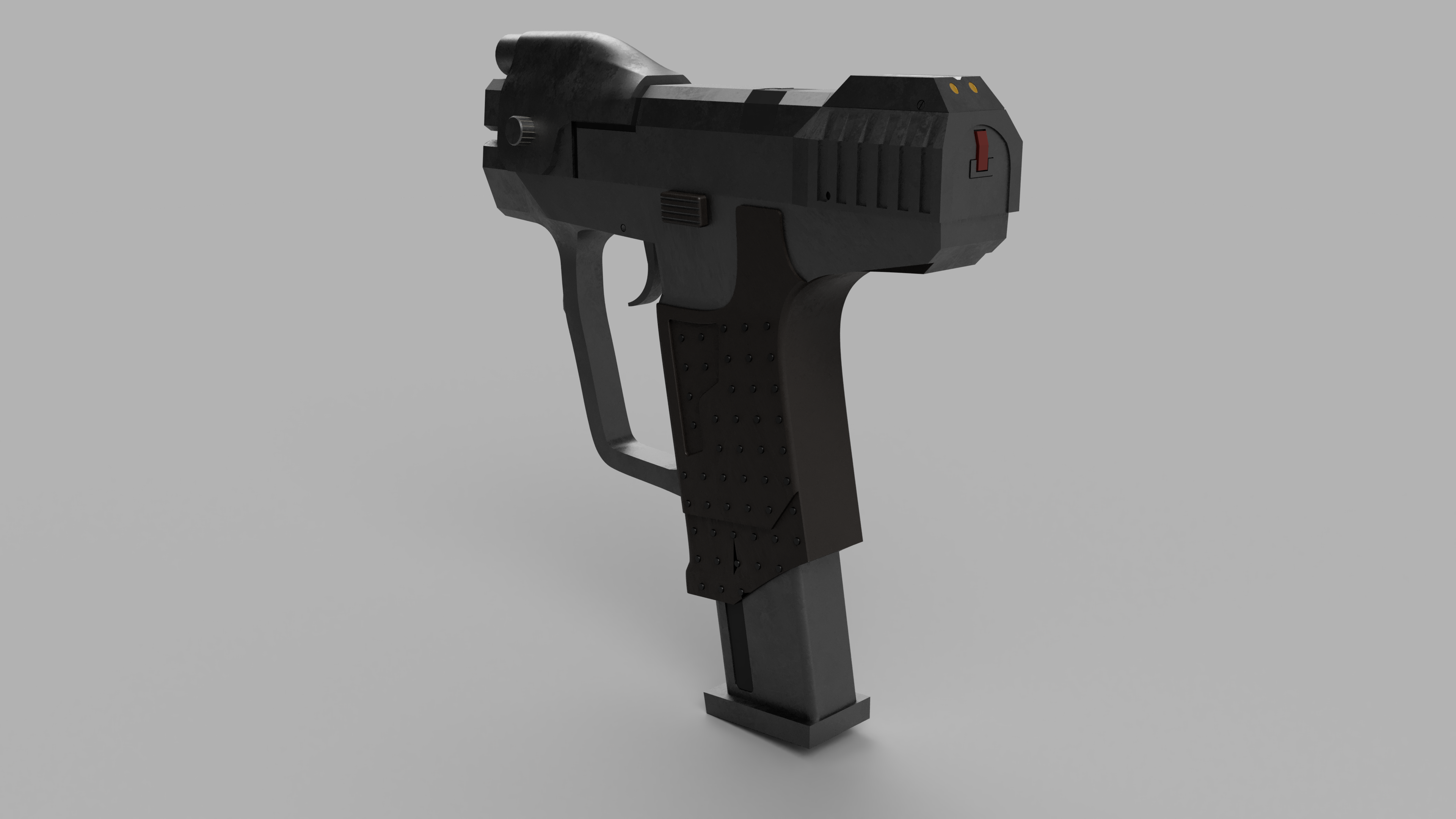

    M6D-1.png M6D-3.png M6D-4.png M6D-5.png M6D-6.png

    Printing recommendations:
    **Unless you're using an SLA printer, you will not be able to print all the details**

    I would highly recommend a 0.2mm nozzle using a 0.1mm (or smaller) layer height.
    Anything larger than either of these and you will see a major loss of detail.

    My estimated time to print:
    Magazine: 3 hours
    Receiver: 19 hours
    Slide:13 hours

    My slicer settings:
    60mm/s perimeter
    100mm/s infill,
    150mm/s travel speed
    750mm/s^2 accelleration
    15% infill
    0.2mm nozzle
    0.1mm layer height


    Original post:
    Heres a very early look at the Halo 1 M6D Magnum. I've nearly figured out all the geometry, there are just a few more tweaks to do before I begin adding the details. If anyone has some good reference material, please send it my way. (Original H1, not anniversary graphics).

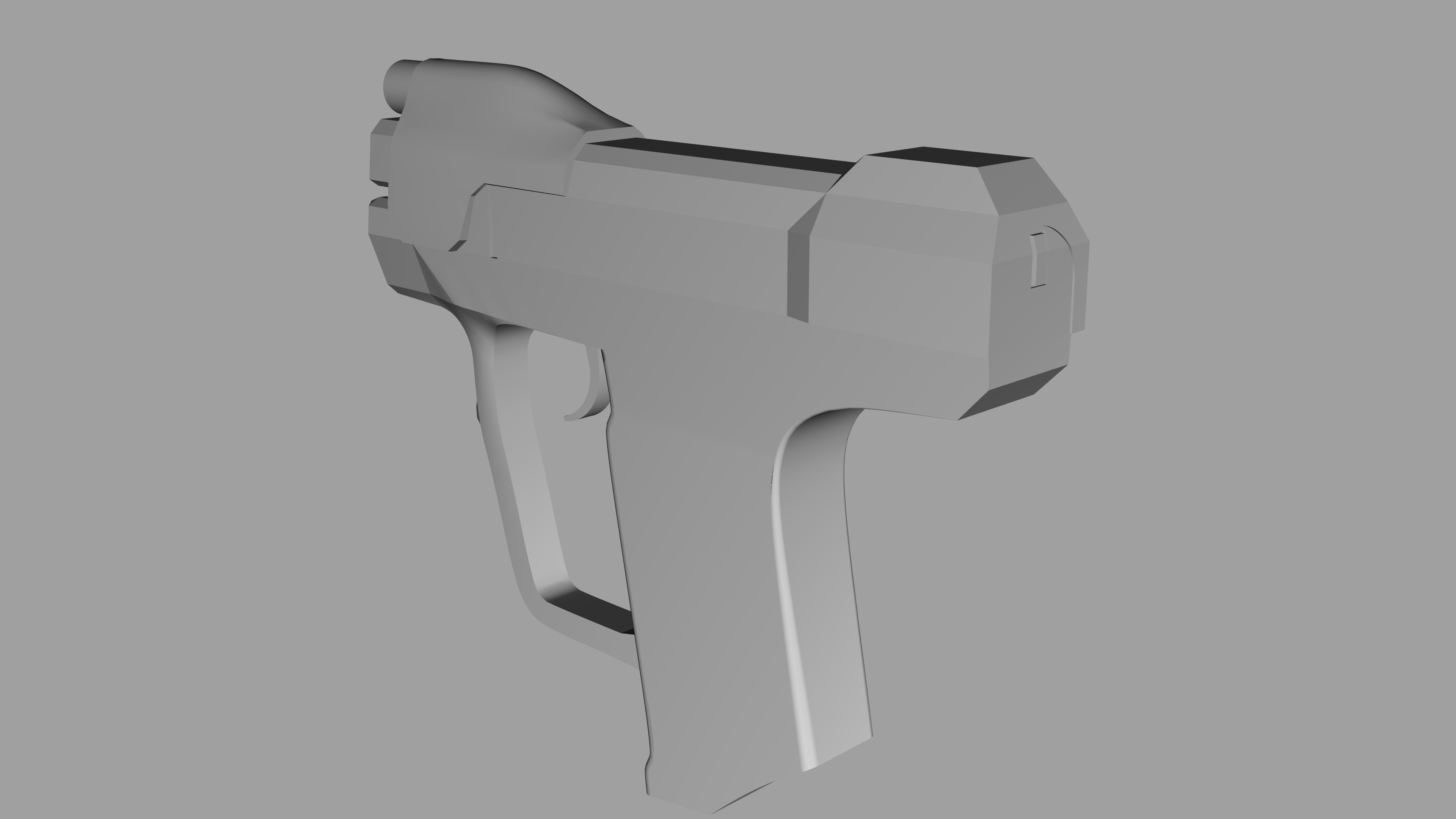

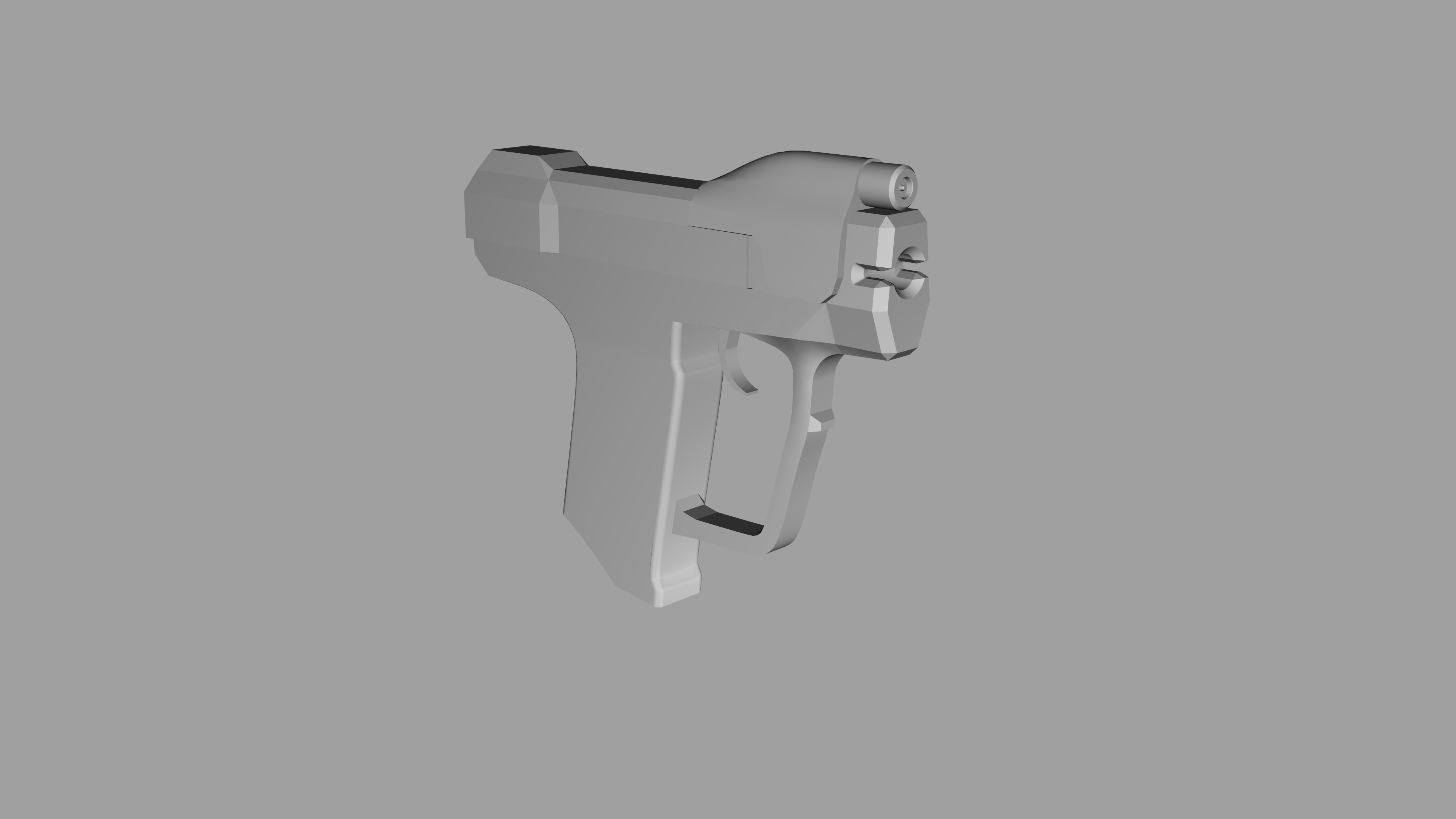

    M6D.jpg M6D_2.jpg


    Attached Files:

    Last edited: Jan 6, 2019
    Vesuro, oniwolf and Lieutenant Jaku like this.
  2. Vesuro

    Vesuro New Member

    Trophy Points:
    2
    Great work so far. Cannot wait to see the end result!

  3. CollinMcCaf

    CollinMcCaf Member

    Trophy Points:
    105
    Vesuro, wait no longer! Its finished!
    Ultimately I was unable to downsize the model from the 1.44 million polygons (every program I tried, crashed) so here it is in it's full 1,440,049 polygon glory.
    Here's the file and some renders (I used Fusion 360 this time)
    M6D.zip

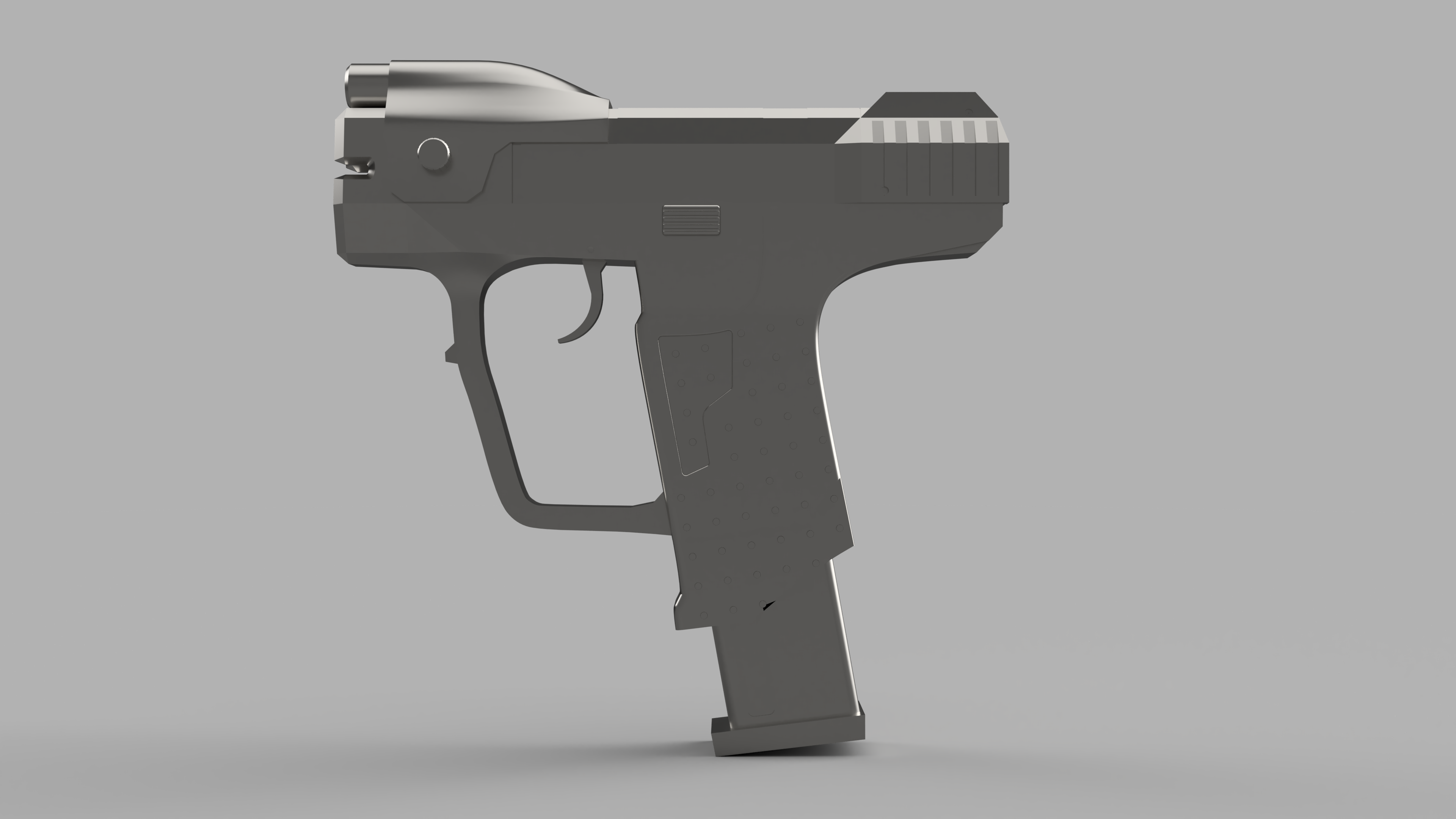

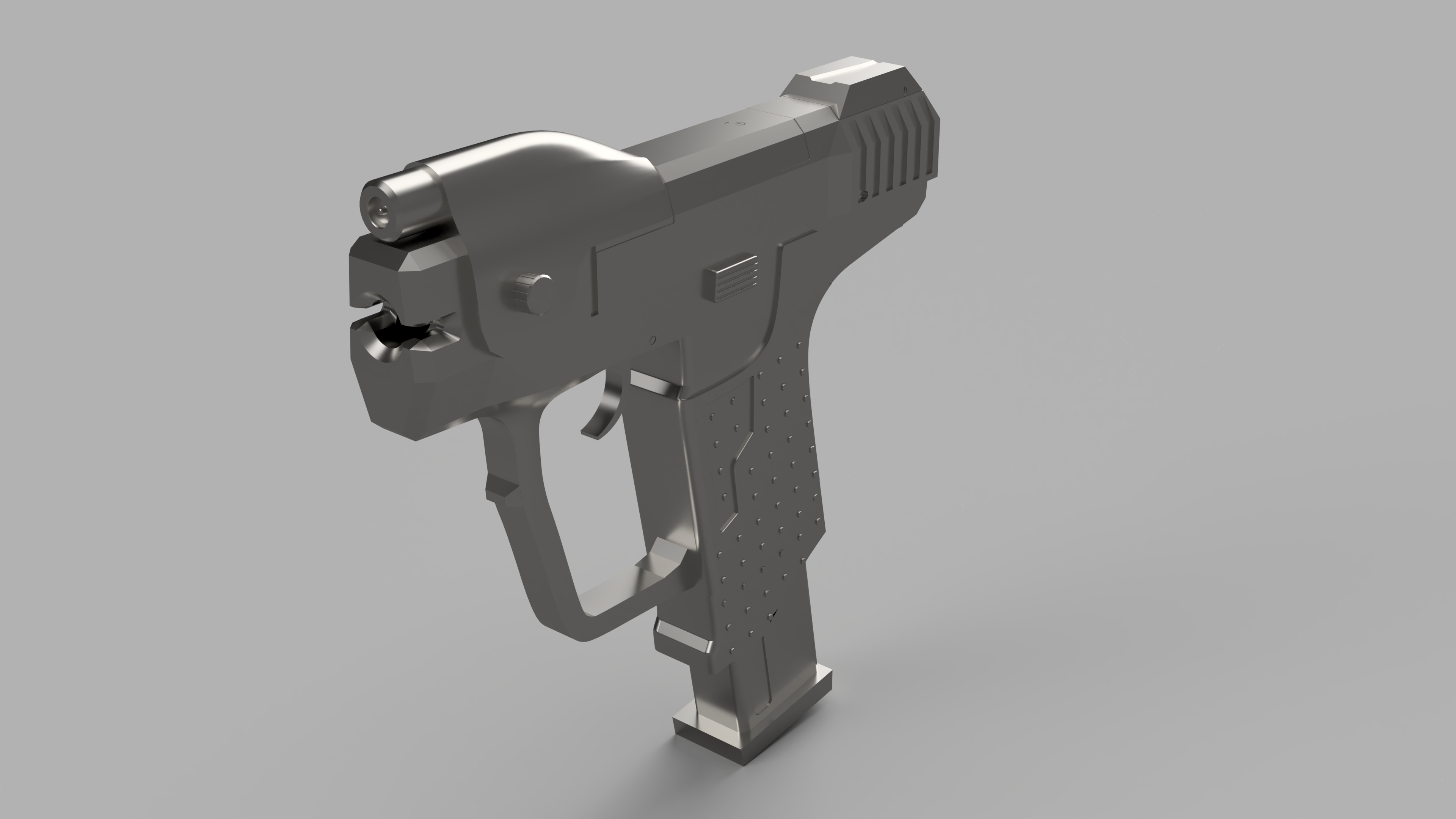

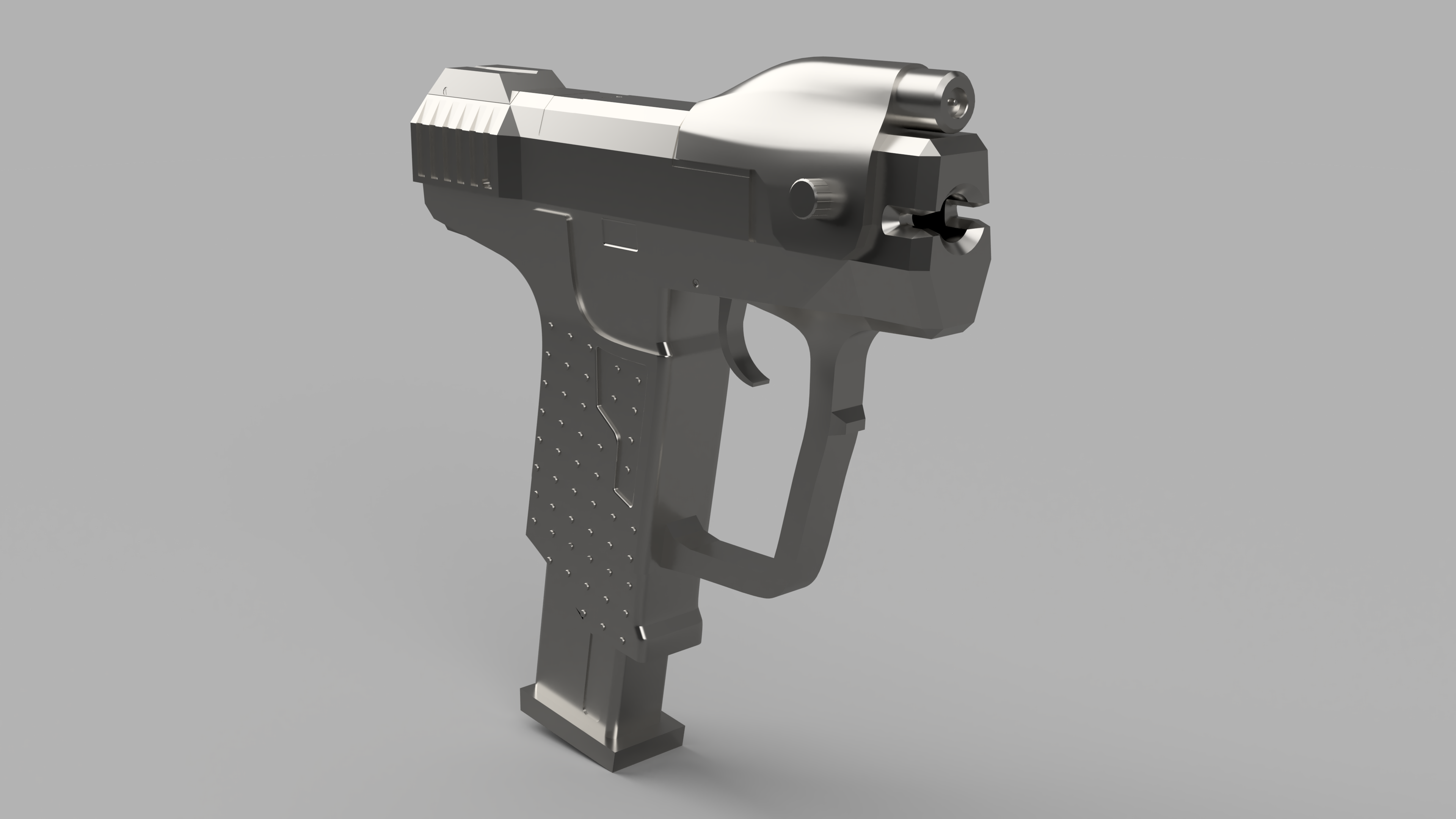

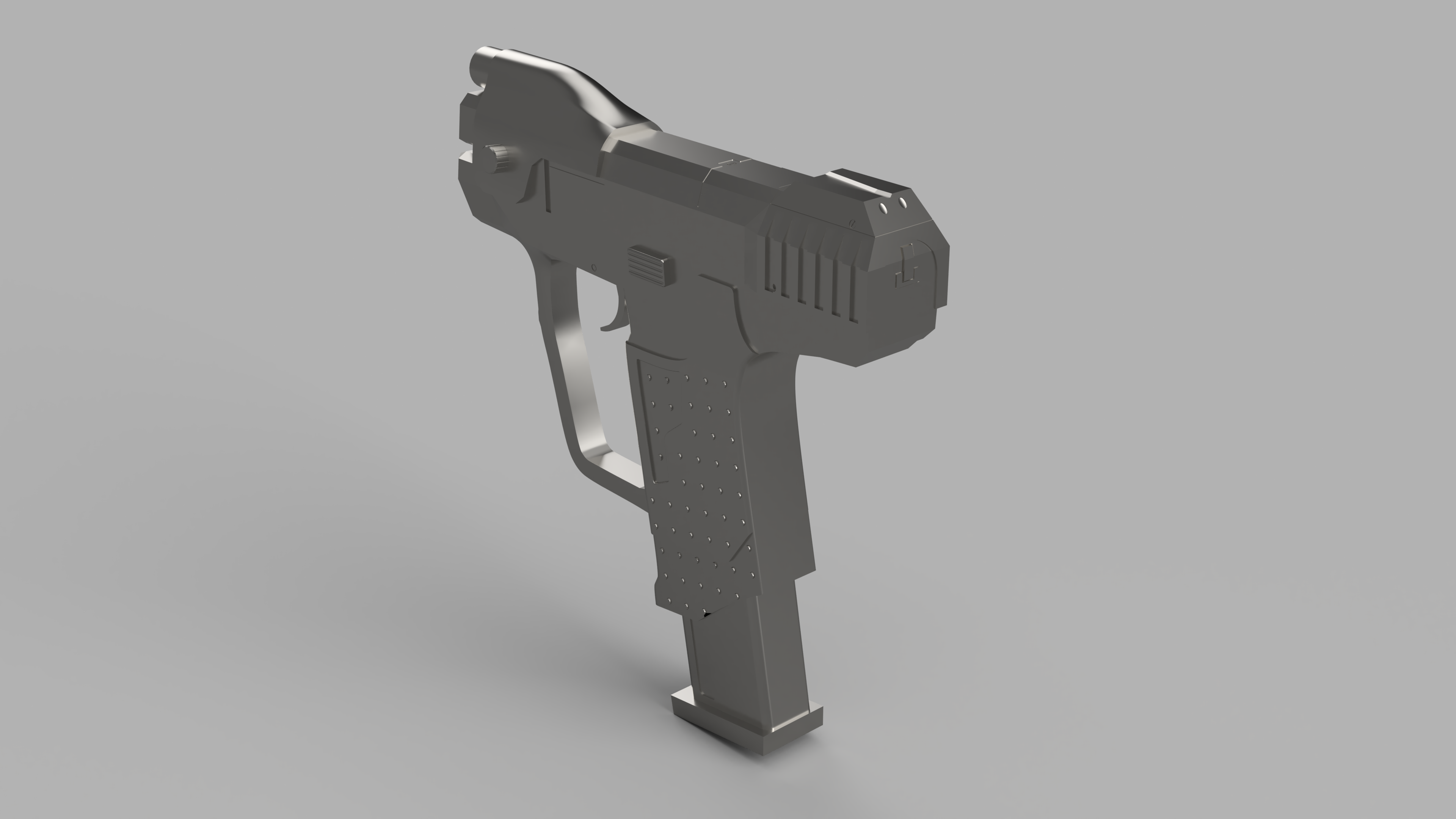

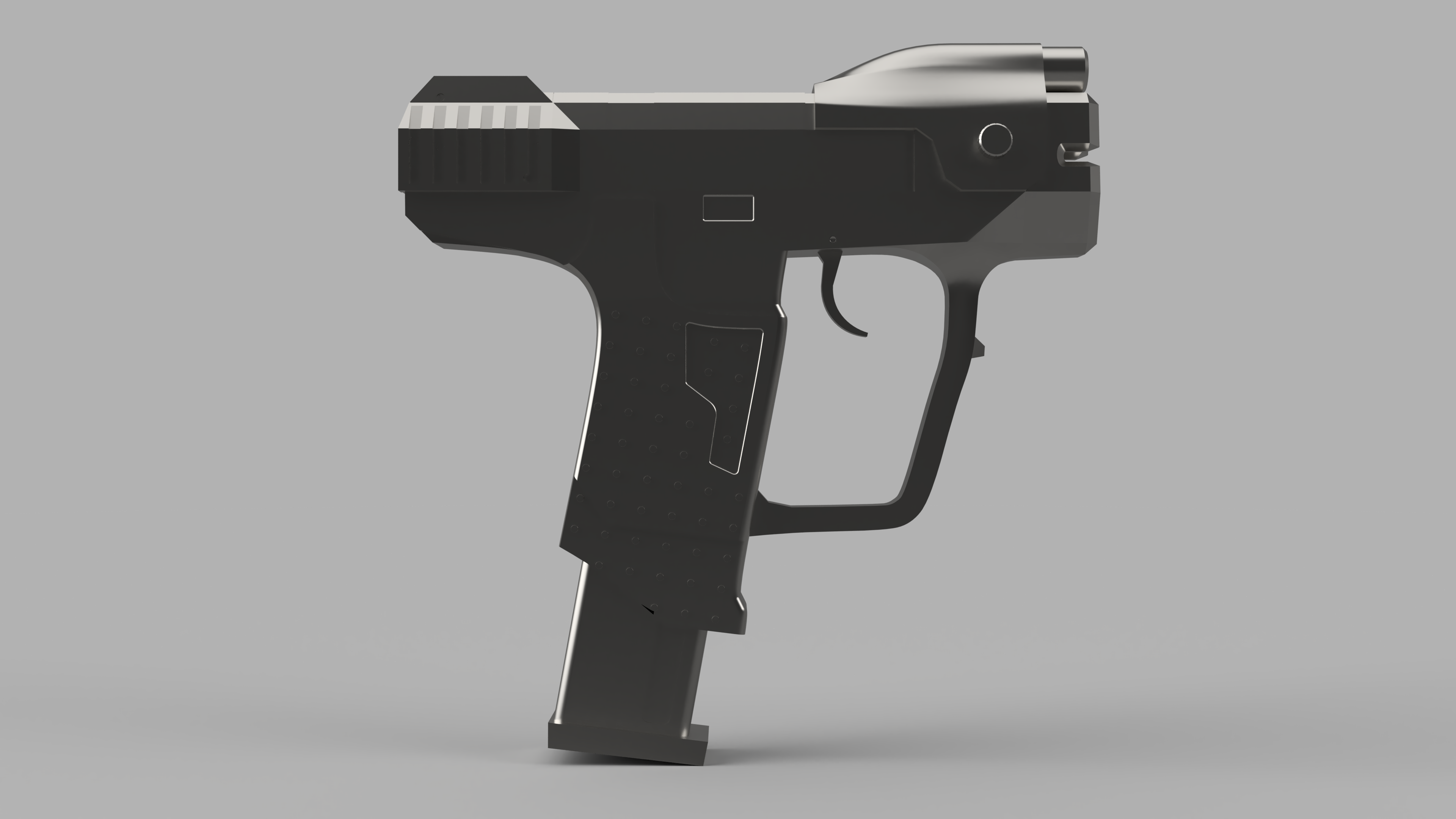

    M6D-1.png M6D-2.png M6D-3.png M6D-4.png M6D-5.png M6D-6.png

    Last edited: Jan 4, 2019
  4. ReClaimer8015

    ReClaimer8015 Member

    Trophy Points:
    145
    That definitifely pleases me....thanks for making these!
    Now i can see me doing this:


    oniwolf and CollinMcCaf like this.
  5. xXDashIVXx

    xXDashIVXx Active Member

    Trophy Points:
    245
    Make sure that printing filament is sturdy!

  6. SI3RRA 117

    SI3RRA 117 Well-Known Member

    Trophy Points:
    835
    That’s one sexy model. Amazing job!

    CollinMcCaf likes this.
  7. CollinMcCaf

    CollinMcCaf Member

    Trophy Points:
    105
    I'm going to post some better renders as soon as I can get Fusion to play nice again. I found a way better material :)

  8. Squizzy

    Squizzy New Member

    Trophy Points:
    3

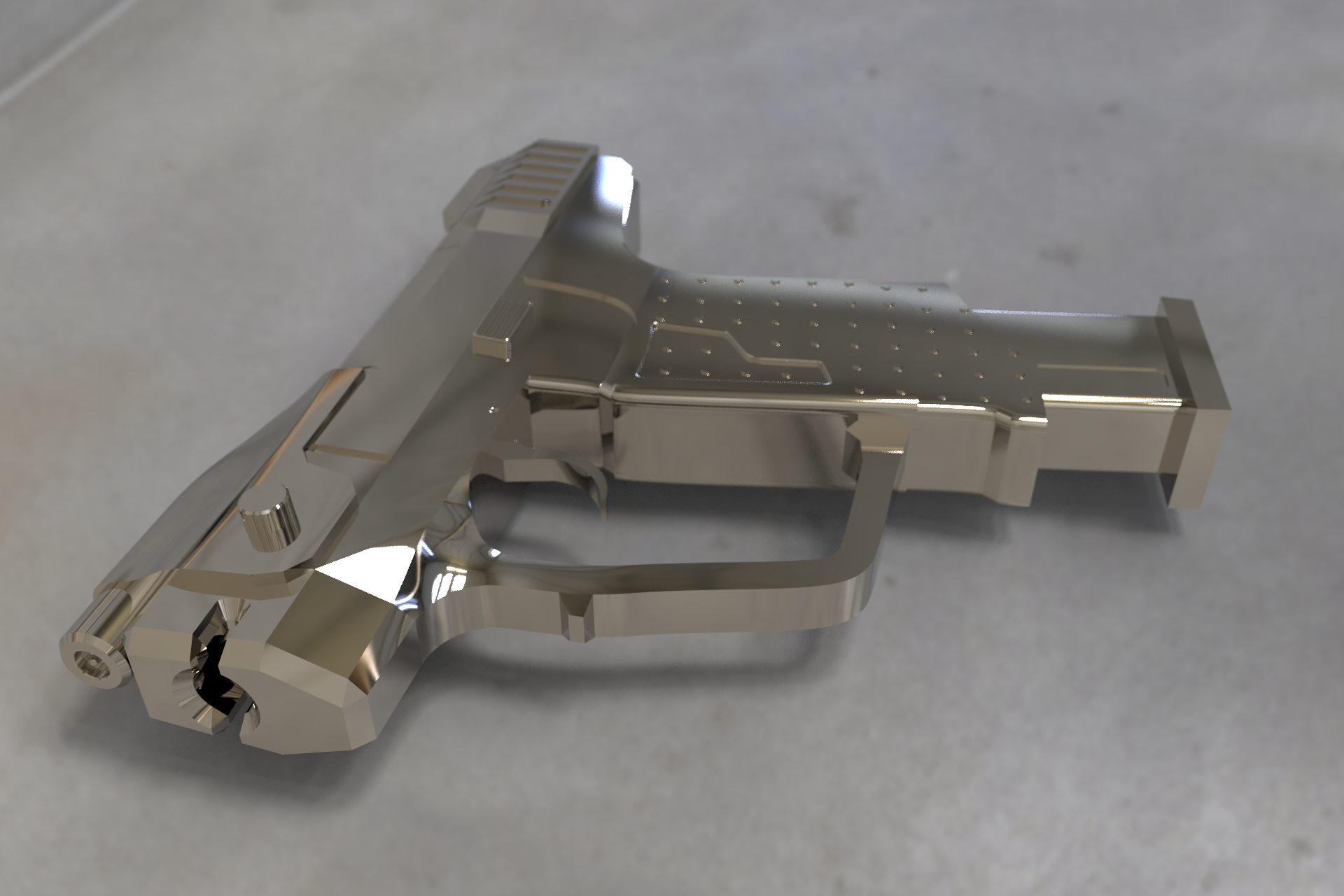

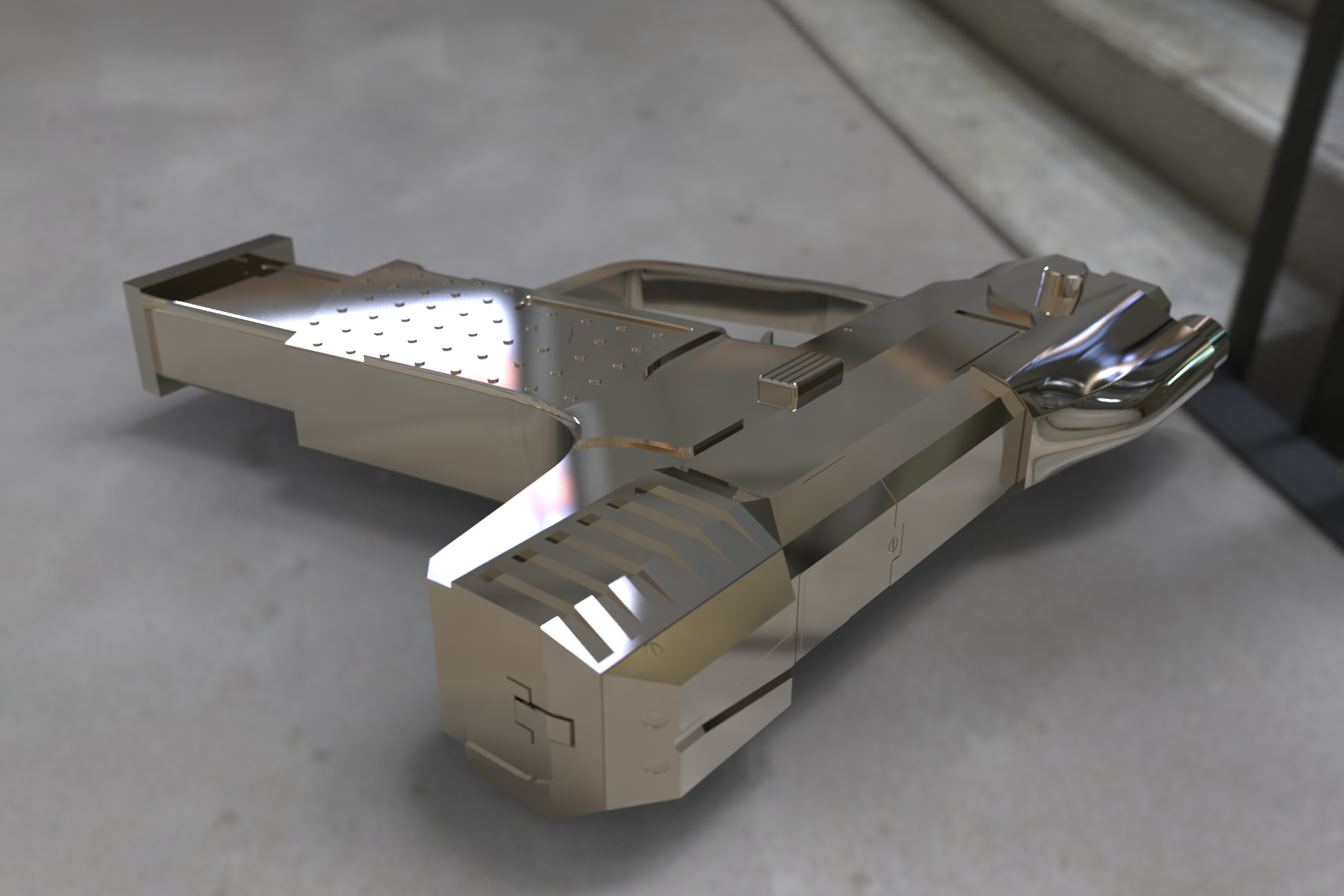

    Your renders will probably look better CollinMcCaf, but I just had to have a go at a quick render in Keyshot :) untitled.69.png untitled.71.png

  9. CollinMcCaf

    CollinMcCaf Member

    Trophy Points:
    105
    Those are still pretty good though, my computer is still chugging along. For whatever reason there isn't gpu based rendering in Fusion XD

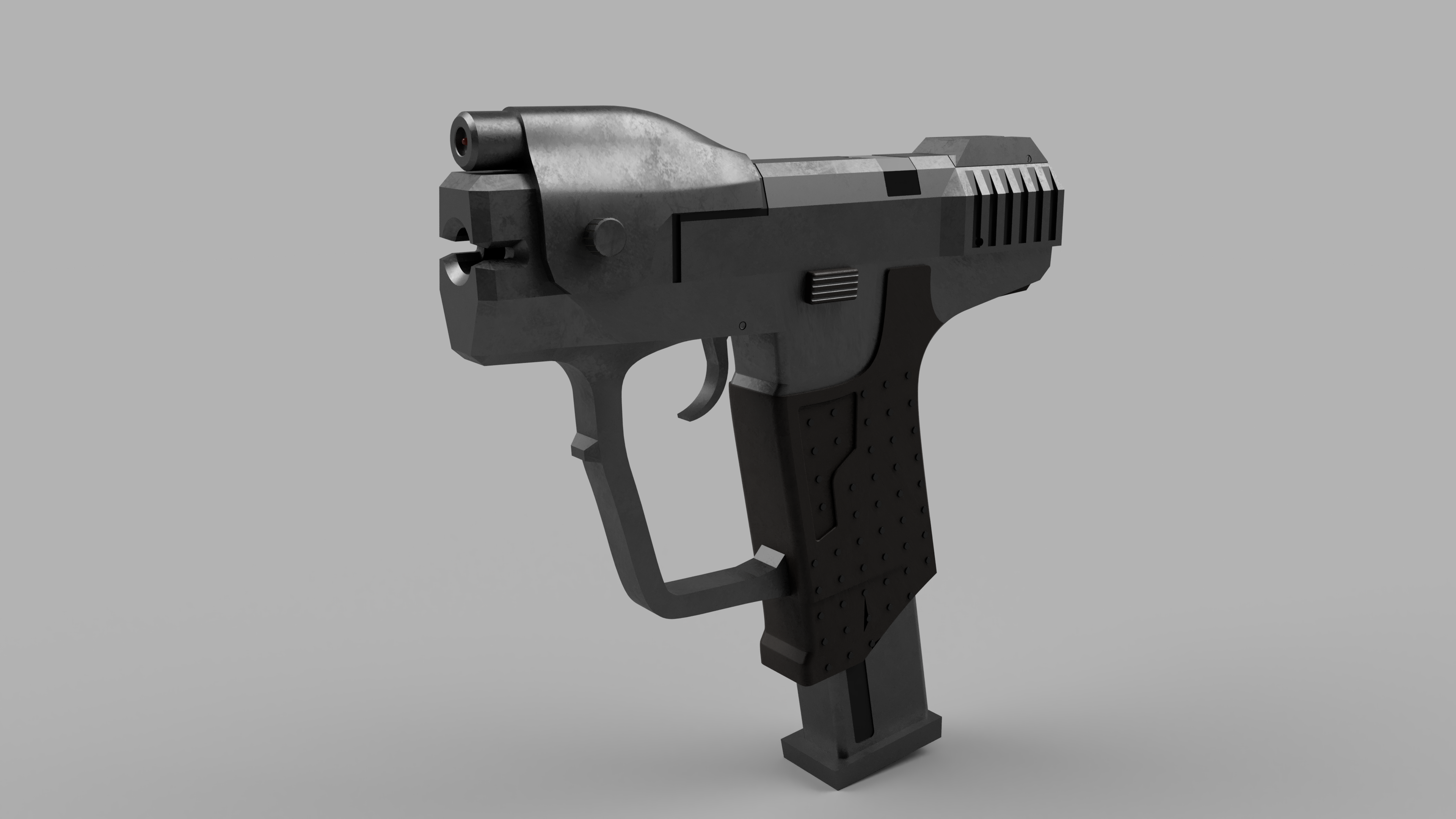

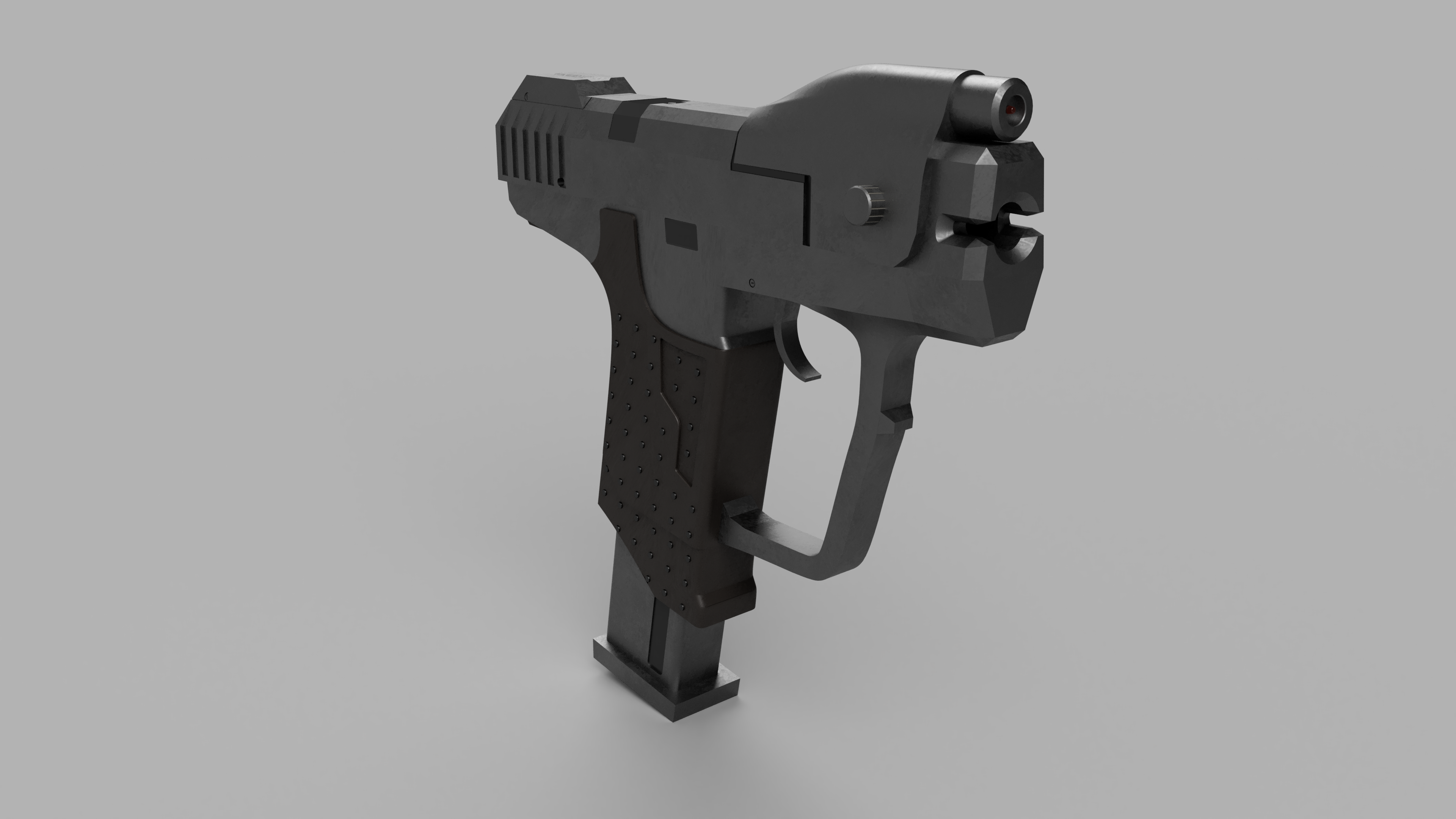

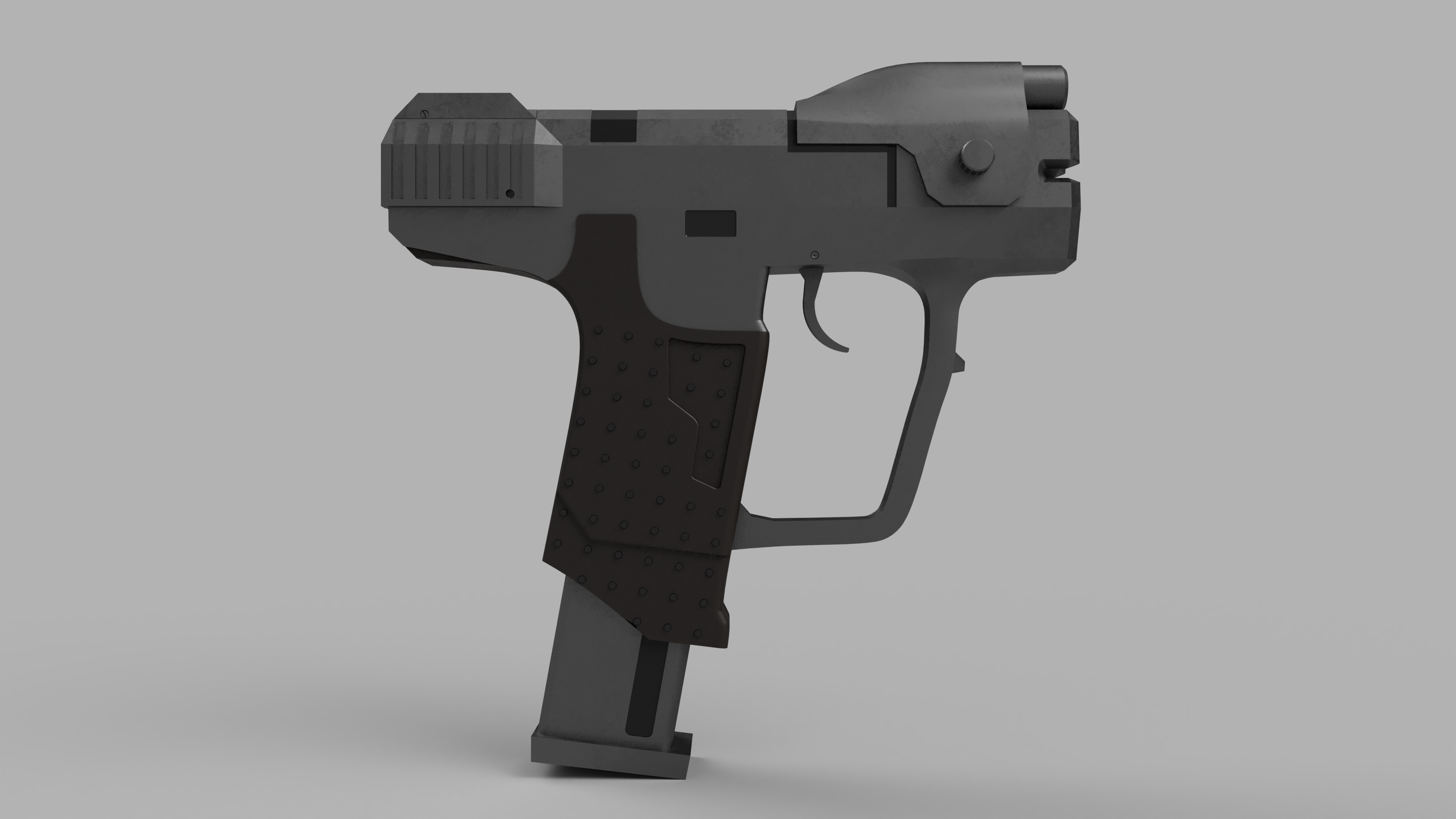

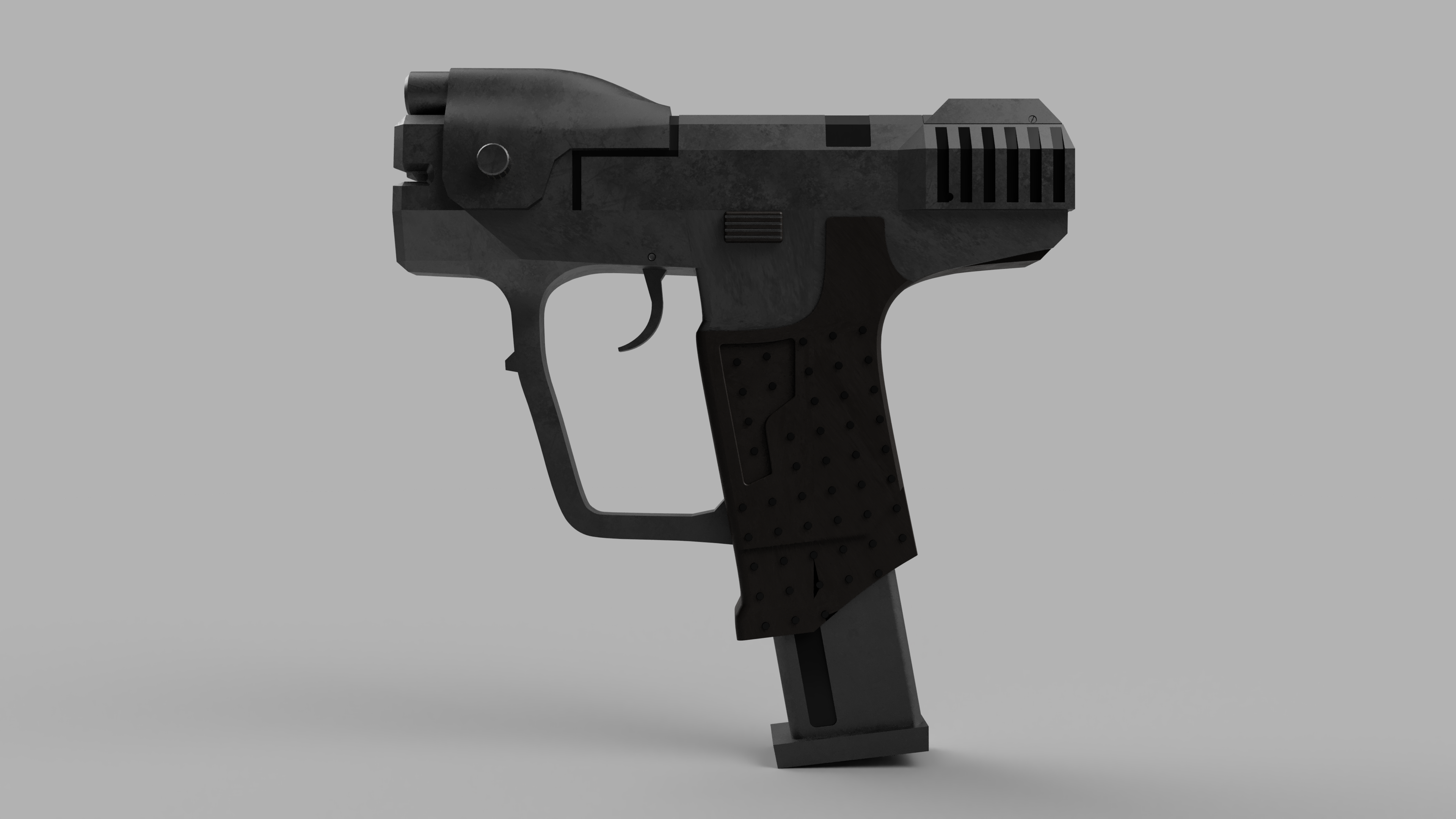

    *Updated renders have been posted*
