M6D rapid prototype with Nerf - CAD only - pic heavy

[rah66]

************************************************** *****************
//edit:
since I'm not able to change the thread title: this is not a M6D, but a M6G. sorry for the confusion.
************************************************** *****************
Once again, I'm trying to make a functional Halo gun out of a Nerf gun.
But this time, I'm only using the internals of the Nerf Longshot front-gun, and give them a new home in an RP-body.
The body is modeled to 80% so far, but i need some advice from you now - how exactly are the grip plates of the M6D from reach looking? I found several references online, but they all seem to use different styles.

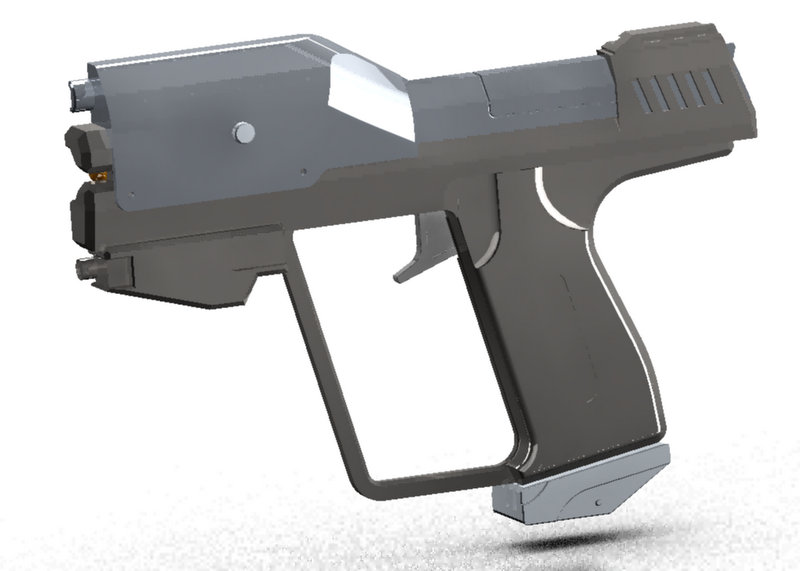

What i got so far:

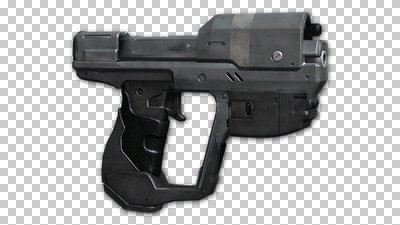

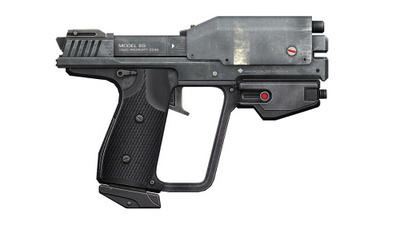

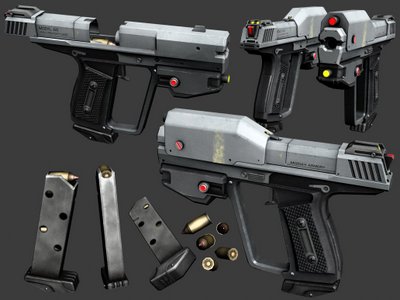

the references i used (notice the three different grips):

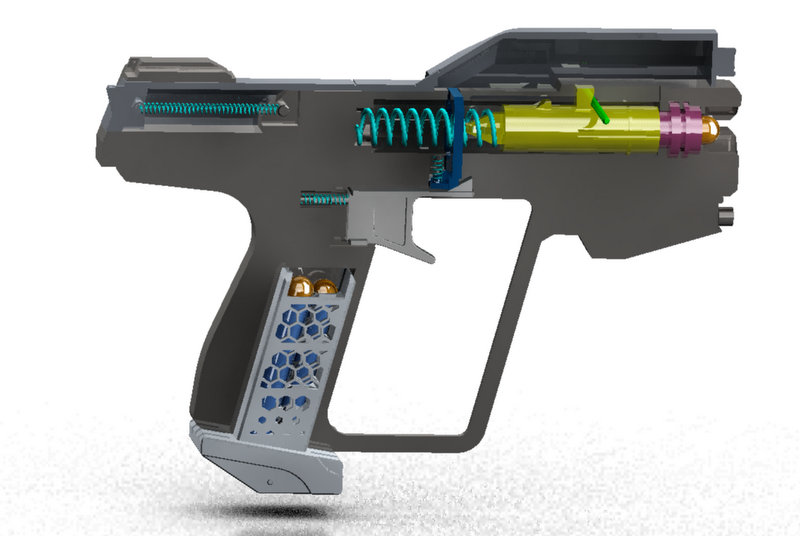

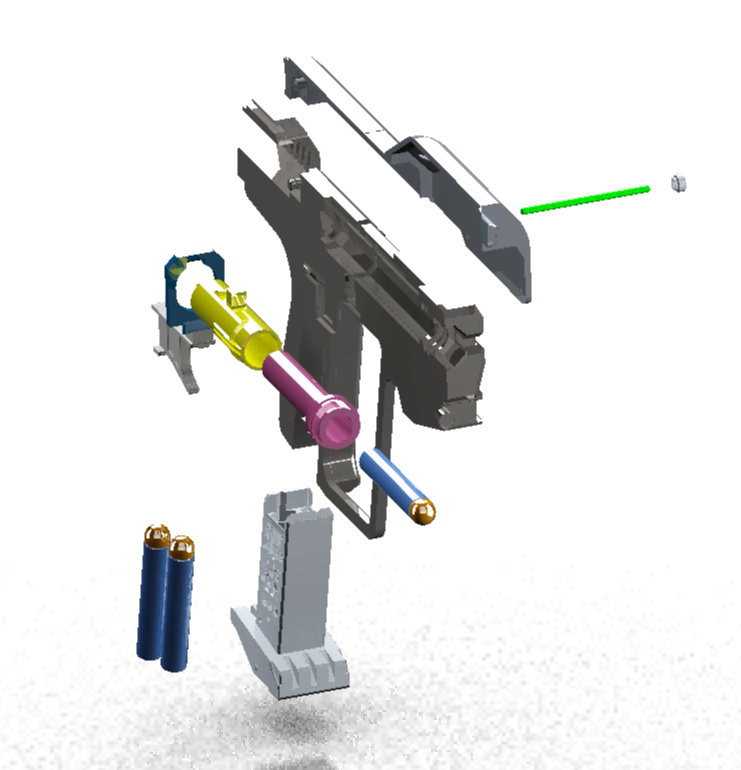

the internals (i want to be able to shot my friends with this thing!) - the yellow and the pink parts are from the Nerf gun:

and this is a video how it's supposed to work:
[video]http://jrm.bplaced.net/assault_rifle_praes/M6D/M6D_MOVE.mpg[/video]
to do list:
- clip release switch (functional)
- second half of the body
- connectors
- get a laserpointer and integrate it in the lower front
- find a 3D printer...



[Xav kitsune]

Direct plunger, rather than the reverse plunger you have in the image, would be able to shoot farther and he a bit more compact. Also this is the M6B(first image and third) or the /M6H(second image), the D does not have the mag counter weight nor the under mounted lazer.



[imamorron]

holy cow, that would be so cool to have with a suit! are you planing on 3D printing it or having it made?



[CasualCosplayer]

Very interresting. Can´t wait to see how this turns out!


Pat-



[NoMaybeYes]

I like your models. Youre still going to release your stock of the Assault rifle.



[DD117]

Mineminemineminemineminemine mine!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!



[Harri51]

super impressive



[Brandon McClain]

If you are able to get these working I might have to snag one...
