Master Chief Foam Halo Infinite /3d Prints 1:1/-Chief 118

Chief118

Member
Hallo, heute starte ich mein neues Projekt! Die Rüstung des Masterchiefs ^^ Halo Infinite

Ich werde meinen ganzen Arbeitsverlauf hier posten, bei Fragen oder vielleicht Tipps wäre ich

offen danke im voraus.


Tools, die ich benutze für meine Halo Rüstung

: Heißkleber: Nicht tropfende Heißkleber Pistole
: Sekundenkleber / für Foam
: Foam Cutter für Schrägen
: Einmal Handschuhe
: Schere für kleine Kanten usw.
: Scharfes Messer für / Foam / oder Laser Cutter bei kleinen Sachen.
: Messer Unterlage / Arbeitsplatz
: 3d Drucker / Für Feste Teile, Details, die nicht verrutschen sollen usw.

Material

: Foam/Schaumstoff Schwarz 10mm



Chief118 (y)

-----------------------------------------------------------------------------------------------------------
Hello, today I'm starting my new project! The Masterchief's Armor ^^ Halo Infinite

I will post my entire work history here, if you have any questions or maybe tips, please contact me


Chief118(y)

Last edited:

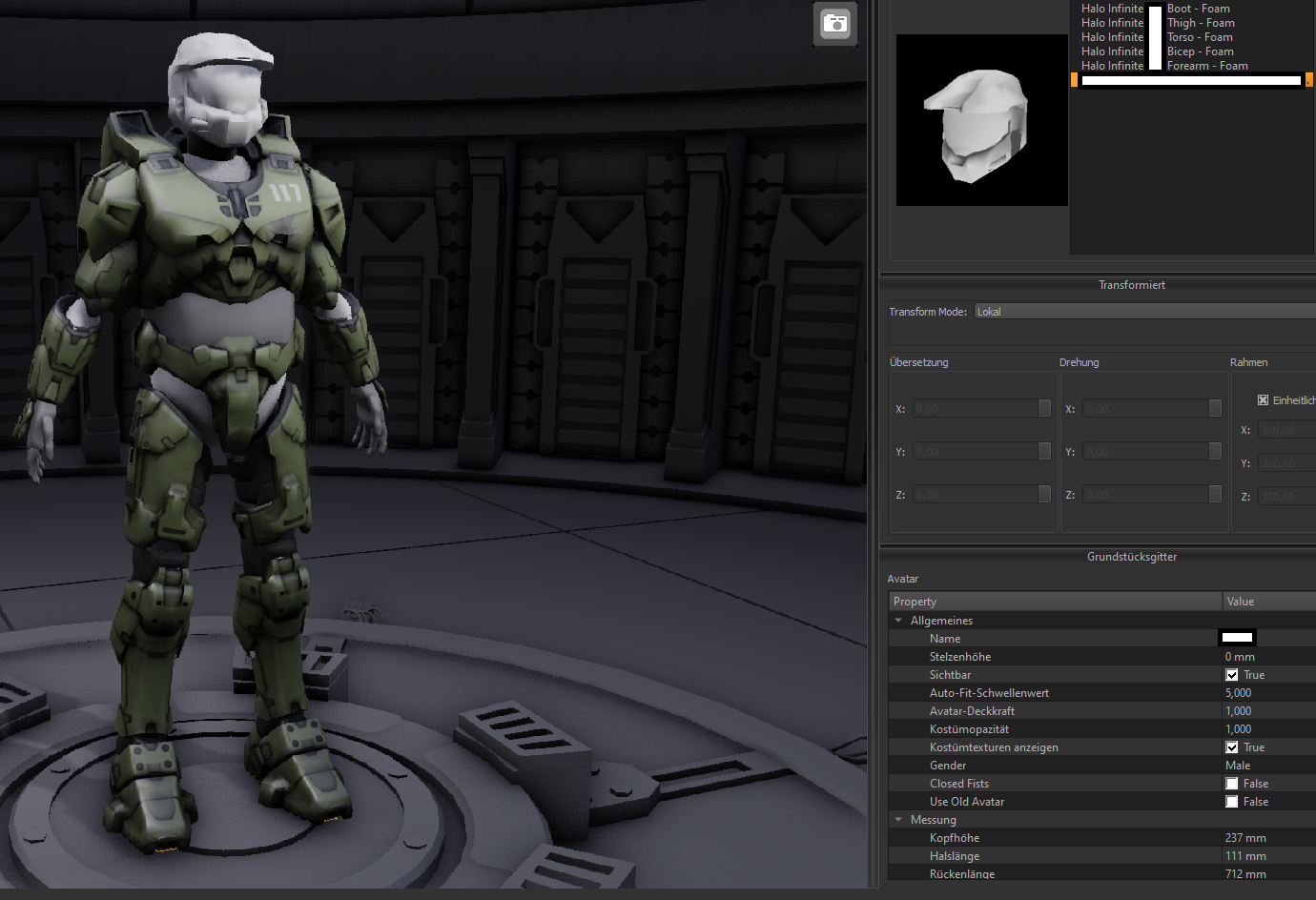

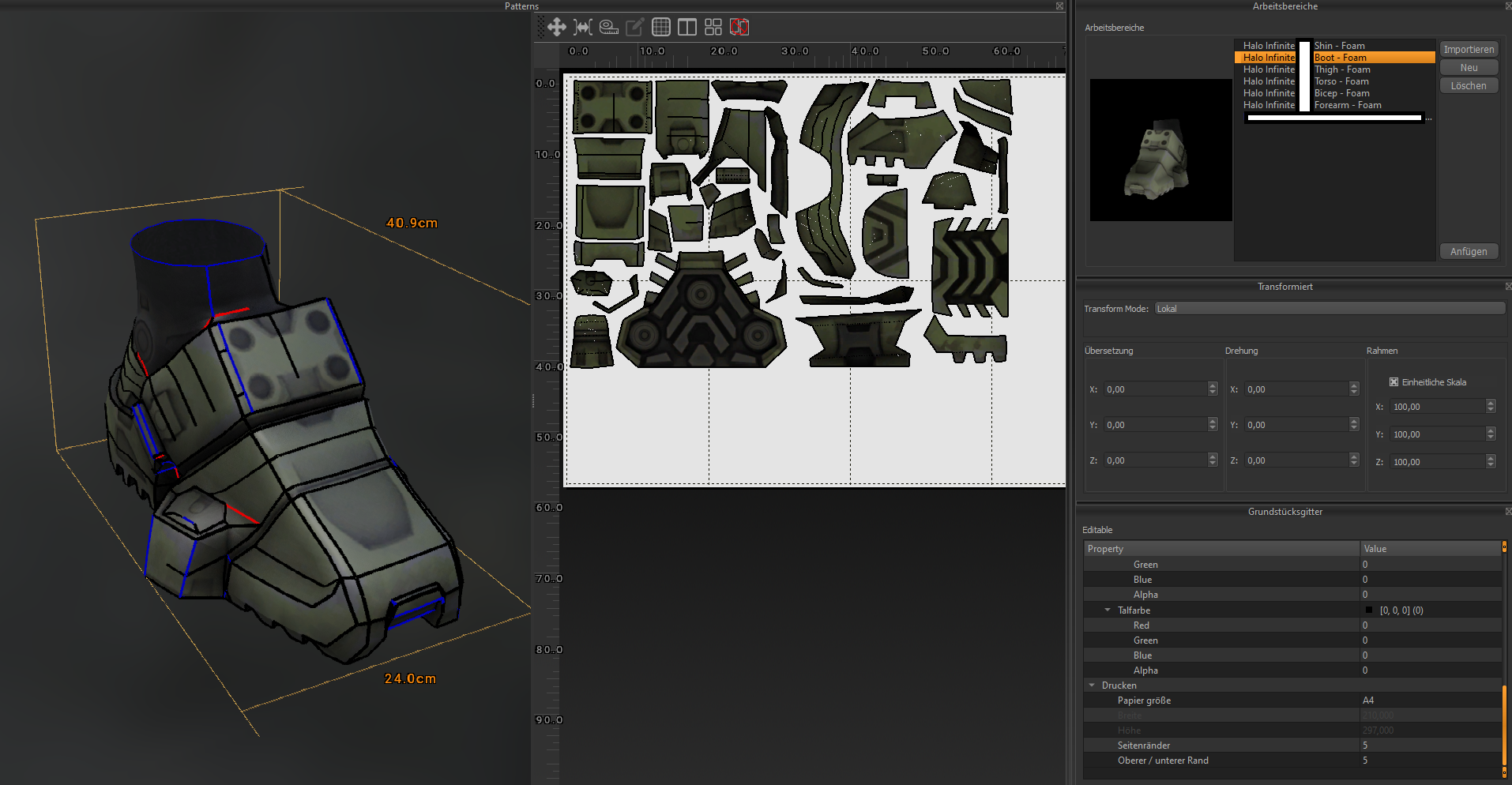

Da ich schon seit 17 Jahren Rüstungen/cosplays baue, nichts geht über dieses Programm, skalieren leicht gemacht, gibt eure Körper maße ein und zieht die entsprechenden Pepakura Files rein und ändert einfach diese Größe entsprechend eurer maße der Figur^^
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Since I've been building armor cosplays for 17 years, nothing beats this program, scaling made easy, enter your body measurements and drag in the corresponding Pepakura files and simply change this size according to your figure dimensions^^

Ich fange immer gerne von unten an ^^ also als allererstes Herstellung und Ausschneiden der Templates.
-------------------------------------------------------------------------------------------------------------------
I always like to start from the bottom ^^ including making and cutting out the templates first.

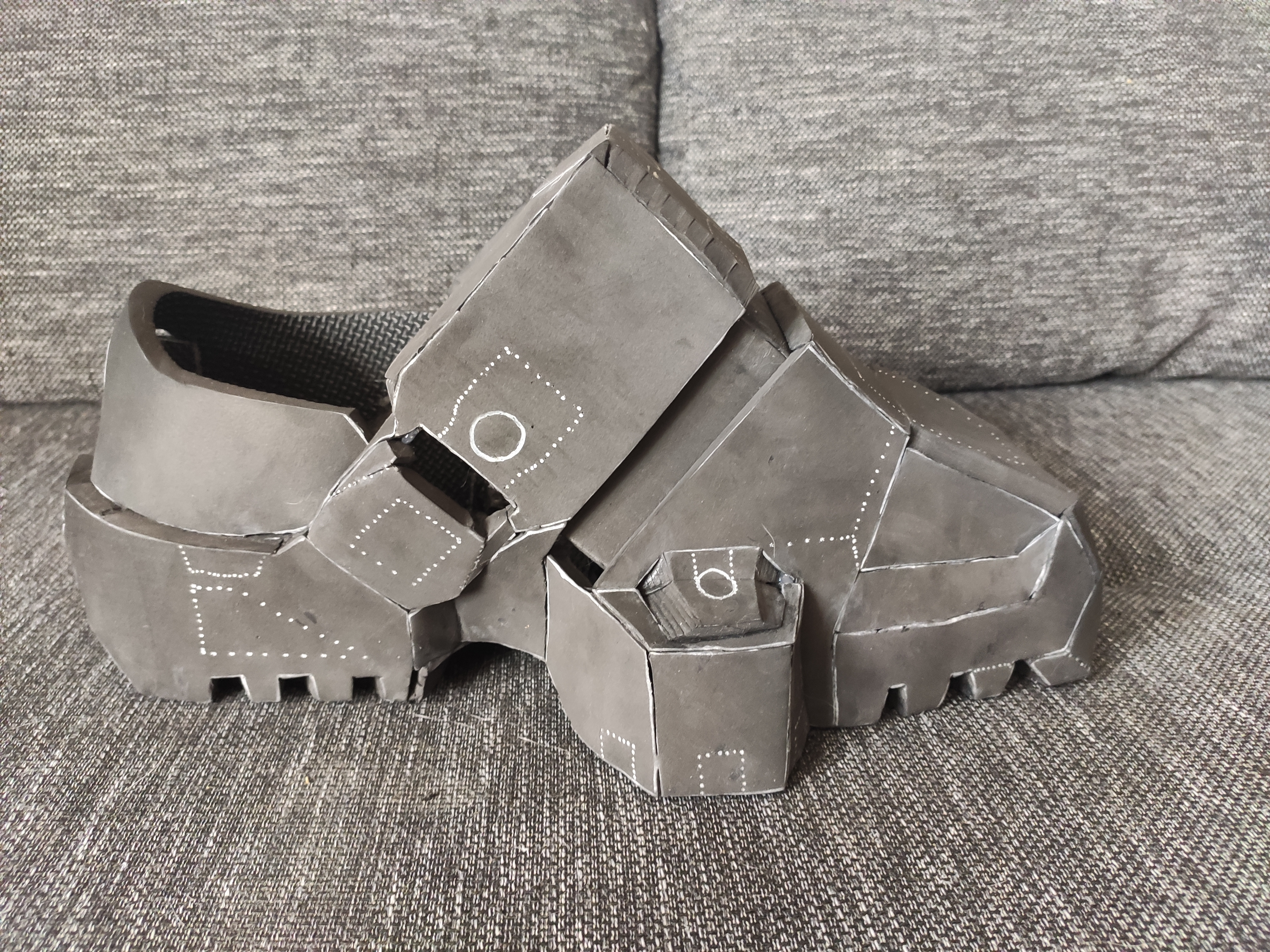

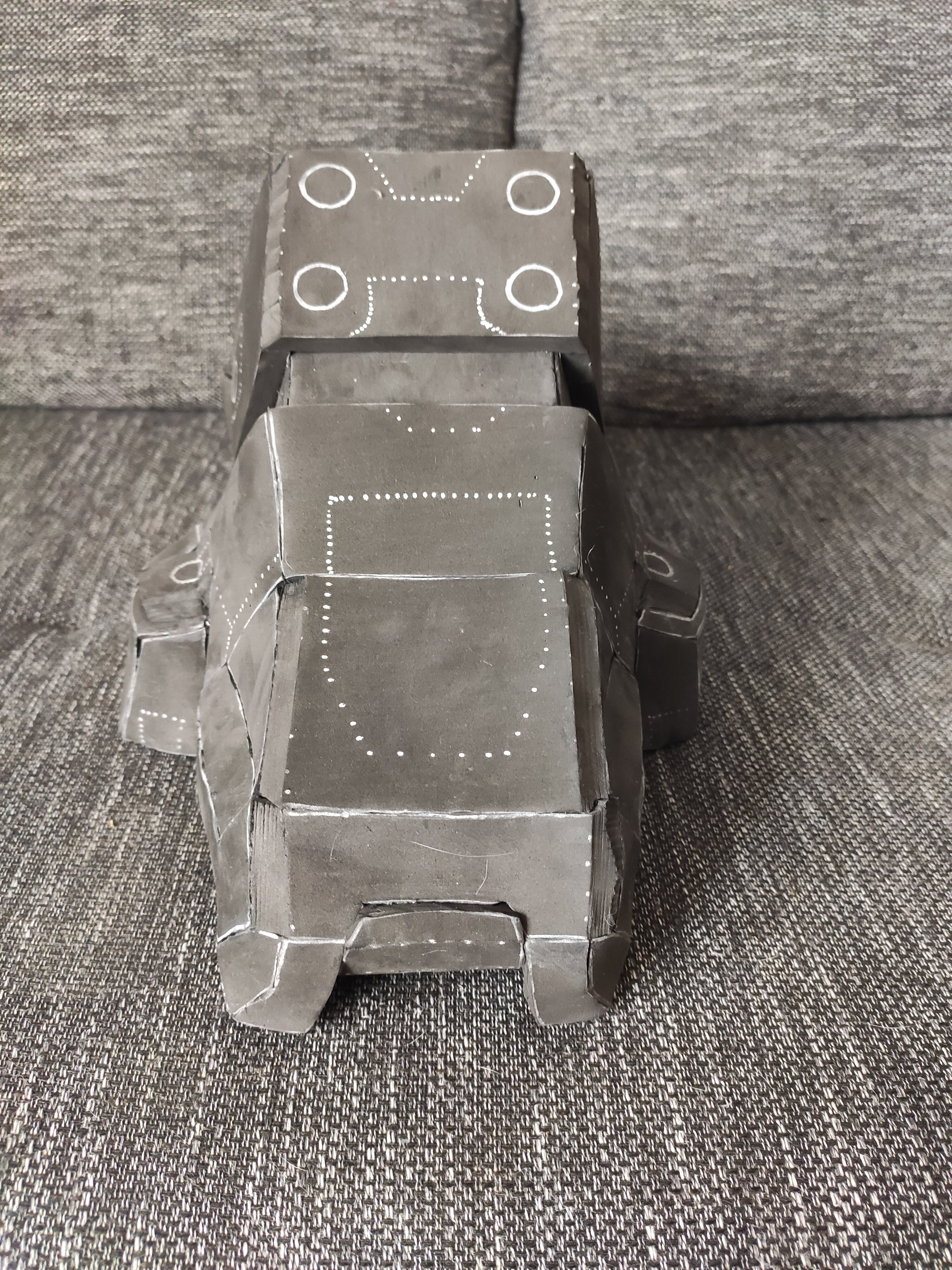

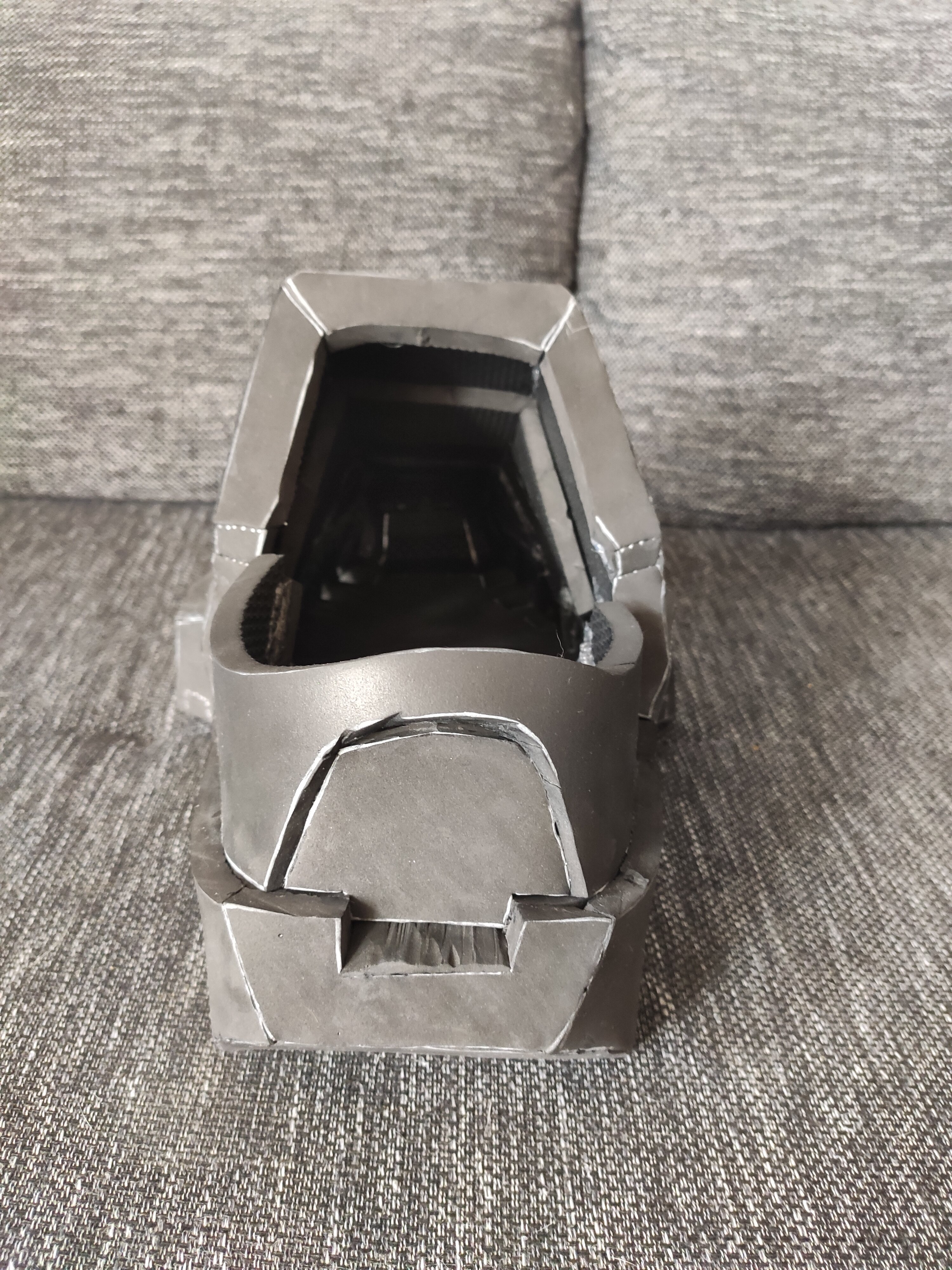

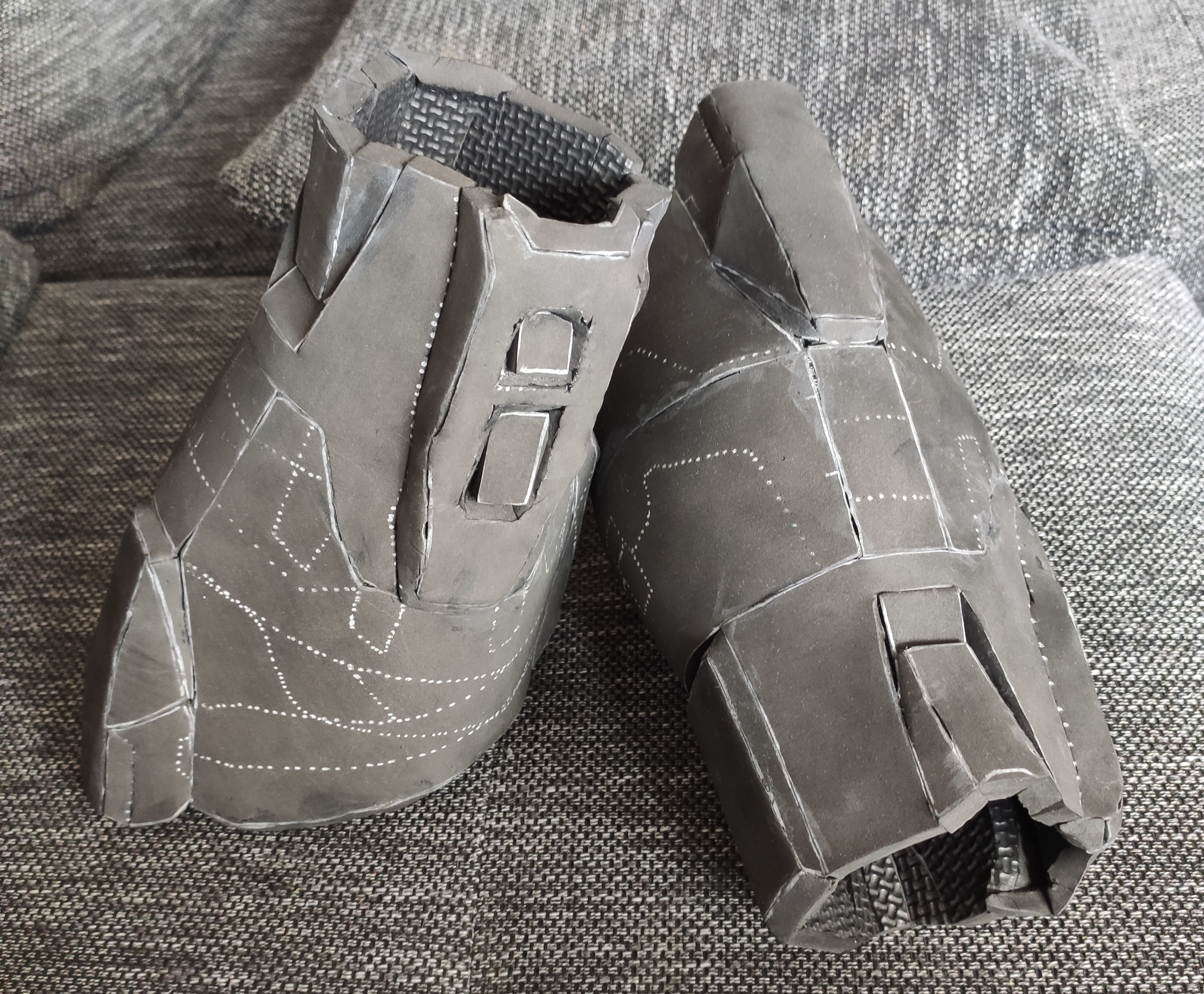

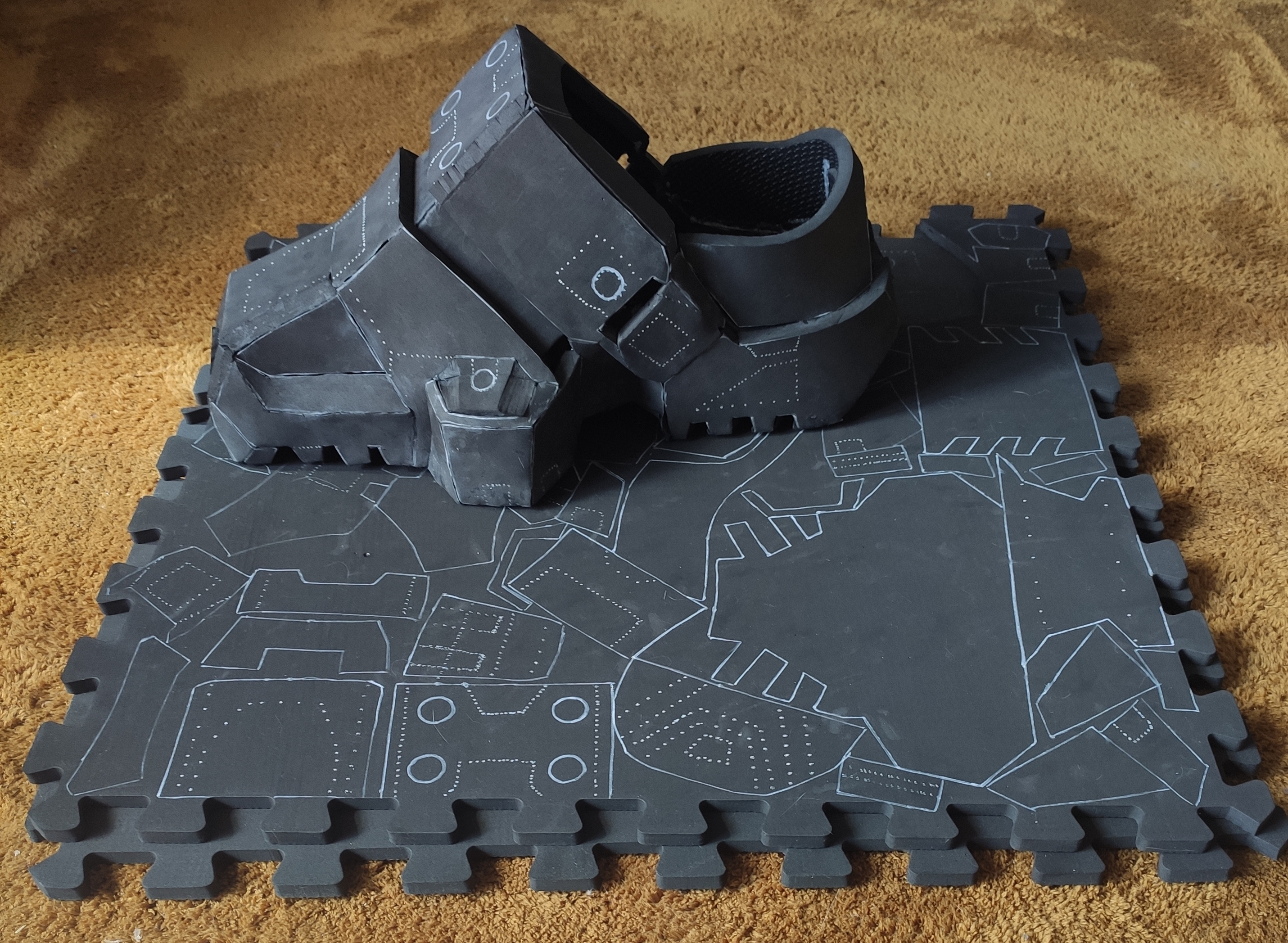

Hi mein erster Schuh, da ich nur wenige Details nachbessern möchte,
habe ich mir mehr Arbeit gemacht mit den Kanten usw. die weiße Markierung sind Gravur
Markierung für Highlights, da ich so wenig wie möglich, nachbessern möchte,
da foam clay sehr teuer ist. Aber nun gut, hier ist mein erster Schuh.
--------------------------------------------------------------------------------------------------
Hello, my first shoe is finished
Did I do more work with the edges etc. The white markings are engraving
marking for highlights.




(y):love:



Attachments

  • IMG_20240410_121236.jpg
    6.5 MB · Views: 91
Habe heute ein wenig 7 Stunden^^ :)mit mein 3D Programm 'ne kleine stl File erstellt
und schnell 'nen schnellen 3d Druck angestellt. Die stl File stelle ich
hier natürlich rein. Ist eine 1:1 Nachbildung des Halo Infinite Hand Plate .
wär ’ne Verbesserung findet oder was
fehlt bitte informiert mich doch damit ich es zeitnah ändern kann.
----------------------------------------------------------------------------------------------
Today I spent a little 7 hours^^ creating a small stl file with my 3D program
and quickly provided a quick 3D print. I provide the stl file
in here of course. Is a 1:1 replica of the Halo Infinite Hand Plate.
Would there be an improvement or something?
Please let me know so that I can change it as soon as possible .

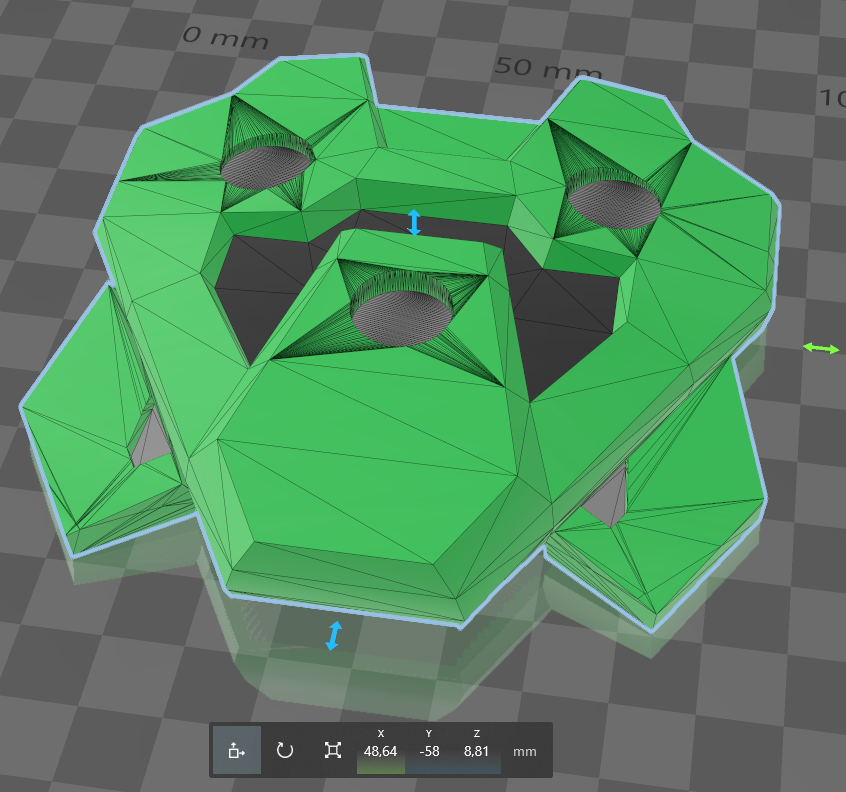

Hand Platte Chief 118.png


Die Maße wie im 3d Vorschau Bild des Programmes können natürlich
ganz einfach abgeändert werden je nach Hand Größe.:)

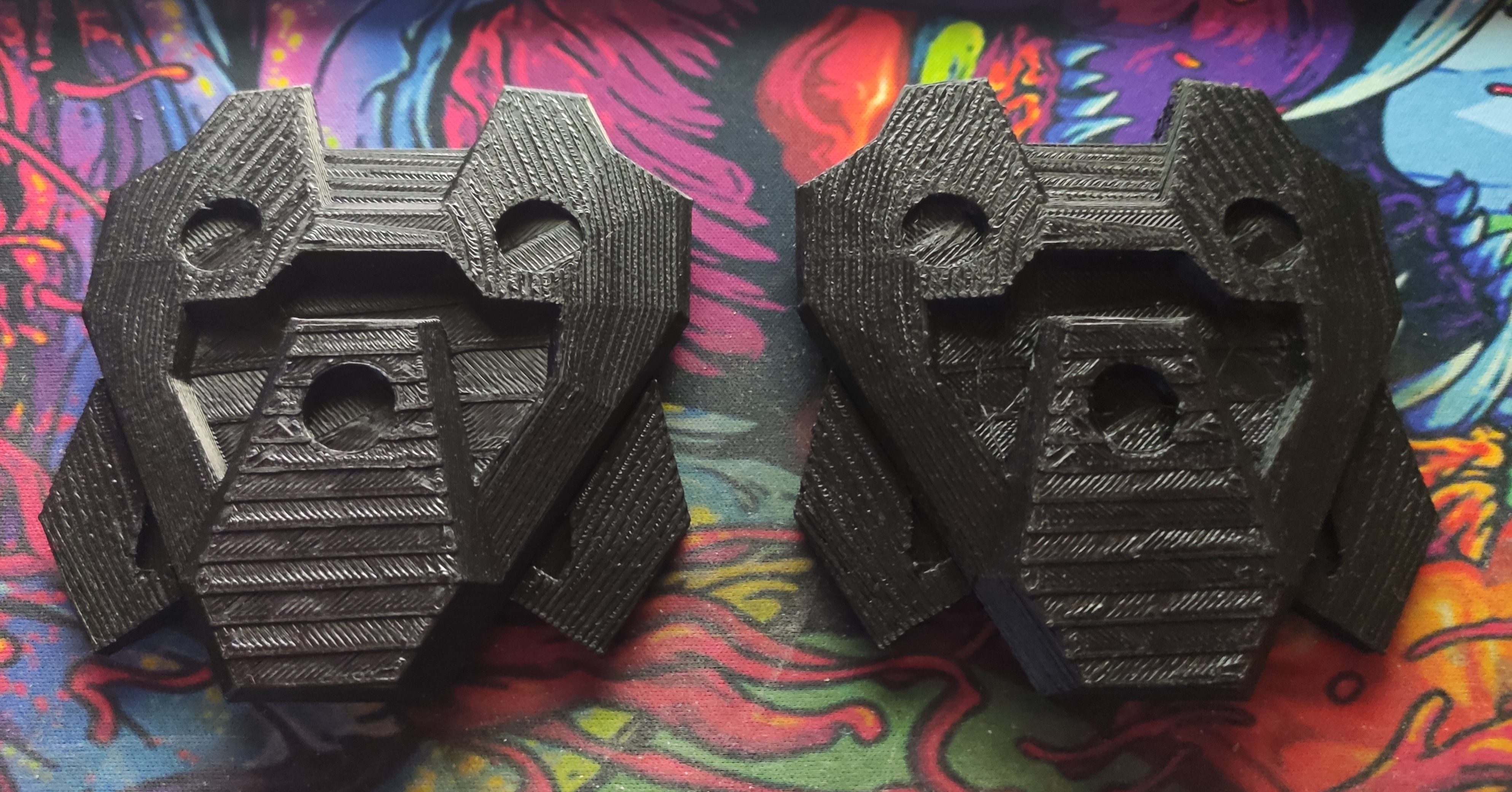

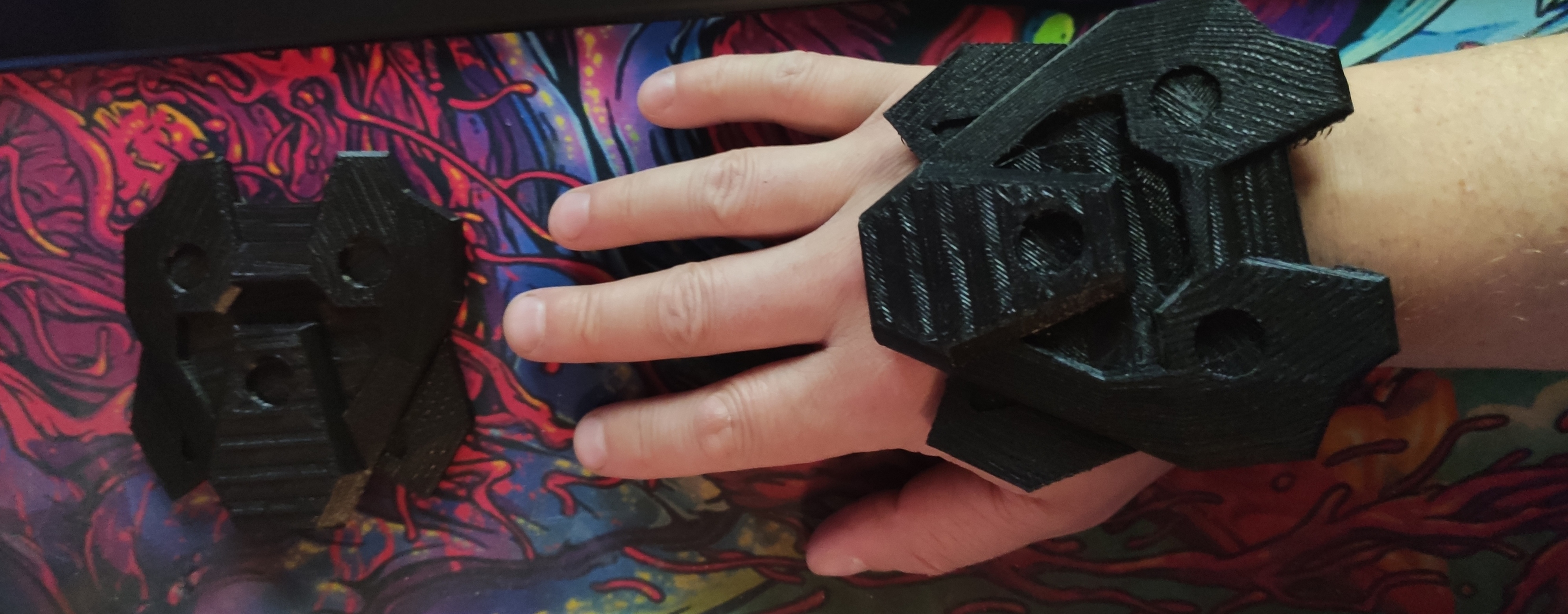

Hier die fertigen Hand-Platten .... ich finde, sie sind echt gut geworden,
nur noch ein wenig schleifen und fertig. ;) (y)



3d Druck Einstellung:

infill 10%
Layer Hight 0,25 mm
mit Raft
mit Support
Druckzeit : 2.56 = 3 Stunden /3d Printer Makerbot 2 with 150 mm/s
_____________________________________________________________________________________________________________


da ich nicht weiß wie ich hier eine stl datei rein stelle hoffe ich mal das mir einer Helfen kann (y)
Since I don't know how to put an STL file here, I hope someone can help me ^^

_____________________________________________________________________________________________________________





Attachments

  • Chief118Hand.stl
    6.6 MB · Views: 113
Last edited:
Very nice progress!
I believe if you use the
button you can attach a .stl file.


Attachments

  • Example.stl
    44.8 KB · Views: 107

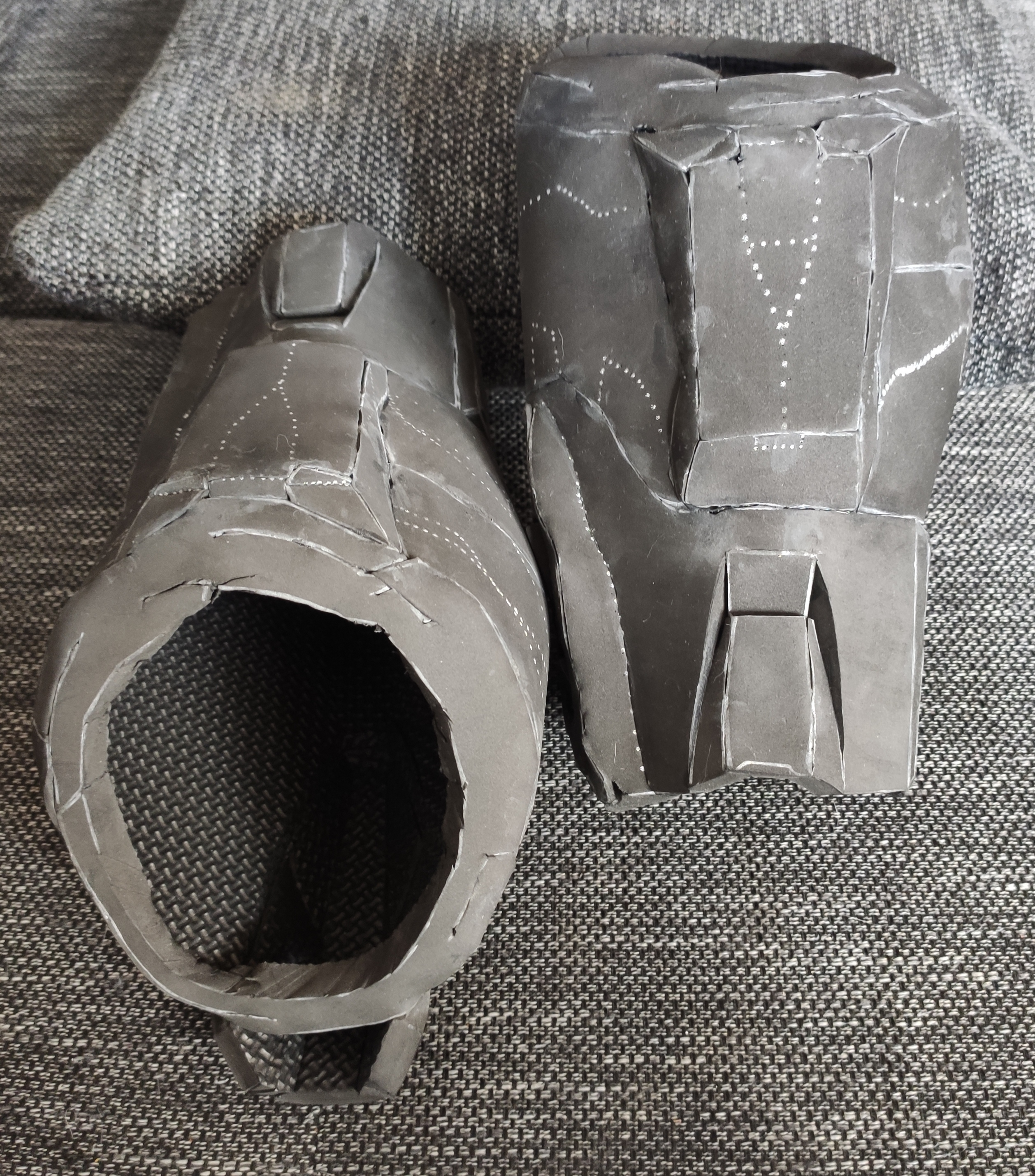

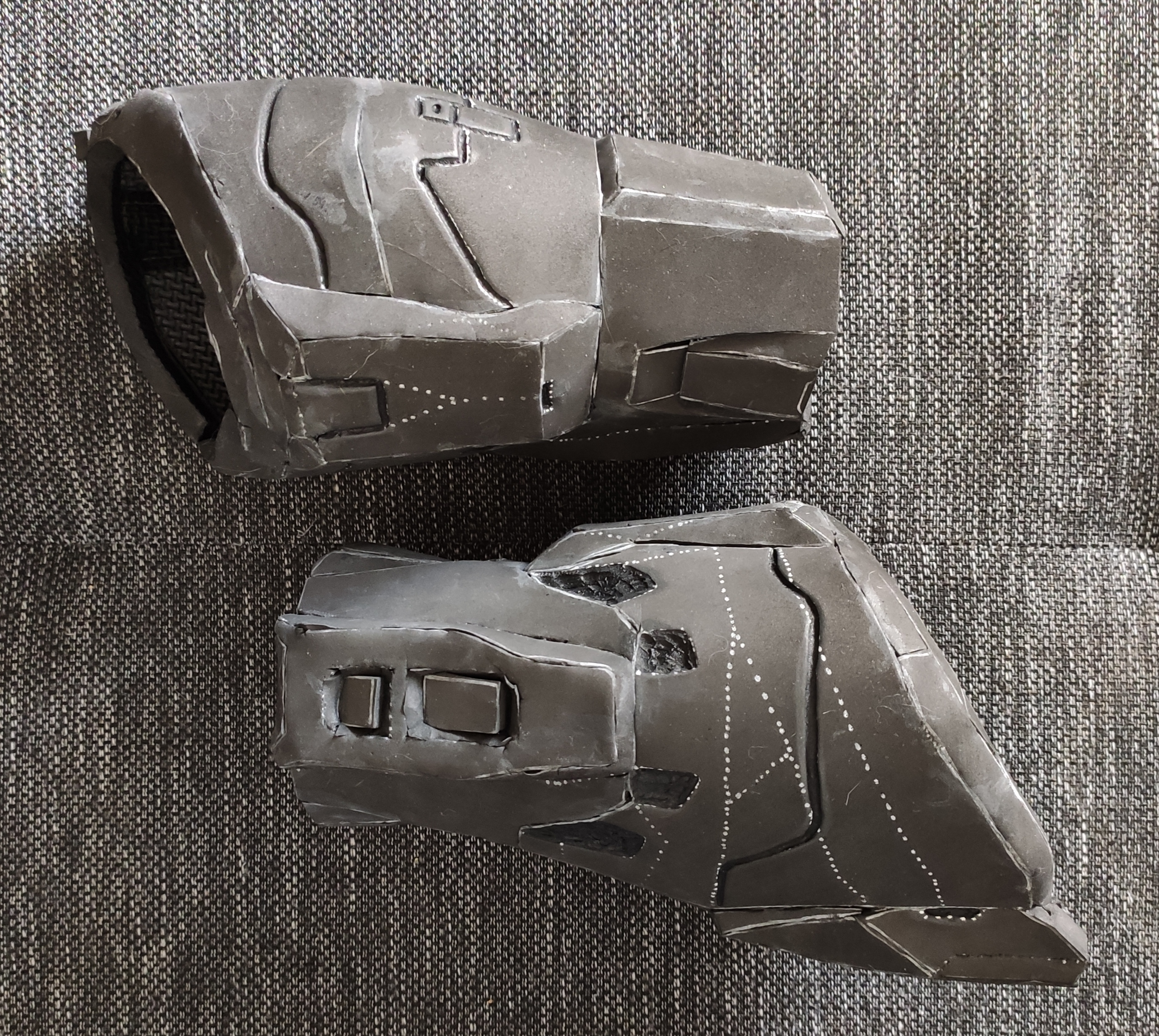

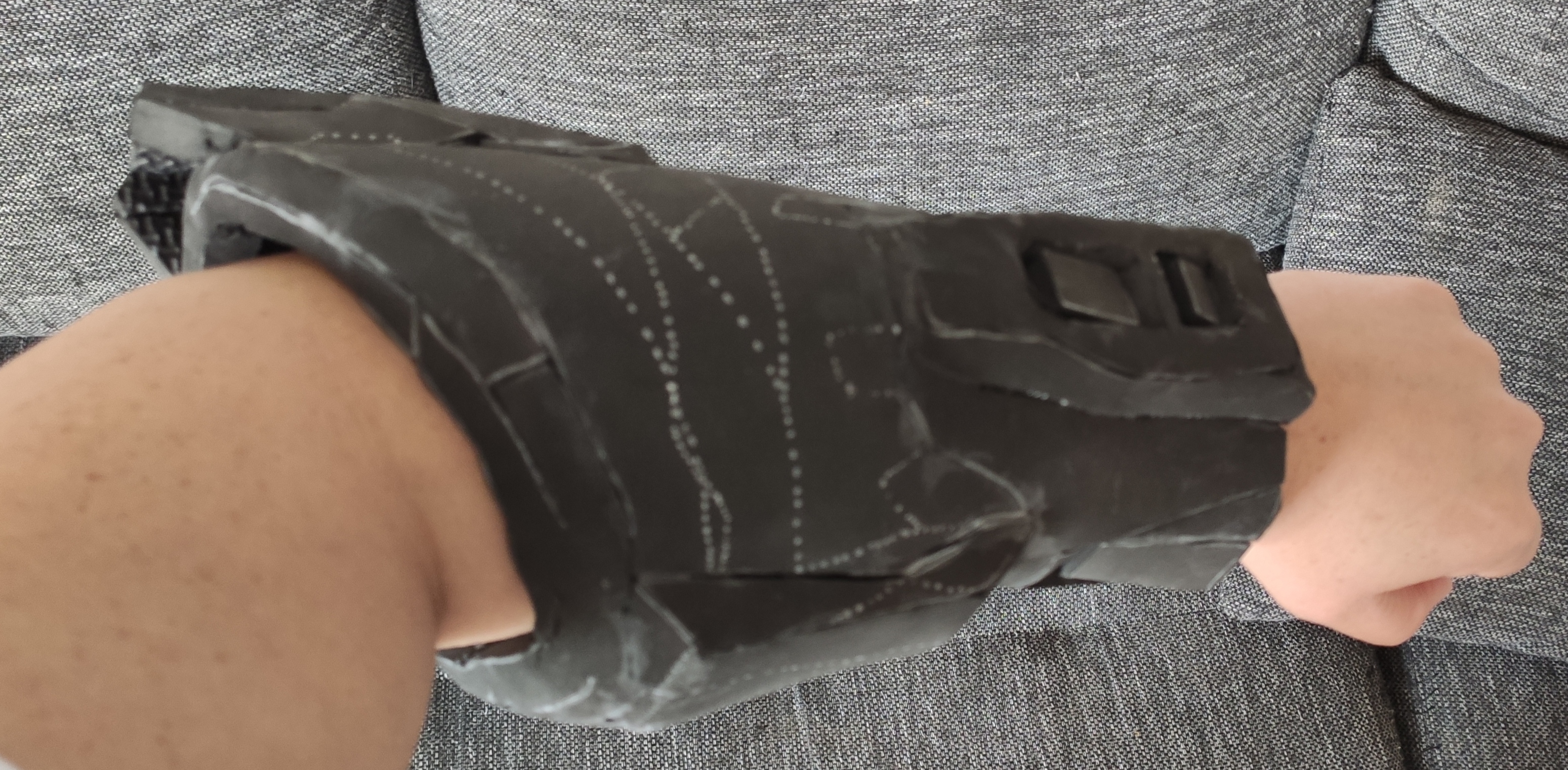

Hier sind meine beiden Arm Parts, die ich gerade fertiggestellt habe.
Finde sie sehen schon ganz gut aus als Nächstes werden die Löcher
zugemacht und die Details werden anschließend mit einem Lötkolben eingebrannt. :cool:
--------------------------------------------------------------------------------------------
Here are my two arm pieces that I just finished.
I think they look pretty good. Next up are the holes
closed and the details are then burned in with a soldering iron.

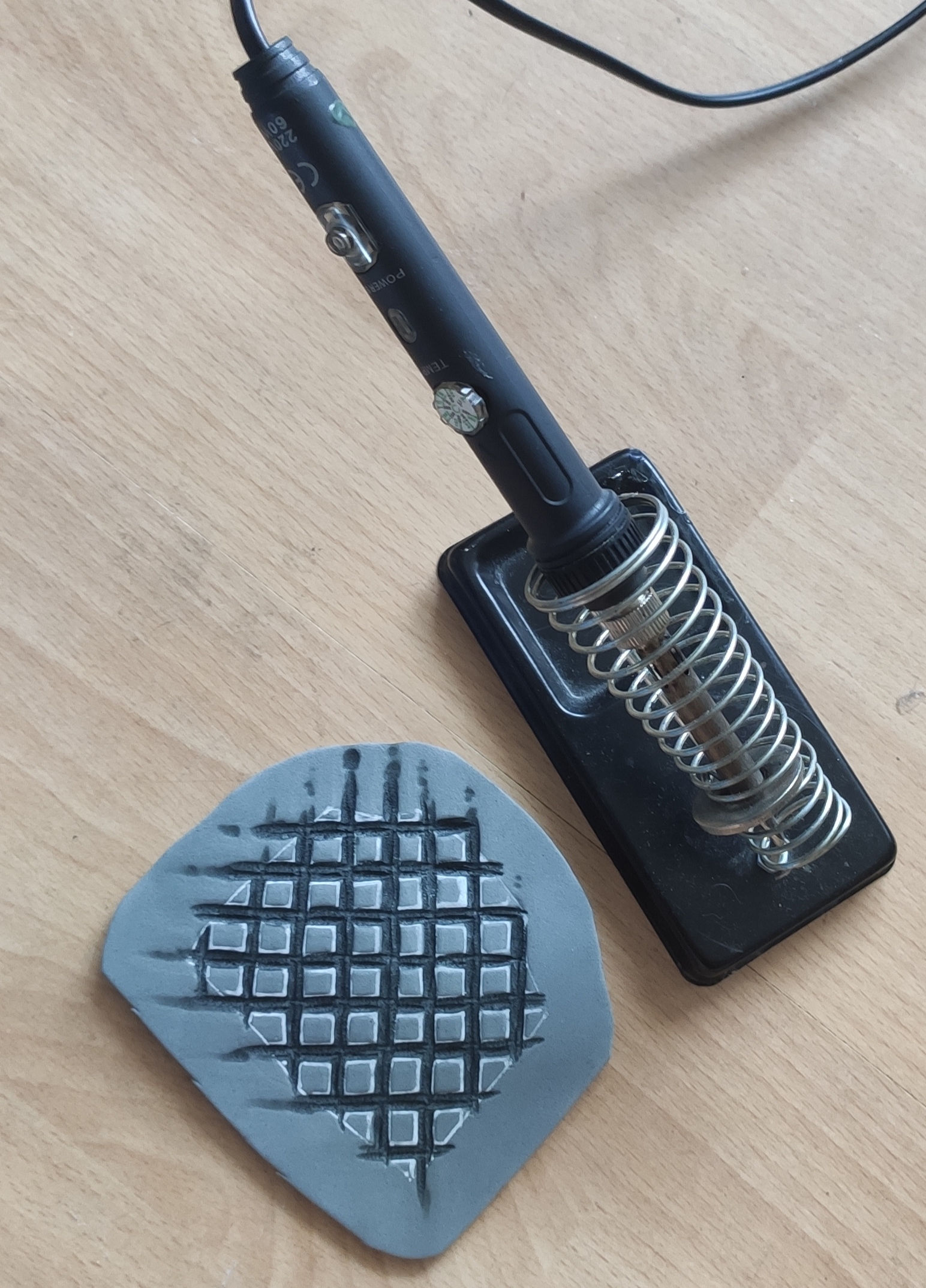

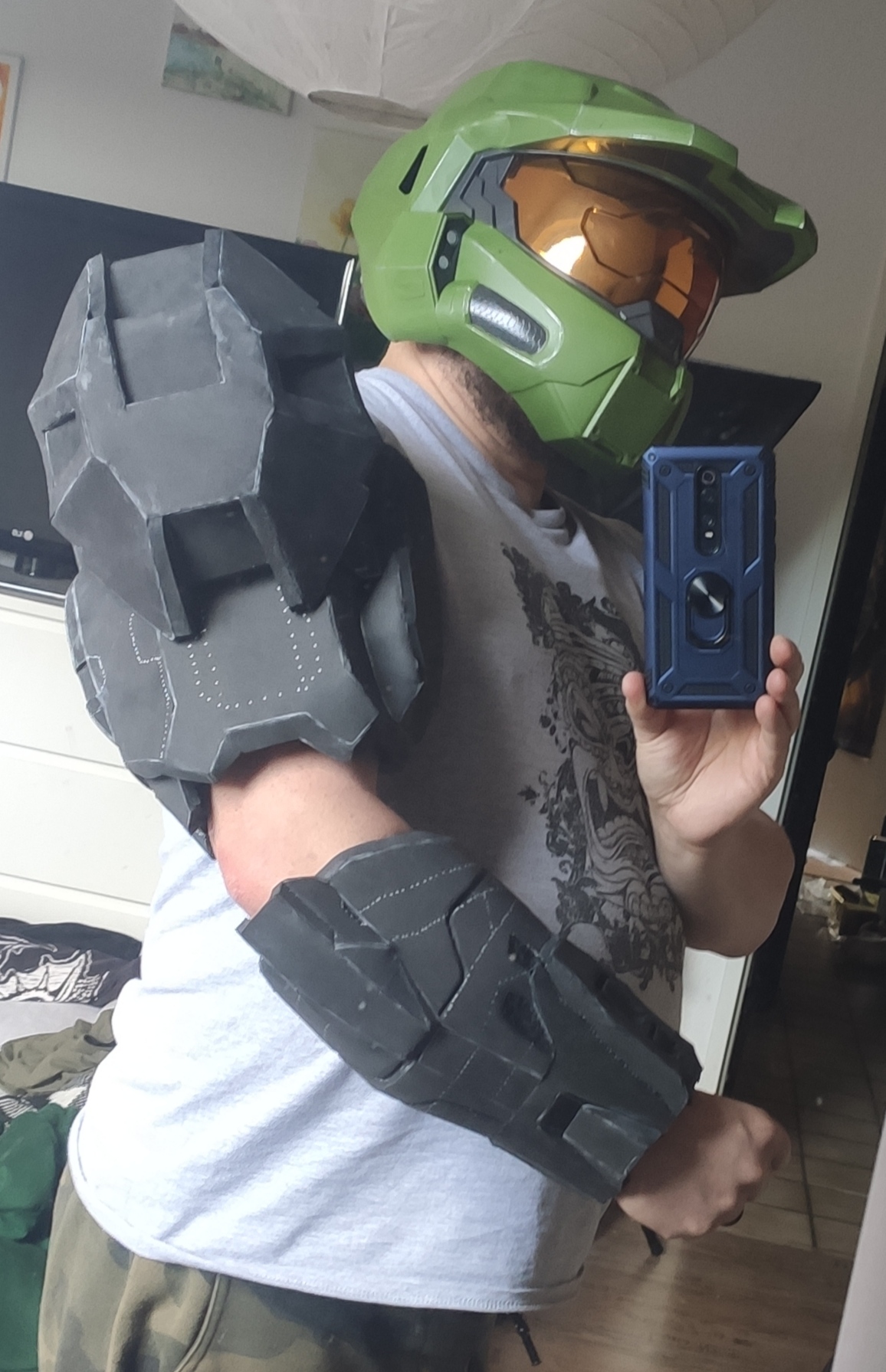

Beide Arm Parts schon fast fertig , Highlights wurden schonmal mit einem Lötkolben eingebrannt.:D
-----------------------------------------------------------------------------------------------------------
Here are my two arm pieces that I just finished. Highlights :)

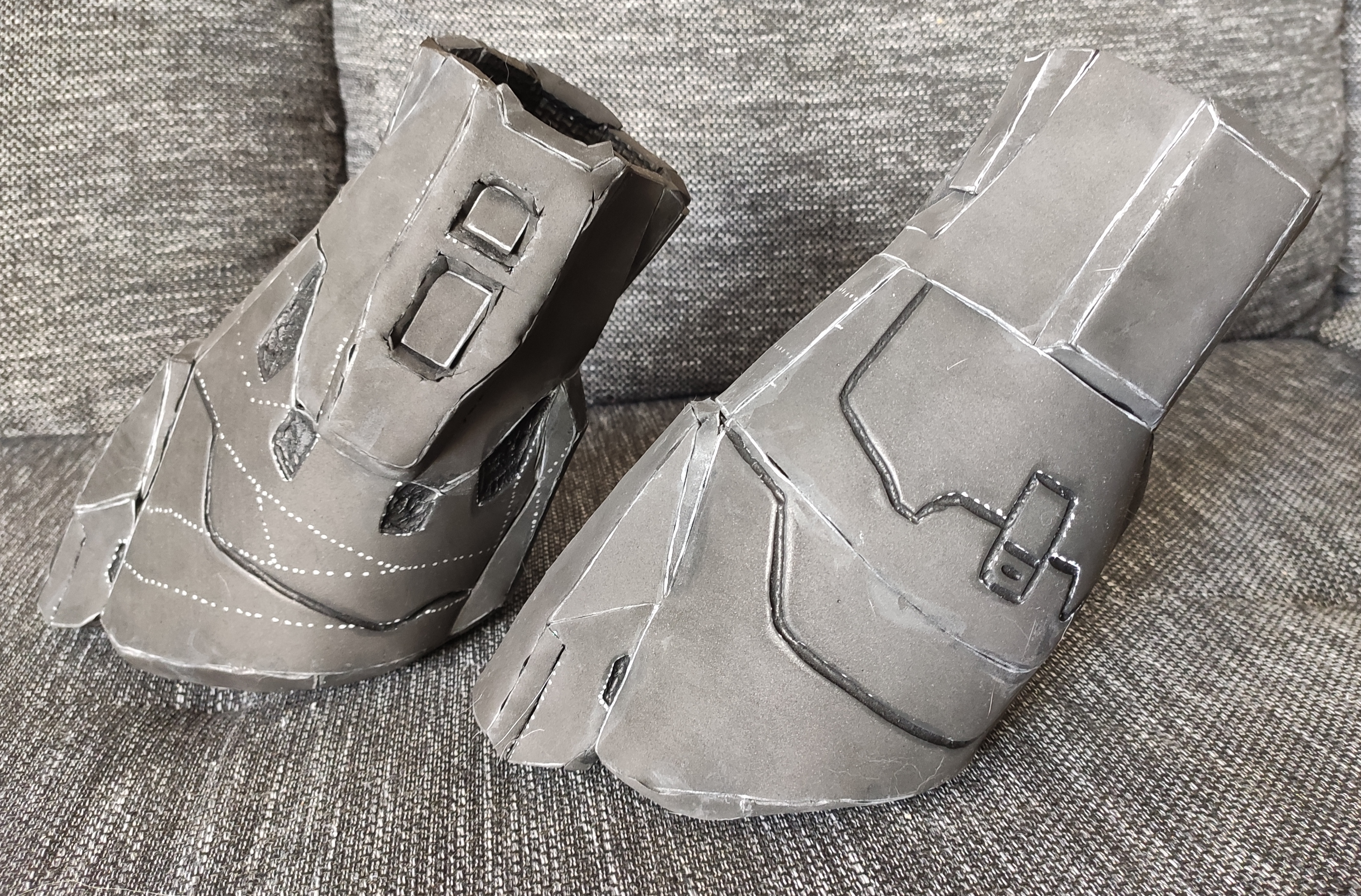

Habe ein wenig weiter gearbeitet, an meiner Masterchief Rüstung und bin sehr zufrieden mit meiner
Skalierung :D ! Hatte auch erst Bedenken gehabt, dass die Schuhe zu groß waren, aber passt auch super
da ich meine Schuhe, also Stiefel in meinen Schuh einbauen werde.
--------------------------------------------------------------------------------------------------------------
I worked a little more on my Masterchief armor and am very happy with mine
Scaling! At first I was worried that the shoes were too big, but they fit great
as I will fit my shoes, including boots, into my shoe.








Nice mate, I've just finished making my masterchief infinite build recently, also entirely from foam. Your doing great so far, and thanks for the armorsmith idea. I've only ever seen it used on stl files before.

Nice mate, I've just finished making my masterchief infinite build recently, also entirely from foam. Your doing great so far, and thanks for the armorsmith idea. I've only ever seen it used on stl files before.
Hehe, thank you (y), I'm glad! Wow, your armor looks great. Great job buddy. I'm currently in the process of creating my second thigh in foam, then the large armor :)

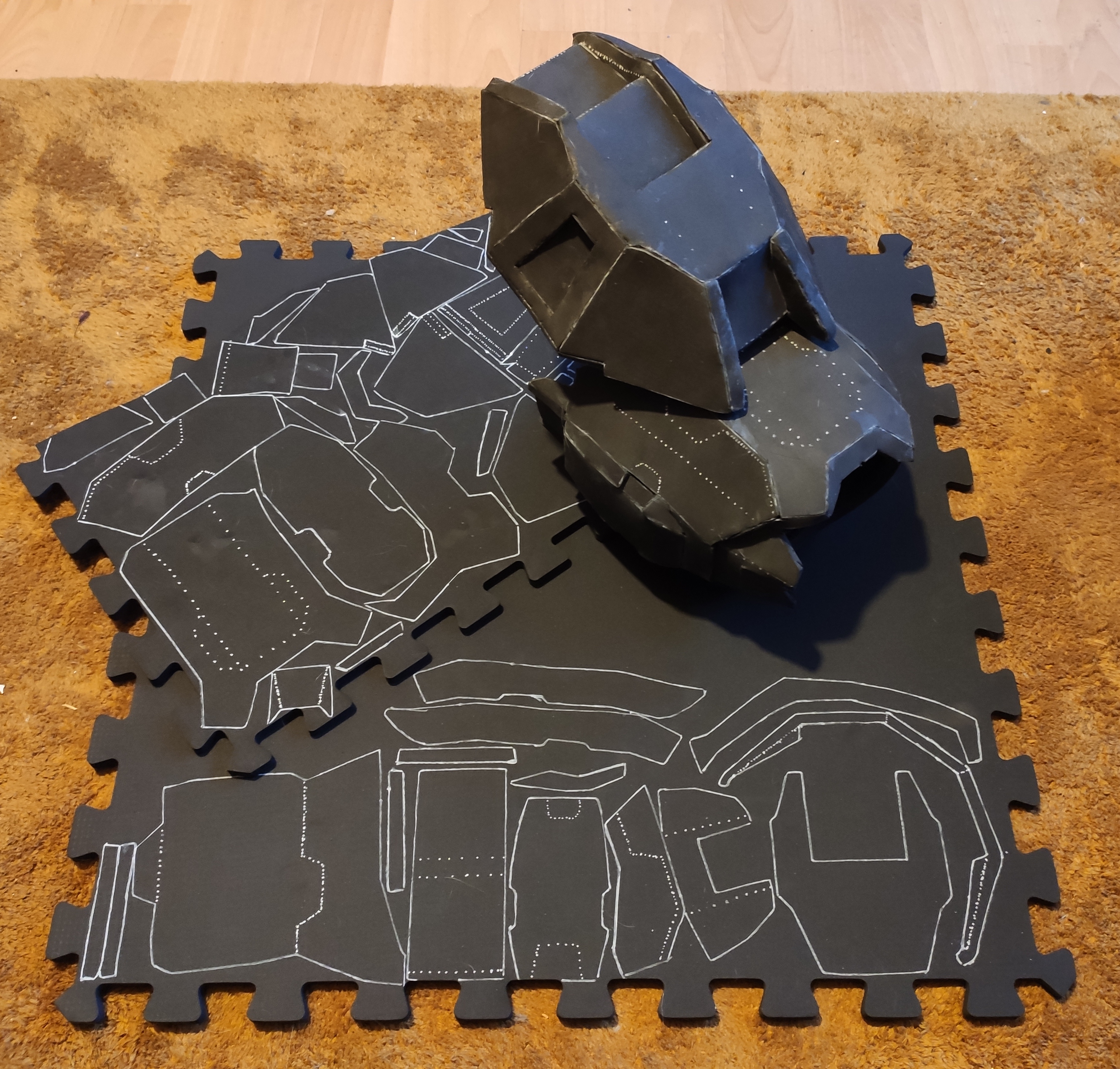

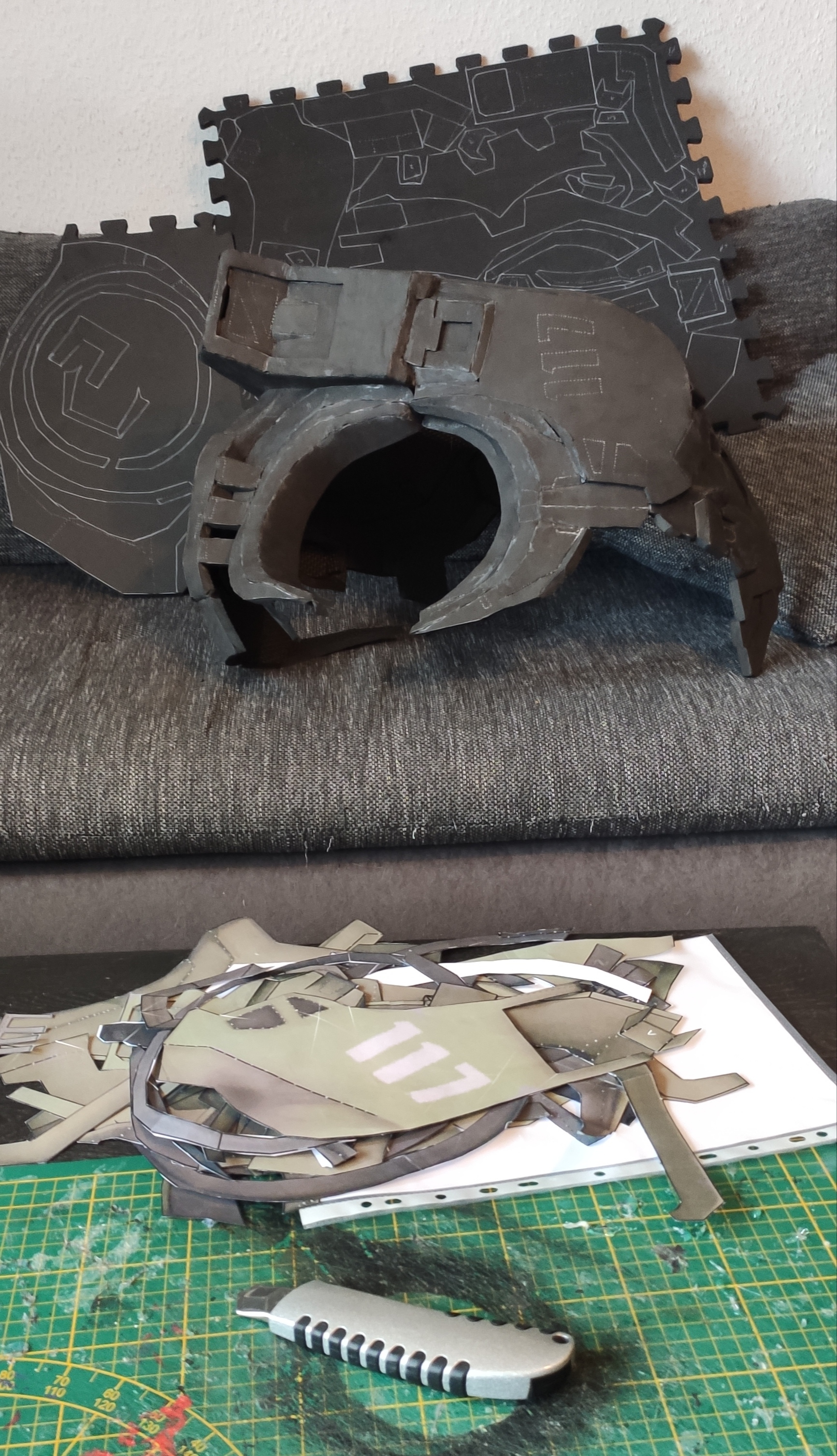

Hey, ich habe diese Woche viel Zeit gehabt und viel geschafft von meiner Halo Rüstung!
! Ich benutze Pepakura Templates für Foam, ich habe sie
dann noch mit Hd Details aufgewertet , um mir die Details zu ersparen mit Foam clay usw.
Hier meine Ergebnisse.

Wer die templates benötigt kann mich gerne anschreiben sind aber leider nichts für Anfänger.
Mit vielen Schnittkanten und umbiegen. Und viele Markierungen.
-----------------------------------------------------------------------------------------------------------
Hey, I had a lot of time this week and got a lot done with my Halo armor!
! I use Pepakura Templates for Foam, I have them
then enhanced with HD details to save me the details with foam clay etc.
Here are my results.

Anyone who needs the templates can write to me, but unfortunately they are not for beginners.
With lots of cut edges and bends. and lots of markings.








In den nächsten Tagen werde ich meine Rüstung mal anlegen, soweit ich mit den ganzen Strapping
fertig bin und meine Rüstung angepasst habe damit sie zu 100 Prozent sitzt.
-----------------------------------------------------------------------------------------------------------
In the next few days I'll put on my armor as far as I can with all the strapping
I'm done and have adjusted my armor so that it fits 100 percent.

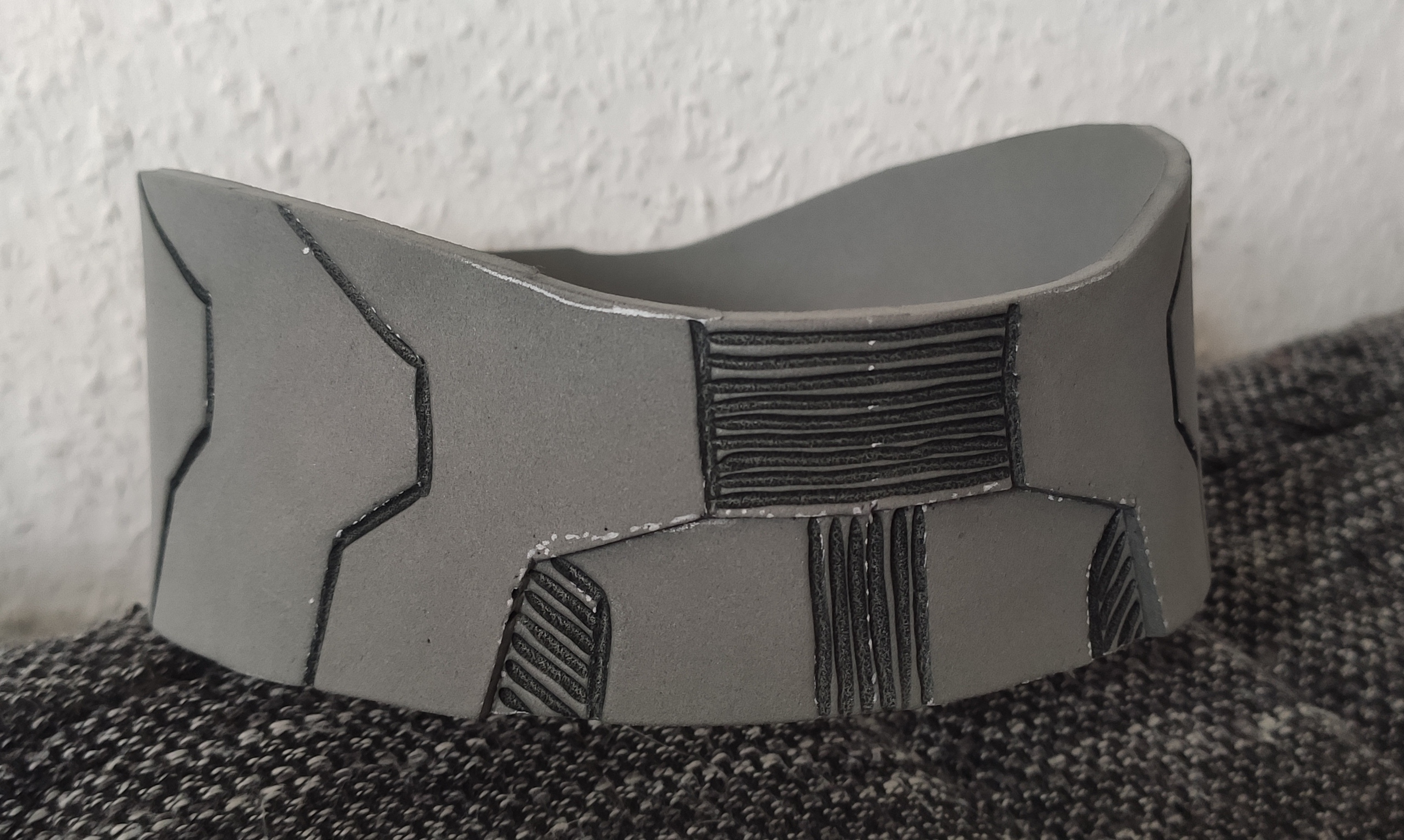

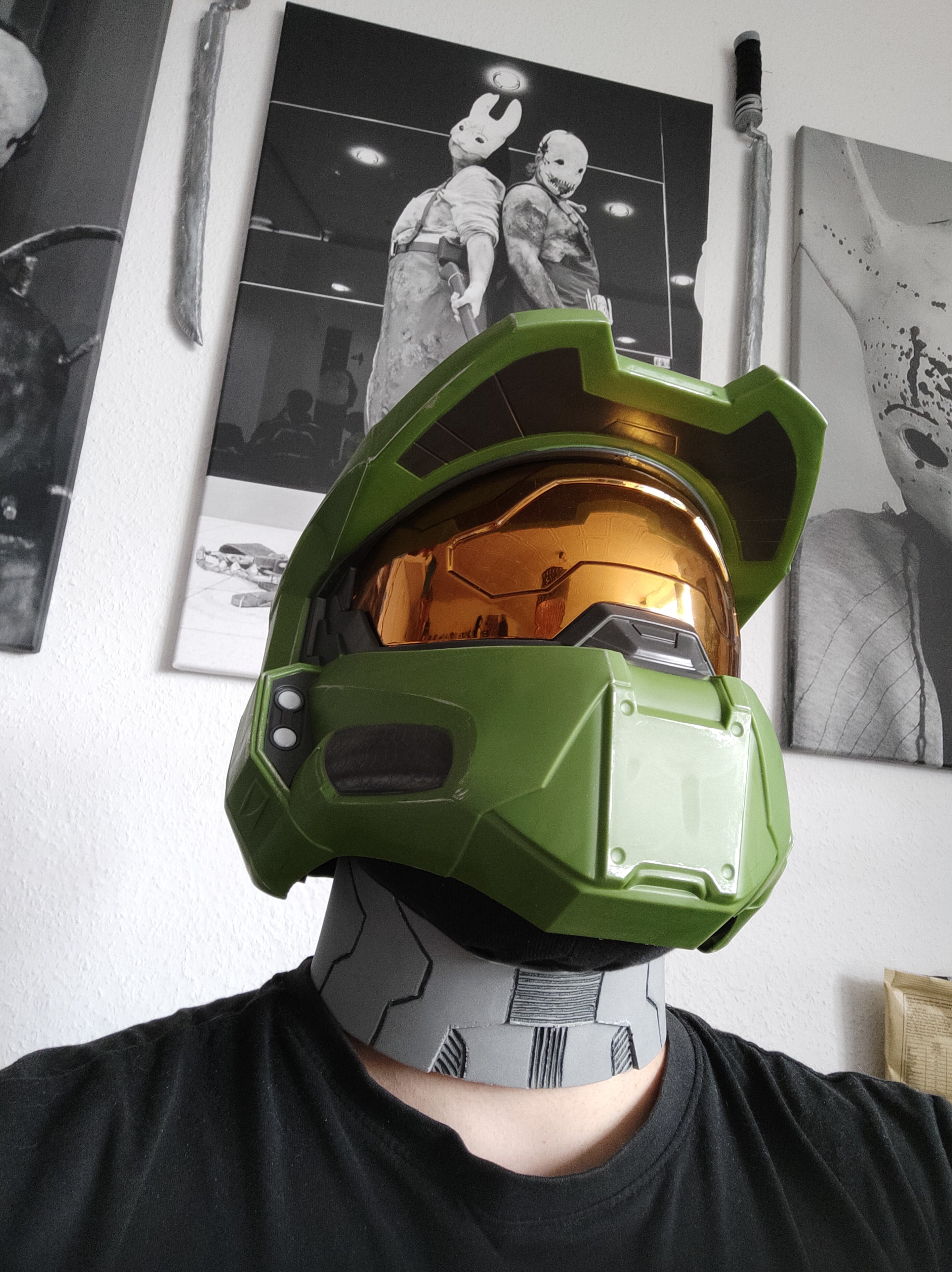

Ich habe heute ein wenig an meinen Nackenschutz gearbeitet damit der
Hals auch abgedeckt wird, sieht wirklich schon super aus mit dem Helm.

Da man unter dem Helm und unter der Brust Rüstung nichts sieht, werde ich den Halsschutz ganz schlicht halten.;)

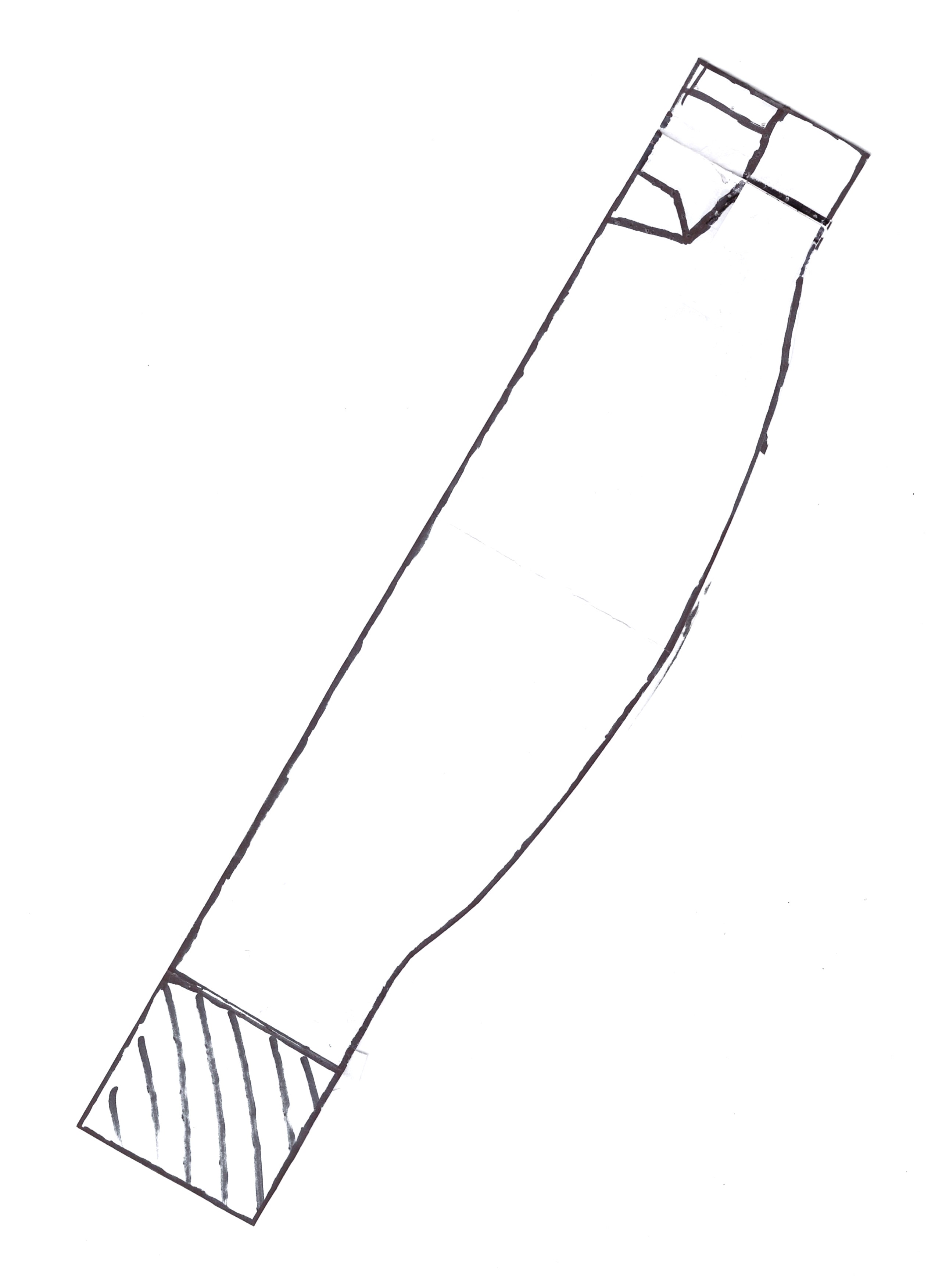

Das Template für den Nackenschutz habe ich als Jpg unten zum download hinzugefügt,
es ist hauptsächlich für 2 - 3 mm dünnes Foam gedacht . einfach mit Strapps hinten am Nacken verbinden.
Das Template muss gespiegelt werden !
----------------------------------------------------------------------------------------------------------------------------
I worked a little on my neck protection today so that it is
Neck is also covered, it really looks great with the helmet.

Since you can't see anything under the helmet or under the chest armor, I'll keep the neck protection very simple.;)

I have added the template for the neck protection as a jpg to download below,
it is mainly intended for 2 - 3 mm thin foam. simply connect with straps at the back of the neck.
The template must be mirrored!





Attachments

  • Nacken_Halo.jpg
    274.2 KB · Views: 60

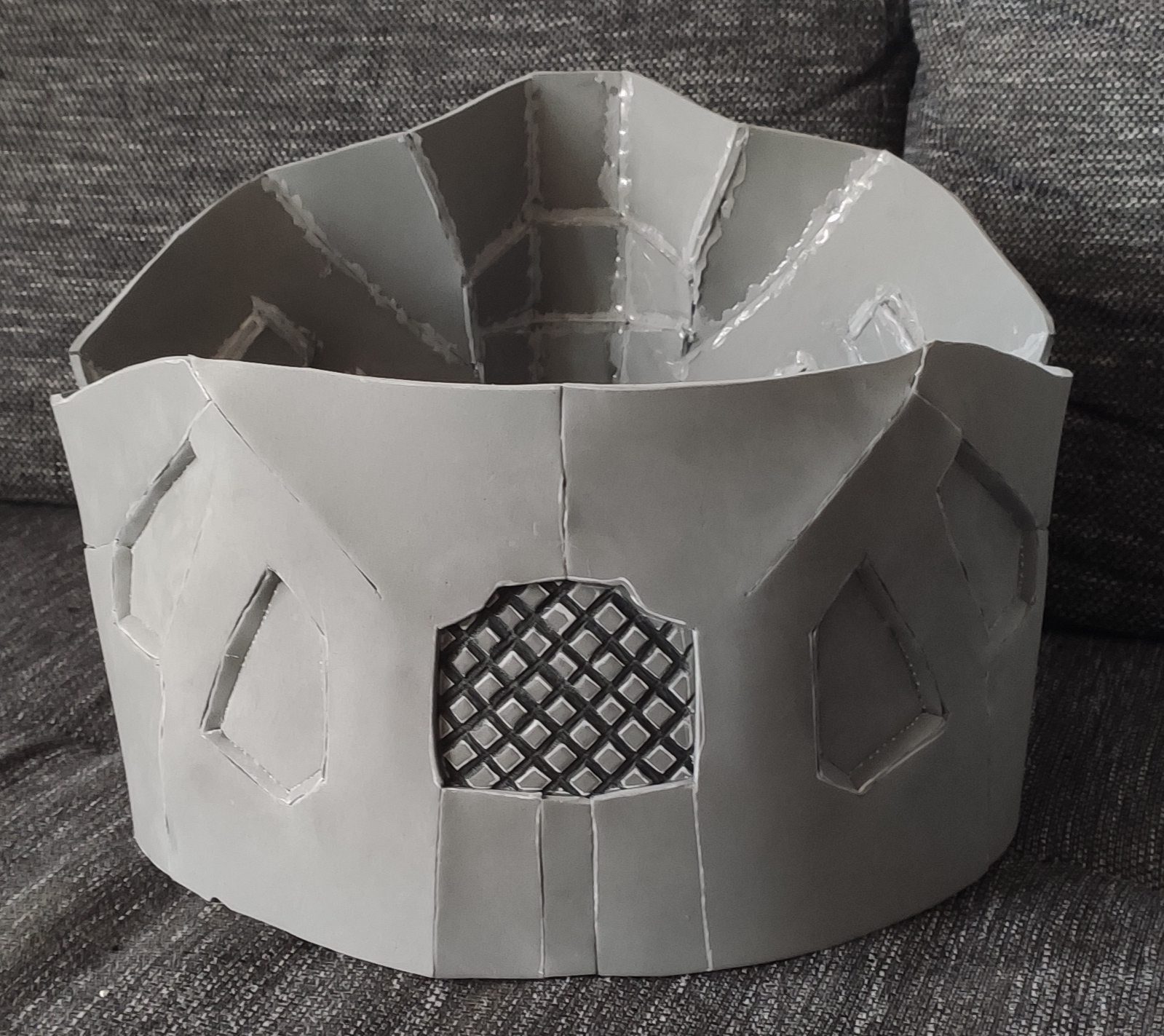

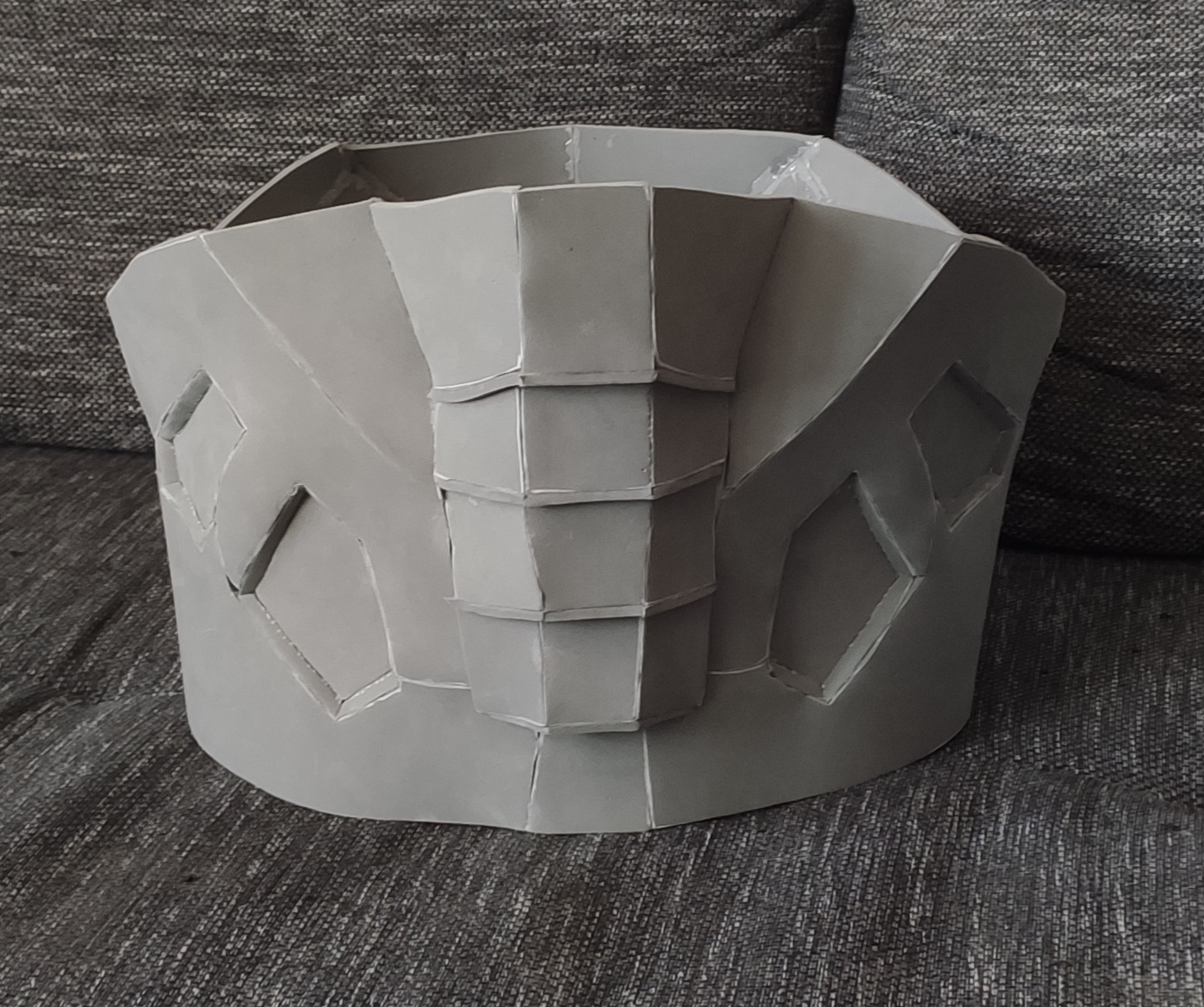

Ich habe mich ein wenig hier umgesehen und leider kein undersuite Abs - teil gefunden ,
und da Molding zu teuer und langwierig ist habe ich eine Pepakura File / für Foam hergestellt .
Einfach ausschneiden und die passende Größe an den Seiten hinzufügen, mit Gummibändern klappt das super!
Ich verwende, denke ich aber meinen alten Rückenstütze-Gürtel den ich noch von der alten Arbeit habe^^.
----------------------------------------------------------------------------------------------------------------------------
I looked around here and unfortunately didn't find an undersuite Abs,
and since molding is too expensive and time-consuming, I made a pepakura file / for foam.
Simply cut it out and add the appropriate size to the sides, it works great with elastic bands!
I think I'll use my old back support belt that I still have from my old job^^.




Pepakura File


Attachments

  • Halo Infinite Master Chief Undersuite.pdo
    2.9 MB · Views: 83

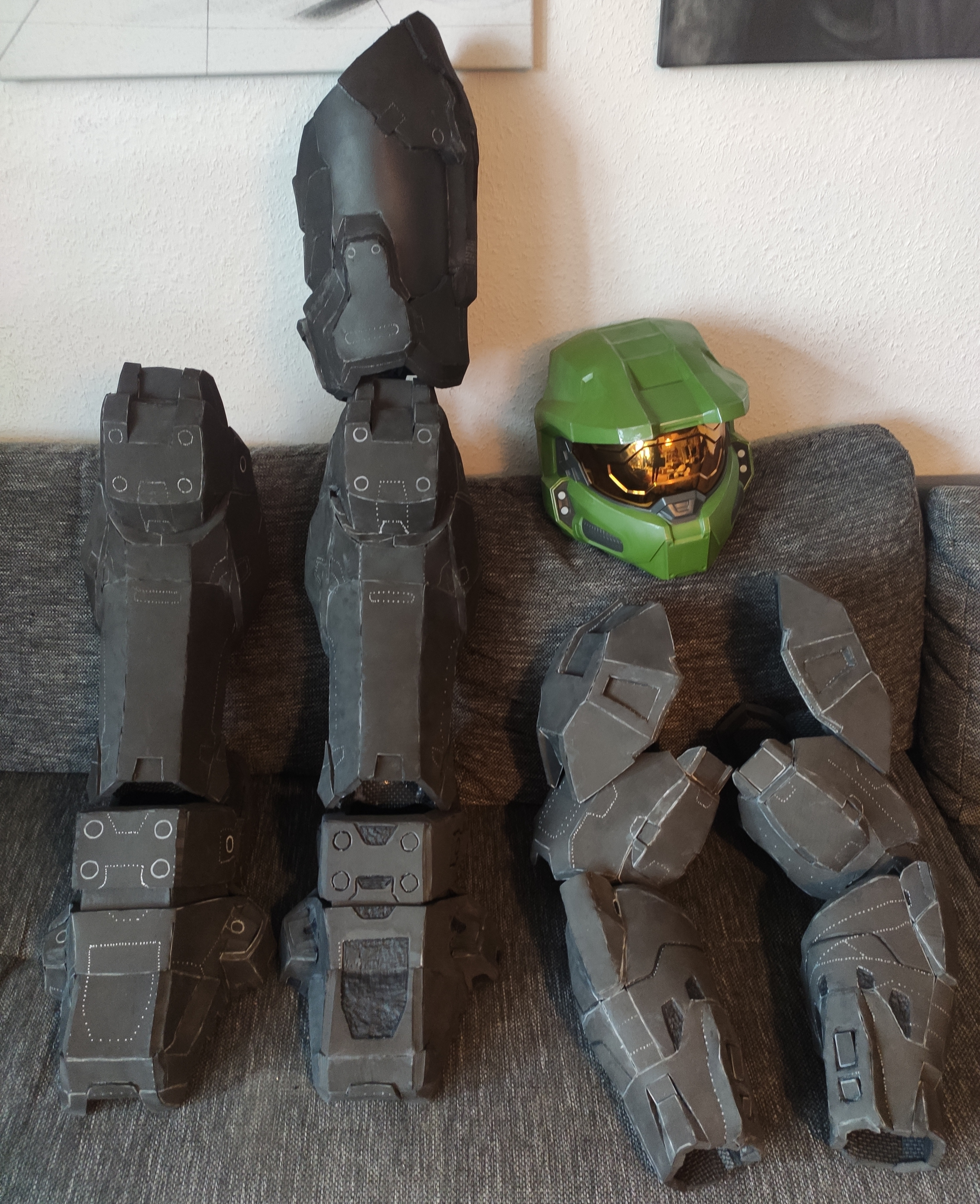

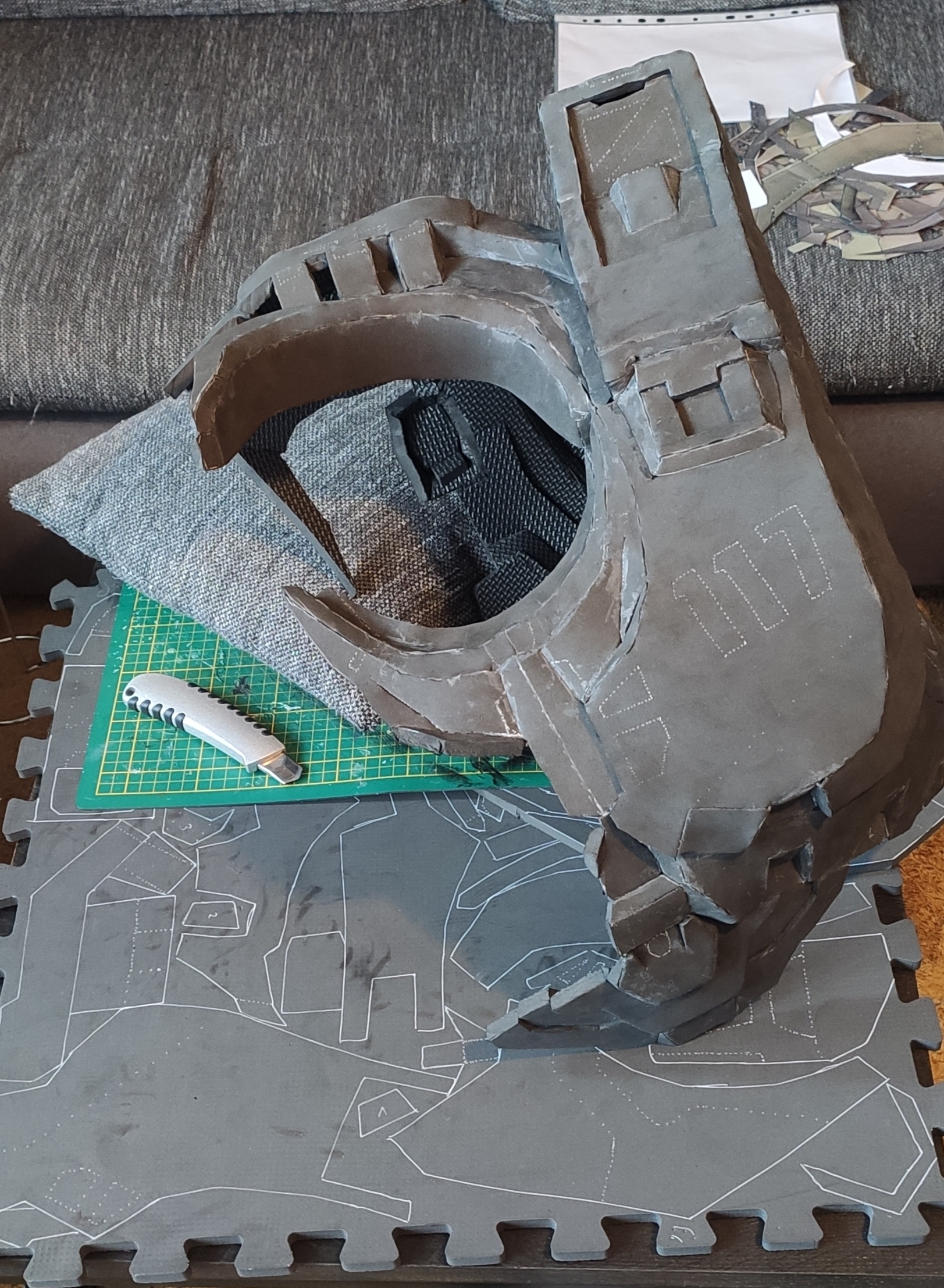

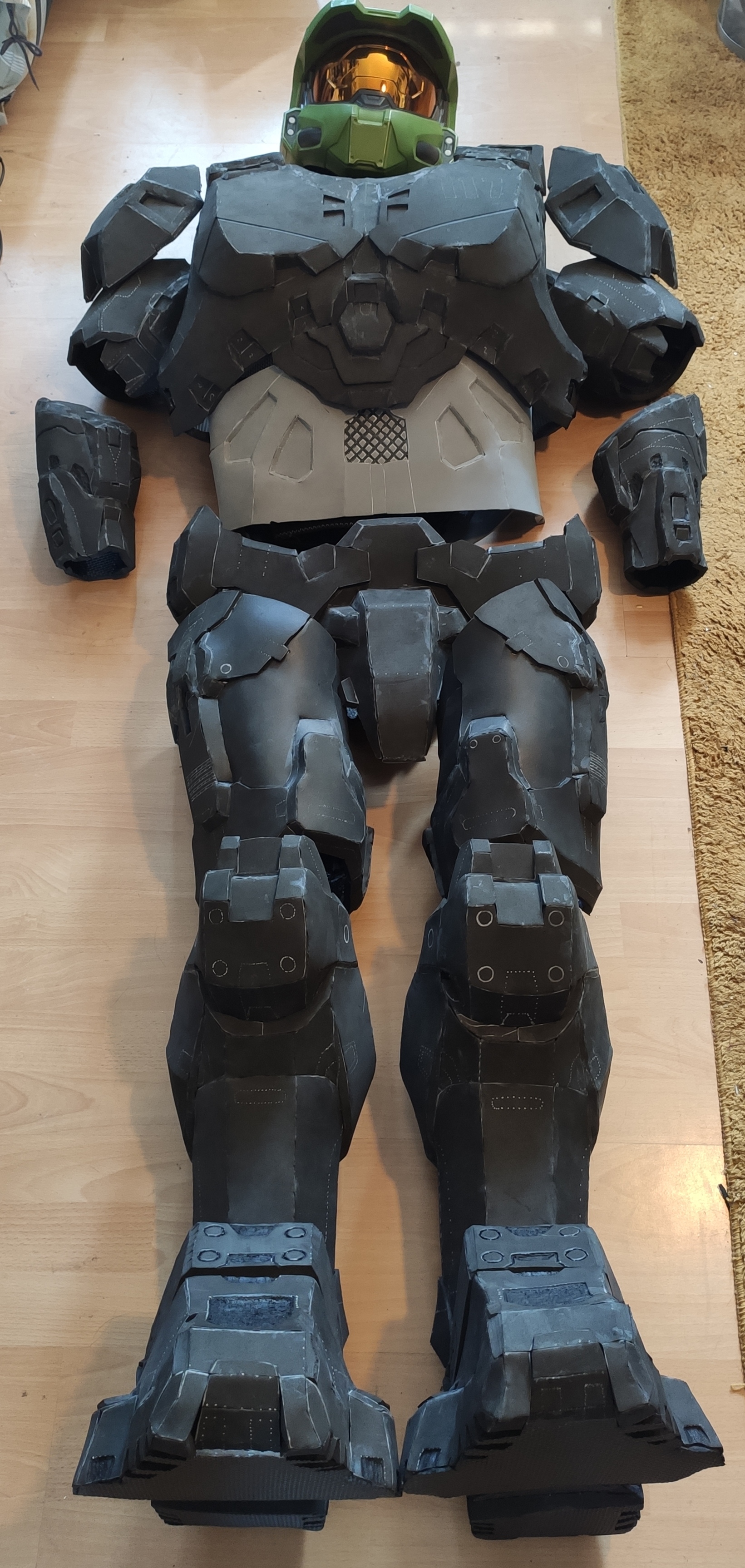

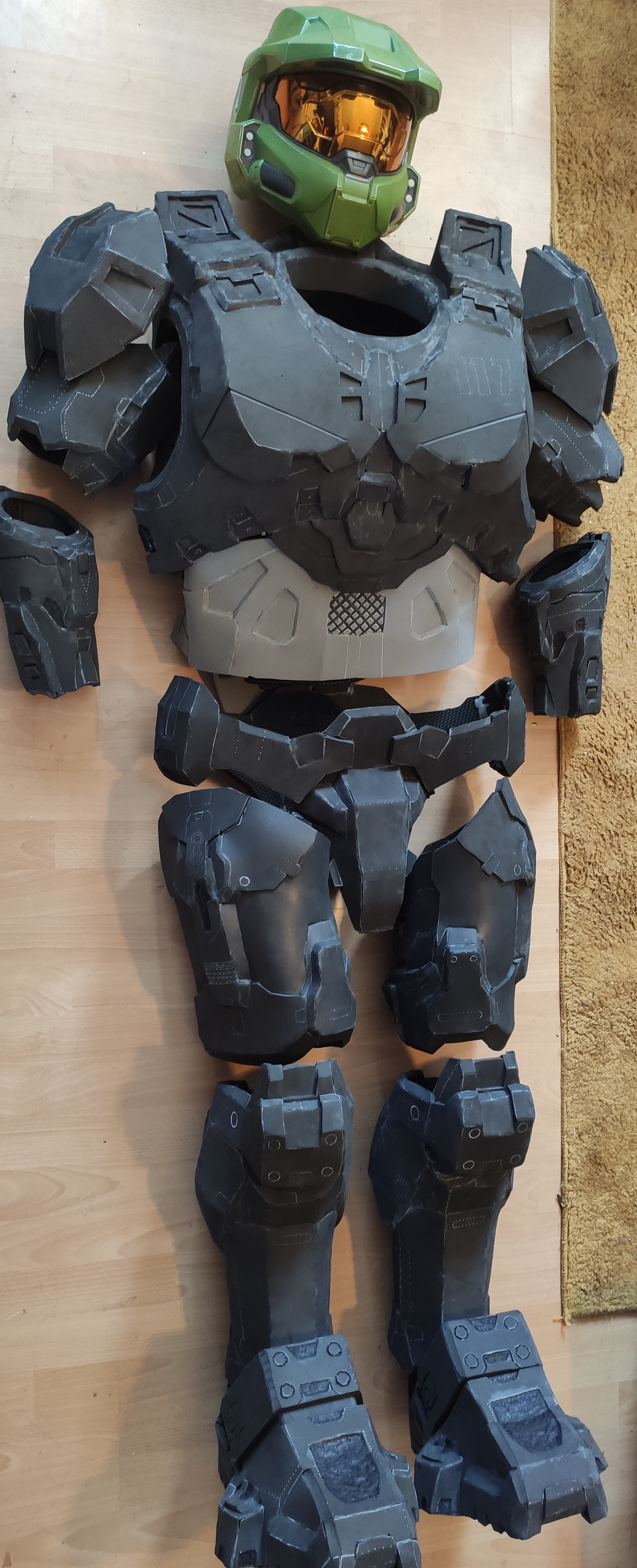

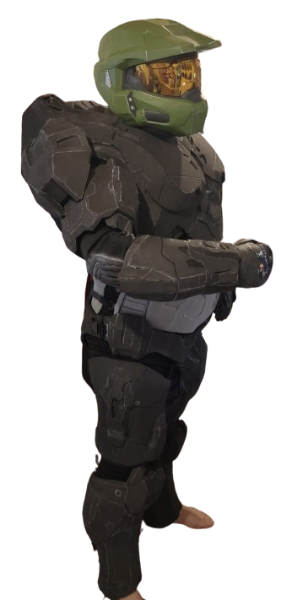

I've finally finished my Halo Infinity armor, now all that's left is details, painting and strapping.
Ich habe meine Halo infinite Rüstung endlich fertig , jetzt fehlen nur noch Details, Lackierung, und Strapping.

I will also equip my helmet with LEDs. And repaint. I'm happy with the results so far.:)
Meinen Helm werde ich auch noch mit LEDs ausstatten. Und neu Lackieren. Ich bin mit den ergebnis bis jetzt zufrieden. :)

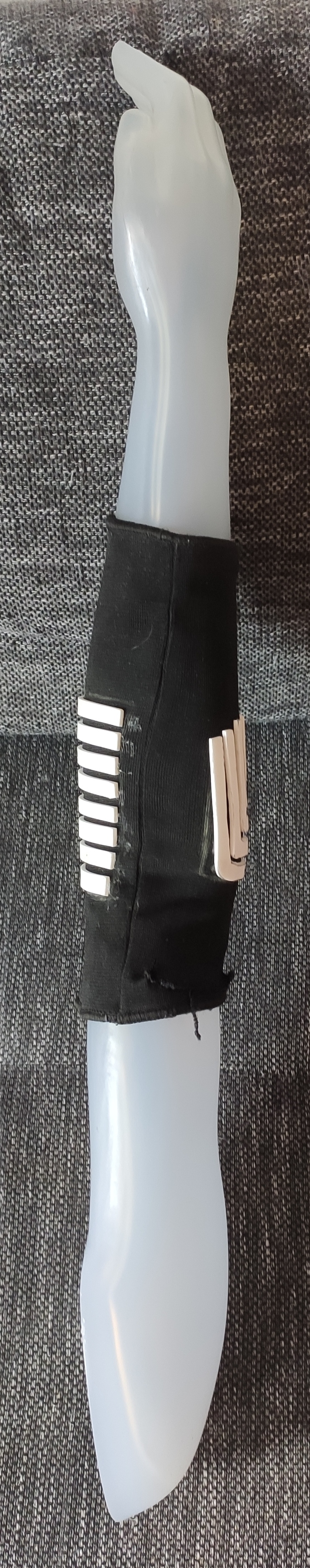

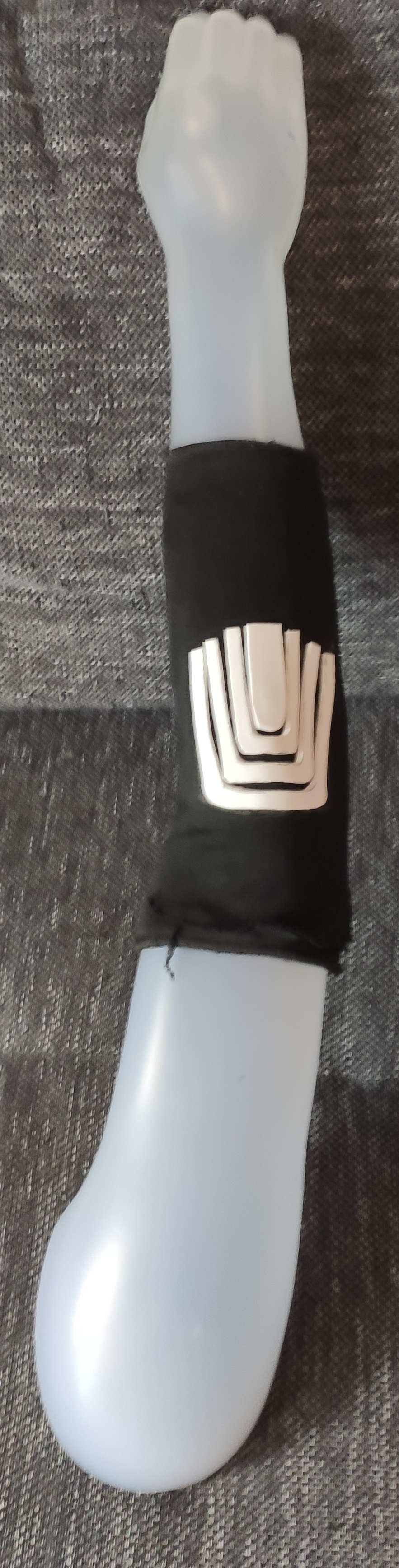

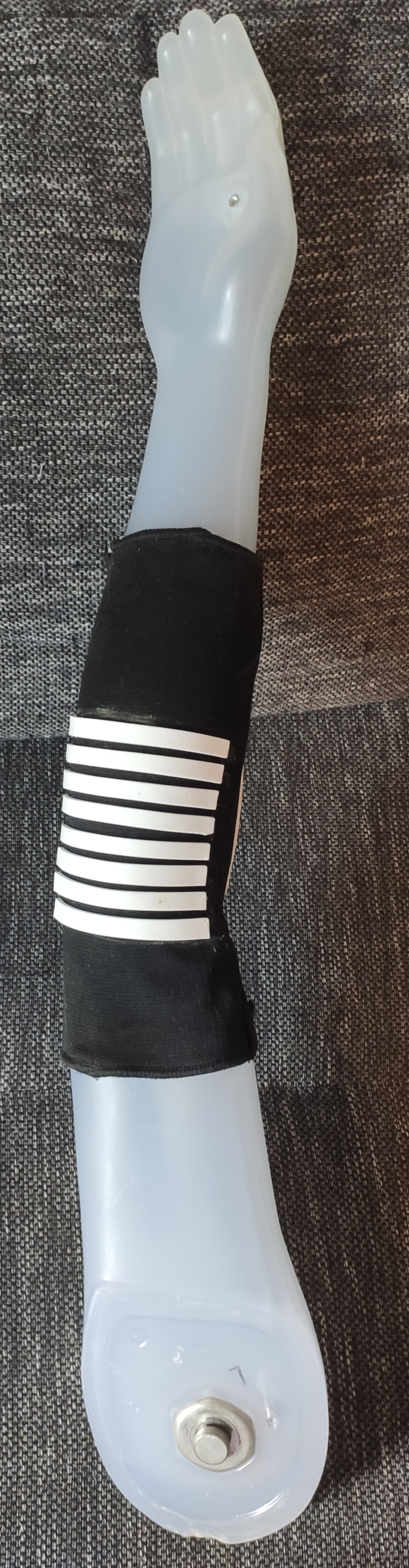

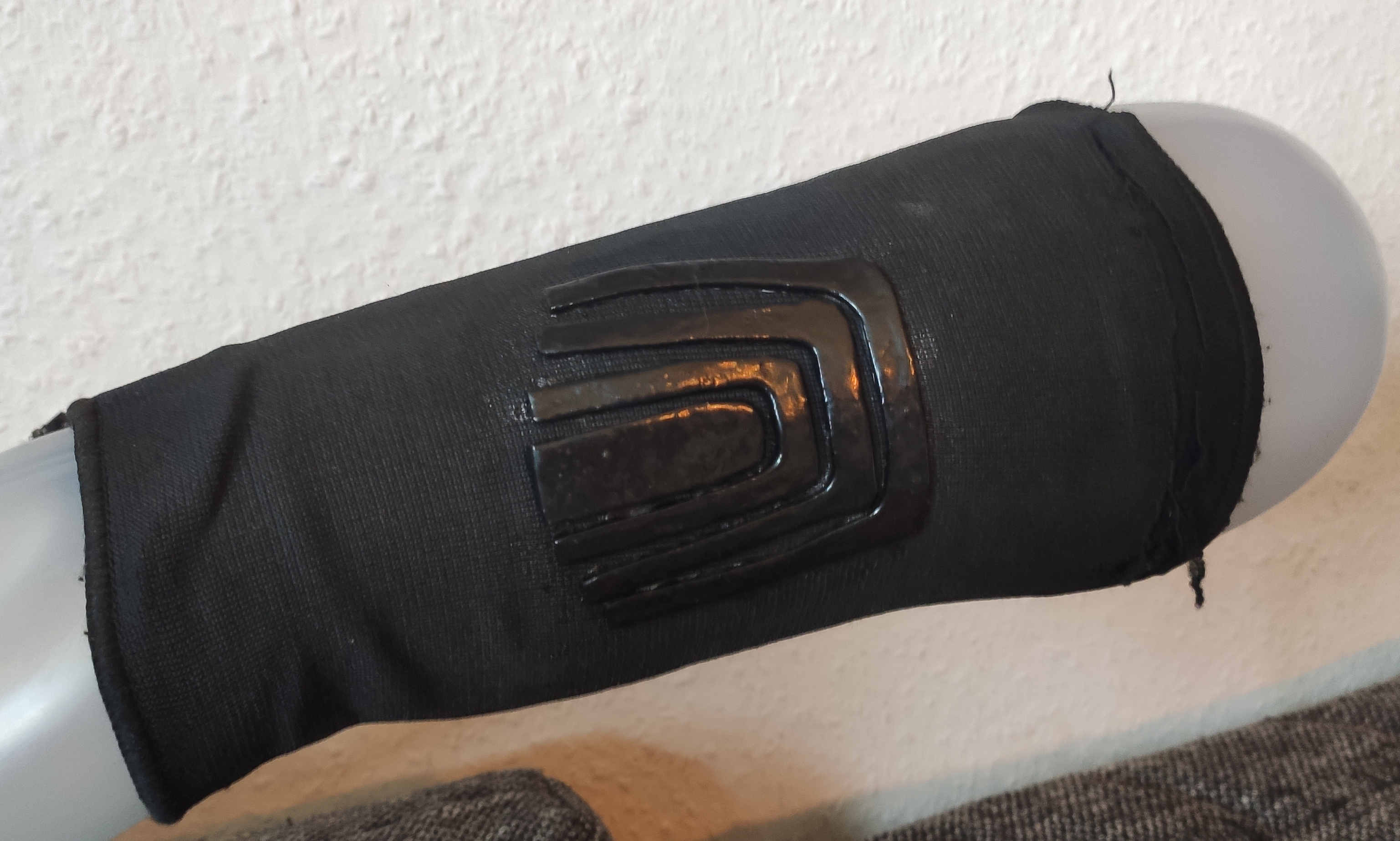

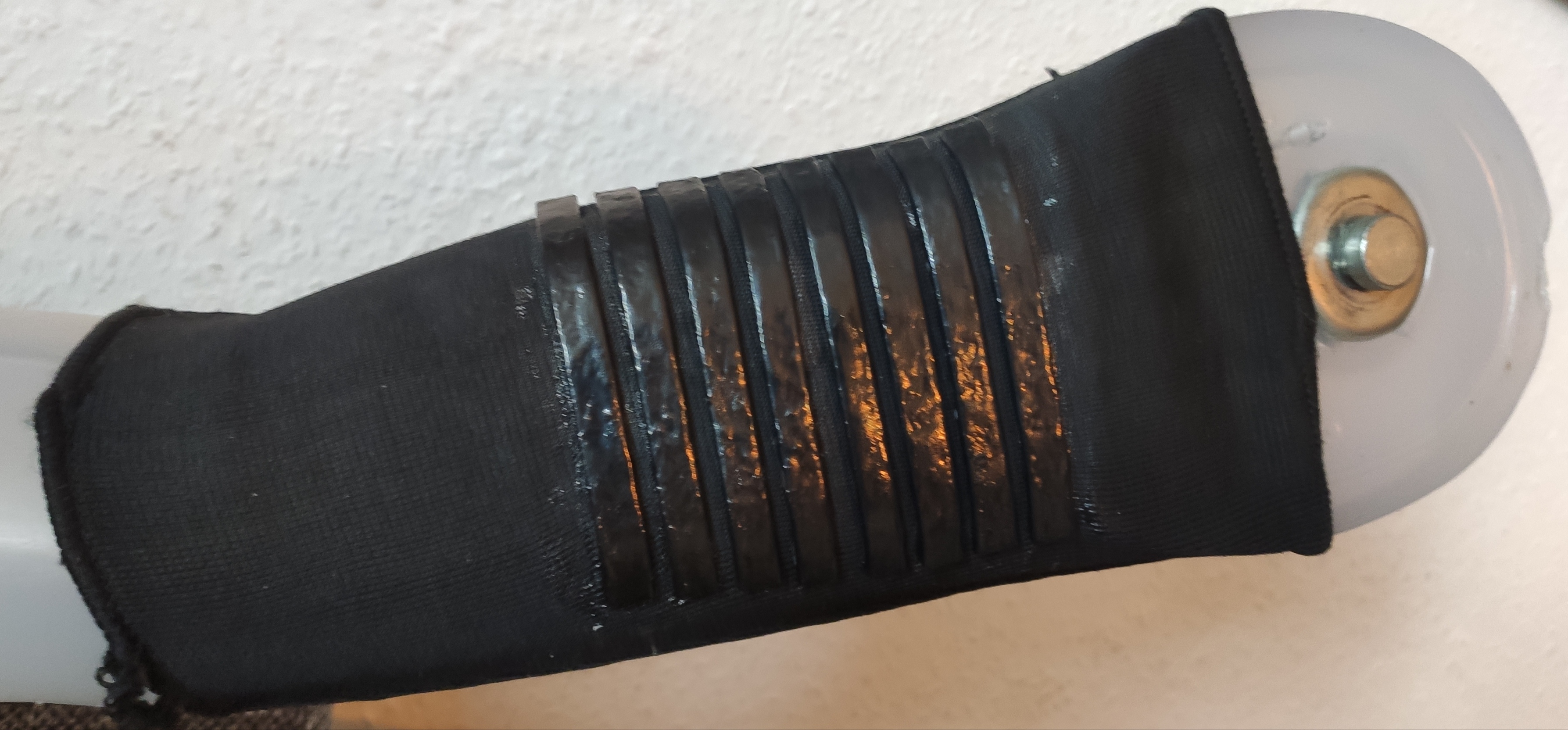

Ich habe ein wenig an meinen eigenen Ellenbogenschoner gearbeitet da ich es doch schon
mehr Details haben wollte und kein Motorrad Outfit verwenden wollte und kein Molding ,
da es zu lange dauert. Ich habe ein Template erstellt und meine alten Ellenbogen Schoner

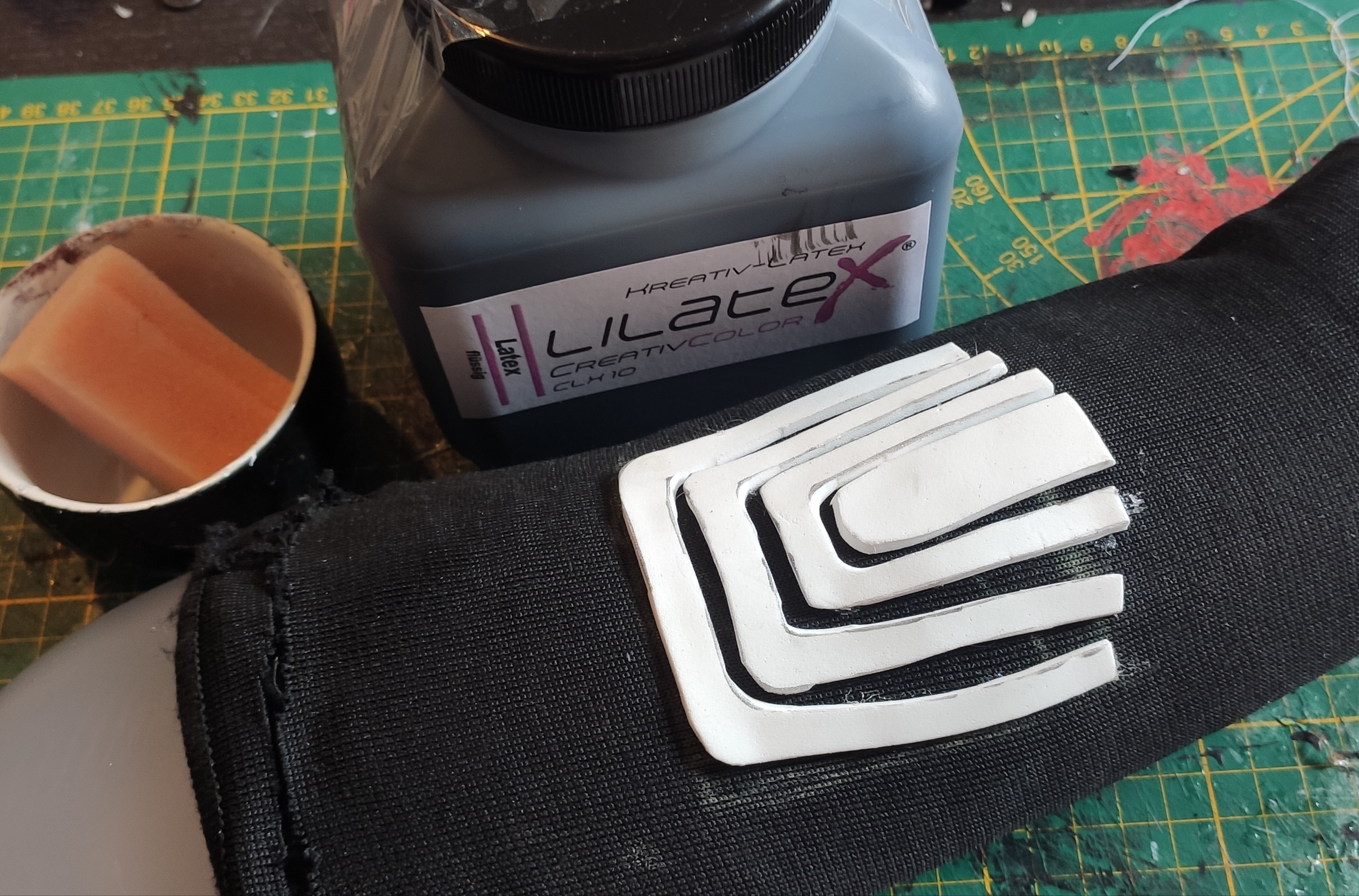

aufgeschnitten und den dicken Schaumstoff herausgenommen , anschließend mit 3 mm Foam
die Details aufgeklebt und mit 5 Lines Schwarze Natur Latex versiegelt.
---------------------------------------------------------------------------------------------------------
I've been working a bit on my own elbow pads since I already have them
wanted more details and didn't want to use a motorcycle outfit and no molding,
Because it takes too long. I created a template and used my old elbow pads
cut it open and took out the thick foam, followed by 3 mm of foam
The details are glued on and sealed with 5 lines of black natural latex.










Mein erster Test ich muss nur noch die Schuhe an meinen stiefeln anpassen!
-----------------------------------------------------------------------------------
My first test, next I will glue my boots to the shoes
