Mgalekgolo Twins Build (Halo 4 Hunter Pair)

Discussion in 'New Recruits' started by MgalekgoloTwins, Nov 8, 2014.

  1. MgalekgoloTwins

    MgalekgoloTwins Member

    Trophy Points:
    120
    Hello and thank you for looking at our build thread. This colony is very excited to show the Spartans of Earth our progress on our armor.

    We are making full scale Mgalekgolo as seen in Halo 4.


    We are making these Hunters 10' ft tall in a permanent crouching position so humans standing inside do not have to crouch the entire time in stilts.

    There are no detailed files of these forms of Hunters that we could find, so we are mainly creating these templates from scratch.

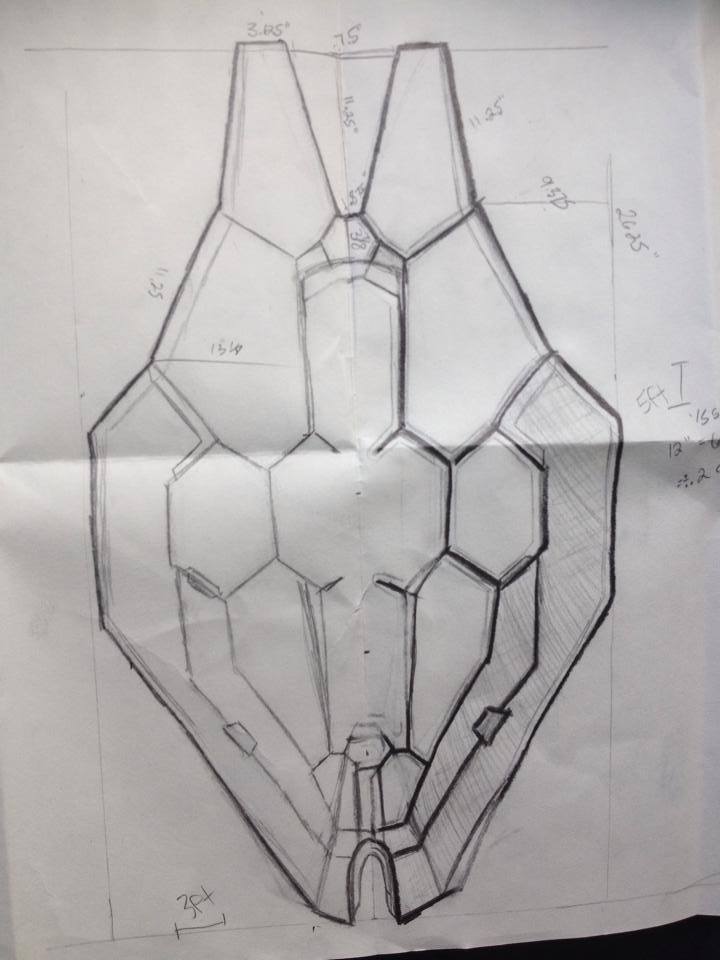

    Here is the shield that was drawn based off different reference images using a ruler and calculator. The drawing is done in 1/5 scale. The full shield is 5' long x3' wide.

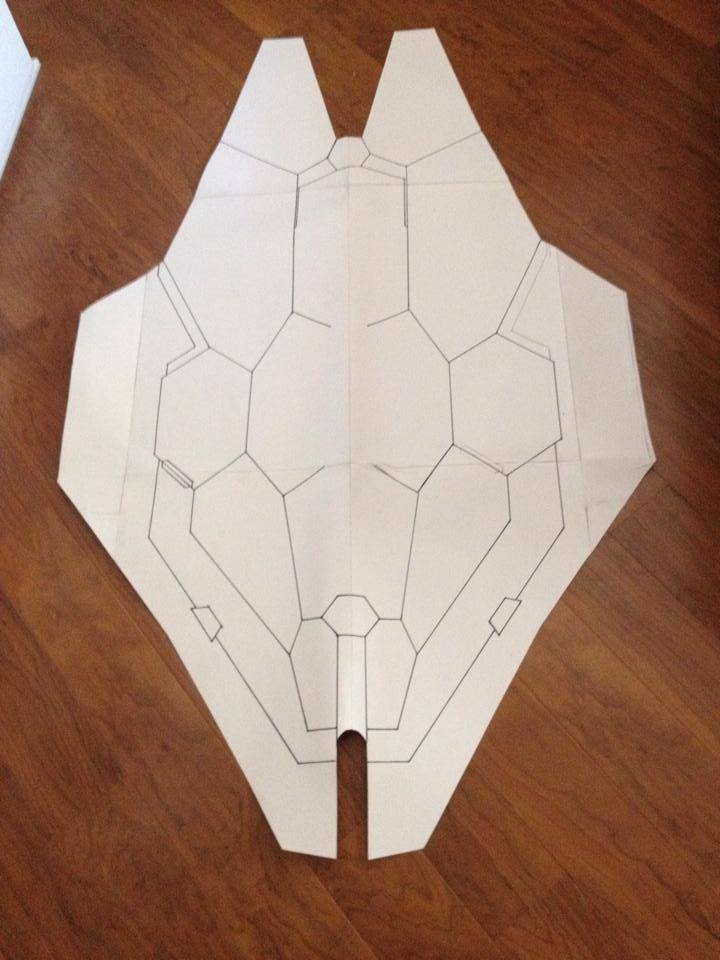

    Here is the shield template to scale drawn out on poster paper.


    And here is the first front portion of the shield fleshed out on foam.

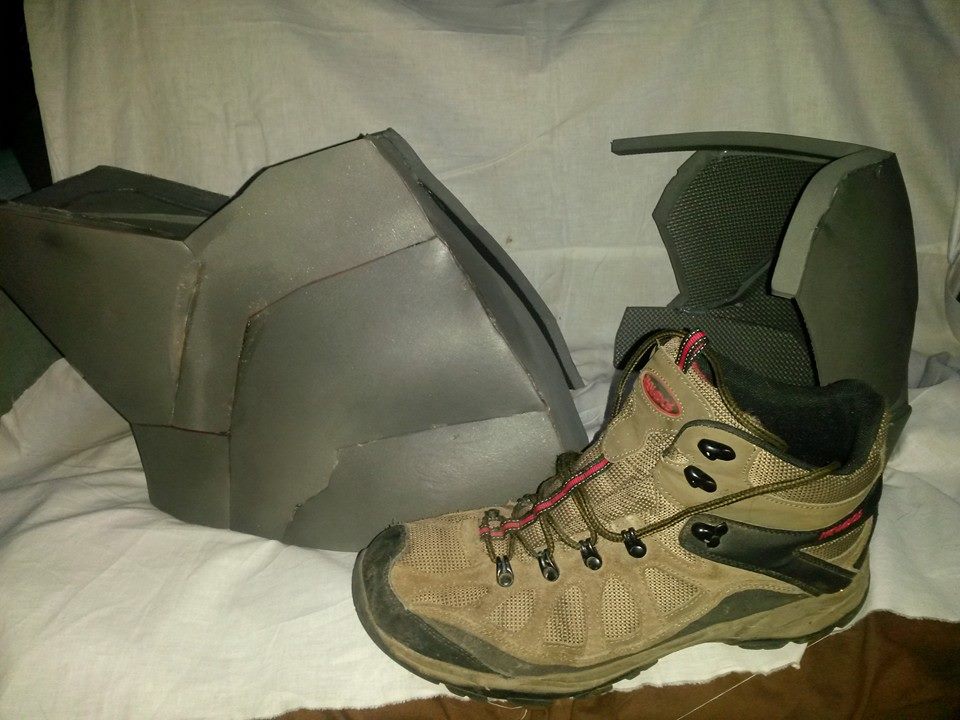

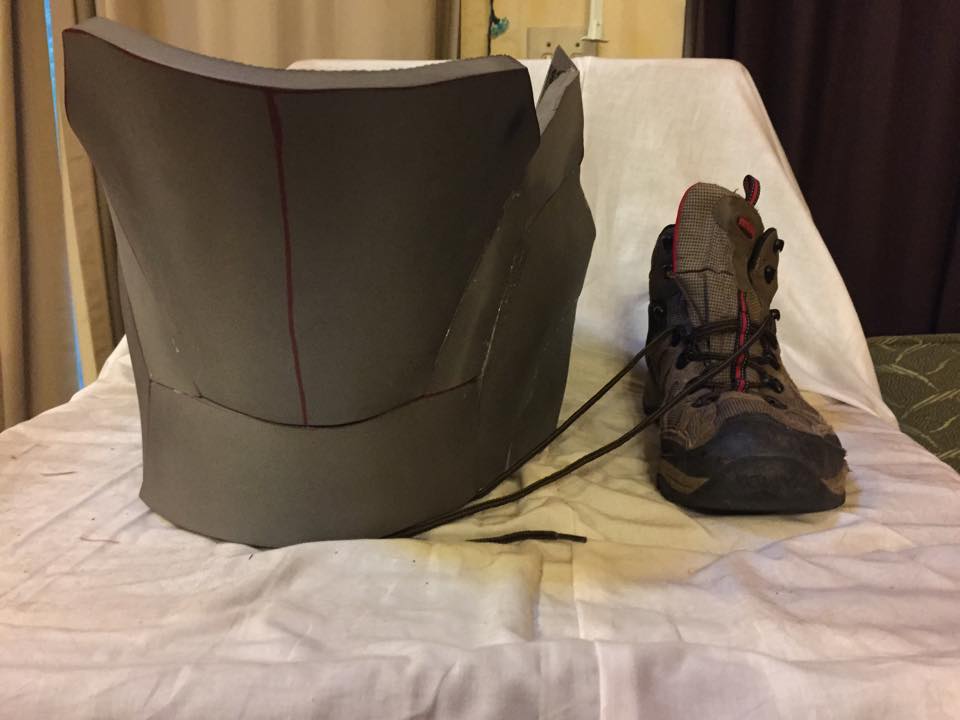

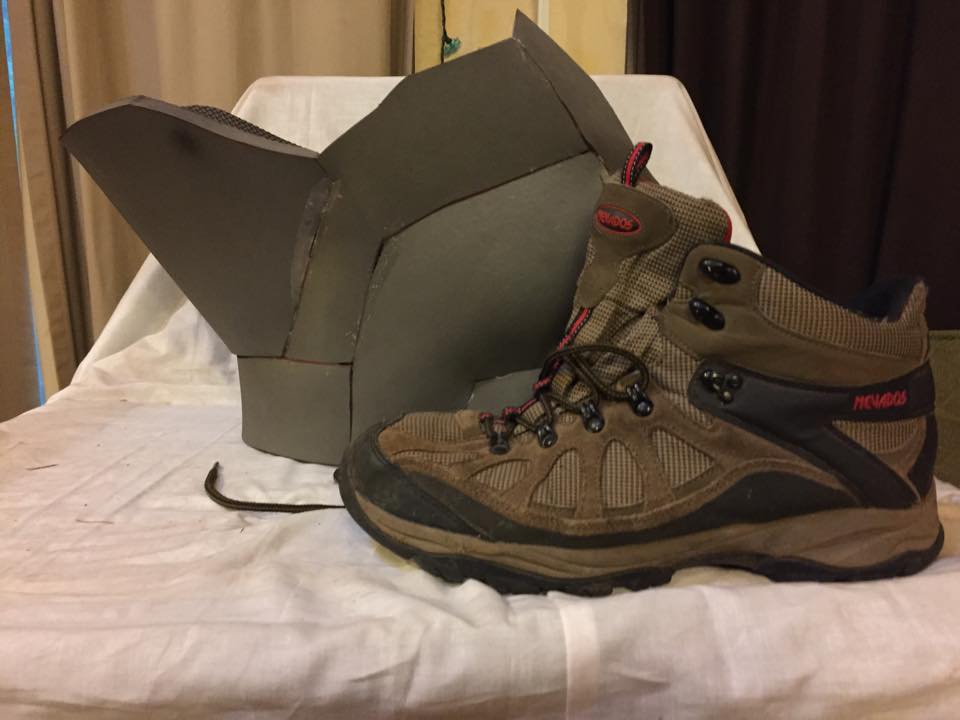

    We also have started the boots of the Mgalekgolo. We want to focus on making the legs first so humans can get used to walking around in the suit as soon as possible.

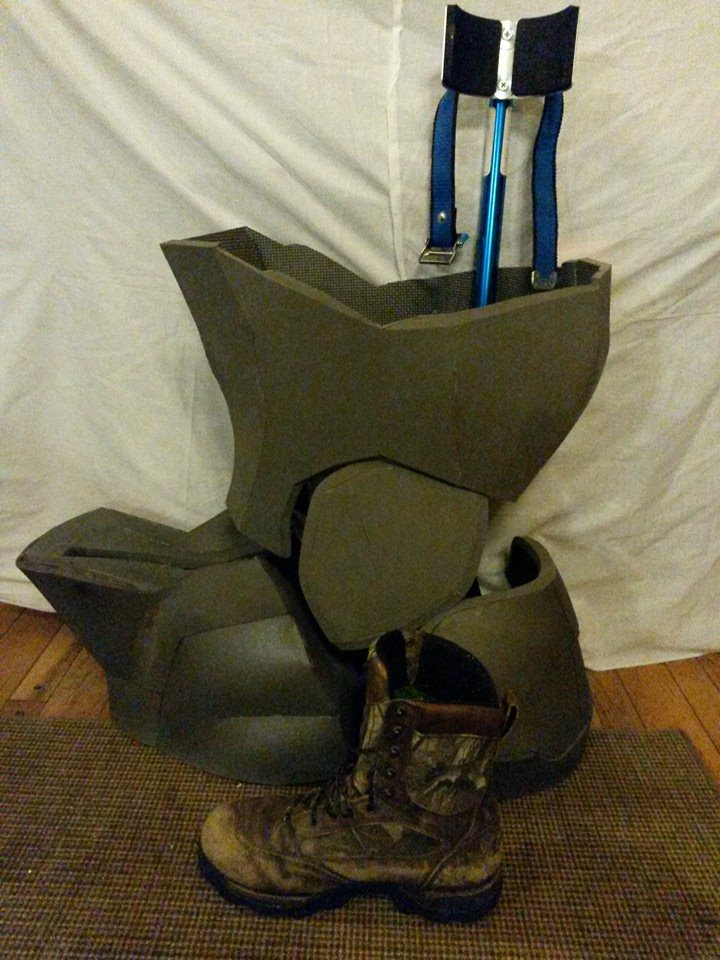

    And here is the knee pad separate from the boot and shin.

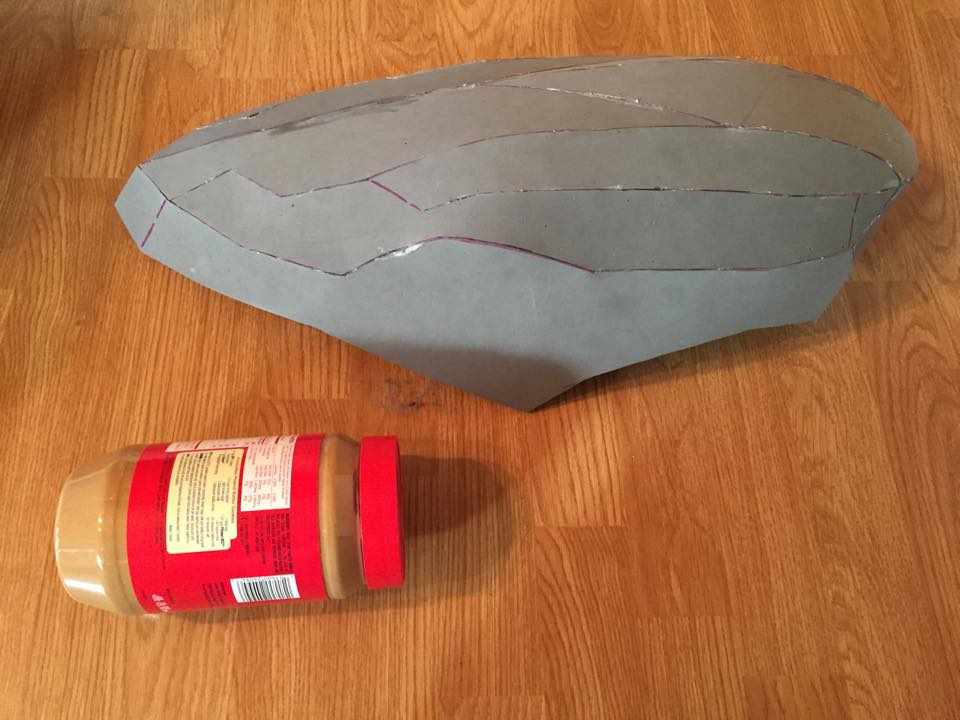

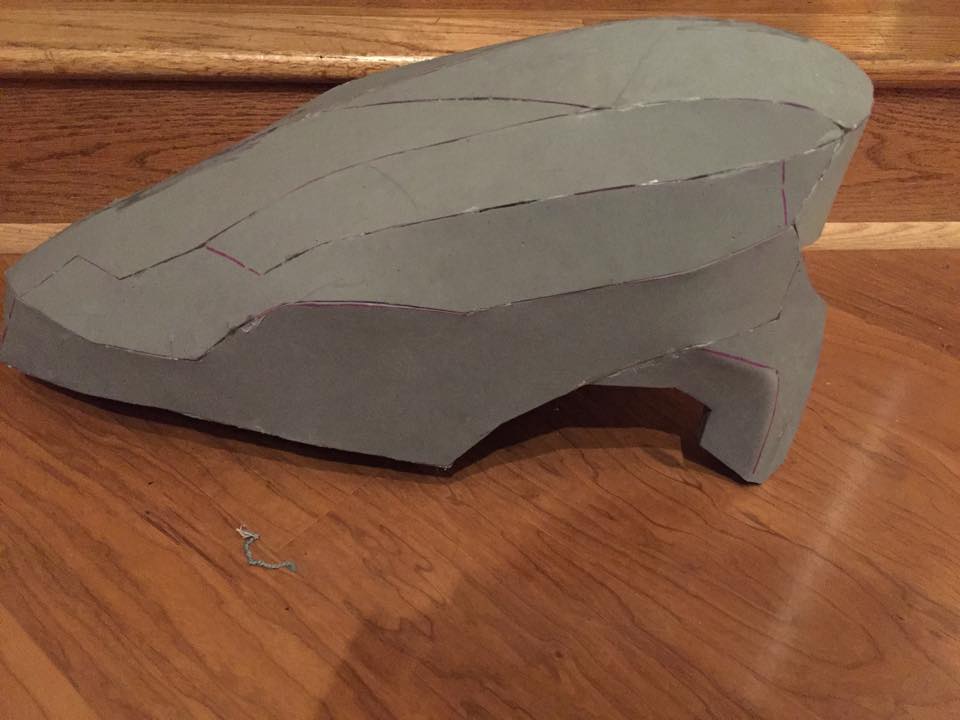

    Here is the progress on one of the helmets as well.




    We are making the armor out of foam to keep it light, but we will be coating the foam with a special resin that will make it hard to the touch without adding a lot of weight.
    We plan on sculpting and molding the worms in sheets and then wrapping them around the open spaces where the worms are visible between the armor plating.

    We have big plans for this collaboration and will keep everyone posted as we get progress done.

    Thank you for looking at this colony's thread and please share your feedback with us.


    Attached Files:

  2. Vampy

    Vampy Jr Member

    Trophy Points:
    70
    Very impressive so far! I like what you've done with your templates!

    ErMaC and MgalekgoloTwins like this.
  3. TheOneWithNoName

    TheOneWithNoName Jr Member

    Trophy Points:
    60
    Definitely like to see the different builds. Seeing things other than just human forces, and elites, is nice, and part of the reason that I am working on a Yanme'e suit. Be sure to keep us posted on progress.

    MgalekgoloTwins likes this.
  4. FoxtrotZero

    FoxtrotZero Jr Member

    Trophy Points:
    60
    Holy hell. I've never seen anything even remotely like this attempted. If you can do it, it'll be jawdropping. If you can build a pair, you'll have officially won at the 405th.

    Subscribed. Everything looks great so far, I think you really know what you're doing. Can't wait to see more.

    MgalekgoloTwins likes this.
  5. MgalekgoloTwins

    MgalekgoloTwins Member

    Trophy Points:
    120
    We thank everyone for their support already.

    To Confirm: We are making a pair of Mgalekgolo. Two Hunters is a lot of work, but we want to make sure our colony is whole and make this look as realistic as possible.

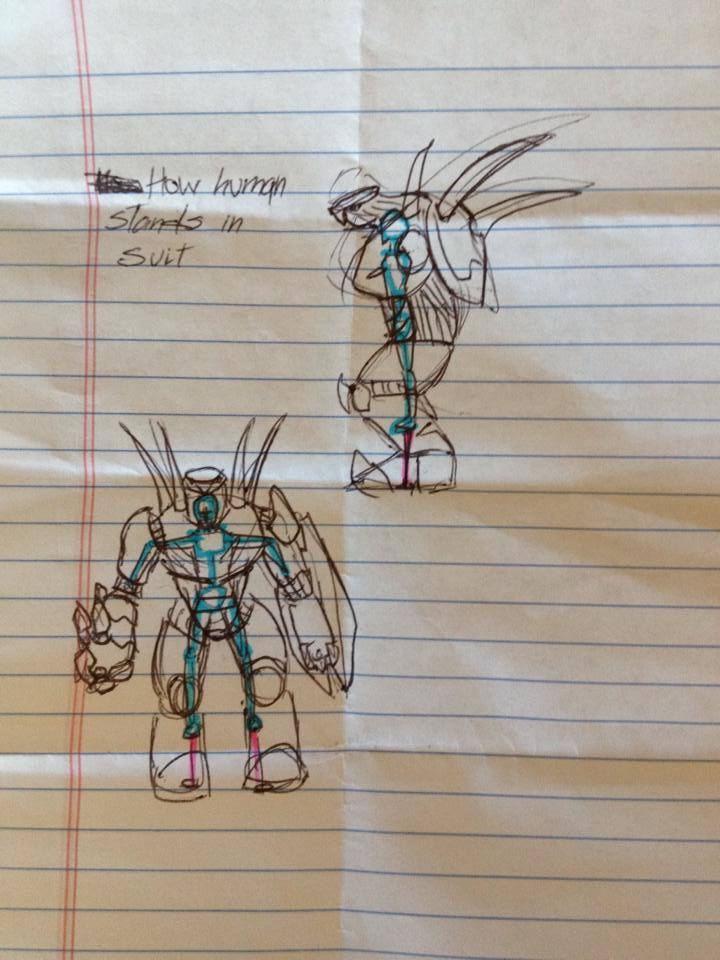

    Here is a quick sketch of the suits with a human fitted inside.



    Attached Files:

    FoxtrotZero likes this.
  6. FoxtrotZero

    FoxtrotZero Jr Member

    Trophy Points:
    60
    The usage of stilts and the lack of control of the lower arms seems a little daring to me. I assume you're going to fix the elbows in place so you can draw the arms up into a combat stance. I'm also wondering how movement will work when the human's shins are where the colony's knees should be, but I don't think I'm imagining movement correctly, given that the mgalekgolo is in a crouched position.

  7. MgalekgoloTwins

    MgalekgoloTwins Member

    Trophy Points:
    120
    The sketch is from our planning phase of this project. A lot of ideas are up in the air for actual body placement and will be fleshed out when we get more progress done.

    The legs themselves will not be moving around a lot. The human legs inside will have plenty of space to move. The Hunters will be moving in more of a shuffle than actual leg bending.

  8. FoxtrotZero

    FoxtrotZero Jr Member

    Trophy Points:
    60
    Right, that makes sense. I shouldn't try to speculate on something so complicated and that I have no hand in the design of, I would be staggered if I was handed this as a task. It's very, very interesting, though, and I can't wait to see how it works.

    MgalekgoloTwins likes this.
  9. m00sem4n

    m00sem4n Member

    Trophy Points:
    155
    I laughed at the peanut butter for scale, you guys are alright in my book, haha

    Subbed, loved, and my eyes will be peeled for further development. Gosh i'd love to take on a project t like this one day. Best of luck ya' wormy bastards :thumbsup

    MgalekgoloTwins likes this.
  10. RobTC

    RobTC Member

    Trophy Points:
    105
    Funny, I was just looking at that top diagram the other day.

    I really want one of those shields as a wall "trophy". Or a replacement door. Maybe on the ceiling!

    MgalekgoloTwins and FoxtrotZero like this.
  11. MgalekgoloTwins

    MgalekgoloTwins Member

    Trophy Points:
    120
    All of your feedback is appreciated. We want to know what other people think so we have another view of our project. Suggestions may turn into ideas.

    We thank you for your support. Peanut butter is a required staple for this colony. Seeing as we do not have jaws, peanut butter is the easiest to consume and is an excellent source of protein.

    The 3D model diagram is an excellent reference source. In the very distant future, our shields may become trophies. But we plan on using them for a very long time before that time comes.

    m00sem4n likes this.
  12. ErMaC

    ErMaC Well-Known Member

    Trophy Points:
    635
    Now that takes a lot of imagination, great job. I cant wait to see the more.

  13. m00sem4n

    m00sem4n Member

    Trophy Points:
    155
    I guess you'll get to it when the time comes but I'm really curious about this "special resin" you speak of. What is this black magic, and is it expensive, because you're gonna rack up a lot of surface area to cover by the end? o_O

    FoxtrotZero likes this.
  14. FoxtrotZero

    FoxtrotZero Jr Member

    Trophy Points:
    60
    I too am curious about this special resin. One of my biggest concerns with doing a foam build is the soft texture. If there's a reasonably priced method of giving it a hard finish, that would be really nice.

  15. m00sem4n

    m00sem4n Member

    Trophy Points:
    155
    I'm going to take a shot in the dark and say its automotive grade. You guys going to use that two part truck bed liner?! That'd be cool to see

  16. Frozensnot

    Frozensnot Member

    Trophy Points:
    120
    I always like to see unique builds. Especially ones about hunters. Subbed for sure!

  17. RobTC

    RobTC Member

    Trophy Points:
    105
    My guess for the "special resin" is just Epsilon or another brand's equivalent coating epoxy. AeroMarine do some good ones, US Composites has the cheapest ones, I believe. Super messy, but the finish at the end is perfect, hence why it's used for boat hulls and bar tops. That's what I'd use, anyway. As long as it's VOC-free (ie. natural viscosity, not thinned) and the foam isn't polyolefin (epoxy doesn't like EPO), it should be useable on just about anything.

    Spray-on truck liner or underbody would probably be cheaper though.

  18. MgalekgoloTwins

    MgalekgoloTwins Member

    Trophy Points:
    120
    We were planning on using Smooth Cast 65D.

    It's a semi-rigid casting resin that will give the foam a hard outside surface without adding a lot of weight and it won't harm the integrity of the foam. We have experimented with this in the past and have found it is pretty flexible as well in thin coats so mobility of the armor is not compromised.

    You can find it here.
    http://www.amazon.com/Smooth-On-65D...id=1415639506&sr=8-2&keywords=smooth+cast+65d

    m00sem4n likes this.
  19. RobTC

    RobTC Member

    Trophy Points:
    105
    Ohhh. Yeah, that makes sense. That's pretty popular over foam builds, though it's designed to be semi-rigid (hence your discovery of its flexibility). When you said hard, I thought you meant "knock, knock" hard.

    Nice that it's designed to rotocast, too. Should make life easier.

  20. Kyre

    Kyre Member

    Trophy Points:
    120
    I'm gonna keep an eye on here for sure, I have no doubt that this will be awesome to see! I can't imagine what it would be like in person, even!

  21. Noble 10

    Noble 10 Well-Known Member

    Trophy Points:
    620
    i have whating to see the build of can-o-worms (a hunter in marine slang)

  22. MgalekgoloTwins

    MgalekgoloTwins Member

    Trophy Points:
    120
    We thank you all for your continued support. Now that the Master Chief Collection has been released, we will hopefully get back into swing on this build soon!

  23. MgalekgoloTwins

    MgalekgoloTwins Member

    Trophy Points:
    120
    Last night we were able to put together a paper model of the fuel canisters on the cannon arm.

    We plan on smoothing this out and adding as much detail as possible before we vacuform it to make lightweight copies of the canister. We will include lights in these canisters that will glow brighter when emulating the charge up effect on the cannon arm.


    For reference, the peanut butter jar is the larger kind you can get at Costco. We are not 100% sure this sizing is correct, we may have to resize it a third time. (The first attempt was too small)

    We thank you for your interest in the colony.


    Attached Files:

    FoxtrotZero and m00sem4n like this.
  24. TheOneWithNoName

    TheOneWithNoName Jr Member

    Trophy Points:
    60
    Looking good still. Keep at it.

  25. FoxtrotZero

    FoxtrotZero Jr Member

    Trophy Points:
    60
    I'm still fairly boggled by the scale of this build. The final product is way bigger than a human, and every part reflects this. And yet, every time I see one, I'm like "holy hell, that's massive!" as if a twelve-foot armoured behemoth would be reasonably sized.
