    I have been snooping around the 405th community for over 2 years now, and I just decided to join the ranks as a member. I somehow stumbled across a build on this forum by LongshotX (LongShot-X's Mark VI HD MJOLNIR Armor - WIP) that truly inspired me. I've been a huge fan of the halo series since the first time I played Halo: CE in 2001. Seeing Longshot's artistic work led me to researching and eventually to start pepping my own pieces of armor.

    I began in January of 2014. I made the Mjolnir Mark VI helmet first, just to see if the project was something I would be interested in pursuing further. Over the next two years I would go through spurts of interest and work on the set of armor in waves. But recently, I attended Anime Detour in Minneapolis, MN and I have been completely motivated to pursue this project to completion.

    Follow along with me as I track my progress...
    (Pepakura files are by FLYING SQUIRL, ROBOGENESIS, RAL PARTHA, NUGGET, and crackhead09)

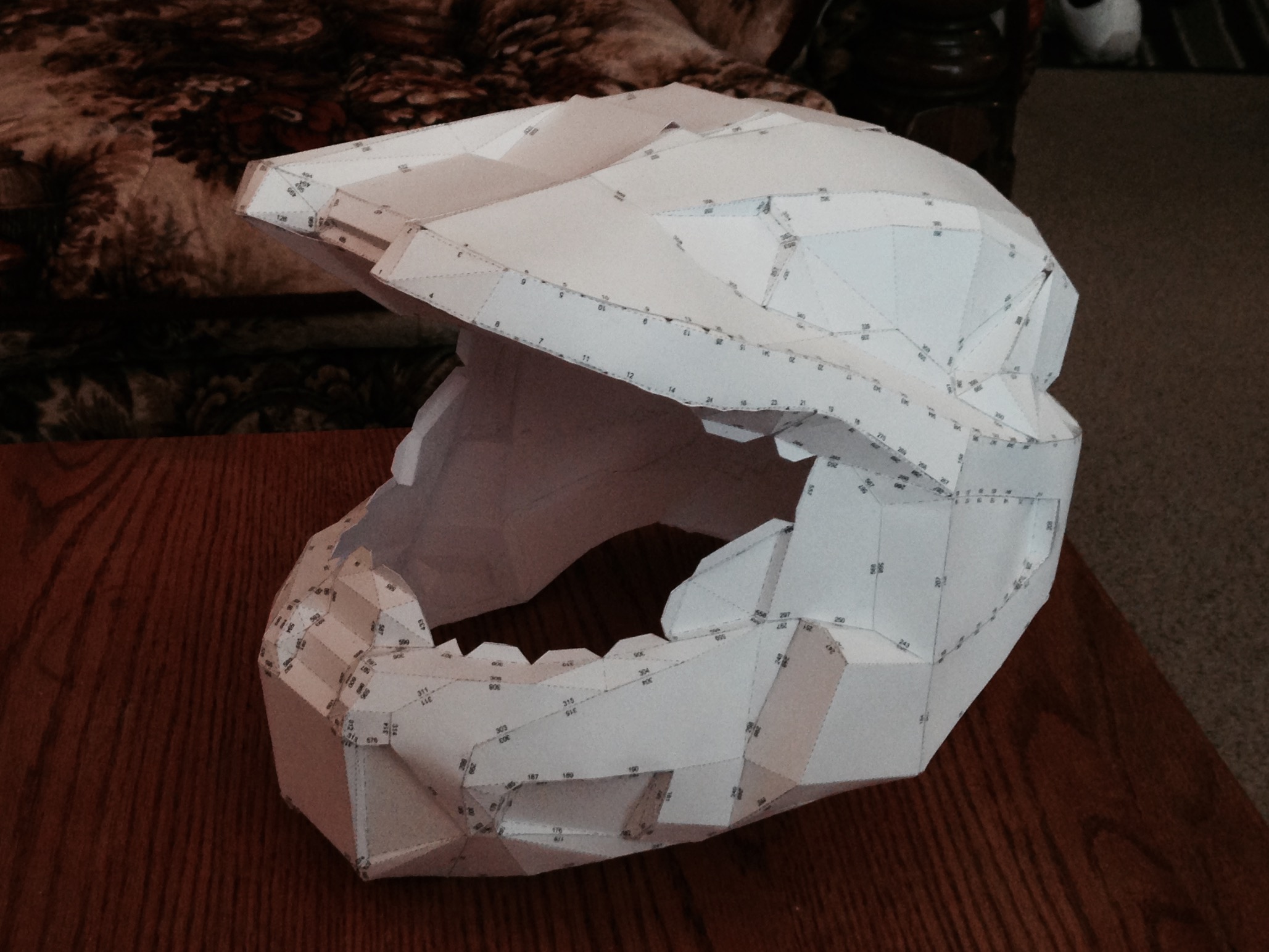

    Helmet
    Pep Helmet.jpg

    Torso and Hand-Plates

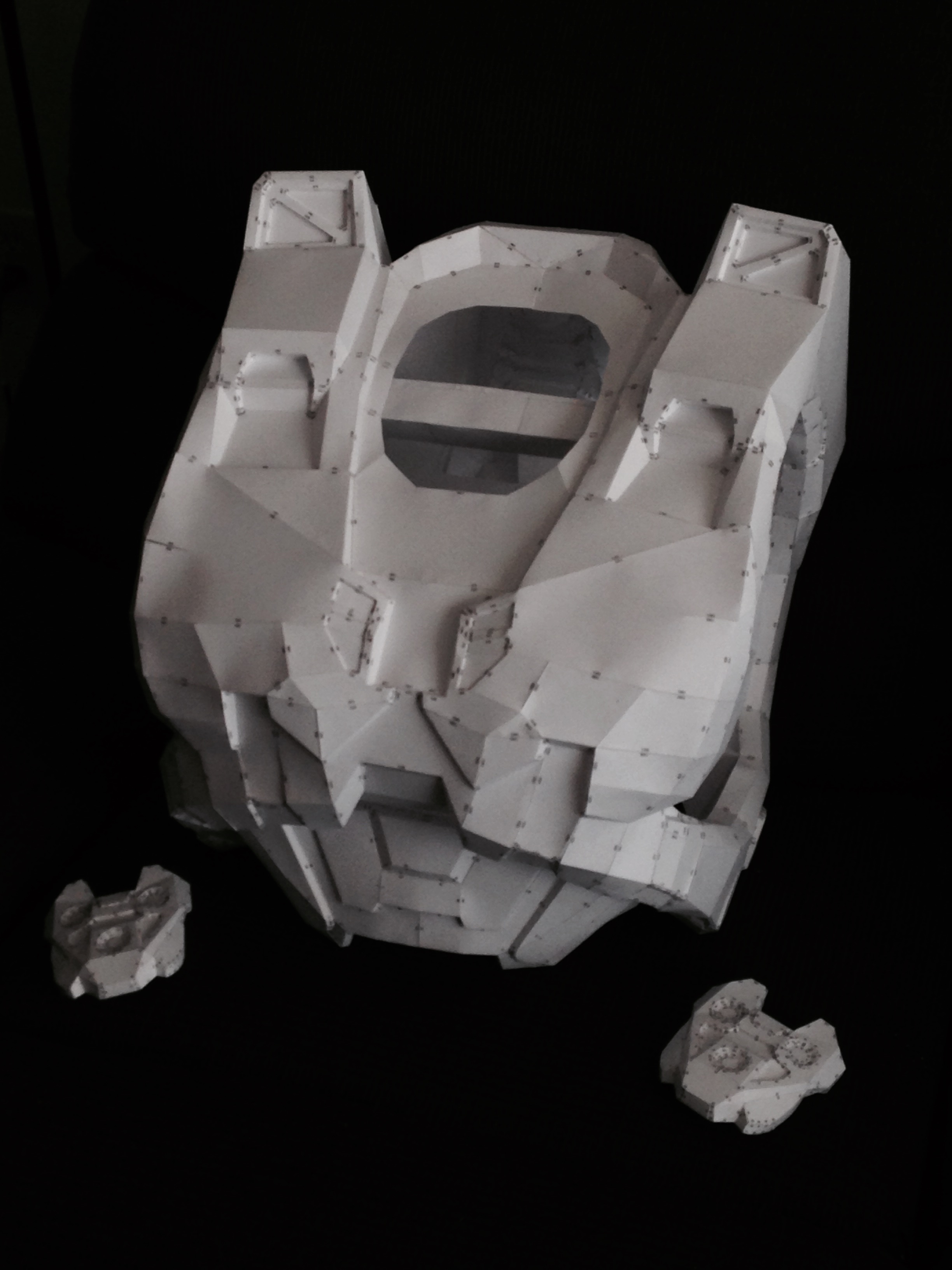

    Pep Chest.jpg

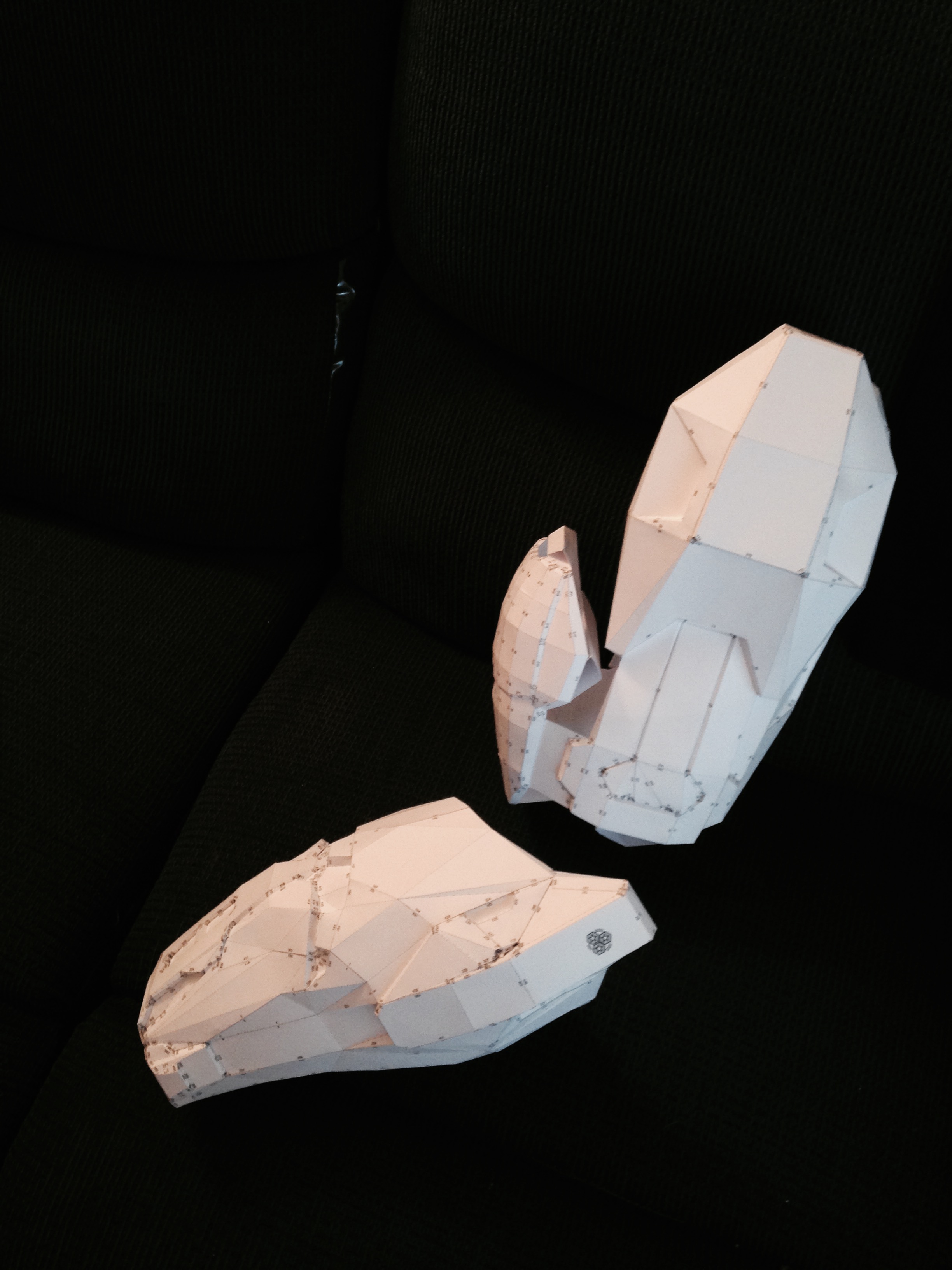

    Left Shoulder and Wrist
    Pep Right Arm.jpg

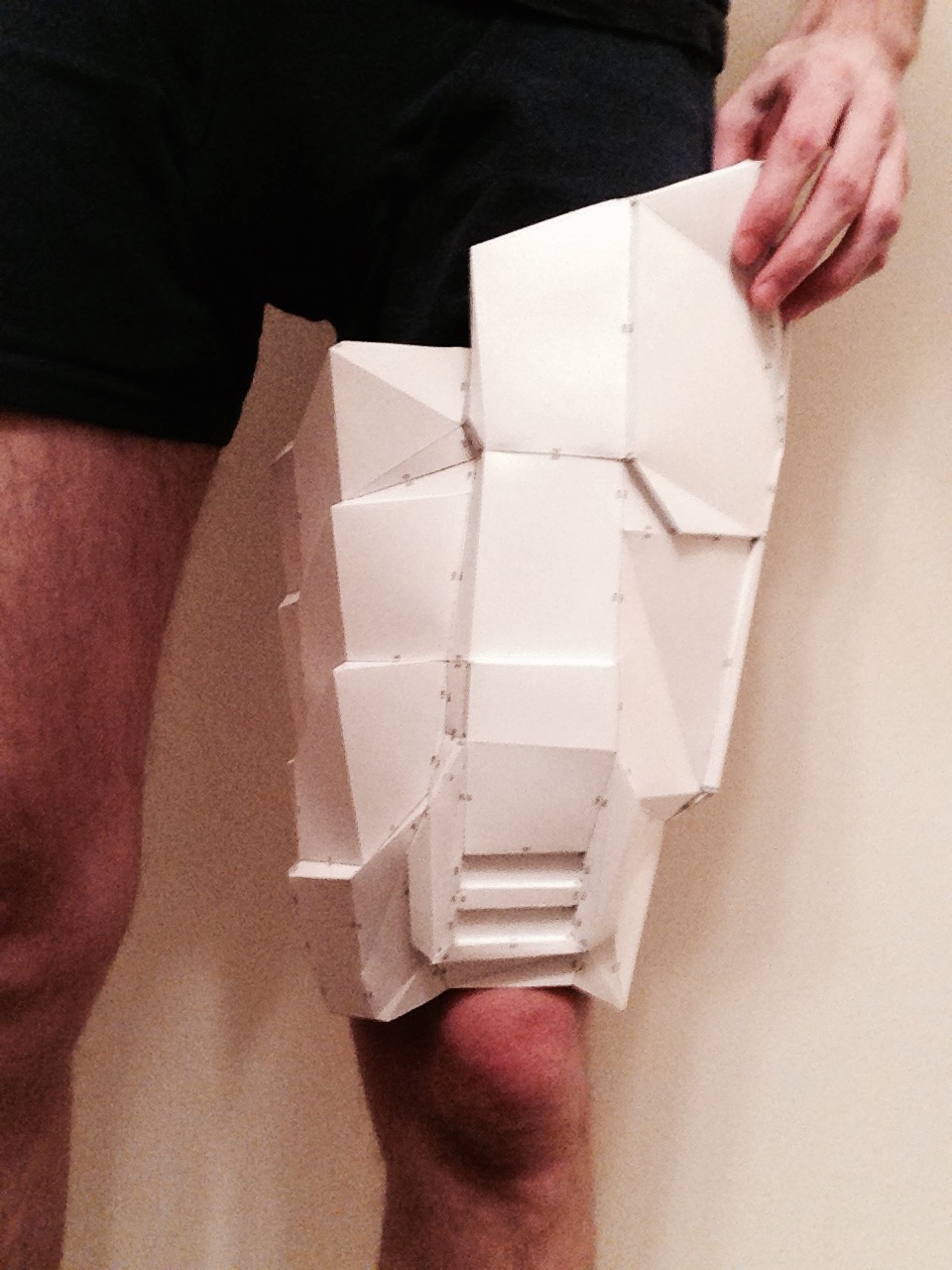

    Left Thigh (don't mind me in my skivvies)
    Pep Thighs.jpg

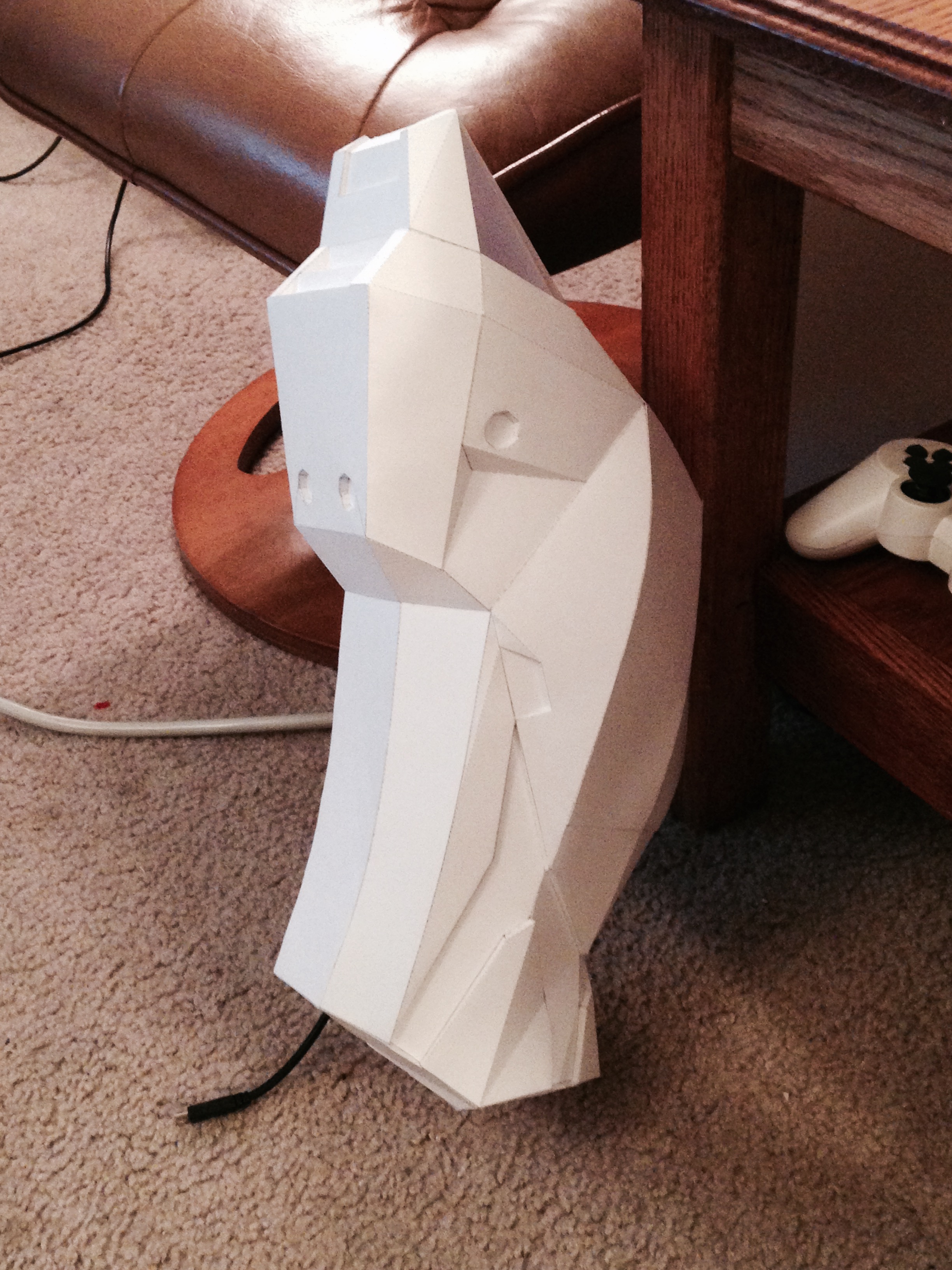

    Shin (I grew a lot more confident in the Pepakura process. I began to model a few pieces without using numbers to match up parts.
    Pep Shin.jpg

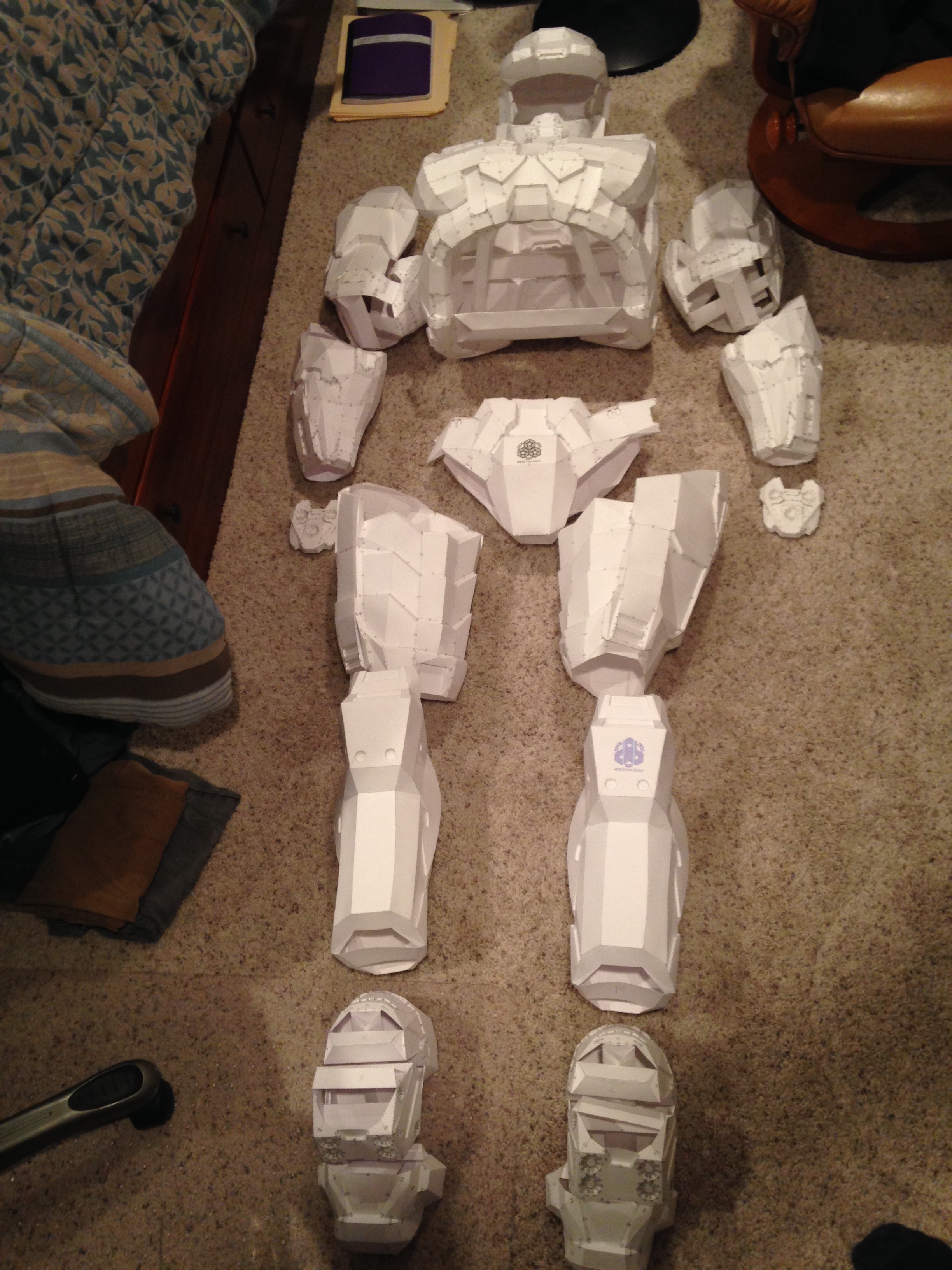

    Here is the full set of armor Pepped and ready for fiber-glassing... Which terrifies me
    Pepped Armor.JPG

    Just the other day I went out and picked up all of the supplies I will need for fiber-glassing. I've got a busy schedule this week though, so I'm not sure how much time I'll get to actually work on the armor.

    Until next time...

    Last edited: Apr 13, 2017
    mawrTRON and LongShot X like this.
  2. ErMaC

    ErMaC

    looks like a very clean build so far. And welcome to the group :)

  3. PerniciousDuke

    PerniciousDuke

    Welcome to the 405th! Your work looks great! I like your choice of files too. Fiberglassing is a pain, but you'll get it. You pepped the support pieces which is going to help you a lot.

  4. Lasrig

    Lasrig New Member

    If you have never fiberglassed before I would recommend that you start it on a small model not a big piece that takes forever to fold.:D

  5. Jalean4

    Jalean4 New Member

    Thanks for the tip, I'm the type of person to research as much as I can before I'll begin something, so I was fairly confident about using the fiberglass resin.

    I started on the shins, because I thought they were probably one of the easier pieces for me to Pep, just in case I ruined them.

    Work's had me pretty busy, but I got a little more time today to work on them. I finished applying resin to both of the shins. I am probably 2/3 done with the torso, and I finished the left thigh. Just going slow, section by section, doing about an ounce at a time to make my resin last as long as possible. That forces me to not over-apply the resin as well.


    I've also been thinking about picking up a pair of BoomCo M6 Blasters (Magnums) or M7 Blasters (SMGs) to paint, as I'm not particularly interested in Pepping a gun.

    Had a funny thought today about building a 343 Guilty Spark hover-drone..
    **Calamity.. If only we had more time!**

  6. Dirtdives

    Dirtdives

    Last edited by a moderator: Aug 2, 2017
  7. Meatwad

    Meatwad Jr Member

    It's looking great so far man. Can't wait to see how the bondo goes.

  8. Jalean4

    Jalean4 New Member

    I was reading through someone else's build and noticed they used two coats of resin on the outside. Is that necessary/a good idea? I feel like the armor is becoming pretty firm with just a single coat and that double-coating it will just take away some of the detail when it comes to the bondo phase.

    I'm tentatively planning on doing two coats of fiberglass on the insides, and then one coat of *Rondo* over the fiberglass to smooth any sharp corners on the inside of the armor.

  9. Meatwad

    Meatwad Jr Member

    I only used 1 coat of resin on the outside of my pieces and 1 layer of fiberglass. The pieces came out very strong and have withstood being thrown on a concrete floor with very minimal damage.

  10. Dirtdives

    Dirtdives

    It's a matter of preference really. The more layers you put the stronger the piece will be but the heavier it will get. It's a trade off. And yes the more layers you do outside, the more details you loose. I believe that the outer layer is to just harden the piece enough to allow you to work on the inside w/o it warping.

  11. ZP180

    ZP180

    While it's purely preference, I don't think there's a need for a second resin coat on the outside. Personally, I'm doing 1 coat resin outside and 2 layers fiberglass inside with and plan on doing a thin coat of rondo inside just to smooth out what sharp edges I can't file/sand down in my helmet. But as Dirtdives said, more layers is stronger but heavier so you'll have to find that sweet spot for you. Either way I wouldn't want to put a bunch of coats of resin on the outside for fear of losing too much detail.

    Great job so far. It's looking good.

    Dirtdives likes this.
  12. Jalean4

    Jalean4 New Member

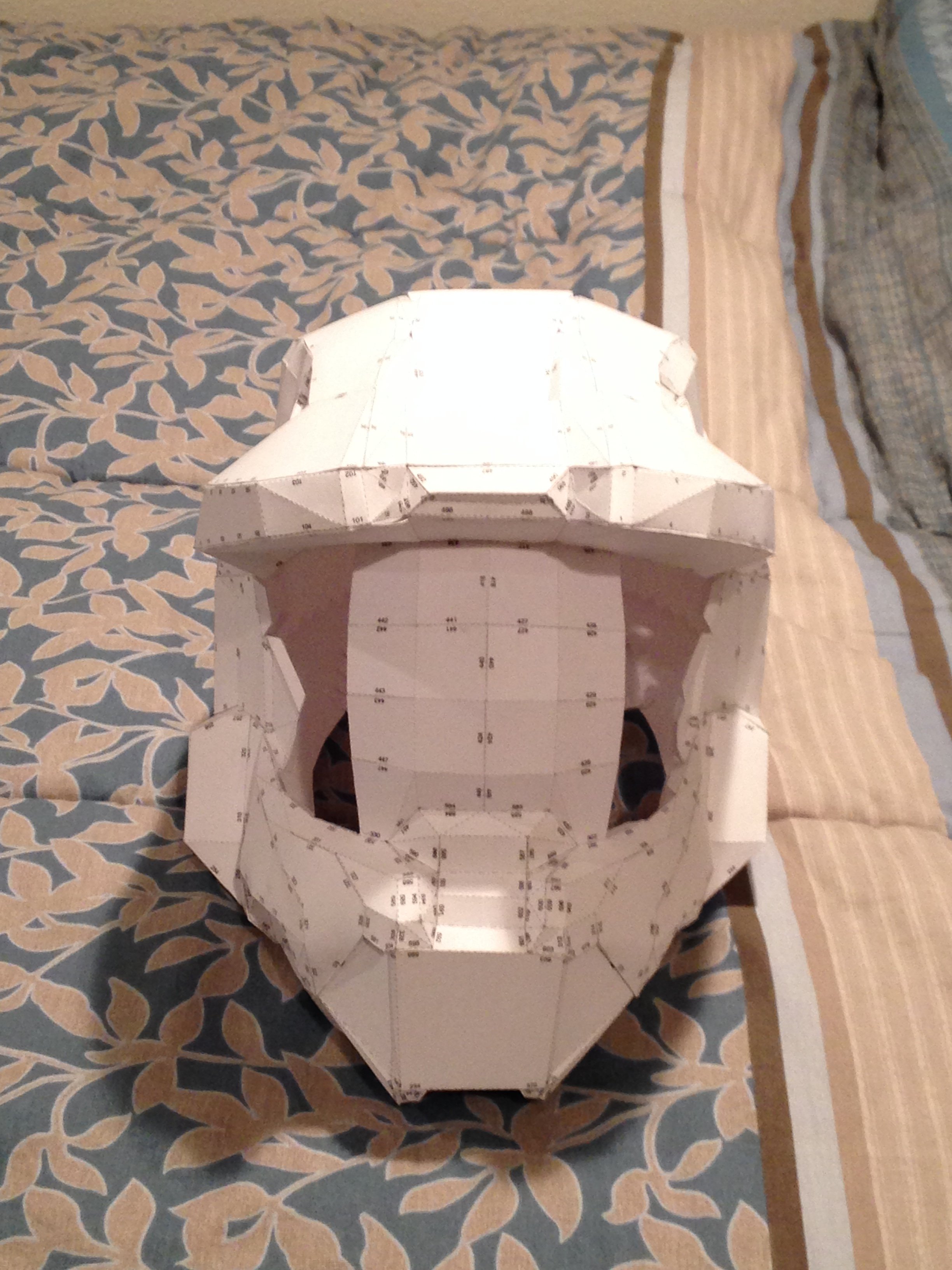

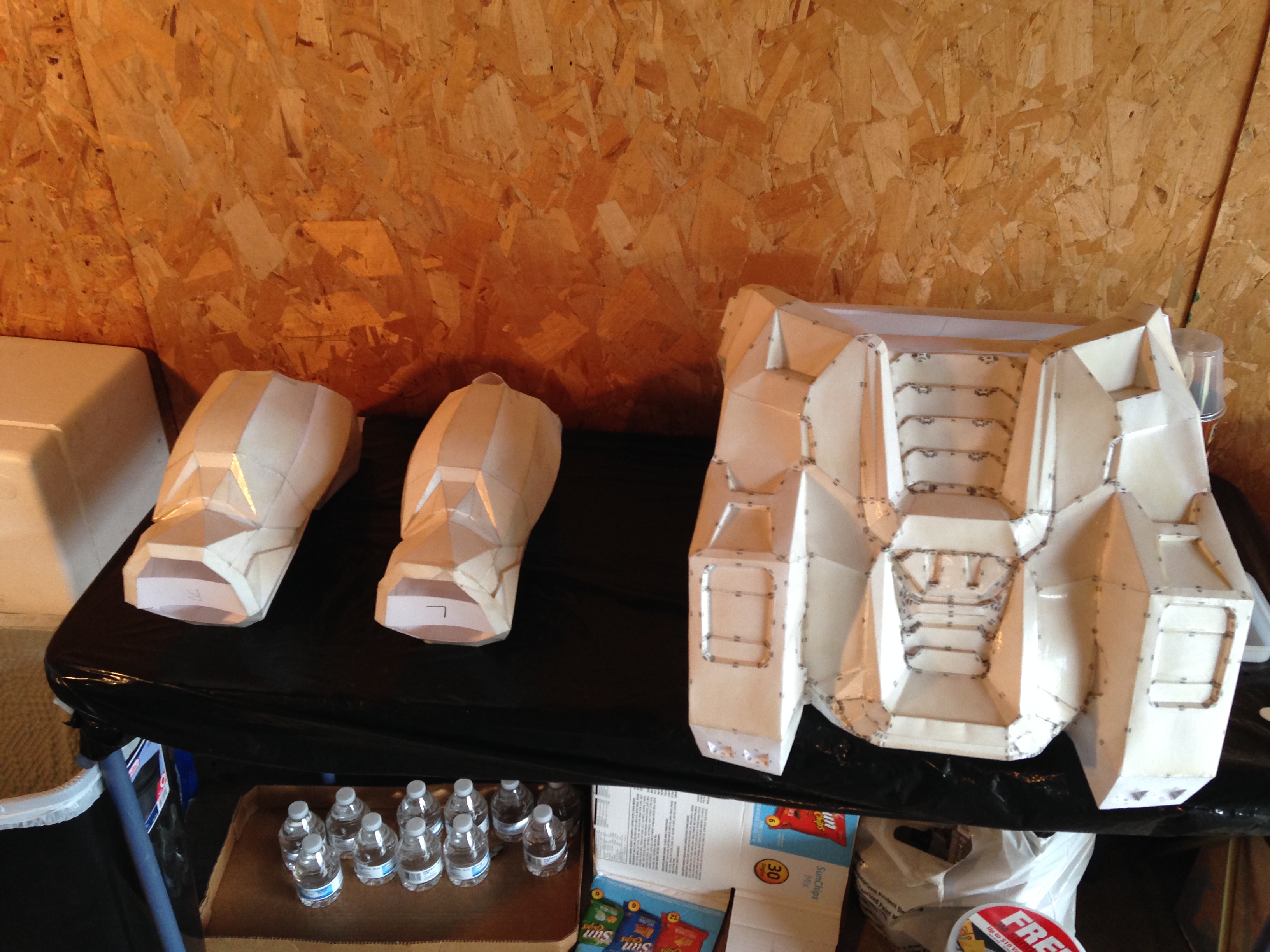

    Last night I noticed that my Mark VI helmet was sagging to one side. Makes sense, as that was the first piece I had pepped, over 2 years ago. I had pepped it without the visor, thinking that way I wouldn't need to cut it out later, but that was a mistake. I reprinted a portion of the visor and added it to the helmet to increase it's structural strength before I put resin to it.

    (sorry I can't seem to figure out why it's rotated, the original file isn't)

    Same thing for the codpiece, I had initially pepped it in pieces knowing I would need to be able to get inside of the built part, but that left it pretty weak structurally, which made the two halves lay flatter than I would need. I added some supports across the inside to hold it in shape before resin.

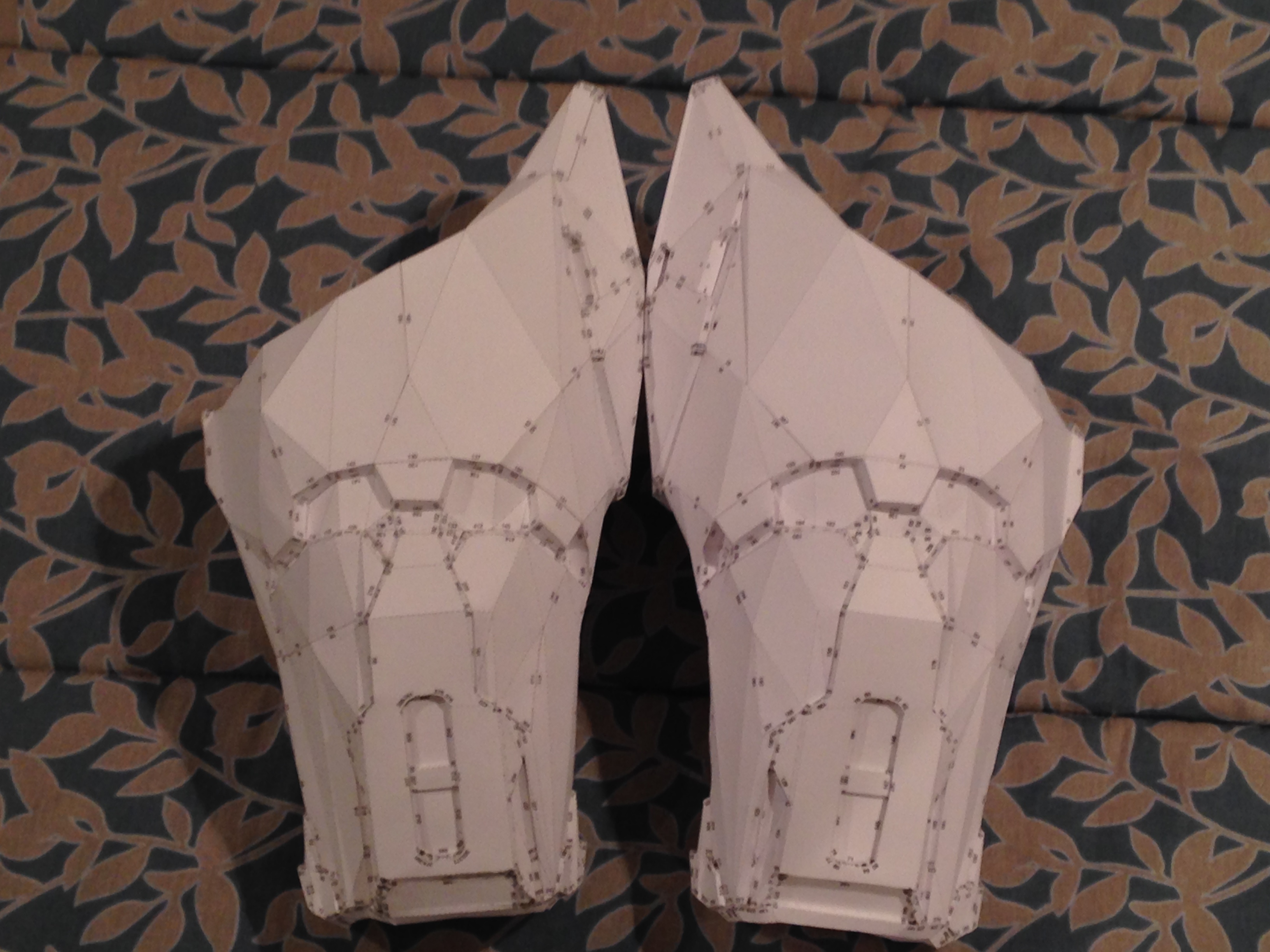

    Also just noticed that my two forearm pieces are slightly off in size.. Small miscalculation on my scaling.. whoops! :facepalm

    I don't think it's too noticeable, but I know it's going to bother me if I don't correct it... I think I might resin both, and see which one fits me better.... and I thought I was done pepping for this build

    Getting down there in pieces left to resin, then it's on to fiberglassing.

  13. PerniciousDuke

    PerniciousDuke

    Great progress! I think the forearms are really close.

    The benefit to the second coat on the outside is for when you go and file down the harsh edges on the outside.. with one coat you will break though to the paper very quickly, which is fine, but then requires more work to get rid of the paper fibers sticking up. You won't lose very much definition if you keep your resin coats thin.

  14. Meatwad

    Meatwad Jr Member

    Another way to handle this problem is to use super glue on any paper you expose. It will saturate the paper and turn it hard, as if it were covered in resin. Ultimately it's up to the builder to choose what they want to do, but it's always nice to have options.

    Dirtdives likes this.
  15. Jalean4

    Jalean4 New Member

    Just smear it on there with your finger?

  16. PerniciousDuke

    PerniciousDuke

    Yeah, this would be the "more work" I was referring to. :p I use Krazy Glue, doesn't dry quite as fast as regular super glue, but still achieves the same result.

    Yes, I use a plastic glove to avoid getting stuck together

  17. Dirtdives

    Dirtdives

    not unless you want your fingers to stick to the the helmet or to themselves.........:facepalm

  18. Jalean4

    Jalean4 New Member

    I went outside yesterday to try finishing putting resin on the last few pieces of armor I had. Look around, and all of my neighbors are out in the street looking up, so I go and join them...

    Apparently we were in a tornado warning...

    I ended up not bothering with working on my armor hehe

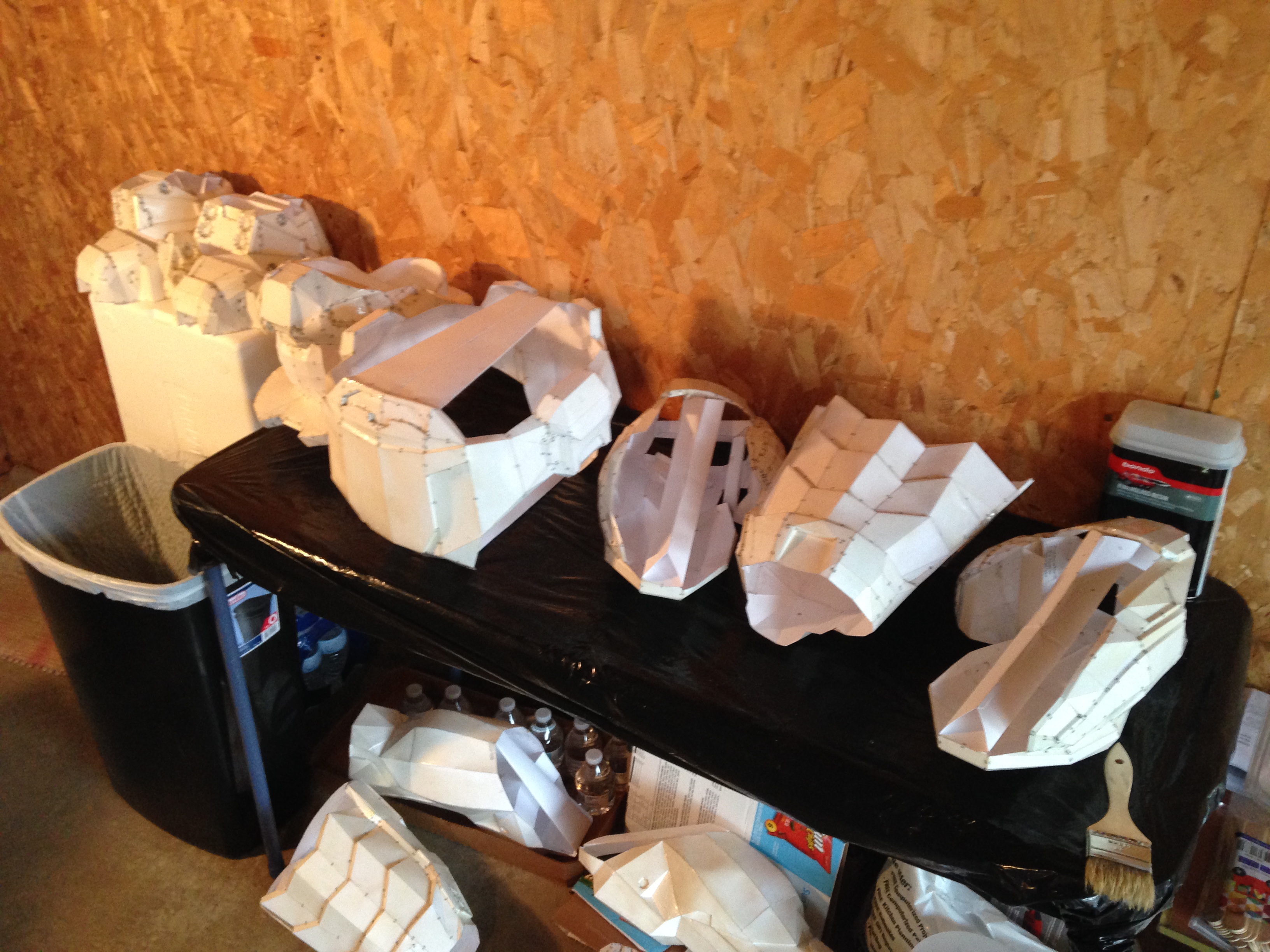

    So today I got to do a little bit of resin work.
    Once all of these pieces cure, I will only have the forearms left to resin. Not sure why I kept them until last, since I'll probably want to redo one of them to make the two the exact same size (see earlier post).

    Anyway, work shouldn't have me as busy this week, so I'm hoping to get an okay jump on fiberglassing. Still planning on taking it nice and easy though as it will still be my first time working with it.

    PerniciousDuke and BlazedStarbon like this.
  19. Lasrig

    Lasrig New Member

    Where do you live? I live in Texas and there was a tornado not 5 feet from my house, thank god it wasn't all that powerful. It still broke around 10 roofs in my neighborhood as well as cut the power off for two days.

    Are you going to use rondo to make it tougher, or are you going to make molds and casting resin?

  20. Jalean4

    Jalean4 New Member

    I live in Fargo/Moorhead (the North Dakota/Minnesota border), we had 2 funnel clouds that night. One touched down in a field just South of town and the other dissipated, so there wasn't any consequential damage.

    My current plan is to do two layers of fiberglass and then use rondo to smooth the insides to make it look more *finished*. Since this is my first build, I'm not even considering delving into the mold/casting area of the 405th community.

  21. Jalean4

    Jalean4 New Member

    I had the chance to begin placing some of my fiberglass cloth inside of my armor. PerniciousDuke suggested in one of his builds to use a spray-adhesive to help the cloth stick in place before you add resin to it. This made me think I could place all of my fiberglass cloth beforehand, so when it comes to adding resin, I'm not as worried about running out of time and I can focus on generating a nice even & saturated coat.


    I have a lot of time left before my personal "deadline" (which is really a soft-deadline anyway), so I'm going to do everything I can as slowly as I can bear in order to achieve the best results that I can.
    I can't work with the fiberglass/resin very often, usually only a few hours a week. This process might allow me to glue the cloth in place when I have free-time but am unable to work with the fume-producing chemicals. That way I can keep making progress at a faster rate than I have been able to thus far.

    PerniciousDuke likes this.
  22. ErMaC

    ErMaC

    very smart to use dowels. That chest piece looks perfect.

  23. spleenbegone

    spleenbegone New Member

    Great work, looks like things are coming along nicely.
    Really like the idea of using spray adhesive to stick the fiberglass first.

  24. Jalean4

    Jalean4 New Member

    Thanks!

    I've actually just been using Elmer's glue and it's been working well so far.

  25. Reclaimerite

    Reclaimerite New Member

    Your armor is looking great! Just curious, how many hours have you spent on this so far?
