Need Help With Making Parts Move

Discussion in 'Halo 3D Modeling' started by Lasrig, Jul 27, 2017.

  1. Lasrig

    Lasrig New Member

    Hello Everyone!

    I am in the process of making the single shot grenade launcher from Halo 5, and Kaween is currently converting a file to "3D Printable" for me! (He's freaking awesome) Once I have those I will start printing, but I had a thought, what if I could get it to work? I know what you're probably thinking, and its true! I want to make an airsoft version! Get ya? Oh well, at least I tried. So onto the technical stuff: I want it to have a break action and working trigger that is connected to a lever that pushes the button on the back of an Airsoft 40mm Grenade (120 Bullets at once). Coincidentally, the Halo grenade launcher also shoots 40mm grenades! I believe that if someone could help me figure out the break action portion of the project, I could install the trigger assembly after printing is all done. I know I'm crazy for thinking about this, but you gotta admit, it would be awesome.

    Any help or advice is appreciated, unless its telling me not to, cause im quite the hard head!

    mblackwell1002 likes this.
  2. Lasrig

    Lasrig New Member

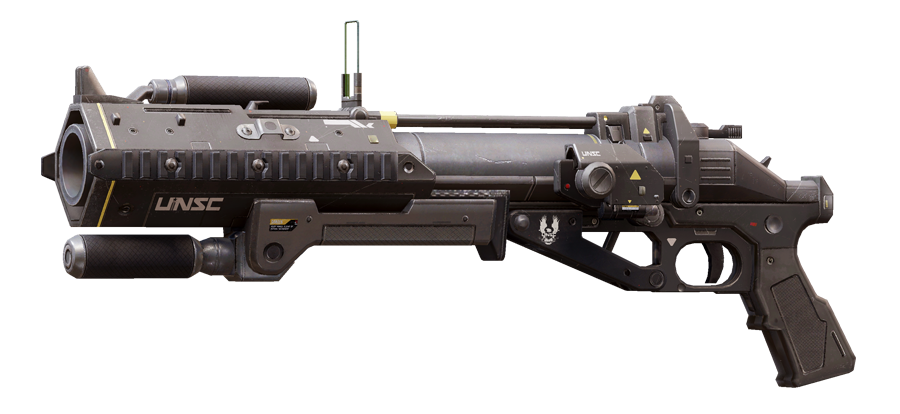

    For those of you who may need a refresher of its amazingness ;)

    mblackwell1002 likes this.
  3. Sgt Whupass

    Sgt Whupass New Member

    you could probably build off a .203 under barrel. there aren't a whole lot of moving parts to that at all though.
