ODST Build (Sean Bradley Armor) -Dragon Con-

Status
Not open for further replies.

Ghost8617

Jr Member
Hello! I have been planning on doing this for a while now but just have been so busy with other builds and life events. I purchased an ODST kit from Sean Bradley, which most of you are familiar with, and grinding at it for 3 years. At this point, the kit is pretty much ready to go but i wanted to be a part of this community so I could get know everyone a little more and ask for suggestions when needed.

I'm a member of the 501st GA Garrison and the Mando mercs so there is a good chance we have probably crossed paths before. I met several 405th members lat DragonCon and you guys were very encouraging to join the community.

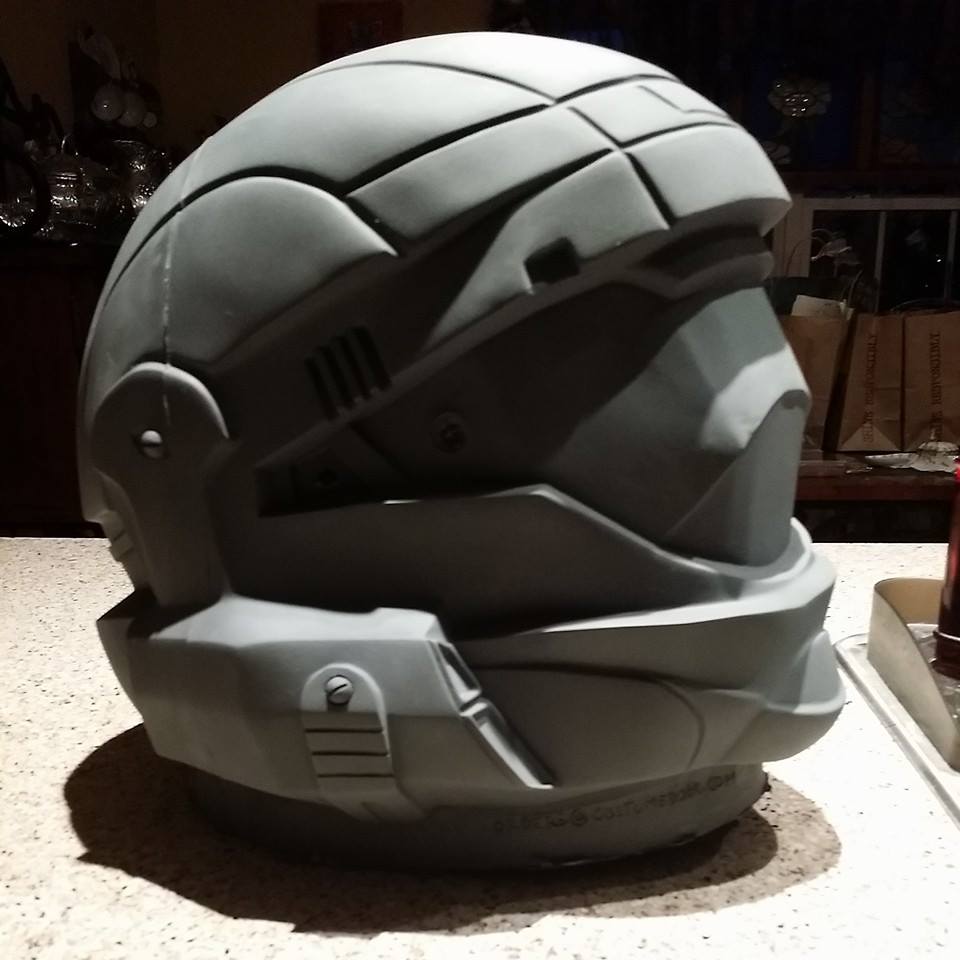

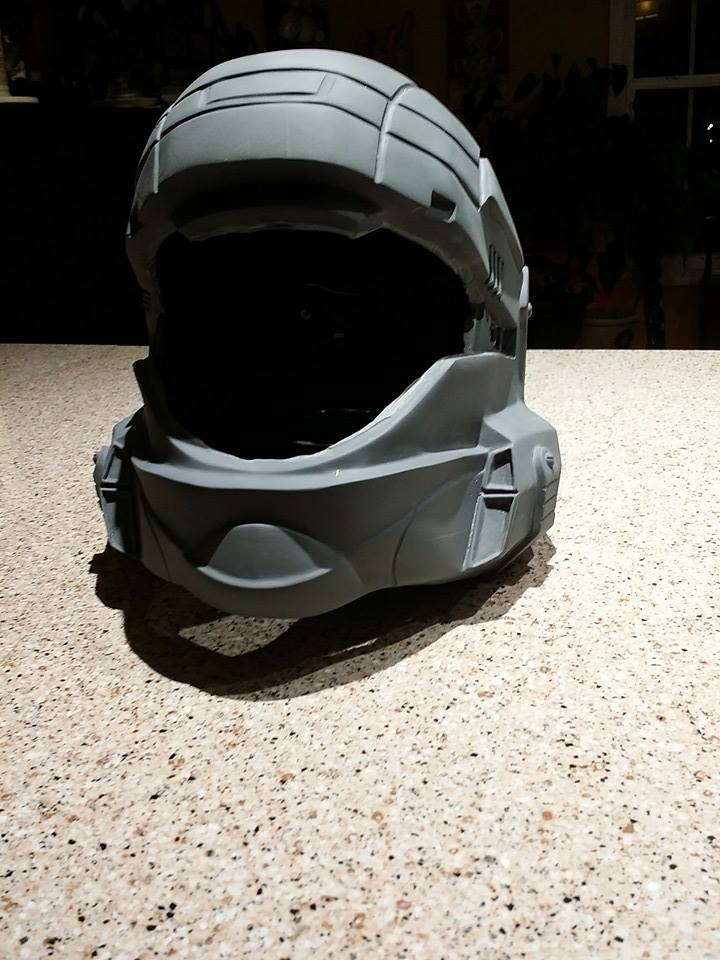

The Helmet

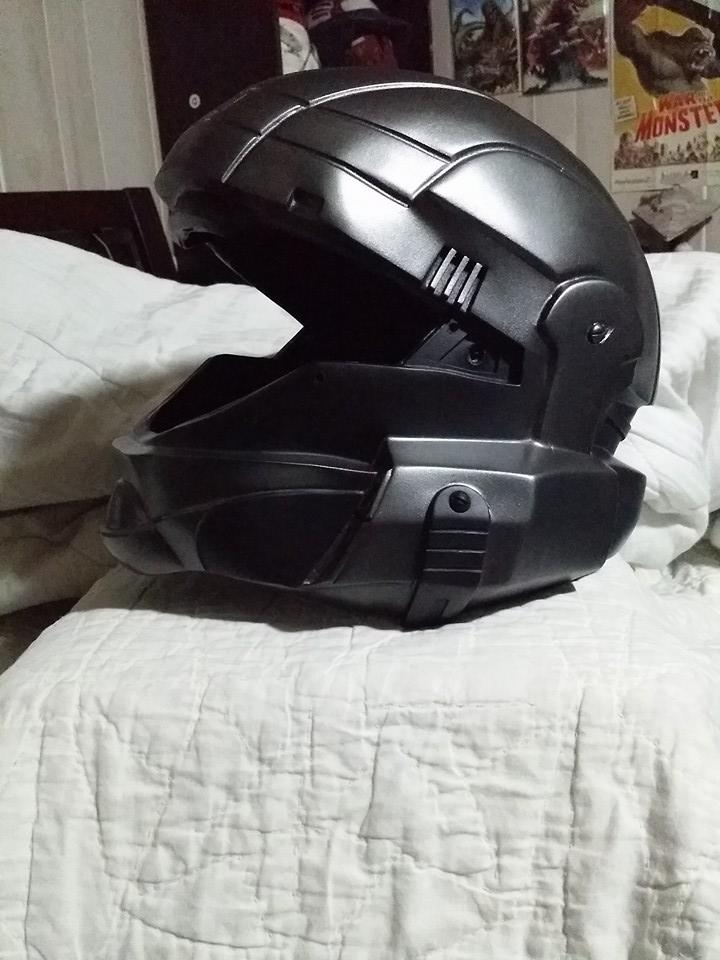

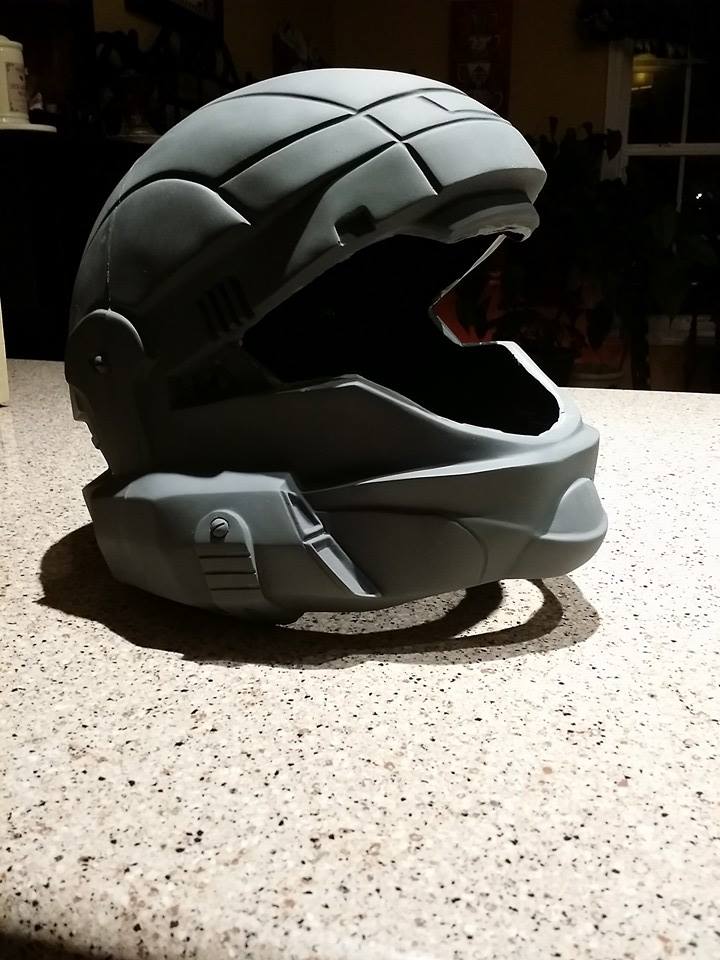

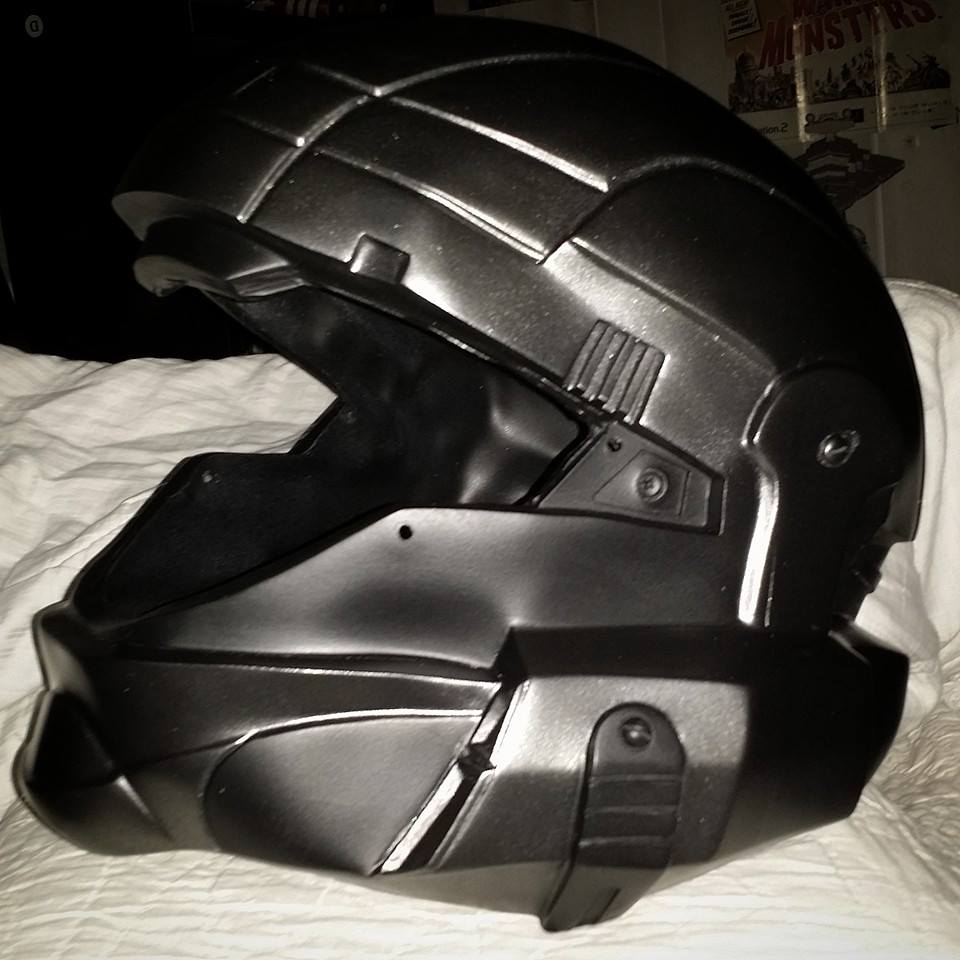

Painted using dupli color Gunmetal and semi gloss black.

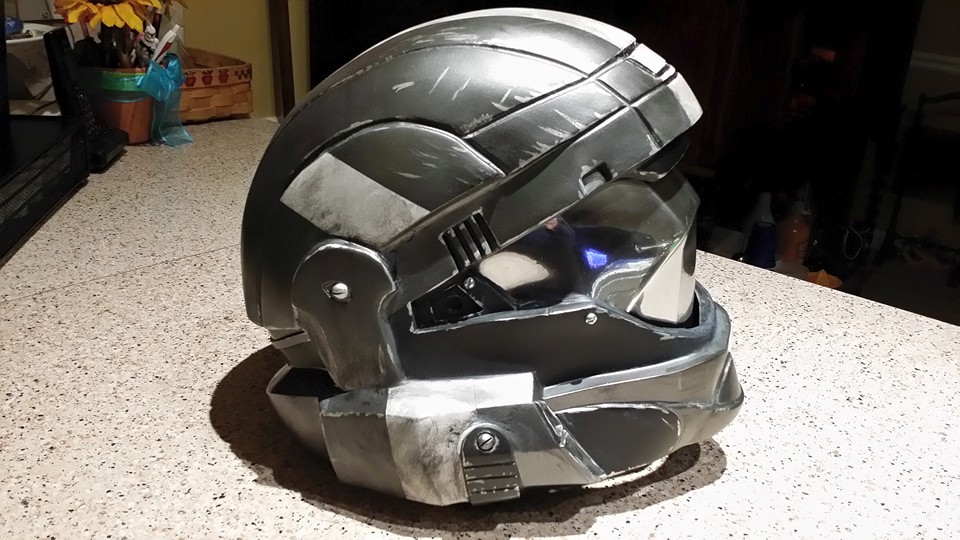

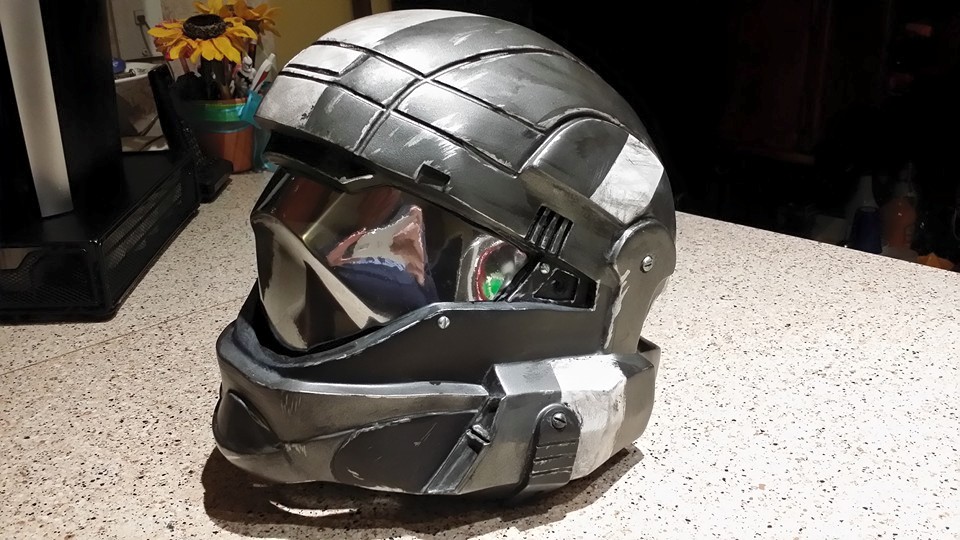

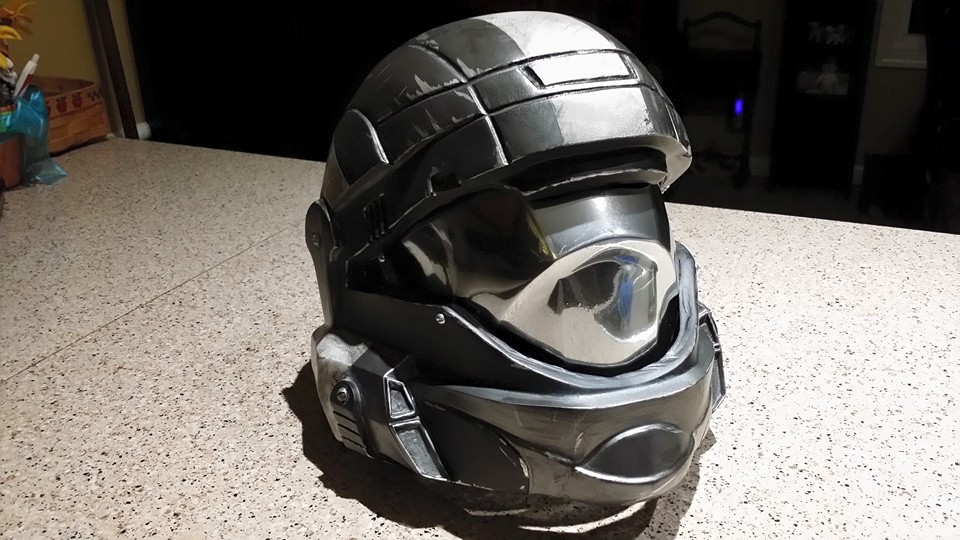

Helmet paint completed + visor attached. I went with the white stripes that were on the Reach ODSTs.
I also weathered it a bit with light sanding and silver leaf rub n buff.








The helmet was the first thing I tackled..It was a good motivation to finish the rest. Next comes the rest of the armor.

Armor

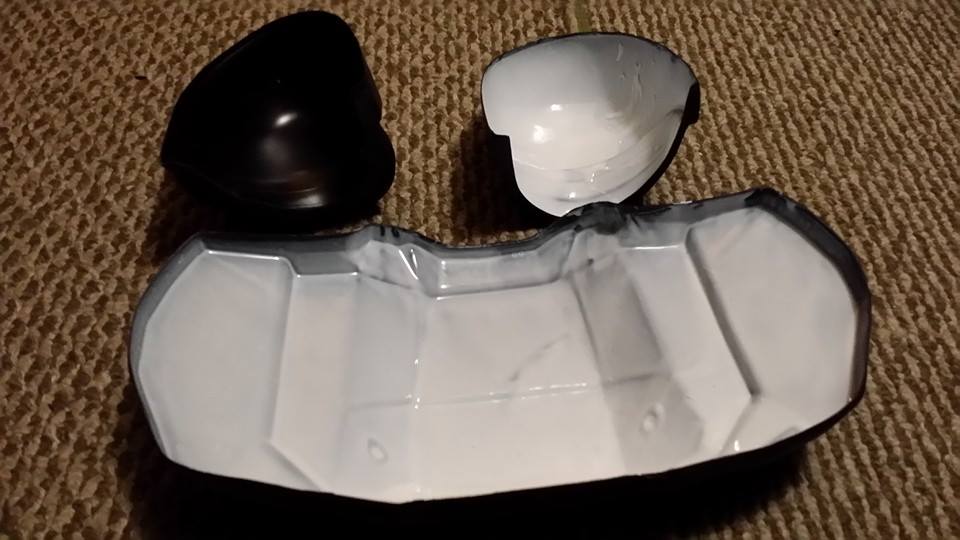

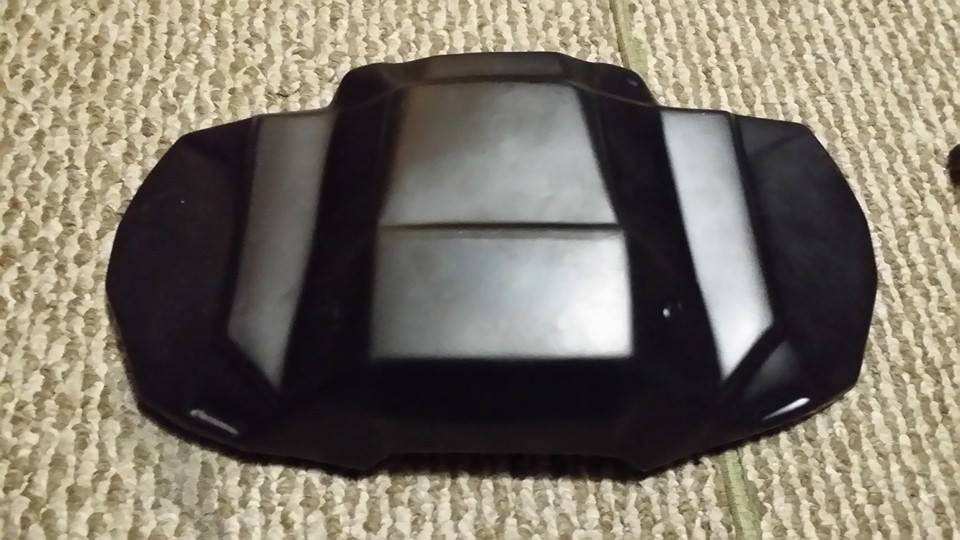

After finishing all the trimming, which takes forever by yourself, I move on to hardening each piece with an "A" "B" resin.





Test fitting the rigging and color test for the chest. sorry for the lack of progress between these points..I was just wanting to finish at this point.
Again the armor is painted in a dupli color gunmetal and semi gloss black. I used silver leaf rub n buff for the center piece.
The blue was a test using rustolem true blue.

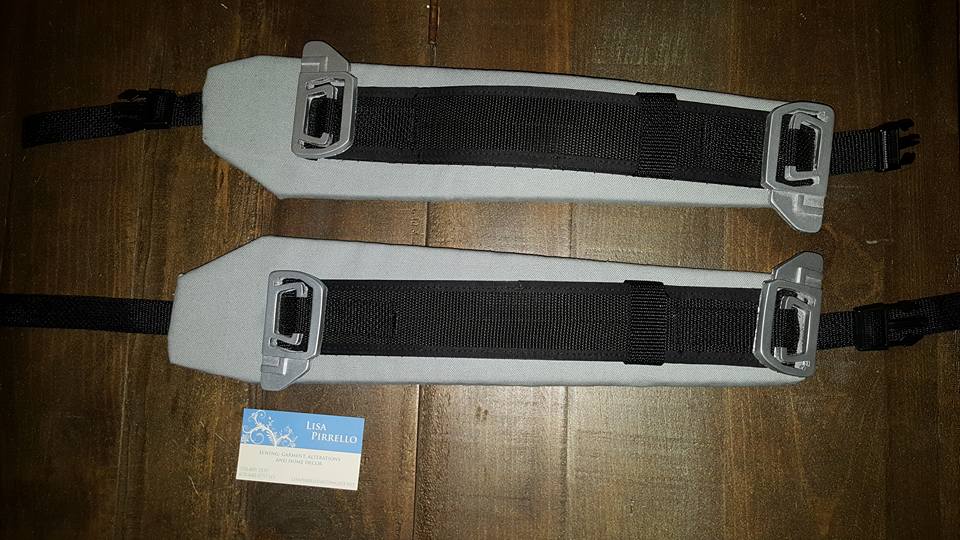

The straps I had made by Lisa Pierrello. I am terrible at sewing so she was nice enough to lend me a hand.
I started off using buckles for the chest but ultimately resorted to using snaps instead.

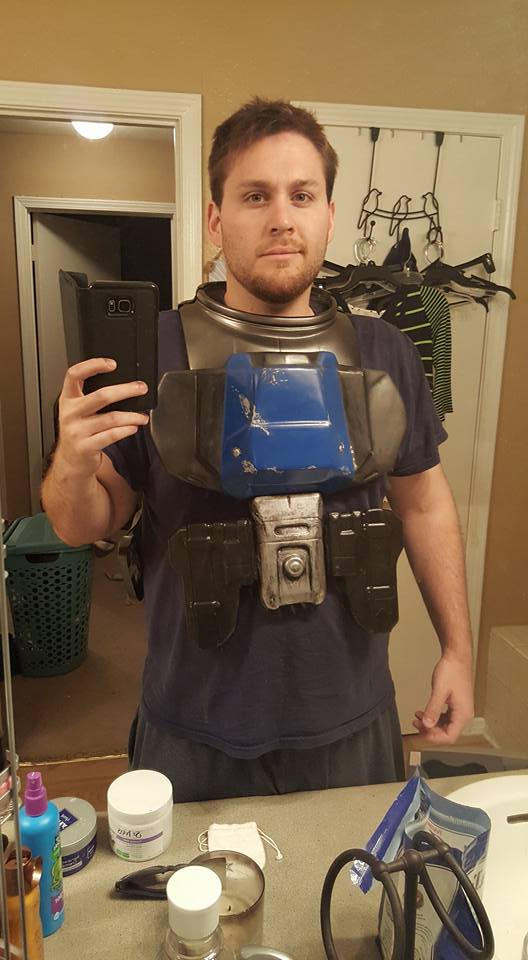

Test fit with the straps

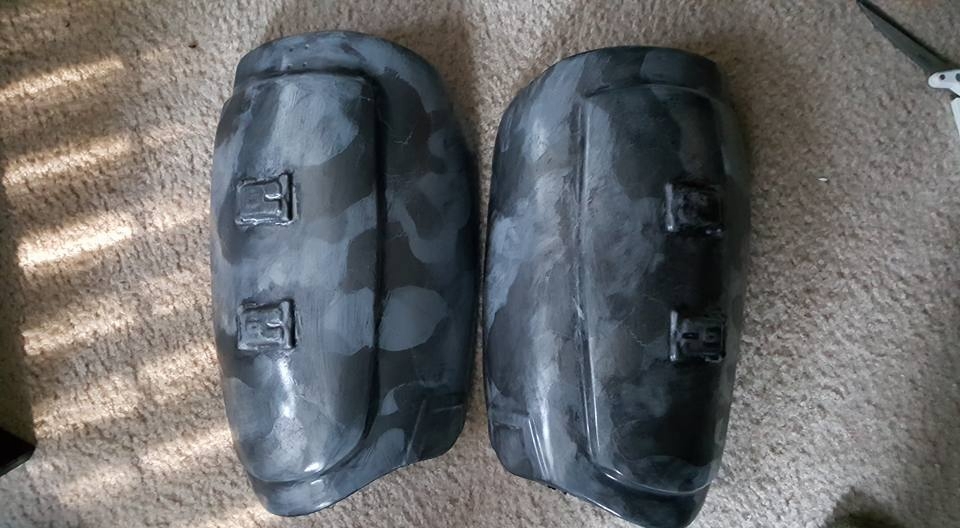

Thighs painted with a gray and then camouflaged with the gunmetal paint. Black washed and silver leafed to make it weathered.

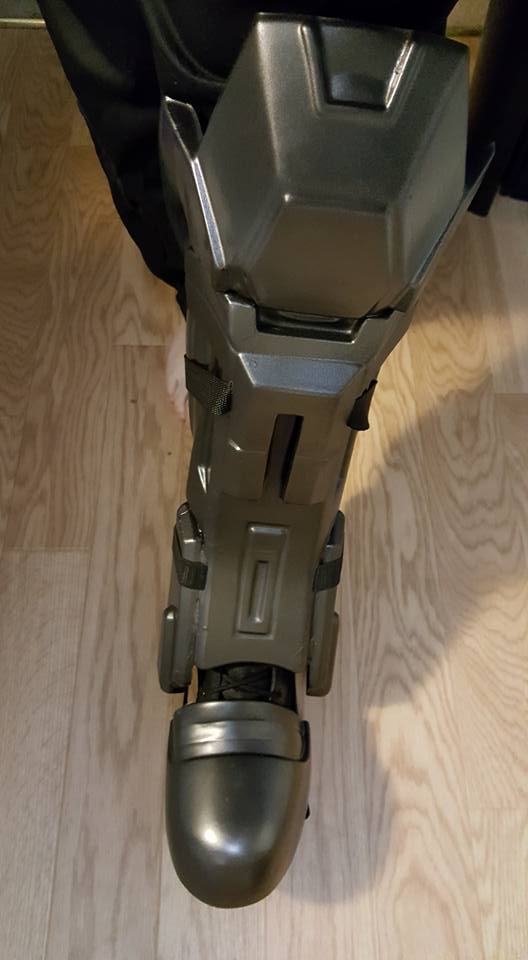

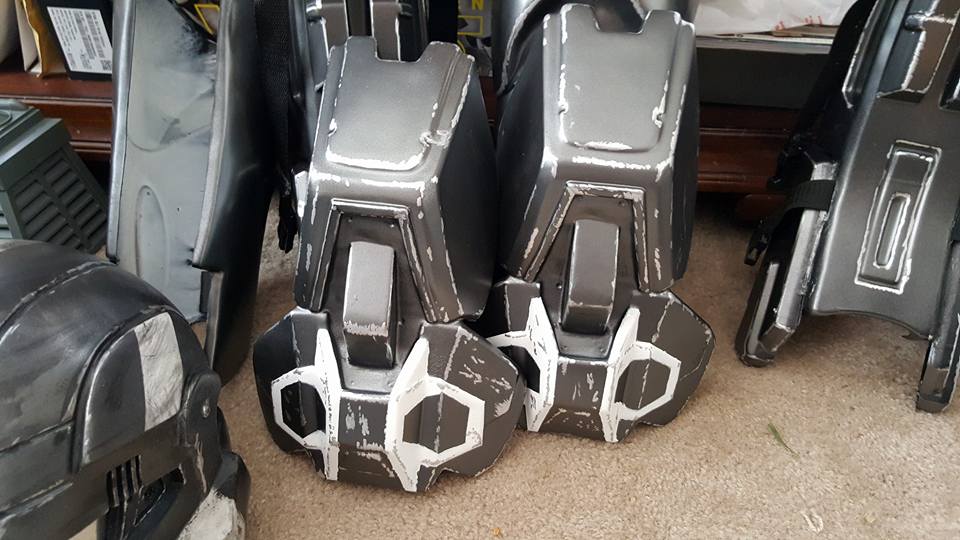

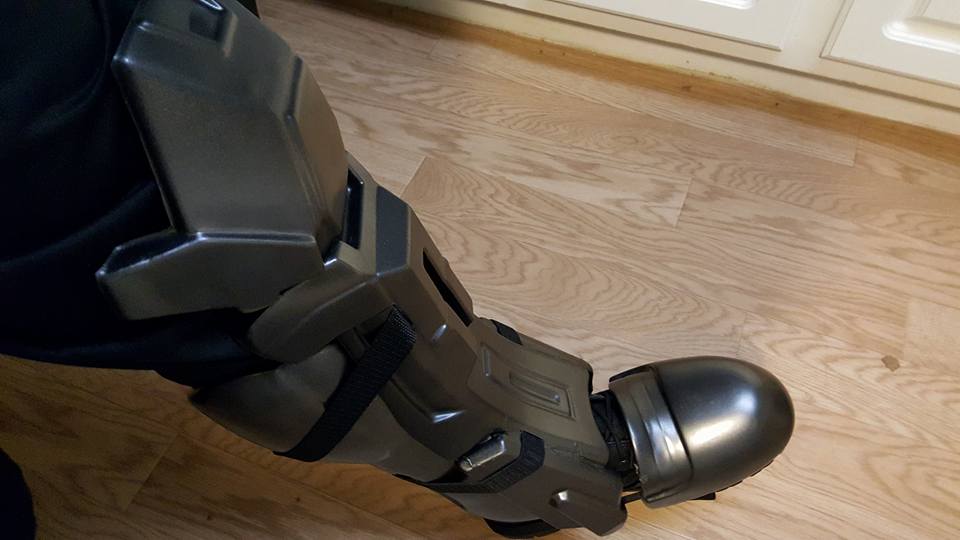

Test fitting the shins. I mixed the straps with nylon on the top and elastic at the bottom.
It helped feel more secure to my legs.





Shoulder's completely painted.

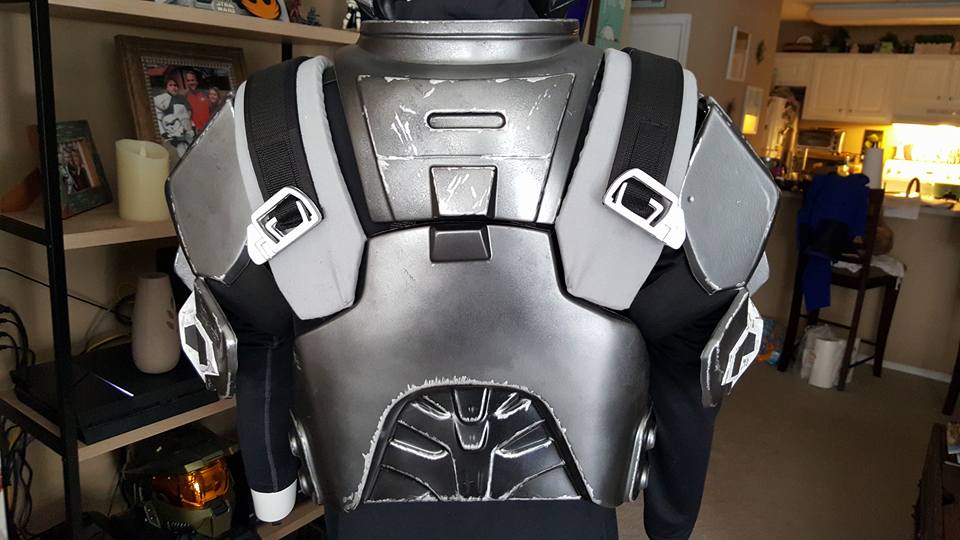

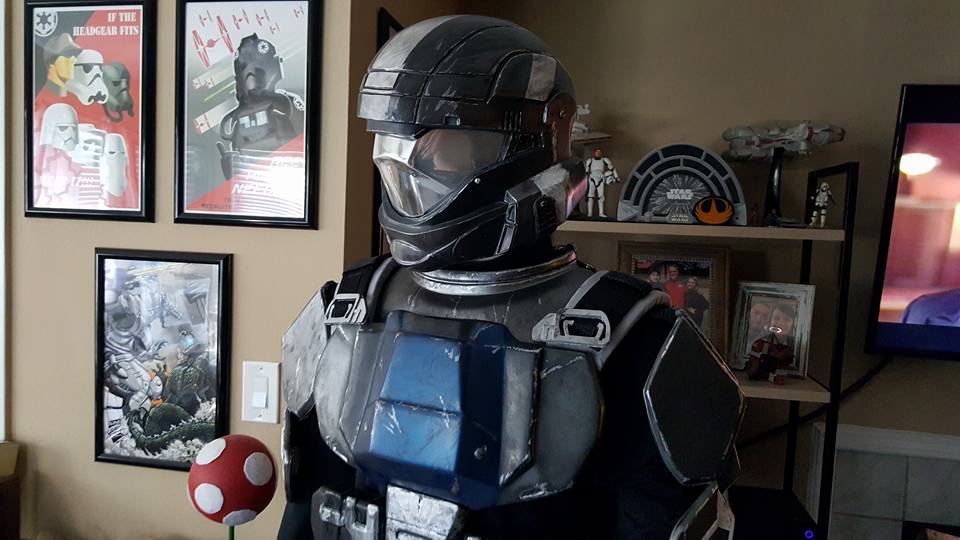

Torso armor on a mannequin.

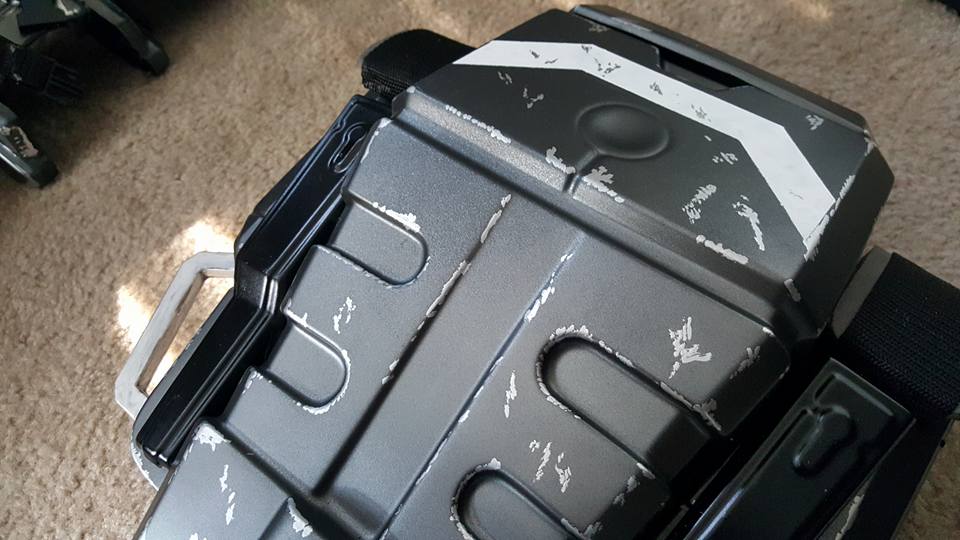

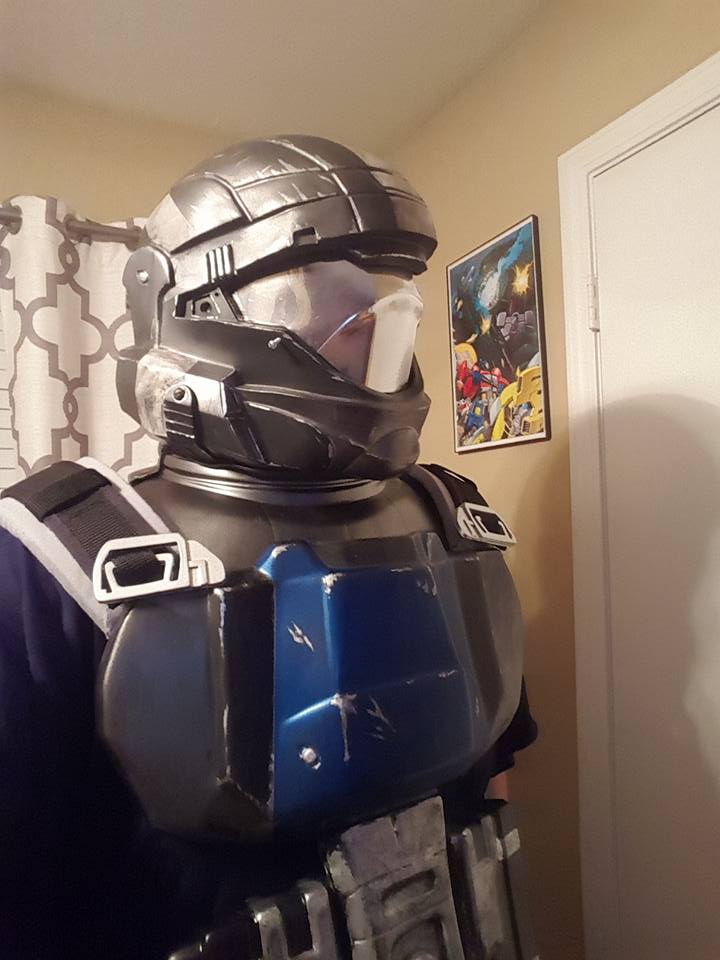

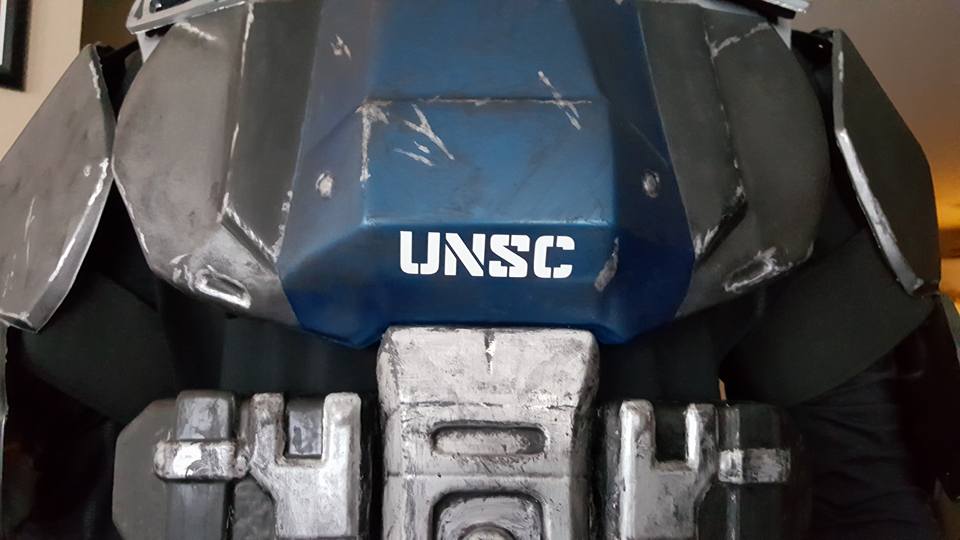

Added some finishing touches to the chest.

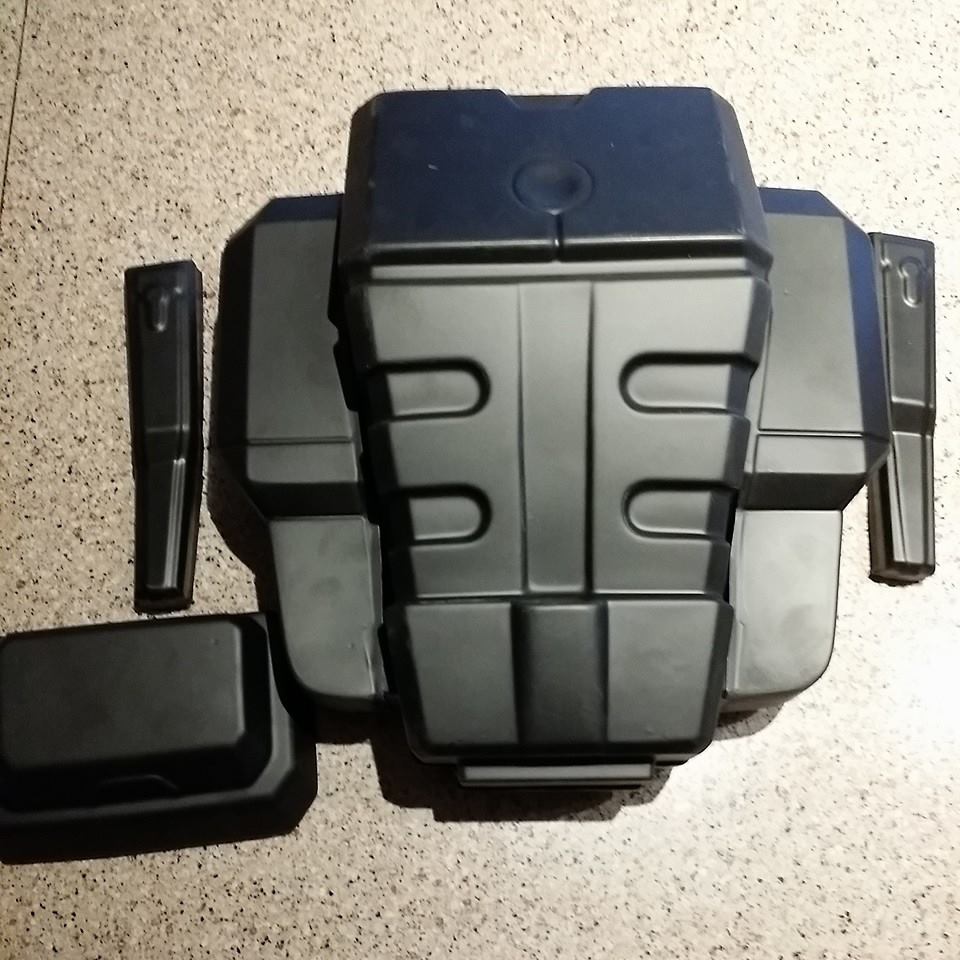

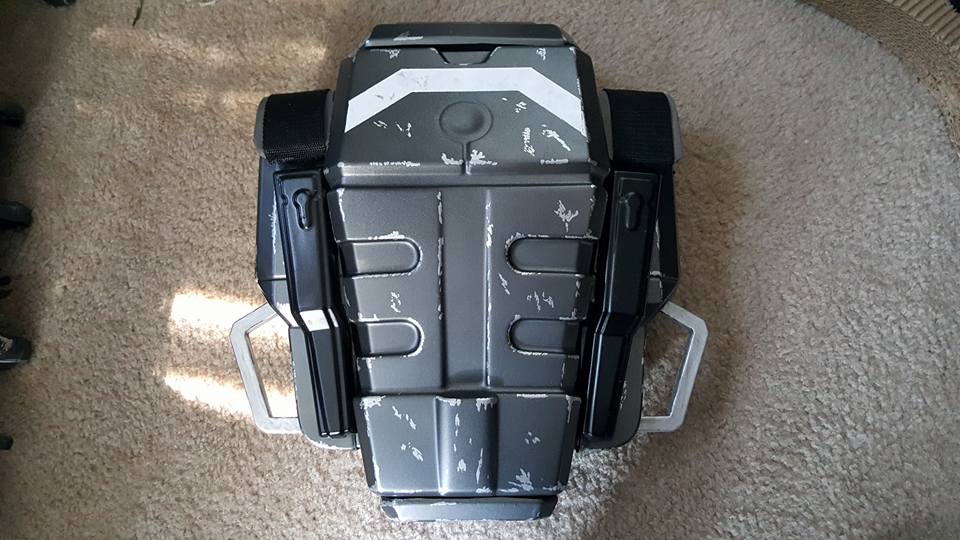

Pack







Full Kit On In The Comments


I'm back at it!


Attachments

  • 10422280_10205139908281726_3499296754031672214_n.jpg
    10.1 KB · Views: 246
  • 11156218_10206619711635885_6329099592820921465_n.jpg
    141.7 KB · Views: 250
  • 11188229_10206619711275876_7799122323658296169_n.jpg
    146.8 KB · Views: 259
  • 11182369_10206619710915867_9113999585586709643_n.jpg
    141.6 KB · Views: 247
  • 10405394_10205877188273265_2110533980050080243_n.jpg
    79.7 KB · Views: 247
  • 10917416_10205877114911431_8757364256733101623_n.jpg
    75.1 KB · Views: 262
  • 10897893_10205712343712254_8975642749164145971_n.jpg
    66 KB · Views: 252
  • 10325350_10205713158452622_7762369866806951510_n.jpg
    85.3 KB · Views: 256
  • 10888513_10205713158732629_9040647103275961132_n.jpg
    91.4 KB · Views: 233
  • 13872806_10210209491658142_6122641730971219158_n.jpg
    61.6 KB · Views: 242
  • 14067579_10210399155519620_9193024465003587182_n.jpg
    67.3 KB · Views: 231
  • 601d11ae-2bae-4723-831c-186c152861c6.jpg
    243.2 KB · Views: 286
  • 13876359_10210233878827806_8972964922328944503_n.jpg
    47.6 KB · Views: 248
  • 13267934_10209586705568879_5838570978215479224_n.jpg
    89.4 KB · Views: 229
  • 11041808_10206271061519850_3650975980995018210_n.jpg
    63 KB · Views: 246
  • 11053283_10206271061159841_972929077952932151_n.jpg
    58.7 KB · Views: 297
  • 13230280_10209586691088517_6129074146305467708_n.jpg
    59.9 KB · Views: 227
  • 14063886_10210399154759601_3866943242800507343_n.jpg
    49.5 KB · Views: 234
  • 10917436_10205718815194037_3147310834752148987_n.jpg
    116 KB · Views: 237
  • 14079941_10210399155239613_1446669529980913855_n.jpg
    85.3 KB · Views: 251
  • 14055181_10210399156039633_3289603126374655014_n.jpg
    63.1 KB · Views: 250
  • 14022240_10210399155759626_8773574373626972940_n.jpg
    67.5 KB · Views: 262
  • 14040001_10210371416106152_5064954427620481200_n.jpg
    78.6 KB · Views: 245
  • 13891996_10210233878587800_8805764143056302672_n.jpg
    42 KB · Views: 221
  • 14102492_10210399154959606_3094084626237004287_n.jpg
    69.9 KB · Views: 309
Last edited:
This is a great looking build! Looking toward to next week at Dcon. You should head over to the Southern Regiment and become a member.

Looking awesome mate! Interested to see how you strap this up, I'm most likely going to be using snaps as well. I'm thinking of taking some elements of the clone trooper strapping and apply it to this.

Looking awesome mate! Interested to see how you strap this up, I'm most likely going to be using snaps as well. I'm thinking of taking some elements of the clone trooper strapping and apply it to this.



Thanks! Yeah for the most part, the torso armor and shoulders are rigged up very similar to how a Clone Trooper or Stormtrooper is set up. I didn't want to rivet too much and something break down the road. The pack was the most difficult part and really i'm still working out the kinks. I have it strapped on to the shoulder straps but the weight of it pulls my armor back a little. To counter this, I took apart a Y harness and used the from straps to attach to my belt to even out the weight. I did small test for it last night and plan to do more tomorrow. I'll try to get pictures of my strapping.

The painting looks great! I love the helmet......Is that Batman and robin i see in the background? (photo 21) oh god no!

Amazing build! I'm looking forward to more progress. :)
How are you going to fix the shoulders?

Amazing build! I'm looking forward to more progress. :)
How are you going to fix the shoulders?

Thanks! I had taken a break for bit but now I'm back at it. The shoulders are attached to the neck armor and they work out pretty nicely. They aren't the usual way of attaching them like some of the other ODST cosplayers. I believe they use a piece of cloth material that wraps around their arms. I chose more of a Stormtrooper armor approach with this. I'll need to uploaded some updated pictures of me in it.

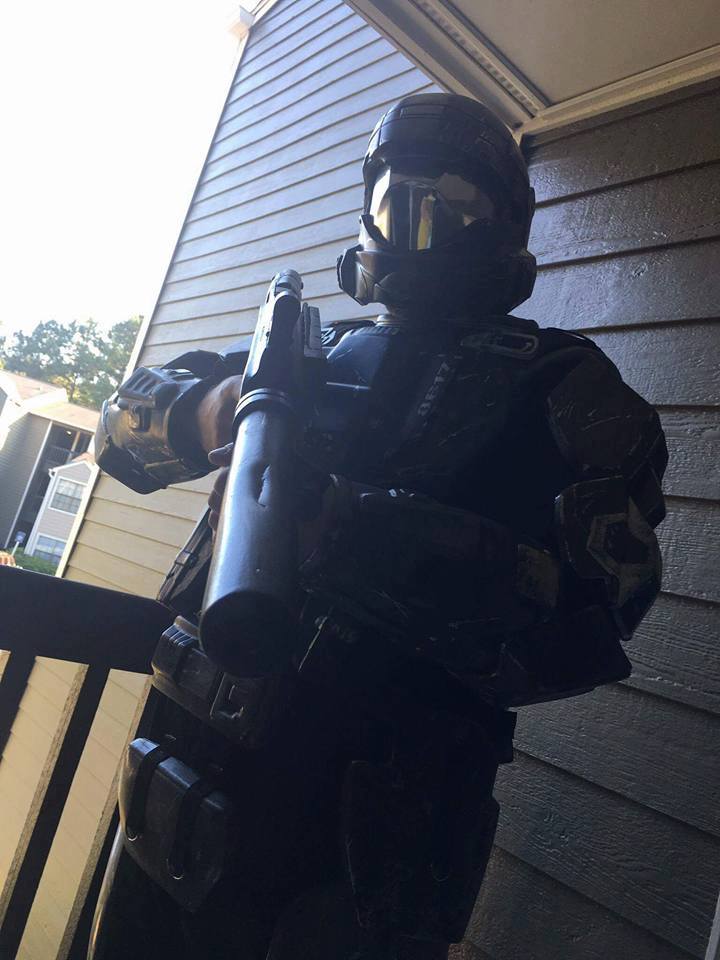

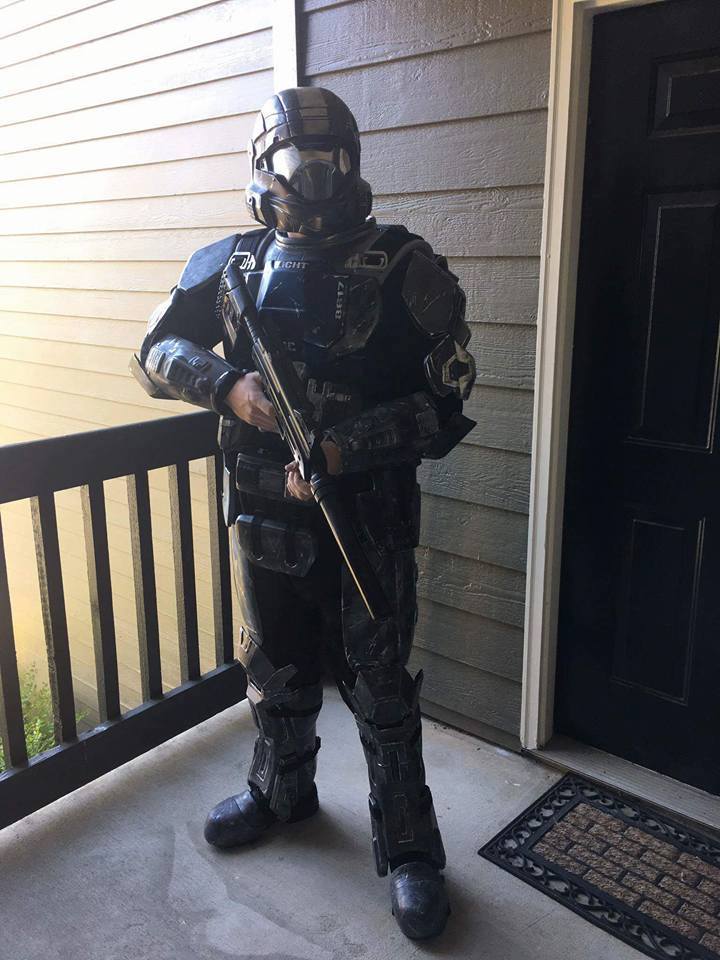

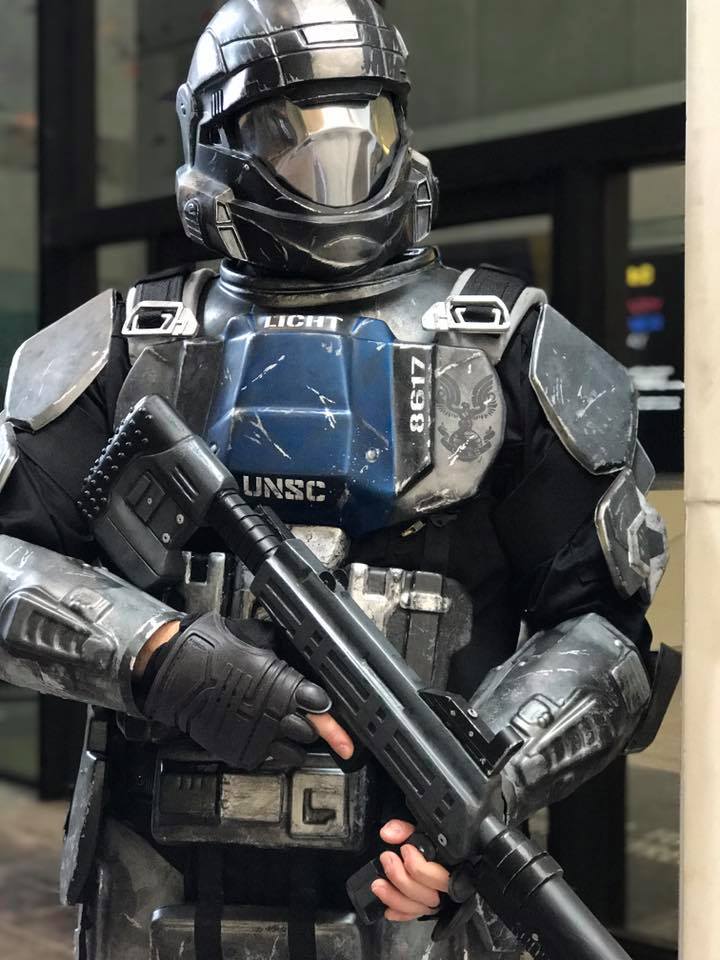

Here is one shot of me in the full kit using a flight suit. Might actually go for a different set up using BDU pants and under armor top.

Last edited:

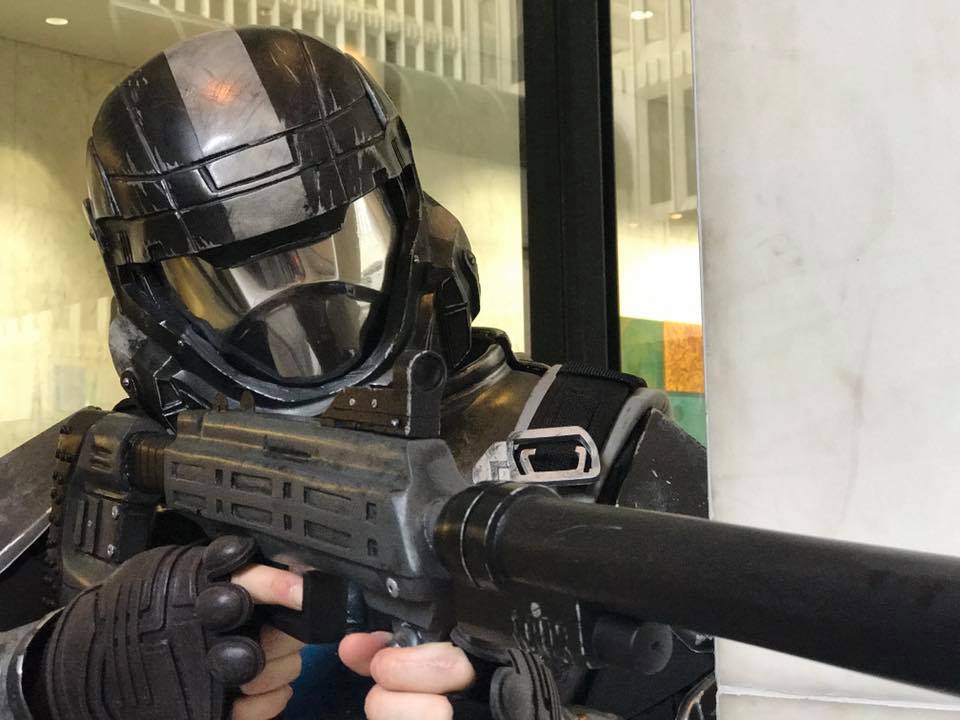

Not the best photo. My gloves are finished so i need to throw those on in the next picture. Ignore the dent on the SMG, working on that as well.

Last edited:
Awesome to see somebody else is using Sean Bradley's Kits here! I've just recently purchased the Rookie Helmet and Full Body Armor sets from him, and I'm waiting for them to be shipped out later this month to mid April. To be honest, I wasn't sure how other 405th members would feel on the matter of use of pre-built kits, but seeing the comments here really make me feel a bit more confident on the matter. Your piece looks great, and makes me even more excited to get my hands on Sean's amazing kits.

This is an awesome build, Love the paintjob and the weathering (y) I got a pair of black bdu pants and a black combat shirt for my suit, although I'm thinking I might modify the shirt a little so that it has the light grey under the arms.

Awesome to see somebody else is using Sean Bradley's Kits here! I've just recently purchased the Rookie Helmet and Full Body Armor sets from him, and I'm waiting for them to be shipped out later this month to mid April. To be honest, I wasn't sure how other 405th members would feel on the matter of use of pre-built kits, but seeing the comments here really make me feel a bit more confident on the matter. Your piece looks great, and makes me even more excited to get my hands on Sean's amazing kits.

Sean Bradley has been a staple of this community for many years now. Feel confident when wearing that armor and knowing that you have the best. When it comes to ODST, Sean IS the standard.

Great work Ghost8617!

This is an awesome build, Love the paintjob and the weathering (y) I got a pair of black bdu pants and a black combat shirt for my suit, although I'm thinking I might modify the shirt a little so that it has the light grey under the arms.
I would love to know how the BDU pants and combat shirt works. The flight suit is nice but anything I can do to keep nice and cool in kit will go long way. I need to take a look at some fabric to add that grey detail too.
