Sean Anwalt's Mk V build

Discussion in 'Halo Costumes and Armor' started by Sean Anwalt, Jun 17, 2018.

  1. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    I have been on here a long time, but i haven't completed a halo costume since 2012, which is disappointing. So i thought I would try my hand at foam. I want to document the whole build from start to finish, and hopefully we'll get some questions answered along the way.

    I will be using the foam templates from the armory unfolded by L3X BLU3R1V3R and the back pieces by RUZE 789.

    So here goes...

    Getting the templates cut out:

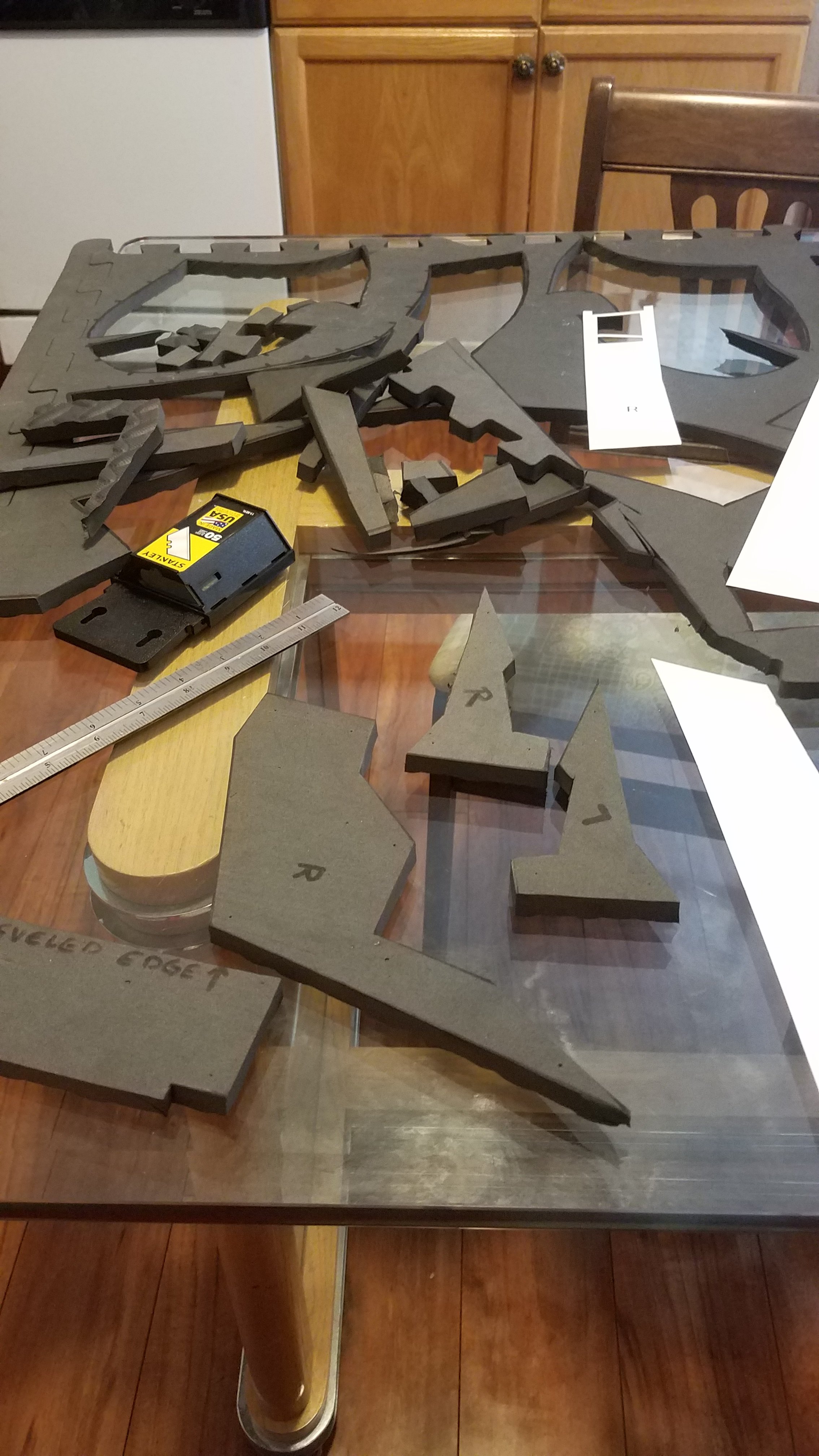

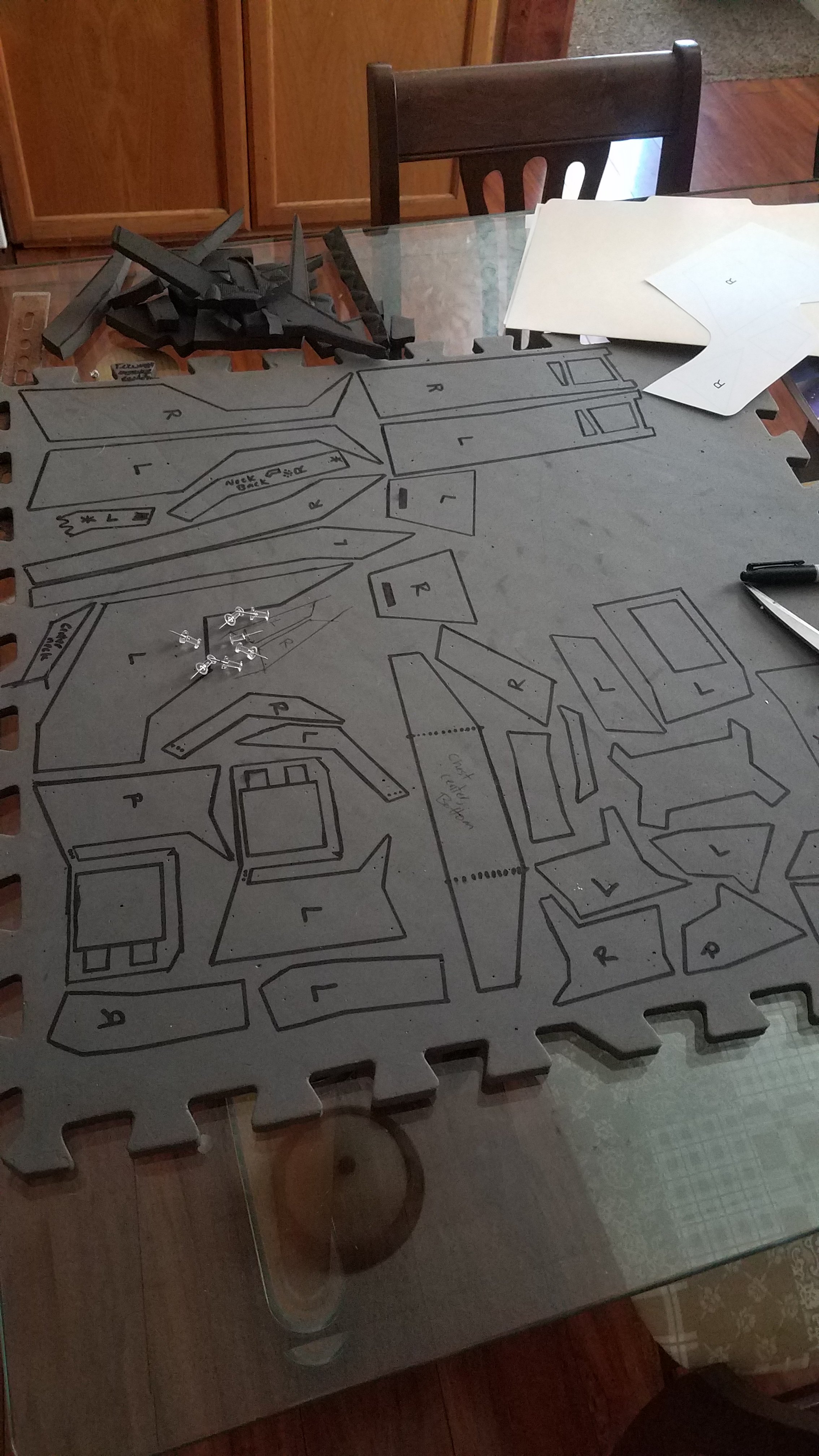

    20180616_072902.jpg 20180617_092758.jpg

  2. PaiganBoi

    PaiganBoi

    Good luck with your build. Excited to see your progression.
    Which body part are you working on in the photos?

    Dirtdives likes this.
  3. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    I'm starting with the chest piece. I don't know why, but it's my favorite part of the suit.

    Wish there were more notes on the pieces, like "Hey, this edge needs to be beveled" or whatever. But it's cool. I'm just building with my computer nearby in case I get confused.

    Unfortunately progress is going to be slow, since work gets in the way, but we'll keep updates as possible.

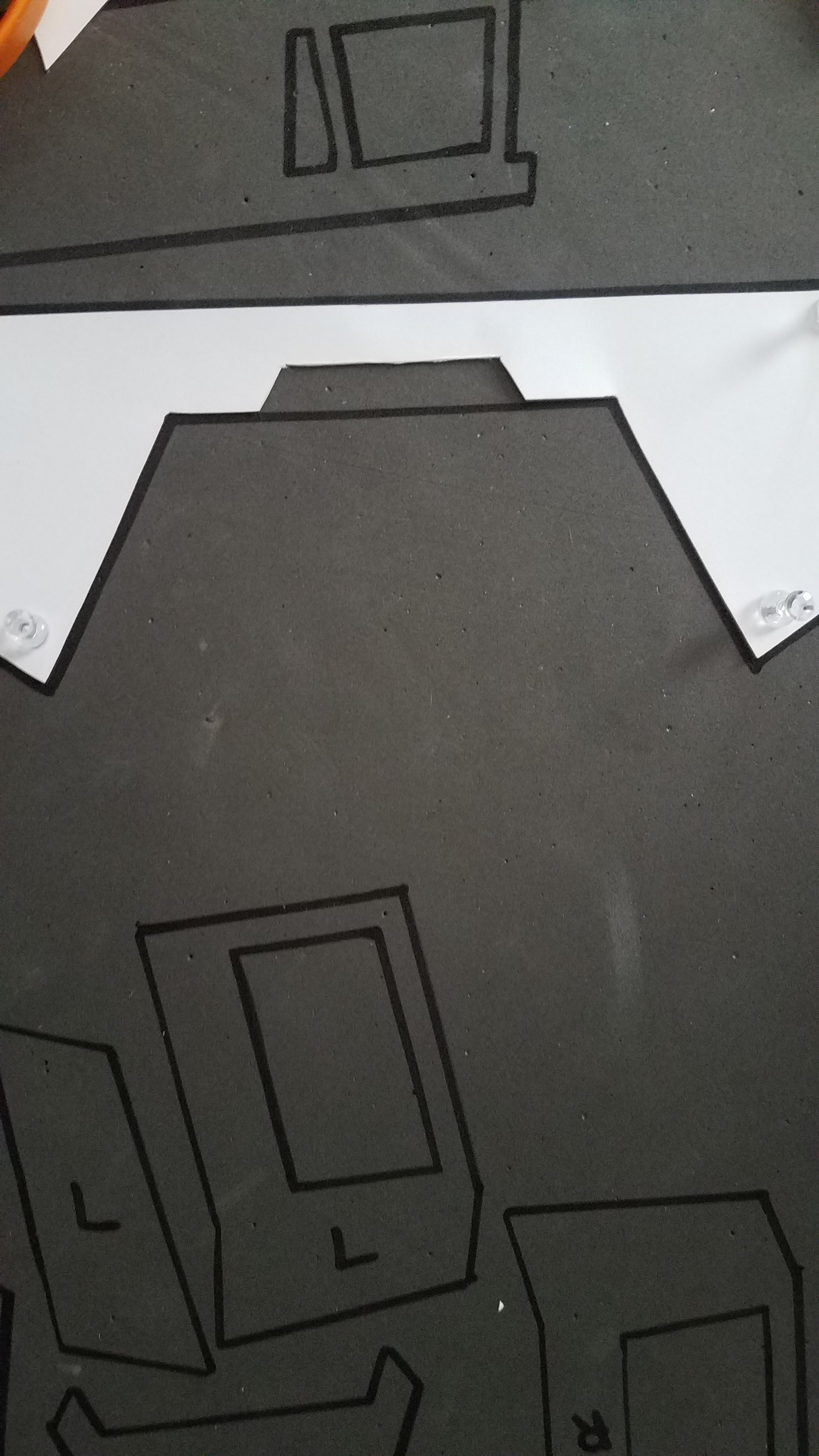

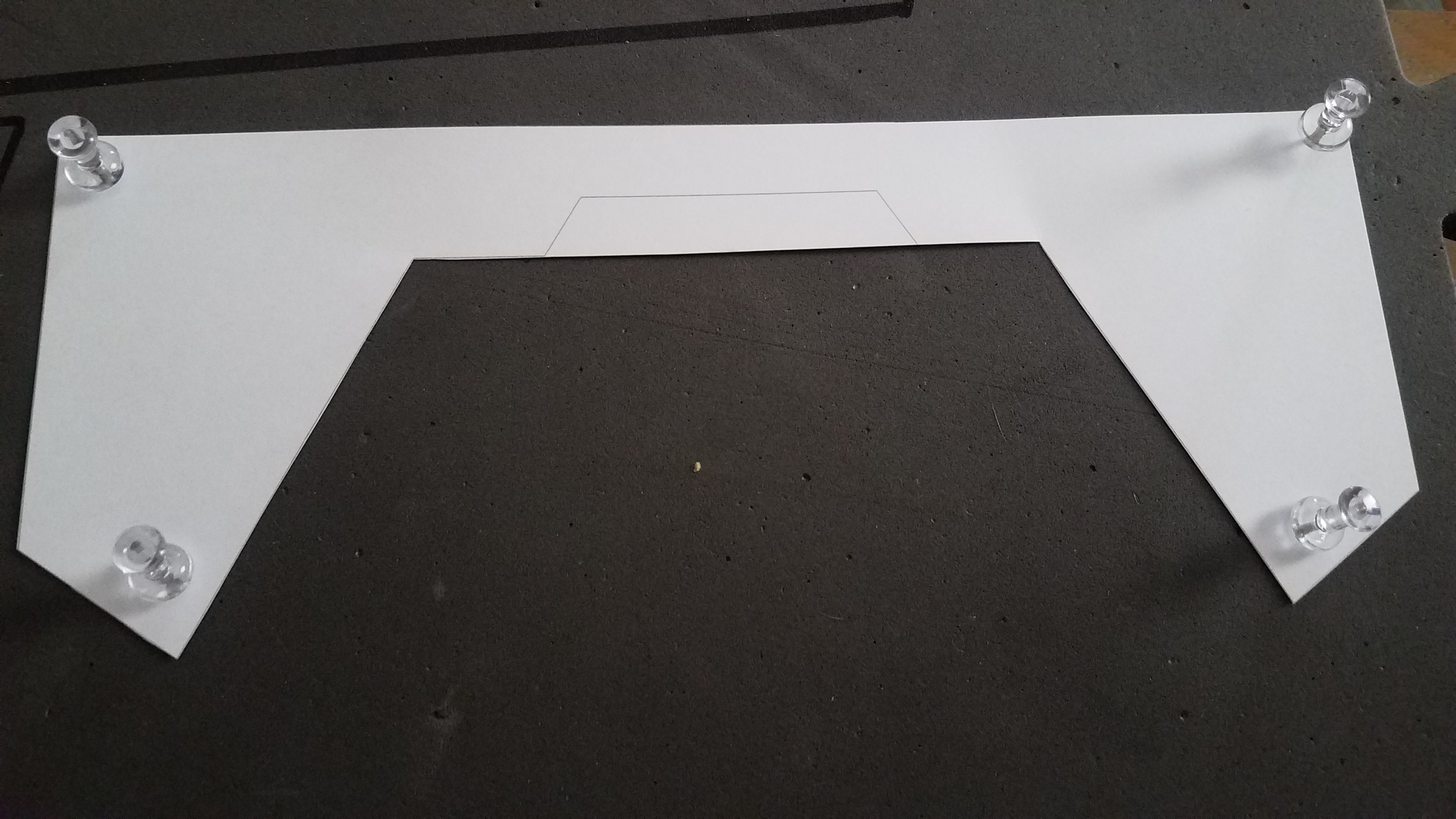

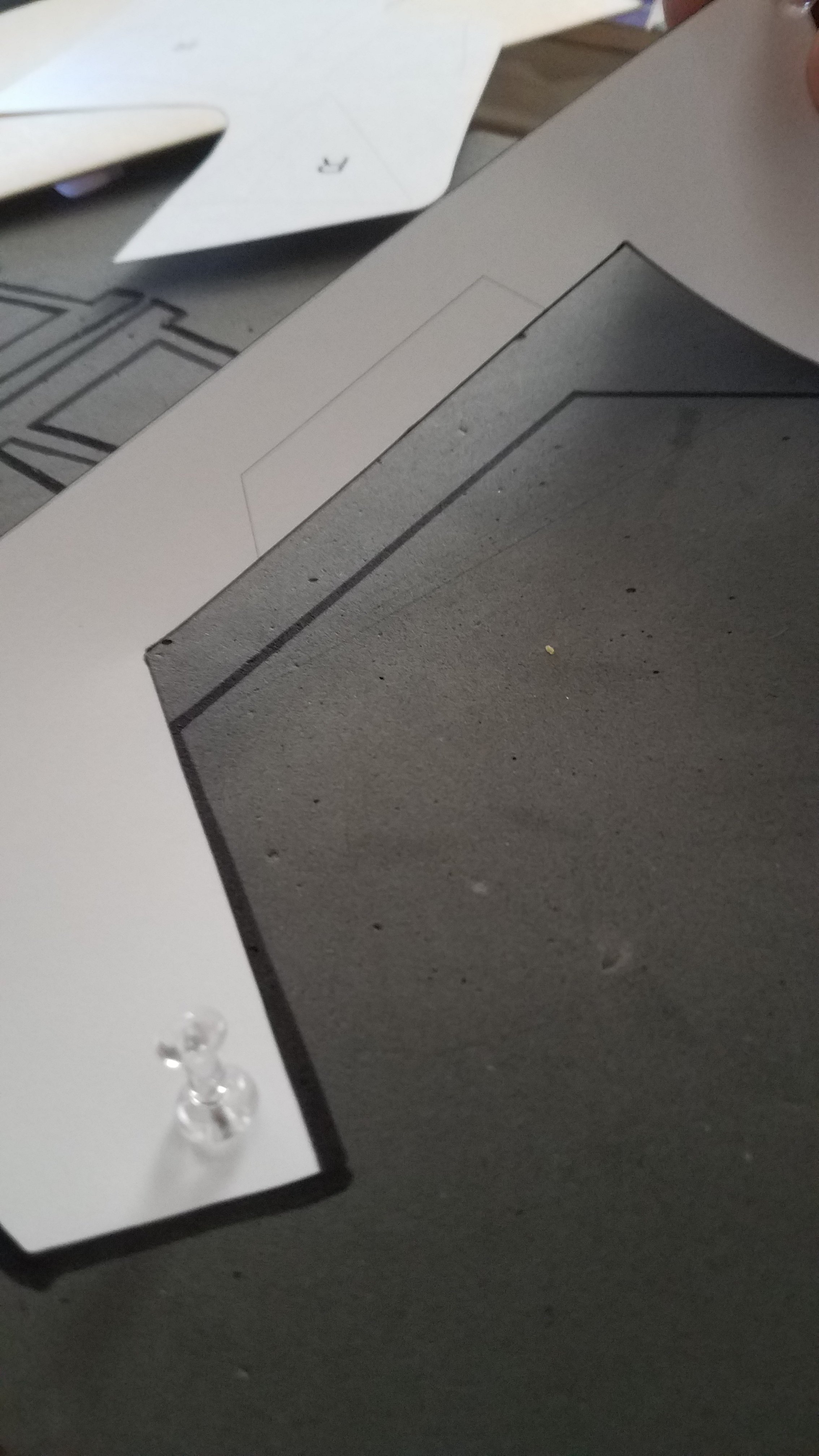

    Here is the bottom of the front chest. There center of the bottom edge needs to be separated, so to keep it as precise as possible, I kept it attached, then after I traced the outline I lifted it up the bottom edge but left the top attached to the foam. 20180617_100342.jpg Then i cut the other part out *carefully!* and layed the pattern back down to trace the little piece. 20180617_100632.jpg
    When I am ready to glue and assemble, that little piece is going to be pushed out for detail.

    Stay tuned! Lots more cutting yet to come!

    Dirtdives and Lieutenant Jaku like this.
  4. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    If you give me a day or two, I've annotated the whole Reach suit with bevels, mirror lines and a bunch of other fun stuff for my foam build and I can either scan or just make a PDF with labelled edges.

  5. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    Oh, that'd be sweet! Really helpful! Thursday would actually work out perfect as well, because I am running despairingly Low on foam...

    Dirtdives and TurboCharizard like this.
  6. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    I'll chuck a few hours at doing that tonight and see if I can't get the majority of it done for you tomorrow.

    HaloHunterChief and Dirtdives like this.
  7. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    That rocks, man, thank you

    Dirtdives likes this.
  8. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    Sean Anwalt

    Shazam

    Link to the build thread I'm putting together and a big ol' reference picture.

    Dirtdives and Sean Anwalt like this.
  9. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer


    Aaaaannnddd downloaded haha. That is going to be the most helpful file of this build. Second only to the actual file of the pattern itself, haha

    Thank you tons, Turbo! Glad to have this resource!

    Dirtdives and TurboCharizard like this.
  10. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    No worries good sir, best of luck with the build.

    Dirtdives and Sean Anwalt like this.
  11. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    Well, here we are, a couple days in. Not a lot of progress so far. Looots of cutting. And blade changing. I knew foam was going to eat through the blades, but i wasn't expecting this bad!

    These little pieces for the sides of the chest front were particularly picky, because I wasn't thinking too super hard. Instead of cutting out the pieces and popping them out, why not just make new ones to fit over the original piece?!

    *Caboose's voice* sometimes, I am so dumb...

    These cuts aren't making anyone proud, are they? I'll have to redo them, i guess. :mad:

    I'm getting the hang of this foam thing, though.

    Amy tips, helpful criticisms, or advice is always welcome!

    Dirtdives likes this.
  12. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Well a cool thing with foam is you dont really have to be a 100% accurate or else it fails kind of situation. You can sort of get away with little mistakes here and there and fix it later. Also if you're unsure how a piece will look like once its assembled, you can use duct tape or masking tape to temporarily fit the pieces together to see how it will look.

    Dirtdives likes this.
  13. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    Yeah, I guess I could... that makes me feel better. We'll see how things look tomorrow if I get a chance to post an update

    Dirtdives likes this.
  14. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    Try to avoid popping out as much as possible is my best advice. If you're having to push pieces free they may not have been cut all the way through which coupled with a push may tear the foam and ruin a clean mating surface, this only is made worse by the fact that usually the uncut section is at corners and curves that are at cut start/end points which will result usually in a loss of detail. The way I get about this is to basically quick split the larger mat down to rough shapes after tracing on the templates and not worry too much about getting anywhere near the lines, just ripping pieces down to manageable chunks that are easy to manipulate on my work surface. From there with a sharpened knife and a steel ruler I get in as exact as I can.

    If you have a sharpener in your kitchen knife block, go and snag that thing. Every four or five cuts give your knife a sharpen paying close attention to the tip and leading edge up to about an inch along the blade. If you've never sharpened a knife this way, you're about to get a lot of practice so I suggest learning how to do it right and not learn any bad habits. One of my favourite videos on the internet is for this is from the Gordon Ramsay's YouTube channel, dude is all about education and teaching his craft and I have loads of respect for him, the video is for kitchen knives but the premise is the same. You'll get the hang of it and start to be able to feel where there's inconsistencies in the blade after a while and know when to give up, snap off the knife and start a fresh tip.

    Your cuts aren't bad believe me, they're better than most of what's on my ODST gear. I've just had a load of practice over the last two years and this wall of text is just me trying to help out a fellow builder with some tricks I've picked up along the way. Keep up the good work and you'll ace this build!

    Sean Anwalt, Dirtdives and PaiganBoi like this.
  15. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    Thanks, man. I'm no stranger to knife sharpening, but i don't own a decent sharpener... yet. I'm about to though! XD

    I'll give that vid a look when I have a chance. I'm at work now, so that wouldn't be kosher.

    Dirtdives and TurboCharizard like this.
  16. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    I'm sorry to double post, but it is UPDATE TIME! Pic heavy long winded update...

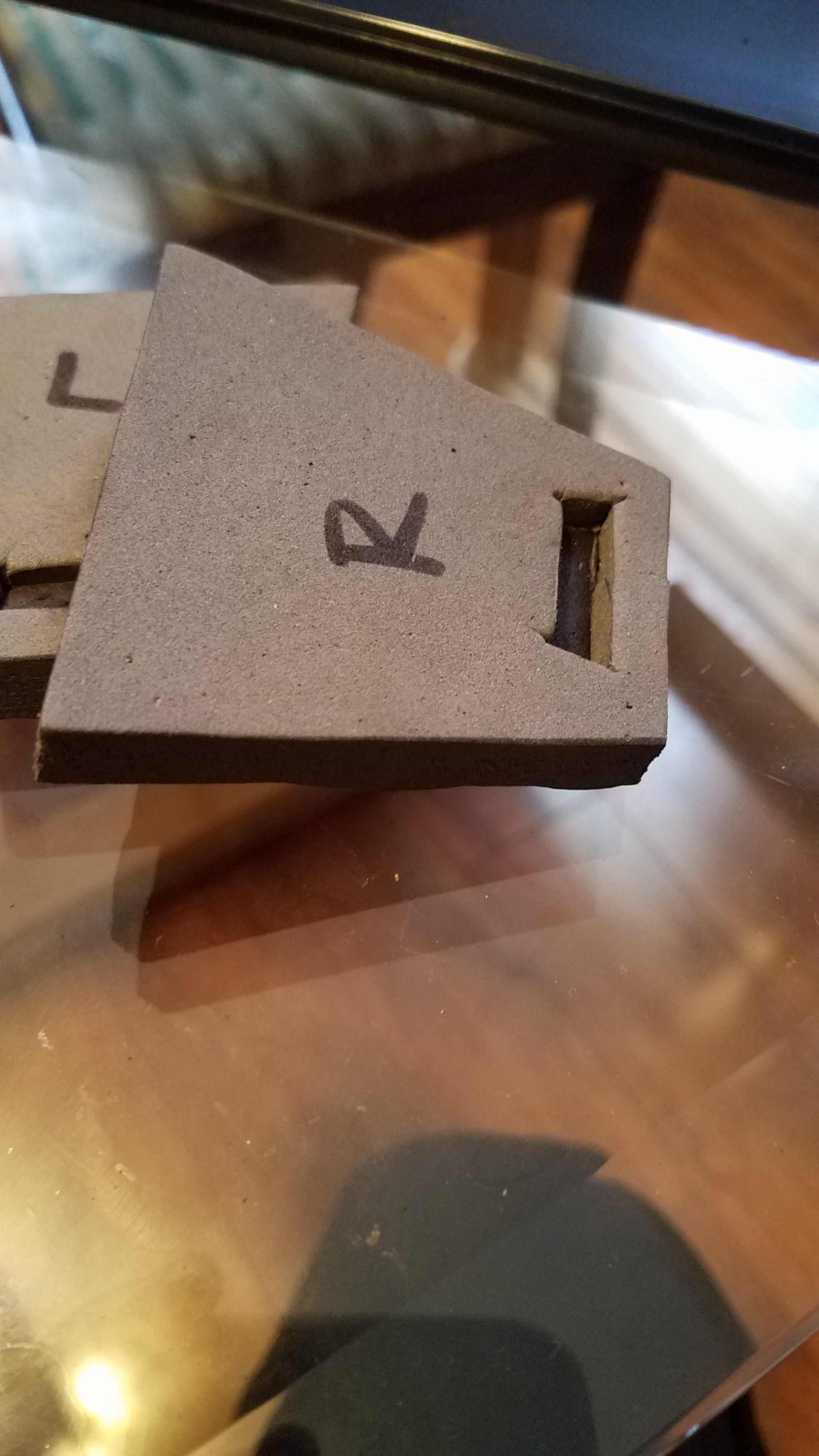

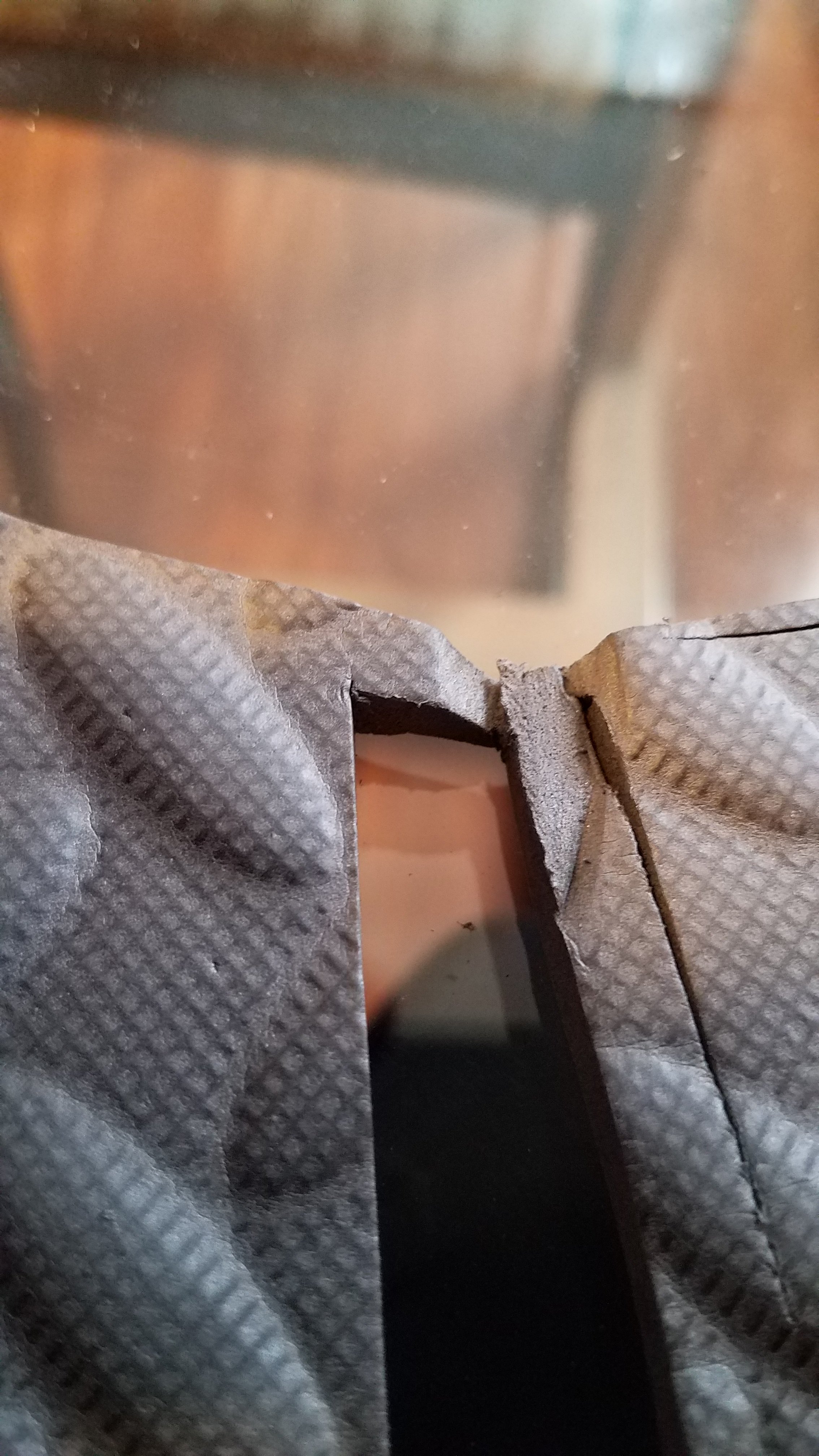

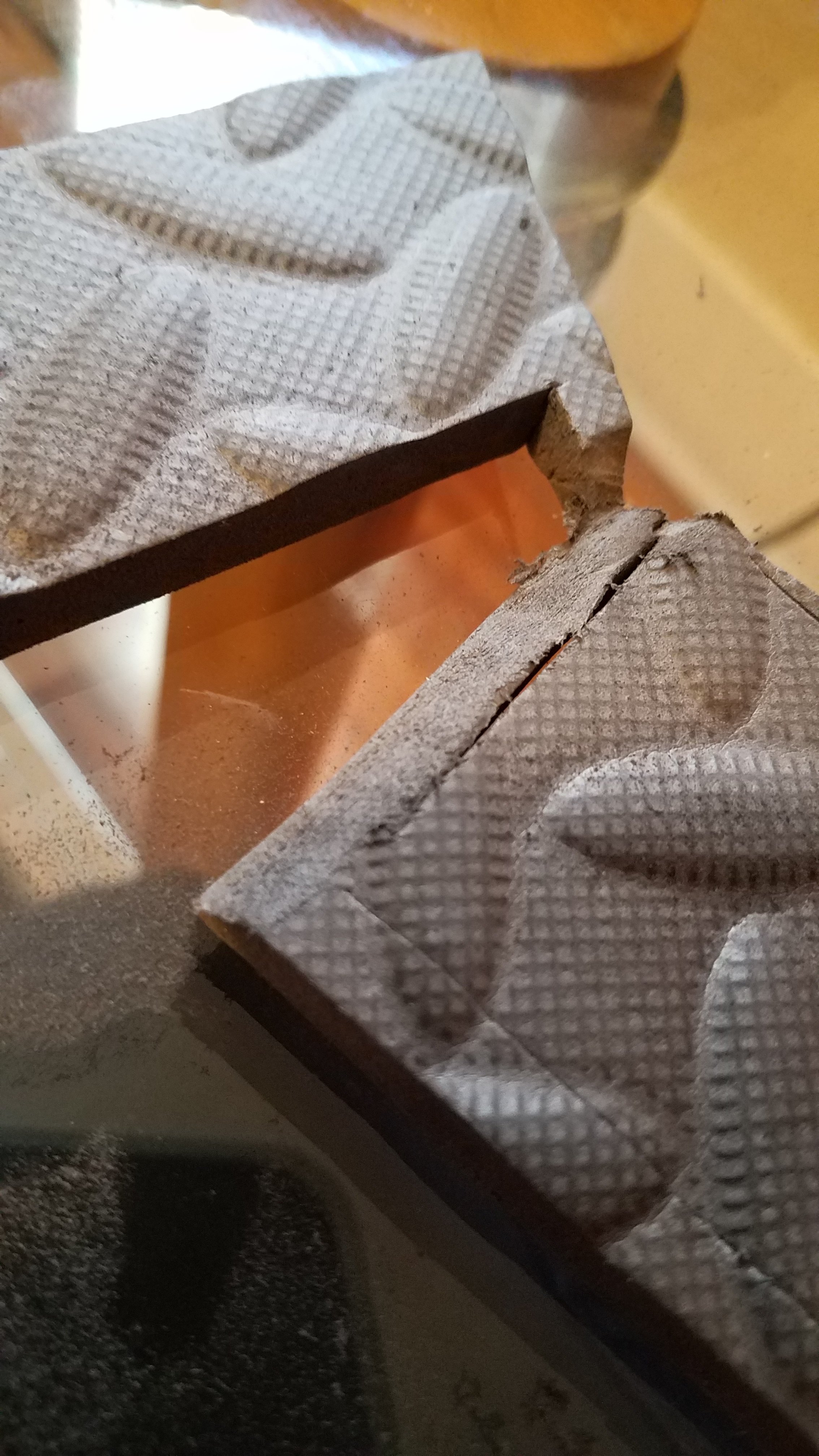

    I put some work in on some beveled edges, and it is my professional opinion that they suck. 20180620_071000.jpg this is the best I was able to get with my knife. I know it is a small detail area, and I should have started bevels on a large straight practice piece, but what can I say? I'm a glutton for punishment.

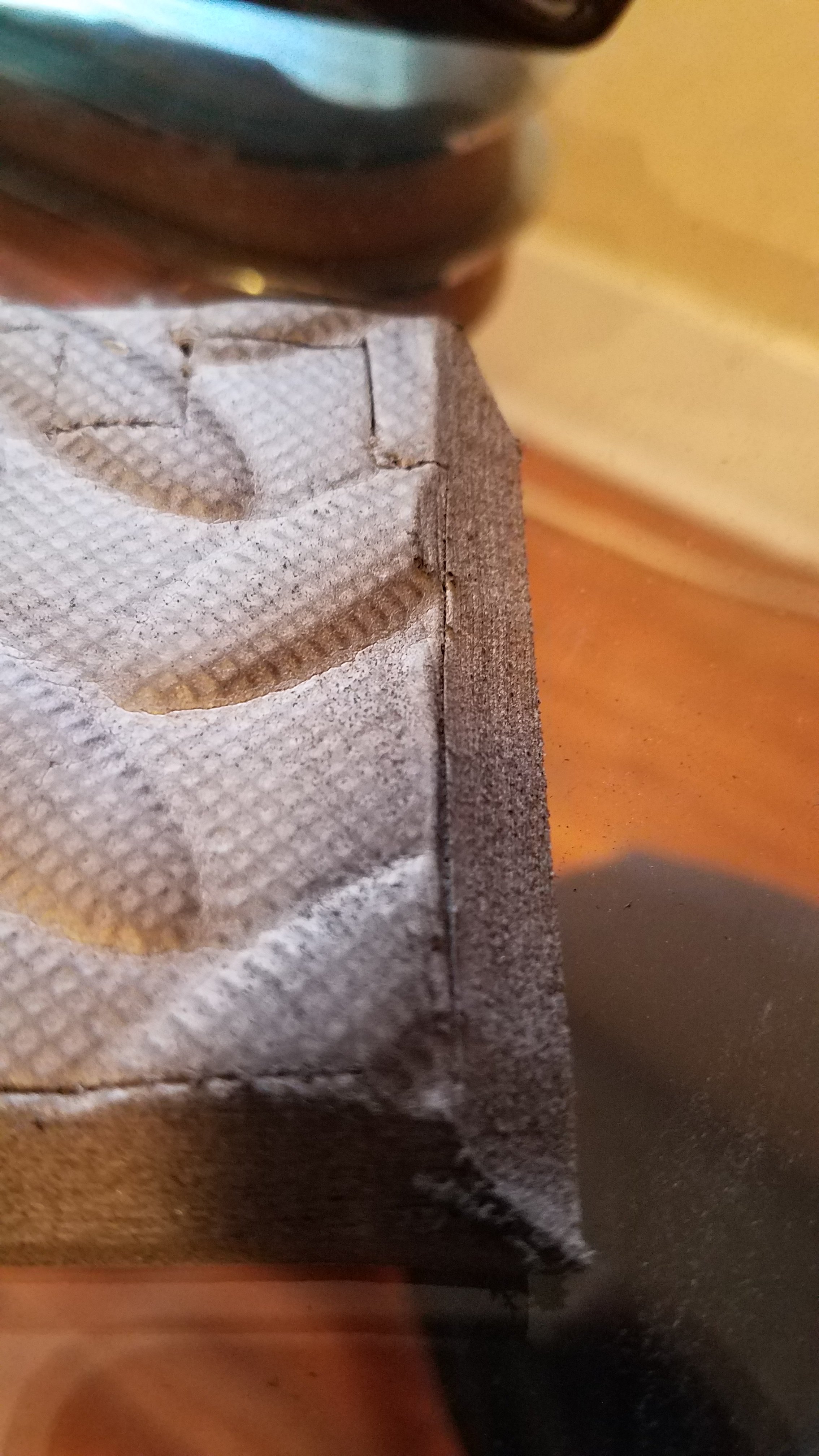

    So I did the next best thing: DREMEL THAT SUCKER! 20180620_071232.jpg 20180620_071120.jpg dremels make everything better. Unlike phone updates that make you misspell everything! Argh!

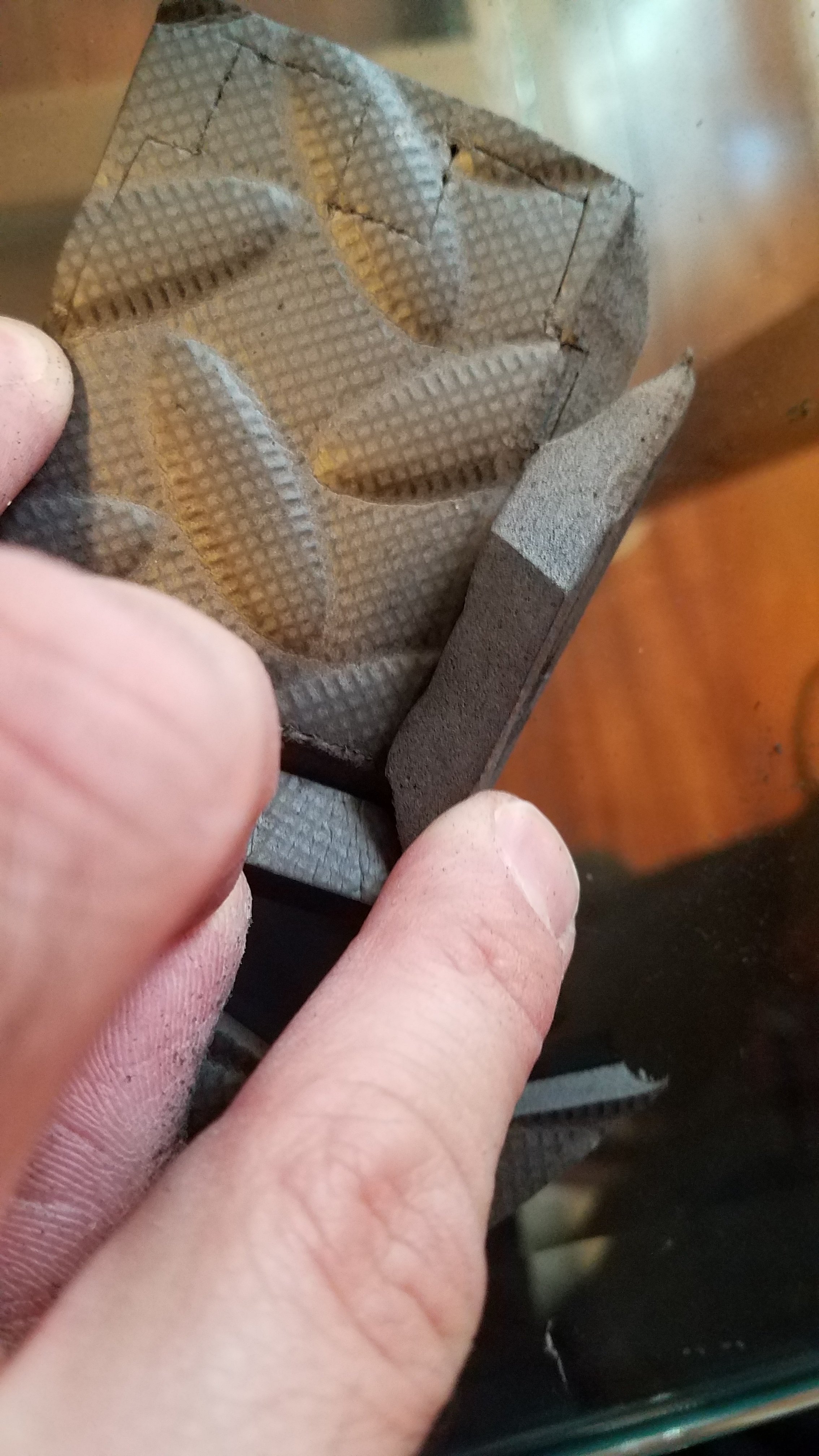

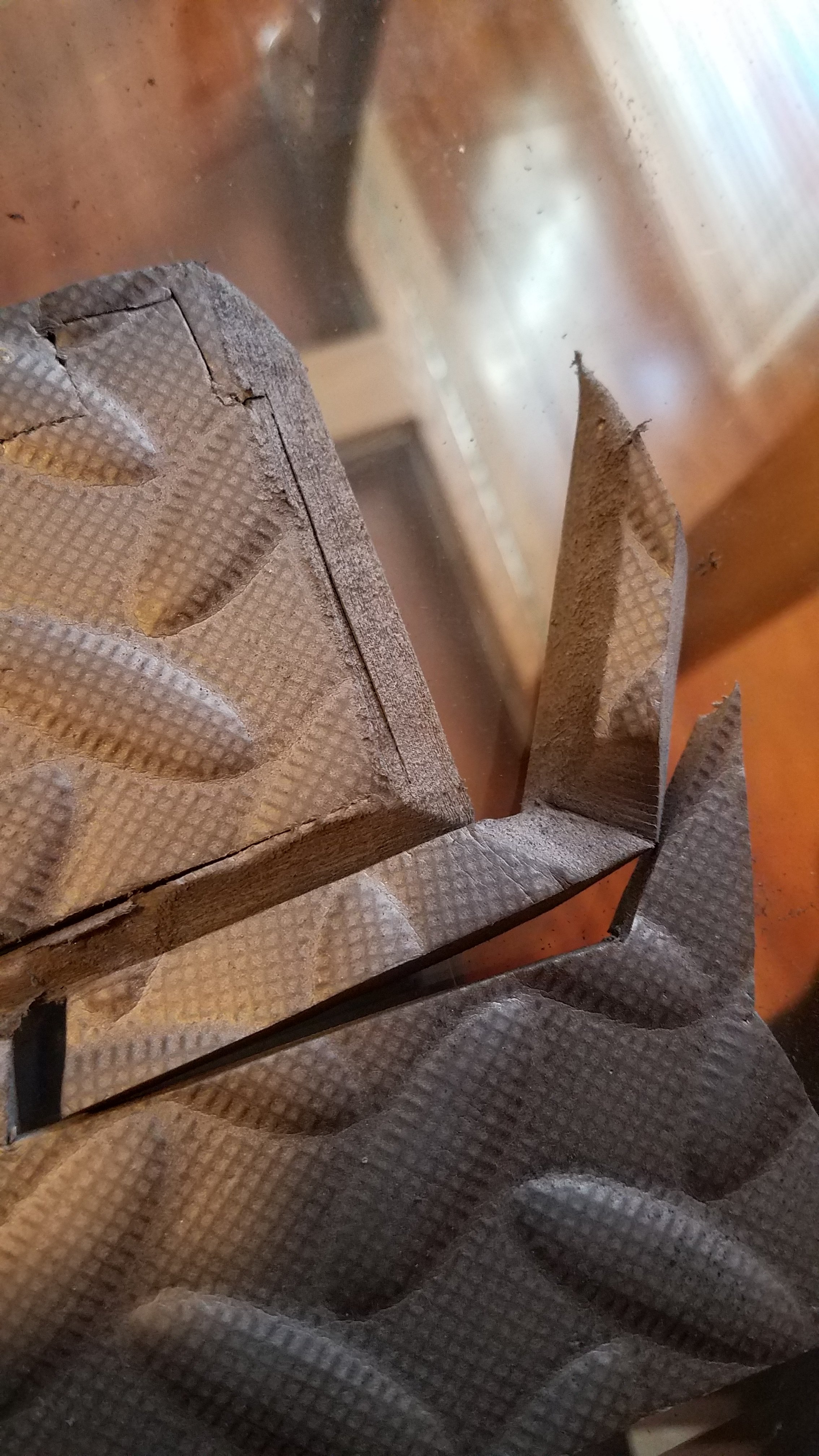

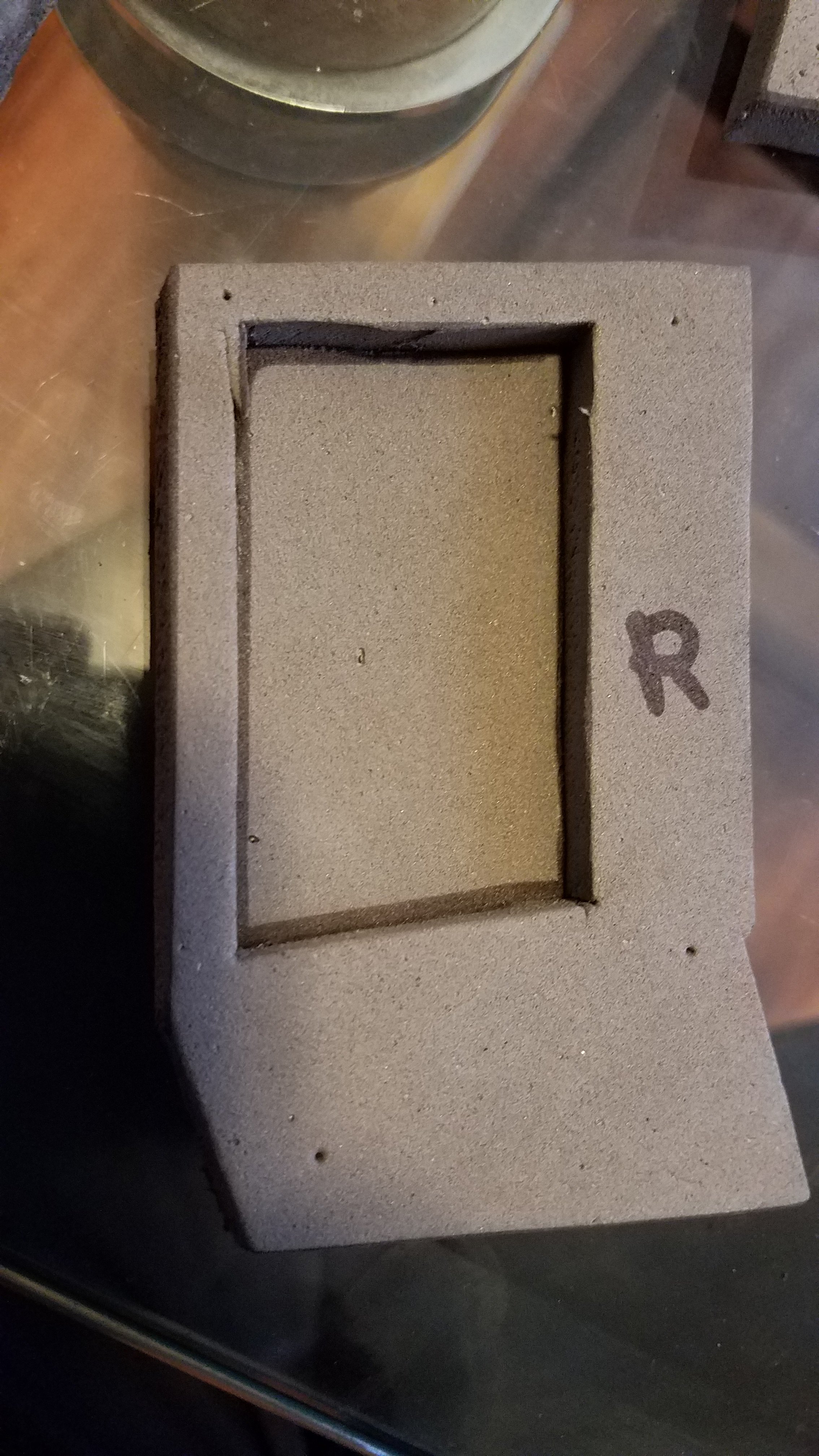

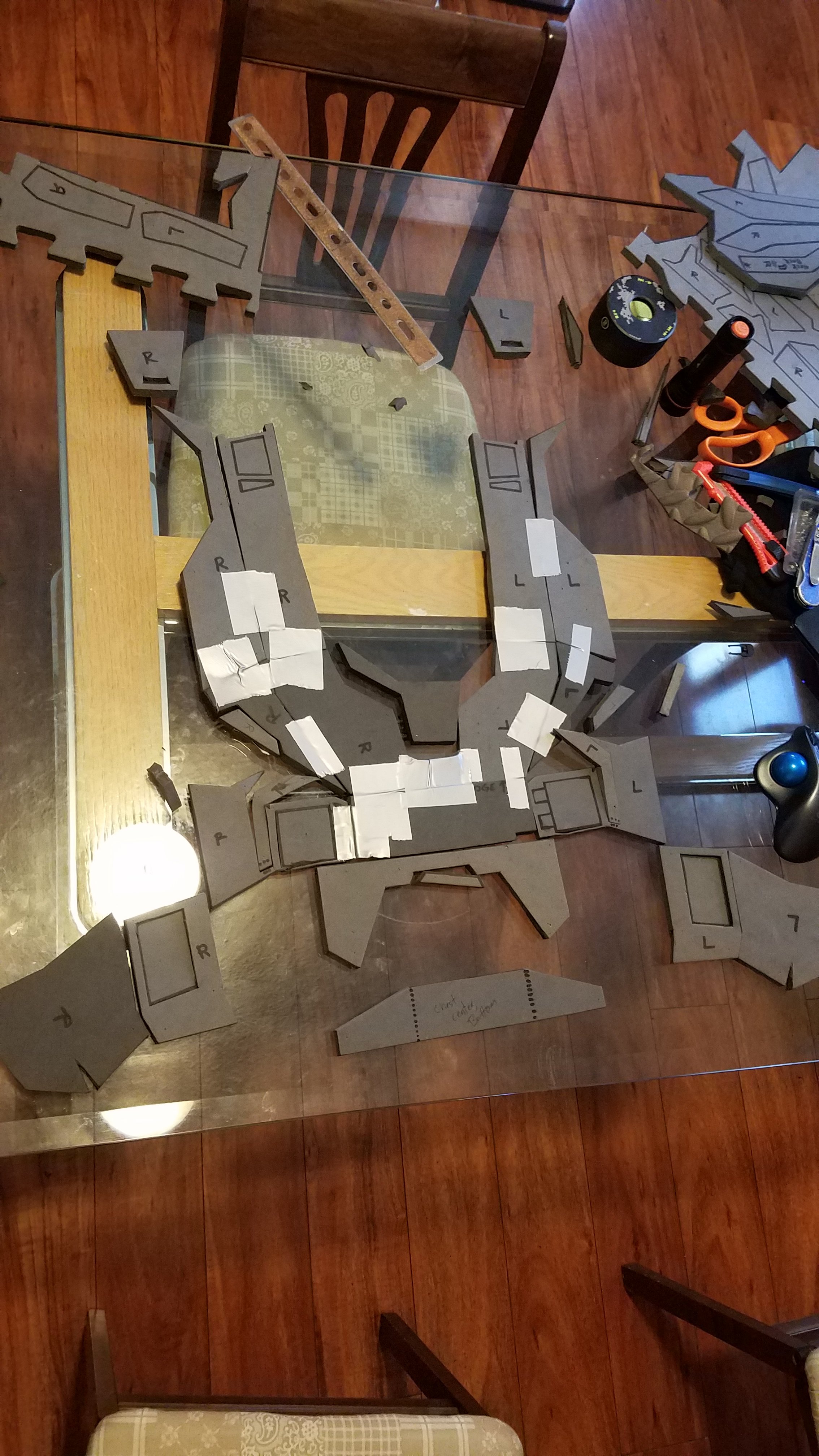

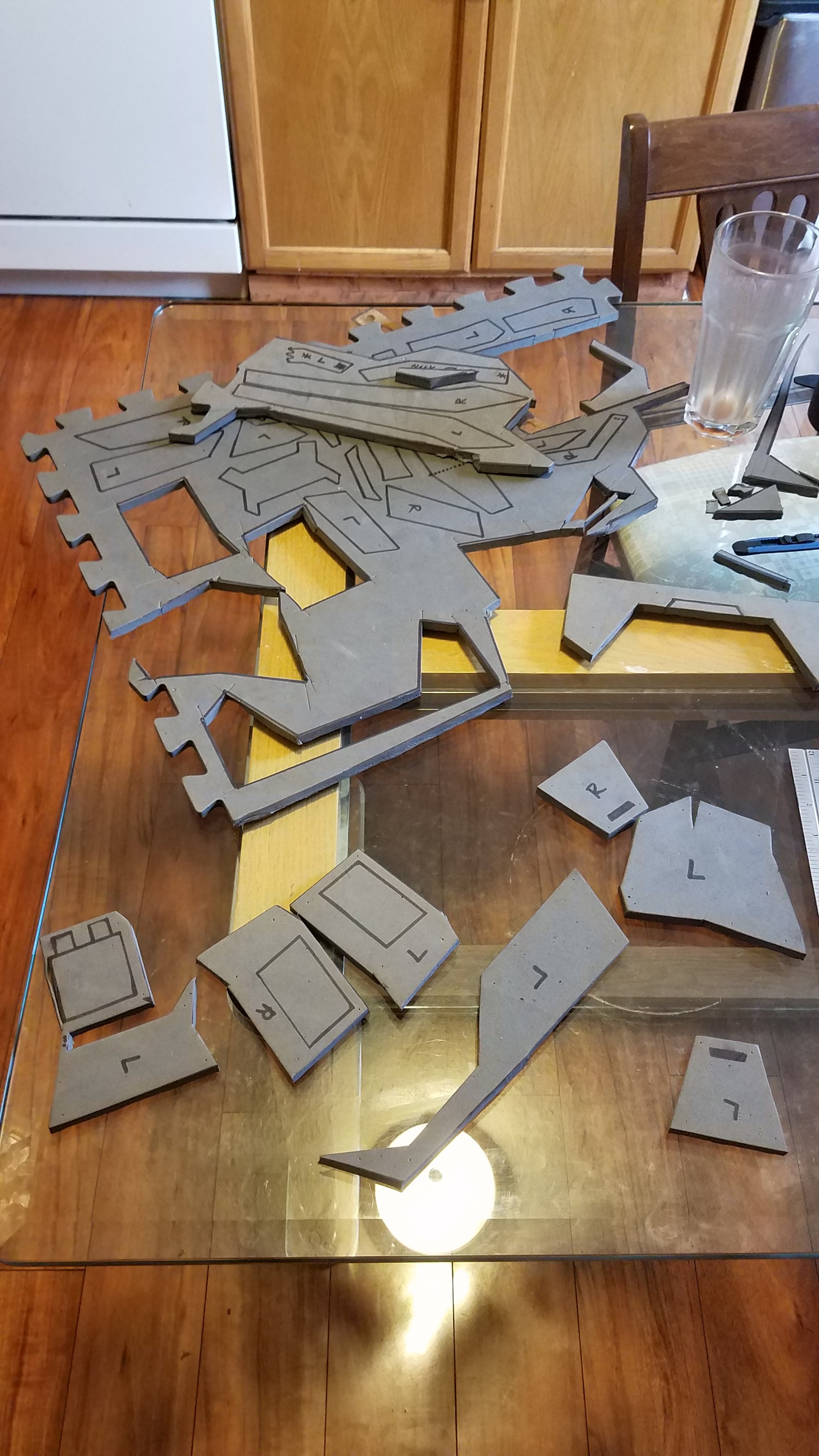

    Anyway, I did some more cutting, and dremelling, and cutting, and kicked some drunk homeless guys off my porch, and cut some more and dremelled some more and got this result: 20180620_071633.jpg 20180620_071625.jpg 20180620_074236.jpg 20180620_074213.jpg and then the childish urges kicked in and I broke out the duct tape, and now this is how it looks: 20180620_074156.jpg
    And all of a sudden there was joy.

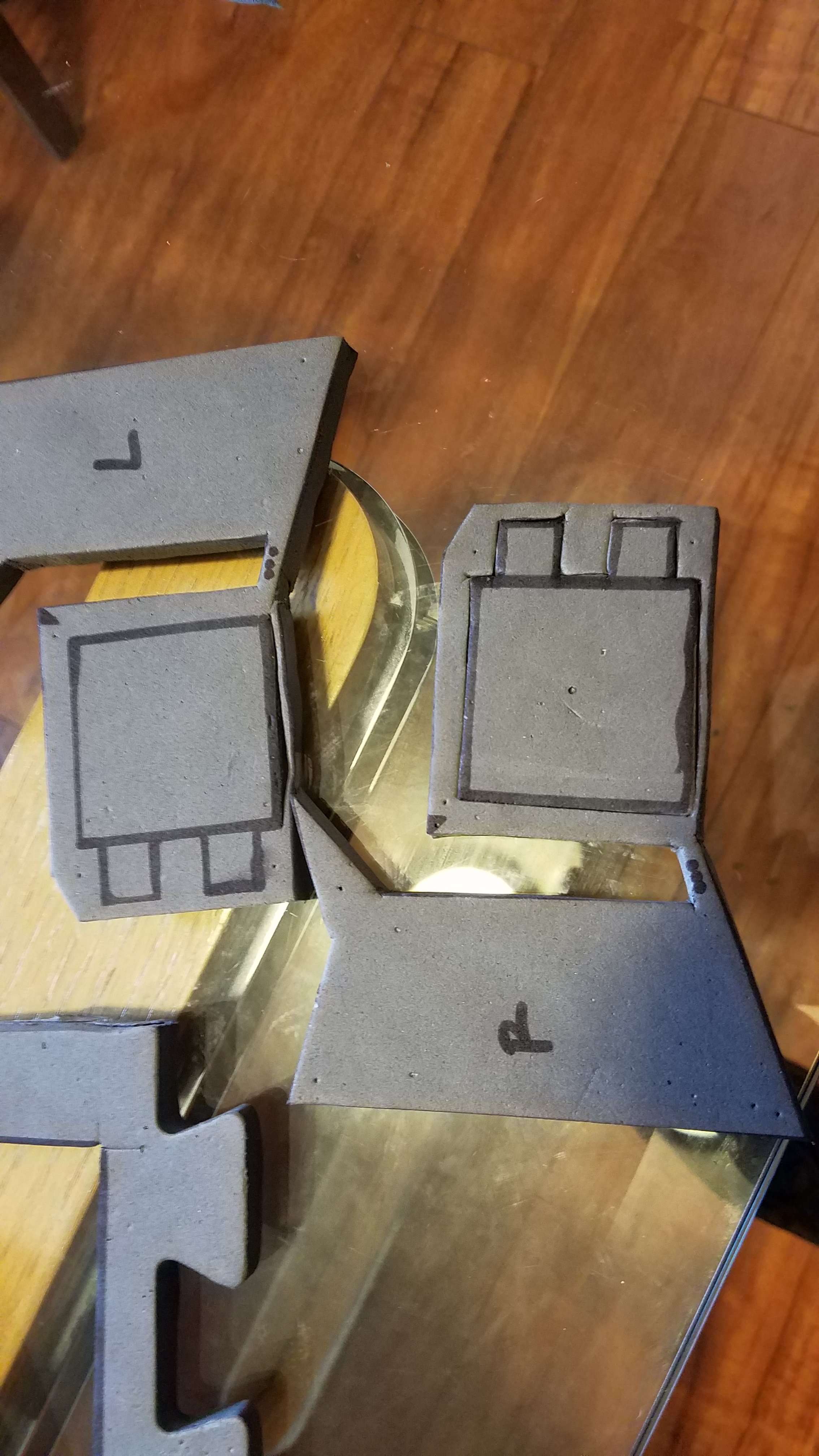

    I think for the side pieces off the chest center I am going to have to back the center with another layer of foam and attach them at a step behind, and then add some detail foam to clean them up a bit... or should I wait to add the detail foam.... what do you guys think?

    Last edited: Jun 20, 2018
    Dirtdives and TurboCharizard like this.
  17. crackhead09

    crackhead09 RXO 405th Regiment Officer

    Dirtdives and Sean Anwalt like this.
  18. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    That's a good looking razor saw! Maybe I'll save up and pick one up for myself.

    Well, almost morning, another update! Didn't get a whole ton of big things done, but I did work on details.

    First, took the pattern and fired it on my foamy, checkered for fit:

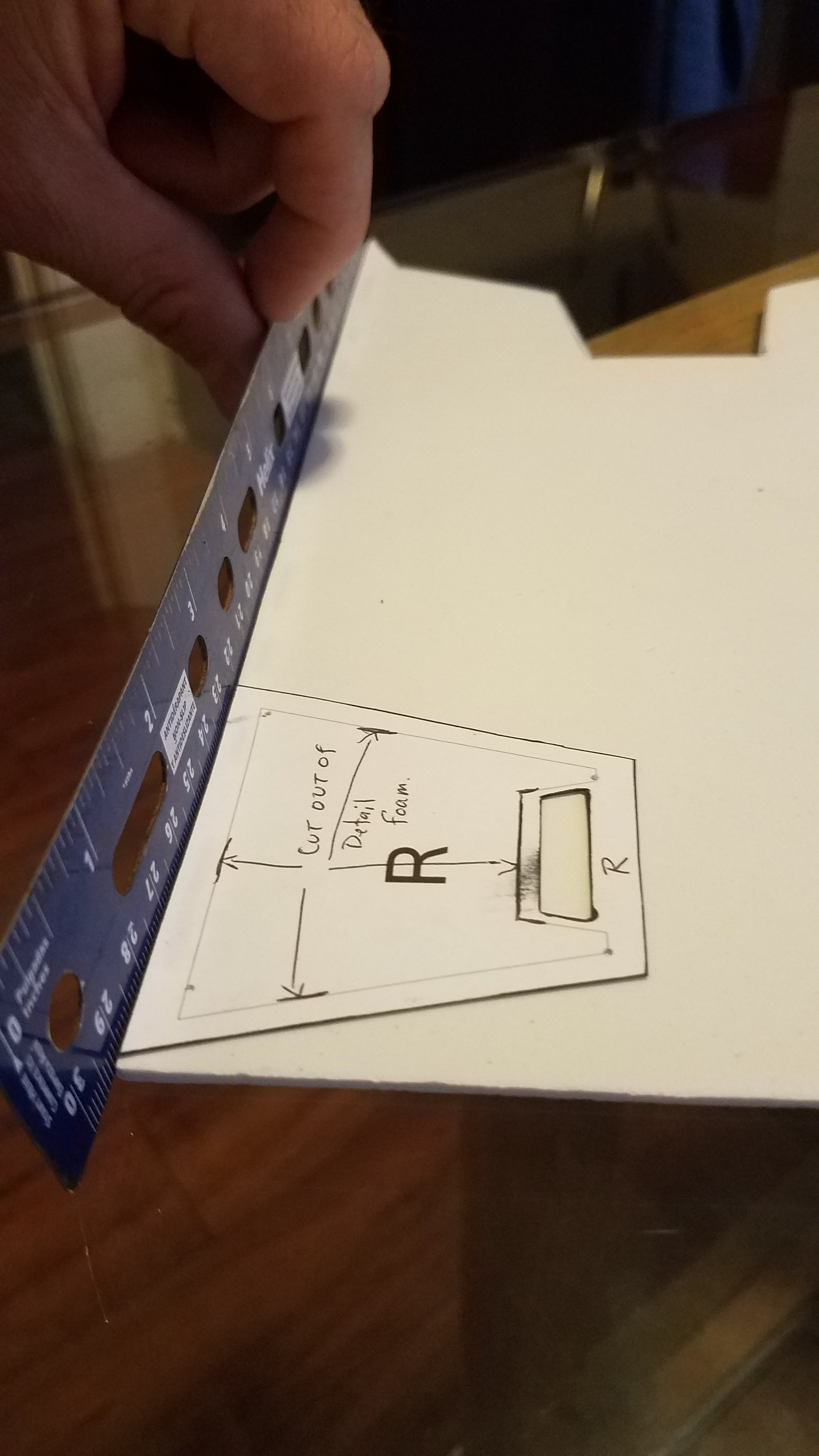

    I used a metal ruler to align the top with the edge of the foam mat to make sure it was straight. Then I cut out the center detail with an exacto knife which helped keep the corners crisp. I figure if I obsess about the little details and make them the best I can, the better the results.

    Straightened the top edge of the fresh- cut piece, and carefully marked with a pen where the cut should be.

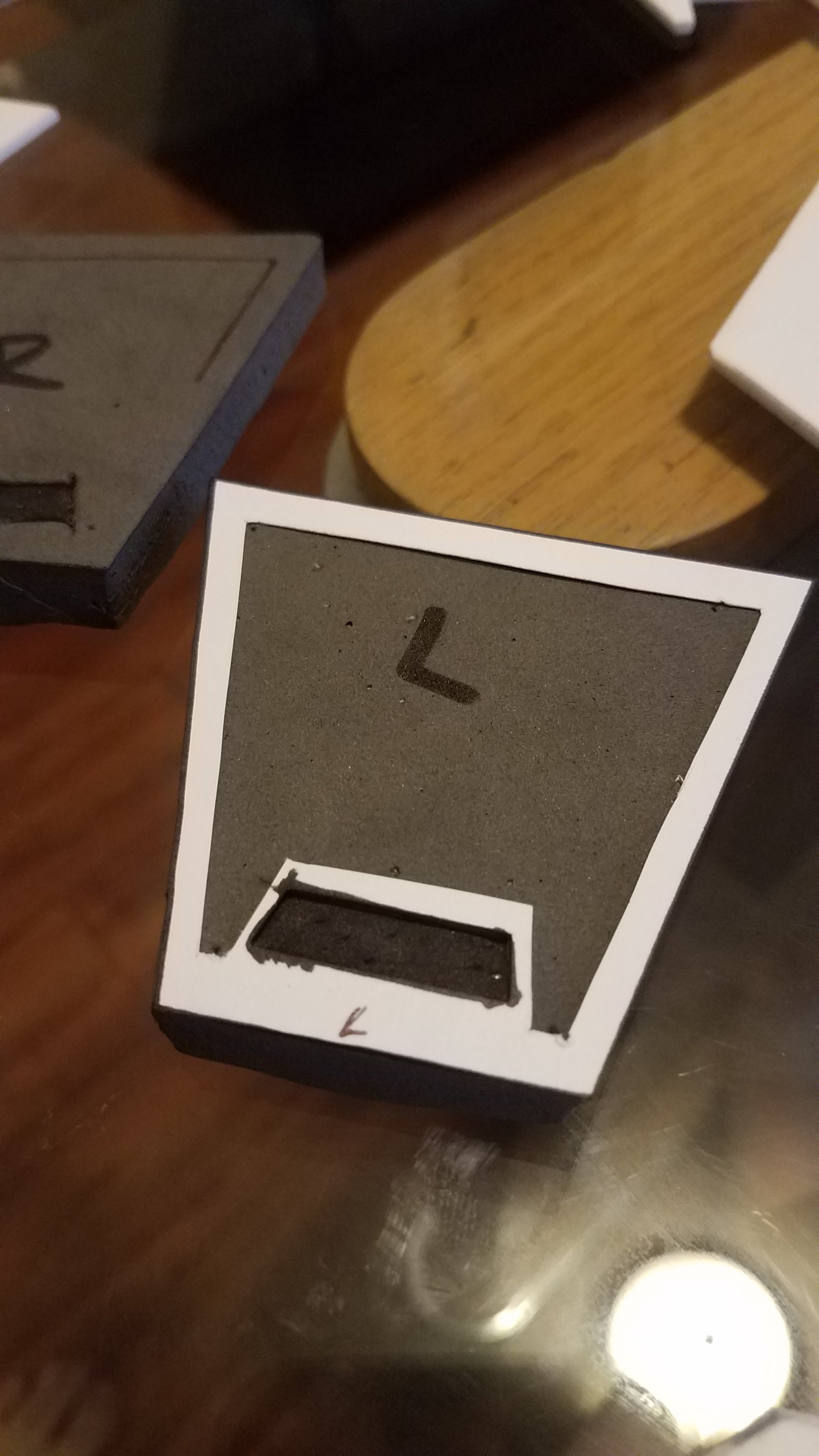

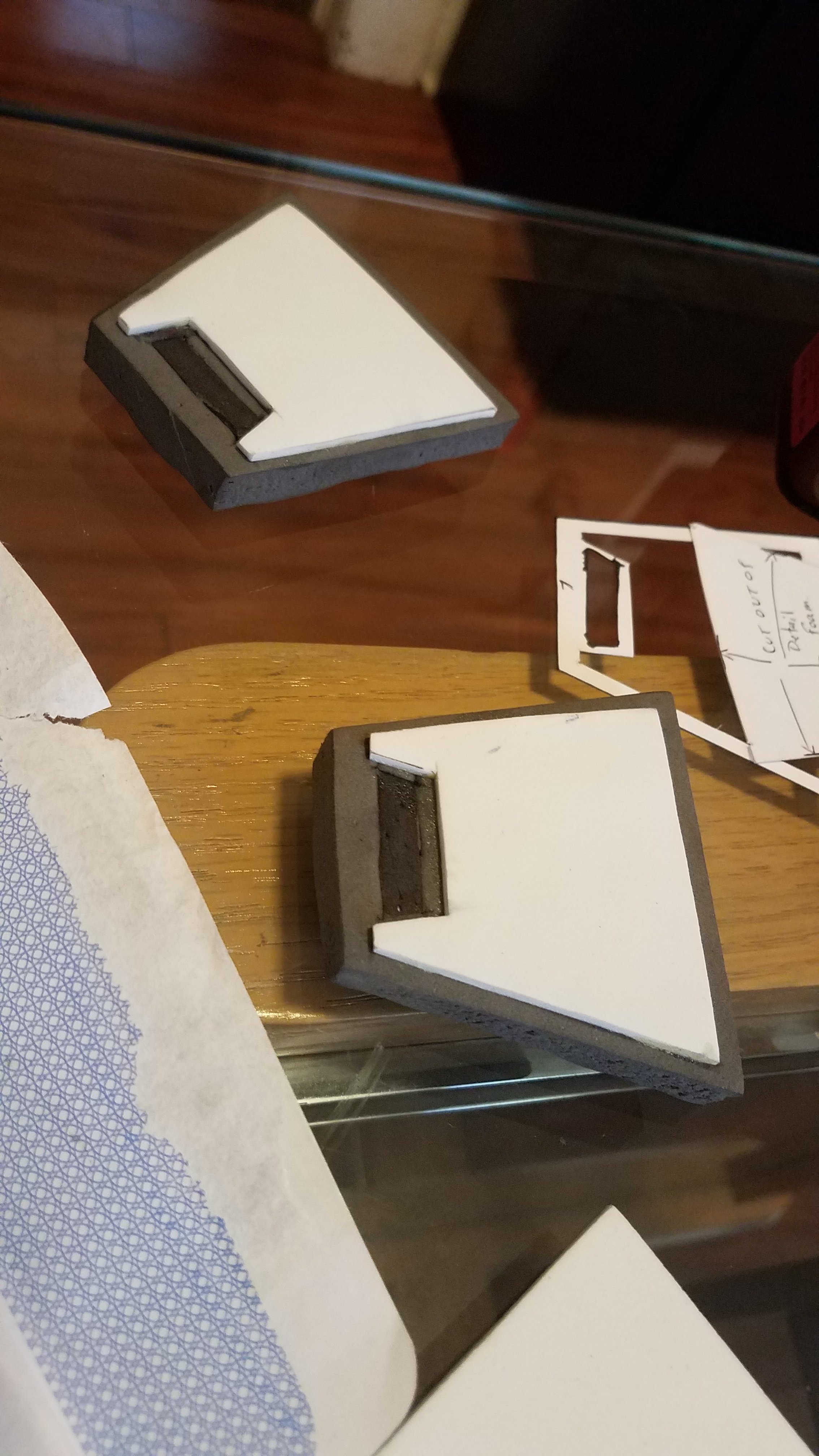

    20180621_064613.jpg 20180621_065149.jpg

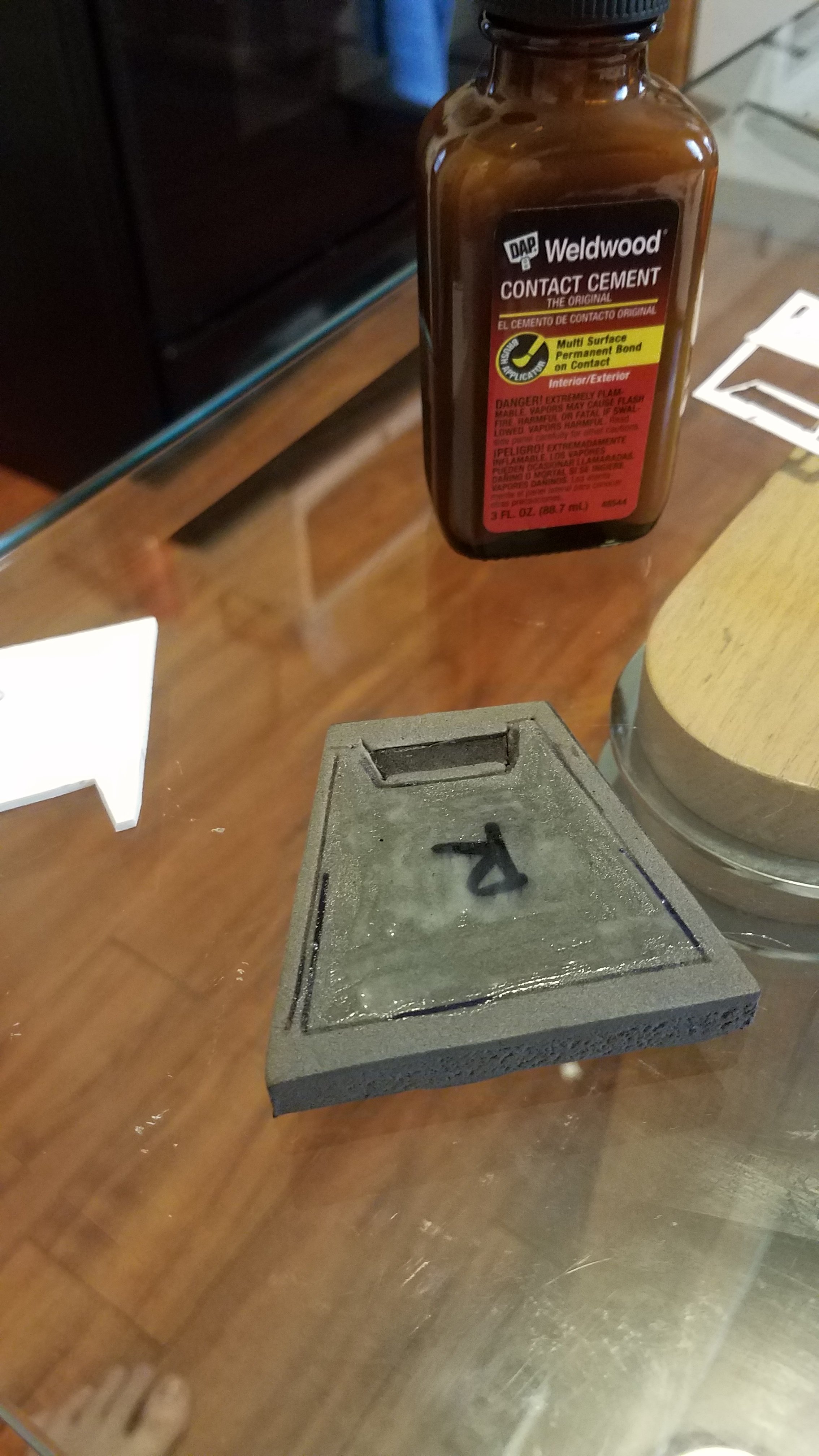

    Put some contact cement on both pieces, waited around 5-10 minutes, or however long it takes to eat a bowl of breakfast cereal (the *real* breakfast of champions), have them a second coat, waited again, and then VERY carefully layed the detail piece where it belonged.

    This is the result:

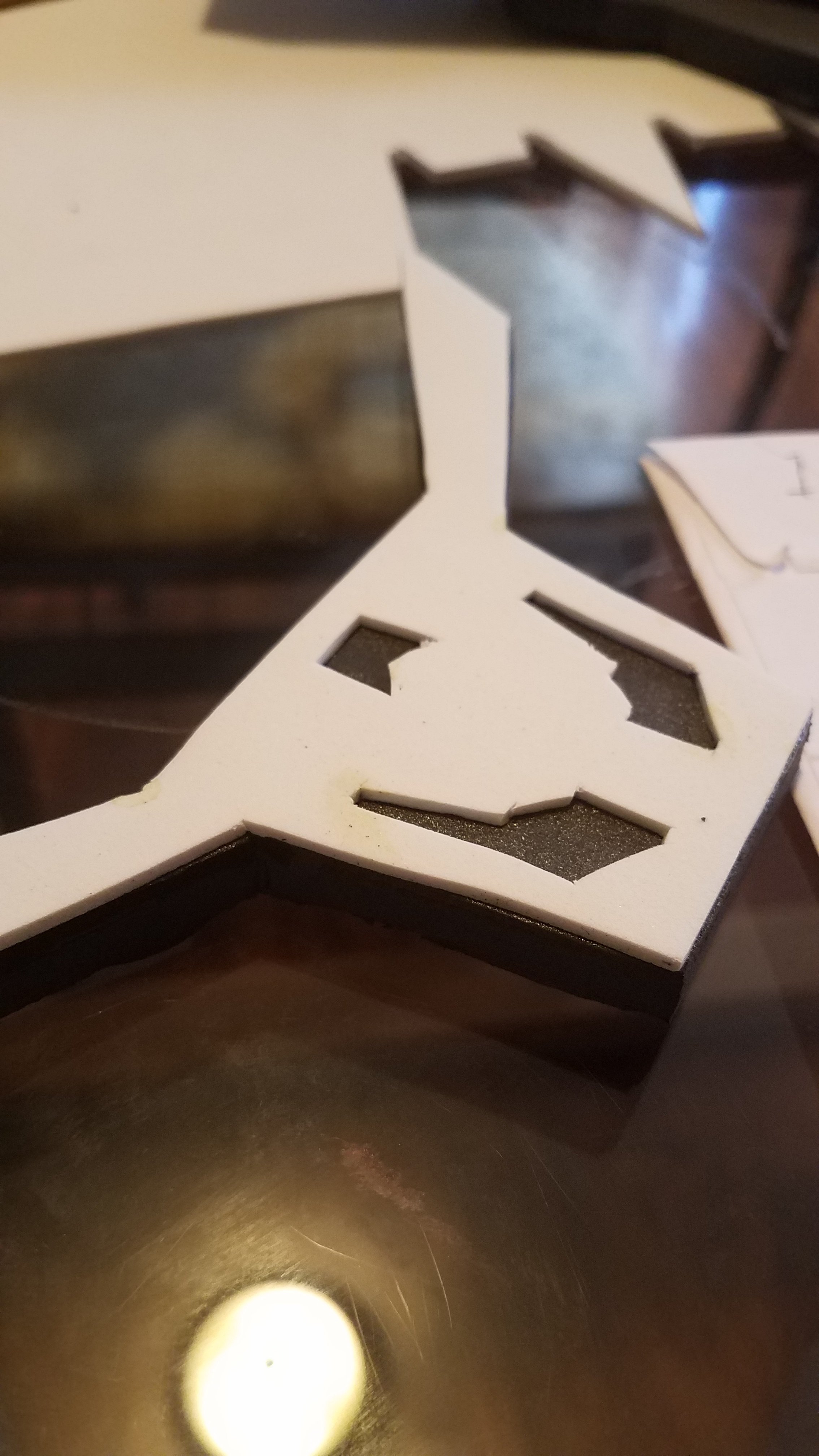

    Usd the same procedure for the center of the neck. 20180621_073028.jpg

    Got a little stain on the one side, but I'll be painting it eventually, so it's no big deal.

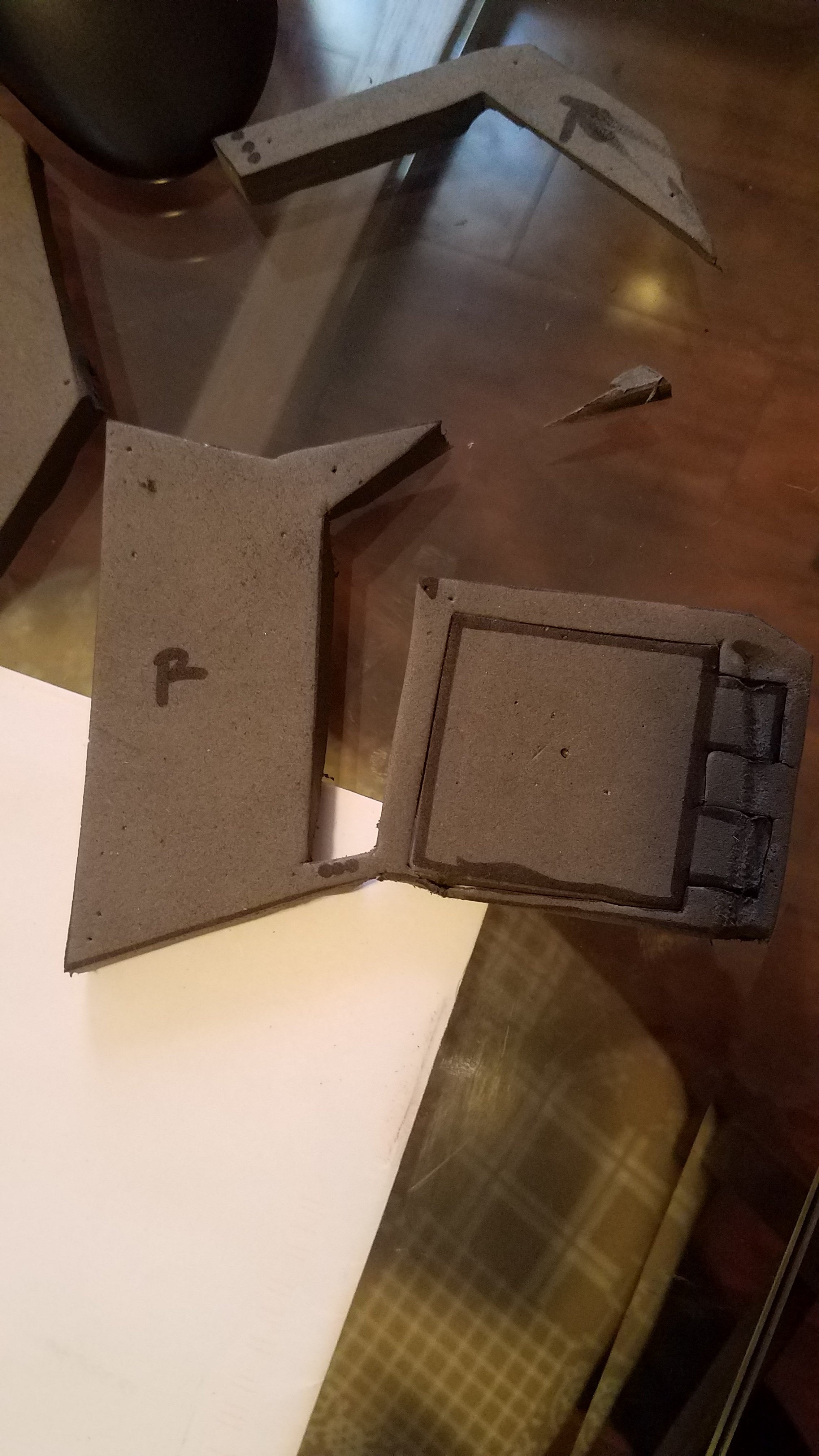

    This has been easy, but time consuming. There is one part that has me bamboozled, though, and that's this part:

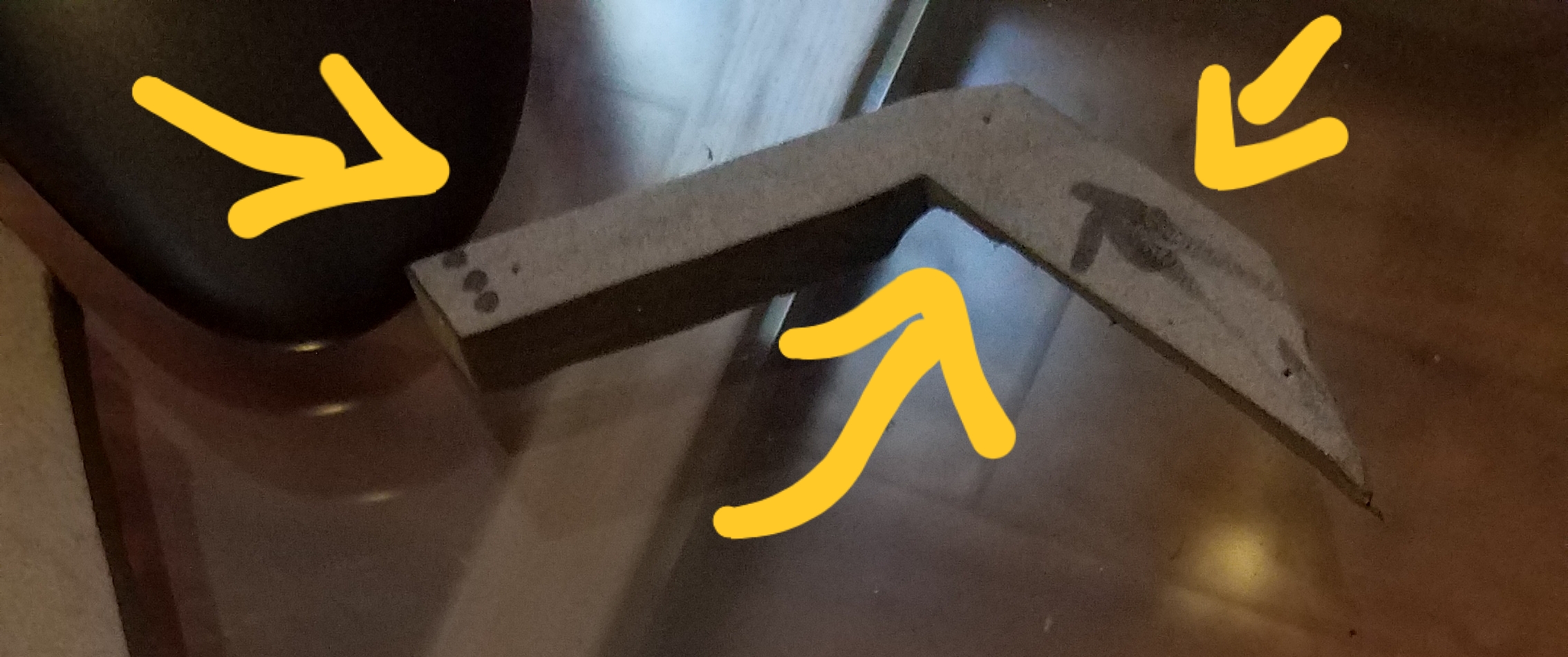

    How do I get this to fold the way I need it to? How have others done that?

    Comments and tips always welcome!

    Dirtdives likes this.
  19. crackhead09

    crackhead09 RXO 405th Regiment Officer

    That looks great! As for the fold, I dont know what fold you are talking about?

    Dirtdives likes this.
  20. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    Hmm... trying to think how to explain this...

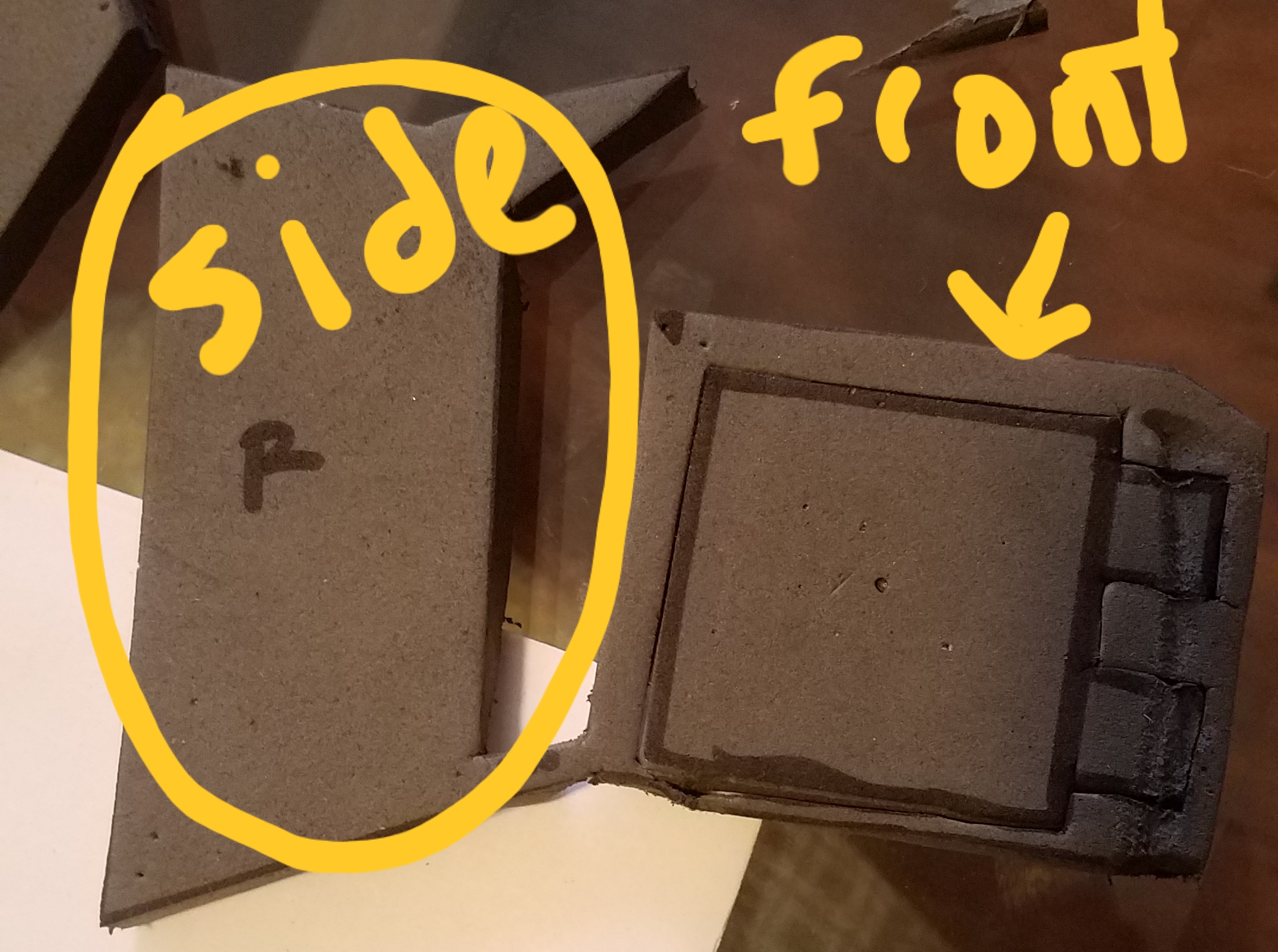

    The part threat says "side" goes on the side, the part that says "front", obviously, goes in the front.

    Normally I'd just be like 'well fold it at the little attachy point, silly', but it isn't that simple, because there's another piece,

    There ^

    That fits in that little gap.

    I don't want to sound unintelligent, but it is proving difficult for me to get the fold as crisp as I want.

    Dirtdives likes this.
  21. crackhead09

    crackhead09 RXO 405th Regiment Officer

    yeah Im not sure either. Sorry I cant be much help :(.

  22. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    There's a bunch of deep scoring on the back that you get to do on those pieces if you want a solid piece or break it into two pieces and bevel to get a sharp transition. I personally cut an over exaggerated channel in the back to get the required bend. At this point I can't really get photos of the inside either without removing cable runs unfortunately but this video by Punished Props will be a good explanation of the process of removing material from the back to get the shape that you need.

    Sean Anwalt likes this.
  23. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    Thanks, Turbo. I'll set to it after work and see what I come up with.

    Dirtdives and TurboCharizard like this.
  24. Sean Anwalt

    Sean Anwalt RCO 405th Regiment Officer

    GUYS!

    I have recently purchased more foam. Yay! BUT! IT IS TEXTURED! :eek:

    The smooth side looks like this
    Whereas the rough side is like this:
    Am I going to be ok? Is there a way to smooth that out?

    Dirtdives and Lieutenant Jaku like this.
  25. PaiganBoi

    PaiganBoi

    Run a few passes over a belt sander would be the best way to smooth it out.

    Dirtdives likes this.
