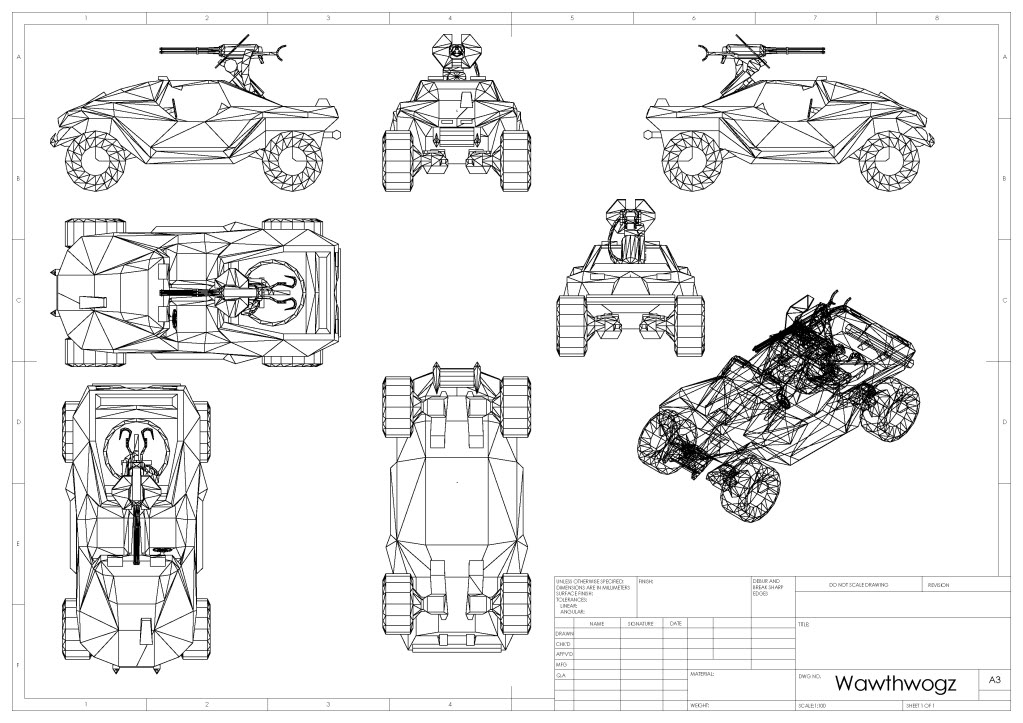

    Hey all, this is my first post on the forum. I am designing a frame for a warthog. My frame is based off of these blueprints:

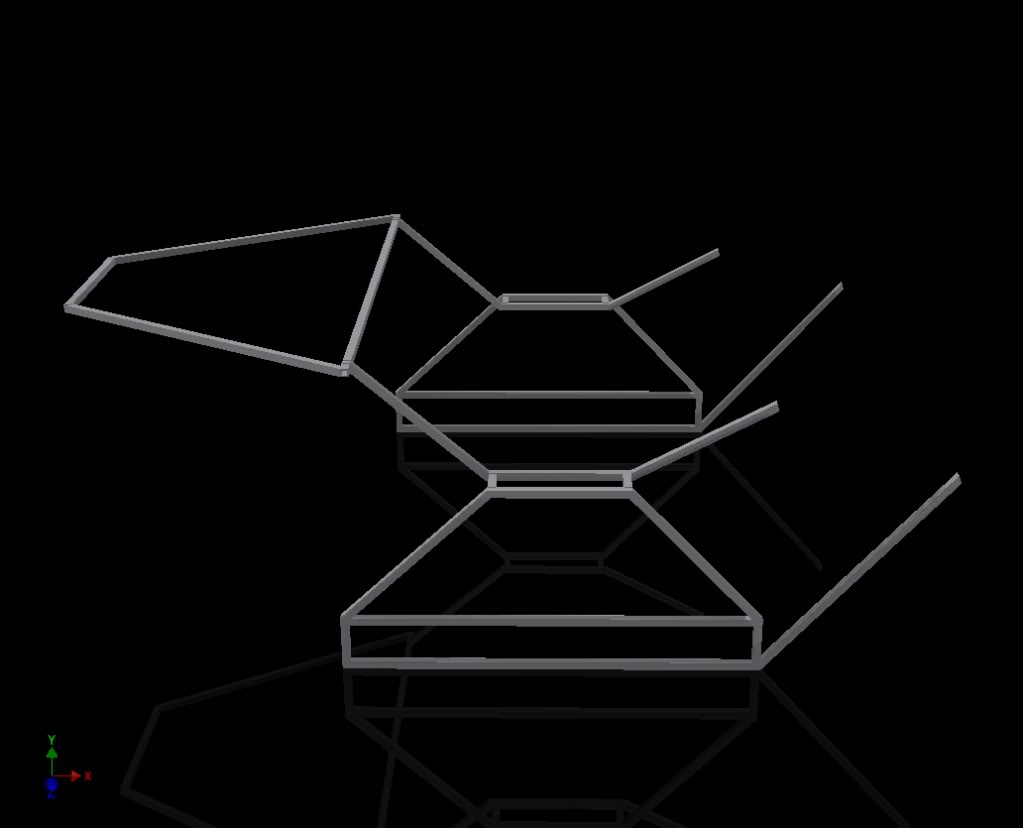

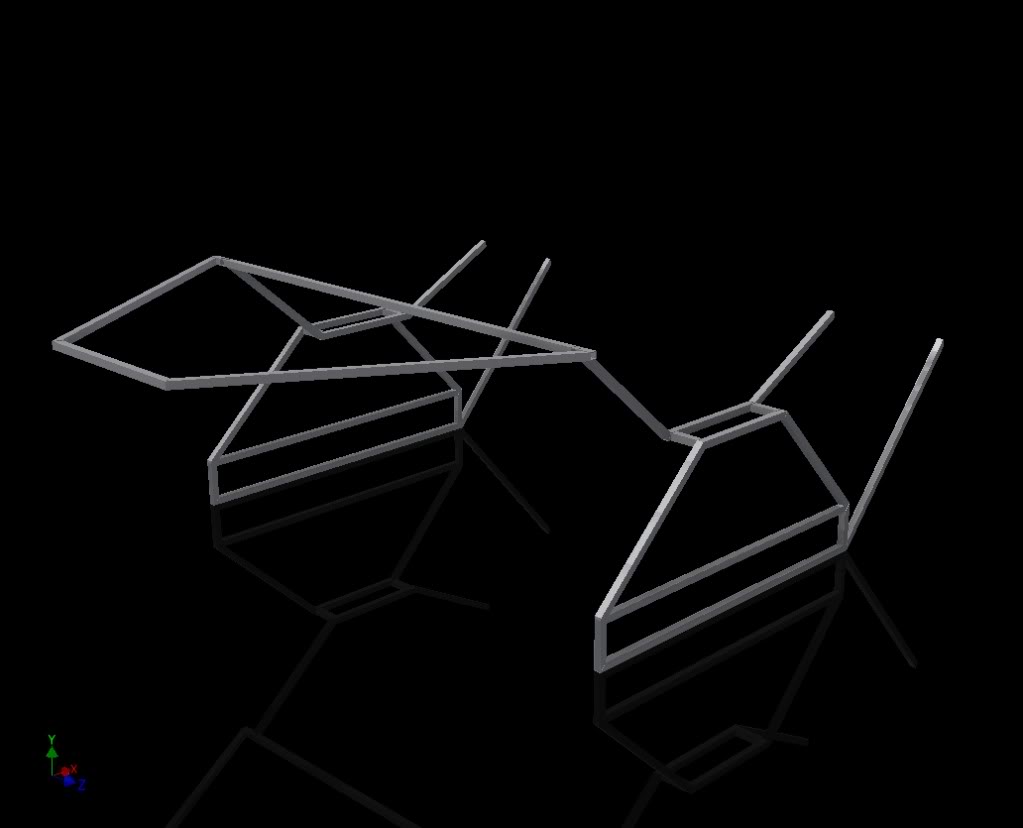

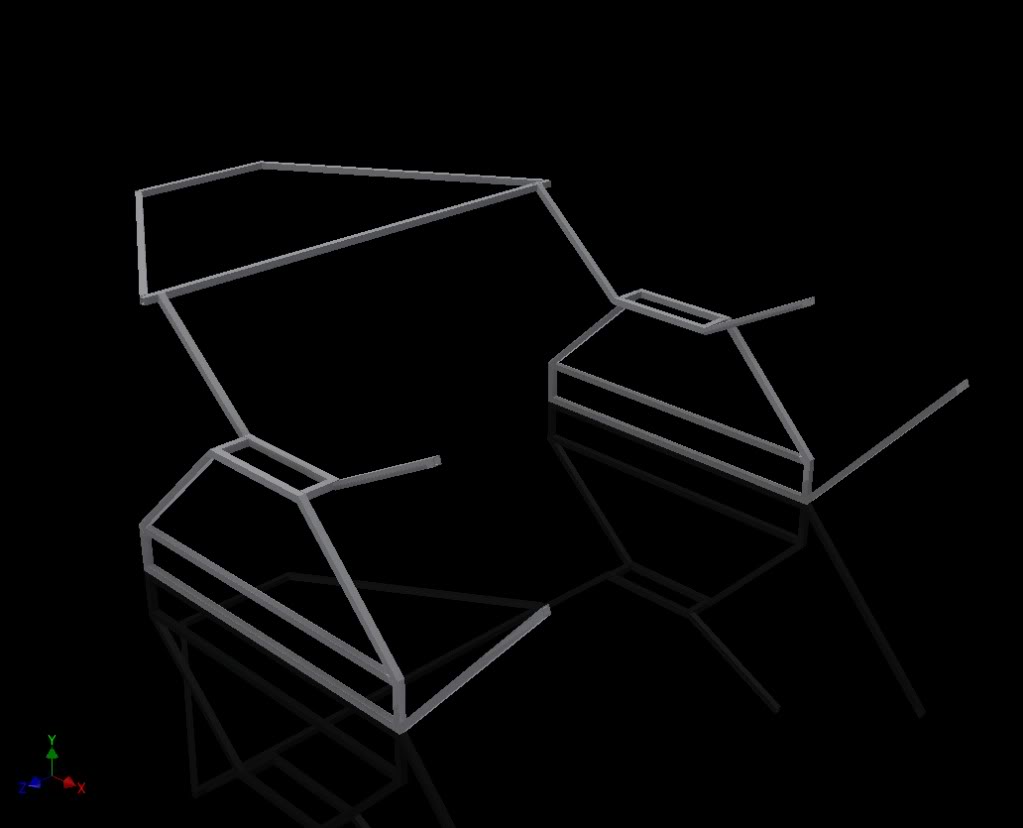

    The way I found the scale was pretty interesting (IMO). I gave the Warthog a designated height of 6ft. And in the blueprints, the Warthog was 360 pixels, so that means that for every 60 pixels, it equals 1 foot. And from that, I based my measurements. Here is what I have so far:




  2. Dark Star

    Dark Star Jr Member

    Trophy Points:
    99
    Soon as I saw your thread title I went NUH FREAKING UH! Your method makes sense to me personally, I can't wait to see what you make with this!

    Oh, and for the record...
    SHOTGUN!!! :D

  3. Finelargeaxe

    Finelargeaxe Jr Member

    Trophy Points:
    99
    I call the gunner's position!

  4. darth tiburon

    darth tiburon New Member

    Trophy Points:
    4
    Are you building a life size warthog?

  5. Dark Star

    Dark Star Jr Member

    Trophy Points:
    99
    For the record I'm fervently praying that you are, I wanna see a life size warthog.

  6. Austin673

    Austin673 New Member

    Trophy Points:
    4
    if i had the right dimensions and the material too do this (and the money ) i could probly make a 1" tube frame and actually make a car from this

  7. Jason 078

    Jason 078 Well-Known Member

    Trophy Points:
    670
    This is going to be interesting to watch. One of my long-term goals is to build a full-sized prop vehicle. Mine won't work, though. Well, it will have lights and movement, but still... X-Wings are impractical to fly.

    Interesting design idea, though. What type of vehicle will you use as a base?

  8. rafinger

    rafinger New Member

    Trophy Points:
    4
    As of right now, I'm just designing it.

    The frame is actually 1 inch tube frame. I'll be happy to give you the files once I'm finished.

    I'm not sure what vehicle could be used. For the scale I used, the wheelbase is 127 inches. I don't know of any vehicle that has that. So the vehicle that would be used would have to have the chassis stretched.

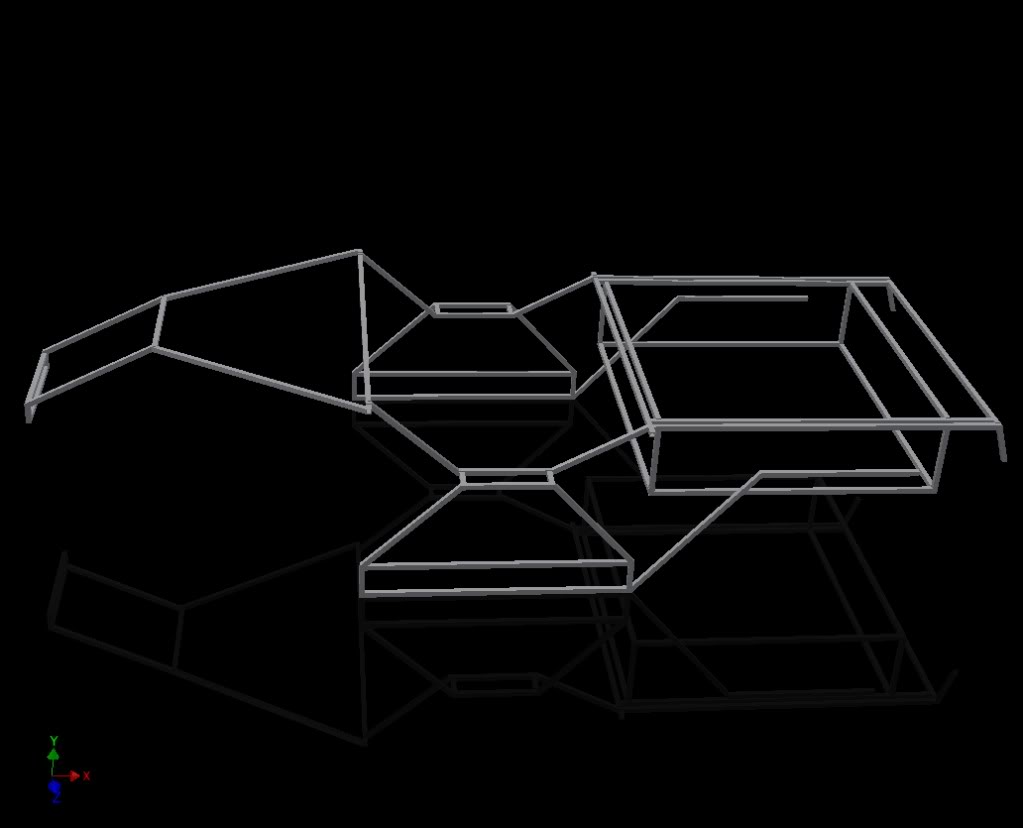

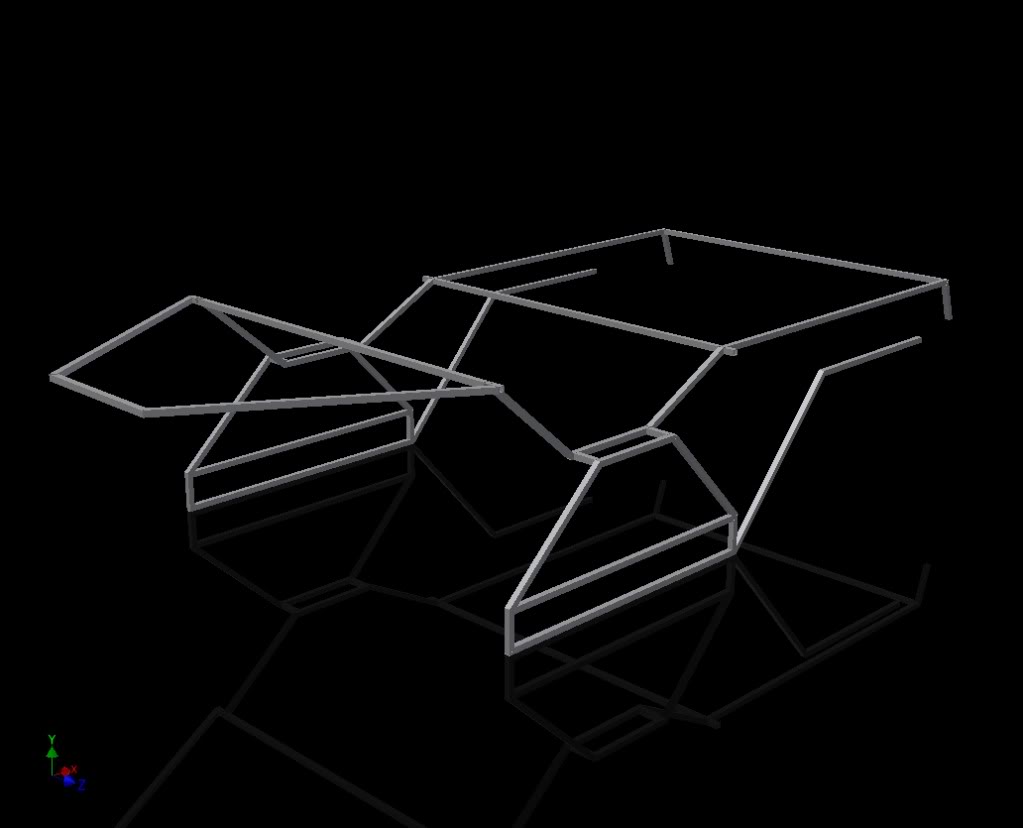

    I have some more progress on the Hog:




  9. Vulgarmas

    Vulgarmas New Member

    Trophy Points:
    2
    when you finsih if you could e-mail me the desings ill be more than glad to make a cople of warthogs i got some old trucks in of the back of my house that i think would work perfectly for this

  10. evanmcorleytv

    evanmcorleytv Member

    Trophy Points:
    100
    VERY NICE!! I have wanted to build one, and I know I could, but........of course, I just don't have the money.. GREAT JOB THOUGH!!

  11. Twisting Neather

    Twisting Neather Active Member

    Trophy Points:
    220
    I'm really looking forward to seeing this completed. I think a lot of members on here have been wanting to build a warthog for a long time, but have lacked the necessary knowledge and skills to do so. This seems like the first real step in helping these members reach their dream. On another note, what model hog are you using as a basis for this design as there are slight variations from game to game.

  12. Dark Star

    Dark Star Jr Member

    Trophy Points:
    99
    Not trying to put you down dude but knowledge and skill I can acquire :p I think most of the concerns were resources xD If I had the spare parts to do it I would TOTALLY try to build a hog!!

  13. rafinger

    rafinger New Member

    Trophy Points:
    4
    @Twisting_Neather - Well, I'm using the blueprints that use the Halo CE Warthog, but I'm compensating the design differences to make it be more like the H3 warthog.

    Thanks for all the positive comments guys. I really appreciate that. Did I mention that I'm only 15? I hope to have more progress in the next couple of days.

  14. hellome

    hellome Member

    Trophy Points:
    120
    Well what I realised is that a hummer has great similarities to a warthog

  15. Austin673

    Austin673 New Member

    Trophy Points:
    4

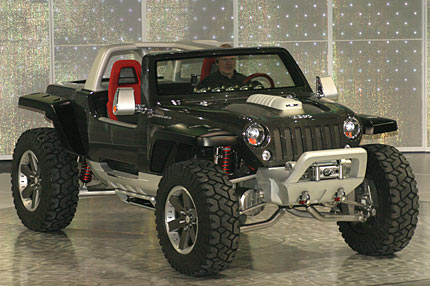

    its close but i think the jeep hurricane is closer jeep_hurricane_frontangle_1_cs_430.jpg

  16. hellome

    hellome Member

    Trophy Points:
    120
    They havn't made it yet. And if they did they don't sell them in America.

  17. rafinger

    rafinger New Member

    Trophy Points:
    4

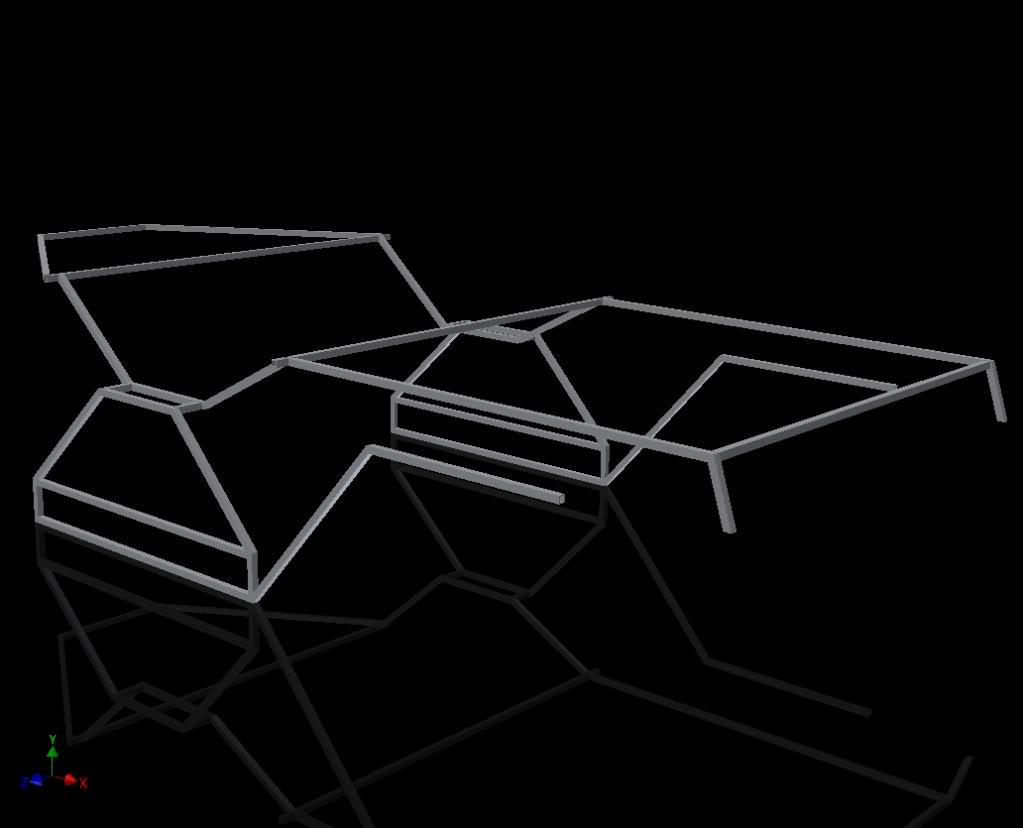

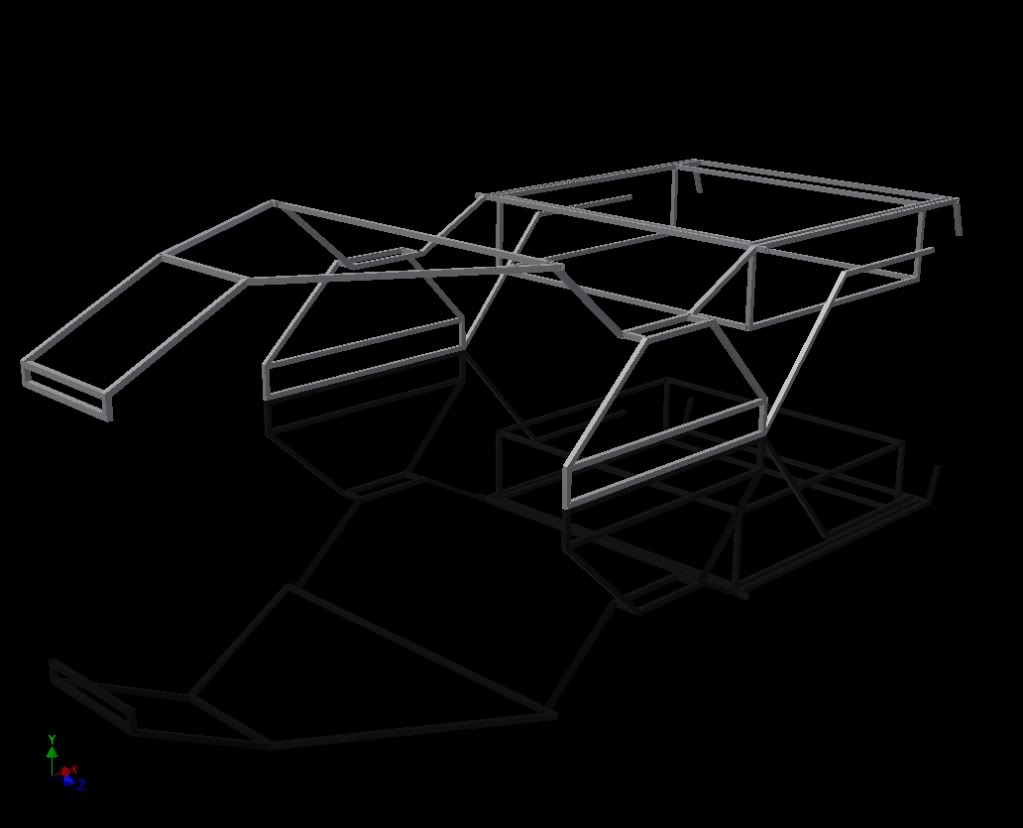

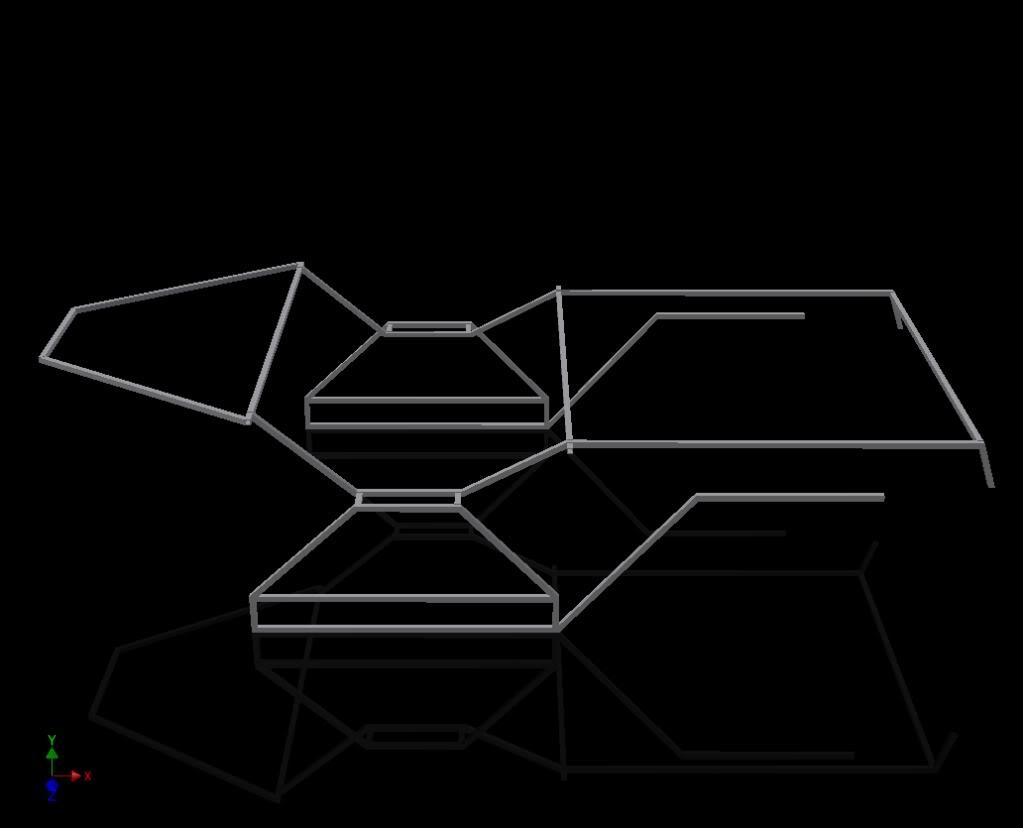

    More progress:




  18. misfitjh

    misfitjh Well-Known Member

    Trophy Points:
    670
  19. rafinger

    rafinger New Member

    Trophy Points:
    4
    Sorry guys, this project is going to have to be put on hold until my computer is fixed. I am in the process of turning it into a Hackintosh, and until all the bugs are fixed, I can't re-install windows to continue this project. I'll try to get it fixed soon!

  20. j0wE

    j0wE New Member

    Trophy Points:
    4

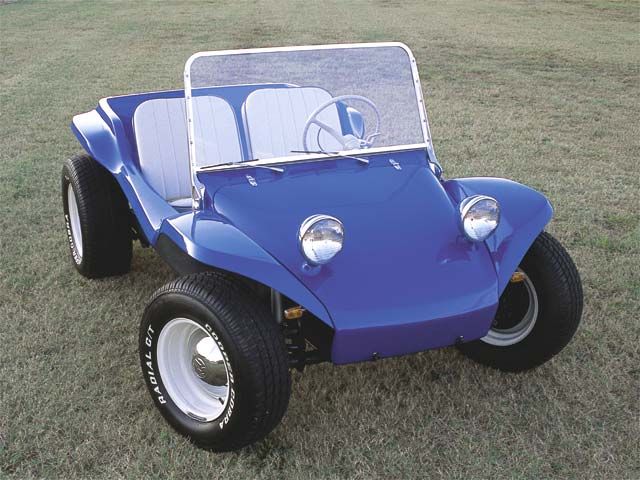

    this looks like it would work really well ontop of an aircooled vw beetle{bug} pan(chassis)... sorta like the fiberglass buggies of the 70s


  21. rafinger

    rafinger New Member

    Trophy Points:
    4
    Yes, it does look like it would look good on a VW. I thought about that too. But the thing is, it only has a 94.5 inch wheelbase. That's about 30 inches too short. So that means if you were to build a Warthog on that, it would be extremely tiny.

  22. j0wE

    j0wE New Member

    Trophy Points:
    4
    aw that's a let down. you can extend it though, just like they shorten em, lol

  23. rafinger

    rafinger New Member

    Trophy Points:
    4
    Yes, you can stretch the chassis, but it would save time and money to find a vehicle that is already closer to the Warthog wheelbase, and only stretch it a couple of inches.

  24. Evilpenguin

    Evilpenguin Member

    Trophy Points:
    100
  25. RAGINZOMBIECHOW

    RAGINZOMBIECHOW New Member

    Trophy Points:
    2
    So I'm looking for a blue print for a worthog to cover my 1963 Chevy and it has a wheel base of 131 I'd love to see what you have

    Lieutenant Jaku likes this.
