Destiny 2 Crystocerene Titan Helmet

[tahu505]

When you say only a little bit of room - how much are you talking about?

The two gaps between the padding is probably all the space I have. Maybe a tiny gap behind the center padding



[tahu505]

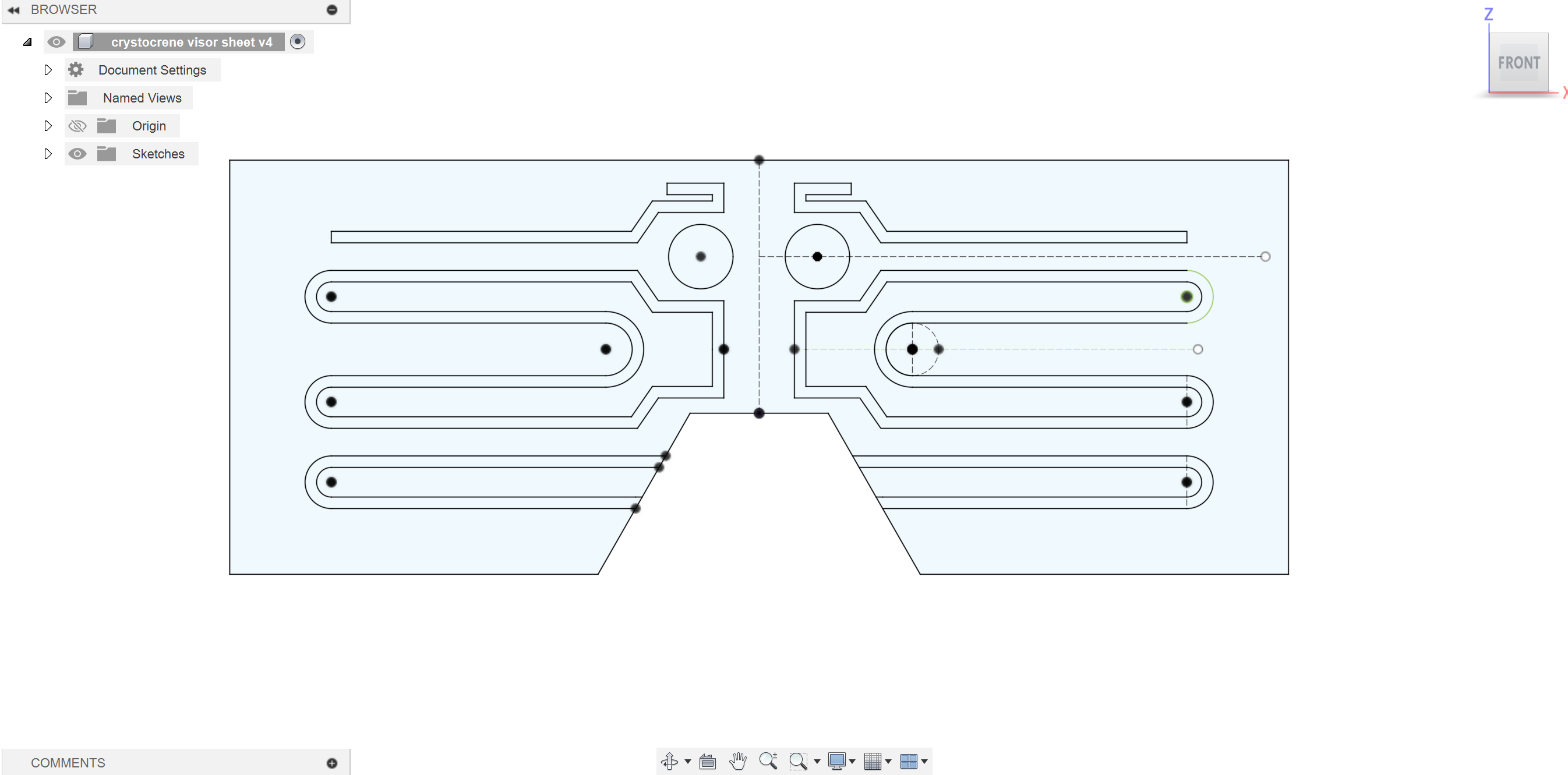

For the LED pattern, I measured the general outline of the visor. I then used that to make a basic visor outline to make the design in Fusion360.

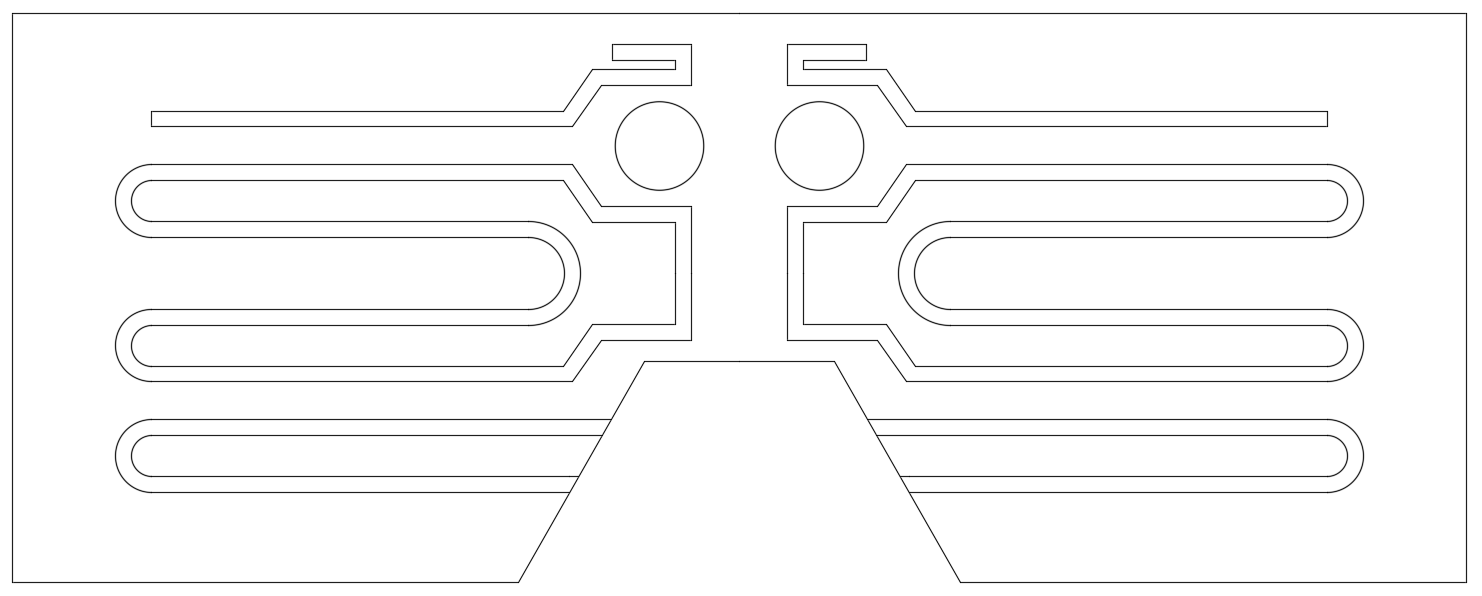

I turned the sketch into a drawing so I wouldn't have any construction lines or center points. I took a screenshot of the drawing and cropped it to just the visor pattern.

I uploaded the image to a Google doc so I could properly size the image using the ruler on the side bar. Then I printed it out and tested the alignment. It's a perfect fit.



[tahu505]

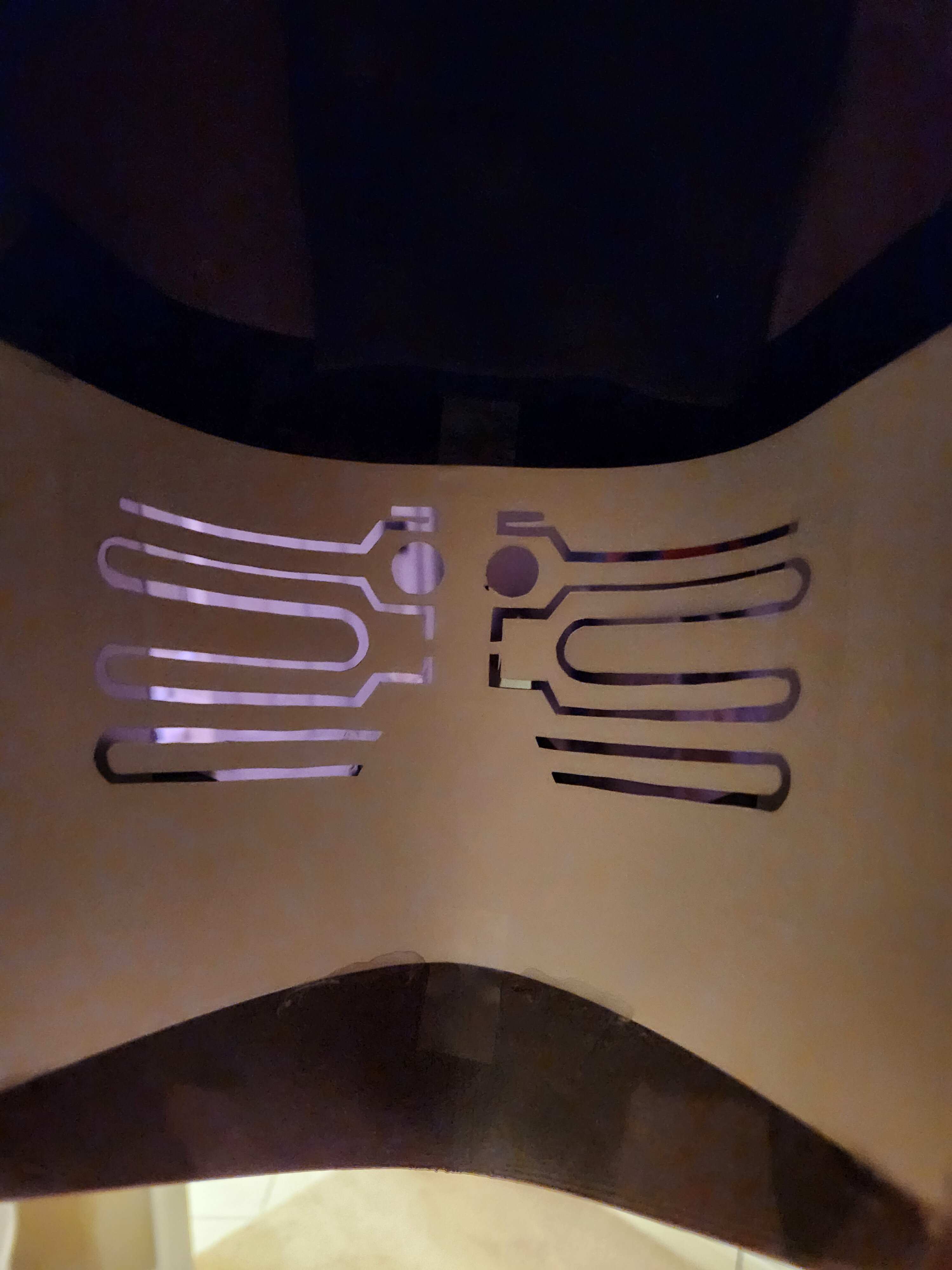

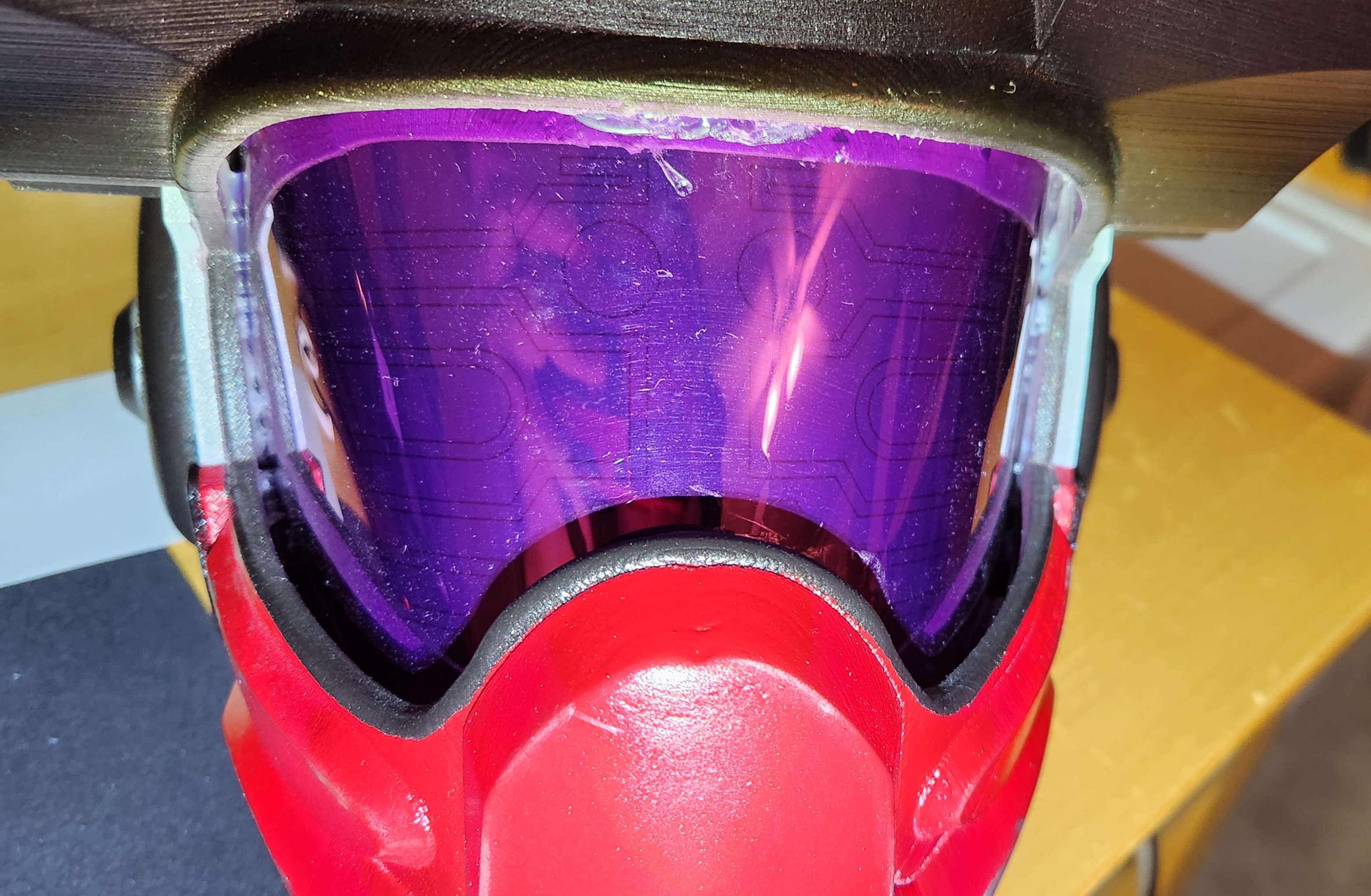

I cut out the visor sheet and taped it into the visor. Once I knew it was aligned how I wanted, I glued it in.

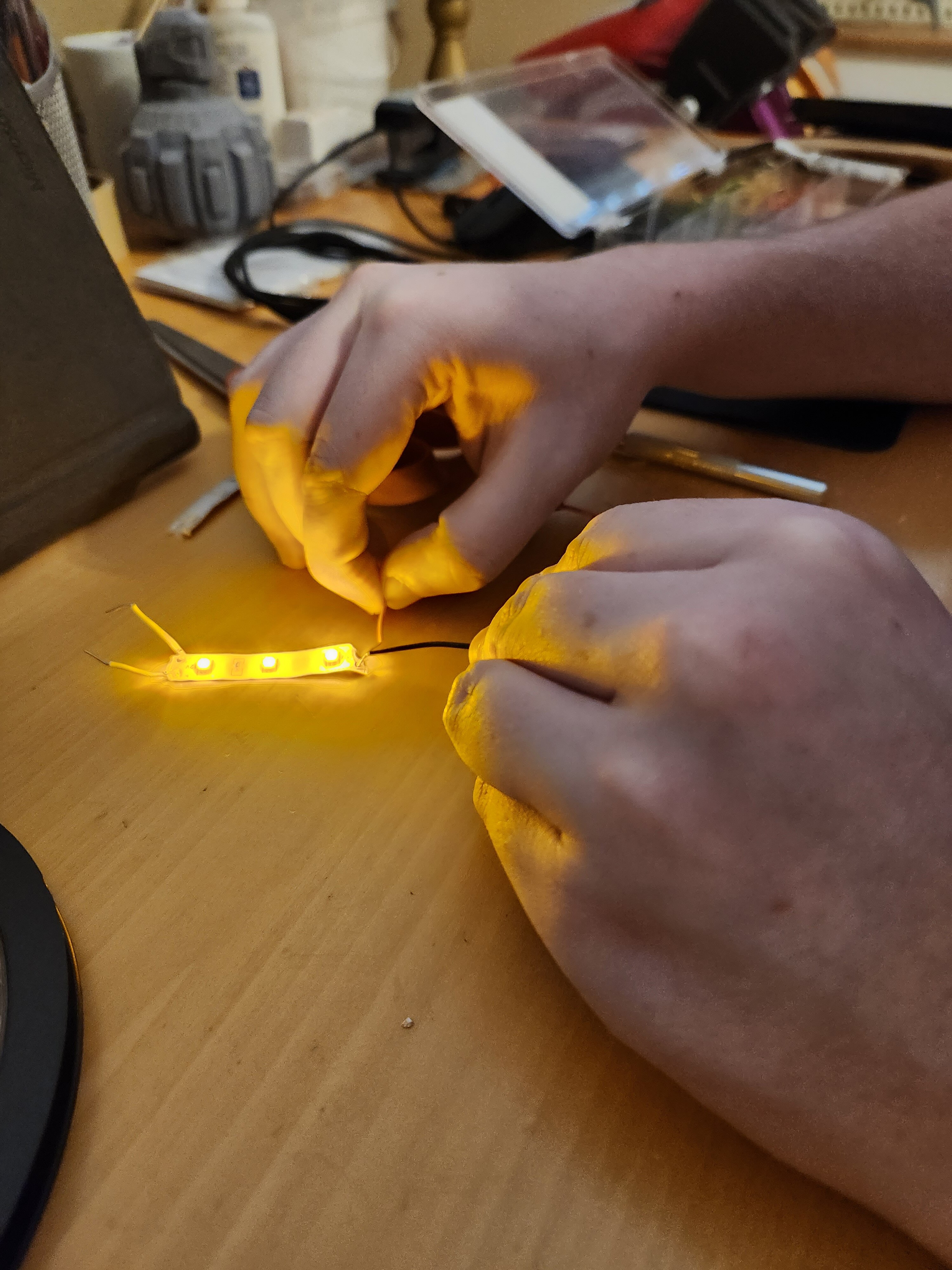

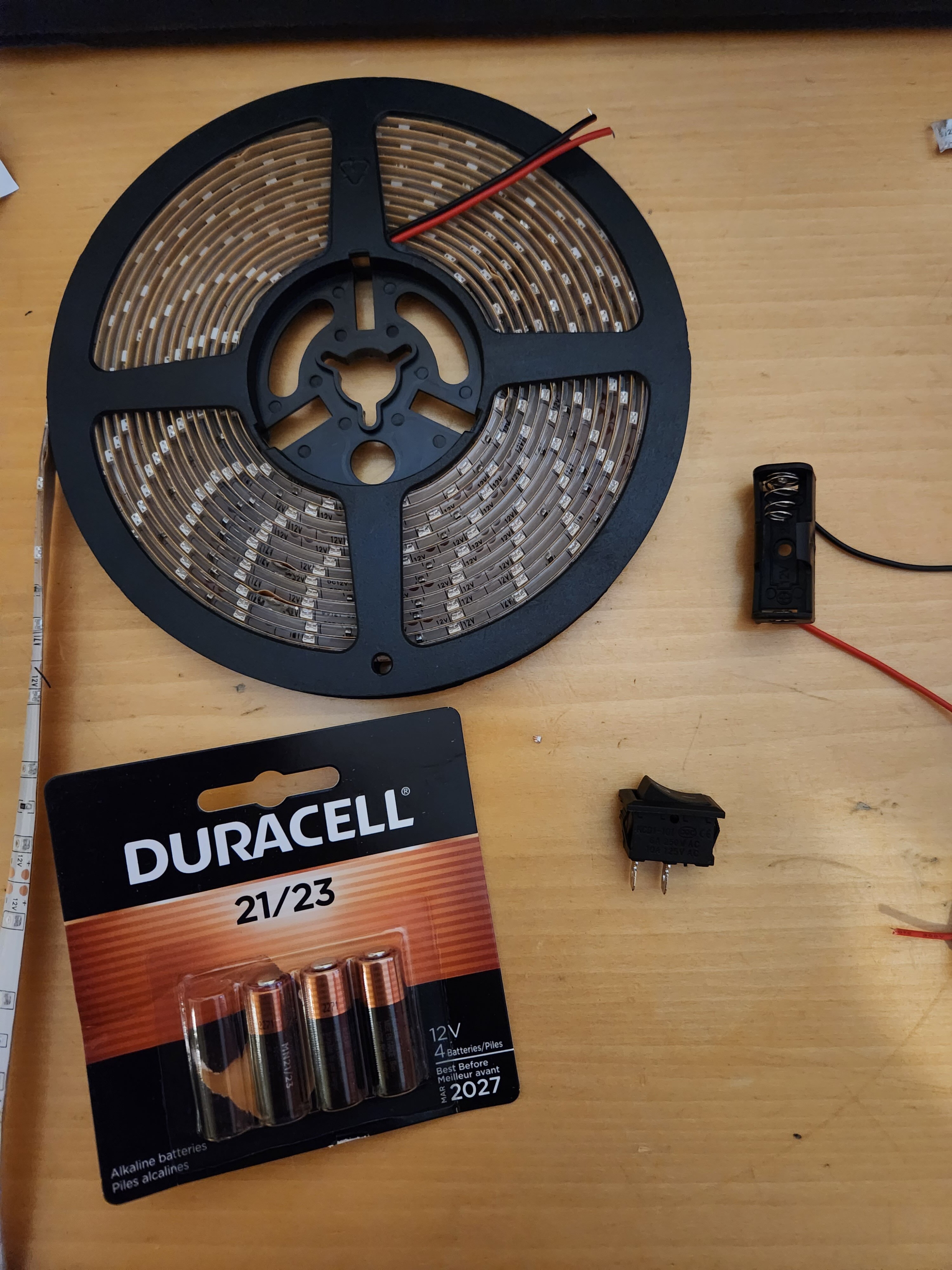

Then I opened up my electrical components that came in and tested them.

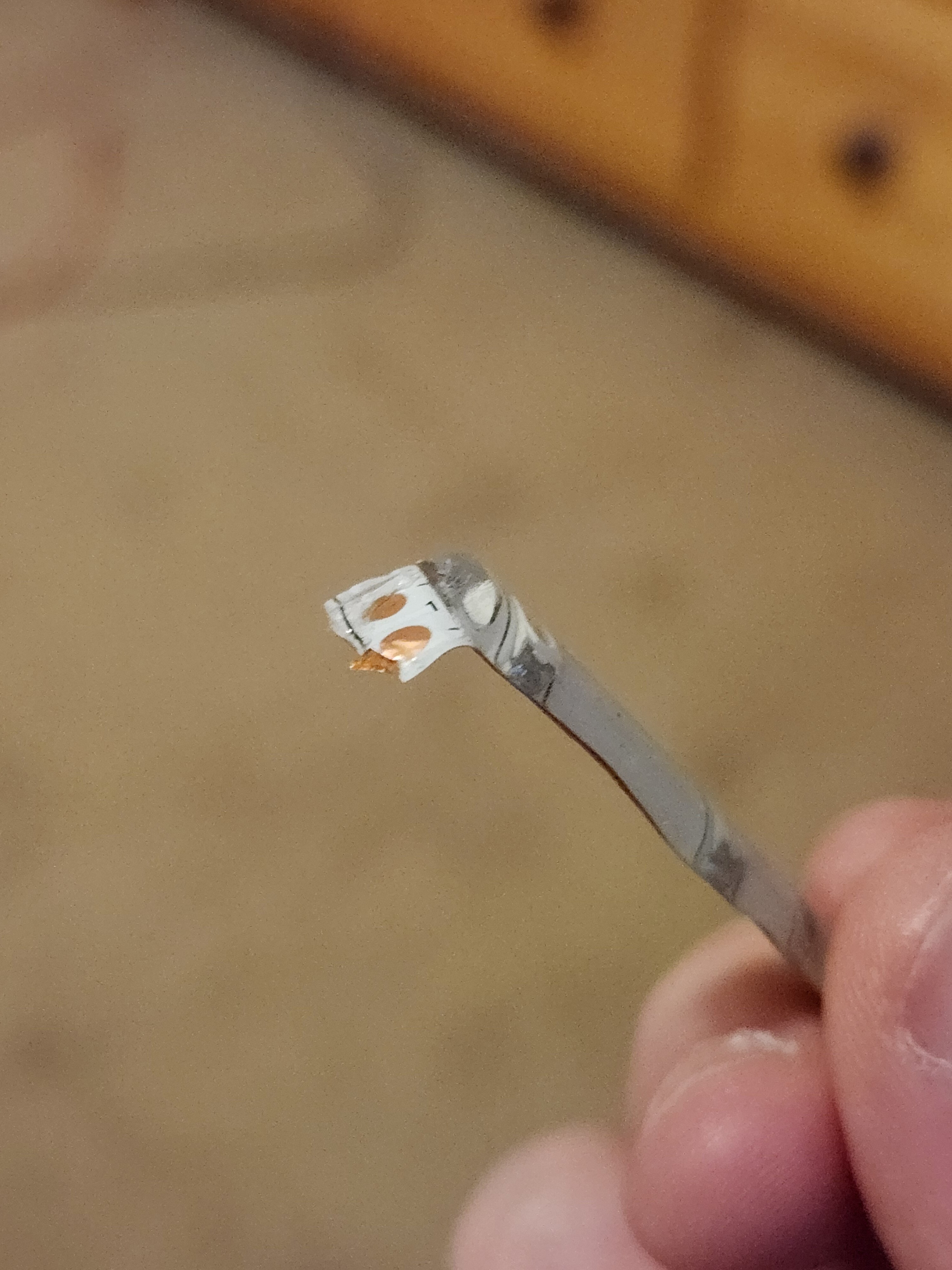

I found these LED strips were easiest to connect by pealing the bottom from the gell layer, then cutting the gell where it was covering the connection points.

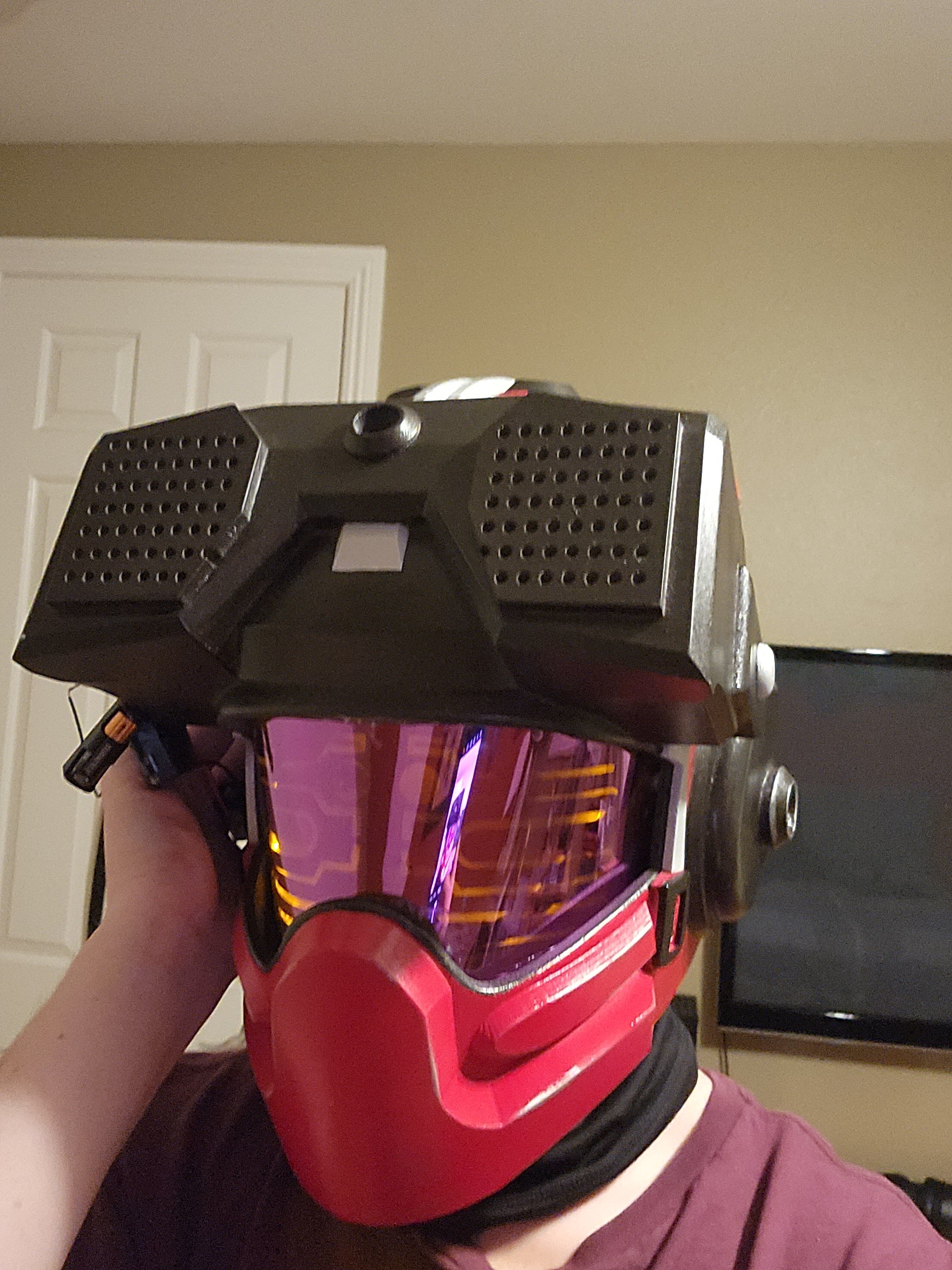

I thought 1 batter was going to be enough, but it wasn't as bright as I wanted it.

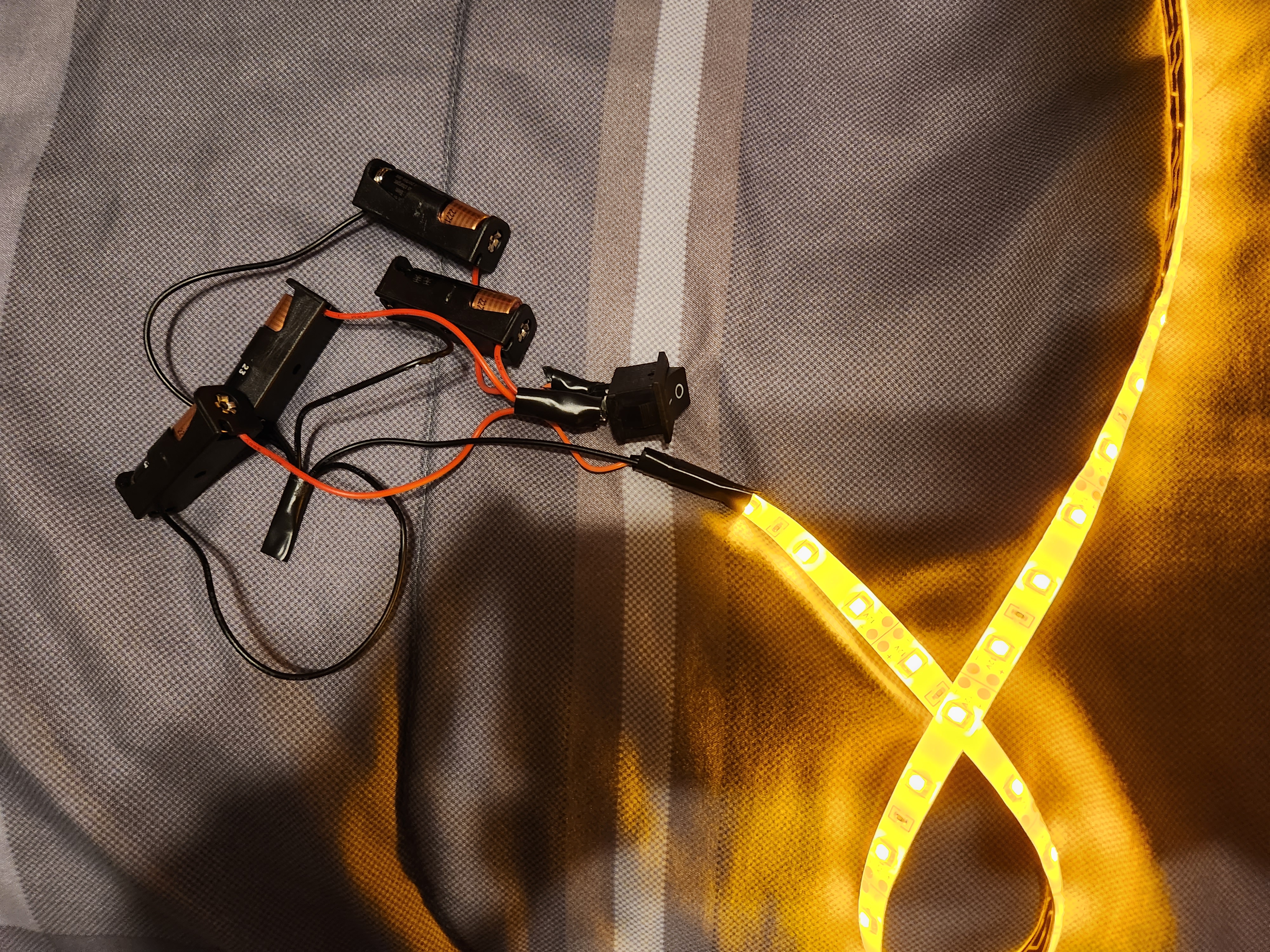

To make the LEDs brighter, I connected all 4 batteries in parallel to increase the current and that did the trick!

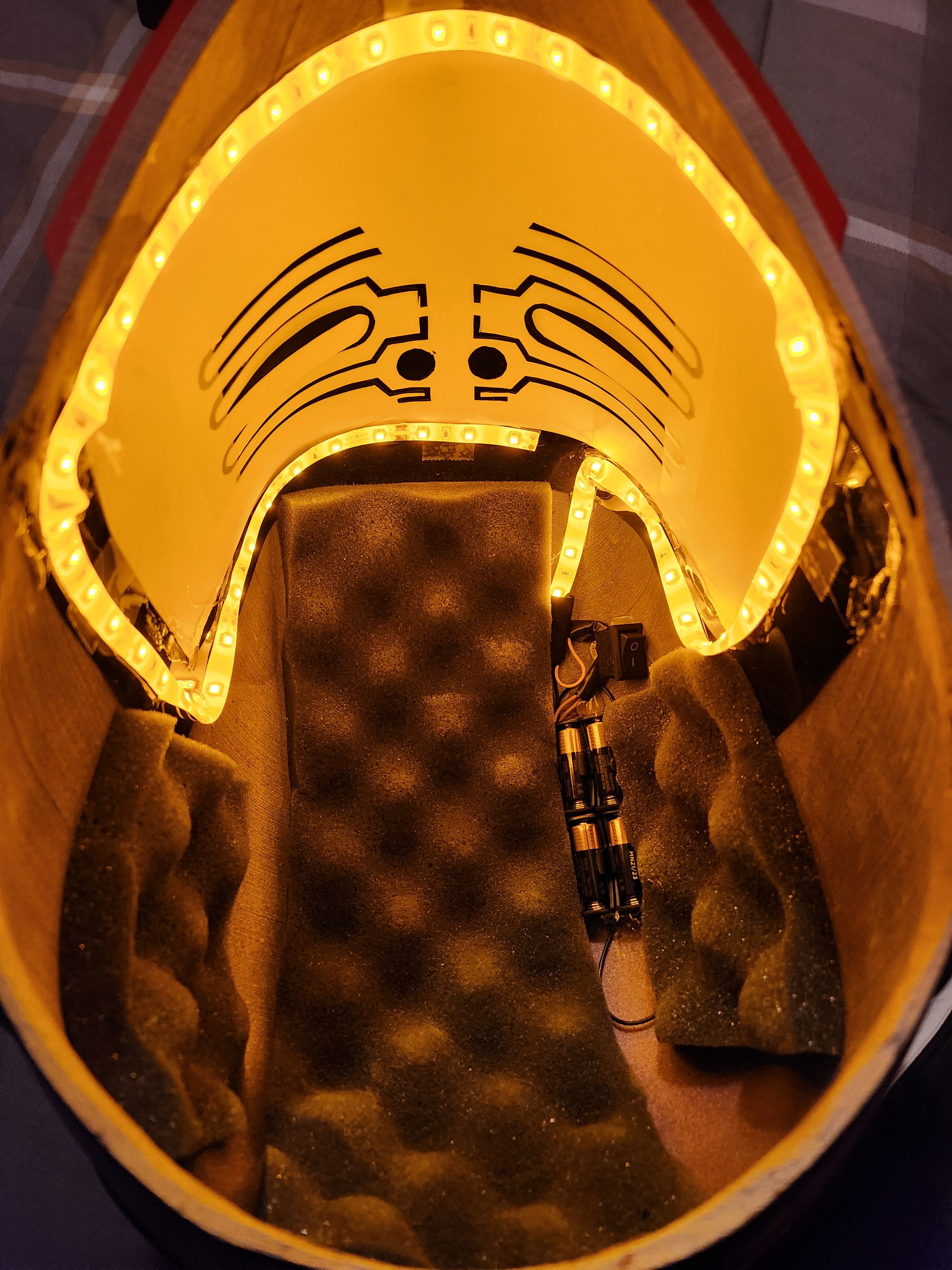

I glued the batteries and lights in using what I call the Creality method. You just put hot glue on everything, even the wires.

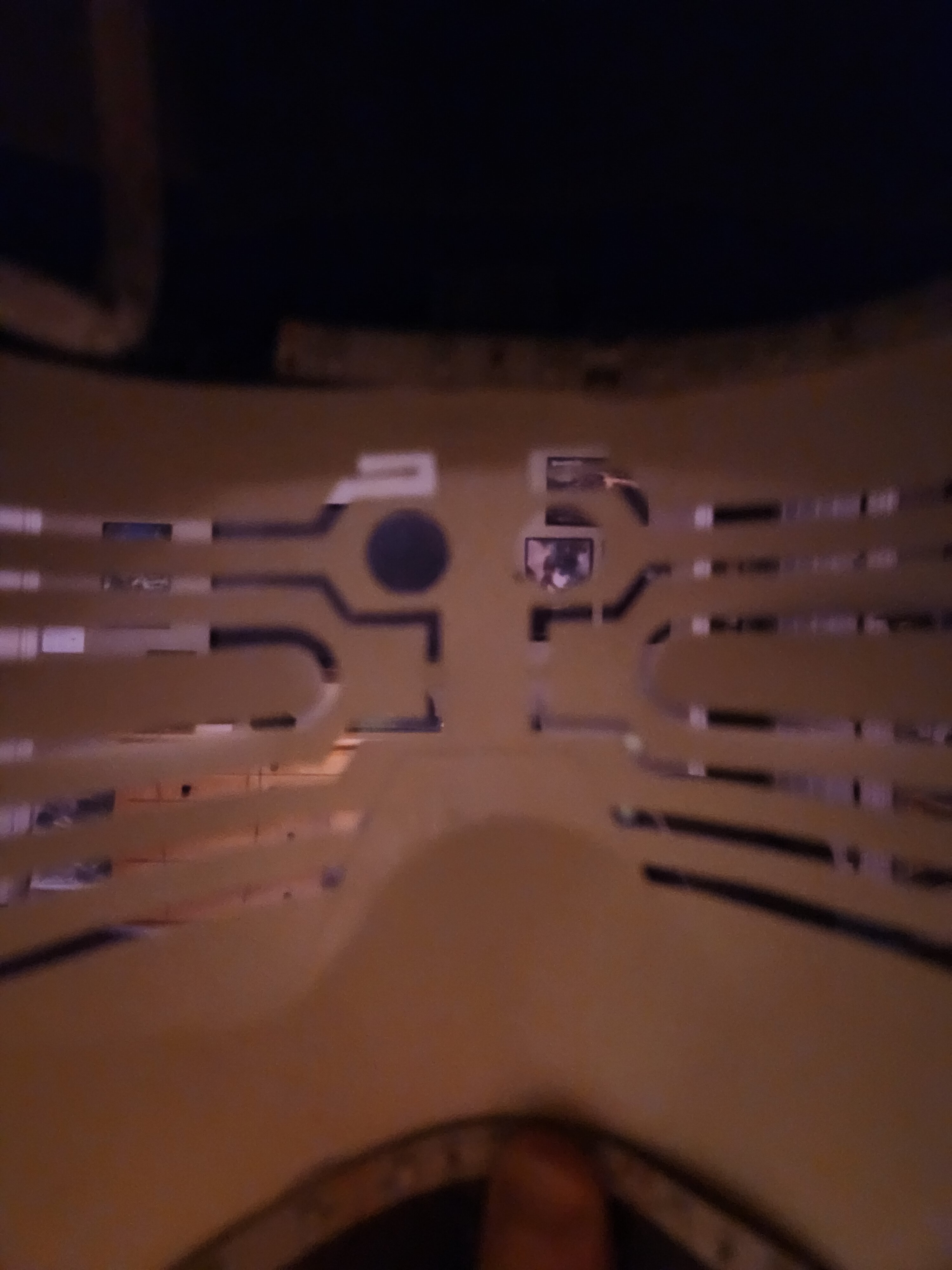

It's hard to see with the lights on if it's too dark. With the LEDs off, the visibility is still good!



[SSGLordElmo]

I cut out the visor sheet and taped it into the visor. Once I knew it was aligned how I wanted, I glued it in.
View attachment 338298

Then I opened up my electrical components that came in and tested them.
View attachment 338299View attachment 338300

I found these LED strips were easiest to connect by pealing the bottom from the gell layer, then cutting the gell where it was covering the connection points.
View attachment 338301

I thought 1 batter was going to be enough, but it wasn't as bright as I wanted it.
View attachment 338302

To make the LEDs brighter, I connected all 4 batteries in parallel to increase the current and that did the trick!
View attachment 338307

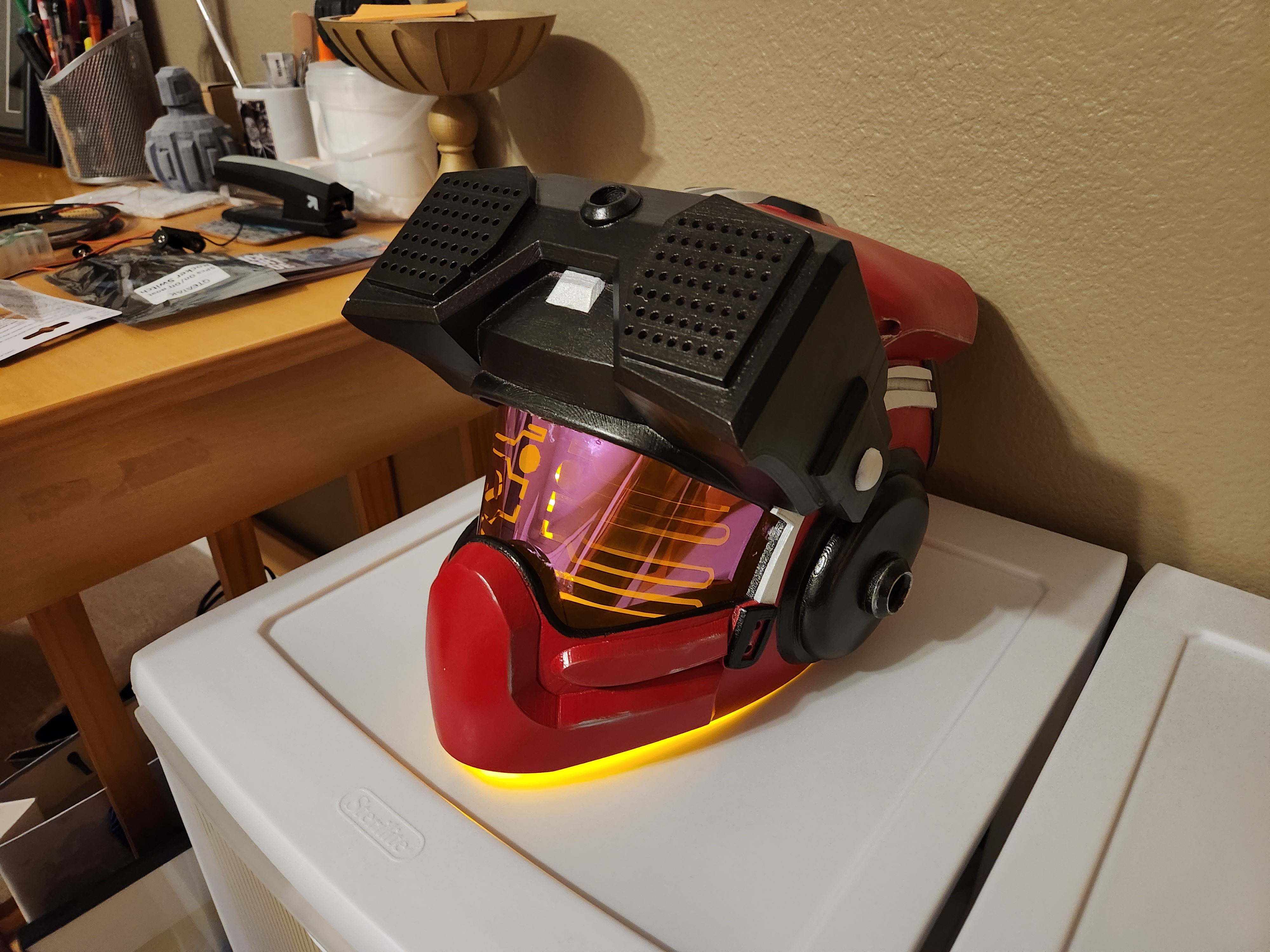

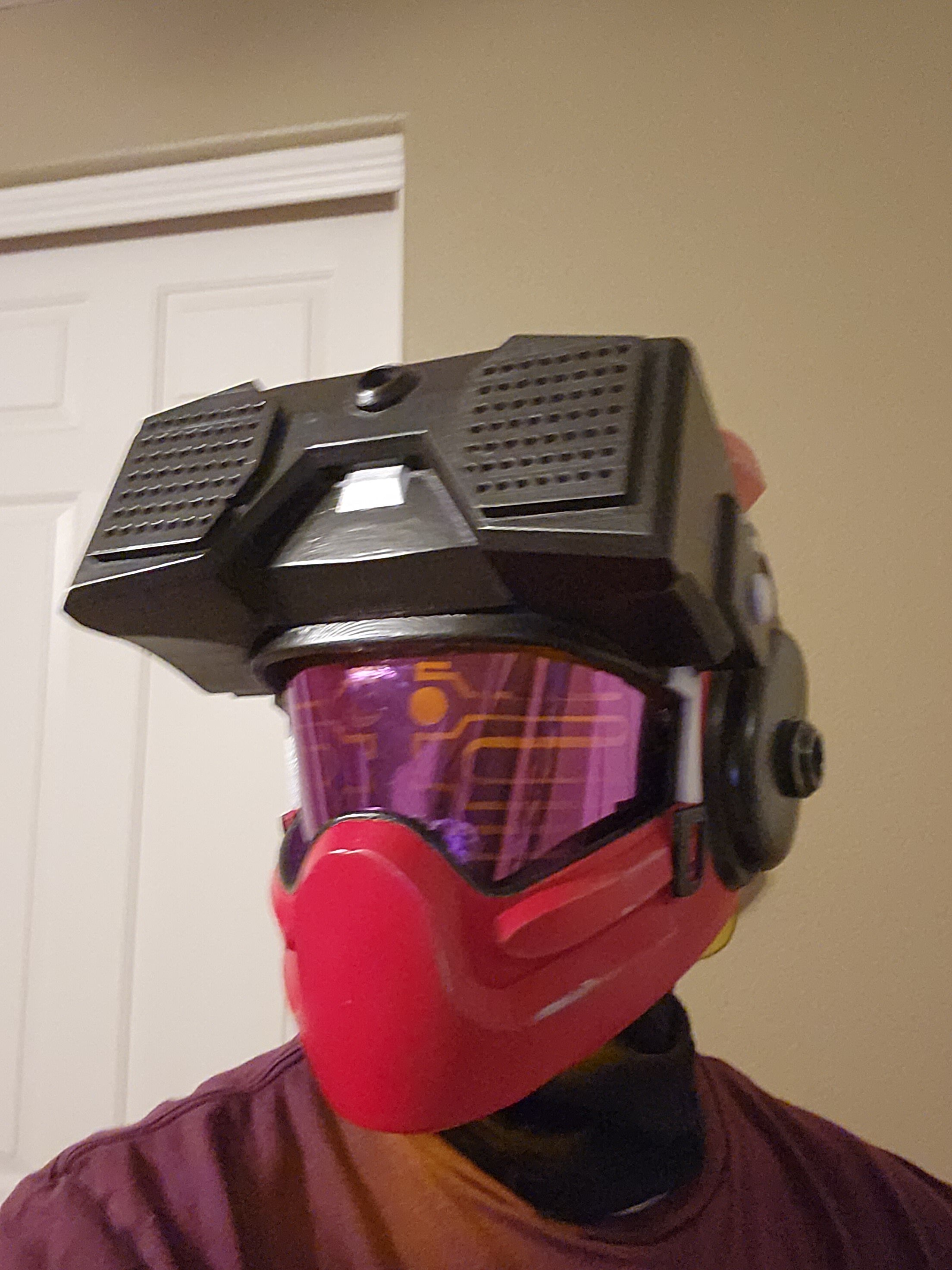

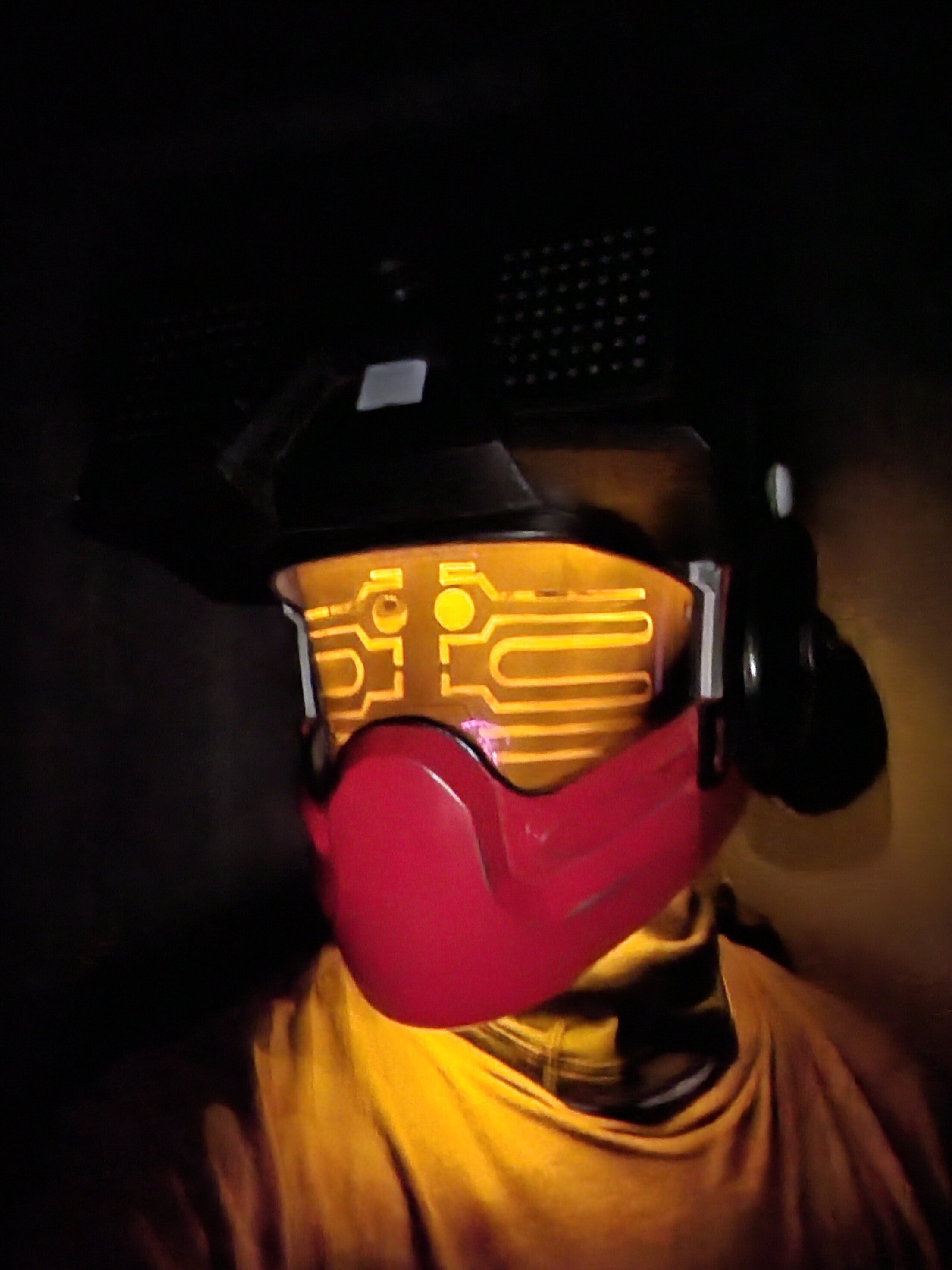

I glued the batteries and lights in using what I call the Creality method. You just put hot glue on everything, even the wires.
View attachment 338308

View attachment 338303View attachment 338304
View attachment 338305
View attachment 338306

It's hard to see with the lights on if it's too dark. With the LEDs off, the visibility is still good!
View attachment 338309

I am blown away from your helmet!!! Looks fantastic and as a Destiny fan, job well done.



[Legend 113]

Sick job bro! All that effort paid off in the end.



[tahu505]

I am blown away from your helmet!!! Looks fantastic and as a Destiny fan, job well done.

Thank you! Gotta do my fellow crayon eaters proud!



[tahu505]

Sick job bro! All that effort paid off in the end.

Thanks! I was worried it wouldn't really come together in the end but I'm happy with the results
