I've always been a sucker for the Mauler and now that Infinite is bringing back a handheld shotgun in the form of the Mangler I had to make one. This thread will serve three purposes.

1. Be a repository and reference for others who are also searching for images to use for their own Mangler builds.
2. Act as a permanent link for free printable files for what I've designed.
3. Showcase the build process as any other build thread.

Since it's a bit of an odd thread that will need updating throughout the process this first post is reserved as an index for the rest of the thread.

Reference Images (343 Industries sources)
CAD References Images (Self made)
Build Pack Files
Materials Used
Finished Photos



[TurboCharizard]

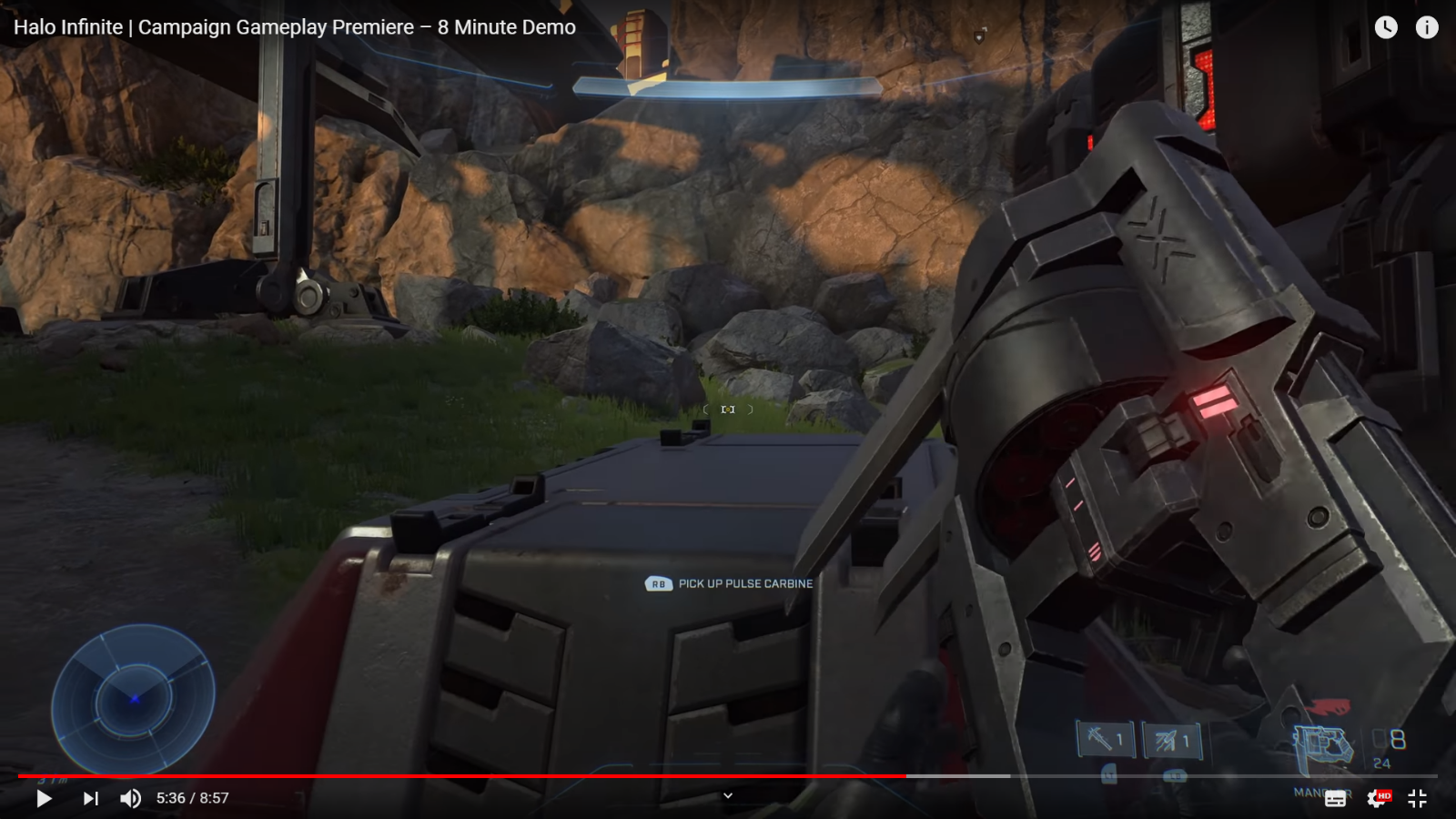

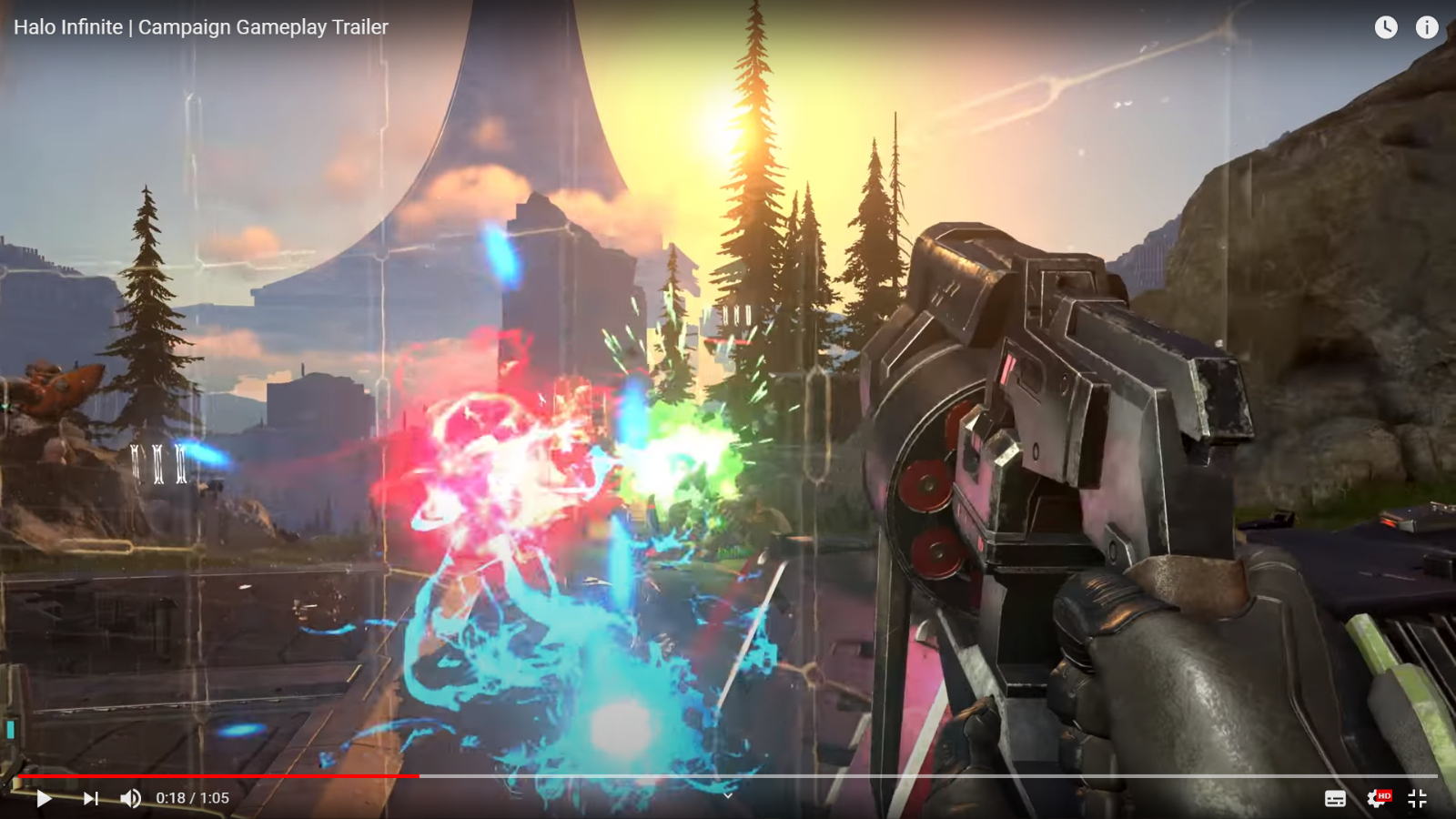

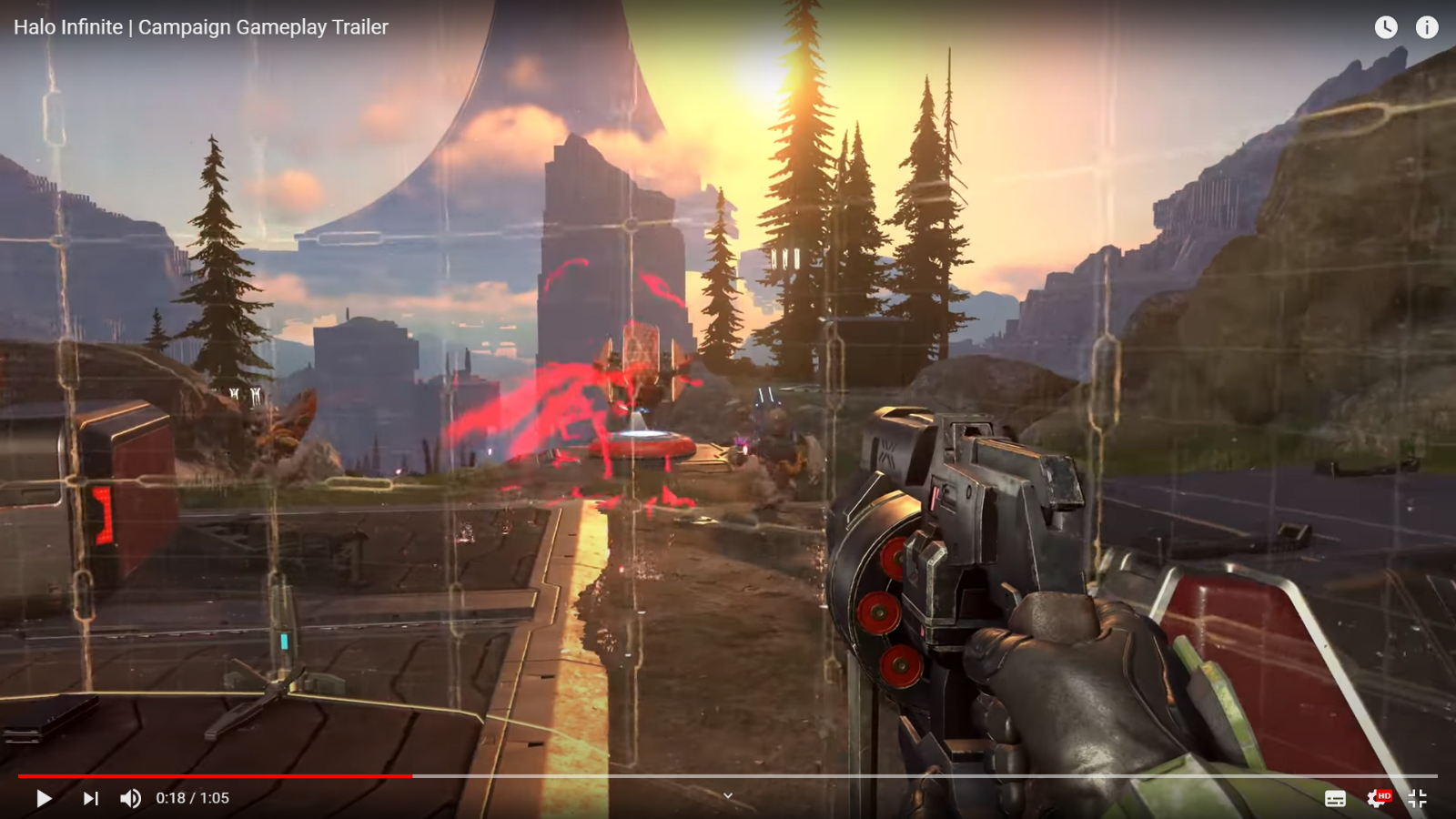

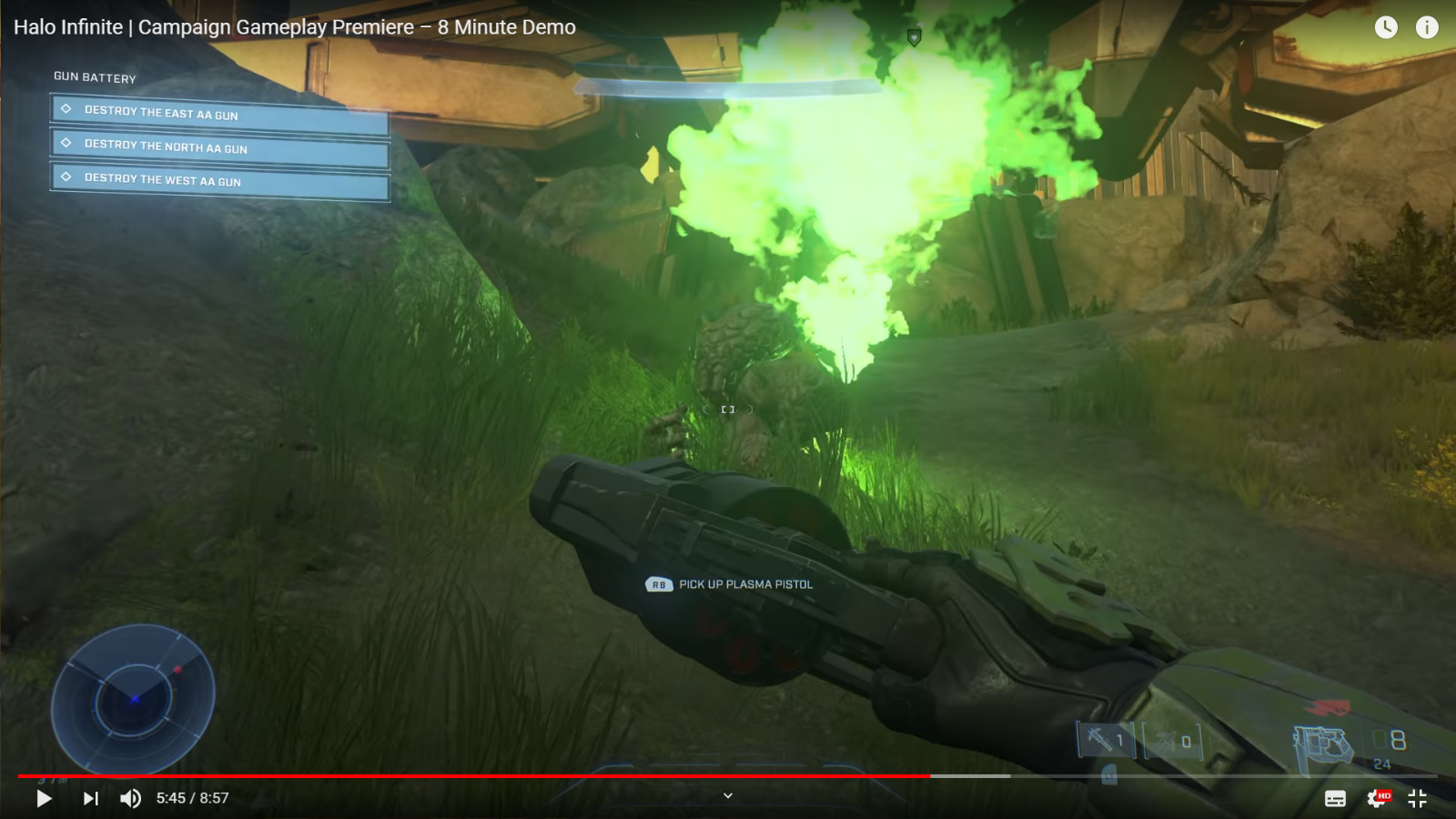

This collection of images was the set that I found most useful while preparing a Fusion 360 model of the Mangler. For modelling a prop from screen captures there's going to be some estimation on approximate size of objects and some frames of video will be more useful than others due to animation/motion blur/lighting or just things getting in the way. The bottom of the grip was almost never in frame fully and when it was there was often a blur from explosions or other dramatic lighting. At this stage I took a best guess in designing my Mangler using a mix of screenshots as reference combined with the HUD icon to get a rough shape and minimal detail.

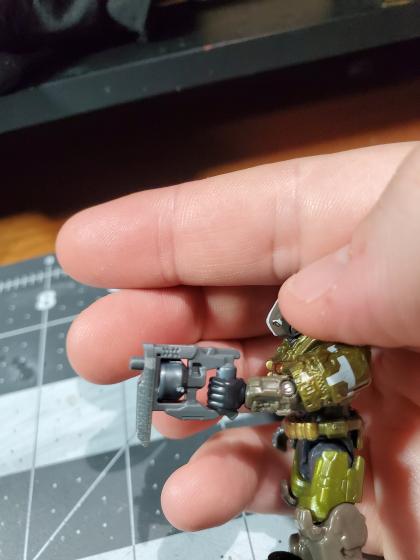

Another helpful reference was the Mega Construx Mangler piece (thanks Rock Lobbster for those photos) and comparing sizes to other scale Brute weapons of previous games.

Also thank you MrJamin for finding 343 official artwork that had an angle of the Mangler that was very rarely shown in great detail during the trailers.

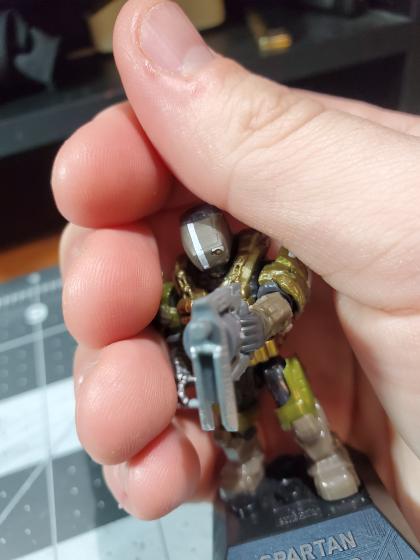

To get an approximate human sized prop I used the reload animation and the speed loader of the drum to compare a gloved SPARTAN hand to my own armoured hand to create something believable for a costume.

Mega Construx Reference

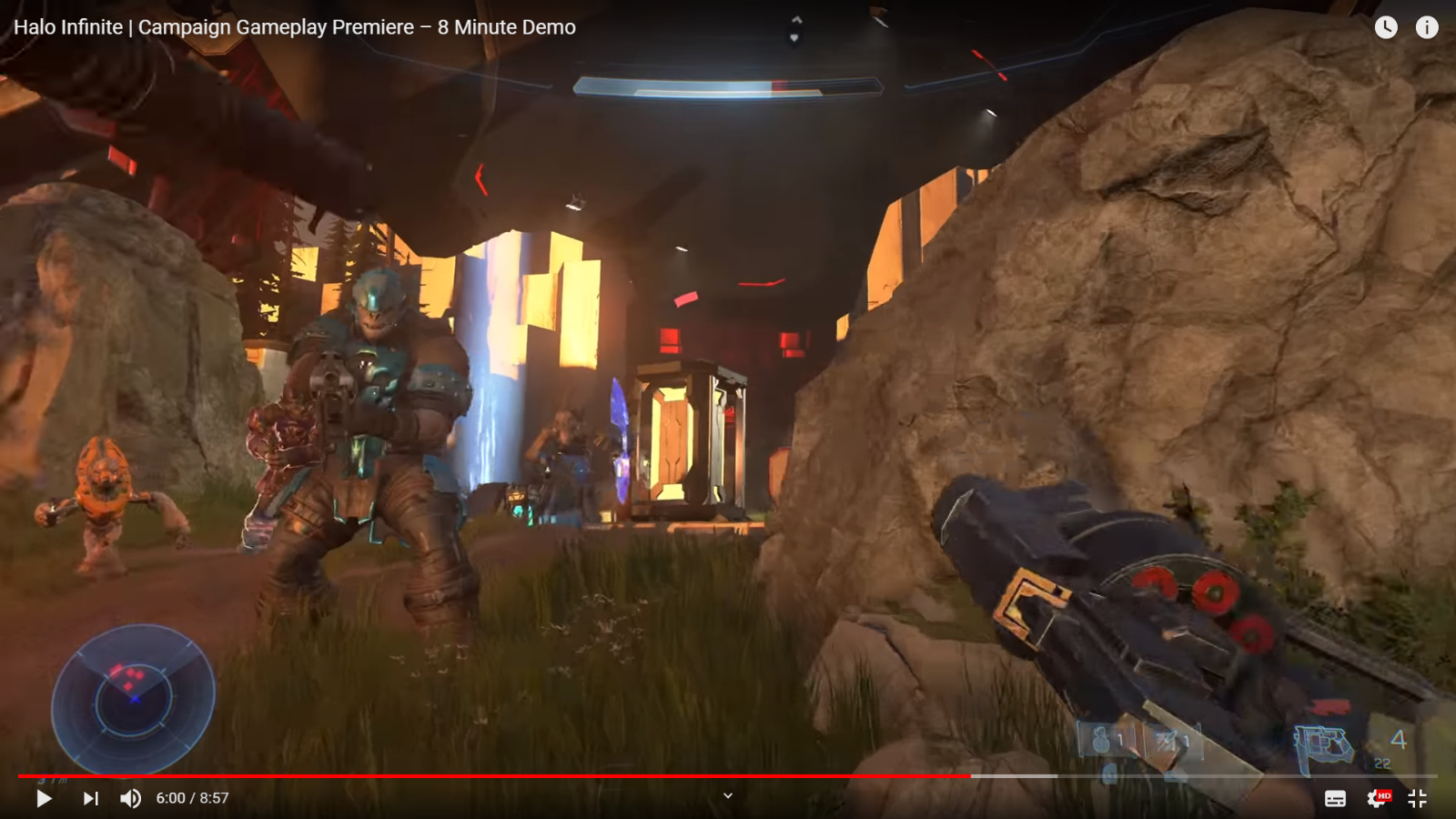

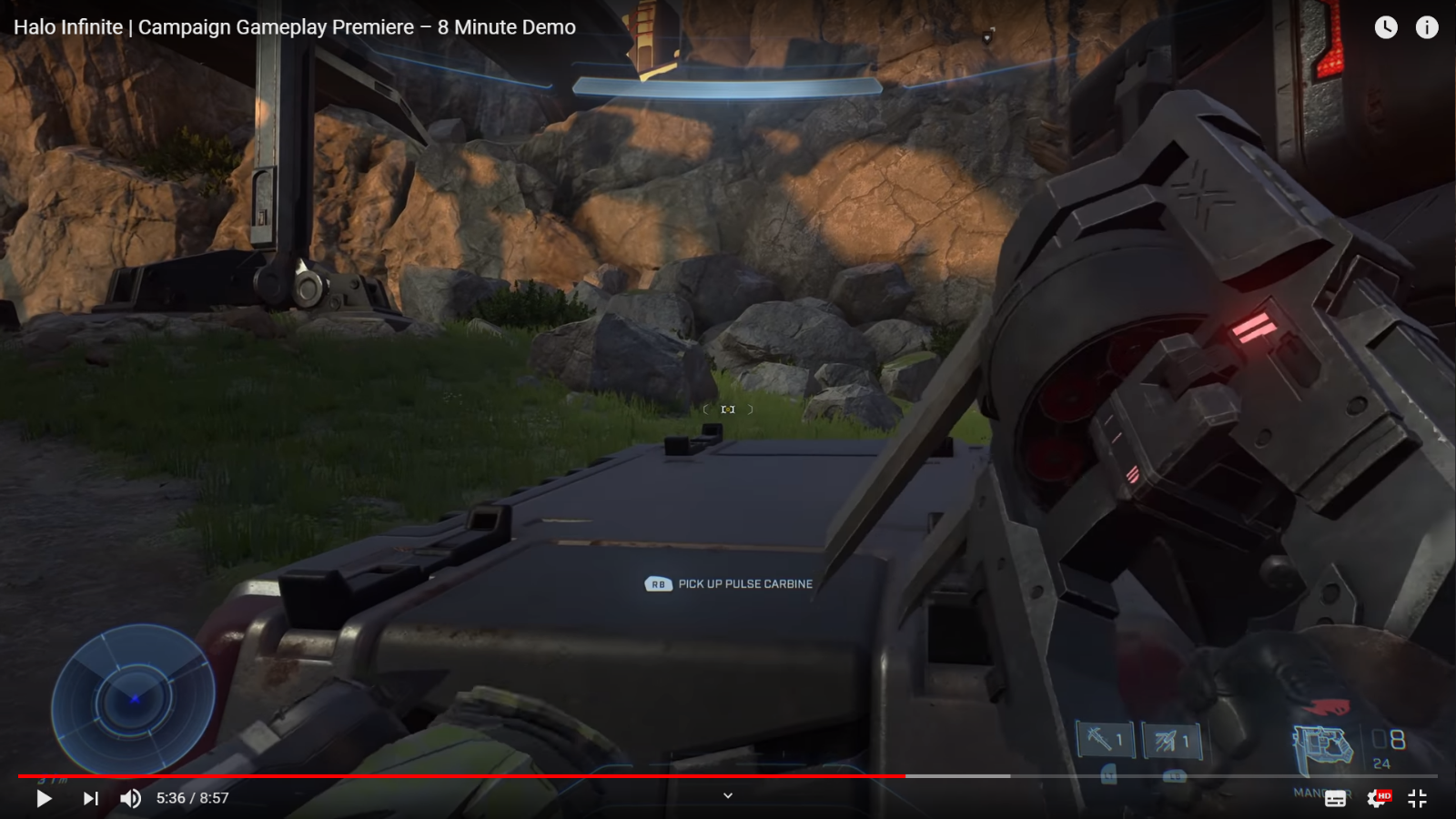

Top Profile

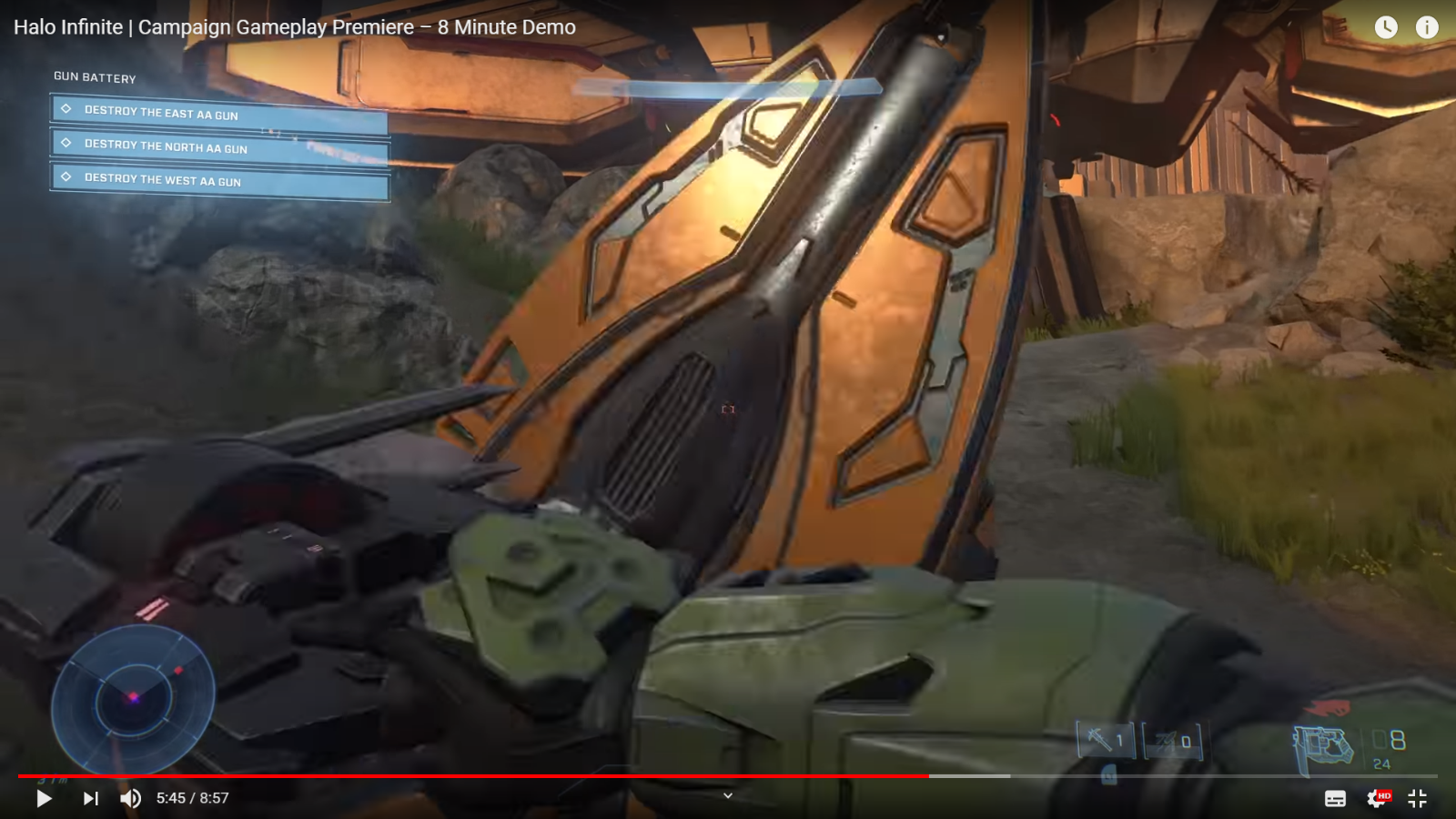

Left Side Profile

Right Side Profile

Front Profile (Brute holding Mangler Straight On)

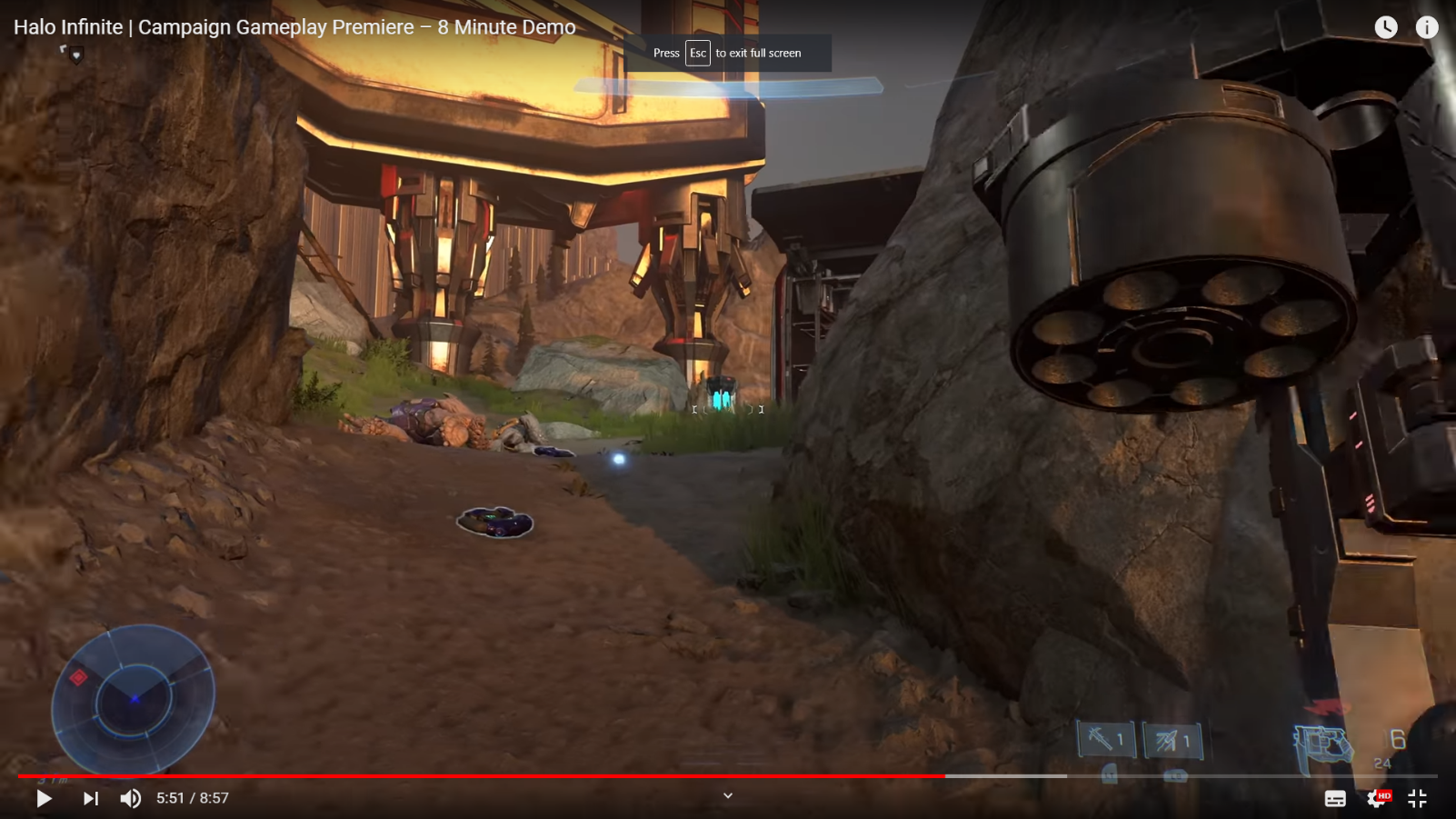

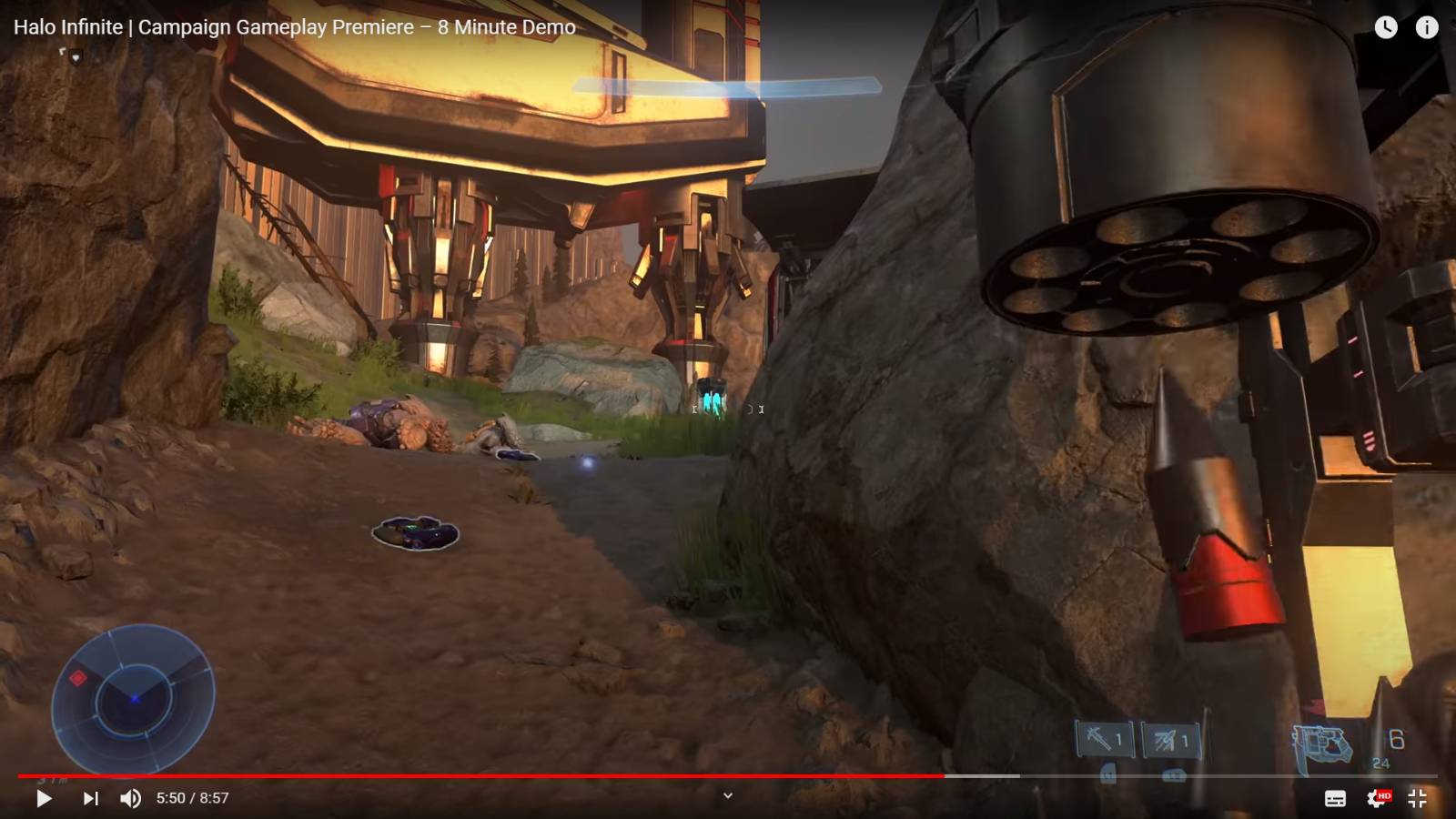

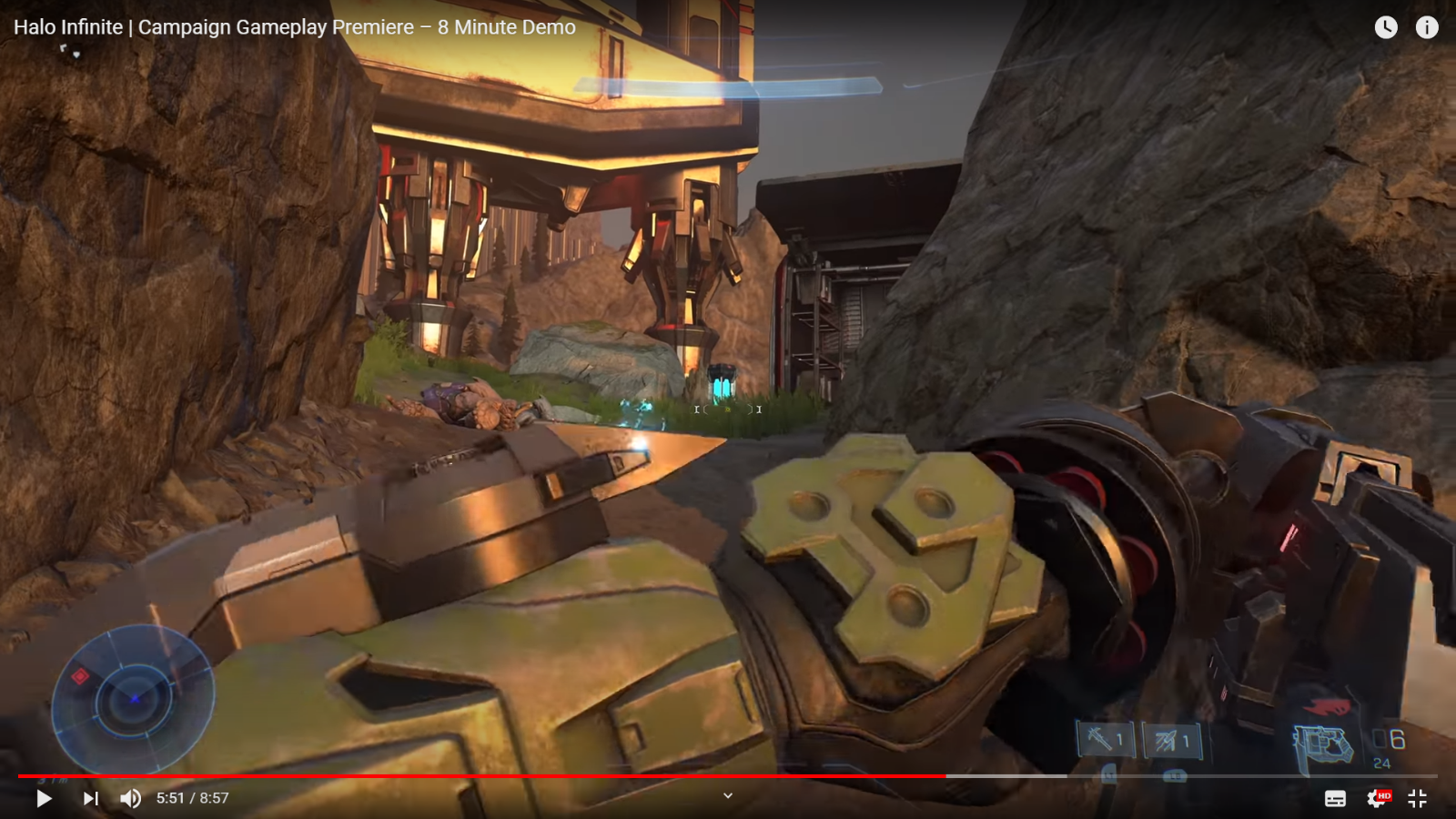

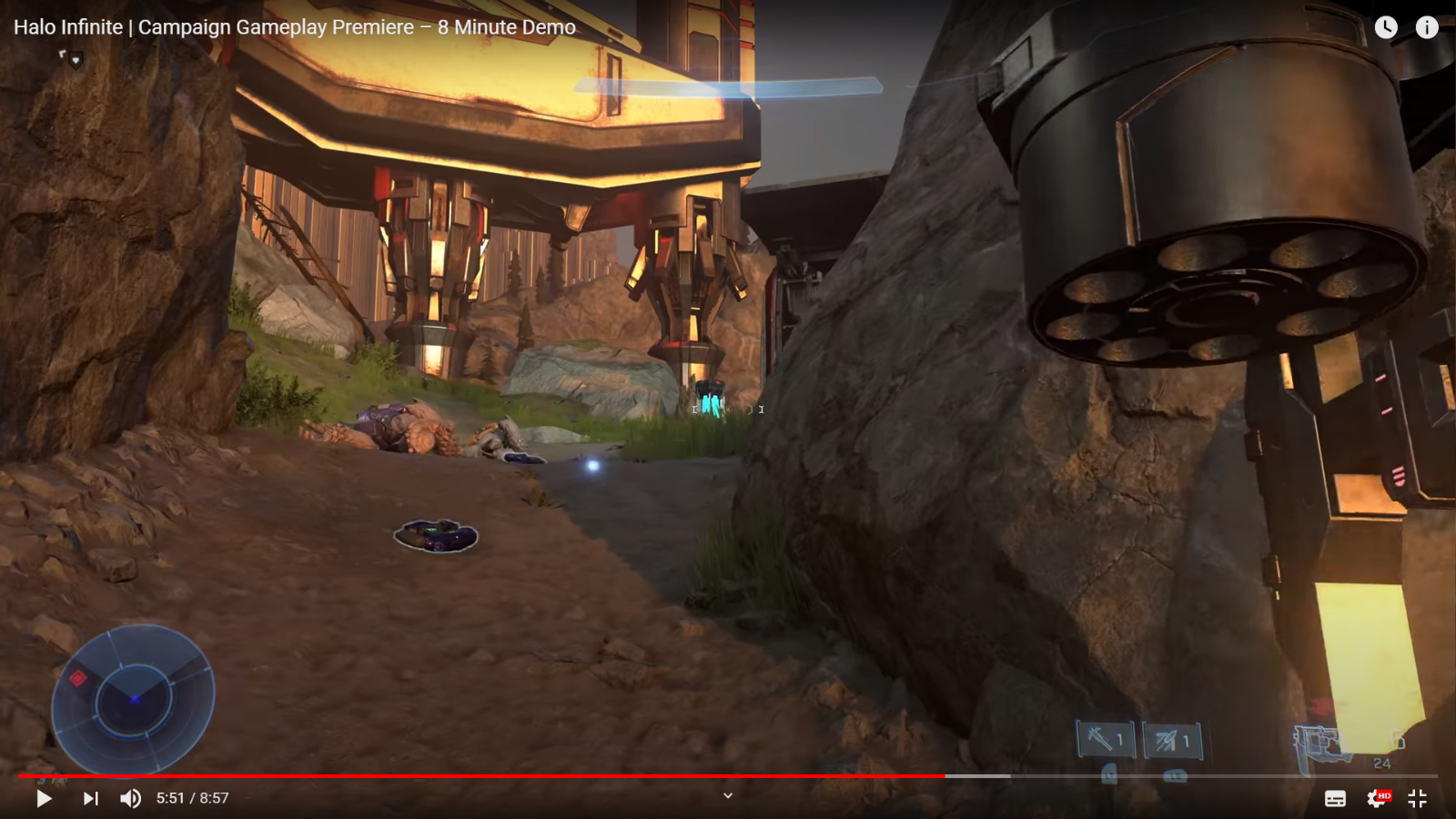

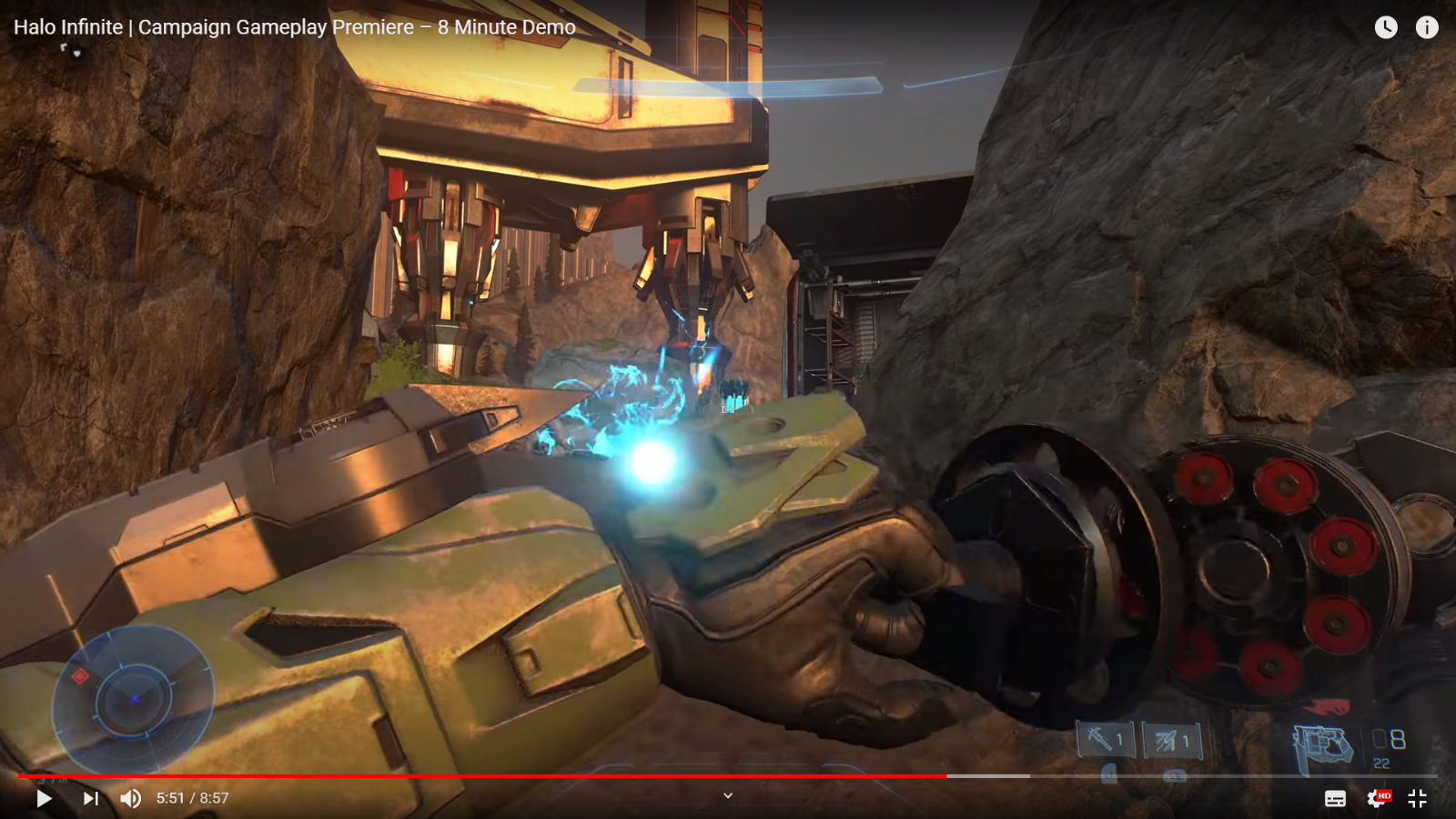

Reload Animation and Motion

HUD Icon



[TurboCharizard]

After about 4-5 hours of monkeying around, we have a model heading to the printer. I'm going to be doing a prototype print of all the drum and forward housing parts to make sure that my pinning and rotation scheme works and once those are done I'll be uploading a zip of files for everyone to use. For now though have some drawings and renders of the Mangler while the print robits do their work.

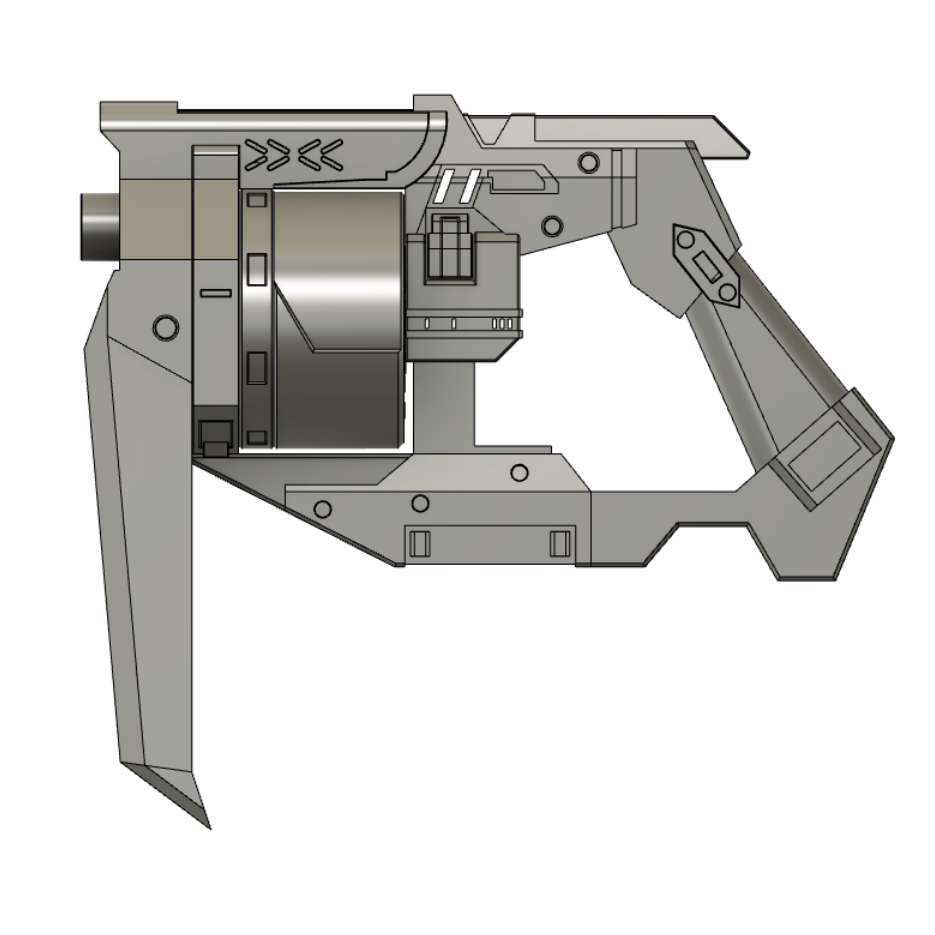

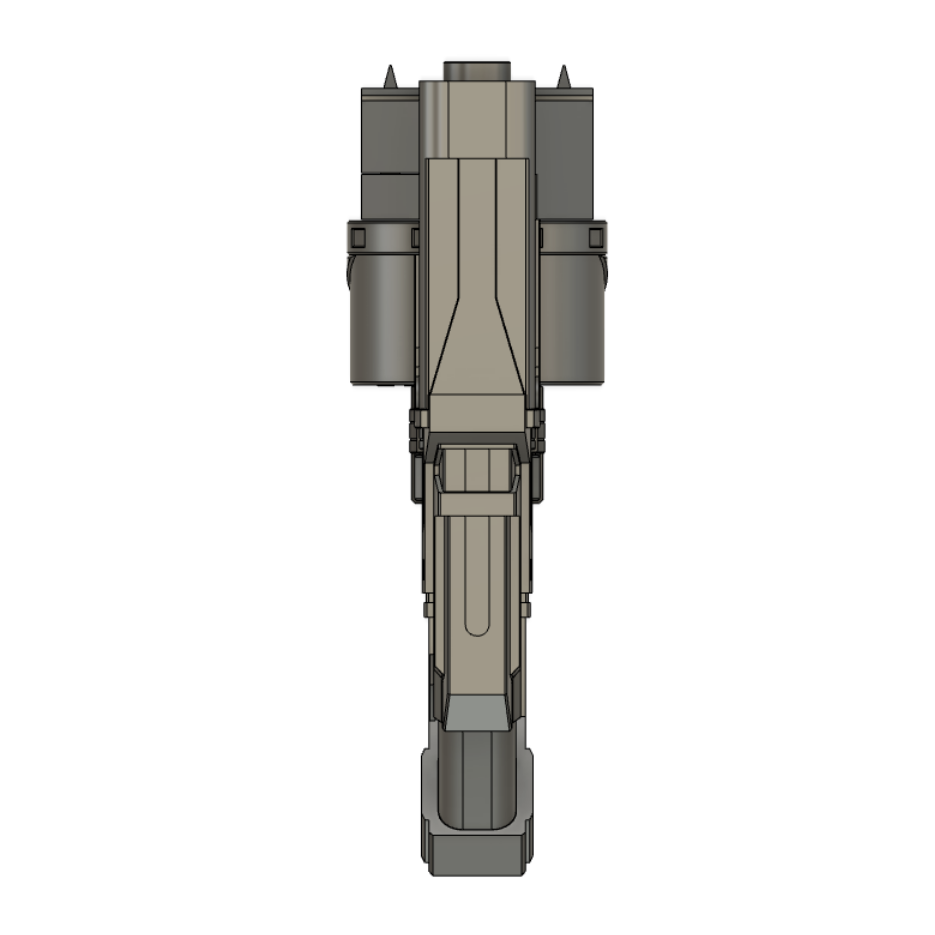

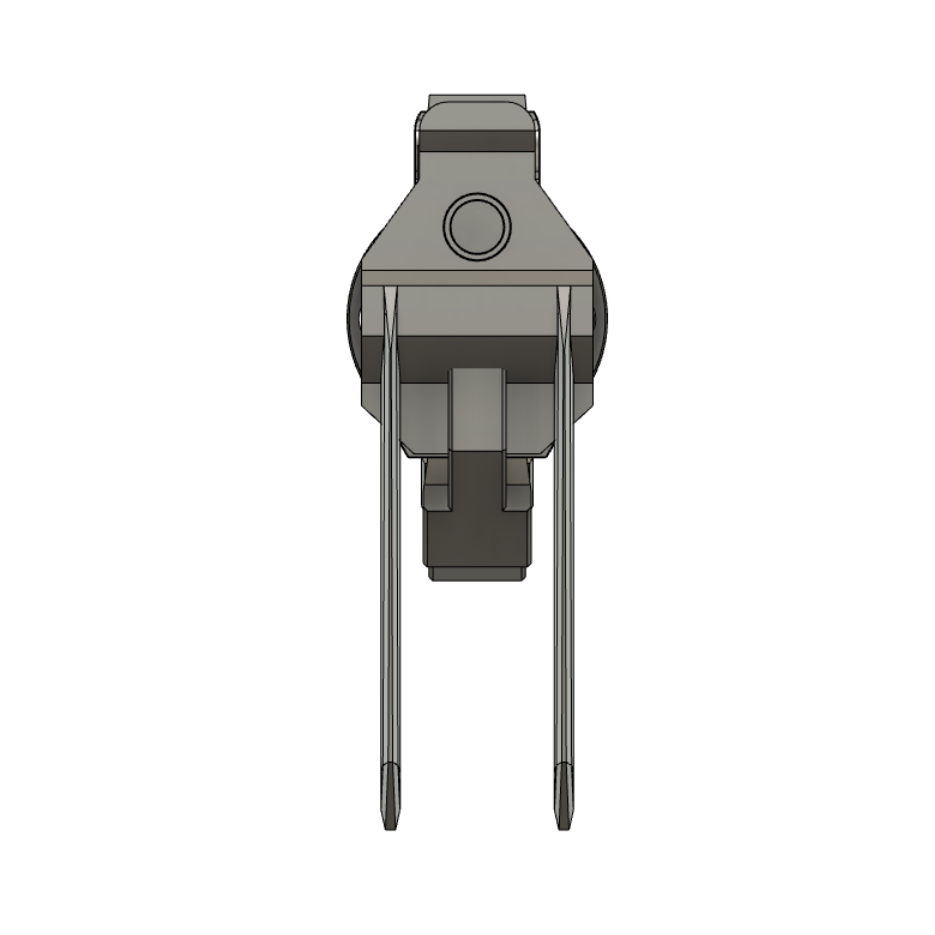

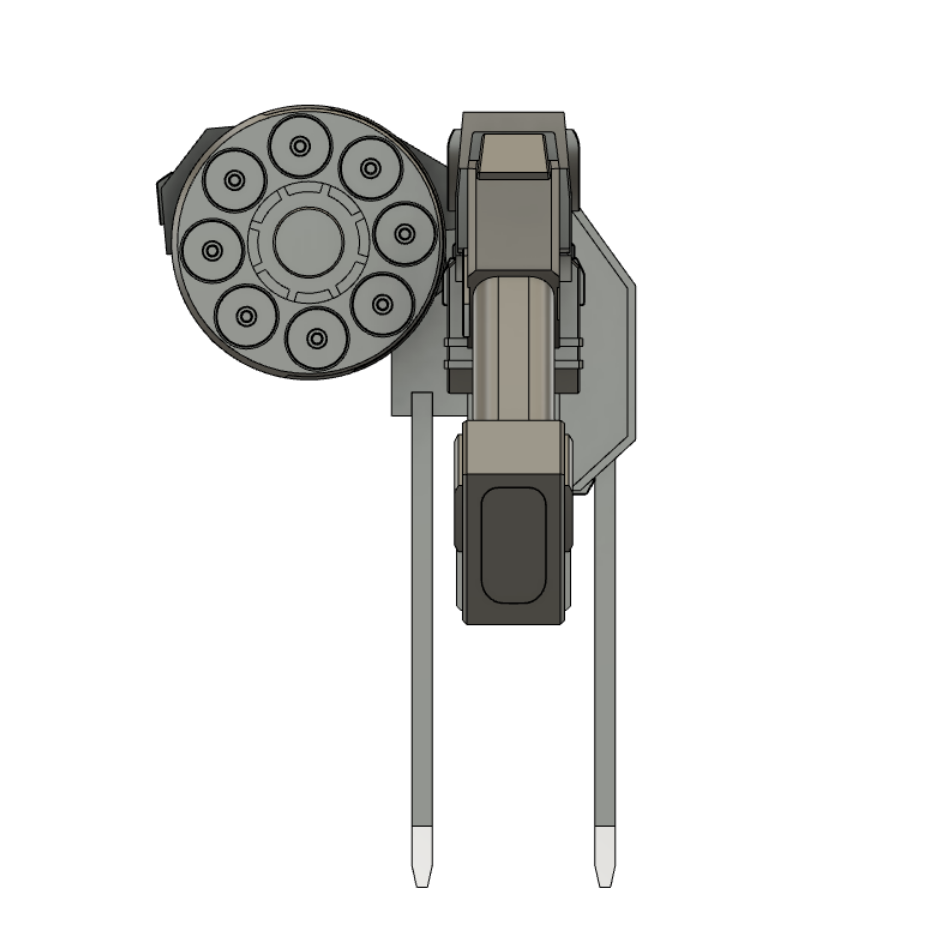

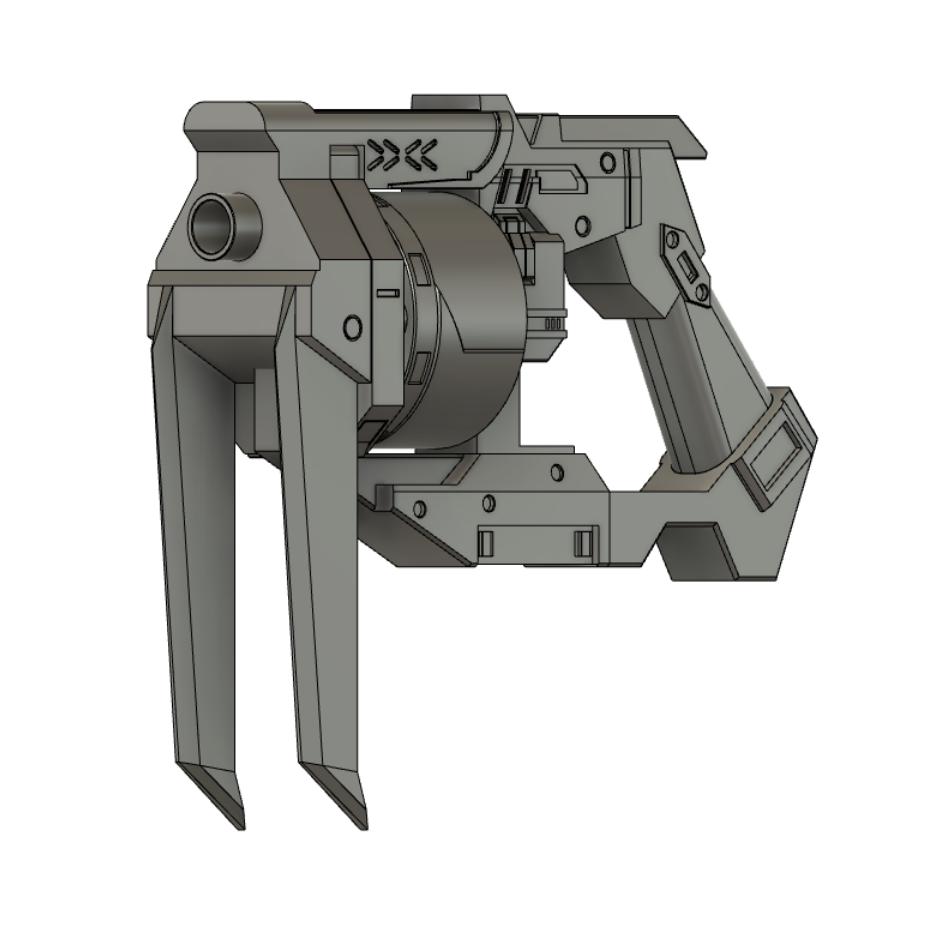

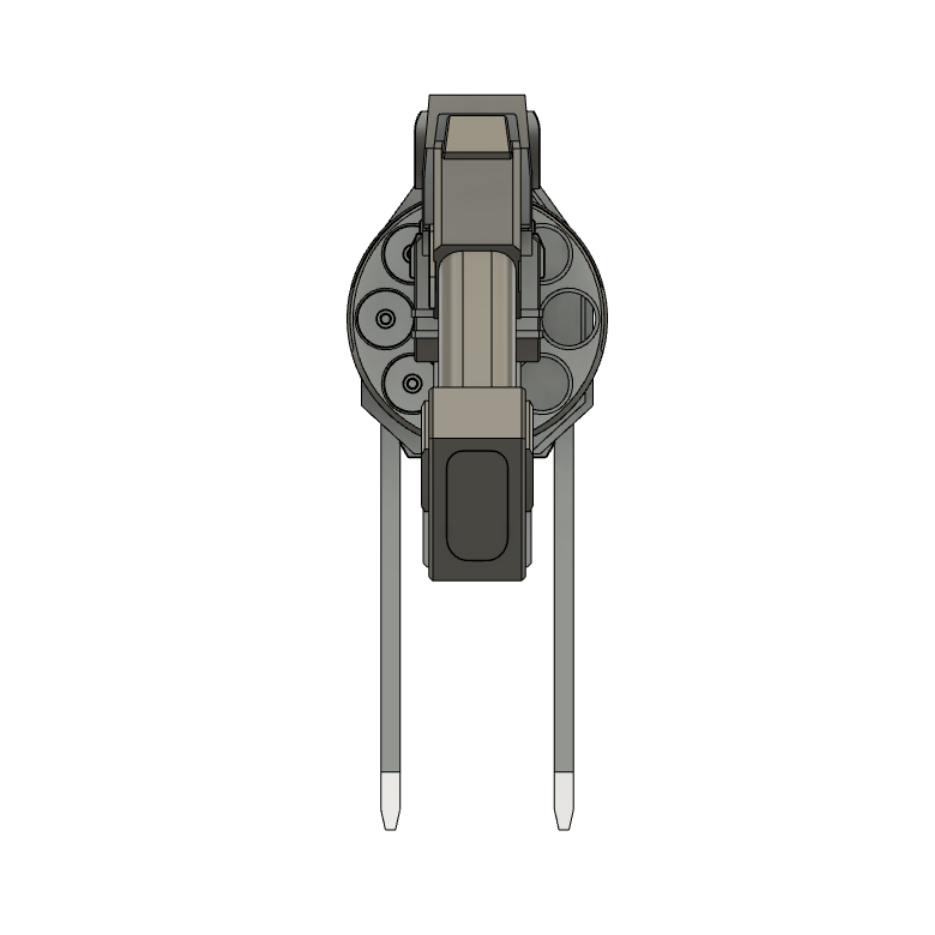

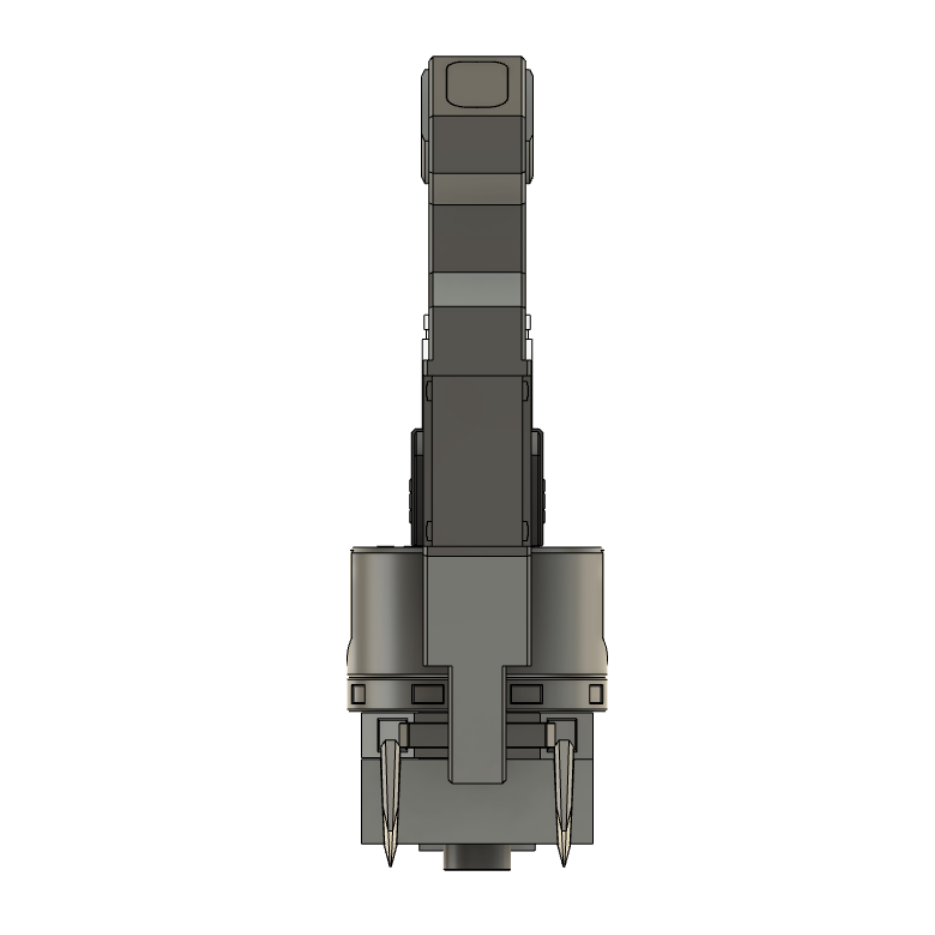

Profile shots showing the shapes of the thing. In this version the slide is stationary and there is no trigger (con safety) but the drum freely rotates on a pin and the drum arm extends outward on a pin as well. There is cutouts for batteries and cable runs for illuminating the red panels on the side of the Mangler as well as a magnetized battery hatch in the bottom of the grip. I didn't model the fabric wrap of the grip because I'll be using a synthetic leather wrap on the finished prop.

The ammunition is separate and removable.

Wish the printers luck with the prototypes!
