Halo Infinite VK78 Commando - July 23rd Game Trailer Demo Version

[Hatake Cosplay]

Amazing work!



[Felipe06]

#commandobando?

Yes xD



[TurboCharizard]

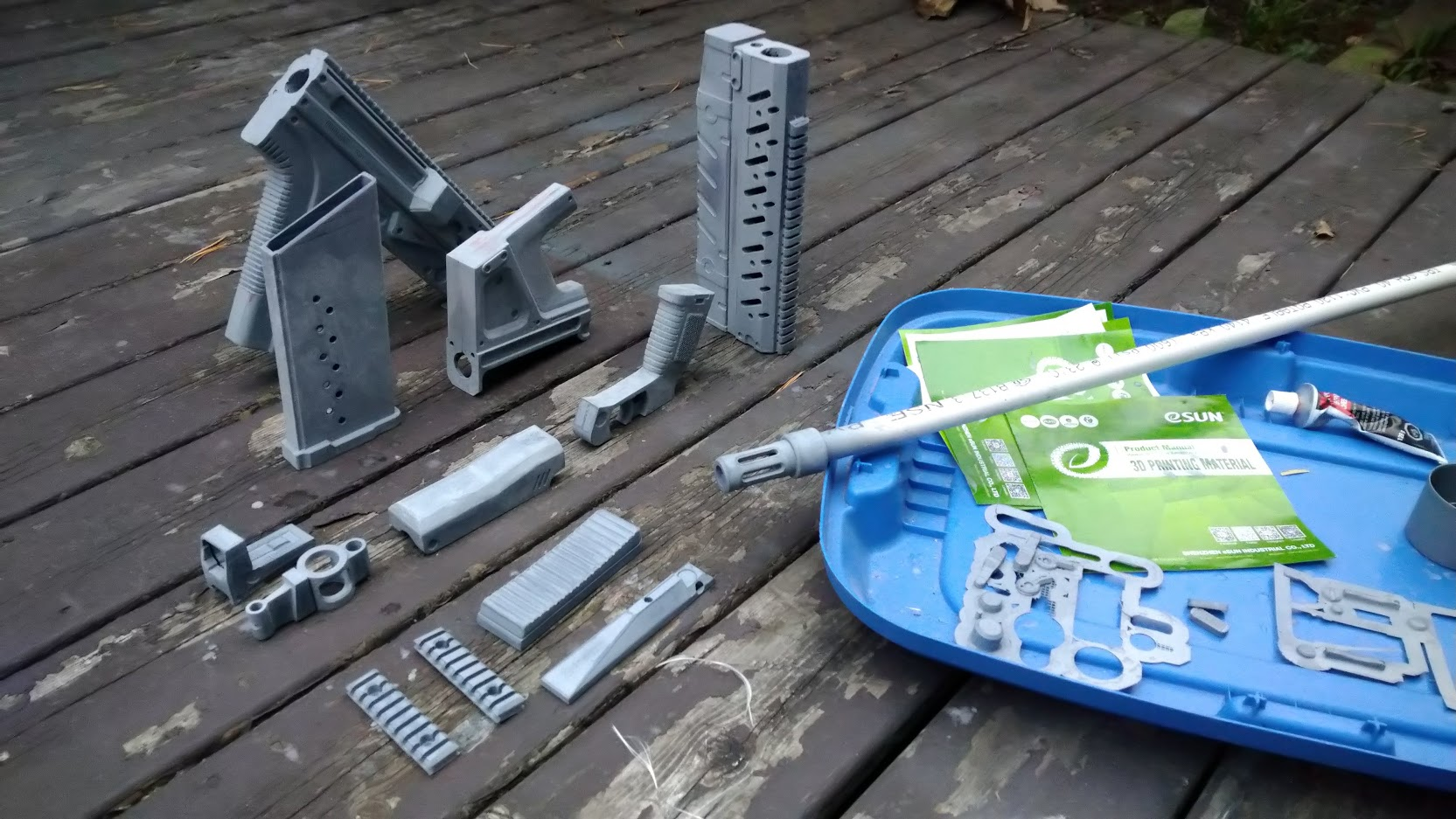

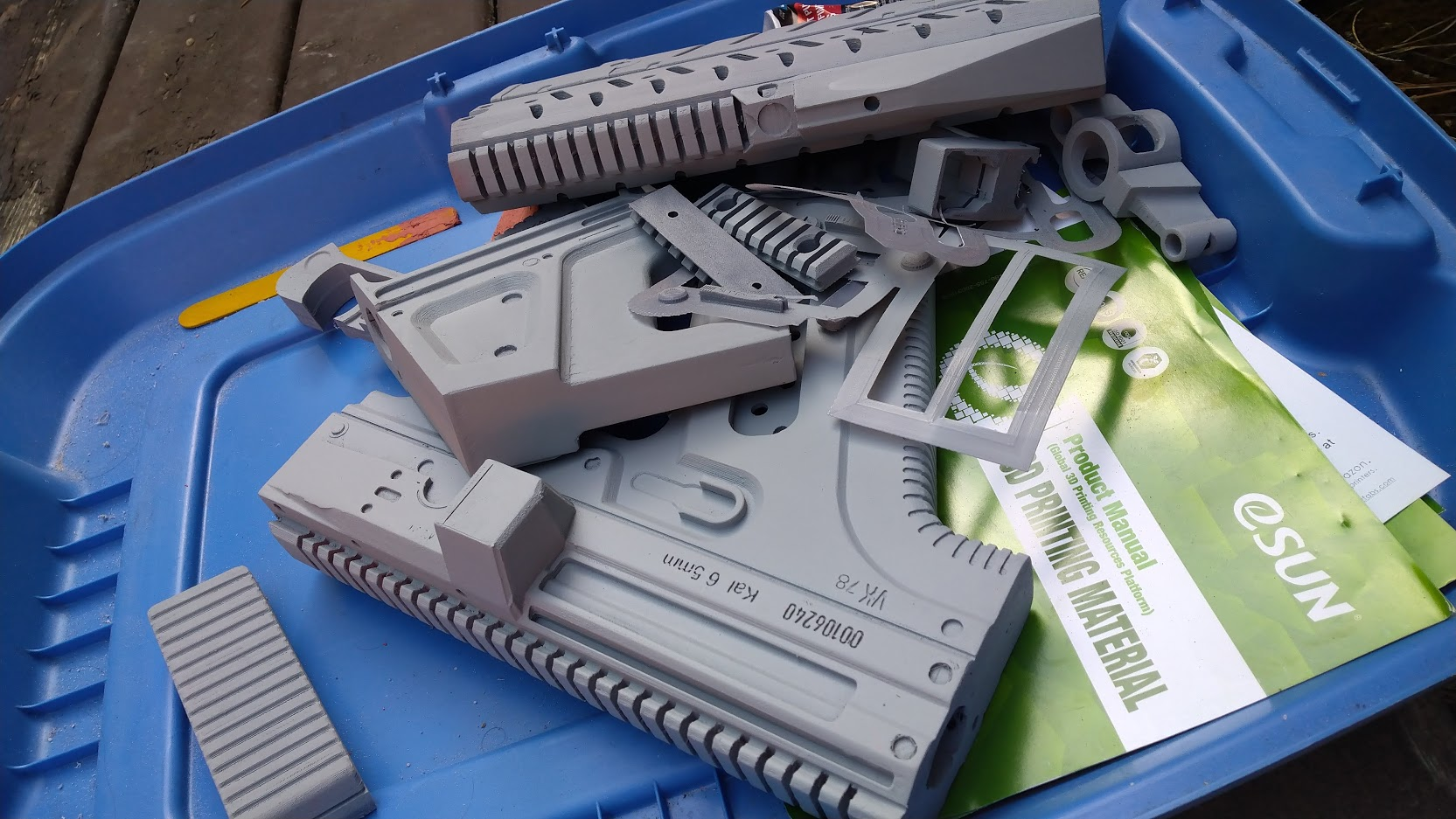

Sand

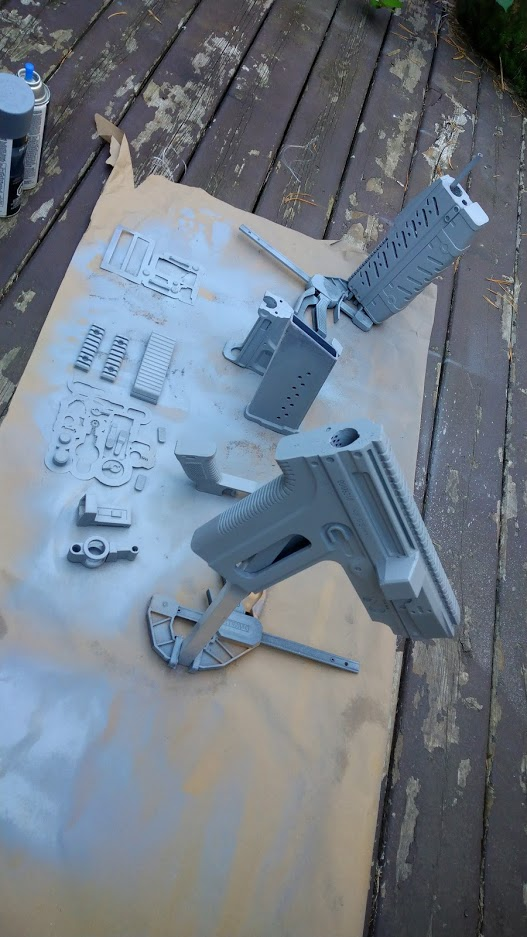

Prime

Sand

Repeat until happy.

Almost there. I've sanded through to 400 and I think I'm ready to start laying down colour coats. It's not perfect but it's pretty damn good and that's all I can ask for from something based off a energy drink promotion.



[TurboCharizard]

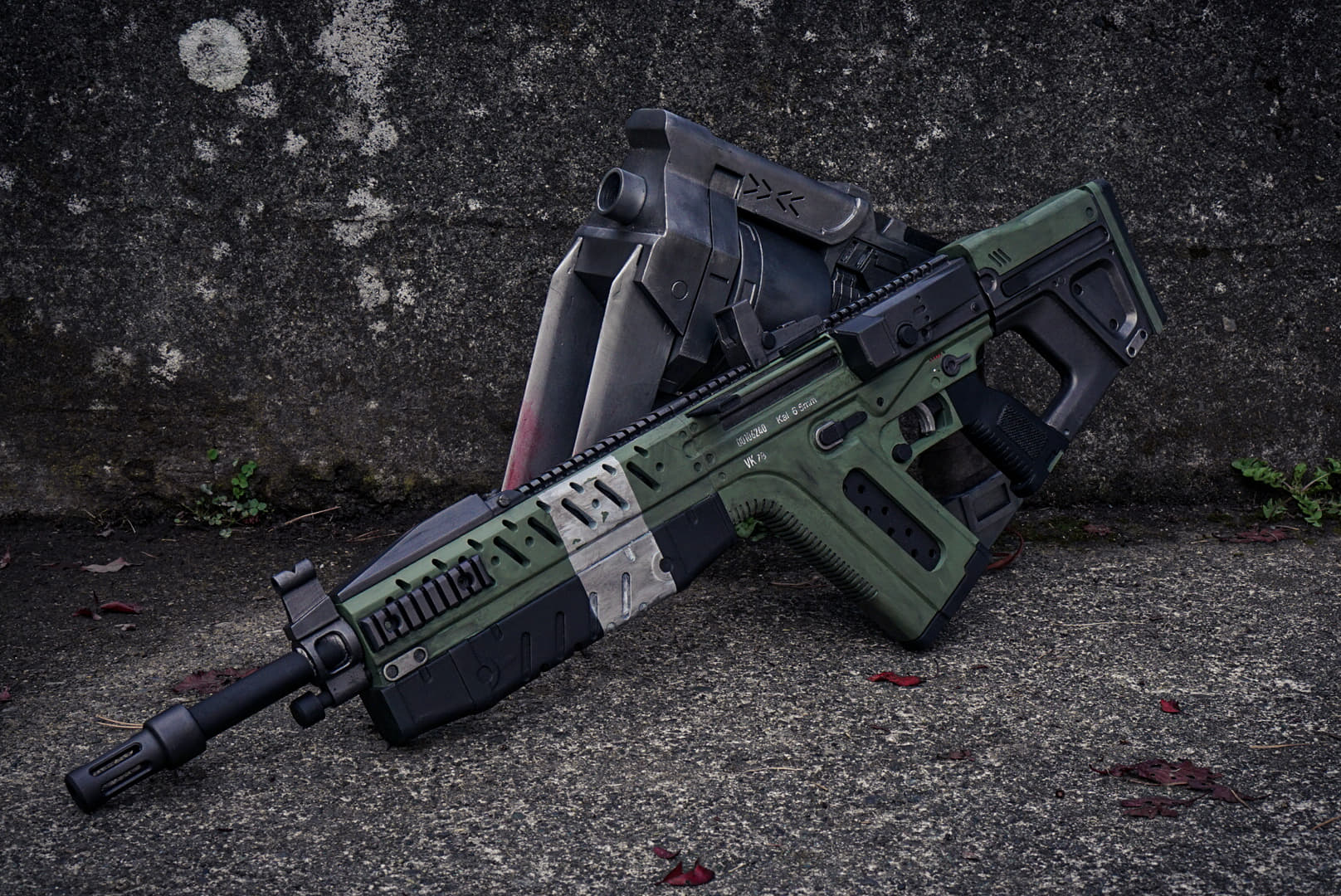

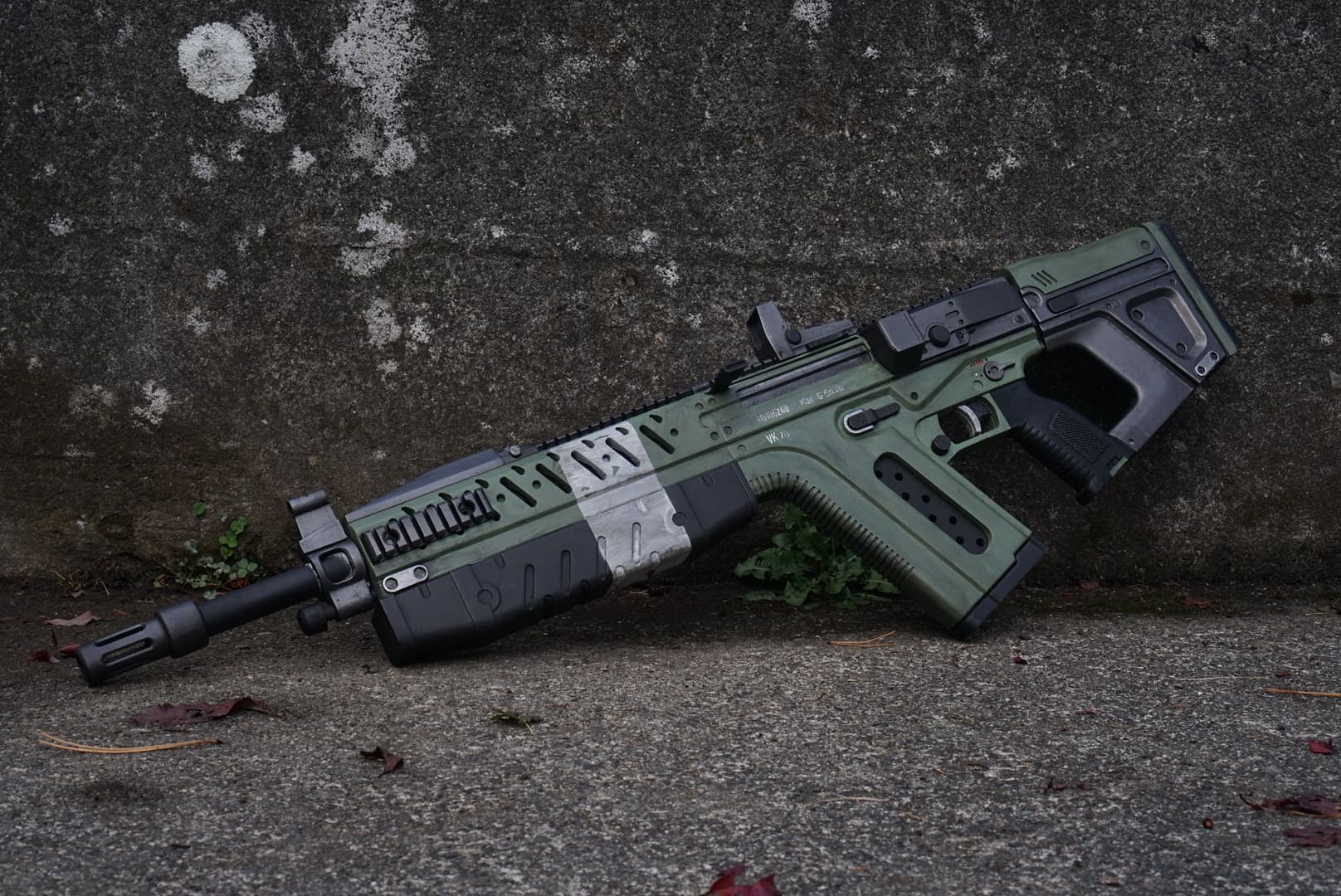

Here we are at the end of another project and we've got another prop for the booth when conventions start being a thing again. I'm not sure if this is the first completed VK78 Commando out there in internetland but I'm happy with the build and glad that a bunch of you fine folks can follow along.

EDIT: Mangler for scale.



[TurboCharizard]

As promised, a parts list so that everyone can follow along.

Material	Amount Used	Cost/Purchase Unit (CAD)
eSun PLA+ (Grey Re-Filament)	1200g	22.50/1kg
0.2mm thick PETG	10mm x 20mm	(I used a pop bottle)
5mm steel rod	2 x 70cm	3.00/1m
1/2" PVC	80cm	10/3m
3/8" or 10mm dowel	10cm	2/1m

Consumables

Material	Amount Used	Cost/Purchase Unit (CAD)
BSI CA Glue	-	12.99/2oz
80/220 Grit Mouse Sanding Pads	2 80grit, 2 220grit	20.00/50 pads
320/400 Grit Wet Sand Paper	-	-
Bondo Glazing Putty		12.00/tube
Dupli-Color Scratch Filler Auto Primer	~1 can	14.99/512g can
Army Painter Army Green Spray CP3005	1/3 can	18.00/512g can
Rustoleum Black Primer Matte	1/2 can	12.00/512g can
PlastiDip Black Spray	-	It appeared in my house somehow
Vallejo 77.712 Steel	-	9.00/35mL
Vallejo 71.001 White	-	5.00/18mL
Vallejo 71.003 Red	-	5.00/18mL
Vallejo 76.518 Black Wash	-	5.00/18mL
Vallejo 28.859 Liquid Mask	-	9.00/200mL



[ODCA]

here's a low effort meme to show my love for your build



[kyle clement]

what are the 10mm dowels for?



[Knipey]

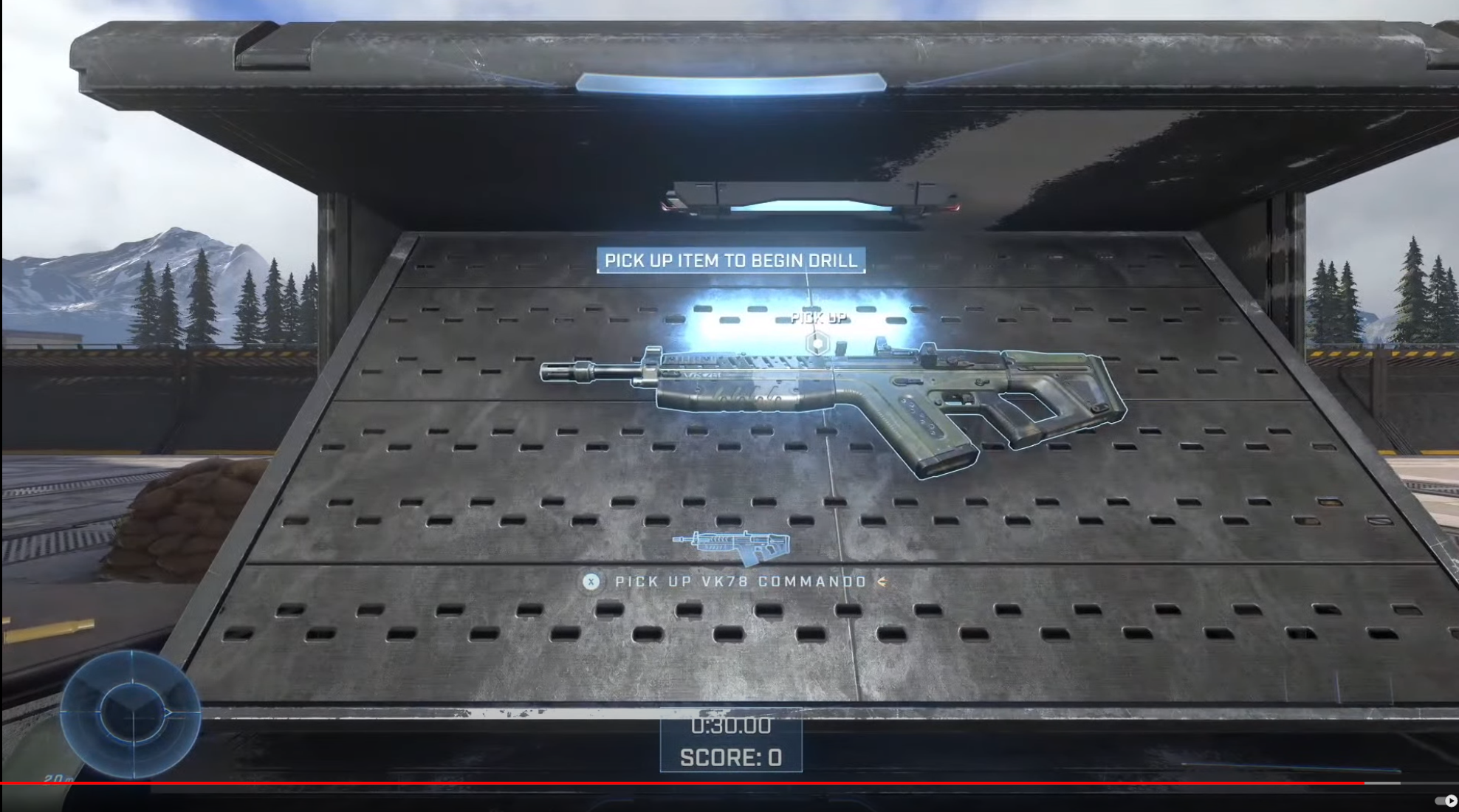

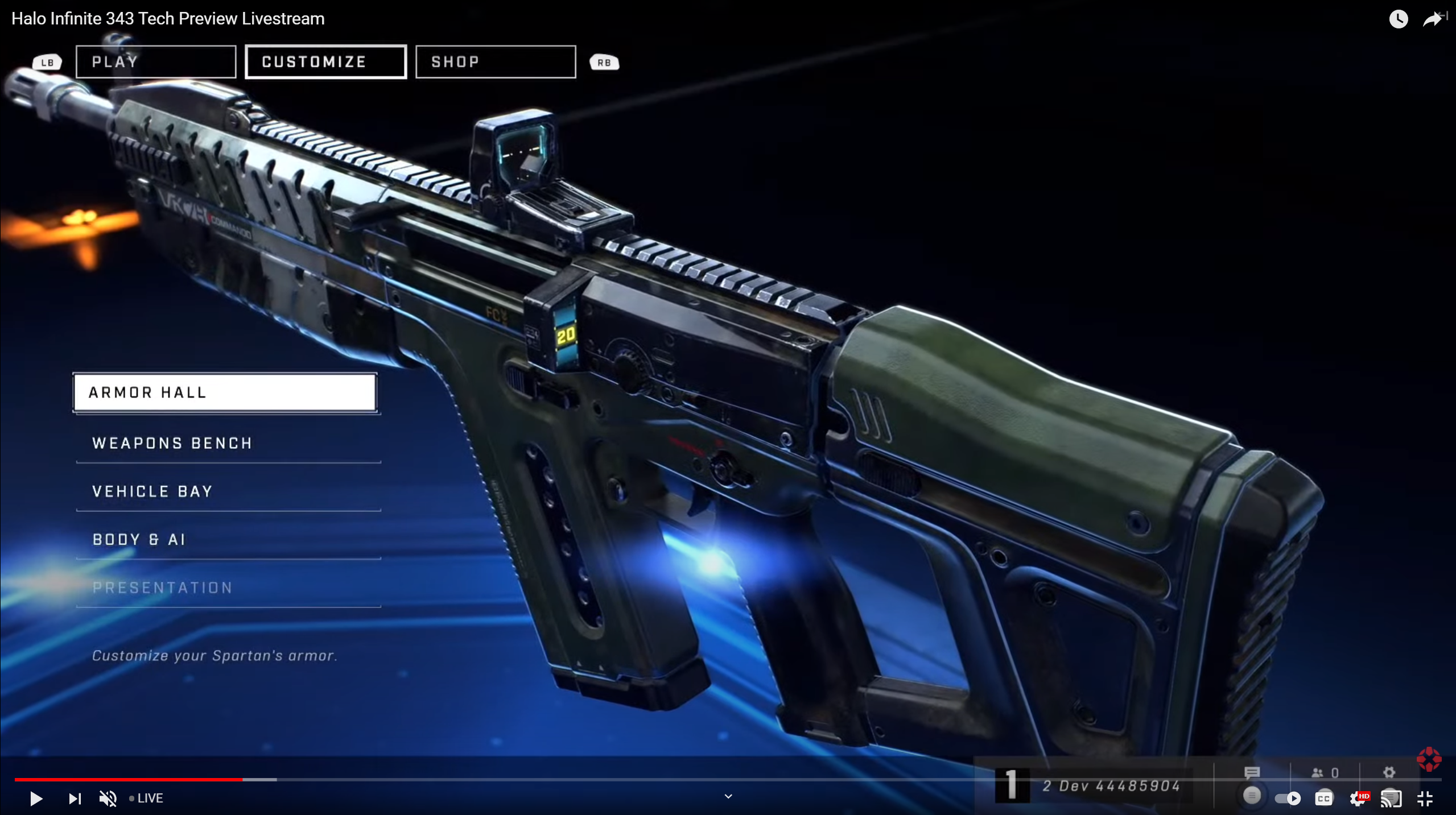

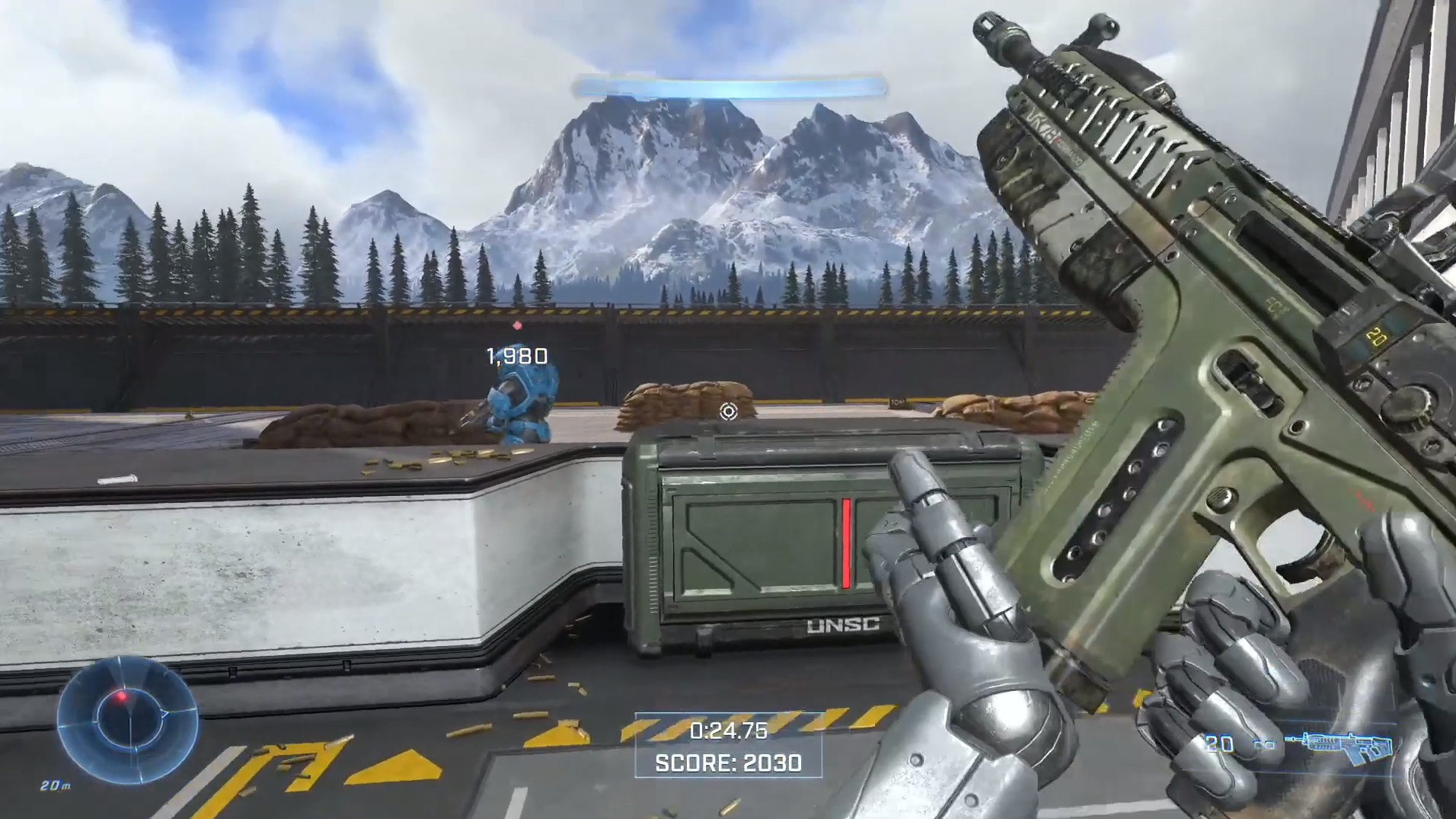

I know this is an old thread but heres a couple screenshots from todays livestream.
AWESOME! build btw.



[TurboCharizard]

I know this is an old thread but heres a couple screenshots from todays livestream.
AWESOME! build btw.

View attachment 308334View attachment 308335View attachment 308336

These screengrabs only further confirm that I was at the 95% mark with the first build. That's pretty dang good in my books.



[MrJamin]

I have been playing around with this lately and ended up re-slicing and changing the shroud for a smaller than 300m printer. The existing files that Turbo has don't allow for easy alignment. I sliced this in a way to make it much easier to get a good alignment and even hide part of the piece line.

(Turbo suggested I throw these up here)



[Crimson]

I have been playing around with this lately and ended up re-slicing and changing the shroud for a smaller than 300m printer. The existing files that Turbo has don't allow for easy alignment. I sliced this in a way to make it much easier to get a good alignment and even hide part of the piece line.

(Turbo suggested I throw these up here)

How spiffy of you MrJamin



[SpartanJohn]

I love this build! The print lines look tight and smooth. Is this the same kit you have Viper 466?



[TurboCharizard]

Is this the same kit you have Viper 466?

This is the first kit he had and I handed off one of the newer version at ECCC



[Reclaimara]

Oooh this Commando is so beautifully done. Wow.



[SpartanJohn]

This is the first kit he had and I handed off one of the newer version at ECCC

how much is it for the new update if I wanted to get the file and print it?



[FANGS]

Unlocked at Turbo's request.



[TurboCharizard]

Filepack updated, thanks FANGS!
