    Hey guys,

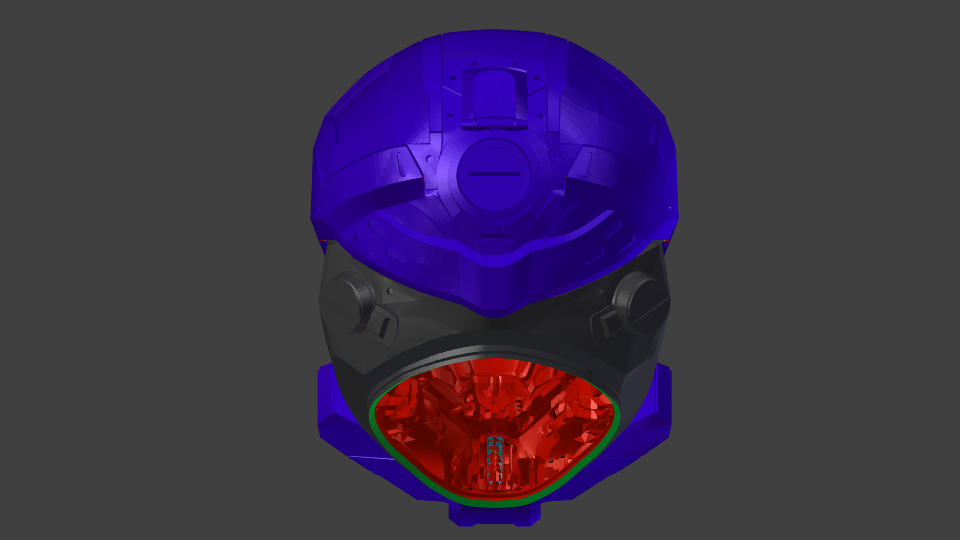

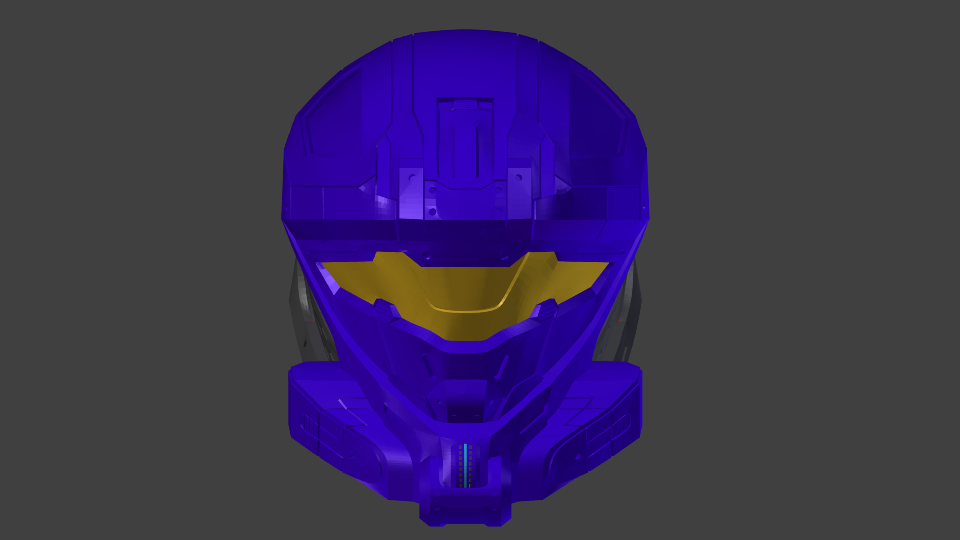

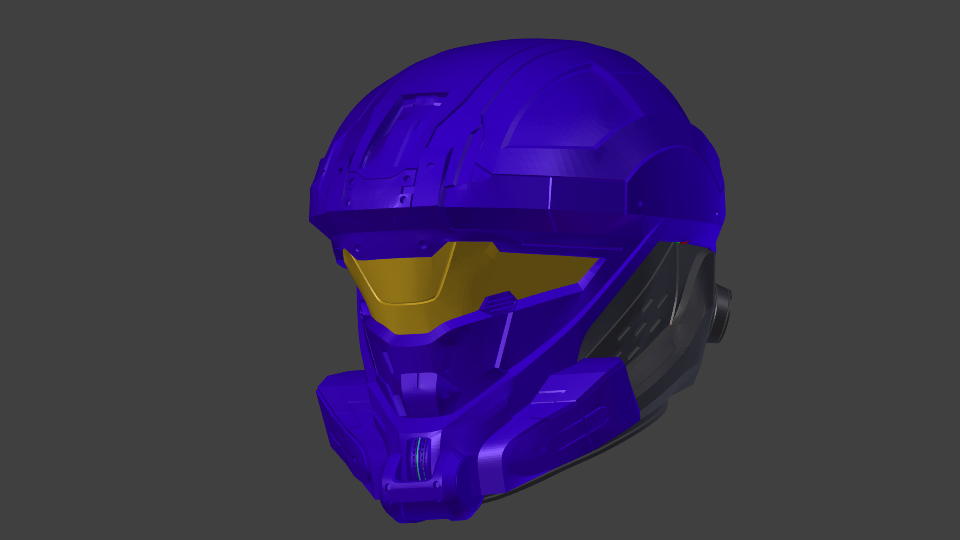

    I am not exactly "new" here. I signed up quite some time ago and got into prop building because of Halo to begin with. I ended up doing some Iron Man builds but I was always itching to do some Halo stuff. My first one was the Halo 4 Soldier Helmet that I gave to a Buddy to finish because I ad absolutely too much on my workbench. After a while I got into 3d modelling and 3d printing and I ran into JTMs model of the Halo 4 Recon Helmet. I got the file from him a while ago and was off and on working on it myself. I added some more Detail and made the Visor and the back/neck detachable. My plan is to mold them separately to have a clear Visor and a rubberneck/lip to just slide the helmet on and have a tight fit. Here are some Pictures of what I have:


    My reference for the changes was this:

  2. Termhn

    Termhn Jr Member

    Trophy Points:
    80
    Looks excellent! I'm looking to do this for my project for the Prefect helmet.

  3. Dirtsen

    Dirtsen Member

    Trophy Points:
    120
    Thanks man, I've seen it done before. I'm researching some clear resin to make the visor.

  4. dodgerfan2226

    dodgerfan2226 New Member

    Trophy Points:
    40
    It looks great but do you have a large enough 3d printer or are you going to print it in parts? (Sorry if this is a stupid question, I just want to know because it seems like a god idea to 3d print it).

  5. Dirtsen

    Dirtsen Member

    Trophy Points:
    120
    That is not a stupid question. Actually the more cuts you have the more work it is to finish it later. I have a pretty big build plate so i should be able to print it without having to cut too many times.

  6. dodgerfan2226

    dodgerfan2226 New Member

    Trophy Points:
    40
    Well that's cool. Good luck and I cant wait for pictures!

  7. WandererTJ

    WandererTJ Well-Known Member

    Trophy Points:
    685
    What printer are you using?

    I've been trying to hold out for a printer that can't print larger than the standard 10x10x12" volume, and I almost bought a Glacier Summit, but their return policy as horrible for something that costs $4K.

  8. spartan 060

    spartan 060 New Member

    Trophy Points:
    5
    if you could give me a shot of the top of the recon helmet it would be amazing and helpful for me.
    seriously I'm begging anyone that has the ability please take a picture from the top of a recon helmet.

  9. Dirtsen

    Dirtsen Member

    Trophy Points:
    120
    I am using the Ultimaker 2 for this project. The build plate is huge but i still need to do some cuts.

  10. Legorenegade

    Legorenegade New Member

    Trophy Points:
    2
    Would it be possible to get this file for 3d printing myself?

  11. Chernobyl

    Chernobyl Sr Member

    Trophy Points:
    1,035
    Hey there, and welcome to the forums! A little tip for etiquette: if a thread hasn't been active in three or more months, please reconsider posting it it unless the post actually contributes to the thread at hand (for example, reporting broken links).

    Otherwise: I doubt the file will be available, I'm afraid.

    CommanderPalmer likes this.
  12. peterthethinker

    peterthethinker Well-Known Member

    Trophy Points:
    665
    Good news ! \
    I did a recon 3D print for Roxas s Embers for ECCC this year . Derrick did the Cad magic and I just printed it .
    I would get in contact with her and derrick .
    Peter

  13. philmac

    philmac New Member

    Trophy Points:
    3
    are you going to share the files for free
