Builds By Baz - Full scale MKII Colonial Viper

[Schankerz]

It’s coming together so freakin awesome!!! I’m really looking forward to when you get to paint and decals, that’ll be really really cool.

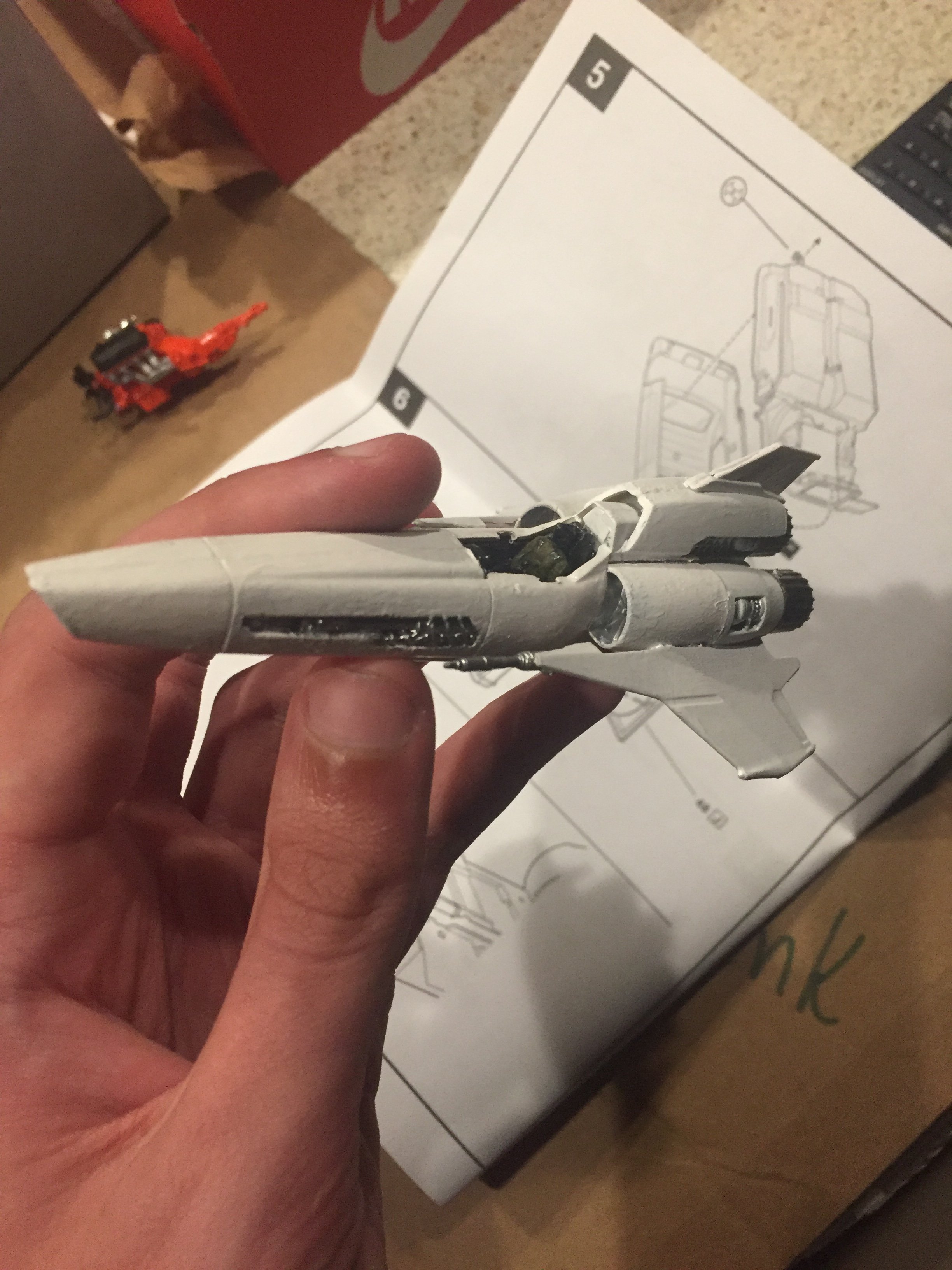

They may be way way WAAAAYYY smaller but look sempai I built a Viper too!



[Dirtdives2424]

WHAT? You don't have a tool that mechanically chisels out what you need removed? Like a router or something that could zip through cleanly? Or do you prefer holding the chisel while you take a pic of your arm?



[BuildsByBaz]

WHAT? You don't have a tool that mechanically chisels out what you need removed? Like a router or something that could zip through cleanly? Or do you prefer holding the chisel while you take a pic of your arm?

I borrowed a router, but with the surfaces being curved and either a drop at one end, or a step preventing travel, the router is more trouble than it's worth.



[BuildsByBaz]

I've had a few wonderful days home alone to work on the Viper. It's strange, I haven't uttered a word. I could get used to this.

Anyways, I went out to my work and spent a night on the bandsaw to cut all the turkey feathers for the other two engines. Much quicker and neater than my jigsaw, plus the belt grinders there have an extraction fan right next to them, so I sanded and shaped them all too. I can do this at home, but with no extraction, the dust is pretty unbearable.

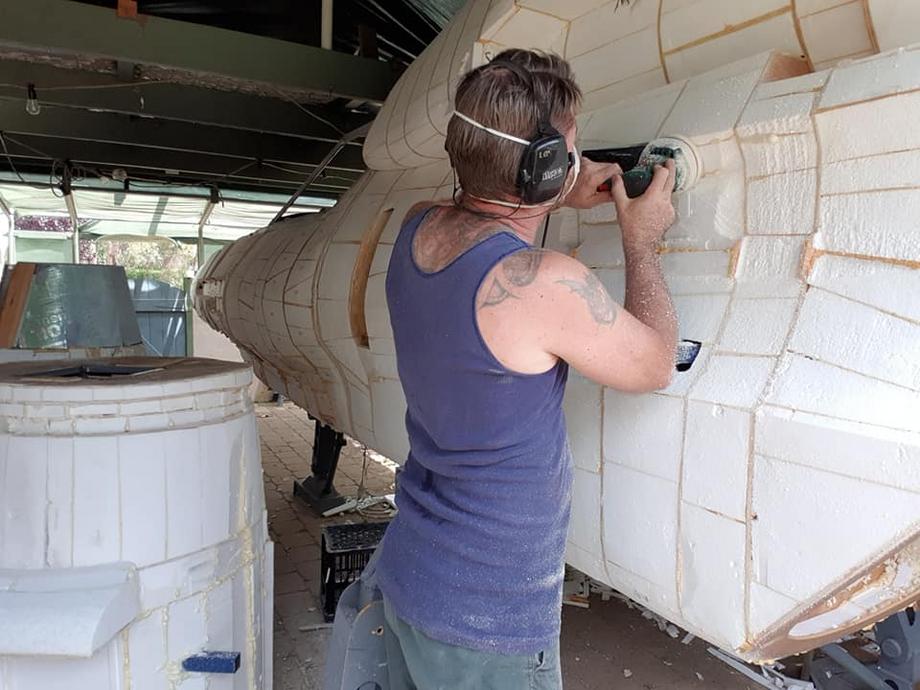

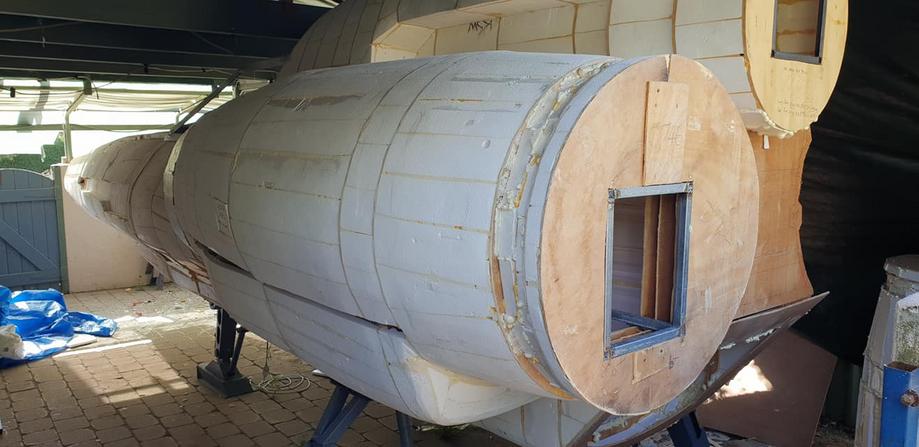

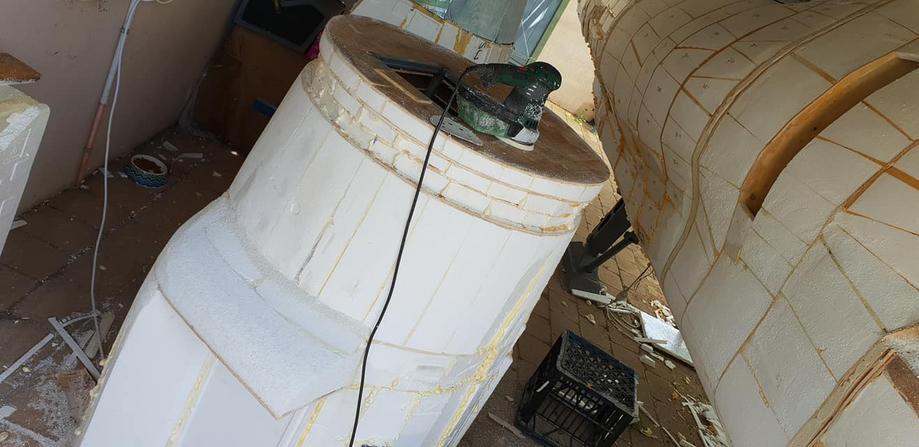

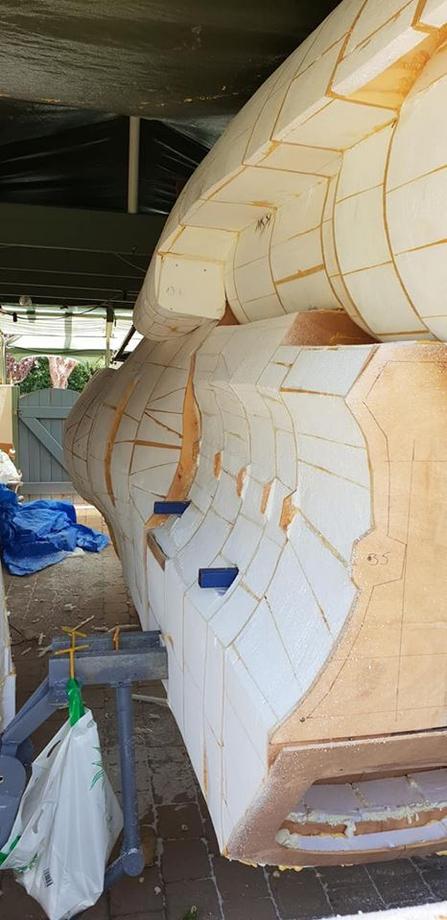

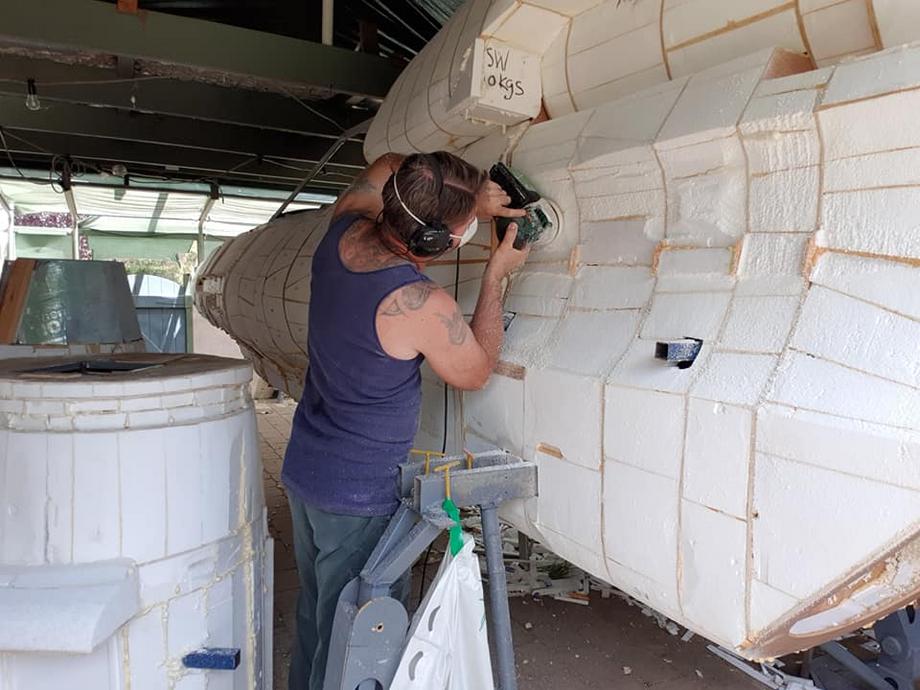

Back at home, I've had a mad glue-up for nearly 24 hours. I had to keep going back to Bunnings for more glue, having underestimated how much I needed to do to finalise all the foam. That's all done now, so I started sanding the whole ship and engines with the orbital sander. Not comfortable under the tarp in temperatures in the high thirties, but I really want to take advantage of the time I have.



[BuildsByBaz]

Holy smokes, he's doing it! He's really doing it!

Haha everytime I see an update in this thread it makes me just a little bit happier! Looking fantastic. That's a LOT of works chiseling out all that detail!

Thanks for coming along for this crazy ride mate!



[Dirtdives2424]

I borrowed a router, but with the surfaces being curved and either a drop at one end, or a step preventing travel, the router is more trouble than it's worth.

Very disappointed.......I would have thought if any one could, you would create a jig to allow a router to run over a curved surface. ....I was thinking to myself...."How is he going to get this on a flatbed to bring to a con?" .....(which is a strange thing to be thinking to myself).....I know you will, but at this point it's a massive piece. I don't think you made a focal point to lift this w/ a crane. Or did you?



[BuildsByBaz]

Very disappointed.......I would have thought if any one could, you would create a jig to allow a router to run over a curved surface. ....I was thinking to myself...."How is he going to get this on a flatbed to bring to a con?" .....(which is a strange thing to be thinking to myself).....I know you will, but at this point it's a massive piece. I don't think you made a focal point to lift this w/ a crane. Or did you?

Have you read any of the thread? I've mentioned several times that the ship is built in modular sections, for ease of transport and storage. Come on over to Facebook and join the build group there, I have a big list of FAQs there. Baz Arm

I thought about making a box-jig for the router, but it's more work than actually just carving with a chisel. Why are you very disappointed?

Baz.



[BuildsByBaz]

WHAT? You don't have a tool that mechanically chisels out what you need removed? Like a router or something that could zip through cleanly? Or do you prefer holding the chisel while you take a pic of your arm?

Cool! Wow, that's a tiny model.



[Dirtdives2424]

Sorry......I knew you were building it in modular sections......didn't recall that it could be broken down for transport and storage.......



[BuildsByBaz]

Sorry......I knew you were building it in modular sections......didn't recall that it could be broken down for transport and storage.......

It's ok mate. But if you do it again, it's ten lashes over the nuts with a wet boot lace for you.



[Dirtdives2424]

As if I don't get enough lashes from FANGS w/ her wet noodle!!!!!



[BuildsByBaz]

6 January 2019 build update.



[BuildsByBaz]

Mammoth week. I think I'll take a break now.



[BuildsByBaz]

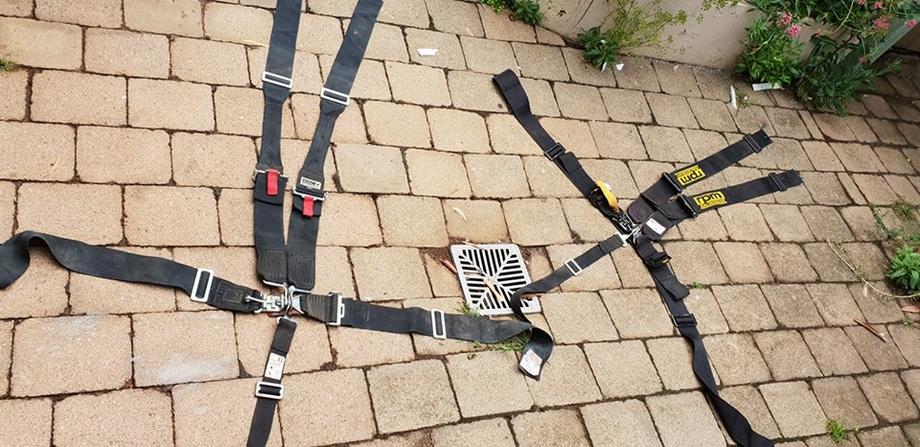

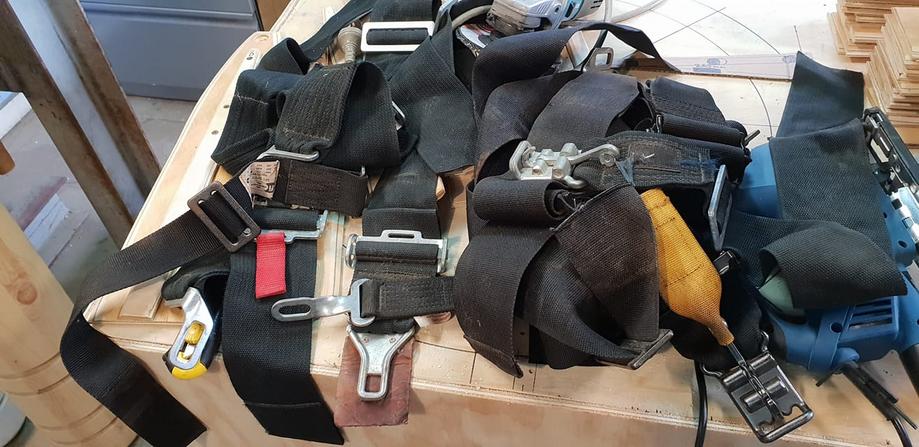

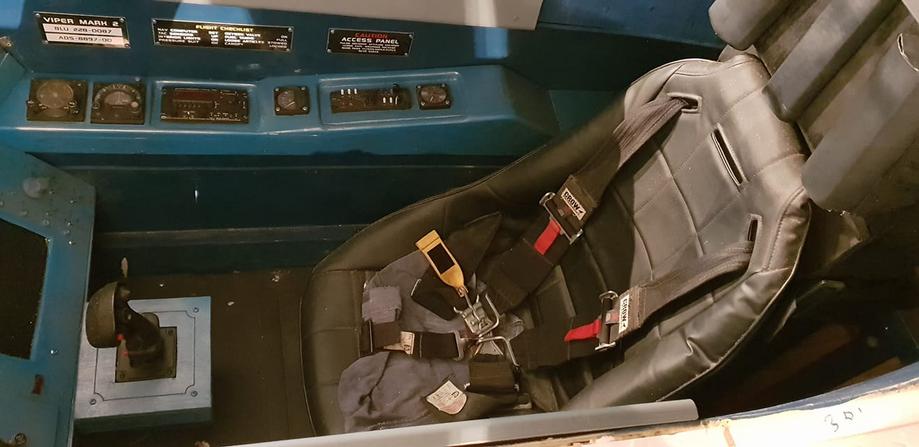

My thanks to the tireless efforts of a Facebook friend named Mat and his friend Daniel. Mat has been looking out for a harness for the Viper pilot's seat. Arrived home today to find two harnesses waiting for me! Thanks gents!!

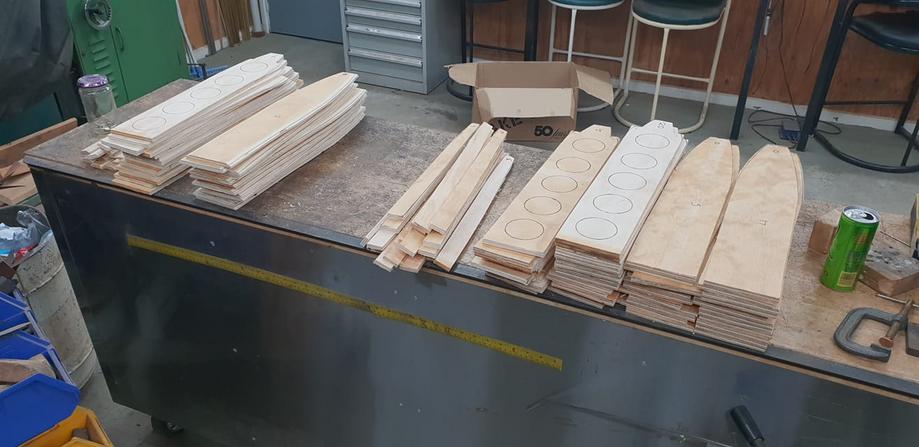

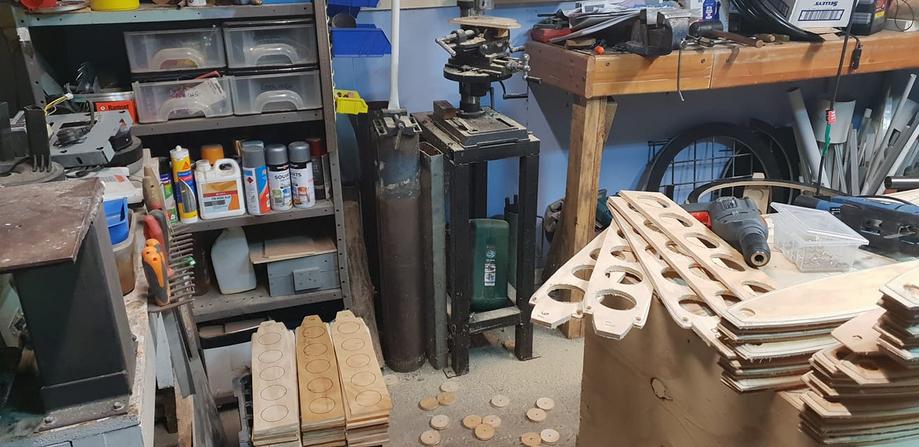

Weight reduction on 40x turkey feathers begins. That's 200 holes to drill.



[Dirtdives2424]

Looks like it's still Christmas in OZ.......



[BuildsByBaz]

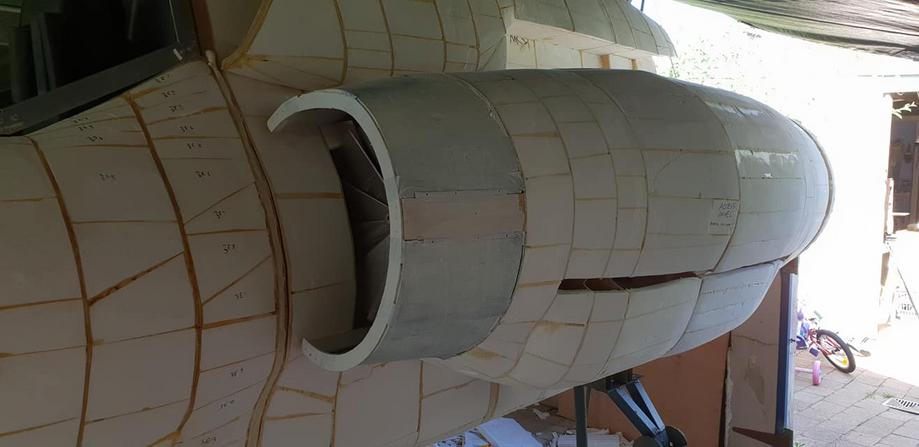

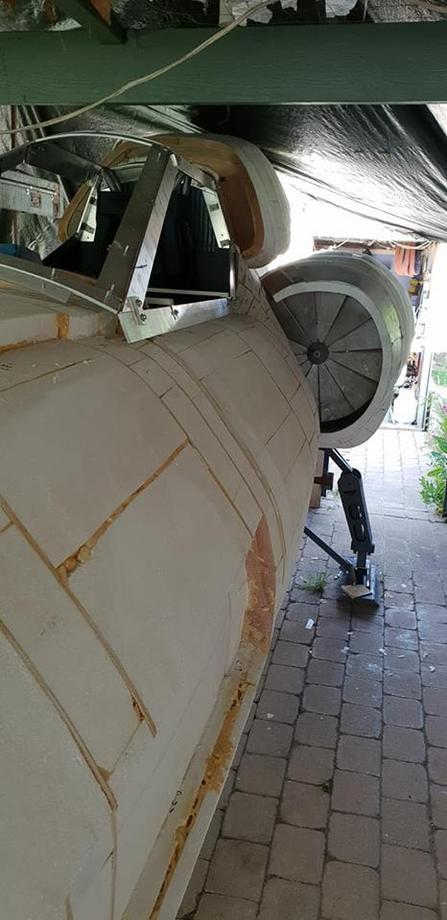

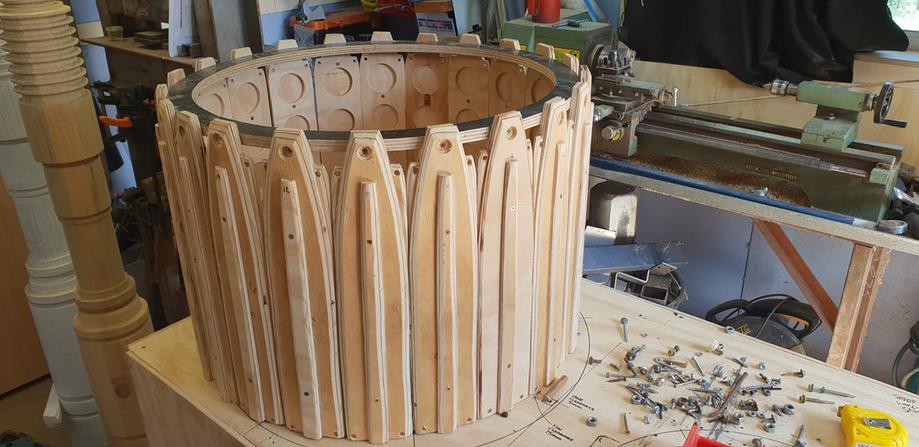

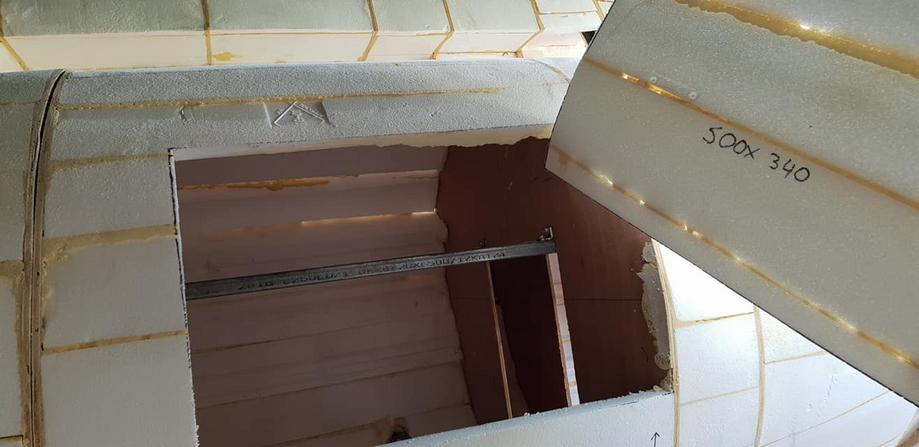

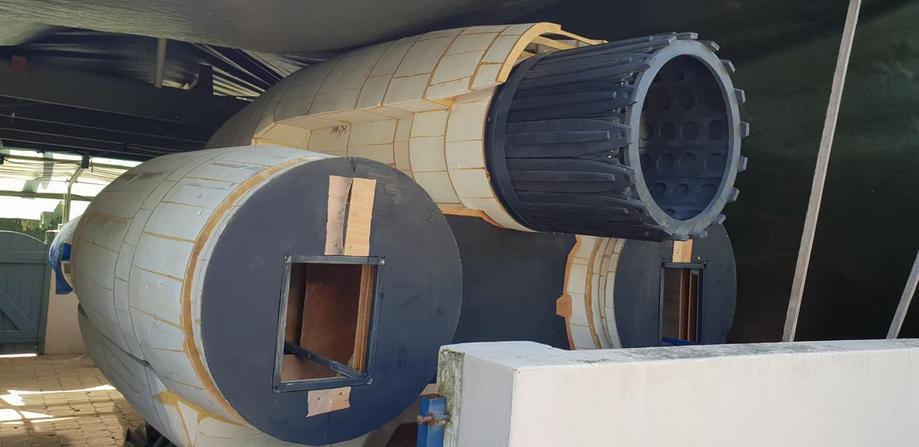

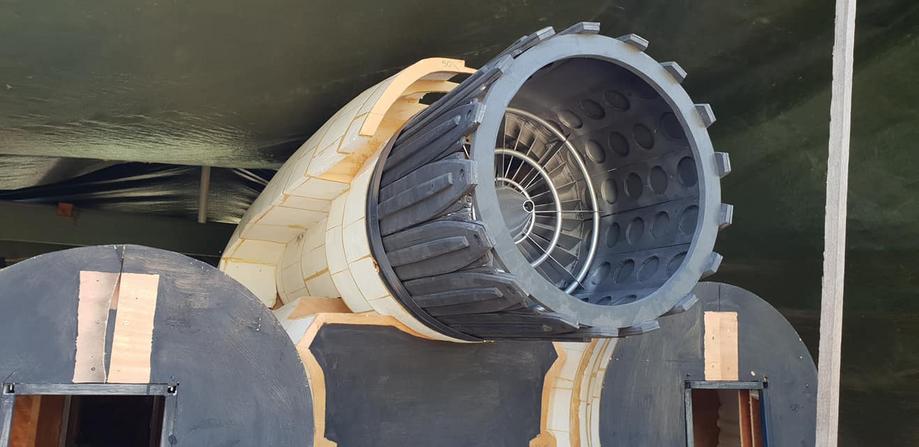

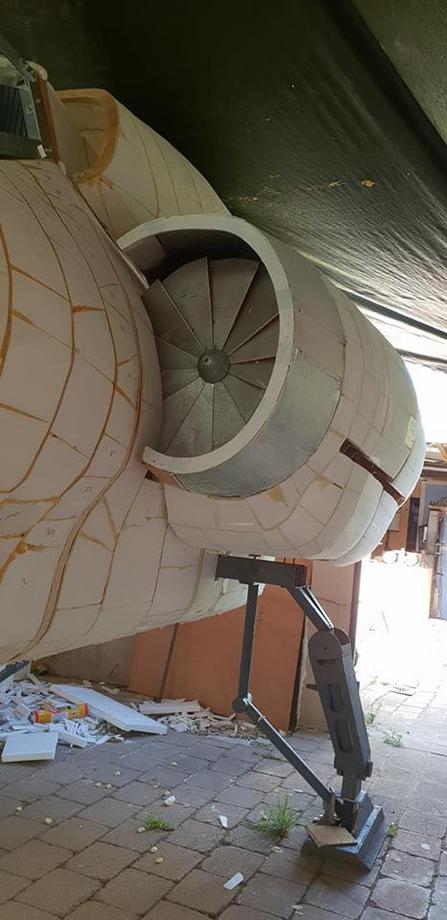

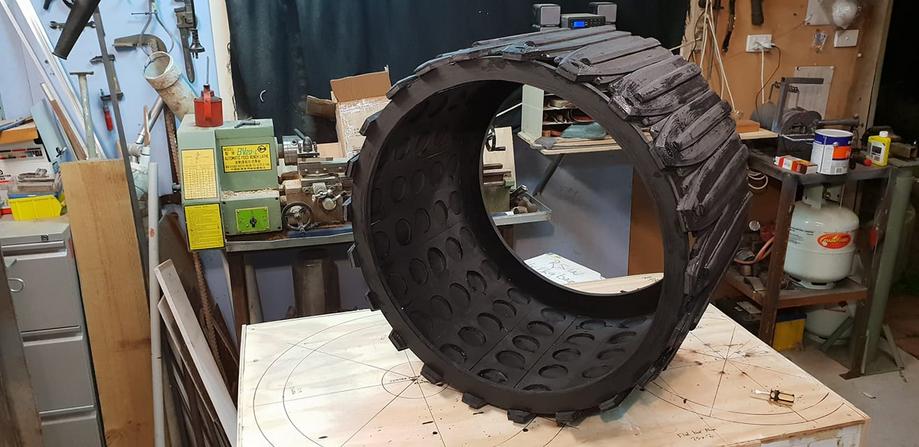

Mounted the top engine exhaust module, then assembled and painted one of the side engine exhaust modules.



[GMer56]

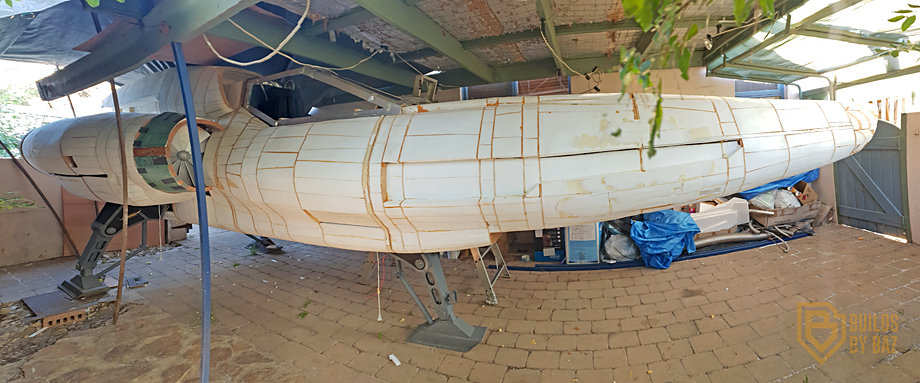

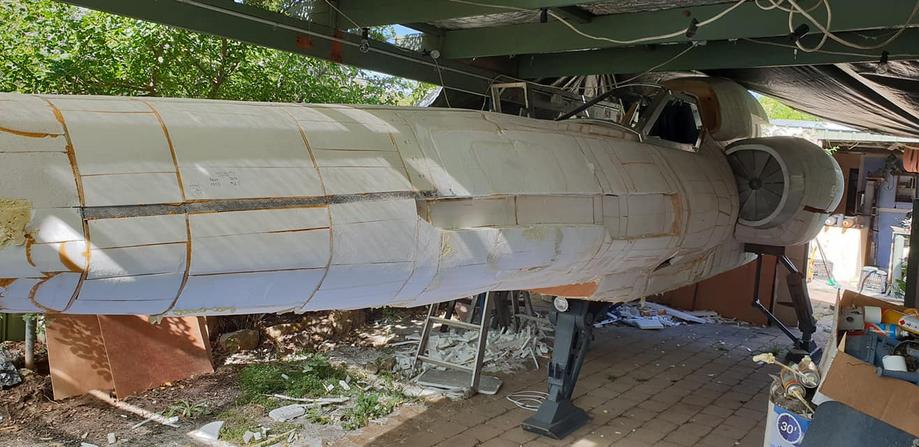

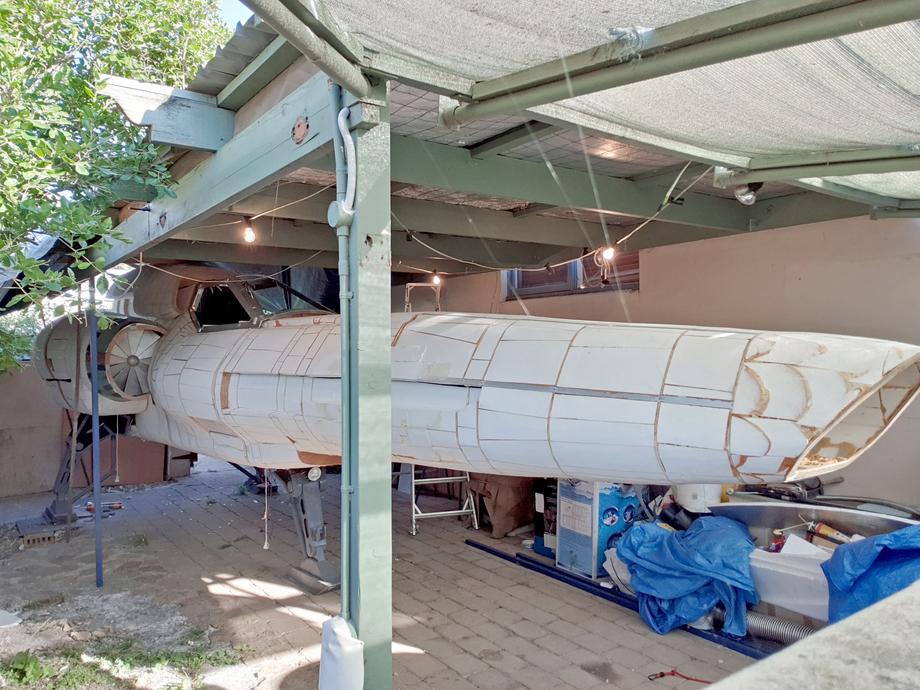

I love that panoramic shot: can really get a sense of how massive it is.
I'm looking forward to seeing it painted!



[BuildsByBaz]

Over the last couple of days I've managed to steal a little time here and there.

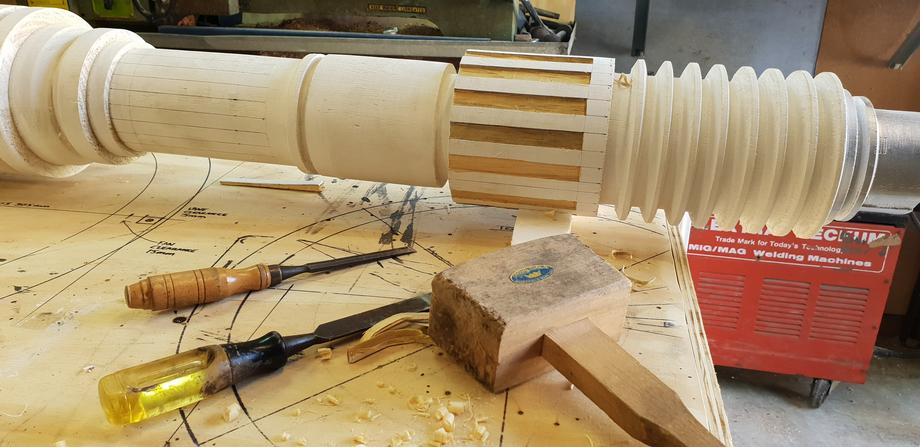

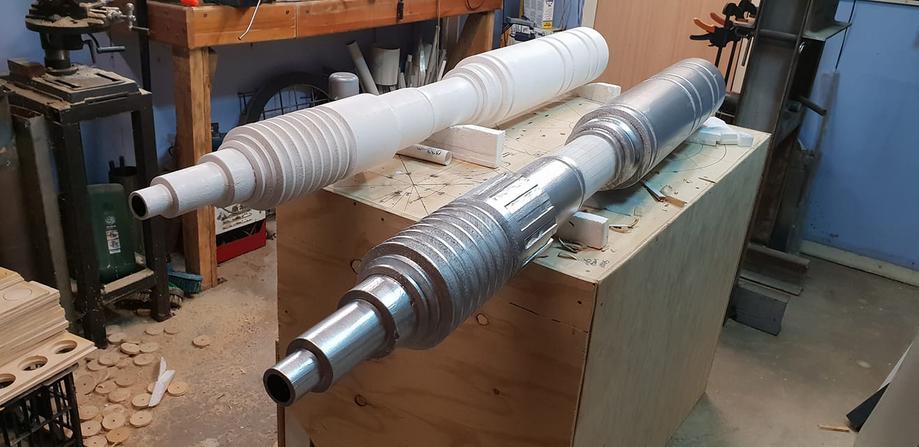

A little chisel and paint work done on the guns. Looking badass.

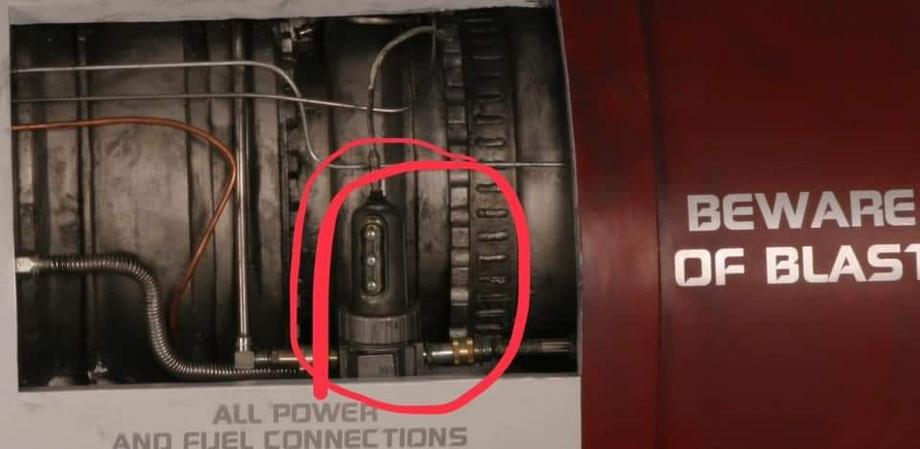

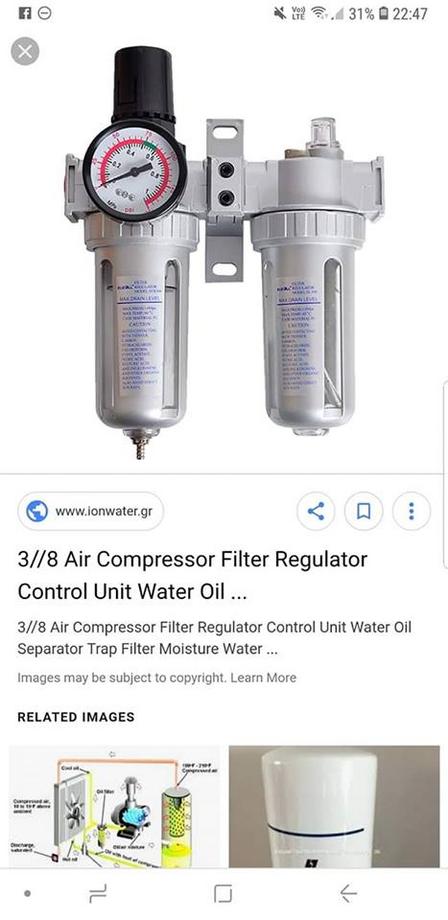

Starting to detail the engines now. I found out that the prop in the side is the air regulator/water trap off a compressor. Now I just have to find a couple of non-functioning units to install to look the part. I couldn't believe Bunnings didn't sell the coils of small diameter copper pipe for plumbing. The smallest they have is 1/2 inch.

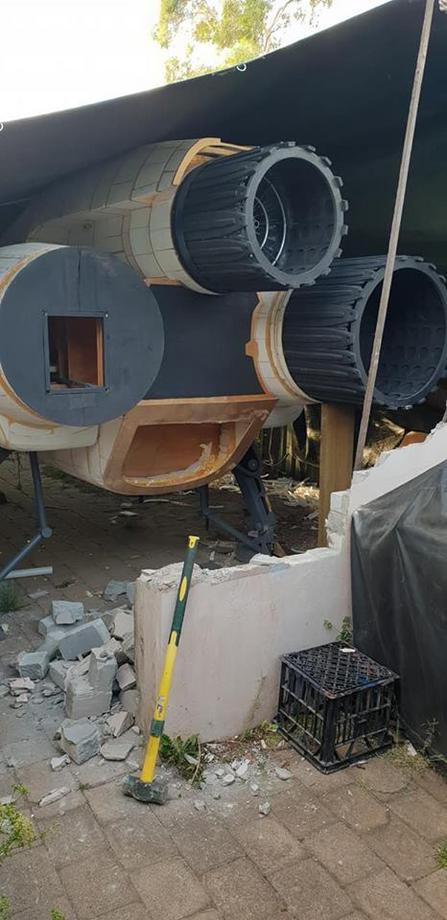

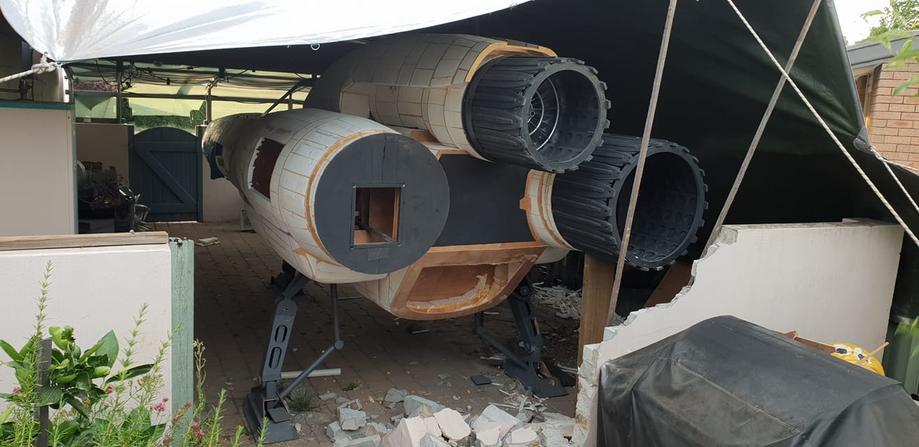

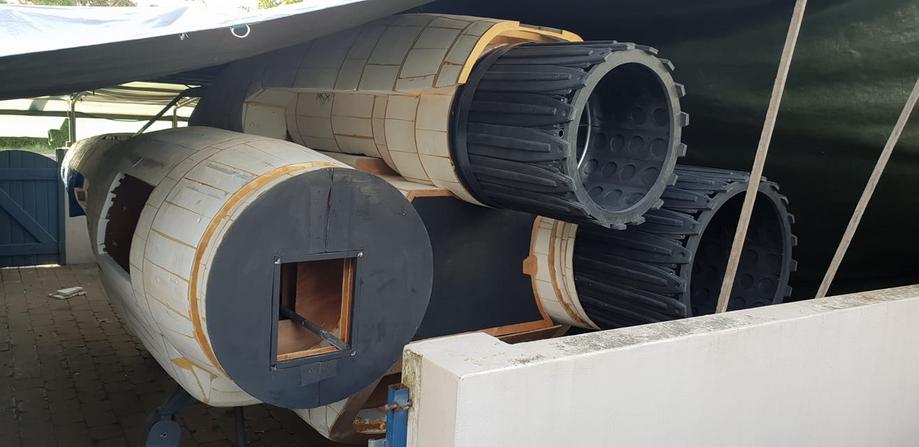

Managed to pre-fit the second engine exhaust module, but now I'm running out of room behind the ship, so demolitions today, once again.



[Lieutenant Jaku]

after you finish the ship do you plan to rebuild the wall and other things you destroyed? or just leave it as is to have room for more projects like this.



[Dirtdives2424]

You broke the wall? Why not just move the whole thing forward?
