Halo 3 Security helmet

Zachary

Member
if there wasnt a fail or a moment where you ask yourself "is it the right size?" did you ever 3D printed a helmet before? XD

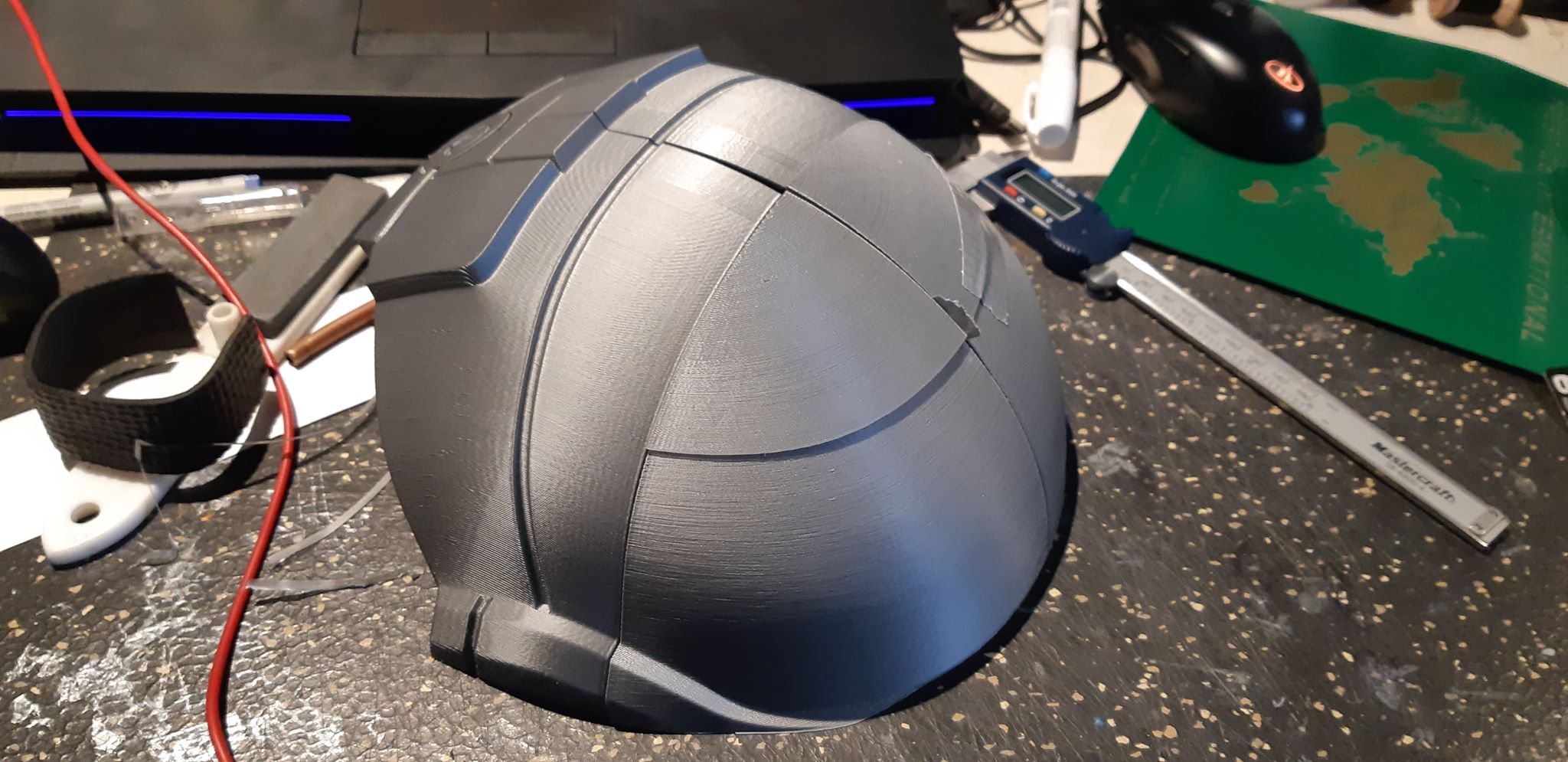

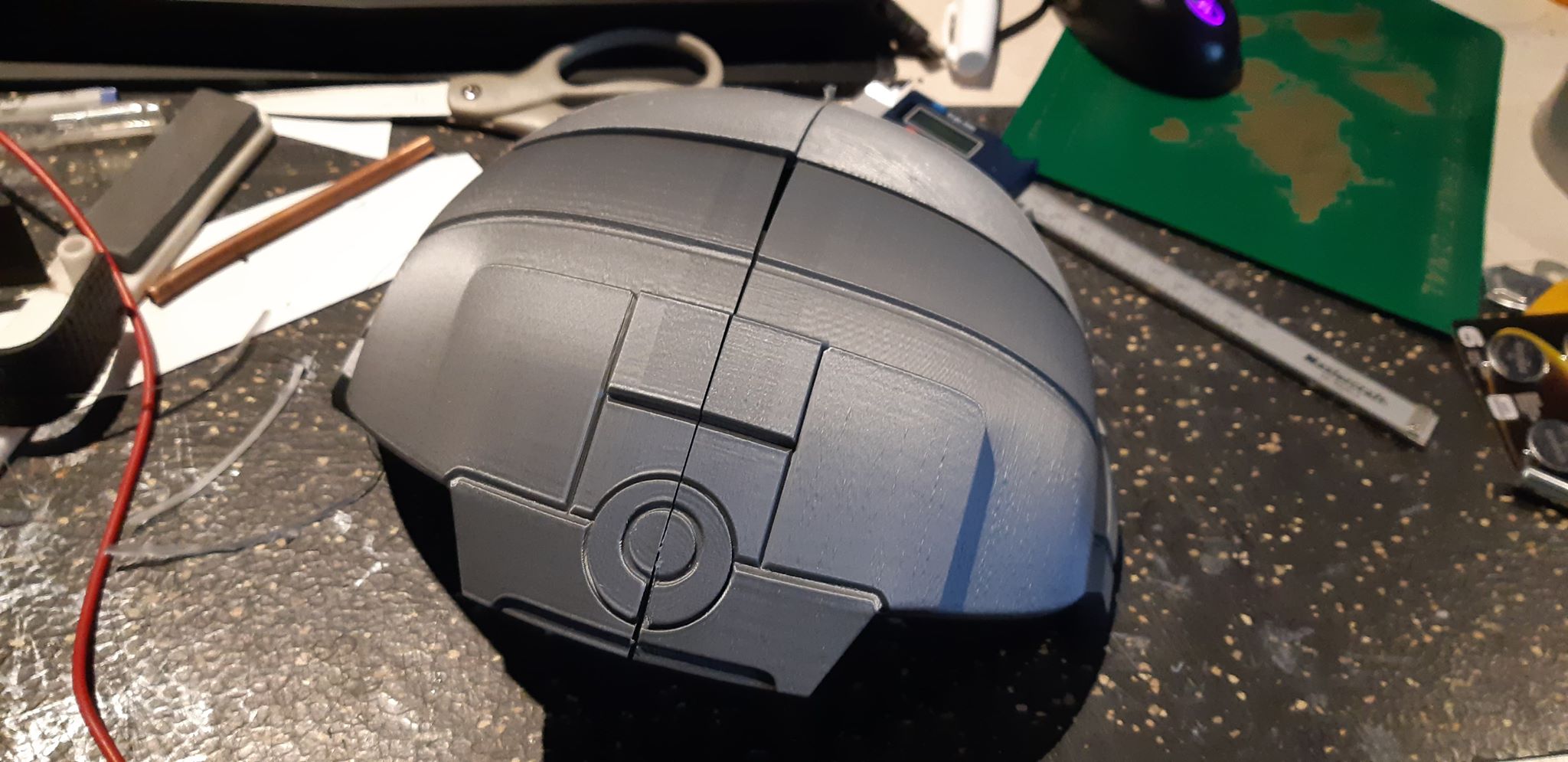

progress update, 1/2 of the helmet is printed and Felipe06 and I were worried of the sizing, so that happened:

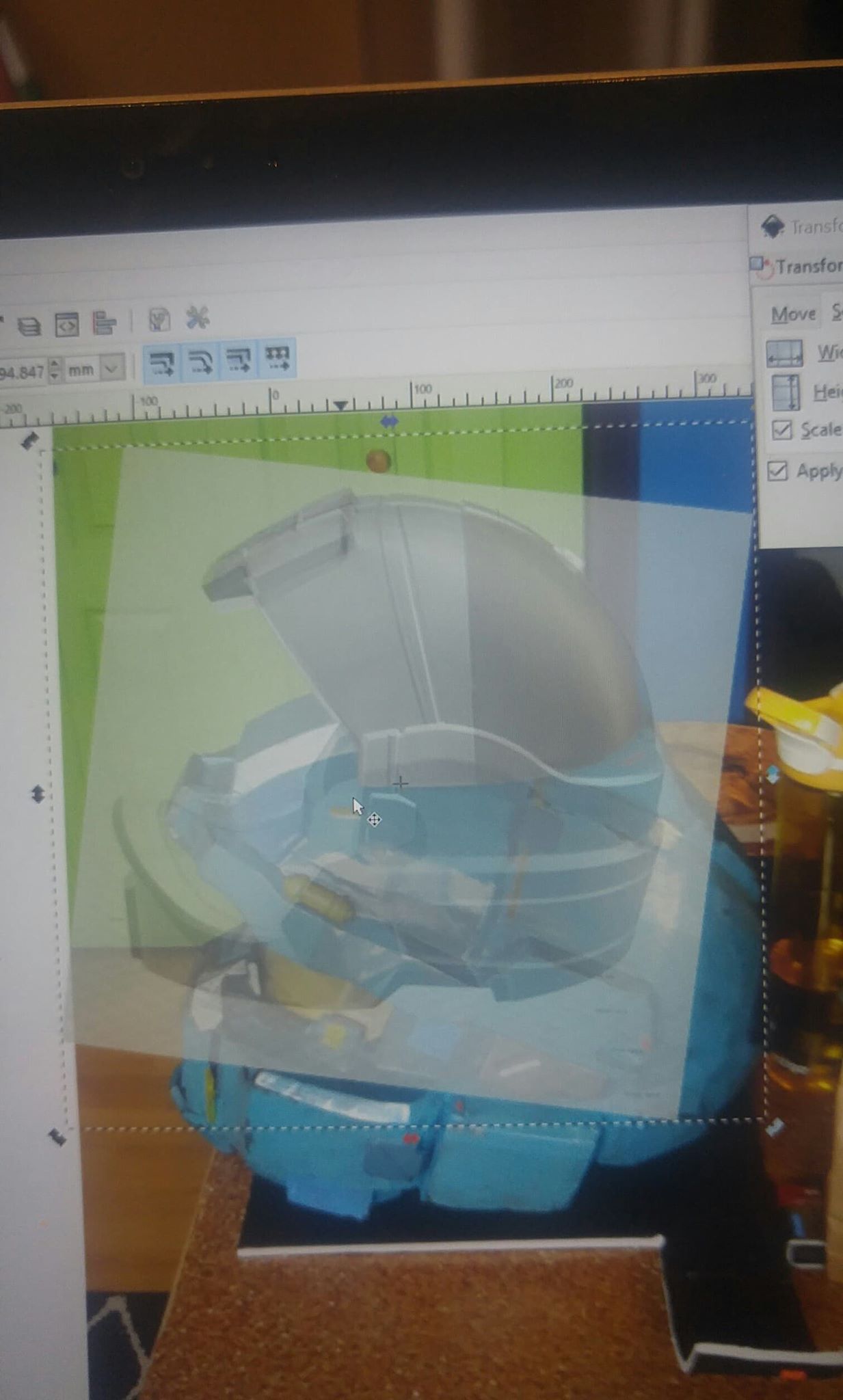

trying to figure out the final size compared to my fred helmet


Felipe06

Member

Dirtdives

Division Scheduler and Keeper of Con Lists
Division Staff
Community Staff
Is it possible that the heated bed has a hot spot and is warping the base as it's printing?


Zachary

Member

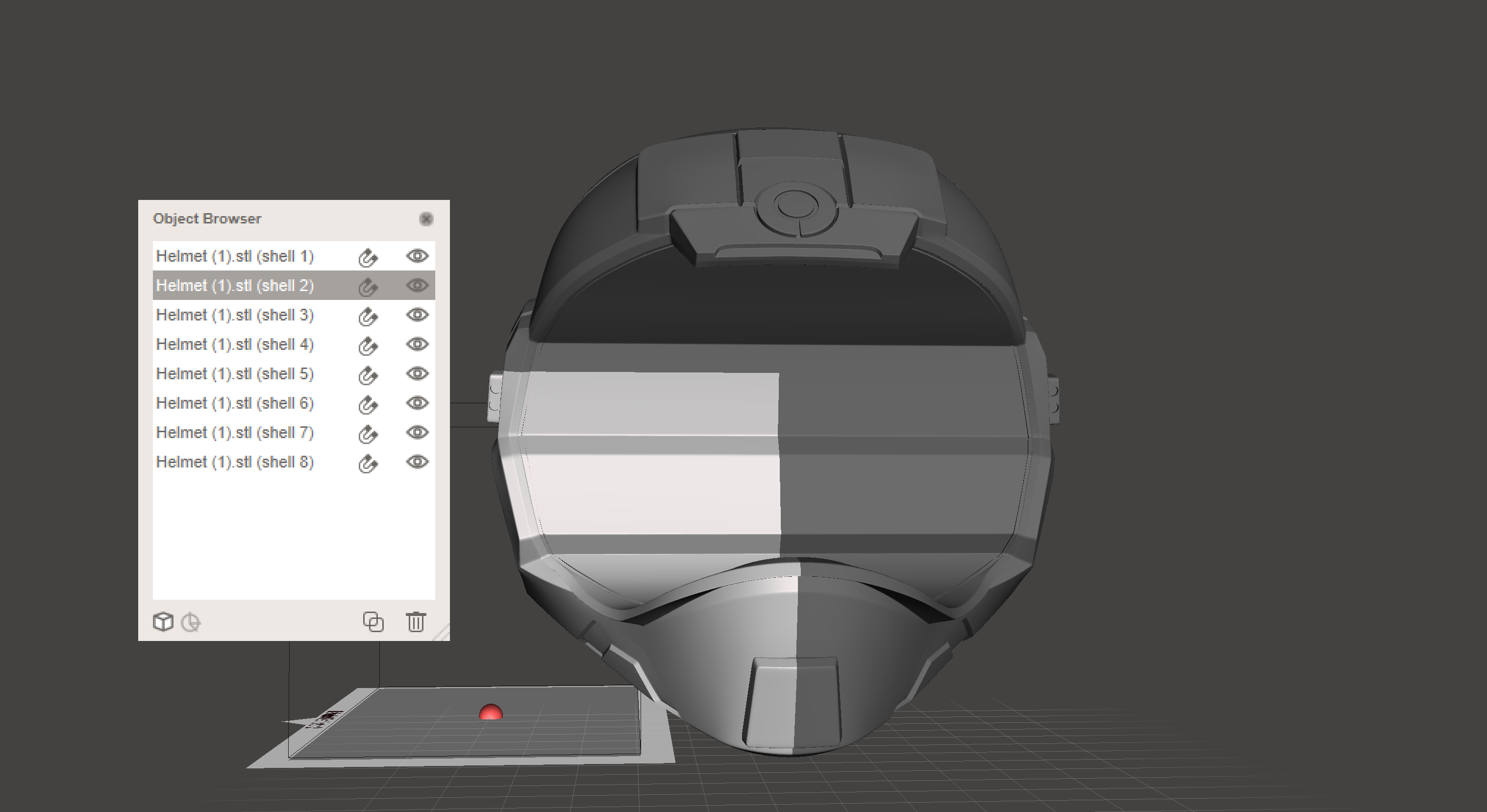

Quick update to let you guys know where ive been on the making of Felipe06 security helmet, turns out, it has really wanky proportions, so even if it was plenty wide enough, the rounded part of the topof the helmet is totaly diffrent then most helmets shapes. so instead of 25.5cm we made it 7.78% bigger to put it at a total of 27cm wich is wider then my spartan Fred helmet at 26.5cm and Felipe's mark V at 25.5 or 26cm. so it makes this helmet the widest we've made, for the sole reason to fit a regular hed in it, so hopefully, this one will be a Felipe friendly helmet!


TurboCharizard

Division PR, RMO and BCO
Division Staff
405th Regiment Officer
Community Staff
Quick update to let you guys know where ive been on the making of Felipe06 security helmet, turns out, it has really wanky proportions, so even if it was plenty wide enough, the rounded part of the topof the helmet is totaly diffrent then most helmets shapes. so instead of 25.5cm we made it 7.78% bigger to put it at a total of 27cm wich is wider then my spartan Fred helmet at 26.5cm and Felipe's mark V at 25.5 or 26cm. so it makes this helmet the widest we've made, for the sole reason to fit a regular hed in it, so hopefully, this one will be a Felipe friendly helmet!

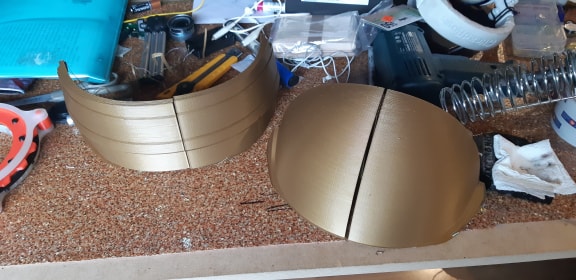

View attachment 282373
If this doesn't work it's time to start sanding down Felipe06


Zachary

Member

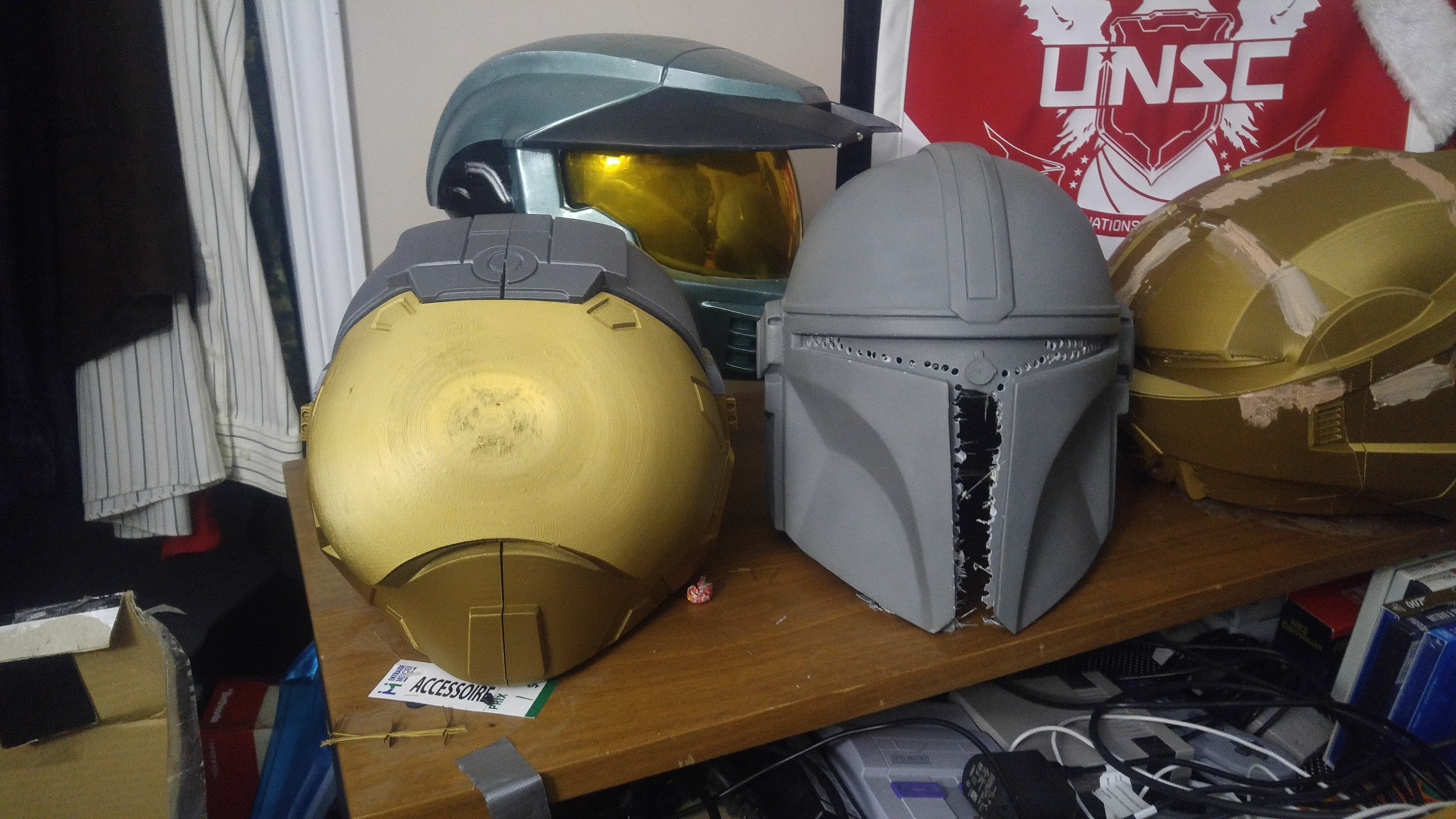

pretty sure it wasn't going to fit most people without showing their chin xD
View attachment 282387
Heretic, this is not the way of this group...
Jk XD, but i can only agree, the back is really low in profile compared to fred's or chief's helmet, so it needs to be re printed! and while im here, the 3rd group of peices are 50% printed so by tomorow morning, 3/4 of it will be printed!


Zachary

Member

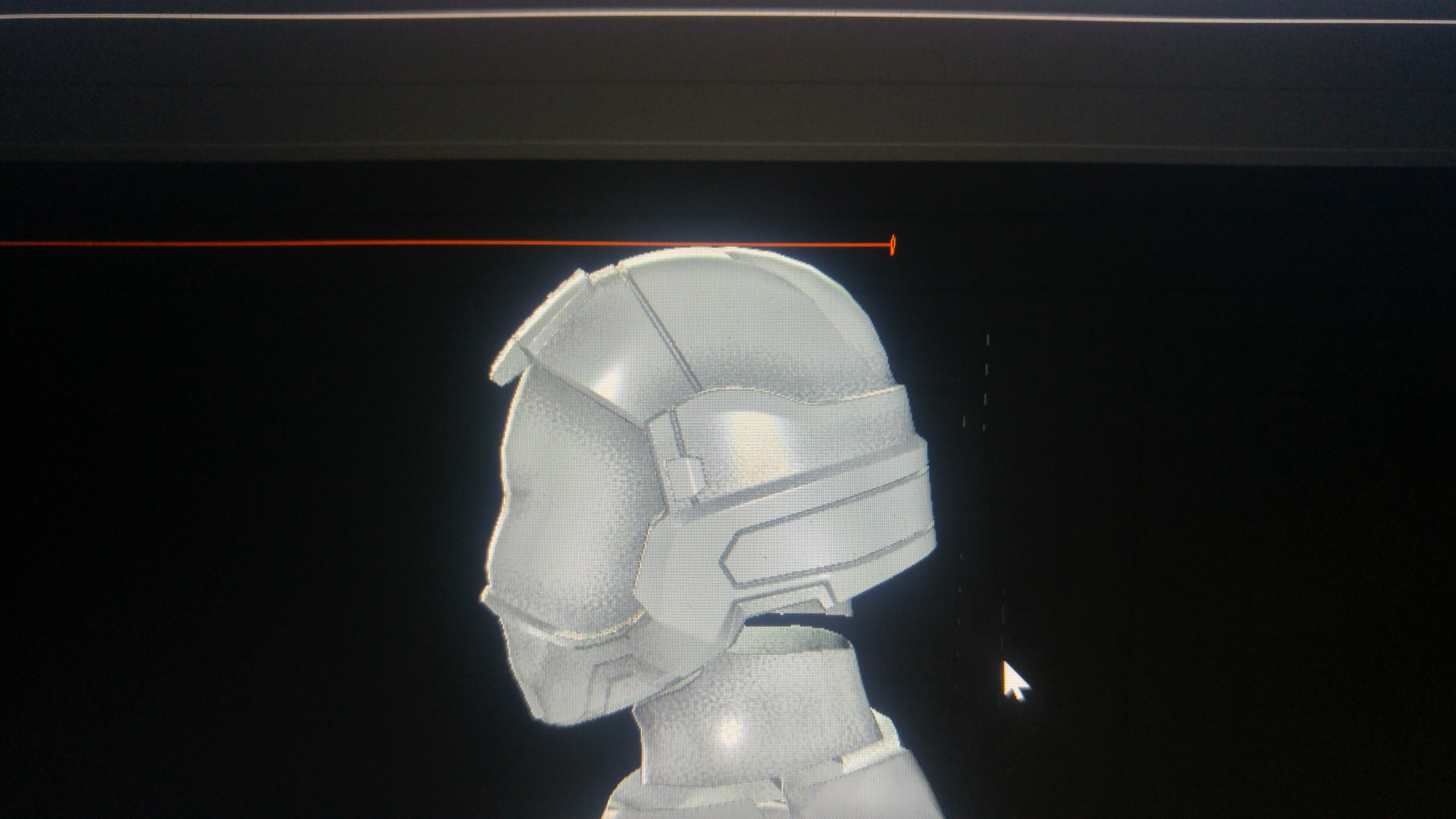

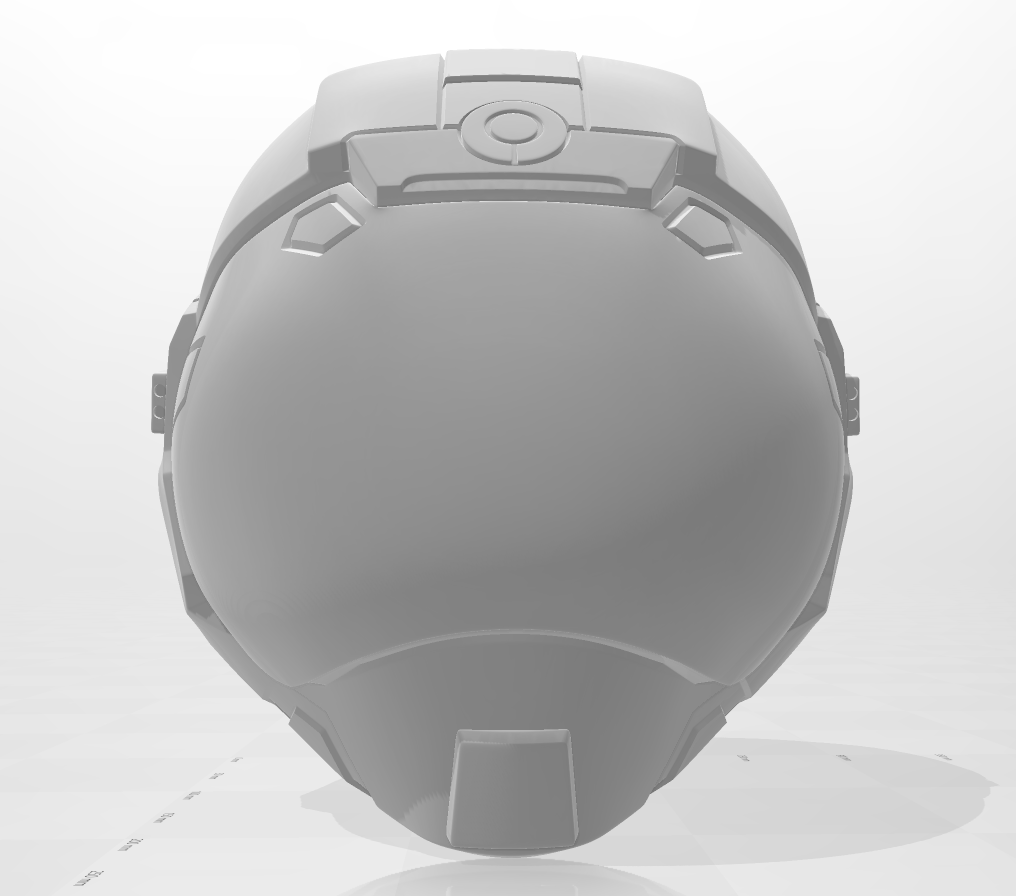

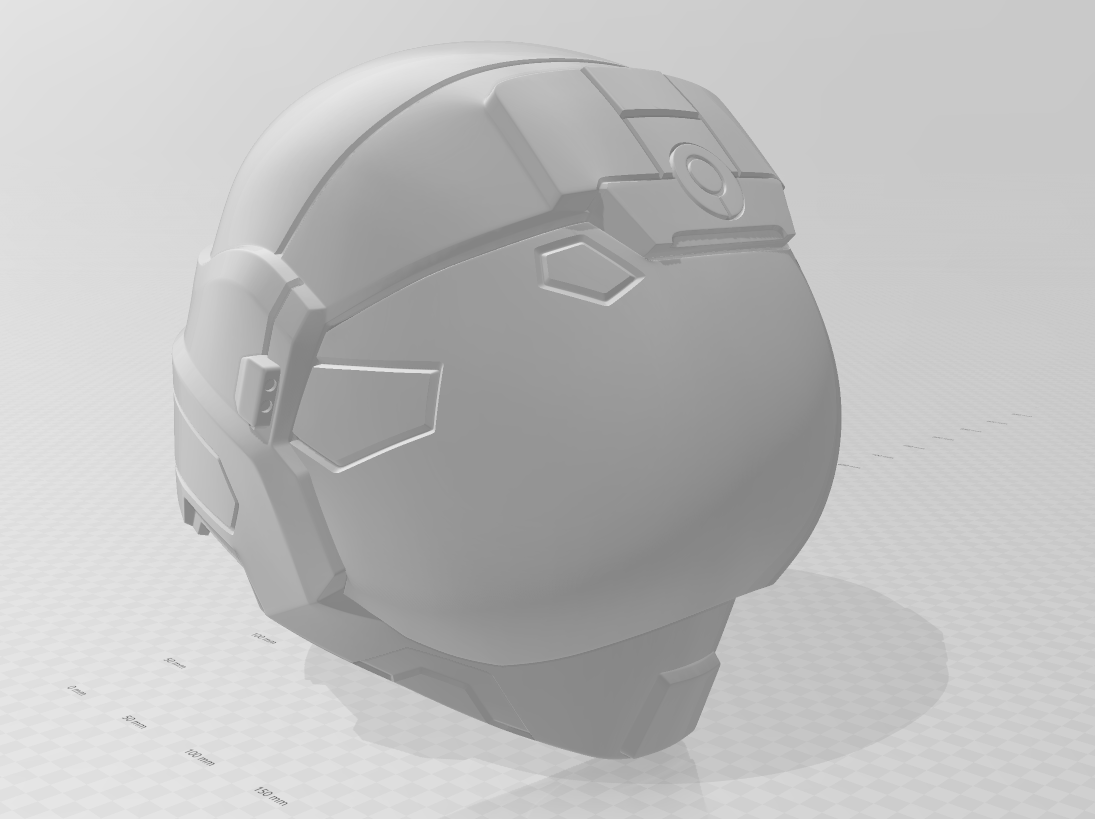

Assuming the head model in armorsmith is properly proportioned, Security V2 looks promising:
View attachment 282410

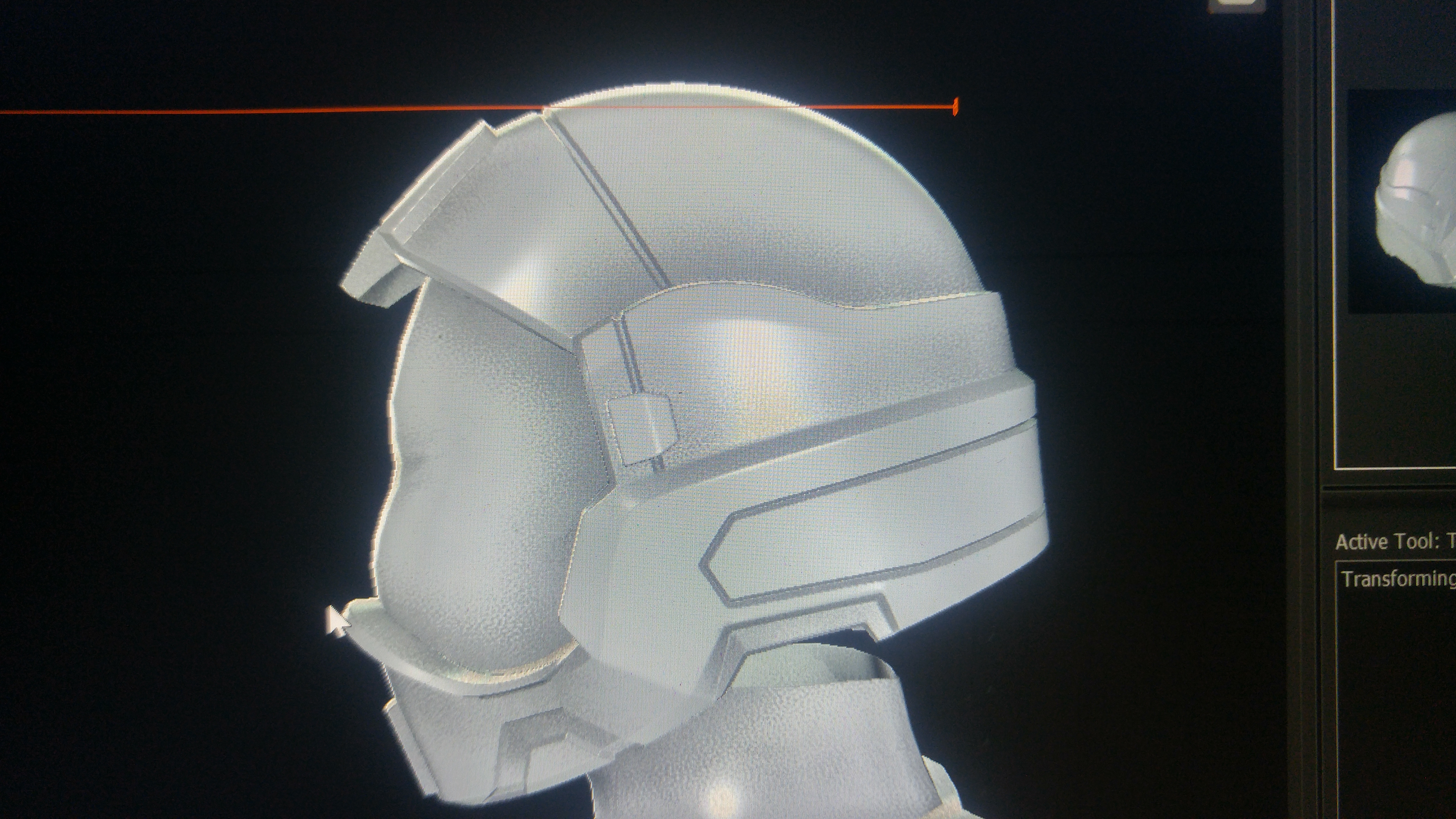

V1

View attachment 282411
V2
No need armorsmith, if you could see it in real life you'll know that it's better! stille this helmet is practicly a sphere and not longer on one axie like the others, but it will fit, it's big enough now! (i will add images to this post in an edit soon)
