how do people print a chest piece?

The Causes 101

New Member
I've messed around cutting up my Spartan Chest armor because its huge and can't find a simple way to print the parts without having a bunch of small pieces then glueing them. I do have a Cr-10 so my print bed isn't to small, but I'm having trouble finding a good cut pattern.

please inform me on how Ya'll do it or how i could do it.

Thanks -Causes


Emp Frosty

Active Member

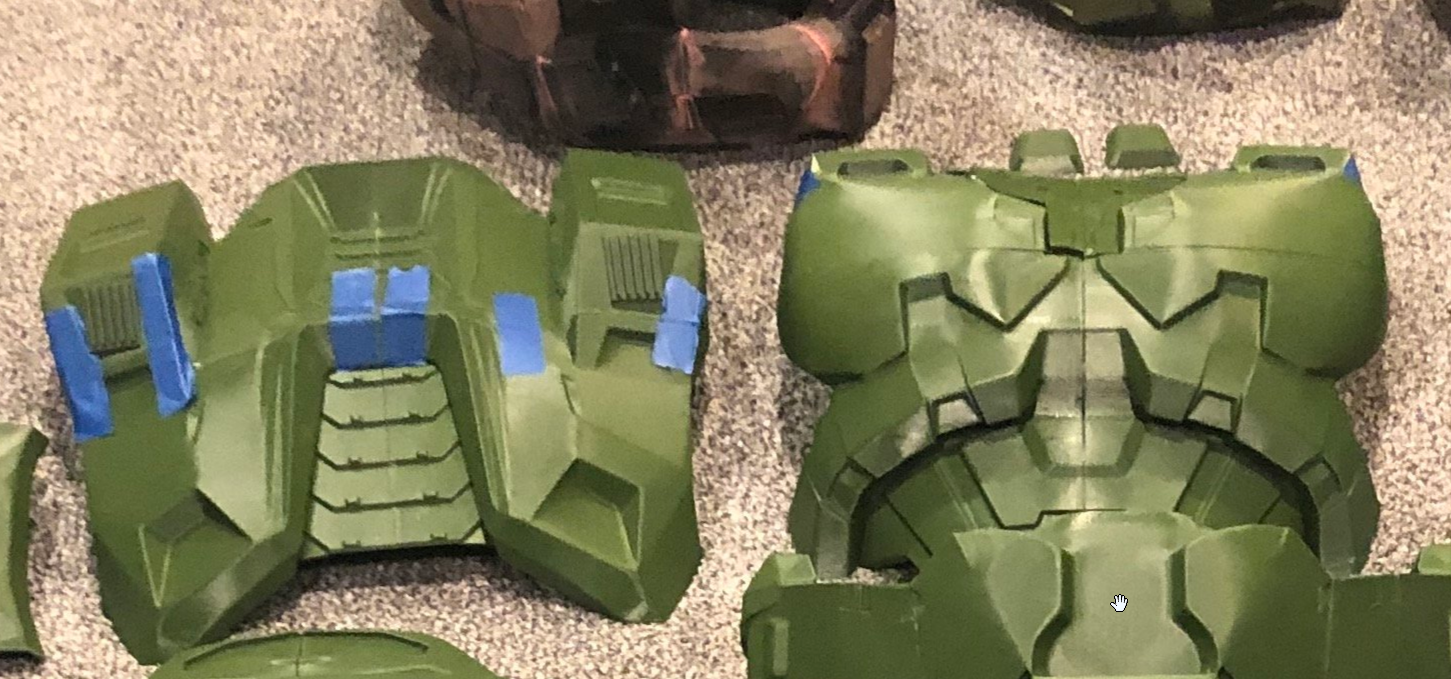

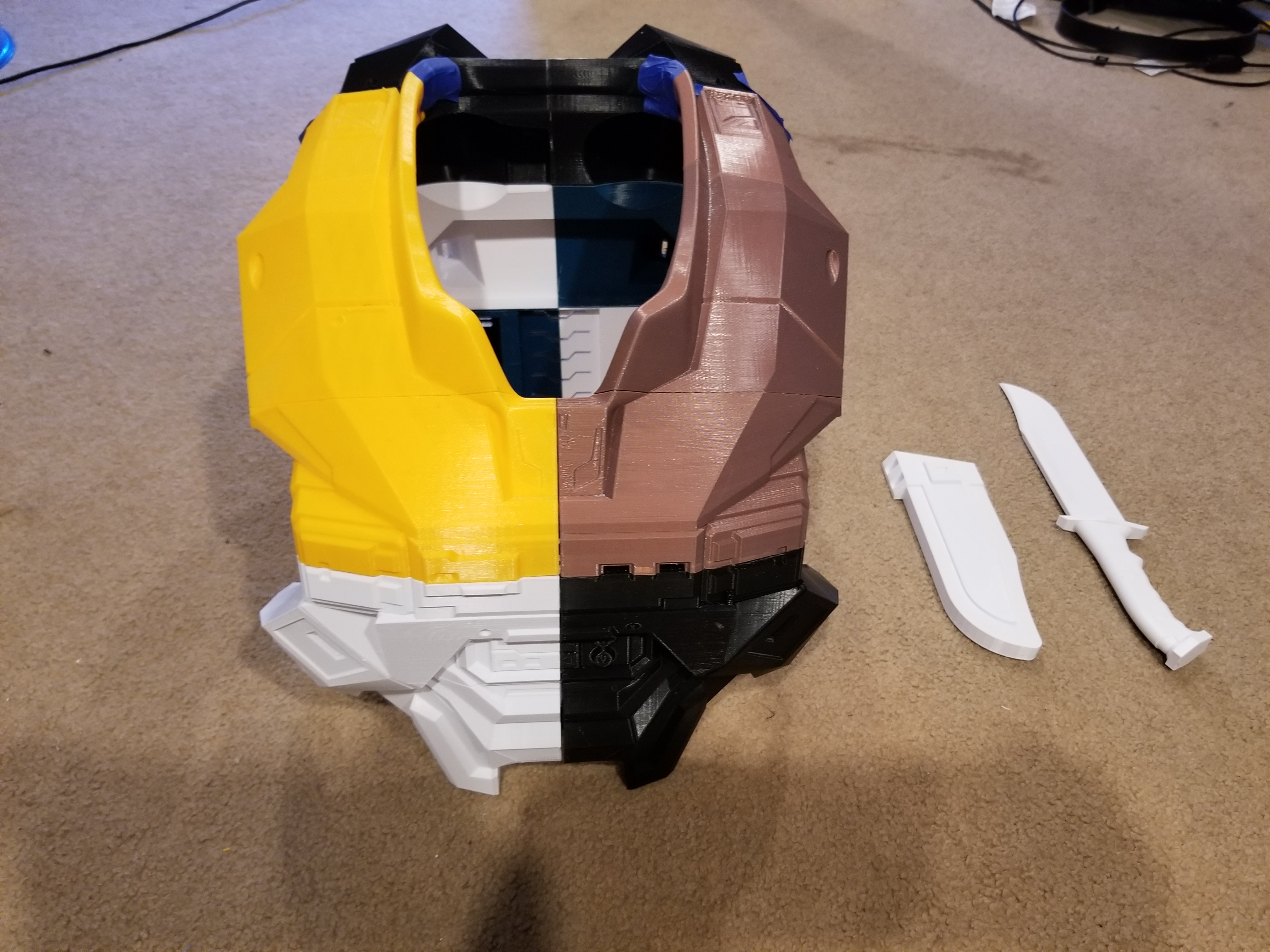

Here is a picture of when I first put my chest plate together. You can see that I split it into about 8-10 sections to print on my ender 5 plus. Basically just split it into sections that make sense and are easy orientations to print.


Mine was glued together with plastic cement. I also reinforced the inside of my chest with fiberglass.
would you recommend plastic cement for PETG prints as well, and how does one reinforce it with fiber glass? sorry for the questions I'm extremely new to the 3d printing game, used foam in the past.


MrJamin

RXO
405th Regiment Officer
would you recommend plastic cement for PETG prints as well, and how does one reinforce it with fiber glass? sorry for the questions I'm extremely new to the 3d printing game, used foam in the past.
I can't say I've tried the plastic cement for PETG prints (only PLA). However, I do think that it should work for them.

Reinforcing with fiberglass is a bit of a messy process. I've used Bondo Fiberglass Resin + sheets of fiberglass I got from the store. My approach has been get everything prepared (including PPE since this stuff is pretty nasty), Mix up the resin, put down a thin layer of resin with chip brush, lay small sheets of fiberglass down into the sticky resin, use the chip brush and more resin to get all the pieces stuck down

Images of it done on my suit starting here - Link

You can also see it done in my other helmet - Link


KernelArthritis

New Member
I also split my chest into multiple pieces. I cut it up into two halves front and back then cut each of those into 4 pieces.

I used CA glue to join mine together. It holds together nicely but if you want it to be more solid I would reinforce it so it wont break if you drop it.

Chest Half.jpg

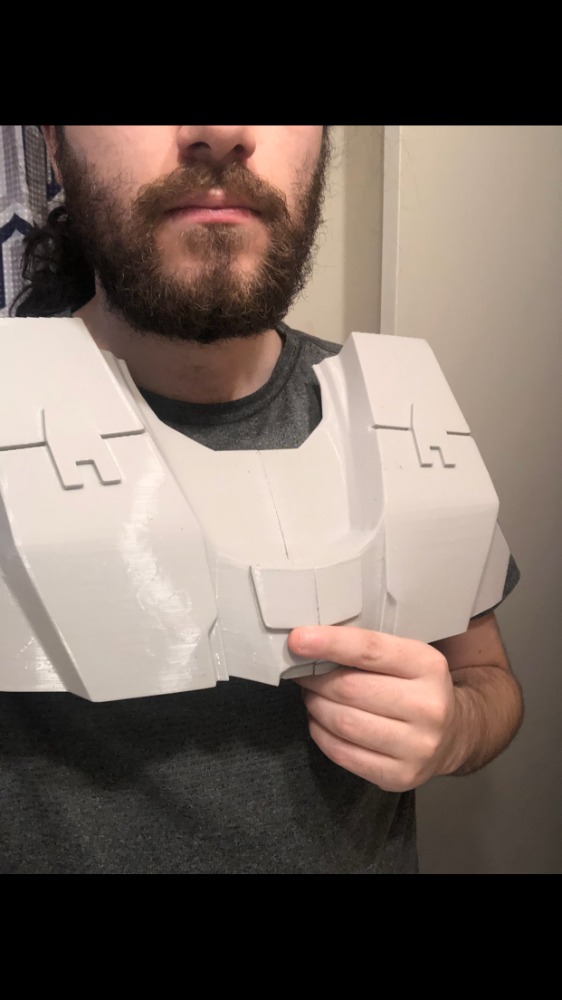

First two pieces of the chest plate


chest full.jpg

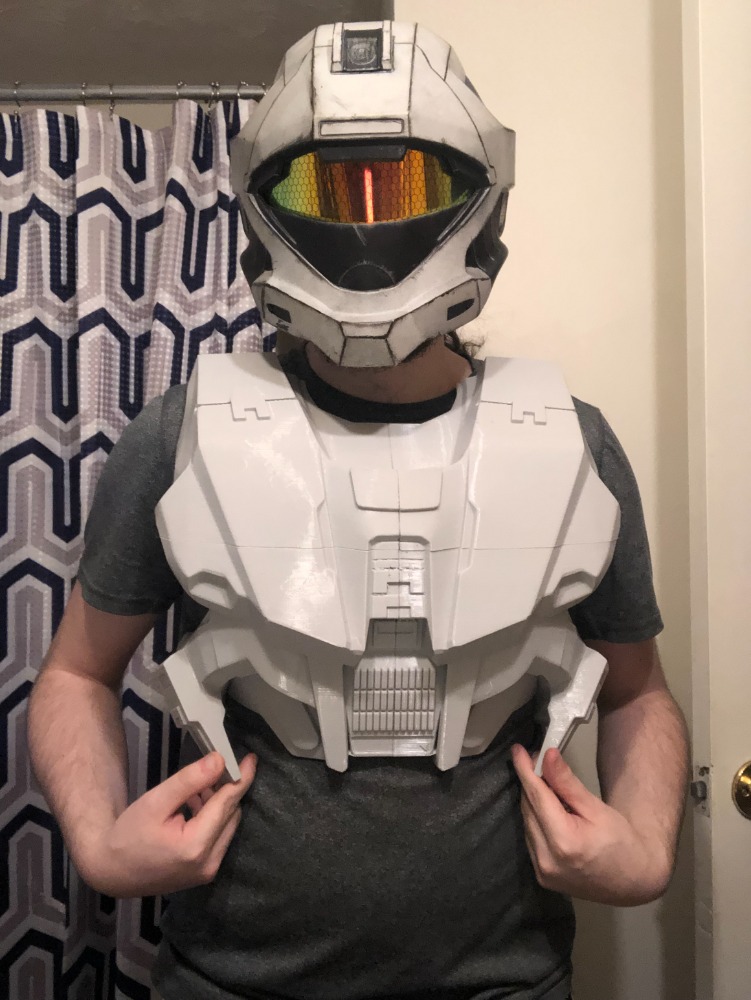

Full chest plate after being glued together

I can't say I've tried the plastic cement for PETG prints (only PLA). However, I do think that it should work for them.

Reinforcing with fiberglass is a bit of a messy process. I've used Bondo Fiberglass Resin + sheets of fiberglass I got from the store. My approach has been get everything prepared (including PPE since this stuff is pretty nasty), Mix up the resin, put down a thin layer of resin with chip brush, lay small sheets of fiberglass down into the sticky resin, use the chip brush and more resin to get all the pieces stuck down

Images of it done on my suit starting here - Link

You can also see it done in my other helmet - Link
Thanks! i will try this.
