Mismatched corresponding numbers


Dynamic1

New Member

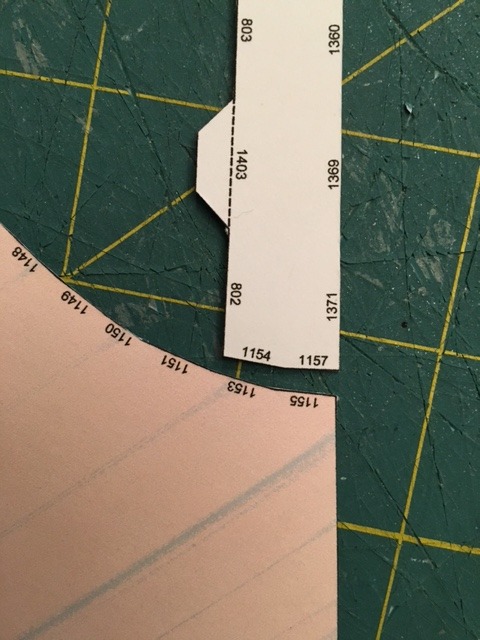

Hey guys, Not sure if and where this has been discussed...I am currently building the MK VI and have noticed that several numbers don't correspond correctly with their counterpart. For example, when I click the brim of the lid (right side), the first corresponding "finger" piece that runs along the center line should be "1155" and "1153" according to the right brim section however, the "finger" section reads "1154" and "1155"? Also, this particular piece fails to have the tabs in order to glue to the center line as shouldn't they be located at points "1371", "1369" etc etc...? Please help.....
B



Attachments

  • Pep%20issue.jpg
    88 KB · Views: 51

FlyinPhil

Well-Known Member
Is there any possibility you simply don't have the correct pieces there to go together? As stupid as that may sound, it could very well be the issue!


Dynamic1

New Member
Is there any possibility you simply don't have the correct pieces there to go together? As stupid as that may sound, it could very well be the issue!

Hey buddy...thanks for the reply...Anything is possible at this point LOL!...Although when I click the screen image on that particular part, it does highlight the piece in the photo.Thoughts?


Dynamic1

New Member

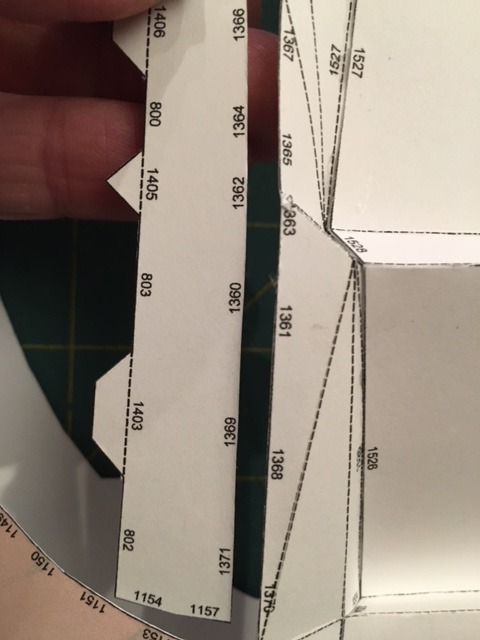

Here is another image...Whats odd is the numbers on the left of the finger..."802", "1403" etc... all correspond to the adjacent piece but the portion that connects to the brim doesn't match? What should I do for the missing tabs? Im so confused...This is the "LD Cameo" version



Attachments

  • Pep%20issue2.jpg
    60.1 KB · Views: 56

Dynamic1

New Member
Thanks for your reply...I feel like I'm going nuts lol...and this isn't even my first pep lol! Ok let me confirm....


Sent from my iPhone using Tapatalk


Chernobyl

Sr Member
I believe you're missing a thin connecting strip that'll link those pieces together.

I hope you don't mind thin, tricky pieces that'll test your patience.


Dynamic1

New Member
Hmmm...this is in fact the correct piece...the corresponding numbers seem to be 1 digit off...1360 matches to 1361 instead 1360....also, the missing tabs to connect to the adjacent part....


Sent from my iPhone using Tapatalk


m073

Jr Member
You will find the missing piece somewhere in your parts, or just look in pepakura where it should be and how it should look :)

I always had my laptop beside me to look how the part looks i search, when you have the whole table full of parts... not so easy :D


Chernobyl

Sr Member
Hmmm...this is in fact the correct piece...the corresponding numbers seem to be 1 digit off...1360 matches to 1361 instead 1360....also, the missing tabs to connect to the adjacent part....

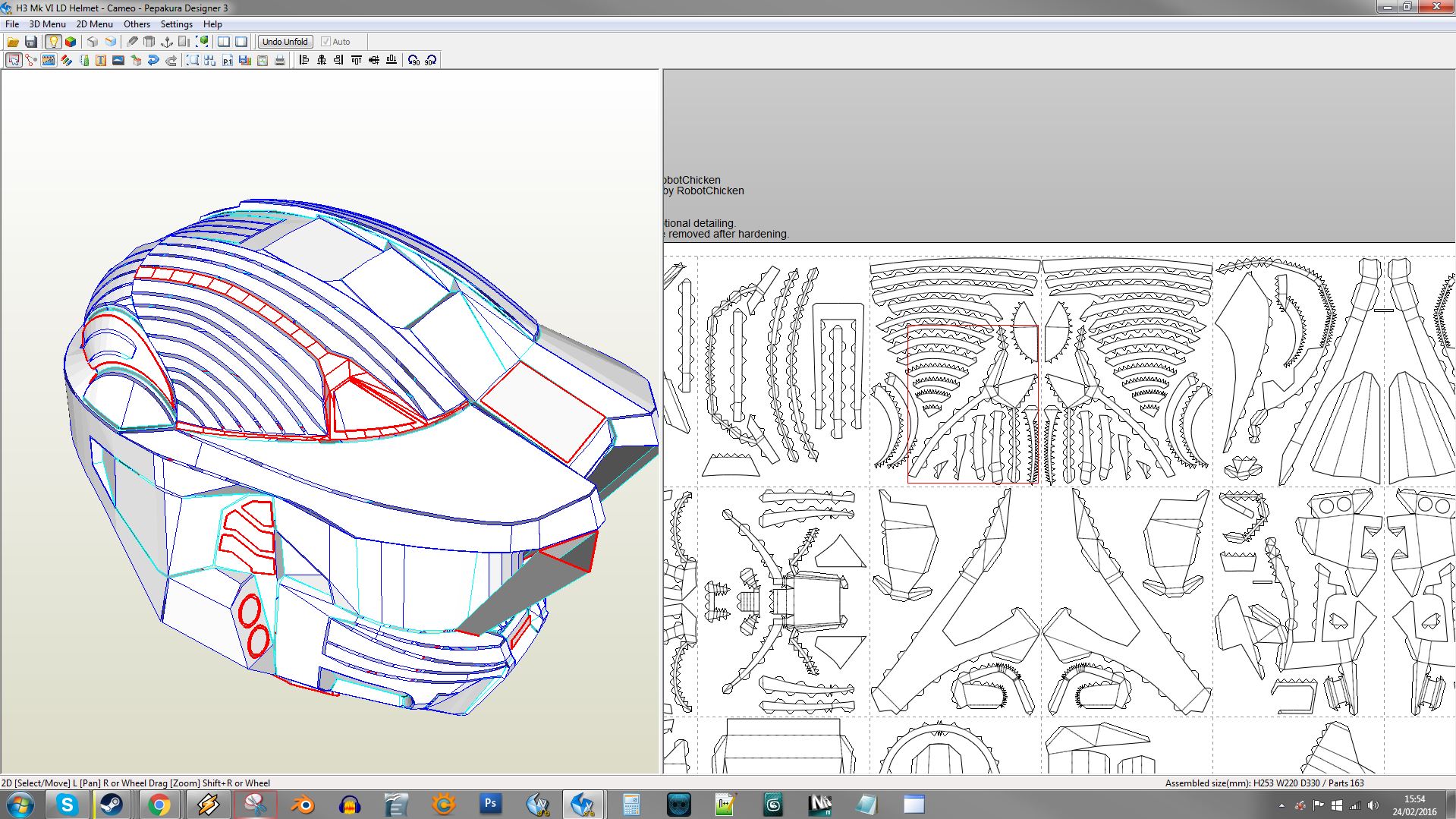

Which file exactly are you using? I can check things out for you.


Dynamic1

New Member
Oh man that would be so great!!! Let me confirm...it's the Halo MK VI LD cameo...let me see who's it is...


Sent from my iPhone using Tapatalk


Dynamic1

New Member
Oh man!!!Was I going nuts or were the numbers off? I've built an Ironman MK VI and never experienced this.....


Sent from my iPhone using Tapatalk


Chernobyl

Sr Member
The numbers aren't off - they're just too small for you to see. It's always worth having the file on hand to check the pieces.


PerniciousDuke

RCO & BCO
405th Regiment Officer
Member DIN
S128
It's always worth having the file on hand to check the pieces.

Agreed.

I was convinced once that it had printed the wrong numbers for me. Turned out I had absent mindedly glued the wrong piece earlier so when I got to the mirrored part the numbers didn't match. Looking back through what I had glued I was able to see where I went wrong.


Dynamic1

New Member
Lol yes guys! Thanks so much....normally what i do is print as I go as I have a 2 year old that loves to take paper...that being said i am going to print all files so I can cross reference in hand as opposed to just digitally...at least I wasn't ok far in lol!


Sent from my iPhone using Tapatalk


Dynamic1

New Member
Also the numbers there at the joining points are jumbled as you can't make them out....without your help I would've never found this....any thoughts or is it just to small to get the numbers clear?


Sent from my iPhone using Tapatalk
