MK V 3D printed helmet


ptrinidad

New Member

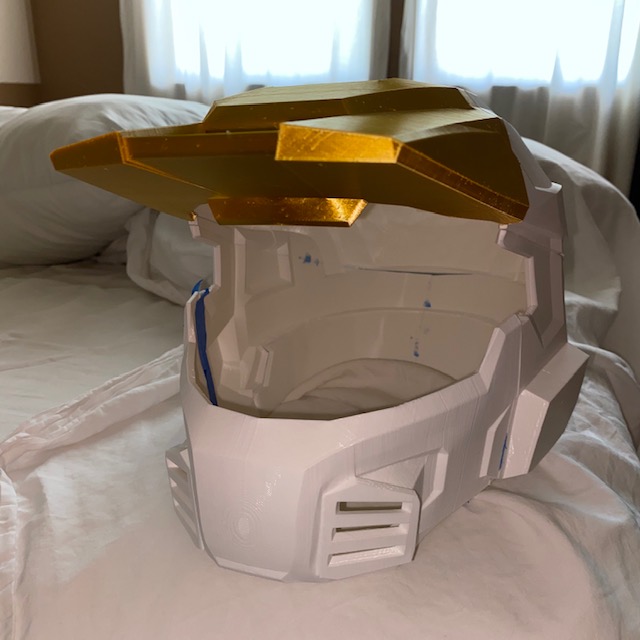

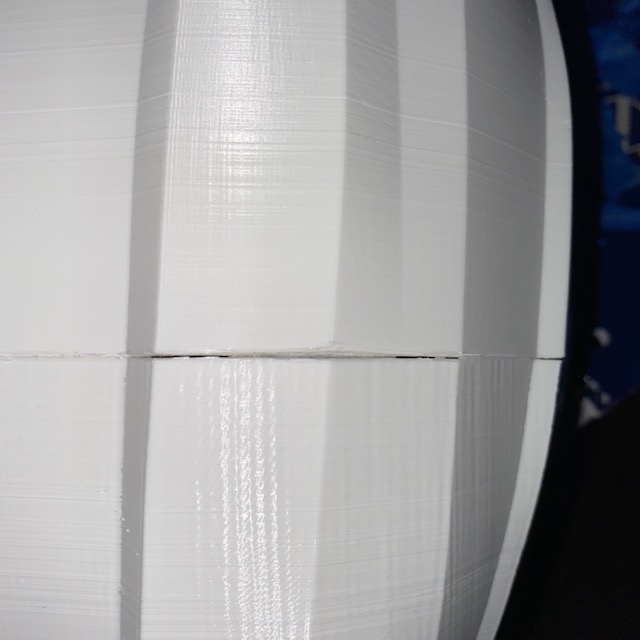

I had resized the MoeSizzlac model I had found on thingiverse and resized it to my head. I Gorilla glued all the parts together and I need suggestions on how to fill the seams and holes. Thank You!


Attachments

  • IMG_7895.jpg
    49.2 KB · Views: 33
  • IMG_7896.jpg
    67.4 KB · Views: 31

Supre_

Member
I had resized the MoeSizzlac model I had found on thingiverse and resized it to my head. I Gorilla glued all the parts together and I need suggestions on how to fill the seams and holes. Thank You!

If you are in the US or know a place who sells it you can use a car body filler called Bondo. Some versions you need to mix the stuff but others can come pre-mixed. Some people also use wooder filler and plasterboard filler. I used a mix of super glue, wood filler and body filler for my helmets. All have there own advantages. To help with really big gaps or small missing bits you can mix baby powder in with the superglue


tahu505

Member
I had resized the MoeSizzlac model I had found on thingiverse and resized it to my head. I Gorilla glued all the parts together and I need suggestions on how to fill the seams and holes. Thank You!
Primer/filler spray paint is pretty useful. personal I use a combo of primer/filler and Bondo. I've also heard mixed responses to XTC-3D, which is a printable coating for 3d prints that can then be sanded once it hardens, but it's also a bit expensive.


DefineLuck

Active Member

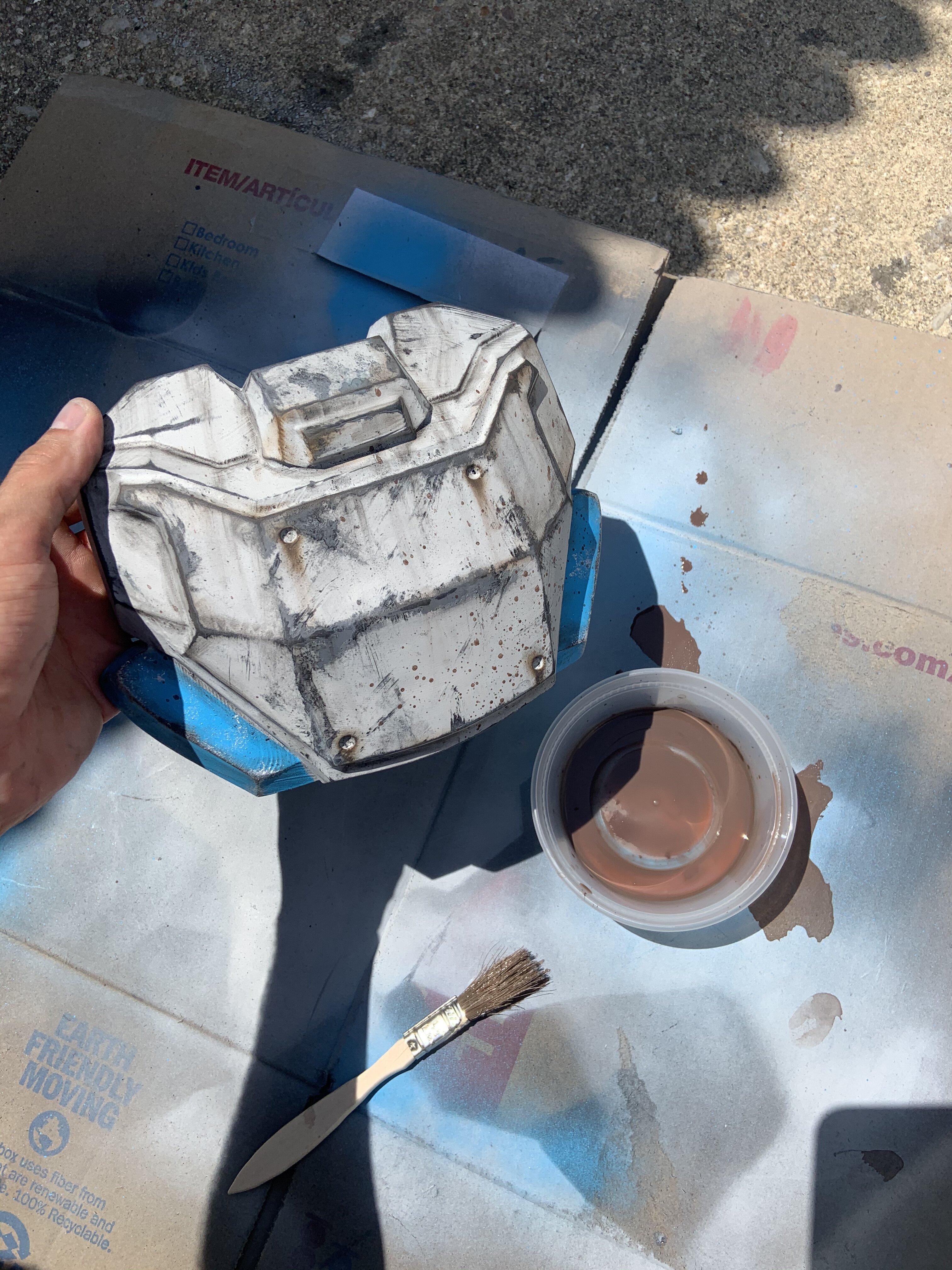

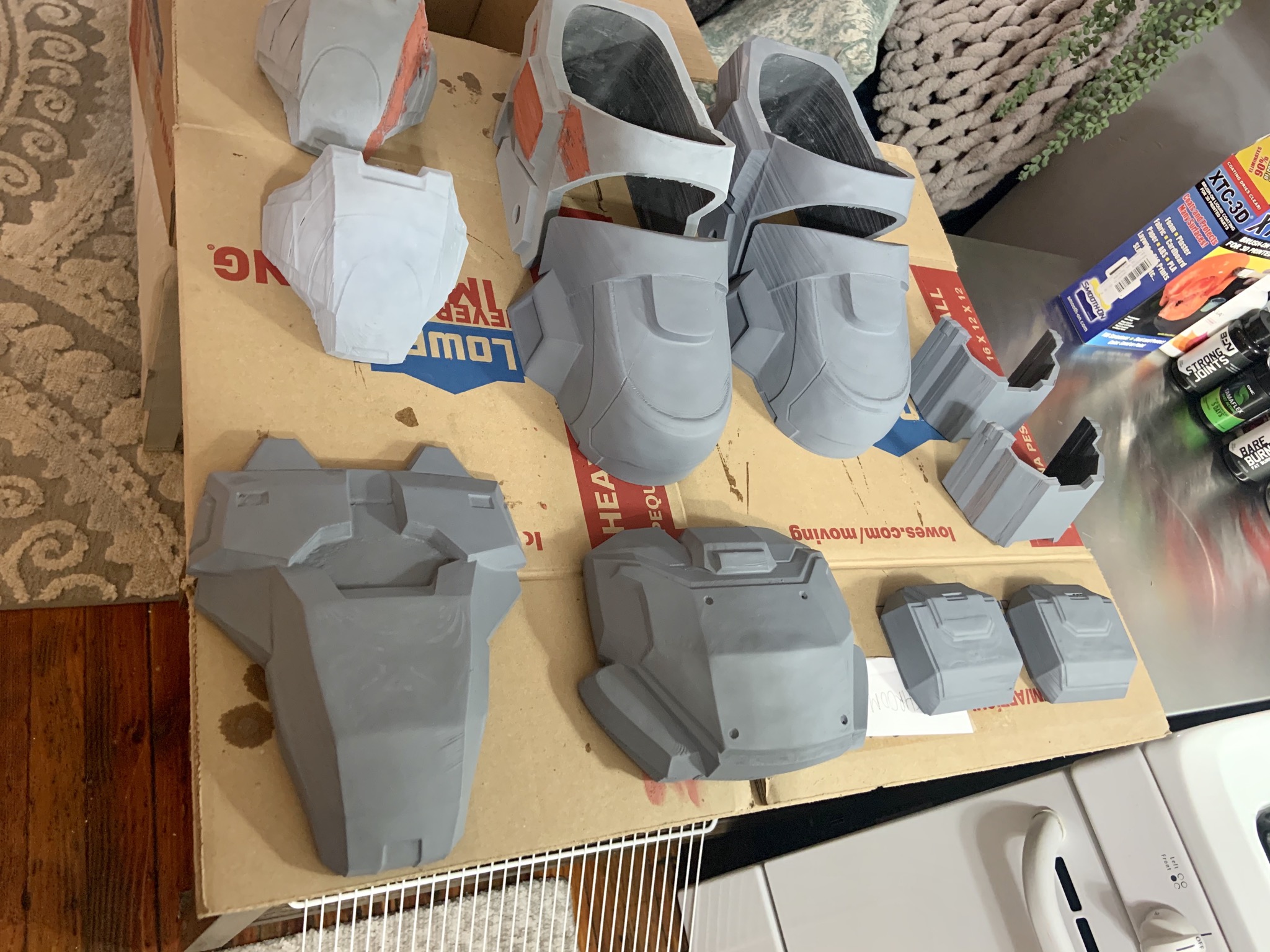

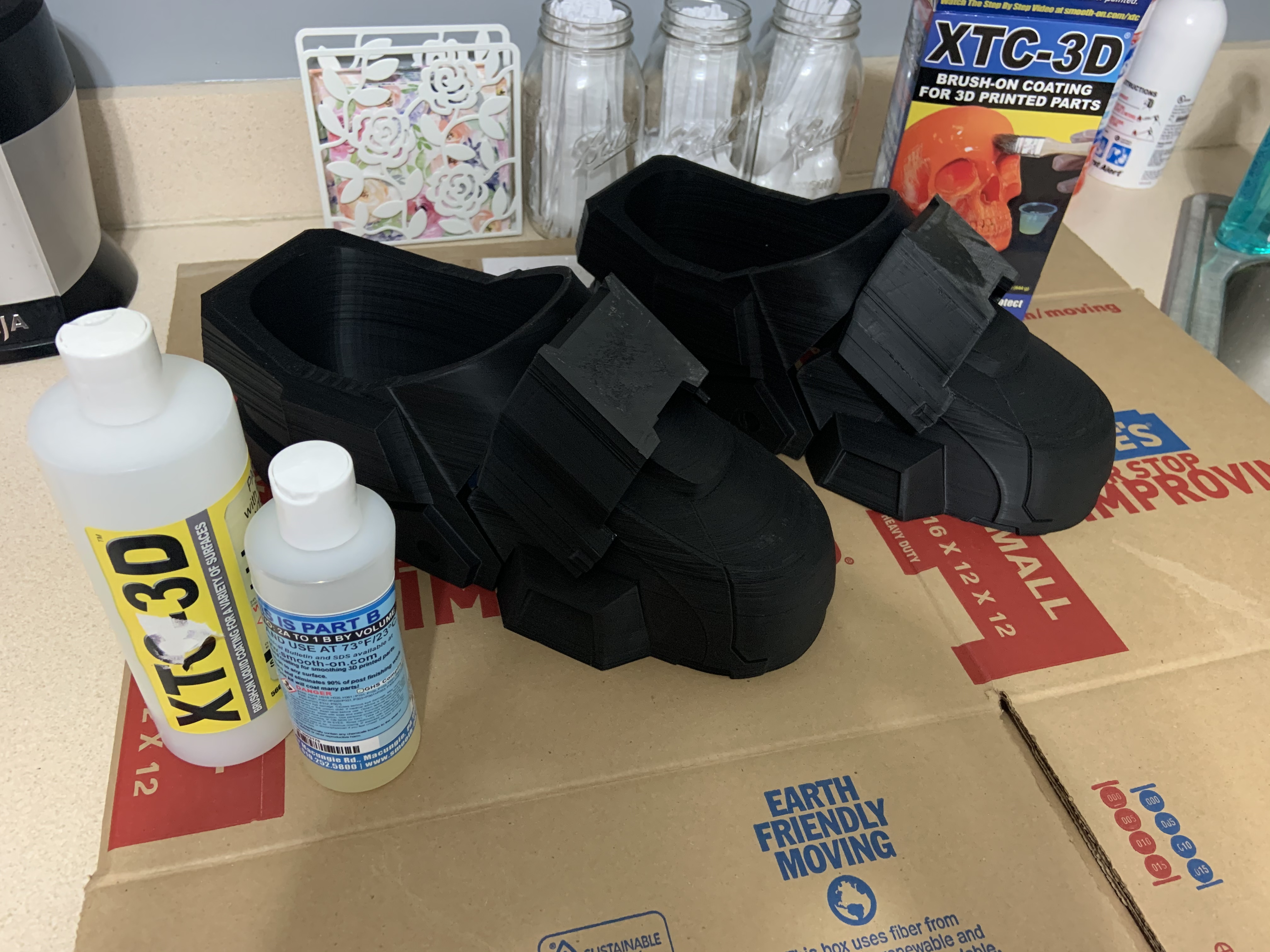

What I do is coat the entire inside/backside of my 3D print in Resin. I use smooth cast 65D. Then I coat my entire piece in XTC-3D. After a layer or two I prime it with filler primer and this removes the bulk of my print lines. I may do a small layer of bondo for larger gaps or seams.


Attachments

  • C3EC405B-52C5-4EFE-A638-F1802EC57E89.jpeg
    335.3 KB · Views: 22
  • 700FE365-5613-4758-BCCD-FC5185ED51A0.jpeg
    2.4 MB · Views: 25
  • 833F5938-4E4D-4F4C-AF3D-6E2A878A5A66.jpeg
    2.8 MB · Views: 23
  • 6F2EDE77-BC7B-494E-BBCC-CD77EA08228A.jpeg
    634 KB · Views: 23
  • 82D6A79C-C12C-4281-92AE-D250982EC88B.jpeg
    2.6 MB · Views: 22
  • 391EB990-942A-452E-808E-8207AD28D1C3.jpeg
    2 MB · Views: 23
