Modeling the M427H (Jorge version)

[PapaBear271]

I tought I'd throw this in here. I'm currently modeling the M427H in Fusin 360. I going to do a vape smoke machine so the barrel and barrel shroud smokes. Just started so we'll see how long it takes. I'm building it around a 1/2" PVC pipe (21.3mm OD) barrel for strength. Once I'm done with the Jorge version, I'm going to go back and make the turret version as well. I'll add updates as I go.



[marinesniper]

I tought I'd throw this in here. I'm currently modeling the M427H in Fusin 360. I going to do a vape smoke machine so the barrel and barrel shroud smokes. Just started so we'll see how long it takes. I'm building it around a 1/2" PVC pipe (21.3mm OD) barrel for strength. Once I'm done with the Jorge version, I'm going to go back and make the turret version as well. I'll add updates as I go.

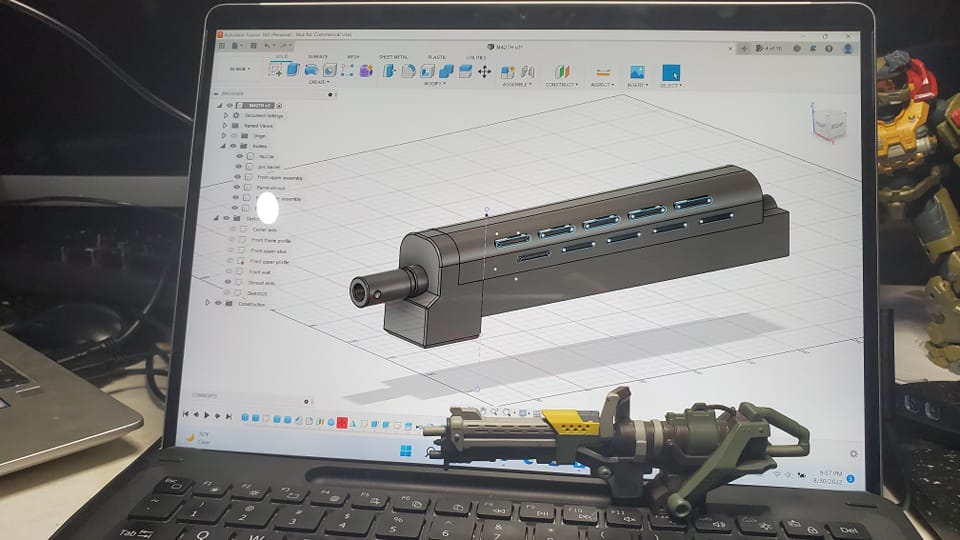

View attachment 322718

my god man i have been wanting to find one on the net to build for my son i am printing out georges armor. please let me know if you ever put the files up online some where i have some wicked ideas for it to but i never thought of the vape for the shroud. keep it up i can not wait to see this done..



[Emp Frosty]

I was gonna modify Moe's version and print it but I''ll wait to see how yours comes out first.



[PapaBear271]

So I have been working on this a lot but don't have much to show. I was so excited to tackle this project, that I started without a clear direction. I would work on one area here and then go back and work on previous area and hop-scotch all over the place. This is a bad idea when using Fusion360. BTW this is only my second project in Fusion so I'm learning as I go.
Now I am trying to tackle this in a systematic process and plan on how I am going to construct this and with what materials I want to use. All that said, I really had to start over on this project.

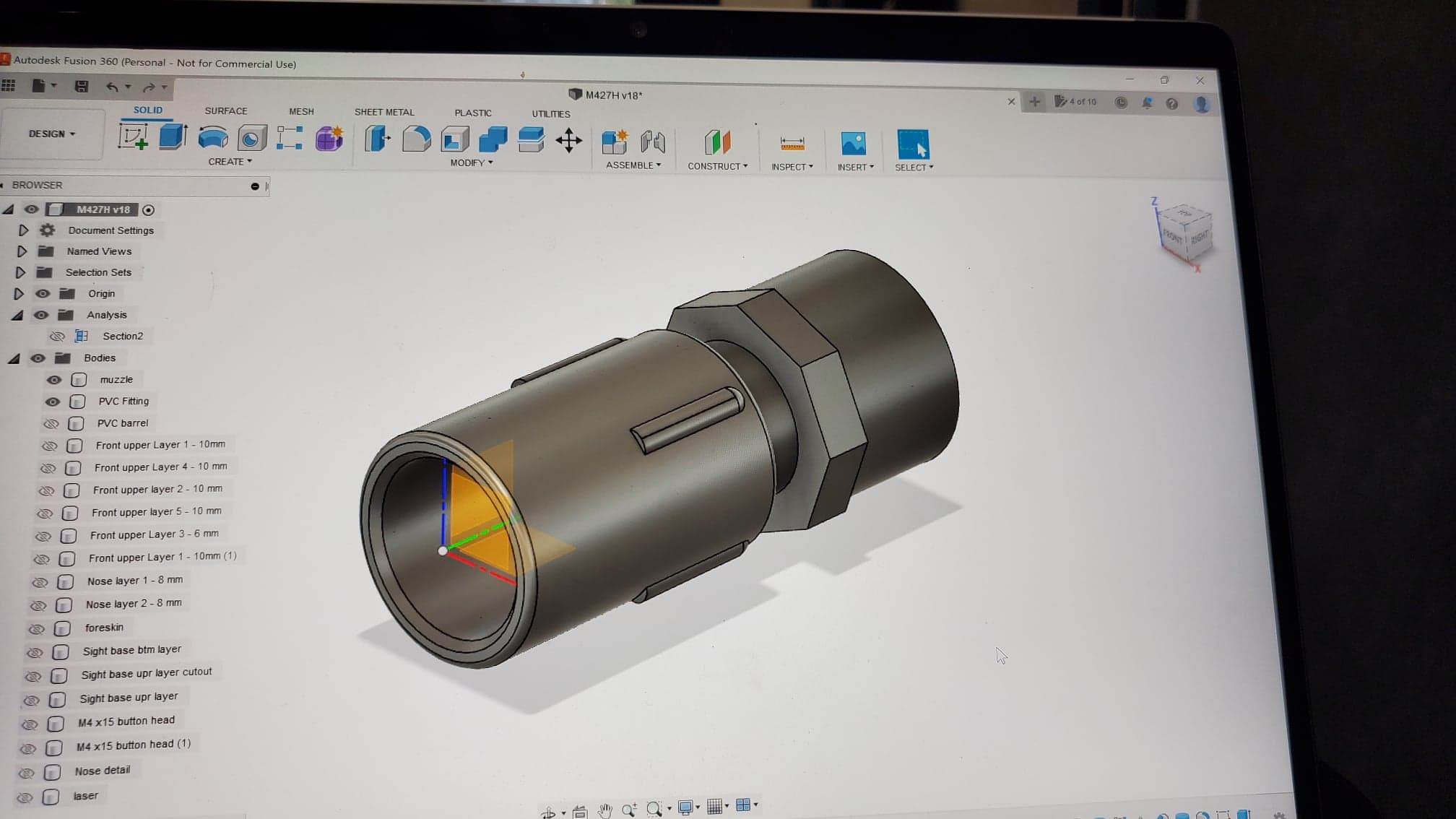

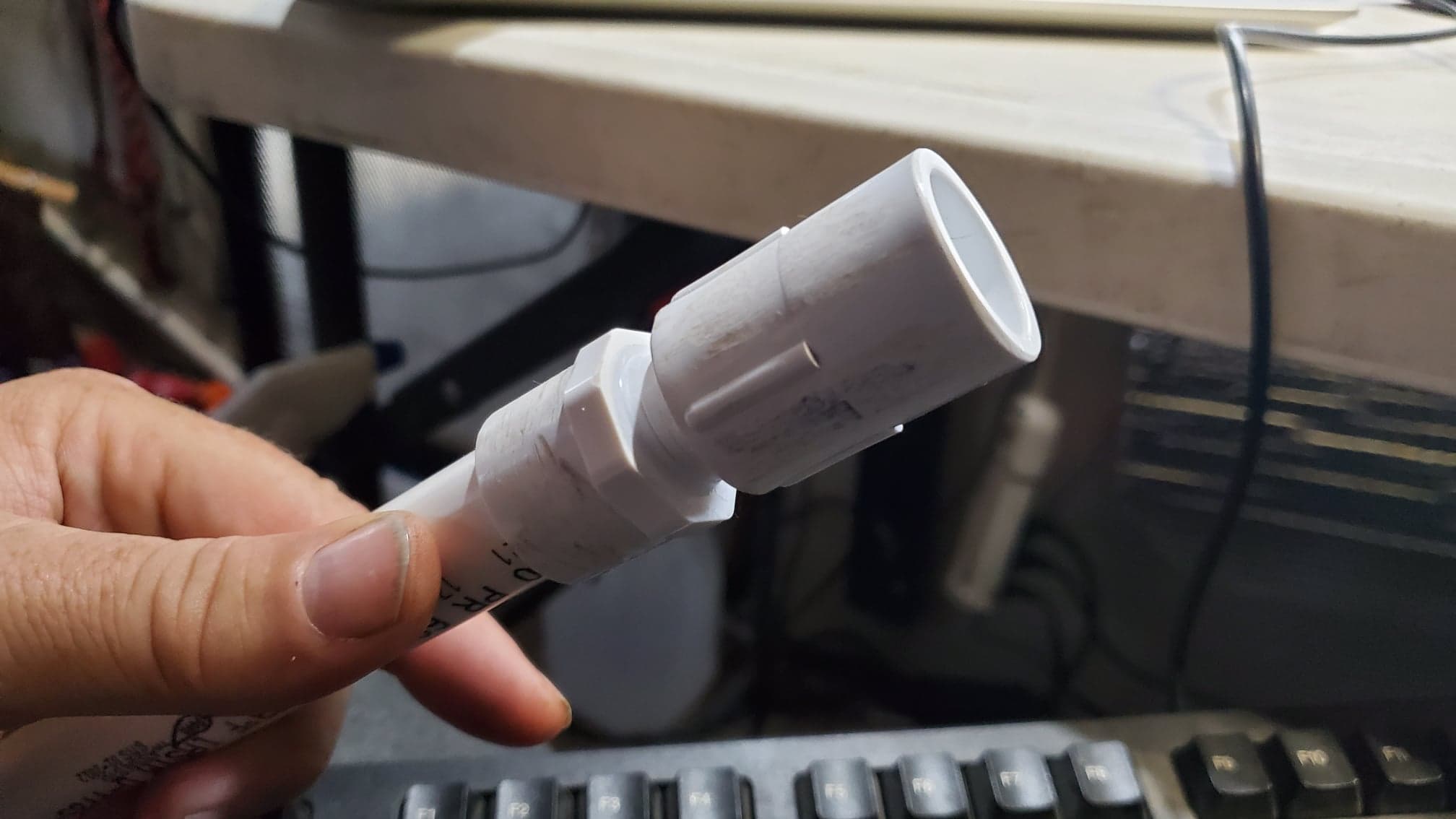

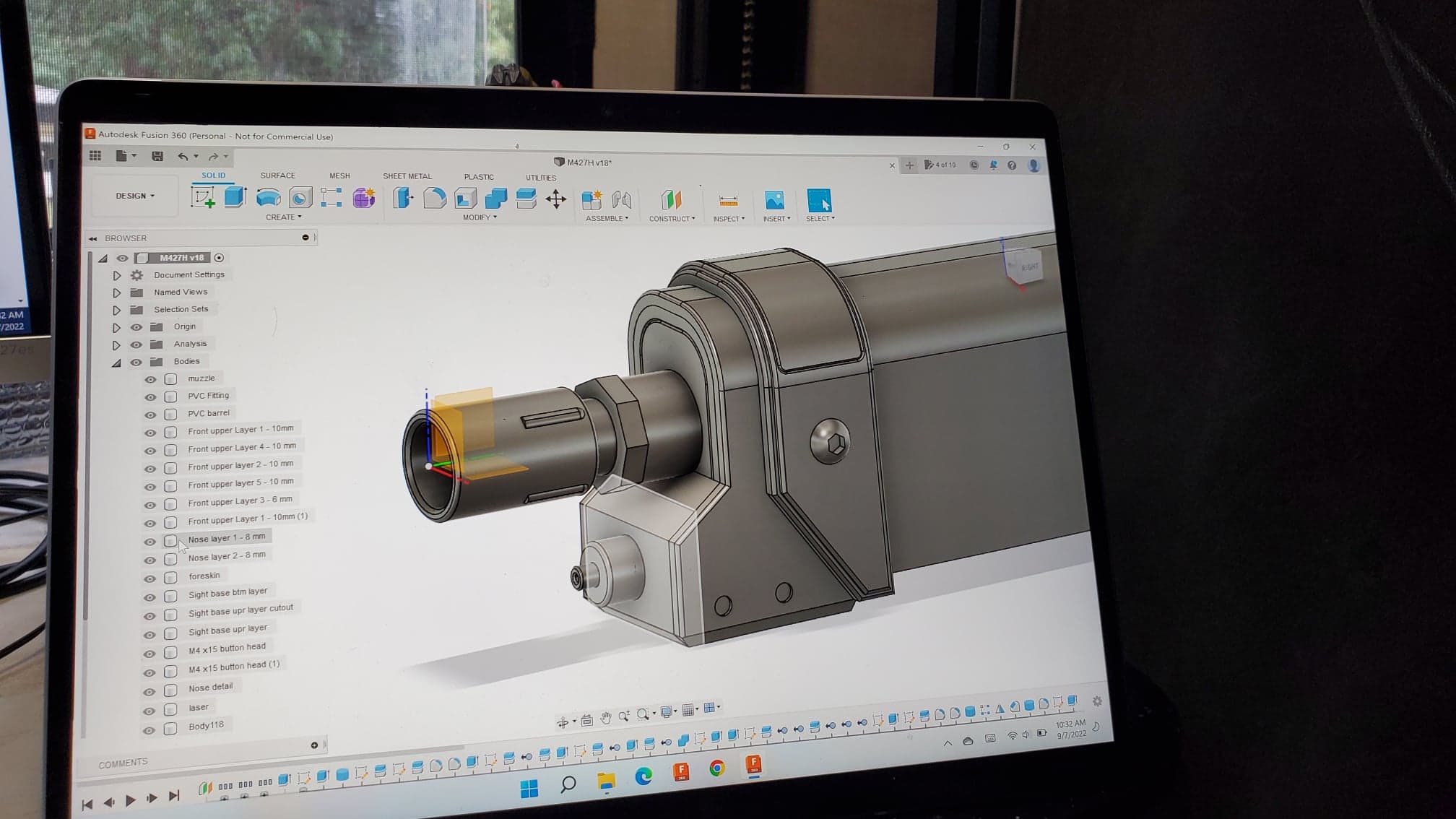

So Here's where I am today. I'm cheating a little bit and using a couple of PVC connectors for the muzzle. They are not screen accurate but they will not break if the muzzle gets dropped or hit in transport or walking around a con. I hope to have the barrel shroud done tomorrow.



[PapaBear271]

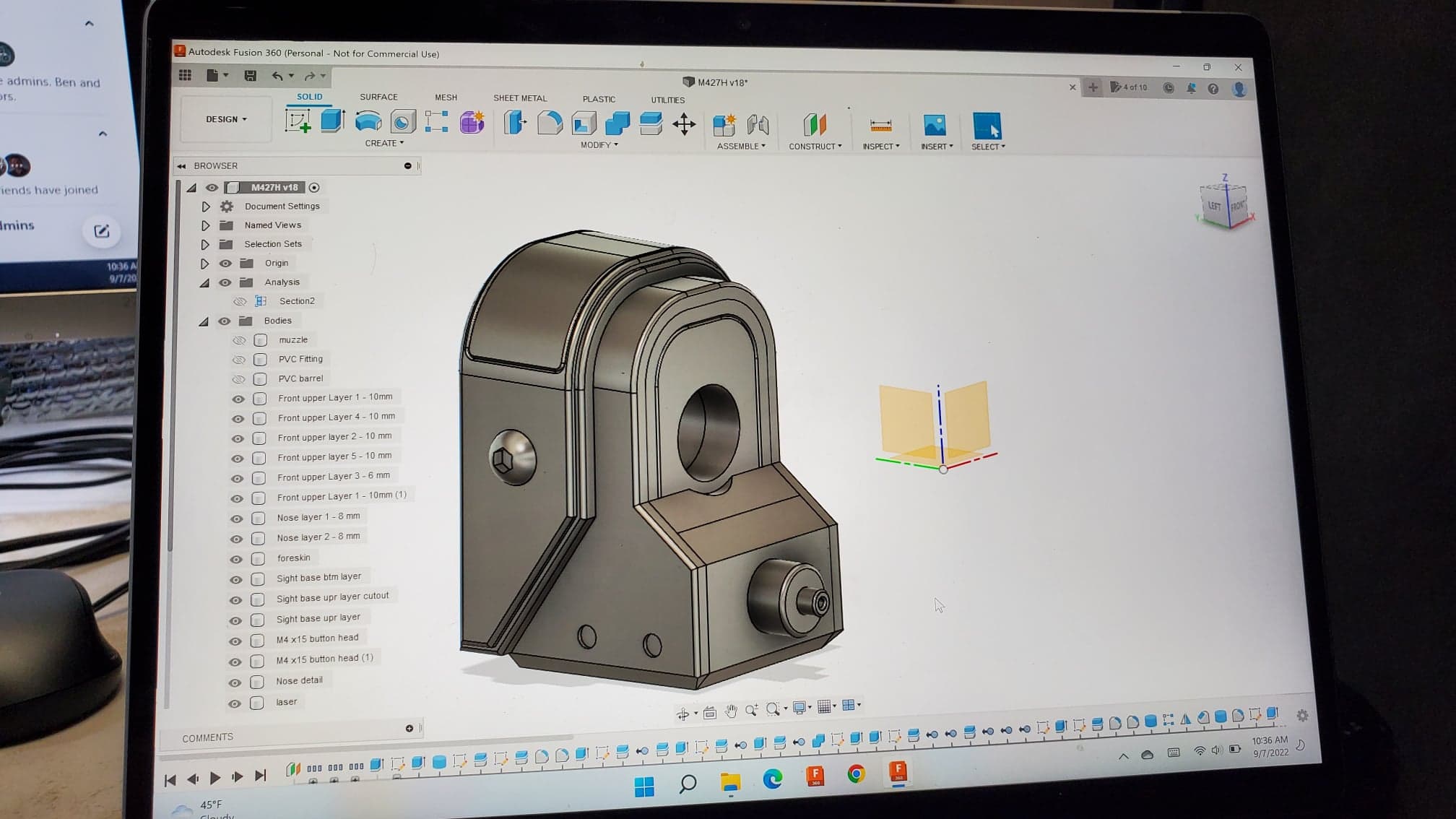

Oh, and the detail below the muzzle will hold a 6mm laser:

https://www.amazon.com/dp/B071FT9HSV/?coliid=I2TMCQNKOIB0NI&colid=Q94JB3FQQWVK&psc=1&ref_=lv_ov_lig_dp_it&fbclid=IwAR20xmk1gfPdDygwTTNi4WqgjmpOragQ_-onoFbWN4E7Tp8r_hvsYuJP808



[PapaBear271]

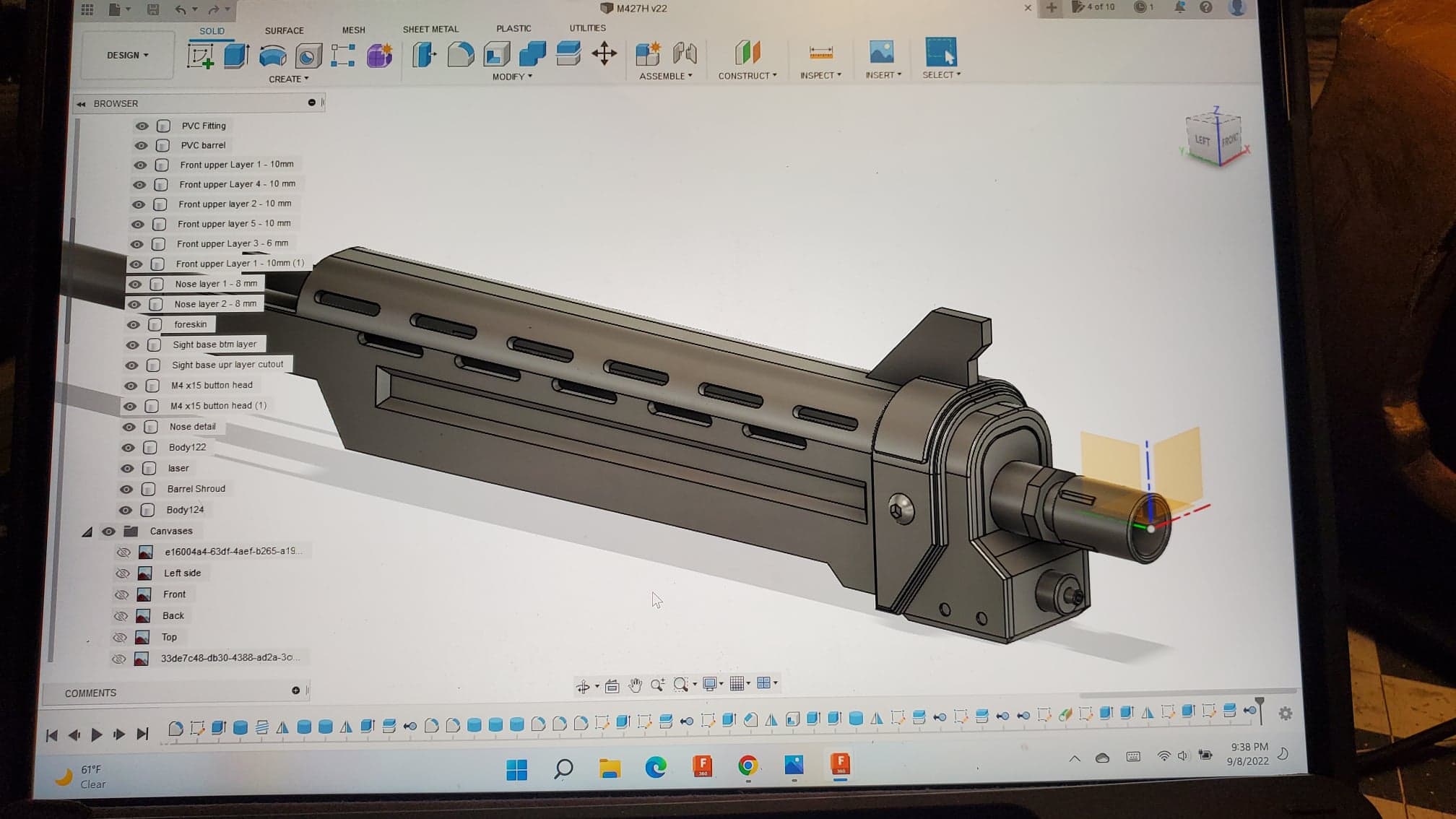

Barrel shroud done, on to the front sights



[PapaBear271]

Just an update, I am focusing on the actual armor build right now, so drafting has been put on hold for a minute. Don't worry, I'll be back...



[marinesniper]

Just an update, I am focusing on the actual armor build right now, so drafting has been put on hold for a minute. Don't worry, I'll be back...

Yes the armor I love to see this armor can't wait
