3D printed mkVI build (Citruspers)

Can confirm, before reinforcing my back armor fell of the chair while painting and it shattered back into a couple pieces. You just need more surface area to get a good bond. Ideally with some reinforcement to prevent shearing.

I can't recommend fiberglass though, at least not the loose sheets I bought. They came apart when I was applying the resin and turned into loose fibers/splinters. You do NOT want fiberglass splinters anywhere near you, and sanding them requires a LOT of PPE.

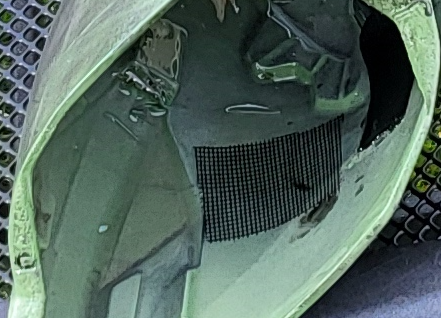

That's why I switched to bug netting/tulle fabric. Easy to cut into the right shape with scissors, tack it down with a dot of superglue and then cover with one or 2 layers of resin. Much safer and (hopefully!) strong enough.
View attachment 345680
Brilliant. What do you use for padding inside? I imagine also you would take that into account when measuring and fitting.

We got some nice weather and I'm getting some more things done. Some base coats for the armor pieces, but more importantly, I got to try the final color for the Plasma Grenade, and made some headway with the cortana chip :)

Plasma nade violet cortana chip.png


I used Motip Effect Metallic Violet and man, does it seem a good match for "covenant purple". Pretty stoked to see the whole thing assembled.

Quite happy with how things turned out today :D

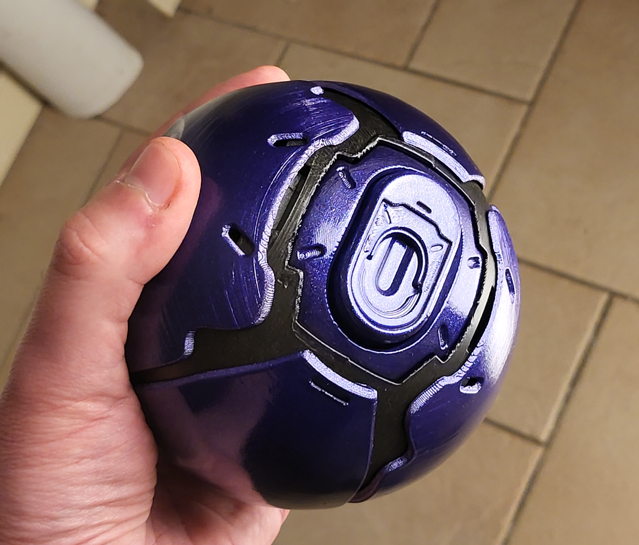

plasma grenade coats.png


The plasma grenade still needs some assembly. The original model has space for magnets and LEDs, but I'm not sure if I want to go that far.

cortana chip painted.png


I have a ball-chain (like you see on dogtags) on the way that I'm going to thread through the chip.

One interesting thing about this paintjob is that it changes with the light. Soft (indoor) lighting makes the body come out somewhat gunmetal grey, whereas bright light outdoors makes it look more silver. Layers are primer -> glossy black -> metallic silver -> matte varnish

P.S. both models were made by OddWorks: Get more from OddWorks on Patreon

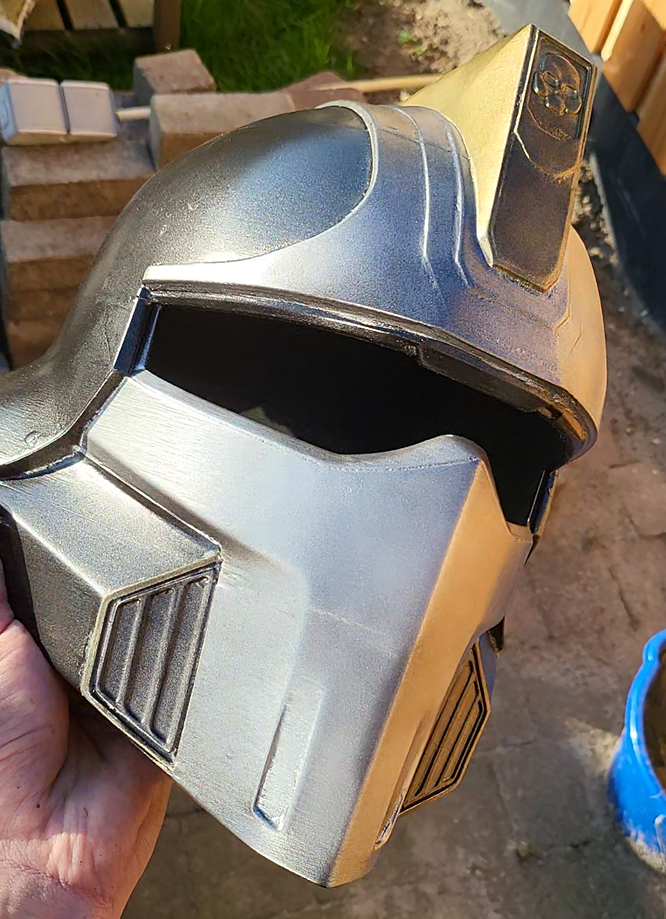

Whoops, wrong franchise. Got distracted :lol:


View attachment 346225
Lol, I like it though. Helldivers, Helljumpers, same thing really.
The plasma grenade still needs some assembly. The original model has space for magnets and LEDs, but I'm not sure if I want to go that far.
Electronics are really fun in any project, but for a plasma grenade I feel like magnets are a must-have if you've got the option. Nothing better than being able to stick it to something, right?

Man, I really want that BR...
What paint did you use for that plasma grenade? It looks great?
Also, you should hide snacks inside that bubble shield generator. At least I would haha

Lol, I like it though. Helldivers, Helljumpers, same thing really.

Electronics are really fun in any project, but for a plasma grenade I feel like magnets are a must-have if you've got the option. Nothing better than being able to stick it to something, right?
True! But the plasma nade has like 20 magnets inside of it, all of the panels can detach etc. Not sure if I want to go that far :)

Man, I really want that BR...
What paint did you use for that plasma grenade? It looks great?
Also, you should hide snacks inside that bubble shield generator. At least I would haha
Thanks! The paint is Motip Effect Metallic Violet.

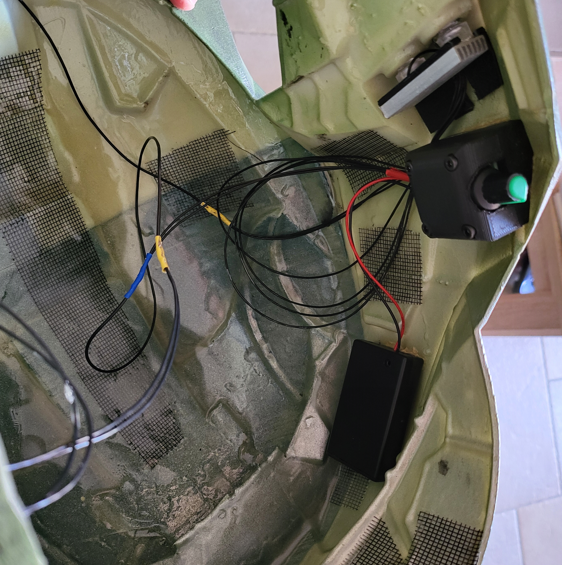

Finally got around to finishing up the wiring for my helmet. I still need to bundle and secure the actual wires, but everything's connected now:

helmet wiring connected.png

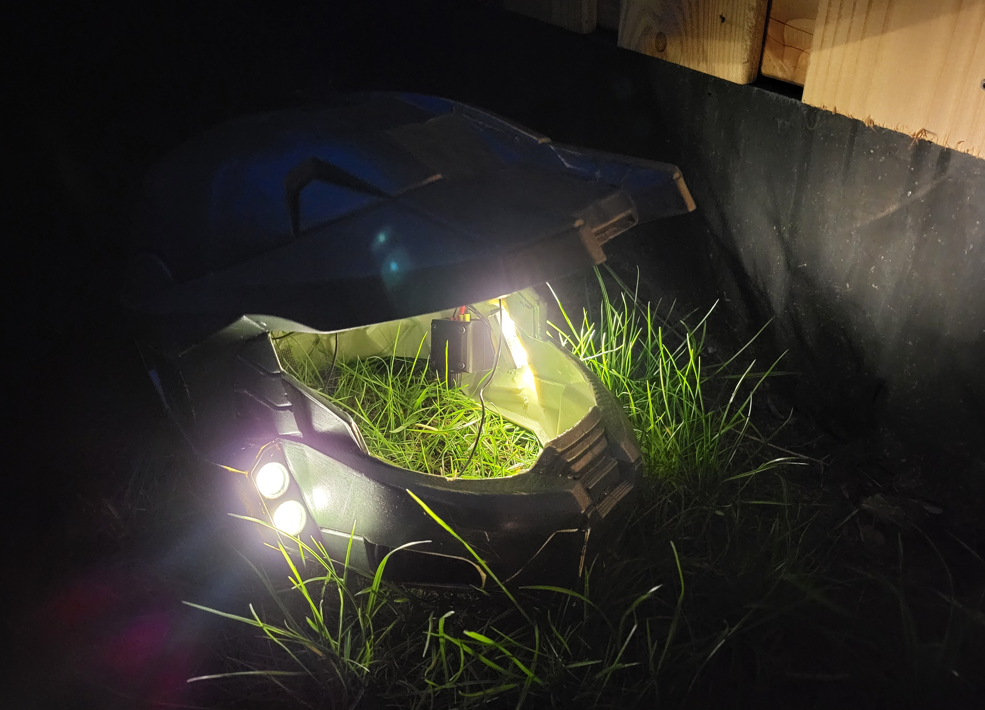

Of course I took it outside in the darkness. This is at the lowest brighness:

helmet night.png

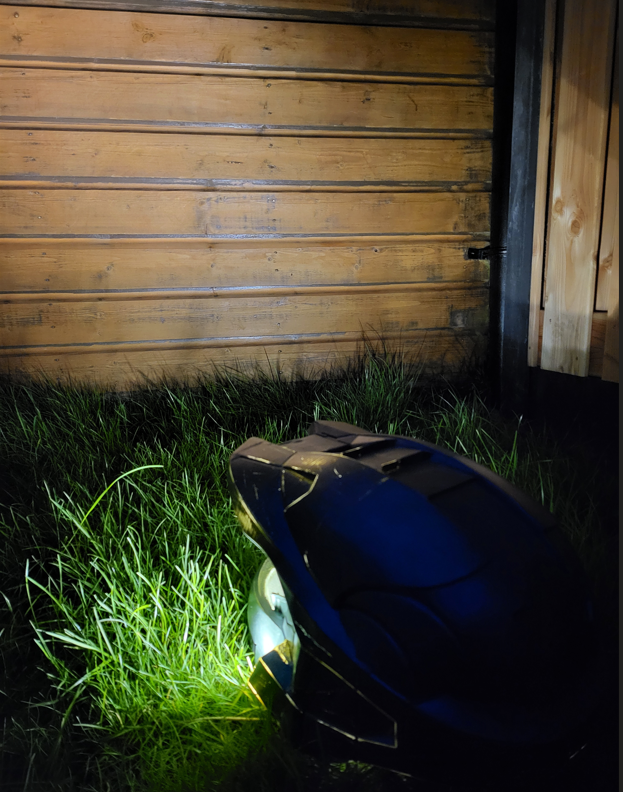

And this is full-blast :lol:

helmet night bright.png

Progress is slow. I like printing and painting more than rigging, and doing two cosplays simultaneously doesn't help speed things up lol.

Still:

* The helmet now has foam padding and sits rather comfortably. Unfortunately my wiring was a bit **** and now only 3 out of 4 LEDs work. Maybe I'll fix that eventually, but for now it's fine. Still need to figure out the visor though.

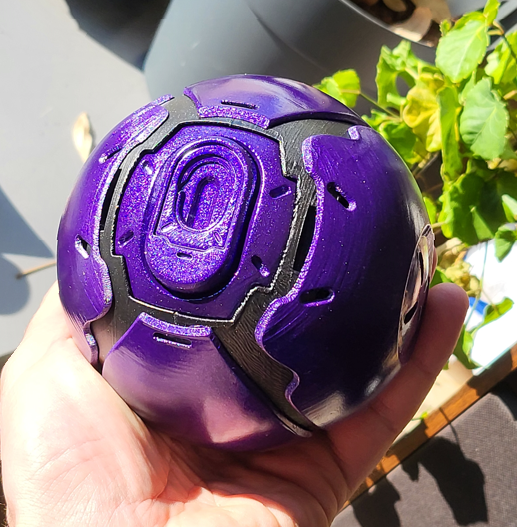

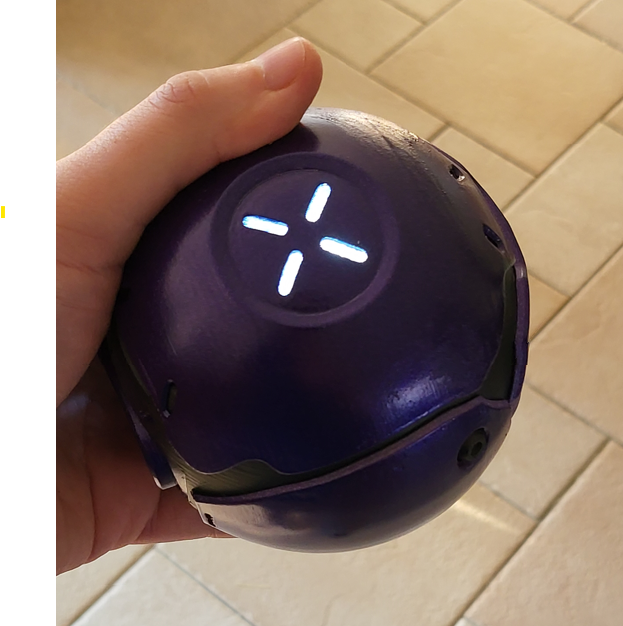

* Plasma grenade is finished (though it does need a holder/sheeth). I didn't put any lights in it (for now), but it does look great with a light source hidden behind it :)

plasma grenade assembled.png
plasma grenade lighting.png


* I bought a proper airbrush and compressor. Wrong franchise again (helldivers), but this is going to help a lot for painting details/accents. Kind of tempted to do a Plasma Rifle now.....not that I need more things to do.

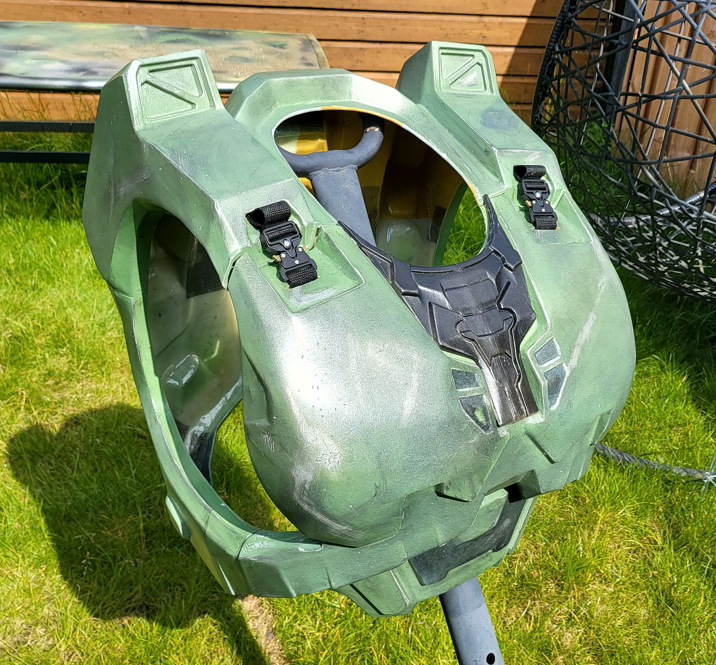

* Chest armor now has buckles (top hinges) and locator pins (all 4 attachments) to prevent side-to-side movement.

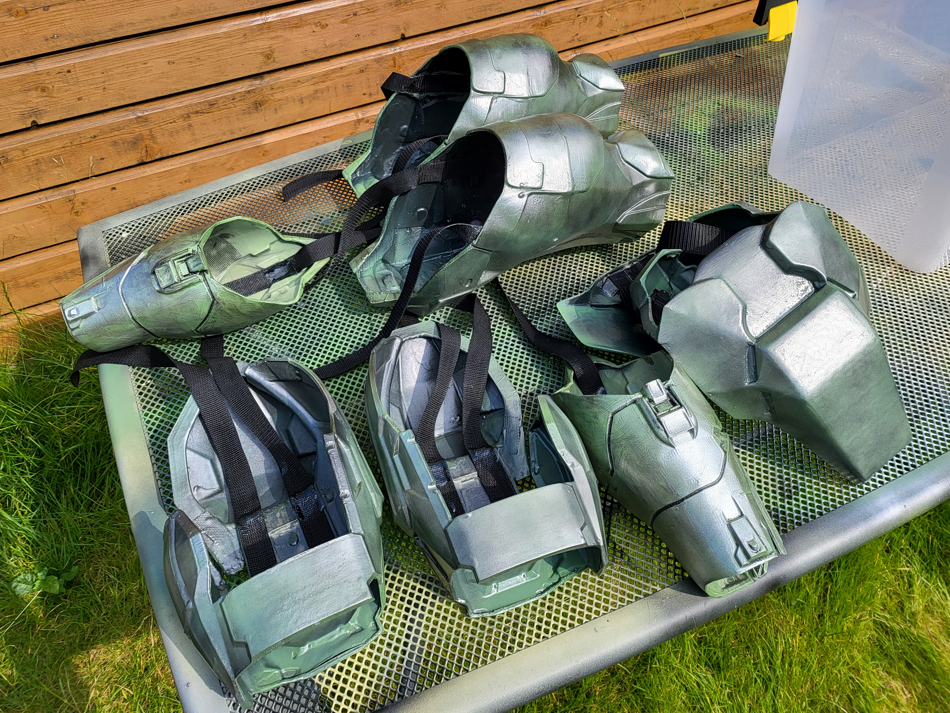

* I mounted a bunch of webbing to my armor pieces. (Flexible) Contact cement to hold the strap in place, and epoxy to reinforce the bit at the top where most of the load is pulling the strap away from the armor.



Now I just need to figure out how it all goes together, and see about painting (or reprinting) those comically large thigh pieces (not pictured)...

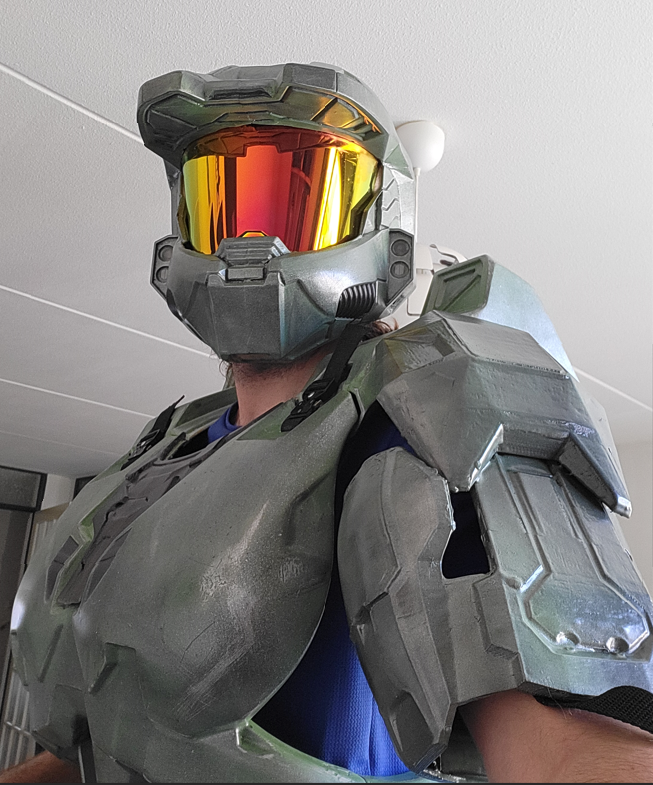

armor selfie visor.png


It's becoming real!

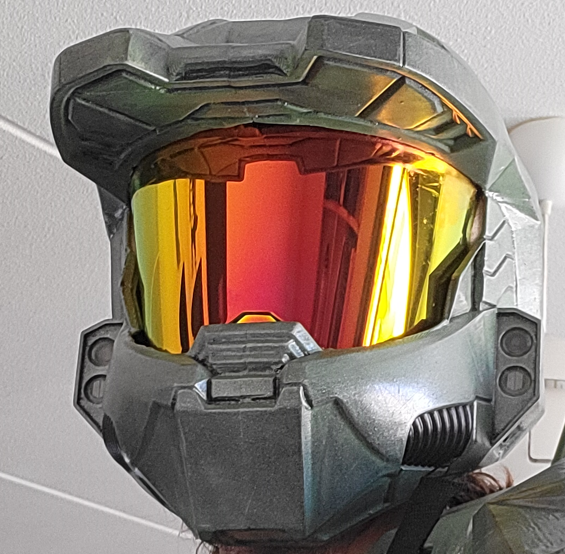

The visor is an AGV AX9 motorcycle helmet visor which fits...well enough into the helmet (scaled at 110%). I couldn't really get Worbla transpa-art to work so I'm glad I finally found a prefab visor that works. Visibility is fantastic, though I do need to add a fan to improve comfort and prevent the visor from fogging up.

Next I'll have to commit to gluing the buckles that attach the shoulder plates to the armor (right now they tend to slide/sag), but....this seems to work. After that it's time for some shoulder padding inside the chest armor and attaching the lower arm pieces to the shoulder parts.

Update: if anyone doesn't want to scroll all the way to the end, here's a little update how things are going:

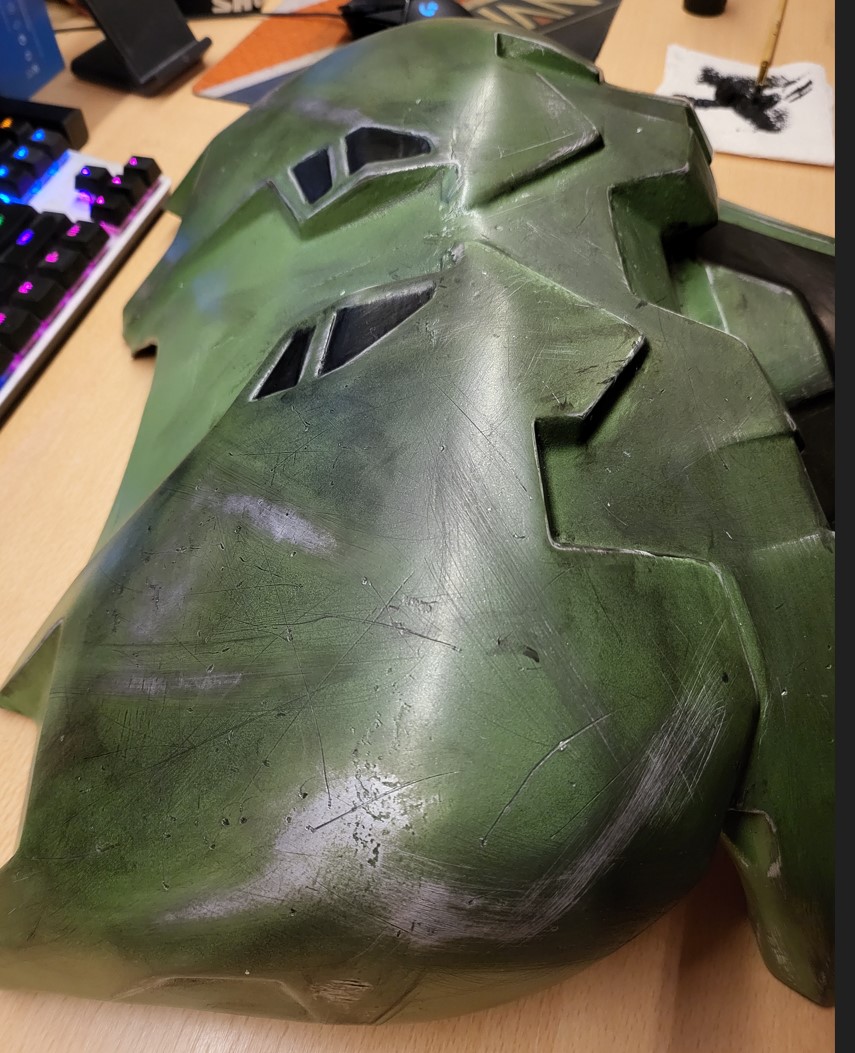

View attachment 324544View attachment 343342View attachment 345915
View attachment 342692View attachment 349519View attachment 342693

-----

Hi everyone,

I'm Citruspers from The Netherlands, 31 years old and been a Halo fan for a long time (I'm no stranger to hauling CRT TV's for a system link LAN party, lol). I've obviously played the games and have read most of the books. Favourite game is a toss-up between Halo 3 (finale) and Reach (storytelling/presentation), favourite books are probably the Karen Traviss series.

I've been dabbling with making a Mjolnir costume for years now, starting out years ago with a paper/pepakura model and a massive amount of filler putty. After that, the project had been on ice for a few years until the Halo TV show came around. Disregarding the flaws, their depiction of spartan armor got the itch going again and I found myself low-key 3D printing some parts of Moe Sizzlac's mkVI armor set.

Then Castlefest came around again (finally!) where I walked around in my first (and last-minute) Skyrim cosplay and the reactions I got really motivated me to pursue my Mjolnir armor further.

So that's where I'm at now, my printer (a Voron 2.4 300mm) is busy cranking out more parts as I type this. I'll update this post to become a proper build log, but for now I'm excited to join the community, have a chat and share experiences. :)

Links to files used:

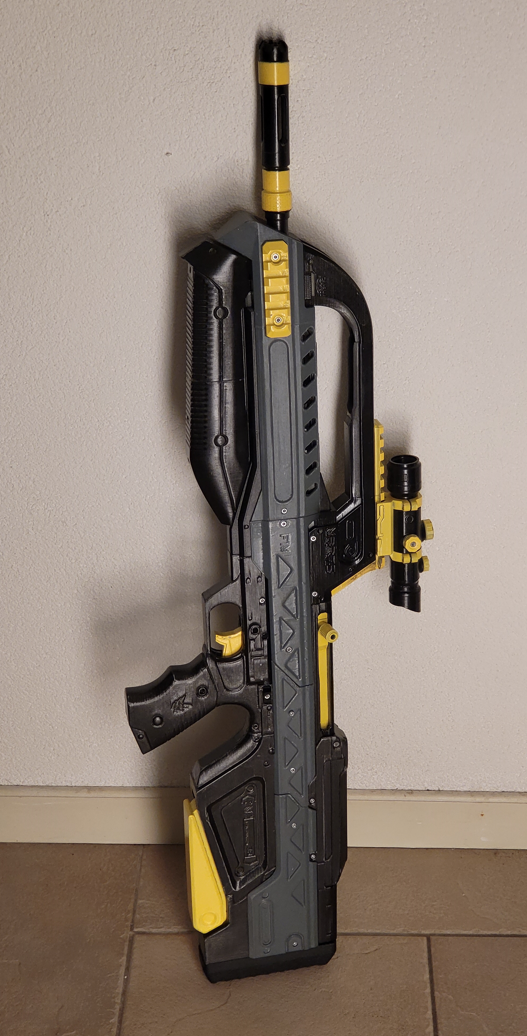

Plasma grenade, Cortana chip, BR75: Get more from OddWorks on Patreon
Hey where is the battle rifle from looks sick!

Halfway done with the rigging :)

For those worrying about their rigging, here's what seems to work for me.

* Only one strap/buckle is neccessary coming from the armor/shoulder to the upper arm piece. I initially fitted two, but using only the rearmost buckle (towards my back) offers better mobility. I also tried only using the front, but that caused the upper shoulder piece to catch inside the arch of my chest armor, getting it stuck.
* I have 3 straps coming down from the upper arm piece down towards the lower arm piece. The (extra long) piece that goes over my elbow doesn't seem to do much and I can probably do without that.
* The codpiece is glued to a generic belt and works well. However, I do plan on fitting some sort of (quickrelease) harness/suspender system because I don't want all the load from the upper and lower leg pieces on my hips.

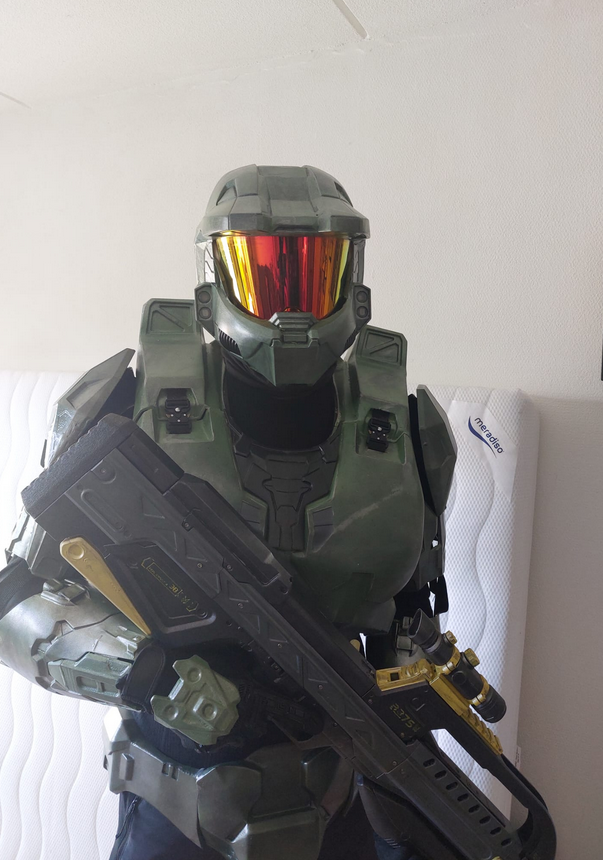

Armor photo halfway.png

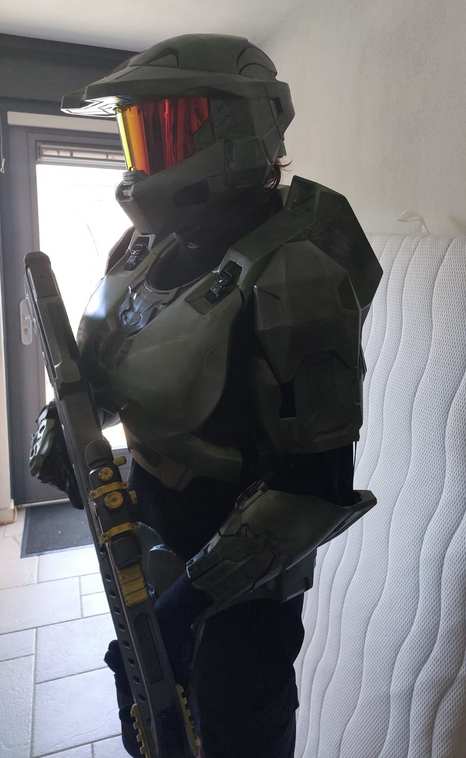

Armor photo halfway 2.png


Next up:

* Trimming (unneccesary) straps, reinforcing some with epoxy and cleaning up glue stains
* Finishing the upper leg pieces (epoxy, paint, the whole thing)
* Adding one or two fans to the helmet to keep it from fogging up, and give me a bit more comfort
* Making up a harness for the codpiece/leg pieces
* Rigging upper and lower legs
* Starting work on the boots
