1st Build Halo 3 MK VI build (foam)


pixelcube

New Member
Actually I am using the ones from the armory. I am using the Halo 3 - MJOLNIR Mark VI - Standard LD files.

I also did download templates from Pretzel's google drive locker. idk if they are the some or not.


sax092

Jr Member
Actually I am using the ones from the armory. I am using the Halo 3 - MJOLNIR Mark VI - Standard LD files.

I also did download templates from Pretzel's google drive locker. idk if they are the some or not.
will you be using all foam or mostly foam?


Ravenxl7

New Member
Actually I am using the ones from the armory. I am using the Halo 3 - MJOLNIR Mark VI - Standard LD files.

I also did download templates from Pretzel's google drive locker. idk if they are the some or not.
Any tips for using the set of foam files from the armory's folder? Especially with the folds in some of the pieces and the details in the hand plates?


pixelcube

New Member
Any tips for using the set of foam files from the armory's folder? Especially with the folds in some of the pieces and the details in the

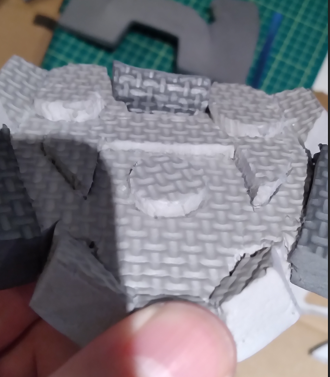

For the hand plates all I did was cut out the circles and the middle piece and then glue them a little more in. Here is a picture to help understand:
As for tips, I can suggest to really study the 3d model that pepakura shows you and to also compare that to reference images from the game. For the folds, all I did was follow the lines that the template provided. But keep in mind that pepakura was meant for paper, not foam, so sometimes you have to be the judge to see if the cut is worth it or not.


Ravenxl7

New Member
For the hand plates all I did was cut out the circles and the middle piece and then glue them a little more in. Here is a picture to help understand:
View attachment 307707
As for tips, I can suggest to really study the 3d model that pepakura shows you and to also compare that to reference images from the game. For the folds, all I did was follow the lines that the template provided. But keep in mind that pepakura was meant for paper, not foam, so sometimes you have to be the judge to see if the cut is worth it or not.
Ok, cool, thanks for the advice. I'll hopefully finally be starting my own project in a couple of weeks. Just need to find some foam to use.

Your armor is looking really good so far. I'm looking forward to seeing how your progress continues.


indigoD0g

Member
I am using hot glue. I don't really have the space to use contact cement
Looks great to me! If you’d like added strength, run a thin bead of hot glue on the inside seams of your work. It’ll reinforce the strength of the connection and make sure the seams don’t rip in high stress places.


pixelcube

New Member

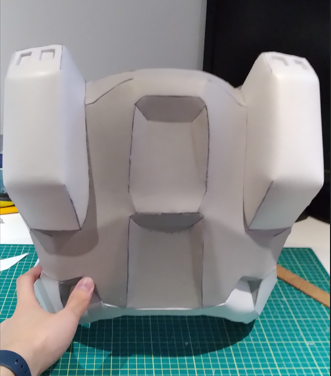

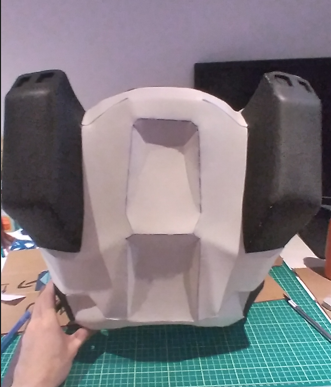

Yeah so I managed to finally finish the chest piece (which was a pain to do) and as I was trying it on with some rough strapping... Yeah it was way too small. So now I'm going to have to redo the chest. Also, I somehow managed to burn my finger with hot glue so it might take longer to complete it.

1627141976931.png 1627142021163.png


JTF4

Member
That looks fantastic! I can’t say I have managed to burn myself with hot glue, but I have had a molten piece of PLA fuse to my fingernail. That was quite painful.
