Halo 4 Build by Xtremenoob

[Charlie117]

:$ you have videos!!!!!!!!!!! , intresting videooooooooooooos! this will help alot . also when you have the chance , can you suit up just so i can see how big it is with the undersuit??? no need for the helmet on , just the hole suit.

Just remember i hot glued stretchy fabric on the sides so it gives me more range of movement, it took alot of trial and error, here is a link to my YouTube video showing the foam and a bit closer of the undersuit,

www.youtube.com/watch?v=4-ZYc0X2XjM

6:12-6:35 you see where i put the fabric



[Charlie117]

Am having a bit of trouble making the details that go on the forearms, how did you made them??? The ones that look like squares or triangles, that there only 2 of them on each forearm.

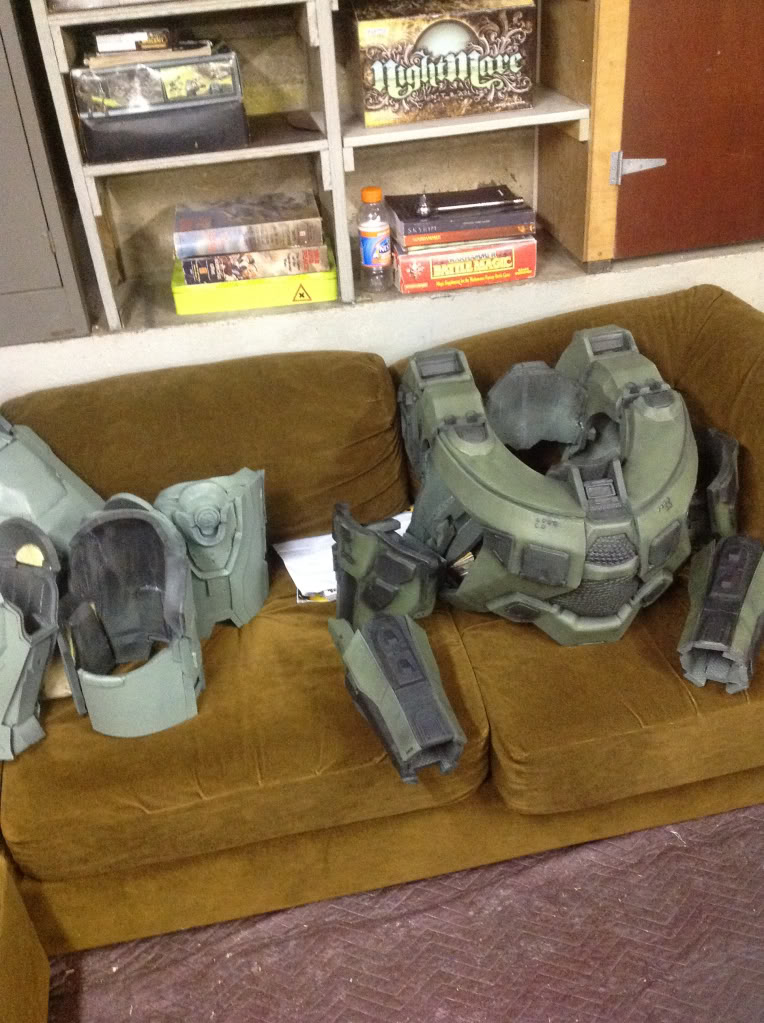

For anyone who is interested here is a sneak peak on how the paint job is comming along

Daniel



[Xtremenoob]

Am having a bit of trouble making the details that go on the forearms, how did you made them??? The ones that look like squares or triangles, that there only 2 of them on each forearm.

Hey,
Ill get some better pics of the full suit and undersuit during the day and ill do a video so you can seehow flexable it is.

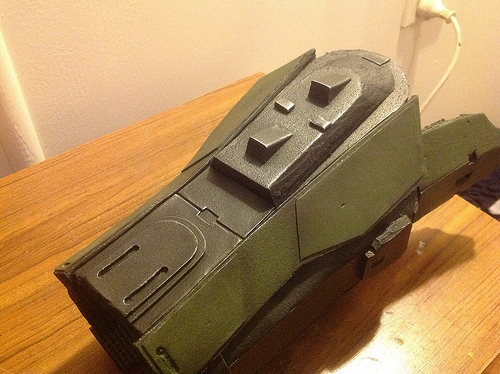

Here is a better pic of the forarm square/triangle bits you were talking about

Untitled



[Xtremenoob]

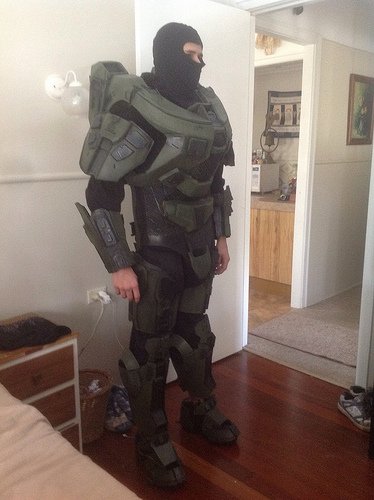

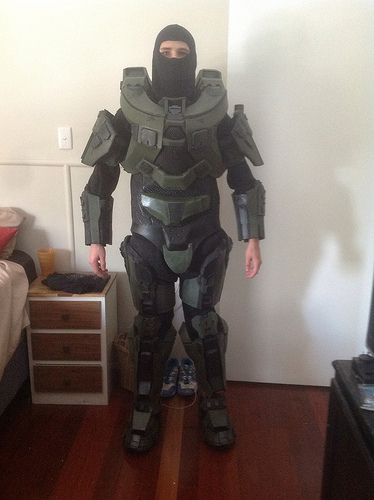

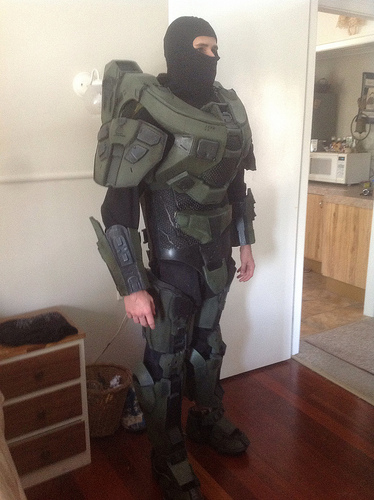

So here are some pics of the suit. Excuse the padding in the shins and forearms,
I forgot to get pics of the back but i have a vid showing what it looks like.


Untitled


Untitled


Untitled



[Xtremenoob]

So here is an update!

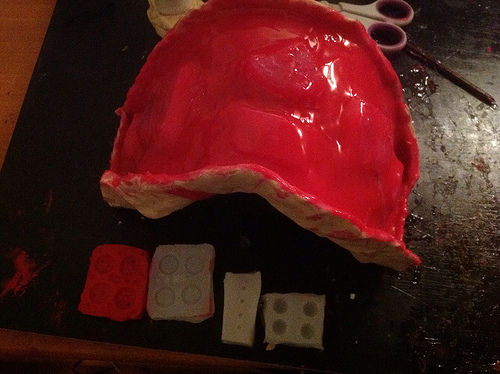

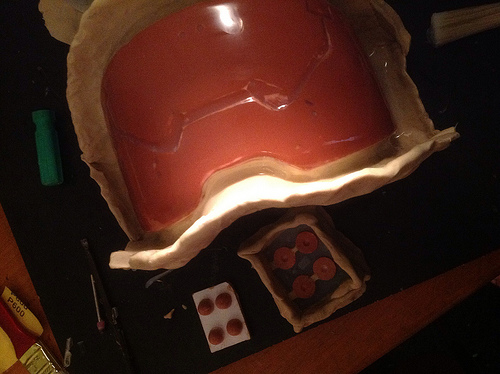

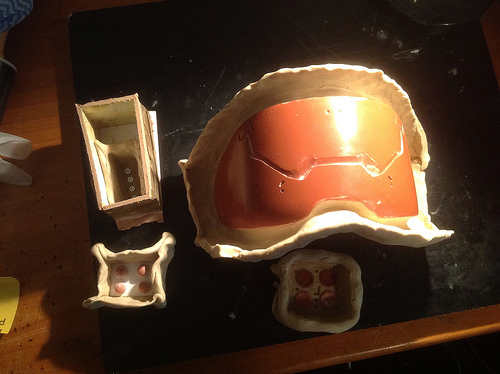

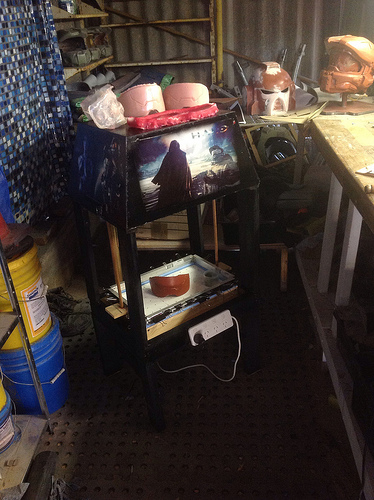

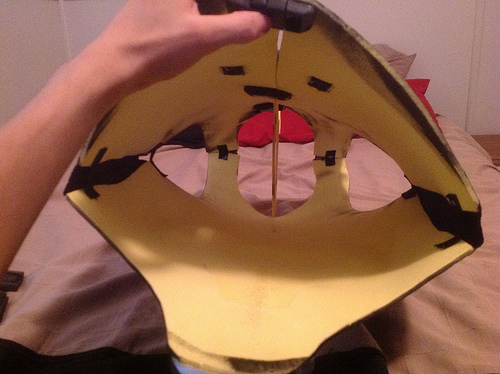

My molding and casting supplies arrived and now working on molding the visor so i can pull 3 visors in one sheet when vacuum forming it,

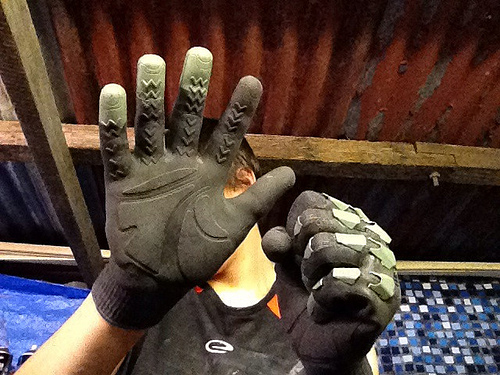

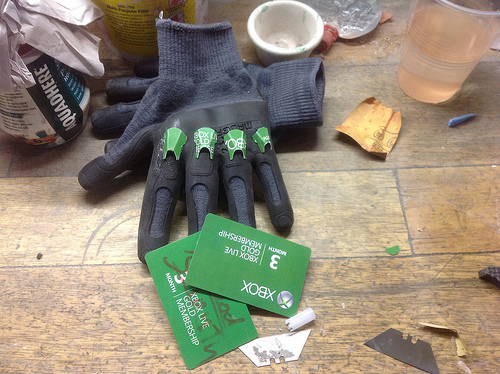

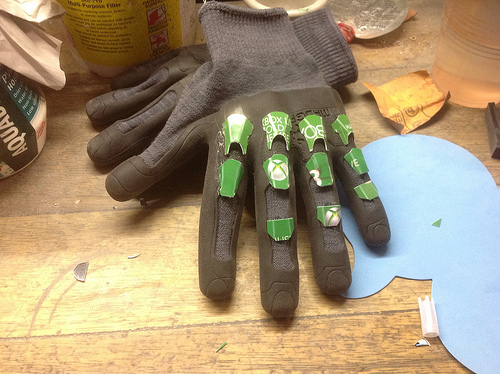

But first i did some quick work on the gloves

Untitled*

Untitled

Untitled


Untitled

Untitled*

Not sure if you can tell but this is after the first layer


Untitled

Untitled

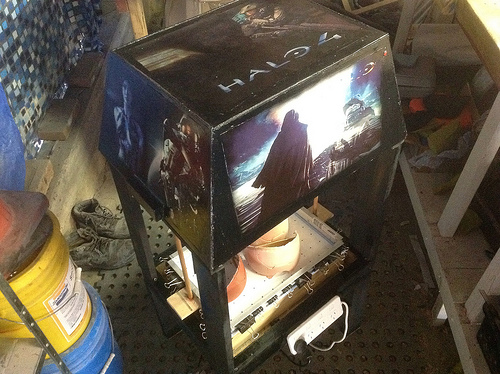

Will be vacuumforming it tomorrow so stay tuned
Until then
Daniel



[Charlie117]

Ahhh nice, so basically is one piece and you scored the lines on the inside ??? so it can take that kinda of shape?? because it looks like one piece instead of difrent layers . On top is a rectangle, the front is a square and the sides are triangles.

Hey,
Ill get some better pics of the full suit and undersuit during the day and ill do a video so you can seehow flexable it is.
Here is a better pic of the forarm square/triangle bits you were talking about

Untitled



[morkar78]

Great job!
I'd like to see a closer picture of the boots (with the shoes inside) and the abdomen! Thanks!!!



[Xtremenoob]

Ahhh nice, so basically is one piece and you scored the lines on the inside ??? so it can take that kinda of shape?? because it looks like one piece instead of difrent layers . On top is a rectangle, the front is a square and the sides are triangles.

Scored lines? It is flat on all sides
Well first i used the foam floor mats and made a strip then cut at 2 peices at 2.5cm long, 1.2cm wide and 1.2depth to make a rectangle, then I cut it from the side in half to make a triangle shape from the side. Each peice made two of those shapes and simply glue on to the gauntlet

Great job!
I'd like to see a closer picture of the boots (with the shoes inside) and the abdomen! Thanks!!!

Thanks ill get some pics in a few hours. Im uploading a video specifically on the undersuit because i have got alot of feedback on it.
But i will get some pics of the abdomen aswell



[morkar78]

Thanks a lot!!!



[Xtremenoob]

Here is some quick pics,

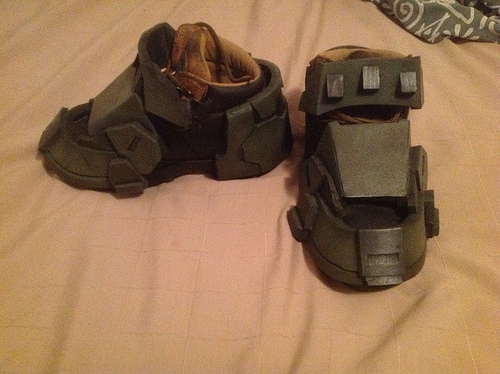

So here are here are the boots

Untitled by daniel.bignoux, on Flickr

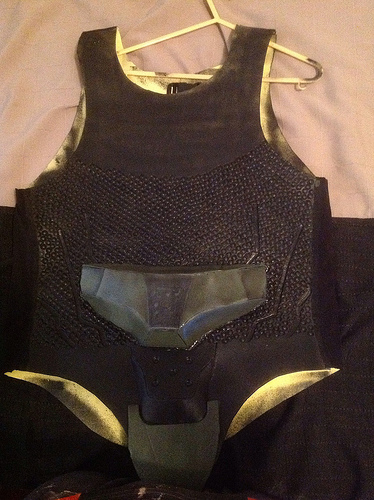

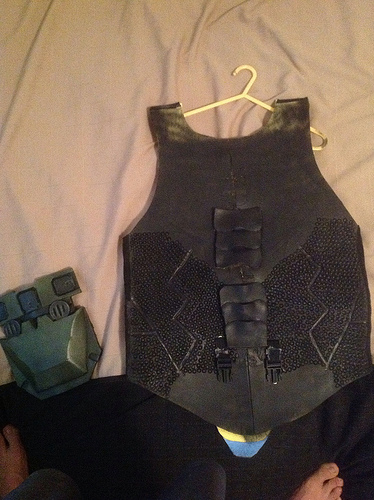

And the undersuit


Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

Here is a sneak peek at what i have built. For the 405th eyes only



Untitled by daniel.bignoux, on Flickr

Until next time
Daniel



[morkar78]

These are very helpful, thanks! So, you glued the shoes inside the boots, right? What material did you use for the undersuite? Is it OK if I ask these questions here or you prefer private messages?



[Xtremenoob]

These are very helpful, thanks! So, you glued the shoes inside the boots, right? What material did you use for the undersuite? Is it OK if I ask these questions here or you prefer private messages?

click here this is the foam, the foam boot was made and glued around the boots



[morkar78]

Thanks! and compliment again for your amazing work...I'm looking forward to be able to start my own thread and share my work!



[U513]

Wow, this is super clean man. Very nice!



[Xtremenoob]

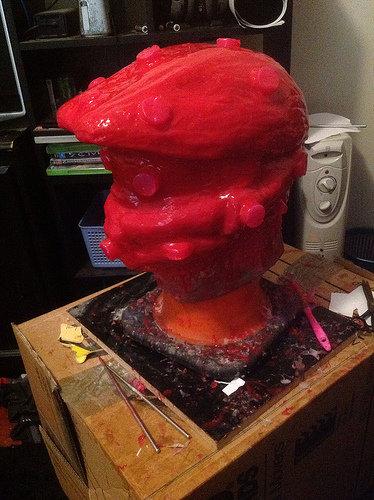

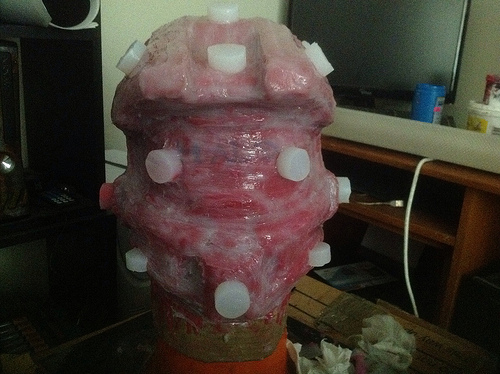

So here is an update on what i have been doing

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

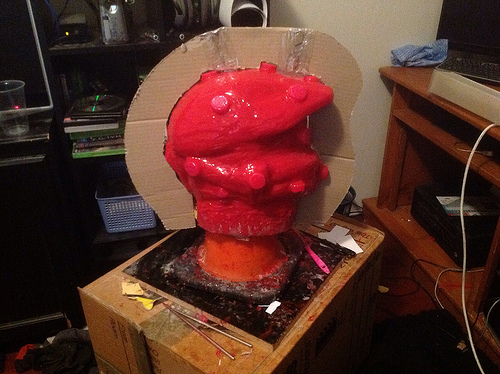

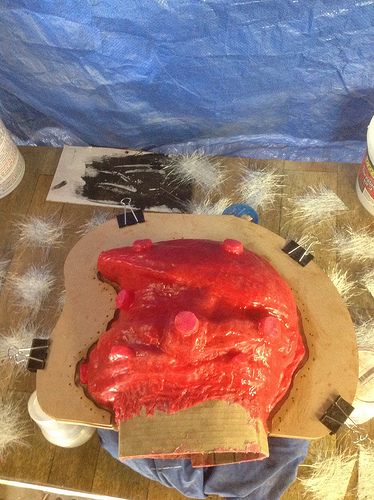

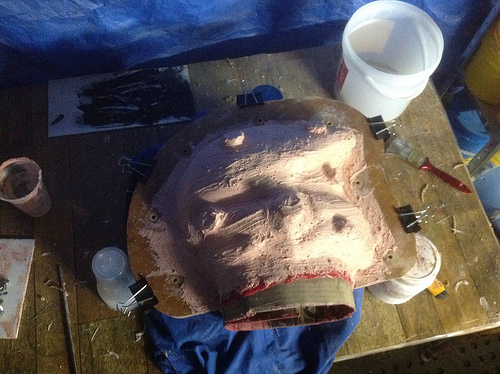

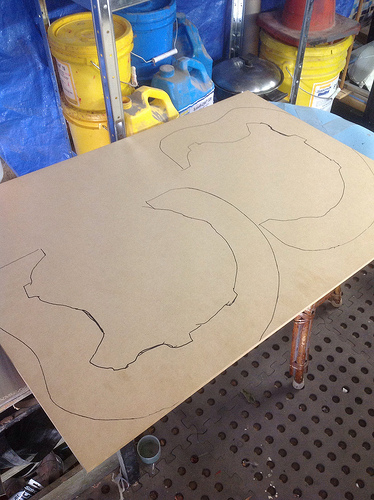

Here you can see cardboard Mohawk because i will be tracing this to MDF and then start to create the mothermold


Untitled by daniel.bignoux, on Flickr



[Xtremenoob]

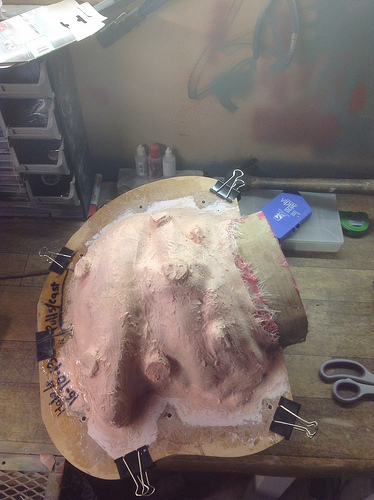

Be pulling casts tomorrow! I put the pics in the wrong order sorry.

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr

Untitled by daniel.bignoux, on Flickr



[Xtremenoob]

HELP NEEDED!!
I vacuumed formed my visor 1/16 PETG but when i went to dye it i spent 3hrs and failed. I used 5 bags of orange rit at 140°f for 10min, nothing happend, turned temp up to 150° 20min started to get i slight colour difference but really nothing, 155-160° the visor warped so much its a throw away,

I REALLY NEED HELP FOR DYEING VISORS I JUST CANT GET THE HANG OF IT

P.S. the pot on the left was the cool bath

Untitled by daniel.bignoux, on Flickr



[Xtremenoob]

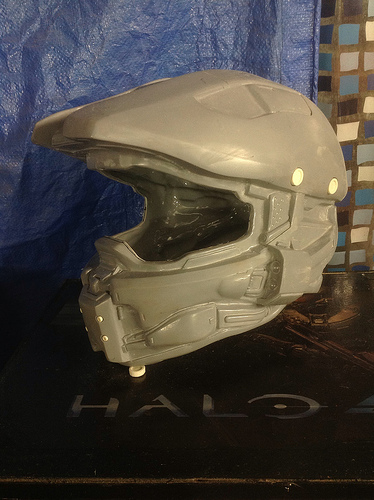

Mean while thats happening i should be selling cast kits soon


Untitled by daniel.bignoux, on Flickr

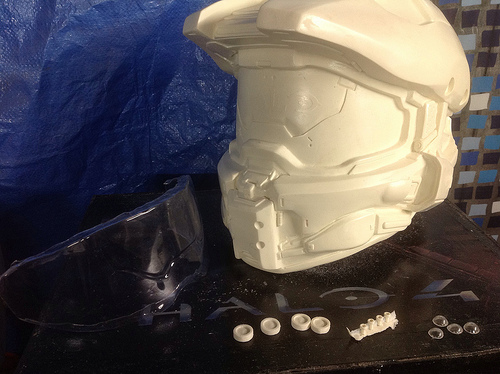

Heres a pic with the little bits added, the LEDs will be installed inside the dome plastic i still have to dye black,
(this helmet is a different cast then the first pic)

Untitled by daniel.bignoux, on Flickr



[Mstruvmgc]

Helmet looks great!
I didn't even know u could dye a visor like that. Very interesting



[Xtremenoob]

Well apparently you can its just not working for me.
