my 3d printing of halo infinite armor

Status
Not open for further replies.

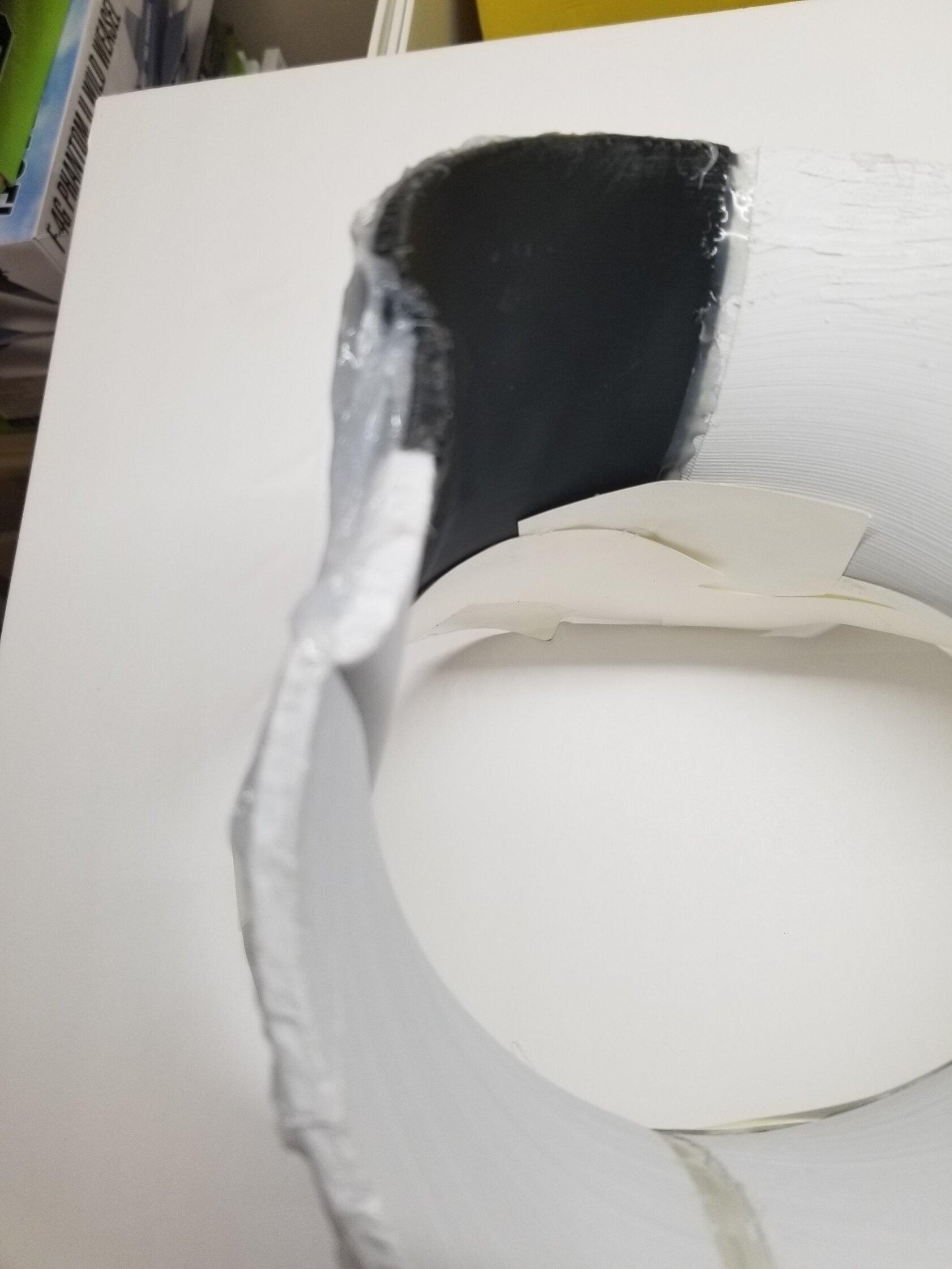

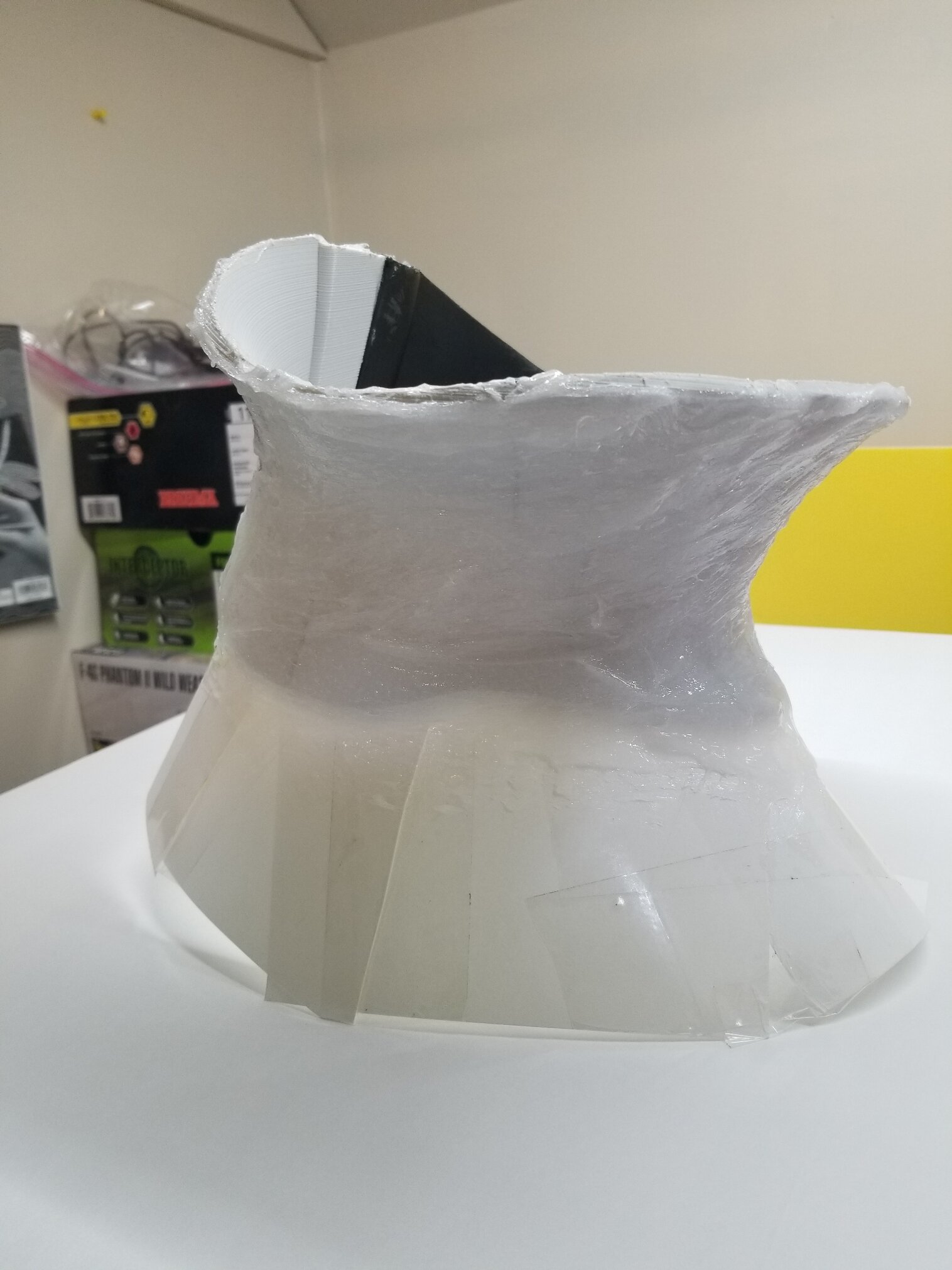

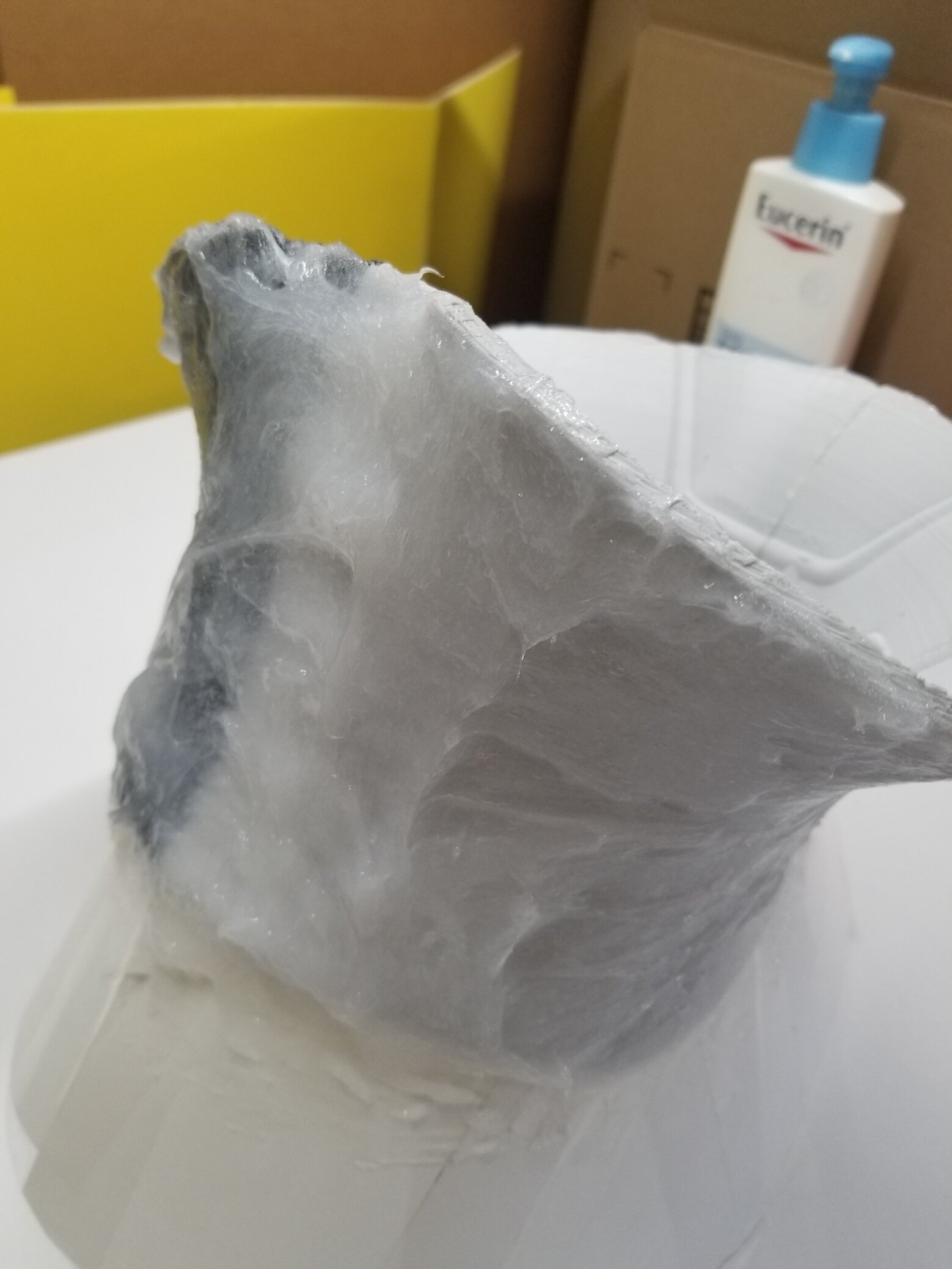

ok so i have my first and second coat of silicone on the neck part i used mold release so it dont stick to my neck seal it is allready starting to harden and dry up here are some progress pics. i still have to put another two coats on it so it will not tare easy. i wil put some kind of pads or layer of something so it dont lay on my skin. but like i said this is going to be trial and error...


Attachments

  • 20200605_152543.jpg
    225.8 KB · Views: 257
  • 20200605_152548.jpg
    229.1 KB · Views: 275
  • 20200605_152555.jpg
    205.6 KB · Views: 278

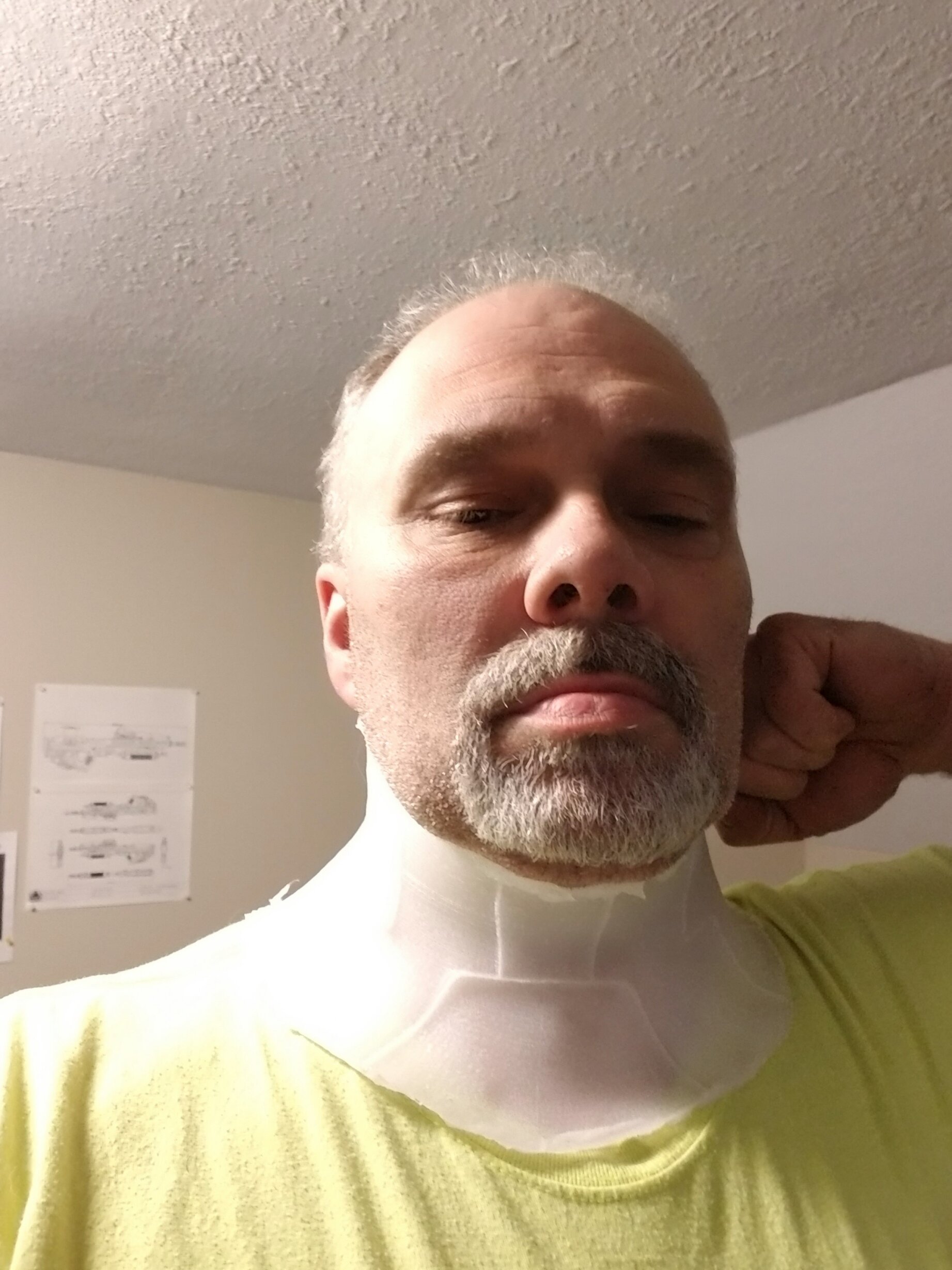

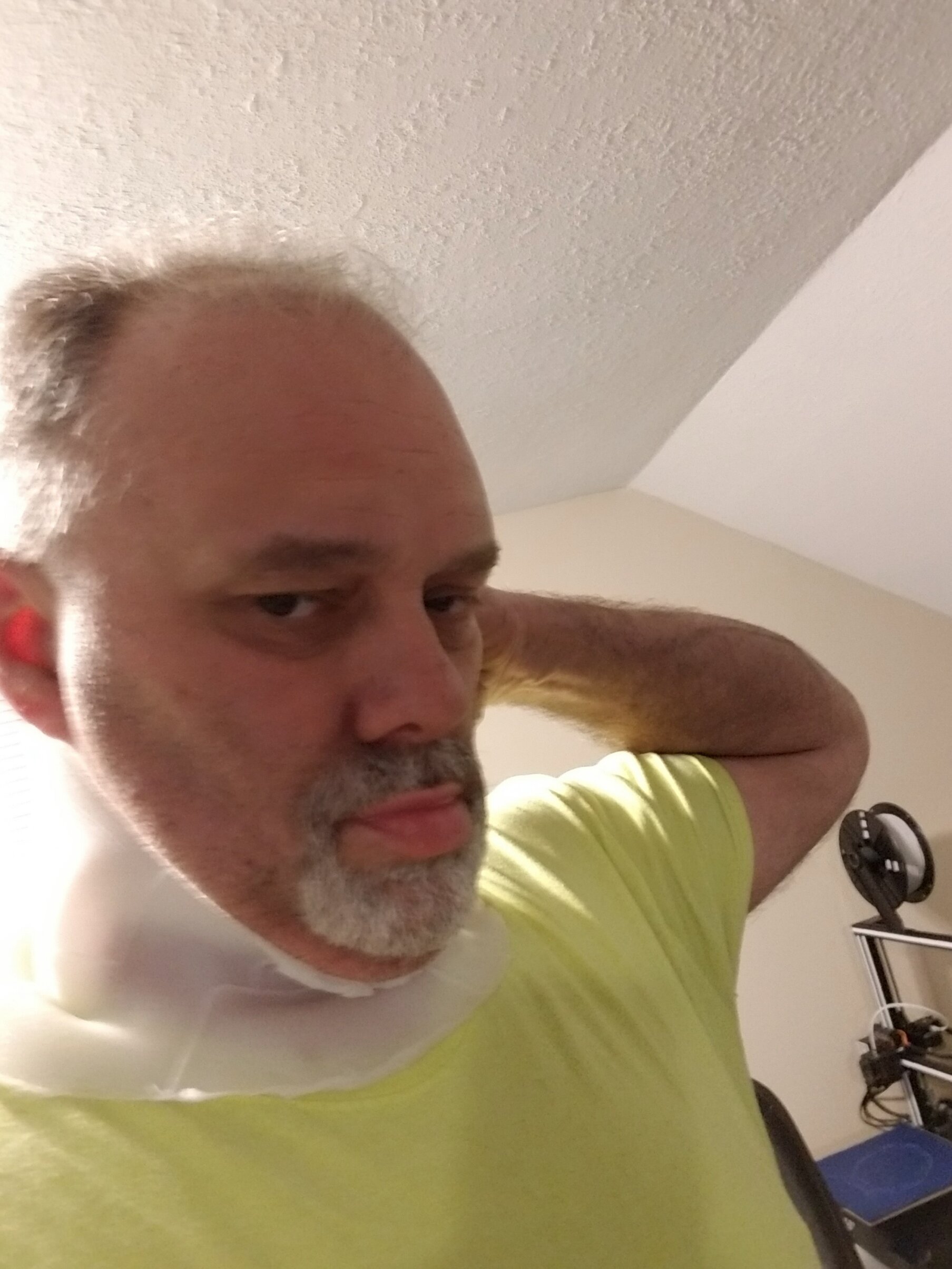

ok everybody i will post a link of a video for this but it is really easy to move in here are pics of the test neck seal i did not die it black because it was a test part but i will make me one now and die it black but i know it looks rough i did not trim the flashing off because i was excited to show you guys.

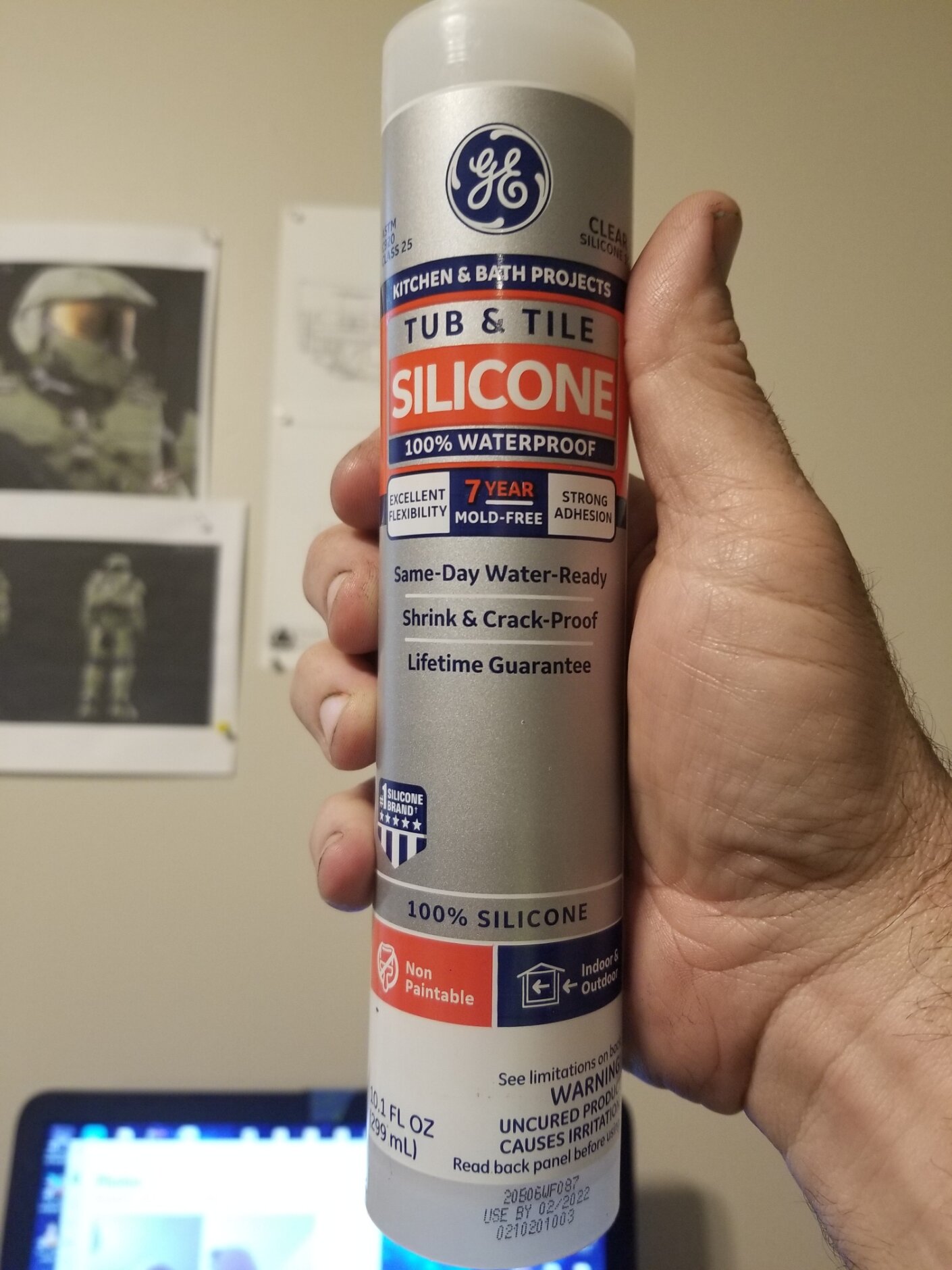

the last picture is the type of silicone i used it dyed really fast and it it picks up all the details. so if you are on a budget here is the answer, like i said im uploading a video of me wearing it and moving my neck with no pinching or discomfort at all i will post the link here as soon as it finishes its only about 1.5 mins long.... have any question feel free to ask..


Attachments

  • 20200606_101208.jpg
    406.2 KB · Views: 260
  • 20200606_101212.jpg
    380.4 KB · Views: 272
  • 20200606_101214.jpg
    371.4 KB · Views: 276
  • 20200606_101701.jpg
    269.1 KB · Views: 275
ok guys here is the short video about the neck seal i told you i would put up. if you want me to make a step by step on how i did this let me know and i will get it done for you guys.


well i had to order new filiment for the printer the junk i have now it start off printing really good then about midway or in other spots the filiment wil just break this stuff is true junk im at work now but i will edit this post with the name of the brand. i returned two boxes and had them replace them and these do the same thing so im going to go back to overture i had no issues with all 4 boxes... anyone else have any issues with other brands?

well i had to order new filiment for the printer the junk i have now it start off printing really good then about midway or in other spots the filiment wil just break this stuff is true junk im at work now but i will edit this post with the name of the brand. i returned two boxes and had them replace them and these do the same thing so im going to go back to overture i had no issues with all 4 boxes... anyone else have any issues with other brands?

I've had a lot of good luck with hatchbox at first but currently, I use e-sun. E-sun gives me consistent results.

I've had a lot of good luck with hatchbox at first but currently, I use e-sun. E-sun gives me consistent results.
thanks i will have to order a roll and give them a try do you know what temp you run PETG i tryed running some this morning and it was like boogering up an i tryed my bed at 60 then 70 then 100 still same out come

thanks i will have to order a roll and give them a try do you know what temp you run PETG i tryed running some this morning and it was like boogering up an i tryed my bed at 60 then 70 then 100 still same out come

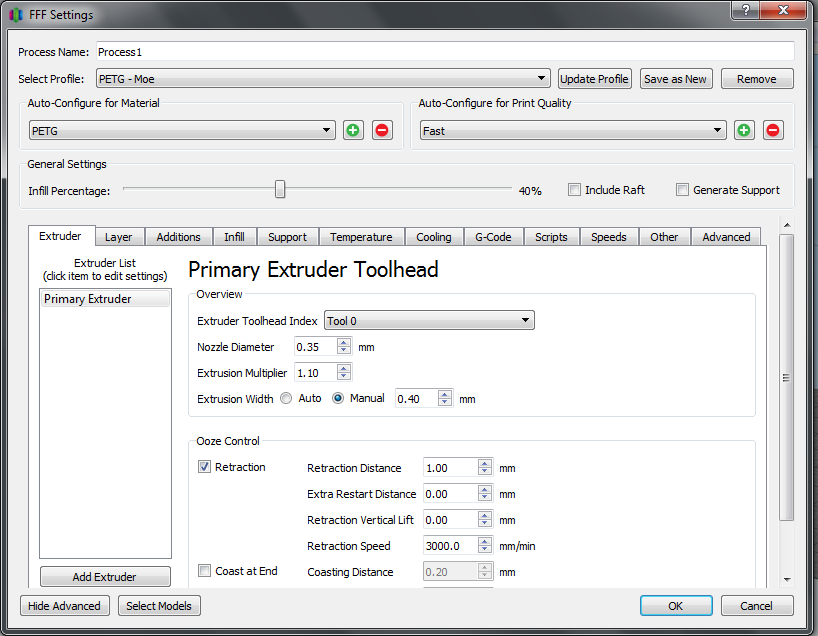

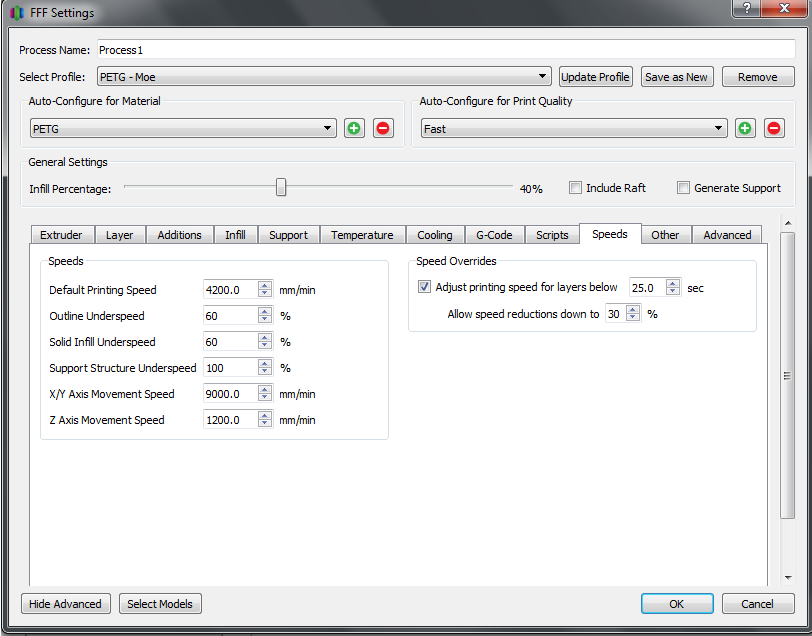

For petG, tool is at 245, Bed is at 110 (only because I don't want to re-level the bed when I swap from ABS for a quick print. Otherwise I think 60 on glass with glue is just fine). Here are the rest of the important information:



Gives me pretty decent results but I can also get away with my abs settings as well which prints at 235C and lower retraction.

For petG, tool is at 245, Bed is at 110 (only because I don't want to re-level the bed when I swap from ABS for a quick print. Otherwise I think 60 on glass with glue is just fine). Here are the rest of the important information:

View attachment 291589 View attachment 291592

Gives me pretty decent results but I can also get away with my abs settings as well which prints at 235C and lower retraction.
thank you i will try thatiformation

MoeSizzlac - Do you have your printer in an enclosure?

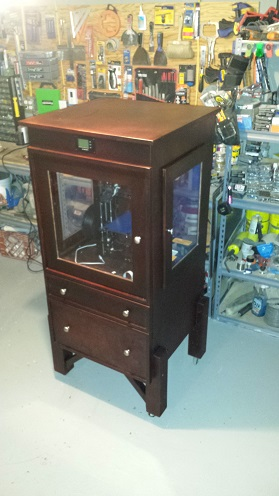

I do use an enclosure.


One of the first things I made once I got the machine. I built into the system a heater (basically just a halogen lightbulb), LED Lighting system, Smoke detector, octoprint, a couple of extinguishers in case of the worst event, and also a temp runoff shutoff switch relay which cuts power to the system if either the hot end tool or the heat bed get above (or below) a certain temperature.

Last edited:
I tried PMing you but it wouldn’t let me?? Build looks great. I really like your neck seal idea. I’ve always pondered doing something similar. I was wonder where you got the 3d printable neck seal file? I would like to print one for my H3 MKVI in the works and follow suit.
Thanks
Edit: oops sorry missed it in your first post. Do3d I see

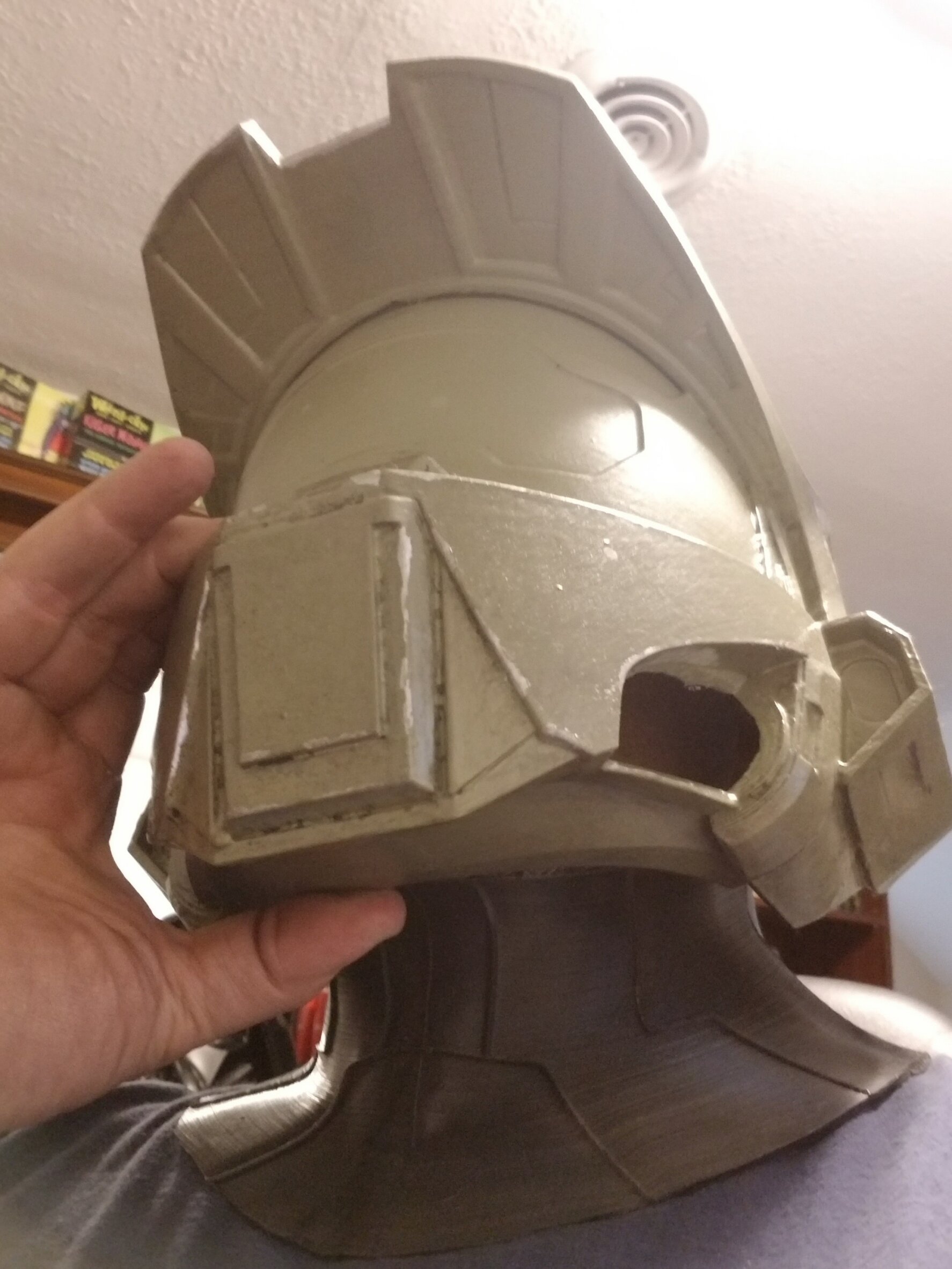

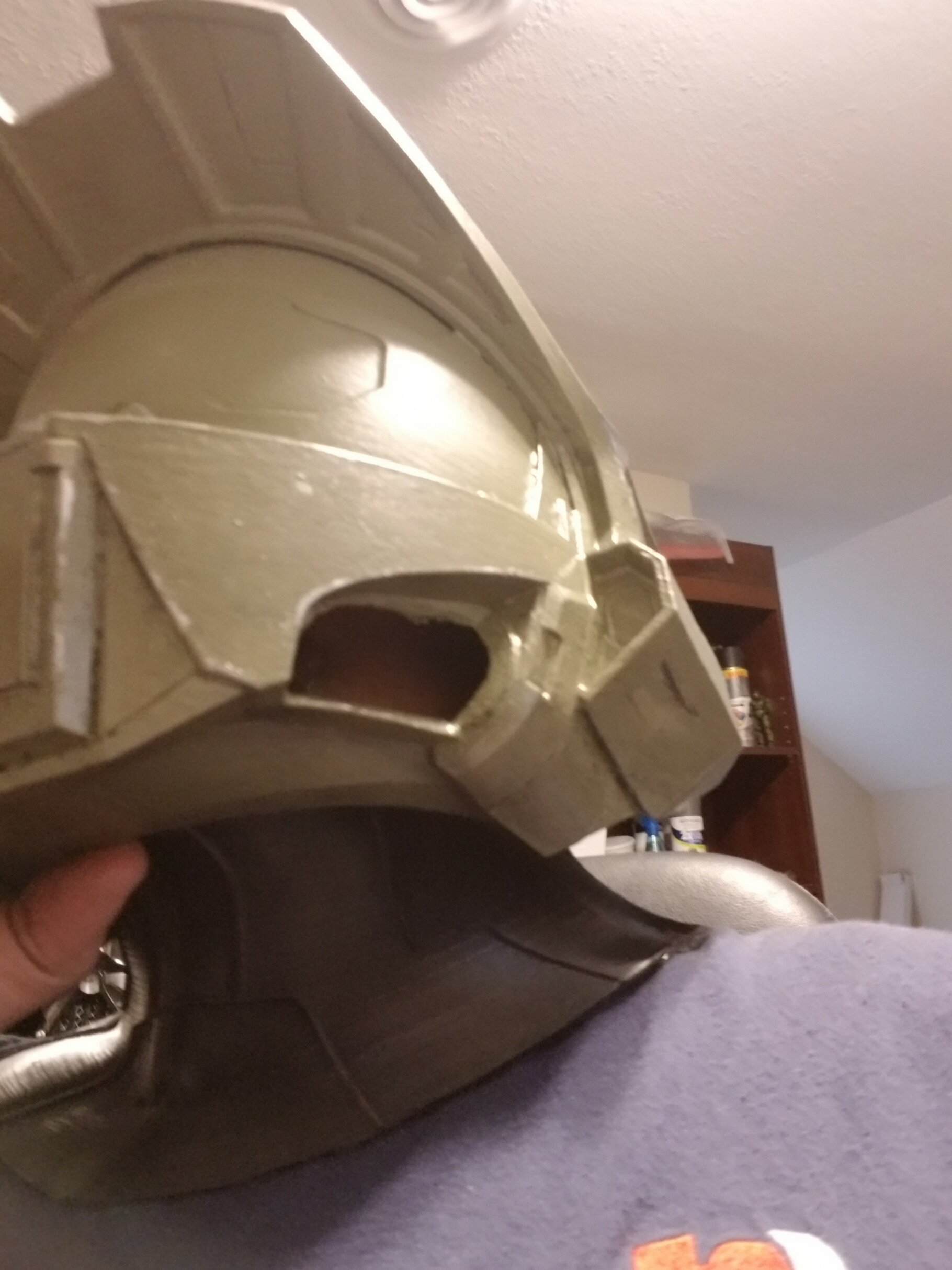

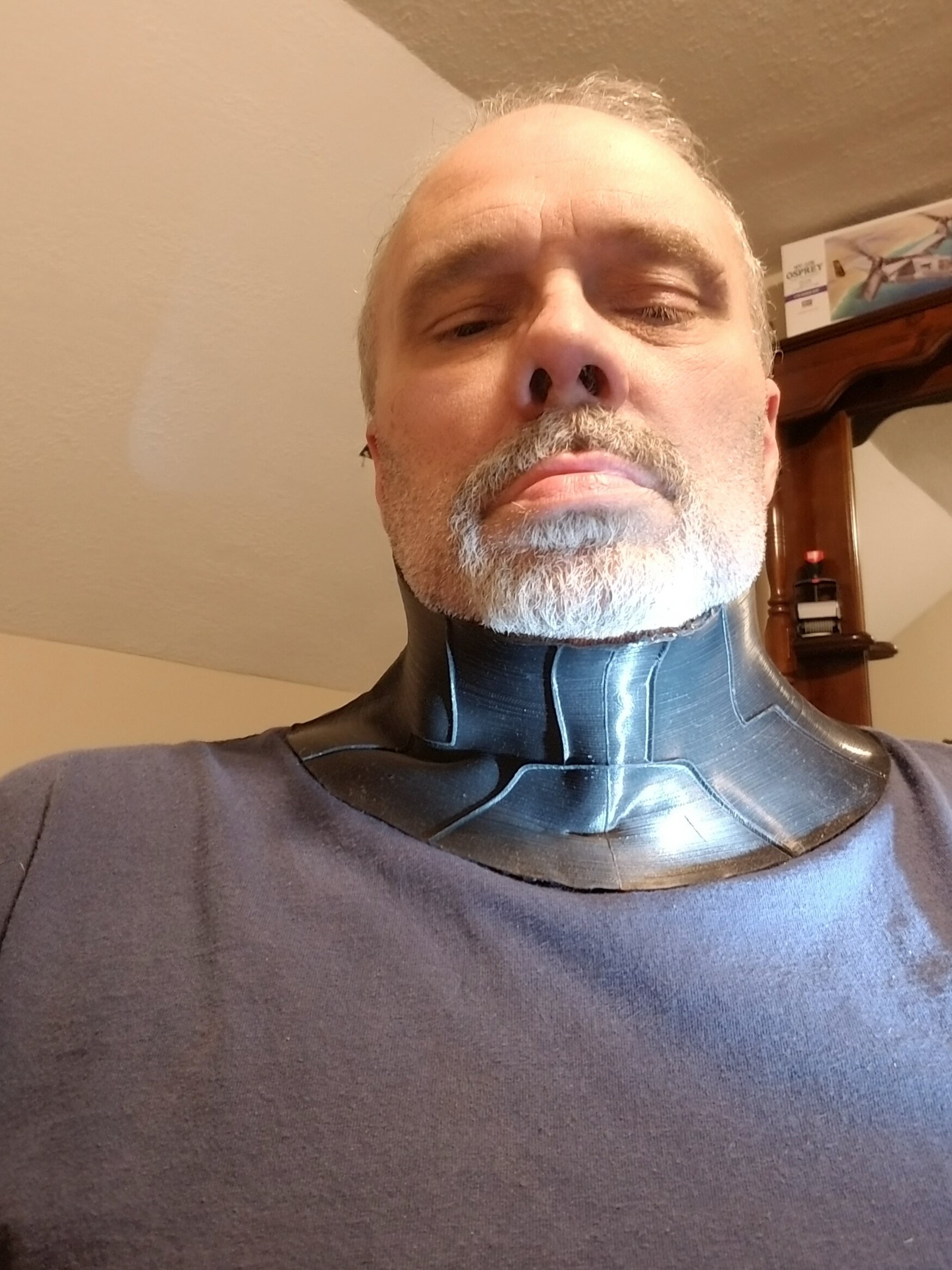

ok so here is the update on the neck seal it is one peace and i died it black andd washed it good so any paint on the side next to my skin is gone. (dont ask me why i know to wash it lol) but let me know i took the picture with my not ready helmet i will finish putting all the parts on her today and hope fully i will vac u form my visor this weekend. work has been busy lately....
please feed back is welcome i cant fix what i did not know was broken lol....


Attachments

  • 20200625_074301.jpg
    464.8 KB · Views: 261
  • 20200625_074407.jpg
    337.7 KB · Views: 224
  • 20200625_074424.jpg
    367.4 KB · Views: 238
That looks great! Since it’s one cast how do you put it on?

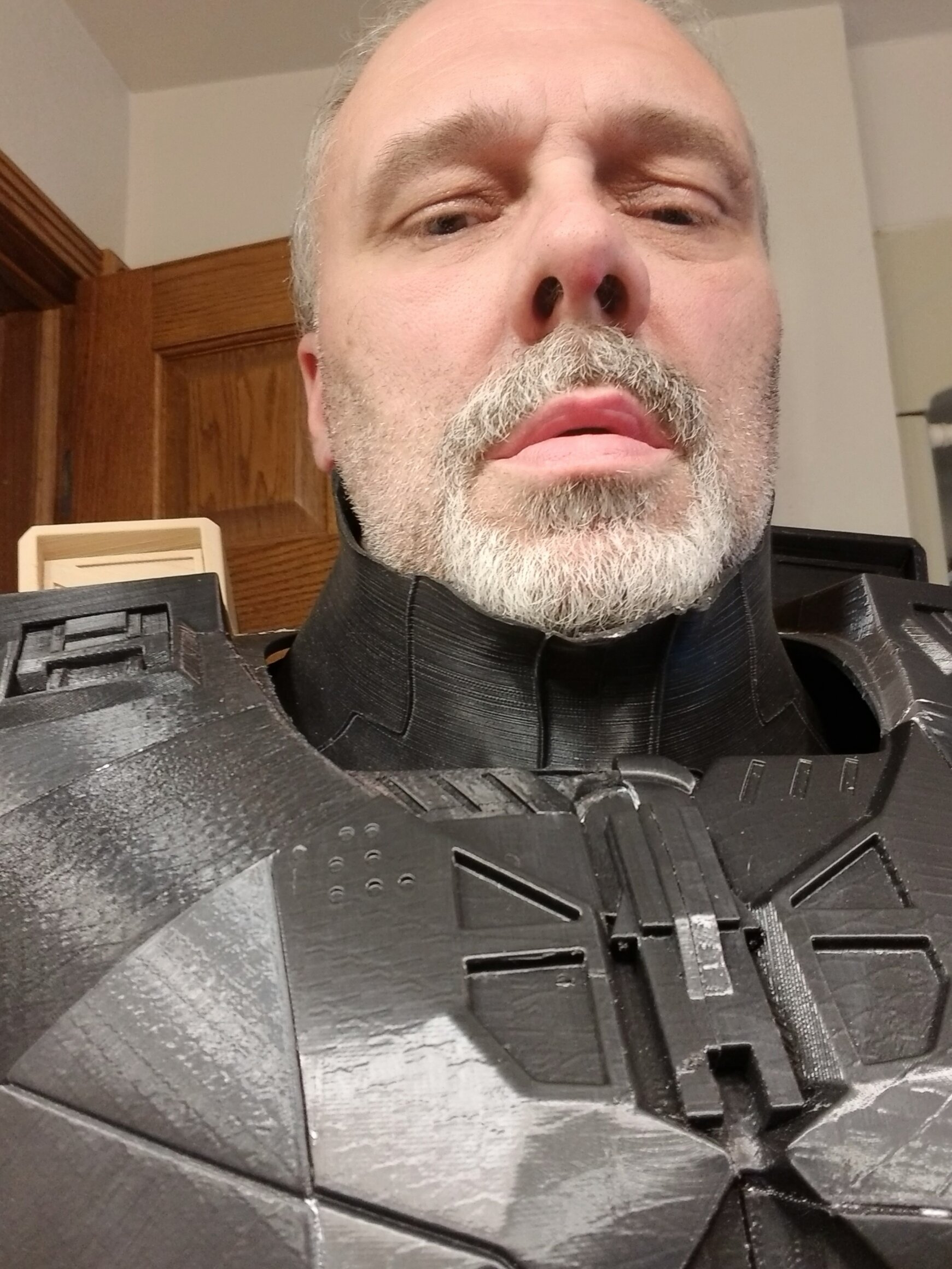

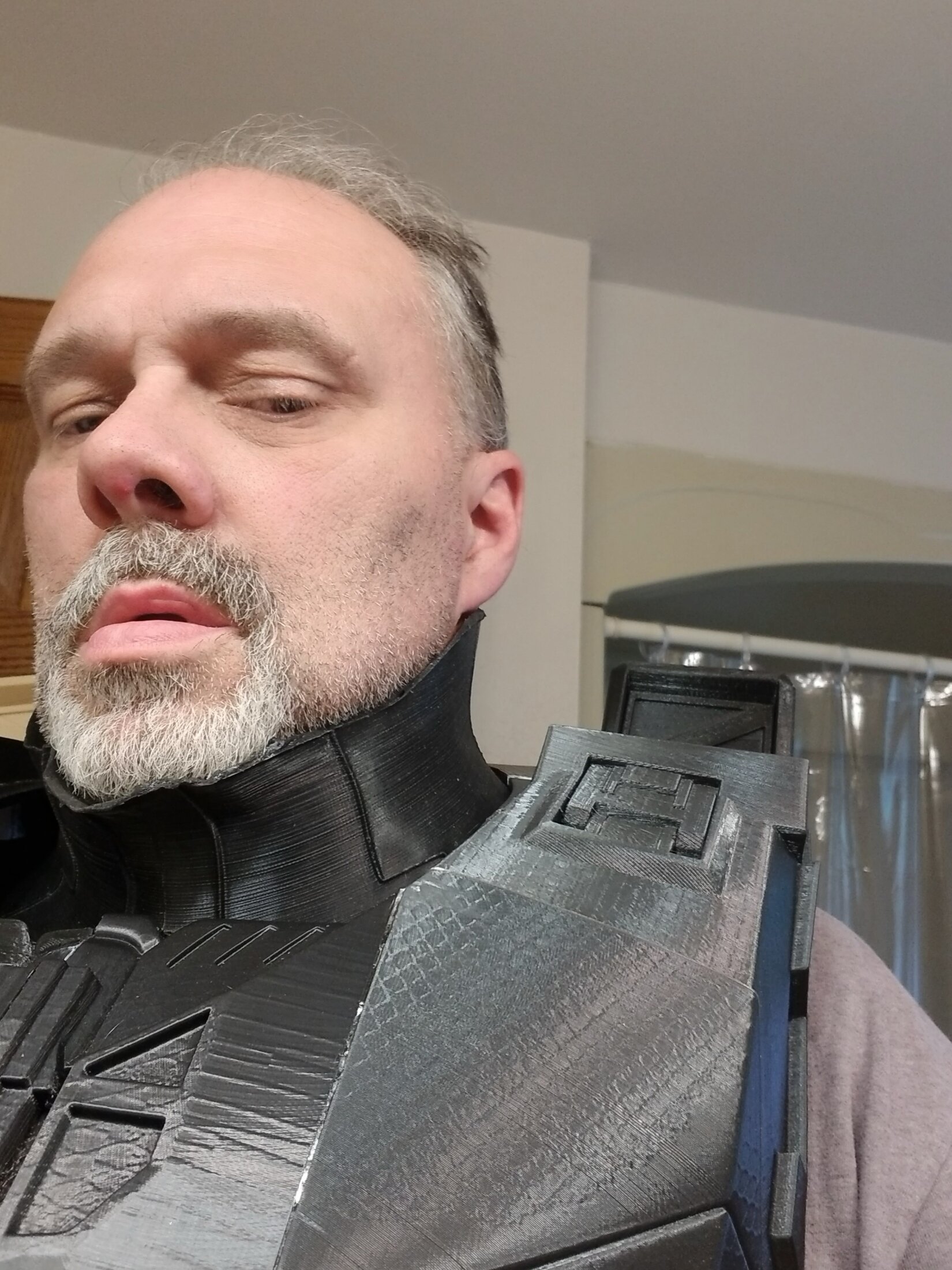

streach it over your head it will expand a little bit, that way it will be easy to get on and off..


Attachments

  • 20200625_152701.jpg
    509.4 KB · Views: 216
  • 20200625_152711.jpg
    521.7 KB · Views: 249
  • 20200625_152723.jpg
    509.3 KB · Views: 229
Last edited:
have you guys got to see this video i know its no real but the way the guy talks about it. you would think its real pretty cool


How did you die the neck seal?? Looks great

when you mix your aceatone and silicone just add some color that you want it to come out as i use the walmart country crafts craft paint because it is water dilutable and it dyes fast so it will not slow the cure time at all
