Why do we always have these conversations?” Vaz asked. “I have moral objections, you say it’s the way of the world, and I end up agreeing with you, doing nothing, and feeling like s**t about it.

Time for some ONI shenanigans! After the LA event was announced I quickly realized that I needed a suit that could travel, introducing Vaz! The Isaac Hannaford art for Kilo 5 was always a big source of inspiration for me and as a big Kilo 5 fan I was pretty determined to finally tackle this challenge. This will get pretty photo heavy so bare with me!

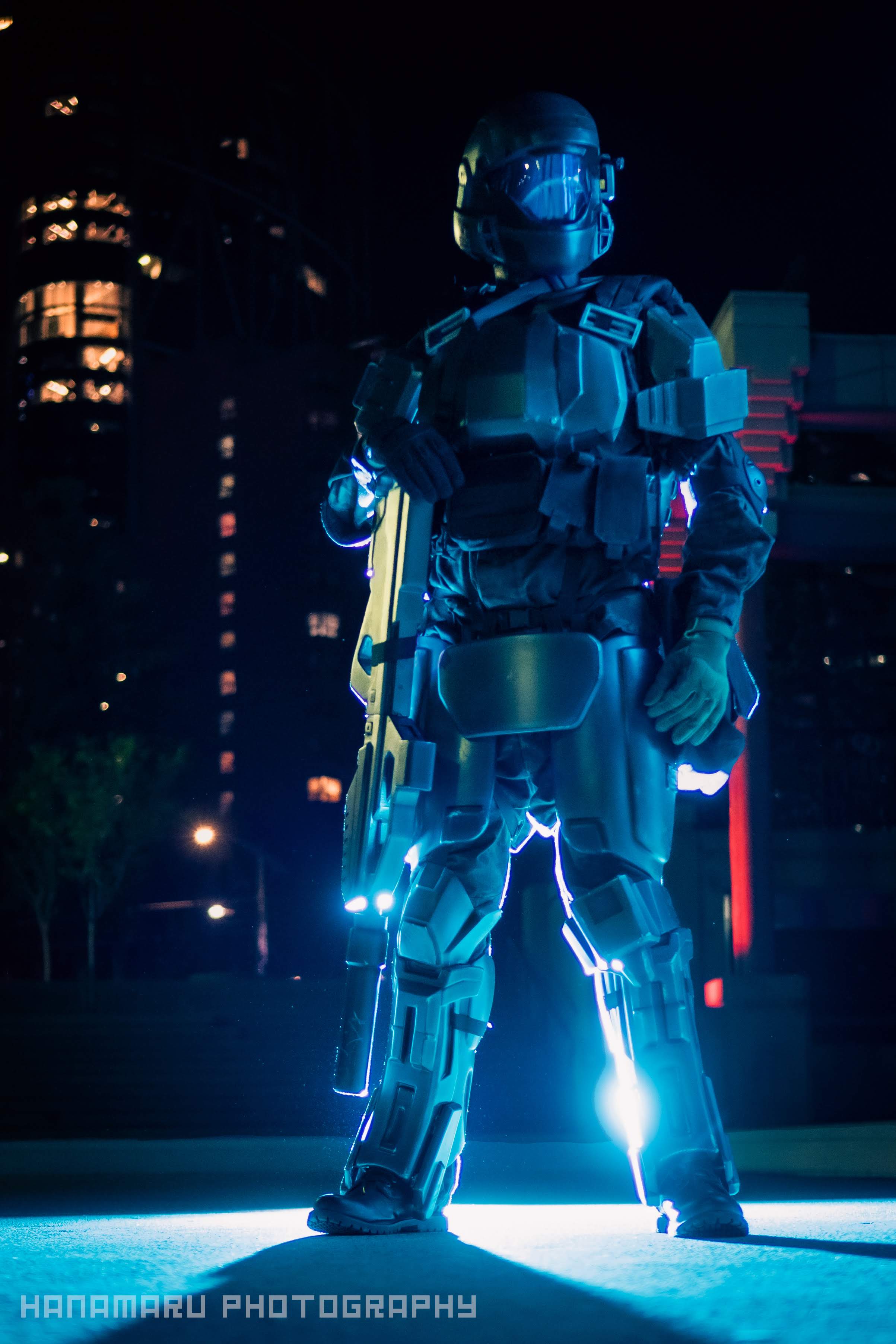

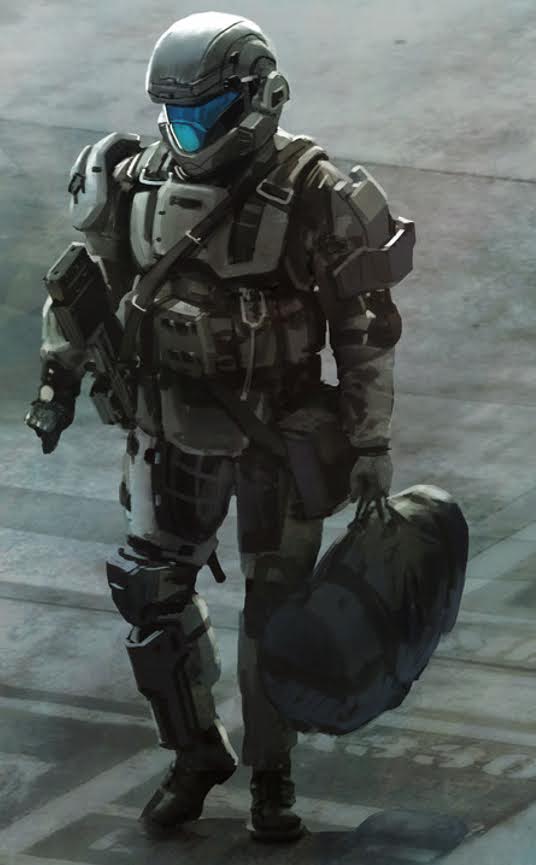

First, finished build vs the concept art!

Quick Stats

Overall build time:
1 month (It was a heck of a month)
Initial Build: 3 weeks
Upgrades: 1 week

Base:
Sean Bradley Armor kit

3d Printed Components:
Turbocharizard: right shoulder, helmet, left knee, codpiece

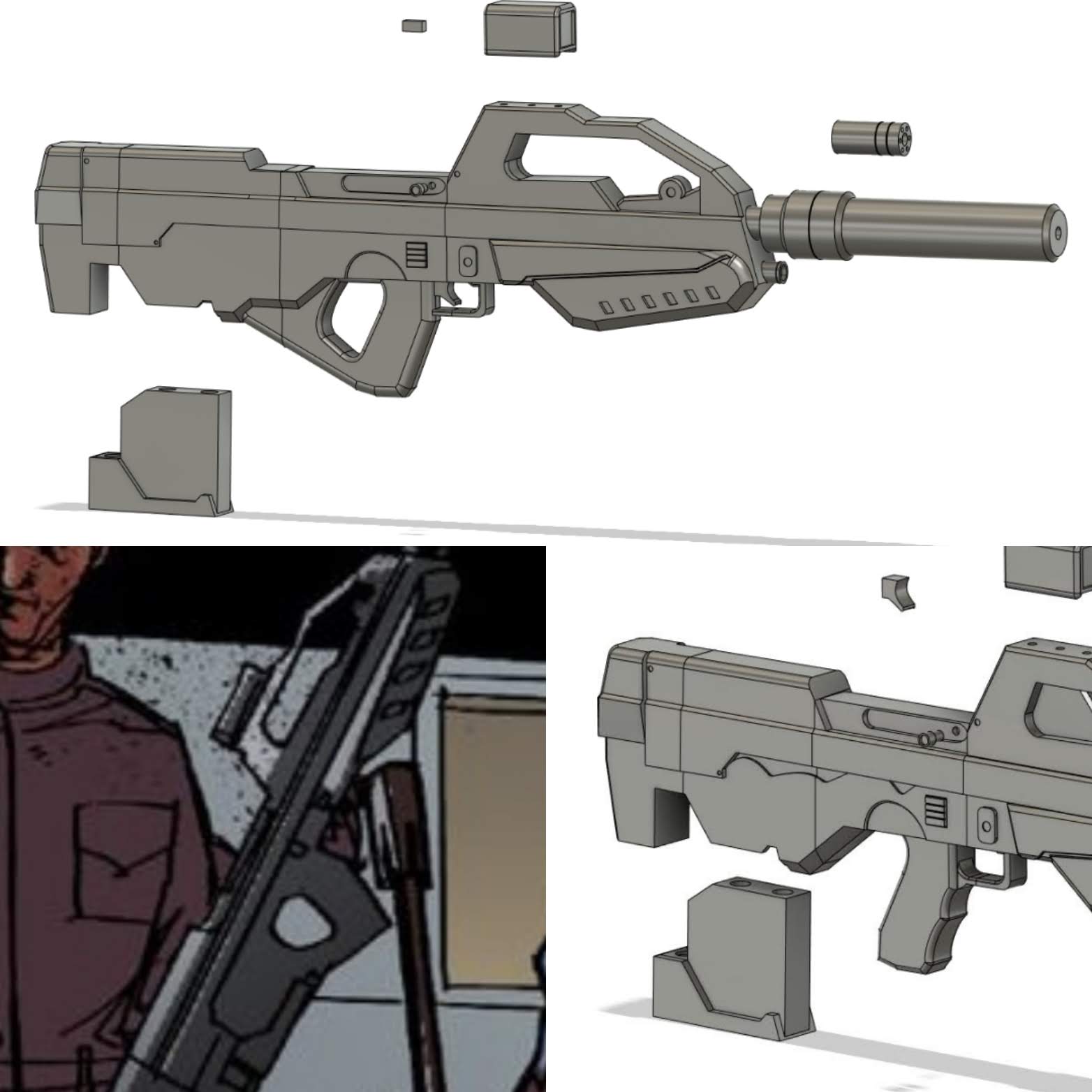

Myself: Left shoulder, right knee, helmet attachments, MA2B

Let’s get started!

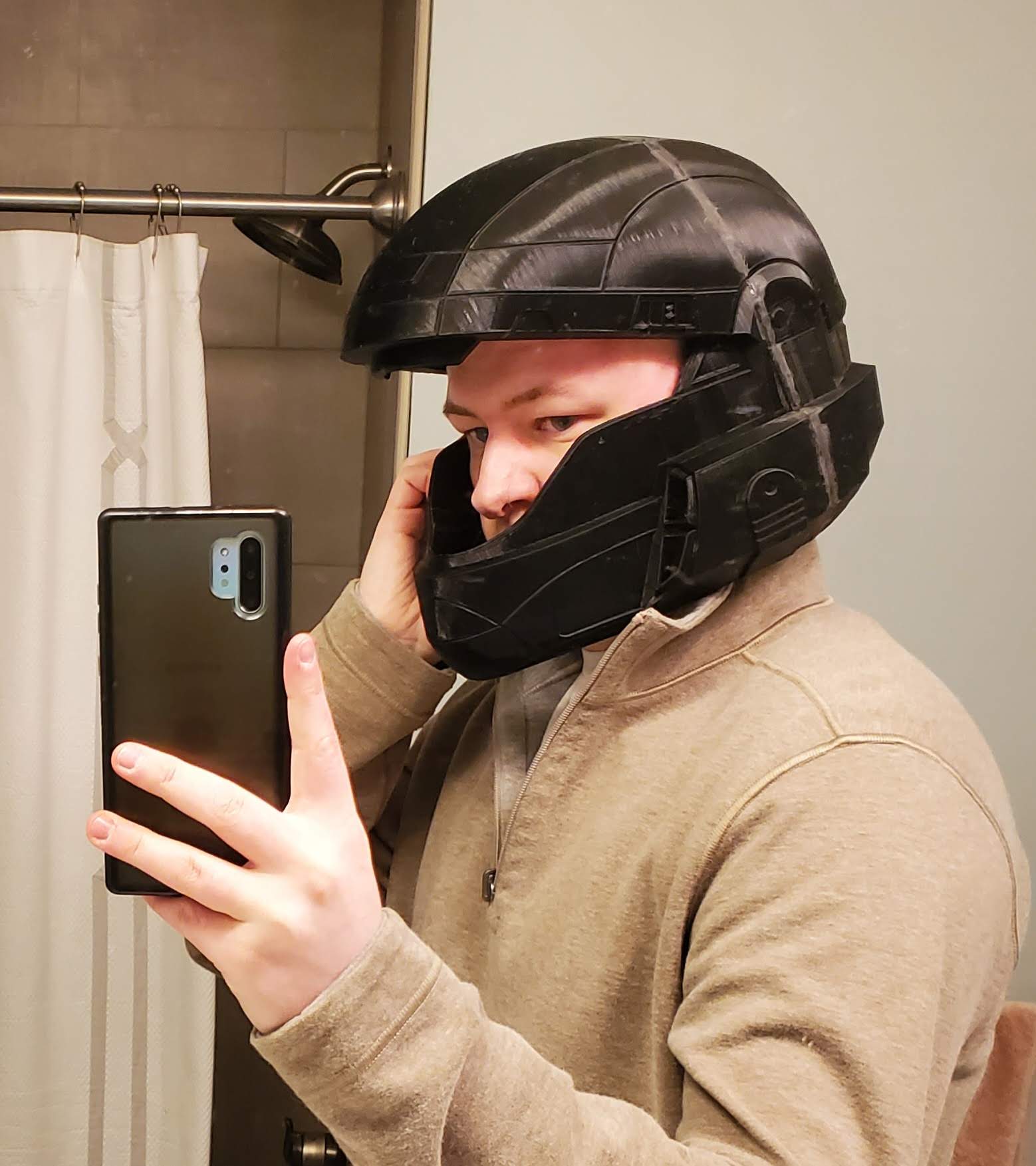

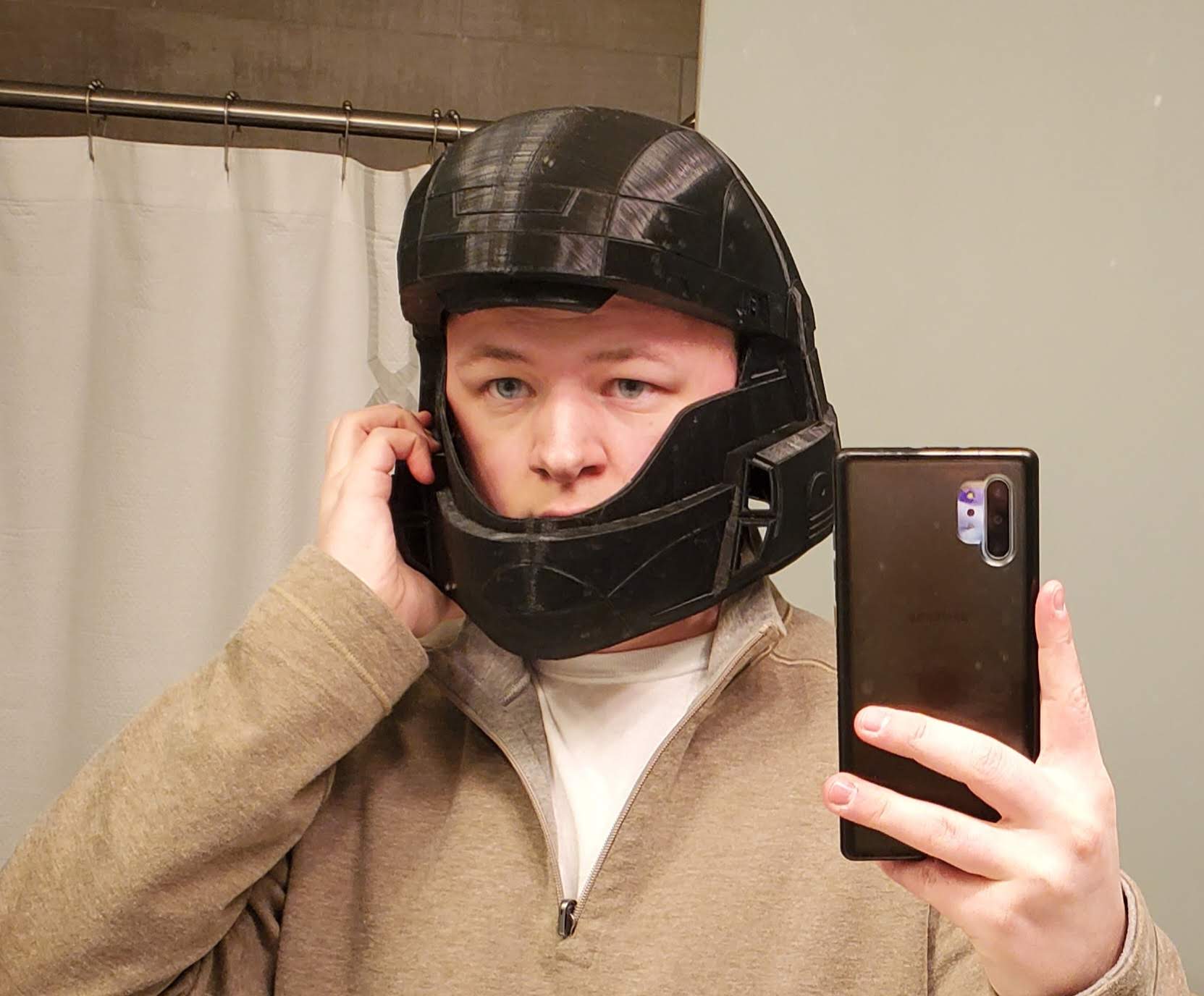

First up was Turbos helmet, I printed it in 2 pieces out of PLA then attached using super glue and my print welding method found HERE.

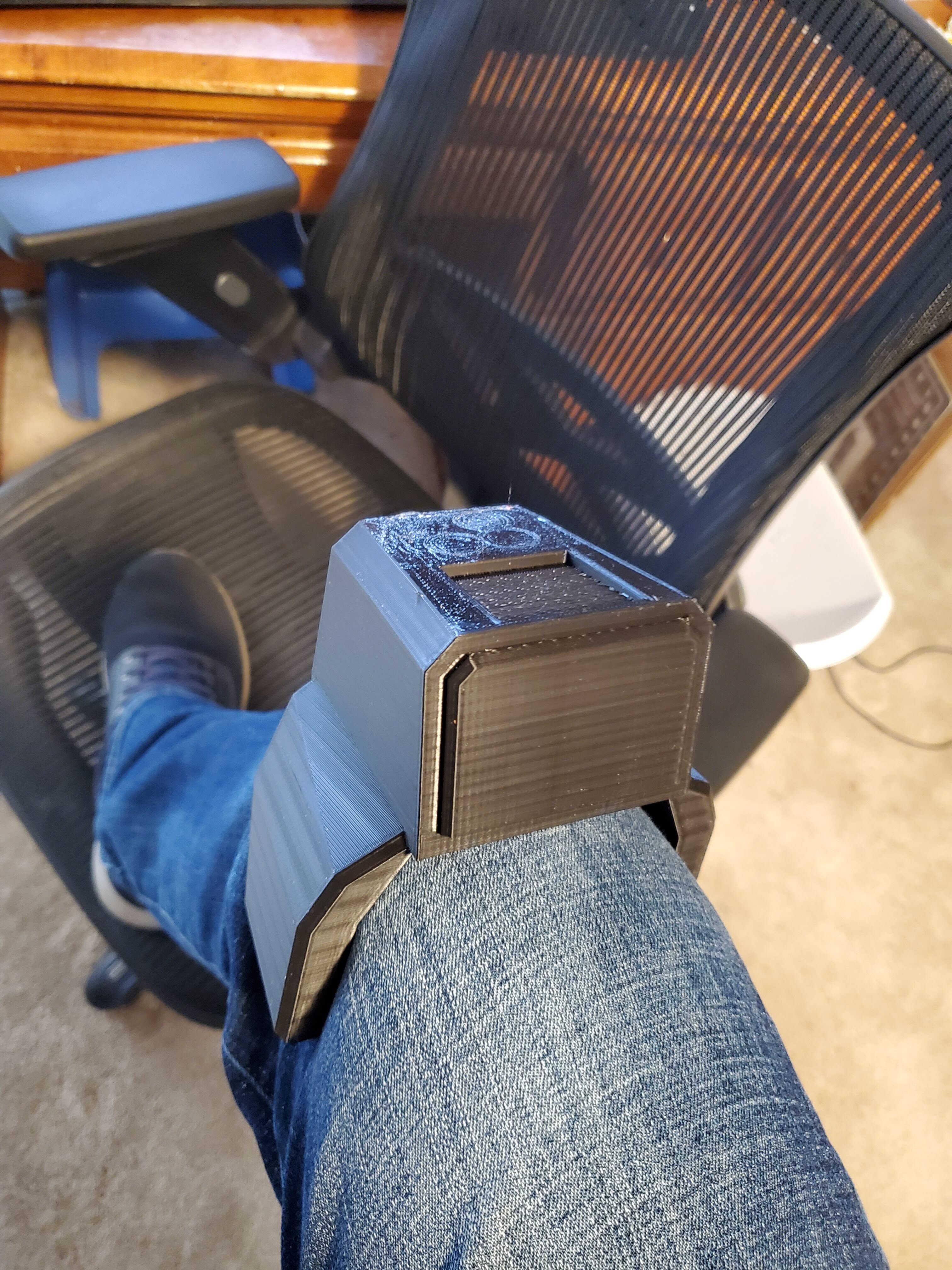

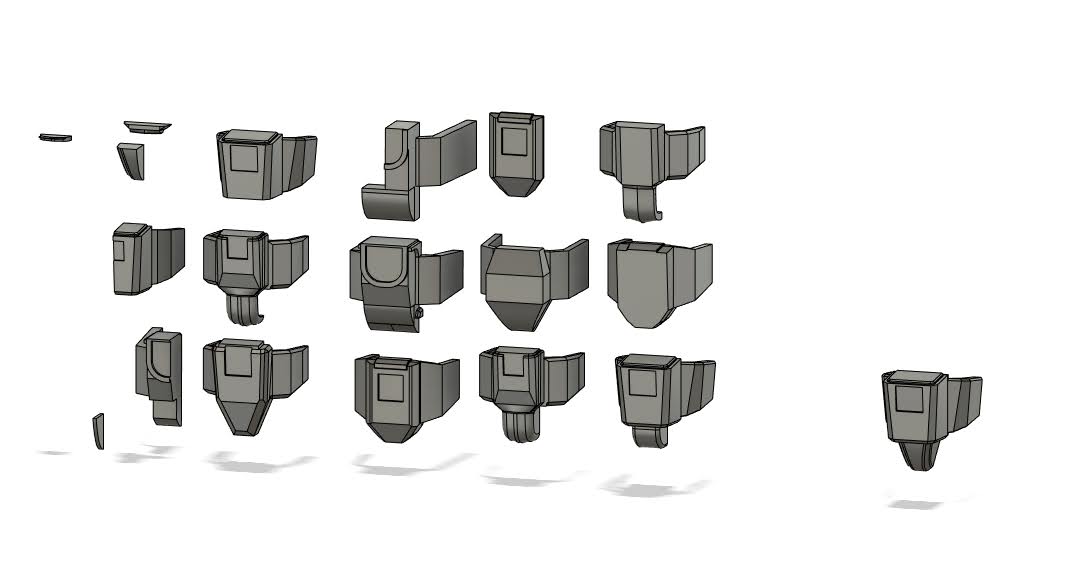

While that was printing I started working on some knees… a lot of knees. It took a great deal of renditions but I was finally able to get down a design I was happy with. 1 quick print… and it was too small. Slightly scaled up and we were golden!
image (1).jpg


Next was the shoulders, luckily Turbo was able to give me a hand and use his fusion wizardry to whip me up the right shoulder pad while I worked on the left. The shoulder features a magnetic detachment method so I can separate it for transportation.
Printed with a layer shift that I was able to fix and we were on to the fiberglass resin stage!
image (2).jpg

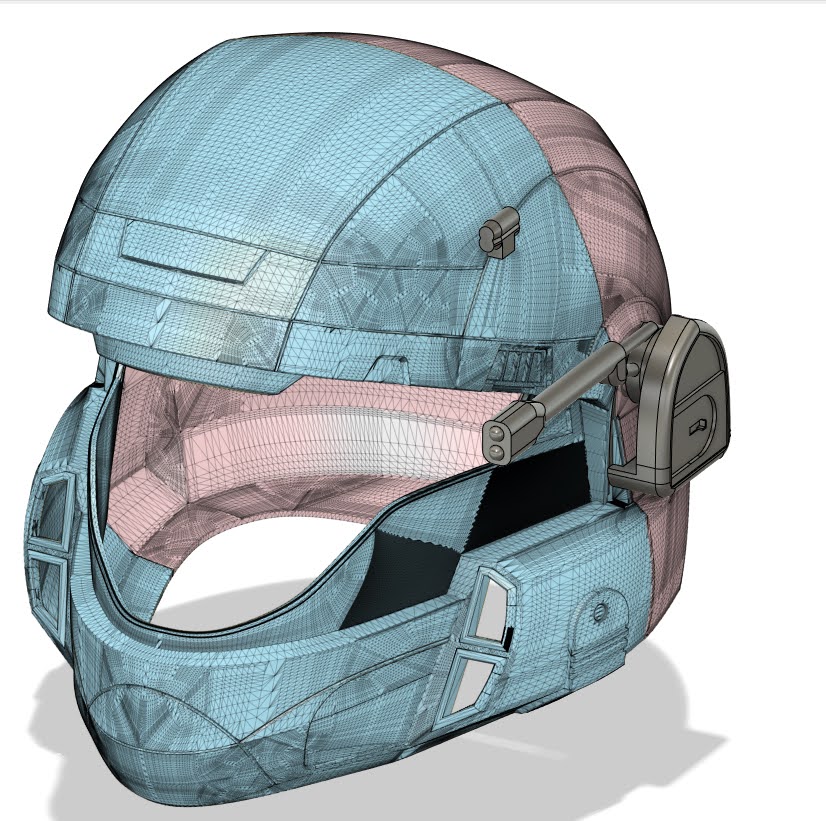

All prints got 2 coats of resin on the outside and 1 on the inside to help with sanding and bumps and scratches. While waiting for those to cure I was hopped back onto Fusion 360 to model the helmet attachments that are featured. Both are magnetically attached to the helmet just incase I want to do a “Rookie” ODST using the bucket.
image (3).jpg

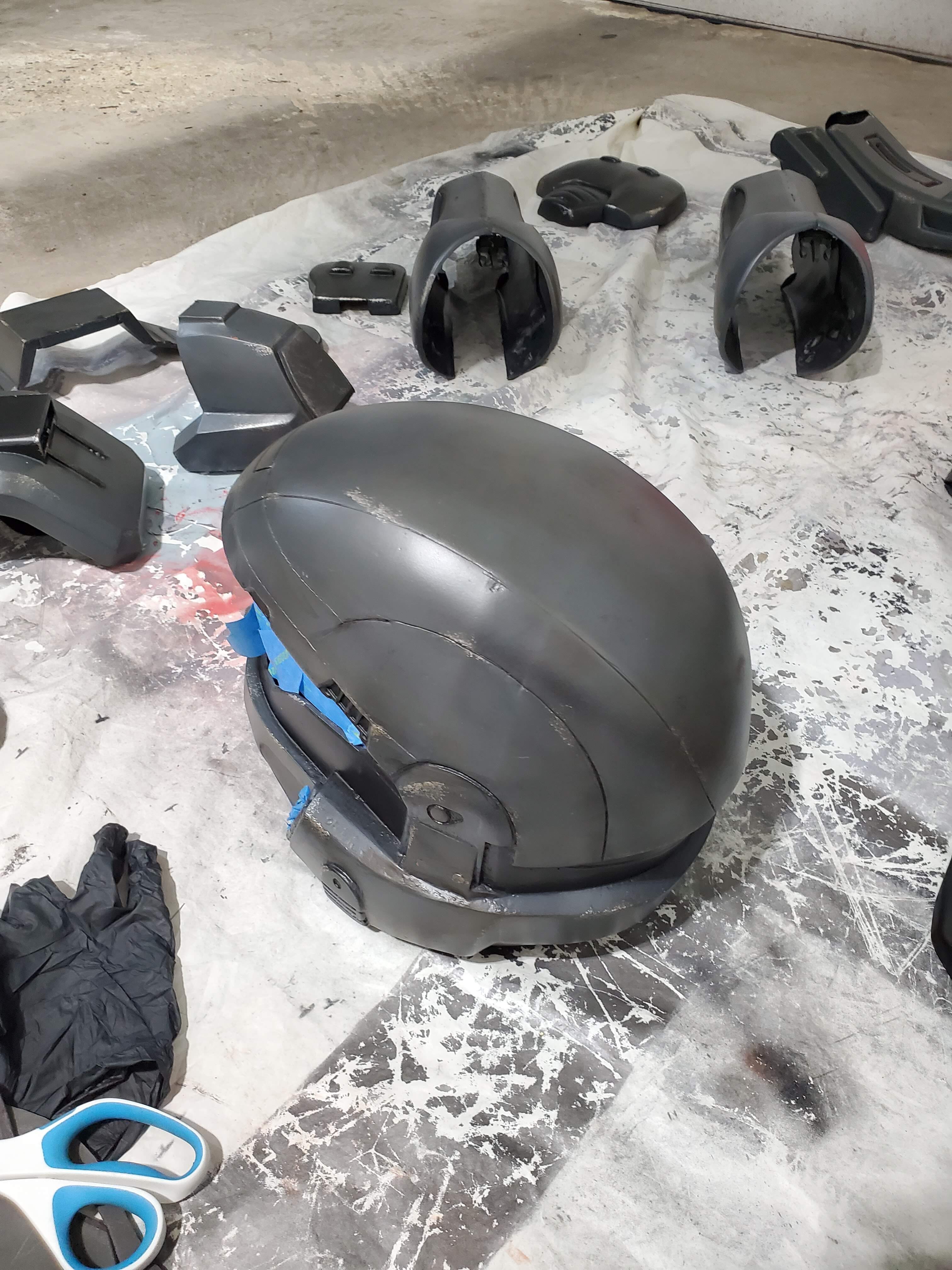

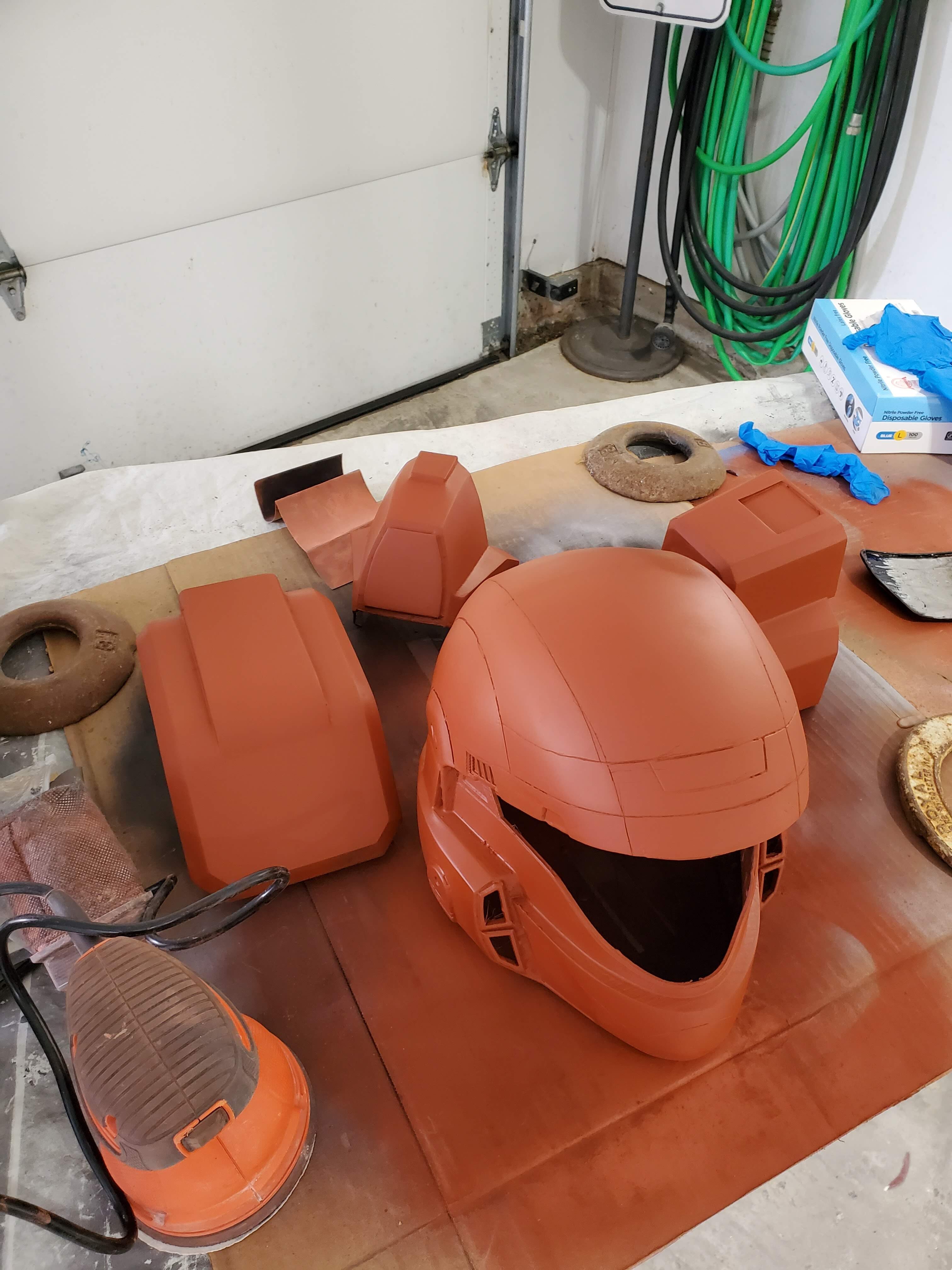

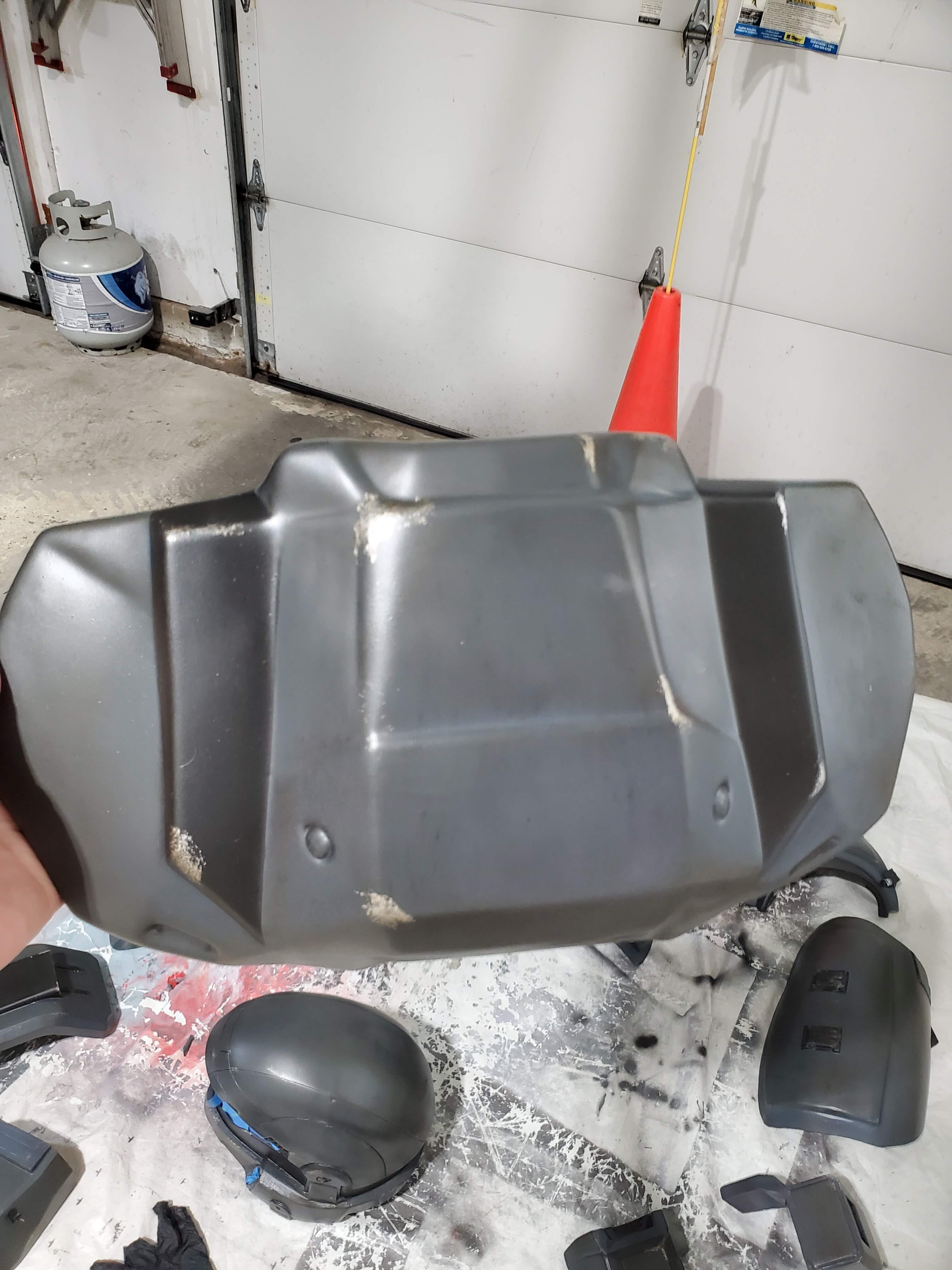

Next up was sanding… a lot of sanding. Started with 60 grit then went 120, 240, bondo and filler primer, then wetsanded 240 320, and 400. Gentle reminder to wear clothes you don’t care about, they will get bondo all over them (also PPE, wear your PPE).


Purchased my soft parts soon after consisting of a chest rig, hip bag, gloves, battery pack for the helmet, and my greatest find, leaf blower straps! Those suckers work PERFECTLY for the shoulder strapping.

2 days later… The Bradley kit arrived! I immediately got to work trimming, sanding, and assembling components. I used M3 screws for the majority of the assembly and (no real surprise here) more magnets! The shins fit together in a “clamshell” design secured by a strap and 2 15lb bar magnets.

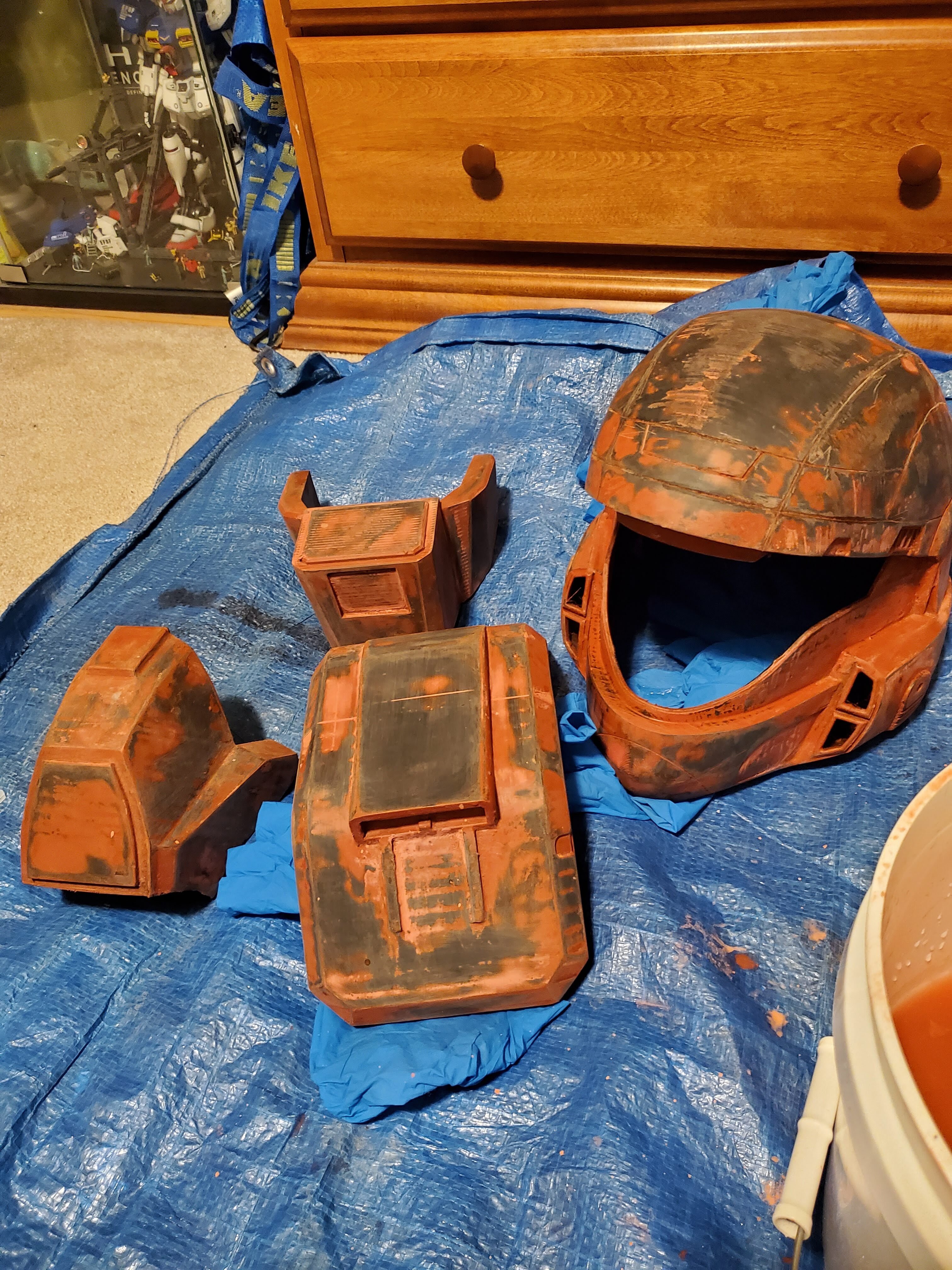

It's finally time for my favorite part, painting! Used a rustoleum matte black primer coat first before hitting everything with Rustoleum slate gray as the base color, I then went back with my airbrush and did the black detailing on all the parts. A silver dry brushed, sponged, and buffed on silver was used for the chipping followed by a black oil wash.

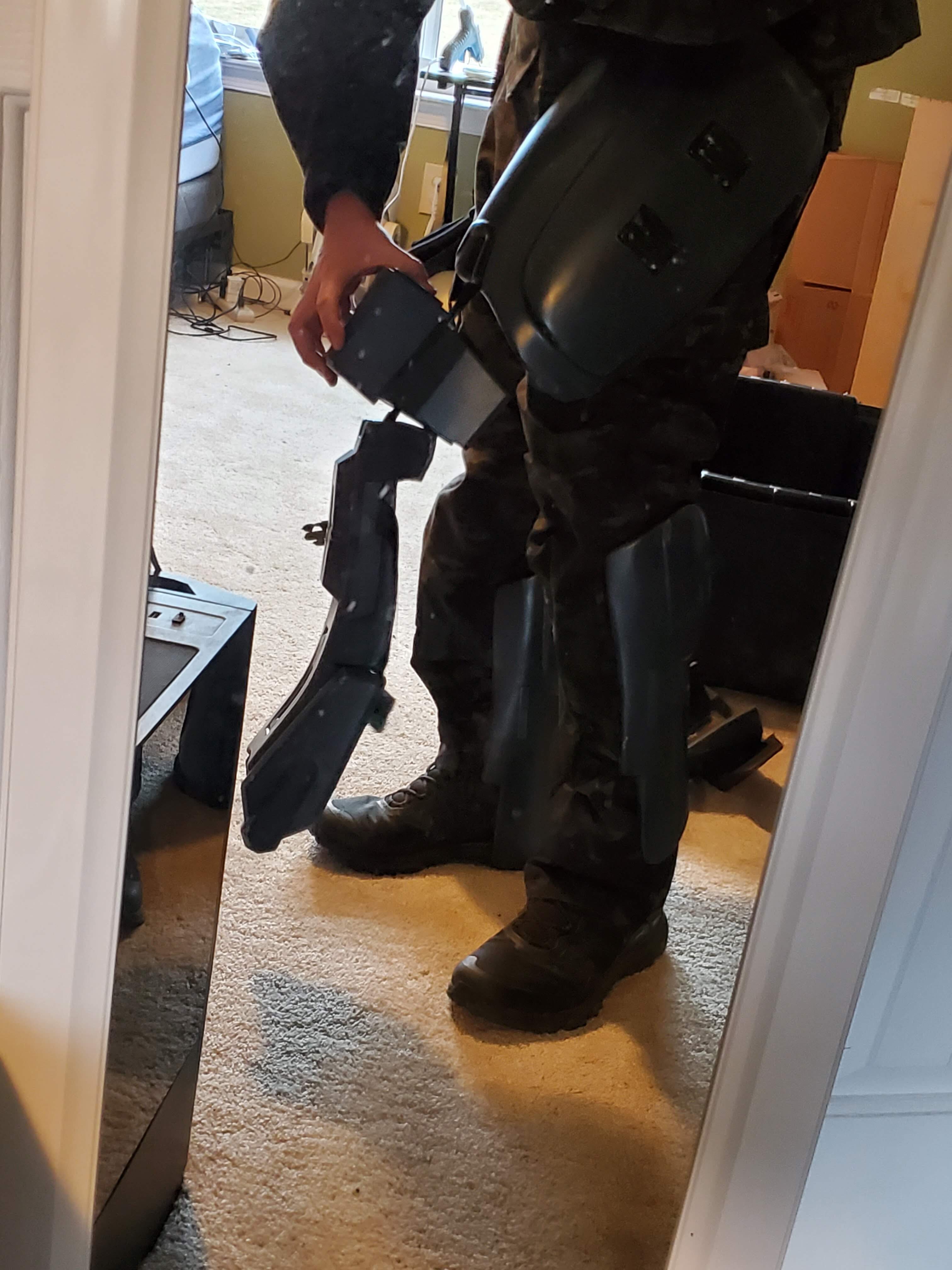

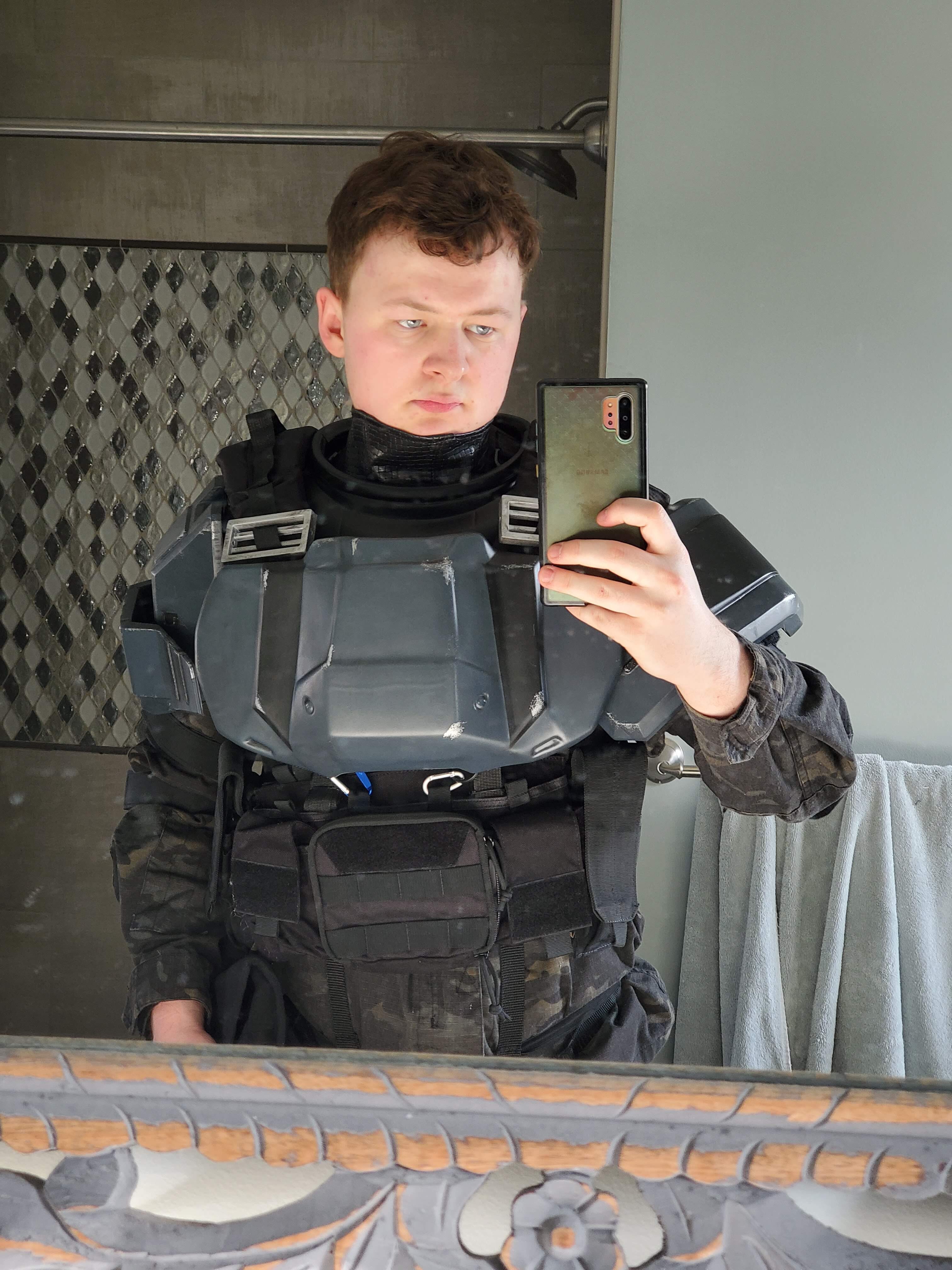

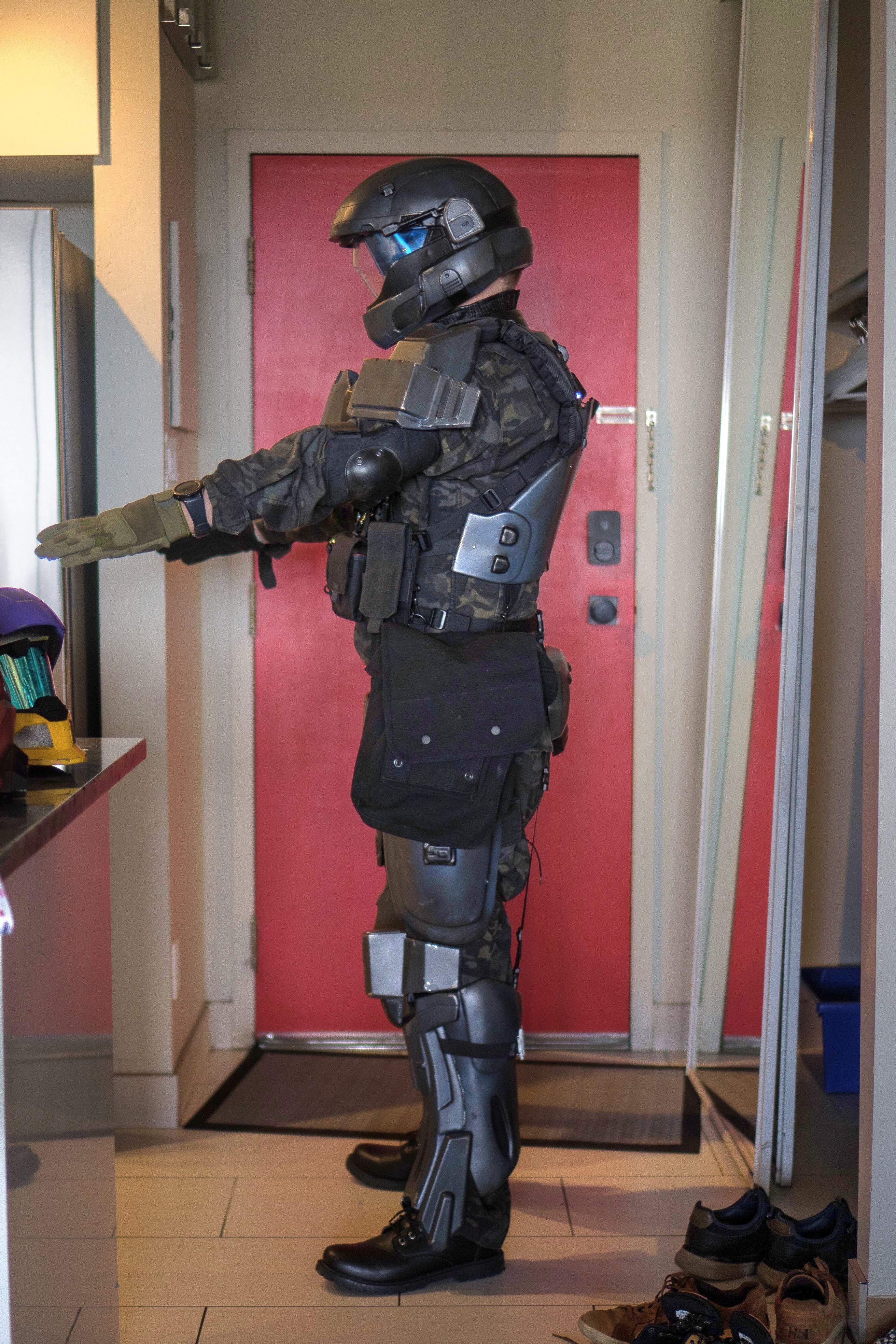

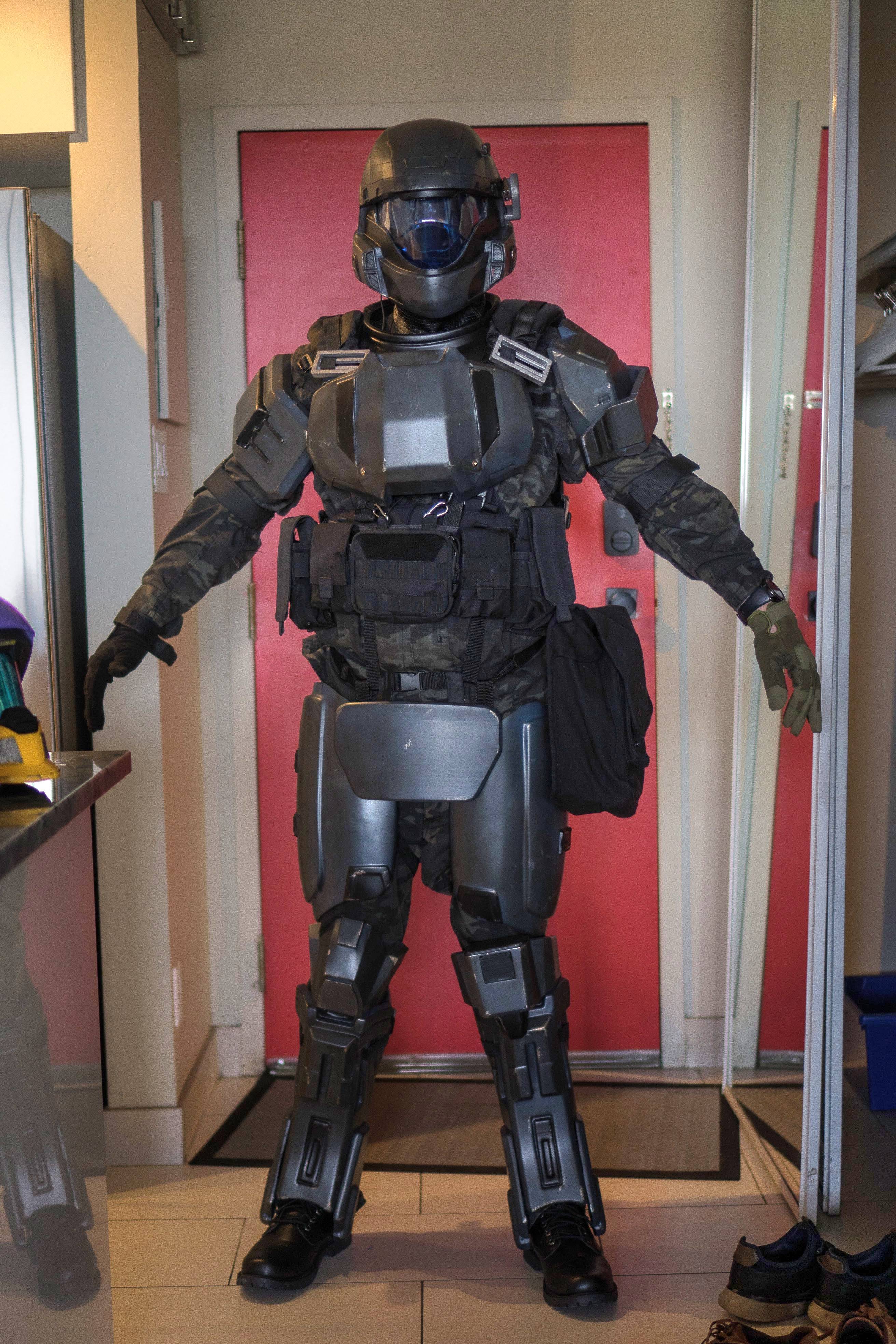

It was time to actually wear it! I used my strapping harness featured HERE to hook everything up then used a ton of parachute clips to rig it up. The harness allows for a sturdy connection and prevents it all from falling down on itself. The chestpiece actually hooks into itself and uses the chest rig as an anchor point for a comfy and secure fit.
20220319_173804 (1).jpg


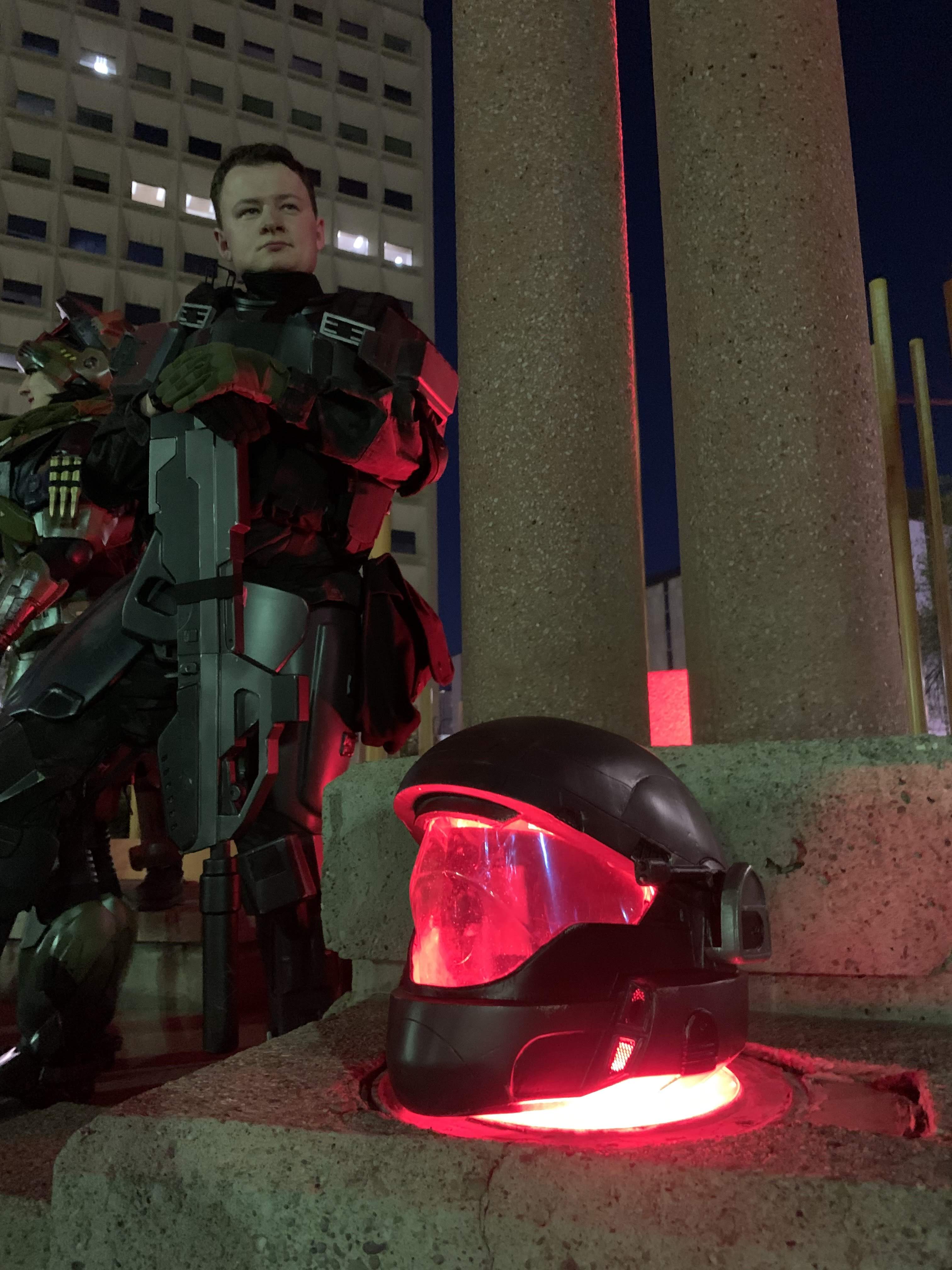

There we have it! My version 1 of Vaz ready to roll for LA!
(Spoiler Alert, we aren’t done yet)



Last edited:

Rock Lobbster

Well-Known Member
Stream Team
Member DIN
S098

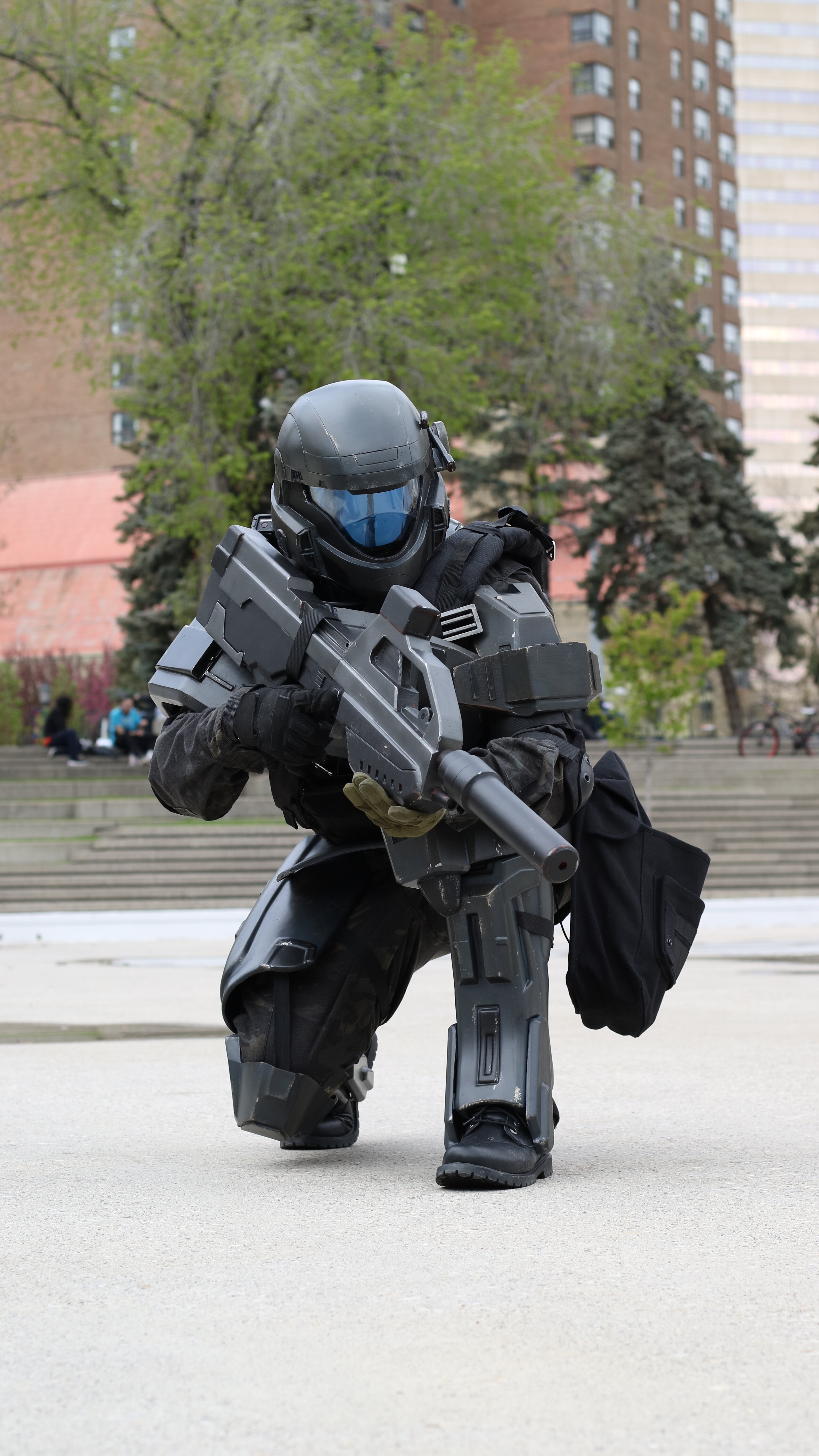

Version 1.5, UPGRADE TIME!

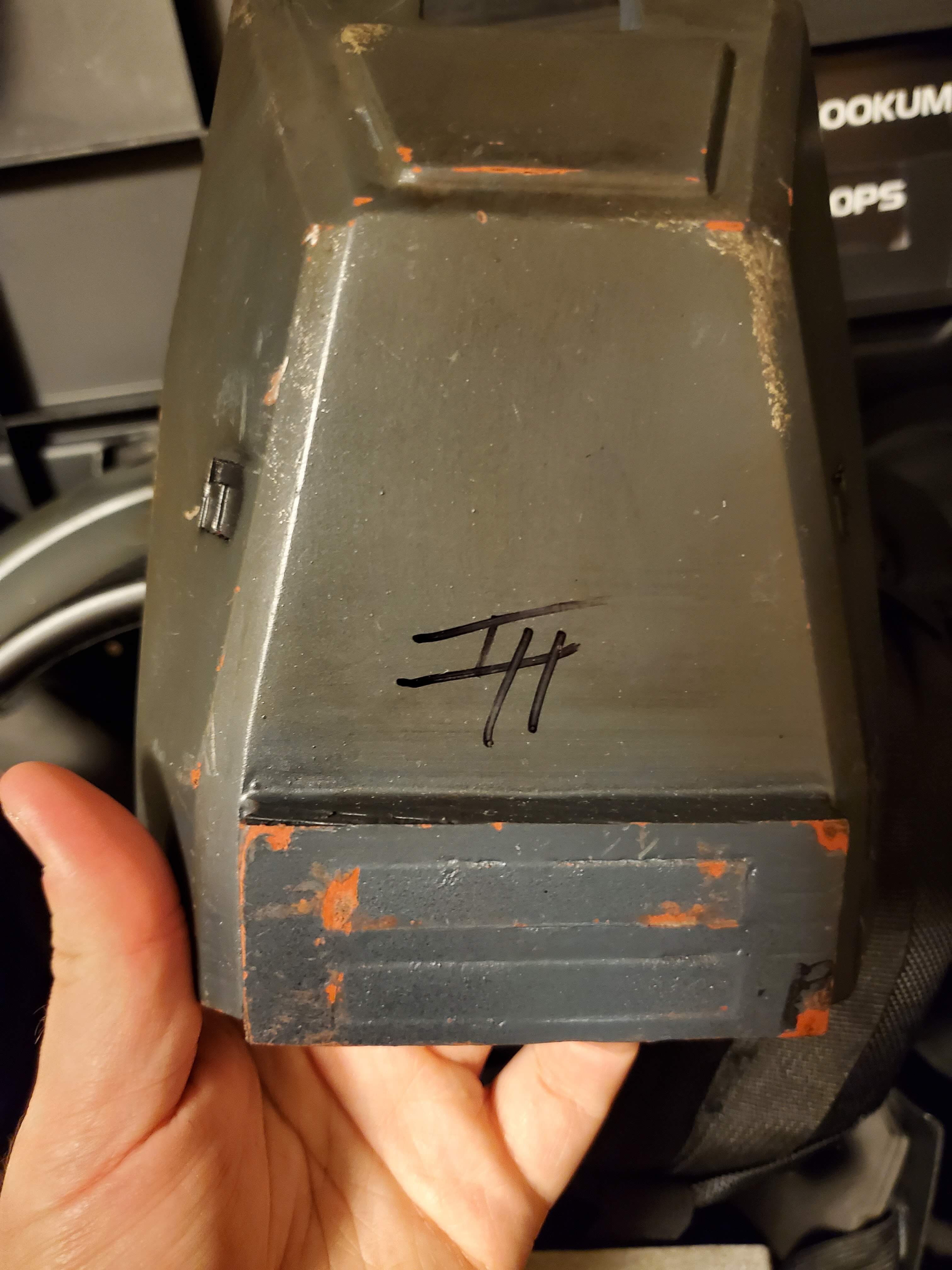

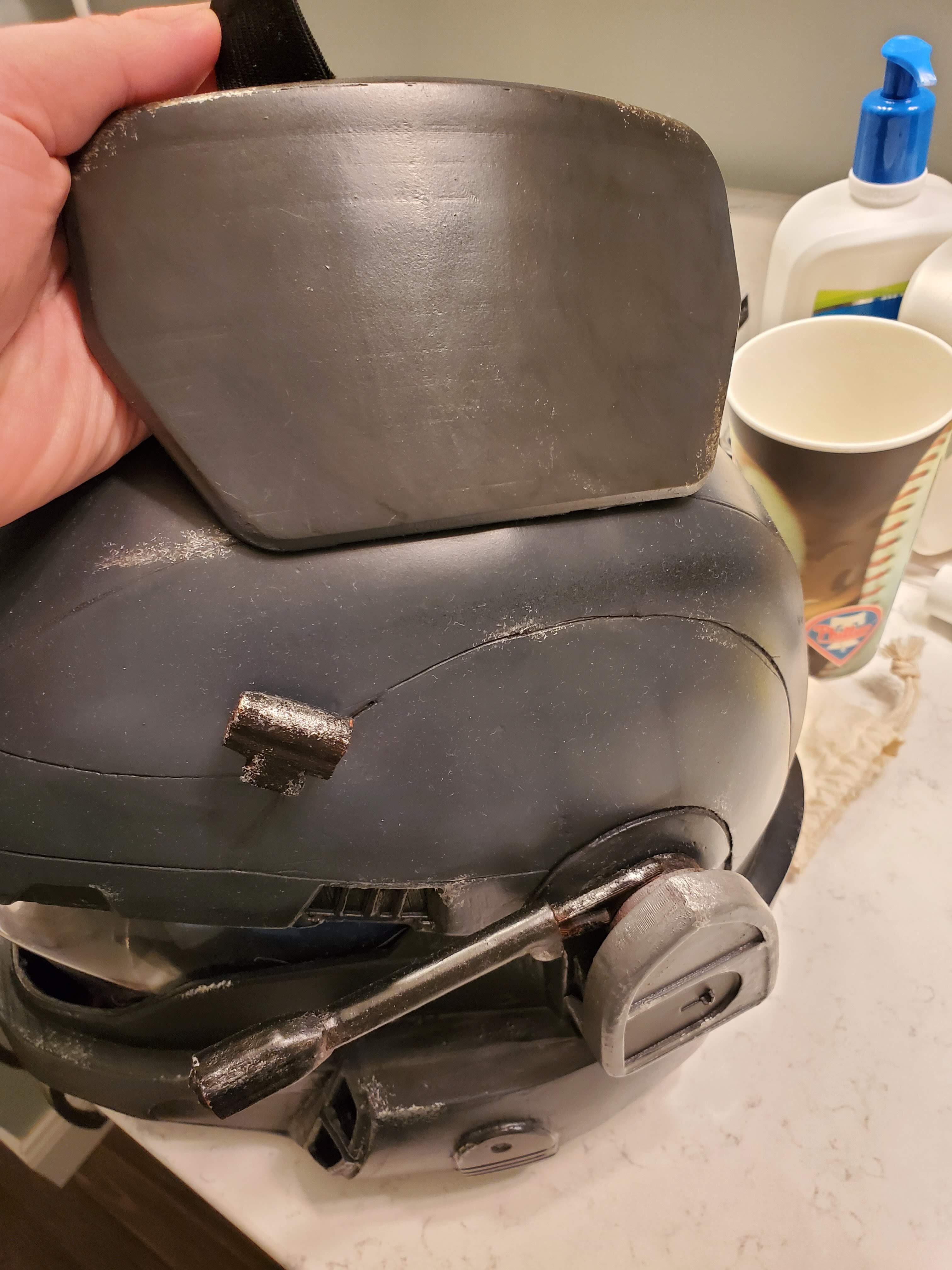

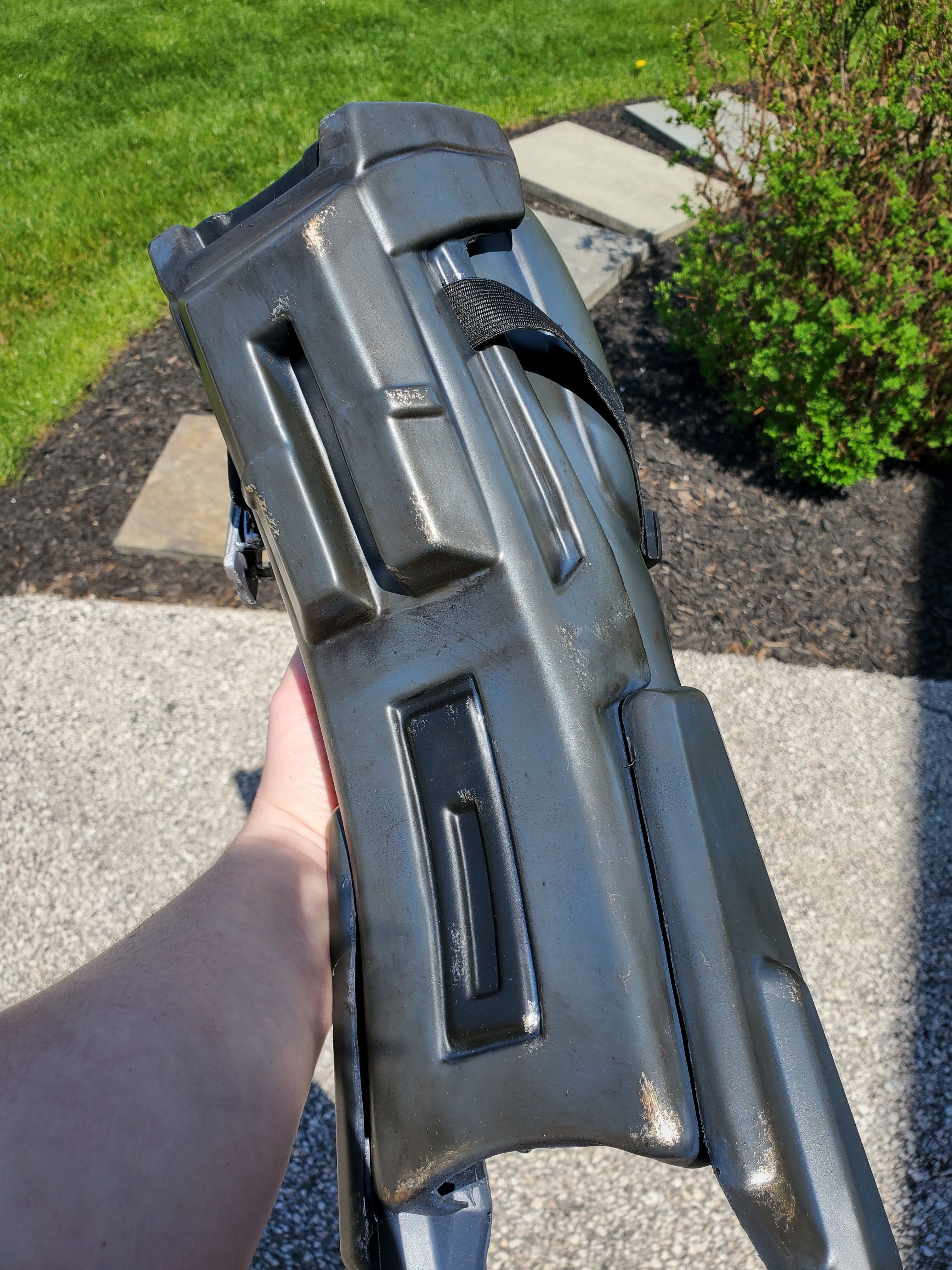

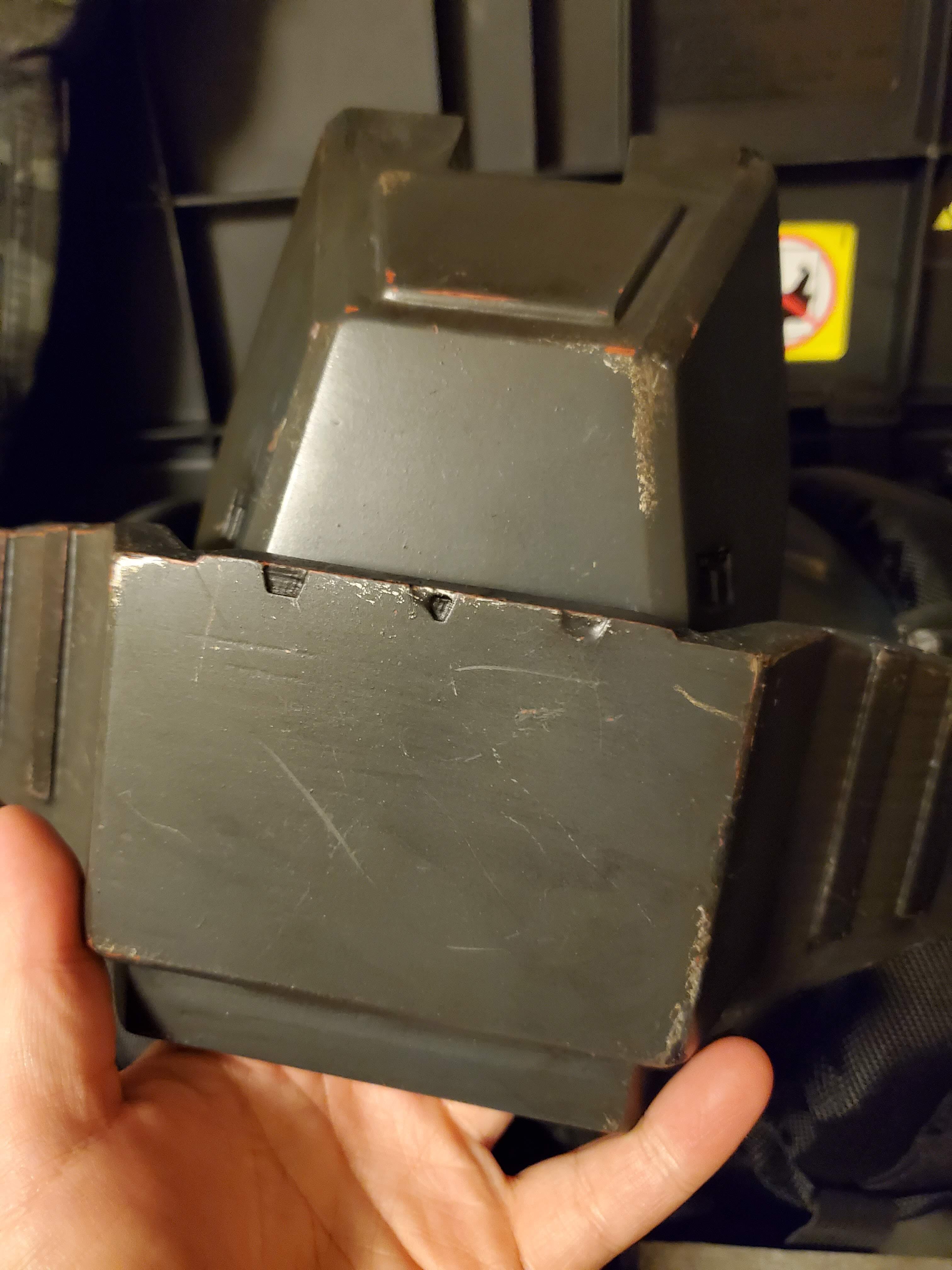

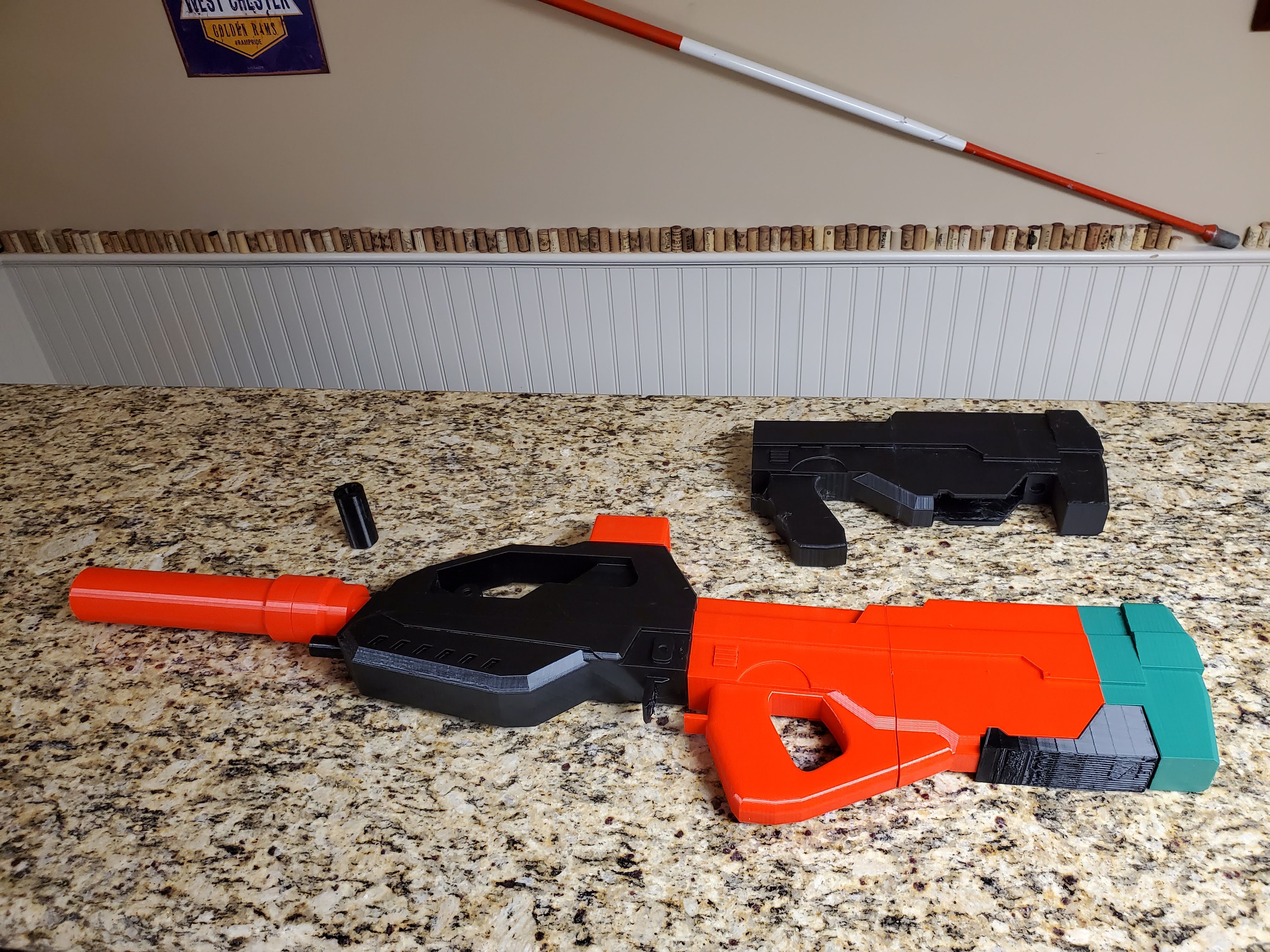

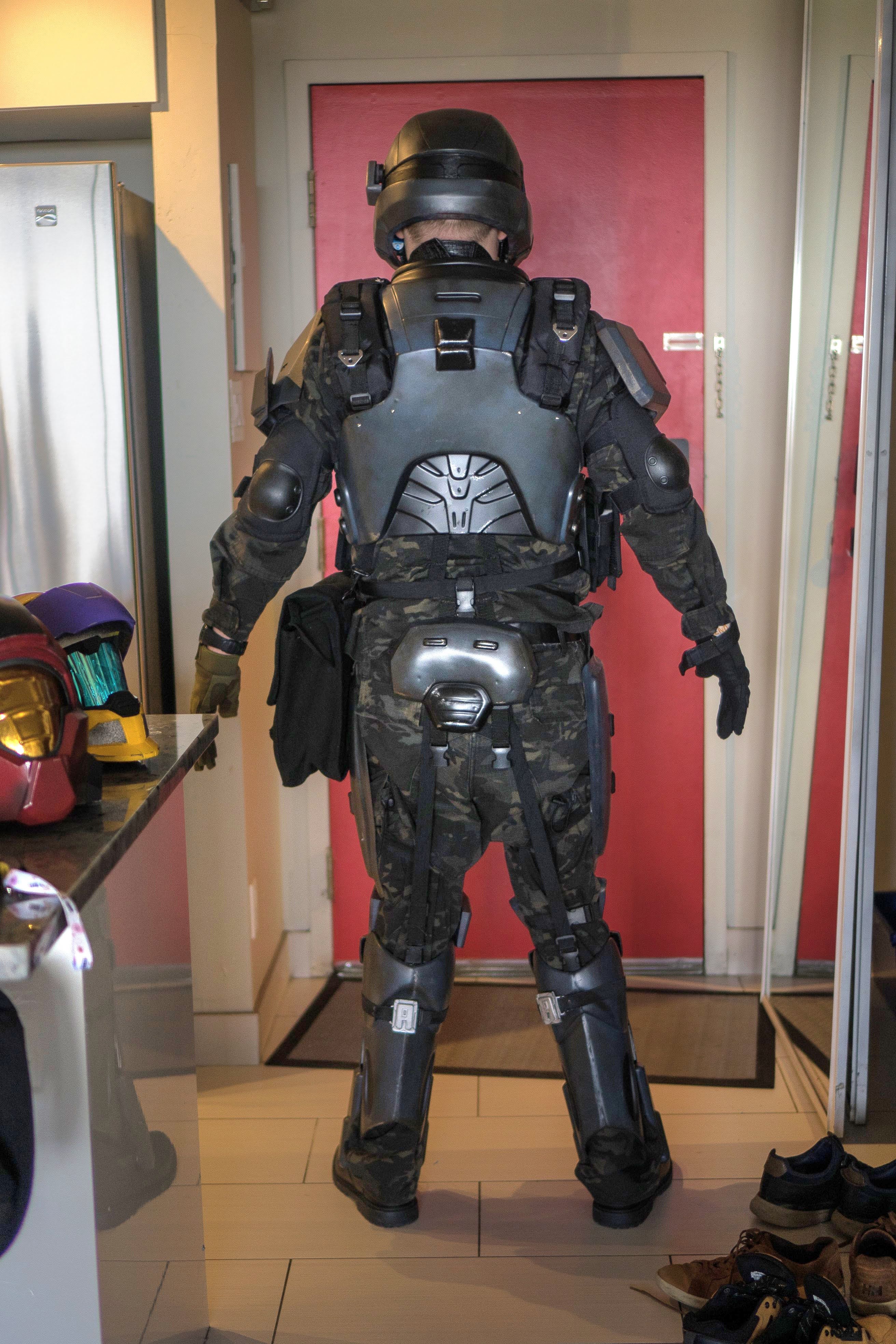

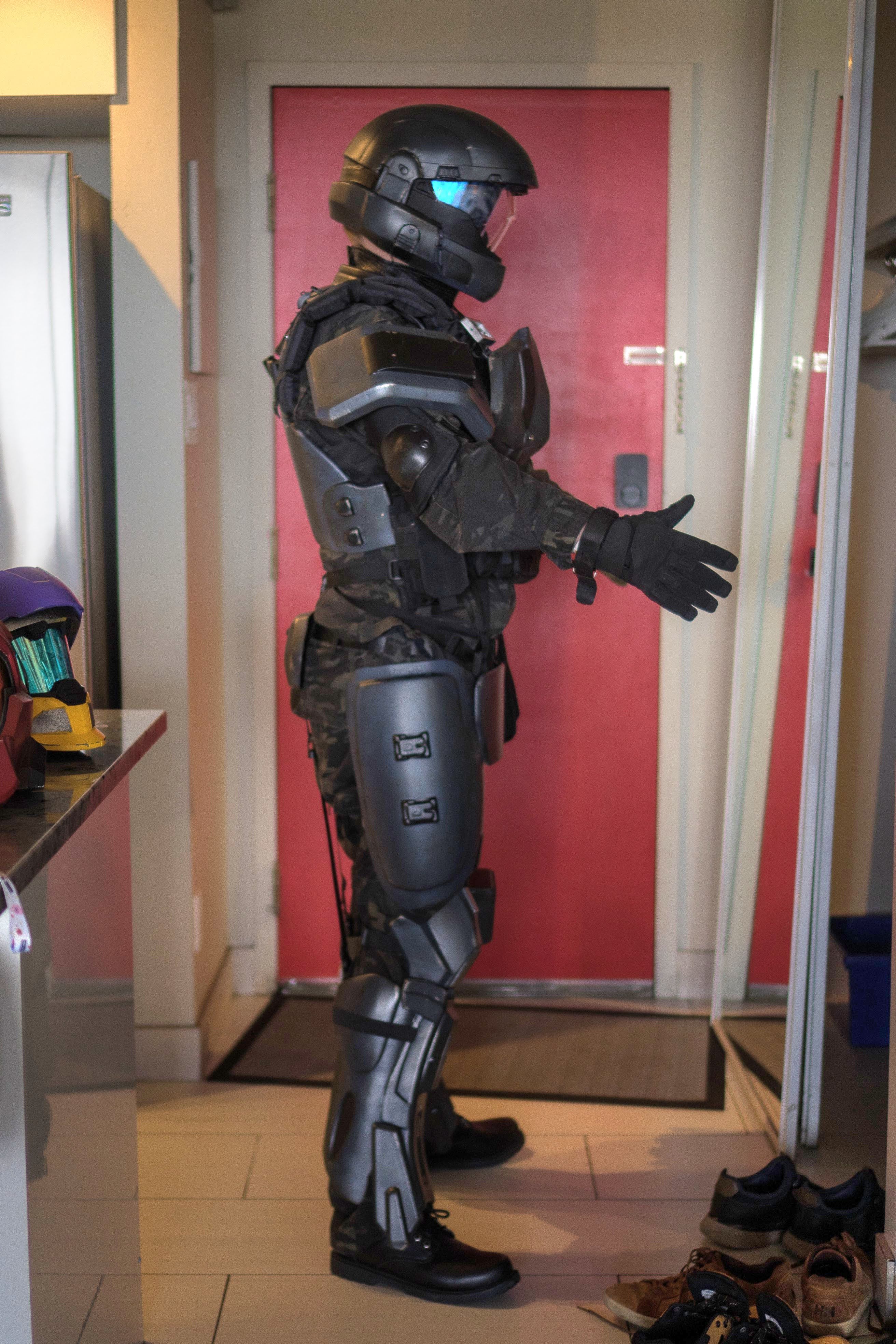

I learned a bunch after bringing Vaz out for LA so it was time for some upgrades! Started with printing a new chestpiece & codpiece from Turbocharizard for a bulkier appearance, added an oil brownwash over the entire armor set, and also designed a MA2B!

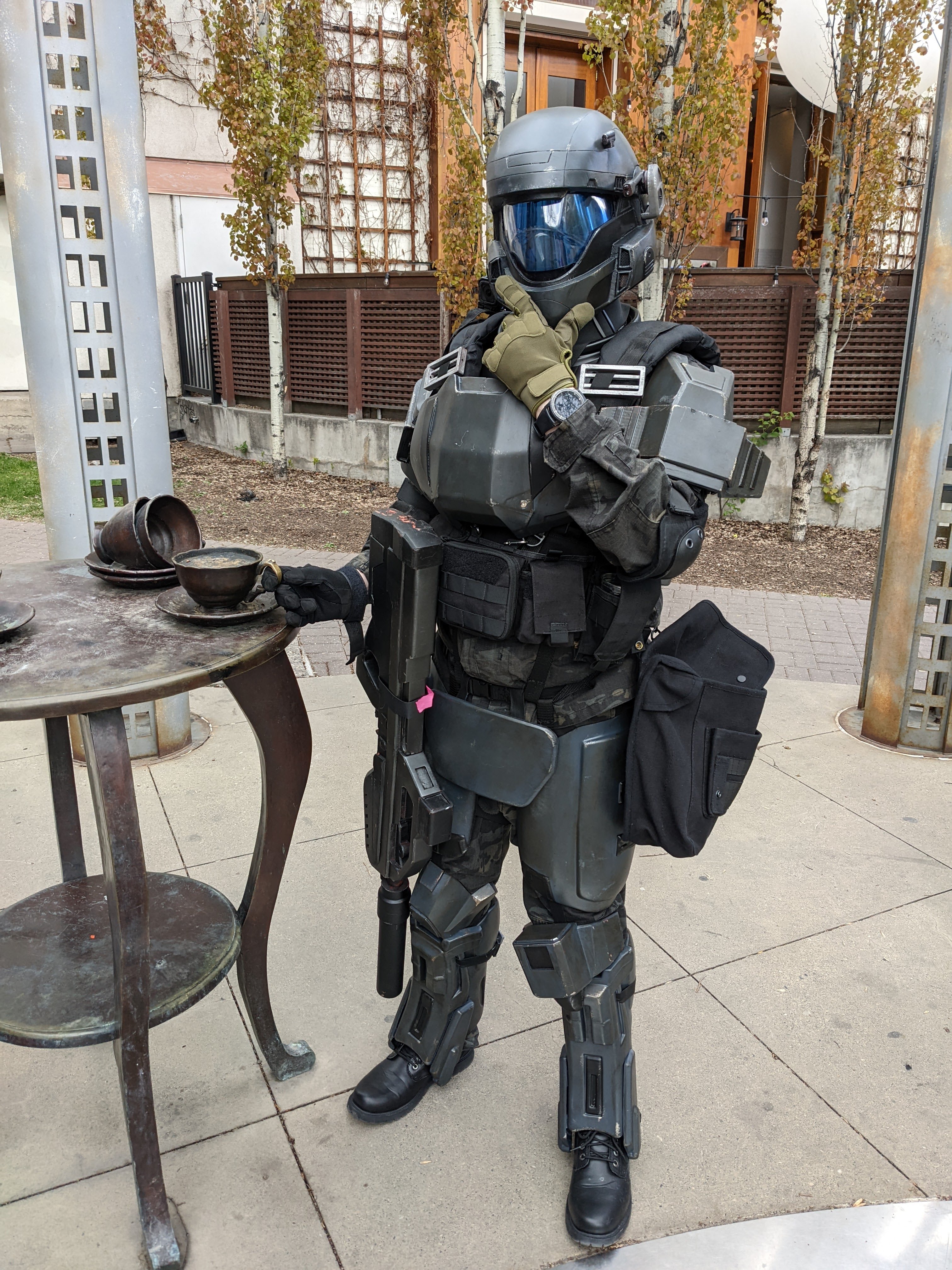

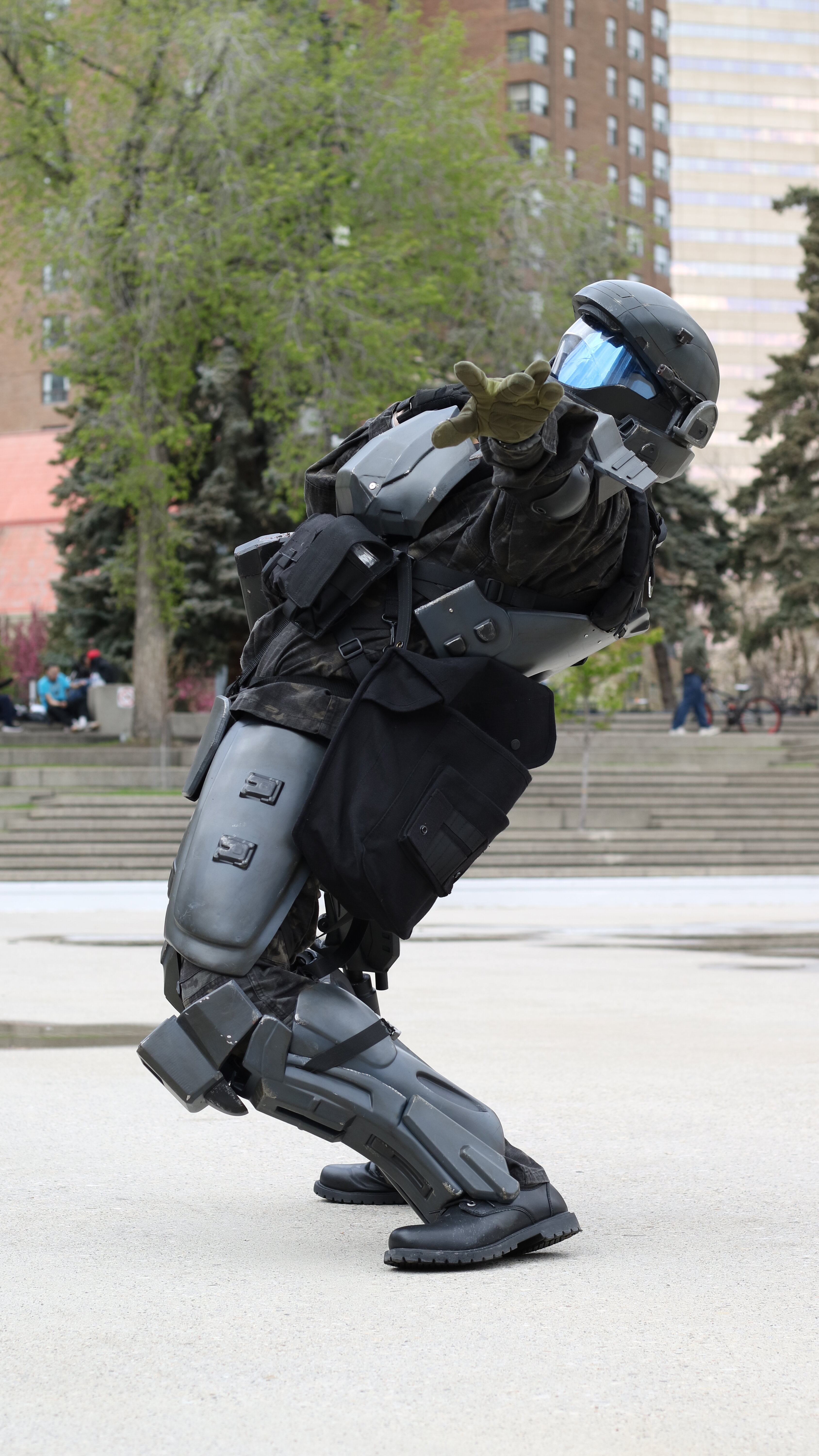

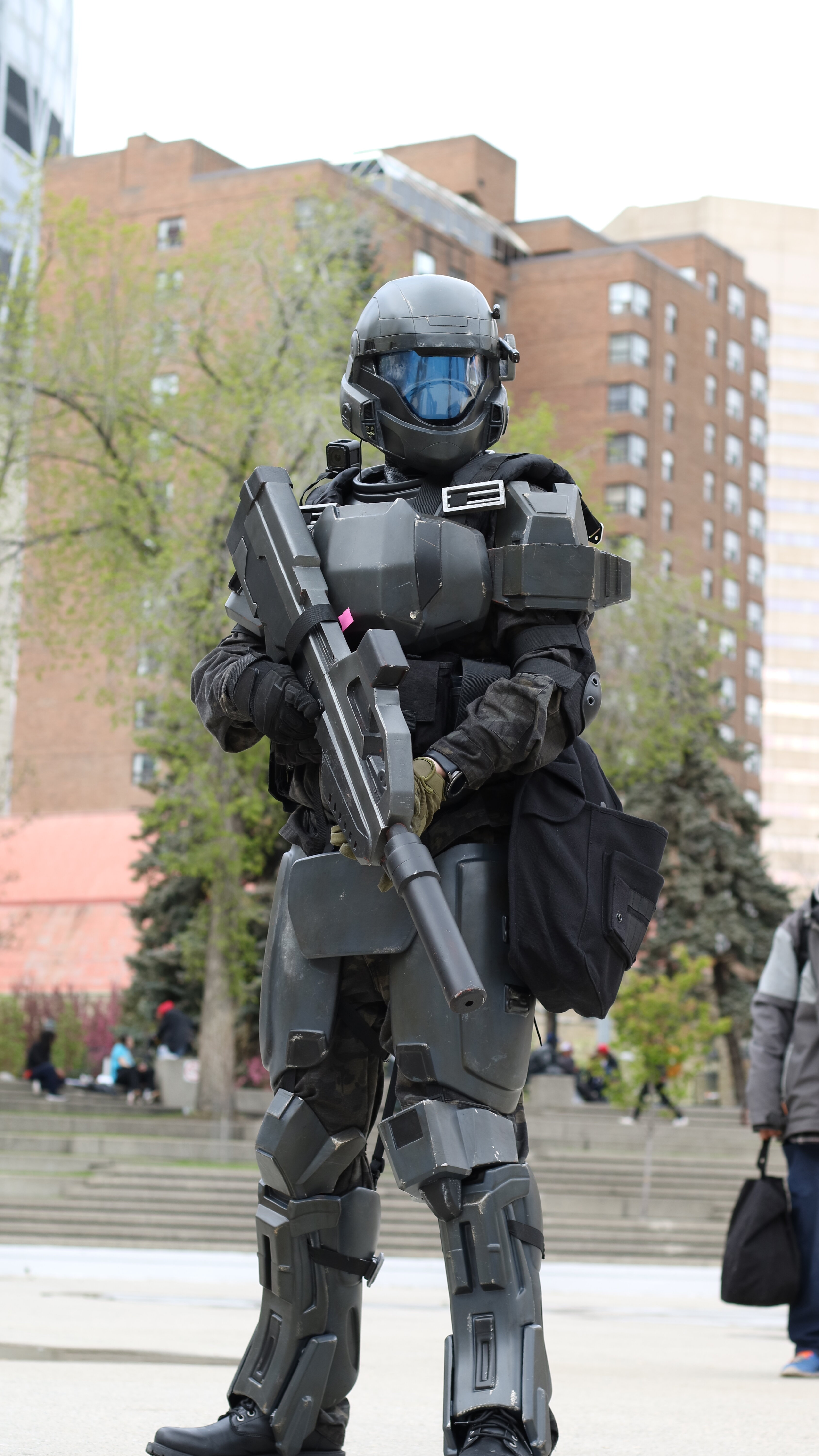

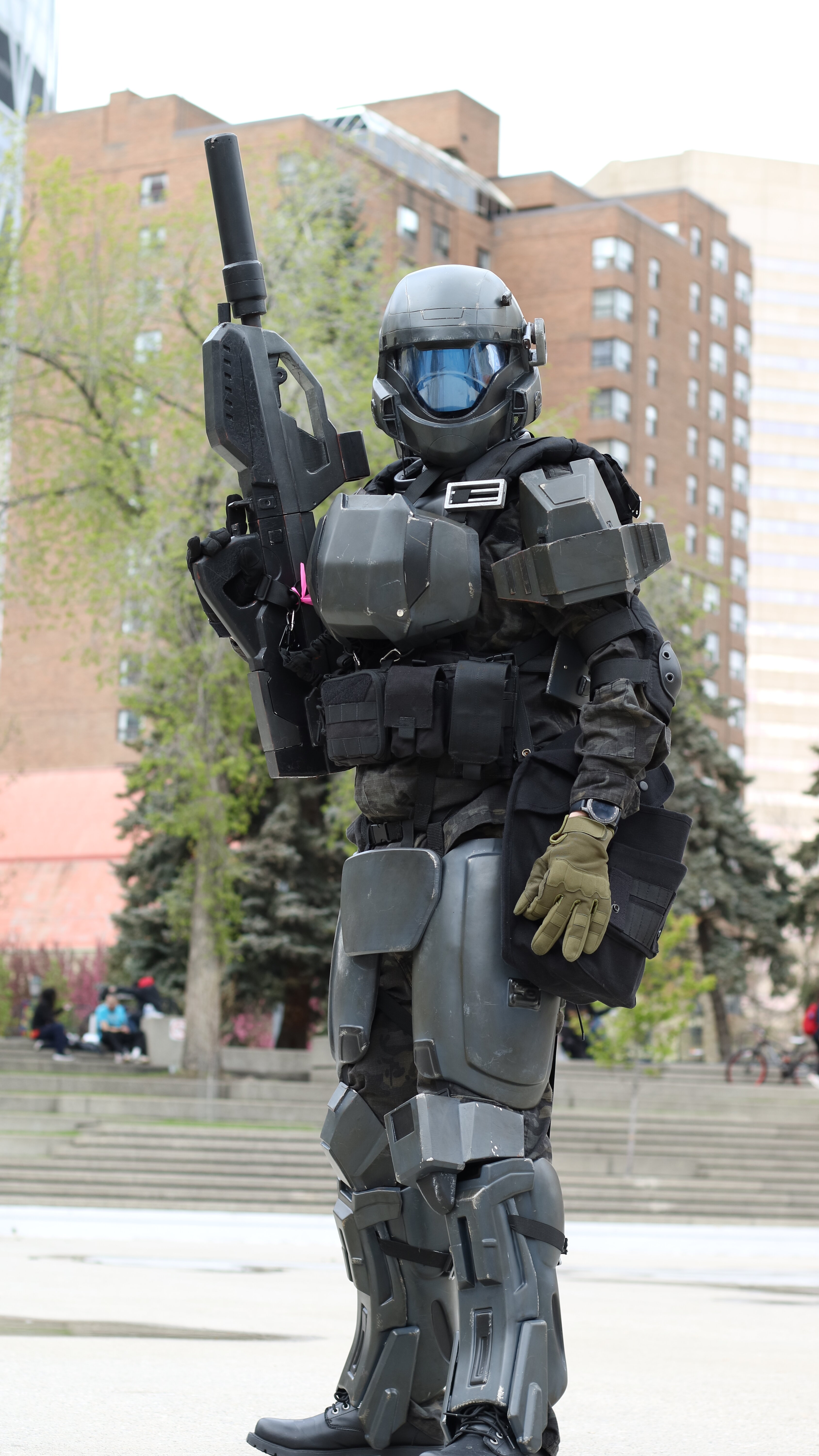

This finally brought me to my current version of Vaz which I’m very proud of. It’s been a heck of a ride and I couldn’t have done it without so many glorious people from the 405th giving me motivation, feedback, and always teaching me something new.







Now this is enough for a university essay so I’ll leave it here. Thank you all for reading!

"'Go, Team Devious,” Phillips muttered, one hand to his earpiece. “No moral depth left unplumbed'"

Lobbster


Attachments

  • IMG_3234.jpeg
    1.5 MB · Views: 19
Last edited:

Rock Lobbster

Well-Known Member
Stream Team
Member DIN
S098
Finally, the files as promised. These are BY-NC-ND CC licensed files (that means Attribution-NonCommercial-NoDerivatives, so don't try to sell stuff using them)
These are built around Turbocharizards ODST file pack however the shoulders and knee can fit on nearly any build. Helmet attachments may require some modification


Attachments

  • Vaz File Pack.zip
    897.2 KB · Views: 22

PerniciousDuke

RCO & BCO
405th Regiment Officer
Member DIN
S128
Great build log! Cool suit. It was nice seeing it in LA! I loved how you'd pop the visor for like every photo. Hehe. Gotta show em what you've got!


Hein B287

Active Member
Very, very, very good build log this one. I may be revisiting for some ideas and such in the future.

Purchased my soft parts soon after consisting of a chest rig, hip bag, gloves, battery pack for the helmet, and my greatest find, leaf blower straps! Those suckers work PERFECTLY for the shoulder strapping.
But to be honest, this was the biggest mind blow for me. Those straps are perfect for the job and not too difficult to find XD

Thanks for that :cool: (y)


Rock Lobbster

Well-Known Member
Stream Team
Member DIN
S098
Very, very, very good build log this one. I may be revisiting for some ideas and such in the future.


But to be honest, this was the biggest mind blow for me. Those straps are perfect for the job and not too difficult to find XD

Thanks for that :cool: (y)
it was definitely a eureka moment coming across those. really helps nail the look at are super comfy


Rock Lobbster

Well-Known Member
Stream Team
Member DIN
S098
Great build log! Cool suit. It was nice seeing it in LA! I loved how you'd pop the visor for like every photo. Hehe. Gotta show em what you've got!
I'm a bit of a 1 trick pony when it comes to that. Main reason was that I liked having the visor down for photos but then would put it up to see better :lol:


Rock Lobbster

Well-Known Member
Stream Team
Member DIN
S098
Helmet

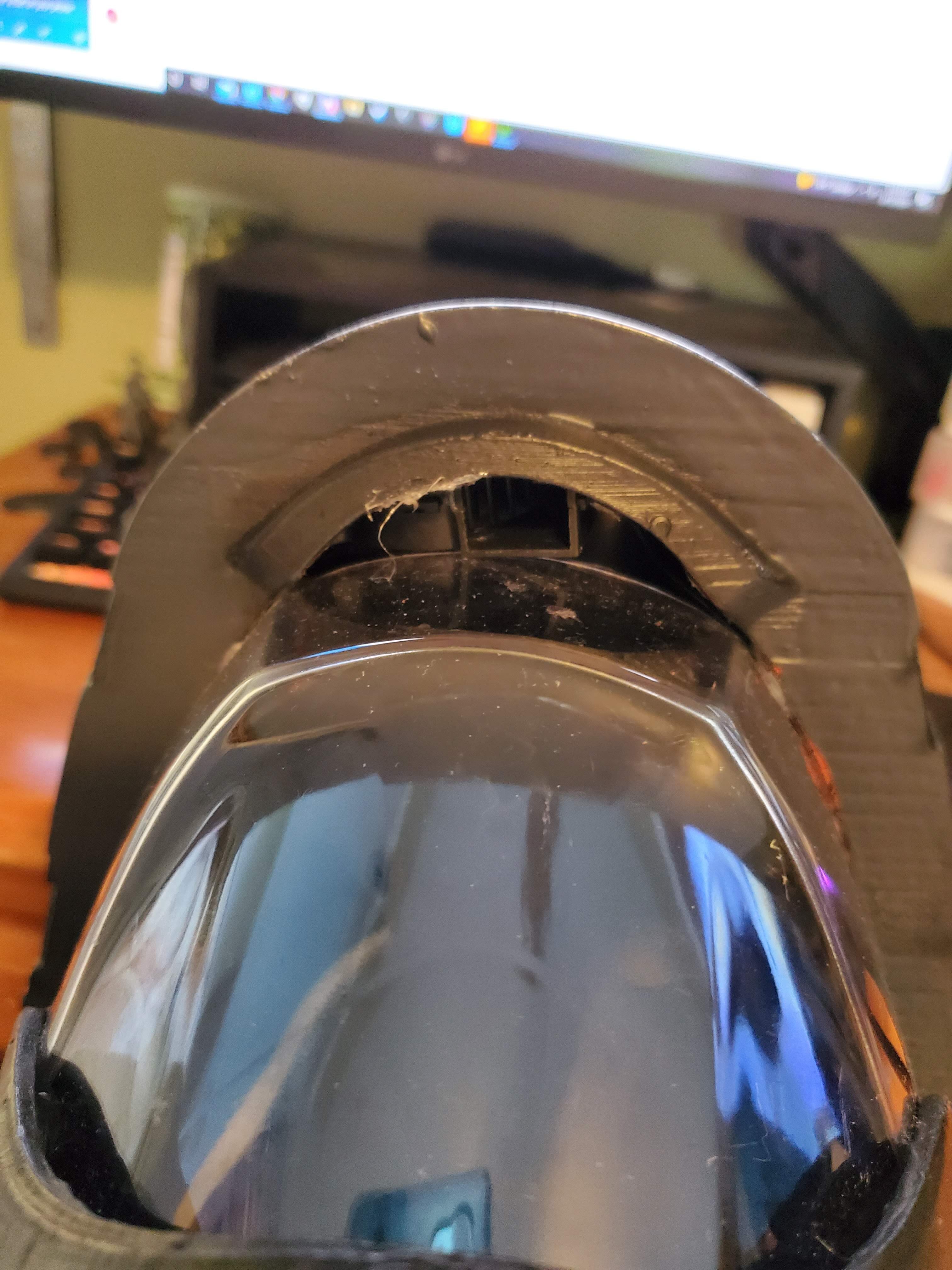

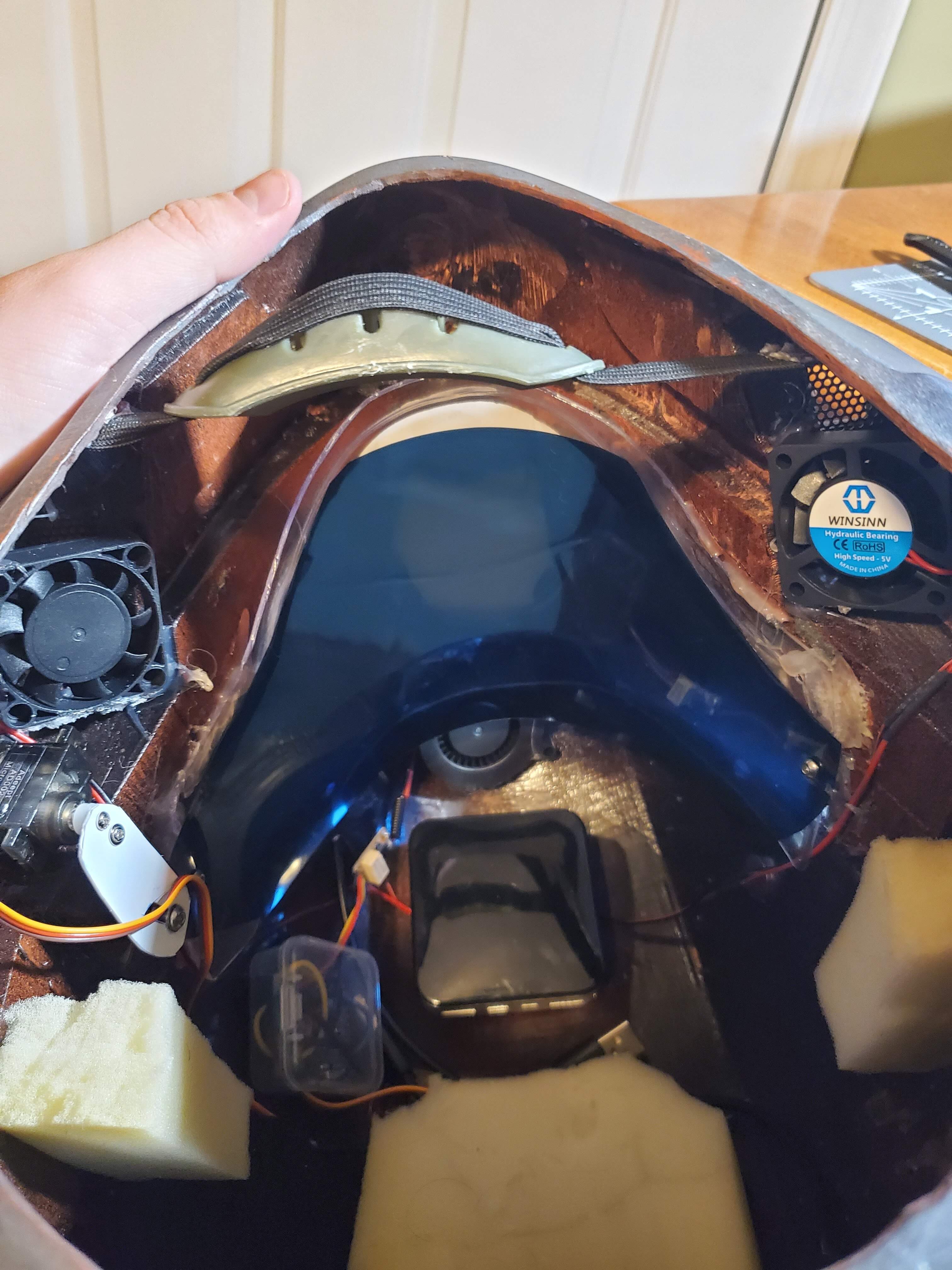

Figured this may be useful so I'll throw it in. My helmet's a little busy on the inside but I used upholstery foam for padding along with a chin strap.
There are 3 fans located inside the bucket, 1 blower on the top venting hot air, 1 on each cheek vent, 1 blowing out and one blowing in. This combo keeps me pretty cool throughout the con. I also have a 10,000mAh battery pack on the top powering both the fans and my visor system (more on that later)



Wallieballie

New Member
Why do we always have these conversations?” Vaz asked. “I have moral objections, you say it’s the way of the world, and I end up agreeing with you, doing nothing, and feeling like s**t about it.

Time for some ONI shenanigans! After the LA event was announced I quickly realized that I needed a suit that could travel, introducing Vaz! The Isaac Hannaford art for Kilo 5 was always a big source of inspiration for me and as a big Kilo 5 fan I was pretty determined to finally tackle this challenge. This will get pretty photo heavy so bare with me!
First, finished build vs the concept art!
View attachment 318736 View attachment 318737
Quick Stats

Overall build time:
1 month (It was a heck of a month)
Initial Build: 3 weeks
Upgrades: 1 week

Base:
Sean Bradley Armor kit

3d Printed Components:
Turbocharizard: right shoulder, helmet, left knee, codpiece

Myself: Left shoulder, right knee, helmet attachments, MA2B

Let’s get started!

First up was Turbos helmet, I printed it in 2 pieces out of PLA then attached using super glue and my print welding method found HERE.
View attachment 318738 View attachment 318739
While that was printing I started working on some knees… a lot of knees. It took a great deal of renditions but I was finally able to get down a design I was happy with. 1 quick print… and it was too small. Slightly scaled up and we were golden!
View attachment 318741 View attachment 318740 View attachment 318742

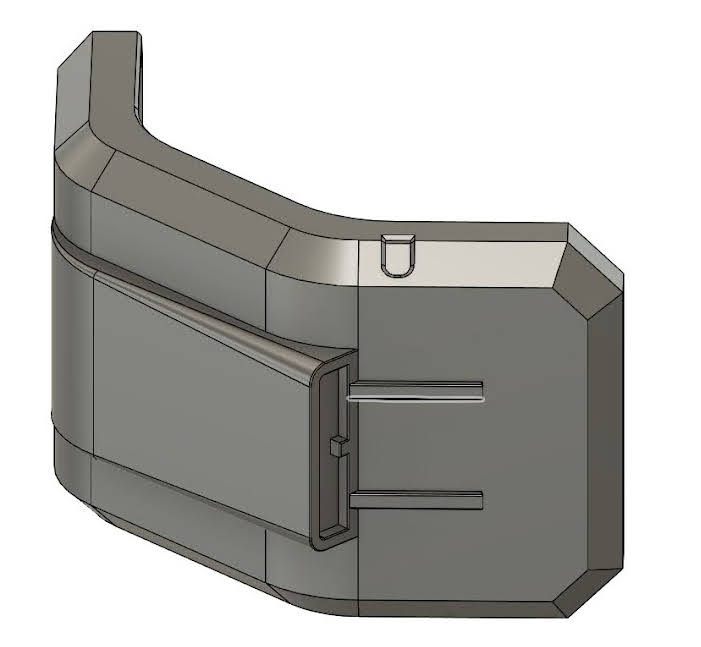

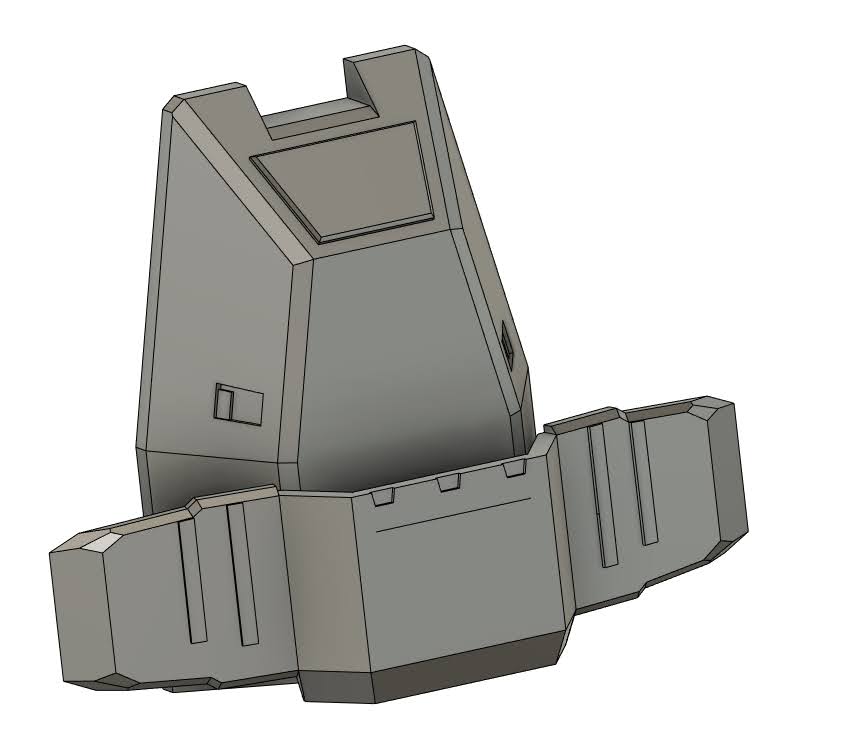

Next was the shoulders, luckily Turbo was able to give me a hand and use his fusion wizardry to whip me up the right shoulder pad while I worked on the left. The shoulder features a magnetic detachment method so I can separate it for transportation.
Printed with a layer shift that I was able to fix and we were on to the fiberglass resin stage!
View attachment 318743 View attachment 318744

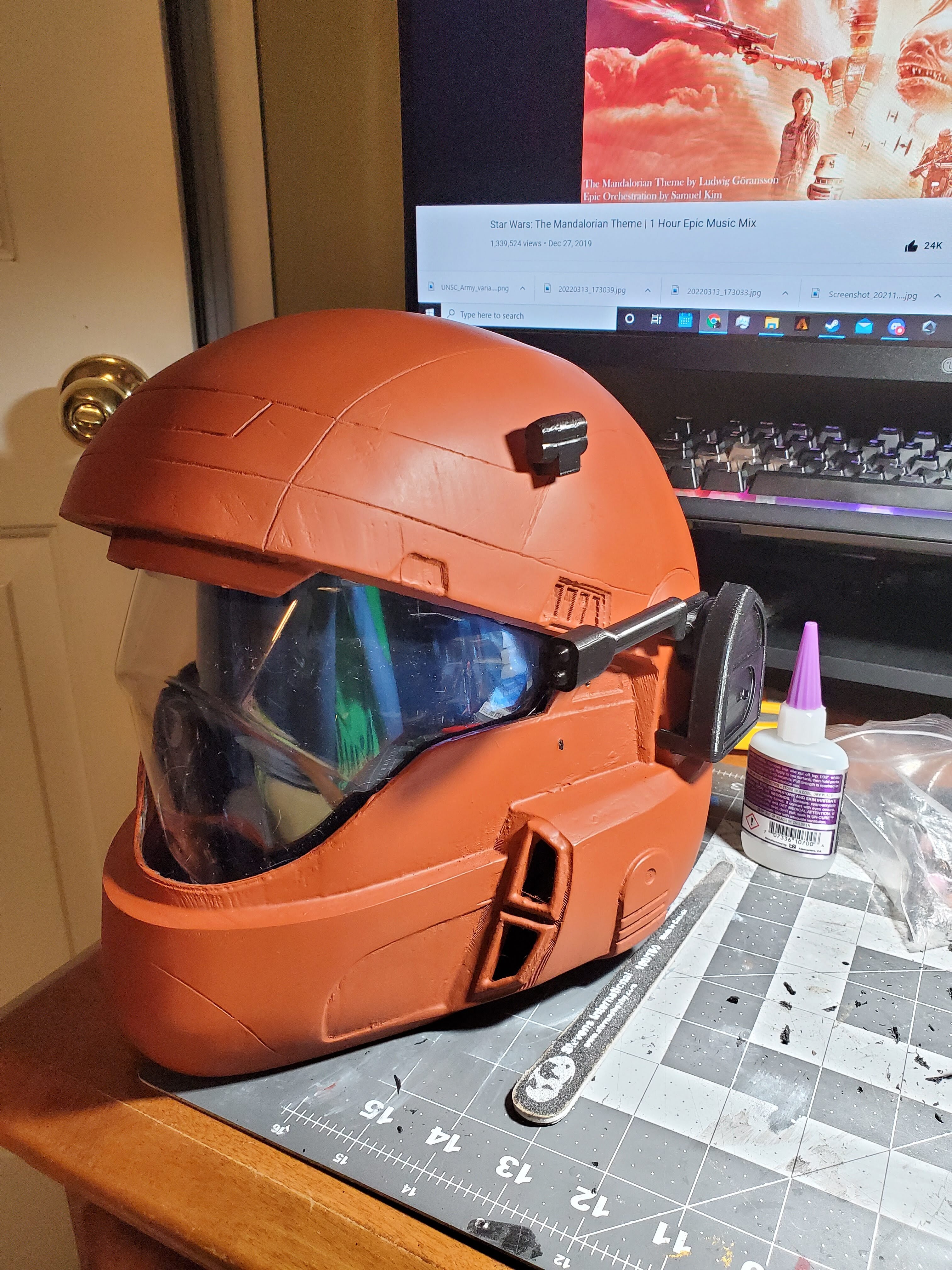

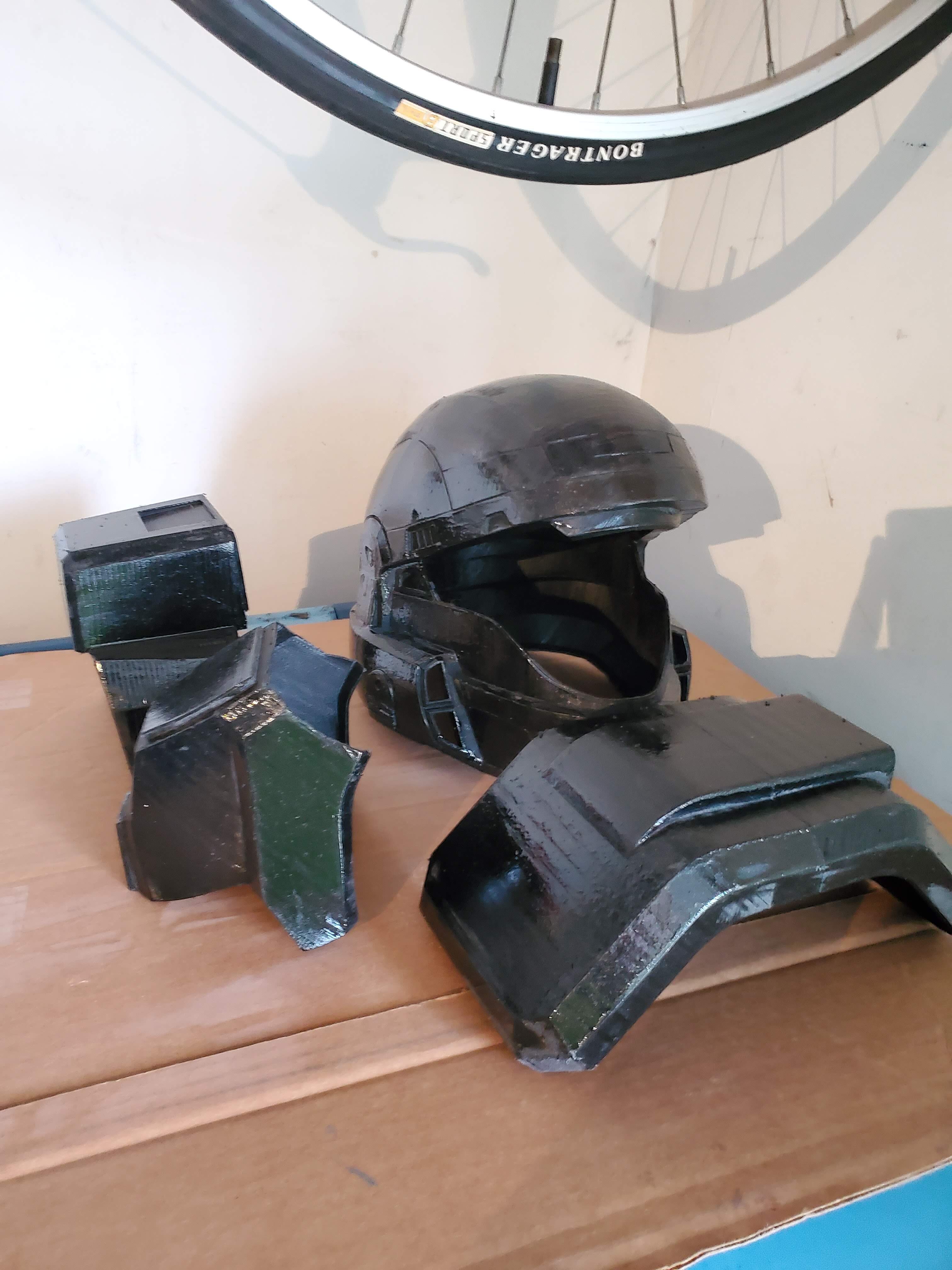

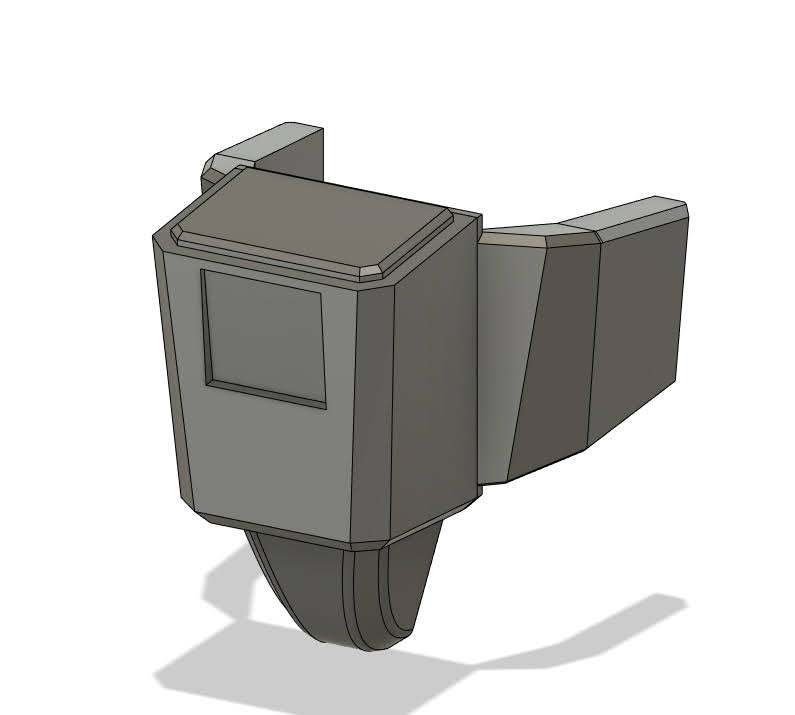

All prints got 2 coats of resin on the outside and 1 on the inside to help with sanding and bumps and scratches. While waiting for those to cure I was hopped back onto Fusion 360 to model the helmet attachments that are featured. Both are magnetically attached to the helmet just incase I want to do a “Rookie” ODST using the bucket.
View attachment 318747 View attachment 318745 View attachment 318746

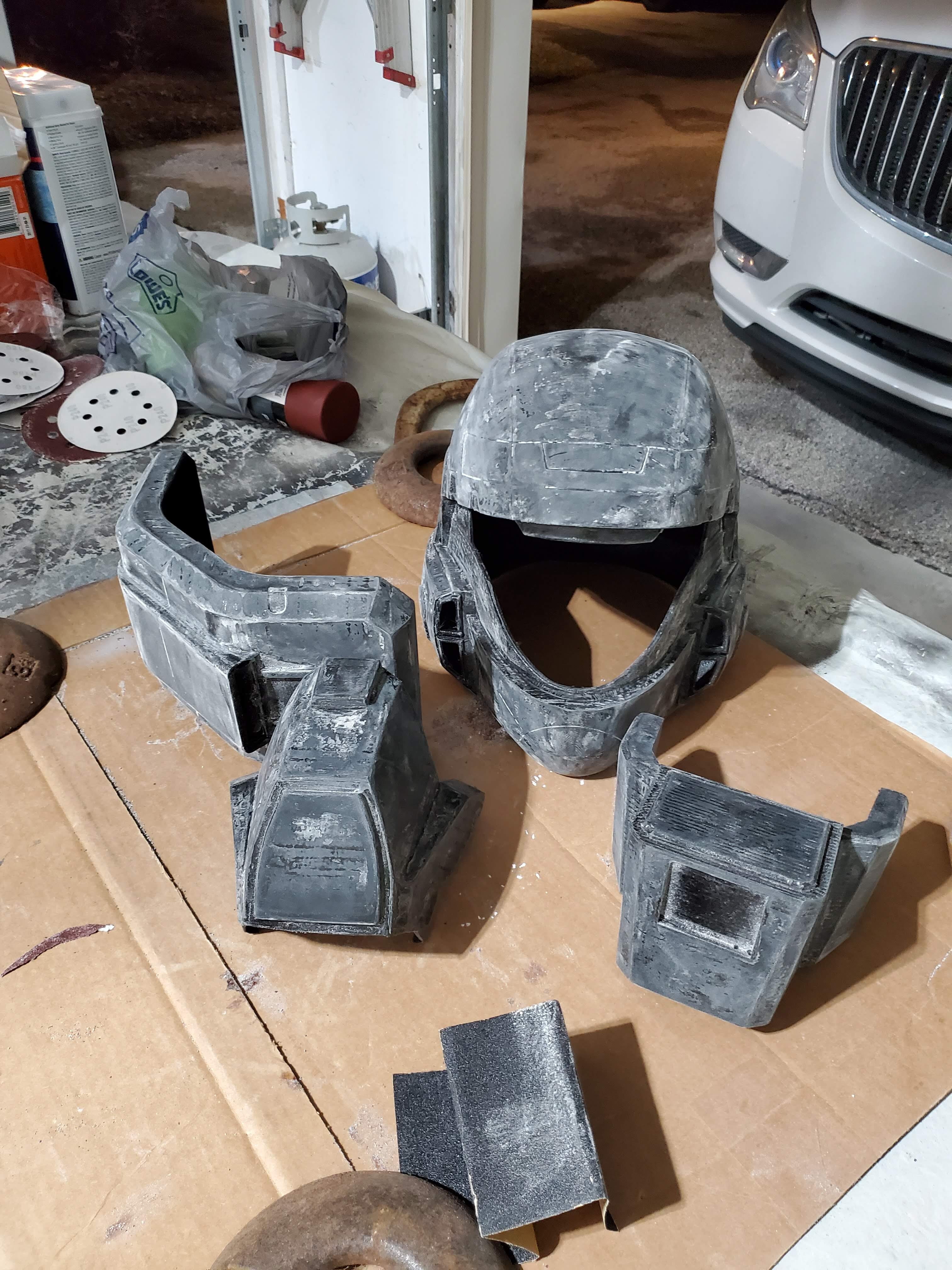

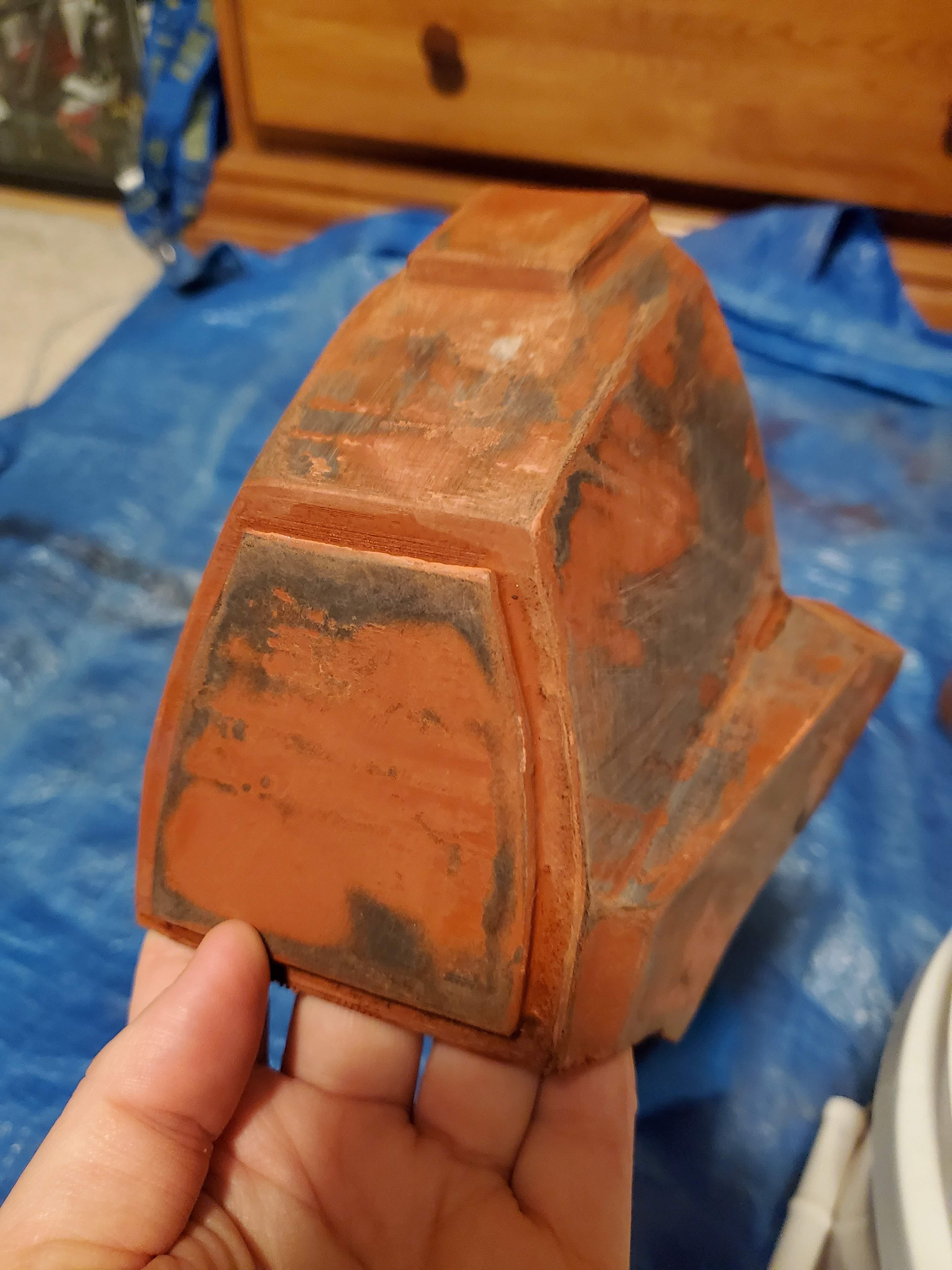

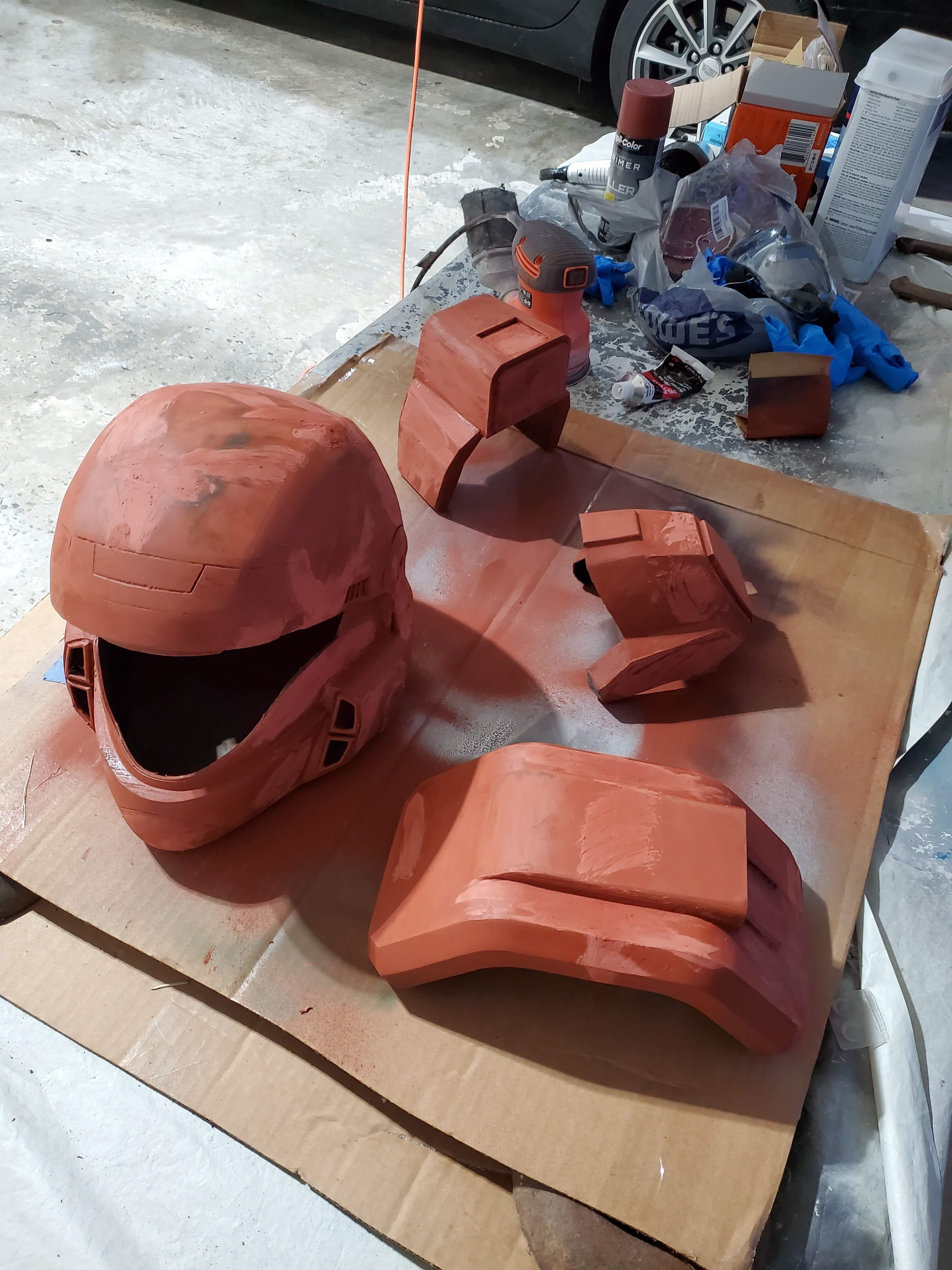

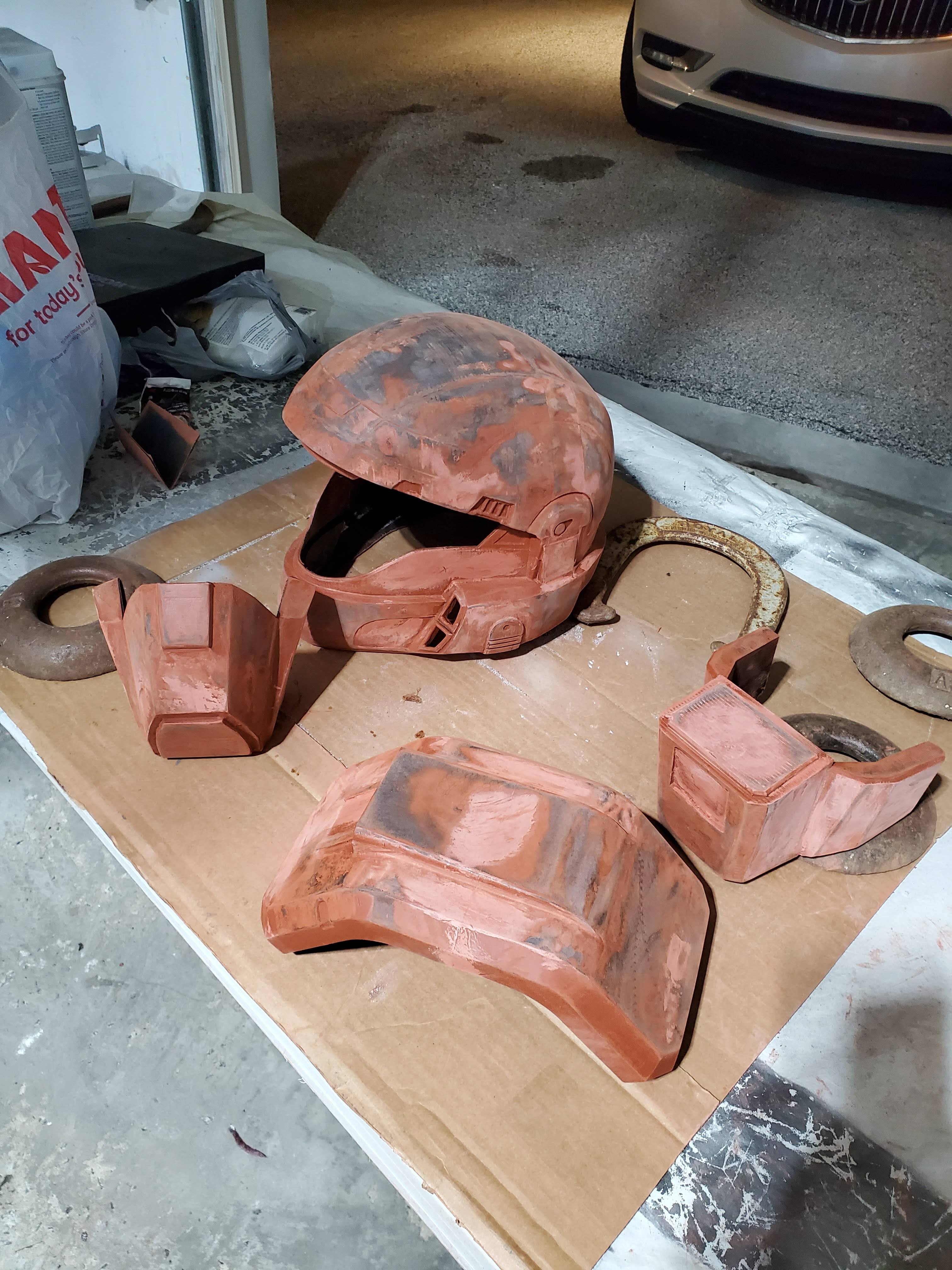

Next up was sanding… a lot of sanding. Started with 60 grit then went 120, 240, bondo and filler primer, then wetsanded 240 320, and 400. Gentle reminder to wear clothes you don’t care about, they will get bondo all over them (also PPE, wear your PPE).
View attachment 318754 View attachment 318753 View attachment 318752 View attachment 318751 View attachment 318750 View attachment 318749 View attachment 318748

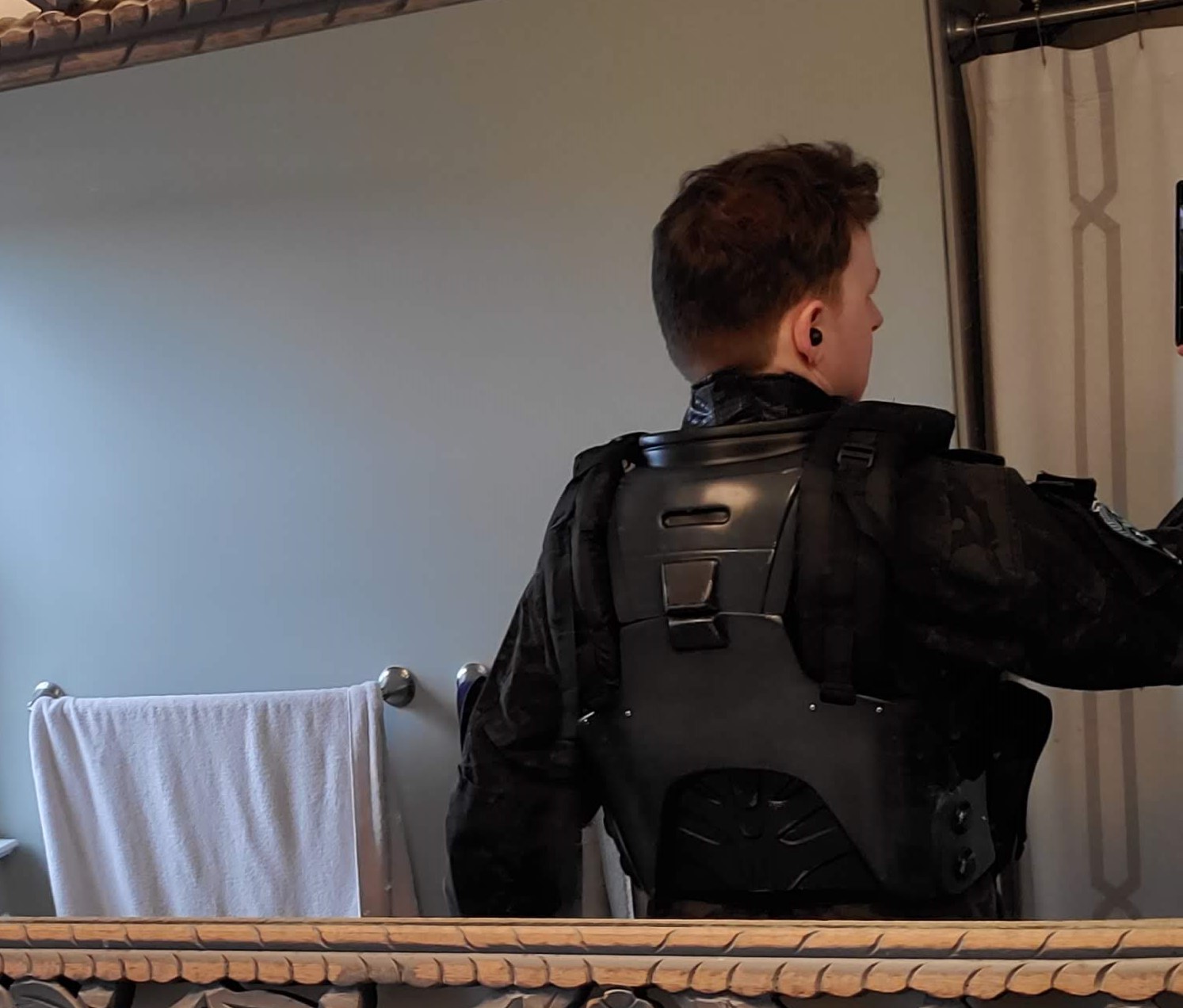

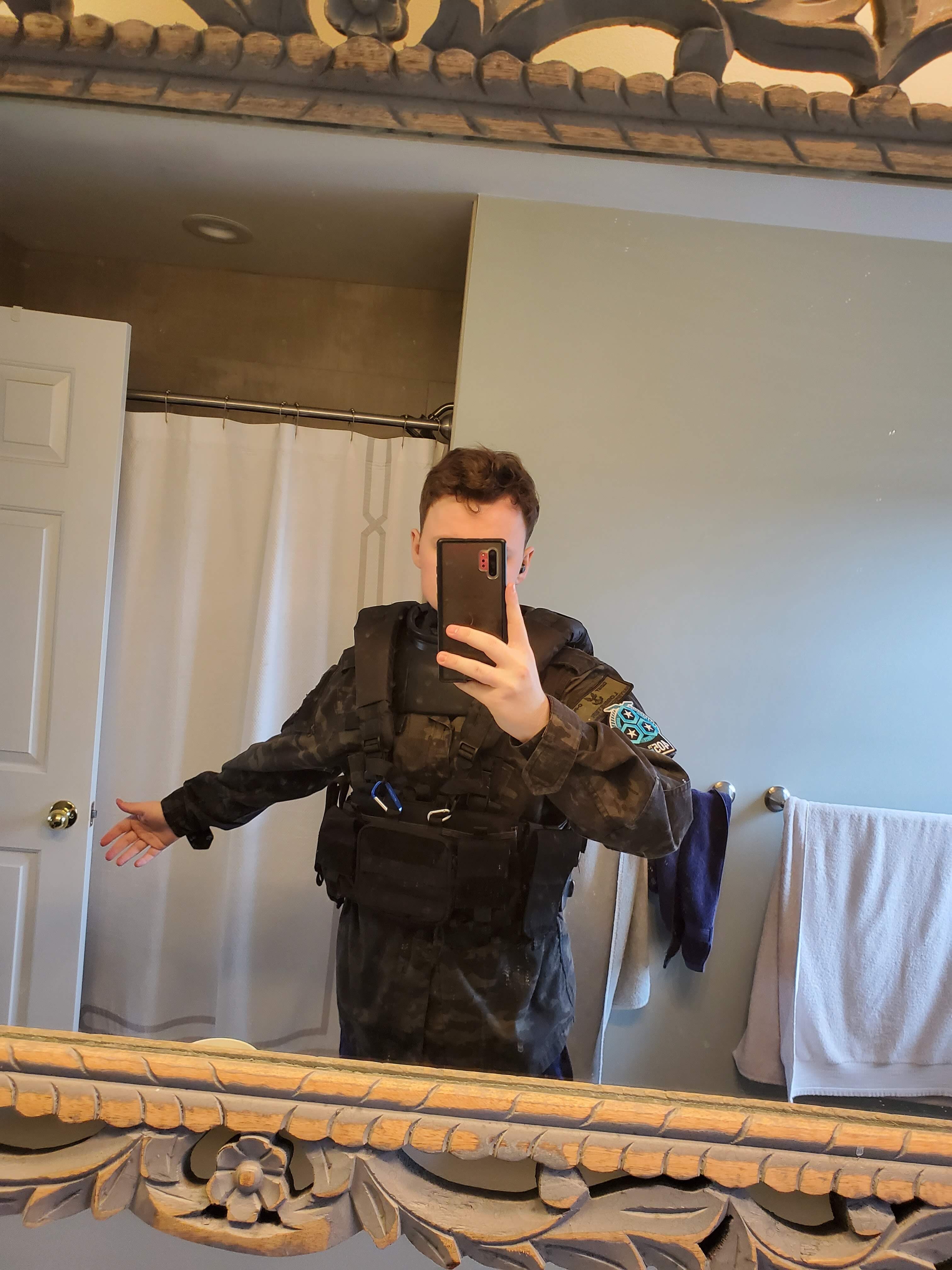

Purchased my soft parts soon after consisting of a chest rig, hip bag, gloves, battery pack for the helmet, and my greatest find, leaf blower straps! Those suckers work PERFECTLY for the shoulder strapping.
View attachment 318755 View attachment 318757

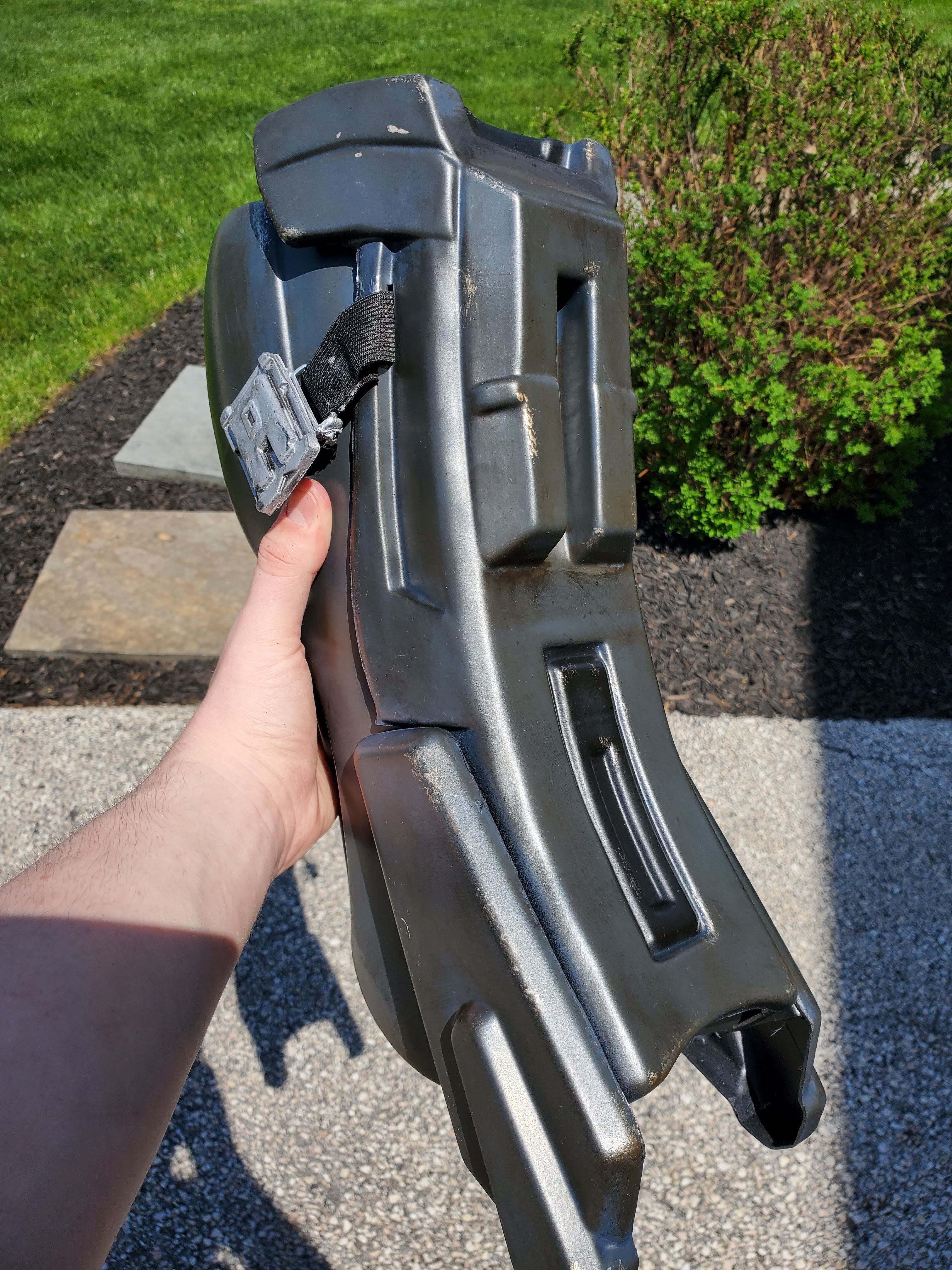

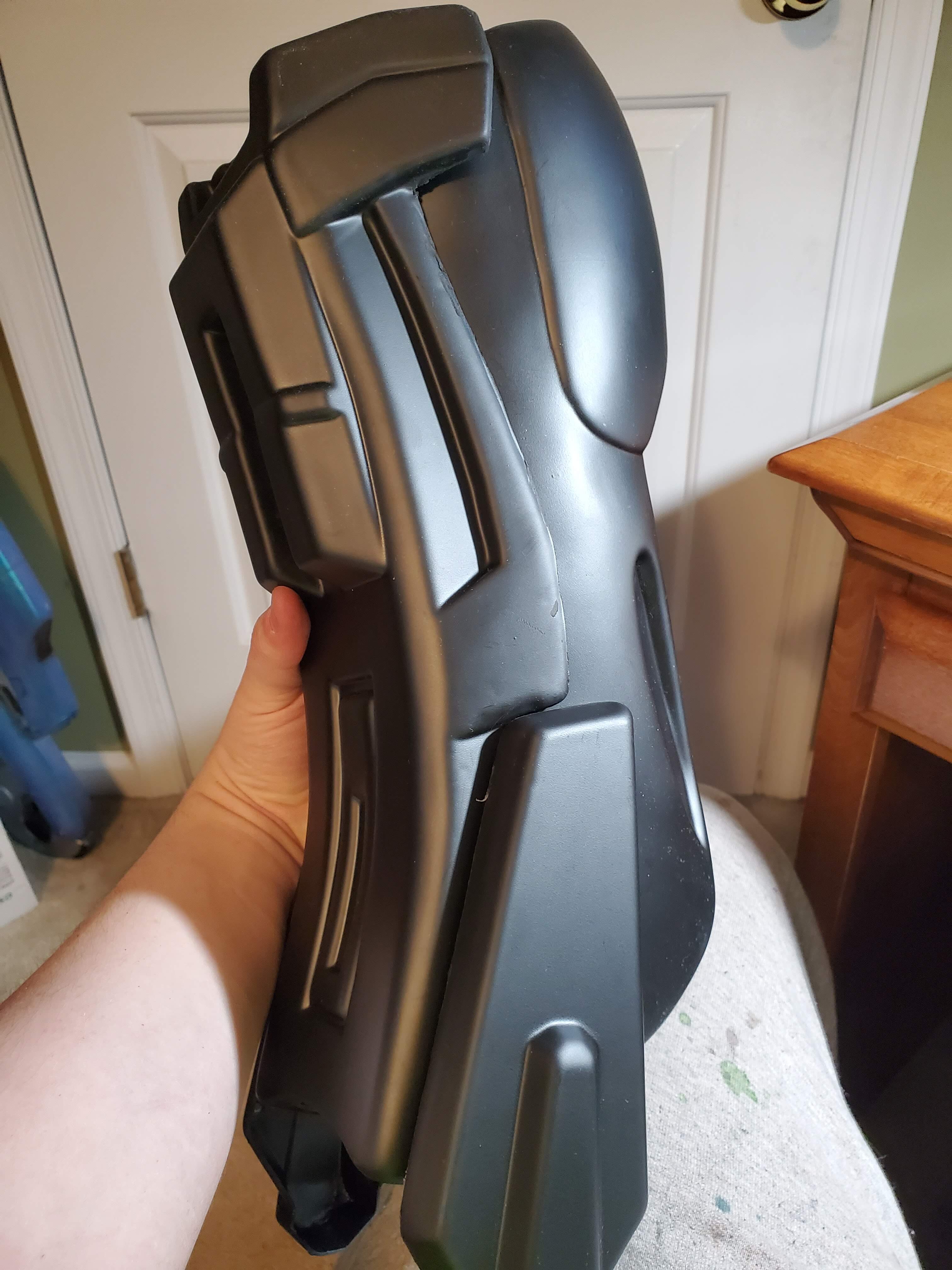

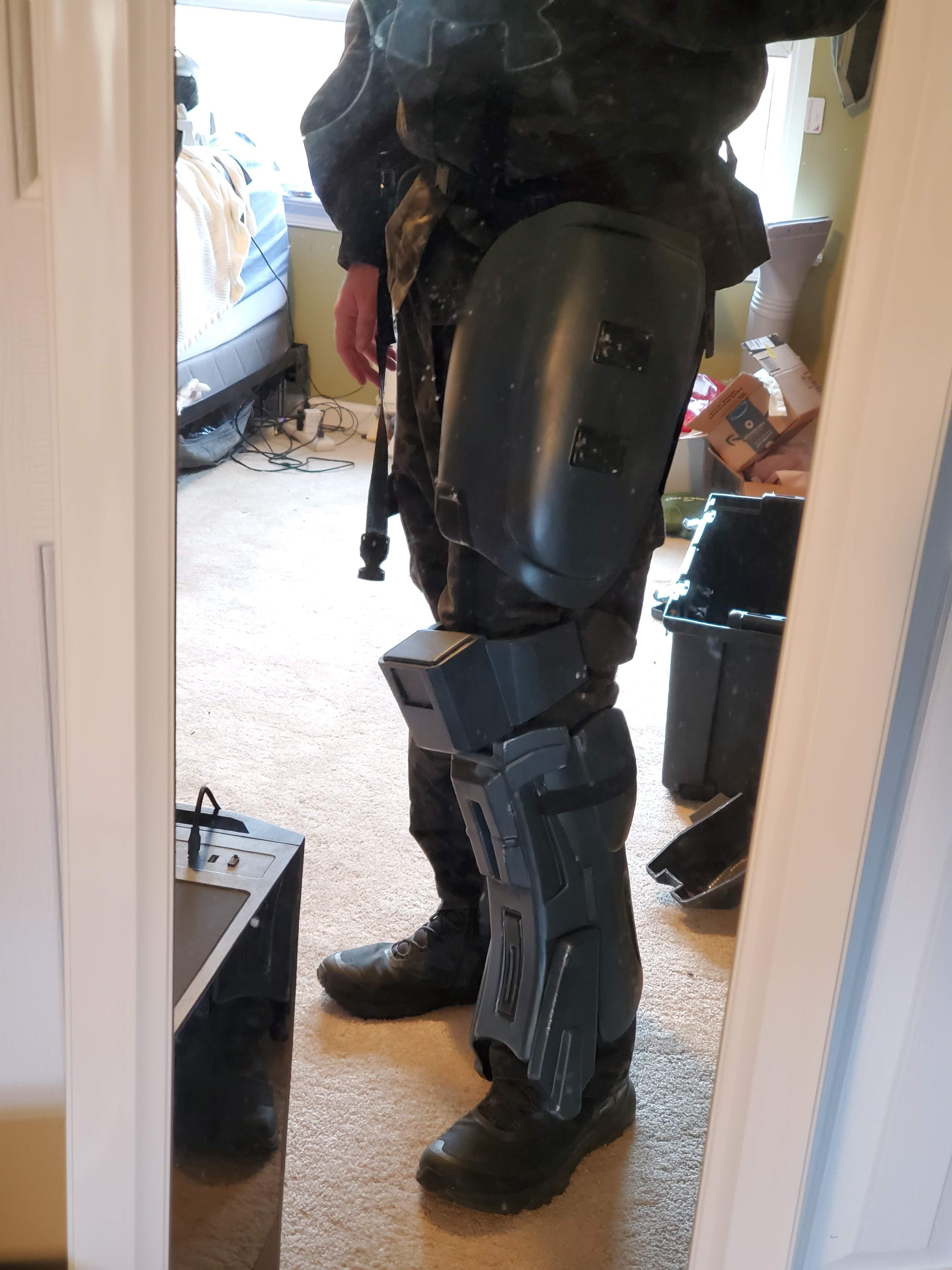

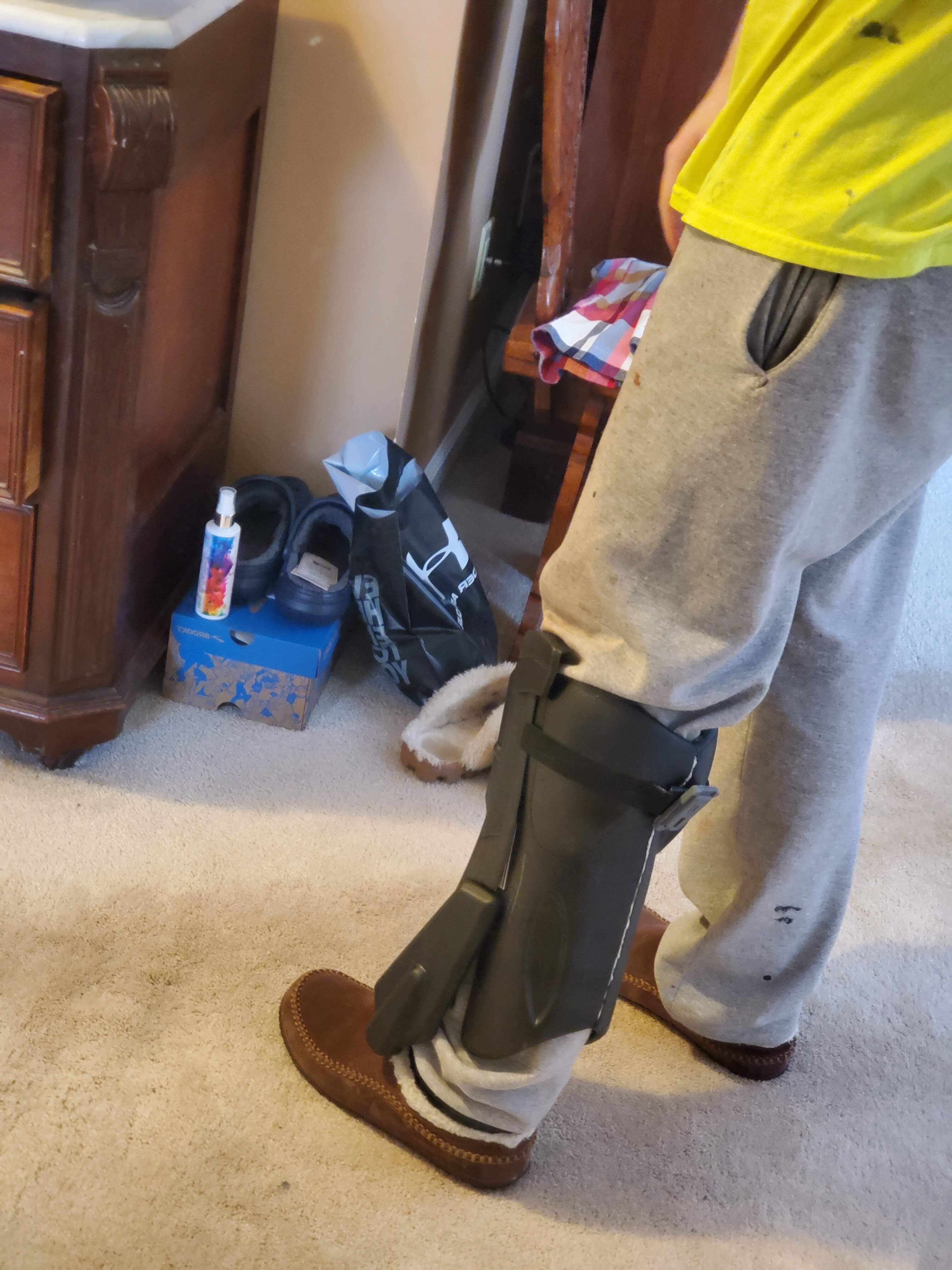

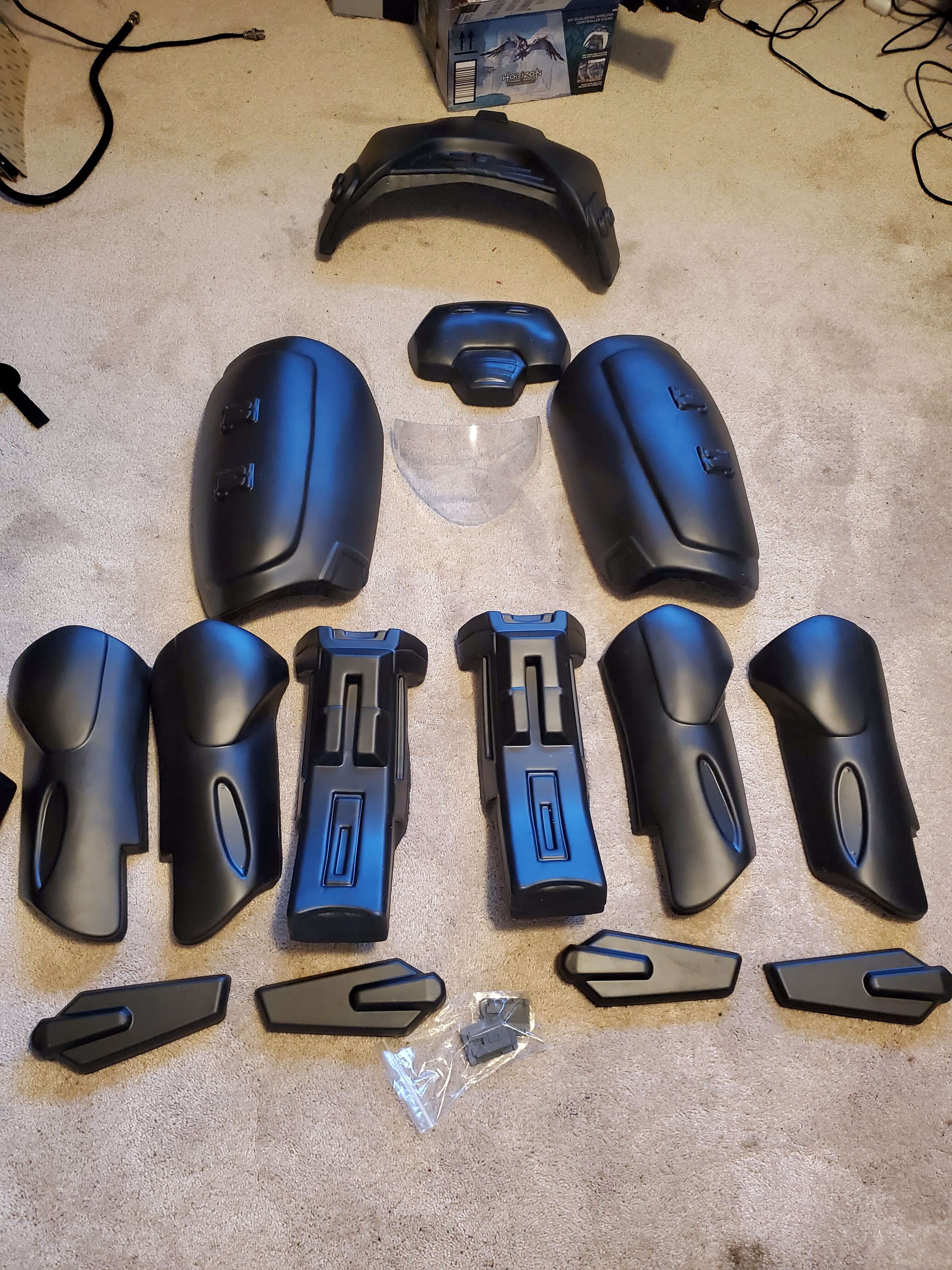

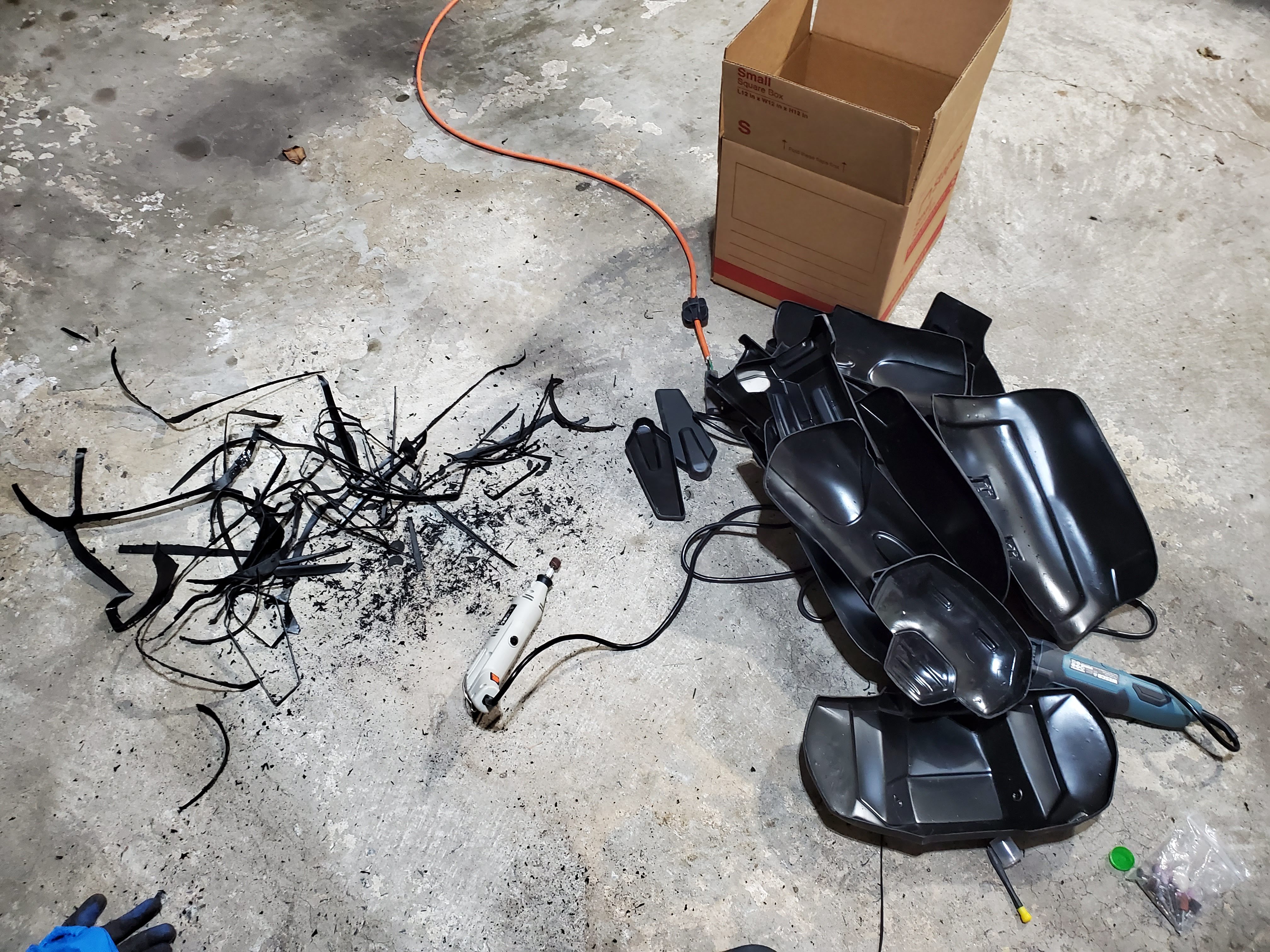

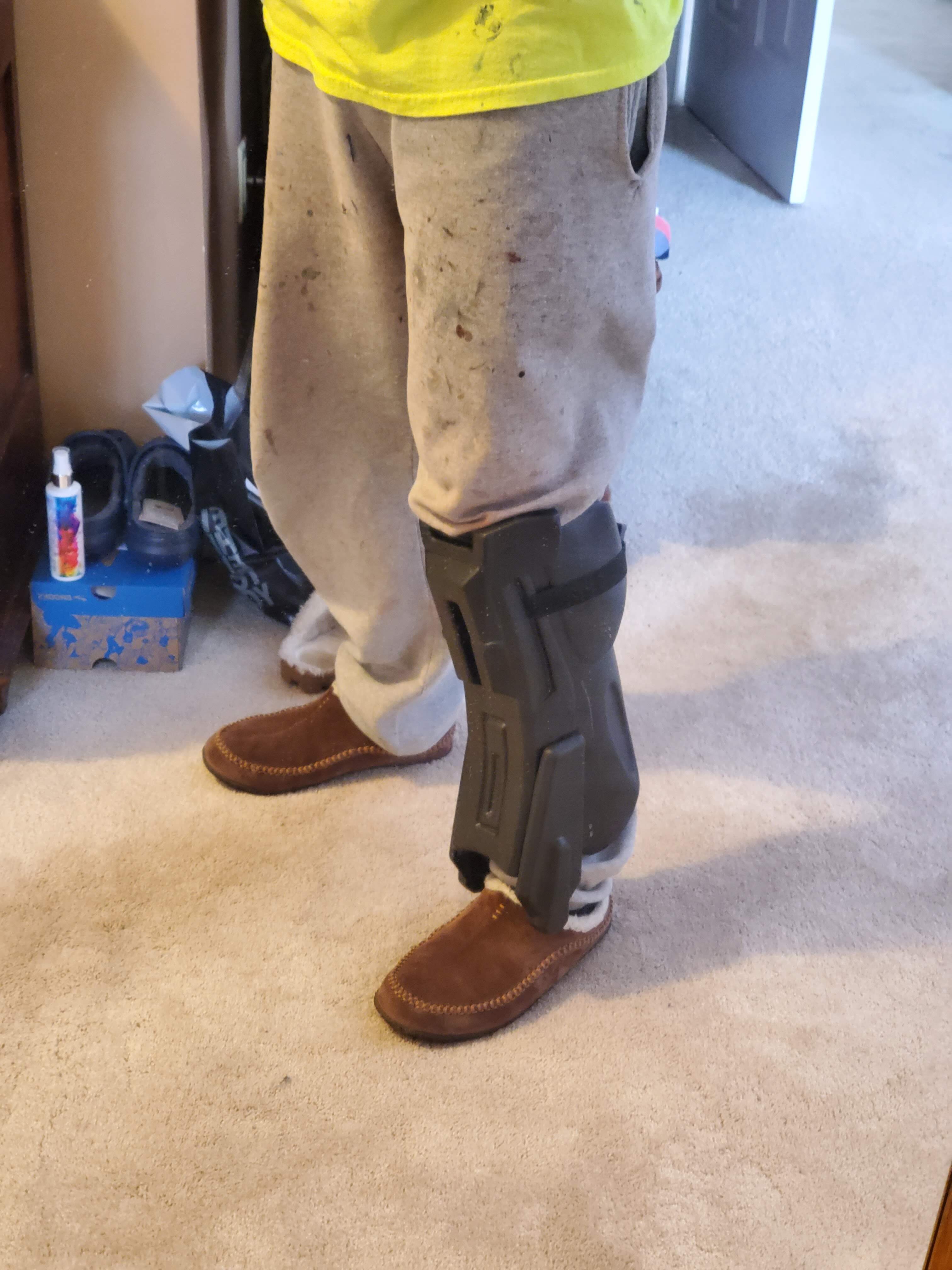

2 days later… The Bradley kit arrived! I immediately got to work trimming, sanding, and assembling components. I used M3 screws for the majority of the assembly and (no real surprise here) more magnets! The shins fit together in a “clamshell” design secured by a strap and 2 15lb bar magnets.
View attachment 318762 View attachment 318761 View attachment 318760 View attachment 318759 View attachment 318758

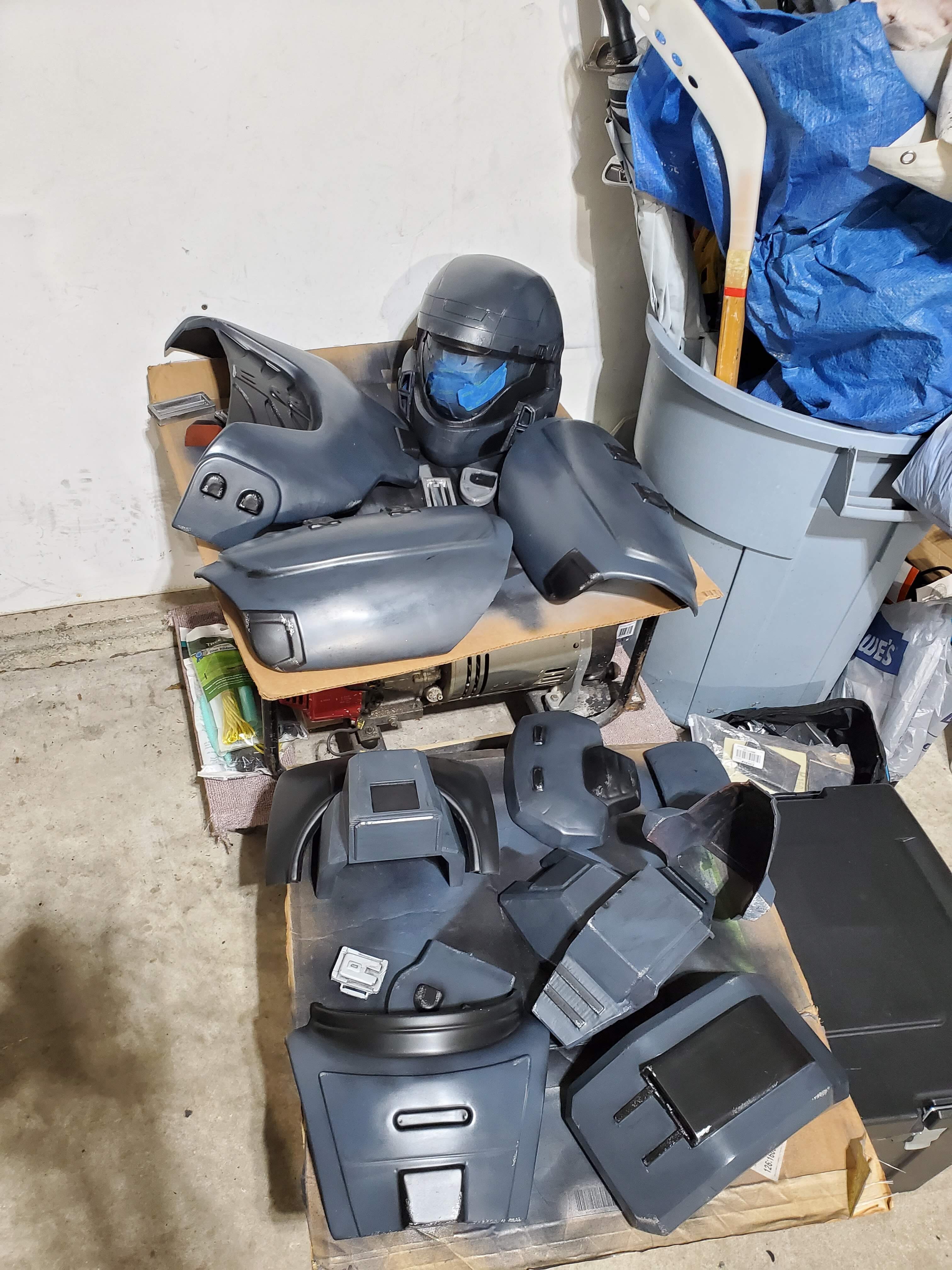

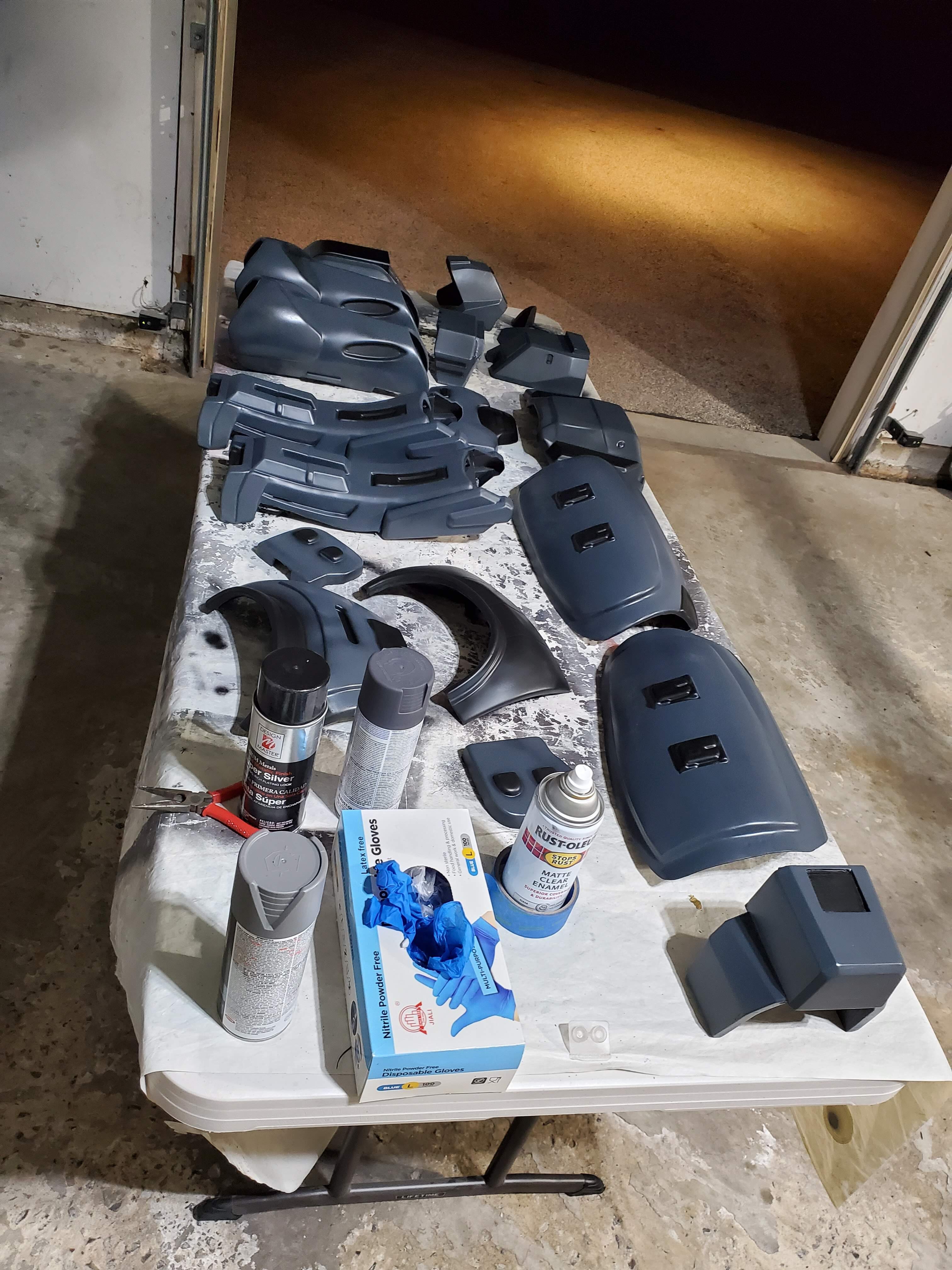

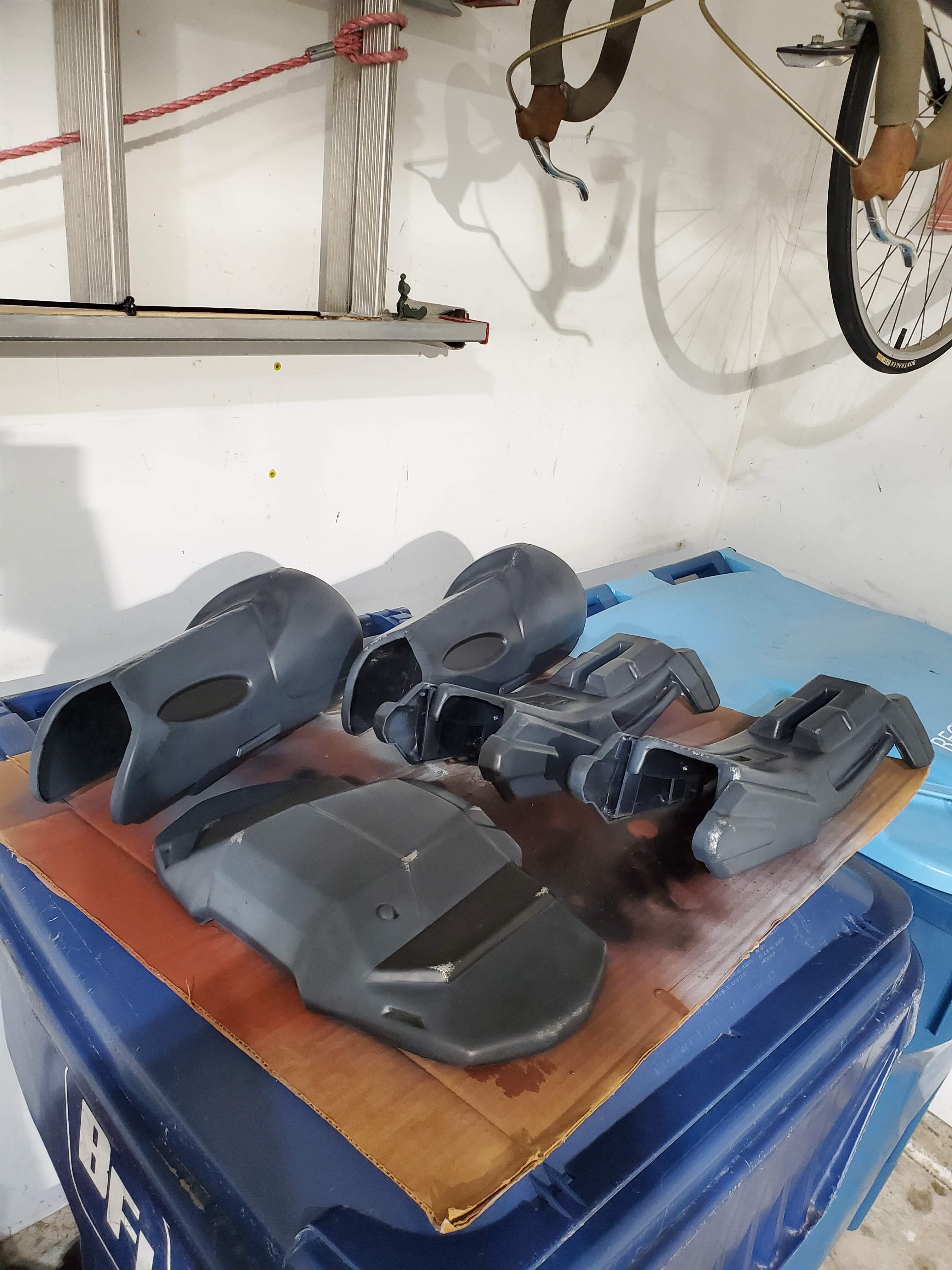

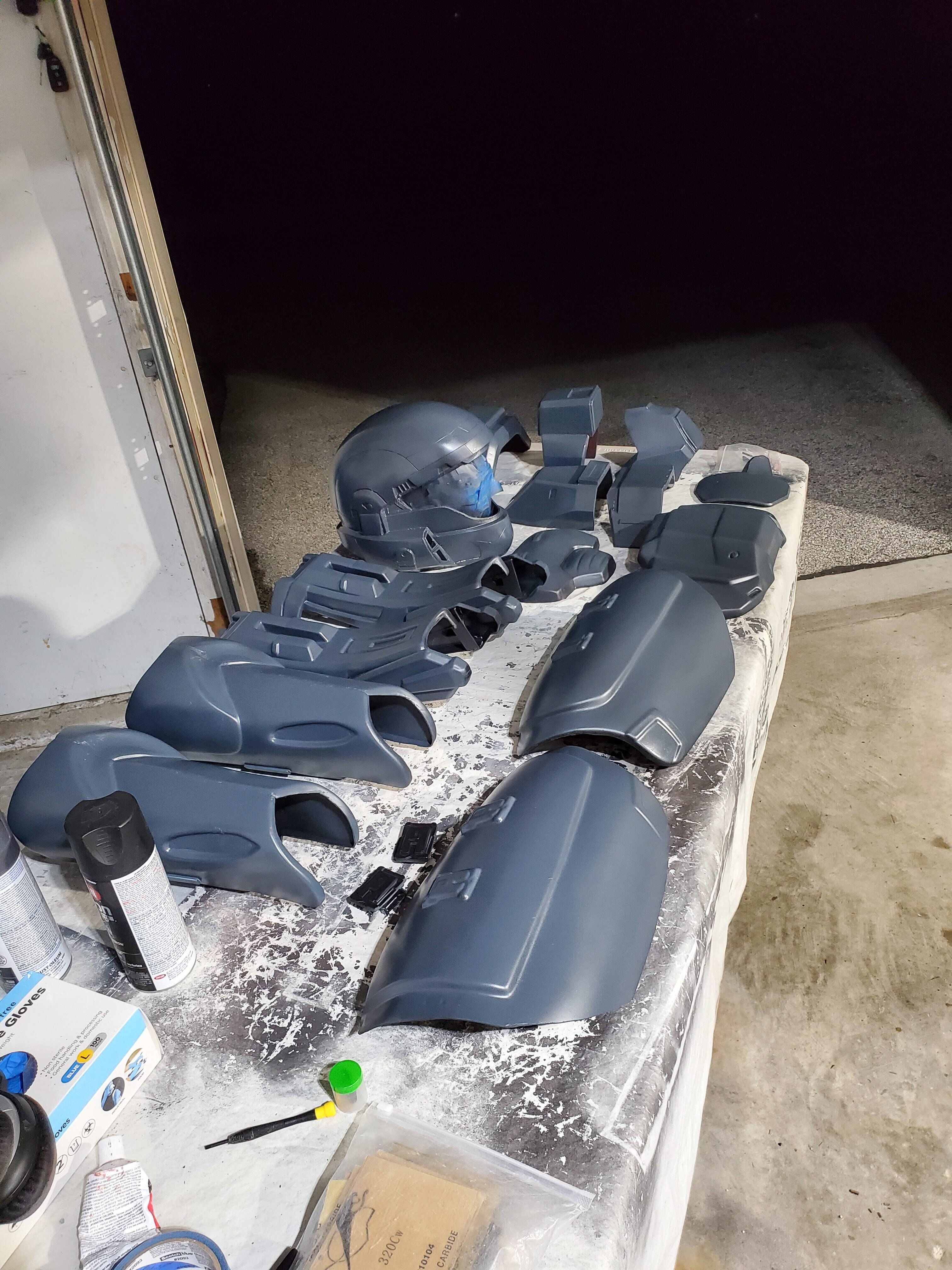

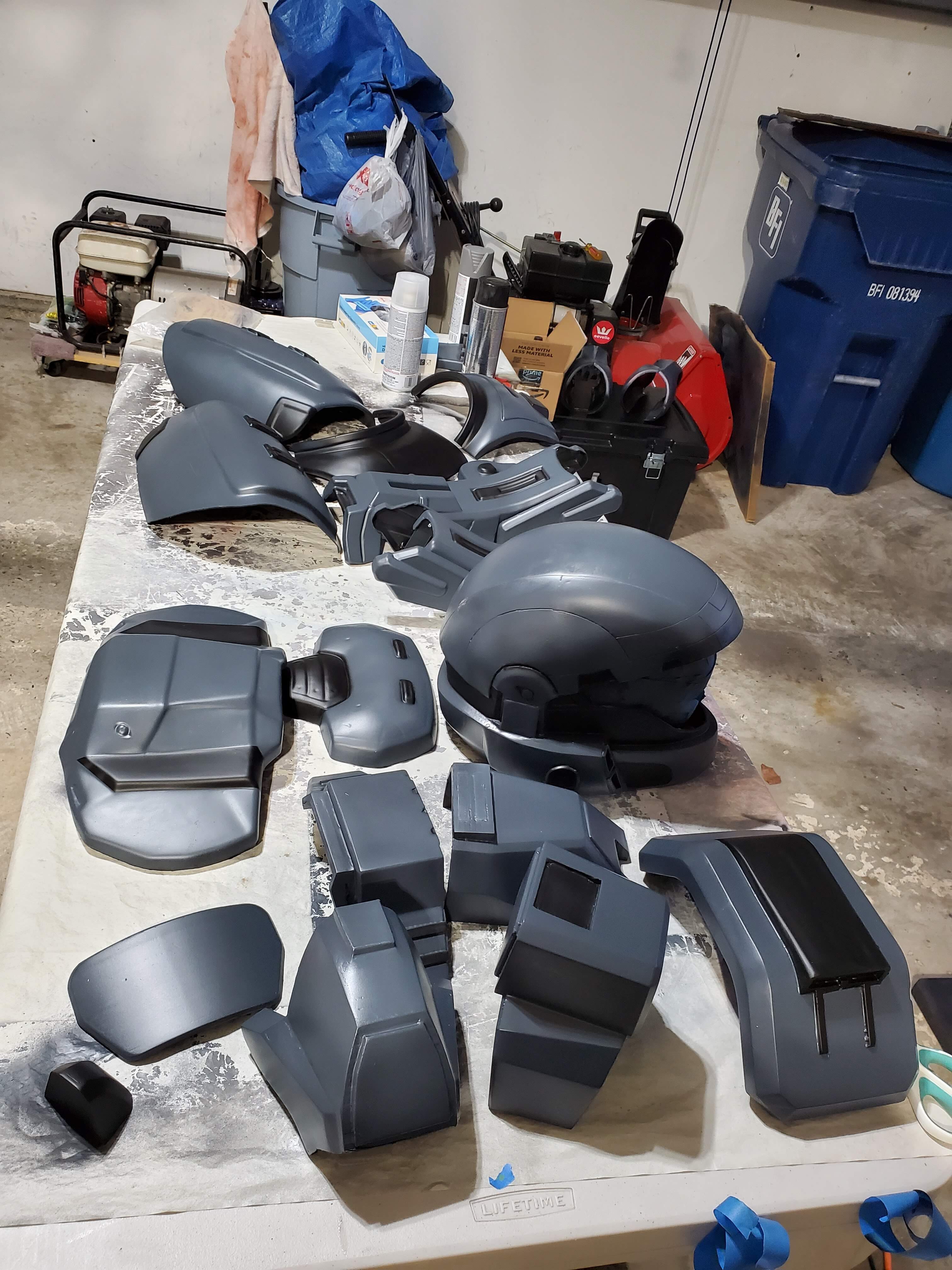

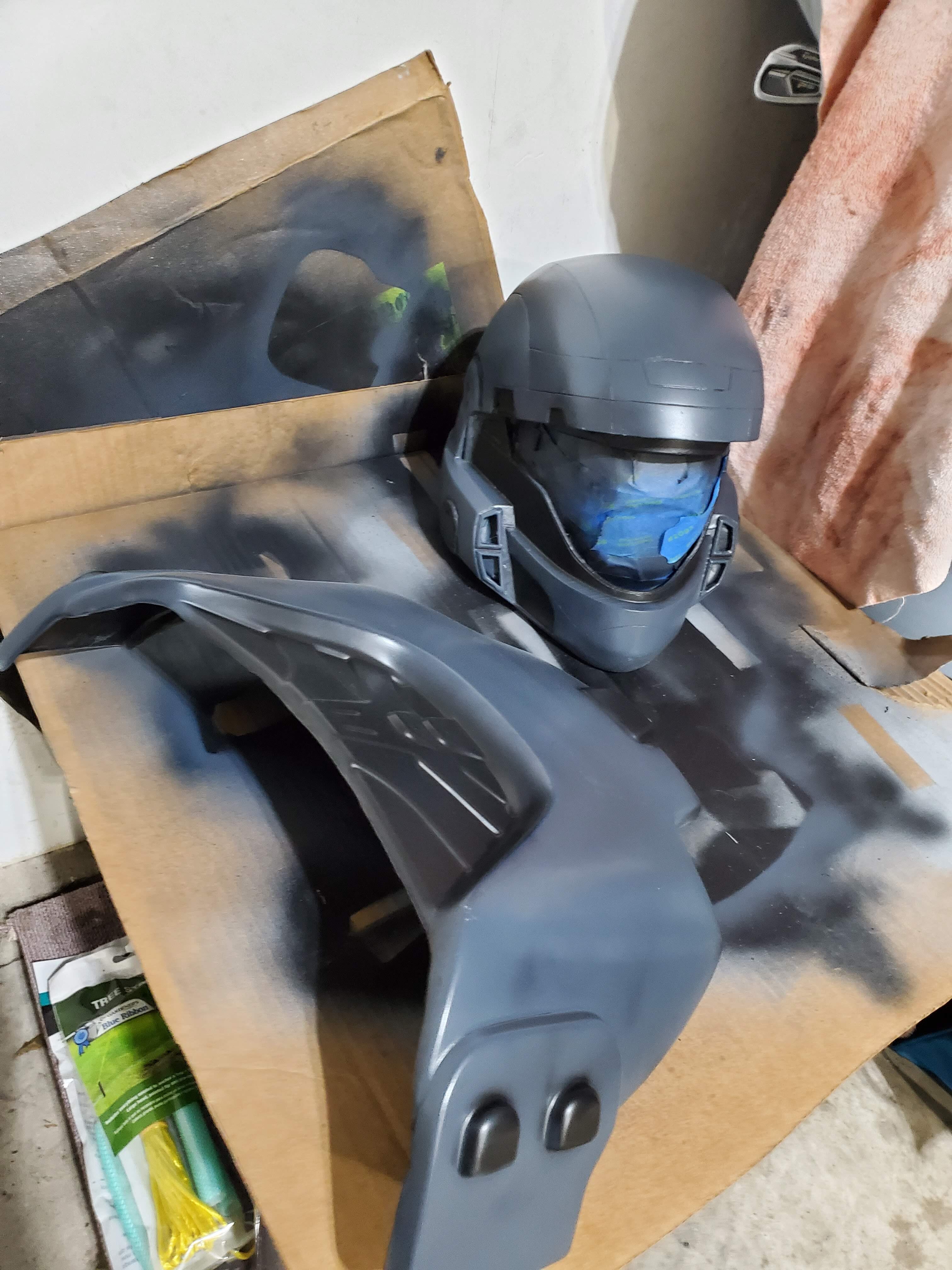

It's finally time for my favorite part, painting! Used a rustoleum matte black primer coat first before hitting everything with Rustoleum slate gray as the base color, I then went back with my airbrush and did the black detailing on all the parts. A silver dry brushed, sponged, and buffed on silver was used for the chipping followed by a black oil wash.
View attachment 318769 View attachment 318767 View attachment 318766 View attachment 318765 View attachment 318764 View attachment 318763

It was time to actually wear it! I used my strapping harness featured HERE to hook everything up then used a ton of parachute clips to rig it up. The harness allows for a sturdy connection and prevents it all from falling down on itself. The chestpiece actually hooks into itself and uses the chest rig as an anchor point for a comfy and secure fit.
View attachment 318776 View attachment 318775 View attachment 318774

There we have it! My version 1 of Vaz ready to roll for LA!
(Spoiler Alert, we aren’t done yet)

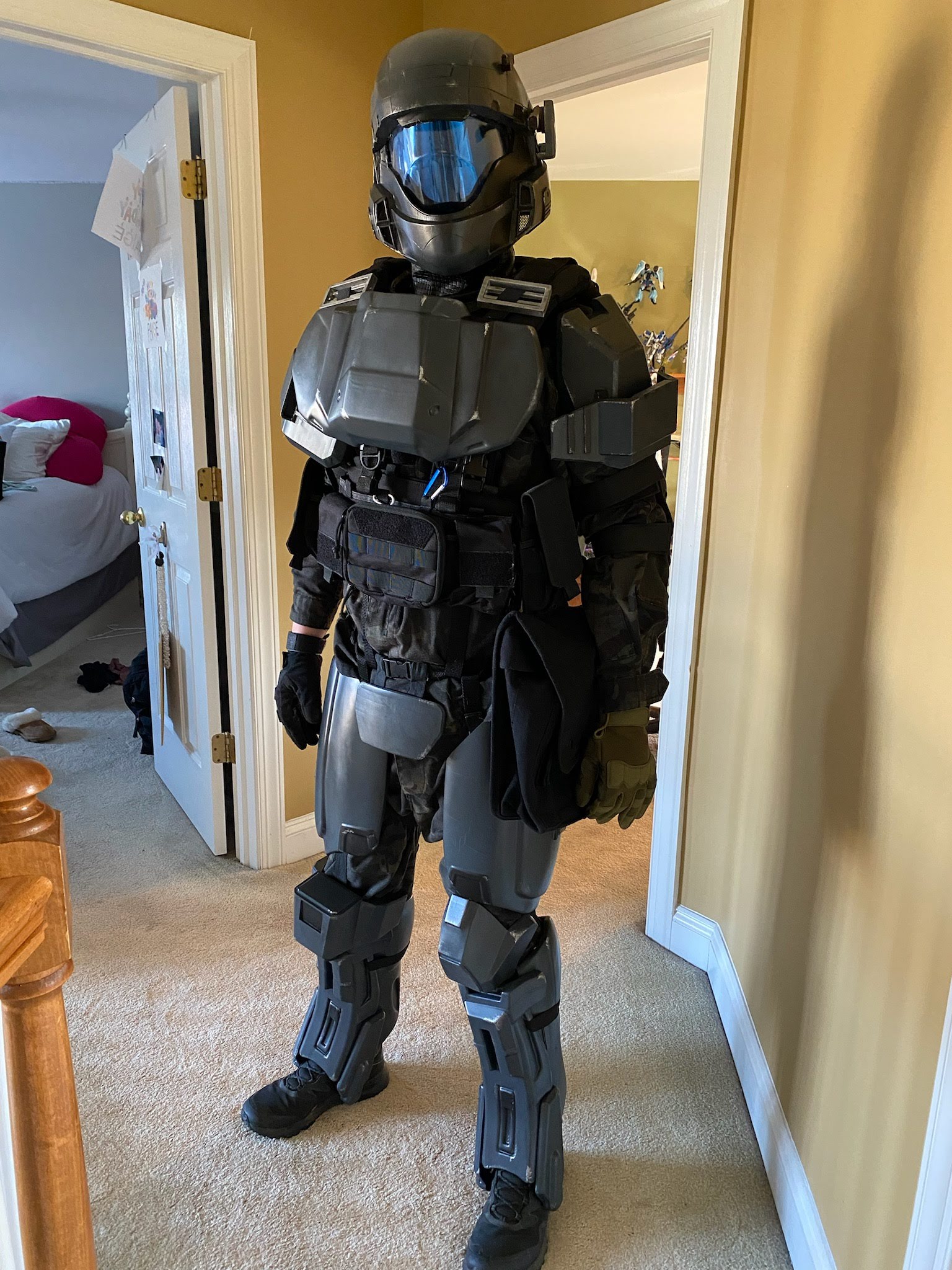

View attachment 318773
