Rakshasa Grenadier

600 grit wet sand on the bondo spot putty.

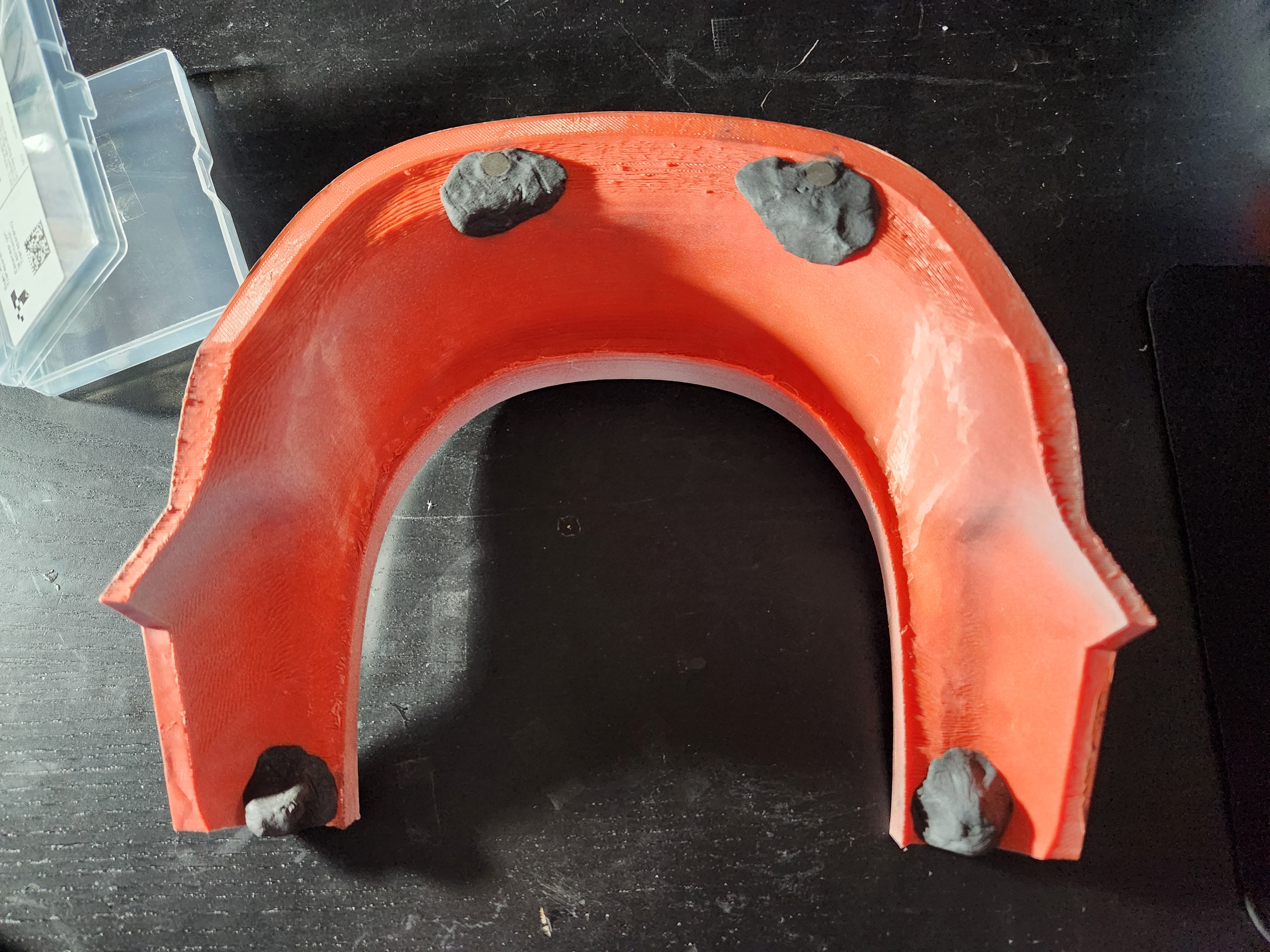

Added the magnets to the helmets back plate. I add the neodymium magnets using JB Weld steel stick on one part, then I cover the magnets with clear wrap, after I add magnets and steel stick to the other side.

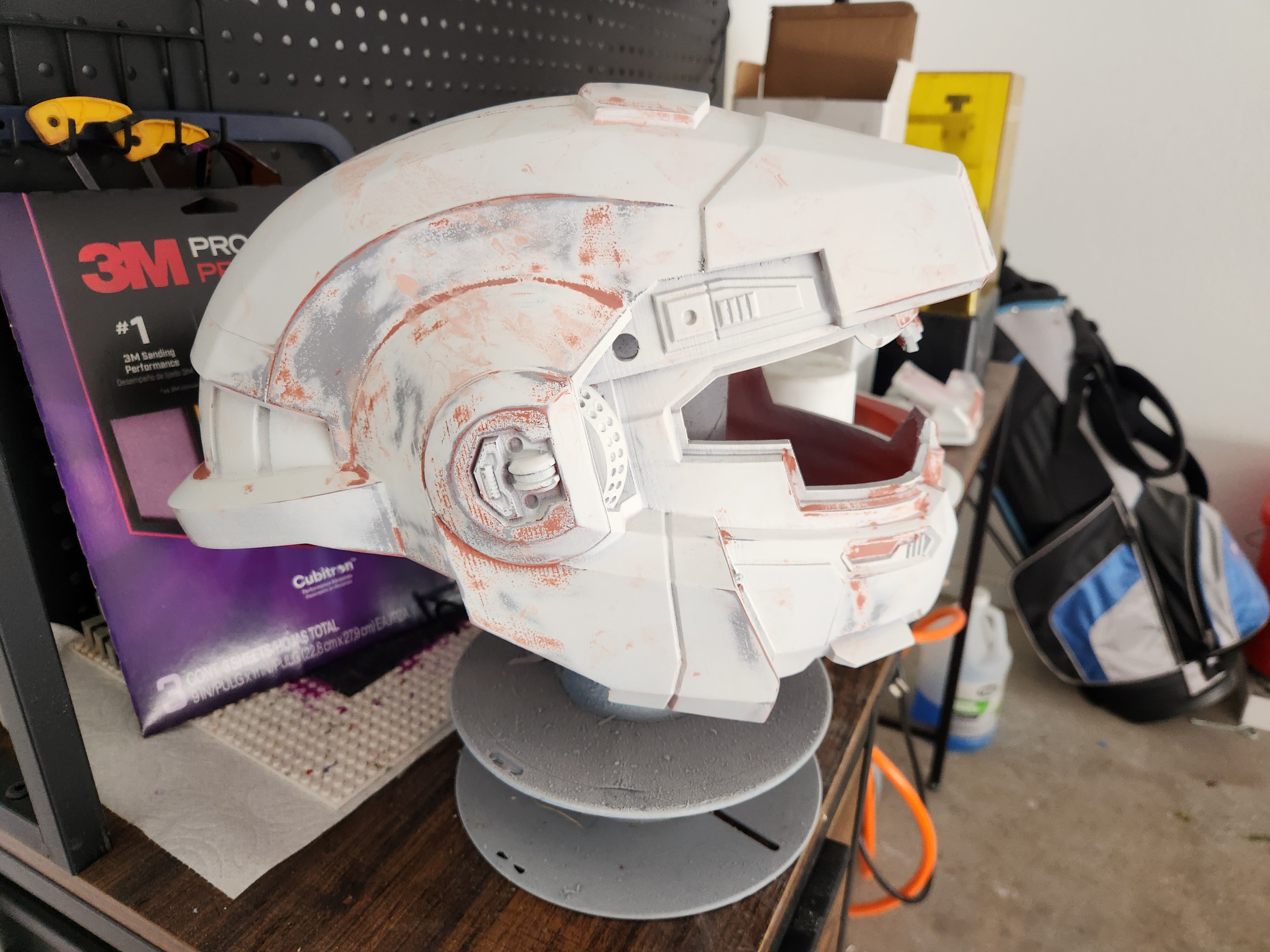

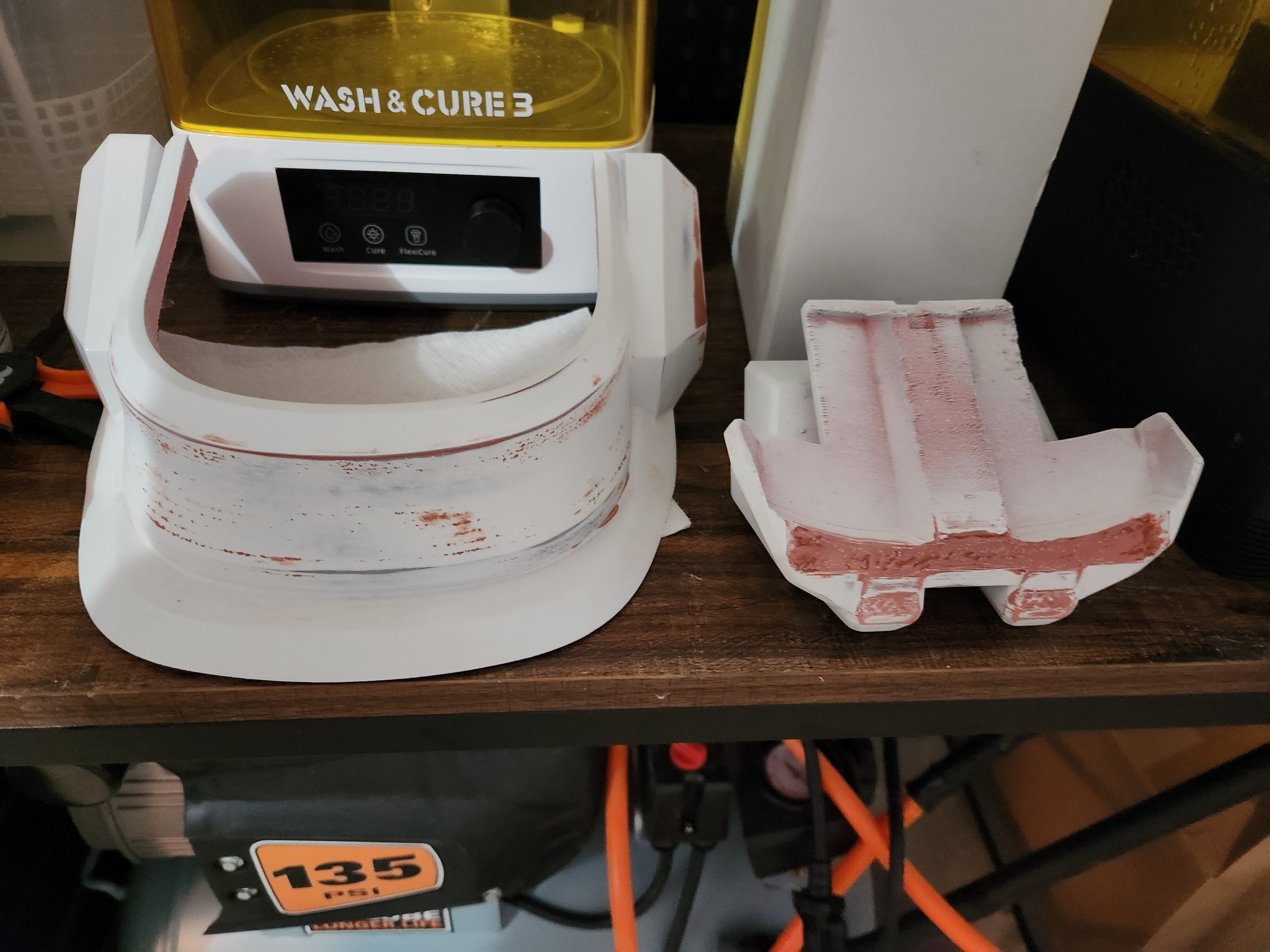

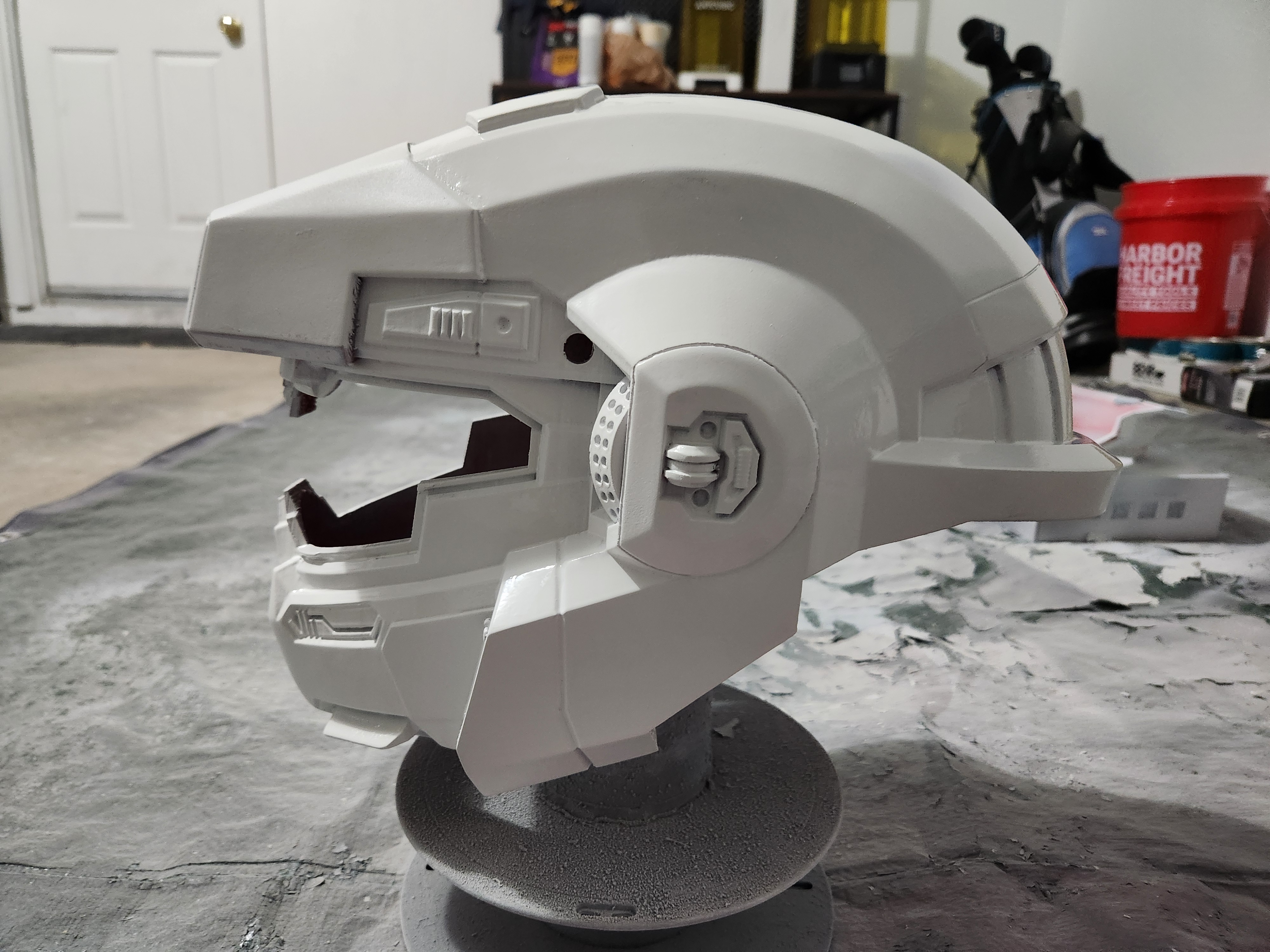

White paint primer.

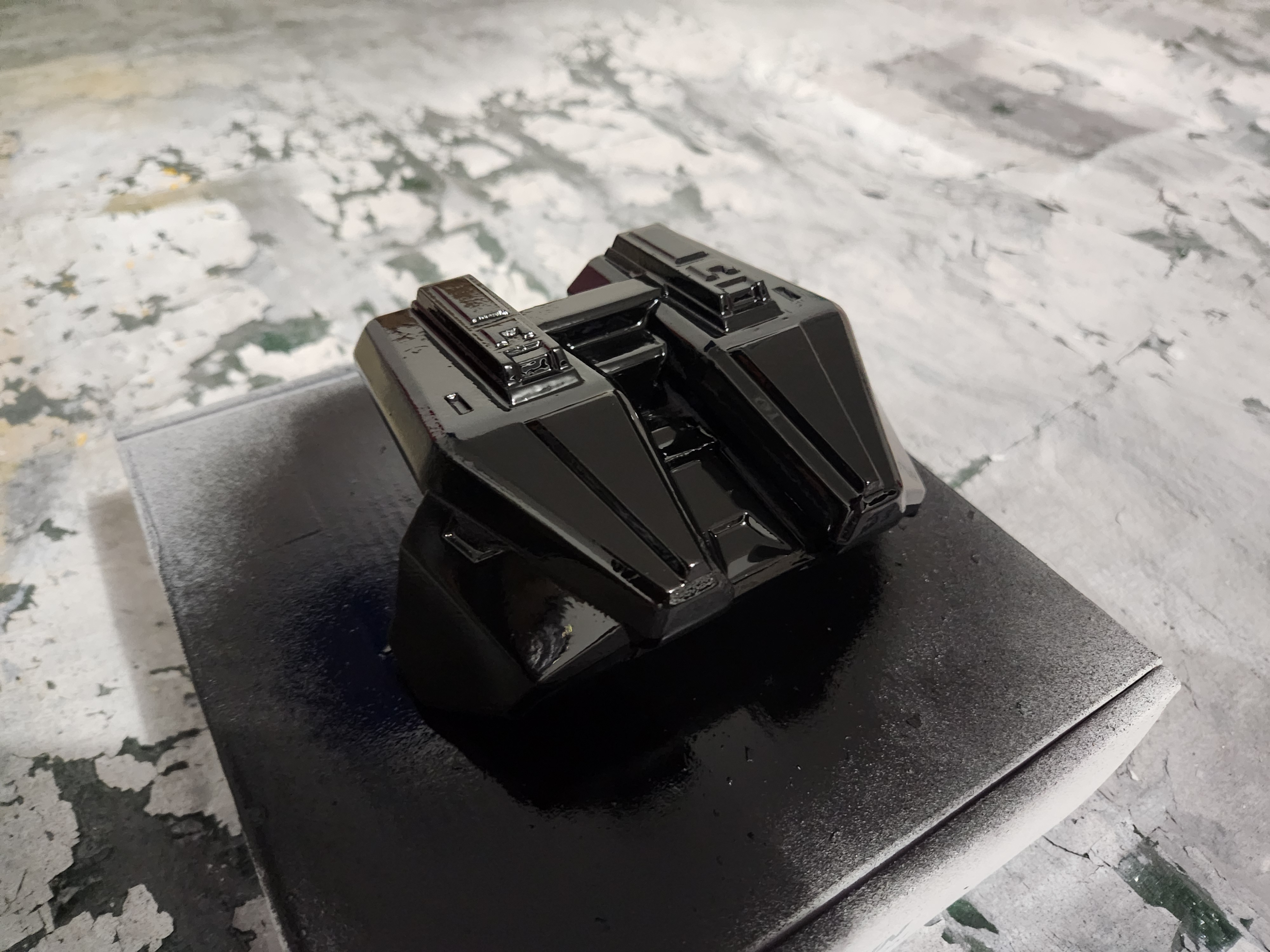

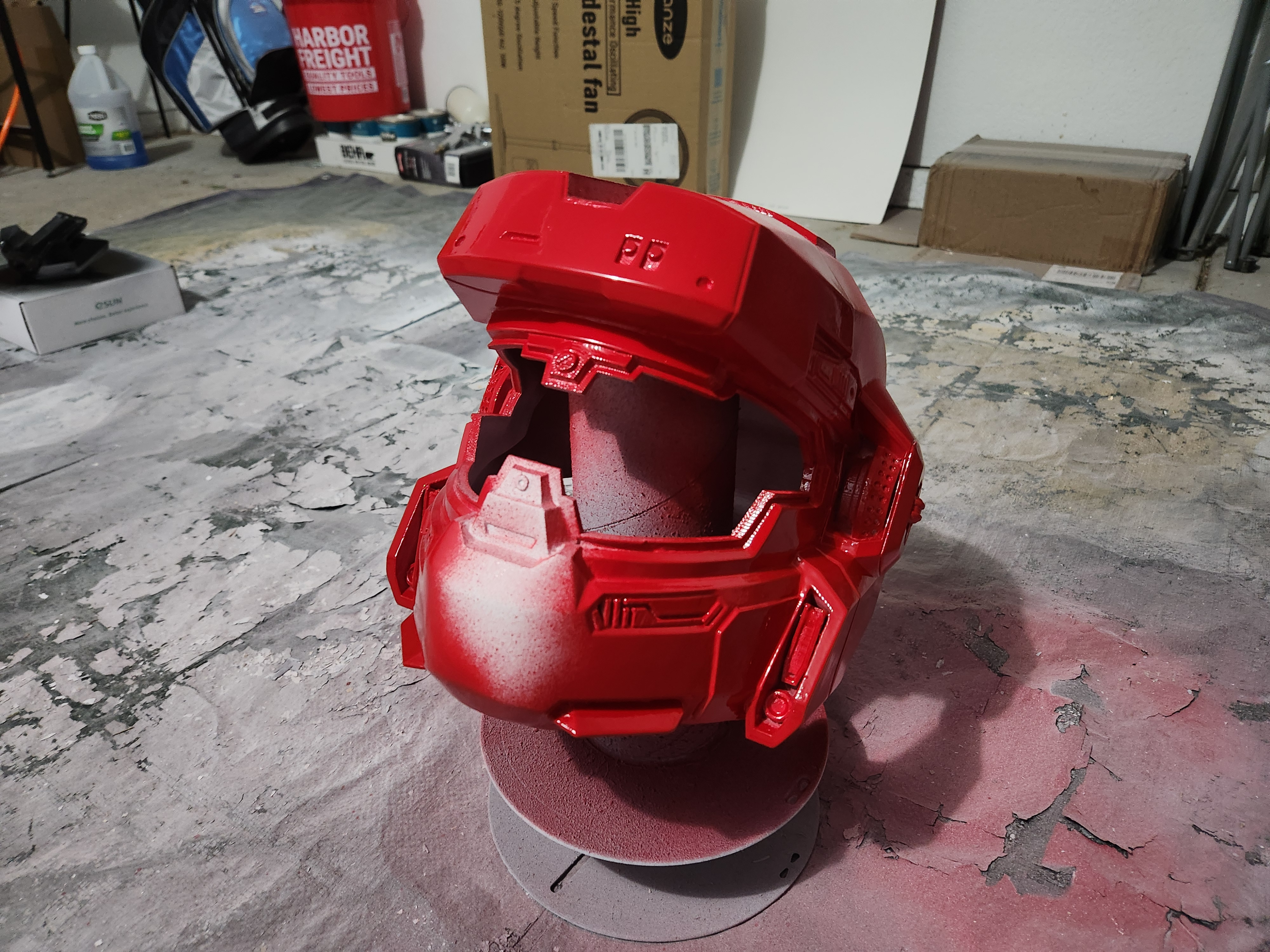

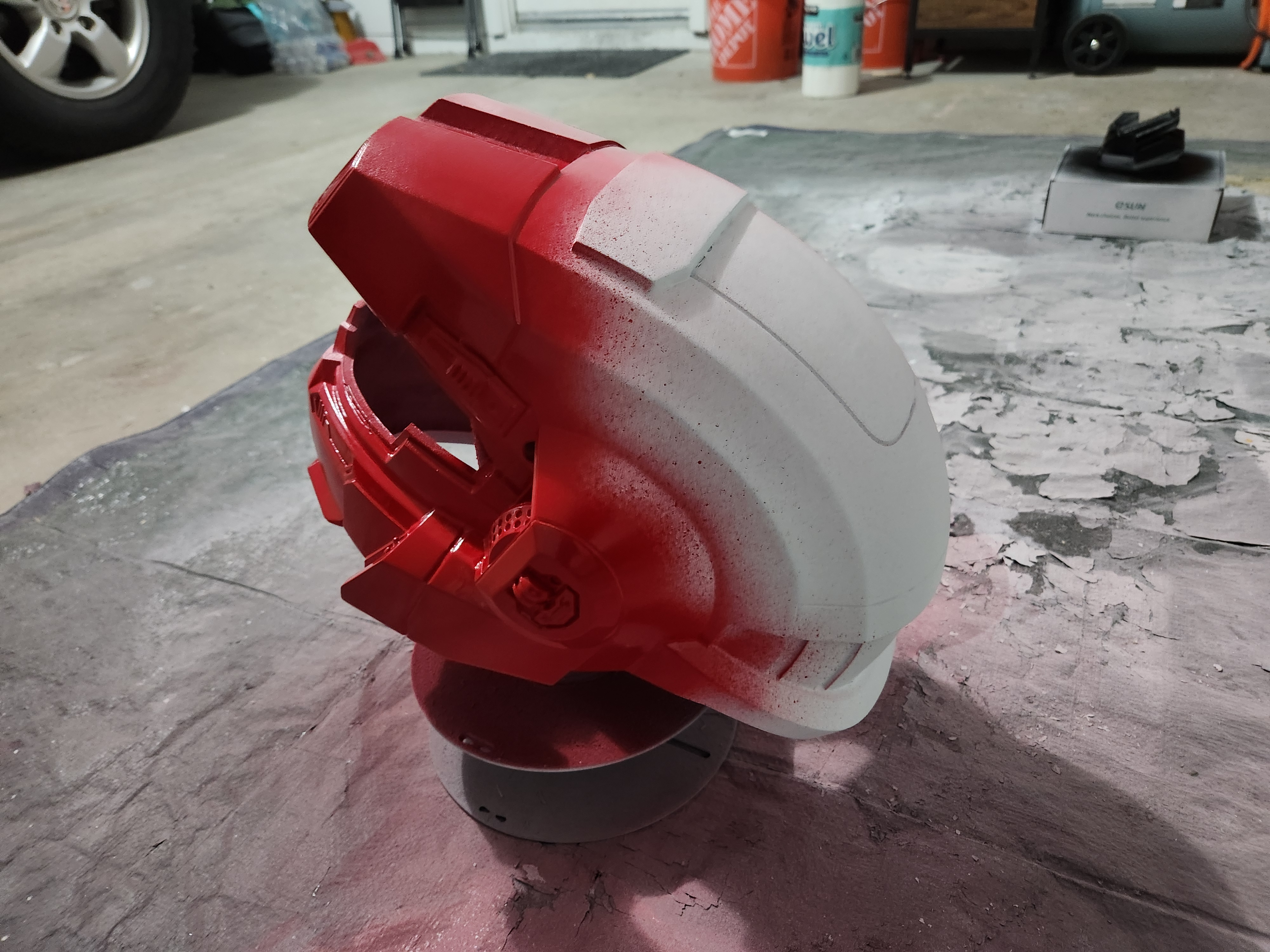

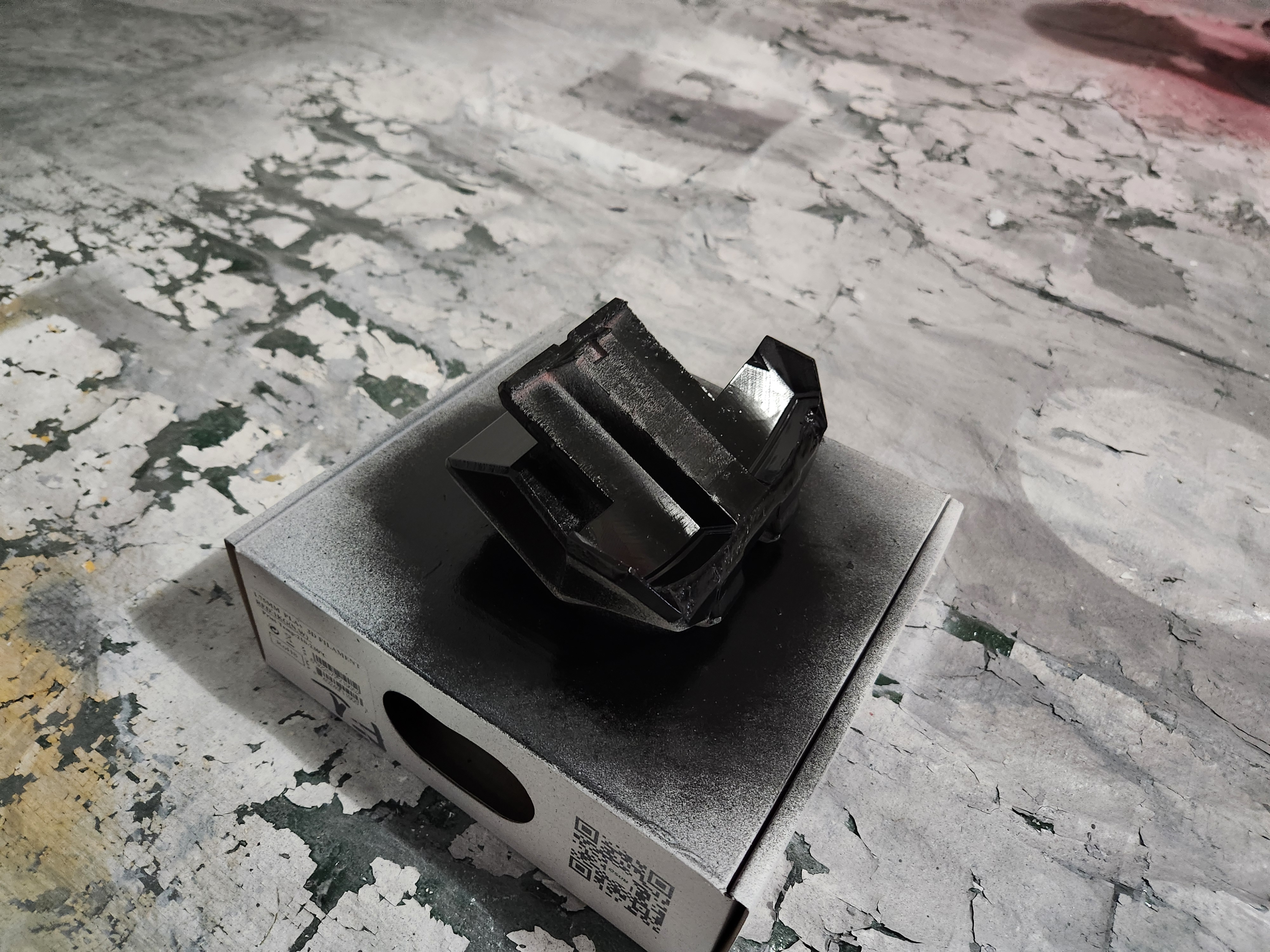

Red enamel paint added to the general areas I want red on the helmet and semi gloss black added to the UA attachment.



Attachments

  • 1000018616.jpg
    3.4 MB · Views: 10
Painted the back plate gunmetal.


Tapped off the sections I want to keep.


Semigloss black paint.


Tape peel.

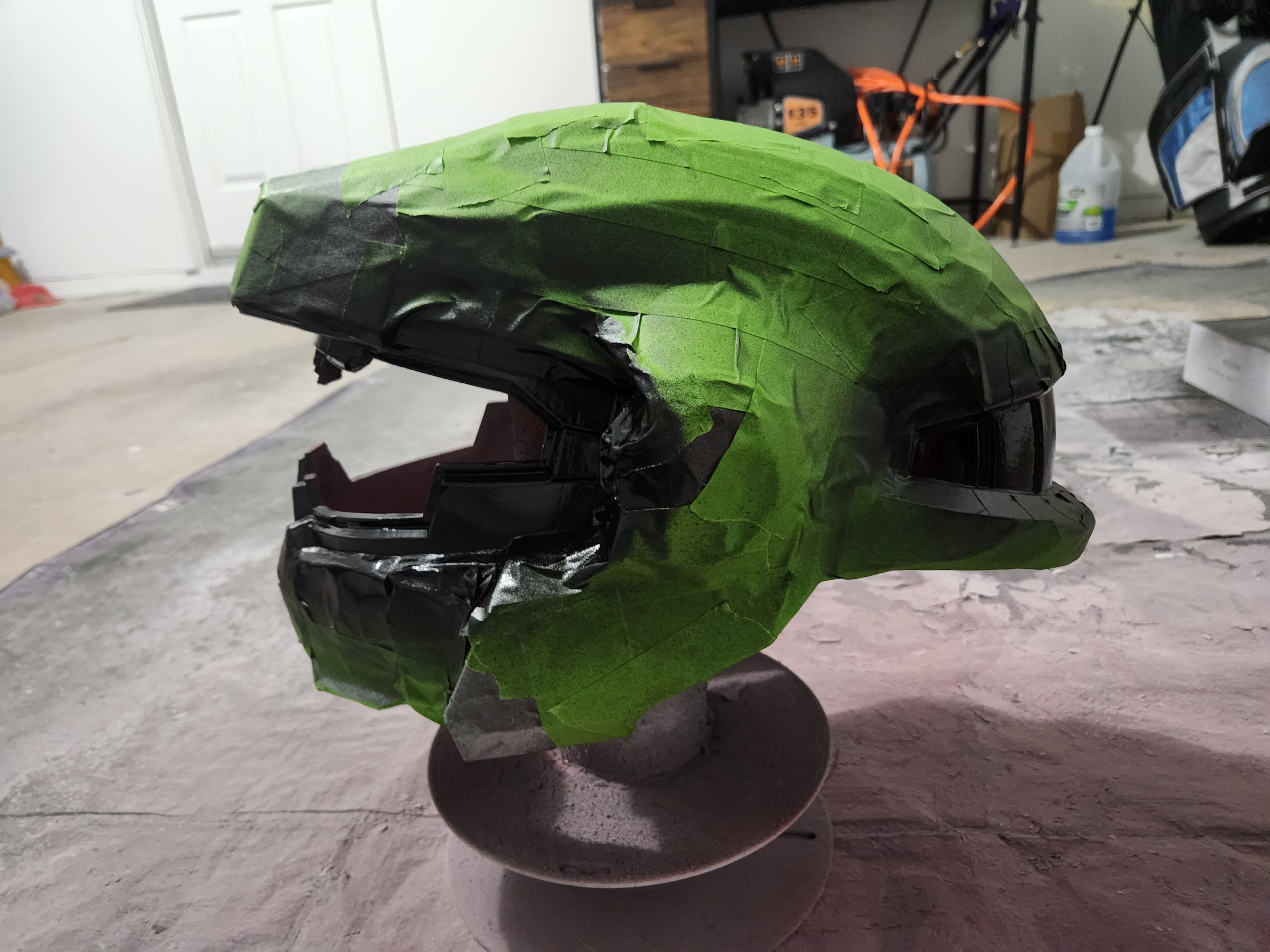

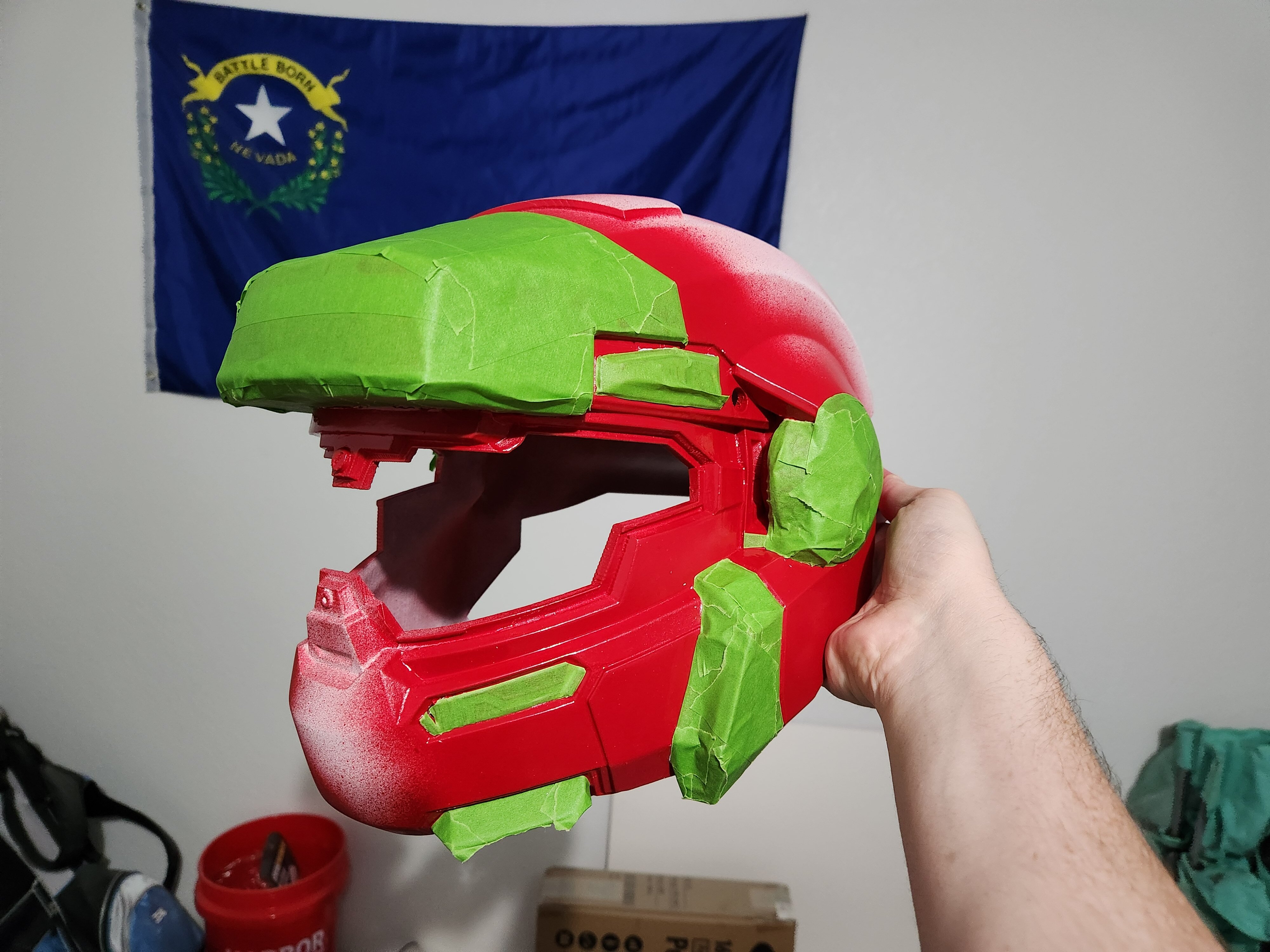

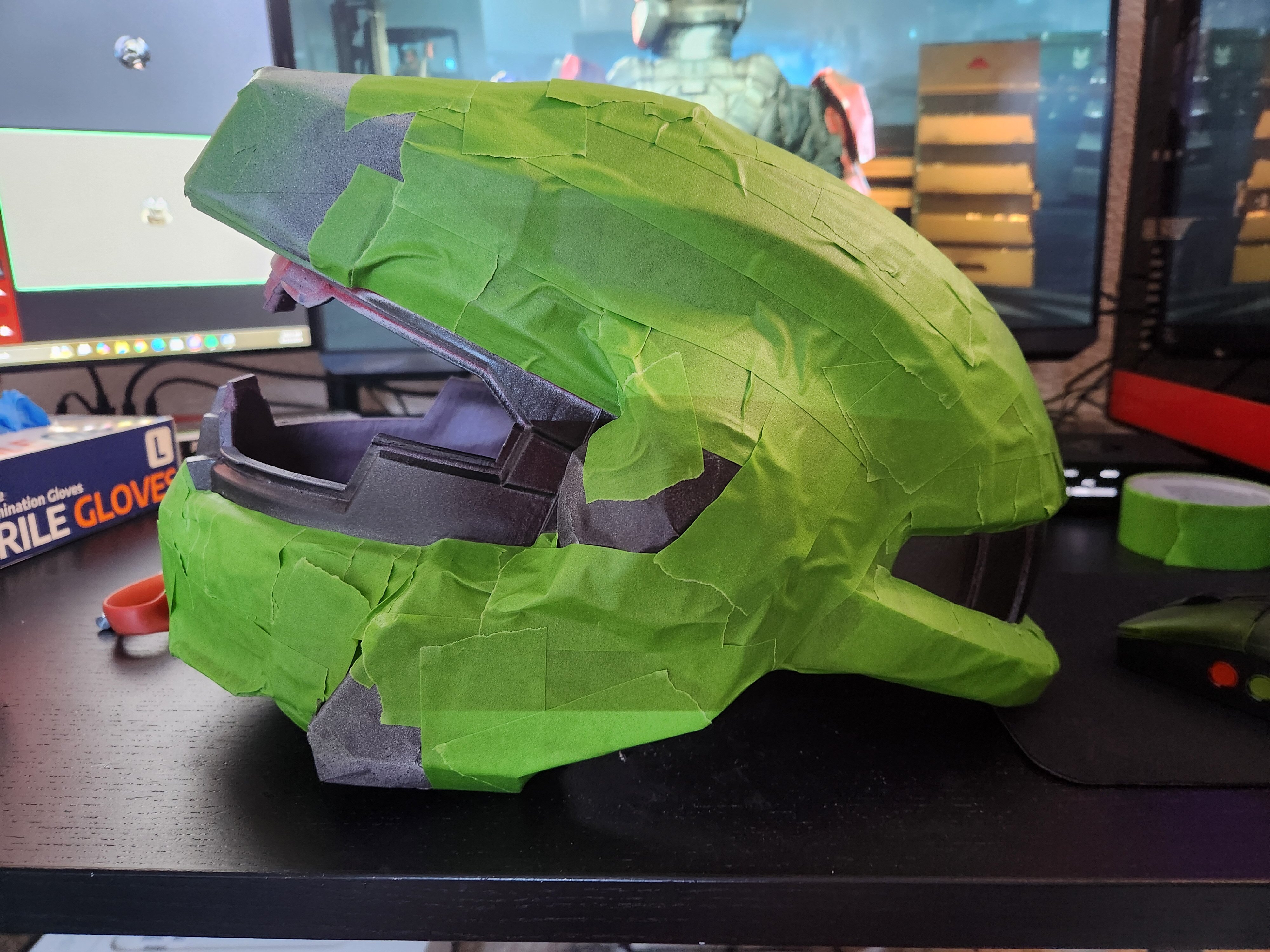

For the main helmet, I tapped off the red I want to keep.


Did a white base for the gun metal.


Gunmetal.


Tapped off gunmetal parts I want to keep.


Semigloss black.

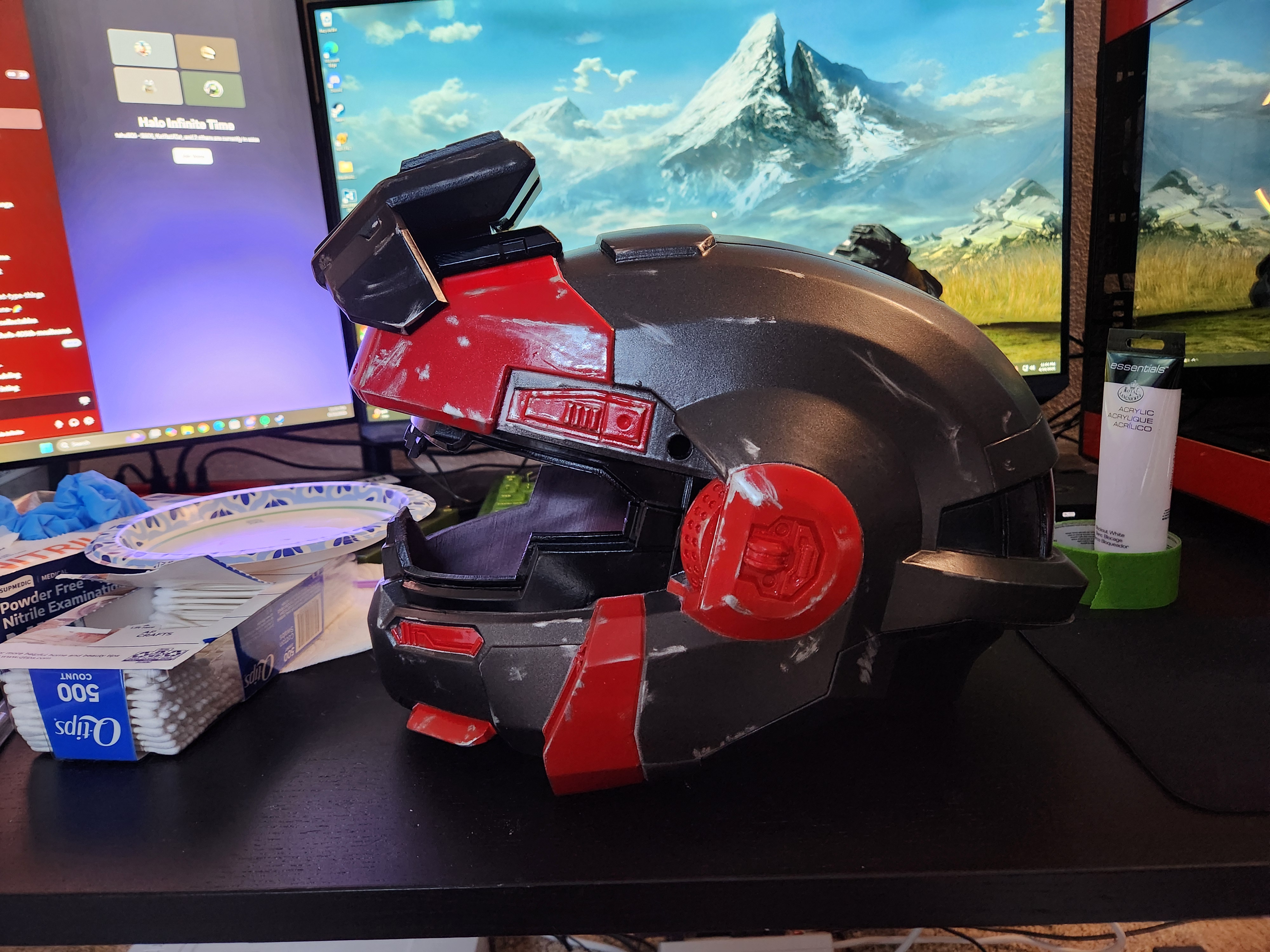

Peel off all the tape.


The inner ear piece was difficult to cover in tape, so I hand painted a white base with acrylic paint.


Then I sprayed the red paint into a disposable cup and used a brush to paint it by hand.

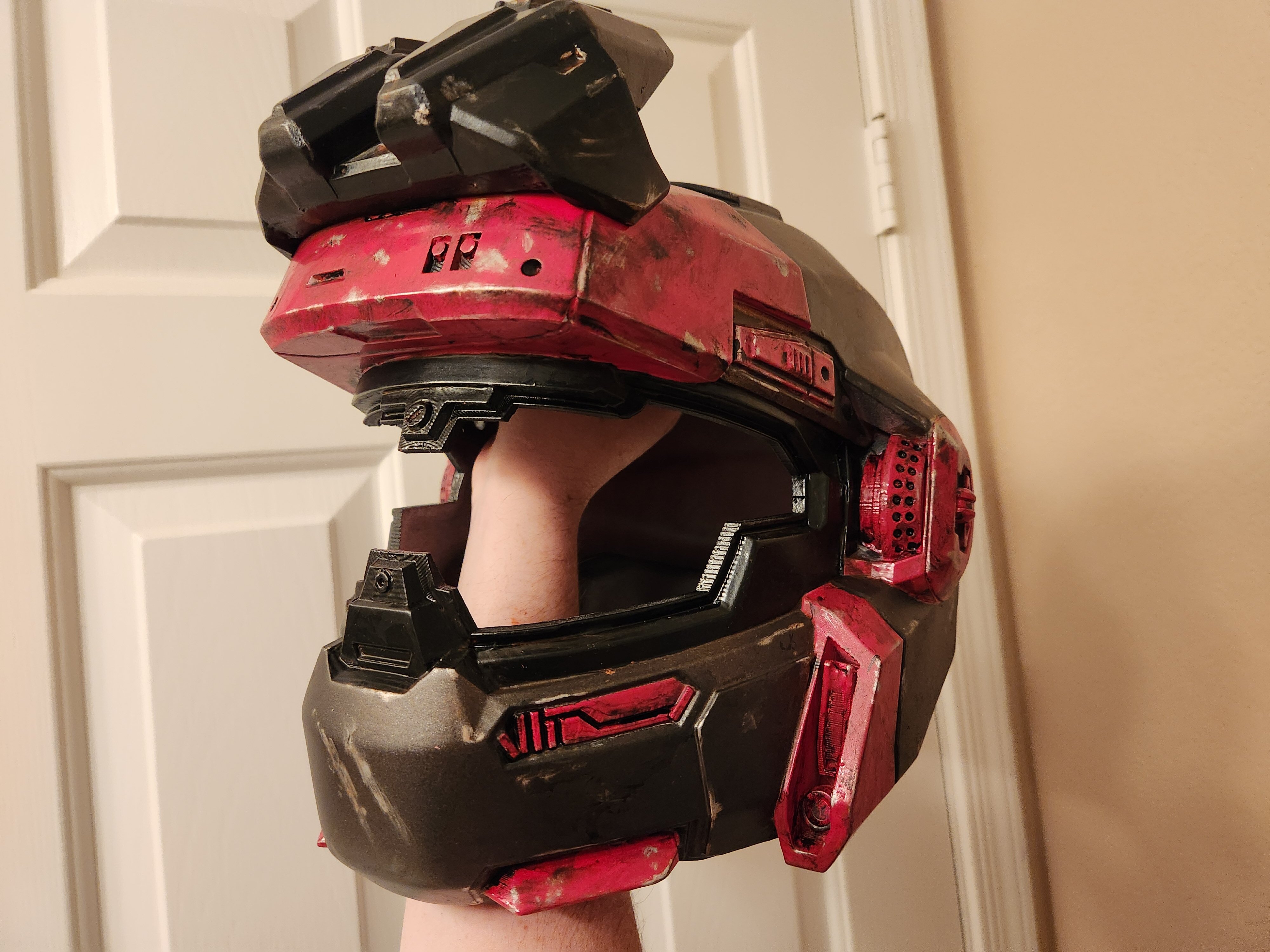

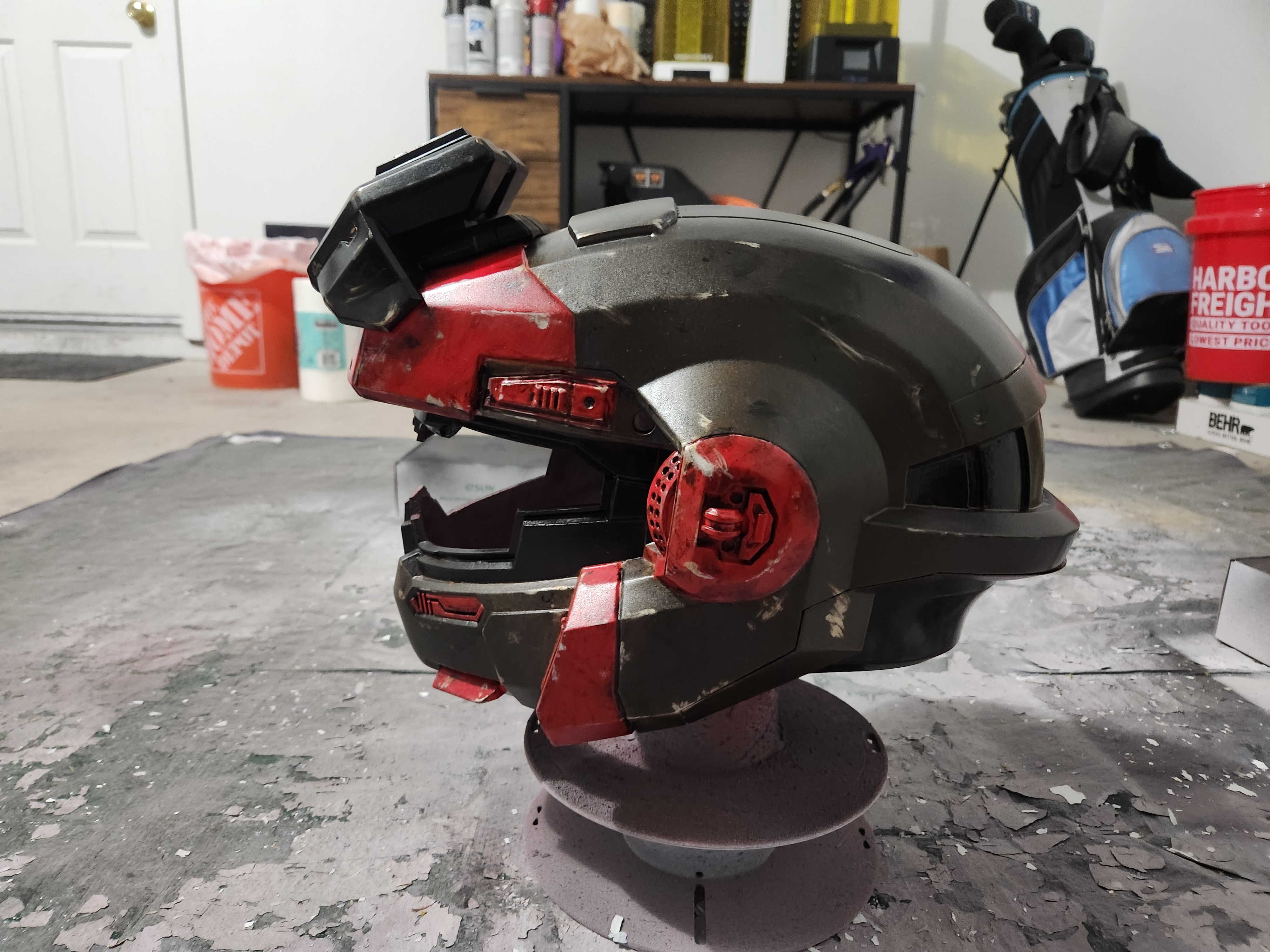

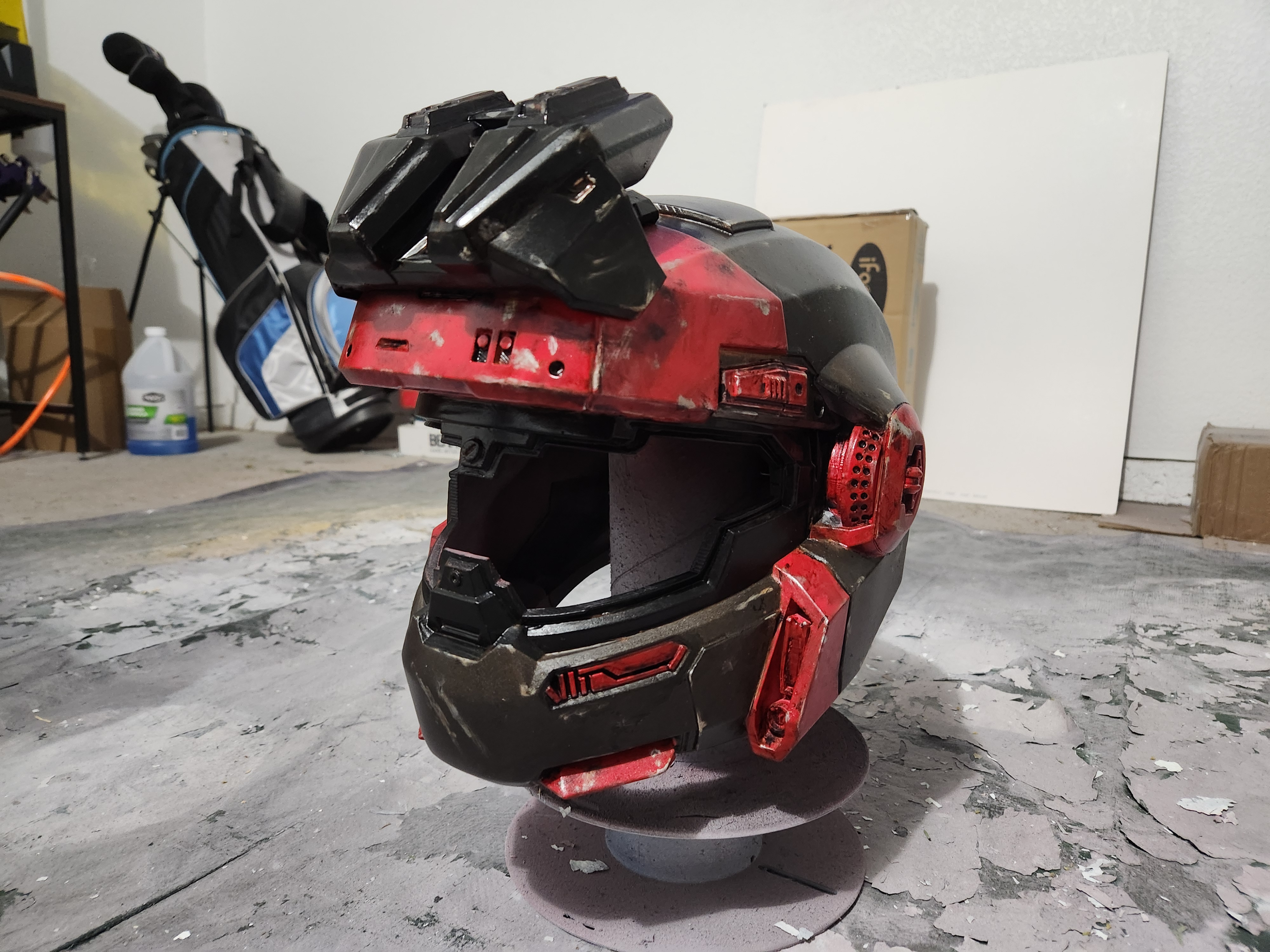

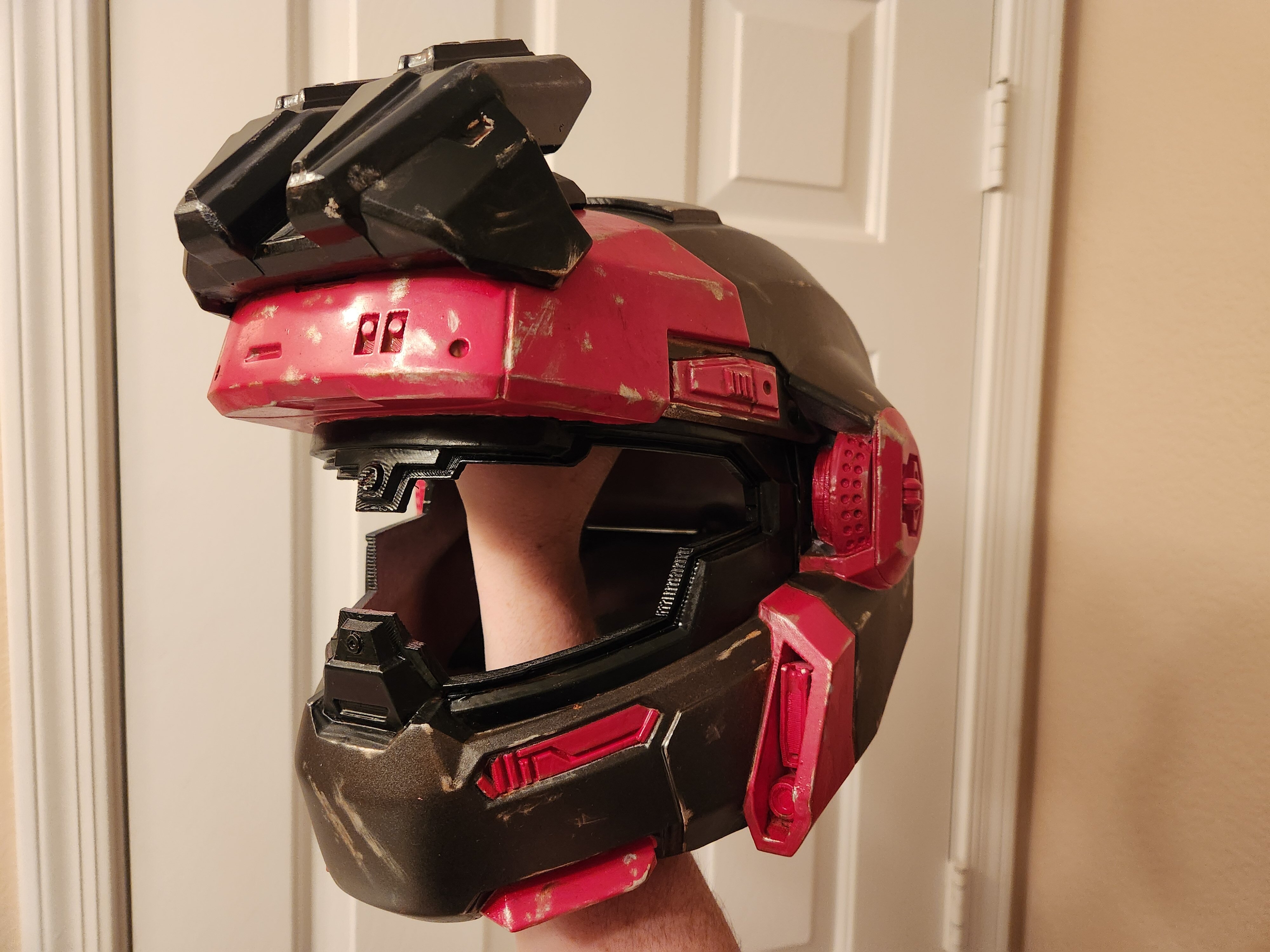

Rub'n Buff bassed off of references from the game and areas I felt were right to hit.
