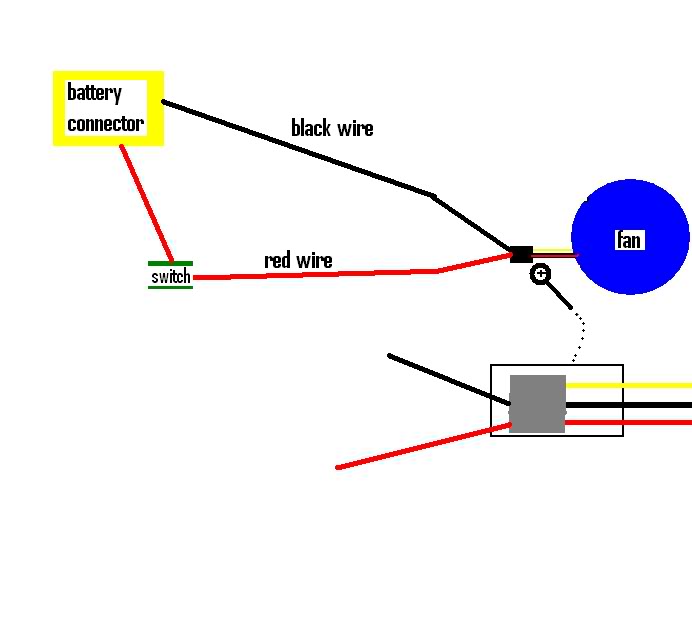

Here, I've drawn up a new picture explaining the fan thing better. I'm not an artist, so piss off if you don't like it :)



Ignore the yellow wire in the fan plug entirely. Solder the negative wire from the black slot on the fan plug to the negative lead on the battery. This can be either the battery itself (not recommended), or a 9v battery holder. The simplest ones are little flaps that connect to the top of the 9V with a red and black wire coming out. Black is negative, red is positive. Simple enough.

Solder the black from the battert to the black of the battery connector...then solder a wire from the red of the plug to the switch, then from the switch to the positive side (red) of the battery

Sikarian said:
Here, I've drawn up a new picture explaining the fan thing better. I'm not an artist, so piss off if you don't like it :)



Ignore the yellow wire in the fan plug entirely. Solder the negative wire from the black slot on the fan plug to the negative lead on the battery. This can be either the battery itself (not recommended), or a 9v battery holder. The simplest ones are little flaps that connect to the top of the 9V with a red and black wire coming out. Black is negative, red is positive. Simple enough.

Solder the black from the battert to the black of the battery connector...then solder a wire from the red of the plug to the switch, then from the switch to the positive side (red) of the battery

I think thats basically what i said =P

dont get me wrong i do not mean to be offensive but please reread my fan tut =P

and yeah your fan image is nice =P

Last edited by a moderator:
FirePhoenix NL said:
I think thats basically what i said =P

dont get me wrong i do not mean to be offensive but please reread my fan tut =P

and yeah your fan image is nice =P


Well, the fans dont generally come with just a red/black cable sticking out. They have a plug designed for a 12v motherboard rail, which you have to solder into like I demonstrated.

Last edited by a moderator:
Sikarian said:
Well, the fans dont generally come with just a red/black cable sticking out. They have a plug designed for a 12v motherboard rail, which you have to solder into like I demonstrated.

Oh sorry then.. i've read somewhere that those fans generally have the wires... but ok i will update it =P

Last edited by a moderator:


Found this. This is a 12v 2 pin connector, it's got red/black. You can just solder directly into the little pin holes at the end of the plug (positive/negative).

Heres a photo with a good picture of the 3 pin 12v connector



so it's easier to see the yellow/red/black and also the pin holes you have to solder into.

Sikarian said:


Found this. This is a 12v 2 pin connector, it's got red/black. You can just solder directly into the little pin holes at the end of the plug (positive/negative).

Heres a photo with a good picture of the 3 pin 12v connector



so it's easier to see the yellow/red/black and also the pin holes you have to solder into.

ah damn lol.. i just made a whole paint image =P



I was wondering tho.. cant you just cut the plug of and solder the wires? =P

Last edited by a moderator:
FirePhoenix NL said:
ah damn lol.. i just made a whole paint image =P



I was wondering tho.. cant you just cut the plug of and solder the wires? =P

You could, better not to, honestly. The pin recesses give you more of a place to hold the wire and fill with solder. Two open wires just soldered together has more of a chance of breaking than a stripped wire pushed into the pin hole.

Last edited by a moderator:
Sikarian said:
You could, better not to, honestly. The pin recesses give you more of a place to hold the wire and fill with solder. Two open wires just soldered together has more of a chance of breaking than a stripped wire pushed into the pin hole.

updated it, tell me if its allright now :)

Last edited by a moderator:
FirePhoenix NL said:
updated it, tell me if its allright now :)

Looks okay to me. I'm a stickler for red/black, so I'd personally say positive/negative. The wiring inside my helmet is all purple for negative and positive, so color is kind of moot :p

Last edited by a moderator:
Sikarian said:
Looks okay to me. I'm a stickler for red/black, so I'd personally say positive/negative. The wiring inside my helmet is all purple for negative and positive, so color is kind of moot :p

hehe, well i thought i would keep everything as simple as possible...

btw, english is my second language so sometimes i cant really phrase a scentence
