Worked a bit more on the SMG model today, mostly done designing the trigger, handle, foregrip, stock and how these pieces interact with the other ones as well as making sure I can actually install them where they need to be.
Next up is finishing the upper body part and the stock shaft (?).


Overview.

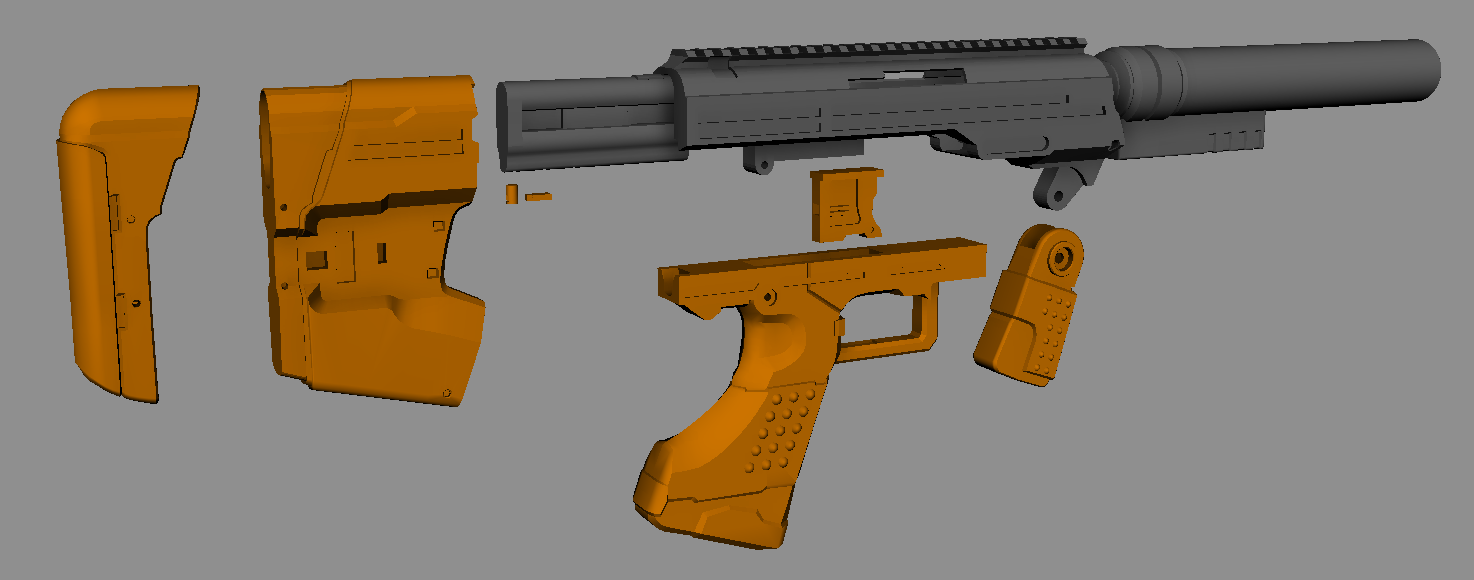

Exploded View.

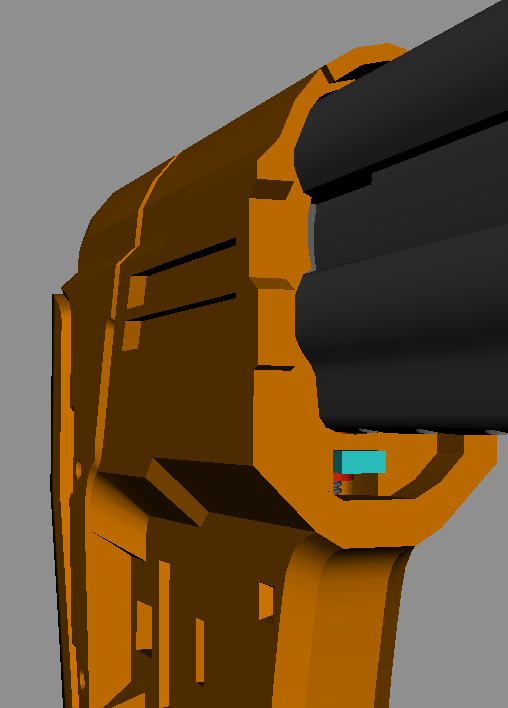

Stock latch.

Stock latch system crosscut.


RedSparrow

Member
Worked a bit more on the SMG model today, mostly done designing the trigger, handle, foregrip, stock and how these pieces interact with the other ones as well as making sure I can actually install them where they need to be.
Next up is finishing the upper body part and the stock shaft (?).

View attachment 282105

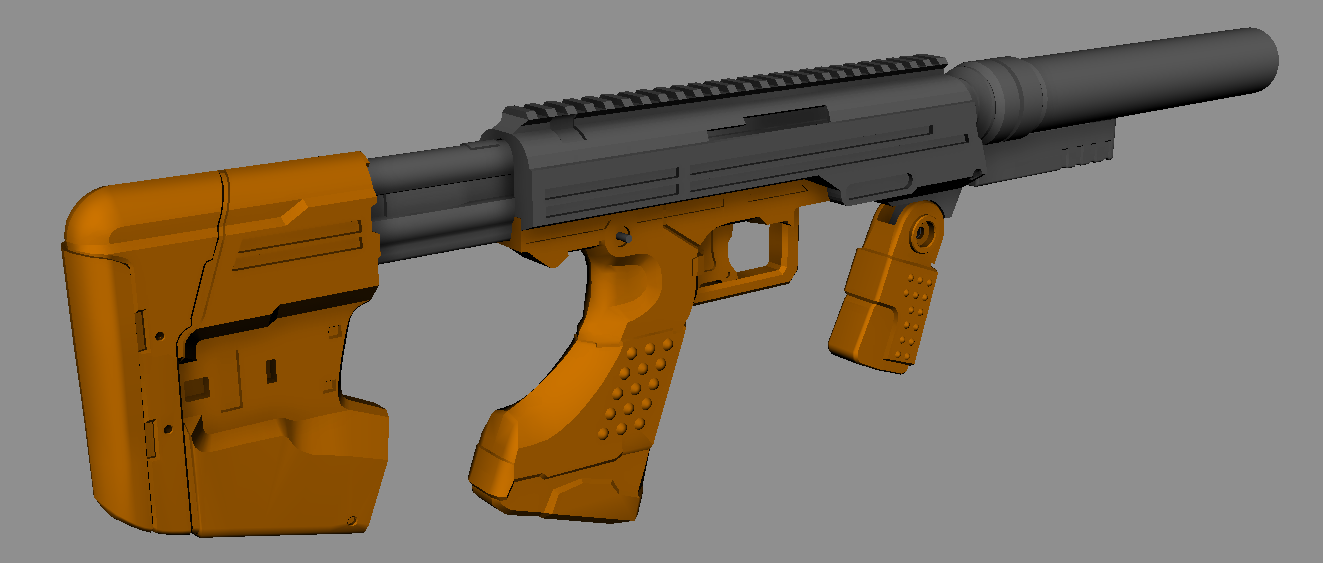

Overview.
View attachment 282106
Exploded View.
View attachment 282107

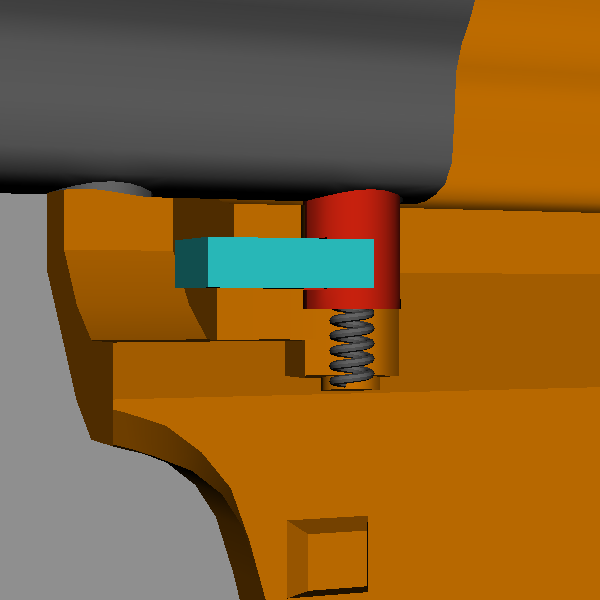

Stock latch.
View attachment 282108 View attachment 282109

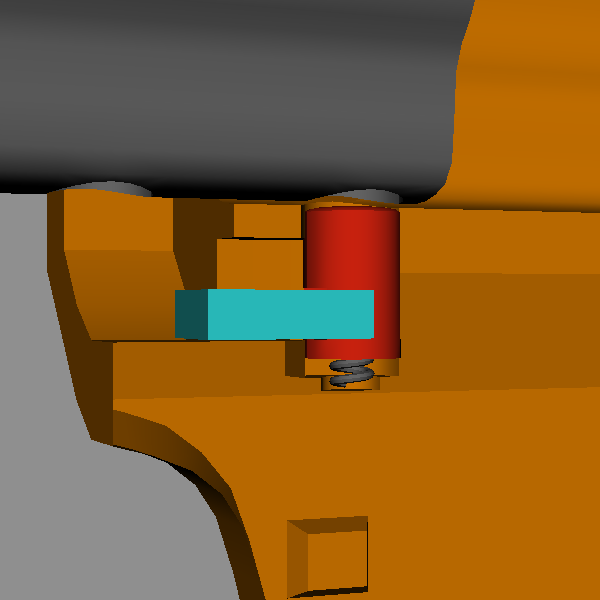

Stock latch system crosscut.
This is...intense. Love it!


WZProps

Member
Happy New Year Y'all!

I'm back from vacation, aka being a potato with valkyrjacosplay and watch a whole bunch of TV shows/ going to parties. Even though I didn't do much in my 2 weeks off, my trusty workshop companion (Mr. 3D Printer) was picking up the slack and dished out a few pieces for the SMG.
Here's where I'm at so far. I still have a few pieces to model, but its progressing nicely.

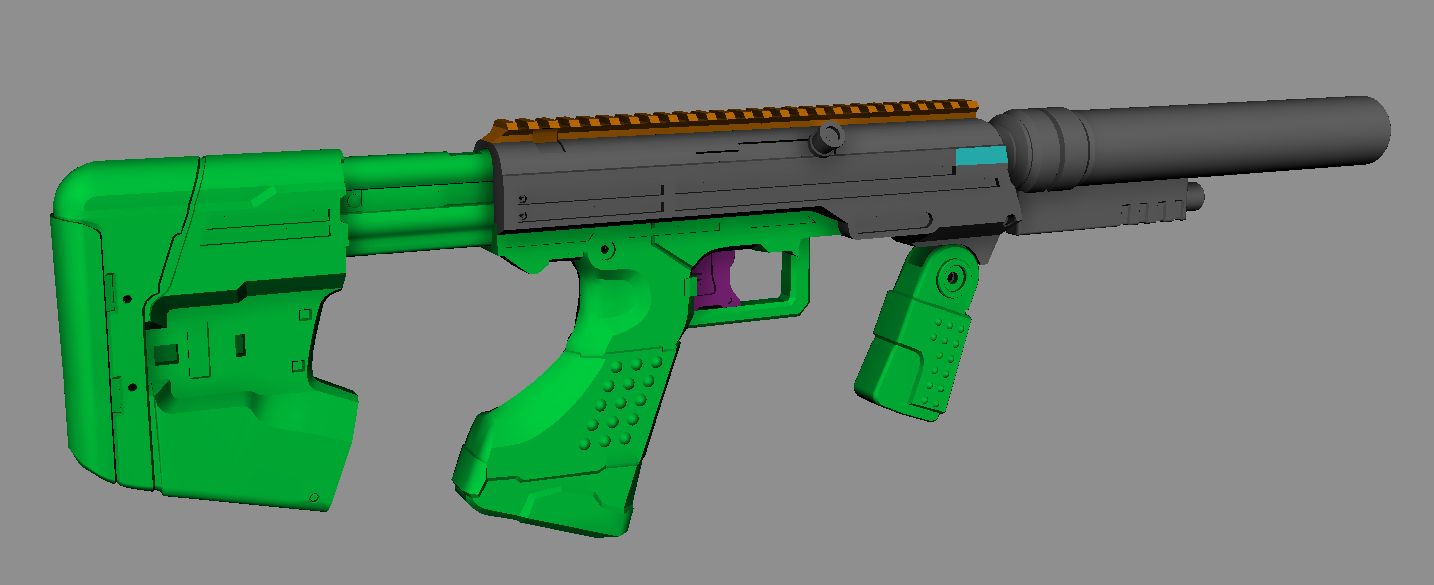

Green = Printed, Purple = Ready to Print.

I've also started my sanding process on some of the pieces, as you can see below. Quite happy with the progress so far.



In an ideal world, I'd like to be done with it before mid-February. Lets see if I can make that happen :p


WZProps

Member
Some more progress !
I haven't been able to do much in the last 2 weeks as I've been encountering some issues with my printer about 1 1/2 weeks ago which rendered it unusable and I only fixed the problem 5 days ago. Also as of yesterday, I'm having issues with my server crashing mid-print, so that's another problem I gotta figure out now...

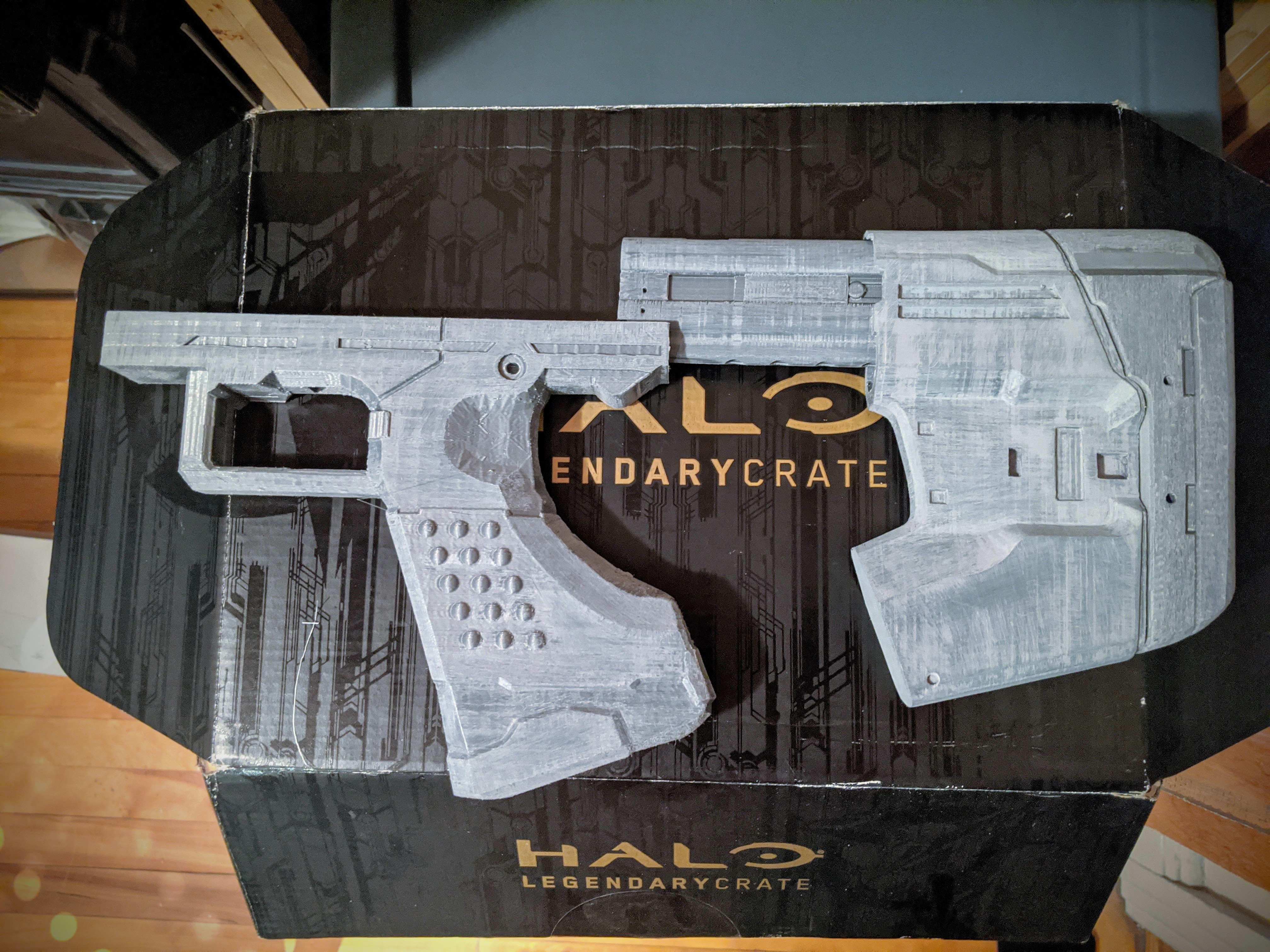

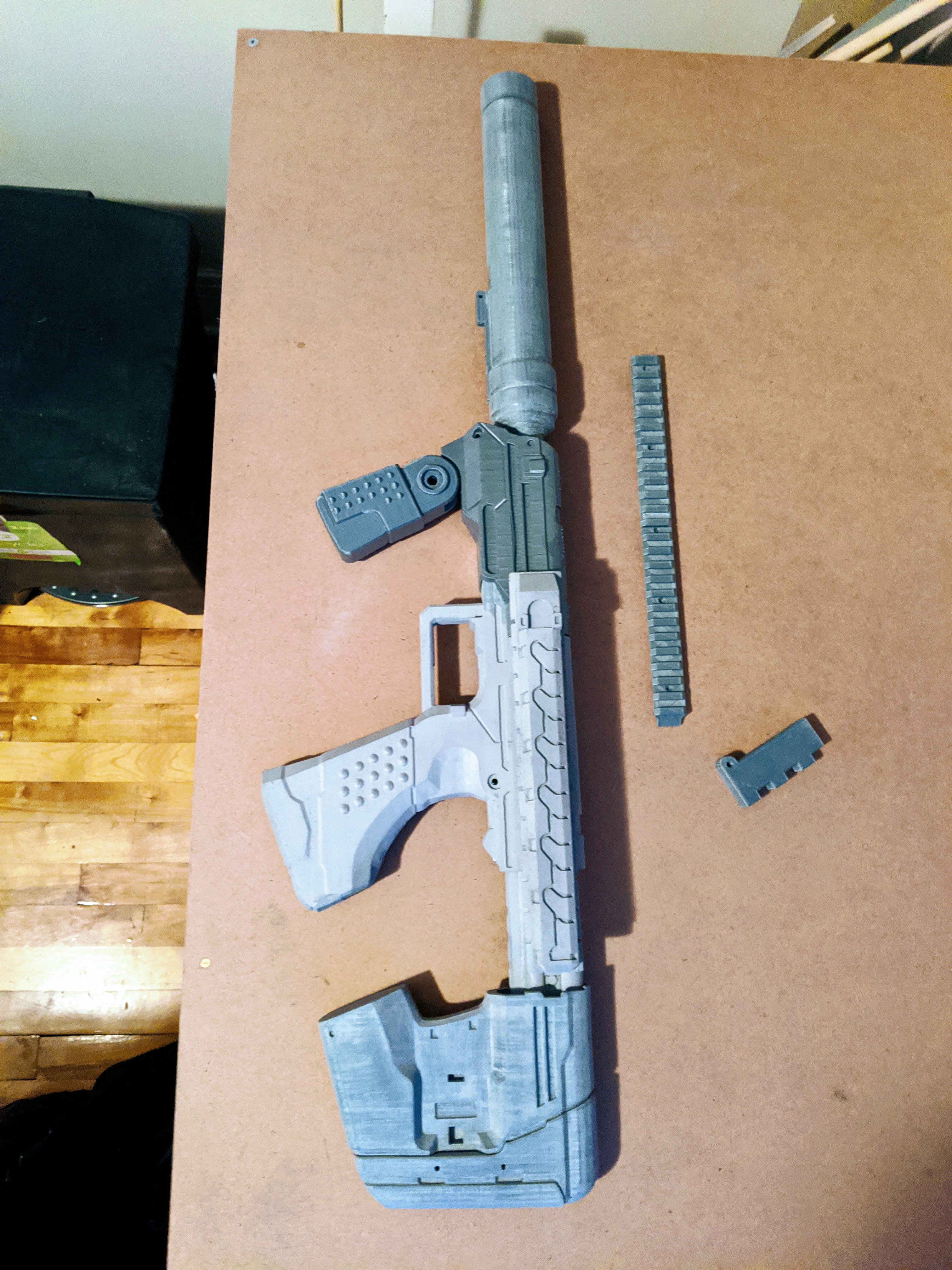

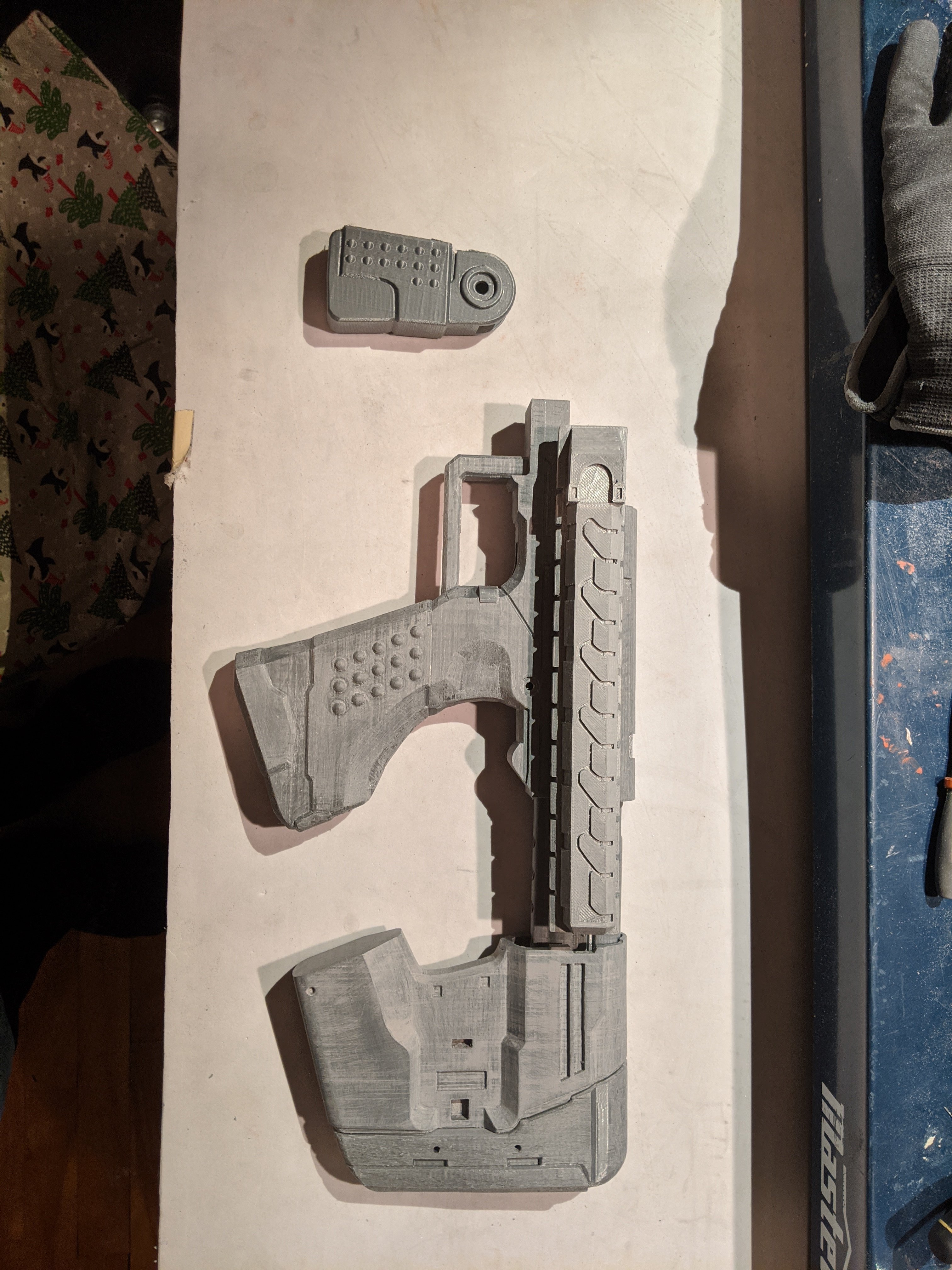

In all cases, I'm pretty much done printing all the big pieces and managed to do a quick dry assembly to see how most the pieces fitted together.
Overall, not bad at all. With some more sanding and fine tuning, its going to fit and look much better.





Last edited:

WZProps

Member
Well I now know what i'm doing with my gameroom...
I believe every prop maker should have at least a wall dedicated to showing the hard work they've put into their creation, no mater how small the wall or the work. It easily serves as a reminder that you're capable of doing great things and it also gives motivation to keep working to fill that wall and improve on your earlier work :)
So yeah, you should definitely make one haha


That wall is a work of art!
It ain't full yet, still got space for future projects (including the smg of course) ;)


SubXzeroXhero

Member
I believe every prop maker should have at least a wall dedicated to showing the hard work they've put into their creation, no mater how small the wall or the work. It easily serves as a reminder that you're capable of doing great things and it also gives motivation to keep working to fill that wall and improve on your earlier work :)
So yeah, you should definitely make one haha



It ain't full yet, still got space for future projects (including the smg of course) ;)

I hear yah! I've been meaning to put more on my wall but I agree that it's a great idea! The smg will make a fine addition to the collection!


WZProps

Member

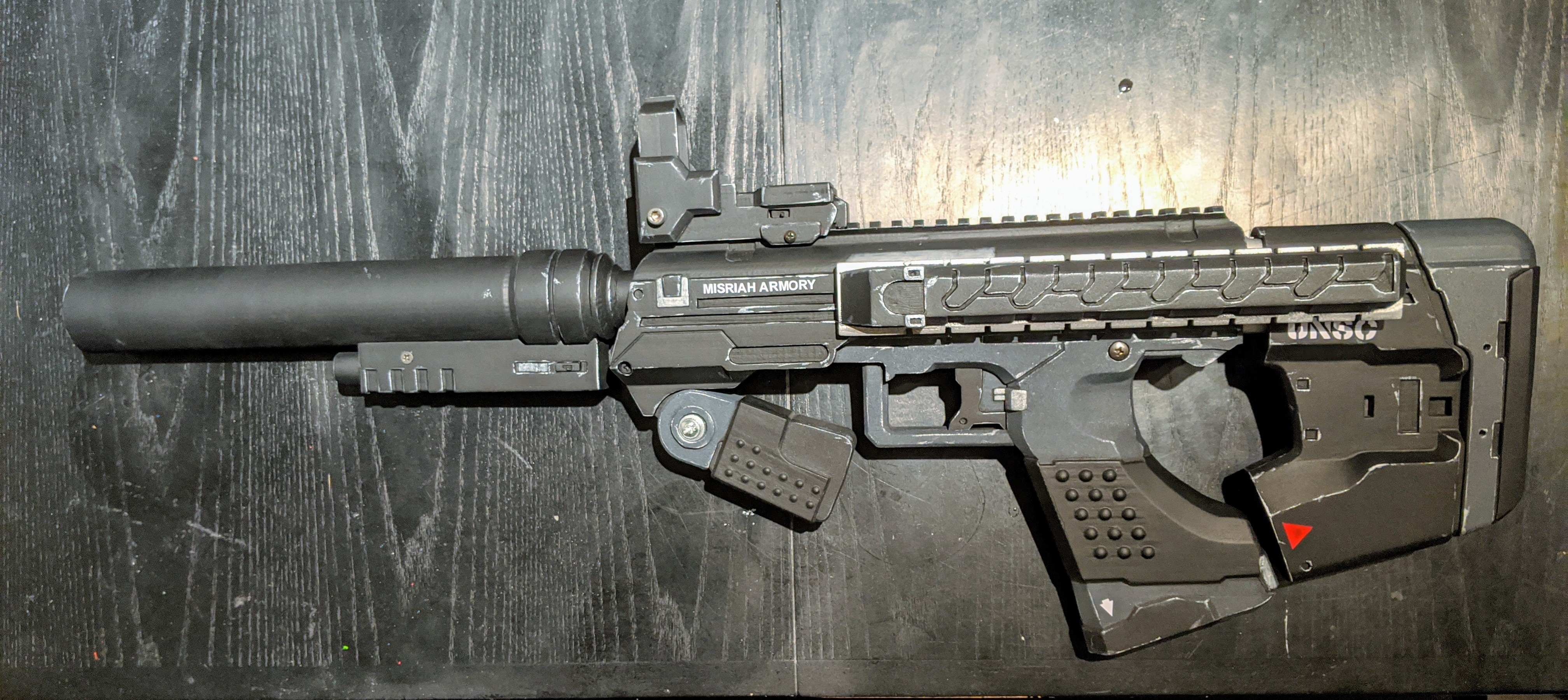

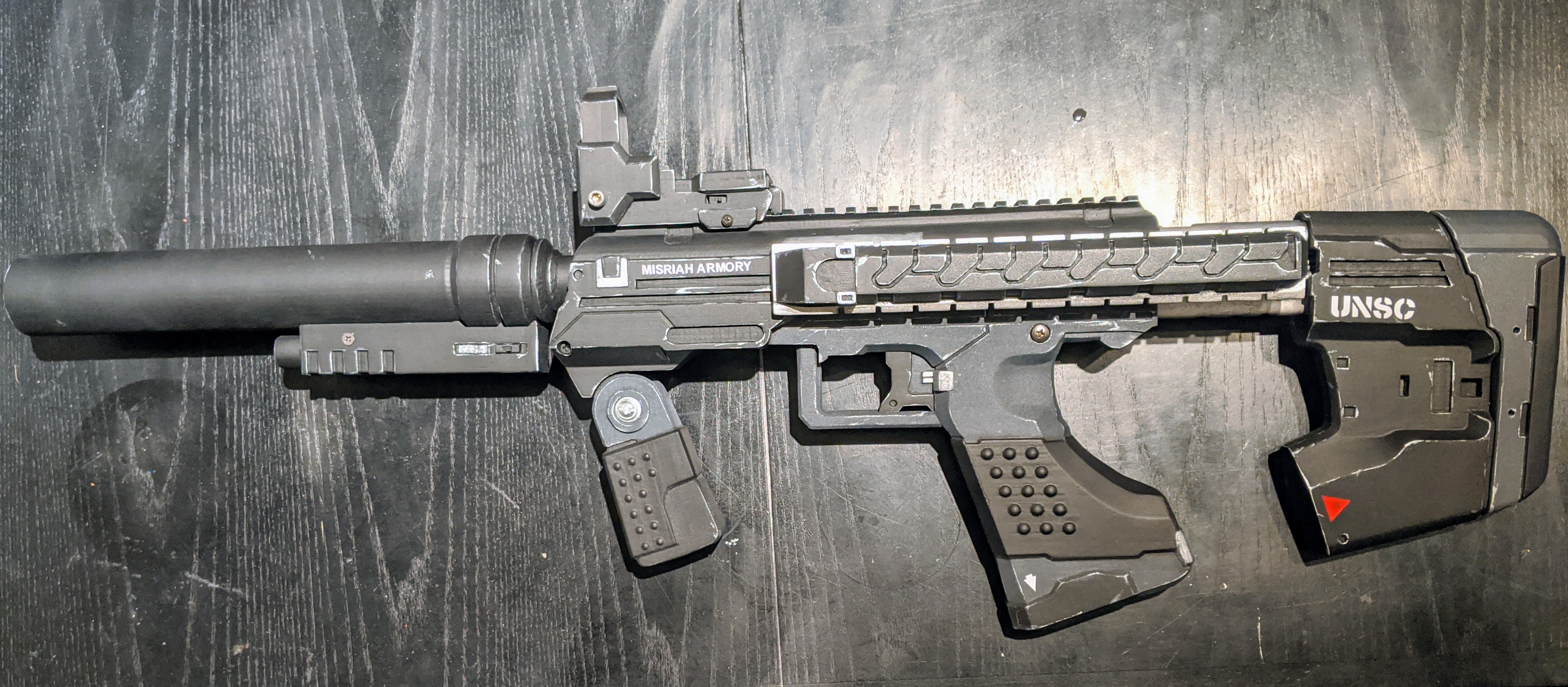

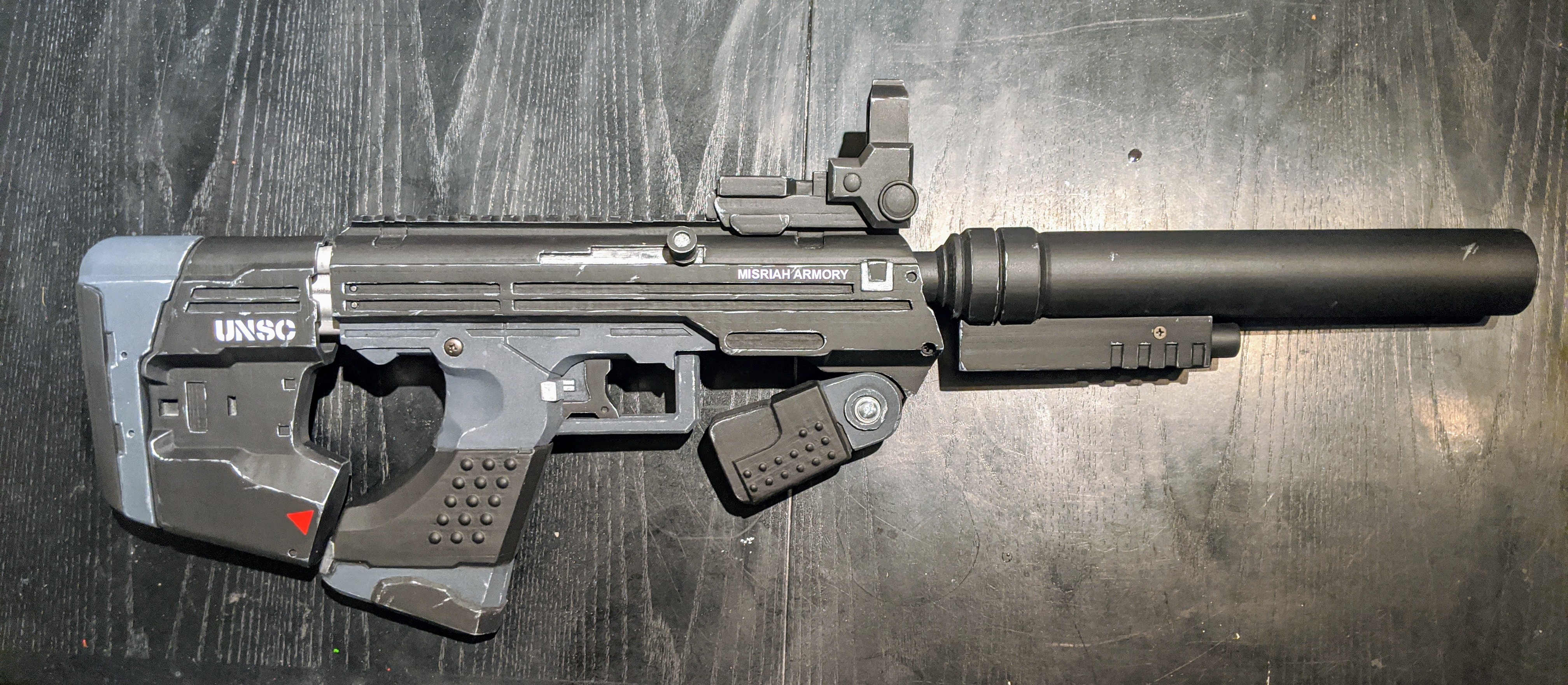

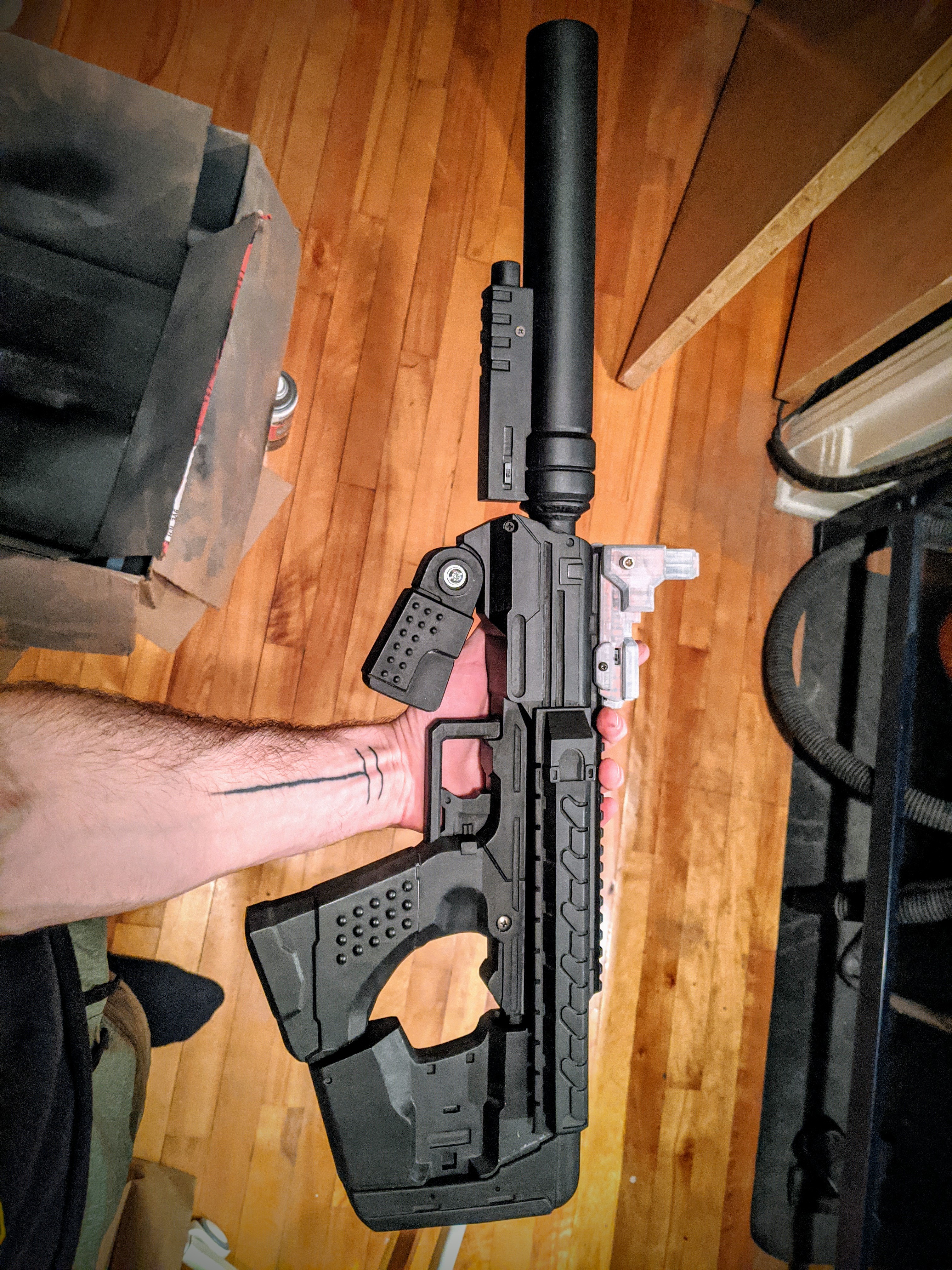

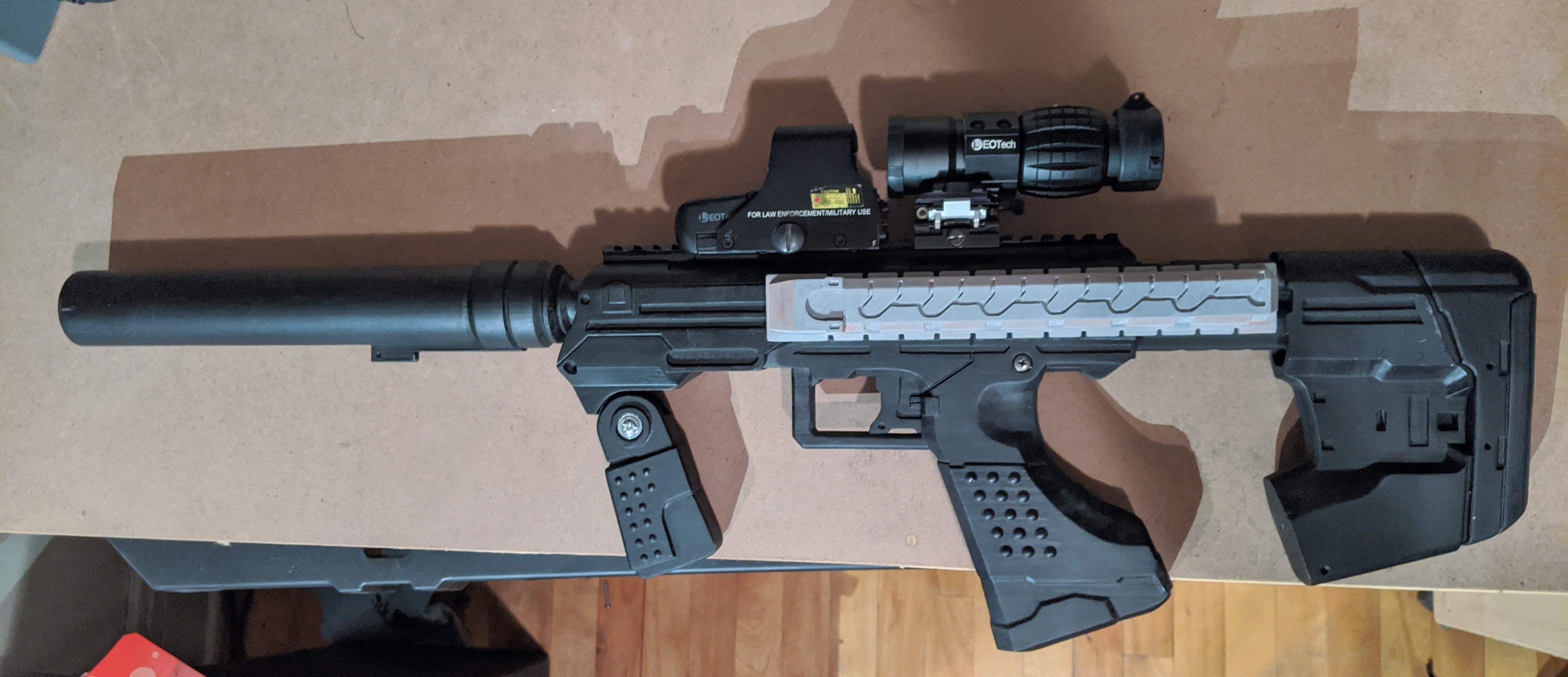

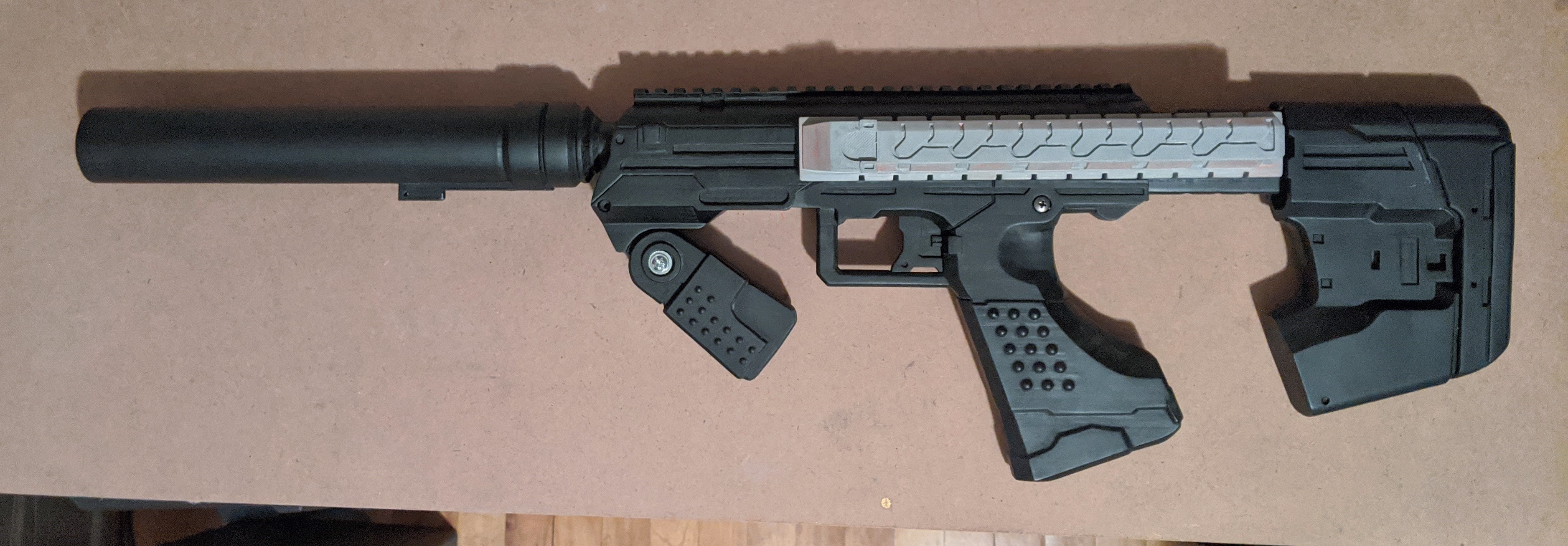

Almost finished with the main gun parts, couple spots here and there that could use a tiny bit more polish, but besides that, not much else.

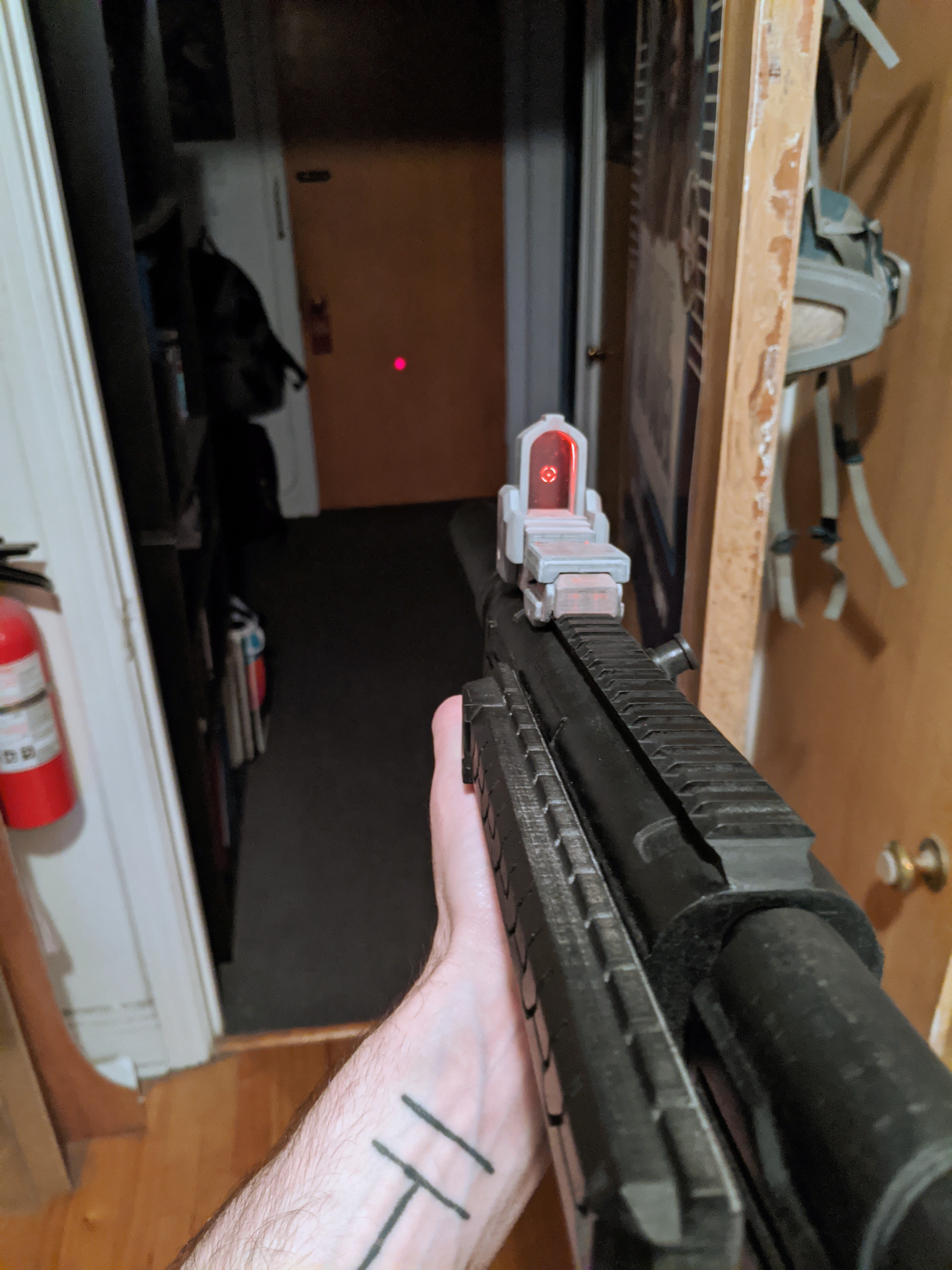

I still have to finish designing and modelling the laser pointer and the sight, but that's pretty much all there is left to print/make.

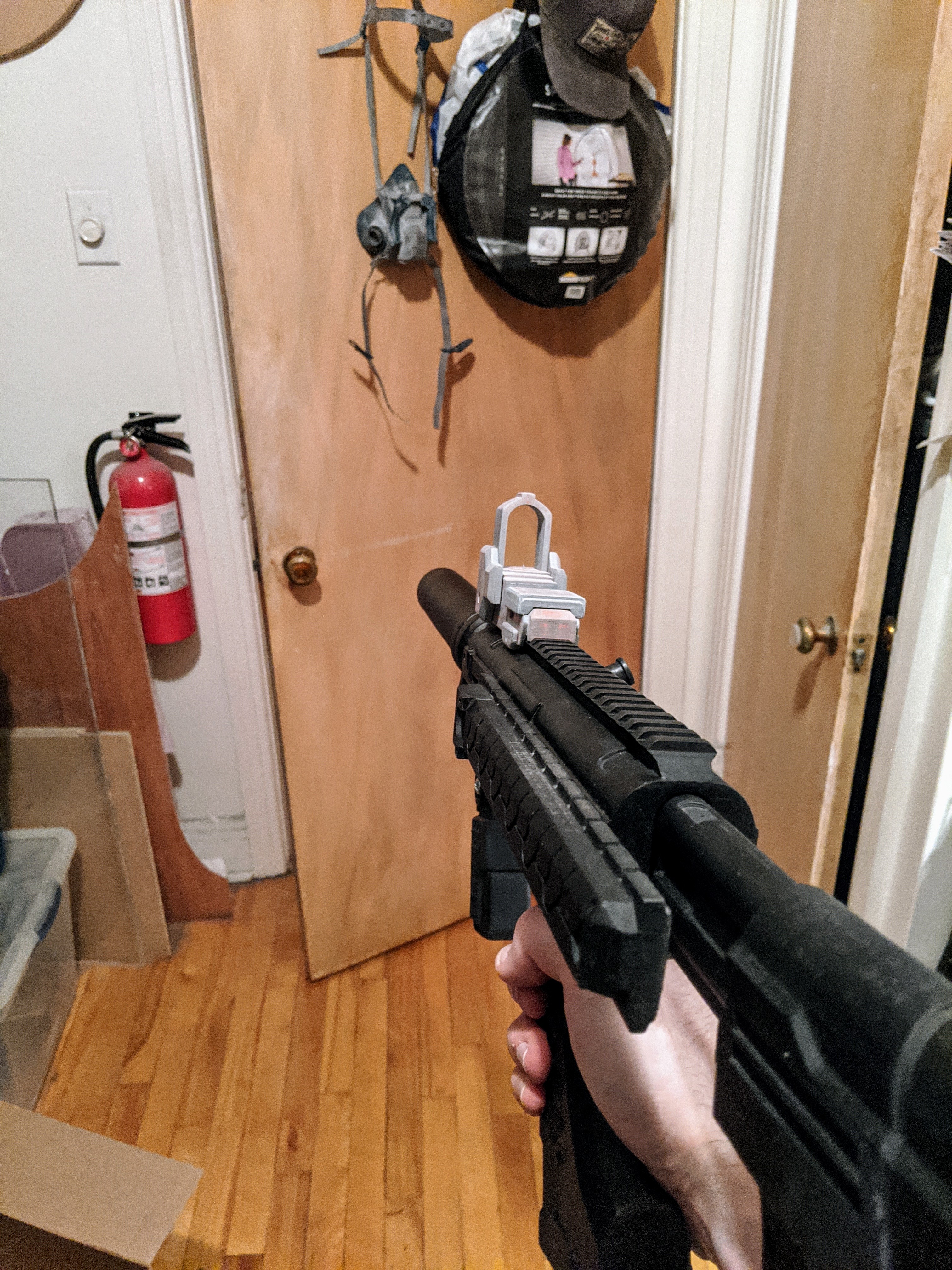

Also, the rail works pretty well, I'm able to attach existing accessories to it without issues. Looks pretty dope imo.
