3D Printable Helmet and Armor Files

Discussion in 'Halo 3D Modeling' started by SI3RRA 117, Mar 12, 2017.

  1. Bucs37DK

    Bucs37DK

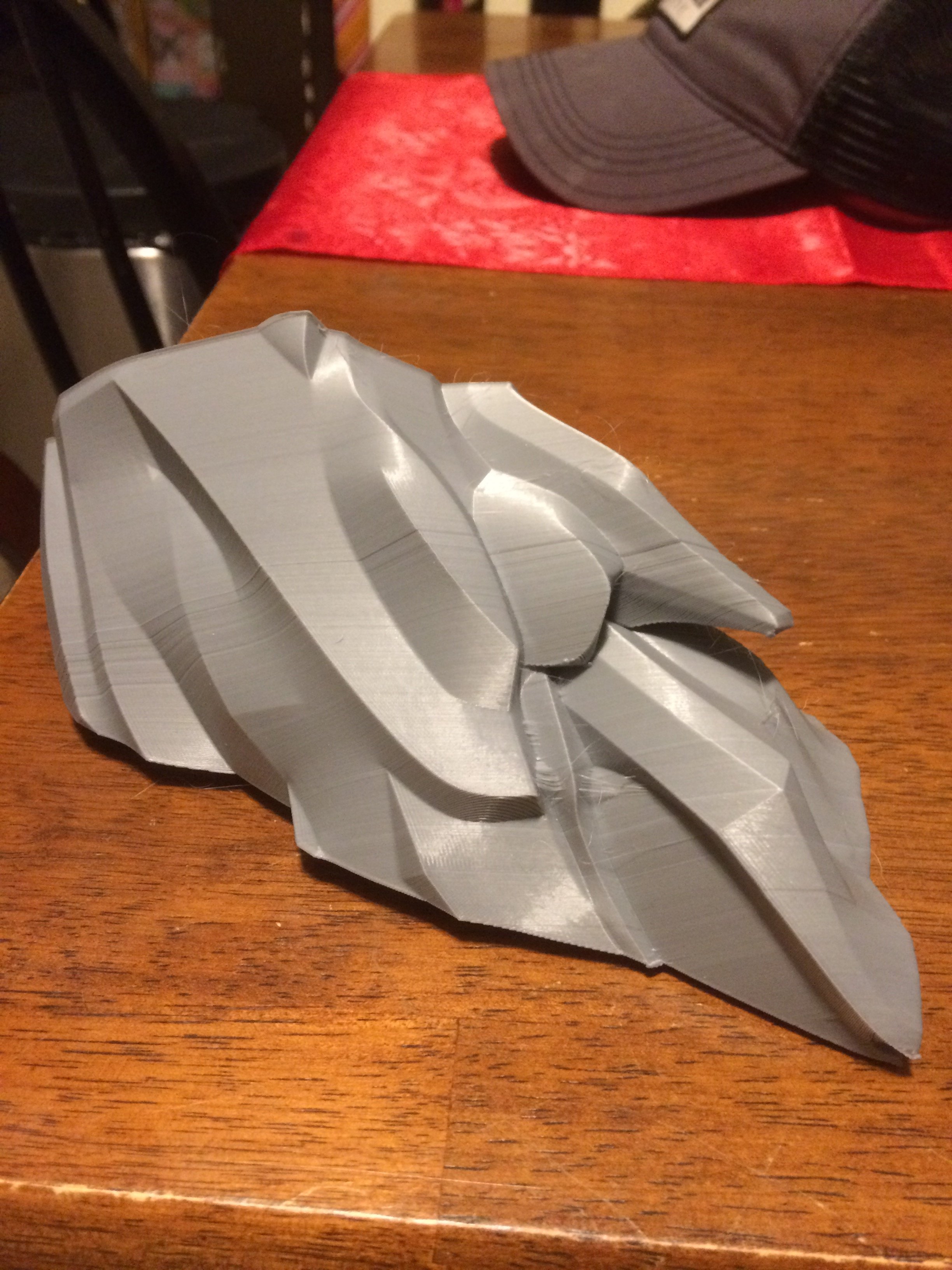

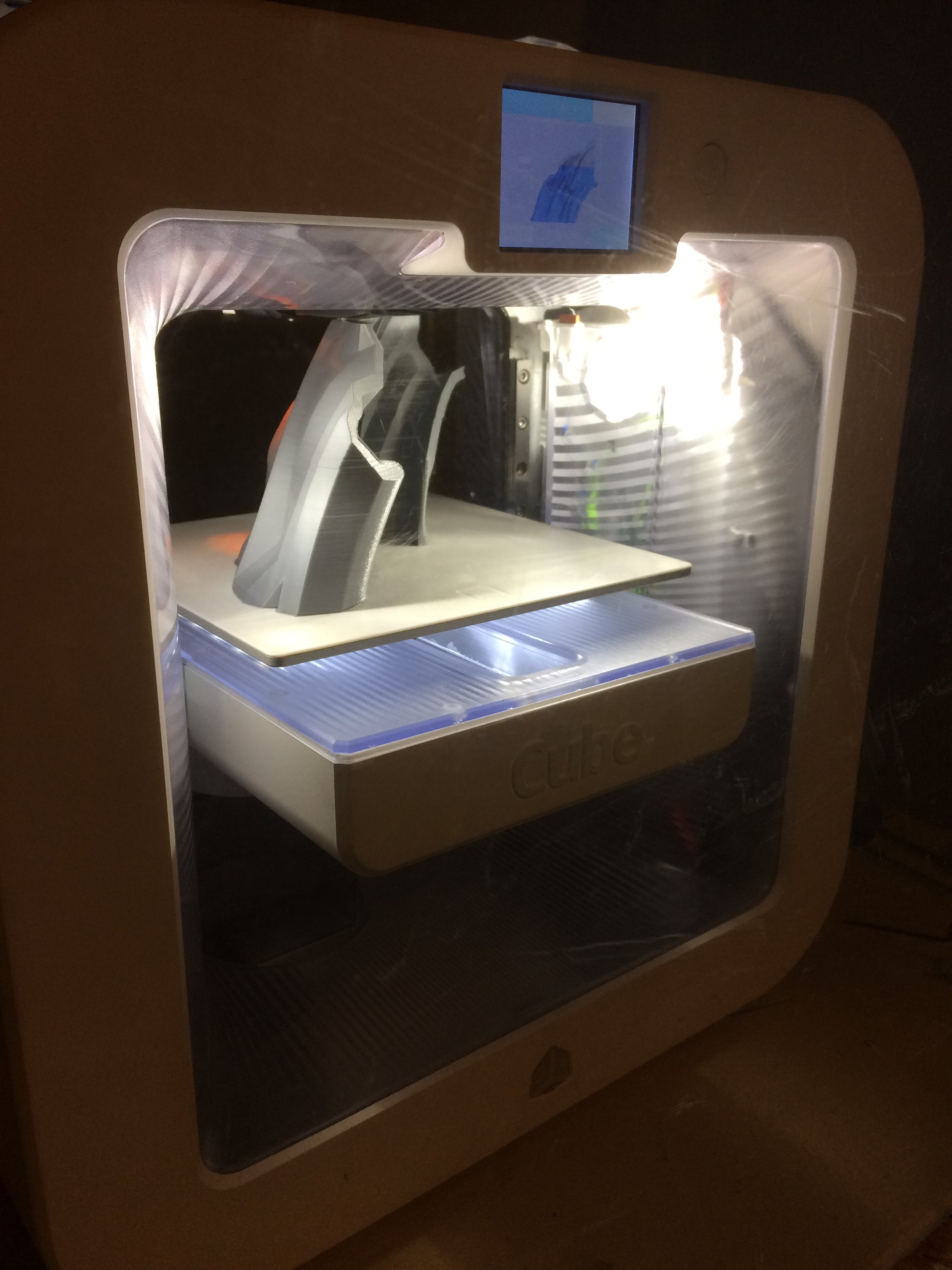

    Thats a good looking print right there. Gotta love assembling. Once it starts taking shape you can't help but have a huge grin on your face looking at it.

    mblackwell1002 and SI3RRA 117 like this.
  2. Nolan

    Nolan New Member

    Do you have that C.I.O torso 3D print file?

    SI3RRA 117 likes this.
  3. SI3RRA 117

    SI3RRA 117

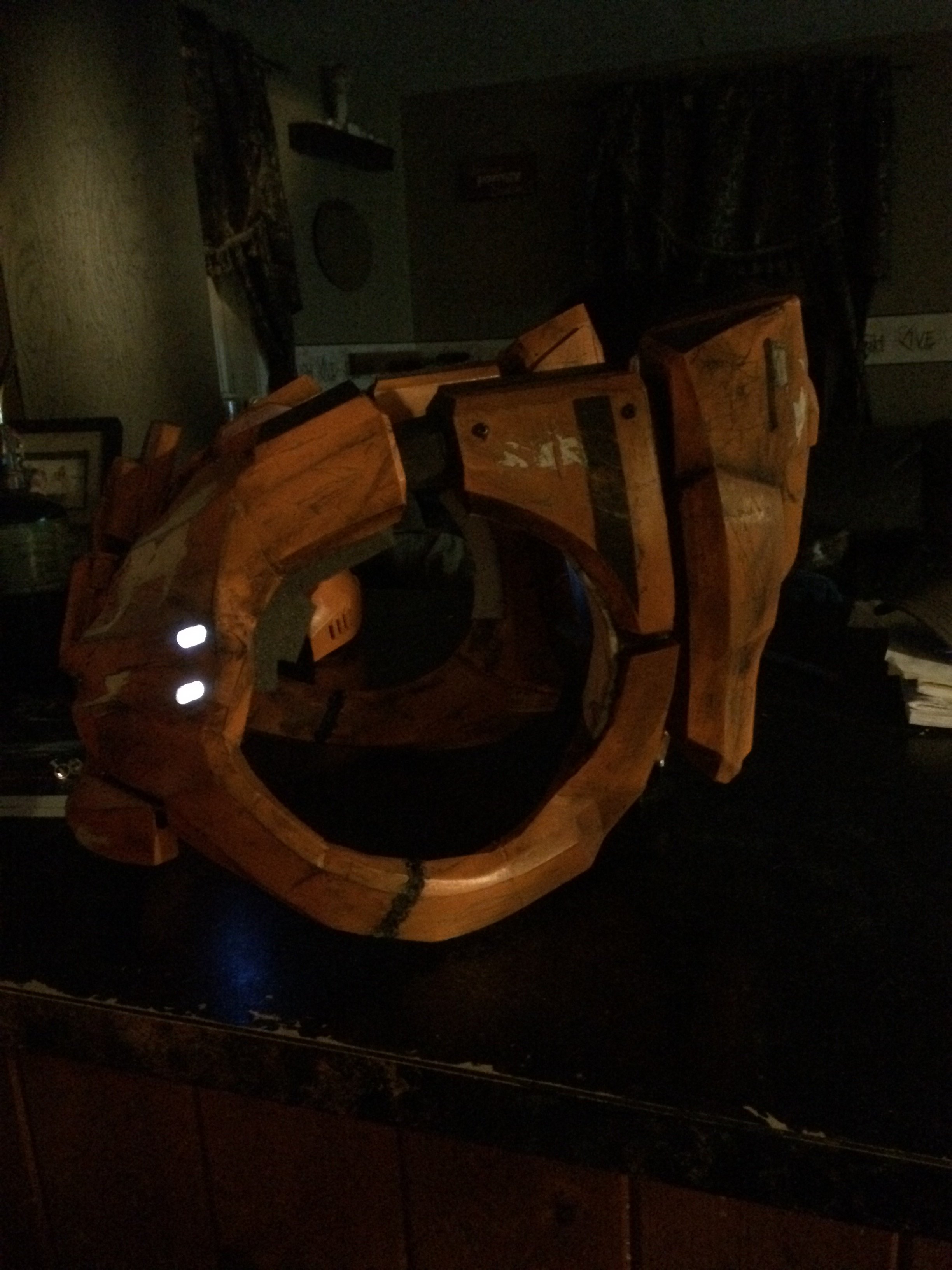

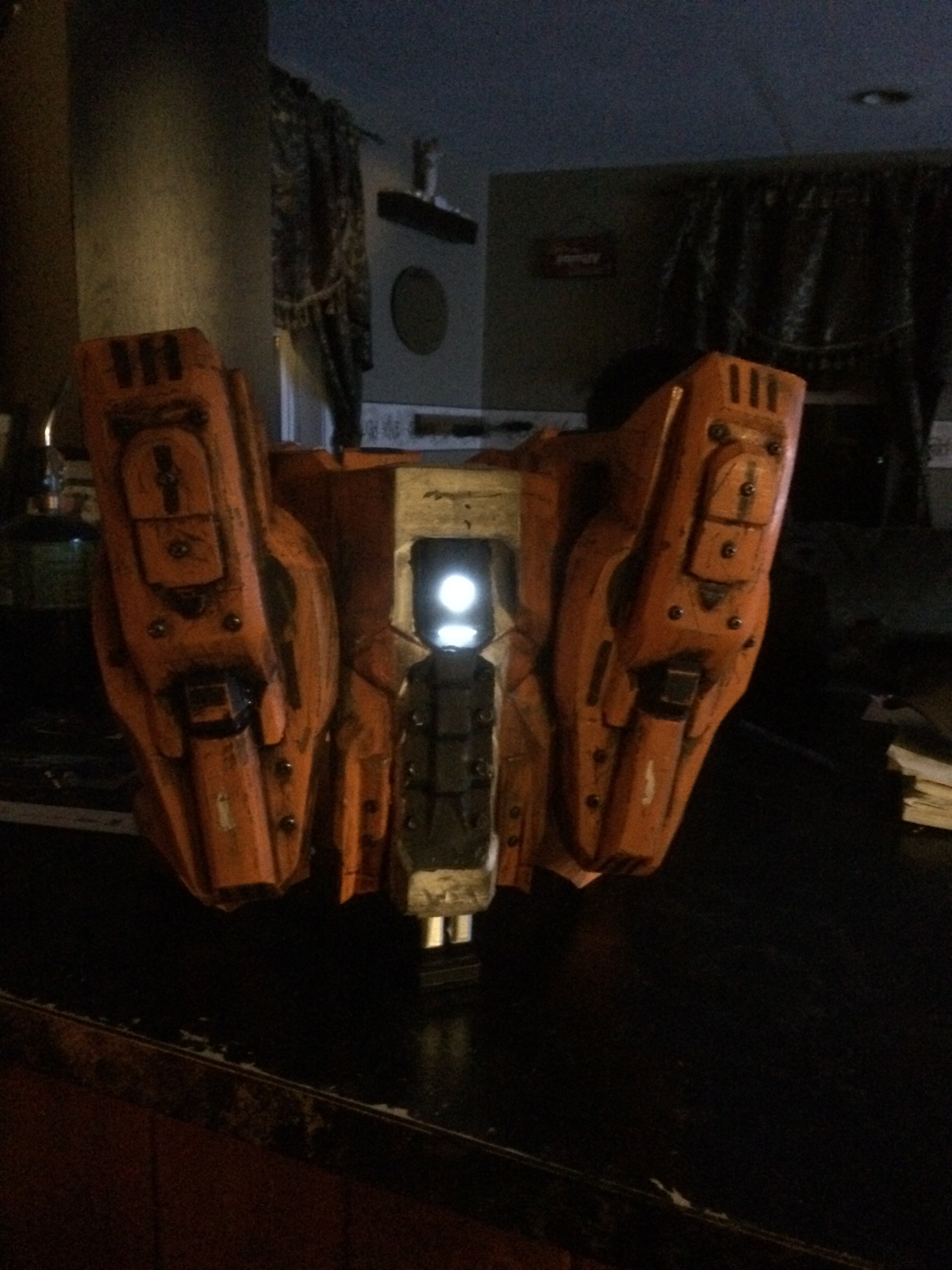

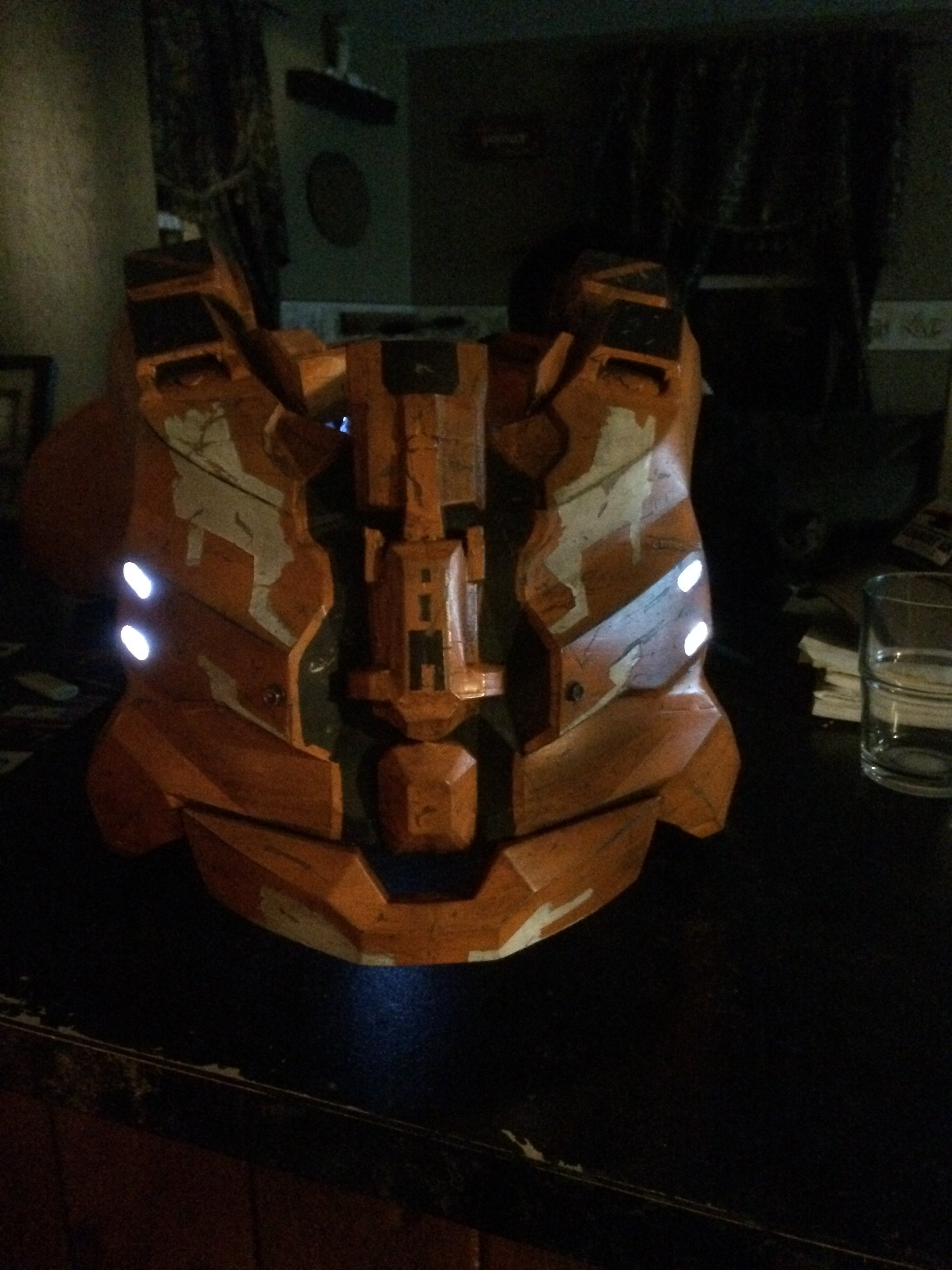

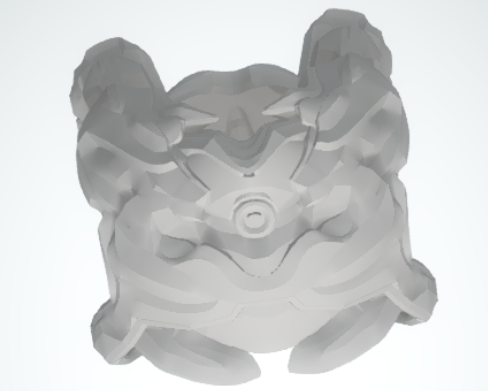

    "You know our motto: We Deliver!" haha sorry couldn't resist. Yes I guess I forgot about uploading this one. Here’s mine all printed and jazzed up and here’s the link . This file is a bit on the large size, I may have gone a bit overboard on the subdivision with this one :whistle:
    CIO Chest File
    B4FADDF8-449E-4889-810E-F799E2F27C93.jpeg 93029444-4240-4169-A9E0-2884F8A14D60.jpeg 5A95D4B5-C44E-4B59-AD12-050105C73326.jpeg

    Last edited: Feb 6, 2018
    Nolan and mblackwell1002 like this.
  4. Nolan

    Nolan New Member

    Also I'm kind of new to 3d printing, but how do take a 3d print file and make it in to pieces? Like the halo 4 fotus chest you were printing and it comes out in pieces. How do you do that?

    mblackwell1002 likes this.
  5. mblackwell1002

    mblackwell1002

    An easy way to split a 3d model is with a program called Netfabb. It's free from Autodesk, i'll shoot you a link.

    Download Autodesk Netfabb 2018 | Free Trial | Autodesk

    There's a free version and a free trial version, you'll probably want the free version. That's what I use, and it has all the features you'll need for slicing.

    Nolan and SI3RRA 117 like this.
  6. SI3RRA 117

    SI3RRA 117

    And there’s also meshmixer which I think its by Autodesk too. I wpuld also scour YouTube I’m sure you’ll find some videos. You’ll want to use the plane cut tools

    Nolan and mblackwell1002 like this.
  7. Nolan

    Nolan New Member

    Thank you you so much!!! Thank you as well blackwell!!!

    mblackwell1002 likes this.
  8. Nolan

    Nolan New Member

    i was also wondering if you had the wetwork helmet in pieces by any chance blackwell?

    Last edited: Feb 9, 2018
    mblackwell1002 likes this.
  9. AgentPaxton

    AgentPaxton New Member

    Does anyone know of any files for an enforcer set?

  10. SI3RRA 117

    SI3RRA 117

    Not that I’m aware of sorry:( One good thing is the enforcer uses the Recruit forearm that we have . So that could get you started.

    Last edited: Feb 11, 2018
  11. Nolan

    Nolan New Member

    SI3RRA 117 likes this.
  12. SI3RRA 117

    SI3RRA 117

  13. AgentPaxton

    AgentPaxton New Member

    Other than a file conversion what would I have to do with these?

  14. SI3RRA 117

    SI3RRA 117

    Here check out this tutorial..... this is basically how I prep the asset files from the armory for printing.
    Tutorial: 3D Printing Pepakura Files with Blender
    That’s just cleaning up a single piece of armor. Have you downloaded the zip for the armor? That’s step one. Then I like to load the body obj file Into meshmixer and click separate shells. This separate all the the armor chest, forearm shoulder etc. then I highlight the part I want to work on. Then export it as an obj. Then I load that exported piece say a forearm for instance into armor smith designer for scaling. Then I go to blender and smooth it. Then it’s back to meshmixer to split the model to fit my printer. Then load the split pieces into Windows 3d builder to arrange each split piece for optimal printing.(I like 3d builder for this because it has a settle object tool that makes sure your model sits flat on the print bed). Then I load each piece again into my printer software for final tweaking and then finally I can “print” I’ll use quotations because well you know
    Phew.....:::See easy peasy haha hopefully I got all the steps in there and sometimes it’s back an forth between steps. Oh and always push save whenever you can. Like I said this is my work flow, everyone else has their own methods that work for them. But it’s not download and print like it appears to most. I know i was guilty of this misconception before I got my printer. So it’s gonna take some trial and error to find out what works for you. I’m still learning new things and tweaking my workflow accordingly. So good luck hope this helps a little? Sorry for the long read.

    Last edited: Feb 11, 2018
  15. AgentPaxton

    AgentPaxton New Member

    Awesome, I've got it smoothed out now, I am though having trouble cutting and arranging. I guess not an intuitive as I would have guessed.

  16. SI3RRA 117

    SI3RRA 117

    I use meshmixer and the plane cut tool I think it works well. I don’t remember what they are but you have to have the options set right to have it cut correctly to keeep the pieces and create new faces on the cut

    Last edited: Feb 12, 2018
  17. AgentPaxton

    AgentPaxton New Member

    I've looked up a couple tutorials but I am unable to figure out how to create those new faces.

    EDIT: It's actually working properly but it doesn't seem to want to add in those new faces. I mess around with the positioning it'll add them, just to places that aren't useful to me.

    Last edited: Feb 12, 2018
  18. Nolan

    Nolan New Member

    Anyone have any shoulders?

  19. SI3RRA 117

    SI3RRA 117

    if meshmixer isn’t working for you I’ve also split models in windows 3d builder. mblackwell1002 likes to use nettfab, might be able to try that

    mblackwell1002 likes this.
  20. AgentPaxton

    AgentPaxton New Member

    I got some advice from the person who was going to print them, apparently, they weren't solid, I guess.

  21. SI3RRA 117

    SI3RRA 117

    AgentPaxton If your doing the deadeye Chest and talking about the back sides of the armor being open? This was done for a reason - this creates an armor similar to pep allowing you to put electronics and padding on the inside of the armor. I do all of my armor like this. Saves on weight and plastic and allows prints with no infill too.

    Last edited: Feb 17, 2018
  22. TheThinker

    TheThinker New Member

    Wait...so around how much filament would you need for each of these pieces? I'm trying to print the CIO forearm, the Deadeye helmet and the FOTUS/Deadeye chest and I'm stumped on budget.

  23. SI3RRA 117

    SI3RRA 117

    Usually a helmet is a 1kg roll a chest is around 2 rolls and I think the forearms and such are maybe around a roll or so for both. These are just estimates as I printed these for 4’6” kids so I’m just increasing the amounts a bit. Sorry for the late reply.

  24. 0852

    0852 New Member

    is a 3d printer any good?

    TurboCharizard likes this.
  25. TurboCharizard

    TurboCharizard RMO 405th Regiment Officer

    Yes.

    Mine has integrated itself into my workflow and has upped my small detail game. Good is a bit of an understatement.
